Variational Autoencoder for Anomaly Detection in Event Data in

Online Process Mining

Philippe Krajsic

and Bogdan Franczyk

1,2 b

Business Information Systems Institute, Leipzig University, Grimmaische Straße 12, Leipzig, Germany

Business Information Systems Institute, Wrocław University of Economics, ul. Komandorska 118-120, Poland

Keywords: Anomaly Detection, Business Process Management, Deep Generative Model, Process Mining, Variational

Autoencoder.

Abstract: The analysis of event data recorded by information systems is becoming increasingly relevant. An increasing

data-centric analysis of processes by using process mining techniques has a direct impact on the management

of business processes. To achieve a positive impact on business process management, a high quality data basis

is important. This paper presents an approach for the application of variational autoencoder for the filtering

of anomalous event data in an online process mining environment, which help to improve the results of

process mining techniques and thus positively influence business process management. For anomaly detection

in an unsupervised environment, mass-volume and excess-mass scores are used as metrics. The results are

compared on the basis of established algorithms such as one-class support vector machine, isolation forest

and local outlier factor. These insights are used to highlight the benefits of this approach for process mining

and business process management.

1 INTRODUCTION

Process Mining (van der Aalst, 2016) is a new

analytical discipline for identifying, monitoring and

improving real processes, where existing data is

extracted from event logs provided by information

systems. As real processes (e.g. logistics, loan

application, payment) become more and more

dynamic and complex, it is crucial to be able to

analyze these processes in real time and to react

adequately to deviations and inconsistencies. The

real-time reaction to inconsistencies within the

processes highlights new potentials, such as more

efficient process design, which goes hand in hand

with reducing and preventing losses. The associated

analysis and cleansing of these event logs is

becoming increasingly important. Existing analysis

methods typically assume that the input event data is

completely free of incorrect data and infrequent

behavior, which does not usually correspond to

reality (van der Aalst et al., 2004) (Leemans et al.,

2013). Incorrect data in event streams can lead to

incorrect results during further processing. For

https://orcid.org/0000-0002-1722-8752

https://orcid.org/0000-0002-5740-2946

example, the accuracy of drift detection can be

negatively affected by stochastic vibrations due to

inaccurate event streams (Maaradji et al., 2017)

(Ostovar et al., 2016). Approaches that have been

conducted in this area using filtering techniques to

eliminate erroneous events from event data show an

improvement in the quality of process mining

techniques which leads to an optimization of the

analysis of the processes (Wang et al., 2015) (Conforti

et al., 2017). The majority of these approaches on event

data based anomaly detection addresses batch

processing, i.e. the processing of historical data. In

order to take full advantage of the possibilities offered

by anomaly detection methods, it is necessary to

transfer these methods to an online setting. This

enables the use of anomaly detection methods and

subsequent process mining techniques in operational

support and allows processes to be influenced in real-

time due to deviations in process flow.

To address this challenge this paper proposes a

new approach to detect anomalies and infrequent

behavior in an online process mining setting using

deep generative models, especially variational

Krajsic, P. and Franczyk, B.

Variational Autoencoder for Anomaly Detection in Event Data in Online Process Mining.

DOI: 10.5220/0010375905670574

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 567-574

ISBN: 978-989-758-509-8

567

autoencoders. The contribution of this work to

information system research can be summarized as

follows: (i) demonstration of the use of a deep

generative model, like the variational autoencoder

used in this work, for unsupervised anomaly detection

in process event data, (ii) its embedding into an online

process mining environment for real-time operational

use and (iii) highlighting the benefits of high-quality

event data using variational autoencoder for process

mining and business process management.

The remainder of the paper is structured as

follows: Section 2 provides a background on process

mining and event data and a look at related work in

the area of anomaly detection approaches in event

data in a process mining context. Section 3 presents

the developed approach for anomaly detection in

event data using a variational autoencoder. This

section contains the methodology for the selection of

the technology, the formal description of the

variational autoencoder and the integration of the

variational autoencoder in an online process mining

environment. Section 4 presents the approach for

anomaly detection. In Section 5 a preliminary

technical experiment of the presented variational

autoencoder is conducted. Section 6 evaluates the

presented approach with regard to the benefits for

process mining and related areas. The final section 7

concludes the paper and presents future work.

2 BACKGROUND AND RELATED

WORK

In the management of business processes, new

technologies have emerged in recent years that

increase the quality of business processes. In the

following, the extension of business process

management with data-driven process mining and the

event data that is central to it are briefly presented.

Subsequently, existing approaches from the literature

are presented, which describe the filtering of

anomalies and incorrect behavior from event data and

thus increase the process quality.

2.1 Business Process Management and

Process Mining

Business Process Management (BPM) is a broad

discipline and a systematic approach to planning,

controlling, monitoring and improving business

processes. The focus here is on the organization of a

company's business processes with the aim of

coordinating and improving them through

appropriate planning and weighting in order to

increase both effectiveness and efficiency in the

manufacture of products and services (Gabler, 2020).

The main focus of the current BPM literature is on the

control flow perspective. With the ongoing

development in data processing, this perspective does

not lose its importance but has to be complemented by

other data-centric components in order to lead to a real

improvement of business processes (van der Aalst et

al., 2016). An important step towards a symbiosis of

model-driven and data-driven BPM is the use of the

event data available in the information systems of the

organizations. The idea behind the integration of data-

centric analysis methods is to minimize the variability

of the processes by early detection of anomalies and

misbehavior in the event data.

From this necessity the process mining

technology has emerged. The explorative, automated

recognition of business processes is the focus of

process mining. Furthermore, it bridges the gap

between traditional model-based process analysis

(e.g. business process improvement) and data-centric

analysis techniques (e.g. machine learning) (van der

Aalst, 2016). It also offers new ways of extracting

knowledge from data generated and stored in the

databases of (enterprise) information systems to

generate event data and can be used in a variety of

areas, such as automatically discover process models,

checking compliances with reference models or

determining the cause for different process variants. 

Due to these characteristics and application

possibilities process mining offers additional

potentials that can be used in the context of BPM. For

example, processes can be enhanced with additional

information such as cycle times and resource

utilization, which can be used to improve the process

and contribute to the strategic objectives of the

organization. Process Mining enables organizations

to take a deeper look into their end-to-end processes.

As a result, process mining methods are now used in

all phases of the BPM life cycle to improve the actual

processes with the help of the available event data

(van der Aalst et al., 2016).

2.2 Event Data

Process Mining evaluates event data that was

recorded during the execution of a process. An event

is any data that is recorded during the execution of a

process and is considered the smallest unit within a

process. The granularity of an event depends on the

application domain as well as the way it is recorded.

For example, an event can describe which activity of

a process was executed at what time. In the same way,

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

568

it can also describe the different stages of the

execution of an activity, e.g. events refer to the

scheduling, starting, suspending, continuing or

completing of an activity (van Zelst et al., 2018). An

event is an assignment of values to a set of attributes.

In order to optimally use the potential of process

mining technology for operational support, it is

important to perform an analysis of the generated

event data in real-time. Such real-time event streams

are chronologically ordered sequences of unique

events (van Zelst et al., 2018).

The event data extracted from the information

systems (e.g., ERP systems) forms the basis for all

further process mining activities. Therefore, the

accuracy of this event data is essential for a high

process quality.

2.3 Related Work

Regarding the approaches to filtering methods of

event data in the context of process mining, the

current state of research can be described as follows:

With regard to detection and filtering of anomalies in

event logs, there are some approaches described in the

literature. In (Wang et al. 2015) a reference model is

used to detect inappropriate behavior and repair the

affected log. The approach proposed in (Conforti et

al., 2017) is based on an automaton which is modeled

on the frequent process behavior recorded in the logs.

(Sani et al., 2017) proposes an approach that uses

conditional probabilities between activity sequences

to eliminate events that are unlikely in a particular

sequence. In (Nolle et al., 2018) an approach using

autoencoders for event classification is proposed. A

stand-alone approach for filtering anomalies in event

streams is offered in (van Zelst et al., 2018). It

proposes an event processor that allows to effectively

filter out unwanted events from an online event

stream, based on probabilistic automaton.

With regard to the application of deep generative

models in a business process environment the work

of (Taymouri et al., 2020) should be mentioned that

proposes an adversarial training framework based on

an adaptation of generative adversarial networks to

the realm of sequential temporal business event data.

Approaches that address the filtering of event data

in an online setting are very limited (van Zelst et al.,

2018). These mostly use statistical methods that make

a priori assumptions about the underlying relationship

of the variables used (Ahn et al., 2020). This leads to

the difficulty that underlying probability distributions

and variable relationships have to be adjusted for each

use case. Furthermore, statistical models are often not

suitable for processing high-dimensional data (Ahn et

al., 2020). For these reasons, the advantages of deep

generative models and its application in the field of

anomaly detection in business event data are

considered in this work.

3 VARIATIONAL

AUTOENCODER FOR

ANOMALY DETECTION

In order to optimize these weaknesses in the

processing of event streams, a method is to be

established that enables self-learning and

unsupervised filtering of anomalies from event

streams for an improved process flow. Therefore, the

selection of the variational autoencoder used in this

work is described in the following. Based on this, a

formal description of the variational autoencoder and

the integration of the variational autoencoder in an

online process mining setting is given.

3.1 Deep Generative Models

In addition to the disadvantages of statistical

techniques, the required specialized process

knowledge and the extraction of suitable features

from the examined data also poses a relevant

challenge. The development of new models in the

areas of deep learning and time series analysis make

it possible to reduce precisely this need. With the help

of special deep learning methods a specific selection

of data features is possible. This includes methods

such as convolutional neural networks, recurrent

neural networks, generative adversarial networks and

variational autoencoder. Especially in the context of

anomaly detection in event streams, the superiority of

deep learning techniques compared to statistical

techniques is shown (Gamboa, 2017) (Ahn et al.,

2019) (OMeara et al., 2018). So called deep

generative models (DGM) are a special form of deep

learning techniques. DGM use deep neural networks

to parameterize the conditional distributions of the

observed data. The advantage of these models is that

they can be used for a variety of applications and, in

contrast to discriminative models, can learn from both

labelled and unlabelled data (Bishop, 2006). DGM

include in particular the generative adversarial

network (GAN) and variational autoencoder (VAE).

The main difference of GANs compared to VAEs is

that they are implicit, i.e. the likelihood of the

samples produced cannot be evaluated directly

(Goodfellow et al., 2016). Therefore, GANs are

usually trained solely with adversarial procedures.

Variational Autoencoder for Anomaly Detection in Event Data in Online Process Mining

569

These implicit probabilities make it inherently difficult

to treat their parameters in an appropriate manner. It is

therefore unclear how to prioritize weightings and

learn approximate posterior distributions. Out of these

mentioned disadvantages of the GANs, VAEs are to be

used for anomaly detection in process event streams

addressed in this work.

3.2 Formal Description of VAE

The approach of an VAE was first introduced by

(Kingma and Welling, 2014). In order to make the

functioning of the VAE comprehensible, it will be

briefly described here. For a more formal description

of the VAE, please refer to (Kingma and Welling,

2014).

Figure 1 shows an exemplary architecture of a

VAE. VAE are latent variable models (Doersch,

2016) (Kingma and Welling, 2019). Such models are

based on the idea that the data generated by a model

can be parameterized by a number of variables that

create some specific characteristics of a given data

point. These variables are called latent variables. One

of the main ideas behind VAE is that instead of trying

to explicitly construct a latent space (space of latent

variables) and to sample from it in order to find

samples that could actually produce correct outputs

(as close as possible to our distribution), an encoder-

decoder-like network that is divided into two parts is

constructed (Kingma and Welling, 2019):

Probabilistic Encoder: The encoder inputs a

datapoint  and outputs a hidden representation ,

and has weights and biases . The encoder must learn

an efficient compression of the data into this lower-

dimensional space . We denote the encoder 



|.

The lower-dimensional space is stochastic, so the

encoder outputs parameters to 



|, which is a

Gaussian probability density. The probabilistic

encoder 



| produces the mean  and standard

deviation  of a normal distribution. We can sample

from this distribution to get noisy values of the

representations .

Probabilistic Decoder: Like the encoder, the

decoder is another neural net. The decoder inputs the

representation  and outputs the parameters to the

probability distribution of the data, and has weights

and biases . The decoder is denoted by 



|. To

find out how much information was lost during

decoding we measure the reconstruction log-

likelihood 



|. This measures how effectively

the decoder has learned to reconstruct an input 

given its latent representation .

Figure 1: Example architecture of a variational autoencoder

(Kingma and Welling, 2019).

The loss function of the VAE is calculated by the

reconstruction loss or expected negative log-

likelihood of the -th datapoint in the first term and

the Kullback-Leibler divergence (Kullback and

Leibler, 1951) in the second term:







,





~















log 





























||

(1)

The lost function is a method of evaluating how

well the VAE models the given data and calculates

how much information is lost during the

reconstruction of the data. A bad reconstruction of the

data automatically leads to high costs in the loss

function and thus to a high reconstruction error. The

aim is to keep this reconstruction error as low as

possible so that 



3.3 Using VAE in Online Process

Mining

In this section the integration of the VAE in an online

process mining setting is described. A suitable

embedding in the process mining workflow leads to

better process mining activities through filtered event

streams and thus to an optimized BPM. The

advantage of integrating the VAE into a lambda

architecture (Marz and Warren, 2013) results from

the processing of streaming data as well as historical

data, which are relevant when using process mining

techniques. A more detailed description of the use of

a lambda architecture for anomaly detection in event

streams is offered in (Krajsic and Franczyk, 2020).

Figure 2 illustrates the embedding of the VAE (event

filter) in an online process mining setting. A batch

layer with the provision of historical data and the

speed layer with the processing and filtering of

streaming data from the real-time process are merged

by the serving layer in which both offline and online

process mining take place and lead to the discovery

and analysis of process models.

x x‘

Input Reconstructed input

Probabilistic

Decoder





|





|

Sampled

latentvector





Probabilistic

Encoder





Mean

Std.dev.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

570

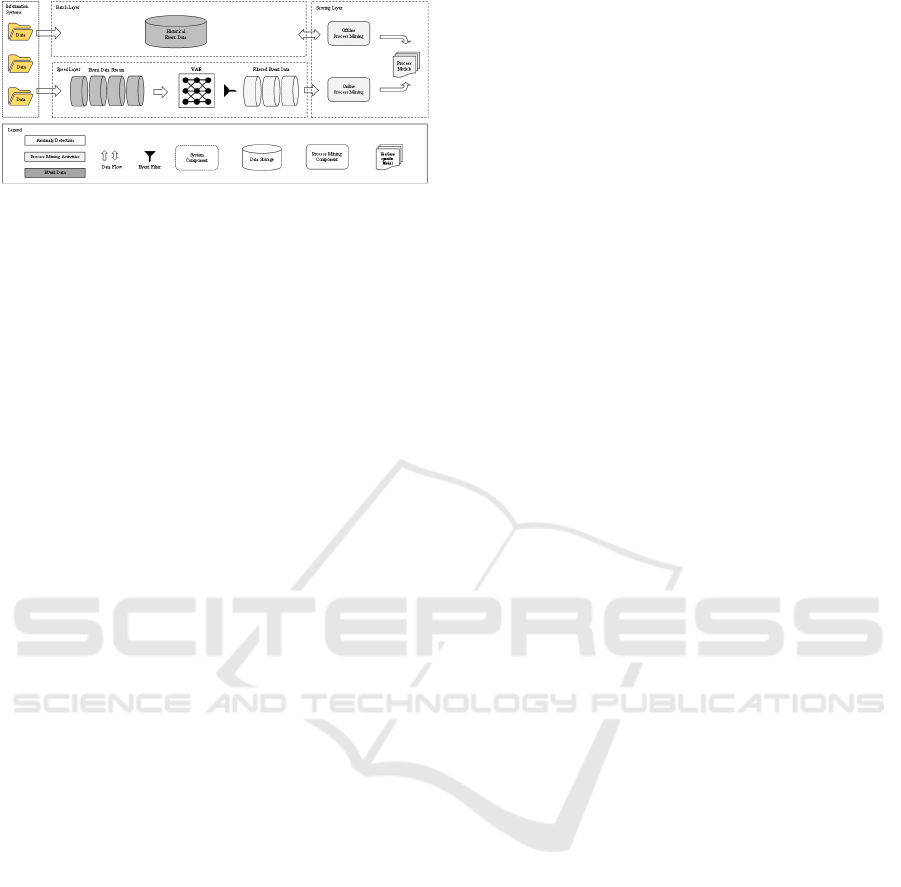

Figure 2: Integrated VAE in an online process mining

setting (Krajsic and Franczyk, 2020).

The real-time event data filtered by the VAE and

used during online process mining is then transferred

to the historical data storage which can later be used

as historical data for new process mining tasks.

In this representation of an online process mining

environment, the VAE thus serves as a buffer

between the streaming data from the speed layer and

the historical data from the batch layer and ensures a

clean data basis before merging the two layers, which

leads to the discovery or analysis of process models

in the serving layer through online and offline process

mining activities.

4 APPROACH

Since the detection of anomalies is a classification

problem, the desired output of a corresponding

classification method is a class label. Through the use

of neural networks it is possible to get such an output

without training the neural network with class labels.

This unsupervised learning corresponds more to the

procedures in real world examples, since data that is

to be generated and checked in real time is usually not

labelled.

Before the VAE can be used for the unsupervised

anomaly detection, the underlying model must be

trained with normal, non-anomalous data. Once the

VAE has been trained with the training data set and

verified using test and validation data set, it can be

used for anomaly detection. The anomaly detection

process is described in more detail as follows.

For the purpose of anomaly detection, a latent

space is initially created using the VAE. A clustering

algorithm and different anomaly detection algorithms

are applied to this latent space. For clustering the k-

means algorithm (Lloyd, 1982) is used. For the

purpose of anomaly detection Isolation Forrest (IF)

(Liu et al., 2008), Local Outlier Factor (LOF)

(Breunig et al., 2000) and One-Class Support Vector

Machine (OCSVM) (Schölkopf et al., 2000) are used

as anomaly detection algorithms.

4.1 Method of Anomaly Detection

In this unsupervised anomaly detection setting no

ROC or Precision-Recall curves can be generated for

evaluation purposes, because there is no possibility to

check the results against a ground truth. For this

purpose, other evaluation options, such as mass-

volume and excess-mass (EM-MV) based criteria, are

suitable (Goix, 2016). The EM-MV method can be

formally described as follows (Goix, 2016):

The goal of this method is to estimate the density

level curves of the probability distribution under

observation, assuming that anomalies occur at the tail

end of this distribution. We introduce  as a given

constant ,













,…,



|







,…,





.

In the presented case the function  is the probability

density estimated by the VAE in latent space. To be

able to determine the degree of anomaly, a score

function  is introduced: 



→



with data in 



The MV and EM curves of  can be written as



















.. 















,





(2)



























,





)

where any ∈0,1 and 0. With this knowledge

the chosen method can be evaluated by calculating

the distance between the level sets of  and  for EM

and MV: 











 and 













 (Goix, 2016).  is defined as 

0.9, 0.999 and  as 0,





0.9 where









0.9



inf



0,









0.9



(Goix,

2016).

The measure is then determined based on the area

under the 



and 



curves. For 



this area

should be maximized and for 



minimized.

5 TECHNICAL EXPERIMENT

The goal of the VAE in this work is to detect

anomalies in process event data. Thereby the VAE is

trained with normal process data, in an unsupervised

way, and finally applied to process data that contain

additional abnormal data. The VAE then attempts to

detect anomaly events by determining their EM and

MV scores.

In order to illustrate the functionality of the VAE

presented here, a technical experiment will be

conducted and its results will be presented in this

section. Based on the representation of latent space

generated by the VAE, the k-means clustering

algorithm is applied to form clusters from the data.

Based on this, the EM-MV method is applied with

Variational Autoencoder for Anomaly Detection in Event Data in Online Process Mining

571

different anomaly detection algorithms to detect the

anomalies in the event data. The data used for this

experiment is taken from an loan application dataset

(4TU.ResearchData, 2013). The dataset is a

collection of artificial event logs representing a

simple loan application process, used in the form of a

CSV file for the experiment.

5.1 Experimental Setup

Simulating a rapid deployment process, no hyper-

parameter tuning was performed for this technical

experiment. In an first preliminary implementation

the dimension of the latent space of the VAE is set to

2. Furthermore, the VAE was trained on batches of

size 64 for 100 epochs. Adam was used as an

optimizer (Kingma and Ba, 2014). The learning rate

for the model is set to 0.001 with the default settings

of the adam optimizer. The selected data set was

partitioned into training, test and validation data set,

with the test set being 20% and the validation set

being 10% of the full data.

For the experiment anomalous event data was

added to the test and validation data set. For this

purpose anomalous sequences were generated and

integrated into the loan application data set for test

and validation purposes. The generated noisy event

logs are effected by the following mutations: Event

Skipping, Event Swapping or Event Duplicating.

5.2 Experimental Results

In the following the results of the technical

experiment are presented. Based on the latent space

representation from the VAE we apply k-means

clustering algorithm with a five clusters based on the

number of different activities in the observed event

log. We can apply the EM-MV method on the basis

of the clusters. Three different anomaly detection

algorithms, IF, LOF and OCSVM, are used. Table 1

gives a comparison of excess-mass (EM) and mass-

volume (MV) scores for the different anomaly

detection methods.

The goal of this approach is to maximize the EM

score and minimize the MV score. As can be seen

from Table 1, the OCSVM best meets this criteria.

Table 1: EM and MV scores based on VAE latent space.

Figure 3: Representation of latent space.

Based on this results OCSVM is used as an

algorithm for anomaly detection purposes on the

generated latent space.

The OCSVM is an unsupervised learning

algorithm that is trained only on non-anomalous data.

To detect outliers the boundaries of these data points

are learned to classify those data points as anomalies

that lie outside these boundaries.

Figure 3 shows the latent space of the data space

generated by the VAE. Data points within the latent

space marked in green were recognized by the

OCSVM algorithm as inconspicuous. The yellow

marked data points, on the other hand, are structurally

different due to their arrangement in latent space and

lie outside of the boundaries defined by the OCSVM

and are therefore classified as anomalous event data.

By filtering out the data points marked as

anomalies, the data quality of the underlying event

data used for process mining can be improved.

6 BENEFITS FOR PROCESS

MINING AND BUSINESS

PROCESS MANAGEMENT

The use of methods for filtering erroneous events and

infrequent behavior from the event data collected in

information systems leads to an improvement of the

results in the analysis of processes.

The characteristics and advantages offered by the

VAE have a considerable influence on the application

area of process mining presented here and its

comprehensive field of business process

management. The advantages and potential benefits

for process mining and business process management

are outlined below.

( 10

-3

)

OCSVM

6.738 1.152

LOF 5.760 1.308

5.349 1.377









Algo rithm

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

572

Process Mining. The partially superficial approaches

to the analysis of the underlying event data made a

beneficial extraction of suitable process knowledge

more difficult. In this context, process mining

activities are not limited by the availability of data but

by the quality of the underlying event data. This issue

has received little attention in previous process

mining research. Especially the application of process

mining techniques to real world applications is made

difficult by data quality challenges. For the extraction

of meaningful process knowledge from the event data

and high-quality process mining results, the

improvement of the data basis is therefore

indispensable. The presented approach contributes

significantly to a filtering of faulty event data for an

increased data quality. As an upstream step in the

processing of real-time event data streams, it enables

a higher quality of the data basis for downstream

process mining activities by filtering out erroneous

event data and incorrect behavior.

Business Process Management. Increasing the

quality of the underlying event data for an efficient

application of process mining techniques not only

leads to an improvement of the results of the process

mining activities but also has a direct impact on the

higher level business process management and the

implementation of and compliance with the strategic

process and business goals. The inclusion of a high-

quality data-centered view in the classic control flow

perspective as a fixed pillar of BPM and workflow

management research leads to a more realistic view

through the inclusion of real world event data than the

idealized as-is and target processes of an organization

obtained in workshops and interviews (van der Aalst,

2011). In addition, the inclusion of filtered real world

event data and the application of process mining

techniques leads to the introduction of improved

process analysis and process automation solutions

that would have been difficult to achieve with model-

based approaches. These developments in process

mining, supported by high-quality event data, make it

possible to replace the previous restrictions in BPM

systems with partially hard-coded, custom-made

processes (van der Aalst et al., 2016) with flexible,

near-real-time processes and thus provide the

organization with near-real-time operational support

for BPM.



7 CONCLUSION AND FUTURE

WORK

In this work, it was shown how variational

autoencoder can be used for filtering erroneous event

data and how this can affect process mining and the

higher-level business process management.

For real-time process support, the VAE was

integrated into an online process mining environment

that filters incoming events for incorrect data and

behavior. To demonstrate the functionality of the

VAE, the VAE was applied to an artificial loan

application process. The results of the conducted

technical experiment have shown that the VAE

enables the unsupervised detection of anomalies in

process event data.

A preliminary limitation of the presented

approach is that the model does not consider long-

term dependencies in process data, which means that

certain incorrect behavior cannot currently be

detected. Furthermore, a transfer of the achieved

results to the governance of business processes and

derivation of recommendations for action is

necessary. From the perspective of business process

management, it would be necessary to conduct

extensive case studies in order to be able to quantify

the exact potential and added value of the approach

presented.

The limitations mentioned above will be taken

into account in future work. These include the

integration of methods for the analysis of long-term

dependencies, such as long short-term memory or

transformers. This enables the recognition of more

complex patterns and behavior. To quantify the

business potential of the presented approach, case

studies will be conducted with partners from science

and practice to verify the added value of the approach

under real world conditions.

ACKNOWLEDGEMENTS

This work was supported by the German Federal

Ministry of Education and Research (BMBF,

01/S18026A-F) by funding the competence center for

Big Data and AI “ScaDS.AI Dresden/Leipzig“.

REFERENCES

Ahn, H., Choi, H.-L., Kang, M., Moon, S., 2019. Learning-

Based Anomaly Detection and Monitoring for Swarm

Drone Flights. In Appl. Sci. 9, p. 5477.

Variational Autoencoder for Anomaly Detection in Event Data in Online Process Mining

573

Ahn, H., Jung, D., Choi, H.-L., 2020. Deep Generative

Models-Based Anomaly Detection for Spacecraft

Control Systems. In Sensors , 20, p. 1991.

Bishop, C.M., 2006. Pattern Recognition and Machine

Learning. Springer.

Breunig, M.M., Kriegel, H., Ng, R., Sander, J., 2000. LOF:

Identifying Density-Based Local Outliers. In Proc.

ACM Sigmod Int. Conf. on Management of Data,

Dallas.

Conforti, R., La Rosa, M., ter Hofstede, A.H.M., 2017.

Filtering Out Infrequent Behavior from Business

Process Event Logs. In Transactions on Knowledge and

Data Engineering 29 (2), pp. 300 – 314.

Doersch, C., 2016. Tutorial on variational autoencoders. In

arXiv preprint, arXiv:1606.05908.

Gabler Banklexikon, https://www.gabler-

banklexikon.de/definition/business-process-

management-70709/version-377663 (Accessed:

12.10.2020).

Gamboa, J.C.B., 2017. Deep learning for time-series

analysis. In arxiv preprint, arXiv:1701.01887.

Goix, N., 2016. How to Evaluate the Quality of

Unsupervised Anomaly Detection Algorithms? In

arXiv preprint, arXiv:1607.01152v1.

Goodfellow, I., Bengio, Y., Courville, A., 2016. Deep

Learning. MIT Press.

Kingma, D.P., Ba, J., 2014. Adam: A Method for Stochastic

Optimization. In arXiv preprint, arXiv:abs/1412.6980.

Kingma, D.P., Welling, M., 2019. An introduction to

variational autoencoders. In arXiv preprint,

arXiv:1906.02691.

Kingma, D.P., Welling, M., 2014. Auto-encoding

variational Bayes. In 2

International Conference on

Learning Representations, CoRR abs/1312.6114.

Krajsic, P., Franczyk, B. 2020. Lambda Architecture for

Anomaly Detection in Online Process Mining using

Autoencoders. In Hernes M., Wojtkiewicz K.,

Szczerbicki E. (eds) Advances in Computational

Collective Intelligence. ICCCI 2020. Communications

in Computer and Information Science, vol 1287, pp.

579-589, Springer.

Kullback, S., Leibler, R.A., 1951. On information and

sufficiency. In Ann Math Stat 22, pp.79–86.

Leemans, S.J.J., Fahland, D., van der Aalst, W., 2013.

Discovering Block-Structured Process Models from

Event Logs – A Constructive Approach. In

International Conference on Application and Theory of

Petri Nets and Concurrency, pp. 311-329, Springer.

Liu, F.T., Ting, K.M., Zhou, Z.-H., 2008. Isolation forest.

In Proc. of the 8th IEEE International Conference on

Data Mining, Pisa, pp.413-422.

Lloyd, S., 1982. Least squares quantization in PCM. In

IEEE transactions on information theory 28 (2), pp.

129-137.

Maaradji, A., Dumas, M., La Rosa, M., Ostovar, A., 2017.

Detecting Sudden and Gradual Drifts in Business

Processes from Execution Traces. In Transactions on

Knowledge and Data Engineering 29 (10), pp. 2140 –

2154.

Marz, N., Warren, J., 2013. Big Data. Priciples and Best

Practices of Scalable Realtime Data Systems, Manning.

Nolle, T., Luettgen, S., Seeliger, A., Mühlhäuser, M., 2018

Analyzing Business Process Anomalies using

Autoencoders. In Mach Learn 107, pp. 1875–1893.

OMeara, C., Schlag, L., Wickler, M., 2018. Applications of

Deep Learning Neural Networks to Satellite Telemetry

Monitoring. In: Proceedings of the 2018 SpaceOps

Conference, p. 2558.

Ostovar, A., Maaradji, A., La Rosa, M., ter Hofstede,

A.H.M., van Dongen, B.F., 2016. Detecting Drift from

Event Streams of Unpredictable Business Processes. In

International Conference on Conceptual Modeling, pp.

330 – 346, Springer.

Sani, M.F., van Zelst, S.J., van der Aalst, W., 2017.

Improving Process Discover Results by Filtering

Outliers using Conditional Behavioral Probabilities. In

Teniente E., Weidlich M. (eds.) Business Process

Management Workshops. Lecture Notes in Business

Information Processing, vol 308, pp. 216-229, Springer.

Schölkopf, B., Williamson, R., Smola, A., Shawe-Taylor,

J., Platt, J., 2000. Support Vector Method for Novelty

Detection. In Advances in Neural Information

Processing Systems 12, pp. 582-588.

Taymouri, F., La Rosa, M., Erfani, S., Bozorgi, Z.D.,

Verenich, I., 2020. Predictive Business Process

Monitoring via Generative Adversarial Nets: The Case

of Next Event Prediction. In Fahland D., Ghidini C.,

Becker J., Dumas M. (eds) Business Process

Management. BPM 2020. Lecture Notes in Computer

Science, vol 12168. Springer, Cham.

van der Aalst, W.M.P., 2011. Process mining: discovery,

conformance and enhancement of business processes.

Springer.

van der Aalst, W.M.P., La Rosa, M., Santoro, F. M., 2016.

Business Process Management. Don’t Forget to

Improve the Process! In Business & Information

Systems Engineering 58 (1), pp. 1-6, Springer.

van der Aalst, W., 2006. Process Mining. Data Science in

Action. Springer, Berlin, 2

edition.

van der Aalst, W., Weijters, A.J.M.M., Maruster, L., 2004.

Workflow Mining: Discovering Pro-cess Models From

Event Logs. In Transactions on Knowledge and Data

Engineering 16 (9), pp. 1128-1142.

van Zelst, S.J., Fani Sani, M., Ostovar A., Conforti, R., La

Rosa, M., 2018. Filtering Spurious Events from Event

Streams of Business Processes. In Advanced

Information Systems Engineering. CAiSE 2018.

Lecture Notes in Computer Science, vol, 10816, pp. 35-

52, Tallin, Springer.

Wang, J., Song, S., Lin, X., Zhu, X., Pei, J., 2015. Cleaning

Structured Event Logs: A Graph Re-pair Approach. In

31st International Conference on Data Engineering, pp.

30- 41, IEEE Press.

4TU.ResearchData, Loan application example,

configuration 1.,

https://doi.org/10.4121/uuid:cdf3ba31-291d-468d-

9712-3a58ac6da3fc (Accessed: 22.10.2020 ).

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

574
