Efﬁcient Flash Indexing for Time Series Data on Memory-constrained

Embedded Sensor Devices

Scott Fazackerley, Nadir Ould-Khessal and Ramon Lawrence

University of British Columbia, Kelowna, BC, Canada

Keywords:

Indexing, Database, Sensor Network, Embedded, Hashing, B-Tree, Bitmap.

Abstract:

Embedded sensor devices with limited hardware resources must efﬁciently collect environmental and indus-

trial time series data for analysis. Performing data analysis on the device requires data storage and indexing

that minimizes memory, I/O, and energy usage. This paper presents an index structure that is optimized for the

constrained use cases associated with sensor time series collection and analysis. By supporting only planned

queries and analysis patterns, the storage and indexing implementation is simpliﬁed, and outperforms general

techniques based on hashing and trees. The indexing technique is analyzed and compared with other indexing

approaches and is adapted to all ﬂash memory types including memory that supports overwriting.

1 INTRODUCTION

There are numerous applications for embedded sys-

tems that perform data collection and analysis includ-

ing IoT devices (Adegbija et al., 2018; Al-Fuqaha

et al., 2015). An ongoing trend is to perform data

analysis on the data collection device as this enables

faster response times and reduces network transmis-

sions and energy usage. Data indexing for ﬂash mem-

ory and solid state drives is a widely studied topic

(Fevgas et al., 2020). However, these generic data

structures based on hashing or trees are not always

applicable to time series indexing on sensor devices

(Qin et al., 2016) that have limited memory and query

processing capabilities.

The position articulated in this work is for index

structures optimized for application speciﬁc use cases

for embedded devices. The focus is on small mem-

ory embedded devices that use sensors to measure and

record environmental metrics, store data locally, and

perform queries for aggregation and event detection.

For this use case, the most important factors are ac-

curate and efﬁcient storage of the sensed data, and

the ability to analyze and transmit this captured data.

Given the limited computational power of IoT hard-

ware (Gubbi et al., 2013), efﬁcient use of memory

is critical, and algorithms must adapt to ﬂash storage

speciﬁc constraints and performance characteristics.

The contribution of this paper is a data indexing

approach optimized for sensor embedded devices, and

a comparison with prior indexing algorithms. By fo-

cusing the index structure for the domain, the over-

all approach is simpliﬁed and results in higher per-

formance. The technique minimizes the number of

writes and the overhead in maintaining the index. A

theoretical analysis and comparison is performed and

demonstrates improvements over hashing and trees

that are typically used.

2 BACKGROUND

Indexing on ﬂash memory is a widely studied area,

and a recent survey (Fevgas et al., 2020) overviews

prior work. Index data structures have been adapted to

the unique performance characteristics of ﬂash mem-

ory such as different read and write times and the

erase-before-write constraint (i.e. no overwriting or

in-place writes). Common optimizations include min-

imizing the number of writes, performing sequential

writes where possible, and exploiting hardware spe-

ciﬁc parallelism.

Signiﬁcant prior work has investigated index-

ing on solid state drives (SSDs) as SSDs improve

database server performance. Grid ﬁles (Fevgas and

Bozanis, 2015), hashing (Jin et al., 2020) and B-tree

variants (Kim and Lee, 2015; Kaiser et al., 2013;

Hardock et al., 2019) are used. Although SSDs use

ﬂash memory, there are differences compared to in-

dexing on embedded ﬂash devices. Besides the ﬂash

memory chips, a SSD contains a CPU, memory, and

a ﬂash translation layer (FTL) (Chung et al., 2009).

This hardware allows for I/O parallelism, and the

most recent algorithms focus on exploiting this par-

allelism. The FTL allows algorithms to write logical

pages and hides the complexities of the allocation and

garbage collection of physical pages on the device.

Fazackerley, S., Ould-Khessal, N. and Lawrence, R.

Efﬁcient Flash Indexing for Time Series Data on Memory-constrained Embedded Sensor Devices.

DOI: 10.5220/0010318800920099

In Proceedings of the 10th International Conference on Sensor Networks (SENSORNETS 2021), pages 92-99

ISBN: 978-989-758-489-3

The FTL also manages wear leveling. In a server en-

vironment, the amount of RAM used for buffering is

signiﬁcant and allows algorithms to delay writes (via

logging or write deltas) to improve performance.

In comparison, a typical small-memory embed-

ded device may have between 4 KB and 32 KB of

SRAM memory, a processor running between 16 and

128 MHz, and ﬂash storage consisting only of raw

ﬂash memory chips. In this environment, SRAM is

the most precious commodity, and many approaches

designed for SSDs and large buffers are not applica-

ble. Further, with no FTL, the algorithm must manage

physical page allocation, garbage collection, and wear

leveling. An additional challenge with embedded de-

vices is that data needs to be moved to persistent stor-

age and not left in SRAM buffers in order to not lose

data as embedded devices have an increased risk of

unexpected reset or power cycling.

Serially accessible ﬂash memories are increasing

in popularity for embedded devices as they require a

minimum number of dedicated I/O pins. Both NAND

and NOR ﬂash are now commonly available in this

format at a low price point. Each category of ﬂash

memory has its own unique attributes in terms of

read, write and data access constraints. Flash mem-

ory is constructed with memory cells aligned in pages,

which is the minimum write unit. Flash memory also

contain an internal page buffer which holds data to

be written to a page. Some devices maintain user ac-

cessible SRAM buffers to hold data but many mem-

ory devices obfuscate the internal buffer, requiring the

embedded device to manage page buffers in its lim-

ited internally available SRAM. With NAND ﬂash,

data must be read from the ﬂash memory to an inter-

nal buffer at a page level before being accessed by the

embedded device whereas many NOR memory candi-

dates support direct reads from a ﬂash memory page.

Pages are grouped into sectors or blocks which

form the minimum erasable unit in the ﬂash mem-

ory. Some NOR ﬂash candidates support single page

erases with a higher energy and time cost. In gen-

eral, data cannot be updated in place with ﬂash mem-

ory. Regardless of the ﬂash memory architecture, de-

vices require erase-before-write and suffer degrada-

tion from increasing erase-write cycles which compli-

cates data management on embedded devices (Faza-

ckerley et al., 2016). Devices utilizing NAND ﬂash

have the additional burden of dealing with the require-

ment for ECC as NAND ﬂash is prone to bit errors,

while this is not required with NOR ﬂash.

Data processing systems for embedded devices

such as Antelope (Tsiftes and Dunkels, 2011) and Lit-

tleD (Douglas and Lawrence, 2014) store and pro-

cess data locally, which differs from sensor network

databases like TinyDB (Madden et al., 2005) and

Cougar (Yao and Gehrke, 2002) where most analy-

sis is conducted after retrieving the data over the net-

work from the nodes. With speciﬁc focus on raw data

storage and indexing, Antelope (Tsiftes and Dunkels,

2011) supported multiple index types including an in-

line index that stored time series data in a sorted ﬁle

by timestamp. MicroHash (Zeinalipour-Yazti et al.,

2005) also used a sorted time series data ﬁle, and

built an index structure supporting queries by value

on top of it. The advantage of storing the data as a

sorted ﬁle is that variants of binary search can be used

to lookup any timestamp value or range. MicroHash

stored index pages intermixed with data pages. This

prevents a O(1) algorithm for timestamp lookup. The

value index consists of a directory of buckets, with

each bucket spanning a range of values. Each index

entry stores a page and offset of the record with that

value. Optimizations were performed to try to com-

pletely ﬁll index pages and minimize the number of

index page writes.

PBFilter (Yin and Pucheral, 2012) minimized

memory usage by sequentially writing the data and

index structure. The index structure used Bloom ﬁl-

ters to summarize page contents, and bitmap indexes

for handling range queries and key duplicates. PBFil-

ter outperforms tree and hashing techniques in terms

of memory usage and write efﬁciency.

B-trees are common and follow one of two general

approaches. Deferring writes can be done by buffer-

ing. Overwriting an existing page can be avoided by

logging changes either in another area on ﬂash or in

special areas of the page itself (Kim and Lee, 2015).

Logging and write defer strategies rely on sufﬁcient

memory to buffer modiﬁed pages so that multiple up-

dates can be batched together in one physical write.

Write-optimized trees (Bender et al., 2015) buffer

modiﬁcations and write them out in batches to amor-

tize the write cost and avoid small random writes.

Overwriting an existing page in ﬂash memory is

allowed (Kaiser et al., 2013; Fazackerley et al., 2016;

Hardock et al., 2019) in certain cases. This allows for

different techniques for erase and write avoidance and

modiﬁcations of data structures to improve the per-

formance of some techniques. There are challenges

related to error correction and the type of writes that

support overwriting for NAND ﬂash memory.

3 PROBLEM DEFINITION

An embedded device performs a ﬁxed set of data op-

erations, unlike a general database server. When the

device is designed and deployed, these data process-

Efﬁcient Flash Indexing for Time Series Data on Memory-constrained Embedded Sensor Devices

ing operations will be known and implemented in the

code base. By exploiting this knowledge, it is possi-

ble to build more implementation-speciﬁc optimized

index structures.

The data set is an append only time series where

each entry consists of a timestamp and one or more

sensor values. A sensor value is produced by read-

ing from a sensor connected to the embedded device,

and is an integer of size between 8 and 32 bits. When

reading using an analog-to-digital converter, the raw

sensor value is then converted into an actual value

based on a sensor speciﬁc transfer function. In many

cases the value produced is a ﬂoating point value.

Processing and storing ﬂoating point values on many

small embedded devices increases device overhead

due to architectural limitations. Using the value in

its discrete raw form instead of the converted value is

more efﬁcient.

The embedded device has these properties:

• Memory-constrained (4 KB to 128 KB)

• Flash memory storage (may be NOR or NAND)

• May have either raw or FTL-based memory

• Flash memory may support page-level overwrit-

ing and/or byte-level direct reads.

The embedded environment characteristics are known

and available to the algorithm including:

• The number of sensors and the frequency of sen-

sor measurements

• The size of the ﬂash memory available to be used

and its characteristics

• The data processing requirements including

queries, sliding window aggregation, and consis-

tency requirements

• Append only data with increasing timestamps

For consistency requirements, the system must sup-

port both page level and record level consistency. The

types of queries supported include:

• Equality and range timestamp queries

• Equality and range value queries (but may be re-

stricted to certain value ranges of interest)

These requirements are reasonable given that sen-

sor devices are developed, conﬁgured, and deployed

with speciﬁc use cases and require efﬁcient and reli-

able operation for extended periods of time.

4 INDEXING APPROACH

The proposed indexing approach minimizes writes

and memory usage. The index structure adapts to

the known query requirements and optimizes for the

queries speciﬁcally required for a particular use case.

4.1 Data Record Storage

The foundation of the approach is that time series

data records are written sequentially in pages to ﬂash.

This is similar to MicroHash (Zeinalipour-Yazti et al.,

2005) except that all data pages are contiguous, and

are not intermixed with index pages.

Storing data pages contiguously works regardless

if the ﬂash has an FTL or supports overwrites. If the

ﬂash memory has an FTL, then all writes are logical

writes and all physical allocations are hidden. If the

ﬂash does not have an FTL, there are several imple-

mentation possibilities:

• Page level consistency - buffer page in memory

and only write out full pages to ﬂash

• Record level consistency:

– Overwrites supported - append record to end of

page using overwrites

– No overwrites supported - write page to free

space at end of memory region temporarily,

when page is full, write to end of data area

The ability to store the data records in sequen-

tial order by timestamp enables efﬁcient timestamp

searches and minimizes the number of writes.

4.2 Design Optimized Value Indexing

Supporting value based queries efﬁciently requires

adding an index structure on top of the raw data stor-

age. Without an index, a query on a data value re-

quires a sequential scan of all data pages.

The design decision is to deploy indexes based

on the types of queries that will be required by the

embedded device application. Since the device will

not be executing interactive queries, these queries are

known during design time. The queries generally fall

in two categories:

• Point and range outlier value detection - value ≥V

or value ≤ V for some value V

• Recent history sliding window aggregates - for the

most recent T time units, return the average, max,

min, or count of value(s)

A key observation is that the integer values of-

ten have a limited domain (e.g. 10 bits) and demon-

strate skew and temporal locality. For example, a sen-

sor collecting temperature data will have the values

change relatively slowly with a regular trend.

SENSORNETS 2021 - 10th International Conference on Sensor Networks

To support efﬁcient aggregate queries, each data

page header contains the smallest and largest times-

tamp values, the count of the number of records, the

minimum and maximum values in the page, and the

sum of all values in the page. The page header also

stores a small bitmap index that approximates the data

distribution. The size of the bit vector is determined

based on design requirements. Each bit represents the

presence of a value in the particular range with ranges

being user deﬁned.

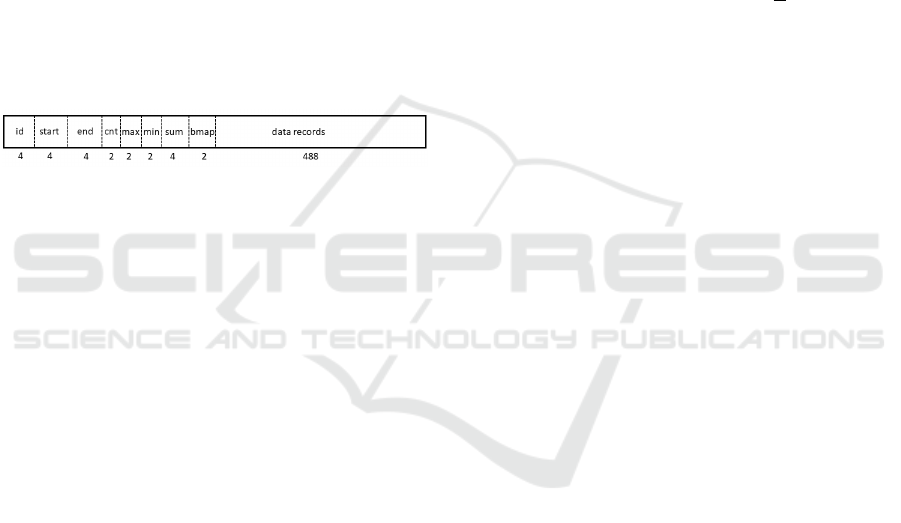

An example page structure that uses 2 byte val-

ues is in Figure 1. The page structure used for any

particular time series data set depends on the queries

that must be supported. The only required ﬁelds are

the 4 byte page id and 2 byte count. The time series

range, aggregate summary and bitmap are optional.

The overhead is about 24 bytes or 4.5% of a 512 byte

page. To support multiple different values, the aggre-

gate summary and bitmap is repeated for each value

in the sensor record.

Figure 1: Page Structure.

The bitmap is designed based on query require-

ments. For example, consider a value range of 0 to

100. One possible bit vector may divide the range

into 10 equal buckets (0-9, 10-19, ..., 90-100) and re-

quire 10 bits of storage. If the values of interest are

not equally distributed, the bit vector can be deﬁned

to capture the data of most importance. For example,

if the analysis queries are looking for very small or

very large data values, it may be better to use only 4

bits with the ranges (0-9, 10-49, 50-89, 90-100). At

the limit, a single bit indicator can be used to deter-

mine a range of interest. For example, if the queries

are focused on only values ≥ V , then 1 bit is used and

is set only if the page contains values ≥ V .

Database index tuning is commonly performed

in database systems, but varying an embedded in-

dex structure based on the required data analysis is

unique. The bit vector ﬁlter in the header is conﬁg-

ured based on design speciﬁcations and only requires

some additional space in each page. No additional

I/Os are required. However, by itself it does not sig-

niﬁcantly improve query performance or reduce I/Os,

as unless direct byte reads are supported, the system

still must read the entire page from ﬂash (although the

bit vector does save time in processing records in the

page once it is read).

The bit vector for each page is also written out

to an index area in a separate area of the ﬂash mem-

ory. Thus, index pages will not be intermixed with

data pages. One buffer is used to store the latest index

page, and it is only written out when full. Given that

a typical bit vector size per page is between 4 and 16

bits, for a 512 byte page, the index size overhead and

additional I/Os is between 0.1 and 0.4%.

4.3 Querying by Timestamp

The pages are ordered by timestamp, and any times-

tamp can be retrieved in O(1) reads by calculat-

ing an offset using the start timestamp, the query

timestamp, and the rate at which records are writ-

ten to ﬂash (based on sampling rate and number of

records/block). A given query timestamp t

can be

located by calculating its page index:

page index = (t

−t

) ∗

(1)

The ﬁrst timestamp value is t

, and r is the sam-

pling rate in records/second with B as the number of

records/page. The page index is converted to a physi-

cal offset by multiplying by the page size in bytes.

Since the memory is treated as a circular storage,

after the data ﬁlls the memory for the ﬁrst time, it is

necessary to wrap the offset value based on the current

physical offset of the ﬁrst data page in memory.

For example, assume that the memory can store up

to 100 data pages, and the data has wrapped around

such that the current ﬁrst data page is at offset 50. If

the page index is calculated as 75, then the physical

page offset is (50 + 75) mod 100 = 25.

4.4 Querying by Value

For queries by value of the form v

≤ value ≤ v

query performance depends on the selectivity of the

query predicate, s, and the ability to capture that se-

lectivity in the bitmap index. Every index based query

must read the entire index, which costs approximately

0.001 ∗ N where N is the number of data pages. This

is a sequential read and requires only one buffer for

the current index page.

If the query predicate selectivity is s, then on aver-

age s ∗ N data pages will be read to process the query.

The actual number of page reads depends on how the

records matching the query predicate are distributed

across the pages. If the query predicate exactly aligns

with the bitmap vector such that no false positives

are generated, then the algorithm will read the min-

imum number of data pages required and is optimal.

Since the indexes can be constructed to support spe-

ciﬁc queries, it is possible to get perfect matching and

no false positives subject to space limitations. The

algorithm for index querying by value is in Figure 2.

When comparing the index and query bitmap, the

two bit vectors can be combined with logical AND,

Efﬁcient Flash Indexing for Time Series Data on Memory-constrained Embedded Sensor Devices

Convert query predicate into query bitmap

Let P = 0 be the current data page index

for each index page

for each index record

if index bitmap AND query bitmap > 0

read data page for this index record

for each record in data page

output record if predicate is true

Figure 2: Querying by Value Range.

and any value greater than 0 (i.e. any bit set) indicates

that the data page should be read.

The overall cost of the algorithm is the cost to

read the index pages and any data pages that contain

records that match the predicate. If the bitmap index

supports the query predicate precisely, the minimum

number of data pages, s ∗ N, are read.

As an example, consider a query for value >= 90.

In the previous section, two possible bitmaps were de-

ﬁned one with 10 bits and the other with 4 bits. In ei-

ther case, the last bit in the vector, matches the pred-

icate exactly, and only pages with records that match

the predicate will be read. On the other hand, if the

query is 25 ≤ value ≤ 75, then both bitmaps will re-

turn false positives. The 10 bit vector will have fewer

false positives as its value ranges have ﬁner granular-

ity and better overlap with the query predicate.

The other common query is sliding window sum-

maries. The page-level aggregate summaries support

aggregate calculations without processing the data

records, and the ﬁltering of rows by examining the

minimum and maximum data range. Using the header

summary is especially useful if the memory supports

byte level or partial page reads so only the header in-

formation is read rather than the entire page.

In most use cases, the query will not scan the en-

tire data set but only the last few pages which rep-

resent the latest data in the sliding window. Given

sufﬁcient memory, previous data pages are obvious

choices for buffering in RAM. If the number of pages

in the sliding window is small, then it is more efﬁcient

to read the pages rather than building another index of

the summary values.

4.5 Memory Management

The minimum memory requirement is one write

buffer for the current data page and a read buffer to

read the data records. The addition of the bitmap in-

dex requires an additional write buffer for the index,

and a read buffer when processing index queries. Any

additional memory available would be used to buffer

the most recent data pages, if the system uses sliding

window queries on recent data. Thus, the minimum

memory requirement is 2 buffers without bitmap in-

dexing and 4 buffers with bitmap indexing.

4.6 Handling Variability

Design and operational parameters may change

throughout the life of an embedded sensor device.

These changes include adding or removing sensors,

modifying the frequency of sensor readings, and

adapting the queries performed on the device.

The approach easily handles changes in the sen-

sors and their sampling frequency. These changes

only impact querying by timestamp, as timestamp

record locations are calculated based on sampling fre-

quency and records per page. These parameters are

known at any given time, and if they change during

run-time, the system must only store a history of pre-

vious values and the time when the change occurred.

For example, consider that the system has already

stored 50 data pages with the frequency r as 10 sam-

ples/hour and B = 10. If r is changed to 20 sam-

ples/hour, then the system must record that starting

at page offset 50, r is 20. To calculate the page index

for a time 120 hours from the ﬁrst timestamp:

page index = 50 ∗

+ (120 − 50) ∗

= 190 (2)

Thus, given knowledge of past sampling rates, cal-

culating the page index remains straightforward. Sup-

porting different bit vector indexing strategies is also

possible by recording the page indexes when the bit

vector structure was changed.

4.7 Wear Leveling

Wear leveling is performed by treating the mem-

ory as a circular array and wrapping around to the

front of the memory region using a modiﬁed Fron-

tier Advance Wear Leveling approach (FAWL). Fig-

ure 3 shows the layout of memory for wear leveling.

Pages are written to the location tracked by the page

write frontier. In advance of the page write frontier,

the system maintains a region of erased pages (write

frontier extent) that allows pages to be written to the

device. The temporary write extent is located in front

of the write extent and is used as temporary record

level storage. The size of the temporary write extent

is a multiple of the memory device’s minimum erase

unit and is aligned on a sector erase boundary. Gen-

eral sector erases are performed at the sweep frontier

in front of the active data extents.

SENSORNETS 2021 - 10th International Conference on Sensor Networks

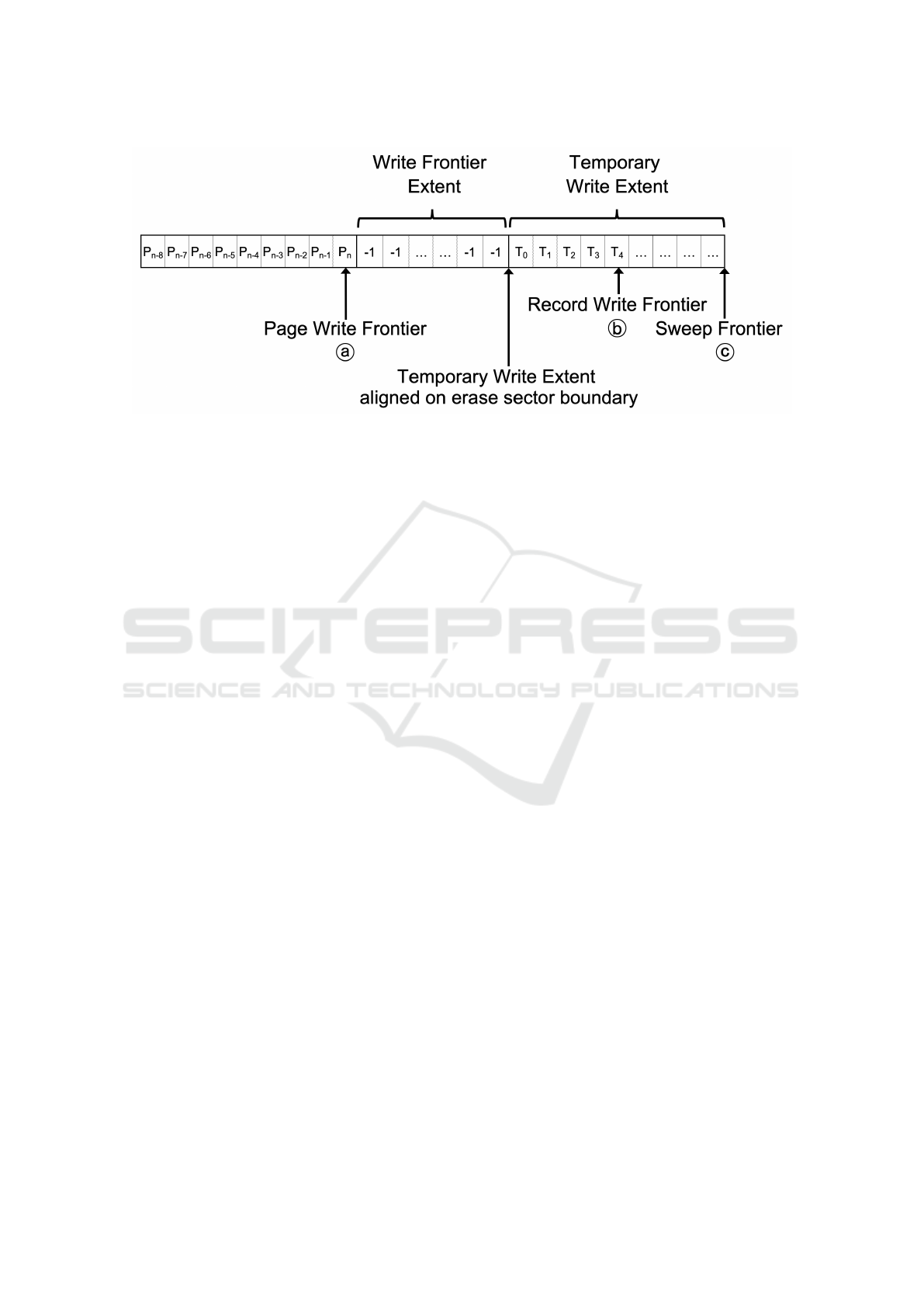

Figure 3: Frontier Advance Wear Leveling.

If page level consistency is used, complete pages

will be written to the page at the page write fron-

tier (

). The system assigns an increasing page id

to each page written (P

) which is used to track the

age of pages in the system. If record level consistency

is being used, record updates will be written to pages

) inside the temporary write extent at the record

write frontier (

). When enough records have been

written to the temporary write extent to ﬁll a page, the

full page is then written to the page write frontier.

As pages are written to the system and the page

write frontier advances towards the temporary write

extent boundary, the temporary write extent will be

advanced to the next sector of free pages. The sys-

tem will erase the sector tracked by the sweep frontier

(

), advance the temporary write extent and record

write frontier to the position of the sweep frontier,

and the sweep frontier will then be advanced to the

next sector that will be targeted for erase. The stale

temporary write extent will then be erased. The write

frontier extent will then be updated to include this re-

claimed area.

As FAWL guarantees that the timestamp records

are written to the memory in a linearly increas-

ing fashion, the sweep frontier will always reclaim

the oldest records in the system. Additionally, it

wears memory uniformly by writing and erasing se-

quentially, eliminating the need for a complex block

write/erase management scheme or FTL.

The system records the current page index for the

start and end of the valid data pages. Preferably, this

information is stored in non-volatile memory in case

of system failure. Otherwise it is recoverable by scan-

ning the memory. The ﬁrst data page has the smallest

page id, and the last data page has the largest.

5 ANALYSIS

The sequential bitmap indexing for time series tech-

nique, referred to as SBITS, is compared to other in-

dexing approaches for embedded systems. A sum-

mary of the approaches is in Table 1.

The inline index developed for Antelope stored

data records in increasing order by timestamp.

Searching by timestamp used binary search, but

searching by value is not supported. The minimum

memory is 2 pages (one write buffer for data records

and one read buffer for queries). This index structure

has low overhead, but does not also support efﬁcient

value queries.

The closest comparable strategy is MicroHash that

has a sequential data ﬁle intermixed with index pages.

Each index page stored index records for a particu-

lar data value. The minimum memory requirement

for MicroHash was 6 pages (write buffer for data,

write buffer for index, 2 read buffers (index and data),

buffer for directory index, and buffer for root block).

MicroHash also uses buffers for caching index pages.

The MicroHash index size varies between 10%

and 50% of the data size and depends on the size of

the data records, the variability in the data, and the

amount of memory available to cache index blocks.

By intermixing data pages and index pages, a modi-

ﬁed binary search was required in MicroHash, which

on average required about 5 reads for the data sets

tested. Further, the index consumed more space as the

index records are larger and could not always com-

pletely ﬁll the pages. This is due to MicroHash using

in-memory hash partitioning of the data values in the

index and being forced to ﬂush an index page to stor-

age whenever space must be freed up.

The key difference and limitation of MicroHash

Efﬁcient Flash Indexing for Time Series Data on Memory-constrained Embedded Sensor Devices

Table 1: Comparative Analysis.

Algorithm Index Size Min. Memory Timestamp Query I/Os Value Query I/Os

SBITS 0.004 ∗ N 2 to 4 1 0.004 ∗ N + s ∗ N

Antelope index 0 2 O(log

N) N/A

MicroHash 0.1 ∗ N to 0.5 ∗ N 6 5 0.1 ∗ N + s ∗ N

PBFilter

B∗N

4 O(log

+ s ∗ N

B-tree

B∗N

5 N/A O(log

N)+ s ∗ N

Linear hash

B∗N

3 N/A O(1) (point query)

compared to SBITS is that index records based on off-

sets consume more space than the bitmap index, and

more importantly, good performance is only achiev-

able if you can buffer one page for each bucket in the

hash table. If the hash table has 4 buckets, then that

would require 4 in-memory buffers. In some data sets

with low variability, it is possible to have fewer mem-

ory buffers, but this causes issues with only partially

ﬁlled pages. The write cost using this index tech-

nique is considerably higher. When reading, more

buffers are required for range queries as each bucket

that intersects the query range needs a buffer in order

to make sure the data ﬁle is not read multiple times.

PBFilter writes data and index pages sequentially

and uses bloom ﬁlters and bitmaps for data sum-

maries. PBFilter requires at least 4 memory buffers

and has more writes as it has both a record-level in-

dex and index summaries. The index size consists of

the space used to store an index entry for each data

record (where I is number of index entries that ﬁt in

a page) plus space used to store the summary of each

data page (where F is number of bloom ﬁlters that ﬁt

in a page). Given that an index record size may be

near the same size as a data record (i.e. 12 bytes), the

index size may be as large as the data size. PBFilter

does not discuss timestamp based queries on the data

ﬁle, but given that the data is written sequentially bi-

nary search is possible. Value queries require reading

the summary index and then any matching data pages.

Compared to SBITS, PBFilter uses more memory and

requires more space and writes to maintain the index.

B-tree implementations on embedded devices are

restricted on RAM so techniques based on extensive

buffering are not applicable. A B+-tree storage struc-

ture will allow for efﬁcient queries on either the times-

tamp or value but not both. Assuming the data is

stored sequentially by timestamp, then the B+-tree is

built on value. If the number of index records per page

is k, search and insert is O(log

N). Buffers required

are 2 for data (read and write) and 2 for B+-tree (min-

imum of 2 for supporting split). To use any form of

log buffering, additional buffers are required. At min-

imum, a write buffer is required for log records. LSB-

tree (Kim and Lee, 2015) is executable on memory-

constrained devices as it uses a single log area to sup-

port updates and requires only one additional buffer

for the log ﬁle. However, it generates more writes

and has costly re-organization operations to rebuild

the tree periodically. Query performance and index

size depends on k . B+-tree implementations are not

optimized for append only time series data.

Linear hash implemented on embedded devices

(Feltham et al., 2019) supports key based lookup in

constant time. The minimum memory usage is 3

buffers, but better performance requires a buffer per

hash partition otherwise every insert requires a page

to be read from memory and then written with the

new data record. Timestamp based queries and range

queries on value are not supported.

Overall, the fundamental position taken is that the

index structure can be adapted at design time given

that the queries to be supported will be known in ad-

vance. With append only time series data and known

query patterns, SBITS minimizes I/Os and energy us-

age by building the minimal possible index to support

the required queries. The number of writes is mini-

mized, and the index size is less than 1% of the data

size. Queries on timestamp require only 1 read, and

value queries will read the minimum amount of data

if the bitmap index is tuned to match query predicates.

6 FUTURE WORK AND

CONCLUSIONS

Efﬁcient data storage and indexing in embedded sys-

tems is critical as these systems collect and process

more data. This work presented the SBITS approach

that is optimized for append only, time series data

sets. An important insight is that embedded systems

typically do not process general queries, and knowl-

edge of data analysis requirements allows for the in-

dex structure to be more efﬁcient. The approach was

compared with other indexing approaches using hash-

ing and trees and shown to minimize memory us-

age while allowing for highly efﬁcient timestamp and

value queries. Future work will experimentally eval-

uate the approach on various hardware systems.

SENSORNETS 2021 - 10th International Conference on Sensor Networks

REFERENCES

Adegbija, T., Rogacs, A., Patel, C., and Gordon-Ross, A.

(2018). Microprocessor Optimizations for the Internet

of Things: A Survey. IEEE Trans. Comput. Aided

Des. Integr. Circuits Syst., 37(1):7–20.

Al-Fuqaha, A., Guizani, M., Mohammadi, M., Aledhari,

M., and Ayyash, M. (2015). Internet of Things: A

Survey on Enabling Technologies, Protocols, and Ap-

plications. IEEE Communications Surveys - Tutorials,

17(4):2347–2376.

Bender, M. A., Farach-Colton, M., Jannen, W., Johnson, R.,

Kuszmaul, B. C., Porter, D. E., Yuan, J., and Zhan,

Y. (2015). An Introduction to Bε-trees and Write-

Optimization. Usenix Mag., 40(5).

Chung, T.-S., Park, D.-J., Park, S., Lee, D.-H., Lee, S.-W.,

and Song, H.-J. (2009). A survey of ﬂash translation

layer. Journal of Systems Architecture, 55(5):332 –

343.

Douglas, G. and Lawrence, R. (2014). LittleD: a SQL

database for sensor nodes and embedded applications.

In Symposium on Applied Computing, pages 827–832.

Fazackerley, S., Penson, W., and Lawrence, R. (2016).

Write improvement strategies for serial NOR dataﬂash

memory. In 2016 IEEE Canadian Conference

on Electrical and Computer Engineering (CCECE),

pages 1–6.

Feltham, A., Ould-Khessal, N., MacBeth, S., Fazackerley,

S., and Lawrence, R. (2019). Linear Hashing Imple-

mentations for Flash Memory. In 21st International

Conference Enterprise Information Systems Selected

Papers, volume 378 of Lecture Notes in Business In-

formation Processing, pages 386–405. Springer.

Fevgas, A., Akritidis, L., Bozanis, P., and Manolopoulos,

Y. (2020). Indexing in ﬂash storage devices: a survey

on challenges, current approaches, and future trends.

VLDB J., 29(1):273–311.

Fevgas, A. and Bozanis, P. (2015). Grid-File: Towards to a

Flash Efﬁcient Multi-dimensional Index. In Database

and Expert Systems Applications, pages 285–294.

Springer.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of Things (IoT): A vision, architec-

tural elements, and future directions. Future Gener.

Comput. Syst., 29(7):1645–1660.

Hardock, S., Koch, A., Vinc¸on, T., and Petrov, I. (2019).

IPA-IDX: In-Place Appends for B-Tree Indices. In

15th International Workshop on Data Management,

pages 18:1–18:3. ACM.

Jin, P., Yang, C., Wang, X., Yue, L., and Zhang, D. (2020).

SAL-Hashing: A Self-Adaptive Linear Hashing Index

for SSDs. IEEE Trans. Knowl. Data Eng., 32(3):519–

532.

Kaiser, J., Margaglia, F., and Brinkmann, A. (2013). Ex-

tending SSD lifetime in database applications with

page overwrites. In 6th Annual International Systems

and Storage Conference, pages 11:1–11:12. ACM.

Kim, B. and Lee, D. (2015). LSB-Tree: a log-structured

B-Tree index structure for NAND ﬂash SSDs. Des.

Autom. Embed. Syst., 19(1-2):77–100.

Madden, S., Franklin, M. J., Hellerstein, J. M., and Hong,

W. (2005). TinyDB: an acquisitional query processing

system for sensor networks. ACM Trans. Database

Syst., 30(1):122–173.

Qin, Y., Sheng, Q. Z., Falkner, N. J., Dustdar, S., Wang, H.,

and Vasilakos, A. V. (2016). When things matter: A

survey on data-centric internet of things. Journal of

Network and Computer Applications, 64:137 – 153.

Tsiftes, N. and Dunkels, A. (2011). A database in every

sensor. In Proceedings of the 9th ACM Conference

on Embedded Networked Sensor Systems, SenSys ’11,

page 316–332, New York, NY, USA. Association for

Computing Machinery.

Yao, Y. and Gehrke, J. (2002). The Cougar Approach to In-

Network Query Processing in Sensor Networks. SIG-

MOD Rec., 31(3):9–18.

Yin, S. and Pucheral, P. (2012). PBFilter: A ﬂash-based

indexing scheme for embedded systems. Information

Systems, 37(7):634 – 653.

Zeinalipour-Yazti, D., Lin, S., Kalogeraki, V., Gunopulos,

D., and Najjar, W. (Dec 13, 2005). MicroHash: An

Efﬁcient Index Structure for Flash-Based Sensor De-

vices. In Proceedings of the FAST ’05 Conference on

File and Storage Technologies, pages 31–43. USENIX

Association.

Efﬁcient Flash Indexing for Time Series Data on Memory-constrained Embedded Sensor Devices
