A Lightweight Microservice-oriented Platform for Development of

Intelligent Agent-based Enterprise Applications

Aluizio Haendchen Filho

, Rafael Castaneda Ribeiro

, Hércules Antônio do Prado

Edilson Ferneda

and Jeferson Miguel Thalheimer

Laboratory of Technological Innovation in Education (LITE), University of Vale do Itajaí (UNIVALI), Itajaí, Brazil

Catholic University of Brasilia (UCB) QS 07, Lote 01, Taguatinga, Brasília, DF, Brazil

Federal Center of Technological Education Celso Suckow da Fonseca Rio de Janeiro, RJ, Brazil

Keywords: Multiagent Systems, Microservice-oriented Development, Service-oriented Development.

Abstract: Excess of adherence to the agent technology standards can hinder the software development process while

the focus in good practices can lever this process. This paper presents IDEA, a lightweight microservice-

oriented platform that facilitates the development and execution of Multi-Agent Systems in the business

context. The solution design seeks for a good trade-off between usability and adherence to the agent

technology standards. The platform also enables microservices discovering, composition, and reuse.

1 INTRODUCTION

Currently, most of the organizations adopt

heterogeneous and complex information systems

enabled by low coupled components. These systems

must coordinate their components in order to provide

efficient support to business processes and consistent

information management. Enterprise and business

applications running in the Web are increasing in

complexity, involving widely heterogeneous entities,

many functions, and the interaction among several

devices.

In the industrial context, the Service Oriented

Architecture (SOA) principles have evolved from the

original service concept to a new concept of

microservices. Microservices paradigm is based on

independent and low-granular software components

that interact to build highly scalable systems (Dragoni

et al., 2017). Rooted in SOA principles, this new style

of architecture has gained strength in recent years,

and are disseminated by companies such as Netflix,

Spotify, Uber, Amazon, and PayPal (Lewis, 2015).

If Lewis et. al. (2010) already recognized SOA as

the best option available for system integration and

leverage of legacy systems, the recent advent of

microservices increased significantly this

importance. Technologies to implement SOA will

certainly evolve to address emerging needs, but its

basic principles seems to keep stable. One of the

primary benefits of SOA is the ability to cdompose

applications, processes, and assemble new

functionalities from existing services.

There are several authors researching the

application of microservices paradigm as a

framework for building modern agent-based systems

(Cabri et al., 2010; Collier et al., 2015; Crow et al.,

2018; Higashino et al., 2018). As argued by the

authors, the inability of agent’s technology for

dealing with complex communication protocols and

also with the excessive formalism of agent-oriented

methodologies contributes to inhibit their use in the

business context.

The combination of microservices-based

approaches with intelligent agents can be a way to

compose and develop intelligent solutions. Agents can

dynamically discover, orchestrate, and compose

microservices, check activities, run business processes,

and integrate heterogeneous and distributed

applications. An important aspect of microservices is

to provide conditions for the system to adapt according

to requirements or circumstances. Evolution can be

applied on time, in features they need (Silva 2017).

This paper presents IDEA, a lightweight

microservice-oriented platform for development of

intelligent agent-based applications. IDEA aims at

offering an infrastruture to facilitate the development

and execution of intelligent MAS in an easier and

faster fashion. The platform also enables

microservices discovering, composition, and reuse.

376

Haendchen Filho, A., Ribeiro, R., Antônio do Prado, H., Ferneda, E. and Thalheimer, J.

A Lightweight Microservice-oriented Platform for Development of Intelligent Agent-based Enterprise Applications.

DOI: 10.5220/0010311003760383

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 376-383

ISBN: 978-989-758-484-8

2 BACKGROUND

This section describes relevant aspects related to

resources and services, and a well-known agent

modeling methodology used in our approach.

2.1 Resources and Services

Large and medium sized organizations usually can

have hundreds and even thousands of fine-grained

procedures distributed across business applications.

Services of the most value to business experts are

constructed from lower-level services, components,

and objects that are structured to meet specific

business needs. Elimination of redundancy assemble

of new functionalities from existing services,

adaptation of systems to changing needs, and

leverage of legacy investments are the common goals

for the adoption of SOA (Lewis and Smith 2007).

As different granularity services normally fulfil

different roles, coarse, medium, or fine granularity

categories of services are considered. These

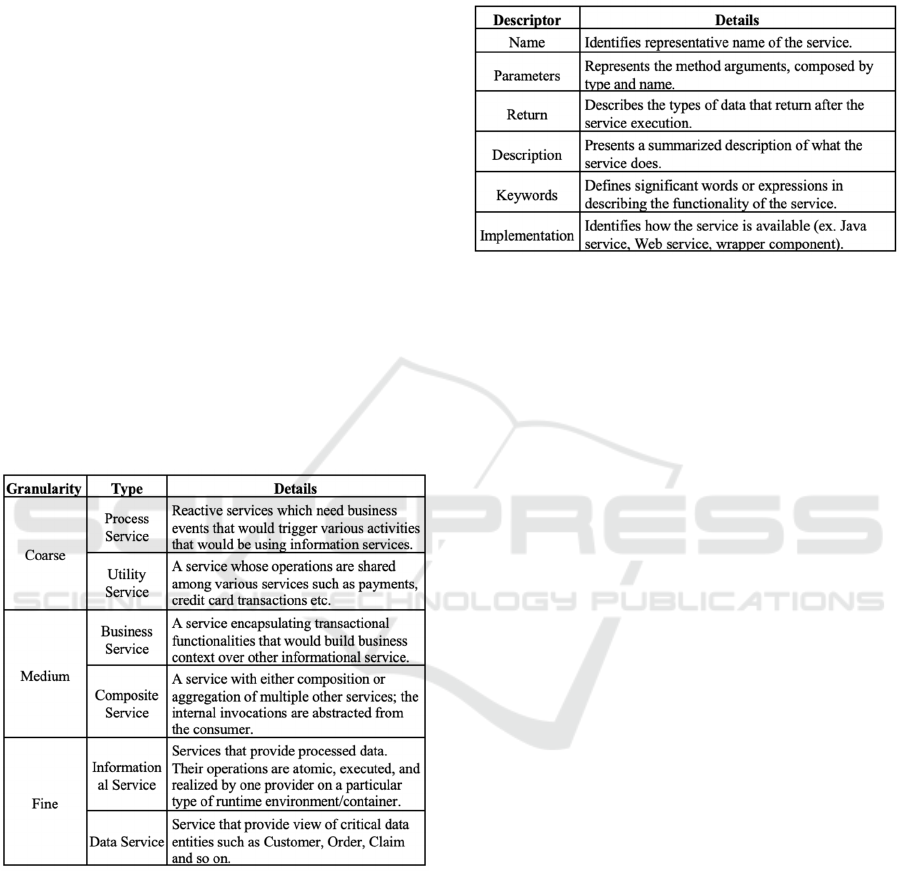

categories can be classified by type, as shown in

Figure 1 (adapted from Kulkarni and Dwivedi, 2008).

Figure 1: Services classification chart.

SOA and services in general rely strongly on the

concept of resource. Human and software agents can

discover services and provider entities by means of

the metadata used to describe a resource

(Bhuvaneswari and Sujatha 2011). The fine- and

medium-grained services need to be appropriately

described, represented, and exposed in order to be

known and visible to modelers, developers, and

business analysts involved in the composition of

medium and coarse granularity services.

The mechanisms for invocation of services such

as descriptors and discovery must comply with

established internal standards. Figure 2 shows the

services descriptors.

Figure 2: List of service descriptors.

The first two descriptors are automatically

retrieved by applying Java Class Library methods,

and the other are informed by the developer. The

Name, Return, Description, Keywords and

Implementation descriptors are stored in meta classes.

2.2 The Role Model

The role model originates from Biddle and Thomas

(1966), in which a role refers to an expected pattern

of behavior for an agent. In the Software Engineering

context, role models were applied initially for

defining a set of entities behavior in object-oriented

approaches (Cabri et al. 2010). After that, the role

model was applied for MAS design and development.

The first principle of the behavior-based approach

for MAS development is that each entity must have a

unique role, clearly defined by a coherent block of

functions or services. The importance of using roles

is emphasized by the fact that it can be adopted in

different areas of computer systems to obtain

decoupling at different levels (Cabri et al. 2010).

Ferber and Gutknecht (1998), Fasli (2003), Cabri

et al. (2003), and Zambonelli et al. (2001), among

others, stablished the basis for applying role models

in MAS development. In this work, Gaia

Methodology (Zambonelli et al., 2001) was adopted.

Gaia's main objective is to model multi-agent systems

as organizations where different roles interact. Roles

are considered only in the analysis phase.

Gaia defines roles by means of the following

attributes: (i) Responsibilities, that specify the agents

functionalities in order to perform the related roles;

(ii) Permissions are a set of rights that mainly refer to

the agent data access level; (iii) Activities are internal

computations of agents, which may involve calling

A Lightweight Microservice-oriented Platform for Development of Intelligent Agent-based Enterprise Applications

377

services, or functions that do not requires interaction

with other agents; and (iv) Protocols which specify

how an agent performing its role can interact with

other agents.

Gaia methodology enables an organizational view

of the system. The requirements definition is made

during the analysis phase and is the first step in the

development.

3 IDEA AGENT PLATFORM

This work presents IDEA, an evolution of MIDAS

(Haendchen Filho, 2007), introducing the

microservice concept for MAS development. The

architecture is based on the coexistence of several

containers that communicate by means of a front-end

server. Each container provides an environment for

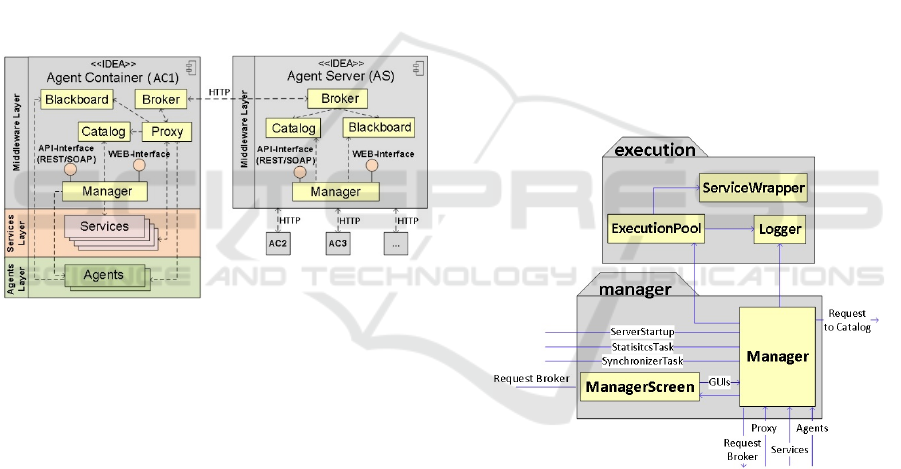

development and execution of agents. Figure 3 shows

the generic architecture.

Figure 3: IDEA generic architecture.

The architecture consists of three layers: (i)

Middleware, represented by the entities Broker,

Proxy, Catalog, Manager, and Blackboard; (ii)

Services; and (iii) Agents. The middleware layer

facilitates the development by abstracting complex

developer procedures. It provides communication,

concurrency, lifecycle management, and discovery.

The Agents and Services layers enables the

development of agent-based applications.

The Agent Container (AC1) represents the

containers where applications can be instantiated. The

communication between Agent Layer and Service

Layer is done by the Proxy, in the middleware layer.

For short, the agent does not need to know who is the

service provider, a feature that ensures transparency

and decoupling from the implementation. Services

can be created independently, and agents can use and

coordinate these services in their workflow.

Agent Server (AS) is responsible for

implementing the platform integration rules,

synchronizing the containers, maintaining a catalog

of all services, and calling remote services. There is

no Proxy in AS because its role of creating agent

instances and invoke services is performed only in the

containers.

AC and AS have three interfaces: (i) HTTP for

inter-platform communication between the front-end

server AS and the AC containers; (ii) an API

interface, which enables the communication with

external applications via REST/SOAP protocols; and

(iii) a WEB-Interface for platform management and

configuration by developers.

3.1 Middleware Layer

3.1.1 Management Model

Playing the roles defined by the management model,

the Manager Agent is the most complex agent in the

architecture. It collaborates with the other agents and

has its responsibilities distributed along five

packages: manager, screens, listeners, tasks and

execution. Figure 4 shows a partial view of its internal

structure.

Figure 4: Partial view of the manager model.

The manager acts as a gateway receiving/sending

request. It is also responsible for the initialization of

the network server, platform agents, and applications

agents. It collaborates (i) with the Catalog agent to

create service wrapper objects, (ii) with the Broker to

synchronize verification requests, and (iii) with the

Proxy, handling requests for queuing messages.

Manager Screen is a management class for accessing

the graphical user interfaces.

The purpose of the execution is to allow more

intuitive and flexible operations to be carried out in

the process of building a service request. In addition,

it creates an execution pool with queuing and request

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

378

execution. This package encompasses three classes:

(i) ServiceWrapper, making very simple the

construction of a service request by enabling the

specification of parameters without concerns about

their sequence, location or type conversion; (ii)

Logger, which implements a log file that is used to

store information about the processing of requests and

statistics; and (iii) ExecutionPool, controlling the

execution pool for synchronous and asynchronous

calls.

3.1.2 Communication Model

The communication model defines the way agents

communicate and how messages traverse service

providers and requesters. Communication can occur

in synchronous or asynchronous mode.

Synchronous Communication. Communication

among agents in the synchronous mode can occur in

three ways: extra-, inter- and intra-platform. Extra-

platform messages are performed via REST-SOAP

and is received by the Manager class placed in

manager, as shown Figure 5. It manipulates messages

extracting the XML message or parameters into a

native protocol. After that, it delegates the request for

the current business process (or entity).

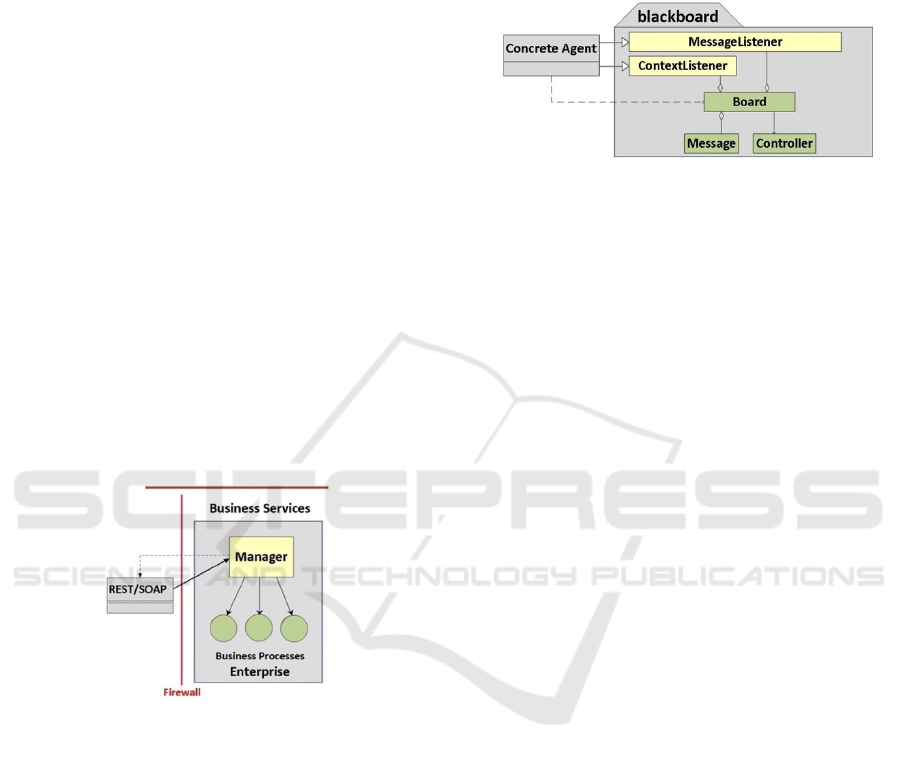

Figure 5: Extra-platform communication.

Inter-platform communication occurs when an

agent placed in an AC container requests a service

from another agent located in a remote container. The

request is sent to the Proxy, that processes and checks

whether it the service can be made available locally.

Otherwise, it forwards the message to the Broker

agent (in the container), that drives it to the AS. In

AS, the Broker agent identifies the service provider

container and forwards the message. Intra-platform

communication are the messages exchanged among

agents in the same container. They always are done

via Proxy that identifies the provider, creates the

instance, and invoke the service.

Asynchronous Communication. Blackboard

(Erman et al., 1980) is one of the most used

information exchange techniques in symbolic

cognitive systems. It acts as sensors that perceive

changes in the environment, addressing them to those

agents that implement the MessageListener and

ContextListener interfaces (Figure 6).

Figure 6: The blackboard architecture.

Board class is responsible for listeners registering.

When the blackboard is initialized, all agents are

registered as potential listeners, using their name as

an identifier. Agents can register with interest groups,

sending messages to everyone, to groups or to an

individual agent. During the resolution of a problem,

the actions taken by the agents gradually modify the

data structure, and the state of the solution. Board also

makes a data structure visible for all agents.

The Message class offers a set of services to keep

messages coming to the blackboard and its respective

log. Agents can access this log file and retrieve data

structured by group, date, subject, and so on.

Controller class is responsible for monitoring and

notifying agents or groups of agents about changes in

the blackboard. It acts as a sensor for agents,

capturing changes in the data structure and notifying

interested agents or groups of agents.

3.1.3 Service Model

Playing the roles defined by the Service Model, the

Proxy agent acts as a representative of the service

provider. It is responsible for processing service

requests. It plays a key role because it acts as a bridge

between agents and the presentation and data layers.

It reduces the complexity of the code and avoids the

implementation of controller classes to mediate the

two layers. Figure 7 shows the structure of the Proxy

agent, composed by two classes: Proxy and Factory.

Factory class plays an important role in making

the architecture flexible and adaptable. It performs

procedures of reconfiguration and dynamic creation

of instances. Reconfiguration makes possible for a

class running on the JVM to be replaced at run time.

Thus, new agents can be inserted dynamically into the

platform without to change the Factory class code.

A Lightweight Microservice-oriented Platform for Development of Intelligent Agent-based Enterprise Applications

379

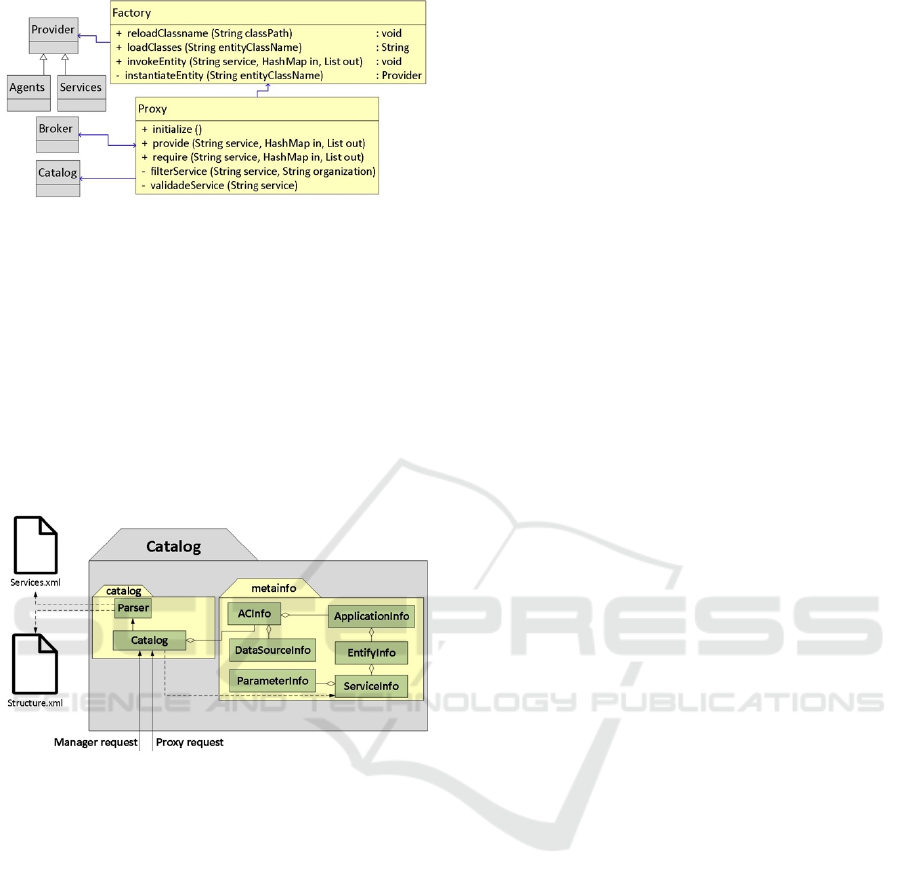

Figure 7: Service model architecture.

3.1.4 Resource Model

Resource is a fundamental concept that underpins

much of the SOA and services. A resource description

are metadata that makes possible for a human or

software agent to discover service and provider

entities (Bhuvaneswari and Sujatha, 2011). Figure 8

shows the internal structure of the Catalog, composed

by catalog and metainfo packages. The Catalog class

(in the catalog) is a gateway, able to handle service

requests from agents via Proxy.

Figure 8: Model architecture of Catalog agent.

In the metainfo package, services are organized in

a hierarchical parent/child entity set. Each element of

the structure is represented by a metaclasse

implemented as an entity. It stores specifications of

data sources in the DataSourceInfo entity, about the

service in the ServiceInfo entity, and so on. The

resources are described in the Services.xml file.

3.2 Services Layer

Unlike agents, services are purely reactive entities,

which have no thread of execution, although they can

execute concurrently. Services may be developed in

different granularities, as shown Section 2.1. The

abstract class Services can be used as a wrapper,

capable of encapsulating data access objects, domain-

specific functionality, legacy applications, parts of

business processes and other procedures. It is

common these services to be implemented for

database access or other procedures.

3.3 Agents Layer

In the agent layer, the abstract class Agents defines an

algorithm skeleton, including concrete and abstract

methods. The concrete methods provide a set of

already implemented functions, such as the interfaces

for interacting with the architecture, the procedures

that start the agent execution thread, and the basic

signatures for the agents’ lifecycle management.

More than simple entry-points, the abstract classes

empower the agents with facilities, such event-based

listeners, and implements a blackboard interface.

Agents offers two interfaces for external

communication: (i) a provider interface, by which the

agent can receive services call or collaboration

requests; and (ii) a requester interface, by which the

agent can request external services.

4 PRACTICAL SAMPLE

In order to validate the IDEA platform, some multi-

agent systems have been developed, like VLE-MAS

(Thalheimer, 2020), a Virtual Learning Environment

(VLE). VLE-MAS works in an abstraction layer

above the operational layer of the different platforms

for distance learning, such as Moodle. The goal was

to use intelligent software agents to make current

VLEs more proactive, dynamic, and interactive.

Agents monitor the environment, organize data, send

warning signals to tutors, teachers, and promote

interactivity with students.

Figure 9 presents the VLE-MAS architecture,

including: (i) the IDEA platform; (ii) a data webhouse

for representing the data models; (iii) VLE Multi-

Agent System composed by a set of collaborative

agents; and (iv) the Moodle virtual environment.

The VLE-MAS is composed by the following

collaborative agents: (i) Tracing Agent (TAg), that

manages the data structure; (ii) Interface Agent (IAg),

that performs interactions with human actors; (iii)

Knowledge Agent (KAg), for generating predictions

and prescriptions; (iv) Pedagogical Agent (PAg),

which performs content management, learning

objects and trails; and (v) Student, Tutor and

Professor, represent virtual instances of these human

actors. TAg is presented in this sample.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

380

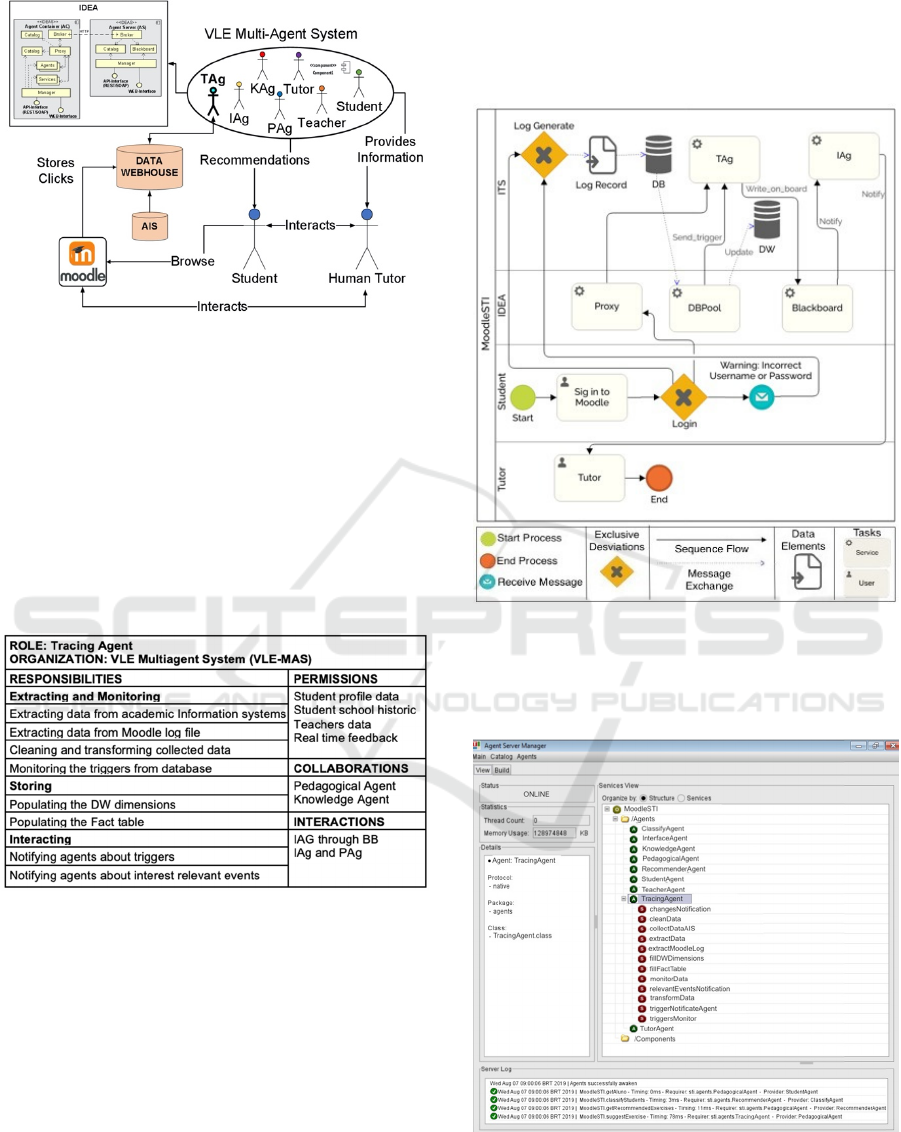

Figure 9: Generic architecture of the VLE-MAS system.

Gaia methodology, adapted to the context of

services, was applied for analysis and design. Figure

10 presents the role model of TAg agent. Tag’s

responsibilities are divided into three groups: (i)

Extracting and Monitoring; (ii) Storing; and (iii)

Interacting. It is possible to observe the differences in

granularity of services. Each group represents a

coarser granularity or composite service, built over a

set of finer granularities microservices. Permissions,

collaborations and interactions, in the right-side

column, state the data the agent is allowed to access.

Figure 10: TAg’s role model chart.

The TAg’s responsibilities are modeled with the

HEFLO tool (https://app.heflo.com). It has strong

adherence to the Business Process Model and

Notation (BPMN). It is intuitive and allows to

represent complex process details in an

understandable language in the business context.

Figure 11 shows a workflow of the Notifying

Triggers service, as well as collaboration and

interaction among agents and entities. The workflow

starts when the student logs in the Moodle. After

logged, the Proxy creates a student instance and sends

its ID to the TAg. Next, TAg receives a trigger

message from DBPool and writes this message in the

Blackboard. The IAg is notified, reads the message

and performs an interactive activity with the tutor,

completing the flow. DBPool is an entity of IDEA

responsible for managing access to databases.

Figure 11: Notifying Triggers service workflow.

Figure 12 presents the GUI wizard for VLE-MAS

application, including agents and the services

implemented by TAg.

Figure 12: GUI wizard displaying the TAg services.

For services reusing, clients need to know much

more than a simple service name or the address of the

service provider. Developers perceives a service as an

A Lightweight Microservice-oriented Platform for Development of Intelligent Agent-based Enterprise Applications

381

interface, including their necessary parameters. GUI

wizard provides filters for selecting services by

attributes like name, function, and keywords,

facilitating its location. In the left side, specifications

of the selected service are displayed.

5 RELATED WORKS

JADE (Bellifemine et al. 2001) is a platform that aims

to facilitate MAS development. The architecture is

based on the coexistence of several Java virtual

machines, having the communication between

different virtual machines done via Java RMI. Each

virtual machine is a basic agent container, which

provides an environment for running agents and

allows multiple agents to run concurrently on the

same host. Even though it was created almost twenty

years ago, JADE remains a reference. Its architecture

follows the reference model FIPA (2000), being

composed by three main agents in the infrastructure

layer: (i) Management System Agent, that performs

supervision and control over the access and use of the

platform; (ii) Communication Channel Agent, the

connection among agents inside/outside the platform;

and (iii) Directory Facilitator, that provides the

yellow pages service, which can be accessed by

agents and viewed by developers.

WADE (Banzi et al. 2008; Banzi et al. 2017) is a

software platform based on JADE that provides

support for the execution of tasks defined according

the workflow metaphor. WADE is a trademark of the

Telecom Italia SpA. Its key component is the

WorkflowEngineAgent class that extends the basic

Agent class of the JADE library embedding a small

and lightweight workflow engine. Besides normal

behaviors, a WorkflowEngineAgent is able to execute

workflows represented according to a WADE

specific formalism. The approach enables to combine

the expressiveness of the workflow metaphor with

programming languages like Java.

JaCaMo (Boissier et al., 2020) is a framework for

Multi-Agent Programming that combines three well-

known technologies: (i) Jason, for autonomous agents

programming; (ii) Cartago, for environment artifacts

programming; and (iii) Moise, for multiagent

organizations programming. A MAS is designed and

programmed as a set of agents which work and

cooperate inside a common environment. Agents

operating in this context follow the organizational

constraints defined by means of artifacts which

provide the agents’ functionalities and the operations

giving access to these functionalities.

Python Agent DEvelopment (PADE) (Melo et al.,

2019), is an open-source platform implemented in

Python and conceived for MAS implementation on

power systems. It is compliant with specifications of

FIPA and eases the development of solutions to

power systems based on MAS. By means of PADE,

developers are building smarter power grid systems.

Smart grids employ digital technology and are based

on highly collaborative and responsive decision-

making strategies.

6 DISCUSSION AND

CONCLUSIONS

IDEA offers several facilities and some important

advantages in comparison with the presented

approaches. First, none of the approaches are service

oriented, making difficult to adapt and reuse for

different levels of granularity. Second, it is more

difficult to design a MAS having to tackle with

composition and reuse details, instead of designing

only to meet a specific function.

For each agent service, JADE requires the

creation of a specific behavior intraclass that

describes programmatically the interface. A new

service request involves the handling of a controller

class, which needs to be programmed to manage the

communication among the application layers.

Depending on the system size, this class tends to

become extremely complex and liable to errors.

For both JADE and WADE, the specification of a

FIPA-ACL message structure specification is not

trivial. It involves a set of tags for different

communicative acts, expressions, and so on. IDEA

provides simplicity to the process of creating, sending

and receiving messages. It requires a much simpler

level of coordination for handling requests than the

approaches associated with the concept of messages

and theirs protocols.

The availability of a workflow engine in WADE,

as a JADE extension, makes the solution able to

perform workflows representing behaviors. However,

the already pointed limiting characteristics in the

FIPA core remain and can inhibit the large-scale use

in the context of business application.

Although its ability for enabling the development

under four layers of abstraction, JaCaMo is not easily

understandable. It presents a high level of difficulty

that does not match with the simplicity required for

developing large scale MAS. A particular difficulty is

understanding its conceptual model.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

382

PADE is tailored to work with advanced power

grids. So, it falls out of the enterprise and business

application context, central for the ideas presented

here.

Beyond the comparative advantages provided by

IDEA, it is important to notice that none of them

mention the ability to dynamically configure agents

and services. Intuitively, the asynchronous

communication model via blackboard used by IDEA

may be more efficient than those used in the analyzed

approaches. Handling asynchronous messages via

blackboard enables generating message logs, creating

a knowledge base that can be very useful for applying

machine learning techniques. In addition, it facilitates

the sending of broadcast messages, messages to group

of agents, or messages to a specific agent.

The main contribution of this work is a

microservice-oriented platform to facilitate and speed

up the MAS development in the business context. The

solution design seeks for a good trade-off between

usability and adherence to the standards. Excess of

adherence to standards can hinder the development

while to focus in good practices can lever this

process. As future works, the creation of a layer for

IOT handling and make IDEA an open-source

project.

REFERENCES

Banzi, M., Caire, G., Gotta, D., Pota, M. 2017. WADE -

Workflows and Agents Development Environment.

https://jade.tilab.com/wadeproject/.

Banzi, M., Caire, G., Gotta, D., 2008. WADE: A software

platform to develop mission critical applications

exploiting Agents and Workflows. In AAMAS 2008, 7th

International Joint Conference on Autonomous Agents

and Multiagent Systems: Industrial Track.

Bellifemine, F., Poggi, A., Rimassa G., 2001. JADE: a

FIPA compliant agent development environment. In

AGENTS '01, Fifth international Conference on

Autonomous Agents. ACM Press.

Boissier, O., Bordini, R. H, Hübner, J., Ricci A., 2020.

Multi-Agent Oriented Programming: programming

MAS using JaCaMo, MIT Press.

Bouman, R., Dongen, J. V., 2009. Pentaho Solutions:

Business Intelligence and Data Warehousing with

Pentaho and MySQL, Wiley Publishing.

Bhuvaneswari, N. S., Sujatha, S., 2011 Integrating SOA

and Web Services, River Publishers.

Cabri G., Leonardi L., Ferrari L., Zambonelli F., 2010.

Role-based software agent interaction models: a survey.

The Knowledge Engineering Review, 25(4):397-419.

Cabri G., Leonardi L., Zambonelli F., 2003. BRAIN: a

framework for flexible role-based interactions in

multiagent systems. In CoopIS, 2003 Conference on

Cooperative Information Systems.

Collier, R. W., Russell, S. E., Lillis, D., 2015. Reflecting on

Agent Programming with AgentSpeak. In PRIMA

2015, 18th International Conference Principles and

Practice of Multi-Agent Systems.

Crow, T., Luxton-Reilly, A., Wuensche, B., 2018.

Intelligent tutoring systems for programming

education. In ACE ’18, 20th Australasian Computing

Education Conference, p. 53-62.

Dragoni, N., Giallorenzo, S., Lluch, A., Montes, F.,

Mustafin, R., Safina, L. 2017. Microservices:

Yesterday, today, and tomorrow. In Present and

Ulterior Software Engineering. Springer. p. 195–216.

Erman, L. D., Hayes-Roth, F., Lesser, V. R., Reddy, D. R.,

1980. The Hearsay-II Speech Understanding System:

Integrating Knowledge to Resolve Uncertainty. ACM

Computing Survey 12:213-253.

FIPA, 2000. FIPA Reference FIPA-OS V2.1.0, Nortel

Networks Corporation.

Haendchen Filho, A., Prado, H. P., Lucena, C.J.P. 2007. A

WSA-based architecture for building multiagent

systems. Proceedings of the 6th international joint

conference on Autonomous agents and multiagent

systems, AAMAS 2007.

Higashino, M., Kawato, T., Kawamura, T., 2018. A Design

with Mobile Agent Architecture for Refactoring A

Monolithic Service into Microservices. Journal of

Computers, 13(10).

Kulkarni, N., Dwivedi, V. 2008. The role of service

granularity in a successful SOA realization – A Case

Study. In 2008 IEEE Congress on Services.

Lewis, G. A., Smith, D. B., 2007. Four pillars of Service-

Oriented Architecture. The Journal of Defense

Software Engineering, Carnegie Mellon University,

Software Engineering Institute.

Lewis, G. A., Smith, D. B., Kontogiannis, K., 2010. A

Research Agenda for Service-Oriented Architecture:

Maintenance and Evolution of Service-Oriented

Systems. Technical Note, CMU/SEI-2010-TN-003.

Melo, L. S., Sampaio, R. F., Leão, R. P. S., Barroso, G. D.,

Bezerra, J. R., 2019. Python ‐ based multi ‐ agent

platform for application on power grids. International

Transactions on Electrical Energy Systems, 29(6).

Silva, B. D, 2017. Dossiê: Modelo de Confiança para

Sistemas Multiagentes. PhD Dissertation – Pontifícia

Universidade Católica do Paraná, v. 1, 2017. 134 p.

Thalheimer, J. M., 2020. A tracing agent in the context of

collaborative agents for monitoring and managing the

data structure in virtual learning environments. MSc

Thesis. UNIVALI. (in Portuguese).

Zambonelli, F., Jennings, N. R., Wooldridge, M., 2001.

Organisational Abstractions for the Analysis and

Design of Multi-agent Systems. In P. Ciancarini, M.J.

Wooldridge, Agent-Oriented Software Engineering,

LNCS, 1957:235-251, Springer-Verlag.

A Lightweight Microservice-oriented Platform for Development of Intelligent Agent-based Enterprise Applications

383
