Portable High-level Agent Programming with golog++

Victor Mataré

1 a

, Tarik Viehmann

2 b

, Till Hofmann

2 c

, Gerhard Lakemeyer

2 d

Alexander Ferrein

1 e

and Stefan Schiffer

1 f

Institute for Mobile Autonomous Systems and Cognitive Robotics, FH Aachen University of Applied Sciences,

Aachen, Germany

Knowledge-based Systems Group, RWTH Aachen University, Aachen, Germany

Keywords:

Robotics, Agents, Planning, Constraints, Abstraction, Golog, Action Logic.

Abstract:

We present golog++, a high-level agent programming and interfacing framework that offers a temporal con-

straint language to explicitly model layer-penetrating contingencies in low-level platform behavior. It can

be used to maintain a clear separation between an agent’s domain model and certain quirks of its execution

platform that affect problem solving behavior. Our system reasons about the execution of an abstract (i.e.

exclusively domain-bound) plan on a particular execution platform. This way, we avoid compounding the

complexity of the planning problem while improving the modularity of both golog++ and the user code. On

a run-through example from the well-known blocksworld domain, we demonstrate the entire process from

domain modeling and platform modeling to plan transformation and platform-speciﬁc plan execution.

1 INTRODUCTION

Conceptually, a high-level control program makes a

robot execute a sequence of actions that achieves a

certain goal, where each action is some elementary

step that manipulates the environment in a predictable

manner. A (formal) description of the preconditions

and effects of such actions is often called a domain

model (or domain theory), and it is supposed to cover

the robot’s environment with its speciﬁc tasks and

challenges. In particular, a description of the domain

is not supposed to be tied (i.e., refer in any way) to

concepts that are speciﬁc to the robot platform (i.e.,

its hardware, software and their limitations).

In practice however, it turns out that a perfect sep-

aration between an agent’s environment and its plat-

form is unattainable. Every hardware platform has

speciﬁc properties and limitations, which cannot sim-

ply be abstracted by a reactive layer below the agent

level.

As an example, consider an RGB-D camera used

for object recognition. Such cameras often actively

https://orcid.org/0000-0003-4606-4758

https://orcid.org/0000-0003-0264-0055

https://orcid.org/0000-0002-8621-5939

https://orcid.org/0000-0002-7363-7593

https://orcid.org/0000-0002-0643-5422

https://orcid.org/0000-0003-1343-7140

project an infrared pattern from which depth informa-

tion is reconstructed, so they are notoriously power-

hungry and may also cause disturbance in other IR-

sensitive devices in the environment. As a result, such

cameras need to be switched off when they are not

being used. When switching them on, they typically

take a few seconds to initialize, so in order to not

cause delays, we want to switch it on shortly before

it will be used.

For this reason, switching the camera on and off is

a platform-specific behavior that can only be sensibly

integrated at the strategic agent level. There are ap-

proaches that model everything from the domain the-

ory down to its mapping onto a particular platform as

one uniﬁed planning problem. However, this can re-

sult in a signiﬁcant increase in the domain size and

thus the search space size, thereby impairing planner

performance.

As an alternative approach, (Hofmann et al., 2018)

proposed to separate the platform model from the do-

main theory such that the domain theory is abstract

and independent of the underlying platform. The

platform model describes the platform components

with timed automata. Temporal constraints describe

the relationship between domain theory and platform

model, e.g., by stating that two seconds before doing

a scan action, the camera should be switched on.

golog++ is a GOLOG development framework

218

Mataré, V., Viehmann, T., Hofmann, T., Lakemeyer, G., Ferrein, A. and Schiffer, S.

Portable High-level Agent Programming with golog++.

DOI: 10.5220/0010253902180227

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 218-227

ISBN: 978-989-758-484-8

that decouples the language syntax, the runtime se-

mantics and the platform interfacing. In this paper,

we describe the runtime semantics of the temporal

constraint language we offer as a means to explic-

itly model how platform-speciﬁc quirks and contin-

gencies interact with a platform-independent domain

theory.

We begin with some background on the GOLOG

language family and other related work in Section 2.

Section 3 is the main part of this paper, where we

build up an application example based on the well-

known Blocksworld domain. We start by introducing

a simple Basic Action Theory (BAT) in Section 3.1,

and continue in Section 3.2 with a golog++ main pro-

cedure that solves a problem within this domain. Sec-

tion 3.3 then introduces our platform modeling lan-

guage by linking the above-mentioned RGB-D cam-

era problem to the Blocksworld BAT. Section 3.4

roughly describes one particular method of trans-

forming a platform-independent plan into a platform-

speciﬁc schedule given the domain theory and the

platform model shown before. The example run-

through is ﬁnished in Section 3.5 with more detailed

account of how a transformed schedule is executed

and how platform consistency is maintained at run-

time.

2 BACKGROUND & RELATED

WORK

As mentioned before, advances in hybrid planning

systems (Halsey et al., 2004; Shu et al., 2005; Eyerich

et al., 2012, etc.) make it possible to treat a domain

theory along with temporal platform contingenciens

as a single, integrated planning problem (Stock et al.,

2015; Dvorak et al., 2014). There is however no way

around the fact that this approach can compound the

problem problem complexity to the point that an oth-

erwise solvable problem becomes intractable.

So introducing some kind of separation between

domain and platform is a natural choice, and the re-

lation between the two is being investigated with di-

verse goals and requirements. (Kone

y et al., 2014)

introduce a concept they call execution semantics

which is used for consistency monitoring during exe-

cution. It is based on Allen’s Interval Algebra (Allen,

1983), much like the groundwork for our endeavour

(Schiffer et al., 2010). Their goals are however differ-

ent from ours in that they aim to increase plan robust-

ness with regard to changes in the world state. (Kunze

et al., 2011) leverage the Web Ontology Language

(Bechhofer et al., 2004) to deﬁne a language called

Semantics Robot Description Language (SRDL) to

map a task-level strategy onto kinematic description

languages.

The roots of our work can be traced back to the

Situation Calculus (McCarthy, 1963; McCarthy and

Hayes, 1969), SitCalc for short. The SitCalc is a

second-order logical language with equality that is de-

signed to reason about actions and their effects. A

situation in the world is the result of a sequence of ac-

tions given an initial situation s

. The preconditions

of actions are described in terms of so-called ﬂuents:

Predicates that carry a situation term as their last ar-

gument. Successor state axioms specify which ﬂuents

hold true in a given situation s. This idea spawned the

ﬁrst GOLOG language (Levesque et al., 1997), where

a nondeterministic imperative program is combined

with a so-called Basic Action Theory that speciﬁes

a SitCalc-like model of the problem domain. This

allows an interpreter to ground the nondeterministic

choices and obtain a grounded action sequence that

can be executed.

Since then, the GOLOG language family has

grown signiﬁcantly, with newer dialects increasing

the capabilities of the original language in differ-

ent directions. CONGOLOG (De Giacomo et al.,

2000) introduced concurrent execution and exoge-

nous actions, allowing an agent to react to events

not triggered by itself. INDIGOLOG (De Giacomo

et al., 2009) made the resolution of nondeterminisms

(i.e. planning) more explicit and thereby increased

capabilities for incremental planning. DTGOLOG

(Boutilier et al., 2000) introduced the capability to op-

timize planned choices against a reward function, thus

introducing decision-theoretic planning. READY-

LOG (Ferrein and Lakemeyer, 2008) integrated fea-

tures from DTGOLOG, PGOLOG and CCGOLOG

(Grosskreutz and Lakemeyer, 2000; Grosskreutz

and Lakemeyer, 2003) to combine decision-theoretic

planning with uncertain action outcomes and ﬂuents

that change continuously over time. The problems

associated with active sensing, resource management

and execution monitoring have also been touched

early in the GOLOG evolution (Hähnel et al., 1998;

Lakemeyer, 1999).

Despite all the progress in GOLOG language se-

mantics, there has been surprisingly little effort put

into the more engineering-related issues like language

usability, platform interfacing and maintainability of

both user code and interpreter implementations. This

effectively puts the GOLOG world at a disadvantage

towards better integrated agent languages like PDDL

or PRS. Important progress towards language usabil-

ity and integration has been made by golog.lua (Fer-

rein, 2010) and the YAGI dialect (Ferrein et al., 2012),

the latter of which has inspired the the golog++ archi-

Portable High-level Agent Programming with golog++

219

tecture (Mataré et al., 2018) and its action execution

interface (Kirsch et al., 2020).

While earlier explorations of the way we han-

dle temporal platform contingencies (Schiffer et al.,

2010) were still based on Allen’s Interval Algebra

(Allen, 1983), this work is based on a more expressive

temporal language called t-ESG (Hofmann and Lake-

meyer, 2018; Hofmann et al., 2018), which embeds

the Metric Temporal Logic (Koymans, 1990, MTL for

short) into ESG (Claßen and Lakemeyer, 2008).

3 PLATFORM ABSTRACTION IN

golog++

In golog++ (same as in many other GOLOG dialects),

programmers have the freedom to interleave planning

with imperative code. Planning is done over regu-

lar imperative code where some parameter choices

are made nondeterministically. Wrapping an impera-

tive code block in a solve(f, h){...} statement lets

golog++ resolve all nondeterminisms in such a way

that the cumulative reward function f is maximized

given the maximum search depth (horizon) h. This

gives programmers the freedom to, for instance, gen-

erate many short plans that solve a problem step by

step, to use a ﬁxed plan library, or even to rely only

on scripted behaviour and not use planning at all.

In classical GOLOG, actions are completed instan-

taneously. In contrast, all domain actions deﬁned in

golog++ (as shown in the next section) are implic-

itly durative. That means they have a begin, a du-

ration and an end, similar to the concept of durative

actions introduced by (Reiter, 1996). So when a user

deﬁnes an action a(), this durative deﬁnition spawns

the instantaneous actions start(a()) and end(a()).

The precondition of a() becomes the precondition

of start(a()), and the precondition of end(a()) de-

pends on a ﬂuent that can only be set by an exogenous

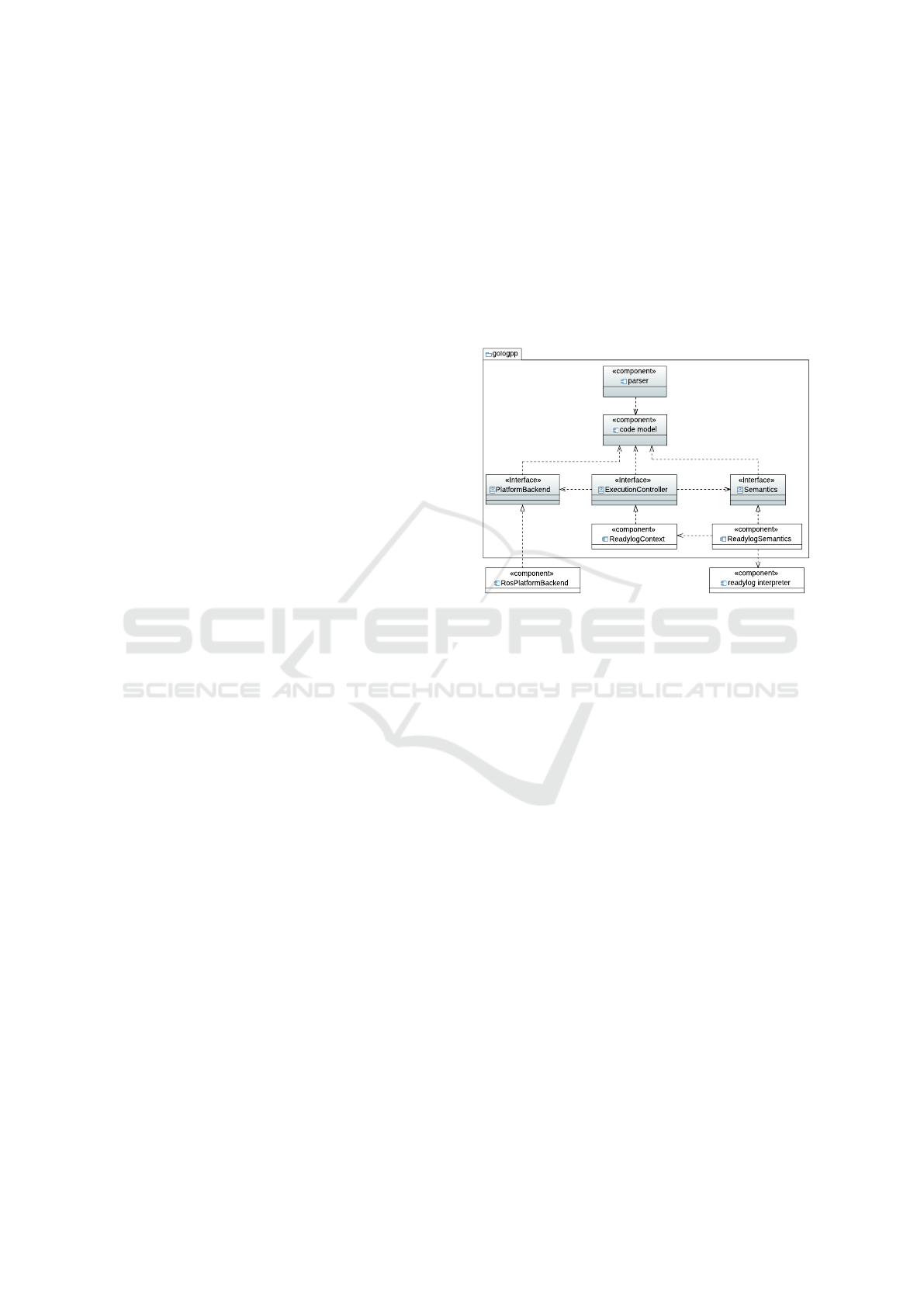

action triggered by the platform backend (cf. ﬁg. 2).

This reﬂects the fact that an agent generally can-

not control if and when a robot platform is ﬁnished

executing a certain task. For example, an agent may

of course cancel a robot’s movement while it is on

its way to a certain target, but it cannot simply stip-

ulate that it has now arrived. So when a program-

mer calls a();, that call is internally expanded into

{start(a()); end(a());}, although these instanta-

neous actions can also be called explicitly.

If the precondition of any action is not satisﬁed,

execution will block at that point and wait for an ex-

ogenous event to change the world state before testing

the precondition again.

Apart from the platform modeling features de-

scribed in sections 3.3 to 3.5, what sets golog++

apart from earlier implementations is its modular ar-

chitecture and vastly improved language usability. All

structural assumptions are explicitly represented in

abstract interfaces, and behavioral assumptions be-

tween major components are kept to an absolute min-

imum. This means for example that development on

language semantics can be done independently from

all of the other concerns.

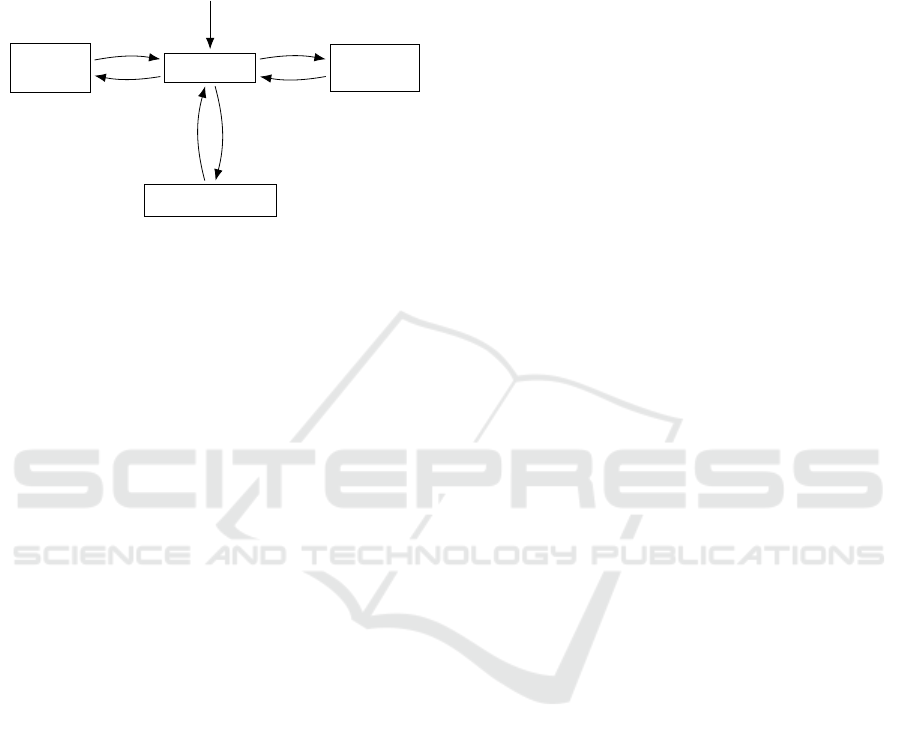

Figure 1: An overiew of the golog++ component architec-

ture. Shaded boxes represent the core architecture, while

the plain boxes are exchangeable. For more background and

motivation on this architecture, see (Mataré et al., 2018).

Only the shaded boxes in ﬁg. 1 make up the golog++

core architecture. Everything within the "gologpp"

package container is shipped with the source distribu-

tion, but the white boxes represent components that

are intended to coexist with alternative implementa-

tions.

The coexistence with alternatives is especially rel-

evant for the platform backend: golog++’s interface

to a real execution platform (i.e., a robot, a simulation,

etc). It typically leverages the functionality of some

robotics middleware framework like ROS (Quigley

et al., 2009) or Fawkes (Niemueller et al., 2010) to

dispatch and monitor action execution and to asyn-

chronously notify golog++ of any relevant exogenous

events (Kirsch et al., 2020). Additionally, it supplies

a clock source with a timed wakeup mechanism and

manages low-level components according to the plat-

form models shown later in section 3.3.

Regarding language usability, golog++ improves

on the state of the art by (1) deﬁning an intuitive yet

strict language syntax and implementing it in a parser

that gives precise error messages, and by (2) making

the language typesafe. In combination, these two fea-

tures allow us to statically verify referential integrity

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

220

and thereby catch the most common programming er-

rors before any code is executed.

3.1 The Basic Action Theory Σ

Fundamental to every golog++ program (as in all

GOLOG dialects) is the Basic Action Theory (BAT).

A BAT Σ describes the domain, mainly in terms of

what actions can be performed, what preconditions

they have and how they will affect the state of the

world.

golog++ uses a notation that is inspired by the C

syntax. Being a syntax that is optimized for readabil-

ity (as opposed to grammar size), the full grammar of

the language is too large to be reproduced here. That

is why we limit ourselves to giving code examples

which should sufﬁce to convey an intuition about the

language syntax.

Since golog++ is an explicitly, statically type-

safe language, all expressions have a ﬁxed type.

A compound type deﬁnition speciﬁes a key-value

structure, and can be freely deﬁned and nested

by the user. list types are also user-deﬁned

and are likewise arbitrarily nestable both in each

other and in compound types. A domain type de-

ﬁnes a named subset of values from some other

type, typically to enumerate relevant domain el-

ements. In the blocksworld scenario, we can use

domains of symbols to represent blocks and locations:

symbol domain Block = { A, B, C }

symbol domain Location =

Block | { Table, Home, Unknown }

An expression of the symbol type can be thought

of as an unquoted string that has to be deﬁned as a

member of some domain before it can be referenced.

So any expression of type Block can take the values

A, B or C, and any expression of type Location can

take the values A, B, C, Table, Home or Unknown. With

these restrictions, we can deﬁne a functional ﬂuent

that evaluates to the current location of a given Block:

Location fluent loc(Block x) {

initially:

loc(A) = Table;

loc(C) = Table;

loc(B) = C;

}

In addition to deﬁning the ﬂuent’s type signature, this

statement also deﬁnes the initial situation s

with

regard to the ﬂuent loc(Block). Using anything other

than a member of the Block domain as an argument

or assigning anything other than a Location as a

value will lead to a static error being raised.

This is already a highly speciﬁc description of the

world state for our simpliﬁed blocksworld scenario.

To complete our BAT, all we need is a descrip-

tion of how our agent can affect the world state.

That is, we need an action that moves a Block x

from its current location to another Location y:

action put_block(Block x, Location y) {

effect:

loc(x) = y;

precondition:

x != y & loc(x) != y

& (!exists(Block z) loc(z) == x)

& (y == Table

| !exists(Block z) loc(z) == y)

duration:

[4, 10]

}

Note how the current location is absent from the

action’s signature and how we are able to encode the

precondition without resorting to additional helper

predicates like Free(x) that are required e.g. in a

PDDL encoding of the Blocksworld domain. So in

detail, the action’s precondition says that we cannot

stack a Block x on itself, that its current location

must be different from y, and that there cannot be

another Block z on top of either x or y, except if y is

the Table (we can put all we want on the Table).

For demonstration purposes, we also introduce

two other actions. The go_to(...) action makes the

robot drive to a certain location using collision avoid-

ance, while align_to(...) will align it precisely so as

to be able to perceive and manipulate objects. We’re

omitting the deﬁnitions of these two actions here be-

cause for the purpose of this paper we are only con-

cerned about their interaction with the platform model

as shown further below.

3.2 The Main Procedure δ

As mentioned in the introduction, GOLOG-based lan-

guages do not automatically search the entire ac-

tion space for a solution to a certain goal. In-

stead, the programmer writes an imperative pro-

gram δ

that can include nondeterministic elements.

These nondeterministic elements make up the search

space for a planning operator that resolves them

so that the code block nested into it becomes exe-

cutable

. One example of such a nondeterminism

is the pick(T var) CODE(var); statement. It tells

golog++ to assign a value from the type T to the vari-

able var for which CODE(var) is executable. Com-

bined with classical imperative constructs, this can

be used to write a program that solves a Blocksworld

problem like a classical planner would:

"Executable" here means that the preconditions of all

executed actions hold true.

Portable High-level Agent Programming with golog++

221

bool function goal() =

loc(A) == Table & loc(B) == A

& loc(C) == B

number function reward() =

if (goal())

100

else

-1

The goal() function decides whether the desired situ-

ation has been achieved, and the reward() function

gives a large payout in the goal() situation while

slightly penalizing all other situations.

procedure main() {

solve(16, reward()) {

go_to(Table);

align_to(Table);

while (!goal())

pick (Block x) pick (Location y)

put_block(x, y);

go_to(Home);

}

The main() procedure shown above com-

bines deterministic action calls (go_to(Table),

align_to(Table) and go_to(Home) with a

nondeterministic parameter choice within the

while (...) {...} loop. The result is a plan that

always begins with the two hard-coded actions and

ends with the hard-coded go_to(Home), but has a

variable sequence of put_block(x, y) actions in the

middle that realizes the shortest path to a situation

that satisﬁes the goal() function. The two pick(...)

statements are responsible for nondeterministically

binding the variables x and y. Without the enclosing

solve(...) block, parameter assignments would

be picked at random and every action would be

dispatched for execution immediately (online exe-

cution in GOLOG jargon). The solve(...) block

enables ofﬂine execution: Actions are not dispatched

to the platform backend, only their preconditions

are checked and their effects are applied, forming

a tree of situations. The entire while(...) block

is executed this way until it terminates or until the

maximum search depth (here 16 actions) is reached.

If an action’s preconditions are not satisﬁed, that

branch is not expanded further, and penalizing any

non-goal situation results in the shortest plan giving

the highest cumulative reward.

For illustration’s sake, say we want to formulate a

different strategy: Maybe we have a lot of space on

the table and manipulation works well, so we think

it’s best to ﬁrst unstack every block and spread them

out on the table, and only then stack them back up in

the desired conﬁguration. Then we could just "tran-

scribe" that strategy in two nondeterministic loops:

procedure main2() {

solve(22, reward()) {

go_to(Table);

align_to(Table);

while (exists(Block x) loc(x) != Table)

pick (Block x)

put_block(x, Table);

while (!goal())

pick (Block x) pick (Block y) {

test(loc(x) == Table);

put_block(x, y);

}

go_to(Home);

}

While this solution may look more complicated at

ﬁrst glance, it actually results in a less complex plan-

ning problem. It encodes sort of a divide-and-conquer

strategy, sacriﬁcing solution optimality for planning

speed: In main2(), the ﬁrst loop only uses a branch-

ing factor of 1, making that search trivial. Then in

the second loop, blocks can only be moved onto other

blocks and the test(...) statement further restricts

the search to blocks which are still on the table, ef-

fectively limiting the search depth to the number of

blocks in existence. Depending on the initial situation

and the goal, the generated plan will likely contain a

number of actions that could have been saved (think

of stacking A-B-C into C-B-A for example), but the

planning will now scale linearly with the number of

blocks instead of quadratically.

3.3 The Platform Model Π

The example code shown so far is concerned purely

with the domain semantics. To execute it efﬁ-

ciently on a particular robot platform, certain layer-

penetrating details of lower-level components may

have to be considered. This phenomenon has been

observed across many areas of software development

(i.e. not just in robotics) and is being discussed under

the term leaky abstraction (Spolsky, 2002).

In Section 1, we mentioned a depth camera as an

example of a hardware component that exhibits be-

haviour that cannot be completely "abstracted away".

Here our platform modeling language can be used to

describe precisely what hardware-speciﬁc behaviour

should be accounted for:

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

222

component depth_cam {

clocks: bcl

states: off, boot (bcl < 4), on, error

transitions: off => boot resets(bcl),

boot ->(bcl > 2) on,

on => off,

error => off

}

The depth_cam component is modeled as a timed au-

tomaton according to (Alur and Dill, 1994). The dis-

tinctive feature of timed automata is that they can have

an arbitrary number of clocks that all count upward

with a uniform period and can be reset by certain

transitions. Both states and transitions can then be

guarded by simple conditions over these clocks.

Here, the model says that the component can only

remain in the boot state as long as the bcl clock

counts less than 4 (seconds in our case). Switching

from off to boot resets bcl to 0, and the transition

from boot to on can only be taken after at least 2 sec-

onds have passed on bcl. The thin arrow (->) on the

transition from boot to on also indicates that this is an

exogenous transition, meaning that it is not triggered

by the agent, but by the component itself. The agent

cannot inﬂuence if and when it happens: it can merely

acknowledge the fact that it did. This is the timed

automata equivalent of saying "The camera takes 2-4

seconds to boot". Now all we need to say is that we

want the depth_cam to be in the on state during any

put_block(...) action:

constraints {

during(put_block(*, *)):

state(depth_cam) = on;

during(go_to(*)):

state(depth_cam) = off;

}

The set of all component automata combined with the

set of all constraint formulas is called the platform

model Π. Generally speaking, a constraint formula

is an implication φ ⊃ ψ, where φ is a formula with

t-ESG semantics that refers only to action terms from

the domain theory Σ, and ψ is formula that refers only

to component states from the platform model Π. We

call φ the action spec and ψ the state spec. In the

golog++ notation shown above, the colon ":" repre-

sents the implication sign "⊃". All temporal opera-

tors can optionally be sufﬁxed with temporal bounds

[t,u]. Other than during, golog++ also supports the

temporal operators previous/next, future/past, and

since/until. The semantics of such temporal formu-

las and their relation to the situation calculus are de-

ﬁned in (Hofmann and Lakemeyer, 2018).

3.4 Plan Transformation

The plan produced by hΣ, δ

i is platform-agnostic and

doesn’t specify temporal boundaries. The plan trans-

formation takes this as input and attempts to satisfy all

platform constraints by inserting maintenance actions

and assigning a [t

min

, t

max

] time window to each ac-

tion. The transformation speciﬁcally is not supposed

to alter the initial action sequence in any way, because

the platform control is assumed to be completely dis-

joint from the domain of reasoning, resulting in a

clear separation between platform speciﬁcs and the

agent BAT as in (Hofmann et al., 2018; Hofmann

and Lakemeyer, 2018). In combination with the sim-

ple structure of platform constraints that demand plat-

form control solely based on the occurrence of certain

domain actions, this allows us to treat the plan trans-

formation as an isolated task only being concerned

with respecting

1. the order and durations of actions according to the

initial plan

2. the temporal features of the platform model

(guards and invariants of the modeled TAs with-

out exogenous transitions as the framework has

no control over them)

3. the desired platform control according to the plat-

form constraints.

Any transformation procedure capable of dealing

with these requirements may be suitable for our appli-

cation. One particular procedure developed with our

use case in mind is presented in (Viehmann, 2019).

There the task is tackled by encoding the entire plat-

form model (i.e. both the component automata and

the constraints) as a reachability problem over timed

automata. Despite being a PSPACE-complete prob-

lem (Alur and Dill, 1994), this is often solvable quite

efﬁciently with modern techniques. The rough idea is

to construct a single automaton with a designated ﬁ-

nal state, such that every path to that state corresponds

to a possible transformed plan together with a range

of possible action time groundings, from which any

one particular may be computed.

Generally there is no single unique solution to

such a plan transformation. Solutions may differ in

the order or types of inserted maintenance actions and

(most likely) in the time windows assigned to each ac-

tion.

3.5 Execution

During execution, the main program δ (initially

δ = δ

) is traversed by the Controller (cf. Figure 2).

Portable High-level Agent Programming with golog++

223

The basic idea is that of an event loop, which is real-

ized by a blocking queue q

exog

. First, all pending ex-

ogenous events are processed in a non-blocking man-

ner, i.e. execution continues as soon as q

exog

is empty.

Controller

hΣ, s

, Π, p

, δ = δ

Platform

Backend

exog

a, t

wake

Transition

Function

hΣ, s, δi

hδ, l = l

Transformation

hΠ, p, li

Figure 2: Flow of events and information between the major

components involved in program execution.

The Transition function is responsible for interpret-

ing program elements up to the point where the next

online action must be executed. It returns the remain-

ing program δ and the resulting abstract plan l

. If

δ calls the next action from outside a planning block

(online), l

is a trivial plan that contains just this sin-

gle action. If a planning block is encountered, the

Transition function will plan through it and return the

resulting plan l

. If the end of the planning block was

reached, l

is valid and the planning block is removed

from the remaining program δ. Note that a valid plan

could also be the empty plan {}.

If the transition function does not reach the end of

the planning block, that means no valid plan could be

found in the current situation s. The remaining pro-

gram δ is not changed, l

is null (i.e. invalid) and we

must wait for the environment to change (i.e. block

on q

exog

) before trying again.

Given the hΣ, s

, δ

i described above, the transi-

tion function will generate the following abstract plan

{

start(go_to(Table));

end(go_to(Table));

start(align_to(Table));

end(align_to(Table));

start(put_block(B, A));

end(put_block(B, A));

start(put_block(C, B));

end(put_block(C, B));

start(go_to(Home));

end(go_to(Home));

}

The durative domain actions have been expanded

into instantaneous start(...) and end(...) actions

and the nondeterministics pick(...) statements have

been grounded such that the plan produces the maxi-

mum cumulative reward().

The abstract plan l

is transformed according to

the platform model Π given the current platform state

p. This turns l

into a schedule l that satisﬁes the

platform constraints. In our example, the result will

resemble the following:

{

[0,32748] start(go_to(Table))

[0,32768] end(go_to(Table))

[1,21] switch_state(depth_cam, off, boot)

[1,5] start(align_to(Table))

[3,5] switch_state(depth_cam, boot, on)

[3,13] end(align_to(Table))

[13,15] start(put_block(B, A))

[15,19] end(put_block(B, A))

[17,19] start(put_block(C, B))

[19,23] end(put_block(C, B))

[19,23] switch_state(depth_cam, on, off)

[21,23] start(go_to(Home))

[21,43] end(go_to(Home))

}

Each action a has been annotated with a time win-

dow [t

min

max

] for its execution, and platform main-

tenance actions have been inserted to satisfy platform

constraints.

The constraints say that the depth_cam must

be off during any go_to(...) action, but they

say no such thing about the align_to(...) ac-

tion. Therefore, the transformation can insert the

switch_state(depth_cam, off, boot) action only

after the go_to(...) has ended. In this case, it co-

incides with the start of the align_to(Table) action,

likely giving the device enough time to complete its

boot procedure while the robot is aligning to the table.

Next up is an exogenous transition from boot to on,

so the action switch_state(depth_cam, boot, on)

will block until the depth_cam component has actu-

ally ﬁnished its boot procedure. The same is true for

end(align_to(Table)). Once both actions have been

executed, we can start stacking blocks according to

the solution found by the solve(...){...} block. Af-

terwards, another go_to(...) action is scheduled, so

the transformation has arranged for the depth_cam to

be switched off before it.

Before any action is executed, its time window

is checked against the current time: If it is still

too early, a timer event at t

wake

= t

min

is sched-

uled on the Platform Backend. Then, the Con-

troller blocks on q

exog

. When the timer event ﬁres

at the wall time t

wake

, the Platform Backend wakes

the Controller up by enqueueing an exogenous event

step_context_time(t

wake

+ ε) to q

exog

. Any exoge-

nous event (including the timer event) will be con-

sumed when it comes up and unblock the Controller.

Other possible events include exogenous component

state changes and any exogenous actions deﬁned by

the BAT Σ.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

224

In case the platform state p did change exoge-

nously, we trigger another Transformation before at-

tempting to execute the next action a. This re-

transformation may insert new maintenance actions,

even at the beginning of the plan to maintain or re-

store platform consistency, effectively changing the

next scheduled action a. If and when a ﬁnally be-

comes possible, it is dispatched to the Platform Back-

end, has its effects applied to the current situation and

is removed from the remaining schedule l. After this,

schedule execution will continue in this way until the

schedule is empty, at which point the remaining pro-

gram δ will continue to be evaluated if it is non-empty.

In the real world, this loop will actually spend

most of its wall time being blocked on q

exog

, wait-

ing for an action to end, waiting until a certain point

in time or for any other kind of exogenous event that

may make the next action a executable.

4 EVALUATION

In 2018/2019 golog++ was used by students in a

lab course to develop an agent for the RoboCup Lo-

gistics League (RCLL Technical Committee, 2018;

Niemueller et al., 2015). The students used the Logis-

tics League simulation in a non-adversarial setup (one

team of 3 cooperating robots on the playing ﬁeld). In

the Logistics League, robots score points by using the

playing ﬁeld to manufacture and deliver products or-

dered by a central game controller (the referee com-

puter or RefBox). Ordered products vary in their de-

livery time windows and in their complexity, with the

more complex ones requiring forty or more interac-

tions with the playing ﬁeld.

In the beginning, we could observe the students

intuitively employing a trial-and-error behavior while

they familiarized themselves with the basic syntax

and semantics of the golog++ language. At this stage,

much of the learning process was being driven by the

error messages generated by the parser and the type

system.

Later during the semester, as students’ pro-

ﬁciency grew along with their code bases, their focus

shifted to experimenting with different team coordi-

nation strategies and how to employ incremental plan-

ning effectively given the uncertainties inherent in the

Note that this would not have been possible with any

of the classical Prolog-based GOLOG dialects because they

neither deﬁne a GOLOG-speciﬁc syntax nor do they check

for any level of semantic coherence (static semantics). With

these, a self-guided, experimental learning process would

have been impossible because many typical beginner’s mis-

takes (syntax errors, parameter mismatches etc.) yield un-

deﬁned behavior instead of helpful error messages.

Figure 3: Top: Playing ﬁeld of the RoboCup Logistics

League (RCLL), seen here during the RoboCup 2015 in

China. The robots (circular bodies) use the Festo MPS ma-

chines (rectangular boxes with AR tags) to manufacture and

deliver ordered products. The MPS machines are movable

and the playing ﬁeld layout changes with each game. Bot-

tom: RCLL simulation. Picture source and further league

details see (Niemueller et al., 2016).

domain.

The fact that students with little previous pro-

gramming experience and little to no background in

knowledge-based multi-agent development were able

to get to this stage shows that golog++ development

can be self-taught sustainably and that it can be a help-

ful tool in teaching knowledge-based high-level agent

programming.

5 CONCLUSION

We have shown how to solve a domain-speciﬁc prob-

lem in a platform-conformant manner while maintain-

ing a strict separation between domain and platform

on all levels. In broader terms, our architecture re-

ﬂects the fact that while an individual is never entirely

separable from its environment, the relationship be-

tween both still follows a different logic than that of

the environment itself. That is why we think it is both

natural and effective to have different formalisms to

model a platform (here: timed automata) and a do-

main (here: GOLOG), and to describe their relation-

ship in a language (here: t-ESG constraints) whose

semantics overlap with both.

We have shown how the execution controller al-

ways strives to keep the runtime behavior consistent

Portable High-level Agent Programming with golog++

225

with the platform model, even in the presence of

unplanned behavior in low-level components. The

framework puts particular emphasis on a clean ar-

chitecture: In user code through type safety and the

platform/domain separation, and in its implementa-

tion through strict separation of the interfacing, repre-

sentation, interpretation and execution concerns. First

lab tests with uninitiated users give us conﬁdence that

both the language design and the system architecture

are comprehensible and sustainable.

It will be of particular interest to study how this

new architecture helps with the development of error

recovery strategies and with porting existing domain

models to new robot platforms.

ACKNOWLEDGMENTS

This work was supported by the German National

Science Foundation (DFG) under grant numbers GL-

747/23-1 and FE 1077/4-1 and by Germany’s Excel-

lence Strategy – EXC-2023 Internet of Production –

390621612.

REFERENCES

Allen, J. F. (1983). Maintaining knowledge about temporal

intervals. Communications of the ACM, 26(11):832–

843.

Alur, R. and Dill, D. L. (1994). A theory of timed automata.

Theoretical computer science, 126(2):183–235.

Bechhofer, S., van Harmelen, F., Hendler, J., Horrocks, I.,

McGuinness, D. L., Patel-Schneider, P. F., and Stein,

L. A. (2004). OWL Web Ontology Language Refer-

ence. W3C Recommendation, World Wide Web Con-

sortium. http://www.w3.org/TR/owl-ref/.

Boutilier, C., Reiter, R., Soutchanski, M., and Thrun, S.

(2000). Decision-theoretic, high-level agent program-

ming in the situation calculus. In AAAI/IAAI, pages

355–362.

Claßen, J. and Lakemeyer, G. (2008). A Logic for

Non-Terminating Golog Programs. In Proceedings

of the 11th International Conference on Principles

of Knowledge Representation and Reasoning (KR),

pages 589–599.

De Giacomo, G., Lespérance, Y., and Levesque, H. J.

(2000). ConGolog, a concurrent programming lan-

guage based on the situation calculus. Artiﬁcial Intel-

ligence, 121.

De Giacomo, G., Lespérance, Y., Levesque, H. J., and Sar-

dina, S. (2009). IndiGolog: A high-level program-

ming language for embedded reasoning agents. In

Multi-Agent Programming, pages 31–72. Springer.

Dvorak, F., Bit-Monnot, A., Ingrand, F., and Ghallab,

M. (2014). A ﬂexible ANML actor and planner in

robotics.

Eyerich, P., Mattmüller, R., and Röger, G. (2012). Using

the context-enhanced additive heuristic for temporal

and numeric planning. In Towards Service Robots for

Everyday Environments, pages 49–64. Springer.

Ferrein, A. (2010). Golog.lua: Towards a non-prolog

implementation of GOLOG for embedded systems.

In Hoffmann, G., editor, Proceedings of the AAAI

Spring Symposium on Embedded Reasoning, (SS-10-

04), pages 20–28. AAAI Press.

Ferrein, A. and Lakemeyer, G. (2008). Logic-based robot

control in highly dynamic domains. Robotics and Au-

tonomous Systems, 56(11):980–991.

Ferrein, A., Steinbauer, G., and Vassos, S. (2012). Action-

based imperative programming with YAGI. In Work-

shops at the Twenty-Sixth AAAI Conference on Artiﬁ-

cial Intelligence.

Grosskreutz, H. and Lakemeyer, G. (2000). Turning high-

level plans into robot programs in uncertain domains.

In ECAI, pages 548–552.

Grosskreutz, H. and Lakemeyer, G. (2003). ccGolog – A

Logical Language Dealing with Continuous Change.

Logic Journal of the IGPL, 11(2):179–221.

Hähnel, D., Burgard, W., and Lakemeyer, G. (1998).

GOLEX — Bridging the Gap between Logic

(GOLOG) and a Real Robot. In Annual Conference

on Artiﬁcial Intelligence.

Halsey, K., Long, D., and Fox, M. (2004). CRIKEY - a tem-

poral planner looking at the integration of scheduling

and planning. In Workshop on Integrating Planning

into Scheduling, ICAPS, pages 46–52. Citeseer.

Hofmann, T. and Lakemeyer, G. (2018). A Logic for

Specifying Metric Temporal Constraints for Golog

Programs. https://kbsg.rwth-aachen.de/~hofmann/

papers/timed-esg-cogrob18.pdf.

Hofmann, T., Mataré, V., Schiffer, S., Ferrein, A., and Lake-

meyer, G. (2018). Constraint-Based Online Transfor-

mation of Abstract Plans into Executable Robot Ac-

tions. In AAAI Spring Symposium: Integrating Rep-

resentation, Reasoning, Learning, and Execution for

Goal Directed Autonomy.

Kirsch, M., Mataré, V., Ferrein, A., and Schiffer, S.

(2020). Integrating golog++ and ROS for Practical

and Portable High-level Control:. In Proceedings of

the 12th International Conference on Agents and Ar-

tiﬁcial Intelligence, pages 692–699, Valletta, Malta.

SCITEPRESS - Science and Technology Publications.

Kone

y, Š., Stock, S., Pecora, F., and Safﬁotti, A.

(2014). Planning Domain + execution semantics:

A way towards robust execution? In 2014 AAAI

Spring Symposium Series – Qualitative Representa-

tions for Robots. http://www.aaai.org/ocs/index.php/

SSS/SSS14/paper/view/7743.

Koymans, R. (1990). Specifying real-time properties with

metric temporal logic. Real-Time Systems, 2(4):255–

299.

Kunze, L., Roehm, T., and Beetz, M. (2011). Towards

semantic robot description languages. In IEEE Int’l

Conf. on Robotics and Automation (ICRA 2011),

pages 5589–5595.

Lakemeyer, G. (1999). On sensing and off-line interpret-

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

226

ing in golog. In Logical Foundations for Cognitive

Agents, pages 173–189. Springer.

Levesque, H. J., Reiter, R., Lespérance, Y., Lin, F., and

Scherl, R. B. (1997). GOLOG: A logic programming

language for dynamic domains. Journal of Logic Pro-

gramming, 31(1-3):59–84. http://www.sciencedirect.

com/science/article/pii/S0743106696001215.

Mataré, V., Schiffer, S., and Ferrein, A. (2018). Golog++:

An Integrative System Design. In Proceedings

of the 11th Cognitive Robotics Workshop 2018

(CogRob@KR 2018), Co-Located with 16th Interna-

tional Conference on Principles of Knowledge Rep-

resentation and Reasoning, pages 29–36. http://

ceur-ws.org/Vol-XXX/#paper-06.

McCarthy, J. (1963). Situations, Actions and Causal Laws.

Technical report memo 2, AI Lab, Stanford Univer-

sity, California, USA.

McCarthy, J. and Hayes, P. J. (1969). Some philosophi-

cal problems from the standpoint of artiﬁcial intelli-

gence. In Meltzer, B. and Michie, D., editors, Ma-

chine Intelligence 4, pages 463–502. Edinburgh Uni-

versity Press, New York. http://www-formal.stanford.

edu/jmc/mcchay69.html.

Niemueller, T., Ferrein, A., Beck, D., and Lakemeyer, G.

(2010). Design Principles of the Component-Based

Robot Software Framework Fawkes. In Proc. of the

2nd Int’l Conf. on Simulation, Modeling, and Pro-

gramming for Autonomous Robots (SIMPAR 2010),

volume 6472 of LNCS, pages 300–311, Berlin, Hei-

delberg. Springer Berlin Heidelberg.

Niemueller, T., Karpas, E., Vaquero, T., and Timmons, E.

(2016). Planning Competition for Logistics Robots

in Simulation. In WS on Planning and Robotics

(PlanRob) at Int. Conf. on Automated Planning and

Scheduling (ICAPS), London, UK.

Niemueller, T., Lakemeyer, G., and Ferrein, A. (2015). The

RoboCup Logistics League as a Benchmark for Plan-

ning in Robotics. In Finzi, A., Ingrand, F., and Or-

landini, A., editors, Proceedings of the 3rd Worksh Op

on Planning and Robotics (PlanRob-15), pages 63–

68, Jerusalem.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). ROS: An

open-source Robot Operating System. In ICRA Work-

shop on Open Source Software, volume 3, page 5.

Kobe, Japan.

RCLL Technical Committee (2018). RoboCup

Logistics League – Rules and Regulations

2018. http://www.robocup-logistics.org/rules/

rulebook2018.pdf?attredirects=0&d=1.

Reiter, R. (1996). Natural Actions, Concurrency and Con-

tinuous Time in the Situation Calculus. In Proceed-

ings of the 5th International Conference on Prin-

ciples of Knowledge Representation and Reasoning

(KR), KR’96, pages 2–13, San Francisco, CA, USA.

Morgan Kaufmann Publishers Inc. http://dl.acm.org/

citation.cfm?id=3087368.3087370.

Schiffer, S., Wortmann, A., and Lakemeyer, G. (2010).

Self-maintenance for autonomous robots controlled

by readyLog. In Proceedings of the 7th IARP Work-

shop on Technical Challenges for Dependable Robots

in Human Environments, pages 101–107.

Shu, I.-h., Efﬁnger, R. T., and Williams, B. C. (2005).

Enabling Fast Flexible Planning through Incremen-

tal Temporal Reasoning with Conﬂict Extraction. In

ICAPS, pages 252–261.

Spolsky, J. (2002). The Law of Leaky Abstrac-

tions. https://www.joelonsoftware.com/2002/11/11/

the-law-of-leaky-abstractions/. Last accessed 2020-

09-25.

Stock, S., Mansouri, M., Pecora, F., and Hertzberg, J.

(2015). Online task merging with a hierarchical hy-

brid task planner for mobile service robots. In Proc.

of the Int’l Conf. on Intelligent Robots and Systems

(IROS), pages 6459–6464.

Viehmann, T. (2019). Transforming Robotic Plans with

Timed Automata to Solve Temporal Platform Con-

straints. Master’s Thesis, RWTH Aachen Univer-

sity. https://kbsg.rwth-aachen.de/~hofmann/theses/

viehmann.pdf.

Portable High-level Agent Programming with golog++

227
