The Proposal of Double Agent Architecture using Actor-critic Algorithm

for Penetration Testing

Hoang Viet Nguyen

, Songpon Teerakanok

2 a

, Atsuo Inomata

and Tetsutaro Uehara

1 b

Cyber Security Lab, College of Information Science and Engineering, Ritsumeikan University, Japan

Research Organization of Science and Technology, Ritsumeikan University, Japan

Graduate School of Information Science and Technology, Osaka University, Japan

Keywords:

Penetration Testing, Deep Reinforcement Learning.

Abstract:

Reinforcement learning (RL) is a widely used machine learning method for optimal decision-making com-

pared to rule-based methods. Because of that advantage, RL has also recently been used a lot in penetration

testing (PT) problems to assist in planning and deploying cyber attacks. Although the complexity and size

of networks keep increasing vastly every day, RL is currently applied only for small scale networks. This

paper proposes a double agent architecture (DAA) approach that is able to drastically increase the size of the

network which can be solved with RL. This work also examines the effectiveness of using current popular

deep reinforcement learning algorithms including DQN, DDQN, Dueling DQN and D3QN algorithms for PT.

The A2C algorithm using Wolpertinger architecture is also adopted as a baseline for comparing the results

of the methods. All algorithms are evaluated using a proposed network simulator which is constructed as a

Markov decision process (MDP). Our results demonstrate that DAA with A2C algorithm far outweighs other

approaches when dealing with large network environments reaching up to 1000 hosts.

1 INTRODUCTION

Nowadays, the rapid development of network infras-

tructure has been increasing the risk of network vul-

nerability. Penetration testing (PT) that is being used

widely in many systems has been seen as an impor-

tant approach in the development of network protec-

tion. The main purpose of the approach is protecting

the system from potential attacks by simulating real-

life hacker’s activities trying to ﬁnd and attack all the

existing security vulnerabilities on the network.

However, there are still many things that prevent

organizations from accessing the advantages of PT.

PT is often considered an expensive approach, per-

forming it consumes a lot of resources including man-

power. The operator who has a wide and deep knowl-

edge of security is required to perform PT. Using au-

tomatic PT instead of depending on human resources

is a popular approach to solve these problems. Cur-

rently, many frameworks and tools supporting PT

have been developed such as Metasploit, Nessus and

Tenable. Unfortunately, these tools usually only sup-

https://orcid.org/0000-0002-1058-149X

https://orcid.org/0000-0002-8233-130X

port security experts in scanning vulnerabilities rather

than assist them exploitation.

In recent years, machine learning (ML) is open-

ing up a new approach in effectively solving complex

problems. ML has been proven that it is able to deal

with difﬁcult problems more quickly and accurately

than humans in some cases (Chui et al., 2016). Re-

inforcement learning (RL) a type of ML has received

great attention lately. RL is able to make a sequence

decision to interact with an unstable environment in

order to get the best reward out of it (Kaelbling et al.,

1996). Unlike supervised learning, the RL agent ﬁnds

the good way to adapt to the environment by itself

without needing pre-labelled data.

The ability of RL shows that it is perfectly suited

to be used to solve PT problems. Leveraging the

power of RL in unstable environments is a good ap-

proach to conduct PT while the RL agent can auto-

matically decide the action needed to perform. In fact,

there are a few researchers who pursued this direction

and have achieved some promising results. Schwartz

et al. showed that RL algorithms are able to search for

the good root of exploiting network and ﬁnd the attack

policy that successfully attacks all target machines

(Schwartz and Kurniawati, 2019). Ghanem et al., on

440

Nguyen, H., Teerakanok, S., Inomata, A. and Uehara, T.

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing.

DOI: 10.5220/0010232504400449

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 440-449

ISBN: 978-989-758-491-6

the other hand, proposed the ability to combine RL

with existing PT frameworks to perform tasks with

no human interference (Ghanem and Chen, 2020).

Despite achieving many promising results, all

above-mentioned approaches, unfortunately, have a

fundamental limitation in the size of the environment

that can be solved. To be clear, this limitation does

not only appear when using RL with PT but also is a

general problem of RL. Schwartz et al. showed that

their algorithm performance rapidly decreases when

the network has more than 43 machines (Schwartz

and Kurniawati, 2019). IAPTS, a POMDP approach,

tried to improve the efﬁciency on large networks, is

tested with a maximum of 100 machines (Ghanem

and Chen, 2020). Using a multi-level system, 4AL, a

promising model-based method, maintains its perfor-

mance when the size of the environment reaches 100

machines and 100 services (Sarraute et al., 2013).

In this paper, we propose a double agent architec-

ture (DAA) which use a popular RL algorithm called

the advantage actor-critic algorithm (A2C) (Mnih

et al., 2016) to conduct PT in large networks. DAA

uses model to attack environments in term of Markov

decision processes (MDP). The aim of DAA is to

be able to do PT on a large network system having

around 1000 machines by remains its performance.

DAA utilizes a network simulator that is built by in-

heriting and developing the features of the network

attack simulator (NAS) (Schwartz and Kurniawati,

2019). The network simulator is then translated into

an MDP problem to be determined by agents. The

A2C algorithm using Wolpertinger architecture (WA)

with multiple level action embedding is also adopted

as a baseline for comparing the results (Hoang et al.,

ress).

The main contributions in this paper are summed

up as follows:

• We build a JSON format network simulator that is

implemented based on the NAS. To add practical-

ity and complexity to the network simulator, there

is a few extension rules have been proposed.

• Testing the effectiveness of some popular deep re-

inforcement learning (DRL) algorithms such as

DQN, DDQN, Dueling DQN and D3QN when us-

ing in PT.

• A robust DRL architecture has been proposed

called double agent architecture (DAA) leverag-

ing the power of the actor-critic algorithm and

multi-agent architecture to conduct PT in the large

environment but maintain the performance. DAA

contains two agents, while the ﬁrst one is used

to learn about the network structure of a network,

the second one helps to choose the appropriate ex-

ploitable service for the machine selected.

• We have conducted experiments on different net-

work size with various attack scenarios. The im-

pact of size on the performance of the algorithms

are compared. The results showed that DQN fam-

ily algorithms and WA can solve the network hav-

ing less than 30 and 256 machines respectively,

while the DAA works for around 1000 hosts and

still remain the performance 81%. The result of

DAA, which is superior to other algorithms, is a

testament to DAA’s ability to perform PT in large

networks.

This paper is organized as follows. Section 2

introduces the literature review about related works.

The design of the network simulator is described in

Section 3. In Section 4, the detailed structure of the

DAA is discussed. This section also discusses the im-

plementation of Wolpertinger architecture using for

comparison. Section 5 reports conducted experiments

and analyze the results. Finally, the last section sum-

maries this study concludes.

2 LITERATURE REVIEW

2.1 Reinforcement Learning Algorithms

RL approach tries to maximizing the cumulative re-

ward from the environment to ﬁnd a good plan (Kael-

bling et al., 1996). At ﬁrst, RL is usually seen in

game theory and information theory. However, in

early years, applying RL method is considered un-

successful, until Mnih et al. proposed the method

named DQN that combine deep neural network with

Q-learning (Mnih et al., 2013). The proposed method

became a huge success and its results demonstrate

that RL approach can be used effectively on real-

world problems. Q-learning has been improved

by many researchers ever since. Many techniques

such as experience replay and double Q-learning are

adopted to improve the performance of RL. RL al-

gorithms commonly used today can be mentioned as

DQN , DDQN (Hasselt, 2010), Dueling DQN (Du-

elling DQN) (Wang et al., 2016) and Duelling Double

Deep Q Network (D3QN) .

Although previous RL approaches have been

proven to be effective, it is still limited to fairly

low-dimensional problems and lacks scalability. This

problem is considered a big challenge for researchers

working in the ﬁeld. Wolpertinger architecture (WA)

using actor-critic algorithm tried to solve the environ-

ment having large action space by adding action em-

bedding and kNN layers (Dulac-Arnold et al., 2015).

The idea of WA is by ﬁnding the max-values action

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing

441

from similar action set, the agent can be able to ﬁnd

the best one. In the previous work, we proposed a

multiple level action embedding that can accurately

represent the relationship between actions in the RL

action space (Hoang et al., ress). This approach can

be used to apply WA for solving PT problems.

2.2 Automatic Penetration Testing

Many automatic PT methods have been developed.

These methods often focus on automatic planning. At

ﬁrst, the research considered PT as a decision-making

problem and used graph methods like decision tree or

attack graph (Phillips and Swiler, 1998). Sarraute et

al. attempt to solve such issue by using multi-level

architecture called 4AL (Sarraute et al., 2013). It di-

vides the PT process into four levels: decomposing

the network, attacking components, subnetworks and

individual machines. The system built as a partially

observable Markov decision process (POMDP) has

proven to be useful to a large number of machines

and exploits. Unfortunately, the number of exploits

and machines tested in this article just stops at around

100.

In recent years, scientists have paid more atten-

tion to using RL to apply to PT automation. Schwartz

et al. built network attack simulator (NAS) and uses

tabular Q-learning and DQN algorithms to solve such

problems (Schwartz and Kurniawati, 2019). The ex-

periments of this article which apply to many different

network architectures assert that RL is completely ca-

pable of solving PTs. However, the article also points

out that with networks with too many machines or

services, the performance of these algorithms will de-

crease signiﬁcantly, even unsolvable.

Ghanem et al. proposed a system called IAPTS

(Ghanem and Chen, 2020). This system uses the

RL to make attack decisions and uses PT frameworks

such as Metasploit to attack. The system also uses

expert validation to monitor the output of the system

to help the agent be able to make more accurate deci-

sions. Unlike the above paper, the PT of the paper is

represented in the form of POMDP and uses the algo-

rithm PEGASUS to solve. However, like the previous

articles, this article is only used on medium and small

environments (from 10-100 machines). The number

of services used is not mentioned in the article.

3 THE NETWORK SIMULATOR

This section contains two main parts: an introduc-

tion to the network simulator used to perform pen-

etration testing and a description of how to convert

network simulator information into MDP format. In

the ﬁrst part, the paper proposes a network simulator

built based on NAS (Schwartz and Kurniawati, 2019),

however, some new rules added to improve the com-

plexity of the simulator compared to the previous one.

Second, representing in MDP format is necessary for

PT problems to be solved by RL algorithms. Further

explanation of how to convert PT problems into the

right format to use as an input of RL will be discussed

in section 3.2.

3.1 The Network Model

The network built based on NAS (Schwartz and Kur-

niawati, 2019) contains basic components such as

subnets, connections, hosts, services and ﬁrewalls.

These components are deﬁned in JSON format and

are loaded when needed. This makes the network

simulator can be deployed fast and be able to run in

different systems. While our connections, ﬁrewalls

and services contain changes in format and structure,

there are also some signiﬁcant additional rules applied

in subnets and hosts. The purpose of these rules is to

make the attack process on the PT environment more

difﬁcult for attackers comparing to NAS.

3.1.1 Subnets

Sub-networks (subnets) are the basic components

making up each network. By default, every host in

a subnet is directly connected and can communicate

with each other. Subnet address and subnet mask are

used to deﬁne a subnet. While the address identiﬁes

which host belongs to which subnet, the maximum

number of machines in each network is determined by

the subnet-mask. Hosts on a different subnet can not

communicate with each other. The network connec-

tions and ﬁrewalls control communication between

subnets.

When deploying a network attack on our environ-

ment, there are several rules that attackers must fol-

low:

• A subnet is considered reachable to attackers if

they have successfully attacked at least one host

on the subnet which directly connect to it.

• Attackers, at ﬁrst, do not know how the subnets

are connected.

• Attackers, by default, know the number of subnets

but do not know the number of machines in each

subnet, even if the subnet is currently reachable to

the attacker. To be able to gather this information,

attackers have to scan the subnet ﬁrst.

• If the subnet is unreachable, scanning it do not

gain any information to attackers.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

442

3.1.2 Hosts

A host represents a device that existed in a network

and runs certain services. IP addresses are an im-

portant component to differentiate hosts from each

other. In the network simulator, there are two types

of hosts: normal hosts and sensitive hosts. Sensitive

hosts are hosts that contain important information that

is needed to be protected from adversaries.

Services that are running on each host can be com-

municated with other hosts in the same or neighbour

subnet. Each host can run different services because,

in reality, not all machines have the same conﬁgura-

tion or running services. Services are seen as vulner-

abilities that attackers can exploit using appropriate

action. Each service is deﬁned by an ID and two ad-

ditional information, a score and a cost. The service

score represents the probability of the exploitation of

service success. For example, if the score of a ser-

vice is set to 100, then attacks on this service are al-

ways successful. The cost of the service represents

how difﬁcult to perform an attack on that service.

To exploit a host in the network simulator, the at-

tackers must also comply with the following rules

• Any action on the host takes effect only when the

host is contained in a scanned subnet

• Attackers, at ﬁrst, do not know which services

are running in the hosts. This information can be

gained after the host is scanned.

• Attackers can exploit a host when having informa-

tion about which service is running in the hosts.

• Exploitation on the host is only counted as suc-

cessful when it is hacked into the service running

on the host. Even that, it is still possible that the

attack fails to depend on the score of the service.

3.2 Representing Penetration Testing as

Reinforcement Learning Problems

In reinforcement learning, all problems need to be

represented in a proper form before it can be solved.

It depends on the designer’s intentions in training the

agent. In this paper, the network pentesting prob-

lem is modelled as an MDP deﬁned by {S,A,R ,T }.

States (S ) are deﬁned as full knowledge about the cur-

rent network. Actions (A) present the possible actions

can be performed for each host and subnet on the net-

work. The reward function (R ) calculates how good

the attacker exploit the network based on certain rules.

The result of performing each action is determined by

the transition function (T ).

3.2.1 State

A state, s ∈ S is deﬁned as the knowledge of all hosts

existed on the network. Particularly, the state is a

vector including information of all hosts. This in-

formation is the host state including attacked state,

reachable state and which service is running on it.

To be clear, each bit in a state vector can belong to

one of three types: reachable state, attacked state and

services state. First, for the reachable state, a bit

can be assigned these value reachable, unreachable

or unknown. Second, if a bit belongs to the attacked

state, it can receive attacked, not attacked or unknown

value. Finally, if a bit represents for a state of a ser-

vice on a host, it can have one of three values avail-

able, unavailable and unknown.

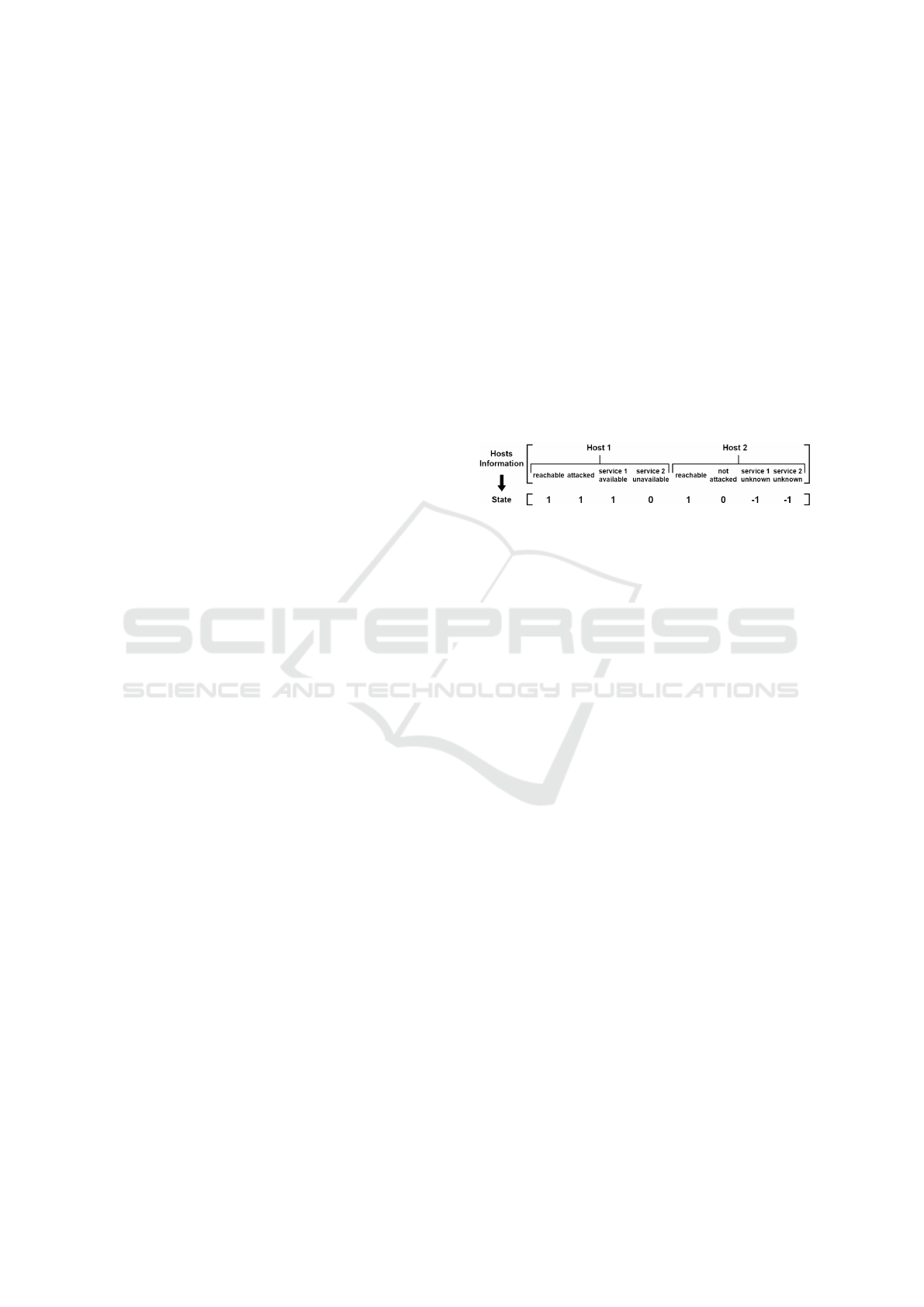

Figure 1: Deﬁning the state space from network informa-

tion.

Although the information about the subnet is not

contained in the state, it plays a crucial role in deter-

mining the current state of hosts. A subnet can receive

unknown, reachable, and scanned states. The subnet

is given an unknown state when an attacker does not

know the existence of that subnet. The subnet receives

reachable and scanned states following the set of rules

applied on subnets mentioned above.

The state of a subnet has a direct inﬂuence on the

state of hosts in it. A host is considered unknown

when the subnet has not been scanned because at

this point the attacker does not know any information

about the host. A host is considered reachable when

it is contained in a scanned subnet. Finally, a host re-

ceives an attacked state if an exploit has successfully

been used on it.

The state-space includes all possible states of each

host including the knowledge about services running

on it. Therefore, if the number of machines and ser-

vices on the network increase, the state space will

grow vastly. The equation 1 shows the state space

size, | S |, where E is the number of exploitable ser-

vices and H is the number of hosts in the network. The

number 2 represents information about the reachable

and attacked state of a host. Because every bit in a

state vector can receive three possible values, the state

space is the exponent of 3.

|S| = 3

(E+2)×H

(1)

For the equation 1, there are some elements that

worthwhile to consider. Although each host has a dif-

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing

443

ferent number of running services, the number of ser-

vice state is the same. Whether a service runs on a

host or not, it can still be assigned one of three val-

ues ”available”, ”unavailable” or ”unknown”, corre-

sponding to 1, 0 and -1. Therefore, in a state vector,

each host is always represented by a number equals to

(E + 2) bits.

3.2.2 Action

The action space A is deﬁned as the set of all actions

within the network simulator. There are three types of

action including scan subnets, scan hosts and exploit

services. The scan subnets action includes a single

scan action for each subnet, while the scan hosts ac-

tion is scanning for each host. The exploit services

action has an exploit for each service and each host

on the network.

The scan hosts action simulates the Nmap scan-

ning. It gives users information about current run-

ning services and its related information such as open

ports, service name and service version. Meanwhile,

the scan subnets action is related to host discovery

giving all IP address of hosts running on the subnet.

Every service on the network has a matching ex-

ploit action. The target host will be counted as at-

tacked if an exploit action successfully conducts on

it. Determining the success of any exploit action is

checking the set of conditions such as the reachable

state of the target host, the availability of the ser-

vice based on the ﬁrewall rules and the action success

probability.

The number of actions | A | is the total number of

three types of actions: scan subnet, scan hosts and ex-

ploit services. It is calculated by the number of subnet

S, the number of host H and the number of exploitable

service E as follows:

|A|& = S + H + H ×E (2)

Each action also has a cost which represents any

real metric such as the time, monetary cost and skill

needed.

3.2.3 Transition

The transition function, T , shows how the environ-

ment reacts with performed actions. The next state is

determined based on the success of the action. The

change in the next state depends on several factors

such as the reachable ability of the action target and

what type of action being used. These factors are

strongly related to the set of rules deﬁned in the net-

work simulator (section 3.1)

3.2.4 Reward Function

In any RL problem, the reward is always a crucial

component. It is a compass that instructs the agent

whether the action taken in the current state is correct.

The reward is deﬁned by the function R (s, a, s’), from

state s agent take an action a and ﬁnally receive state

as the result.

The reward for transitions is the value of any

newly successful attacked host minus the cost of the

selected action a. For any action that changes the state

of the environment, the little amount of reward r

added to encourage the agent. When the agent suc-

cessfully attacks a normal host, the reward r will be

given to the agent. In the network simulator, 10% of

hosts are sensitive hosts containing important infor-

mation. When successfully attacking these hosts, the

reward will be (H

normal

sensitive

) × r. This formula

ensures that the total reward received if attacking sen-

sitive hosts will be equal to the total reward received

when attacking normal hosts. This strikes a balance

between the agent’s attempting to successfully attack

sensitive hosts and expanding the reach area by at-

tacking normal hosts.

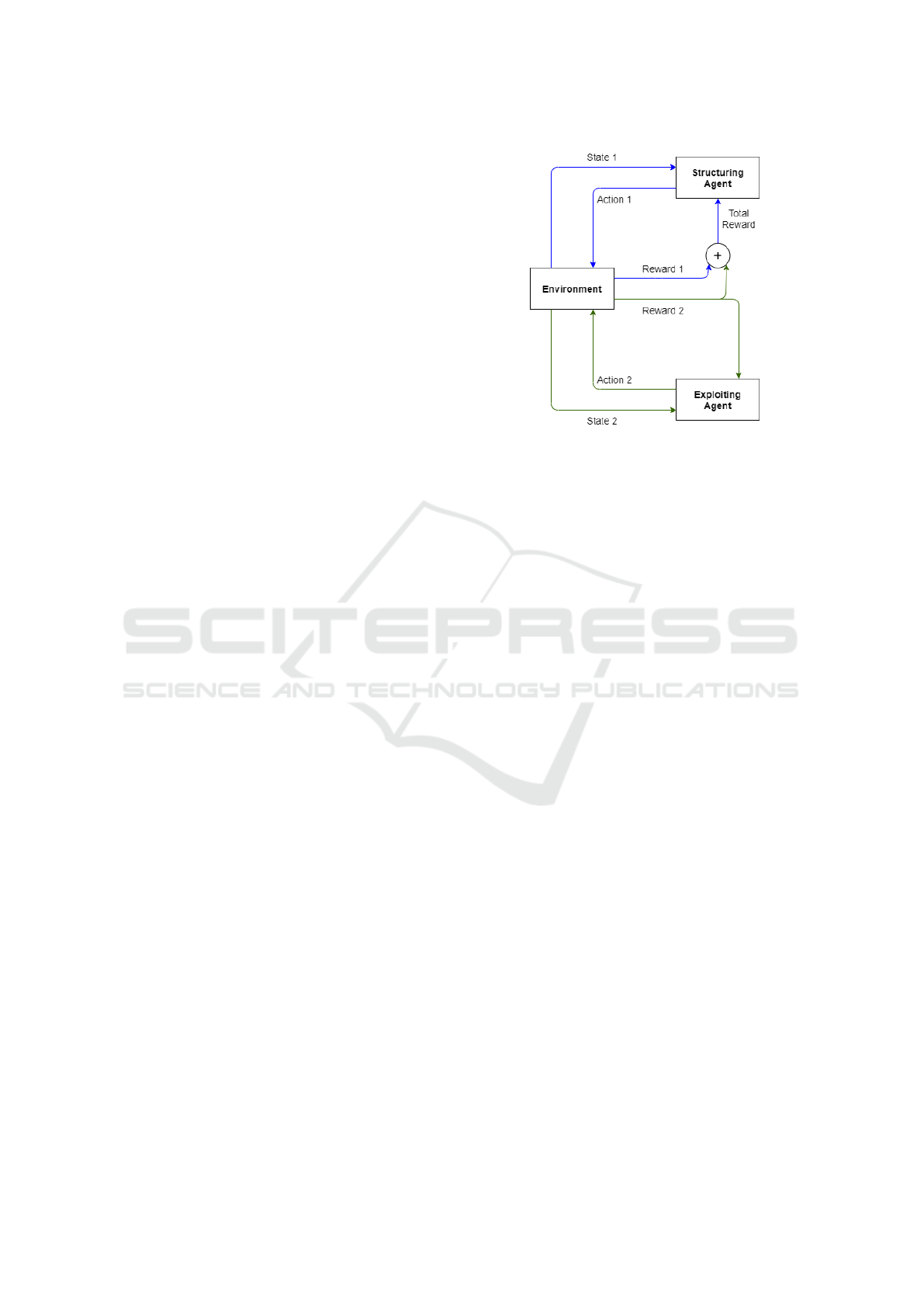

4 THE DOUBLE AGENT

ARCHITECTURE (DAA)

4.1 Introduction

All reinforcement learning architectures contain two

main components an environment and an agent. The

basic architecture often has only one agent which di-

rectly interacts with the environment. The environ-

ment represents the problem that needs to be solved.

The agent which has a core of RL algorithms is re-

sponsible for ﬁnding out the best solution for the

problems in the environment. To do that, the agent

continuously interacts with the environment by using

appropriate actions. At ﬁrst, the selected actions are

not optimized, but based on the feedback information

(including new states and rewards) sent by the envi-

ronment, the agent updates its policy and gradually

makes more accurate choices.

When applying RL to PT problems, these proper-

ties and behaviour of the agent and the environment

are retained. Previous articles have shown that, in

this way, RL algorithms is still capable of searching

for the good root of successful exploiting target ma-

chines on a network (Schwartz and Kurniawati, 2019)

(Ghanem and Chen, 2020). However, when the num-

ber of hosts and services is too large, its complexity

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

444

will increase exponentially. This leads to the situation

that the agent is no longer able to solve the problem.

Sarraute et al. proposed 4AL algorithm, a domain-

speciﬁc algorithm, using a multi-level system split-

ting the PT process into four levels including decom-

posing the network, attacking components, attacking

subnetworks, and attacking individual machines (Sar-

raute et al., 2013). The results of the paper show that

this concept is capable of scaling up performance in

solving PT in large environments (tested for up to 100

machines).

Inspired by the concept of dividing the PT pro-

cess, this paper proposes the double agent architec-

ture (DAA) that divides the PT problem into two

steps including understanding the network structure

(network topology) and choosing an appropriate ex-

ploitable service to attack a certain host. Applying

to RL, instead of using only one agent, DAA uses

two separate agents, each agent undertakes a different

step. This approach is possible to reduce signiﬁcantly

the action space and the state space of PT problem

that each agent must solve. Thus, the DAA can be

applied to problems with a large number of hosts and

services.

4.2 Design

As mentioned in 4.1, the state space size and the ac-

tion space size depend greatly on the number of hosts,

subnets and services. This leads to the situation that

RL algorithms no longer have the ability to learn to

solve problems in such a large environment. In order

to solve these problems, this paper proposes an idea

that uses two separate agents for learning the network

structure and choosing an appropriate service to ex-

ploit a certain host. The structuring agent is responsi-

ble for learning about the network structure including

subnets, hosts, ﬁrewalls and the connections between

subnets. Meanwhile, the exploiting agent is responsi-

ble for picking out the service that is most likely to be

a successful attack in a certain host.

The coordinating of two agents is shown on the

ﬁgure 2. At ﬁrst, the structuring agent observes the

environment and gets a state s

from this observation.

In the case the agent thinks that the received state still

lacks structural information, i.e. the agent thinks it

can explore the network more deeply, it will choose

structural discovery actions including hosts and sub-

nets scanning. When executing these commands, the

agent receives an immediate reward r

from the envi-

ronment and uses it to evaluate the correctness of the

action. In the other case, if the agent considers that

it is acceptable to collect information or exploit ser-

vices of a certain host, because of the lacks of service

Figure 2: Double agent architecture.

information, it will not directly make decisions but do

the action that will trigger the exploiting agent.

The exploiting agent once enabled, will use the

state of the selected host as its input (state 2). The se-

lected host’s state information will now include the

reachable, attacked state and information about the

services running on it. At this point, if the agent con-

siders that the information is not enough, it can con-

tinue to execute the scan hosts command, otherwise, it

can exploit the host with the appropriate service. Af-

ter the exploiting agent action, the environment will

give the agent an immediate reward r

. The exploiting

agent uses this reward to update its policy. The struc-

turing agent is also aware of this reward and uses the

sum of r

and r

as the result of its action that triggers

the exploiting agent. If the action that the structuring

agent chooses is scan hosts or scan subnets then r

considered 0. Finally, the structuring agent uses the

total reward to update its policy.

The use of the double agent not only reduces sig-

niﬁcantly the action space and the state space of PT

but also increases the agent’s learning speed. In ad-

dition, separating into two agents also helps to reuse

the agents. For example, when the number of services

in the network changes, we only need to train the ex-

ploiting agent individually. On the other hand, when

there is a change in the network structure but there is

no change in the number of services, it is completely

possible to train the chosen network separately with-

out needed to retrain the exploiting one.

4.3 The Environment for Double Agent

Approach

The ﬁrst issue we need to consider when adopting this

approach is needed changes in the built environment

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing

445

to ﬁt into the new architecture. However, this change

should be as little as possible to avoid the case that it

is too different from the original environment and can

be viewed as different problems. Therefore, this paper

only proposes very small changes to the current envi-

ronment so that the environment can be used by both

the original method and the double agent method.

4.3.1 State

The state space has not been changed when using

DAA. The only difference is that we have to ﬁlter the

matching state space information as input to agents.

The state of the structuring agent will include the

reachable and attacked state of all hosts on the net-

work. From the perspective of the pentesting operator,

we totally know the total number of hosts currently on

the network so this ﬁltering can be done easily. The

size of the state space of the ﬁrst agent is

| = 3

(3)

On the other hand, the exploiting agent’s state will

be details of the selected host including reachable, at-

tacked state and all information about that exploitable

services. The state space size of the exploiting agent

| = 3

(4)

With this size, agents can completely solve the

problem even though the number of hosts and services

increases. The complexity is now much smaller than

before

4.3.2 Action

The action space of the environment as mentioned

above includes three types: scan subnets, scan hosts

and exploit services. The selection of scan actions,

including scan hosts and scan subnets, can be deter-

mined by the structuring agent to retrieve information

about the network structure. However, this agent can-

not decide whether to exploit service or which service

should be used to exploit the machine. Therefore,

an extension action named choose hosts is added to

this agent. This action is chosen when the structur-

ing agent think that there is a host that is likely suc-

cessfully attacked but the agent can not handle such

information. Instead, it sends the current host infor-

mation to the exploiting agent and let this agent take

responsibilities.

With the information received from the structur-

ing agent, the exploiting agent is able to decide which

exploit service is available on the host. At this point,

it can choose between exploiting the host using such

service or scanning the host to retrieve more informa-

tion.

With this approach, the structuring agent can

choose actions including scan subnets, scan hosts and

choose hosts, meanwhile, the exploiting agent can

choose actions which works on a certain host such

as scan hosts and exploit services on a host. Thus,

the action space size of agents has been signiﬁcantly

reduced as follow.

| = S + 2H (5)

| = H + E (6)

4.3.3 Reward Function

Although the reward function does not change, there

is a little bit different when using this reward to train

agents. For the exploiting agent, the agent still re-

ceives the immediate reward in interacting with the

environment. For the structuring agent, the two ac-

tions scan subnet and scan host still receive an imme-

diate reward. However, the new action, choose host, is

a little different. The results of the choose host action

are available only after we have ﬁnished running the

exploiting agent. In other words, the result of choose

host will be the sum of the immediate reward of the

structuring agent and the exploiting agent.

4.4 The Neural Network of Agents

Neural networks used for agents are built based on

actor-critic algorithms. This article uses the advan-

tage actor-critic algorithm (A2C) (Mnih et al., 2016)

for its efﬁciency and ease of implementation. In gen-

eral, both agents have a relatively similar neural net-

work structure in terms of the number of hidden layers

and learning parameters. The required parameters for

the A2C algorithm have been constructed according

to the previous article (Mnih et al., 2016). However,

there is a slight change in the number of neurons per

hidden layer, because of the difference in the input

size. The actor and critic networks of each agent share

the same conﬁguration.

To determine the most suitable hyper-parameters

value for neural networks, a tuning process has been

performed. The table 1 describes more clearly param-

eters used and the differences in the conﬁguration of

neural networks.

5 EXPERIMENTS AND RESULTS

To test the performance of the proposed approach,

two experiments will be conducted. The ﬁrst ex-

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

446

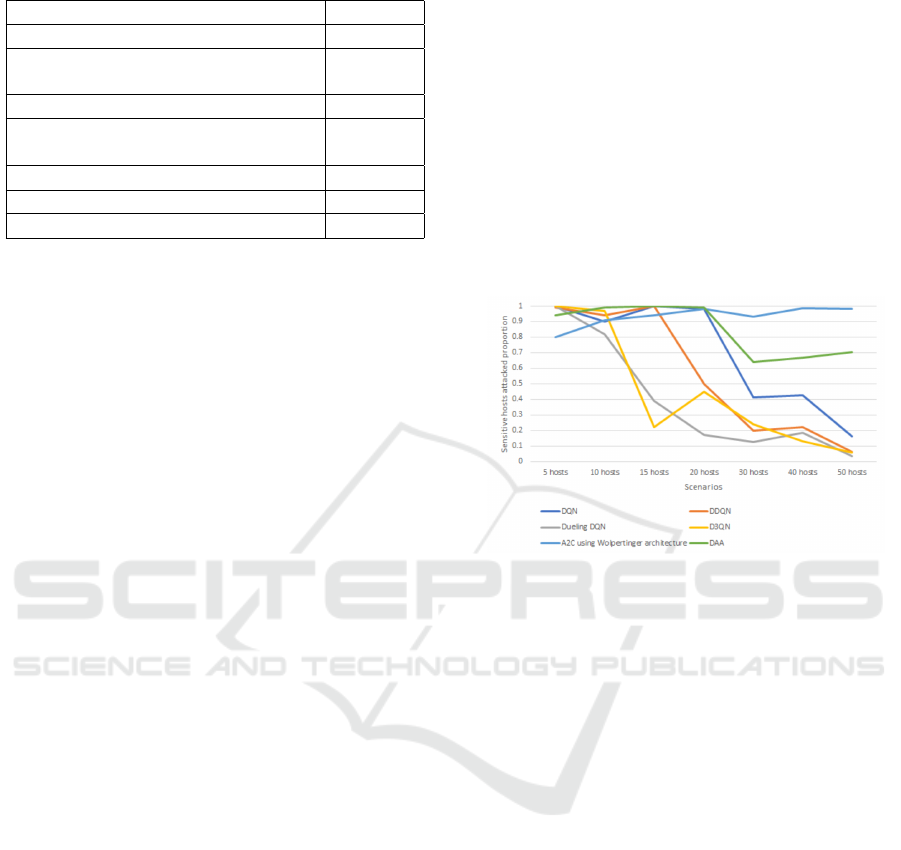

Table 1: Agent’s network parameters.

Parameter Value

No. hidden layers (structuring agent) 3

No. neurons per hidden layer (struc-

turing agent)

512

No. hidden layers (exploiting agent) 3

No. neurons per hidden layer (ex-

ploiting agent)

Learning rate

5 × 10

−3

Discount factor 0.99

Entropy coefﬁcient

5 × 10

−3

periment is used to evaluate the results of DAA, the

DQN family algorithms and the A2C algorithm using

Wolpertinger architecture with multiple level action

embedding (Hoang et al., ress) in the case of small

networks. The second experiment is to compare the

results between Wolpertinger architecture (WA) and

DAA. Metrics are used to evaluate the results of ex-

periments including the reward gained during training

and the proportion of sensitive hosts being success-

fully attacked.

These experiments are conducted to answer the

following questions:

• Can DQN family algorithms such as DDQN, Du-

eling DQN and D3QN as well as A2C algorithm

using WA and DAA be used to solve PT prob-

lems?

• Does apply a DAA increase problem-solving per-

formance in large environments, especially when

compared to WA?

• What is the maximum size of the network that

these algorithms can handle?

The experiments use the auto-generated scenar-

ios with the number of hosts ranging from 5 to 1024

and the number of services from 2 to 100. Scenario

conﬁgurations contain all components and follow the

rules of the network simulator in section 3.1. Each

host in a scenario contains a different number of run-

ning services. For each service, the score value is ran-

domized from 40-90%.

An Unbuntu computer using NVIDIA GeForce

RTX 2080 Ti 11GB GPU and AMD Ryzen 9 3900X

CPU is used to conduct these experiments

5.1 The Experiment Conducted on

Small Network Environments

In this test, we designed and implemented several net-

works on different sizes. The number of hosts (H) on

each network is ranging from 5 to 50 hosts. In which,

the number of sensitive hosts is 2 for scenarios with

less than 20 hosts, and 10% of normal hosts for sce-

narios with 20 or more hosts. In these scenarios, the

number of subnets is set to 7 while the number of ex-

ploitable services running on each host is 2.

In each training session, there are 1000 episodes

running. In each episode, the maximum number of

actions the agent can perform is 2 × (S + 2H). Hypo-

thetically, the optimal number of actions the agent can

perform is S+2H which includes scanning all subnets

at least once, scanning all hosts at least once, and suc-

cessfully attacked the service on each host with just

one attempt. Because this optimal value is difﬁcult

to achieve, the algorithm uses 2 times this value per

episode.

Figure 3: The sensitive machine attack proportion result of

algorithms using different scenarios.

The ﬁgure 3 shows the results of algorithms with

different scenarios. With the number of hosts less

than 20, the results of the algorithms are not much dif-

ferent when DQN (Mnih et al., 2013), A2C using WA

(Dulac-Arnold et al., 2015) and DAA all reach over

90%. However, with scenarios where the number of

hosts is greater than 20, we ﬁnd that the performance

of A2C using WA and DAA far outweighs the DQN

algorithms. In a scenario with 50 hosts, while the

DQN algorithms have a sensitive host attacked pro-

portion is less than 20%, the proportion in the DAA is

70% and A2C using WA remains at 99%.

The reason the DAA in this experiment is not per-

forming so well is that it used only 1000 episodes for

training. Because of using both agents to learn the

network, DAA is converging slower than DQN algo-

rithm and A2C using WA. Therefore, the experiment

using a small number of episodes has not shown all

the capabilities of DAA.

The experiment result can be explained when we

look at the reward received in the training of algo-

rithms (ﬁgure 4). In a scenario with 5 hosts, we

see that with 1000 episodes, DQN algorithms tend

to learn and converge faster than A2C using WA and

DAA. However, when the number of hosts is too large

(50 hosts), the DQN algorithms are no longer able to

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing

447

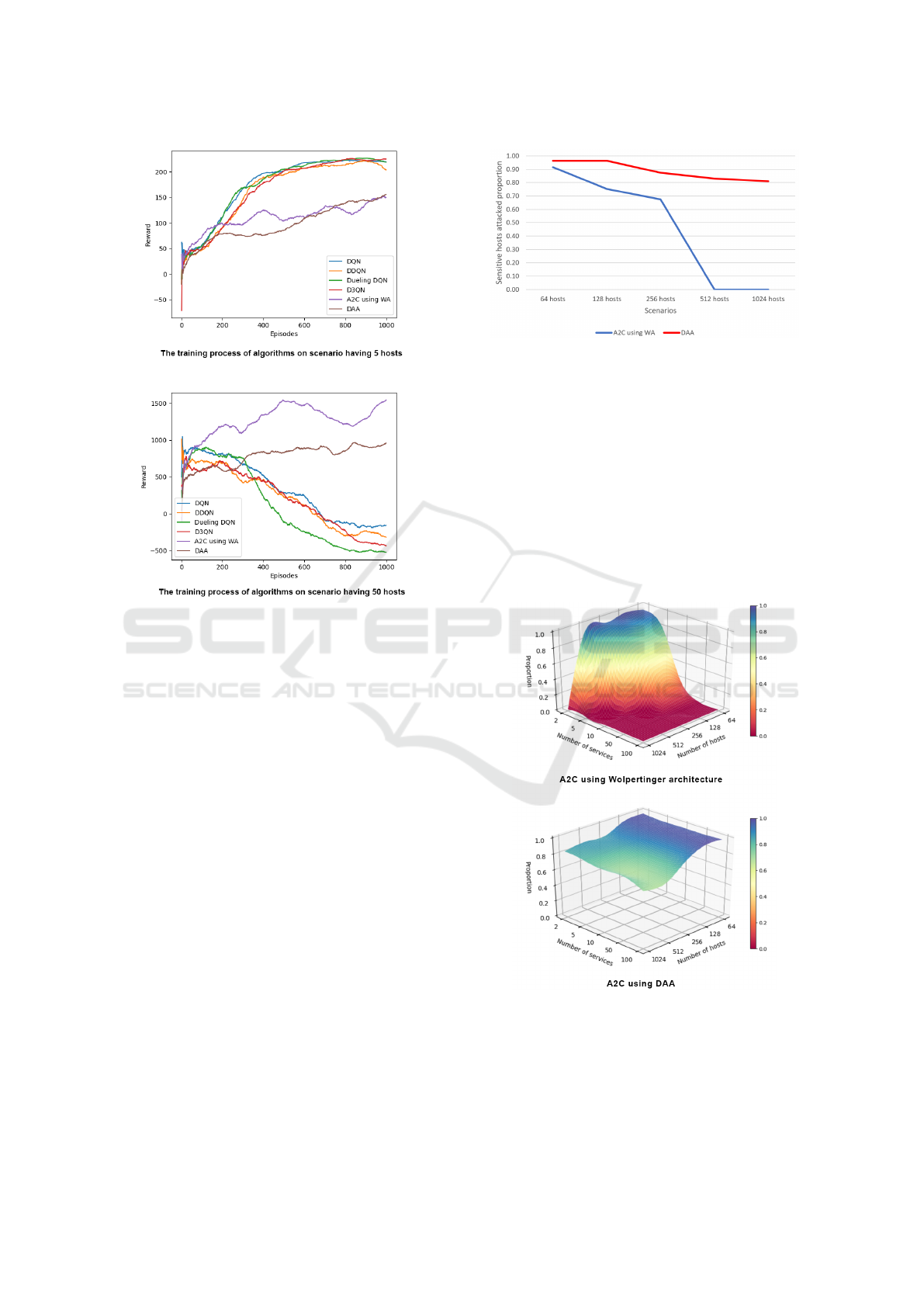

Figure 4: Rewards obtained by algorithms during the train-

ing process.

learn while A2C using WA and DAA still retain their

ability to learn in the environment.

5.2 The Experiment Conducted on

Large Network Environments

In this test, we still designed and implemented sev-

eral networks on different sizes to test performance

for A2C using WA and DAA. The other algorithms

retain poor performance (0%) for scenarios having

more than 50 machines, so we do not consider them in

this experiment. Because we are testing on large net-

work environments, the number of hosts (H) on each

network this time is ranging from 64 to 1024 hosts. In

which, the number of sensitive hosts is 10% of normal

hosts for all scenarios. In these scenarios, the number

of subnets is set to 20 while the number of exploitable

services running on each host is 5. In each training

session, there are 10000 episodes running. In each

episode, the maximum number of actions the agent

can perform remains 2 × (S + 2H).

The ﬁgure 5 shows the results of A2C using WA

and DAA with different scenarios. With a scenario

with less than or equal to 128 hosts, both architec-

tures have performance over 80%. However, with a

scenario with a host of more than 512, A2C with WA

Figure 5: The sensitive machine attack proportion result of

A2C algorithm using WA and DAA.

reaches its limit and is not capable of attacking sen-

sitive hosts (0%). Meanwhile, the DAA kept its per-

formance and the proportion of sensitive hosts being

successfully attacked was still 81% in a scenario with

1024 hosts.

To better understand the scale-up of architectures,

we keep the same parameters of the above experiment

but change the number of exploit services running on

each machine. The number of exploitable services (E)

on each host this time is ranging from 2 to 100 ser-

vices.

Figure 6: Results of A2C algorithm using WA and DAA

with different scenarios and number of exploitable services.

Based on the results showed in ﬁgure 6, we can see

that the performance of A2C using WA is greatly af-

fected by both the number of hosts and the number of

exploitable services. As these two numbers increase,

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

448

A2C with WA is incapable of solving the problem. In

contrast, DAA is slightly affected by the number of

hosts but is not affected by the number of exploitable

services. When the number of services running per

machine increases, the DAA retains its performance

around 70%, while WA fails to resolve these scenar-

ios. Given these points, the data show that DAA out-

performs WA in large environments.

The reason for such results is because the DAA

uses two different agents to learn about the network.

When the number of services increases in the range

from 2 to 100, this complexity is still in processing

capability of the exploiting agent, so the performance

of DAA is almost not affected. Likewise, the struc-

turing agent is capable of handling a number of hosts

between 5 and 1024. In contrast, the agent of WA has

to deal with host and service proliferation at the same

time. Because the complexity increases exponentially

when both of these values increase, the performance

of WA drops rapidly to the point where it is no longer

capable of solving problems. Therefore, DAA is su-

perior to WA as well as other algorithms when per-

forming PT in complex environments.

6 CONCLUSIONS

The study is focusing on the investigation into the ap-

plication of RL to pentesting. The proposed archi-

tecture named double agent architecture is built based

on two separate agents in order to improve the per-

formance and accuracy of RL when applied to large

network environments. The paper also conduct ex-

periments to test the efﬁciency of DQN algorithms to

evaluate its use in PT problems.

The main contribution of the paper is to increase

RL’s ability to solve the PT problem when the net-

work is large. By dividing the PT problem into dif-

ferent subproblems including learning the structure of

the network and learning how to choose the appropri-

ate attack on the individual host, the double agent ar-

chitecture has been proven to be impressive efﬁcient.

This method opens another approach when using RL

to solve PT problems in the future.

Experimental results show that DAA outperforms

other algorithms when solving PT problems with

large networks. The size of scenarios can reach up

to 1024 hosts and 100 services, and the DAA’s ability

to successfully attack sensitive hosts remains above

70%. With the number of exploitable services is less

than 10, the performance of this architect with a net-

work having 1024 hosts is up to 81%.

One of limitations of our work is that using the

network simulator which is a high level of abstrac-

tion will cause a gap between studying and applying

the problem in practice. The main direction for future

work is proposed to use a more realistic environment

such as VMs or real network as the input to the DAA.

Frameworks and tools such as Metasploit and Nes-

sus can be implemented to be able to more accurately

evaluate method results in practice.

REFERENCES

Chui, M., Manyika, J., and Miremadi, M. (2016). Where

machines could replace humans—and where they

can’t (yet). McKinsey Quarterly, 30(2):1–9.

Dulac-Arnold, G., Evans, R., van Hasselt, H., Sunehag,

P., Lillicrap, T., Hunt, J., Mann, T., Weber, T., De-

gris, T., and Coppin, B. (2015). Deep reinforcement

learning in large discrete action spaces. arXiv preprint

arXiv:1512.07679.

Ghanem, M. C. and Chen, T. M. (2020). Reinforcement

learning for efﬁcient network penetration testing. In-

formation, 11(1):6.

Hasselt, H. V. (2010). Double q-learning. In Advances in

neural information processing systems, pages 2613–

2621.

Hoang, V. N., Hai, N. N., and Tetsutaro, U. (in press). Mul-

tiple level action embedding for penetration testing. In

Proceedings of the International Conference on Fu-

ture Networks and Distributed Systems.

Kaelbling, L. P., Littman, M. L., and Moore, A. W. (1996).

Reinforcement learning: A survey. Journal of artiﬁ-

cial intelligence research, 4:237–285.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap, T.,

Harley, T., Silver, D., and Kavukcuoglu, K. (2016).

Asynchronous methods for deep reinforcement learn-

ing. In International conference on machine learning,

pages 1928–1937.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M.

(2013). Playing atari with deep reinforcement learn-

ing. arXiv preprint arXiv:1312.5602.

Phillips, C. and Swiler, L. P. (1998). A graph-based system

for network-vulnerability analysis. In Proceedings of

the 1998 workshop on New security paradigms, pages

71–79.

Sarraute, C., Buffet, O., and Hoffmann, J. (2013). Pomdps

make better hackers: Accounting for uncertainty in

penetration testing. arXiv preprint arXiv:1307.8182.

Schwartz, J. and Kurniawati, H. (2019). Autonomous pen-

etration testing using reinforcement learning. arXiv

preprint arXiv:1905.05965.

Wang, Z., Schaul, T., Hessel, M., Hasselt, H., Lanctot, M.,

and Freitas, N. (2016). Dueling network architectures

for deep reinforcement learning. In International con-

ference on machine learning, pages 1995–2003.

The Proposal of Double Agent Architecture using Actor-critic Algorithm for Penetration Testing

449
