Providing Secured Access Delegation in Identity Management

Systems

Abubakar-Sadiq Shehu

1,2 a

, António Pinto

and Manuel E. Correia

2,3 c

Department of Information Technology, FCSIT, Bayero University Kano, Kano, Nigeria

Department of Computer Science, Faculty of Science, University of Porto, Porto, Portugal

CRACS & INESC TEC, Porto, Portugal

Keywords: Service Providers, Identity Provider, Authentication, Authorisation, Opend ID Connect, Attribute based

Access Control, Public Key Cryptography.

Abstract: The evolutionary growth of information technology has enabled us with platforms that eases access to a

wide range of electronic services. Typically, access to these services requires users to authenticate their

identity, which involves the release, dissemination and processing of personal data by third parties such as

service and identity providers. The involvement of these and other entities in managing and processing

personal identifiable data has continued to raise concerns on privacy of personal information. Identity

management systems (IdMs) emerged as a promising solution to address major access control and privacy

issues, however most research works are focused on securing service providers (SPs) and the services

provided, with little emphases on users privacy. In order to optimise users privacy and ensure that personal

information are used only for intended purposes, there is need for authorisation systems that controls who

may access what and under what conditions. However, for adoption data owners perspective must not be

neglected. To address these issues, this paper introduces the concept of IdM and access control framework

which operates with RESTful based services. The proposal provides a new level of abstraction and logic in

access management, while giving data owner a decisive control over access to personal data using smart-

phone. The framework utilises Attribute based access control (ABAC) method to authenticate and authorise

users, Open ID Connect (OIDC) protocol for data owner authorisation and Public-key cryptography to

achieve perfect forward secrecy communication. The solution enables data owner to attain the responsibility

of granting or denying access to their data, from a secured communication with an identity provider using a

digitally signed token.

https://orcid.org/0000-0002-2894-6434

https://orcid.org/0000-0002-5583-5772

https://orcid.org/0000-0002-2348-8075

1 INTRODUCTION

The continuous growth in Internet technologies has

increased the adaption to Web enabled services,

which eases access and processing of electronic data

in a wide range of fields. For example it is used to

access social services in healthcare, finance,

insurance and educational institutions. However, this

advancement has proliferated the risk of users private

data exposure to third parties (SPs and IdPs) that

manages the data as they (user) barely have control of

their data on different services. To ensure users data

privacy and regulate third-party access, IdMs with

access delegation methods are used.

Access delegation is akin to power of attorney. It

is a process of entrusting or transferring acting

powers to a legal entity (person, business or

application) to act on behalf of another entity in

conducting transactions. Electronically, access

delegation is achieved in twofold by; authentication

and authorisation. Authenticating an entity implies

proving that the entity is indeed who they claim to be

by presenting what they have or who they are (Jin et

al., 2012). While authorisation indicates a decision

on what resources an authenticated entity is allowed

to perform (Tschofenig, 2015). Some standard

protocols used by IdMs in achieving these include,

SAML, OAuth, LDAP and Shibboleth.

638

Shehu, A., Pinto, A. and Correia, M.

Providing Secured Access Delegation in Identity Management Systems.

DOI: 10.5220/0009892206380644

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 638-644

ISBN: 978-989-758-446-6

The ability to delegate access rights is important

as it improves on quality and timeliness of service

delivery. This process is mostly felt in sectors like

health, banking and educational institutions. In

Health institutions for example, healthcare

practitioners exercises their duty by accessing some

electronic data on behalf of the healthcare

institution. To do this they would need to access

personal health record of a patient and possibly

create entries for consultation, which implies a

representation of both the Healthcare institution and

patient, which gives an uncontrolled access to the

institutional and personal health record of the patient

(Sá-Correia. et al., 2020). Hence, generates the issue

of data privacy

Data privacy is ability to control the release of

private data (Gates, 2007). To achieve this by access

delegation, a representative has to be properly

identified and authorised. In conventional

transactions, physical identification with an identity

document is sufficient. However, the prevalence of

electronic services necessitated the need for an

equivalent identification method that supports access

delegation with secured gateways. In related works,

several IdM concepts using secured protocols where

proposed, however many of these works are unable

to address the needed flexibility for modular

approach to access delegation and allowing data

owners determine their own privacy.

To address these issues, we introduce SChEMER

(uSer Centred Mandate Representation), for preserv-

ing privacy of users personal information on IdMs.

The solution is a decentralised and user centred access

delegation framework that adopts some technologies;

OIDC, ABAC and Public key cryptograpy. It extends

a standard authentication and authorisation request of

a user and enables a data owner to asynchronously

determine appropriate access, authorise and delegate

responsibility or share private resources with the user.

It provides an additional layer of security, where data

owner assumes full control over the disclosure of their

identity data through an assertion issued from their

mobile phones to an authorisation server which in turn

issues an access token.

2 THREAT MODEL

The use of eServices has exposed users sensitive data

to third parties whom are not only able to access

private data, but also keep a registry of users access

pattern. The provision of these services to users ir-

respective of their location invariably involves data-

sharing among domains. A breach of trust can be en-

countered in a federated protocol where a user gets

authenticated to a compromised IdP using an identity

credential which is centrally controlled and agreed on

by both SP and IdP. Once done the client application

copies these credentials and are used to access back

end services. In many cases users tend to repeat

access credentials on services they access. However,

we assume here that different credentials are used on

different services, but the client application gets

around this by demanding for leading questions that

clearly reveals user’s identity, sometimes with

promised access to other or extended services.

Some example projects for the interoperability of

users data in Europe include: epSOS (cross- border

exchange of health data), e-CODEX (cross- border

legal services), STORK and eIDAS (regulation on

electronic identification and trust services in e-

transactions). While these projects are mostly

meeting their goals in easing access to interoparable

eServices, they have continued to raise issue relating

to privacy of users which include but not limited to

the following:

Non-optional trust on IdPs; Users are coerced to

trust IdPs and SPs who request and stores private

user information that are more than necessary to

access a service. If an IdP suffers a security

breach it loses private users data, therefore users

rather than the Idp bears the economic con-

sequences of identity theft and invasion of privacy

(Sabouri et al., 2012).

Data integrity and confidentiality; are SPs able to

guarantee that private data is free from

unauthorised access and manipulations?

Trusted parties colluding to mount an attack on

private data. This can be experienced in proxy re-

encryption method used in (Dash et al., 2017),

where trusted proxy colludes with recipient to

generate the originally encrypted message.

3 RELATED WORKS

Possible breech of users private data lies between

the receipt, processing and dissemination of the data.

With the current role attained by SPs and IdPs, users

privacy on their data is non guaranteed. Some works

aimed at achieving users privacy on eServices have

been produced.

The work in (Leitold et al., 2014), (Zheng et al.,

2015) and (Falcão-Reis and Correia, 2010)

takes data regulatory provisions aimed at protecting

users private data (Directive, 1995) and (Regulation,

2016) into consideration. These works uses

Providing Secured Access Delegation in Identity Management Systems

639

mechanisms that demand data owner’s consent to

access personal data, but such consent does not

define the extent of use on requested data. Moreso,

since users data is at their disposal, noting stops SPs

and IdPs from exploiting the data at will. This

further makes a privacy-enhanced IdM

indispensable. The work in (Dash et al., 2017),

supports user consent on releas- ing identity

attributes, but relies on trusting the IdP to re-encrypt

the authorised attributes. A collusion within trusted

parties can lead to a compromise in public keys used

for the encryption. Also, most of the studied works

do not ensure minimisation of users data in identity

verification, giving services more than the required

data to verify a person. Also, once a user has granted

right of access on their data they cannot withdraw

such right, this further gives free reign on users data

to third parties.

To overcome these and other issues, there is a need

for security methods that implements policies based

on data owners decision flexible enough to allow them

control or delegate access to their data seamlessly and

at their will. With these data owners would have full

knowledge of access on their private data.

4 PROPOSED SOLUTION

We propose a user centred access delegation method

using a fine grained access control model to

authenticate users. Once authenticated, data owners

can issue their consent to allow or deny access to pri-

vate resources. If allowed, users can carry out only

functions delegated by data owner. An example of

controlled access delegation is a valet key, where a

car owner is able to grants access to doors, trunk, or

car safe without the ignition.

The ubiquitous use of smart-phones has created a

dynamic computing platform, making it a de facto

carrier routinely by owners Therefore, integrating

owners mobile phone as a platform to authenticate

their identity and issue their consent will be seamless

and remove the need to trust third parties at different

location.

While IdMs simplifies shared authentication

within and across domains, it does not include au-

thorisation. Therefore, SChEMER is be based on a

combination of OIDC federated identity, ABAC and

Public-key cryptography (asymmetric).

4.1 Underlying Technologies

OIDC is an authorisation protocol built upon the

OAuth 2.0 framework (Richer et al., 2017), it is used

to specify secure access authorisation and delegation

methods for users in federated IdMs based on the

authentication performed by an authorisation Server

(AS). OIDC’s AS issues cryptographycally secured

and signed credential access and ID token, which are

used to verify a request and contain several claims and

information about users request (e.g attributes, unique

identifiers and other meta data).

To acquire an access token, (1) a user requests to

access some protected resources from an SP. Since the

user is unknown to the SP, it responds with a redi-

rect URI containing information needed to verify, au-

thenticate and request for user authorisation at a del-

egated IdP. (2) User then authenticates at the IdP,

using certified credentials. (3) Once authentication

and authorisation is completed the IdP responds with

authorisation code, implicit code or user credentials.

To enhance user privacy and protect against hijack-

ing of authorisation response, protected resources are

not delivered directly in plain text rather a code is is-

sued (we adopt the use of authorisation code flow).

This flow issues an authorisation code to confirm the

users credential and request for consent to share this

information with SP before the access token is issued.

(4) The user then shares the code with the SP.

(5) SP forwards it to the IdP as a confirmation and

re- quest for access and ID token. (6) Once received,

the SP uses the access token to collect user

information from IdP, whereas the ID token is used

to confirm the user’s identity. (7) With the access

token, the SP de- livers the IdP’s consent to either

grant or deny access to the user. To prevent against

replay attack and ensure data integrity, OIDC token

contains a nonce and expiration timestamp for user’s

access to protected resources. Together with the

token, some hash value of the request information is

also generated and disseminated in the response.

Once user identity is verified and authorised, the SP

responds to the user.

ABAC, is a logical access control mechanism

that is based on XACML standard. It employs the

use of fine-grained contextual rules to determine the

authenticity of a request. Permissions are then

granted through the use of policy definitions that are

made up of collective attributes of subject and object

such as; who, what, why, when, where, how and in

what HTTP mode (POST, UPDATE and DELETE

e.t.c) are resources accessed (Hu et al., 2014).

Access policies define conditions (predicates over

attributes) of granting access to requests. ABAC

addresses some of the limitations posed by Role

based access control (RBAC) framework, like

inadequacy in role granularity which can lead to role

explosion. ABAC also supports the multi factor

SECRYPT 2020 - 17th International Conference on Security and Cryptography

640

Table 1: Diffie–Hellman key exchange.

Public Key Cr eation

Communicating entities

Step 1: keys selection P and (g modulo P) P and (g modulo P)

Step 2: integer selection integer a. integer b.

Step 3: Computation

modulo P. g

modulo P.

Step 4:Public key A and B exchange computation in Step 3.

Step 5: Secret keys

)

modulo P. (g

)

modulo P.

Step 6: Key exchange A and B exchange keys in Step 5.

Step 7: Secret keys The shared secret of A and B are equivalent.

evaluation of users attributes at run-time to determine

allowable operations for ex- ample, decision that

depends on some or all of users rank, organisation,

geo-location, affiliation and access history (Hu et al.,

2014) can be made at run-time. In ABAC, user

request and access decisions can be de- termined by

simply changing attribute values, without the need to

change the entities relationship defining underlying

policy. Additionally, ABAC presents great advantage

in access control as it encompasses the concepts of

Mandatory Access Control (MAC), Discretionary

Access Control (DAC) and RBAC (Ausanka-Crues,

2001; NIST, 1995). ABAC meets the required

flexibility of an access control model, as any attributes

that identifies an entity can be used to create rules

(Hu et al., 2014). It also fit to be applied externally

on APIs, databases and other secured resources and

supports high performance even in complex

environments. XACML defines the standard

architecture for the implementation of ABAC. A

XACML reference architecture is made up of: (1)

Policy enforcement point (PEP); located at a web

server, it intercepts a request, translates to XACML

and sends to Policy decision point (PDP). PEP

enforces authorisation decisions at the resource

server (RS). (2) PDP; Receives XACML request

from PEP, evaluates and propagates request with

respect to attribute and policies. (3) Policy

information point (PIP); Serves as the repository

holding attribute information about subject and

objects. It also serves as the sole policy repository

with default policies and attributes. (4) Policy

administration point (PAP); stores the abstract

authorisation policy in databases example, LDAP

and SQL. It anchors scopes and policies to PDP.

Public-key cryptography (Hankerson et al., 2006)

is a key exchange method where a common key pair

is used as a secret key between two communicating

parties in achieving perfect forward secrecy

communication. To arrive at a common key pair the

communicating parties first select two keys, a public

key that is known across the communicating channel

and a private key known only to the owner. For

example entities A and B agrees on a large prime

number p and a nonzero integer g to compute a

public key (g modulo p). Both parties then choose

secret integers a and b, and exchange a message with

value g

mod- ulo p and g

modulo p respectively.

With this they are able to compute their mutual

secret keys without knowing their private keys; A

computes (g

)

modulo p while B computes (g

)

modulo p. The values computed by A and B

respectively are actually the same, since (g

)

modulo p = (g

)

modulo p. The common value

generate is their exchanged key. With this key they

will be able to encode their message pri- vately since

it is know to them only. It addresses the key

management and distribution issues in asymmet- ric

key cryptography by ensuring data confidentiality

between communicating parties (Kuegler and Sheffer,

2012). An example of this is the Diffie Hellman key

exchange protocol as illustrated in Table 1.

4.2 Description of SChEMER

SChEMER is a user centred access delegation frame-

work aimed at ensuring privacy of users data. This

model is supported by a Mobile and Web application,

it is made up of the following entities; (1) User; a

person requesting access to protected resources at RS,

(2) User authorisation engine; an authorisation

endpoint for user based on ABAC. (3) RS; Protected

resources are stored on this server; (4) IdP; OIDC

provider, which contains an AS that encapsulates the

endpoints for data owner’s authentication and

authorisation. (5) Data owner; a person that owns

private resources. In contrast to user managed access

(UMA) (Richer et al., 2017), where data owner’s

policy on private resources is pre-defined, our

solution enables data owner to pro- vide access

policies, consent and access delegation method on

protected resources when an access re- quest is made,

which can be delivered asynchronously on their

mobile phone. To do this, data owner receives a

notification informing them on the need to respond

to an access request. Before giving consent, data

owner is able to verify users attributes and determines

access scope. SChEMER uses OIDC’s authorisation

code flow to asynchronously issue access token after

a data owner’s consent is received from their mobile

phone. The use of authorisation code via URI query

prevents the exposure of browser parameters (exam-

ple cache, log files) and replay attacks. It also pre-

vents phishing attacks, since the actual access token

is not revealed. The components in SChEMER are di-

vided into two authorisation sections as shown in fig-

ure 1, which are connected via the RS and IdP through

an adapter. The first section performs user

authorisation based on internal policies to confirm

Providing Secured Access Delegation in Identity Management Systems

641

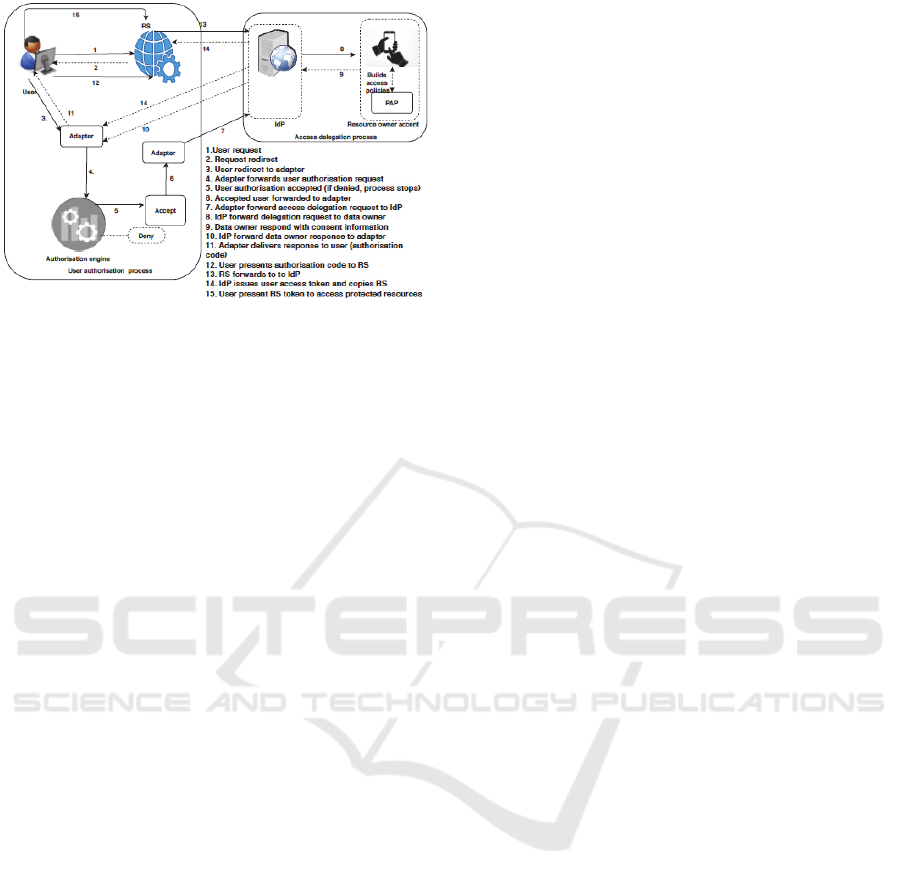

Figure 1: Example instantiation of the architecture.

the authenticity of user and the resources requested

for. This re- quest is captured by PEP server within

the authorisation engine, which extracts both user and

protected resources attributes for the evaluation and

authorisation process within the engine. The second

authorisation section is initiated after receiving a

request from an adapter which is either completed

for first time from authorisation engine or a

subsequent request which has already been issued an

authorisation code/refresh token. The adapter is used

in cross conversion of user authorisation request and

access authorisation results into access delegation

request and vice-versa, so that they can be forwarded

to data owner as an access delegation request and to

user as a response. The concept of this work on

empowering data owners to decide their privacy and

determine access rights at their will tallies with the

EU regulations on Data Protection Directive (DPD)

and the General Data Protection Regulation (GDPR)

These regulations compels third-access request may

contain user ID or name, refresh

token, and user

profession or affiliation. All attributes are evaluated

against state policies (for example who may access

what resources according to state legislation),

organisational and resource policies which are in the

policy and attribute repositories. For example to be

affiliated with a project, reside in a supported

location, possess some qualification or even have

some working experience. Therefore, to achieve this

authorisation the engine fetches these policies within

it from PIP and PAP. Once all attributes for policy

evaluation have been gathered and evaluated, the

authorisation engine’s response is forwarded either

to parties to seek explicit owner’s consent before

using private data. The regulation further mandates

all applications, services and entities involved in

processing individual data to provide owners with full

knowledge of these processes.

4.3 SChEMER Integration with Open

ID and ABAC

This section describes the major components of

SChEMER framework; which integrates OIDC and

ABAC. The framework assumes that data owner is

pre-registered at IdP to receive an access delegation

request by notification, but unknown to SP. Likewise,

the user is known to the SP but not IdP. The

interaction process begins with user’s request.

User’s Request: a user requests for access on pro-

tected resources using a client application on behalf

of the owner from RS which operates with RESTful

service. The RS notices that the user is unknown, so

it replies with a redirect to an authorisation engine

through an adapter for the user to be authorised. The

RS passes along a callback URL (a redirect URL) as

a query parameter, which the adapter will use when

the authorisation process is completed. The user in-

vokes the authorisation engine via the adapter for au-

thorisation, which provide an authentication and au-

thorisation interface with scopes for user to provide

the required credentials. At the authorisation engine

the user credential is captured and the request is trans-

lated into XACML arbitrary language.

Authorisation Engine Process: At authorisation

engine, PEP intercepts user’s request, translates and

forwards it internally for the user authorisation based

on attributes and access policies of the user and the

resource been requested. The authorisation engine

captures the request that contains user’s and protected

resources attributes. Depending on the scenario, an

adapter that translate and forwards it to IdP or to a

terminal end if the authorisation is not granted. The

adapter passes along the request information as a

query parameter which the IdP will use when user

consent is received.

IdP Evaluation: IdP captures the request for-

warded by the adapter and sends it to data owner for

informed consent. Since SP is only known to the IdP

and not data owner, a request from IdP with user’s

redirect information and authorisation decision guar-

antees that the user is pre-authorised. Data owner re-

ceives this request as a notification on their mobile

phone. To issue informed consent, data owner needs

to sign into the IdP server and be authenticated, we

assume that a client application that enables user au-

thenticate to IdP is pre-installed on the data owners

mobile phone. Once authenticated they will be able to

SECRYPT 2020 - 17th International Conference on Security and Cryptography

642

respond asynchronously to requests by either grant-

ing or denying it. Before issuing this consent, both

data owner and IdP needs some assurance that the

right owner has received the request, to do this a se-

cured secret key generation process is initiated using

the Diffie Hellman public key exchange discussed in

Section 4.1, with which they both generate common

secured key to confirm their identities. Once both par-

ties are able to confirm their identities and establish a

common secured key, the data owner drafts a delega-

tion policy with the client application using the PAP,

and forwards a response to the IdP. The IdP computes

an authorisation code with query parameters in the

URL and sends it to the user via the adapter. To access

the resources the user presents the authorisation code

to the SP in exchange for a digitally signed OAuth

JSON Web access Token (JWT) and ID token at the

IdP, that is only understood by the RS but opaque to

client application and user. The RS submits the au-

thorisation code directly to the IdP for confirmation

of code, users authorisation process and scope of ac-

cess. IdP then responds with the access, refresh and

ID token. The access token is used to invoke RS

forthe protected resources. While the ID token

contain set of claims about the authentication session

such as user, IdP and client application ID, and

validity of the token. In other to protect an attacker

from overcoming IdP’s security, data owner issues an

access token that contains policy and scope, which

determines access lifetime, purpose, method,

location, usage and ability to revoke the token (both

refresh and access). With access token a user is able

to further invoke the RS for the purported service at

the same instance, while a refresh token is used to

access the same resource within the lifetime of the

access token.

5 CONCLUSIONS AND FUTURE

WORK

This paper introduces a user centred access

delegation framework. It foresees a method that

secures users privacy and ensure data confidentiality

by authenticating a requestor, and granting only an

authorized requestor access to data via a revocable

token. This manifestation has detached the need to

trust an external IdP residing at the SP or controlled

by third parties and vice versa.

Being part of a work in progress, we strongly rely

on already implemented IdMs, client applications and

Government owned registers for integrating the

method. For future development, we plan to

implement our framework within the health care,

education and other social services to support

seamless interoperability of citizens data. This we

believe will further support EU digital single market.

ACKNOWLEDGEMENTS

This work is partially financed by National Funds

through the Portuguese funding agency, FCT - Fun-

dação para a Ciência e a Tecnologia, within project

UIDB/50014/2020.”

REFERENCES

Ausanka-Crues, R. (2001). Methods for access control: ad-

vances and limitations. Harvey Mudd College, 301:20.

Dash, P., Rabensteiner, C., Hörandner, F., and

Roth, S. (2017). Towards privacy-preserving and

user-centric identity management as a service. Open

Identity Sum- mit 2017.

Directive, E. (1995). 95/46/ec of the european parliament

and of the council of 24 october 1995 on the protec-

tion of individuals with regard to the processing of

personal data and on the free movement of such data.

Official Journal of the EC, 23(6).

Falcão-Reis, F. and Correia, M. E. (2010). Patient

empowerment by the means of citizen-managed elec-

tronic health records. Medical and Care Compunetics,

6:214–228.

Gates, C. (2007). Access control requirements for web 2.0

security and privacy. IEEE Web, 2(0).

Hankerson, D., Menezes, A. J., and Vanstone, S. (2006).

Guide to elliptic curve cryptography. Springer Sci-

ence & Business Media.

Hu, V. C., Ferraiolo, D., Kuhn, R., Schnitzer, A., Sandlin,

K., Miller, R., and Scarfone, K. (2014). Guide to at-

tribute based access control (abac) definition and con-

siderations. NIST Special Publication, 800:162.

Jin, X., Krishnan, R., and Sandhu, R. (2012). A unified

attribute-based access control model covering dac,

mac and rbac. In IFIP Annual Conference on Data and

Applications Security and Privacy, pages 41–55.

Springer.

Kuegler, D. and Sheffer, Y. (2012). Password authenti-

cated connection establishment with the internet key

exchange protocol version 2 (ikev2). IETF RFC 6631.

Leitold, H., Lioy, A., and Ribeiro, C. (2014). Stork 2.0:

Breaking new grounds on eid and mandates. In Pro-

ceedings of ID World International Congress, pages

1–8. .

NIST, N. (1995). An introduction to computer security: The

nist handbook. NIST Special Publication, pages 800–

12.

Regulation, E. (2016). 2016/679 of the european parliament

and of the council of 27 april 2016 on the protection of

natural persons with regard to the processing of per-

sonal data and on the free movement of such data, and

Providing Secured Access Delegation in Identity Management Systems

643

repealing directive 95/46/ec (general data protection

regulation). European Union, pages 1–88.

Richer, J., Sanso, A., and Glazer, I. (2017). OAuth 2 in

Action. Manning Publications.

Sabouri, A., Krontiris, I., and Rannenberg, K. (2012).

Attribute-based credentials for trust (abc4trust). In In-

ternational Conference on Trust, Privacy and Security

in Digital Business, pages 218–219. Springer.

Sá-Correia., L., Correia., M. E., and Cruz-Correia., R.

(2020). Illegitimate his access by healthcare profes-

sionals detection system applying an audit trail-based

model. In Proceedings of the 13th International Joint

Conference on Biomedical Engineering Systems and

Technologies - Volume 5 HEALTHINF: HEALTHINF,,

pages 539–546. INSTICC, SciTePress.

Tschofenig, H. (2015). Oauth working group j. bradley

internet-draft ping identity intended status: Standards

track a. sanso, ed. expires: January 22, 2016 adobe

systems.

Zheng, H., Yuan, Q., and Chen, J. (2015). A framework for

protecting personal information and privacy. Security

and Communication Networks, 8(16):2867–2874.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

644
