On the Application of Safe-Interval Path Planning to a Variant of the

Pickup and Delivery Problem

Konstantin Yakovlev

1,2 a

, Anton Andreychuk

1,3 b

, Tom

s Rybeck

4 c

and Miroslav Kulich

4 d

Federal Reseach Center for Computer Science and Control of Russian Academy of Sciences, Russia

Moscow Institute of Physics and Technology, Russia

Peoples’ Friendship University of Russia (RUDN), Russia

Czech Institute of Informatics, Robotics, and Cybernetics, Czech Technical University, Czech Republic

Keywords:

Multi-robot Systems, Safe-Interval Path Planning, Multi-agent Path Finding, Automated Warehouses.

Abstract:

We address a variant of multi-agent pickup and delivery problem and decouple into two parts: task allocation

and path planning. We employ the any-angle Safe-Interval Path Planning algorithm introduced in our recent

work and study the performance of several task allocation strategies. Furthermore, the proposed approach has

been integrated into a control system to verify its feasibility in deployment on real robots. A key part of the

system is a visual localization system which is based on the detection of unique artiﬁcial markers placed in

the working environment. The conducted experiments show that generated plans can be safely executed on a

real system.

1 INTRODUCTION

Multi-robot systems are gaining much attention re-

cently as they can effectively be used for search-and-

rescue (Kulich et al., 2017; Krajn

ık et al., 2015), ex-

ploration (Faigl and Kulich, 2013), logistics (Wurman

et al., 2008). The latter is a domain where robotic

systems are already widespread, especially when it

comes to the automated warehouses where the ﬂeet

of mobile robots replace human workers in order to

increase the throughput, see (Roodbergen and Vis,

2009) for an overview.

One of the core problems in the context of auto-

mated warehouses is to ensure safe navigation of mul-

tiple robots w.r.t. both static (shelves, sorting stations

etc.) and dynamic (other robots) obstacles. This prob-

lem is commonly tackled by introducing a centralized

controller that plans collision-free trajectories before-

hand and assuming that robots will follow them accu-

rately enough. Thus the problem boils down to multi-

robot path planning, which is known to be an NP-hard

problem even in the simplest cases, e.g. when the

disk-shaped robots move with constant speed among

https://orcid.org/0000-0002-4377-321X

https://orcid.org/0000-0001-5320-4603

https://orcid.org/0000-0002-5019-9260

https://orcid.org/0000-0002-0997-5889

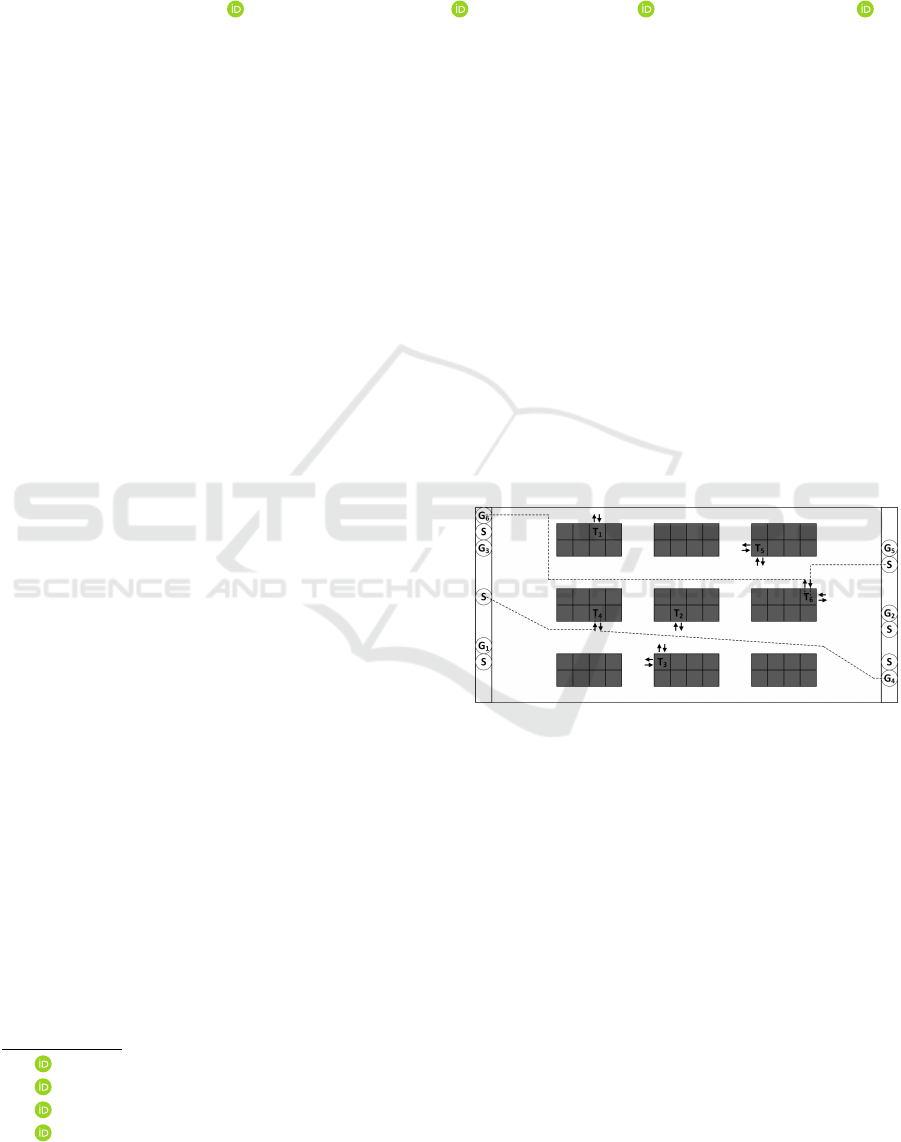

Figure 1: Multi-Agent pickup and delivery instance. Stor-

age areas are depicted in gray. They contain pallets (T) that

have to be delivered to the sorting stations (G). Robots ini-

tial locations are marked with S. Arrows show the locations

from which robots can go under a pallet to lift it. Two types

of paths are shown by dashed lines: the one that contains

only cardinal moves and the one that contains any-angle

moves.

polygonal obstacles (Spirakis and Yap, 1984).

A discretized version of the problem is typically

solved when the robots are conﬁned to a graph and al-

lowed to move only following the edges of this graph.

Still, even the discretized version of the problem, of-

ten named multi-agent path ﬁnding (MAPF), is NP-

hard to solve optimally for a range of critical objec-

tive functions, such as the makespan – the time by

which the last agent reaches its goal, and the ﬂowtime

– the sum of execution times across the agents (Yu

and LaValle, 2016). Indeed the planners that are able

Yakovlev, K., Andreychuk, A., Rybecký, T. and Kulich, M.

On the Application of Safe-Interval Path Planning to a Variant of the Pickup and Delivery Problem.

DOI: 10.5220/0009888905210528

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 521-528

ISBN: 978-989-758-442-8

521

to ﬁnd cost-optimal solutions for both of these objec-

tives exist, but they scale poorly to a large number of

robots.

From a practical point of view, it is reasonable to

trade-off optimality for the runtime. A widespread

approach to do this is to rely on prioritized planning

(PP) (Erdmann and Lozano-P

erez, 1987), when the

solver plans individual trajectories of the robots se-

quentially one after the other in some ﬁxed order. This

speeds up the search signiﬁcantly as at each iteration

previously planned trajectories are considered to be

ﬁxed. The main drawback is that prioritized plan-

ning is incomplete. However, for a large class of the

MAPF problems, i.e. the ones that involve planning

in the well-formed infrastructures, PP guarantees to

ﬁnd a solution (if one exists) (

ap et al., 2015). Coin-

cidentally, the warehouse environments are designed

to obey the rules of the well-formed infrastructures in

the vast majority of cases, so the prioritized planning

ﬁts very well to this domain.

Another advantage of the prioritized planning is

that it can rely on the advanced single-agent path-

ﬁnding algorithms, e.g. Safe interval path-planning

(SIPP) (Phillips and Likhachev, 2011), that allow lift-

ing numerous limiting assumptions, often adopted by

the optimal MAPF solvers, e.g. wait actions of the

uniform duration.

In this work, we extend previous research on pri-

oritized multi-agent path planning with continuous

time and kinematic constraints by considering the ap-

plication of this approach to a variant of multi-agent

pickup and delivery (MAPD) problem arising in the

context of automated warehouses. In the studied set-

ting robots have to pick up goods that are distributed

over the speciﬁed zone and deliver them to the sort-

ing stations. Thus, a combination of task alloca-

tion and multi-agent path-ﬁnding is needed to accom-

plish the mission. We suggest and evaluate a range

of heuristics for task allocation. For path planning,

we use a state-of-the-art prioritized planner – AA-

SIPP(m) (Yakovlev et al., 2019) relying on its ﬂex-

ibility to produce different types of trajectories, i.e.

the one that contain any-angle moves and the one that

allows only movements into the cardinal direction.

We analyze the efﬁciency of the suggested ap-

proach in a simulation, where we run experiments

with up to 164 robots. We also evaluate how the con-

structed plans can be executed on the real-word dif-

ferential drive robots, commonly used in robotics re-

search – Turtlebots 2 (Open Source Robotics Founda-

tion, Inc., 2020). Unlike numerous works that rely on

the external centralized navigation system, we show

that the trajectories produced by the considered algo-

rithm are accurately executed by Turtlebots relying on

the local vision-based navigation system.

2 RELATED WORK

In the recent decade, a range of prominent multi-agent

path ﬁnding algorithms has been proposed. Search-

based approaches, such as as A*+ID+OD (Standley,

2010), M* (Wagner and Choset, 2011), CBS (Sharon

et al., 2015) are typically aimed at ﬁnding optimal so-

lutions. They do not scale well to the problems in-

volving a large number of agents, though their sub-

optimal variants, e.g. ECBS (Barer et al., 2014), mit-

igate this issue to a certain extent. When optimality

is sacriﬁced, polynomial-time algorithms can be pro-

posed, that treat multi-agent path planning as a peb-

ble motion problem. Push-and-rotate (de Wilde et al.,

2013) is a prominent algorithm of this kind. Its main

drawback is that it assumes a sequential movement of

pebbles (robots). thus the cost of the solution is very

high in practice. In (Kulich et al., 2019) an extension

to this algorithm was proposed that supports paral-

lel movements. Overall, most of the aforementioned

algorithms assume discrete time, uniform-cost transi-

tions and do not take kinematic constraints into ac-

count. Most recent algorithms, introduced in (Cohen

et al., 2019; Andreychuk et al., 2019; Hv

ezda et al.,

2018a; Hv

ezda et al., 2019), lift these assumptions but

are very computationally intensive.

Prioritized planning (Erdmann and Lozano-P

erez,

1987) is an appealing alternative, when kinematic

constraints should be taken into account, as it is com-

putationally less burdensome, scales well and is com-

plete under certain conditions that often hold in prac-

tice (

ap et al., 2015). In (Andreychuk et al., 2019)

a road-map based planner supporting different mov-

ing speeds was suggested, in (Yakovlev and Andrey-

chuk, 2017) grid-based planner capable of handling

any-angle moves was proposed. The latter was ex-

tended in (Yakovlev et al., 2019) to handle kinematic

constraints such as agents’ size, rotation and transla-

tion speed. This work builds on the latter algorithm.

Among the works that study the application of

multi-agent path ﬁnding algorithms to the problems

arising in the context of automated warehouses, one

can name the following. In (Ma et al., 2017) a lifelong

variant of the multi-agent path ﬁnding problem with

uniform-cost actions was investigated. In the subse-

quent work (Ma et al., 2019) it was extended to handle

different moving speeds of the agents. However, they

were allowed to move only in cardinal directions on

a grid. In (Ma and Koenig, 2016; H

onig et al., 2018)

both target assignment and path planning for teams of

agents were considered. Time was discretized in these

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

522

works, while we assume a continuous timeline.

3 PROBLEM STATEMENT

Consider n robots operating in the environment dis-

cretized to a grid. Each robot is modelled as a disk and

is initially positioned at the center of a grid cell. The

following actions constitute a robot’s action set: wait,

rotate, move (translate). Robots are allowed to wait

and rotate only at the centers of grid cells. Moving

is allowed from the center of one cell to the center of

the other following the straight line connecting them,

hence – translate. The duration of rotate and move

actions is deﬁned by the endpoint conﬁgurations, e.g.

the duration of a translate action is the distance be-

tween the move’s endpoints divided by the robot’s

translation speed. Inertial effects are neglected. The

duration of a wait action is arbitrary, i.e. a robot can

wait for any amount of time at a grid cell. The time-

line is continuous.

The plan for a robot is a sequence of the timed ac-

tions: π = (a

, t

), ..., (a

, t

), s.t. t

j+1

−t

= dur(a

where (a

, t

) represents an action that starts at time

moment t

and dur stands for the duration of an ac-

tion. The cost of a plan is its duration: c(π) =

+ dur(a

). Two plans are called collision free iff

the robots that follow them never collide. A set of

plans, Π = {π

, ..., π

} is collision free if any pair of

the constituent plans is collision-free. Cost for Π is

either the makespan: C(Π) = max{c(π

), ..., c(π

)},

or the ﬂowtime: C(Π) = c(π

) + ... + c(π

Two types of designated areas are present in the

workspace: sorting stations and storage areas. The

cells that form them are assumed to be distributed in

a well-formed infrastructure (

ap et al., 2015). This

means that there always exists a path for a robot be-

tween any of these cells that avoids other robots in

case they are positioned in any other sorting/storage

cell. An example of the well-formed infrastructure

is shown in Fig. 1. Cells that form the storage ar-

eas are assumed to contain pallets with goods (one

pallet per cell), hence the robots can’t move through

them. However to load a pallet a robot can roll under

it. n storage cells are distinguished and it’s assumed

that they contain pallets that need to be carried to the

sorting stations. Each pallet has to be delivered to a

particular sorting station. We will call the former the

sub-goals, and the latter - the goals.

The multi-agent pickup and delivery (MAPD)

problem we are considering in this work can now

be formulated as follows. Given n starting locations,

sub-goals and goals the task is to ﬁnd n collision-free

plans (one for each robot) from start to sub-goal to

goal. It is not required to solve the problem optimally

w.r.t. ﬂowtime (or makespan). However, lower-cost

solutions are, obviously, preferable.

4 METHOD

We suggest the following decoupled approach to

solve the considered MAPD problem. First, the

sub-goals are distributed among the robots, and then

collision-free plans are found by a prioritized planner.

By solving assignment and planning problems inde-

pendently, we, obviously, can not provide any guaran-

tees on optimality. On the other hand, such approach

is fast, which is critical for real-world applications.

4.1 Task Allocation

Indeed, there exist algorithms that solve an assign-

ment problem optimally, e.g. the Hungarian method

(Kuhn, 1956). However, these methods typically re-

quire the cost associated with each allocation to be

known. In our scenario to get this cost one needs

to solve the multi-agent pathﬁnding problem for all

n robots and sub-goals (pallets), which is computa-

tionally expensive. Instead, we suggest the following

greedy approach to assign sub-goals to robots. We

iterate over the robots and at each step assign a sub-

goal to the current robot by the virtue of a select func-

tion, select(s

, l

, ..., l

). The input of the latter is

the start position of the current robot and all the sub-

goals’ positions. The output is a sub-goal assignment,

i.e. l

that is assigned to robot i. We suggest the fol-

lowing select functions.

Basic implementation of a select function may

simply return random sub-goal out of the sub-goals

that have not been assigned so far. A more intelli-

gent approach is to compute the Euclidean distances

between all of the unassigned sub-goals and the cur-

rent robot and choose the sub-goal with the minimal

computed distance. Intuitively, by following this ap-

proach, we minimize the travel time of a robot to a

sub-goal. However, in this case, static obstacles, i.e.

the cells that constitute the storage area, are not taken

into account. To mitigate this issue a more involved

implementation of a select function can be proposed

that relies on invoking a path planning algorithm that

ﬁnds the shortest path between the start location of

the robot and each of the sub-goals. Then the sub-

goal with the minimal computed cost is selected. In-

deed, this approach is more computationally expen-

sive, compared to the previous ones. On the other

hand, it’s likely to be more accurate in estimating the

actual time needed for each robot to reach a respective

On the Application of Safe-Interval Path Planning to a Variant of the Pickup and Delivery Problem

523

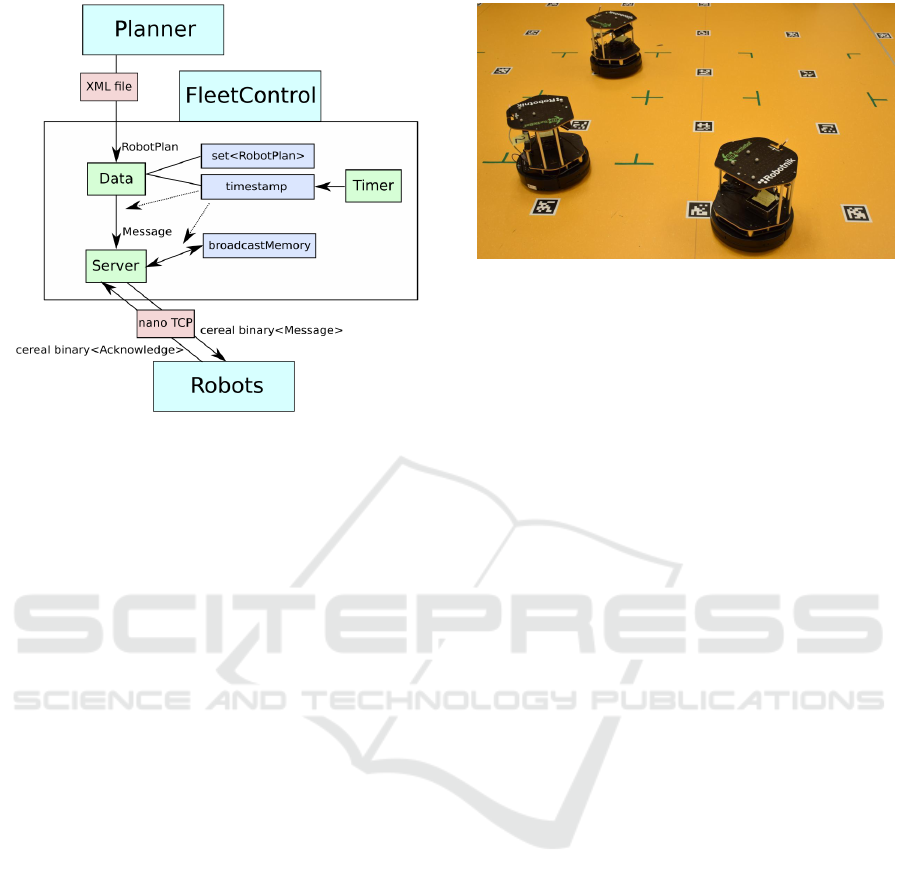

Figure 2: FleetControl scheme.

sub-goal and, as a result, the overall mission comple-

tion time is likely to be lowered down. The experi-

ments that we carried out conﬁrm this hypothesis.

4.2 Multi-agent Path Planning

To ﬁnd collision-free plans from the robots’ start lo-

cations to the assigned sub-goals (pallets) and then to

the corresponding goal locations (sorting stations) we

suggest using the prioritized planning (PP) approach

as it is known to work fast and scale well to a large

number of robots (up to hundreds).

In PP, each robot is assigned a priority ﬁrst and

then plans are constructed sequentially in accordance

with the imposed priority ordering. Different ways to

assign priorities can be proposed. One of the common

ways to do so is based on computing the distances be-

tween the robots and their goals. It is known from

previous research that assigning higher priorities to

the robots with lower distances positively inﬂuences

the ﬂowtime, and doing the same for the robots with

higher distances – the makespan (Andreychuk and

Yakovlev, 2018). When time permits, one can also try

running the planning algorithm with a range of var-

ious assignments in an attempt to decrease the cost

of the resultant solution (Bennewitz et al., 2002). A

more sophisticated approach is presented in (Hv

ezda

et al., 2018b), where priorities are dynamically re-

computed based on how the robot inﬂuences the tra-

jectories of already planned robots.

When priorities are ﬁxed, a planner ﬁnds a

collision-free plan for each agent one by one. Once

the plan for agent i is found it’s considered to be ﬁxed,

and the agents i + 1, i + 2, ... n have to avoid colli-

Figure 3: Turtlebots operating in an environment with

AprilTags.

sion with i by modifying their own plans, not ith. In

general, this approach does not provide completeness

guarantees. However, for the well-formed infrastruc-

tures, PP is guaranteed to ﬁnd a solution, if one exists,

provided that the individual planner explicitly avoids

start locations of all robots (

ap et al., 2015). In this

work, we consider only well-formed infrastructures

and thus follow this rule.

The task of ﬁnding a valid plan for a robot that

avoids collisions with previously planned robots can

be solved by any planner that takes time dimension

into account. In the simplest case, when time is dis-

cretized and only cardinal translations and rotation on

◦

are allowed, A* (Hart et al., 1968) can be adopted

to solve the problem. The search state, in this case,

consists of the conﬁguration-time pairs. At each step,

the planner reasons whether the adjacent conﬁgura-

tions are reachable in the next time step, i.e. whether

such transitions do not conﬂict with the given con-

straints induced by the higher-priority robots. An al-

ternative to staying in the same conﬁguration, i.e. to

wait, should also be considered. Obviously, searching

in such a search-state is a computationally intensive

task as the number of states is huge.

In (Silver, 2005) a modiﬁcation of the described

approach, named WHCA*, was suggested that in-

troduces a time-window and considers time dimen-

sion only when planning inside this window. A

more advanced approach, known as Safe-Interval

Path Planning (SIPP), was suggested in (Phillips and

Likhachev, 2011). The idea of SIPP is to group for

each conﬁguration the time steps at which no colli-

sion happens and to make search-nodes out of these

intervals. I.e. each search node is a tuple hc f g, [t

, t

]i,

where c f g is the conﬁguration of the robot and [t

, t

]

– is the safe interval for that conﬁguration. Endpoints

of the interval are computed taking the trajectories

of the dynamic obstacles (high-priority robots) into

account. SIPP signiﬁcantly reduces search effort as

now the number of the search-states corresponding to

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

524

a single conﬁguration is proportional not to the total

number of time-steps, but to the number of dynamic

obstacles that interfere with that conﬁguration.

A nice property of SIPP is that it can be naturally

extended to handle non-discretized, i.e. continuous,

time as the endpoints of the intervals are not restricted

by the algorithm to be integers. This, in turn, provides

a pathway to handle any-angle moves (Yakovlev and

Andreychuk, 2017), translations and rotations of arbi-

trary duration etc. In this work, we employ one of the

latest modiﬁcations of SIPP, suggested in (Yakovlev

et al., 2019), that supports planning with a wide range

of kinematic constraints by explicitly reasoning about

the velocities of the agents, their sizes, etc.

5 CONTROL SYSTEM

The proposed planning approach has been integrated

into a control system to allow testing and evaluation

of the planner with real robots. Its ﬁrst component

is the planner which is given a set of assignments for

the agents, a map and a conﬁguration. The planner

then provides a set of timed plans for the agents –

robots. These plans are processed by the FleetControl

module that transforms them into messages to be sent

to the robots at a speciﬁed time. The robots localize

themselves by fusing data from a camera and odome-

try. Based on the knowledge of their current location,

they navigate to a target given by the last command.

5.1 FleetControl System

The architecture of the FleetControl is depicted in

Fig. 2. It loads a ﬁle with plans for the agents and

transforms them to timed commands for robots. The

format of all commands is the same: the start and tar-

get locations and orientations, execution time and an

ordinal number. The expected execution time of the

command is used to maintain robot’s average speed,

which is vital to fulﬁll the plan as expected by the

collision-avoiding planner.

The time when a command should be sent is de-

termined by the duration of the preceding commands.

The commands for each robot are put in a queue that

is sorted by their execution start. The queues and

other state variables are stored in Data.

The Server and Timer threads are started, after the

plans are loaded. The Timer thread maintains a fre-

quency of 100 Hz in increasing the timestamp of the

system. The timestamp is also stored in Data to deter-

mine when to send new commands to robots.

The Server thread maintains the communication

with the robots, which is performed over TCP mak-

ing use nanomsg library. The time-ordered queue of

commands for robots is also checked by Server which

sends them to the correct robot in a given time. The

commands are serialized to a binary format making

use the cereal library.

Correct reception of commands by robots is en-

sured by a broadcast memory and a timer mechanism.

This remembers the last command sent to each robot

and if the robot does not conﬁrm its reception within

a set time, the command is sent again.

5.2 Robot Localization and Control

The robots are entirely driven by ROS (Quigley et al.,

2009): standard ROS packages together with the ones

designed for the described scenario are used. The

central ROS node is used for navigation and com-

munication with FleetControl. It listens on a TCP

client socket to new commands from FleetControl.

Whenever a previous command is completed, the ac-

knowledgement of the reception and a new deserial-

ized command for execution are sent to FleetControl.

The localization is carried out in two ways. The

odometry is used for continuous localization, al-

though it is prone to inaccuracy and growing errors.

To provide absolute localization, robots are equipped

with cameras, and detection of ﬁducial markers is em-

ployed. Speciﬁcally, a set of visually detectable and

unique markers - AprilTags (Wang and Olson, 2016)

is placed in the environment and the positions of these

markers are stored. Whenever some marker is de-

tected in a camera image and its ID is recognized, the

absolute robot position is retrieved from the stored ab-

solute position of the marker, a position of the marker

in the image, and the relative position of the cam-

era to the robot. Decoding of AprilTag information

from a camera image is done by the apriltag ros

package (http://wiki.ros.org/apriltag ros).

The Navigator receives updates of a relative robot

position and determines the current absolute robot lo-

cation and orientation in the map. This information is

used as the robot pose when no tag is visible and thus

AprilTag-based localization does not provide data.

Regulation errors – the deviation in the desired

orientation to the current goal and the expected and

real traveled distance based on expected average

speed – are computed from the robot position. A pro-

portional controller is used to control robot speed:

speed

(t) = K

speed

(t), (1)

while robot steering is controoled by a PI controller:

steer

(t) = K

steer

(t) + K

steer

)dt

. (2)

On the Application of Safe-Interval Path Planning to a Variant of the Pickup and Delivery Problem

525

and K

denote the proportional and integral co-

efﬁcients respectively, while e

are the regulation er-

rors. The controllers ensure navigation towards the

goal with the deﬁned precision and its attainment in

the desired time.

6 EXPERIMENTAL EVALUATION

6.1 Simulation Experiments

We used a 170 × 84 grid map from the Mov-

ing AI repository (Stern et al., 2019) –

warehouse-10-20-10-2-2 – that represents a

warehouse environment with racks, passages be-

tween them and two open areas on the borders of the

map. We generated 100 scenarios, each containing

164 unique start, sub-goal and goal locations. Start

and goal were placed randomly in the right and

left column of the grid, sub-goals were randomly

distributed across the racks. To generate instances

involving n number of robots we took ﬁrst n start-

subgoal-goal triplets out of the generated scenarios.

100 different instances for each number of agents

were generated. Two different action models were

considered: the one that allows only cardinal moves

and the one that allows any-angle moves. Translation

speed was set to be one cell per time unit, rotation

speed – π radians per time unit. In each experiment

we measured the following indicators: algorithm’s

runtime, resultant ﬂowtime and makespan.

Fig. 4 depicts the results for cardinal-only motion

model. Three lines on the plots correspond to differ-

ent task allocation strategies: random, when the sub-

goals were assigned randomly; without obs, when

the sub-goals were assigned based on the computation

of Euclidean distance; with obs, when sub-goals as-

signment involved path planning with A* algorithm.

In the latter case we also measured the breakdown be-

tween the task assignment and path ﬁnding – see the

right chart on Fig. 4.

As one can see, the task assignment strategy has

a signiﬁcant impact on the performance of the al-

gorithm. For example, the difference in ﬂowtime

between random and without obs is 15% for 164

agents and the difference between random and with

obs is even more articulated – up to 30% for 164

agents. Trends for the makespan are similar. In terms

of runtime, the best results were achieved by without

obs. However, the difference between without obs

and with obs is not signiﬁcant (10% on average).

Please also note, that a signiﬁcant portion of the run-

time is spent on task allocation when with obs strat-

egy is utilized (see the right-most plot on Fig. 4.)

Fig. 5 depicts the results for any-angle motion

model. In this case, we evaluated an additional task

allocation strategy – with obs any-angle – which

relies on ﬁnding paths with Theta* (Nash et al., 2007)

not A* to assign sub-goals. In general, the trends are

similar to the previous ones: the more involved strat-

egy to assign sub-goals is used – the better results are

in terms of solution cost. Interestingly runtime for the

with obs any-angle is lower compared to without

obs. It means that investing time in path planning at

the stage of task allocation pays off in the considered

setting. Two right plots in Fig. 5 show that any-angle

planning for task assignment is, indeed, more time-

consuming.

Comparing the results of both experiments, one

can note that the difference in ﬂowtime and makespan

between the action models is about 10%. This is due

to the the open areas on the borders of the map in

which robots can move into arbitrary directions short-

ening their paths.

6.2 Veriﬁcation on Real Robots

Suggested approach was veriﬁed on a ﬂeet of real

robots in a laboratory setup. The robots used were

Kobuki TurtleBot2 equipped with an Intel NUC PC

and Orbbec Astra camera. The camera provides

1280 × 960 RGB images at the frequency of 10FPS.

Intrinsic/extrinsic parameters of the camera have been

identiﬁed, and camera distortion was removed before

processing by the AprilTag detector.

The laboratory setup serving for the demonstrator

has been populated with a grid consisting of AprilT-

ags (type Tag36h11) on the ﬂoor as shown in Fig. 3.

The unique tags were placed equidistantly with 70 cm

gaps, and their positions were stored in an XML map.

The planner was given a situation with six agents

and six tasks as depicted in Fig. 6. Each task con-

sisted in a pickup of an item (the colored boxes) and

delivering it to the speciﬁed position (the triangles).

The plans and the task assignment were done by the

proposed planner. The speed of the agents was as ex-

pected by the planner, so they were able to keep safe

distance without being able to perceive their peers.

The location and orientation deviations did not exceed

the set thresholds during the entire experiment, which

were set to 5cm for the position error tolerance and

0.02 radians for the orientation error tolerance.

Generally, the proposed planner proved to be a

ﬂexible and versatile tool in practice. After ap-

propriate tuning, it was capable of providing ro-

bust solutions that were safely executed by real

robots. Video of the experiment can be found at

youtu.be/siRl0TlGLtQ.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

526

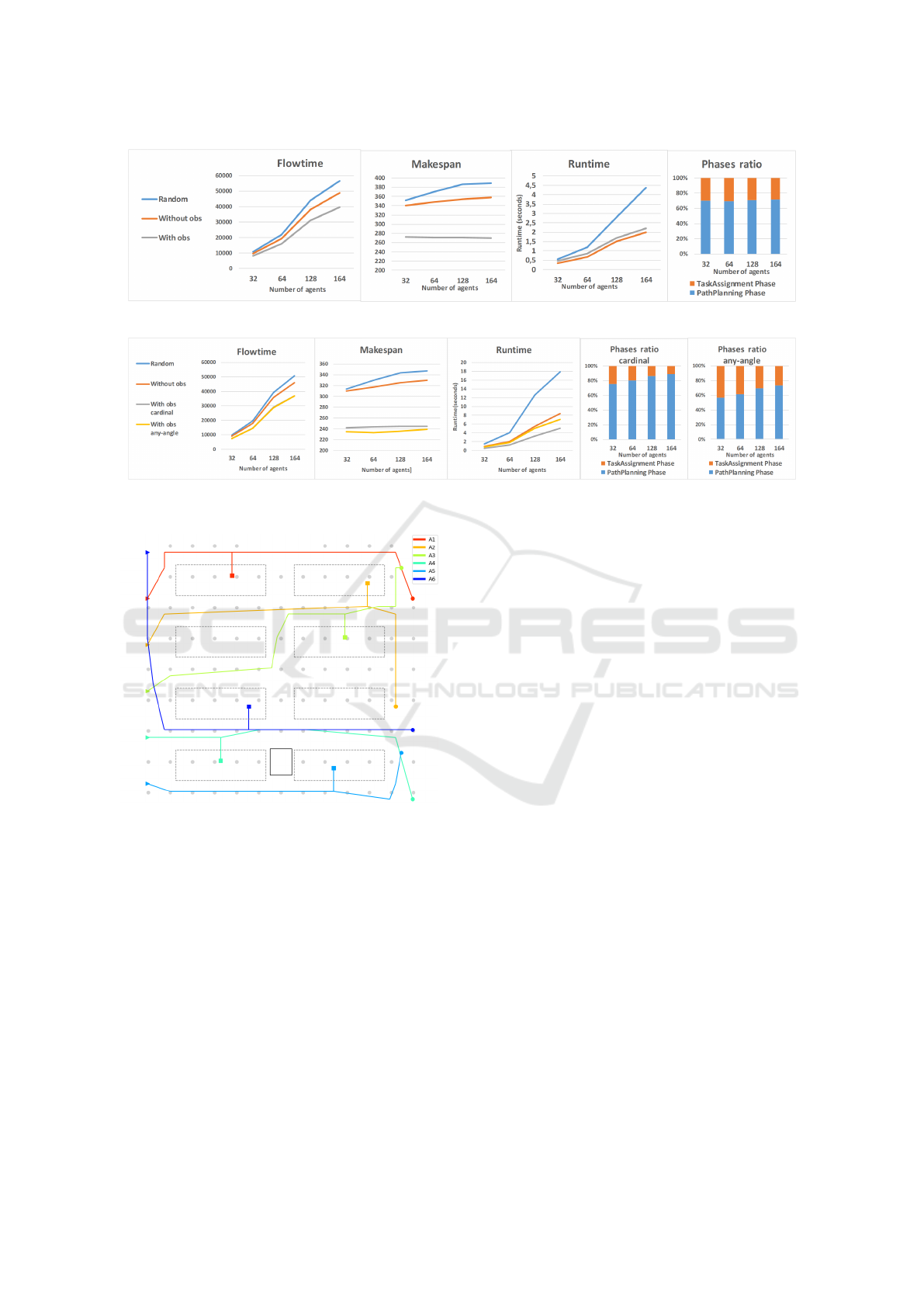

Figure 4: Experimental results when cardinal-only moves were allowed.

Figure 5: Experimental results when any-angle moves were allowed.

Figure 6: The experiment setup.

7 CONCLUSIONS

In this work, we examined a variant of the multi-

agent pickup and delivery problem that arises in the

context of automated warehouses. We suggested and

evaluated a range of task allocation strategies paired

with state-of-the-art multi-agent path ﬁnding algo-

rithm that takes kinematic constraints into account.

We conducted experiments on real robots that rely on

a local vision-based localization system for naviga-

tion and plan execution. A prominent direction for

future research is examining a lifelong variant of the

problem (when sub-goals and goals appear on an on-

going basis) and conducting experiments with a larger

number of real robots.

ACKNOWLEDGEMENTS

The work of Tom

s Rybeck

y and Miroslav Kulich

has been supported by the European Union’s Hori-

zon 2020 research and innovation programme under

grant agreement No 688117 and by the European Re-

gional Development Fund under the project Robotics

for Industry 4.0 (reg. no. CZ.02.1.01/0.0/0.0/15

003/0000470). Konstantin Yakovlev and Anton An-

dreychuk were supported by the Russian Foundation

for Basic Research (project 17-29-07053) and special

program of the presidium of Russian Academy of Sci-

ences. Anton Andreychuk is also supported by the

“RUDN University Program 5-100”.

REFERENCES

Andreychuk, A. and Yakovlev, K. (2018). Two techniques

that enhance the performance of multi-robot priori-

tized path planning. In Proc. of the 17th Int. Conf. on

Autonomous Agents and MultiAgent Systems (AAMAS

2018), pages 2177–2179.

Andreychuk, A., Yakovlev, K., Atzmon, D., and Stern, R.

(2019). Multi-agent pathﬁnding with continuous time.

In Proc. of the 28th Int. Joint Conf. on Artiﬁcial Intel-

ligence (IJCAI 2019), pages 39–45.

Barer, M., Sharon, G., Stern, R., and Felner, A. (2014). Sub-

optimal variants of the conﬂict-based search algorithm

for the multi-agent pathﬁnding problem. In Proc. of

the 7th Symp. on Combinatorial Search, pages 19–27.

Bennewitz, M., Burgard, W., and Thrun, S. (2002). Find-

ing and optimizing solvable priority schemes for de-

coupled path planning techniques for teams of mobile

robots. Robotics and autonom. systems, 41(2):89–99.

On the Application of Safe-Interval Path Planning to a Variant of the Pickup and Delivery Problem

527

ap, M., Nov

ak, P., Kleiner, A., and Seleck

y, M. (2015).

Prioritized planning algorithms for trajectory coordi-

nation of multiple mobile robots. IEEE Trans. on Au-

tomation Science and Engineering, 12(3):835–849.

Cohen, L., Uras, T., Kumar, T. S., and Koenig, S. (2019).

Optimal and bounded-suboptimal multi-agent motion

planning. In Proc. of the 12th Symposium on Combi-

natorial Search.

de Wilde, B., ter Mors, A. W., and Witteveen, C. (2013).

Push and rotate: cooperative multi-agent path plan-

ning. In Proc. of the 12th Int. Conf. on Autonomous

Agents and Multiagent Systems, pages 87–94.

Erdmann, M. and Lozano-P

erez, T. (1987). On multiple

moving objects. Algorithmica, 2:1419–1424.

Faigl, J. and Kulich, M. (2013). On determination of goal

candidates in frontier-based multi-robot exploration.

In Proc. of 6th European Conf. on Mobile Robots.

Hart, P. E., Nilsson, N. J., and Raphael, B. (1968). A for-

mal basis for the heuristic determination of minimum

cost paths. IEEE transactions on Systems Science and

Cybernetics, 4(2):100–107.

onig, W., Kiesel, S., Tinka, A., Durham, J. W., and Aya-

nian, N. (2018). Conﬂict-based search with optimal

task assignment. In Proc. of the 17th Int. Conf. on

Aut. Agents and Multi-Agent Systems, pages 757–765.

ezda, J., Kulich, M., and P

reu

cil, L. (2018a). Improved

discrete rrt for coordinated multi-robot planning. In

Proc. of the 15th Int. Conf. on Informatics in Control,

Automation and Robotics, Madeira, PT. SciTePress.

ezda, J., Kulich, M., and P

reu

cil, L. (2019). On Random-

ized Searching for Multi-robot Coordination, pages

364–383. Lecture Notes in Electrical Engineering.

Springer, Cham, CH.

ezda, J., Rybeck

y, T., Kulich, M., and P

reu

cil, L.

(2018b). Context-aware route planning for automated

warehouses. In Proc. of 2018 21st Int. Conf. on Intel-

ligent Transportation Systems (ITSC).

Krajn

ık, T., Kulich, M., Mudrov

a, L., Ambrus, R., and

Duckett, T. (2015). Where’s Waldo at time t? Us-

ing spatio-temporal models for mobile robot search.

In 2015 IEEE Int. Conf. on Robotics and Automation

(ICRA), pages 2140–2146.

Kuhn, H. W. (1956). Variants of the hungarian method

for assignment problems. Naval Research Logistics

Quarterly, 3(4):253–258.

Kulich, M., Nov

ak, T., and P

reucil, L. (2019). Push,

stop, and replan: An application of pebble motion on

graphs to planning in automated warehouses. In Proc.

of the 2019 IEEE Intelligent Transportation Systems

Conf. (ITSC 2019), pages 4456–4463.

Kulich, M., P

reu

cil, L., and Miranda Bront, J. J. (2017). On

multi-robot search for a stationary object. In Proc. of

ECMR 2017, Marseille, FR. IEEE.

Ma, H., H

onig, W., Kumar, T. K. S., Ayanian, N., and

Koenig, S. (2019). Lifelong path planning with kine-

matic constraints for multi-agent pickup and delivery.

In Proc. of the 33rd AAAI Conf. on Artiﬁcial Intelli-

gence (AAAI 2019), page in press.

Ma, H. and Koenig, S. (2016). Optimal target assignment

and path ﬁnding for teams of agents. In Proc. of the

15th Int. Conf. on Autonomous Agents and Multiagent

Systems (AAMAS 2016), pages 1144–1152.

Ma, H., Li, J., Kumar, T. S., and Koenig, S. (2017). Lifelong

multi-agent path ﬁnding for online pickup and deliv-

ery tasks. In Proc. of the 16th Conf. on Autonomous

Agents and MultiAgent Systems, pages 837–845.

Nash, A., Daniel, K., Koenig, S., and Felner, A. (2007).

Theta*: Any-angle path planning on grids. In Proc. of

The 22nd AAAI Conf. on Artiﬁcial Intelligence (AAAI

2007), pages 1177–1183.

Open Source Robotics Foundation, Inc. (ac-

cessed April 6, 2020). Turtlebort2.

https://www.turtlebot.com/turtlebot2/.

Phillips, M. and Likhachev, M. (2011). SIPP: Safe interval

path planning for dynamic environments. In Proc. of

The 2011 IEEE Int. Conf. on Robotics and Automation

(ICRA 2011), pages 5628–5635.

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). ROS: an

open-source Robot Operating System. In ICRA Work-

shop on Open Source Software.

Roodbergen, K. J. and Vis, I. F. (2009). A survey of litera-

ture on automated storage and retrieval systems. Eu-

ropean journal of oper. research, 194(2):343–362.

Sharon, G., Stern, R., Felner, A., and Sturtevant., N.

(2015). Conﬂict-based search for optimal multiagent

path ﬁnding. Artiﬁc. Intelligence Journal, 218:40–66.

Silver, D. (2005). Cooperative pathﬁnding. In Proc. of

The 1st Conf. on Artiﬁcial Intelligence and Interactive

Digital Entertainment (AIIDE 2005), pages 117–122.

Spirakis, P. and Yap, C.-K. (1984). Strong NP-hardness of

moving many discs. Inf. Proc. Letters, 19(1):55–59.

Standley, T. S. (2010). Finding optimal solutions to cooper-

ative pathﬁnding problems. In Proc. of the 24th AAAI

Conf. on Artiﬁcial Intelligence, pages 173–178.

Stern, R., Sturtevant, N., Felner, A., Koenig, S., Ma, H.,

Walker, T., Li, J., Atzmon, D., Cohen, L., Kumar,

S., Boyarski, E., and Bartak, R. (2019). Multi-agent

pathﬁnding: Deﬁnitions, variants, and benchmarks.

Symp. on Combinatorial Search, pages 151–158.

Wagner, G. and Choset, H. (2011). M*: A complete

multirobot path planning algorithm with performance

bounds. In Proc. of the 2011 IEEE/RSJ Int. Conf. on

Intelligent Robots and Systems, pages 3260–3267.

Wang, J. and Olson, E. (2016). AprilTag 2: Efﬁcient and

robust ﬁducial detection. In Proc. of the IEEE/RSJ

Int. Conf. on Intelligent Robots and Systems (IROS).

Wurman, P. R., D’Andrea, R., and Mountz, M. (2008). Co-

ordinating hundreds of cooperative, autonomous vehi-

cles in warehouses. AI magazine, 29(1):9–19.

Yakovlev, K. and Andreychuk, A. (2017). Any-angle

pathﬁnding for multiple agents based on SIPP algo-

rithm. In Proc. of The 27th Int. Conf. on Automated

Planning and Scheduling, pages 586–593.

Yakovlev, K., Andreychuk, A., and Vorobyev, V. (2019).

Prioritized multi-agent path ﬁnding for differential

drive robots. In Proc. of The 2019 European Conf.

on Mobile Robots, pages 1–6.

Yu, J. and LaValle, S. M. (2016). Optimal multirobot

path planning on graphs: Complete algorithms and

effective heuristics. IEEE Transactions on Robotics,

32(5):1163–1177.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

528
