A New Neural Network Feature Importance Method: Application to

Mobile Robots Controllers Gain Tuning

Ashley Hill

1

, Eric Lucet

1

and Roland Lenain

2

1

CEA, LIST, Interactive Robotics Laboratory, Gif-sur-Yvette, F-91191, France

2

Universit

´

e Clermont Auvergne, Inrae, UR TSCF, Centre de Clermont-Ferrand, F-63178 Aubi

`

ere, France

Keywords:

Machine Learning, Neural Network, Robotics, Mobile Robot, Control Theory, Gain Tuning, Adaptive

Control, Explainable Artiﬁcial Intelligence.

Abstract:

This paper proposes a new approach for feature importance of neural networks and subsequently a methodol-

ogy using the novel feature importance to determine useful sensor information in high performance controllers,

using a trained neural network that predicts the quasi-optimal gain in real time. The neural network is trained

using the Covariance Matrix Adaptation Evolution Strategy (CMA-ES) algorithm, in order to lower a given

objective function. The important sensor information for robotic control are determined using the described

methodology. Then a proposed improvement to the tested control law is given, and compared with the neural

network’s gain prediction method for real time gain tuning. As a results, crucial information about the impor-

tance of a given sensory information for robotic control is determined, and shown to improve the performance

of existing controllers.

1 INTRODUCTION

In robotic control, the search for more accurate and

more adaptive controllers have been the foundation

of research in the ﬁeld. Where the controller must be

able to adapt to varying known conditions or to react

with respect to observed changes in the environment.

However, it is not trivial to know a priori which as-

pects of the perception need to be included into the

control law. As such many paths have been and are

being explored for improving control law, such as

computer vision (Ha and Schmidhuber, 2018) or state

estimators and observes (Lenain et al., 2017). %

More recent papers have shown the use of neu-

ral networks for gain prediction (Hill. et al., 2019).

Where the gain changes with respect to the perception

quality, allowing the controller to adapt to information

that was underused. Indeed, due to their nature as uni-

versal function approximators (Hornik et al., 1990),

neural networks can use most of the available sensor

information; in order to predict a quasi-optimal gain

that adapts to the changes in the perception. %

However, many tasks cannot use neural networks,

for safety reasons or in some cases for performance

reasons. Indeed, they are considered black-boxes due

to their mathematical complexity and high number

of internal parameters (LeCun et al., 2015), making

them hard to analyze and predict consistent behavior.

As such, the natural question that follows, is how

to analyze trained neural controllers in order to un-

derstand their behavior, and possibly improve current

control laws. This is an important question in the

ﬁeld of machine learning and artiﬁcial intelligence in

general, and currently heavily researched (Gunning,

2017). In this paper, the application of existing and

novel analysis methods are used, in order to under-

stand the how a trained gain prediction method reacts

to its input information, and how this knowledge can

be used in order to improve classic control law.

At ﬁrst, a few methods for neural network analysis

will be described, including a novel analysis method.

Then, an experimental setup, where the gain predic-

tion method is described, along with a dynamic sim-

ulation of a robotic car-like bicycle model. Followed

by experiments showing how to integrate the analysis

information into improving the control law. And ﬁ-

nally, a discussion of the results and in depth analysis

before concluding.

188

Hill, A., Lucet, E. and Lenain, R.

A New Neural Network Feature Importance Method: Application to Mobile Robots Controllers Gain Tuning.

DOI: 10.5220/0009888501880194

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 188-194

ISBN: 978-989-758-442-8

Copyright

c

2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

2 ANALYSIS METHOD

2.1 Preliminaries

The analysis is based on feature importance, it de-

scribes how important each input feature is in order to

obtain a good prediction.

This is usually used in the context of decision trees

(Liaw et al., 2002), where each node on the tree has

a score determining the quality of its split. Which in

some cases is the Gini impurity (Suthaharan, 2016).

The feature importance is described as the input pa-

rameters that lead to a low Gini impurity for each

node that use the input feature for its split. When

sorted, these feature importance show which inputs

where the most useful in order to obtain a good pre-

diction.

Unfortunately, decision trees struggle to outmatch

the performance of neural networks, due to neural net-

works strengths as dimensional reducers and being

universal function approximators for non-linear func-

tions (LeCun et al., 2015). This means that in most

cases neural networks must be used in order to obtain

the desired performance.

The notion of feature importance is still available

to neural networks, however they are not as clear as

for the decision trees. The most known method is the

Temporal Permutation method, described in (Molnar,

2019), and detailed in the following section.

2.2 Feature Importance using Temporal

Permutation

Neural network predicts from a vector inputs, a de-

sired output vector. By varying the inputs and ob-

serving the change in the output, a correlation can be

established between each input and amount of change

for the output. This correlation shows if a given in-

put were to change, by how much would the output

change.

If the assumption that the neural network predicts

a quasi-optimal output is given. Then the change be-

tween the original predicted output, and the predicted

output when the input was altered, should give the in-

ﬂuence each input has on the output. And this is turn

gives describes how important each input is to pre-

dicting the quasi-optimal output.

However, the changes that are made to each in-

put must be in such a way, that the input values

must remain consistent and realistic. For this, the ap-

proach proposed in (Molnar, 2019), use a temporal

permutation method. Where for a list of input vectors

recorded over time and a given input to analyze, the

given input will be shufﬂed across all the input vectors

over time. This causes a given input to be randomly

permuted over time, meaning the input value will not

longer hold any meaning with respect to the other in-

puts in the input vector. This input will then be similar

to a random distribution of the same type as observed

in the initial unshufﬂed input vectors.

When this method is applied to each input, a dif-

ference of the output, relative to each input can be

achieved. Where the difference of the output is di-

rectly translated to the error of the output, if the as-

sumption that the neural network predicts a quasi-

optimal output is given.

2.3 Feature Importance using the

Gradient

Feed forward multilayer perceptron neural networks,

consist of a sequence of matrix multiplications, adds,

and activation functions, from the given input to the

given output (LeCun et al., 2015):

y = a(b

(n)

+ w

(n,n−1)

a(...b

(1)

+ w

(1,0)

X))

Where y is the output, X is the input, a is the activation

function, b

(n)

is the bias at the layer n, and w

(n,n−1)

is

the weight matrix between the layer n and the layer

n − 1.

From this, the gradient between the output, and

any component of the neural network can be achieved

using the chain rule. Indeed this is the exact method

that is used in backpropagation (LeCun et al., 2015)

for gradient descent in supervised learning methods

applied to neural networks.

However, backpropagation is only used to tune the

parameter of the neural network in order to minimize

an error between the predicted output and a desired

output. A different method can be used with the chain

rule to calculate the rate of change of the output value

with respect to the input vector:

∂y

∂X

=

∂y

∂a

∂a

∂z

(n)

∂z

(n)

∂s

(n−1)

. . .

∂s

(1)

∂a

∂a

∂z

(1)

∂z

(1)

∂X

∂y

∂X

= a

0

(z

(n)

)w

(n,n−1)

. . . a

0

(z

(1)

)w

(1,0)

A variant of this method was previously used in

image modiﬁcation with neural networks, in order to

change an input image that maximized a cost func-

tion (Mordvintsev et al., 2015). And for determining

a Saliency map in image classiﬁers (Simonyan et al.,

2013).

Using this methods a jacobian matrix between

each output component and each input component,

can be obtained at each feed forward prediction of

the neural network. With this, the average and vari-

ance of the rate of change for each input with respect

A New Neural Network Feature Importance Method: Application to Mobile Robots Controllers Gain Tuning

189

to the output can be achieved over a given task. The

contribution that allow the method to return the fea-

ture importance, is the assumption that the neural net-

work predicts a quasi-optimal output. Where the rate

of change of the output is directly translated to the

error of the output. Meaning if a low rate of change

for a given input is obtained, then the input does not

contribute much to the quasi-optimal output, and as

such is not considered to be an important feature for

the prediction method.

3 EXPERIMENTAL SETUP

Before any analysis of the neural network can be

done, a training environment must ﬁrst be established.

For this, a robotic car-like model in a dynamic simu-

lation is used to generate training samples. Which are

then used as input to a covariance matrix adaptation

evolution strategy (CMA-ES) method (Hansen, 2016)

in order to optimize a neural network’s weights and

biases, to minimize an objective function. This neural

network has as a goal to output in real time, the quasi-

optimal gains for the steering controller, in a similar

fashion to previous works (Hill. et al., 2019).

3.1 Robotic Model & Simulation

The robotic model is a dynamic bicycle model, which

takes into account the slide slip angle and lateral

forces applied to the rear and front axle. This model

is show in the ﬁgure 1.

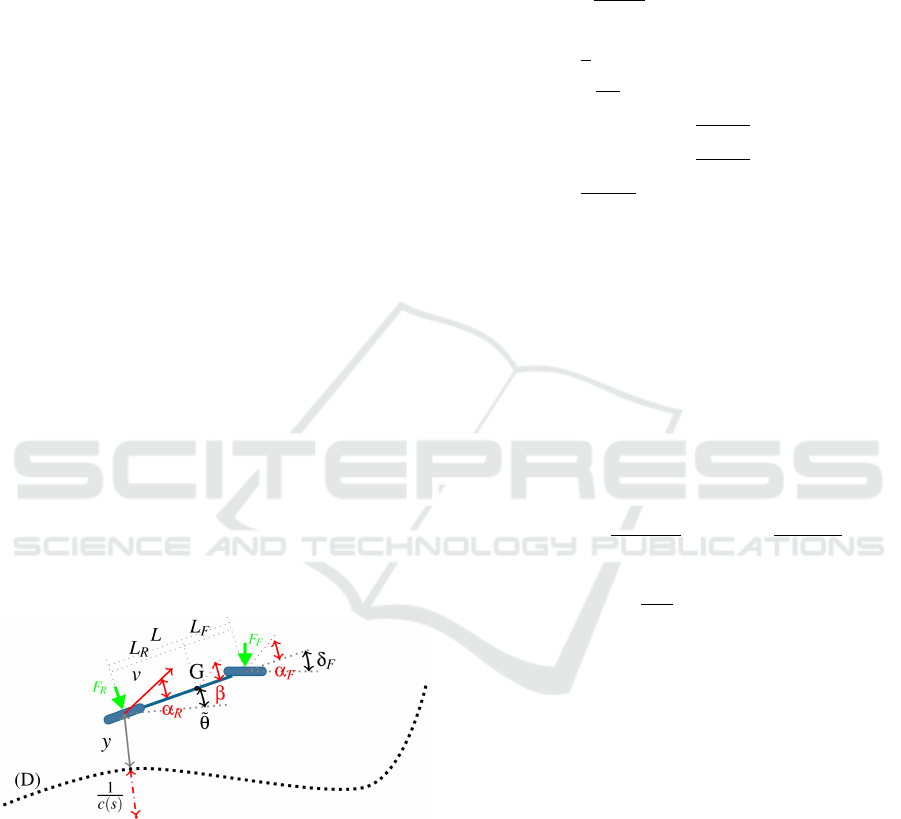

Figure 1: The dynamic robot model.

The notation of the model being deﬁned as fol-

lows: (D) is the trajectory being followed, s is the

curvilinear abscissa along D, L is the wheel base

length of the robot, v is the speed vector of the robot

at the middle of the rear axle,

˜

θ is the angular error, y

is the lateral error, c(s) is the curvature at the point s,

δ

F

is the front steering angle, G is the center of mass

of the robot, L

R

and L

F

are the distance from the cen-

ter of mass to the rear and front axle respectively, F

R

and F

F

are the lateral force on the rear and front axle

respectively, β is the vehicle sliding angle, α

F

and α

R

are the front and rear axle sliding angle respectively,

I

z

is the moment of inertia across the Z axis.

From this modeling, the following system of equa-

tions can be derived:

˙s = v

cos(

˜

θ)

1−c(s)y

˙y = v sin(

˜

θ)

¨

θ =

1

I

z

(−L

F

F

F

cos(δ

F

) + L

R

F

R

)

˙

β = −

1

v

2

m

(F

F

cos(β − δ

F

) + F

R

cos(β)) −

˙

θ

β

R

= arctan(tanβ −

L

R

˙

θ

v

2

cos(β)

)

β

F

= arctan(tanβ +

L

F

˙

θ

v

2

cos(β)

) − δ

F

v

2

=

vcos(β

R

)

cos(β)

The lateral forces applied to the rear and front

axle, follow the Pacejka magic formula (Bakker et al.,

1987), in order to obtain a more realistic and dynamic

environment.

An extended Kalman ﬁlter (Welch and Bishop,

1995) is used in order to determine the robotic state

from the sensor input, along with the covariance.

The steering actuators are modeled using an action

delay of approximately 0.5s.

This robot’s steering is controlled using the fol-

lowing control equation:

δ

F

= arctan

L cos

3

ε

θ

α

k

θ

(e

θ

) +

κ

cos

2

(ε

θ

)

with e

θ

= tan ε

θ

−

k

l

ε

l

α

is the relative orientation

error of the robot to reach its trajectory (i.e. ensur-

ing the convergence of ε

l

to 0). This control detailed

in (Lenain et al., 2017) guaranties the stabilization of

the robot to its reference trajectory, providing a rele-

vant choice for the gains k

θ

and k

l

.

3.2 Gain Prediction Model & Training

The gain prediction model used, is based on previ-

ous works (Hill. et al., 2019), where a neural net-

works predicts the quasi-optimal gain that minimize

a given objective function. This neural network pre-

dict this gain using information that is underused in

the control loop, such as the perception quality. This

neural network has 3 hidden layers of 40, 100 and

10 neurons respectively, with a hyperbolic tangents

as an activation function. It is then optimized in order

to minimize the objective function using the CMA-

ES method (Hansen, 2016). The full control loop is

shown on the ﬁgure 2:

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

190

Controller

Robot

Observer

Tracking

errors

Errors

Control input

Measures

State

Gain model

Errors, state,

covariance,

curvature

Gains

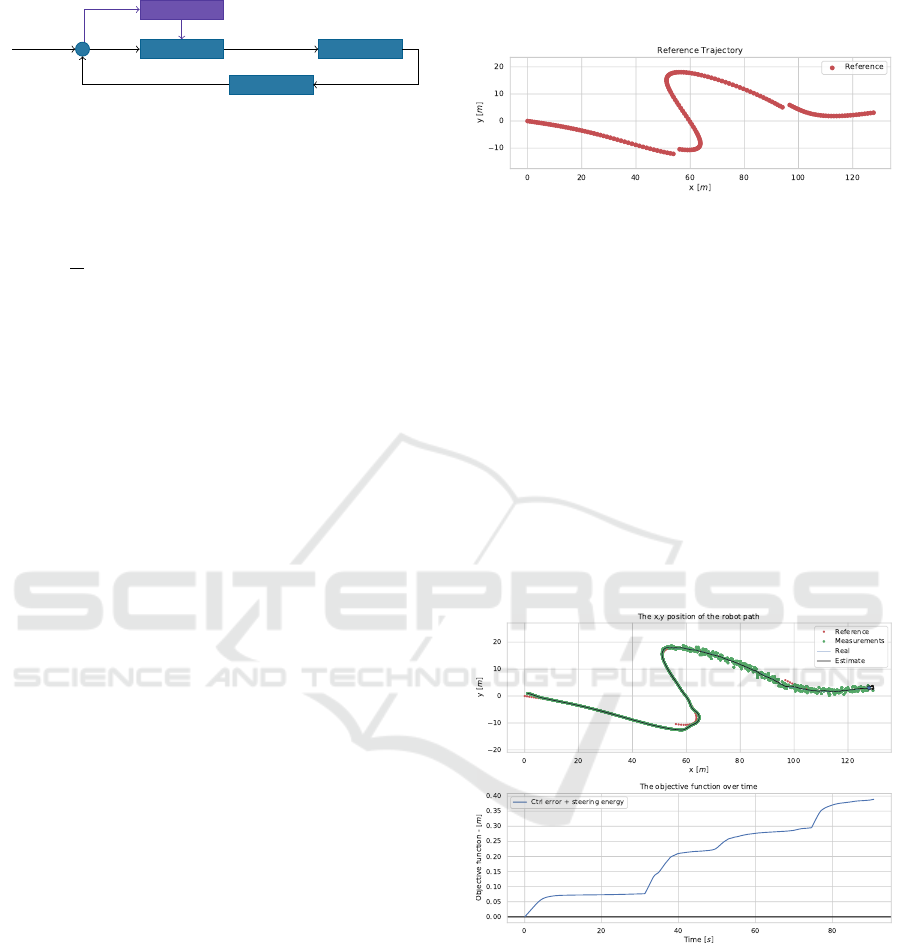

Figure 2: The control loop of the mobile robot steering task,

with a gain predictor.

The objective function used is the following (de-

ﬁned in [m]):

ob

1

=

1

T

N

∑

n=0

|y(t

n

)| + L|

˜

θ(t

n

)| + k

steer

L|δ

F

(t

n

)|

dt

Where T is the total time taken to follow the path, N is

the number of measured timesteps, t

n

is the time at the

timestep n, y is the lateral error,

˜

θ is the angular error,

δ

F

is the front steering, and dt is the time step be-

tween two samples. k

steer

is set to 0.5, as it showed to

be the ideal compromise between minimizing the con-

trol errors, and keeping a low steering energy which

minimizes oscillations.

This training was done using the previously de-

scribed simulation, over 20000 trajectory examples

using a population of 32 for CMA-ES.

3.3 Feature Importance for Robotic

Control

In robotics, there can be many sensors that can mea-

sure a wide variety of different kinds information.

However, it is not always clear what kind of infor-

mation or sensors will be of use in order to develop a

performant control equation.

As such, the goal of the following experiments, is

to use a trained neural network that can predict the

quasi-optimal gain. And from this, determine which

inputs of the neural network are used the most in order

to minimize the given objective function.

This will give a list of features that are needed in

order to improve the performance of the control equa-

tion. Some of which will then be integrated into the

control law.

4 RESULTS

The following results were obtained using the previ-

ously described methods, with a line following task

and the trajectory shown in the ﬁgure 3, at 2.0m.s

−1

,

1.5m.s

−1

, and 1.0m.s

−1

. Midway though the trajec-

tory, a GPS noise of 1m is applied to simulate a per-

ception quality loss. Two change lanes occurs along

the trajectory, in order to simulate a GPS constellation

jump or a sudden change in the target set-point.

Figure 3: The trajectory.

The method will use the trained neural network,

over the given trajectory, in order to calculate the two

feature importance methods. The temporal permu-

tation feature importance is then compared with the

novel feature importance method. Followed by an ap-

plication of the feature importance for improving the

control law.

4.1 Baseline

The baseline method that will be used to compare in

the following sections, is the expert tuned constant

gain method. Using a gain of k

l

= 0.2, and k

θ

= 1.0.

The results for the experiment can be see in the

ﬁgure 4. Where the baseline method reached an

Figure 4: Above: The method line following. Below: the

objective function over time.

end objective function value of 0.389m, 0.336m, and

0.308m for 2.0m.s

−1

, 1.5m.s

−1

, and 1.0m.s

−1

respec-

tively.

This method has some obvious shortcomings, as

it is not adaptive to the changes in speed or sensor

accuracy. Which can be observed in the noisy region,

where the controller is reacting to the GPS noise.

A New Neural Network Feature Importance Method: Application to Mobile Robots Controllers Gain Tuning

191

4.2 Gain Adaptation

The neural network gain method uses the information

in the control loop, in order to minimize the objec-

tive function. As such, it is able to predict the quasi-

optimal gain along the trajectory at any given time.

The results for the experiment can be see in the

ﬁgure 4. Where the neural network gain method

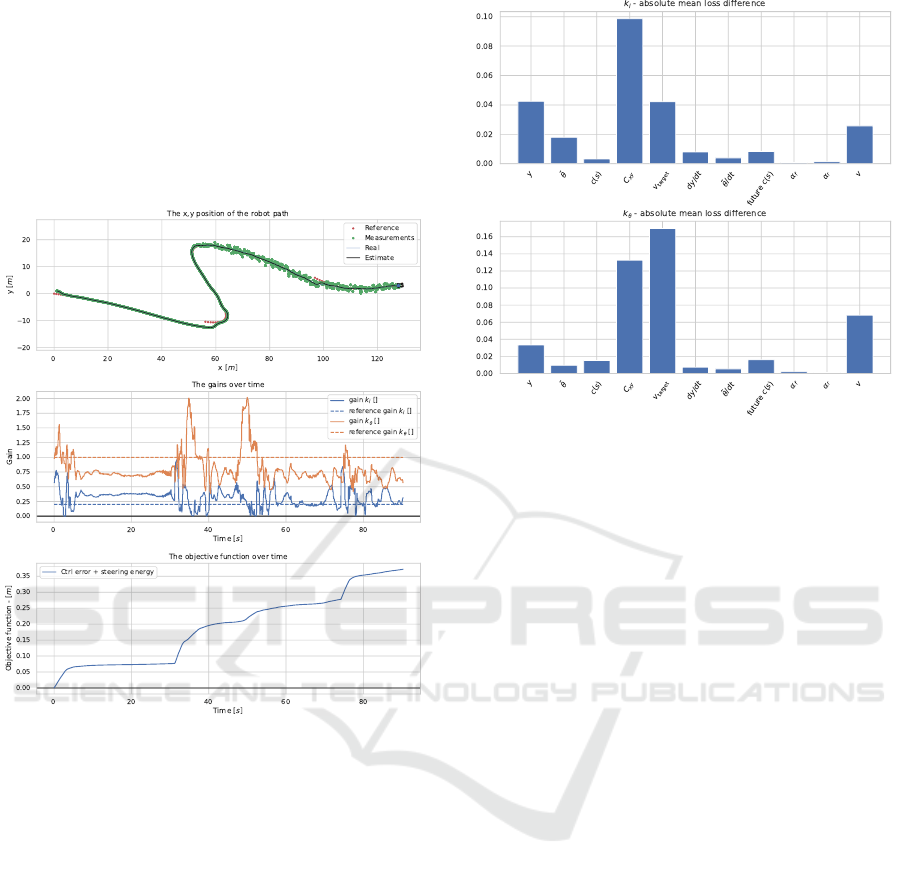

Figure 5: Above: The method line following. Middle: The

predicted gain, where the reference gain is the baseline con-

stant gain. Below: the objective function over time.

reached an end objective function value of 0.372m,

0.325m, and 0.291m for 2.0m.s

−1

, 1.5m.s

−1

, and

1.0m.s

−1

respectively.

The neural network is adapting the gain with re-

spect to changes in the speed, sensor accuracy, curva-

ture, and error. This allows the method to lower it’s

objective function substantially when compared to the

baseline method.

The feature importance can now be done over the

trained neural network. For this, both the temporal

permutation feature importance and the novel gradi-

ent feature importance are done.

On ﬁgure 6, the temporal permutation feature im-

portance can be observed. It is shown as the absolute

mean difference between the original predicted gain,

and the predicted gain when the given input is shuf-

ﬂed over time. From this, the most important features

for both gains, from highest to lowest are the Kalman

covariance matrix denoted C

xy

, the speed and target

Figure 6: The temporal permutation feature importance.

Above: for the k

l

gain. Below: for the k

θ

gain.

speed denoted v and v

target

respectively, the lateral er-

ror denoted y, the angular error denoted

˜

θ, and the

curvature denoted c(s).

The temporal permutation feature importance de-

scribes the absolute change in the gain, with respect

to the input feature. However is it does not show the

rate of change of the gains, with respect to the val-

ues of the input features. For this the gradient feature

importance is used.

On ﬁgure 7, the gradient feature importance can

be observed. It is shown as the mean and the variance

of the jacobian matrix of the gain for each input. A

large amplitude in the jacobian for a given input, im-

plies a strong inﬂuence of the input with respect to

the output. As such, the feature importance can be

derives by ranking the input, by order of largest to

smallest amplitude.

Similarly to the temporal permutation feature im-

portance, the most important features for both gains,

from highest to lowest are the Kalman covariance ma-

trix denoted C

xy

, the speed and target speed denoted v

and v

target

respectively, the lateral error denoted y, the

angular error denoted

˜

θ, the curvature denoted c(s),

and the future curvature (the predicted curvature at

t + 1s) denoted future c(s) due to its high variance.

From this, the equivalence of the feature impor-

tance methods can be implied. However the gradient

feature importance has some strong strengths to it: It

does not need each input features to vary in order to

obtain the feature importance. Indeed if a given input

does not explore the span of values during the analy-

sis, the temporal permutation feature importance will

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

192

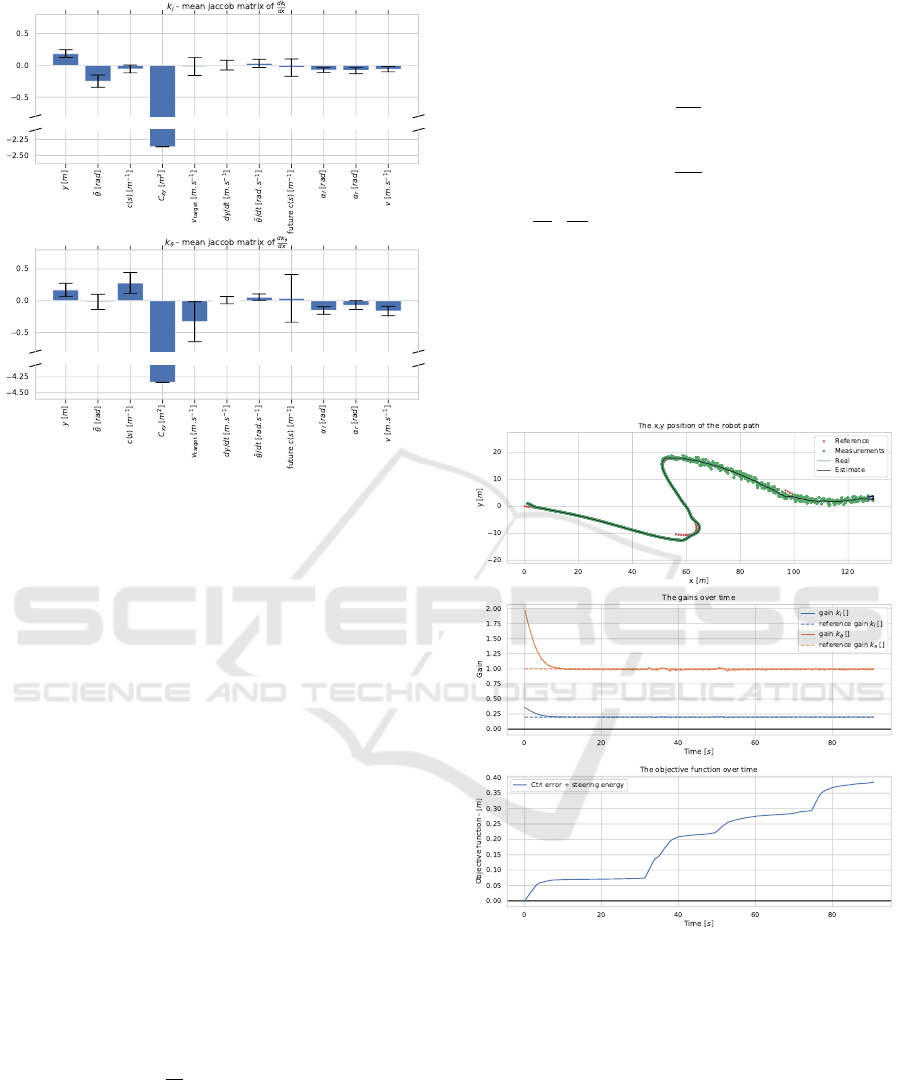

Figure 7: The gradient feature importance, as the mean ja-

cobian matrix. The ﬁgure is cut midway to avoid scaling

issue of outliers. The error bars, show the variance of the

jacobian matrix. Above: for the k

l

gain. Below: for the k

θ

gain.

not return the correct feature importance. Further-

more the gradient feature importance can return the

jacobian matrix for each input and output, at each feed

forward of the neural network. Allowing for real time

analysis and approximate prediction of the behavior

of the neural network. And ﬁnally, the mean jacobian

matrix for each input and output can be used, as an

approximation of the neural network’s behavior, that

can be exploited to improve the control equation, as

shown in the following section.

4.3 Improving Control Law

The ideal way to change the control law, is to derive

it from the model while taking some of the important

features into account (covariance, speed, sliding an-

gles, ...). However, in this case study a simple mod-

iﬁcation of the gain will be used in order to show a

proof of concept.

For this, the gains equation are augmented using

the mean jacobian

∂y

∂X

matrix for the speed. Even

though more inputs could be used to improve the con-

trol law, in this case study only the speed is exploited.

The covariance is not used for example, due to how

the neural network is using it for non-linear adapta-

tion of the gain. As such a linearization of the jaco-

bian is not a valid approximation of the original gain

behavior for the covariance, and in which during ex-

perimentation lead to unstable behavior.

Using the mean jacobian matrix, the following

gain equations are derived:

k

l

= v

∂

ˆ

k

l

∂v

+ k

lv

k

θ

= v

∂

ˆ

k

θ

∂v

+ k

θv

Where

∂

ˆ

k

l

∂v

,

∂

ˆ

k

θ

∂v

are the mean jacobian of the predicted

gains with respect to the speed, v is the longitudinal

speed, and k

lv

, k

θv

are the new tune-able gains for the

control equation. This modiﬁcation should allow the

control law to change its reactivity to the error with

respect to changes in the speed.

The results for the experiment can be see in

the ﬁgure 8. Where the improved control equation

Figure 8: Above: The method line following. Middle: The

predicted gain, where the reference gain is the baseline con-

stant gain. Below: the objective function over time.

method reached an end objective function value of

0.387m, 0.327m, and 0.288m for 2.0m.s

−1

, 1.5m.s

−1

,

and 1.0m.s

−1

respectively.

The improved control is adapting the gain with re-

spect to changes in the speed. This allows the method

to lower it’s objective function substantially when

compared to the baseline method, and to achieve simi-

lar performance to the neural network gain adaptation

method. Furthermore, it is able to capture the fast ini-

tial convergence to the trajectory that the neural net-

A New Neural Network Feature Importance Method: Application to Mobile Robots Controllers Gain Tuning

193

work gain adaptation method had, thanks to the initial

speed up (visible from t = 0 to t = 5).

Table 1: The objective function obtained for each method

and speed over the trajectory.

1.0m.s

−1

1.5m.s

−1

2.0m.s

−1

Baseline 0.308m 0.336m 0.389m

Neural net gain 0.291m 0.325m 0.372m

Improved control 0.288m 0.327m 0.387m

In the table 1, the objective function for each

method and speed can be observed. In all cases the

baseline constant gain method had the highest ob-

jective function, meaning it had the worst perfor-

mance. For the improved control and the neural net-

work gain method, both results are comparable, as

most of the performance gained is thanks to the speed

adaption. However the improved control does not

adapt to changes in the covariance, which in some

cases allows the neural network gain method to out-

perform the improved control method.

5 CONCLUSION

A novel method for feature importance and a novel

methodology to determine useful sensor information

was proposed. This feature importance method allows

the analysis of a neural network’s behavior, to show

the importance of each sensor information, and to po-

tentially build an approximation of the neural network

for a given input.

It has been applied to a steering controller of a car-

like robot for a line following task in a highly dynamic

simulated environment. In order to analyze a gain pre-

diction method, and determine the optimal changes to

the control equations to improve its performance. In-

deed, the tested modiﬁcation to the control law has

been shown to reach comparable performance to the

initial neural network gain prediction method.

This methodology can be applied to any given

simulated model of a robot control task, in order to

improve its control performance for a given criteria

encoded as a objective function.

However, the sensor information must be ide-

ally used to derive new control law from the robotic

model, as using a linear approximation for a neural

network will not encode the complete characteristic

behavior to the neural network. As such this method-

ology far more powerful as a tool to describe what is

important for control law, not how to derive a novel

control law.

Future works include validating this methodology

on varying control tasks in different ﬁeld, and to use

the novel feature importance method to assist in de-

mystifying neural networks.

REFERENCES

Bakker, E., Nyborg, L., and Pacejka, H. B. (1987). Tyre

modelling for use in vehicle dynamics studies. Tech-

nical report, SAE Technical Paper.

Gunning, D. (2017). Explainable artiﬁcial intelligence

(xai). Defense Advanced Research Projects Agency

(DARPA), nd Web, 2.

Ha, D. and Schmidhuber, J. (2018). World models. arXiv

preprint arXiv:1803.10122.

Hansen, N. (2016). The CMA evolution strategy: A tutorial.

CoRR, abs/1604.00772.

Hill., A., Lucet., E., and Lenain., R. (2019). Neuroevolu-

tion with cma-es for real-time gain tuning of a car-like

robot controller. In Proceedings of the 16th Interna-

tional Conference on Informatics in Control, Automa-

tion and Robotics - Volume 1: ICINCO,, pages 311–

319. INSTICC, SciTePress.

Hornik, K., Stinchcombe, M., and White, H. (1990). Uni-

versal approximation of an unknown mapping and

its derivatives using multilayer feedforward networks.

Neural Networks, 3(5):551 – 560.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. nature, 521(7553):436–444.

Lenain, R., Deremetz, M., Braconnier, J.-B., Thuilot, B.,

and Rousseau, V. (2017). Robust sideslip angles ob-

server for accurate off-road path tracking control. Ad-

vanced Robotics, 31(9):453–467.

Liaw, A., Wiener, M., et al. (2002). Classiﬁcation and re-

gression by randomforest. R news, 2(3):18–22.

Molnar, C. (2019). Interpretable machine learning. Lulu.

com.

Mordvintsev, A., Olah, C., and Tyka, M. (2015).

Deepdream-a code example for visualizing neural net-

works. Google Research, 2(5).

Simonyan, K., Vedaldi, A., and Zisserman, A. (2013).

Deep inside convolutional networks: Visualising im-

age classiﬁcation models and saliency maps.

Suthaharan, S. (2016). Decision tree learning. In Machine

Learning Models and Algorithms for Big Data Clas-

siﬁcation, pages 237–269. Springer.

Welch, G. and Bishop, G. (1995). An introduction to the

kalman ﬁlter. Technical report, Chapel Hill, NC, USA.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

194
