Optimal Path Planning for Drone Inspections of Linear Infrastructures

Golizheh Mehrooz and Peter Schneider-Kamp

Dept. of Mathematics & Computer Science, University of Southern Denmark, Denmark

Keywords:

Path Planning, Routing, A* Algorithm, Drone Inspections, Power Grids.

Abstract:

Autonomous Beyond Visual Line of Sight (BVLOS) ﬂights represent a huge opportunity in the drone industry

due to their ability to monitor larger areas. Autonomous navigation and path planning are essential capabil-

ities for BVLOS ﬂights. In this paper, we introduce the routing component of a path planning system for

inspecting linear infrastructures. We explore both a direct algorithm and a transformation algorithm. The

direct algorithm is an extension of A* to allow limited routing through air as well as the use of non-logic

intersections. The transformation algorithm pre-computes a graph that include edges for routing through air

and nodes for non-logic intersections. We implemented both algorithms for routing along a particular type of

linear infrastructure, power lines, and validated them through an empirical evaluation at three different scales:

the Danish power grid, the French power grid, and the entire European power grid. The test results show that

the transformation algorithm allows for sub-second routing performance for a small-to-medium sized power

grid. Larger power grids can be routed in less than ﬁve seconds, and even an optimal route of more than six

thousand kilometers along linear infrastructures from Portugal to Sweden via Russia is found in less than half

a minute. All algorithms have been implemented and are available as an open-source Python package for

Linear-infrastructure Mission Control (LiMiC).

1 INTRODUCTION

There are more than 200,000 km (University of

Southern Denmark, ) of overhead power line cables

in European countries that are the backbone of the en-

ergy infrastructure. According to ((Mrs.), ), a heavy

windstorm, which caused a tree to fall on an important

power line in Switzerland, resulted in around $1.2 bil-

lion worth of damage. Approximately 56 million peo-

ple – mainly in Italy but also in Switzerland – were

without power for several hours ((Mrs.), ). Thus, in

order to prevent power outages, electric utilities regu-

larly perform inspections of their power grids to plan

for the necessary repair or replacement work (Nguyen

et al., 2019).

To improve the inspection speed, accuracy, safety,

and costs, a considerable amount of research has been

conducted in order to automate inspections by us-

ing drones. Drones have been used in various ar-

eas such as infrastructure inspections for automating

labor-intensive, time-consuming, and sometimes even

dangerous tasks. However, the current applications

of drones in the area of inspecting linear infrastruc-

tures such as power lines still face many unsolved

challenges such as drone ﬂight time as well as au-

tonomous BVLOS ﬂights.

The BVLOS ﬂights represent a huge opportunity

in the drone industry especially in the ﬁeld of linear

infrastructure inspection due to their ability to mon-

itor larger areas. During a BVLOS ﬂight, the drone

often ﬂies out of the visual range of the Pilot-in-

Command. Thus, extra safety features such as the

capability to autonomously navigate and path plan-

ning have to be considered on the drone to prevent

the aircraft from ﬂying beyond the restricted area as-

signed by the Special Flight Operations Certiﬁcates

(SFOC)(Fang et al., 2018).

The core task of autonomous navigation and path

planning for linear infrastructures is optimal routing,

i.e. ﬁnding the shortest path along the infrastruc-

ture between two given elements of the infrastructure.

This task is very important not only for routing drones

from one location to another, but, more importantly,

also as the basic building block of other tasks such as

optimal scheduling of inspection missions. For practi-

cal purposes of mission control for drone inspections,

we aim as a design goal for the routing algorithm to

run in less than one second.

New EU regulations for drone inspections have

ease the process of obtaining permission to ﬂy inspec-

tion missions for the special case of inspecting linear

326

Mehrooz, G. and Schneider-Kamp, P.

Optimal Path Planning for Drone Inspections of Linear Infrastructures.

DOI: 10.5220/0009846703260336

In Proceedings of the 6th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2020), pages 326-336

ISBN: 978-989-758-425-1

Copyright

c

2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

infrastructures. These regulations require the drone

to stay within close range to the linear infrastructure

(world, ). Thus, ﬁnding an optimal route requires con-

sidering many factors such as minimizing the ﬂight

time a drone spends away from the immediate vicin-

ity of the linear infrastructure. This factor can be rep-

resented through a cost function that penalizes ﬂying

away from the linear infrastructure and, thus, affects

which route is considered optimal.

There are standard solutions for routing in road

networks. The Open Source Routing Machine

(OSRM) (Huber Stephan, 0601) is an open-source

C++ implementation of a high-performance routing

engine for ﬁnding the shortest path in such a network,

and it is available as a light-weight docker image for

straightforward deployment.

In the case of power line inspections considered

in this paper, we can view the optimal routing prob-

lem along linear infrastructures as a search problem

for ﬁnding a path with a minimum cost between

two power towers, including possibly limited rout-

ing through air and the use of non-logical intersec-

tions. This search problem poses several signiﬁcant

challenges, which effectively preclude the use of pre-

existing routing solutions such as OSRM:

• The start and end power towers are on different

parallel power lines. (see Fig. 1 (a)).

• There is an intersection between power lines, and

the start and end power towers are on these lines.

(see Fig. 1 (b)).

• The lines intersect with no-ﬂy zones (e.g. around

airports) or infrastructure to be avoided (e.g.

transformer stations, power plants). (see Fig. 1

(c)).

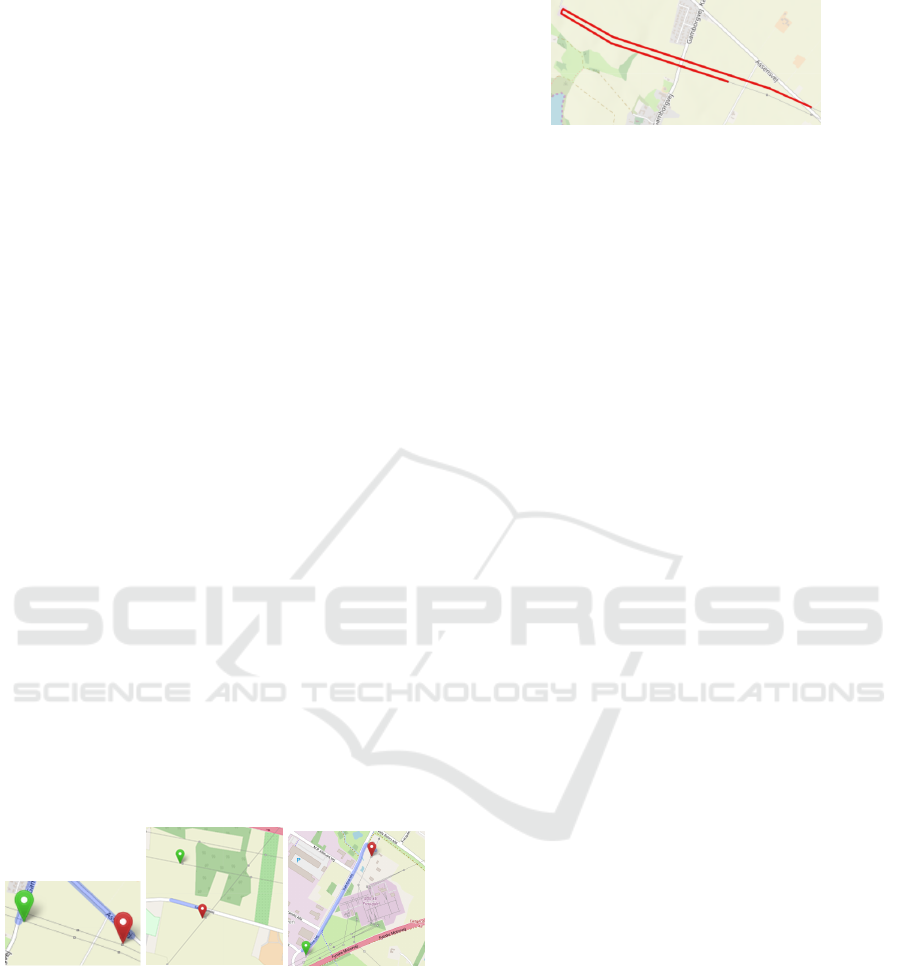

(a) Parallel points (b) Intersection (c) Power substation

Figure 1: Path planning challenges.

In Fig. 1 (a), the start and end power towers are on

two parallel power lines. In order to ﬁnd a path be-

tween these two power towers, one might be tempted

to use OSRM with a proﬁle for drones that use power

lines instead of streets. The result of such a routing is

shown in Fig. 2.

The route computed by OSRM starts from the star

power tower and follows the line until it arrives at a

transformer substation. From the substation, it routes

Figure 2: Path planning by using OSRM.

within the transformer substation to the other power

line and follows that one until it reaches the end power

tower. It is immediately apparent that OSRM can-

not ﬁnd the shortest path between these two power

towers, and that it only ﬁnds a path due to the two

power lines being logically connected through the

transformer station.

In the case of Fig. 1 (b), OSRM cannot ﬁnd a route

as the two power lines are logically never connected.

In both Fig. 1 (a) and (c), a route computed by OSRM

would require the drone to ﬂy through a transformer

station. This is undesirable for a multitude of safety

reasons. Due to these problems, we could not use

OSRM or similar pre-existing solutions for optimal

routing.

In order to solve these problems, we have imple-

mented two algorithms to compute the shortest path

between two elements of a linear infrastructure such

as power lines: (1) a direct algorithm based on an ex-

tension of the A* algorithm for ﬁnding the shortest

paths in weighted graphs as well as (2) a transforma-

tion algorithm for transforming the special conditions

of the problem into a standard weighted undirected

labelled graph.

The direct algorithm extends the A* algorithm

by allowing to route between two nodes not con-

nected through an explicit edge with certain restric-

tions: routing through air is penalized by having a

higher cost factor and is allowed only up to a certain

distance to take into account regulatory restrictions.

Furthermore, given that the edges of our graph are on

an essentially two-dimensional surface, they might in-

tersect. Thus, the algorithm also has to ﬁnd intersec-

tions and use them to change from one power line to

another without having to ﬂy away from the power

lines.

The transformation algorithm builds on the same

ideas as the direct algorithm but pre-computes a graph

of power towers. The nodes of the graph are locations

typically representing power towers. The edges of the

graph are weighted by the distance between two con-

nected power towers. There are also edges connect-

ing power towers through air with scaled weights to

model higher costs. Finally, there are nodes repre-

senting non-logical intersections of power lines. An

optimal route between two power towers then corre-

sponds to the shortest path between two nodes in the

Optimal Path Planning for Drone Inspections of Linear Infrastructures

327

graph, and it can be found by using standard graph

algorithms such as the A* algorithm.

The rest of this paper is structured as follows: Sec-

tion 2 presents and explores the direct algorithm, in-

cluding how to speed up repeated calculations and

queries to the map data through various caching

schemes and the use of multi-threading. Section 3

presents and explores the transformation algorithm

for optimal routing which allows the use of standard

shortest path algorithms, including different pruning

methods for removing redundant edges in the graph.

Sections 4, 5, and 6 illustrate the results of the em-

pirical evaluations on the Danish, the French, and the

European power grids. Section 7 concludes this paper

and discusses possible future work.

2 THE DIRECT ALGORITHM

This section presents and explores the direct algo-

rithm, including how to speed up repeated calcula-

tions and queries to the map data through various

caching schemes and the use of multi-threading.

2.1 The Extension of A* to Route

through Penalized Air and to

Consider Non-logical Intersections

The A* (pronounced “a star”) algorithm(Ducho

ˇ

n

et al., 2014) is a popular choice for path planning

problems, as it is guaranteed to return an optimal so-

lution and can be used in a wide range of contexts.

It combines the speed of heuristic approaches like

Greedy Best-First-Search (Dechter and Pearl, 1985)

and optimal approaches such as Dijkstra’s algorithm

(Noto and Sato, 2000). The A* algorithm begins with

the start node and successively computes the exact

cost of the path from the starting node to any other

node n represented as a function g(n). In order to se-

lect which n to expand next, A* employs a heuristic

based on the estimated cost from node n to the end

node represented as h(n). When the end point n

end

is reached, the A* algorithm terminates. The cost

is then known through g(n

end

), and the path repre-

senting the corresponding route can easily be recon-

structed through a simple bookkeeping exercise. As

long as the heuristic function h is admissible (i.e., it

underestimates the costs to the end node), the cost and

route found by A* are guaranteed to be optimal.

In (Sathyaraj, 2008), authors compare the A* al-

gorithm with Dijkstra solver and Floyd-Warshall al-

gorithm in the term of the increasing number of nodes

visited and the time of computation consumed. As, in

the worst-case, the Dijkstra algorithm has to consider

all paths to all possible nodes, the time complexity of

that algorithm depends on the number of nodes and

edges in the graph. However, the time complexity of

the A* algorithm does not depend on the total num-

ber of nodes(Sathyaraj, 2008) but only on the length

of the shortest path and the average branching factor.

The Floyd-Warshall algorithm computes the shortest

paths between all nodes. On large sparse graphs such

as the ones representing linear infrastructures, this is

prohibitive in terms of time and space requirements.

In (Sathyaraj, 2008), authors concludes that the A* is

the best-established general algorithm for ﬁnding op-

timal routes.

The variant of the A* algorithm proposed in this

paper has several parameters:

• SafeDist: the minimum distance to keep from

perilous infrastructure such as transformer sta-

tions

• MaxFly: the maximum free ﬂying distance away

from infrastructure elements such as power towers

• Penalty: the penalty factor for ﬂying away from

infrastructure elements

• Precision: when set to larger than 1, the algorithm

will perform faster but ﬁnd possibly non-optimal

routes

The SafeDist parameter has two functions: it makes

the drone avoid infrastructure elements such as trans-

former stations, and it avoids unnecessary routing

complexity, as transformer stations internally consist

of a large number of logical and non-logical intersec-

tions and, consequently, increase the average branch-

ing factor. We use a default value of 100 metres.

For the MaxFly parameter, we set a default of

1000 metres, which again has two effects: it disal-

lows ﬂying away from power towers for more than

1 km, and it keeps the average branching factor on

a somewhat manageable level. In our initial experi-

ments, we found that a much lower value would suf-

ﬁcie for most situations. But there are situations such

as ﬂying around a transformer station or crossing over

to a line, where free ﬂights of up to a few hundred

metres were necessary to avoid having to add tens or

hundreds of kilometres.

The Penalty parameter is used to penalize such

free ﬂying time away from power lines. We use a

default value of 20, as we would rather have the drone

ﬂy for an extra kilometre than have it ﬂy 100 metres

away from the power lines.

The Precision parameter scales the estimate for

h(n). We use a default value of 1, as we strive for

fully optimal routes in order to keep ﬂying times for

the drones minimal.

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

328

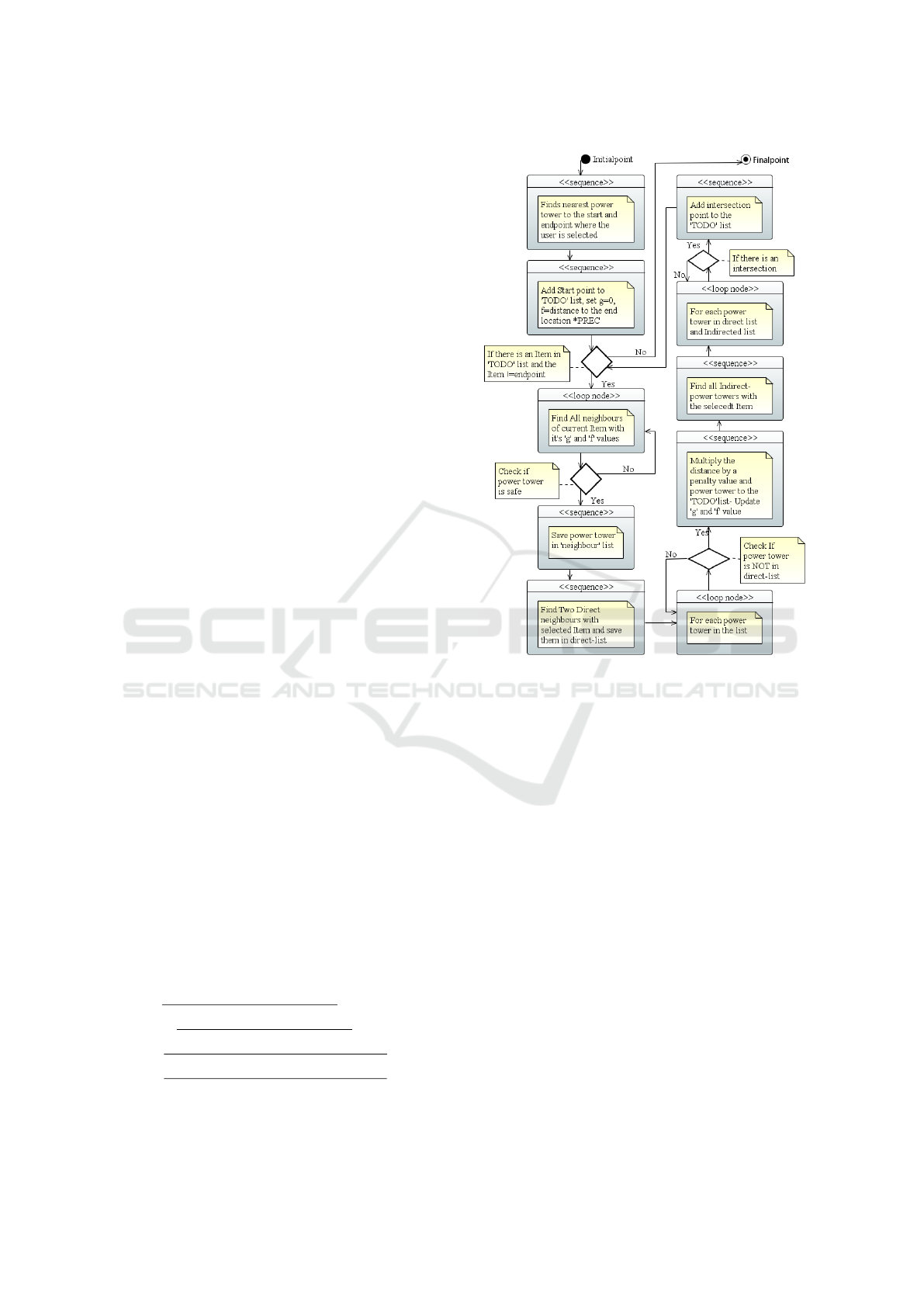

Fig. 3, shows the UML diagram of the direct A*

algorithm. As shown here, the algorithm ﬁnds the

nearest power towers to the start and end points se-

lected by the user. In this algorithm, we have a pri-

ority queue of power towers to visit called the TODO

list. The power towers in the queue are sorted by their

f -value, i.e., by their estimated total costs. The algo-

rithm is executed until the queue is empty or the least

costly element of the queue is equal to the endpoint.

In the beginning, we add the start power tower to the

TODO queue with the g-value set to zero and the f -

value set to the distance between the start and the end

tower multiplied by the Precision value. For example,

in the beginning, the queue contains the following in-

formation:

(dist=320.89,tower=pylon(id=831295194,

latlon=(55.3466014,

10.447012),neighbours=())). Here, dist is the

f -value and pylon is the class we use to hold

the id, GPS location, and possibly neighbours of

intersections.

Then for the most promosing item in the TODO

queue, the algorithm ﬁnds all the direct neighbors of

the tower as well as all other towers within MaxFly

distance. Only the neighbours which are safe accord-

ing to SafeDist are kept. The g-value and h-values

are computed, the g-values are scaled by the Penalty

factor.

The algorithms divides the neighbours into power

towers on the same line (direct neighbours) and those

that are not (indirect neighbours). Then it calculates

possible intersections between the power line seg-

ments between the current tower and its direct neigh-

bours and the segments between indirect neighbours.

Given that these towers are in close proximity, we

compute possible intersections using a standard for-

mula for intersections in a plane. The formula com-

putes the intersection of the inﬁnitely long lines con-

taining the segments represented by the coordinates

of the four power towers - (x

1

,y

1

) and (x

2

,y

2

) for the

direct segment and (x

3

,y

3

) and (x

4

,y

4

) for the indi-

rect segment. Here, d is the denominator used and 0,

if the segments/lines are parallel. Otherwise, t and u

compute whether the intersection is on the segments

(0 ≤ t,u ≤ 1). If the intersection is on the segments,

the intersection coordinates x and y can be computed.

d = (x

1

− x

2

) ∗ (y

3

− y

4

) − (y

1

− y

2

) ∗ (x

3

− x

4

)

t =

(x

1

−x

3

)∗(y

3

−y

4

)−(y

1

−y

3

)∗(x

3

−x

4

)

d

u = −

(x

1

−x

2

)∗(y

1

−y

3

)−(y

1

−y

2

)∗(x

1

−x

3

)

d

x =

(x

1

∗y

2

−y

1

x

2

)∗(x

3

−x

4

)−(x

1

−x

2

)∗(x

3

y

4

−y

3

x

4

)

d

y =

(x

1

∗y

2

−y

1

x

2

)∗(y

3

−y

4

)−(y

1

−y

2

)∗(x

3

y

4

−y

3

x

4

)

d

The above approach for computing the shortest

path is very slow in practice due to the large number

Figure 3: UML Activity diagram of the direct algorithm.

of web-service requests to the overpass API. In the

next subsections, we explain about how to use a disk-

based cache ﬁle and a memory based-cache ﬁle in or-

der to cache web-service requests in order to speed up

the shortest path calculations.

2.2 Speeding Up Repeated Calls and

Calculations through a Disk-based

Cache

In order to speed up the performance of the algo-

rithm, our ﬁrst attempt was to employ a disk-based

cache for storing information persistently. In this

case, we have used the dogpile.cache module. A

dogpile lock allows a single thread to generate an

expensive resource while other threads use the “old”

value until the “new” value is ready(python library,

). The dogpile.cache module provides an interface

to caching backends of any variety. The DBM ﬁle

backend uses a lock-ﬁle alongside a Unix-style DBM

ﬁle. A lock ﬁle is used to protect the DBM ﬁle itself

from concurrent writes and for coordinating the value

creation. A cache in the dogpile.cache framework

Optimal Path Planning for Drone Inspections of Linear Infrastructures

329

consists of a region, a backend, and value generating

functions. A region is an instance of the cache region

class and deﬁnes the conﬁguration details for a partic-

ular cache backend. A backend describing how val-

ues are stored and retrieved from a backend. Finally,

data generation functions are user-deﬁned functions

that generate new values to be placed in the cache.

In this research, the data generation func-

tions generate new values by requesting

data through overpass API. we have used

@region.cache on arguments() as a decora-

tor function for these functions for fully-transparent

querying and updating of the cache. For instance, the

find neighbours id function sends the following

query for ﬁnding the locations of all power towers

on the same power line as power tower with id

1881623946:

https://overpass.kumi.systems/api/interpreter?data=

[out:json][timeout:3600];(node(id:1881623946)

;way(bn)[”power”=”line”];node(w););out;

The code below exempliﬁes how we use

dogpile.cache in this paper. We have de-

ﬁned a region which uses a ﬁle astar.dbm as a

backend for storing and retrieving data. ”@re-

gion.cache

on arguments()” on the top of the

”ﬁnd towers” function is used for updating the

“astar.dbm” cache ﬁle.

region = dogpile.cache.make_region()

.configure("dogpile.cache.dbm",

arguments={"filename":"astar.dbm"})

@region.cache_on_arguments()

def find_neighbours_id(location, around):

return (towers);

In the next subsection, we explain how to use a

memory-based cache with a persistence layer as well

as how multi-threading can be used to pre-ﬁll the

cache ﬁle.

2.3 The Pre-ﬁlling of a Persistent

Memory-based Cache

As we mentioned in the previous section, in order

to increase the speed of path planning, we have em-

ployed a disk-based cache. In this section we explain

how to use a memory-based cache instead. We have

decided to use a memory-based cache, as the loading

of cache data from a disk and the locking mechanism

are both rather slow compared to loading the cache

data from the memory.

Python’s standard perstistence layer Pickle can

be used to serialize and deserialize a Python object

structure. In this research, we have used Pickle

for loading the dictionaries that serve as backend for

memory-based caches in dopgile.cache. Unpickle

is used to open the cache ﬁle for reading. The fol-

lowing code shows how the cache data is saved and

loaded.

# saving cache file to astar.cache

pickle.dump(region.backend._cache,

open("astar.cache","wb"))

# load cache file to the region

region.backend._cache = pickle.load(

open("astar.cache","rb"))

Table 1 shows times for picking and unpickling

different ﬁle types in seconds. Not compressing

(None) is the fastest choice for both saving and load-

ing ﬁle. Compressing with gzip is a good compro-

mise, when the focus is on fast loading and reasonable

ﬁle size. Pickling and unpickling times for xz, which

produces the smallest ﬁle size, are highest compared

to other options.

Table 1: Time for pickling and unpickling different ﬁles.

Compression Size Pickling (seconds) Unpickling (seconds)

None 368,318K 12.845 28.538

gzip 153,148K 84.380 35.121

bz2 145,436K 45.494 43.844

xz 102,099K 159.424 46.912

In the next subsection, we explain about using

multi-threaded for pre-ﬁlling the cache.

2.4 The Multi-threaded Pre-ﬁlling of

the Cache

A thread of execution is deﬁned in computer science

as the smallest sequence of programmed instructions

that can be scheduled in an operating system. Multi-

threaded programs run faster on computer systems

because these threads can be executed concurrently.

Threads of the process share the memory of the global

variables. If the global variables change in one thread,

this change is valid for all threads.

The concurrent.futures module in Python 3

provides a high-level interface for asynchronously

executing “callables”, typically functions with pa-

rameters. The asynchronous execution can be per-

formed with threads using the ThreadPoolExecutor

class. An Executor object uses a pool of at

most max workers threads to execute calls asyn-

chronously.

In this research, we used multiple threads for pre-

ﬁlling our cache, allowing to submit multiple Over-

pass queries simultaneously to the server. The code

bellow illustrates this multi-threaded approach for

pre-ﬁlling the cache.

import concurrent.futures as cf

exe = cf.ThreadPoolExecutor(max_workers)

exe.submit(find_all_neighbours, tower,

around, safe_dist))

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

330

In the next section, we explain the implementation

of the transformation algorithm for routing.

3 THE TRANSFORMATION

ALGORITHM

This section is split threefold. In the ﬁrst subsec-

tion, we explain about extracting the graph from

the memory-based cache ﬁle which we have cre-

ated by multi-threaded pre-ﬁlling in the previous sec-

tion. In the second subsection, we use two functions

(prune complete and prune incomplete) for prun-

ing the redundant edges in the graph. In the third sub-

section, we use standard A* implementations on the

graph for routing.

3.1 Extracting a Weighted Undirected

Graph Including Non-logical

Intersections and Penalized Air

A weighted labelled graph G is a set of nodes N la-

belled by a function ` connected by edges E weighted

by a function w(e). It can be represented as G =

(N, E,`,w). The nodes N in this research are la-

belled with power tower GPS locations from the

map. Two nodes n

1

,n

2

∈ N are connected by an

edge e

d

= (n

1

,n

2

) ∈ E if there is a power line be-

tween these two locations. This edge is labelled

with a weight that represents the distance between

the two locations, i.e., w(e

d

) = distance(`(n

1

),`(n

2

))

where we use the Haversine distance function for

distance. There is also an edge e

i

between two nodes

n

1

,n

2

∈ N if distance(n

1

,n

2

) < around. In this case,

such an edge e

i

= (n

1

,n

2

) ∈ E would be labelled

with the penalized distance, i.e., w(e

i

) = penalty ×

distance(`(n

1

),`(n

2

)).

A path through a graph is a traversal of the con-

secutive nodes along a sequence of edges (Sathyaraj,

2008). The length of the path is the sum of the weights

of edges that are traversed along the path. The best

path is the one which has the minimum sum of the

weights from the source to the destination.

Path planing is the determination of all possible

paths from the start point to the endpoint and it is the

art of deciding which path to take. This decision is

based on the length of the path. Therefore, path plan-

ing depends on factors including how to get from the

starting point to the end, how to get around obstacles

in the way and how to ﬁnd the shortest possible path.

(Sathyaraj, 2008).

Different methods have been developed to solve

this problem and ﬁnd the shortest path such as the

unidirectional A*, the bidirectional A*, the Floyd-

Warshall (Hougardy, 2010), and the Dijkstra’s algo-

rithm. Standard graph packages such as networkx

support all these algorithms. We use networkx

for generating the shortest path in the graph of

power towers as we found it to have better out-of-

the-box performance than competitors such as e.g.

graph tool (graph tool, ).

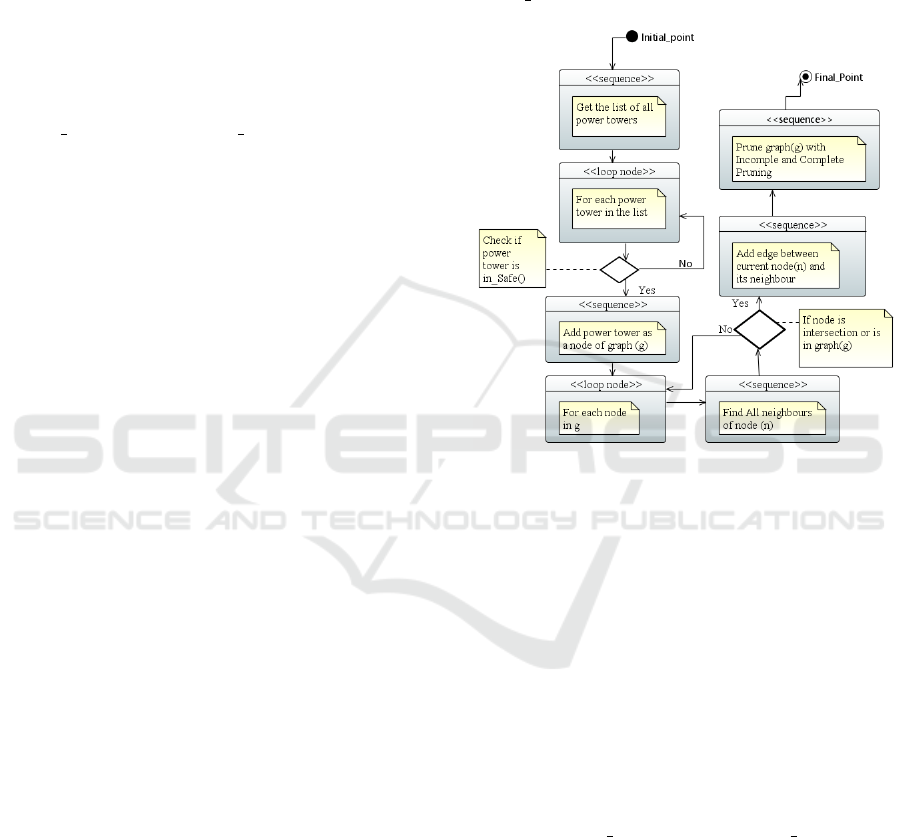

Figure 4: UML Activity diagram of extracting graph.

Fig. 4 shows the UML diagram for extracting the

graph. In this research, we have created a graph of

power towers for each European country. First, we

send an overpass API request to get the list of all

power towers for the speciﬁc European country. Then

for each power tower in the list, the algorithm checks

if the power tower is in a safe distance from power

substations. If this is the case, it adds the power tower

as a node of the graph. For adding the edges between

nodes the algorithm ﬁnds all direct and indirect neigh-

bors of the current power tower with their distance.

The algorithm is also creating non-logical intersec-

tion points in the graph and adds edges between these

points and the current power tower. We also use two

functions prune

complete and prune incomplete

to remove edges that can never be part of a shortest

path. This increases the performance of the transfor-

mation algorithm. We explain these functions in the

next subsection.

Optimal Path Planning for Drone Inspections of Linear Infrastructures

331

3.2 Incomplete and Complete Pruning

of Redundant Edges

Pruning of redundant edges in this research is used to

improve the search performance on the graph by elim-

inating redundant edges, i.e., edges that have such

a high weight that it is always cheaper to take two

or more other edges.

1

We use two functions called

incomplete prune and complete prune to this end.

In the incomplete pruning function, we consider

two nodes k and l connected by an edge with weight

w(k, l). Then we try to ﬁnd a shorter path through an-

other node m connected to both k and l with edges

weighted by w(k, l) and w(l,m). For each node k

we check whether there are nodes l and m and edges

with weights w(k,m) and w(m, l) such that w(k, l) >

w(k, m) + w(m,l).

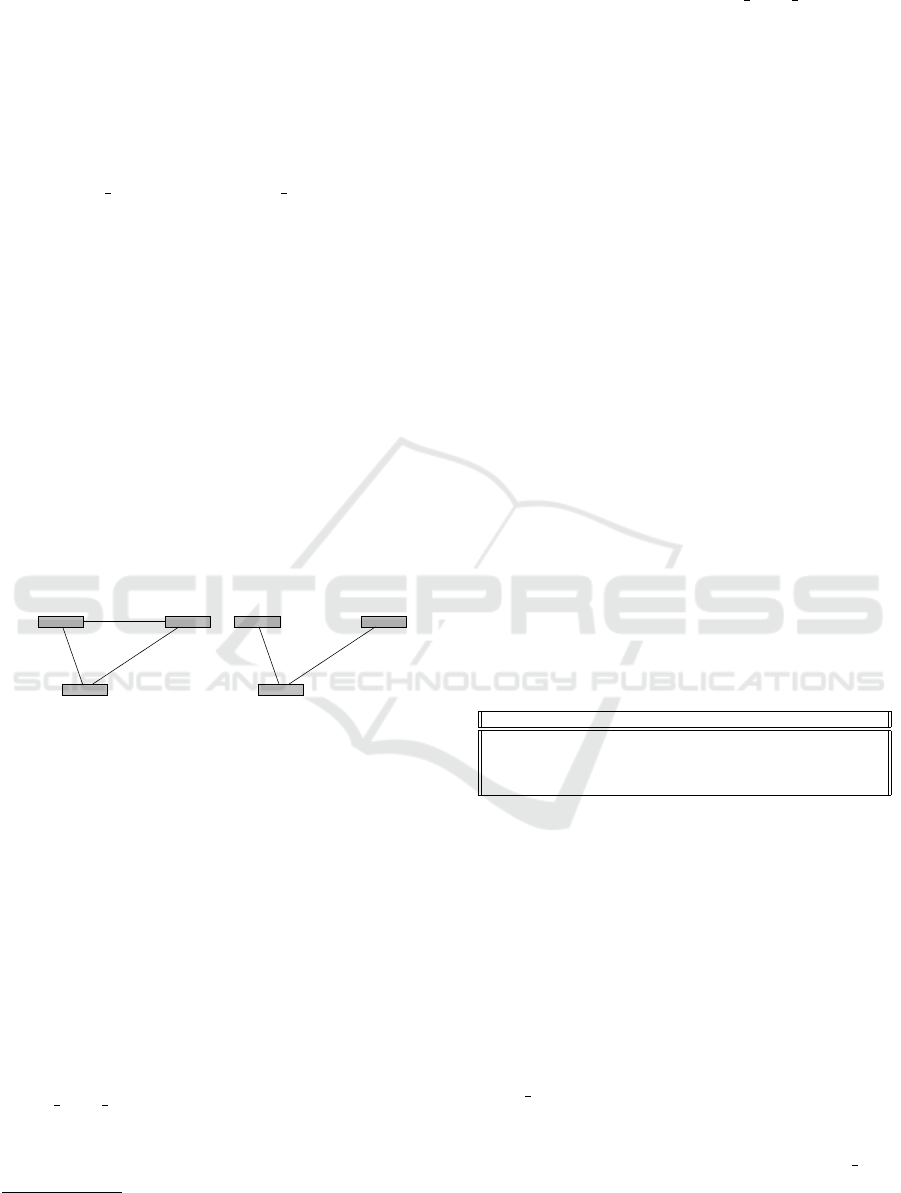

As it is shown in Fig. 5 (a), there are two paths

from the start point to the endpoint: (1) from node k

through node l to node m and (2) from node k directly

to node m. The length of path (1) is 50 and the cost of

choosing the second path is equal to 40. Therefore, by

removing the edge between nodes k and m, (see Fig. 5

(b)), we do not lose any shortest paths but improve

the search performance. The code of this scenario is

shown below.

node Lnode K

node M

distance = 50

distance = 10 distance = 30

(a) Before pruning

node Lnode K

node M

distance = 10 distance = 30

(b) After pruning

Figure 5: Prune-incomplete function.

for k in g.nodes():

for l in g.neighbors(k):

# K<L is considered is for optimization

if k < l:

for m in g.neighbors(l):

if g.has_edge(k,m) and

g[k][l][’weight’] >

g[k][m][’weight’] +

g[m][l][’weight’]:

to_prune.add((k,l))

for u,v in to_prune:

if g.has_edge(u,v):

g.remove_edge(u,v)

The complete function likewise consid-

ers two nodes k and l. It uses the function

astar path length from networkd, which returns

the length of the shortest path between the nodes k

and l by using the A* algorithm. If the weight of

the edge between these two nodes w(k, l) is strictly

1

Note, that this is possible as the penalization of direct

ﬂights invalidates the triangle inequality.

greater than the result of astar path length, the

algorithm remove the edge (k, l) from E. Following

code shows the complete function for pruning the

redundant edges.

for k in g.nodes():

for l in g.neighbors(k):

if k < l and g[k][l][’weight’] >

networkx.astar_path_length(g,k,l):

to_prune.add((k,l))

for u,v in to_prune:

if g.has_edge(u,v):

g.remove_edge(u,v)

Table 2 shows routing times in seconds for a long

route in Denmark when using different (combinations

of) pruning functions. The edges pruned by using the

complete function are exactly the same as the pruned

edges by using the combined incomplete-complete

function, which is reﬂected in the routing time. From

the results in Table 2, we can conclude that the graph,

which is created by using either the complete or com-

bined pruning function, works best for routing, and

the graph which have not use any pruning function

works worst. The time of pruning for the incomplete

function is almost the same as the time of pruning

for incomplete-complete function, while the time of

pruning for the complete function alone is the longest.

Consequently, we use the combined function as it has

optimal routing performance and a quite competitive

pruning time.

Table 2: Routing with different pruning function for Den-

mark.

pruning type pruned edges routing time pruning time

incomplete 41,001 0.161 17.57

complete 79,657 0.156 138.99

incomplete-complete 79,657 0.152 20.36

without both functions 0 0.449 0

In the next section, we explain our routing strat-

egy, which is based on using the standard A* imple-

mentation of the nextworkx library for ﬁnding the

shortest path in the graph.

3.3 The Use of Standard A*

Implementations on the Graph

In this research, we use the standard A* implemented

in networkx, an open-source python package for ana-

lyzing networks and graphs algorithms. The function

astar path gets the location of the start power tower,

the location of the end power tower, the graph, and a

distance function to compute the distance of any loca-

tion to the end power tower. The result of astar path

is the shortest path between these two points. The

code below shows how to use the networkx library

for ﬁnding the shortest path between power towers.

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

332

import networkx as nx

path = nx.astar_path(g,start.tower,

end.tower,heuristic=dist)

In the next section, we analyze Denmark as a use

case for measuring the routing time when using the

direct algorithm and the transformation algorithm.

4 EMPIRICAL EVALUATION

(DENMARK)

This section is split into three subsections. In the ﬁrst

subsection, we evaluate the direct algorithm when

using either no cache, the disk-based cache, or the

memory-based cache ﬁle. In the second subsection,

we evaluate the pre-ﬁlling cache ﬁle by either using

the single-threaded or the multi-threaded approach. In

the third subsection, we evaluate the transformation

algorithm with a graph extracted from the memory-

based cache for routing randomly selected power tow-

ers in Denmark.

4.1 Performance of the Direct

Algorithm

In this subsection, we evaluate the performance of

the direct algorithm for routing between two points

in Odense (Denmark), which are 17.95 km from each

other. We evaluate the three following conﬁgurations:

• Direct Algorithm Without Any Caching: With-

out a cache, the performance of our routing algo-

rithm is very slow. Routing time takes 410 sec-

onds.

• Direct Algorithm With Disk-based Cache: In

this approach, we cache data in an initially empty

disk ﬁle as described previously. This performs

signiﬁcantly better, reducing the routing time to

4.15 seconds.

• Direct Algorithm With Memory-based Cache:

In this approach, we cache the data in a memory-

based cache ﬁle. Routing by using this approach

takes 3.01 seconds.

It is clear from the above results, that routing with

the memory-based cache works faster than the other

two approaches, as the queries to memory are faster

than the queries to disk. Furthermore, performance

without caching is totally unacceptable.

In the next subsection, we use multi-threading and

the memory-based cache in order to incrase the per-

formance of the pre-ﬁlling of the cache.

4.2 Single-threading and

Multi-threading for Pre-ﬁlling of

Cache with Disk-based and

Memory-based Cache

As we have seen in the previous section, we can pre-

ﬁll the cache to increase routing performance by using

a disk-based cash or the memory based-cash. We can

also use multi-threading to speed up the process. In

this section, we evaluate these options empirically by

considering the country of Andorra as an example:

• Single-threaded Pre-ﬁlling of the Cache with

the Disk-based Cache: This approach is very

slow, as queries to disk are relatively slow. The

pre-ﬁlling of the cache in this approach takes

516.47 seconds.

• Single-threaded Pre-ﬁlling of the Cache with

the Memory-based Cache: In this approach, we

use the memory-based cache in order to increase

the cache performance. It works slightly faster

than the previous approach but it is still slow.

The pre-ﬁlling of the cache in this approach takes

350.19 seconds.

• Multi-threaded Pre-ﬁlling of the Cache with

the Disk-based Cache: In this approach, we use

multi-threading with the disk-based cache. Multi-

threading provides multiple threads of execution

concurrently which should lead to faster overall

execution. The pre-ﬁlling of the cache in this ap-

proach takes 377.02 seconds, though, making it

slower than the single-threaded version. The rea-

son is, of course, that the locking mechanism pre-

vents simultaneous updates to the disk cache.

• Multi-threaded Pre-ﬁlling of the Cache with

the Memory-based Cache: In this approach,

we use multi-threading with the memory-based

cache. Pre-ﬁlling of the cache in this approach

takes only 17.52 seconds.

From the above experiment, we can conclude that

for pre-ﬁlling the cache, the ﬁrst approach (single-

threaded with disk-based cache) is the slowest one

and the fourth approach (multi-threaded with the

memory base-cache) is the fastest one.

4.3 Random Routing Performance of

the Transformation Algorithm

The performance of the transformation algorithm is

much better due to the extracted and pruned labelled

weighted graph. Fig. 6 shows the outcome of us-

ing this algorithm for one of the longest possible

routes in Denmark. The start power tower is located

Optimal Path Planning for Drone Inspections of Linear Infrastructures

333

at (57.4468, 10.0260) and the end one at (54.8196,

9.3314) for a distance of approx. 295 km. Routing

between these two towers takes only 0.1587 seconds.

Even when we use the graph without pruning with the

same start and end locations it takes 0.374 second,

which is still quite acceptable.

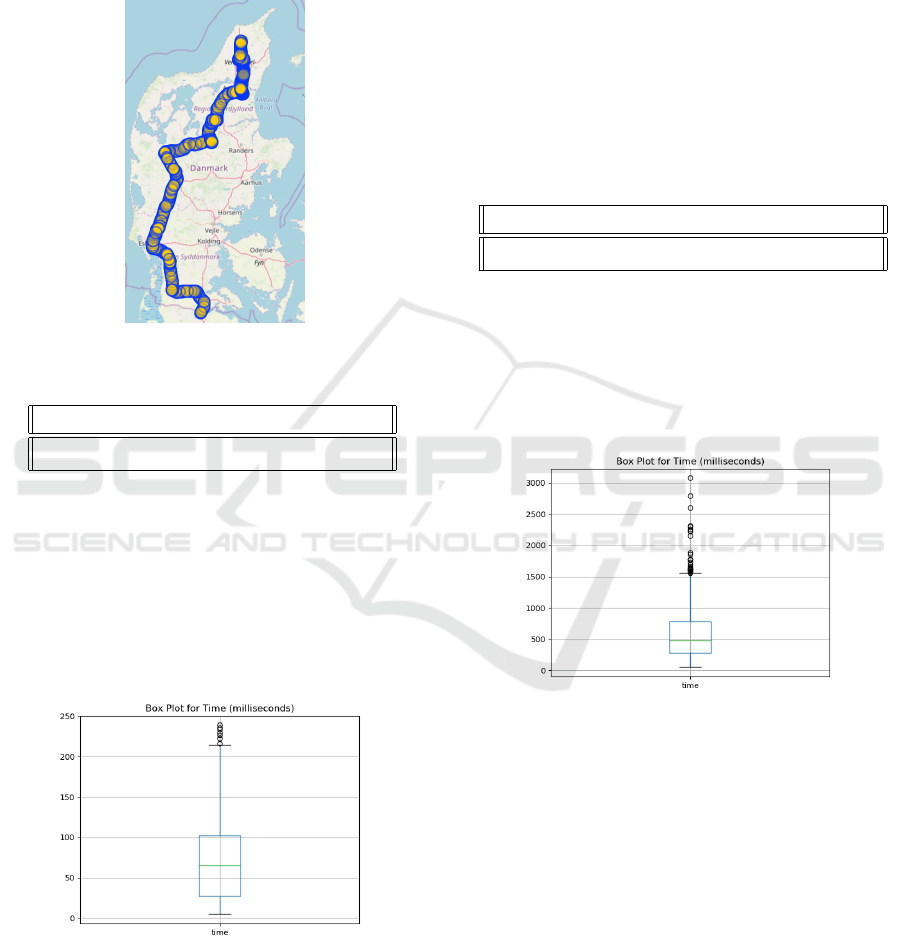

Figure 6: Routing through Denmark.

Table 3: Routing value for 1000 random samples.

Min Max AVG Median STD

4.92 238.99 73.32 65.31 53.85

Table 3 shows the minimum time (Min), the maxi-

mum time (Max), the average time (AVG), the median

time (Median) and the standard deviation (STD) for

1,000 randomly select pairs of power towers in Den-

mark. Time in this table is in milliseconds rather than

seconds.

Fig. 7 shows a box plot for these routing times of

randomly selected pairs power towers in Denmark.

Figure 7: Box plot of 1000 routings for Denmark.

To summarize, the transformation algorithm is

able to route between tower powers in Denmark in

less than one second – and often in less than 100 mil-

liseconds.

In the next subsection, we analyze France as a use

case for measuring the routing time for a larger grid

by using the transformation algorithm for 1,000 ran-

domly selected routes.

5 EMPIRICAL EVALUATION

(FRANCE)

In this section, we used the transformation algorithm

for routing between randomly selected power towers

in France. We measured the routing time for 1,000

random pairs of power towers.

Table 4: Routing value for 1000 random sample for France.

Min Max AVG Median STD

51.29 3076.86 591.09 480.34 435.14

Table 4 shows minimum time (Min), the maxi-

mum time (Max), the average time (AVG), the median

time (Median) and the standard deviation (STD) in

milliseconds. Fig. 8 shows a box plot for the routing

times between these randomly select power towers in

France.

Figure 8: Box plox of 1000 routings for France.

To summarize, the performance of the transform

algorithm is still very acceptable for larger power

grids. The majority of routes takes less than one sec-

ond.

In the next section, we analyze Europe as a use

case measuring the searching performance of the

transformation algorithm.

6 EMPIRICAL EVALUATION

(EUROPE)

In this section, we measure the performance of the

transformation algorithm for all European countries.

In order to do that we need to follow steps bellow:

334

1. Pre-ﬁll caches for all countries

2. Extract the graph from pre-ﬁlled caches for all

countries

3. Merge graphs of all countries into a single graph

4. Use transformation algorithm for randomly se-

lected pairs of power towers in Europe countries

Note in particular step 3), where in order to use

the graph for routing by using the transformation al-

gorithm, we have to merge the graphs of all countries

into a single graph. In order to do that, we create

a new graph containing all the edges from the indi-

vidual country graphs. When building the country

graphs, border-crossing power lines were kept in or-

der to facilitate this process.

The code below shows how to merge graphs from

different countries into a single graph.

for country in countries:

for n1, n2, w in country.edges(data=True):

g_merge.add_edge(n1,n2,**data)

As an example of using the transformation algo-

rithm for routing in the European countries, we have

set (37.1058271, -8.6962473) as the starting location

and (55.4316748, 12.9769681) as the end location.

Fig. 9 shows the outcome of routing algorithm com-

puted in 28.38 seconds. The distance between the

start location and the end location is 2,609.34 km.

The total ﬂying distance along the infrastructure is

6,951,307.18 km.

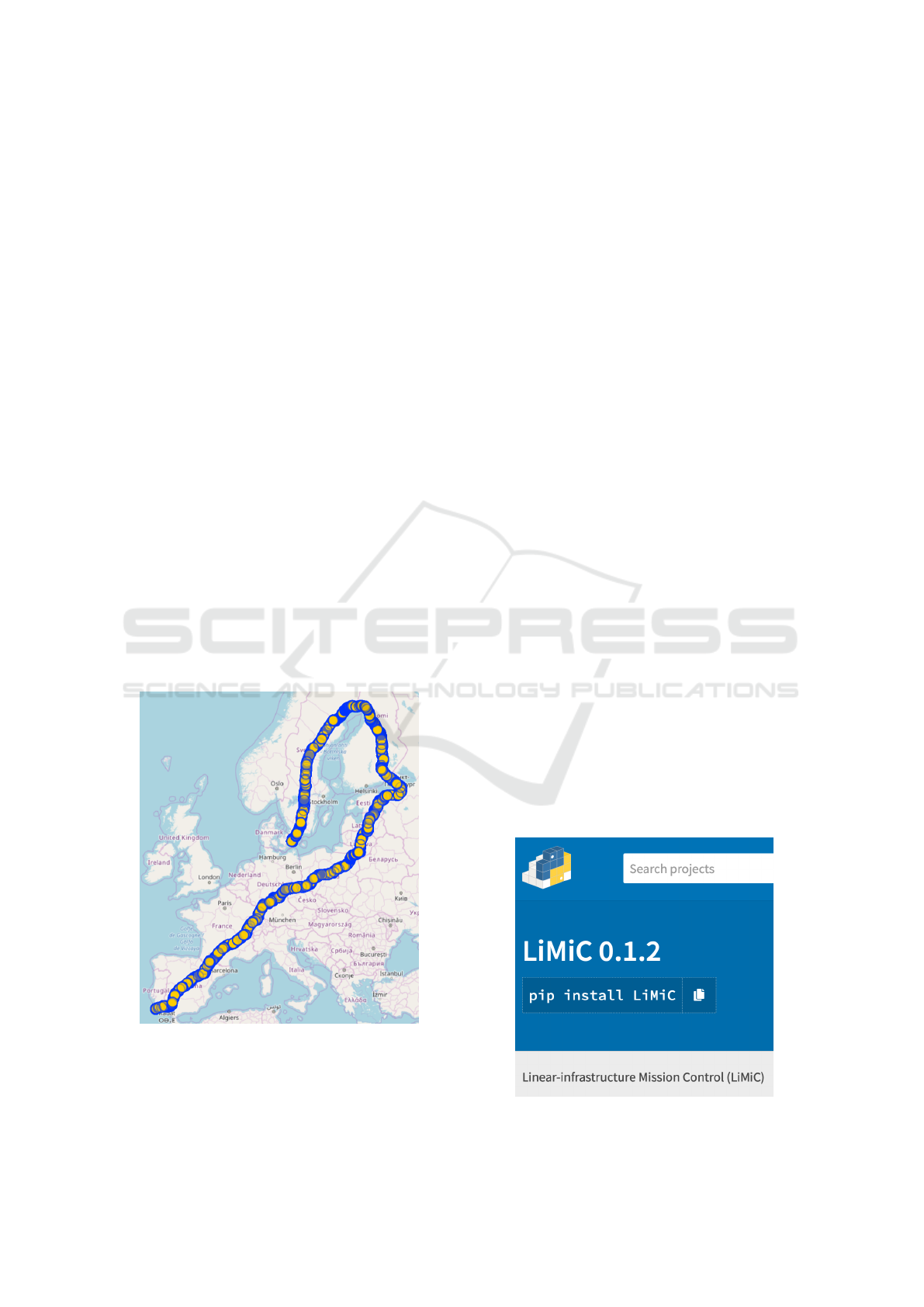

Figure 9: Routing through European countries.

7 CONCLUSIONS

In this paper, we have developed two routing algo-

rithms for path planing of drone inspections along

linear infrastructures: a direct algorithm and a trans-

formation algorithm. We have shown that the trans-

formation algorithm provides typical sub-second per-

formance even on medium to long distances in large

power grids such as the one of France.

More importantly, the more than satisfactory per-

formance on short distances allows to use this routing

algorithm as an ingredient in optimal mission plan-

ning, where routing can be used to determine the

shortest distances between a number of inspection tar-

gets.

Future work could be to speed up the generation

of the graphs by creating them directly from Open-

StreetMap data. In principle, one could also go be-

yond A*-like algorithms, e.g. investigating the appli-

cability of reach algorithms (Goldberg et al., 2006).

With the level of performance demonstrated and the

typically rather short distance in real-world use cases,

this does not seem necessary, though.

8 OPEN-SOURCE AVAILABILITY

FOR RELEVANCE AND

REPRODUCIBILITY

In order to experiments to be reproducible, we pack-

aged all results described in this paper as a Python

package. The LiMiC (Linear-infrastructure Mission

Control) package is available through The Python

Package Index (PyPI) and can be installed either us-

ing the Package Installer for Python (PIP) by the com-

mand pip install LiMiC or by direct download

from the PyPI: https://pypi.org/project/LiMiC/

Figure 10: LiMiC on the PyPI.

Optimal Path Planning for Drone Inspections of Linear Infrastructures

335

The LiMiC package also also allows other re-

searchers, drone companies, and drone enthusiasts to

build upon the results described in this paper.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the Innovation Fund Denmark

Grand Solutions grant 8057-00038A Drones4Energy

project.

https://drones4energy.dk/.

REFERENCES

Dechter, R. and Pearl, J. (1985). Generalized best-ﬁrst

search strategies and the optimality of a*. J. ACM,

32(3):505–536.

Ducho

ˇ

n, F., Babinec, A., Kajan, M., Be

ˇ

no, P., Florek, M.,

Fico, T., and Juri

ˇ

sica, L. (2014). Path planning with

modiﬁed a star algorithm for a mobile robot. Procedia

Engineering, 96.

Fang, S. X., O’Young, S., and Rolland, L. (2018). Devel-

opment of small uas beyond-visual-line-of-sight (bv-

los) ﬂight operations: System requirements and pro-

cedures. Drones, 2(2).

Goldberg, A., Kaplan, H., and Werneck, R. (2006). Reach

for a*: Efﬁcient point-to-point shortest path algo-

rithms. Technical Report MSR-TR-2005-132, drone.

Technical Report for CLASSiC FP7 European project.

graph tool. Efﬁcent network analysis. Available: https:

//graph-tool.skewed.de/.

Hougardy, S. (2010). The ﬂoyd–warshall algorithm on

graphs with negative cycles. Information Processing

Letters, 110(8):279 – 281.

Huber Stephan, R. C. (2016/06/01). Calculate travel time

and distance with openstreetmap data using the open

source routing machine (osrm). SAGE Publications,

2(2).

(Mrs.), E. S. The cost of blackouts in europe. Avail-

able: https://cordis.europa.eu/article/id/126674-the-

cost-of-blackouts-in-europe/.

Nguyen, V. N., Jenssen, R., and Roverso, D. (2019). Intelli-

gent monitoring and inspection of power line compo-

nents powered by uavs and deep learning. IEEE Power

and Energy Technology Systems Journal, 6(1):11–21.

Noto, M. and Sato, H. (2000). A method for the short-

est path search by extended dijkstra algorithm. In

Smc 2000 conference proceedings. 2000 ieee interna-

tional conference on systems, man and cybernetics.

’cybernetics evolving to systems, humans, organiza-

tions, and their complex interactions’ (cat. no.0, vol-

ume 3, pages 2316–2320 vol.3.

python library. dog.pil.core. Available: https://pypi.org/

project/dogpile.core//.

Sathyaraj, B. Moses, J. L. C. F. A. D. S. (2008). Multiple

uavs path planning algorithms: a comparative study.

In Fuzzy Optimization and Decision Making.

University of Southern Denmark, Marianne Harbo Fred-

eriksen, O. V. M. . M. P. K. Drones for inspection of

infrastructure: Barriers, opportunities and success-

ful uses. Available: https://uasdenmark.dk/wp-

content/uploads/2019/06/Final Infrastructure-

Memo 30.05.2019.pdf/.

world, E. Utilities in europe to use long-distance drones to

inspect transmission liness. Available: https://energy.

economictimes.indiatimes.com/news/power/utilities-

in-europe-to-use-long-distance-drones-to-inspect-

transmission-lines/65007676?redirect=1.

336
