Human Factors Assessment of Scenario-driven Training in

Web-based Simulation

Bharvi Chhaya

, Shafagh Jafer

and Stephen Rice

Department of Electrical, Computer, Software, and Systems Engineering, Embry-Riddle Aeronautical University,

1 Aerospace Boulevard, Daytona Beach, U.S.A.

Department of Human Factors and Behavioral Neurobiology, Embry-Riddle Aeronautical University,

1 Aerospace Boulevard, Daytona Beach, U.S.A.

Keywords: Simulation Training, Usability Testing, Subjective Workload Measures.

Abstract: Usability testing of products has commonly been used to test desktop applications, websites, online tools, and

various types of learning platforms. This paper discusses usability and workload testing for a portable training

simulation technology for Air Traffic Control (ATC) trainees. The NASA-TLX (Task Load Index) was

developed for the purpose of measuring user subjective workload, and is useful for a variety of tasks, including

online or computer-based training sessions such as the one being described in this paper. This

multidimensional assessment tool rates users’ perceived workload, which is then correlated with other aspects

of performance such as accuracy, speed, response times, etc. At the conclusion of the human factors

experiment, the data indicated that participants found the simulation software to be relatively easy to learn

and use, and did not experience high workload while using it.

1 INTRODUCTION

Usability testing of products has commonly been used

to test desktop applications, websites, online tools,

and various types of learning platforms. It has

traditionally been conducted in the restricted setting

of the laboratory, where potential external variables

and other confounds can be controlled for in order to

prevent loss of internal validity. This allows the

developers to maintain stable environmental factors

and restrict the amount of social influences that might

impact users and their performance.

Scenario-based training and particularly scenario-

oriented exercising is highly valuable in training

professionals who will operate under sensitive and

risky environments. Pilot and air traffic controller

training programs highly benefit from modeling and

simulation where trainees are provided with realistic

but simulated scenarios to master their knowledge

and learn in a risk-free environment (Updegrove &

Jafer, 2017). While scenario-based training is

currently used in full fidelity simulators for trainees,

this technology is not readily available in a portable

environment, so studies on the usability and

advantages of such scenario-driven training are

limited.

This paper aims to describe a case study detailing

the human factors assessment of the use of a web-

based scenario-driven simulation training

environment for air traffic control (ATC).

2 BACKGROUND

The training technology used as the tool for the case

study has been described in detail in this section along

with the measures being used to determine usability

as well as stress and workload undertaken.

2.1 ATC Scenario Training Technology

(ASTT)

Simulation-based training and particularly scenario-

oriented exercising is highly valuable in training

professionals who will operate under sensitive and

risky environments. The performance and realism of

any simulation requires a clearly-defined scenario

articulated with all involved factors. Any aviation

related simulation scenario must be defined with clear

expression of the specification of initial and terminal

conditions, aircraft specifications, airport and

Chhaya, B., Jafer, S. and Rice, S.

Human Factors Assessment of Scenario-driven Training in Web-based Simulation.

DOI: 10.5220/0009820301890196

In Proceedings of the 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2020), pages 189-196

ISBN: 978-989-758-444-2

 2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

189

airspace configurations, significant events, failure

modes (if any), instructions, clearances, and the

environment, as well as the major actors, their

capabilities, behaviour and interactions over time

(Moallemi et al., 2018).

To develop training scenarios, domain experts

and software developers collaborate closely to bridge

the gap between the domain and the simulation world

(Chhaya, Jafer, Coyne, Thigpen, & Durak, 2018).

This often requires tremendous amount of effort and

manual work. One of the main challenges that

scenario-oriented training programs face is the lack of

diverse pool of scenarios. Limited variety of training

scenarios put trainees at the risk of unprepared

circumstances that might arise in the actual field. On

the other hand, the underlying simulation

infrastructure (bot software and hardware) hinders

trainees’ exposure to the training material, since

training could only take place in specialized

laboratories equipped with necessary technologies

and only under supervision/mentoring of an

instructor/lab technician (Cummings, 1970). The

above capabilities were recently developed for a

funded project for the FAA Academy En-route

Controller Training Program.

The ATC Scenario Training Technology (ASTT)

tool has been developed as a portable training

platform for ATC trainees (Shannon et al., 2018).

ASTT provides an online environment allowing

trainees to practice Air Traffic Control (ATC)

concepts at their own pace without the need to utilize

instructional lab space and instructor’s time. It

involves development of a training tool that emulates

En Route Automation Modernization (ERAM) and en

route lab interfaces. ASTT provides “instructor” and

“student” modes of operation, allowing for instructors

to monitor student performance, and providing

students with an on-demand training environment to

practice various en route scenarios. This technology

allows trainees to respond to a given scenario using

their acquired skills and receive feedback on their

performance (B. N. Chhaya et al., 2019). ASTT is a

high-fidelity web-based simulation tool for practicing

ATC en route scenarios utilizing interactive

computer-based system replicating the actual En

Route Automation Modernization or ERAM ATC

system.

The ERAM system requires coordination between

two controllers managing the same space and looking

at two different monitors: (1) the Radar-Position (R-

Position) which contains an interface with a radar

display, and (2) the Radar Associate-Position (RA-

Position) which has an interface to the ERAM

Decision Support Tool (EDST) (Richard et al., 2019).

The R-Position interface shows the data blocks of

all flights within the sector airspace and in its

immediate surroundings, as well as trailing lines. An

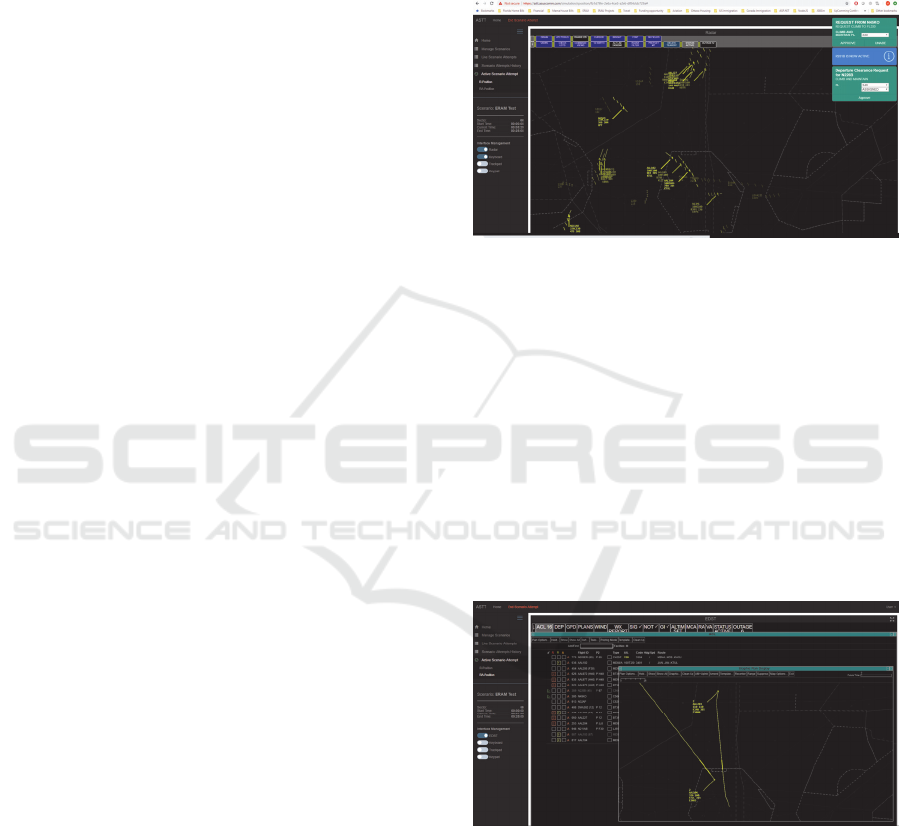

image of this interface screen can be seen in Figure 1.

The data blocks can be expanded if needed and show

details such as the aircraft ID, speed, sector control

and other remarks.

Figure 1: View of ASTT R-Position interface. It shows the

radar screen with the airspace and aircraft within it along

with flight properties.

The RA-Position lets the radar associate look at

several screens, including the radar screen pictured in

Figure 1, along with a list of all flights, altitudes,

directions, routes and remarks. EDST warns the

associate in the event of potential issues such as an

Inappropriate Altitude for Direction of Flight

(IAFDOF) or varying levels of conflict alerts. It also

gives the controller the option to edit any of the fields

or to trial plan a change in altitude or route (Richard

et al., 2019). An image of this interface screen can be

seen in Figure 2.

Figure 2: View of ASTT RA-Position Interface. It allows

the controller to see the radar screen, a list of flights and to

communicate changes to the flight plan.

The controller interacts with the screen using a

virtual keyboard that is identical to the ERAM

keyboard to avoid confusion because the keys are

different from those on a standard keyboard attached

to the computers running ASTT. This virtual

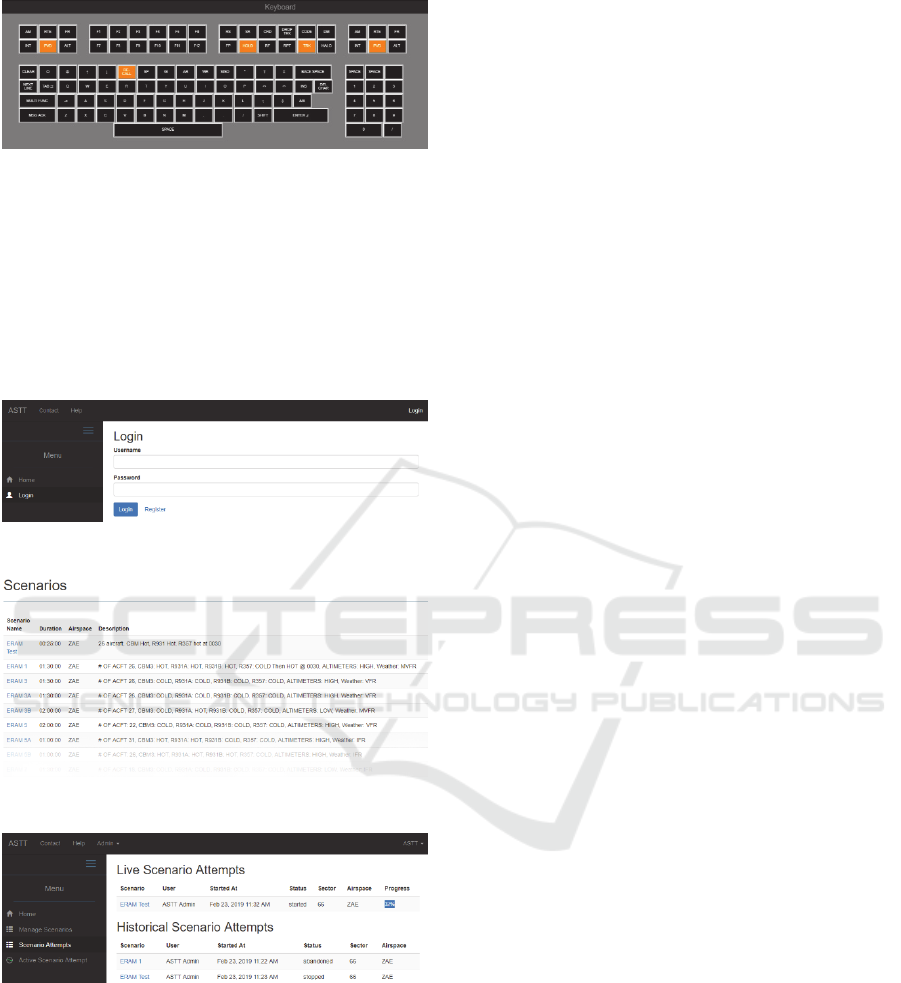

keyboard can be seen in Figure 3.

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

190

Figure 3: View of ASTT virtual keyboard.

Upon navigating to the tool through the web, the

users are first greeted with a login screen as seen in

Figure 4. Once their credentials have been

authenticated, they can access a list of scenarios they

are able to run as seen in Figure 5. At the conclusion

of any attempt, they can check their attempt history in

order to get feedback on their attempt. This screen is

shown in Figure 6.

Figure 4: ASTT login screen.

Figure 5: ASTT scenario selection screen.

Figure 6: ASTT scenario attempt history screen.

In order to simulate real-time air traffic for the

scenarios, ASTT uses accurate Flight Dynamic

Models of several aircraft, each of them including

simulated Flight Management System (FMS) and

autopilot capable of steering the aircraft per the

aircraft published flight profile (Richard et al., 2019).

The simulated FMSs are capable of storing flight

plans using 4D waypoint trajectories (latitude,

longitude, altitude, and time constraints).

2.2 Usability Testing

There are several types of usability tests that can be

conducted. The most common type is the problem

discovery test, where the goal is to uncover (and

potentially fix) all the usability problems that are

detected at this stage. This test should be done early

on in the development process, but can also be done

later in the process. Once the problems are found and

the new design is developed, then a benchmark study

can be used to determine if those changes actually

made the interface easier to use. Once it is determined

that the interface is easier to use, then a competitive

test can be conducted to compare the new product to

existing ones. Most usability studies assess first-time

use, so a follow-up learnability study might be useful

to ensure that users can easily learn how to use the

product and can accomplish certain long-term tasks.

This is particularly useful for training platforms,

where users may log in repetitively over time during

the training course.

For these assessment tests, there are typically a

combination of methods employed. Some of these

methods are designed to capture physical

measurements, and can include, but are not limited to,

video recording, logged keystrokes, mouse

movements, body movements, etc. Other methods

might include physiological measures, including

pupil dilation, heart rate, cortisol levels, O2 levels,

etc. Another approach is to collect performance

measures such as time to complete a task, number of

errors, number of navigations needed, number of false

starts, etc. Lastly, measures of subjective workload

are important in order to capture how much stress and

workload the user is experiencing while interacting

with the product. This paper will be focusing on this

last measure.

2.2.1 Stress and Workload

Stress is a state of mental or emotional strain or

tension resulting from adverse or very demanding

circumstances (Roscoe, 1978). Stress and workload

typically correlate during training periods. Users feel

under a certain amount of stress from the training

itself, and workload can be unnecessarily increased

by poor design. Additional stress can also be

generated by environmental factors, such as heat,

cold, motion, air quality, etc. Psychological stressors

may include cognitive appraisal (a person’s

understanding or interpretation of the situation), level

of arousal (often measured by heart rate, pupil

diameter, hormonal chemistry, etc.), and tunneling (a

user’s tendency to focus solely on one task).

Human Factors Assessment of Scenario-driven Training in Web-based Simulation

191

While some stress is advisable, having too little or

too much stress can lead to poor performance. Figure

7 shows the Yerkes-Dodson Law (Teigen, 1994),

which posits that the ideal amount of stress is

somewhere in the middle of the user’s potential stress

levels. Having too much stress can lead to anxiety and

disorganization, while having too little stress can lead

to loss of alertness and even sleepiness due to

boredom. It is important to note that when the task is

difficult, the stress levels need to be somewhat higher

than they would be if the task is easy.

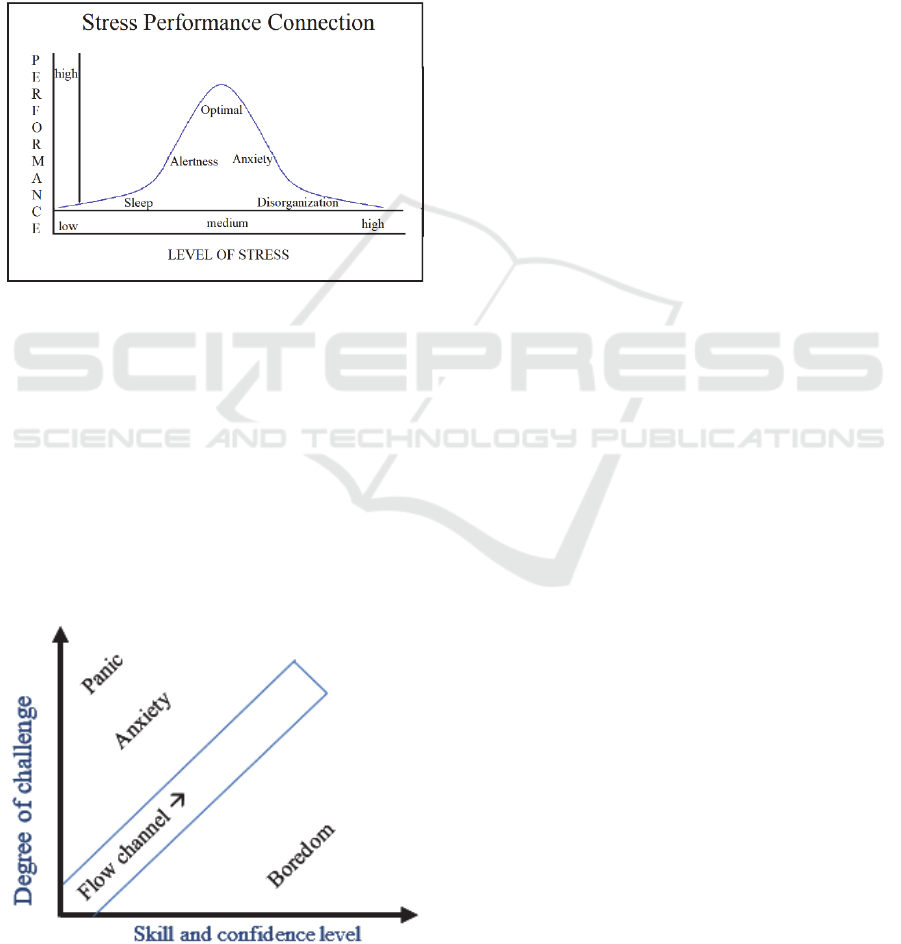

Figure 7: Graphical depiction of Yerkes-Dodson Law

(Teigen, 1994).

When stress is at its optimal level, then workload

is not adversely affected, and users will tend to put

forth their best effort. The amount of workload that

users should be under depends largely on the task;

however, it is critical to note that a good design does

not necessarily attempt to eliminate workload. In fact,

Csikszentmihalyi (1990) has shown that it is

important to match a user’s workload level with that

user’s skill level.

Figure

8 shows a graphical representation of this

concept.

Figure 8: Csikszentmihalyi’s (1990) flow model.

Here we see that when the user does not have the

skills necessary for the task, then a challenging task

will result in anxiety and frustration, and can lead to

a user quitting the task prematurely. On the other

hand, when the user’s skills exceed the workload

required, the user can become bored and apathetic.

The goal is to make sure the user has the skills

necessary for the task, and that the task generates

enough workload to engage the user and keep the

flow channel open. This is similar to the concept of

athletes being “in the zone”.

2.2.2 NASA-TLX Subjective Workload

Measure

There are many ways of measuring workload,

including physiological measures such as hormonal

levels, pupil diameter, heart rate, sweat rate, etc.;

however, many of those measures do not capture

subjective workload as reported by the users

themselves. The NASA-TLX (Task Load Index) was

developed at NASA's Ames Research Center by the

Human Performance (Hart & Staveland, 1988;

NASA, 1986). This workload measure was developed

precisely for the purpose of measuring user subjective

workload, and is useful for a variety of tasks,

including online or computer-based training sessions

such as the one being developed at Embry-Riddle

Aeronautical University (ERAU). This

multidimensional assessment tool rates users’

perceived workload, which is then correlated with

other aspects of performance such as accuracy, speed,

response times, etc. It is one of the most well-known

and used self-report workload measures (Moroney et

al., 1995; Noyes & Bruneau, 2007). The

psychometric characteristics of the NASA-TLX are

well documented (Yurko et al., 2010), and it has been

used previously as a tool for subjective evaluation of

individual's workload in flight simulation (Nygren,

1991) and air traffic control studies (Metzger &

Parasuraman, 2005).

The NASA-TLX is composed of two parts. In the

first part, participants respond to six subscales that are

presented on a single page. These subscales include:

• Mental Demand. What is the required level of

mental and perceptual activity? How easy,

difficult, simple or complex was the task?

• Physical Demand. What is the required level

of physical activity? How slack or strenuous

was the task?

• Temporal Demand. How much time pressure

is felt by the user? Was the pace too slow or

too fast?

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

192

• Performance. How well does the user feel

that she or he did on the task? How satisfied is

the user with his or her performance?

• Effort. How hard did the user need to work in

order to accomplish the task? This can be both

physical and mental.

• Frustration. How much irritation, stress, or

annoyance was perceived by the user?

Prior to responding to the scale questions,

participants read the description for each subscale.

They then provide a score for each subscale by

choosing one of the gradations that range from Very

Low to Very High. The scores can range from 0 to

100 in 5-point gradations. Upon completion of the

NASA-TLX, user scores are then combined into an

overall score that measures perceived subjective

workload. Figure 9 provides the actual survey that is

given to users.

As with all measures of workload, and

particularly with subjective workload, there are some

caveats. First, the NASA-TLX relies on users

accurately giving their responses, and it assumes that

the users are being honest with themselves and with

the experimenter. Second, it relies on the users’

memory in order to accurately assess their workload.

This can be problematic, especially if the survey is

given some time after the task has ended. Third, the

survey cannot be given while a user is doing the task

in question, or else it becomes a dual-task situation.

This can be problematic if the user suddenly feels a

release of stress and frustration when the task is

placed to the side while they fill out the survey. They

may misperceive this reduction of stress as being part

of the task and provide an inaccurate assessment of

their subjective workload.

In order to avoid these issues, the NASA-TLX

was given to some participants immediately after

each task, and not just at the end of the overall

session. Participants were carefully instructed that

they should be rating their perceived workload during

the task itself and not their perceived workload of

taking the survey. Participants were also encouraged

to provide honest and well-thought out responses in

order to ensure validity.

3 CASE STUDY

This section details the case study for human factors

assessment of the subject workload of using a web-

based simulation tool for ATC. The methodology is

described first, followed by the results obtained along

with discussion.

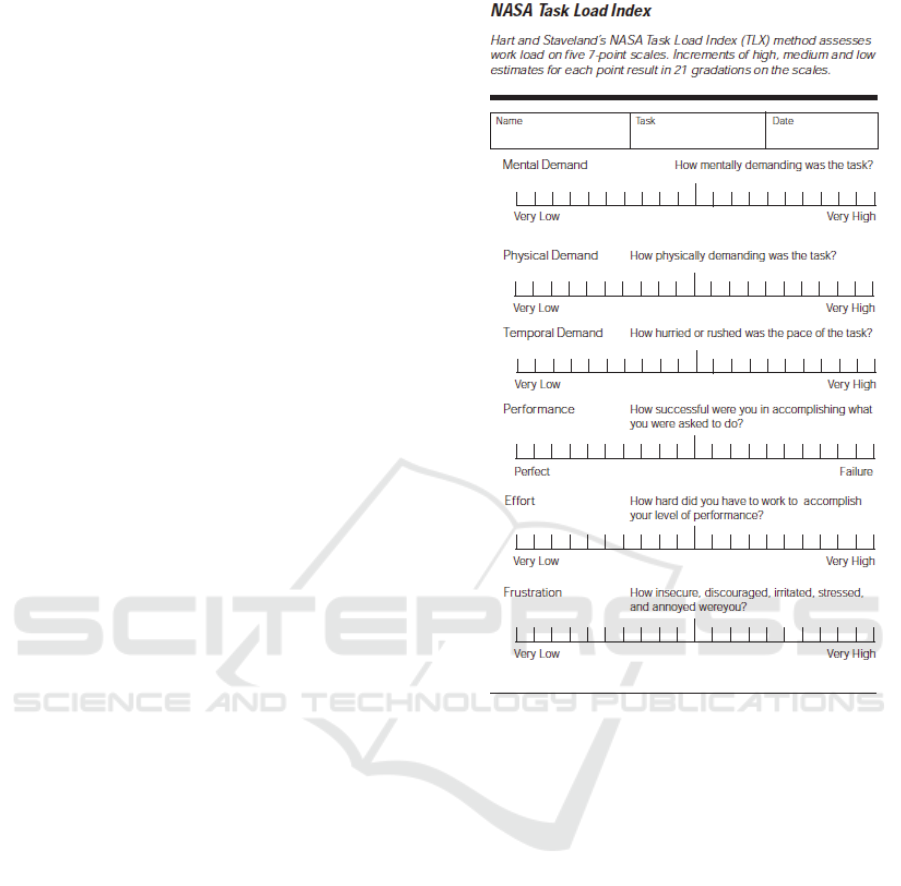

Figure 9: NASA Task Load Index (NASA, 1986).

3.1 Methodology

The human factors approach to evaluating the

software comprises of measuring subjective

workload via the NASA-TLX survey. The NASA-

TLX is designed to capture subjective workload

measures and was used in our usability analysis. The

study was approved by ERAU’s Institutional Review

Board for the Protection of Human Subjects in

Research (IRB).

Participants: Eight ERAU students in the Air

Traffic Management (ATM) program were recruited.

These volunteers had an age range from 20 to 22.

Each volunteer had successfully passed en route

training in the ATM program. A one-time monetary

compensation was provided for participating in the

study.

Materials: The NASA Task Load Index shown

in Figure 9 was used for this study. Specifically, the

raw score values were collected and analyzed.

Human Factors Assessment of Scenario-driven Training in Web-based Simulation

193

Procedure: Participants were first given a

consent form to sign and were then provided with

instructions about the procedures of the study.

Following this, they were given a training session on

the new software that lasted about one hour. The

purpose of this training session was to ensure that the

participants understood what they were being asked

to do, and to give them time to become familiar with

the software. This was meant to represent the typical

training that they would receive at the Academy if

they were asked to use this software later in their own

spare time. All questions were answered prior to the

completion of the training session.

In the second part of this study, participants were

given a list of nine tasks that they were then to

complete using the new software. These tasks are

listed below:

[1] Log in to the ASTT system (Figure 4)

[2] Accessing available scenarios (Figure 5)

[3] Run any scenario

[4] Access the R (Figure 1) and RA (Figure 2)

positions on two separate windows

[5] Access the soft controller keyboard (Figure

3) on a separate device

[6] Understand and approve a departure request

[7] Understand and approve a pilot request

[8] End scenario attempt

[9] Access the scenario history page (Figure 6)

Five of the participants were asked to complete all

nine tasks prior to filling out the NASA-TLX form.

The purpose of this was to get a sense of the overall

subjective workload, and to avoid disrupting the tasks

until they were all completed. The other three

participants were asked to complete the NASA-TLX

after each task. The purpose of this was to determine

the subjective workload of each task, and participants

were asked to stop after each task and fill out the

subjective workload scale. While the scenarios

selected by the students were not the same and

covered different areas of training, they were all of a

similar duration which would be completed within a

single class period. All tasks required of the student

controllers were those they would be familiar with, so

while the comparison is not direct due to the nature of

the scenarios being different, the level of difficulty

and time taken is expected to be reasonably similar

for each of the scenarios offered to the students.

Upon completion of the study, participants were

debriefed, compensated and dismissed.

3.2 Results

The results of the subjective workload reports for the

three participants who completed the scale after each

task can be found in Figure 10 to Figure 13. These are

“Raw TLX” score values with a minimum value of 0

and a maximum value of 100. Lower scores indicate

lower perceived workload.

Figure 10: Raw TLX Data for Task 1.

Figure 11: Raw TLX Data for Task 4.

Participant1 Participant2 Participant3

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

194

Figure 12: Raw TLX Data for Task 7.

Figure 13: Raw TLX Data for Task 9.

The overall average score for all nine tasks was

14.63, which is very low compared to the possible

highest score of 100. These scores ranged from 7.22

for Participant 2 to 25.37 for Participant 3. Thus, even

the highest score was in the bottom quartile for

subjective workload. The task with the highest

subjective workload appeared to be Task 6, with two

of the participants reporting scores over 35/100. Even

in this case, these scores seem very reasonable given

that participants only had one hour of training prior to

completing the assigned tasks.

The results of the subjective workload reports for

the five participants who completed the scale after

finishing all nine tasks can be found in Figure 14.

Here, we see that the average is 11.83, with a

range of 5.83 for Participant 6 to 21.67 for Participant

4. These scores indicate that the participants all

experience reasonably low subjective workload when

completing the assigned tasks, which is an indicator

that they found the software easy to learn and use.

Figure 14: TLX Results of Participants after Completing

Tasks.

4 CONCLUSIONS

Simulation-based training is highly valuable in

training professionals who will operate under

sensitive and risky environments. For this purpose,

the ATC Scenario Training Technology (ASTT) tool

was developed. This paper used the NASA-TLX tool

to understand users’ perceived workload for

computer-based training sessions using ASTT in

order to assess the human factors aspect of web-based

simulation training. The data from this study are

straightforward. When completing all nine sub-tasks,

participants then reported reasonably low subjective

workload on the NASA-TLX. When completing one

task at a time, participants also reported very low

Participant1 Participant2 Participant3

Participant4 Participant5 Participant6

Participant7 Participant8

Human Factors Assessment of Scenario-driven Training in Web-based Simulation

195

subjective workload for most of the tasks. The highest

report workload score was for Task 6, with an average

score of 29.72.

These data indicate that participants found the

software to be relatively easy to learn and use, and did

not experience high workload while using it. They all

commented on the usefulness of the tool and how it

can actually aid them in learning the en route concepts

more effectively. They were mostly very excited

about the fact that the tool is available online and

allows them to practice at their own pace at any time

and from anywhere.

REFERENCES

Chhaya, B., Jafer, S., Coyne, W. B., Thigpen, N. C., &

Durak, U. (2018, January 8). Enhancing Scenario-

Centric Air Traffic Control Training. 2018 AIAA

Modeling and Simulation Technologies Conference.

https://doi.org/10.2514/6.2018-1399

Chhaya, B. N., Jafer, S., & Moallemi, M. (2019, January 7).

Evaluation of Scenario-Centric Training in ATC

Simulators. AIAA Scitech 2019 Forum. https://doi.org/

10.2514/6.2019-1483

Csikszentmihalyi, M. (1990). Flow: The Psychology of

Optimal Experience. Harper Perennial.

Cummings, R. J. (1970). Air Traffic Controller Training at

the FAA Academy. Training Technol.

Hart, S. G., & Staveland, L. E. (1988). Development of

NASA-TLX (Task Load Index): Results of Empirical

and Theoretical Research. Advances in Psychology,

52(C), 139–183. https://doi.org/10.1016/S0166-

4115(08)62386-9

Metzger, U., & Parasuraman, R. (2005). Automation in

future air traffic management: Effects of decision aid

reliability on controller performance and mental

workload. Human Factors, 47(1), 35–49.

https://doi.org/10.1518/0018720053653802

Moallemi, M., Jafer, S., & Chhaya, B. (2018, January 8).

Scenario Specification Challenges for Next Generation

Aviation Technology Demonstrations. 2018 AIAA

Modeling and Simulation Technologies Conference.

https://doi.org/10.2514/6.2018-1396

Moroney, W. F., Biers, D. W., & Eggemeier, F. T. (1995).

Some Measurement and Methodological

Considerations in the Application of Subjective

Workload Measurement Techniques. The International

Journal of Aviation Psychology, 5(1), 87–106.

https://doi.org/10.1207/s15327108ijap0501_6

NASA. (1986). TASK LOAD INDEX (NASA-TLX) v 1.0.

https://ntrs.nasa.gov/search.jsp?R=20000021488

Noyes, J. M., & Bruneau, D. P. J. (2007). A self-analysis of

the NASA-TLX workload measure. Ergonomics, 50(4),

514–519. https://doi.org/10.1080/00140130701235232

Nygren, T. E. (1991). Psychometric Properties of

Subjective Workload Measurement Techniques:

Implications for Their Use in the Assessment of

Perceived Mental Workload. Human Factors: The

Journal of the Human Factors and Ergonomics Society,

33(1), 17–33. https://doi.org/10.1177/0018720891033

00102

Richard, K., Shannon, C., Moallemi, M., Chhaya, B., Patel,

K., & Jafer, S. (2019). Smart web-based air traffic

control training technology. Integrated Communica-

tions, Navigation and Surveillance Conference, ICNS,

2019-April. https://doi.org/10.1109/ICNSURV.2019.

8735329

Roscoe, A. H. (1978). Stress and workload in pilots.

Aviation, Space, and Environmental Medicine, 49,

630–636. https://psycnet.apa.org/record/1980-26622-

001

Shannon, C., Jafer, S., Vardhan Raja, A., Moallemi, M., &

Thigpen, N. C. (2018). Software Challenges of a Web-

based Air Traffic Control Training Tool. 2018

IEEE/AIAA 37th Digital Avionics Systems Conference

(DASC), 1–8. https://doi.org/10.1109/DASC.2018.

8569233

Teigen, K. H. (1994). Yerkes-Dodson: A Law for all

Seasons. Theory & Psychology, 4(4), 525–547.

https://doi.org/10.1177/0959354394044004

Updegrove, J. A., & Jafer, S. (2017). Optimization of Air

Traffic Control Training at the Federal Aviation

Administration Academy. Aerospace, 4(4), 50.

https://doi.org/10.3390/aerospace4040050

Yurko, Y. Y., Scerbo, M. W., Prabhu, A. S., Acker, C. E.,

& Stefanidis, D. (2010). Higher Mental Workload is

Associated With Poorer Laparoscopic Performance as

Measured by the NASA-TLX Tool. Simulation in

Healthcare: The Journal of the Society for Simulation

in Healthcare, 5(5), 267–271. https://doi.org/10.1097/

SIH.0b013e3181e3f329

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

196
