Discovering of a Conceptual Model from a NoSQL Database

Fatma Abdelhedi

, Amal Ait Brahim

, Rabah Tighilt Ferhat

and Gilles Zurfluh

CBI2, TRIMANE, Paris, France

Toulouse Institute of Computer Science Research (IRIT), Toulouse Capitole University, Toulouse, France

Keywords: NoSQL, Big Data, Schema-less, Model Extraction, MDA.

Abstract: NoSQL systems have proven effective to handle Big Data. Most of these systems are schema-less which

means that the database doesn't have a fixed data structure. This property offers an undeniable flexibility

allowing the user to add new data without making any changes on the data model. However, the lack of an

explicit data model makes it difficult to express queries on the database. Therefore, users (developers and

decision-makers) still need the database data model to know how data are stored and related, and then to write

their queries. In a previous work, we proposed a process to extract a physical model from a NoSQL database.

In this article, we propose to extend this process by leading to the extraction of a conceptual model that

provides an element of semantic knowledge close to human understanding. To do this, we use the Model

Driven Architecture (MDA) that provides a formal framework for automatic model transformation. From a

NoSQL physical model, we propose formal transformation rules to generate a conceptual model in the form

of a UML class diagram. An experimentation of the extraction process was carried out on a medical

application.

1 INTRODUCTION

Big data have received a great deal of attention in

recent years. Not only the amount of data is on a

completely different level than before, but also we

have different type of data including factors such as

format, structure, and sources. In addition, the speed

at which these data must be collected and analyzed is

increasing. This has impacted the tools required to

store Big Data, and new kinds of data management

tools, i.e. NoSQL systems have arisen (Chen, 2014).

Compared to existing DBMS, NoSQL systems are

commonly accepted to support larger volume of data

and to provide faster data access, better scalability

and higher flexibility (Angadi, 2013).

One of the NoSQL key features is that databases

can be schema-less. This means, in a table,

meanwhile the row is inserted, the attributes names

and types are specified. This property offers an

undeniable flexibility that facilitates the data model

evolution and allows end-users to add new

information without the need of database

administrator; but, at the same time, it makes the

database manipulation more difficult. Indeed, even in

Big Data context, the user still needs a data model that

offers a visibility of how data is structured in the

database (table names, attribute names and types,

links, etc.)

In practice, the developer that has created the

database, is also in charge of writing queries. Thus,

he already knows how data is stored and related in the

database; so, he can easily express his requests.

However, this solution cannot be applied to all cases;

for instance, the developer who is asked for doing the

application maintenance, does not know the data

model. It is the same for a decision maker who needs

to query a database while he was not involved in its

creation.

On the one hand, NoSQL systems have proven

their efficiency to handle Big Data. On the other hand,

the needs of a NoSQL database model remain up-to-

date. Therefore, we are convinced that it’s important

to provide to the developer data models describing the

database: (1) a physical model that describes the

internal organization of data and allows to express

queries and (2) a conceptual model that provides a

high level of abstraction and a semantic knowledge

element close to human comprehension, which

guarantees efficient data management (Sevilla,

2015). The physical model is already extracted in a

previous work. In this article, we are interested in

extending this extraction to the conceptual level by

Abdelhedi, F., Brahim, A., Ferhat, R. and Zurﬂuh, G.

Discovering of a Conceptual Model from a NoSQL Database.

DOI: 10.5220/0009796100610072

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 61-72

ISBN: 978-989-758-423-7

proposing a process which extracts a conceptual

model (UML class diagram) from the physical model

already extracted.

We should highlight that we formalized and

automated our solution using the Model Driven

Architecture (MDA) proposed by the Object

Management Group (OMG, 2019) and that is well

known as a framework for models automatic

transformations.

The remainder of the paper is structured as

follows. Section 2 motivates our work using a case of

study in the healthcare field. Section 3 reviews

previous works. Section 4 describes our model-based

process for extracting a conceptual model from

schema-less NoSQL databases. Section 5 details our

experiments, compares our solution against those

presented in Section 3 and validates our solution.

Finally, Section 6 concludes the paper and announces

future work.

2 ILLUSTRATIVE EXAMPLE

To motivate and illustrate our work, we have used a

case study in the healthcare field. This case study

concerns international scientific programs for

monitoring patients suffering from serious diseases.

The main goal of this program is (1) to collect data

about diseases development over time, (2) to study

interactions between different diseases and (3) to

evaluate the short and medium-term effects of their

treatments. The medical program can last up to 3

years. Data collected from establishments involved in

this kind of program have the features of Big Data

(the 3 V): Volume: the amount of data collected from

all the establishments in three years can reach several

terabytes. Variety: data created while monitoring

patients come in different types; it could be (1)

structured as the patient's vital signs (respiratory rate,

blood pressure, etc.), (2) semi-structured document

such as the package leaflets of medicinal products, (3)

unstructured such as consultation summaries, paper

prescriptions and radiology reports. Velocity: some

data are produced in continuous way by sensors; it

needs a [near] real time process because it could be

integrated into a time-sensitive processes (for

example, some measurements, like temperature,

require an emergency medical treatment if they cross

a given threshold).

In these programs, one of the benefits of using

NoSQL databases is that the evolution of the data

(and the model) is fluent. In order to follow the

evolution of the pathology, information is entered

regularly for a cohort of patients. But the situation of

a patient can evolve rapidly which needs the

recording of new information. Thus, few months

later, each patient will have his own information, and

that’s how data will evolve over time. Therefore, the

data model (1) differs from one patient to another and

(2) evolves in unpredictable way over time.

As mentioned before, this kind of systems operate

on schema-less data model enabling developers to

quickly and easily incorporate new data into their

applications without rewriting tables. Nevertheless,

there is still a need for a conceptual model to know

how data is structured and related in the database; this

is particularly necessary to write declarative queries

where tables and columns names are specified

(Bondiombouy, 2015).

In our view, it’s important to have a precise and

automatic solution that guides and facilitates the

database model extraction task within NoSQL

systems. For this, we propose the

ToConceptualModel process presented in section 4

that extracts a conceptual model of a NoSQL

database. This model is expressed using a UML class

diagram.

3 RELATED WORK

The problem of extracting the data model from

schema-less NoSQL databases has been the subject of

several research works. Most of these works focus on

the physical level (Klettke, 2015), (Sevilla, 2015),

(Gallinucci,

2018), (Maity, 2018), (Baazizi, 2017),

(Baazizi, 2019) and (Mongo, 2019). For our part, we

proposed an extracting process of the physical model

from a document-oriented NoSQL database. This

process, based on the Model Driven Architecture

(MDA), aims to extract a model from the database

that allows users to express queries. It generates the

physical model of the database by applying a

sequence of transformations formalized with the

QVT standard. The returned model describes the

collections that make up the database. The major

contribution of our solution is taking into account the

links between these collections.

However, few research works have studied the

extraction of a conceptual model from NoSQL

databases; here the conceptual term qualifies a

semantic model devoid of any technical

consideration. Thus in (Comyn-Wattiau, 2017), the

authors propose an extraction process of a conceptual

model for a graph-oriented NoSQL database (Neo4J).

In this particular type of NoSQL databases, the

database contains nodes (objects) and binary links

between

them. The proposed process takes as input

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

Table 1: Comparative table of extraction works of conceptual model from schema-less NoSQL databases.

Modeling levels Types of NoSQL

systems

Types of links

Physical Conceptual Graph Document Association Composition

(Comyn-Wattiau, 2017)

X X X X

(Izquierdo, 2016)

X X X X

(Chillón, 2019)

X X X X X

the insertion requests of objects and links; and then

returns an Entity / Association model. This process is

based on an MDA architecture and successively

applies two transformations. The first is to build a

graph (Nodes + Edges) from the Neo4j query code.

The second consists of extracting an Entity /

Association model from this graph by transforming

the nodes with the same label into entities and the

edges into associations. These works are specific to

graph-oriented NoSQL databases generally used to

manage strongly linked data such as those from social

networks.

Furthermore, another work

(Izquierdo, 2016)

proposes a process to extract a conceptual model

(UML class diagram) from a JSON document. This

process consists of 2 steps. The first step is to extract

a physical model in JSON format. The second step

generates the UML class diagram by transforming the

physical model into a root class RC, then the

primitive fields (Number, String and Boolean) into

RC attributes and the structured fields into component

classes CC linked to RC by composition links. Thus,

this work only considers the composition links and

ignores association links.

On the other hand, in (Chillón, 2019), the authors

propose a process to transform a document-oriented

database into a conceptual model. It consists of

entities with one or more versions according to the

attributes they contain. An attribute can be atomic or

multivalued with atomic elements and a relationship

can be of type association or composition. An

association relationship between two entities is

obtained by transforming a reference field (using a

specific syntax proposed by the authors). In addition,

any structured field in the physical model is

systematically transformed into a composition link.

Thus, these works do not consider either structured

attributes or association classes in the conceptual

schema.

In Table 1, we summarize the three previous

works by considering modeling levels, types of

NoSQL systems as well as types of links.

This state of the art shows that the proposed

solutions only partially answer our problem. Indeed,

the works in (Comyn-Wattiau, 2017) concern only

graph-oriented systems that do not take into account

either structured attributes or composition links. On

the other hand, in the article

(Izquierdo, 2016), the

authors do not consider association links that are the

most common in our case study. Finally, in (Chillón,

2019), the authors do not take into account structured

attributes in a class as well as the concept of

association classes that makes it possible to

characterize a relation by attaching attributes to it.

4 EXTRACTION PROCESS OF

THE CONCEPTUAL MODEL

Our work aims to provide users with models to

manipulate NoSQL databases. Two models are

proposed: (1) the physical model to write queries on

this database and application code and (2) the

semantic model to give the meaning of the data

contained in the database. When data structures are

complex, these two models are essential to enable

users (usually decision-makers) to understand and

manipulate data. As part of this work, we proposed

mechanisms to discover a physical model from a

NoSQL database in a previous article. This work is

based on the MDA architecture and applies a set of

transformation rules formalized in QVT. The result

model describes the internal organization of the

NoSQL database, taking into account the technical

details. This model shows the names of collections,

attributes and links between collections. The current

paper completes the latter and focuses on

thetransformation of the physical model into a

conceptual model represented by using a UML class

diagrams (red circle in Figure 1) and which provides

users with the semantics of the data. Note that we

limit our study to document-oriented NoSQL

databases that are the most complete to express links

between objects (use of referenced and nested data).

We propose the ToConceptualModel process which

applies a set of transformations ensuring the passage

a NoSQL physical model towards a UML class

Discovering of a Conceptual Model from a NoSQL Database

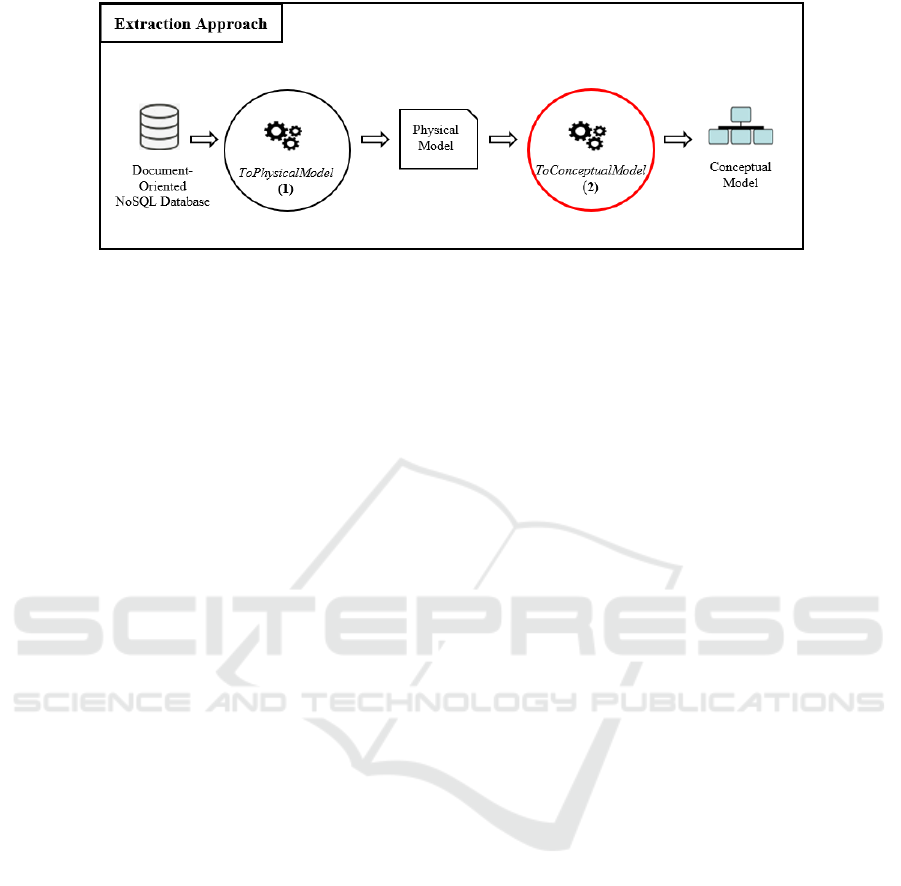

Figure 1: Overview of ToConceptualModel process.

diagram. To formalize and automate our process, we

use the Model Driven Architecture (MDA) proposed

by the OMG (OMG, 2019), which provides a formal

framework for automating model transformations.

The purpose of this architecture is to describe

separately the functional specifications and

implementation specifications of an application. For

this, it uses three models representing the abstraction

levels of the application. These are (1) the

requirements model CIM (Computation Independent

Model) in which no IT considerations appear, (2) the

independent Platform Independent Model (PIM)

independent of technical details and (3) Platform

Specific Model (PSM) specific to a particular

platform. The transition between the different models

is done through a succession of transformations

essentially between PIM and PSM. These

transformations can be classified according to two

categories: M2M (Model-To-Model) when the result

of the transformation is a model and M2T (Model-To-

Text) when the result is a code.

Since the input of our process is a NoSQL

physical model and the output corresponds to the

conceptual model (UML class diagram), we retain

only the PIM and PSM levels. The transition from the

PSM to the PIM is done through a sequence of M2M

transformations. We will formalize these

transformations using the QVT standard (Query View

Transformation) defined by the OMG (Section 5).

In the following subsections, we detail the

components of the ToConceptualModel process by

specifying the three elements: (a) the source, (b) the

target and (c) the transformation rules.

4.1 Source: Physical Model

The physical model is produced by the

ToPhysicalModel process shown in Figure 1 was

presented in a previous work. In this paper, it is the

source of the ToConceptualModel process that we

will study here.

This model is composed of collections. Each of

them corresponds to the model of a collection of the

database and describes its different fields. A field is

defined by a name and an atomic, structured or

multivalued type. The atomic type is one of the

standard data types such as Number, String or

Boolean. The structured type (between {}) is

composed of one or more fields that can also be

atomic, structured or multivalued. The multivalued

type is put between []; it consists of atomic, structured

or multivalued elements. To express a link between

collections, we used a field called DBRef, which is un

standard proposed by the MongoDB (MongoDB,

2018). This one is a special case of a structured field.

It is composed of two fields; one corresponds to the

identifier of the referenced document and the other

corresponds to the name of the collection that

contains the referenced document.

We present the different concepts of the physical

model in the meta-model of Figure 2. All metamodels

presented in this article are formalized with the Ecore

standardized language that we present in the

Experimentation section.

4.2 Target: UML Class Diagram

A UML Class Diagram is defined by a set of classes

linked together by relationships. Each class is defined

by a name, attributes, and operations. Each attribute

is defined by a pair (name, type). Note that an

attribute can be structured, i.e. it is composed of other

attributes like Address which is composed of:

StreetName, ZipCode and City.

In this article, we do not consider operations. A

relationship is a semantic connection between two or

more classes. The most common links are association,

composition, aggregation and inheritance. In this

article, we restrict ourselves only to links used in our

case study: association and composition. An

association link is defined by a name and its

extremities;

a composition link is defined by its two

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

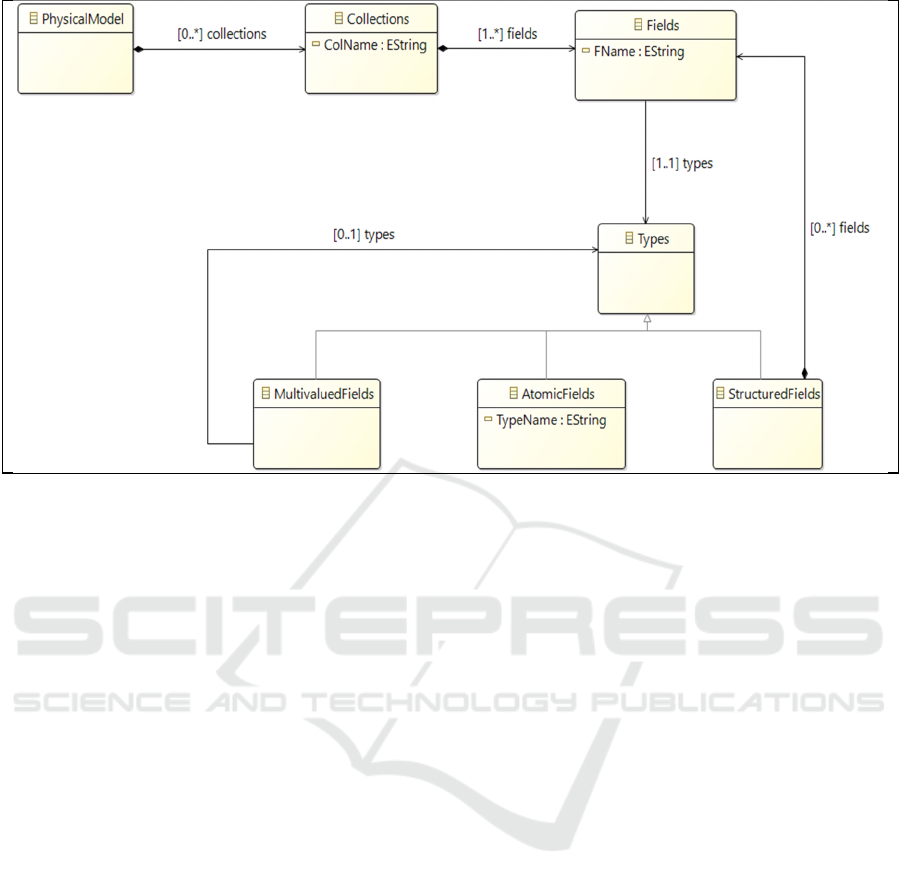

Figure 2: Source Metamodel.

extremities and its meaning (composite class and

component class). An extremity can be

characterizedby a special constraint called

multiplicity that are defined by a lowerCardinality

and an upperCardinality. Note that an association link

can be characterized by attributes; in this case, it is an

association class. We formalize all these concepts

through the Ecore meta-model of Figure 3.

4.3 Transformation Rules

After having formalized the concepts present in the

source model (Physical Model) then in the target

model (UML Class Diagram), we will describe the

automatic transition between the two models as a set

of transformation rules. These rules will be

formalized later in the Experimentation section using

the QVT standard. Links between collections (DBRef

fields) will be taken into account from rule R5.

R1: A collection is transformed into a class with

the same name.

R2: With the exception of the _id field, an atomic

field in a collection is transformed into an atomic

attribute with the same name and type in the

corresponding class.

R3: A multivalued field whose elements are

atomic is transformed into a multivalued attribute

with the same name and type.

R4: A structured field is transformed into a

structured attribute with the same name. The elements

constituting the input structured field are transformed

by applying R2 if it is an atomic element, R3 for a

multivalued element or R4 for a structured element.

R5: A DBRef field is a structure of the following

form:

<DBRef_Name>: {$_id: ObjectId,

$Ref: <Collection_Name>}.

A DBRef field in a collection A referencing a

collection B is transformed into an association

relationship connecting the two corresponding

classes X and Y; this association relationship has the

same name as the DBRef field and has the following

cardinalities:

0..1 for the class Y and 0..* for the class X if the

field DBRef is monovalued,

0..* for the class Y and 0..* for the class X if the

field DBRef is multivalued.

R6: A DBRef field may consist of additional

fields as follows:

<DBRef_Name>: {$_id: ObjectId,

$Ref: <Collection_Name>,

<Champ1>: Type,

<Champ2>: Type,

…},

In this case, a DBRef field in a collection A

referencing a collection B is transformed into an

association class between the corresponding classes

X and Y; this association class has the same name as

the DBRef field and contains the additional fields as

attributes.

these

fields

are

type

DBRef,

they

are

Discovering of a Conceptual Model from a NoSQL Database

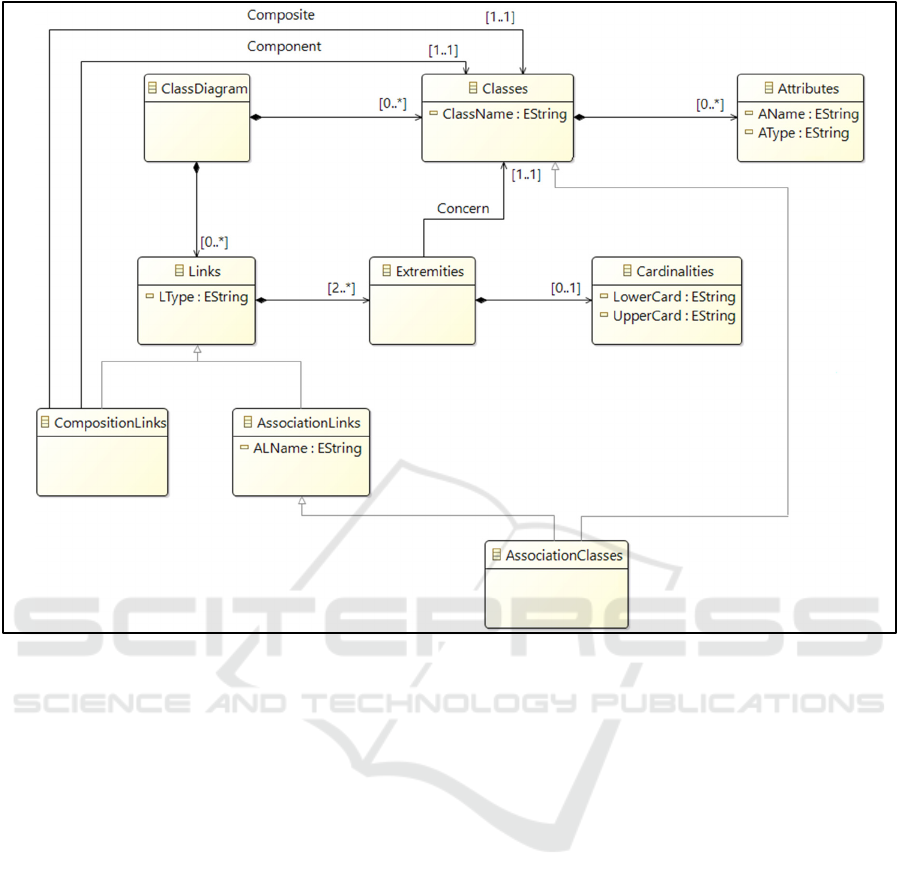

Figure 3: Target Metamodel.

transformed into association relationships by

applying R5. The association class obtained has the

same cardinalities as the association relationship

(R5).

R7: In a collection A, if a field is structured or

multivalued of structured elements and the structure

consists of at least one field DBRef, then this

structured field is transformed into a component class

Z linked to the class X (corresponding to A) with a

composition link. This one has has the following

cardinalities:

0..1 for the class Z if the input field is structured,

0 ..* for the class Z if the input field is multivalued

of structured elements.

The component class Z is linked with another

class T by applying the rule 5.

To illustrate the implementation of our process,

Figure 4 shows the transformation of a physical

model to a UML class diagram by applying three

rules; other examples are presented in the Experiment

section. Thus, the classes Hospitals and Specialties

are obtained by applying R1 on the collections that

have the same names, respectively on the physical

model. The atomic Attributes HospitalName and

Designation result from the application of R2.

Finally, the component class Services as well as the

relationship MedicalField are obtained by applying

R7.

5 EXPERIMENTS

5.1 Technical Environment

In this section, we describe the techniques used to

implement the ToConceptualModel process. Since

our approach is model driven, we used a technical

environment suitable for modeling, meta-modeling

and model transformation. We used the Eclipse

Modeling Framework (EMF) (Budinsky, 2004). EMF

provides a set of tools for introducing a model-driven

development approach within the Eclipse

environment. These tools provide three main features.

The first is the definition of a meta-model

representing the concepts handled by the user. The

second is the creation of the models instantiating this

meta-model and the third one is the transformation

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

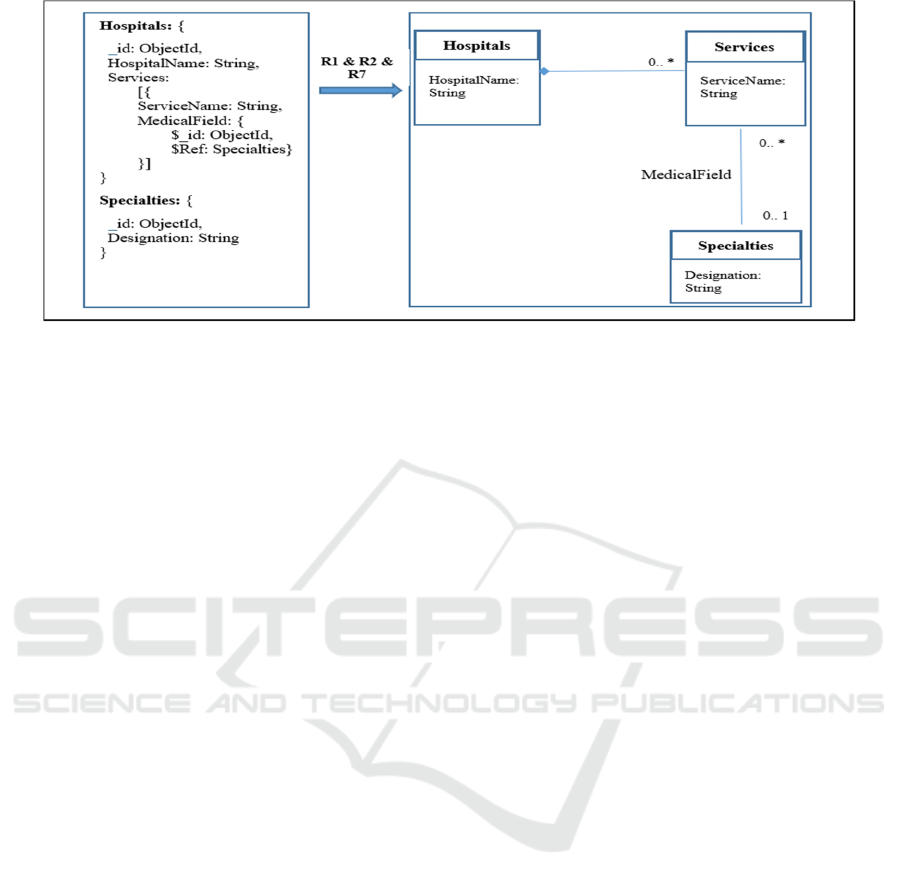

Figure 4: Transformation example.

from model to model and from model to text. Among

the tools provided by EMF, we used:

Ecore: a metamodeling language used to create

our metamodels. Figure 2 and Figure 3 illustrate the

source and target Ecore meta-models used by

ToConceptualModel process.

XML Metadata Interchange (XMI): the XML

based standard that we use to create models.

QVT (Query, View, Transformation): the OMG

standard language for specifying model

transformations. The choice of the QVT standard was

based on criteria specific to our approach. Indeed, the

transformation tool must be integrated into the EMF

environment so that it can be easily used with

modeling and meta-modeling tools.

5.2 Implementation of the

ToConceptualModel Process

ToConceptualModel process is expressed as a

sequence of elementary steps that build the resulting

model (UML class diagram) step by step from the

source model (physical model).

Step1: we create a source and a target metamodel

to represent the concepts handled by our process.

Step2: we build an instance of the source

metamodel. For this, we use the standard based XML

Metadata Interchange (XMI) format. This instance is

shown in Figure 5

Step3: we implement the transformation rules by

means of the QVT language provided within EMF.

Step4: we test the transformation by running the

QVT script created in step 3. This script takes as input

the source model built in step 2 (physical model) and

returns as output a UML class diagram. The result is

provided in the form of XMI file as shown in figure 6.

5.3 Comparison

The aim of this section is to compare our solution

with the three works (Comyn-Wattiau, 2017),

(Izquierdo, 2016), (Chillón, 2019) presented in

section 3 and that have investigated the process of

extracting a NoSQL database conceptual model.

Starting from a graph-oriented NoSQL database,

authors in (Comyn-Wattiau, 2017) propose to extract

an E/A model based on a set of mapping rules

between the conceptual level and the physical one.

Obviously, these rules are specific to graph-oriented

systems used as a framework for managing complex

data with many connections. This kind of NoSQL

DBMS lack of ability to define structured attributes

and composition links that we need to use in our use

case (cf. Section 2). The solution presented in

(Izquierdo, 2016) have the advantage to start from a

document-oriented NoSQL database. But the

proposed mapping doesn’t take into account

association links between collections; such type of

links is a key element in our case to describe

relationships between the medical application

objects. Other process in (Chillón, 2019) focuses on

association links during the extraction of a document-

oriented NoSQL database, however it doesn’t

consider structured attributes and association classes.

To overcome the limits of these works, we have

proposed a more complete solution based on the

Model Driven Architecture (MDA). Table 2

summarizes the main features of our process and sets

them against those of (Comyn-Wattiau, 2017),

(Izquierdo,

2016) and (Chillón, 2019) processes.

Discovering of a Conceptual Model from a NoSQL Database

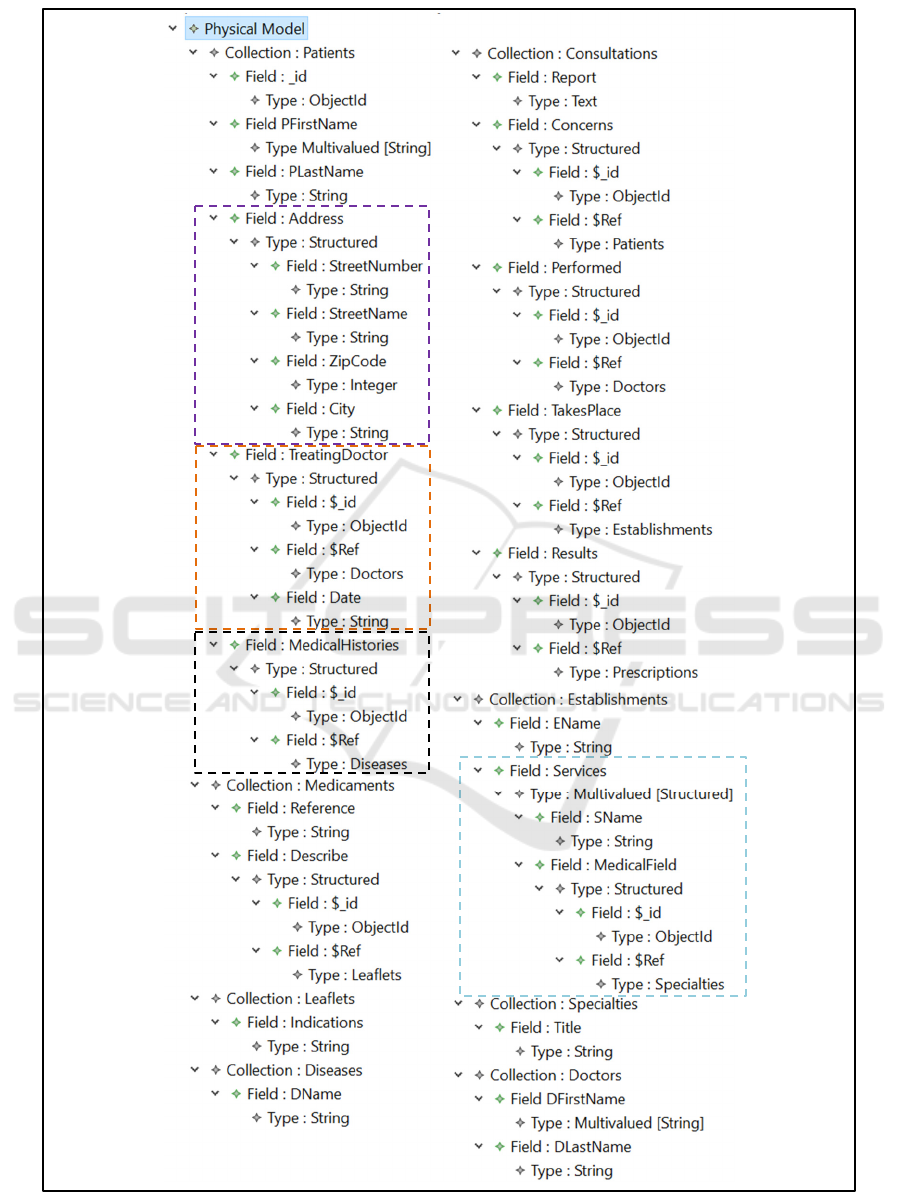

Figure 5: Source Model.

 R1



 R4

 R5

 R6

 R1

 R2

 R1

 R7

 R1

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

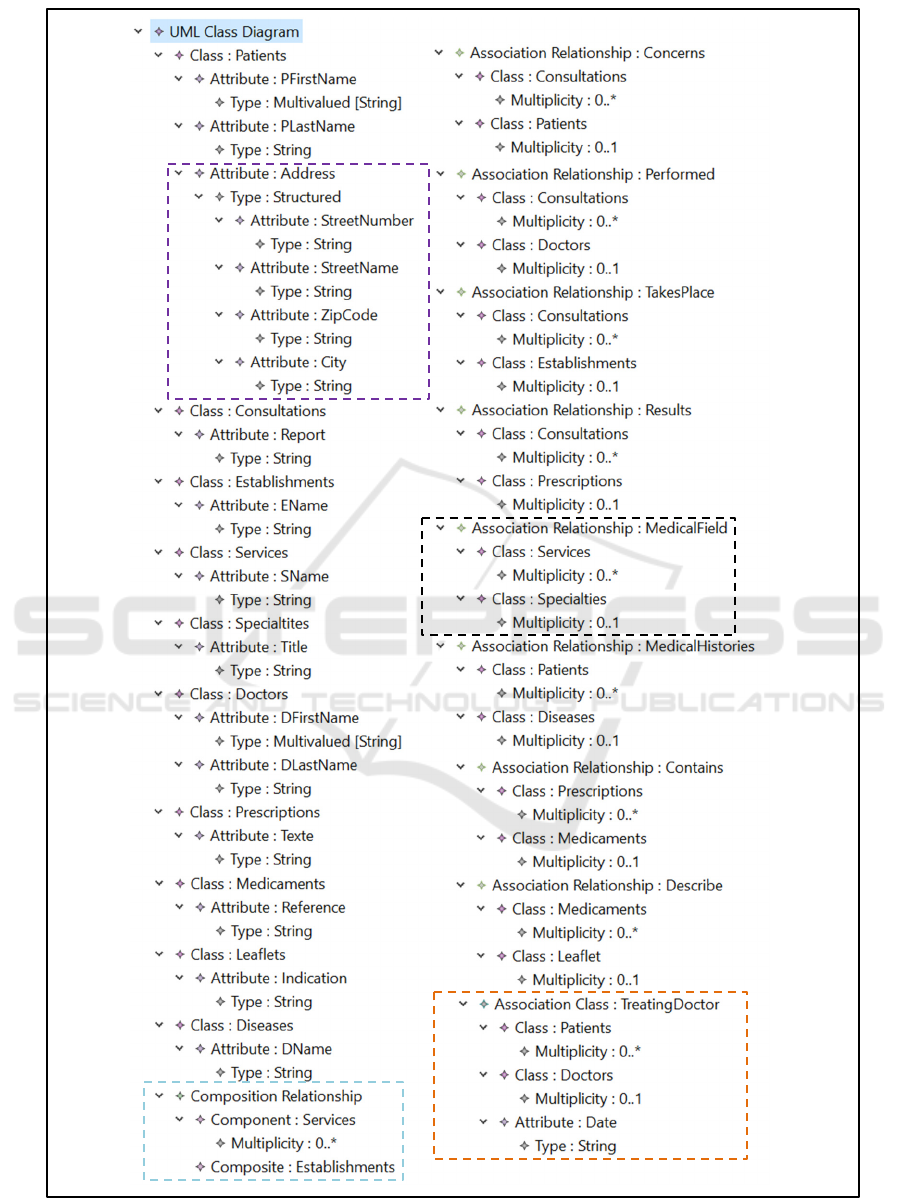

Figure 6: Target Model.

R1 

R3 

R2 

4 

R5 

R6 

R7 

Discovering of a Conceptual Model from a NoSQL Database

Table 2: Comparative table of solutions.

Types of NoSQL

systems

Types of links Structured

attributes

Use Of

MDA

Graph Document Association Composition Association

class

(Comyn-

Wattiau, 2017)

X X X

(

Izquierdo, 2016

)

X X

(Chillón, 2019)

X X X

Our Process X X X X X X

Table 3: Query writing time.

Without model Physical model alone Conceptual and

physical model

Developer 1 Database 1: 50 minutes Database 2: 23 minutes Database 3: 18 minutes

Develo

er 2

Database 2: 40 minutes Database 3: 25 minutes Database 1: 16 minutes

Developer 3 Database 3: 48 minutes Database 1: 20 minutes Database 2: 16 minutes

Average 46 minutes 23 minutes 17 minutes

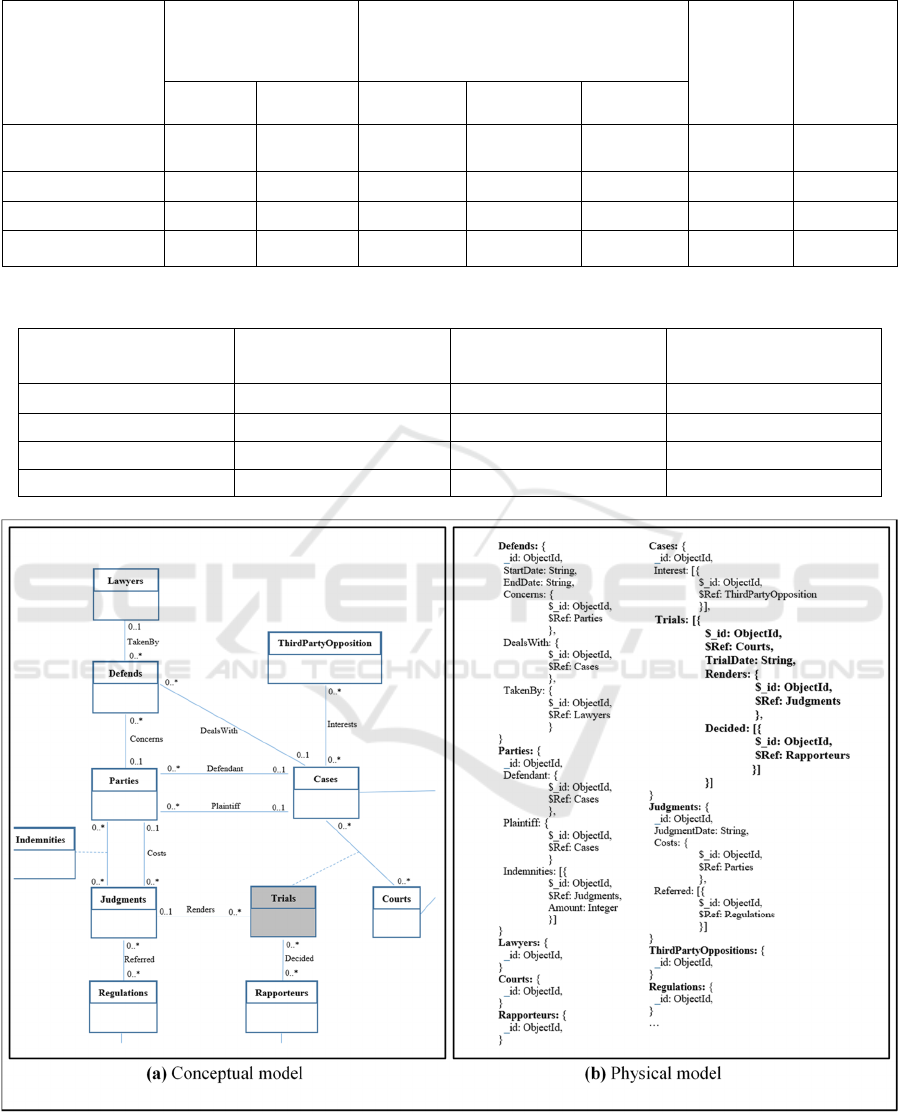

Figure 7: Screen representing the database of one of the three applications.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

5.4 Validation

Concerning the model extraction of schema-less

NoSQL databases, our approach allows to display to

the developer simultaneously a conceptual model and

a physical model; the first to understand the semantics

of the database and the second to write queries. To

evaluate the relevance of our approach, our prototype

(section 4) was implemented by three developers at

Trimane, a digital services company specialized in

business intelligence and Big Data. The three

experienced developers (IT consulting engineers)

were tasked with providing maintenance for three

separate applications. None of the developers know,

previously, the data model of the concerned

applications. For each application, each developer

writes ten queries that have an increasing complexity

according to three different cases: (1) without any

data model, (2) with the physical data model or (3)

with the both conceptual and physical models.

Figures 7(a) and 7(b) show respectively an example

of the conceptual and physical models corresponding

to one of the three applications. Note that due to lack

of place, we present data models (conceptual and

physical one) of only one application.

We should also highlight that for reasons of

visibility, models are represented to the user in the

same screen and with an appropriate format: JSON

for the physical model and the graphic format for the

conceptual one. Each time we click on a class on the

conceptual model, we will have its equivalent on the

physical model. For example, the part of the physical

model written in bold corresponds to the selected

class (Trials).

Each database is associated with a set of queries

whose natural language statements are provided to the

three developers. In Table 3, we calculated the

average time of writing the queries by the three

developers in each situation: (1) without any data

model, (2) with the physical data model or (3) with

the both conceptual and physical models.

Our initial hypothesis was verified in the

situations considered. This establishes that a

knowledge of semantics and data structure allows the

developer to write queries faster on a schema-less

NoSQL database. The small difference noted between

the use of the single physical diagram and the use of

the two models (conceptual and physical), is probably

due to the experience of the three developers.

6 CONCLUSION AND FUTURE

WORK

Our work is part of Big Data databases. They are

currently dealing with the reverse engineering

mechanisms of schema-less NoSQL databases to

provide users with models to manipulate NoSQL

databases.

In this article, we have proposed an automatic

process ToConceptualModel which focuses on the

transformation of a physical model into a conceptual

model represented using a UML class diagrams by

applying a set of rules. The resulting conceptual

model makes it easier for developers and decision-

makers to understand the database and write queries.

To formalize and automate our process, we use the

Model Driven Architecture (MDA) proposed by the

OMG, which provides a formal framework for

automating model transformations.

The major contribution of our solution is the

consideration of structured attributes, association

relationships, composition relationships as well as

association classes. We have experimented our

process on the case of a medical application which

relates to scientific programs of follow-up of

pathologies; the database is stored on a document-

oriented NoSQL Database.

As future work, we plan to complete our

transformation process to have more semantics in the

conceptual model by considering other types of links

such as inheritance, aggregation and N-ary.

REFERENCES

Angadi, A. B., & Gull, K. C. (2013). Growth of New

Databases & Analysis of NOSQL Datastores.

International Journal of Advanced Research in

Computer Science and Software Engineering, 3, 1307-

1319.

Baazizi, M. A., Lahmar, H. B., Colazzo, D., Ghelli, G., &

Sartiani, C. (2017, March). Schema inference for

massive JSON datasets. In Extending Database

Technology (EDBT).

Baazizi, M. A., Colazzo, D., Ghelli, G., & Sartiani, C.

(2019). Parametric schema inference for massive JSON

datasets. The VLDB Journal, 1-25.

Bondiombouy, C. (2015). Query processing in cloud

multistore systems. In BDA : Bases de Données

Avancées.

Budinsky, F., Steinberg, D., Ellersick, R., Grose, T. J., &

Merks, E. (2004). Eclipse modeling framework: a

developer's guide. Addison-Wesley Professional.

Chen, CL Philip et Zhang, Chun-Yang. Data-intensive

applications, challenges, techniques and technologies:

Discovering of a Conceptual Model from a NoSQL Database

A survey on Big Data. Information Sciences, 2014, vol.

275, p. 314-347.

Comyn-Wattiau, I., & Akoka, J. (2017, December). Model

driven reverse engineering of NoSQL property graph

databases: The case of Neo4j. In 2017 IEEE

International Conference on Big Data (Big Data) (pp.

453-458). IEEE.

Extract Mongo Schema

https://www.npmjs.com/package/extract-mongo-

schema/v/0.2.9 Online; 5 October 2019.

Gallinucci, E., Golfarelli, M., & Rizzi, S. (2018). Schema

profiling of document-oriented databases. Information

Systems, 75, 13-25.

Izquierdo, J. L. C., & Cabot, J. (2016). JSONDiscoverer:

Visualizing the schema lurking behind JSON

documents. Knowledge-Based Systems, 103, 52-55.

Klettke, M., U. Störl, et S. Scherzinger (2015). Schema

extraction and structural outlier detection for json-

based nosql data stores. Datenbanksysteme für

Business, Technologie und Web (BTW 2015).

Maity, B., Acharya, A., Goto, T., & Sen, S. (2018, June). A

Framework to Convert NoSQL to Relational Model.

In Proceedings of the 6th ACM/ACIS International

Conference on Applied Computing and Information

Technology (pp. 1-6). ACM.

MongoDB (2018). Mongodb atlas database as a service.

https://www.mongodb.com/. Online; 5 November

2019.

Sevilla, Diego Ruiz, Severino Feliciano Morales, and Jesús

García Molina. "Inferring versioned schemas from

NoSQL databases and its applications." International

Conference on Conceptual Modeling. Springer, Cham,

2015.

Chillón, A. H., Ruiz, D. S., Molina, J. G., & Morales, S. F.

(2019). A Model-Driven Approach to Generate

Schemas for Object-Document Mappers. IEEE Access,

7, 59126-59142.

Object Management Group (2019) https://www.omg.org/

Online; 5 July 2019.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
