Improving Emotion Detection for Flow Measurement with a High

Frame Rate Video based Approach

Ehm Kannegieser

, Daniel Atorf

and Robert Matrai

Fraunhofer IOSB, Institute of Optronics, System Technologies and Image Exploitation,

Fraunhoferstraße 1, 76131 Karlsruhe, Germany

FH Technikum Wien, Höchstädtplatz 6, 1200 Wien, Austria

Keywords: Flow, Immersion, Focus, Emotion Detection, Micro-expressions, High Frame Rate Video.

Abstract: Achieving states of high focus (i.e., Flow, Immersion) in learning situations is linked with the motivation to

learn. Developing a tool to measure such states could potentially be used to evaluate and improve learning

system potential and thus learning effect. With this purpose in mind, correlations between physiological data

and states of high focus were tried to be discovered in a prior study. Physiological data from over 40

participants was recorded and analyzed for correlations with states of high focus. However, no significant

correlations between physiological data and elicited states of high focus have been found yet. Revisiting the

results, it was concluded that especially the quality and density of emotion recognition data, elicited by a

video-based approach might have potentially been insufficient. In this work in progress paper, a method with

the intention of improving the quality and density of video data by way of implementing a high frame rate

video approach is outlined, thus enabling the search for correlations of physiological data and states of high

focus.

1 INTRODUCTION

Serious Games – games, which do not exclusively

focus on entertainment value, but rather on achieving

learning experiences in players – are successful tools

to improve education (Girard, Écalle and Magnan,

2013). In this field of technology, the biggest question

is: How might the learning effect be improved even

further?

Previous studies have found that the learning

effect is linked to the fun games provide to players

(Deci and Ryan, 1985; Krapp, 2009), thus, raising the

level of fun and measuring its increase becomes more

and more important.

Similar to the definition of Flow – as the state of

optimal enjoyment of an activity (Csikszentmihalyi,

1991) and Immersion as the sub-optimal state of an

experience (Cairns, 2006), fun is defined as the

process of becoming voluntarily engrossed in an

activity. As such, measuring these states of high focus

becomes interesting when analyzing the fun

experienced during gameplay (Beume et al., 2008).

Both Flow and Immersion are currently measured

using questionnaires (Nordin, Denisova and Cairns,

2014). The questionnaires can be elicited either

during the game – disrupting the player’s

concentration – or after the game, leading to

imprecise results. Additionally, questionnaires can

only elicit subjective measurements, further

degrading the quality of the data gathered.

For this reason, the development of a system for

automatic measurement of Immersion and Flow

becomes increasingly interesting. Instead of using

questionnaires filled out by participants, in previous

work (Atorf et al., 2016; Kannegieser et al., 2018) a

study was introduced, which aimed to further the

understanding of how Flow and Immersion are linked

together and to ease future work towards a new

measurement method using physiological data to

determine their current Flow or Immersion state.

Such a measurement method would provide

Serious Game developers with better, more objective

insight about how much fun, and respectively, how

much learning value is provided by their games.

In a previous study, first steps had been taken in

in the direction of developing such a method. Based

on the measured data, no correlations between states

of high focus and physiological signals were found.

However, this does not yet prove that no such

490

Kannegieser, E., Atorf, D. and Matrai, R.

Improving Emotion Detection for Flow Measurement with a High Frame Rate Video based Approach.

DOI: 10.5220/0009795004900498

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 2, pages 490-498

ISBN: 978-989-758-417-6

correlation exists and better data quality and density

might deliver different results.

The next Chapter explores relevant concepts by

reviewing related research and outlines the study

preceding this one, in which no correlations had been

found. Then, Chapter 3 delineates a new

measurement method that to be integrated into the

existing experiment setup with the intention of

improving data quality and density, as suggested

above.

2 RELATED WORK

Flow was first described by Csikszentmihalyi as the

state of the optimal experience of an activity

(Csikszentmihalyi, 1991). When entering a state of

Flow, even taxing activities like work no longer feel

taxing, but rather feel enjoyable. However, the Flow

state cannot be achieved for every activity.

Csikszentmihalyi bases flow on the model of extrinsic

and intrinsic motivation. Only intrinsically motivated

actions, which are not motivated by external factors,

can reach the Flow state. Flow is reachable when the

challenge presented by such an intrinsically

motivated action is balanced with the skill of the

person performing the task. All this makes Flow an

interesting point of research concerning games, as

playing games is usually intrinsically motivated.

Flow is mapped to games in the GameFlow

questionnaire (Sweetser et al., 2005).

There exist two concurrent definitions of

Immersion. The first definition is called presence-

based Immersion and refers to the feeling of being

physically present in a virtual location. The second

definition is known as engagement-based Immersion.

It defines Immersion based on the strength of a

player’s interaction with the game. The model given

by Cairns et al. in their series of papers (Cairns et al.,

2006; Jenett et al., 2008), defines Immersion as a

hierarchical structure, with different barriers of entry.

The lowest level, Engagement, is reached by

interacting with the game and spending time with it.

Engrossment is reached by becoming emotionally

involved with the game. During this state, feelings of

temporal and spatial dissociation are starting to

appear. The final state, Total Immersion, is reached

by players having their feelings completely focused

on the game. Cheng et al. improved upon this

hierarchical model by adding dimensions to the three

levels of the hierarchy (Cheng et al., 2015). The

Engagement level is split into the three dimensions:

Attraction, Time Investment and Usability. The

second level, Engrossment, is split into Emotional

Attachment, which refers to attachment to the game

itself, and Decreased Perceptions. Finally, Total

Immersion is defined by the terms Presence and

Empathy.

Table 1: Comparison of similarities in Flow and Immersion

definitions.

Flow Immersion

Task The Game

Concentration Cognitive

Involvement

Skill/Challenge

Balance

Challenge

Sense of Control Control

Clear Goals Emotional

Involvement

Immediate Feedback -

Reduced Sense of

Self and of Time

Real World

Dissociation

Flow and Immersion share many similarities.

Both have similar effects, such as decreased

perceptions of both time and the environment, and

refer to a state of focus (see Table 1.).

Georgiou and Kyza even take the empathy

dimension in the immersion model by Cheng et al.

and replace it with Flow (Georgiou and Kyza, 2017).

There are two main differences between the two

definitions: First, Flow does not define an emotional

component, while Immersion is focused heavily on

the emotional attachment of players to the game.

Second, while Flow refers to a final state of complete

concentration, Immersion refers to a range of

experiences, ranging from minimal engagement to

complete focus on the game.

The model used in previous work (Kannegieser et

al., 2018) is based on the Flow model presented by

Csikszentmihalyi (Csikszentmihalyi, 1991) and the

Immersion model by Cheng et al. (Cheng et al.,

2015), which itself is a refinement of the hierarchical

model presented by Cairns et al.. Flow, as the optimal

experience of an action, is considered the highest

point in the Immersion hierarchy, which implies that

Total Immersion and Flow are regularly experienced

together. Figure 1 presents the Immersion hierarchy

imposed on top of the three-channel model by

Csikszentmihalyi. As Immersion grows the

possibility to reach the Flow state increases. It must

be noted that the diagram is only meant to be a

qualitative visualization, as Immersion is not

dependent on the challenge/skill balance.

Improving Emotion Detection for Flow Measurement with a High Frame Rate Video based Approach

491

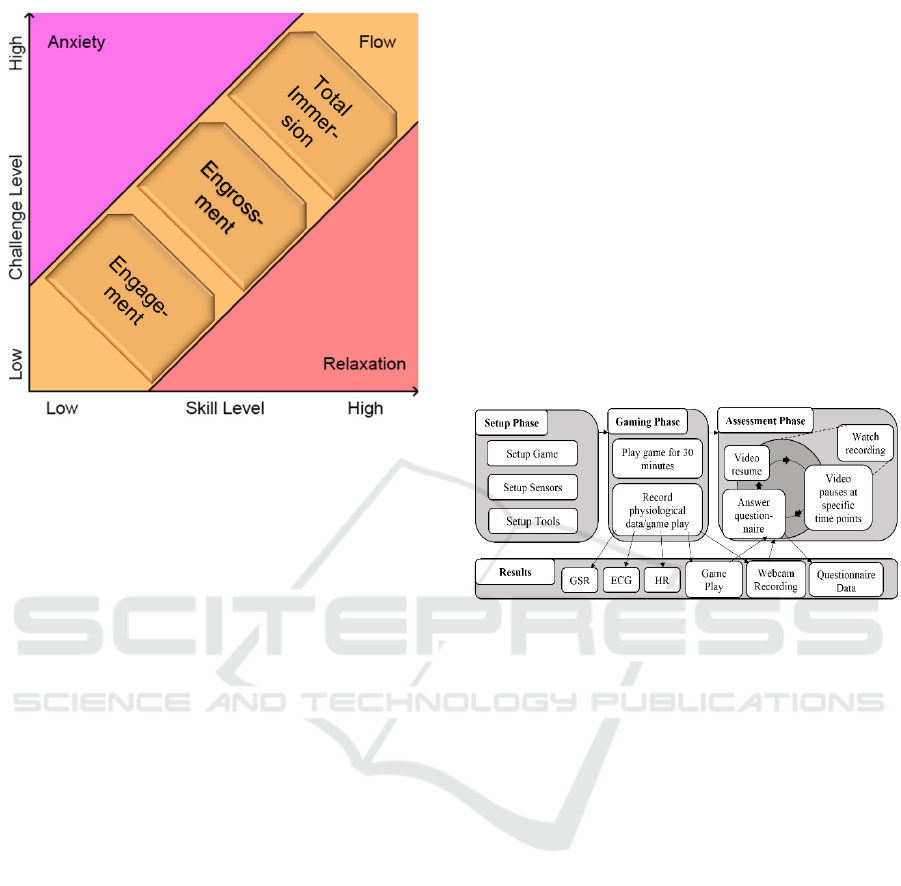

Figure 1: Combined model of Flow and Immersion.

Qualitative view, the skill/challenge balance does not

influence Immersion.

2.1 Experiment

The mentioned study of Kannegieser et al.

(Kannegieser et al., 2019) was designed to both

gather data to link physiological measurements with

Flow and Immersion, as well as validate the

Flow/Immersion model presented in section 2.

About forty participants took part in the study. The

number of participants chosen for the experiment is

similar to the number of participants used in other

experiments in this area (Cairns et al. 2006, Jennett et

al., 2008). There were no requirements for

participants, which were self-selected as the

experiment was aiming for as close to a random

selection as possible and to observe higher levels of

Immersion and Flow.

The study was split into three phases. During the

Setup Phase, a game was selected. Free choice of

game makes finding links between physiological

measurements harder, but was chosen to help

participants reaching the Flow state more easily.

During the Gaming Phase, participants played the

game for 30 minutes. After the Gaming Phase had

concluded, participants entered the Assessment Phase

and watched their previous gaming session, while

answering questionnaires about Immersion and Flow

periodically. This setup was chosen to get more exact

results and because it does not interrupt the Flow

experience.

Three questionnaires were used during the study.

The first questionnaire used was the Immersion

questionnaire described by Cheng et al (Cheng et al.,

2015). As the questionnaire was too long to be

measured multiple times without worsening the

results, it was split into an Immersive Tendency

questionnaire asked at the beginning of playback and

an iterative questionnaire asked every three minutes

during playback. For Flow, the Flow Short Scale

questionnaire by Rheinberg et al. was used

(Rheinberg et al., 2003). It was originally designed

for being used multiple times in a row, making it

perfect for this iterative approach. During playback,

it is asked every six minutes. The final questionnaire

used is the Game Experience Questionnaire

(IJsselsteijn, de Kort and Poels, 2013). It measures a

more general set of questions and was asked once

after playback is over. Figure 2 shows the three

phases of the experiment as well as the activities of

each phase.

Figure 2: Three phases of the experiment.

2.1.1 Physiological Measurements

For 30 minutes, physiological measurements were

taken. The physiological measurements used in this

study were used due to being non-intrusive and not

hindering the immersion of players. Galvanic skin

response, Electrocardiography, gaze tracking and

web cam footage for emotion analysis were used. A

facial EMG would be more precise for analyzing

displayed emotions, however, placing electrodes on

the face of the player would distract from the game

play experience and make it harder to reach the flow

state. For the same reasons, sensors for EEG

measurement were not chosen for the study.

Aside from Galvanic Skin Response (GSR),

Electrocardiography (ECG), Eye-tracking and screen

game play recordings, web cam footage of the player

and was obtained with a resolution of 960x720 and a

frame rate of 15 fps. From this web cam footage, the

facial portion of the still images were selected and

emotion recognition was performed on this extraction

Convolutional Neural Networks (CNN) with the

method proposed by Levi and Hassner (Levi and

Hassner, 2015).

CSEDU 2020 - 12th International Conference on Computer Supported Education

492

2.1.2 Analysis and Results

In the first step of the analysis, the data was checked

for correlations between Flow and Immersion. As the

results from both the Flow and Immersion

questionnaires did not follow a normal distribution,

Spearman correlation was chosen. The correlation

analysis found a strong correlation between all three

levels of Immersion and Flow. The strongest

correlation was found between Engagement and Flow

(R = 0.69, p = 8.536e-30), which made sense,

knowing that Flow encompasses all features making

up Engagement. The second strongest correlation

exists between Total Immersion and Flow (R = 0.652,

p = 1.91e-25) (see Figure 3). This is caused by the fact

that players who played games without clear avatars,

such as strategy games, found it difficult to emphasize

with their avatar in the game, leading to reduced Total

Immersion. The least correlated level of the three was

Engrossment (R = 0.56, p = 1.829e-18), which can be

explained as Engrossment puts strong emphasis on

emotional attachment of the player to the game,

something Flow does not elicit. All three showed

strong correlation to Flow (see Table 2), meaning the

relation between these two psychological states

explained in section 2 is likely.

Table 2: Correlation between Flow and Immersion

(Spearman-Rho-Coefficient).

Flo

Engage

-ment

Engross

-ment

Total

Immersio

Flow 1 0.69 0.57 0.65

Engage-

ment

0.69 1 0.45 0.58

Engross-

ment

0.57 0.45 1 0.62

Total

Immersio

0.65 0.58 0.62 1

Table 3: Correlation between Flow and physiological

measurements (Spearman-Rho-Coefficient).

GSR HR Fixations

per minute

Flow -0.02 -0.03 -0.07

Engage-

ment

0.01 -0.08 -0.02

Engross-

ment

-0.04 -0.09 0.05

Total

Immersion

-0.15 0 0.06

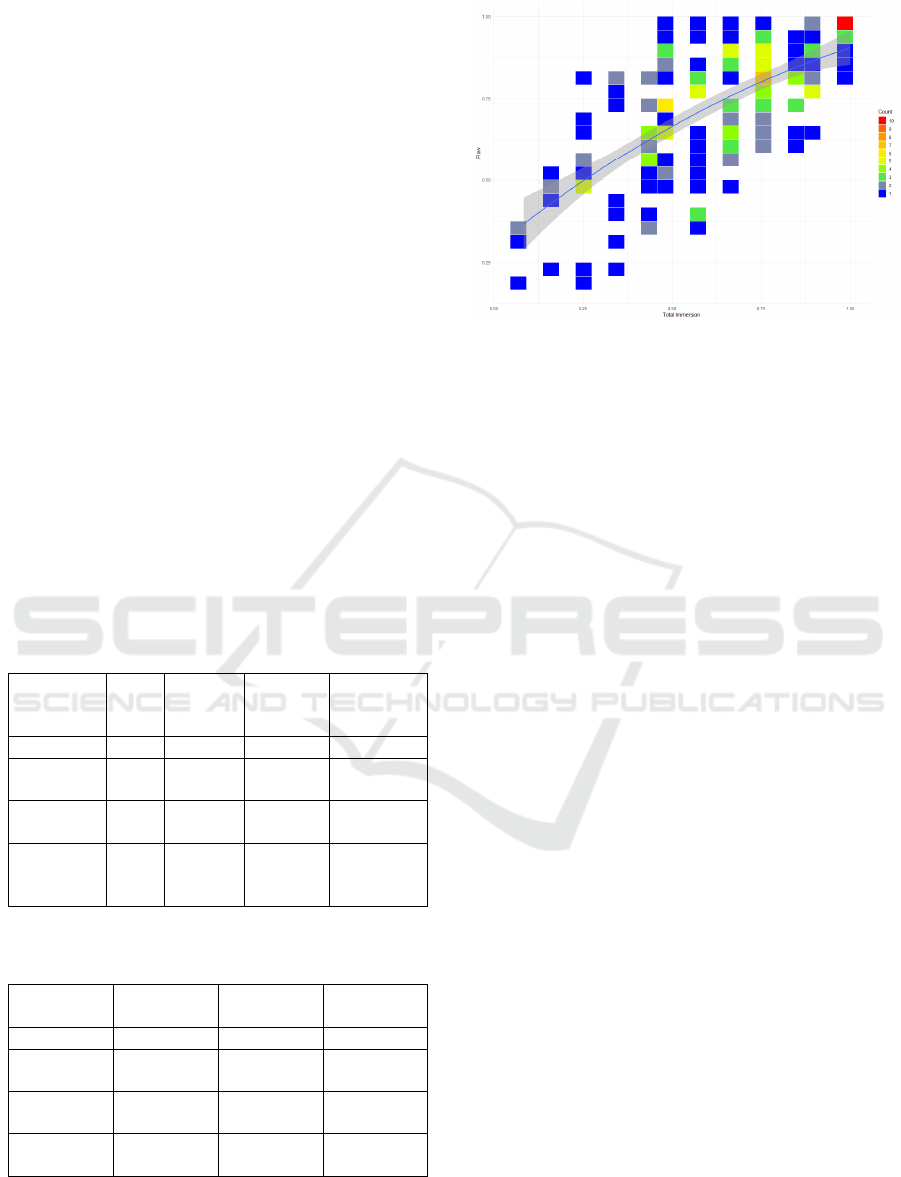

Figure 3: Scatter plot for correlation between Flow and

Total Immersion, R=0,65; P<2,2e^-16; conf=0,95.

Direct correlation between normalized

physiological data and answers of the Flow and

Immersion questionnaires showed no meaningful

correlation. The direct correlation results are shown

in Table 3. Further discussion on the statistical

methods employed can be found in Kannegieser et al.,

2019.

3 ONGOING WORK

Given the similarities in definition, a correlation

between Engagement-based Immersion and Flow

seemed a logical consequence, as shown in the

previous chapter. However, the data elicited by a

study to find the link between physiology and high

focus states did not yield matching results.

Therefore, ongoing work focuses on expanding the

study setup and refining the methods utilized to gain

detailed insight and improve the understanding of the

data recorded as well as improve overall data quality

and density. How to elicit Micro-expressions (ME)

which are defined as “true emotional state” which are

deemed suitable to help finding more significant

relations between states of high focus and

physiological data, is elaborated on further in this

chapter.

3.1 Micro-expressions

ME are very short (40-200ms) contractions of facial

muscles in limited areas (Liong et al., 2019; Gan et

al., 2019). ME contrast macro-expressions (MA)

(>200ms) in duration, intensity, and the scope of the

affected areas.

Improving Emotion Detection for Flow Measurement with a High Frame Rate Video based Approach

493

Unlike MA, ME are also involuntary in nature, i.e.

they emerge without conscious intent and cannot be

replicated deliberately. That is, micro-expressions are

not subject to conscious manipulation and thence

reflect peoples’ true emotions.

Capturing and identifying ME with adequate

hard- and software could enable the inference of

emotional states experienced by participants. The

ability to detect emotions in this manner could prove

to be a valuable addition to our experiment setup in

the context of measuring high focus states.

3.2 Capturing Micro-expressions

As in the case of macro-expressions, there are two

established methods to capture micro-expressions

(Ekman, 1992; Tan et al. 2012). The first method

involves measuring the activity of facial muscles

using electromyography (EMG). The second method

employs special software to detect facial expressions

visually based on footage acquired by video cameras.

Recording ME via electromyography is

performed by measuring several facial muscle

regions of the mimetic muscles (Fridlund and

Cacioppo, 1986). As the placement of electrodes onto

the face of the participant had been deemed too

invasive, High Frame Rate Video (HFRV) was

chosen as an alternative approach.

Conventional video cameras record video with

either 30 frames per second (fps) (NTSC – e.g. in

North America), 25 fps (PAL – e.g. in Europe) or 24

fps (cinema). Although the term is not defined

precisely, HFRV is understood to refer to video with

frame rates higher than these conventional frame

rates.

ME will be identified by first segmenting the

captured videos into individual pictures, then

extracting the facial area by a machine learning (ML)

algorithm, and finally detecting emotions using the

CNN by Levi and Hassner (Levi and Hassner, 2015).

3.3 Feasibility Study of HFRV

The experiment at hand is intended to accumulate

data with the goal of determining connections

between physiological signals and immersive states.

This automatically poses the requirement on all

sensors and electronics used, that these not impede

participants from experiencing said immersive states.

From the two methods for capturing ME, HFRV has

been selected for integration into the existing study

setup, due to its less invasive nature in comparison to

facial EMG.

3.3.1 HFRV with the Current Setup

In the current study setup, video footage of the

participants is acquired using the web cam Logitech

C920 (Logitech International S.A., Newark,

California, USA). Theoretically, this camera is

capable of recording video with a maximum of 30 fps.

With all other software running on the computer at

the same time, the highest achieved sampling rate,

without overall negative performance impact was 15

fps.

Most cameras are controlled by internal

electronics, and save recordings to a storage medium,

like a memory card. Web cams, on the other hand, can

be controlled by software on the computer they are

attached to and save the videos directly to the hard

drive of the computer, which adds additional load to

the computer.

Video games can have high memory

requirements, as does the software used for recording

multiple physiological signals and screen capturing.

The combination of all these processes resulted in

disturbances to the player in the form of slowdowns,

reductions in the game’s frame rate and buffer issues

when writing data streams to disk: the frame drop of

the screen capture and web cam video increased

significantly, when ramping up the video output

frame rate, resulting in deteriorated data quality.

In order to quantify the effects of capturing video

via web cam on the computer’s performance, multiple

benchmark tests have been carried out. First, without

recording video, then with ever-increasing frame

rates. Two different benchmarks were used: the

3DMark basic edition (Futuremark Oy, Espoo,

Finland), and the Unigine Heaven Benchmark 4.0

(Unigine Corp., Clemency, Luxembourg). In all three

tests, the achieved overall scores showed negative

tendencies, indicating that recording video on the web

cam mentioned above has a negative impact on the

computer’s performance. The exact results can be

seen in Table 4. The numerical values show that

increases in frame rates cause only small changes in

performance. However, the differences in

subjectively perceivable spatial resolution during the

tests were substantial.

One way to resolve the resulting bottleneck

regarding the computer’s performance would be

upgrading the computer. This solution has been

repudiated, as it would have required substantial

financial investment. As an alternative, it has been

proposed that the current web cam be replaced with a

different camera. Potentially, this could prevent

disturbances to immersion in the game, while also

capturing video at higher, more adequate frame rates.

CSEDU 2020 - 12th International Conference on Computer Supported Education

494

Table 4: Overall scores of the computer used in the

experiment on three benchmark tests with different frame

rates.

FPS 3DMark Heaven

Score %CPU Score %CPU

No video 10484 91.707 2685 93.768

10 10768 94.593 2687 97.581

15 10678 95.443 2586 94.196

20 10532 94.911 2587 96.821

25 10451 98.489 2580 99.651

30 10332 99.314 2566 98.946

As reported in the scientific literature, the shortest

ME last a mere 40ms, or 1/25 of a second.

Theoretically, to capture each signal, each ME, a

sampling rate higher than the minimal frequency of

the original signal should be chosen. Therefore, in the

case of this experiment, a minimum 26 fps is

necessary.

Using even higher frame rates would insure that

each signal is captured with higher certainty, while

also providing additional information in regards to

each individual ME. In this manner, information

pertaining to the path of the movement could be

acquired, as well, potentially improving the accuracy

of emotion detection.

Common frame rates of camera hardware, able to

record video faster than 30 fps include 50, 60, 90, 120

and 240 fps. To allow a detailed sampling of the target

signal and to coincide with a conventional frame rate,

the minimum necessary frame rate for this selection

process has been set at 60 fps.

Three cameras available in-house, the Sony HDR-

CX240E, the Sony Alpha 5100, and the Sony FCB-

ER8550 (Sony Corporation, Minato, Tokyo, Japan),

have been tested. The cameras were operated via a

USB-HDMI-Interface, an Elgato HD-Cam Link

(Corsair GmbH, Munich, Germany) with an internal

restriction to 60 fps), and the maximum possible

frame rate has been assessed. Each of these cameras

achieved maximum frame rates higher than the

aforementioned webcam. The exact results can be

seen in Table 5.

Table 5: Evaluated cameras and the respective frame rates

achieved.

Camera Achieved FPS

Logitech C920 29

Son

HDR-CX240E 30

Son

Alpha 5100 50

Sony FCB-ER8550 59

As these cameras could not achieve frame rates of 60

fps, alternative camera equipment available on the

market has been selected based on the requirements

listed in 3.3.2. To evaluate their suitability for

emotion recognition, the selected cameras will be

integrated into the experiment setup and tested.

Videos captured by each camera will be evaluated

regarding their performance in ME and emotion

recognition with multiple frame rate settings (60, 120,

240 fps).

3.3.2 Requirements

In order to be classified as eligible for integration into

the experimental setup, cameras should meet certain

requirements regarding hardware features. As they

greatly simplify and shorten developmental

processes, integrating control functions for the

camera into the existing software with the help of an

application-programming interface (API) is required

to be feasible.

High Resolution. Spatial resolution of the camera

should be high enough to give detailed visual

information of the subject’s face. High resolution

would also allow for placing the camera far enough

from the subject to provide them with a certain level

of freedom of movement. Potentially, this could make

participants more at ease and promote immersion.

Full-HD (1080p) had been set as a target value.

High Frame Rate. As outlined above (3.3.1), the

minimum frame rate has been set at 60 fps. However,

using even higher frame rates could deliver more

detailed information regarding facial muscle

movements.

Instead of using the pre-trained CNN of Levi and

Hassner (2015) for face detection and extraction, it

would also be conceivable to train this CNN with self-

generated data, or to use a different network, also self-

trained. In this manner, face detection accuracy could

potentially be improved. For training a neural

network, a large training data set is essential. Higher

frame rates could provide more data per

measurement, contributing to and facilitating the

accumulation of such a data set (Pfister et al., 2011).

Internal Soft- and Hardware for Video Recording

and Storage. These features would allow for the

outsourcing of the computational burden of capturing

and saving video. Outsourcing these tasks would free

up computational capacity on the main computer,

contributing to a lag-free gaming experience.

API. An available open source API would be rather

advantageous, because it would greatly simplify the

integration of the camera into the existing

Improving Emotion Detection for Flow Measurement with a High Frame Rate Video based Approach

495

experimental setup and software. In addition, this

would do away with the restrictions the HD-Cam

Link poses on frame rates (60 fps). With the help of

said API, the following functionalities should be

feasible: Set camera settings (Resolution, FPS, FOV,

etc.), Start/stop video recording, Media export to

computer and deleting media from memory card.

3.3.3 Proposed Solution

For subsequent integration into our experiment setup,

off-the-shelf cameras on the market have been

evaluated, based on the criteria listed above (3.3.2).

Two action cameras (action-cams) have been

selected and purchased for further testing: the Yi4k

(Xiaoyi Technology Co., Ltd., Pudong District,

Shanghai, China) and the GoPro Hero7 Black (GoPro

Inc., San Mateo, California, USA). The maximum

frame rate of the Yi4k is 120 fps, and that of the

Hero7 Black is 240 fps, both at a resolution of 1080p.

At this resolution, both cameras are able to record at

their respective highest frame rates. Both are also

capable of recording at higher resolutions, albeit only

at lower frame rates.

Both cameras use internal soft- and hardware for

capturing and storing video. Moreover, these cameras

can be controlled via API. In theory, this should allow

for outsourcing the computational burden of

capturing videos while synchronizing said videos

with the recorded physiological signals. That is, these

two action-cams meet all four requirements

mentioned above.

For the Yi4k, there is an open-source API (Yi

Technology, 2017) available online. To the contrary,

the GoPro Hero7 Black has none. Fortunately,

however, it can be controlled via simple HTTP-

requests. A list of these requests is available online

(Iturbe, 2020). Utilizing said API, both cameras will

be integrated into the current setup: the video

recordings will be started and stopped and file

transfer over Wi-Fi will be initiated from the

computer.

Multiple tests will be carried out regarding these

cameras: some regarding the performance of video

acquired by these cameras with different frame rates

(60-240 fps) in ME and emotion recognition, and

others regarding circumstantial modalities. These

circumstantial modalities include battery life, speed

of data transfer over Wi-Fi and its effect on

experiment duration, and utilized color encoding

systems. It is imperative that the battery last long

enough to record one experiment and carry through

data transfer to the computer. In this experiment, the

recorded videos are 30 min long. HFRV-files of this

length will be several GB in size. Therefore, the

length of time necessary for data transfer to the

computer over Wi-Fi will have to be assessed. With

the color encoding system NTSC, higher frame rates

can be achieved than with PAL. Therefore, NTSC

would be preferred. The compatibility of this setting

with artificial lighting under European standard AC

frequency will have to be tested, as well.

4 CONCLUSIONS AND

DISCUSSION

This paper gave an overview of the current state of

work related to the physiology of Flow and

Immersion. It referenced a preceding study that did

not yield the expected results, but also did not rule out

the possibility of achieving such results with different

methods. It laid out the experiment setup of the

previous study and delineated plans to expand it with

the goal of improving data quality and density. This

refers to the integration of a HFRV approach.

With the integration of the proposed method,

further insight regarding the relationship between

Flow/Immersion and physiological signals could be

gained. Obtaining such insight could prove to be a

step forward in developing a tool for measuring high

focus states physiologically.

Further plans have been described to boost the

performance of machine learning methods already in

use (face detection/extraction, emotion recognition)

as well as to employ machine learning as a substitute

for conventional statistical analysis in identifying

relationships between physiological signals and

questionnaire data.

Currently, both face detection/extraction and

emotion recognition is accomplished using software

developed and described by Levi and Hassner (Levi

and Hassner, 2015). This program, like any other, is

not fully accurate. It does not recognize faces in

images with perfect precision, misidentifications are

inevitable.

The software used for emotion recognition faces

a similar problem: As detailed in their paper, the CNN

of Levi and Hassner used for emotion recognition

accurately classified approximately 54% of the

displayed emotions into seven categories. In the

concrete application laid out in this work, this

accuracy is to be improved by better quality footage.

However, improving video quality is not the only way

imaginable to achieve such improvement. One

possibility would be to train the aforementioned CNN

with self-generated and application-specific data. As

CSEDU 2020 - 12th International Conference on Computer Supported Education

496

this method runs into the difficulty of labelling data,

other methods seem more actionable. For example,

alternative NN could provide better results. As of

2020, the CNN used in this work is about five years

old; it seems plausible to think that in the rapidly

evolving field of machine learning other NN with

higher classification accuracy have been developed in

the meantime.

Video data is not the only kind of data collected.

Parallel to capturing video footage, other

measurement systems are also in use. These include

EMG, ECG, and GSR (Kannegieser et al., 2018). In

these cases, similar to video data, there could still be

room for improvement regarding data quality, as well.

Such improvements could theoretically be achieved

using alternative measurement tools or different

methods for data processing.

Up until now, statistical methods have been used

for finding correlations between questionnaire data

and physiological signals. As mentioned before in

this paper, none has been found. Apart from

improving the quality of the data with methods like

the ones described above, one could entertain the idea

that such correlations could be found with different

analytical methods. For example, as a tool capable of

establishing connections based on high-level

abstraction, machine learning seems an obvious and

promising candidate.

REFERENCES

Atorf, D., Hensler L., and Kannegieser, E. (2016). Towards

a concept on measuring the Flow state during gameplay

of serious games. In: European Conference on Games

Based Learning (ECGBL). ECGBL 2016. Paisley,

Scotland, pp. 955–959. isbn: 978-1-911218-09-8.

Beume, N. et al. (June 2008). “Measuring Flow as concept

for detecting game fun in the Pac-Man game”. In: 2008

IEEE Congress on Evolutionary Computation (IEEE

World Congress on Computational Intelligence), pp.

3448–3455. doi: 10.1109/CEC.2008.4631264.

Cairns, P. (2006). “Quantifying the experience of

immersion in games”.

Cheng, M.-T., H.-C. She, and L.A. Annetta (June 2015).

“Game Immersion Experience: Its Hierarchical

Structure and Impact on Game-based Science

Learning”. In: Journal of Computer Assisted Learning

31.3, pp. 232–253. issn: 0266-4909. doi:

10.1111/jcal.12066.

Csikszentmihalyi, M., (Mar. 1991). Flow: The Psychology

of Optimal Experience. New York, NY: Harper

Perennial. isbn: 0060920432.

Deci, E. and Ryan, R. (Jan. 1985). Intrinsic Motivation and

Self-Determination in Human Behavior. Vol. 3.

Ekman, P. (1992). Facial expressions of emotion: an old

controversy and new findings. In: Philosophical

Transactions of the Royal Society of London. Series B:

Biological Sciences, 335(1273), 63-69.

Fridlund, A. and Cacioppo, J. (1986). Guidelines for

Human Electromyographic Research. In:

Psychophysiology. 23. 567 - 589. 10.1111/j.1469-

8986.1986.tb00676.x.

Gan, Y., Liong, S.-T., Yau, W.-C., Huang, Y.-C. & Tan, L.-

K., 2019. Off-apexnet on microexpression recognition

system. In: Signal Processing: Image Communication,

74, pp.129–139.

Georgiou, Y. and Kyza, E.-A. (Feb. 2017). “The

Development and Validation of the ARI

Questionnaire”. In: International Journal of Human-

Computer Studies 98.C, pp. 24–37. issn: 1071-5819.

doi: 10.1016/j.ijhcs.2016.09.014.

Girard, C., Écalle, Jean, and Magnan, Annie, (2013).

Serious games as new educational tools: how effective

are they? A meta-analysis of recent studies. In: Journal

of Computer Assisted Learning 29, pp. 207–219.

IJsselsteijn, W. A., de Kort, Y. A. W., and Poels, K. (2013).

The Game Experience Questionnaire. Eindhoven:

Technische Universiteit Eindhoven.

Iturbe, K., goprowifihack (2020). Available at:

https://github.com/KonradIT/goprowifihack [Accessed

05.02.2020].

Jennett, C. et al. (Sept. 2008). “Measuring and Defining the

Experience of Immersion in Games”. In: Int. J. Hum-

Comput. Stud. 66.9, pp. 641–661. issn: 1071-5819. doi:

10. 1016/j.ijhcs.2008.04.004.

Kannegieser, E., Atorf, D., and Meier, J. (2018). Surveying

games with a combined model of Immersion and Flow.

In: MCCSIS 2018 Multi Conference on Computer

Science and Information Systems, Game and

Entertainment Technologies. 2018.

Kannegieser, E.; Atorf, D. and Meier, J. (2019). Conducting

an Experiment for Validating the Combined Model of

Immersion and Flow. In Proceedings of the 11th

International Conference on Computer Supported

Education - Volume 2: CSEDU, ISBN 978-989-758-

367-4, pages 252-259. DOI: 10.5220/

0007688902520259

Krapp, A., Schiefele, U., and Schreyer, I., (2009).

Metaanalyse des Zusammenhangs von Interesse und

schulischer Leistung. postprint.

Levi, G., and Hassner, T., (2015). Emotion Recognition in

the Wild via Convolutional Neural Networks and

Mapped Binary Patterns. In: Proceedings ACM

International Conference on Multimodal Interaction

(ICMI), Seattle, 2015.

Liong, S.-T., Gan, Y., See, J., Khor, H.-Q, and Huang, Y.-

C., 2019. Shallow triple stream threedimensional cnn

(ststnet) for micro-expression recognition. In: 2019

14th IEEE International Conference on Automatic

Face & Gesture Recognition (FG 2019), pp.1–5.

Nordin, A., Denisova, A. and Cairns, P. (2014). Too many

questionnaires: measuring player experience whilst

playing digital games. In Seventh York Doctoral

Improving Emotion Detection for Flow Measurement with a High Frame Rate Video based Approach

497

Symposium on Computer Science & Electronics, pp.69-

75.

Pfister, T., Li, X., Zhao, G. & Pietikäinen, M., 2011.

Recognising spontaneous facial microexpressions. In:

2011 international conference on computer vision,

pp.1449–1456.

Rheinberg, F., Vollmeyer, R., and Engeser, S., (2003). “Die

Erfassung des Flow-Erlebens”. In: Diagnostik von

Motivation und Selbstkonzept. Göttingen: Hogrefe, pp.

261–279.

Sweetser, P. and Wyeth, P. (July 2005). “GameFlow: A

Model for Evaluating Player Enjoyment in Games”. In:

Comput. Entertain. 3.3, pp. 3–3. issn: 1544-3574. doi:

10.1145/1077246.1077253.

Tan, C. T., Rosser, D., Bakkes, S., and Pisan, Y. (2012).

A feasibility study in using facial expressions analysis

to evaluate player experiences. In: Proceedings of The

8th Australasian Conference on Interactive

Entertainment: Playing the System (pp. 1-10).

YI Technology, I., 2017. YIOpenAPI Available at:

https://github.com/YITechnology/YIOpenAPI

[Accessed 05.02.2020].

CSEDU 2020 - 12th International Conference on Computer Supported Education

498
