A Parallel Many-core CUDA-based Graph Labeling Computation

Stefano Quer

a

Department of Control and Computer Engineering (DAUIN), Politecnico di Torino, Turin, Italy

Keywords:

Graph Theory, Graph Algorithms, Algorithm Design and Analysis, Parallel Algorithms, Graphics Processors.

Abstract:

When working on graphs, reachability is among the most common problems to address, since it is the base

for many other algorithms. As with the advent of distributed systems, which process large amounts of data,

many applications must quickly explore graphs with millions of vertices, scalable solutions have become

of paramount importance. Modern GPUs provide highly parallel systems based on many-core architectures

and have gained popularity in parallelizing algorithms that run on large data sets. In this paper, we extend

a very efﬁcient state-of-the-art graph-labeling method, namely the GRAIL algorithm, to architectures which

exhibit a great amount of data parallelism, i.e., many-core CUDA-based GPUs. GRAIL creates a scalable

index for answering reachability queries, and it heavily relies on depth-ﬁrst searches. As depth-ﬁrst visits are

intrinsically recursive and they cannot be efﬁciently implemented on parallel systems, we devise an alternative

approach based on a sequence of breadth-ﬁrst visits. The paper explores our efforts in this direction, and it

analyzes the difﬁculties encountered and the solutions chosen to overcome them. It also presents a comparison

(in terms of times to create the index and to use it for reachability queries) between the CPU and the GPU-

based versions.

1 INTRODUCTION

Given a directed graph, the basic reachability query

answers whether there is a simple path leading from a

vertex u to another vertex v. Reachability plays an

important role in several modern applications such

as ofﬁce systems, software management, geograph-

ical navigation, Internet routing, and XML index-

ing. As one of the most fundamental graph opera-

tors, it has also drawn much research interest in re-

cent years (Chen and Chen, 2011; Zhang et al., 2012;

Ruoming and Guan, 2013; Su et al., 2017).

Standard approaches to solve reachability queries

rely either on graph traversal algorithms or on the

computation of the Transitive Closure of the graph.

Unfortunately, breadth-ﬁrst (BFS) and depth-ﬁrst

(DFS) searches have linear time complexity (in the

graph size) for each query. At the same time, stor-

ing the list of all reachable nodes for every vertex

implies a quadratic memory occupation (in the graph

size). As a consequence, both of these direct ap-

proaches do not scale well for large graphs, and most

practical reachability algorithms lie somewhere in be-

tween them. Current approaches usually involve a

pre-processing phase which creates an “index”, and

a

https://orcid.org/0000-0001-6835-8277

then they use this index to achieve efﬁcient traversal

times for each query. An index essentially consists in

some sort of graph labeling, i.e., it associates extra in-

formation items with the vertices, while keeping their

amount within reasonable limits. These data struc-

tures are then used to develop efﬁcient queries, result-

ing in a speed-up of the query resolution time at the

expense of requiring more space to store the labeling.

Existing algorithms differentiate themselves accord-

ing to several factors, but the trade-off between the in-

dexing space and the querying time often constitutes

their basic characteristic. In recent times their biggest

limitation lies in their capacity to process large graphs

efﬁciently, and so scalability has become one of the

most signiﬁcant metrics for analyzing reachability

methods.

Interestingly, recently there has also been an

emerging trend to develop applications that scale

gracefully by exploiting the increasing number of

processors provided by parallel systems. The ad-

vent of NVIDIA’s general purpose GPU (Graphi-

cal Processing Unit) architecture, commonly known

as CUDA, has transformed mainstream computers

into highly-parallel systems with signiﬁcant compu-

tational power. Since the release of CUDA’s ﬁrst

version in 2006, there has been a continued effort

to redesign algorithms in order for them to exhibit a

Quer, S.

A Parallel Many-core CUDA-based Graph Labeling Computation.

DOI: 10.5220/0009780205970605

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 597-605

ISBN: 978-989-758-443-5

Copyright

c

2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

597

large degree of data parallelism and beneﬁt from the

ever-increasing number of processors and bandwidth

available on GPUs. Speciﬁcally, GPUs are especially

designed to concurrently and efﬁciently execute the

same program over different data. For that reason,

there has been a recent boost in producing graph-

processing software in CUDA, both from NVIDIA,

with its NVIDIA Graph Analytic library, and from in-

dependent projects, such as the recent GUNROCK li-

brary.

In this context, we propose an analysis, and

a many-core CUDA-based implementation, of the

indexing method called GRAIL (Yildirim et al.,

2010). GRAIL (Graph Reachability Indexing via

RAndomized Interval Labeling) was designed with

particular emphasis on scalability as it has linear in-

dex creation time and linear space occupation. More-

over, it is able to solve reachability queries with time

costs ranging from constant to linear in the graph size.

The core of this work is to study how to redesign its

entire work-ﬂow such that it exhibits a higher degree

of data parallelism, and it can beneﬁt from execution

on Single Instruction, Multiple Threads (SIMT) sys-

tems.

GRAIL is essentially based on the DFS procedure.

DFS is intrinsically recursive and it essentially pro-

ceeds sequentially on the graph, as it recursively visits

single paths in-depth. Unfortunately, CUDA (even us-

ing Dynamic Parallelism) does not support more than

24 in-depth recursion levels, and it is still only suit-

able to manage small graphs. For this reason, the ﬁrst

step necessary to adapt the algorithm to CUDA, is to

modify its execution structure in order to formally re-

move recursion and to increase parallelism. As ex-

plicitly substituting recursion adopting a “user” stack

would not satisfy our requirements in terms of efﬁ-

ciency and memory usage, we resort to Naumov et

al. (Naumov et al., 2017) in order to exploit speciﬁc

properties of Direct Acyclic Graphs (DAGs). In this

way, we replace one single DFS run with three BFS

executions able to partially label all graph vertices as

desired. As BFS is by deﬁnition not recursive, and

it iteratively expands set of states (the frontier set),

it enables a much higher degree of data parallelism.

Partial labels will then be completed into label pairs

(suited to perform interval inclusion checks) by us-

ing one more BFS visit. As a consequence, as the

ﬁnal algorithm will perform four BFS traversals in-

stead of one DFS of its CPU-based counterpart, it

will be fundamental to rely on a very work-efﬁcient

BFS on CUDA. Thus, we will devote a considerable

effort on adapting state-of-the-art BFS algorithms to

suit our needs, following other works in the area, such

as (Luo et al., 2010; Liu and Howie Huang, 2015; Shi

et al., 2018). Our experimental results will prove that

the CUDA-based GPU implementation is faster, or at

least competitive, with the original CPU one. This re-

sult also open new ﬁelds of research, where heteroge-

neous computational units may work together to solve

complex tasks.

The paper is organized as follow. Section 2 intro-

duces the related works and the required background.

Section 3 describes our methodology while Section 4

reports our experimental results. Finally, Section 5

draws some conclusions and reports some hints on fu-

ture works.

2 BACKGROUND

2.1 Related Works

The majority of the existing reachability computation

approaches belong to three main categories.

The ﬁrst category (Su et al., 2017) includes on-

line searches. Instead of materializing the transi-

tive closure, these methods use auxiliary labeling in-

formation for each vertex. This information is pre-

computed and used for pruning the search space.

These approaches can usually be applicable to very

large graphs but their query performance is not always

appealing as they can be one or two orders of magni-

tude slower than the ones belonging to the other two

categories.

The second category (Ruoming and Guan, 2013)

includes reachability oracles, more commonly known

as hop labeling. Each vertex v is labeled with two

sets: L

out(v)

, which contains hops (vertices) v can

reach, and L

in(v)

, which contains hops that can reach v.

Given those two sets for each vertex v, it is possible to

compute whether u reaches v by determining whether

there is at least a common hop, L

out(u)

∩ L

in(v)

6=

/

0.

These methods lie in between the ﬁrst and the third

category, thus, they should be able to deliver more

compact indices and also offer fast query perfor-

mance.

The third category (Jin et al., 2008; Chen and

Chen, 2011) includes transitive closure compression

approaches. These methods compress the transitive

closure, i.e., they store for each vertex v a compact

representation of all vertices reachable from v, i.e.,

TC(v). The reachability from vertex v to u is then

veriﬁed by checking vertex u against TC(v). Exist-

ing studies show how these approaches are the fastest

in terms of query answering even if representing the

transitive closure, despite compression, is still expen-

sive. For that reason, these approaches do not scale

well enough on large graphs.

ICSOFT 2020 - 15th International Conference on Software Technologies

598

To sum up, after more than two decades since ﬁrst

proposals and a long list of worthy attempts, many

adopted techniques fail to meet general expectations,

are exceedingly complex, or do not scale well enough.

2.2 Notation

Let G = (V, E) be a directed graph with V being the

set of vertices and E the set of directed edges. We

shall refer to the cardinality of V and E, respectively,

with n and m. Our implementations adopt the Com-

pressed Sparse Row (CSR) representation for a graph,

which is able to offer fast row access while avoid-

ing useless overhead for very sparse matrices. CSR is

particularly well suited to represent very large graphs

since it is basically a matrix-based representation that

stores only non-zero elements of every row and, as

such, is able to offer fast row access while avoiding

useless overhead for very sparse matrices.

We use the notation u →

?

v to indicate the reacha-

bility query to check whether there is a path that goes

from node u to node v. Moreover, we write u → v to

indicate that such a path exists, and u 6→ v if it does

not exist.

As a last comment, let us remember that reachabil-

ity on directed graphs can be reduced to reachability

on Directed Acyclic Graphs (DAGs), since for every

directed graph it is possible to construct a condensa-

tion graph ﬁnding all strongly connected components

of the original graph. Henceforth, it will be assumed

that all following graphs are directed and acyclic.

2.3 GPUs and CUDA

Modern GPU processors consist of a SIMT (Single

Instruction, Multiple Threads) architecture. SIMT

processors may manage thousand of threads, where

threads are divided into blocks of threads belonging

to different SIMD (Single Instruction, Multiple Data)

core processors. Within the same block, synchroniza-

tion is basically free, but divergent control ﬂow can

signiﬁcantly reduce the efﬁciency within the block.

Memory access patterns can also affect the perfor-

mance and typically each SIMD processor in a SIMT

machine is designed to access data from the same

cache.

Nowadays, CUDA and OpenCL are the leading

GPU frameworks. CUDA is a proprietary framework

created by NVIDIA, whilst OpenCL is open source.

Even if OpenCL is supported in more applications

than CUDA, the general consensus is that CUDA gen-

erates better performance results as NVIDIA provides

extremely good integration. For that reason, we will

explicitly refer to CUDA in the sequel.

2.4 The GRAIL Approach

Interval labeling consists in assigning to each node a

label representing an interval. Intervals are usually

generated using either a pre-post or a min-post label-

ing scheme. GRAIL (Yildirim et al., 2010) uses the

min-post labeling, and it assigns to each graph vertex

v an interval label L

v

such that L

v

= [s

v

, e

v

], where:

• e

v

(or outer rank) is deﬁned as the rank of vertex

v in a post-order traversal.

• s

v

(or inner rank) is equal to e

v

, if the vertex is a

leaf, and it is the minimum e

v

among the descen-

dants of v if the vertex is an internal node.

Then, based on the observations that for Direct Trees

(DTs) every node has a single parent, GRAIL checks

reachability verifying interval containment, i.e., given

two nodes u and v and their labels, respectively L

u

and

L

v

, u → v ⇔ L

v

⊆ L

u

.

For example, for the DT of Fig. 1(a) the labeling

can be constructed through a simple DFS, with a con-

struction time which is linear in the number of ver-

tices. Then, it can be used to verify that E 6→ L, since

[2, 2] 6⊆ [5, 5], and that D → L, since [2, 2] ⊆ [1, 4].

D

H

E

[5,5]

[7,9]

[7,8]

[1,3]

[2,2]

[1,6]

[7,7]

[1,4]

[1,10]

A

B

C

G

I

L

F

[1,1]

(a)

E

D

C

H

G

A

[1,9]

[1,8]

[2,2]

[1,3]

[1,5]

[1,4]

[1,10]

B

F

I

L

[1,1]

[1,6]

[1,7]

(b)

E

D

H

G

[2,2]

[1,3]

[1,8]

[1,9]

[1,5][1,8]

[1,7]

[1,3]

[1,5]

[4,4]

[1,1]

[1,1]

[1,10]

[1,10]

[1,6]

[1,9]

[1,6]

[1,7]

[1,2]

[1,4]

A

B

C

F

I

L

(c)

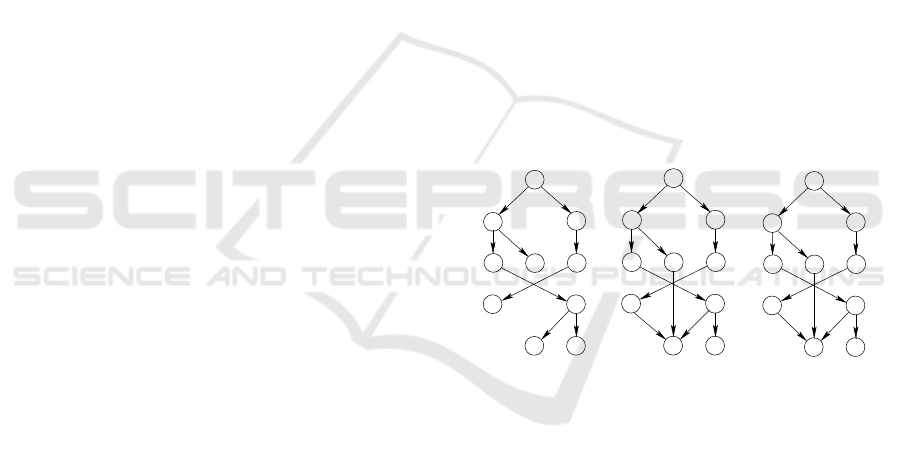

Figure 1: A DT (a) and a DAG (b) with a single label pair,

and the same DAG (c) with two label pairs.

For DAGs, that are a generalization of DTs, min-

post labeling correctly detects all reachable pairs. Un-

fortunately, is may also falsely detect as reachable

pairs that are actually unreachable. This effect can

be seen in Fig. 1(b), where as node I has vertices E,

G and H as parents, its inner rank will propagate to

all of them. This entails that two nodes that do not

reach each other but have a common descendant, such

as E and F, could be marked as reachable. In fact,

[1, 5] ⊆ [1, 8] and this would result in concluding that

F → E, which is not true.

To avoid exceptions as long as possible, GRAIL’s

approach randomizes multiple interval labeling, i.e.,

instead of using a unique label, it performs many

traversals following random orders, creating multi-

ple intervals for every vertex. The result of this pro-

A Parallel Many-core CUDA-based Graph Labeling Computation

599

cess is represented in Fig. 1(c) for two label pairs. In

this case, we can see that F 6→ E as [1, 5] ⊆ [1, 8] but

[1, 8] 6⊆ [1, 3].

Usually, a small number of labels is sufﬁcient

to drastically reduce the number of exceptions. By

adding just one label, one can notice that the num-

ber of exceptions in the graph of Fig. 1b decreased

from 15 to just 3. All remaining false positives must

be dealt with by creating exception lists, which may

be expensive, or by resorting to extra DFS queries,

that are anyhow much faster than the original DFSs as

they use interval comparison to prune the tree at every

level. Maintaining d intervals per node implies that

the amount of memory to store the index is O(d · n),

and the construction algorithm runs in O(d · (n + m)),

both still linear in the graph size. Since the number

of possible labelings is exponential, usual values for

d go from 2 to 5, regardless of the graph’s size.

3 GRAPH EXPLORATION

Despite their high computing throughput, GPUs can

be particularly sensitive to several computational is-

sues. In particular, GPUs are poorly suited for graph

computation and BFS is representative of a class of

algorithms for which it is hard to obtain signiﬁcantly

better performance from parallelization. Memory us-

age optimization is also non-trivial because memory

access patterns are determined by the structure of

the input graph. Moreover, parallelization introduces

contention, memory and control ﬂow divergence, load

imbalance, and under-utilization on multi-threaded

architectures.

As reported by Merrill et al. (Merrill et al., 2012),

previous works on parallel graph algorithms relied

on two key architectural features for performance.

The ﬁrst focuses on hiding memory latency, adopt-

ing multi-threading and overlapped computations.

The second concentrates on ﬁne-grained synchroniza-

tion, adopting speciﬁc atomic read-write operations.

Atomicity is especially useful to coordinate dynamic

shared data manipulation and to arbitrate contended

status updates.

However, even if modern GPU architectures pro-

vide both mechanisms, serialization from atomic syn-

chronization is particularly expensive for GPUs in

terms of efﬁciency and performance. Moreover, mu-

tual exclusion does not scale to thousands of threads.

3.1 The Labeling Strategy in CUDA

Standard DFS-based labeling approaches traverse

graphs recursively following a speciﬁc vertex order

for each node. Moreover, they update global variables

(which need to be protected and accessed in mutual

exclusion in parallel environments) representing in-

ner and outer ranks during the visit. These character-

istics are conspicuous limitations for parallelization.

However, while DFS explores single paths in-depth

until all vertices have been reached, BFS expands the

current set of vertices (i.e., the current frontier) in par-

allel. In other words, BFS has no restrictions against

the number of vertices being processed concurrently,

and it allows a higher degree of data parallelism.

The key to substitute DFSs with BFSs for graph

labeling is to realize that ﬁnding the post-order of a

node in a directed tree DT is equivalent to computing

an offset based on the number of nodes to the left and

below the node itself. Following Naumov et al. (Nau-

mov et al., 2017), we will substitute a single DFS with

three BFSs able to compute in parallel the number of

nodes that every vertex can reach. This process pro-

duces a complete label pair for each node, but this

labeling, which uses separate counters for the pre and

post-order ranks, is not suited to check for label in-

clusion. Thus, for each graph vertex v, we retain only

its outer rank e

v

and we adopt an extra breadth-ﬁrst

visit to recompute the inner rank and to build the en-

tire min-post labels L

v

= [s

v

, e

v

] for each vertex. The

entire process (including four BFSs) is described by

Algorithm 1, and illustrated by the running example

of Fig. 2. Pseudo-codes are not reported for the sake

of space.

COMPUTELABELS (G)

1: DT = DAGTODT (G)

2: COMPUTESUBGRAPHSIZE (DT)

3: COMPUTEPOSTORDER (DT)

4: COMPUTEMINPOSTLABELING (DT)

Algorithm 1: GRAIL labels computation through four

BFSs.

Fig. 2a shows the initial graph G, i.e., a very sim-

ple DAG, composed by only 7 nodes for the sake of

simplicity.

Fig. 2b shows the DT derived from the graph of

Fig. 2a by function DAGTODT of line 2 of Algo-

rithm 2. Generally speaking, there are many methods

to select a parent for each vertex and transform a DAG

into a DT. The so called “path based method” follows

an intuitive approach, as it iterates over the graph’s

nodes through a top-down BFS and it assigns to each

child its parent’s path, unless the children has already

been provided with a path. In that case a node-by-

node comparison of the two paths takes place, until

a decision point is found and solved by selecting the

path with the “smaller” node according to the order-

ing relationship in the graph.

ICSOFT 2020 - 15th International Conference on Software Technologies

600

A

G

E

F

C

B

D

(a) G.

B

A

D

G

E

F

C

(b) DT.

A

D

G

E

F

C

B

1 2

4

7

2

1

1

ζ

v

(c) ζ

v

.

ζ

,

~

v

τ

v

B

A

D

G

E

C

0,0

0,0

4,4

1,1

0,1

0,4

F

0,0

(d)

˜

ζ

v

, τ

v

.

B

A

G

E

F

C

E

(7−1)+0=6

(4−1)+0=3

(1−1)+0=0

(2−1)+1=2 (1−1)+4=4

(2−1)+4=5

(1−1)+1=1

ζ

v

−1) + τ

v

post−order = (

v

(e) (ζ

v

− 1) + τ

v

.

L =[s ,e ]

v v v

B

A

G

E

F

C

E

[1,7]

[1,4] [2,6]

[2,5]

[2,2]

[2,3]

[1,1]

(f) L

v

= [s

v

, e

v

].

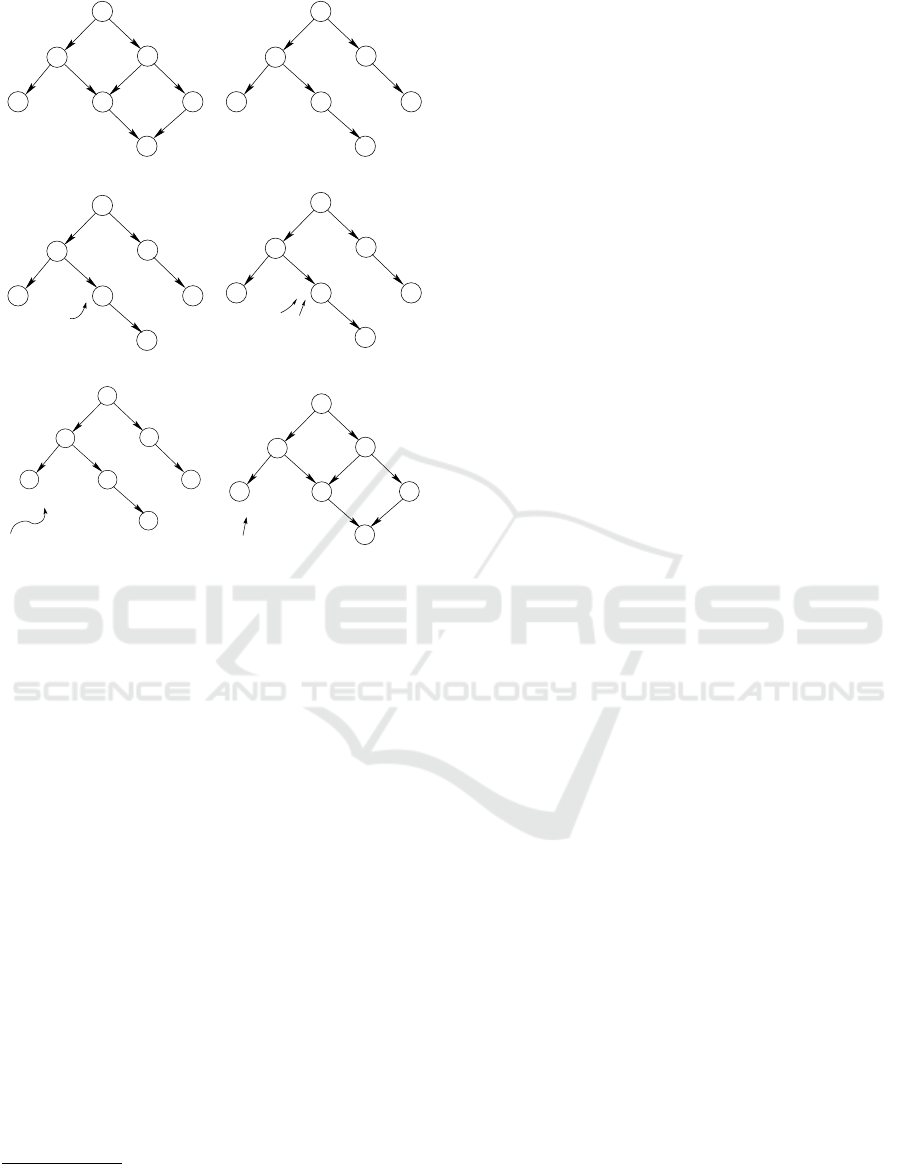

Figure 2: GRAIL labels computation through four BFSs.

(a) Initial graph. (b) The corresponding DT, i.e., the same

graph after the selection of a single parent for each vertex.

(c) The DT with the subgraph size. (d) The original graph

with

˜

ζ

v

and τ

v

reported for each vertex v. (e) The post-order

times as computed by the ﬁrst three breadth-ﬁrst visits. (f)

The ﬁnal min-post labeling L

v

= [s

v

, e

v

] obtained by the pro-

cedure COMPUTELABELS of Algorithm 1.

In Fig. 2c we represent the subgraph size for every

node of the DT of Fig. 2(b). The algorithm to compute

these values is implemented by function COMPUTE-

SUBGRAPHSIZE of Algorithm 1. It basically explores

the set of nodes following a bottom-up traversal in

which every time a node i is encountered the node’s

subgraph size is propagated to its parent p. At every

iteration a node i is extracted from a queue Q

1

stor-

ing all nodes to be visited. Moreover, the edge (p, i),

where p is the parent of node i, is marked as already

visited. The algorithm then checks if parent p has

been visited by all of its children and, if so, it is in-

serted on a secondary queue Q

2

storing nodes which

will be visited during the next iteration, after a pre-

ﬁx sum

1

on the children subgraph sizes is performed.

Notice that, since the algorithm proceeds bottom-up,

1

The preﬁx sum, or cumulative sum, of a sequence of

numbers {x

0

, x

1

, x

2

, . . .} is a second sequence of numbers

{y

0

, y

1

, y

2

, . . .} such that each y

i

is the sums of preﬁxes, i.e.,

y

0

= x

0

, y

1

= x

0

+ x

1

, y

2

= x

0

+ x

1

+ x

2

, etc.

it is necessary to wait until a parent has been visited

by all of its children in order to compute the preﬁx

sum, given that the children’s subgraph sizes would

not be available otherwise. As a result, the algorithm

produces the subgraph size ζ

v

for every node v, and

the preﬁx sum of the subgraph sizes for every pair

(v, p).

Fig. 2d and 2e show the computation of the post-

order times for all nodes, as performed by function

COMPUTEPOSTORDER. The algorithm proceeds in a

breadth-ﬁrst manner, visiting the DT top-down. Let

us consider a vertex p and refer to its children with

C

p

. Among these children there is an ordering re-

lationship given by the original DFS visit. For each

vertex v ∈ C

p

, we deﬁne

˜

ζ

v

=

∑

i<v,i∈C

p

ζ

i

(1)

which indicates the number of nodes that can be

reached from all the children of the parent p of vertex

v, coming before v in the ordering relationship given

by a DFS. After that, as in a DT there is a unique path

that goes from the root r to a node v, i.e., r → v, we

deﬁne τ

v

as the sum of all the

˜

ζ

u

along the path, i.e.,

τ

v

=

∑

u∈{r→v}

˜

ζ

u

(2)

Given

˜

ζ

v

and τ

v

(as computed by Equations 1 and 2)

for each vertex v, we can compute the post-order time

as follows:

post-order

v

= (ζ

v

− 1) + τ

v

(3)

Fig. 2d indicates for each node v the values of

˜

ζ

v

and

τ

v

as computed by Equations 1 and 2. Fig. 2e reports

for all vertex v the computations represented by Equa-

tion 3 to evaluate the ﬁnal post-order raking times.

Finally, function COMPUTEMINPOSTLABELING

computes all node’s actual label pair, i.e., L

v

= [s

v

, e

v

].

It essentially proceeds breadth-ﬁrst on the DT, visit-

ing it bottom-up. Each outer-rank e

v

is increased by

1 to obtain its ﬁnal value. Each inner rank s

v

is com-

puted in the following way. If the vertex is a leaf, then

s

v

= e

v

. If the vertex is not a leaf, s

v

is equal to the

minimum value of the post-order rank e

v

among the

descendants of v. The ﬁnal labels are represented in

Fig. 2f.

3.2 CUDA Code Optimizations

To properly design the procedure COMPUTELABELS

on CUDA-based architectures, it is necessary to efﬁ-

ciently implement the required queues and to limit the

overhead caused by threads’ divergence.

To represent frontier nodes, usually CPU-based

parallel versions rely on a unique queue which is com-

plemented by a synchronization mechanism to realize

A Parallel Many-core CUDA-based Graph Labeling Computation

601

accesses in mutual exclusions. Nonetheless, this ap-

proach is of no use for porting BFS on CUDA as a

lock and a queue may work ﬁne for threads in the or-

der of tens, but will never guarantee acceptable per-

formances for thousands of threads. As other CUDA-

based BFS implementations, we replace our queues

with a “frontier”, or “status”, array, i.e., an array with

n elements, one for every vertex v ∈ V . The value of

each element indicates whether v will be part of the

frontier set on the next iteration or not. Henceforth,

all our queues are actually implemented through sta-

tus arrays and several mechanisms built on top. Then,

at every iteration one thread will be assigned to each

node, and it will process the vertex depending on its

value on the status array, ﬁnally updating the status

array for all of the vertex’s children.

Following previous works (Su et al., 2017), this

manipulation strategy implies huge levels of thread

divergence slowing down the entire process. In fact,

even when only few vertices belong to the frontier set,

the status array requires a full array scan at every it-

eration. The different number of children that each

node may have, can force threads to behave differ-

ently, i.e., to diverge, since some threads will process

thousands of children vertices while others none. To

reduce divergence by concurrently processing nodes

that have similar out-degrees at the same time, we fol-

low Luo et al. and Liu et al. (Luo et al., 2010; Liu and

Howie Huang, 2015). Thus, we divide the frontier set

into three distinct queues. Nodes are inserted in the

small queue if they have less than 32 children, in the

large queue if they have more than 256 children, and

in the medium queue in all other cases. Subsequently

each queue is processed by a number of threads be-

ﬁtting the amount of work that has to be performed.

Nodes belonging to the small queue will be handled

by a single thread, whereas a warp of threads will be

assigned to each node in the medium queue, and a

block of threads to each vertex of the large one. To

implement this strategy, three different kernels will

be launched, each optimized to handle its own queue.

This approach will result in having approximately the

same amount of work for each thread in each ker-

nel, as well as in assigning resources proportionally

to each node’s processing requirements.

3.3 The Searching Strategy on CUDA

Once labels have been computed, they can be used to

verify reachability queries. Following the Enterprise

BFS (Liu and Howie Huang, 2015), we try to develop

our searching algorithm to maximize the number of

queries, i.e., concurrent graph explorations, that can

be managed in parallel. Unfortunately, the Enterprise

BFS algorithm parallelizes breadth-ﬁrst visits belong-

ing to the same traversal. On the contrary, our query

search strategy must parallelize in-depth queries be-

longing to distinct traversal procedures. In general,

this implies that a signiﬁcant number of threads will

visit a large number of nodes at the same time. As

a consequence, during each algorithmic step, many

visited nodes will be logically associated to distinct

explorations making hard to keep track of what each

thread is doing.

More speciﬁcally, when we process a query

u →

?

v, we start a BFS on the subtree rooted at u, and

we use labels to prune the set of nodes that have to be

visited in order to discover whether v is reachable or

not. Vertices are visited concurrently for each BFS

traversal level. Since we want to proceed in parallel

on all the nodes with several visits, we must imple-

ment a mechanism to singularly identify the frontier

set for each query. To do this, we use a status array

of integer values rather than Boolean values, and we

rely on bit-wise operators to manipulate single bits

of these values. In other words, the set of queries is

divided in groups of k queries, where k is the high-

est number of bits that can be efﬁciently stored (and

retrieved) on a single CUDA data-type. Groups are

then processed one at a time, and queries within the

same group are managed in parallel. Within each

group, a query is identiﬁed through an index value

included between 1 and k and corresponding to a bit

ﬁeld. Therefore, during the bin generation phase the

status array is scanned and a node is inserted into a

bin if its value is different than zero. Similarly, dur-

ing the traversal, the status array’s value are modi-

ﬁed through bit-wise atomic operations. We use func-

tions such as the CUDA API ATOMICOR(ADDRESS,

VALUE), which allows us to set the i-th bit of vertex v

to represent that this vertex has to be explored during

the next iteration, and that its exploration is associated

with the i-th search.

Furthermore, given the high number of expected

label comparisons, these arrays will be accessed con-

tinuously, and it is important to limit the number of

global accesses related to these requests. Thus, at the

beginning of each kernel execution all threads coop-

eratively load the labels of the searched nodes from

the global memory array into a shared memory cache.

4 EXPERIMENTAL RESULTS

Tests have been performed on a machine initially

conﬁgured for gaming purposes and equipped with a

CPU Intel Core i7 7770HQ (with a quad-core proces-

sor running at 2.8 GHz, and 16 GB of RAM), and a

ICSOFT 2020 - 15th International Conference on Software Technologies

602

GPU NVIDIA GTX 980 over-clocked to 1, 300 MHz

(with 4 GB of dedicated fast memory, and 2, 048

CUDA cores belonging to Compute Level 5.2). All

software runs under Ubuntu 18.04.

We conducted our experiments on three different

data sets, varying in size and edge density, gener-

ated from real applications, and used to verify the

original GRAIL algorithm (Yildirim et al., 2010)

2

.

Given the different architectures of our machine com-

pared to the one of Yildirim et al. (Yildirim et al.,

2010), our tests produced index construction times

and reachability query times from one to two order

of magnitudes smaller than those of the original pa-

per. For that reason, we avoid considering small and

medium size graphs, and we only concentrate on the

large set. Table 1 reports its characteristics. The

set includes graphs up to 25 M vertices and 46 M

edges, and many older algorithms are unable to run

on some of them. Among the graphs, Citeseer is sig-

niﬁcantly smaller, the Uniprot family ranges from rel-

atively large to huge graphs, and the Cit-Patents is a

large dense graph. The Uniprot subset has a distinct

topology, as these DAGs have a very large set of roots

that are all connected to a single sink through very

short paths, which will have signiﬁcant implications

for reachability testing.

Table 1: The large data set.

Benchmark # Vertices (n) # Edges (m) Avg. Degree

Citeseer 693948 925779 1.33

Cit-Patents 3774769 17034732 4.5

Uniprot

22

1595445 3151600 1.97

Uniprot

100

16087296 30686253 1.91

Uniprot

150

25037601 46687655 1.86

4.1 GPU Labeling

Our GPU algorithm was carefully designed to avoid

constant calls to memory allocation and data transfer

functions in order to maximize continuous GPU ex-

ecution time. We exploited the fact that the input of

each breadth-ﬁrst visit is the output of the preceding

one to pre-allocate and keep most of the data struc-

tures in the GPU’s global memory until no further use

is required. However, given the limited size of the

GPU’s global memory (i.e., 4 GB), and the size of the

larger graphs that we analyzed, it was not possible to

pre-allocate all data structures beforehand and some

of them were necessarily freed, reallocated, and re-

initialized when needed. This factor, along with the

time required to transfer the data structures between

the CPU and the GPU, added a signiﬁcant overhead

to the total GPU times.

2

The data set was obtained from https://code.google.

com\-/archive/p/grail.

Results, to create a single label pair, are re-

ported in Table 2. The columns indicate the to-

tal time demanded by the CPU to build the la-

beling (column CPU Time), the times required

by all main phases of the GPU (the ones re-

ported in Algorithm. 1, namely DAGTODT, COM-

PUTESUBGRAPHSIZE, COMPUTEPOSTORDER, and

COMPUTEMINPOSTLABELING), and the total time

needed by the GPU (column GPU Time, which is the

sum of the previous partial times).

Table 2: Labeling times for one label and large-real graphs.

All times are in milliseconds.

Benchmark

CPU

DAGtoDT

Subgraph Post Min-Post GPU

Time Size Order Labeling Time

Citeseer 33 38 20 10 8 76

Cit-Patents 1048 189 210 28 57 479

Uniprot

22

772 36 24 11 7 78

Uniprot

100

1270 301 228 70 68 667

Uniprot

150

67 470 344 108 106 1028

Generally speaking, the indexing times range

from 100 milliseconds for the smaller graphs in the

data set, to 1000 milliseconds for the larger. The algo-

rithm spends considerable time on the ﬁrst two phases

of the algorithm (i.e., DAGTODT and COMPUTE-

SUBGRAPHSIZE), especially on the larger instances

of the data set. This can be explained by consider-

ing the large amount of edges that are discarded by

the ﬁrst procedure. Notice again, that all times refer

to create a single label pair, i.e, L

v

= [s

v

, e

v

] for each

graph vertex v. This is somehow a disadvantages for

the GPU. In fact, CPU times increase linearly to build

more labels, whereas for the GPU functions DAG-

TODT and COMPUTESUBGRAPHSIZE can be called

only once when computing multi-dimensional labels

(as represented in Fig. 1(c)), thus the GPU times grow

less than linearly. It is worth noticing that our results

share many similarities with those presented in the

original GRAIL paper (Yildirim et al., 2010) (even

if, as previously stated, we are from one to two orders

of magnitude faster). GPU and CPU present contrast-

ing results, where the winner strongly depends on the

topology of the graph. It is ﬁnally useful to note that

one of the major limits of the GPU approach is its in-

herently sequential nature. In fact, each one of the

four algorithmic phases (i.e., each BFS) produces the

data structures required by the following phase. This

inevitably prevents the GPU from concurrently run-

ning different parts of the algorithm at the same time,

or from sharing tasks between the CPU and the GPU

adopting a cooperative approach.

4.2 GPU Search

Given the labeling computed in the previous section,

we now present our data on reachability queries, com-

A Parallel Many-core CUDA-based Graph Labeling Computation

603

paring again our GPU results with the standard CPU

ones. Each run consists in testing reachability for

100,000 randomly generated query pairs. All reported

results are averages over twenty runs. As described

in Section 3.3, we divide our queries in groups of k

queries, managed in parallel. Unfortunately, our ar-

chitecture limited the parallelism to k = 64.

During the testing phase of the CPU-based algo-

rithms, we noticed that the GRAIL algorithm solves

from 75% to 90% of all the queries (depending on

the graph’s density) with the ﬁrst label comparison.

As a consequence, the search algorithm was modiﬁed

in order to avoid assigning GPU resources to those

queries for which an answer can be provided with a

single label comparison. Thus, the search procedure

performs a preliminary CPU ﬁltering of all queries,

which consists in a single label comparison. If this

comparison is inconclusive, we transfer the problem

on the GPU. Considering this initial CPU side screen-

ing, the metrics for measuring the search algorithm’s

performances are reported in Table 3. They include

the time spent to perform the ﬁrst label comparison of

every query on CPU (CPU Filter), and the time spent

analyzing queries on the GPU (GPU Search). Col-

umn GPU Queries indicates the number of queries

assigned to the GPU for testing reachability. Addi-

tionally, we also report the original search times using

only the CPU (CPU Time).

Table 3: Search times for one label and large-real graphs.

All times are in milliseconds.

Benchmark

CPU

CPU Filter GPU Search GPU Queries

Time

Citeseer 20 6 26 7324

Cit-Patents 2747 8 530 19112

Uniprot

22

37 10 710 26551

Uniprot

100

38 11 1045 25030

Uniprot

150

31 9 156 48582

Compared with the results presented by Yildirim

et al. (Yildirim et al., 2010), the amount of queries that

resulted in a positive answer (positive queries) were

practically identical, and the graph instances that re-

quired larger processing times, both for querying and

indexing, are the same in most cases. The only sig-

niﬁcant difference between the two studies regarded

the times of the unguided DFS search compare to the

label-guided DFS search for testing reachability. In

particular, in the original work the unguided DFS pro-

vided similar results to the guided DFS, whereas in

our framework unguided DFS is consistently slower

than guided DFS. Moreover, our unguided DFS per-

formed relatively better on the small sparse data set

than on the most critical instances.

Interestingly, both experimental investigations

conﬁrmed that the topography of the standard graph

set is so peculiar to be meaningless in many cases, as

a signiﬁcant amount of queries is directly explored by

the CPU, and it needs no further investigation. For

example, for Uniprot

150

only 50% of the queries are

analyzed by the GPU, and in average very few of

them contain reachable pairs. As a consequence, the

original CPU-based DFS exploration is extremely ef-

ﬁcient, and it is really hard to beat. This is again due

to the particular topography of the considered graphs,

which are quite shallow. Moreover (see the Uniprot

family), these graphs are often characterized by short

paths that connect many roots to a single sink. As a

consequence, we need some extra analysis to inves-

tigate results on more critical, e.g., deeper, instances.

Another implicit problem of our GPU approach is the

low level of parallelism due to the adopted hardware

conﬁguration, with data types limited to 64 bits. Any-

how, this last limitation may be easily overcome by

using GPU architectures allowing efﬁcient manipula-

tion of longer data types.

5 CONCLUSIONS

In this work we design a data-parallel version of the

graph labeling approach named GRAIL, and we im-

plement it on a GPU CUDA-based architecture. Ex-

perimental results, for both the labeling and the search

procedure, show that our implementation presents re-

sults in the same order of magnitude of the CPU-base

version although it must deal with the intrinsic com-

plexity of avoiding recursion, transforming DFS into

several BFSs, and transferring data between compu-

tational units. In general, the CPU implementations

may be preferred when working on small graphs,

while the GPU implementations become attractive on

larger graphs or cooperative approaches. In these

cases, the main limitation lies in the amount of mem-

ory available, which in turn may become a major is-

sue.

Future works will include experimenting on more

heterogeneous and circuit-oriented graph sets. Re-

garding the labeling algorithm, it should be possi-

ble to explore some alternative to obtain higher de-

gree of concurrency among the subsequent algorith-

mic phases, eventually adopting CPU-GPU coopera-

tive approaches. Concerning the searching approach,

future work should concentrate on hardware architec-

tures or methodologies to increase the amount of par-

allel queries answered at each run.

ICSOFT 2020 - 15th International Conference on Software Technologies

604

ACKNOWLEDGMENTS

The author wish to thank Antonio Caiazza for imple-

menting the ﬁrst version of the tool and performing

the initial experimental evaluation.

REFERENCES

Chen, Y. and Chen, Y. (2011). Decomposing DAGs into

Spanning Trees: A new way to Compress Transitive

Closures. In 2011 IEEE 27th International Confer-

ence on Data Engineering, pages 1007–1018.

Jin, R., Xiang, Y., Ruan, N., and Wang, H. (2008). Ef-

ﬁciently Answering Reachability Queries on Very

Large Directed Graphs. In Proceedings of the 2008

ACM SIGMOD International Conference on Manage-

ment of Data, SIGMOD ’08, pages 595–608, New

York, NY, USA. ACM.

Liu, H. and Howie Huang, H. (2015). Enterprise: Breadth-

ﬁrst graph traversal on GPUs. In International Confer-

ence for High Performance Computing, Networking,

Storage and Analysis, pages 1–12.

Luo, L., Wong, M., and Hwu, W.-m. (2010). An effective

gpu implementation of breadth-ﬁrst search. In 47th

Design Automation Conference, DAC ’10, pages 52–

55, New York, NY, USA. ACM.

Merrill, D., Garland, M., and Grimshaw, A. (2012). Scal-

able gpu graph traversal. In Proceedings of the

17th ACM SIGPLAN Symposium on Principles and

Practice of Parallel Programming, PPoPP ’12, page

117–128, New York, NY, USA. Association for Com-

puting Machinery.

Naumov, M., Vrielink, A., and Garland, M. (2017). Parallel

Depth-First Search for Directed Acyclic Graphs. In

Nvidia Technical Report NVR-2017-001.

Ruoming, J. and Guan, W. (2013). Simple, fast, and scal-

able reachability oracle. CoRR, abs/1305.0502.

Shi, X., Zheng, Z., Zhou, Y., Jin, H., He, L., Liu, B., and

Hua, Q.-S. (2018). Graph processing on gpus: A sur-

vey. ACM Comput. Surv., 50(6).

Su, J., Zhu, Q., Wei, H., and Yu, J. X. (2017). Reachability

querying: Can it be even faster? IEEE Transactions

on Knowledge and Data Engineering, 29(3):683–697.

Yildirim, H., Chaoji, V., and Zaki, M. J. (2010). GRAIL:

Scalable Reachability Index for Large Graphs. Proc.

VLDB Endow., 3(1-2):276–284.

Zhang, Z., Yu, J. X., Qin, L., Zhu, Q., and Zhou, X.

(2012). I/o cost minimization: Reachability queries

processing over massive graphs. In Proceedings of the

15th International Conference on Extending Database

Technology, EDBT ’12, page 468–479, New York,

NY, USA. Association for Computing Machinery.

A Parallel Many-core CUDA-based Graph Labeling Computation

605
