Constructing Tool-based Security Test Sequences for Vehicles as

High-tech Data-rich Systems

Alexandr Vasenev

, Stelios Karagiannis

and Roland Mathijssen

Joint Innovation Centre ESI (TNO), Eindhoven, The Netherlands

Beyond Vision, Ilhavo, Portugal

Keywords: Test Sequences, Method, Reference Architecture, Pen Testing, Open Source.

Abstract: Vehicles, as a prime example of high-tech systems, get increasingly connected and data-centric with the need

to process personally identifiable information. Often, companies that develop such systems act as integrators

and need to comply to adequate data protection requirements. For instance, GDPR requires securing personal

data. Yet, testing security of data (including, but not limited to personal data) is challenging. Penetration

testing often starts from the outside of the system and take place at the end of the development lifecycle. This

may be insufficient to adequately test for potential errors hidden within system boundaries. Having methods

to design, execute, and reuse (automated) security test cases on a ‘white-box’ system is desirable. This

positioning paper proposes an approach to design tool-based security test sequences. We structurally approach

high-level data storing, processing, and communicating functionality in connection to the system boundary.

We suggest to use pen-testing tools and sequences for testing the functionality of the vehicle’s (sub)system,

before test-enabling interfaces are removed. This paper intends to contribute to discussions how to test layered

defense implementations. The proposed approach is undergoing extensions and validations.

1 INTRODUCTION

Automotive companies develop their high-tech

systems (HTS) by acting as integrators who combine

components provided by suppliers. Improper re-use,

misconfiguration, or non-compliant components can

lead to undesired functionality and, therefore, system

vulnerabilities.

Testing security as an integral non-functional

system quality is an complex task. It commonly

involves simulating attacks and employing other

kinds of penetration testing where testers play the role

of a hacker trying to attack the system (vehicle) and

exploit its vulnerabilities (Felderer et al., 2015). This

approach serves its purpose, but is commonly used at

late development stages and often such tests start

from the outside of the system. As a result, potential

errors and vulnerabilities within the system boundary

can stay hidden after product release.

Modern-day solutions are often designed with the

defence-in-depth concept in mind, where multiple

layers of security are placed through a system. Yet,

the question remains how to test these inner security

measures properly, easily, and securely, without

introducing extra weak spots.

Arguably, automated test cases conducted on a

‘white-box’ system during system integration can

assist in providing the proper support and reasoning

for security and privacy compliance claims towards

the authorities. Test interfaces can provide access to

inner components of the vehicle. Clearly, these

interfaces are expected to be fully removed before

releasing the system.

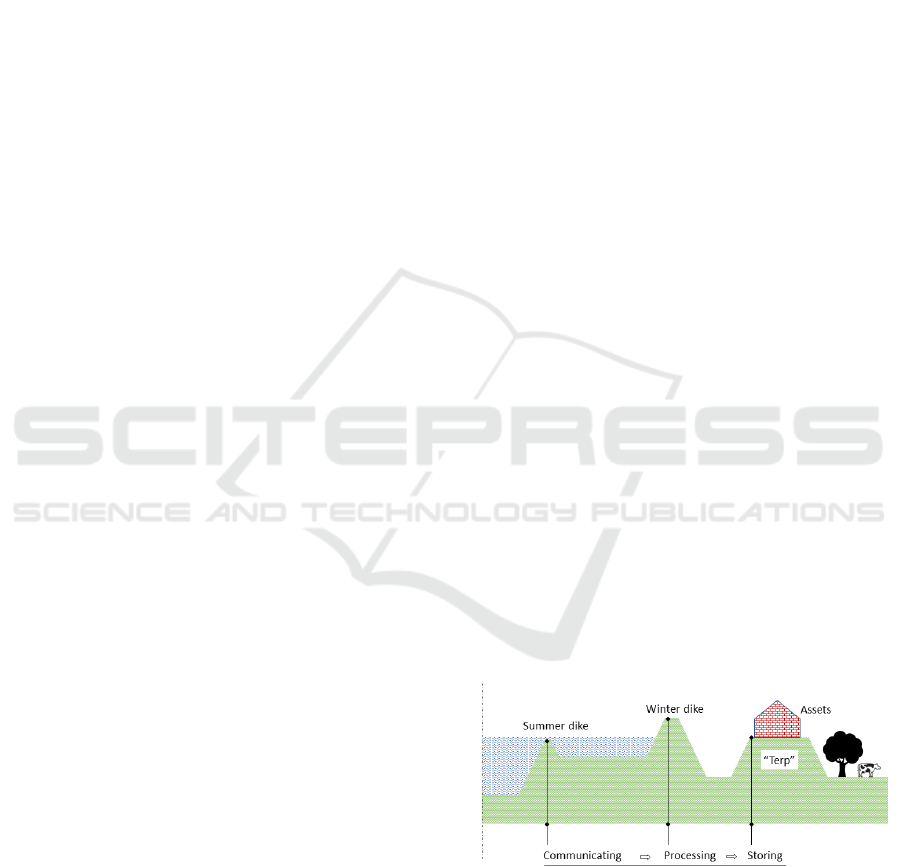

Figure 1: The flow of the analysis.

To approach white-box testing, automotive,

similar to other high-tech domains, can borrow ICT

concepts. In particular, data handling can be

approached as data storing, processing, and

communicating functions. For instance, an attacker

needs to bypass the communication, processing, and

Vasenev, A., Karagiannis, S. and Mathijssen, R.

Constructing Tool-based Security Test Sequences for Vehicles as High-tech Data-rich Systems.

DOI: 10.5220/0009575200530058

In Proceedings of the 6th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2020), pages 53-58

ISBN: 978-989-758-419-0

storage functionality to access the GPS history before

being able to retrieve the data.

Figure 1 shows an analogy how elements of the

data handling functionality triad can be related to

each other through the idea of Dutch river dikes. The

water represents the environment external to man-

made structures. Next to the river is the first

protection layer, called the summer dike. Once the

summer dike is compromised, the river water can

overflow in the retention base, where the water has

room to flow, and strong waves and changes are

diminished. The retention base is again surrounded by

a second protection layer, the winter dike. As it can

also be breached, the most valuable houses or villages

are built on a higher hill, called the Terp, to provide

the last layer of defense.

Similarly, a data asset is typically located behind

several perimeters. Communicating functionality is

located on the system boundary prior to Processing,

which in turn precedes Storing. If an intruder gets into

a system, their actions shall be dampened out,

another defense layer should exist before the more

critical parts of the system, and if that layer is

breached, valuable assets need to have yet another

defense layer (e.g. extra encryption or access control).

Thus, it might take separate steps to access Storing.

To ensure data containment (e.g., personal data or

algorithms), these steps should also tested.

This high-level functionality triad can be

implemented by different in-vehicle (sub)systems

with different components depending on the data in

focus. Communicating functionality can be mainly

included in Gateway or Telematics unit. Yet, while

those ECUs can include their own storage and

communicating, some critical data may be located

deeper in the system. Consequently, the testing

approach outlined in this paper deals not with

individual components responsible for

communication, processing, and storage, but with

specific subsets of ECU functionalities structured as

communicating-processing-storing of particular data.

This paper investigates how recent ICT security

advancements on threat actor modelling can provide

insights needed to design test cases. We explore how

to apply available security tools in sequences based

on available security (pen)testing tools and

methodologies. For this, we consider:

 The concept of kill chains (sequences of

steps) needed for an adversary to achieve a

goal, e.g., to access data;

 A subset of penetration testing tools available

(for longer lists see, e.g., (Software Testing

Help, 2019), (ProfessionalQA, 2019));

 High-level decomposition of high-tech

systems in terms of data storing, processing,

and communicating functions.

This paper takes a connected vehicle case to

illustrate how to design tool-based test sequences.

These sequences aim to test the ‘functionality triad’

in a manner independent from the system topology.

2 BACKGROUND

2.1 Introduction to Security Testing

Security tests are often performed on complete

systems and focus on simulating situations when the

system is attacked from a particular external

interface. For instance, (Mouratidis and Giorgini,

2007) describes an example testing over available

interfaces.

The reasons behind testing nearly completed

systems are often justified. First, testing from the

outside simulates adversary activities when one needs

to exploit interfaces to proceed. Second, the testers

often have a multitude of other aspects to consider,

not to mention the functionality of the barrier itself.

At the same time, testing external interfaces can be

insufficient, because it could limit the test coverage

within the (sub)system itself. It was repeatedly shown

that most barriers can be breached by brute force,

social engineering, phishing, lost passwords, and

other means. Additionally, although penetration

testing often takes place late in the system design

lifecycle, testing can be beneficial throughout the

development life cycle and on units (Arkin et al.,

2005).

The question remains how to test what an intruder

can do, once access is gained. Although layered

defenses are becoming more common, it is often

unclear how to (automatically) test such defense-in-

depth constructions.

A possibility can be to test systems before testing

interfaces are removed, i.e., when testers have full

access to the system. Testing in such conditions

simulate a situation when the adversary already

obtained a foothold in the system. Therefore,

designing tests cases that focus on subsystems and

from within the system appears to be a promising

direction. However, methods to design such tests are

not so well documented, or at least not many

strategies can be found on this topic.

Interest to bring testing earlier in the development

cycle led to research on testing with the use of

simulators. One example is to employ hardware-in-

the-loop testing. Another possibility concerns

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

validation platforms like (Ming et al., 2016) to benefit

from OMNeT++ as an event-based network

simulator, and SUMO (a road traffic simulator).

Simulated attacks can include Message spoof,

malicious fault of devices, physical disturbance. Such

solutions help to reduce testing and validation efforts,

avoid creating dangerous road situations and lower

validation costs. Yet, they do not cover testing

defence-in-depth aspects related to data security.

This paper investigates whether pen testing tools

commonly used at a rather late system development

stage can also provide benefits at an earlier stage

(when test interfaces are still available). We wish to

contribute to discussions on practical strategies for

subsystem testing and full system testing in contexts

when the outer layer of defence is breached.

2.2 Automotive Security Concerns

The automotive domain provides a suitable example

of a complex software-intensive high-tech system

available in large numbers all over the world. In this

aspect it is similar to many other high-tech systems,

e.g., from medical, production, and financial

domains, that are readily accessible over the internet.

In principle, remote access to them is only limited by

well-defined interfaces.

New vehicle functions that rely on connectivity do

attract customers, but they also open up the system to

many external attack vectors. As a result, vehicle

(sub)systems can be accessed by Internet, GSM, or

Wi-Fi in addition to traditional on-board diagnostic

ports (OBD) and Controller Area Network (CAN)

communication buses. Accessing the latter can imply

physical interactions with the vehicle (e.g., by simply

drilling a door of the car). But it can also be done in

the aftermath of remote attacks, as the following cases

demonstrate:

 A buffer overflow error can grant unauthorized

access to an in-car media player. This breach of

processing allowed the adversary to propagate

through a CAN bus and reach multiple Electronic

Control Units (ECU) (Wired, 2015).

 A dongle used for insurance purposes that is

plugged into the dashboard can be remotely

hacked through external communication

channels. This allows attackers to access the

vehicle's essential system actuators, such as

brakes (IBS, 2015).

 An adversary can take control of an electric

vehicle remotely by using an app. This results in

accessing the vehicle’s storage with GPS history,

which can be exfiltrated through communication

channels (IBS, 2016).

These examples demonstrate that relying only on

system boundaries can be insufficient to prevent

remote access to in-vehicle components. Developers

need to consider protecting the in-vehicle

functionality as well. For this, data storage,

processing, and communicating functionalities shall

be adequately designed, implemented, and tested.

2.3 Security Testing Approaches

Security professionals examine high-tech systems by

using specialized tool-based approaches like

vulnerability assessment or offensive methods. Such

manual and automatic security testing approaches

have their advantages and disadvantages

(Wallingford et al. 2019) and can provide valuable

insights for designing security tests and sequences.

Vulnerability assessment as a process to identify

and rank vulnerabilities can be compared to risk

assessment. This activity provides significant

insights, but can be time consuming with too many

attack vectors to control and simulate.

Offensive methods support more focused system

examinations. In particular, penetration testing as

series of tasks positively impacts the enhancement of

system security (Applebaum et al., 2017) by

considering specific attack vectors. Such testing

often uses the attack trees as conceptual diagrams

representing actions of the adversary in connection to

the asset. For different attack vectors, specific

penetration tools like Nmap, Hydra, Msfconsole and

Dirb can be used.

Using (automated) test sequences can help to

overcome some difficulties of manual assessments, as

noted in (Miller et al., 2018). Created tests can be

executed systematically and, in some cases,

continuously. Benefits of (semi-) automated

penetration testing methods are described in (Samant,

2011). As an example, a semi-automatic security

evaluation helps to enumerate automotive security

issues with severity ratings on each step of the attack

chain (Cheah et al., 2018).

Adversary emulation is an approach that assists to

structure potential (inter)connected actions of an

adversary. Centered on scenarios, it helps to

effectively utilize threat intelligence, discover

advanced persistent threats (APTs), and anticipate

and better describe possible attack vectors.

Cybersecurity community has accumulated a number

of methods for describing attacks, such as threat

models or attack trees. A prime example is an

ATT&CK model created by MITRE researchers

(Strom et al., 2017) based on real-world observations.

This represents a knowledge base of adversary tactics

Constructing Tool-based Security Test Sequences for Vehicles as High-tech Data-rich Systems

and techniques. The Cyber Kill Chain framework

describes cyber-attacks as sequences of typical stages

including: reconnaissance, weaponization, delivery,

exploitation, installation, command and control, and

actions on objective. This approach was used to

describe Havex and Stuxnet cases (Assante and Lee,

2015) and is a subject of extensive research.

The described data functionality triad constructed

as a sequence resembles a simplified kill chain. This

similarity provided us with an aspiration to reuse

security methodologies and tools for testing layered

security.

3 PROPOSED APPROACH

As mentioned, this positioning paper outlines

possibilities to envision test sequences by employing

high-level data handling operations described as

(nested) Communicating, Processing, and Storing

functionality related to the system boundary (Figure

1).

The proposed steps of identifying and sequencing

tools for ‘white-box’ testing of systems during the

integration step include:

1. Construct a high-level functional

decomposition of (sub)systems involved in

the Communicating-Processing-Storing

triad based on the focus of the test sequence.

For instance, components that deal with

GPS-related data.

2. Set up initial assumptions which software

can implement the functionality of the triad

elements. This step is particularly relevant

for embedded systems. For instance, an

ECU may have limited resources to run

general-purpose operating systems, while a

vehicle’s gateway can suffice. Such ECU

capabilities can limit usage of, e.g., TCP/IP

tools or web applications.

3. Relate available tools to the functional

decomposition from step 1. Specifically, to

identify groups of tools for:

a. Setting up test management

environment and the testing

context;

b. Testing Communicating

functionality (located on the

system boundary);

c. Testing the Processing

functionality of the system;

d. Testing Storing functionality.

4 ILLUSTRATIVE EXAMPLE

This section illustrates how relevant groups of tools

can be identified for a connected vehicle case.

Step 1: Figure 2 shows how a vehicle use case can be

described using the high-level Communicating-

Processing-Storing triad. We assume that a connected

vehicle interacts with a traveler, a traveler’s device

(e.g., smartphone), and external entities

(infrastructure or other vehicles). This section denotes

them as Vehicle, TD (Traveler’s Device), and OtherS

(Other Systems). The latter include, for instance,

cloud-based services for renting a vehicle or

advanced authentication schemes. Human machine

interface (HMI) represents a specialized subset of

Communicating functionality to interact with the

traveler. Actuating and Sensing functionality provide

inputs for Processing and act on Processing

commands.

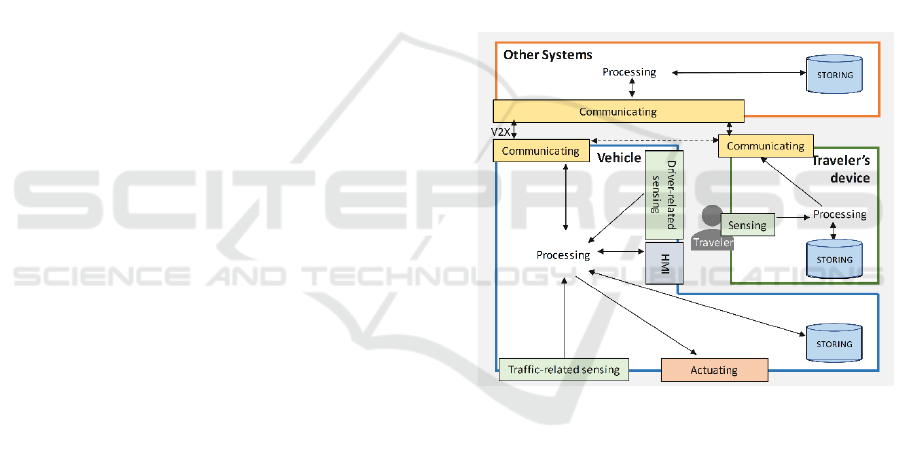

Figure 2: High level architecture of an automotive system.

Step 2: We can set up assumptions on capabilities of

components implementing the Figure 2 functional

elements as follows:

- Processing capacity of Vehicle, OtherS, and

TD systems can support Linux and TCP/IP

tools;

- Vehicle.HMI (infotainment) and

OtherS.Processing can incorporate

webservers;

- OtherS.Processing can support honeypots;

- OtherS.Communicating can employ Zigbee.

Step 3: Existing pen-testing tools can be used to test

components that deal with high-level functionality

shown in Figure 2. Table 1 shows a (non-rigorously

constructed) list that can illustrate the approach. The

relation between the tools to the high-level

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems

functionality is not exhaustive and used here for

illustrative purposes. We refer both to a system

(Vehicle, TD, OS) and functionality element. For

instance, ‘[Vehicle/TD].HMI’ indicates that the tool

can be used to test Vehicle’s HMI or TD’s HMI.

Another example, “All.Storing” indicates that the tool

can be related to the Storing functionality of all

systems from Figure 2.

Table 1: An illustrative mapping of existing tools to high-

level system functionality.

Tool name

Applicability for testing:

Figure 2 functionality Comment

Ail-

Framework

All.Storing and

All.Communication

On captured data

contents

BeRoot

All.Processing;

Vehicle.HMI

Privilege

escalations

CAN-

alyzat0r

Vehicle.Processing Car protocols

CANToolz Vehicle.Processing CAN

Can-Utils Vehicle.Processing CAN, car network

Cloakify Prepare All.Storing Steganography

DefectDojo -- Management tool

EvilLimiter

All.Processing (links to

.Communicating);

Vehicle.HMI

Linux and network.

ARP spoofing

Infection

Monkey

OtherS.Processing

SSH, WMI,

passwords

KillerBee OtherS.Communicating Zigbee

Lnx Smar

Enum

All.Processing;

Vehicle.HMI

Checks for run-ning

environments

MitmAP All.Communicating

Simulates an

Access Point

Net Creds

All.Communicating (incl.

links to All.Processing);

Vehicle.HMI (incl. link to

.Processing)

HTTP; FTP; Telnet;

SMTP; Kerberos;

NTLM

Nmap and

Zenmap

All.Processing Scanner

OWASP

Honeypot

OtherS.Processing;

Vehicle.HMI

Honeypot; web

server

P4wnP1

All.Communication;

[Vehicle/TD].HMI

Emulates another

device behavior

Poisontap

[Vehicle/TD].HMI;

All.Communicating

(USB)

Sniffer. Provides an

entry point

RedHunt-OS

All.Processing;

Vehicle.HMI

Aggregator of tools

SheepL

OtherS.Processing (incl.

link to .Communicating)

Simulates benign

PC users’ network

behavior

ShellSum

OtherS.Processing;

Vehicle.HMI

Detects web shells,

Web-server

SSH Key

Auth

[Vehicle/TD/

OtherS].Storing

Manage SSH keys

Suricata All.Processing (Gateway) Intrusion detection

Tools to set up the test environment can be used

to (1) simulate scenarios how high-tech systems are

utilized and (2) assist security testers in managing the

test process. Afterwards, tests can be executed in

connection to a particular functionality. For instance,

MitmAP as a Communication-related tool can

simulate a rogue access point; or Ail-Framework can

assist in testing Storing. Complementary to individual

tests, test sequences can be organized based on the

steps within Communicating-Processing-Storing

structure. The testers can assume moving from the

system boundary to the data storage or in the opposite

direction (e.g., during data exfiltration).

5 DISCUSSIONS

As integrators, high-tech companies need practical

tools and methods for testing their systems before

release. This paper proposed an approach that can be

used as a reference for designing tool-based test

sequences. Specifically, this paper argues in favor of

extending the use of automated pen testing

approaches to earlier integration stages. Testers could

identify relevant vehicle components in connection to

the data functionality triad.

The described approach suggests how to

operationalize a simplified kill chain sequence. While

high-level functionality can be deployed to several

system components (e.g., Storing and processing can

be done at different locations within the system), the

tools still stay relevant. The system topology and

functional decomposition do not directly impose

requirements to this method, but can further elaborate

test sequences.

The outlined approach can be applied recursively

and form a basis for creating automated testing

infrastructure. E.g., after a system component is

added during the system integration stage, designated

groups of tools can be applied. This could help

ensuring continuous testing during system

integration.

The system under test must have dedicated test

interfaces for testing the security of the system. These

dedicated interfaces must give access to the system

behind the initial security barrier, however these test

interfaces must also provably be fully removed in the

final system. Any remnants of this interface might

lead to vulnerabilities or forgotten backdoors.

The steps mentioned in the Proposed Approach

section are to be tailored according to the case at

hand. E.g., storage of particular data can be located in

a specific part of the system. Correctly identifying

relevant data handling functionality is essential.

Constructing Tool-based Security Test Sequences for Vehicles as High-tech Data-rich Systems

Assumptions of ECU capabilities can impact the

future mapping between tools and ECUs.

Furthermore, the same tools can be used for different

types of functionality and in connection to different

components. While the structure of the approach

would remain the same, it is the tailoring of a specific

system that might require inputs from experts.

This paper illustrated the approach, but didn’t go

into interdependencies of tools and testing

infrastructures. Ensuring proportionality of tests,

tools, and test outcomes is a subject for future

research. Future mapping and applying will provide

further insights on their appropriateness and

sequences of their use. Test dependencies is another

topic for future investigation.

The illustrated list of tools is not exhaustive,

rigorously constructed, or undisputable linked to the

high-level functionality. To scope the list, we focused

on technologies relevant to connected vehicles. The

mentioned tools were identified based on their

relevance to automated security testing, adversary

emulation, vulnerability assessments, attack

simulations, and identifying threats, such as threat

management tools and attack trees. Yet, this is

borrowed significantly from network and web testing.

Future research could focus on more comprehensive

studying how these and other tools can be used to

devise advanced strategies of testing and simulated

adversary activities.

ACKNOWLEDGEMENTS

The research is carried out as part of the SECREDAS

project, which is co-funded by the ECSEL Joint

Undertaking of the European Union under grant

agreement number 783119 and the Netherlands

Organization for Applied Scientific Research TNO.

REFERENCES

Applebaum, A., D. Miller, B. Strom, H. Foster, and C.

Thomas, 2017, “Analysis of automated adversary

emulation techniques.” In Proceedings of the Summer

Simulation Multi-Conference (p. 16). Society for

Computer Simulation International, July 2017.

Arkin, B., S. Stender, and G. McGraw, 2005. “Software

penetration testing. Security & Privacy, IEEE, 3(1): 84-

87.

Assante M.J. and L.M. Lee, 2015, “The industrial control

system cyber kill chain”. SANS Institute InfoSec

Reading Room, 1

Cheah, M., S.A. Shaikh, J. Bryans, and P. Wooderson,

2018, “Building an automotive security assurance case

using systematic security evaluations,” Computers &

Security, 77, pp. 360-379.

Felderer, M., M. Büchler, J. Martin, A. Brucker, R. Breu,

and A. Pretschner, 2015, “Security Testing: A Survey”,

10.1016/bs.adcom.2015.11.003.

IBS, 2015, “International Business Times. Hackers disable

Corvette brakes by texting dongle meant to lower

insurance risk”, http://www.ibtimes.co.uk/hackers-

disablecorvette-brakes-by-texting-dongle-meant-

lower-insurance-risk-15151253, Last accessed on Dec

20, 2019.

IBS, 2016, “Hacker takes control of Nissan electric vehicle

from other side of the world through Leaf app”,

http://www.ibtimes.co.uk/hacker-takes-control-nissan-

electric-vehicle-otherside-world-through-leaf-app-

1545808. Last Accessed on Dec 20, 2019.

Miller, D., R. Alford, A. Applebaum, H. Foster, C. Little,

and B. Strom, 2018, “Automated adversary emulation:

A case for planning and acting with unknowns,” 2018.

Ming L. et al., 2018, "A General Testing Framework Based

on Veins for Securing VANET Applications," IEEE

SmartWorld, Guangzhou, pp. 2068-2073.

Mouratidis H. and P. Giorgini, 2007, “Security Attack

Testing (SAT)—testing the security of information

systems at design time”. Information Systems. 32.

1166-1183. 10.1016/j.is.2007.03.002

ProfessionalQA, 2019, “Penetration Testing Tools: Top

55”, July 16, http://www.professionalqa.com/

penetration-testing-tools. Last accessed on Dec 20,

2019.

Samant, N., 2011, “Automated penetration testing”

Software Testing Help website, 2019, “19 Powerful

Penetration Testing Tools In 2020 (Security Testing

Tools)”, Dec 14, https://www.softwaretestinghelp.com/

penetration-testing-tools/. Last accessed on Dec 20,

2019.

Strom, B.E., J.A. Battaglia, M.S. Kemmerer, W.

Kupersanin, D. Miller, C. Wampler, et al. 2017,

“Finding cyber threats with ATT&CK-based

analytics,” Technical Report MTR170202, MITRE.

Wallingford, J., M. Peshwa, and D. Kelly, 2019, “Towards

Understanding the Value of Ethical Hacking. In

International Conference on Cyber Warfare and

Security”, pp. 639-XIV. Academic Conferences

International Limited.

Wired, 2015, “GM Took 5 Years to Fix a Full-Takeover

Hack in Millions of OnStar Cars”,

https://www.wired.com/2015/09/gm-took-5-years-fix-

full-takeover-hack-millions-onstar-cars/#. Last

accessed on Dec 20, 2019.

VEHITS 2020 - 6th International Conference on Vehicle Technology and Intelligent Transport Systems
