Data Lake and Digital Enterprise

Oumaima El Haddadi

, Mahmoud El Hamlaoui

, Dkaki Taouﬁq

and Mahmoud Nassar

IMS Team, ADMIR Laboratory, Rabat IT Center, Mohammed V University in Rabat, Rabat, Morocco

IRIS Team, IRIT Laboratory, University Toulouse Jean - Jaur

es, Toulouse, France

Keywords:

Data Lake, Big Data, Metadata, Data Management.

Abstract:

Due to the digital transformation and huge amount of publicly available data, decision support systems are

becoming highly useful in helping to deﬁning, managing and improving business strategies and objectives.

Indeed, data is a key asset and a key competitive differentiator for all organizations. This newly available data

has changed traditional data processing and created new challenges related to the velocity, volume and variety

of data. To address these challenges related to the storage of heterogeneous data and to provide the ability of

rapid data processing, we explore the data lake paradigm. In this paper, we present the state-of-the-art of Data

Lake systems and highlight their major advantages and drawbacks. We also will propose a solution to improve

Data Lake System.

1 INTRODUCTION

We live in a society where information and data be-

came the new oil. Data is growing rapidly because of

the over-connected world we live in.

Data becomes more important over time, since it is

a key issue in understanding and analyzing scientiﬁc,

economic, political and social problems.The volume

of digital data doubles every year and is expected to

reach 44 billion gigabytes (GB) during 2020 accord-

ing to talend website

With the diversity of unstructured and semi-

structured data, we face a dual challenge in ﬁnding

efﬁcient solutions to store this huge amounts data and

in having the necessary capacities for their fast pro-

cessing.

In this article, we will focus on the problems of

migrating a company’s traditional information system

to a DL. These problems are related to the implemen-

tation, management and the exploitation. Since it is

not easy to transform all data in a DL at once, be-

cause it is costly. Companies need a service-oriented

architecture. That is why we propose an approach

that creates an interface for each source of informa-

tion to menage access to external data (along with the

company internal databases) without actually perma-

nently storing it. We will concentrate on extracting, if

it is possible, the metadata (schema) of each sources

https://www.talend.com/resources/what-is-data-lake

to perform a ”virtual” data migration (metadata mi-

gration). These schemata will be merged to form one

global schema. The advantage of this approach is

that we don’t need to change the whole systems in-

formation to a single server in one time (which will

be highly expansive).

This paper is organized in three sections. The ﬁrst

section describes the literature related data storage.

In the second section, we propose a two layers ar-

chitecture (physical and logical) for managing data

lake. We show our contribution related to the problem

of linking the physical layer and the logical layer us-

ing metadata for each type of data (data source). The

third section presents the experimentation we conduct

to assess our proposal.

2 LITERATURE REVIEW

The huge amount of available digital data -Big Data-

, has changed our way of conceiving scalable data

operations from collecting to analysis. Indeed, data

community has been forced to ﬁnd new solutions to

collect, store and use data. The need for these new so-

lutions mainly stems from the new characteristics of

nowadays data -variety of sources and schemata (open

data, social data, GPS...), volume, velocity (continual

changing), ... Speciﬁcally for data storage, traditional

IT solutions, such as data warehouses, that use rela-

tional data are no longer suitable as they do not scale

El Haddadi, O., El Hamlaoui, M., Taouﬁq, D. and Nassar, M.

Data Lake and Digital Enterprise.

DOI: 10.5220/0009415604230429

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 423-429

ISBN: 978-989-758-421-3

423

to thees new characteristics.

New architecture and approaches has been pro-

posed. Among them is a new storage concept called

Data Lake (DL), which addresses the big challenges

of Big Data that correspond to the question raised by

the authors of (R. Hai and Quix, 2016): ‘how to make

an easy use of highly diverse data and provide knowl-

edge?’

Data Lake was ﬁrst introduced by James Dixon

(Chief Technology Ofﬁcer (CTO) at Pentaho) in a

blog post (Dixon, 2010), where he said that if we

think that a data marts as a store of bottled water so the

DL is the rich source of water in a more natural state

(raw data). In addition, in his initial article (Dixon,

2014), he describes the DLs as a system that store

data into a single source (Miloslavskaya and Tolstoy,

2016) (Quix and Hai, 2018).

Barry Delvin said that a DL is: “In the simplest

summary, it is the idea that all enterprise data can and

should be stored in HADOOP and accessed and used

equally by all business applications.”

Before moving on to DL it’s necessary to deﬁne

what is a digital enterprise. There is undoubtedly a

change in companies’ ecosystem (Information sys-

tems), due to the rapid evolution of technologies -

essentially the rapid explosion of data. Therefore

the mastering this ecosystem data with fast and ef-

ﬁcient tools becomes a necessity for organisations.

Hence the digitalization of internal business processes

for example: customer portfolio management in the

banking sector, production management in the indus-

trial sector..., and external business processes for ex-

ample: customer relations, supplier relations...

So what is digital enterprise?, according to Mar-

garet Rouse

, It is an organization that uses technol-

ogy as a competitive advantage on these operations.

In addition, the rapid technological change is forcing

business leaders and heads of institutions to regularly

review their strategy to adapt it to the needs and the

environment in which they operate.

2.1 Data Lake Context

DL can be deﬁned as a massively scalable stor-

age repository that contains a very large amount of

raw data in its native (original) format from vari-

ous sources for an indeﬁnite period of time (till it is

no longer neededd) (Wang, 2017). Among the ben-

eﬁts of this storage method, is the ease of coexis-

tence between different schema and structural forms

of data, usually blobs of objects or ﬁles (R. Hai

and Quix, 2016),(Miloslavskaya and Tolstoy, 2016),

https://searchcio.techtarget.com/deﬁnition/Digital-enter

prise

(Llave, 2018), (Kachaoui and Belangour, 2019). Most

researcher take the DL as just a methodology but it

is an actual new data architecture that includes both

hardware, software and conceptual design (Madera

and Laurent, 2016).

Different users can access to the DL at any time

because the data are stored in its raw form (Zagan

and Danubianu, 2019), so they can analyze, structure

and process it. Moreover, a DL can store all types

of data such structured, semi-structured and unstruc-

tured data. Also, we can say that the advantage of a

DL is its ability to trace each piece of data back to

any time in the past (because the data are stored as

it is directly from its original source of storage), and

any organization can perform any analysis on any old

stored data.

DL use Schema on Read technique as it is the case

for ELT process. This technique offers more ﬂexibil-

ity in using a huge amount and different types of data

(Zagan and Danubianu, 2019).

According to a survey conducted by TDWI

, 82%

of users deal with rapidly changing data in terms of

structures, types, sources and volumes. In addition,

85% of the people surveyed consider the DL as an

opportunity, because of analytical applications that re-

quire all types of data (old and new data) to be widely

consolidated. On another hand, the DL is exploited

for several beneﬁts and use cases (Advanced Analysis

49% and Data Discovery 49%). Also the TDWI sur-

vey states that ”only a quarter of surveyed organiza-

tions have at least one DL in production, but another

quarter plan to enter production within a year”.

2.2 Data Lake Solutions

Most researchers in DL offer solutions (system, ser-

vice, product ...) that handle some speciﬁc problems.

For example, (A. Beheshti and Zhao, 2017) propose

two DL services CoreDB and CoreKG. CoreDB was

created in 2017 as is an open source service that pro-

vide relational and NoSQL databases-as-a-service to

develop web data application, and it use the power

of Elasticsearch as a seaurch engine. It helps ana-

lysts to create a DL. This solution offers tools to eas-

ily organize, index and query data and metadata and

provides an integrated design for security and track-

ing. CoreKG was created in 2018 to complete the

CoreDB services. CoreKG offers a contextualized DL

service that provides researchers and developers with

the possibility of managing multiple database tech-

nologies from relational to NoSQL. It offers a built-

in design for data curation, security and provenance

https://tdwi.org/articles/2017/03/29/tdwi-research-report-

examines-emerging-best-practices-for-data-lakes.aspx

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

424

(A. Beheshti and Tabebordbar, 2018).

In (M. Wibowo and Shamsuddin, 2017), the au-

thors propose a machine learning technique to opti-

mize data management processes in a DL by com-

bining data silos. This solution intended to improve

data quality is divided into two phases. The ﬁrst phase

bridges the gap between the data sources, i.e. the data

silos, and the DL that will manage the data source. In

this phase, data discovery will describe the data, gov-

ernance will capture the data using evolving metadata,

and data mining will new data models to combine it

with other ML processes. The second phase, is for

verifying the result. It uses several tools related to

Reporting, BI, Visualization...

In the same context, (A. Farrugia and Thomp-

son, 2016) proposes a DL management (DLM) by

extracting the metadata from the database using So-

cial Network Analysis. (Z. Shang and Feng, 2016)

proposes the iFuse (data fusion platform) that bases

on Bayesian Graphical Model to manage and query

a DL. (I. D. Nogueira and Ea, 2018) uses a group

of modeling to handle schema evolution in a DL

and proposes a data vault. (Sawadogo and Darmont,

2019) presents a methodological approach to manage

and build a metadata system for textual document in

a DL. Also, (L. Chen and Zhuang, 2015) propose

a data model for unstructured data and the RAISE

method to process it using a SQL-like query lan-

guage. Hai and colleagues present an intelligent sys-

tem under the name Constance. This system (R. Hai

and Quix, 2016) have been proposed as a solution to

non-integrated data management system with hetero-

geneous schema, and to avoid the problem of “data

swamp”. Constance was built to discover, extract and

summarize the structural metadata of data sources and

to annotate data and metadata with semantic informa-

tion to avoid ambiguities. Another system proposed

in (M. Farid and Chu, 2016) introduces the CLAMS

system that discovers the raw data and metadata in-

tegrity constraint using the RDF model. To validate

the result, this system requires human intervention.

From these previous work, we state that most re-

searchers use speciﬁc data type as while addressing

the data heterogeneity problem. In another words,

contributors start deﬁning the two main axes of a DL,

which are the data extraction and data management

phase. they start choosing, beforehand, the targeted

data type. Since we acknowledged the variety as-

pect of nowdays data -there are various of structured,

semi-structured and unstructured data-, the proposed

DL architectures and models are limited to the only

type of data they explicitly target. also, what is miss-

ing in the existing work is the projection of the ap-

proaches in a real case (some of them have a large

project which, based on a real case as (R. Hai and

Quix, 2016)).

To summarize, most research focuses on the man-

agement system and exploration of DL using popular

knowledge and tools such as machine learning, data

quality, social networks focus on textual data. This

only concerns a part of the variety of data types.

3 DATA LAKE MANAGEMENT

As stated previously, a Data Lake is a sustainable so-

lution for companies which want to take advantage of

publicly available data. However, DL solutions hard

to implement, manage and operate especially if tar-

geted data sources are heterogeneous. It is therefore

necessary to have an architecture that can adapt to any

type of data structure or format and ensure the stor-

age, ingestion and preparation policy.

According to the literature, the company needs a

service-oriented architecture but it isn’t easy to trans-

form the entire information system into a single DL.

To deal with this problem we propose the creation of

interfaces for each source of data. In addition, we

believe that we need to create a virtual DL with two

layers (physical layer and logical layer) in order to

conserve resources adequately.

The question that arises now is how to link the

two layers? To do so, we propose a DL architec-

ture, covering the business perimeter, then we focus

on managing a DL by grouping metadata, managing

the schema, managing database access and indicating

how to extract metadata from any possible source.

3.1 Architecture

The ﬁgure 1 bellow shows the architecture of our DL.

It is divided into two layers:

• Physical Layer: This layer, makes the physical

and real link between the DL and the external

(API, web page, etc.) and internal (databases, ﬂat

ﬁle, etc.) sources of an organization. In other

words, it is responsible for establishing the con-

nection of each source through a dedicated in-

terface that take into account the nature of each

source.

• Logical Layer: this layer illustrates the core of

our architecture. It Contains several functionali-

ties. For example, as soon as the connection is es-

tablished with a source, we retrieve the metadata

of this source and store it in our database. After

that, the integration of all metadatas is performed

by storing them in the same database. From this

Data Lake and Digital Enterprise

425

moment, it is possible to update the data dictio-

nary that represents the mapping of the sources in

the DL.

Moreover, the purpose of a DL is to prepare the data

for the user. In order to achieve this purpose, we

use the following technique: Data preparation, data

pre-processing and data wrangling. In addition, we

have to implement the necessary treatments such as

machine learning which helps us to prepare the data

and then create interfaces to disseminate the data re-

quested by the user.

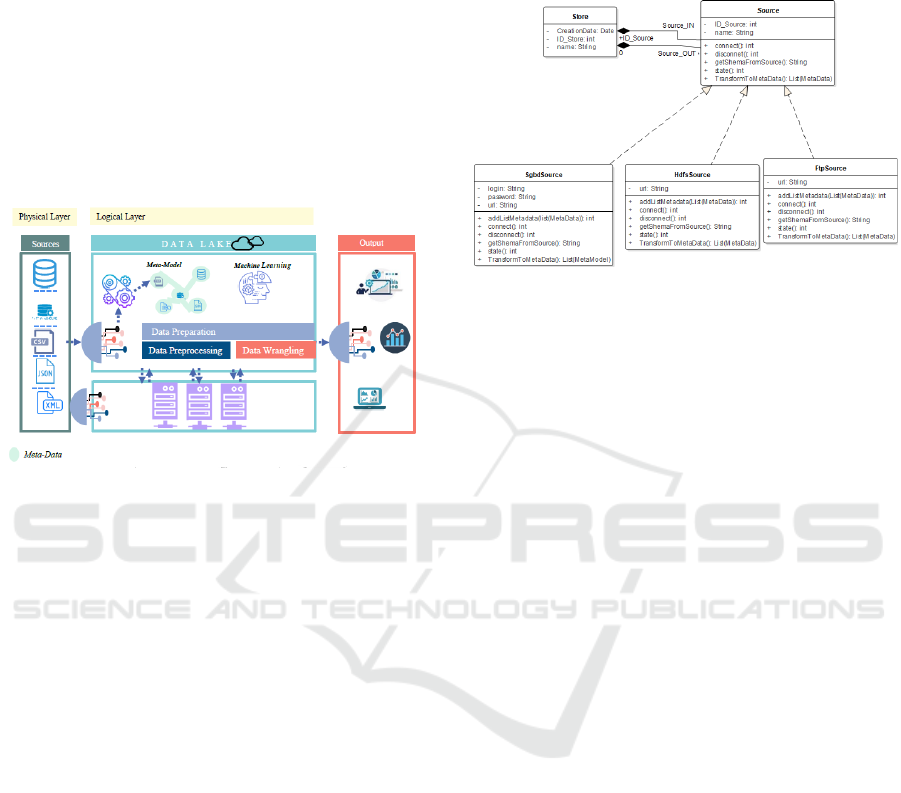

Figure 1: Proposed architecture of the Virtual Data Lake.

3.2 Conception Model

We have built a conceptual model of our DL as a set

of stores. Each store created by a user contains two

types of sources: input sources and output sources.

The source is an interface between the physical source

of data and the logical layer of DL.

The ﬁrst constraint to solve is how to integrate

all possible sources such as relational databases, ﬂat

ﬁles or other data sources in the DL. To overcome

these constraints, we use different design patterns

(E. Gamma and Vlissides, 1994). The ﬁrst design pat-

tern we use is the Bridge pattern.

So, our Source class will become an abstract class

containing the methods: connect (), disconnect (),

state (), getShemaFromSource (), TransformToMata-

Data () and other methods that we will added subse-

quently.

Therefore, we take the ﬁrst case of a DBMS

Source (MySQL, PostgreSQL, etc.) . We use Sgbd-

Source class to connect to a relational database. This

requires three important elements to communicate

with the database:

1. The database link with the port,

2. The login,

3. Password.

For any other type of source, we add the necessary

elements to establish the links with our DL as shown

the ﬁgure 2.

Figure 2: Conception the Source class with the patron

bridge.

3.3 Meta-Model

The goal of a DL is to enable the user to see and un-

derstand all the data in his information system. This

information system consists of a large variety of data.

So, we must ﬁrst analyze and manage the metadata

of each source and use it through the metadata set.

Metadata management is a vital step in understand-

ing the business of a company. With the previous de-

sign, we identiﬁed the source and the next step is to

extract the metadata from them. When talking about

metadata, we are implicitly talking about the types of

data we can solicit, so we are talking about a classic

Big Data problem: the variety of data. To unify and

make all metadata uniform, we have created a general

meta-model that groups all metadata together (ﬁgure

3). Therefore, each entity of metadata is a set of vari-

ables. We note:

M =

{

, ..., v

}

, such v

∈ V where V a set o f variables

(1)

3.4 Transformation of Relational

Metadata

For a relational schema, we transform all relation-

ships into a metadata entity. Afterwards, we take

all the names of the properties out of foreign keys

and we transform them on a variable typed as String.

The third step aims to transform the foreign keys into

variables. For each foreign key, we should know

its source relationships because we use the metadata

name of this source relationships to assign the type of

variable. The algorithm 1 summarize all this step.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

426

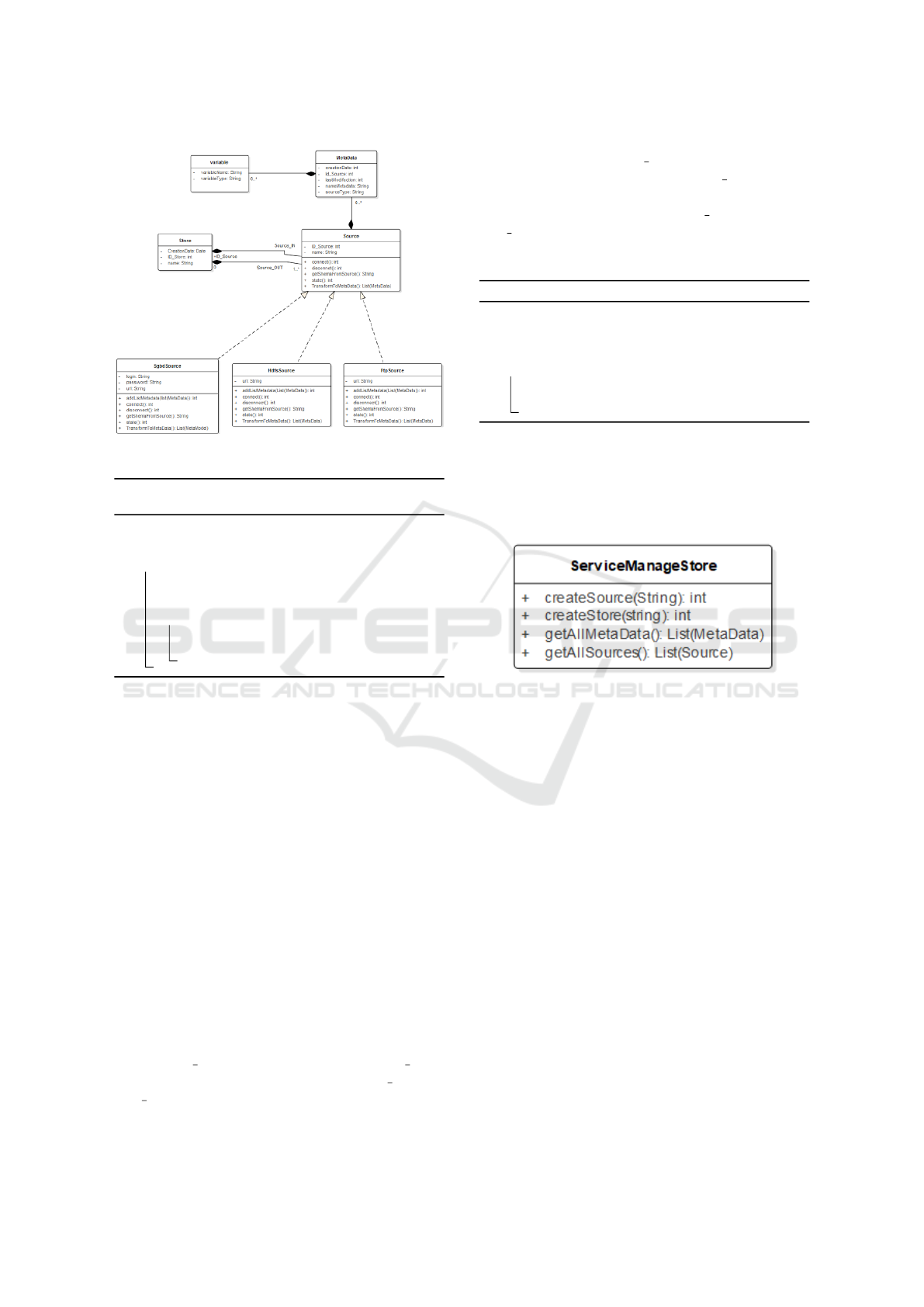

Figure 3: Global Conception.

Algorithm 1: Transformation of relational

metadata.

1 R

← ReLationExtract(q) ; q: set of

relation with attribute

2 for R in R

3 m

new

← newMetadata(R) ;

4 P

← labelExtractPopriety(R) ;

5 for P in P

6 v

new

← newvaraibles(P, ”String”) ;

7 m

new

.getListVariable.Add(v

new

);

As an example, we take the following relational

schema: Film(NameFilm(Int), ReleaseYear(date),

#FilmMaker(int))

FilmMaker(IdFilmMaker(int), LastName(string),

FirstName(String))

After the transformation our example gives the

following schema:

MFilm(NameFilm(string), ReleaseYear(string),

FilmMaker(MFilmMaker));

MFilmMaker(IdFilmMaker(string), Last-

Name(String), FirstName(String))

3.5 Flat File Transformation

If we took the example of CSV ﬁles. For each one,

we create a meta-data entity and all columns becomes

variables in the new entity as shown the algorithm 2.

For example, a following transaction CSV ﬁle:

(Transaction date, Product, Price, Payment Type,

Name, City, State, Country, Account Created,

Last Login, Latitude, Longitude)

Turns into:

MTransaction(Transaction date(String), Prod-

uct(String), Price(String),Payment Type(String),

Name(String), City(String), State(String),

Country(String), Account Created(String),

Last Login(String), Latitude(String), Longi-

tude(String))

Algorithm 2: Flat ﬁle transformation.

1 m

new

← newMetadata(”ID”) ; ID: Auto

Increment

2 P

← labelExtractPoprietyFromFile() ;

3 for P in P

4 v

new

← newvaraibles(P, ”String”) ;

5 m

new

.getListVariable.Add(v

new

);

The management of the store is carried out by the Ser-

viceManageStore class. This class contains different

methods like creating stores and creating sources, as

well as getting the source list and metadata list.

Figure 4: ServiceManageStore.

The createSource() function takes as parameter the

user request in a json format ﬁle. This latter

contains, as shown below, the type of source and

the information needed to establish the connec-

tion: ”Type”: ”mysql”, ”Parameter”: [ ”url”:

”mysql://localhost:3306/todo”, ”login”: ”admin”,

”password”: ”admin” ]

The previous method will establish a connec-

tion and then it will call the getShemaFromSource()

method. This latter is speciﬁc for each type of source.

The output result of the previous function is passed

as a parameter to the TransformToMetaData() func-

tion. It is dedicated for each type of source, like

the transformation algorithms seen in section (3.4 and

3.5), and then we will add the output result as a list

of meta-data in the source object. Finally, we invoke

the SaveSource () method in the SourceRepository to

store the source class in the database. The sequence

diagram (ﬁgure 5) shows the process of creating the

source. It represents the most critical function of our

model.

To conclude, we propose two examples of trans-

formations. So, for each source type, we create a

Data Lake and Digital Enterprise

427

Figure 5: Sequence Diagram.

dedicated transformation model, using for each type

a speciﬁc algorithm.

4 EXPERIMENTATION

To experiment our approach we used a docker which

is a software that will allow us to launch different ap-

plications in different containers. The objective is to

simulate the real environment of a company with its

different databases. For this we will take three con-

tainers that represent our sources:

• Container number 1: Relational database server;

• Container number 2: Hdfs server contains csv

ﬁles;

• Container number 3: Cassandra server;

• Fourth container contains our DL layer.

Figure 6: Experimentation Schema.

We used for the implementation of our application,

the Framework Spring, with its variant Spring Boot

that allows us to launch a Rest API to deploy our ap-

plication.

For the creation of a store we send the following

request using curl:

curl -d ’”name”: ”store1”’ -H ’Content-Type: appli-

cation/json’

http://localhost:8082/spring-rest/store/add

Also, for the creation of sgdb type sources we send

the following request:

curl -d ’”Type”: ”mysql”, ”Parameter”:[”url”:

”mysql://localhost:3306/testSource”, ”login”: ”ad-

min”, ”password”: ”admin”]’ -H ’Content-Type:

application/json’

http://localhost:8082/spring-rest/Srource/add

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

428

In this experiment, we check the good functioning of

our application, which aims to collect and manage the

metadata of the chosen sources. We also provide other

interfaces to help the user manipulating, visualizing

and managing the store and the sources being created.

5 CONCLUSION AND FUTURE

WORK

In this article, we presented a DL literature review,

a DL architecture proposal called Virtual DL, and a

conceptual model that deﬁnes a DL as a set of stores.

We also deﬁne an experimentation framework to ac-

cess our model. To integrate data sources, we used

bridge patterns and create metadata that describe each

targeted data source. The goal of this proposal is to

avoid the migration of the whole digital and IT in-

frastructure of the company to a single server as a

single operation. This a single-operation relocation

of resources would be too expensive. Our solution

offers companies the opportunity to gradually trans-

form their information system without supporting an

exorbitant cost while still beneﬁting from the entire

available data. The entire cost will be gradually ab-

sorbed as the relocation of resources goes on. As a

future work, we believe that it is necessary to man-

age a global schema that comprehends organization’s

data, and create a dictionary of relationships between

internal and external data that handles the problem of

heterogeneous data.

REFERENCES

A. Beheshti, B. Benatallah, R. N. and Tabebordbar, A.

(2018). Corekg: a knowledge lake service.

A. Beheshti, B. Benatallah, R. N. V. M. C. H. X. and Zhao,

X. (2017). Coredb: a data lake service.

A. Farrugia, R. C. and Thompson, S. (2016). Towards social

network analytics for understanding and managing en-

terprise data lakes.

Dixon, J. (2010). Pentaho, hadoop, and data lakes.

Dixon, J. (2014). Data lakes revisited.

E. Gamma, R. Helm, R. J. and Vlissides, J. (1994). Design

patterns : Elements of reusable object-oriented soft-

ware.

I. D. Nogueira, M. Romdhane, J. D. U. d. L. and Ea, E.

(2018). Mod

elisation des m

etadonn

ees d’un data lake

en data vault.

Kachaoui, J. and Belangour, A. (2019). Challenges and ben-

eﬁts of deploying big data storage solution.

L. Chen, J. Shao, Z. Y. J. S. F. W. and Zhuang, Y. (2015).

Raise: A whole process modeling method for unstruc-

tured data management.

Llave, M. R. (2018). Data lakes in business intelligence:

reporting from the trenches.

M. Farid, A. Roatis, I. F. I. H.-F. H. and Chu, X. (2016).

Clams: Bringing quality to data lakes.

M. Wibowo, S. S. and Shamsuddin, S. M. (2017). Machine

learning in data lake for combining data silos.

Madera, C. and Laurent, A. (2016). The next information

architecture evolution: the data lake wave.

Miloslavskaya, N. and Tolstoy, A. (2016). Big data, fast

data and data lake concepts.

Quix, C. and Hai, R. (2018). Data lake.

R. Hai, S. G. and Quix, C. (2016). Constance: An intelligent

data lake system.

Sawadogo, T. K. and Darmont, J. (2019). Metadata man-

agement for textual documents in data lakes.

Wang, L. (2017). Heterogeneous data and big data analyt-

ics.

Z. Shang, Y. Liu, G. L. and Feng, J. (2016). K-join:

Knowledge-aware similarity join.

Zagan, E. and Danubianu, M. (2019). From data warehouse

to a new trend in data architectures – data lake.

Data Lake and Digital Enterprise

429
