Skeleton-based Action Recognition for Industrial Packing Process

Zhenhui Chen

, Haiyang Hu

, Zhongjin Li

, Xingchen Qi

Haiping Zhang

, Hua Hu

1,2

and Victor Chang

School of Computer Science and Technology, Hangzhou Dianzi University, Hangzhou, China

School of Information Science and Engineering, Hangzhou Normal University, Hangzhou, China

School of Computing & Digital Technologies, Teesside University, Middlesbrough, U.K.

Keywords: Skeleton-based Action Recognition, Image Classification, Industrial Packing Process.

Abstract: The applications of action recognition in real-world scenarios are challenging. Although state-of-the-art

methods have demonstrated good performance on large scale datasets, we still face complex practical

problems and inappropriate models. In this work, we propose a novel local image directed graph neural

network (LI-DGNN) to solve a real-world production scenario problem which is the completeness

identification of accessories during the range hood packing process in a kitchen appliance manufacturing

workshop. LI-DGNN integrates skeleton-based action recognition and local image classification to make

good use of both human skeleton data and appearance information for action recognition. The experimental

results demonstrate the high recognition accuracy and good generalization ability on the range hood packing

dataset (RHPD) which is generated in the industrial packing process. The results can meet the recognition

requirements in the actual industrial production process.

1 INTRODUCTION

Deep learning has been successfully applied in

computer vision, including image classification,

object detection, semantic segmentation and pose

estimation. Action recognition, which is a

fundamental task in the fields of video understanding

and intelligent monitoring, has also benefited from

the deep learning technique. However, it has not been

solved completely. As an attempt of using deep

learning in action recognition, it is the first time that

the two-stream model (Simonyan et al., 2014)

surpasses previous hand-crafted features methods. It

decomposes videos into spatial appearance and

temporal motions information by modelling

individual frame and stacked optical flow maps

respectively with CNNs then fusing the results of

these two streams. The concept of two-stream has a

profound impact on subsequent development in this

domain. Another important branch of approach to

CNN-based video modelling is represented by 3D

convolutional networks (C3D) (Tran et al., 2015)

introduced by Du Tran et al. They regarded whole

video as three-dimensional data and used 3D CNNs

to classify videos which is resemble 2D CNNs to

classify images. Notably, Carreira and Zisserman

introduced a model (I3D) (Carreira et al., 2017) that

combines two-stream processing and 3D

convolutions. I3D significantly improved action

recognition results on UCF101 (Soomro et al., 2012)

and HMDB51 (Kuehne et al., 2011). More recently,

kernel factorization strategy which replaced 3D

convolution with a 2D convolution (in space)

followed by a 1D convolution (in time) has shown its

unique advantages in reducing computation and

improving accuracy, such as P3D (Qiu et al., 2017),

R(2+1)D (Tran et al., 2018), S3D (Xie et al., 2018)

and CSN (Tran et al., 2019). The above methods are

all based on RGB frames or dense optical flow maps

of videos. In addition, skeleton-based approach plays

an important role in the field of action recognition.

Skeleton data of human can robustly accommodate

dynamic circumstances and complex backgrounds

which is benefit from the highly accurate depth

sensors (e.g. Kinetics) and pose estimation

algorithms. Skeleton-based action recognition can

pay attention to the posture and motion process more

intuitively and accurately of the human body. To

some extent, it is more suitable for both subtle and

complex action recognition.

The applications of action recognition and

detection in real-world scenarios are not as prevalent

Chen, Z., Hu, H., Li, Z., Qi, X., Zhang, H., Hu, H. and Chang, V.

Skeleton-based Action Recognition for Industrial Packing Process.

DOI: 10.5220/0009340800360045

In Proceedings of the 5th International Conference on Internet of Things, Big Data and Security (IoTBDS 2020), pages 36-45

ISBN: 978-989-758-426-8

as object detection and semantic segmentation. The

main reasons lie in three folds: First, existing models

Figure 1: The range hood packing scene in the workshop of

kitchen appliance manufacturing enterprise Robam.

are not applicable to recognition of specific human

actions in real scenarios. Second, the video

processing is really computationally inefficient.

Finally, the models trained on current datasets cannot

be transfer directly into real-world tasks.

In this work, for solving the problem of

identifying the completeness of the accessories

during the range hood packing process of kitchen

appliance manufacturing enterprise Robam, we

investigate a novel method called Local Image

Directed Graph Neural Networks (LI-DGNN) to

model both human skeleton data and frames in a

surveillance video. Figure 1 shows the range hood

packing assembly line. Workers need to pack two

kinds of parts (connecting pipe and carton containing

tools) together into range hood packing box.

Although the numbers of range hoods and accessories

on this assembly line are recorded, there are still cases

where workers forgot to put accessories into the box.

In this way, the cost of finding the missing box later

is extremely high. The skeleton data is collected by a

real-time pose estimation algorithm AlphaPose.

Specifically, a skeleton-based action recognition

algorithm directed graph neural networks (DGNN)

(Shi et al., 2019) is embedded to classify worker’s

activities, then local images of worker's hands taken

from skeleton points are further analyzed to identify

what is in the hand with image classification model

ResNeXt (Xie et al. 2017).

In order to train our data-driven learning

framework and evaluate its advantage, we create a

range hood packing dataset (RHPD). The dataset

contains 4 different modalities of data: RGB videos,

2D skeleton data, local images and parts’ bounding

boxes data. We experimentally show that our

proposed LI-DGNN model outperforms other object

detection and action recognition methods in both cost

saving and accuracy on RHPD. The main

contributions of our work lie in three folds: (1) A

novel local image directed graph neural network is

proposed to solve the problem of accessories

deficiency recognition in a real-world industrial

production scenario. (2) We make a range hood

packing dataset (RHPD) to train and evaluate our

model which is finally deployed online. (3) On the

dataset, our model exceeds the mainstream action

recognition methods in both recognition accuracy and

generalization ability.

2 RELATED WORK

Before using deep learning to solve action recognition

problem, improved dense trajectories (iDT) (Wang

and Schmid, 2013) is universally acknowledged as

the state-of-the-art approach the state-of-the-art

which describes video as several hand-designed

features which follow dense trajectories, computed by

optical flow. The features include histogram of

oriented gradients (HOG), histogram of optical flow

(HOF) and motion boundary histogram (MBH).

MBH is a gradient-based feature, separately

computed on the horizontal and vertical components

of optical flow. Then an SVM classifier is used to

classify Fisher Vector encoded by those features.

Driven by the breakthrough of deep learning in

still-image recognition, some active researches have

been dedicated to the design of deep networks for

videos. Moreover, researchers have put considerable

efforts to utilize convolutional networks to model

videos. Two-stream model was introduced by

Simonyan and Zisserman, who proposed to extract

deep features from both RGB frames and dense

optical flow maps then fuse results predicted from

these two modalities features. Feichtenhofer et al.

enhanced the two-stream networks using the ResNet

architecture (He et al., 2016) and additional features

fusion between streams (Feichtenhofer et al., 2016).

Temporal segment networks (Wang et al., 2016) are

proposed to model long-range temporal structure over

the whole video by applying two-stream framework

to multiple video segments.

Another influential approach to learning

spatiotemporal features of video is represented by 3D

convolutional networks (C3D). Compared with 2D

CNNs, C3D has a stronger learning ability benefit

from its increased parameters. But it is difficult to

learn good features on small scale datasets. This has

been proved in the work of I3D, in which C3D was

re-implemented and pretrained on a larger video

Skeleton-based Action Recognition for Industrial Packing Process

dataset Kinetics, finetuned on UCF-101 and HMDB-

51, and better results have been obtained. I3D

proposed by Carreira and Zisserman combined two-

stream framework and 3D convolutions to model both

videos and optical flow maps. It also uses successful

ImageNet (Russakovsky et al., 2015) architecture

designs and even their parameters by inflating 2D

ConvNet to 3D. I3D raised the performance of action

recognition to a new level. Recently, in order to

accelerate training and convergence, kernel

factorization has become a new trend. Typically, Du

Tran et al. introduced R(2+1)D model which

decompose 3D convolution into a 2D spatial

convolution followed by 1D temporal convolution

within a ResNet architecture. It compensates for the

defect of 3D convolutions without losing

performance.

In addition to directly model video frames and

optical flow maps, extracting features of dynamic

skeletons to predict human actions has also become

an active research area. The dynamic skeleton data

represents human action as a sequence of coordinates

of the major body joints in videos. It can be easily

captured by the existing pose estimation algorithms

(Cao et al. 2017; He, Gkioxari et al. 2017; Fang et al.

2017) or the depth sensors. Skeleton-based action

recognition can focus on human body activities

without interferences of body scales changes, motion

speeds, camera viewpoints and complicated

background. The traditional methods of processing

skeleton data represent the human pose based on

hand-craft features. However due to the challenge of

manually designing a good feature extractor, which

impedes the way of yielding satisfying results.

Methods based on deep learning has been proved to

be superior to the traditional methods. There are

mainly three frameworks for deep-learning-based

methods: sequence-based methods, image-based

methods and graph-based methods.

Sequence-based methods use RNN-based

architectures (Shahroudy et al., 2016; Liu et al., 2016;

Song et al., 2017; Li et al., 2018) to model skeleton

data represented as a sequence of joints with designed

traversal strategy. Image-based methods mainly use

CNNs which are applied successfully in the area of

image classification (Du, Fu et al., 2015; Kim and

Reiter, 2017) to model a pseudo-image constructed

from skeleton data. Instead of representing the

coordinates of joints as sequences or pseudo-images,

it is more intuitive to organize the data as a graph with

joints as vertexes and bones as edges (Tang et al.,

2018; Shi, Zhang et al. 2018). Yan et al. investigated

graph convolutional networks (GCN) to model both

spatial and temporal information of dynamic skeleton

data which was constructed as a graph (Yan et al.

2018). The strategies of two-stream and adaptive

graph construction were integrated to GCN

framework for the purpose to boost the performance.

However, the existing approaches cannot

perfectly solve our practical problem. Most methods

based on RGB frames or optical flow are

computationally costly and high time consuming on

both training and inference stages. This impedes real-

time recognition in production deployment.

Moreover, these methods are also data-hungry. That

means it is difficult for the model to obtain a good

accuracy and generalization ability which was trained

on a small dataset. Skeleton data is naturally robust

and skeleton-based methods can capture subtle

human body movement stably. But it is at the expense

of discarding the important appearance contents and

background information. We proposed local image

directed graph neural networks (LI-DGNN) which

can capture both RGB contents and human skeleton

data by combining Local image classification and

skeleton-based action recognition. Our experiments

show that LI-DGNN framework yields best

performance and generalization ability on RHPD

compared with existing mainstream action

recognition approaches (specifically two-stream

networks, C3D, I3D, R(2+1)D, ST-GCN (Yan et al.

2018) and DGNN).

3 METHOD

In this section, we describe the LI-DGNN framework

which solved our problem of lacking the integrity

recognition of range hood accessories on the packing

line. Our model integrates directed graph neural

networks (DGNN) and local image classification

model ResNeXt which can capture both dynamic

skeleton data and appearance information to predict

human actions efficiently. The pipeline of the

proposed LI-DGNN demonstrated in the following

(Figure 2). First, skeleton data is extracted from a

video stream by pose estimation algorithm AlphaPose

in real time, then a sliding window is introduced

which will be performed on the skeleton sequence to

obtain available samples. The data from samples will

be fed into DGNN to predict current action. Finally

using ResNeXt model to classify local images which

are cropped from the area of skeletal points of the

worker’s hands for further identification. The final

integrity result is determined by the results of the two

models.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

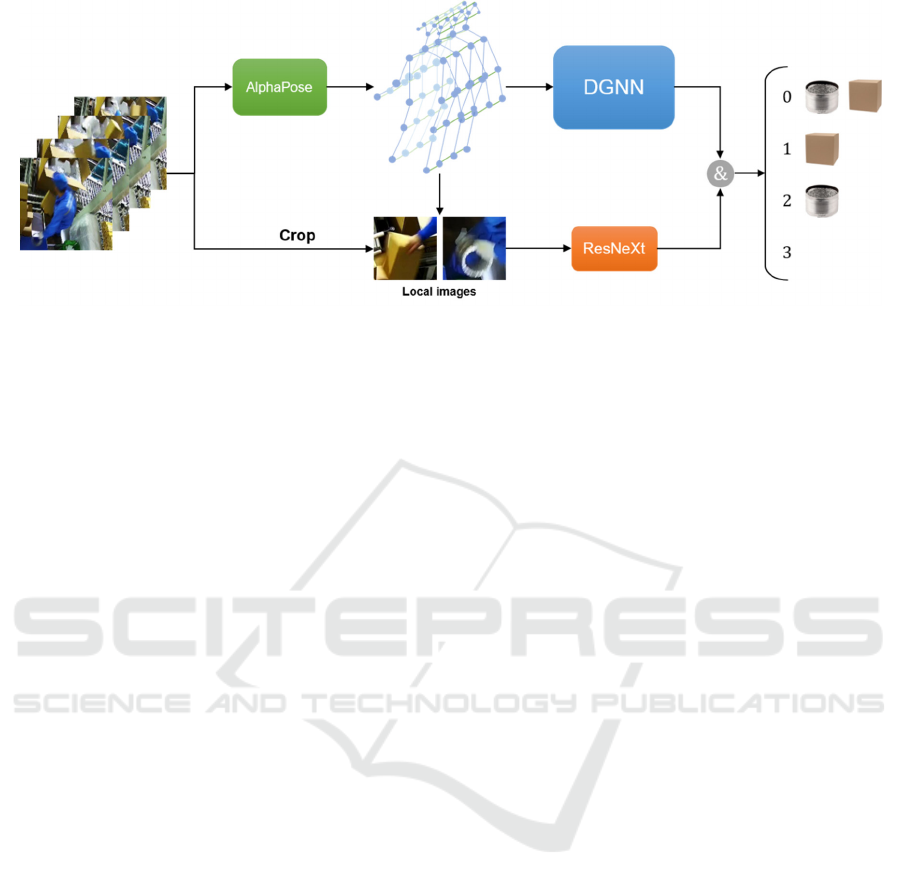

Figure 2: Pipeline of our Local Image Directed Graph Neural Networks (LI-DGNN) framework.

3.1 Regional Multi-person Pose

Estimation

To extract skeleton data accurately and fast, we use

AlphaPose model to detect the locations of human

skeleton key points on each frame of video stream.

AlphaPose is a regional multi-person pose estimation

framework (RMPE) (Fang et al. 2017) which is

introduced to facilitate pose estimation in the

presence of inaccurate bounding boxes and redundant

detections of human detectors from single-person

pose estimator (SPPE). There are primarily two

techniques contributing to this: symmetric spatial

transformer network (SSTN) and parametric pose

non-maximum-suppression (NMS).

3.1.1 Symmetric STN and Parallel SPPE

SSTN includes spatial transformer network (STN),

single-person pose estimator (SPPE) and spatial de-

transformer network (SDTN). SDTN is the inverse of

STN. STN receives human bounding boxes from

human detector, and SDTN generates pose proposals

(Figure 3).

The spatial transformer network (STN) (Jaderberg

et al., 2015) has demonstrated excellent performance

in selecting region of interests automatically. STN

embedded in networks performs a 2D affine

transformation. Therefore, the networks possess the

functions of cropping, translation, scaling and

rotation on the input feature map. It can learn how to

transform the shape of data by training. Parallel SPPE

is another single-person pose estimator branch. The

parameters of this branch are fixed in the training

phase. The output of this SPPE branch is directly

compared to labels of centre-located ground truth

poses and back-propagate centre-located pose errors

to the STN module. If the pose extracted by the STN

is not centre-located, the parallel branch will back-

propagate large errors. In this way, STN is

transformed to the correct region to extract high-

quality human body region images.

3.1.2 Parametric Pose NMS

For the purpose of eliminate redundant pose

estimations, non-maximum suppression (NMS)

method is required. Different from traditional NMS

methods, parametric pose NMS which embedded in

AlphaPose has four parameters in the eliminate

criterion function. The parameters are optimized to

achieve the maximal mAP for the validation set in

training phase. The parameters will be fixed once

convergence is achieved which will be used in the

testing phase.

The signs 

(







,





)

,…,

(







,





)

denotes the

pose 



, with m joints, where 





and 





are the 



location and confidence score of joints separately.

AlphaPose defined pose distance metric





,



Λ, to calculate the pose similarity, and a

threshold  is introduced as elimination criterion,

where Λ is a parameter set of function (∙). The

elimination criterion is demonstrated as follows





,



Λ,1



,



Λ, (1)

The output of (∙) should be 1, if (∙) is smaller than

. This further indicates that we should eliminate pose





, which is because of the redundancy with reference

pose 



The definition of the distance function









,



 is the sum of two distances, soft

matching of joints and spatial distance between parts.

Definition of the soft matching function is written as

follows

Skeleton-based Action Recognition for Industrial Packing Process

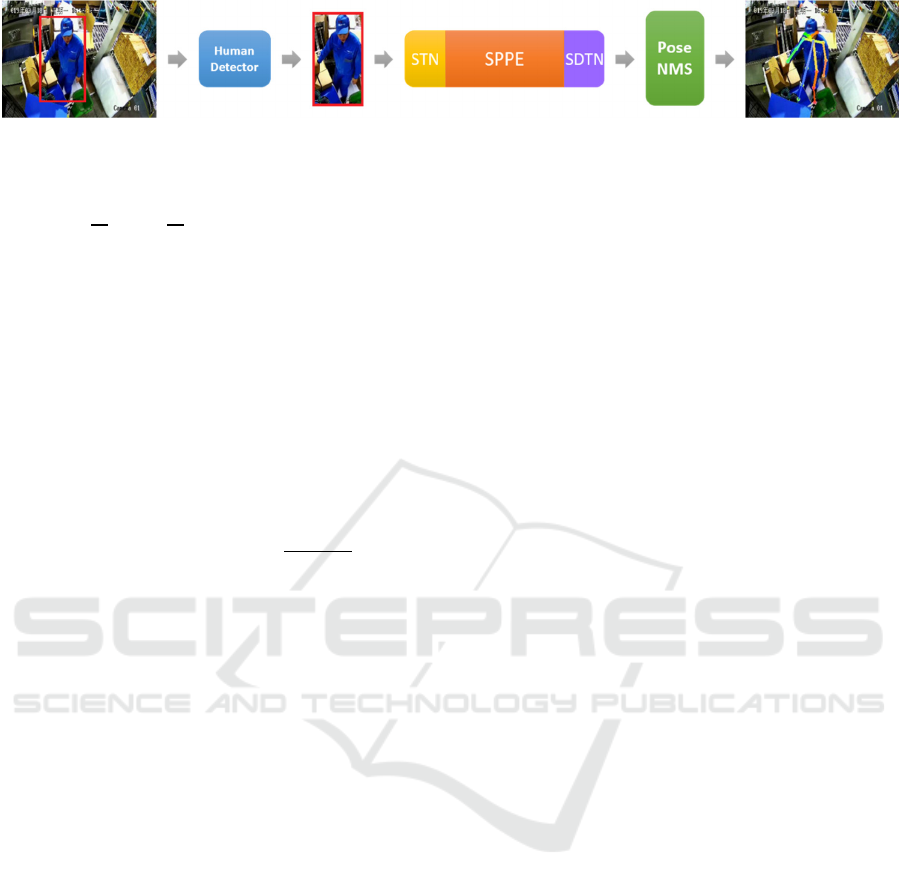

Figure 3: Structure of regional multi-person pose estimation model.









,











∑













∙





















(







)

0

(2)

where (





) is a bounding box centred at 





, and

each dimension of (





) is defined as 1/10 of the

original box 



for pose 



. The  operation

deletes poses with low-confidence scores. The output

will be close to 1 if the confidence scores of two

corresponding joints are both fairly high. The number

of joints that match between poses is counted softly

by this distance. We define the spatial distance

between parts is as follows









,









∑





























(3)

The final distance function can be written as





,



Λ,









,















,







 (4)

where  is a weight that balancing the two distances

and Λ







,



,



. These parameters were

determined in a data-driven manner.

3.2 Directed Graph Neural Networks

The raw skeleton data extracted from AlphaPose are

a sequence of frames, each of which contains a set of

joint coordinates. Directed graph neural networks

(DGNN) can capture spatial and motion information

of a sequence of skeleton frames to recognize human

action. The spatial information (the joints and bones)

are represented as the vertexes and edges within a

directed acyclic graph. The difference of coordinates

of joints and bones in consecutive frames are

regarded as the motion information with the same

graph. The spatial and motion information are fed into

a two-stream DGNN framework respectively to

extract features for action recognition.

3.2.1 Bone and Motion Information

The importance of combining the joint information

and bone information together has been emphasized

by previous works for skeleton-based action

recognition. In this algorithm, the bone is represented

as difference value of coordinates between two

connected joints. To extract both the movements of

joints and the deformations of bones, the movements

of joints is calculated as the difference of coordinates

along the temporal dimension and the deformation of

bones is represented as the difference of the vectors

for the same bone in consecutive frames.

Mathematically, the joint in raw data is represented as

a vector with two elements, i.e., its x-coordinate and

y-coordinate. There are two joints 





(





,



)

and







(





,



)

, so the bone linked from 



to 



formulated as the difference of the two joint vectors,

i.e., 





,





(









,







)

. The movement of

joint  in time  is calculated as 













. The

deformation of bone is defined similarly as 















3.2.2 Graph Construction

DGNN needs a directed acyclic graph (DAG)

depicted by the skeleton data with the joints as

vertexes and bones as edges. The direction of each

edge is determined by the distance between the vertex

and the root vertex, where the vertex closer to the root

vertex points to the vertex farther from the root

vertex. This representation is intuitive since the

human body is naturally an articulated structure. The

joints closer to the center of the human body always

control adjacent joints which are farther from the

center. As with the spatial information modeling, the

motion information is represented as directed acyclic

graphs similarly to the movements of the joints as

vertexes instead of simply joints and the deformation

of bones as edges instead of the bones.

Formally, for each vertex 



, defines the edge

heading to it as the incoming 





and the edge

emitting from it as the outgoing edge 





. For each

directed edge 



, 





and 





denote the source vertex

and the target vertex of the edge respectively. In this

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

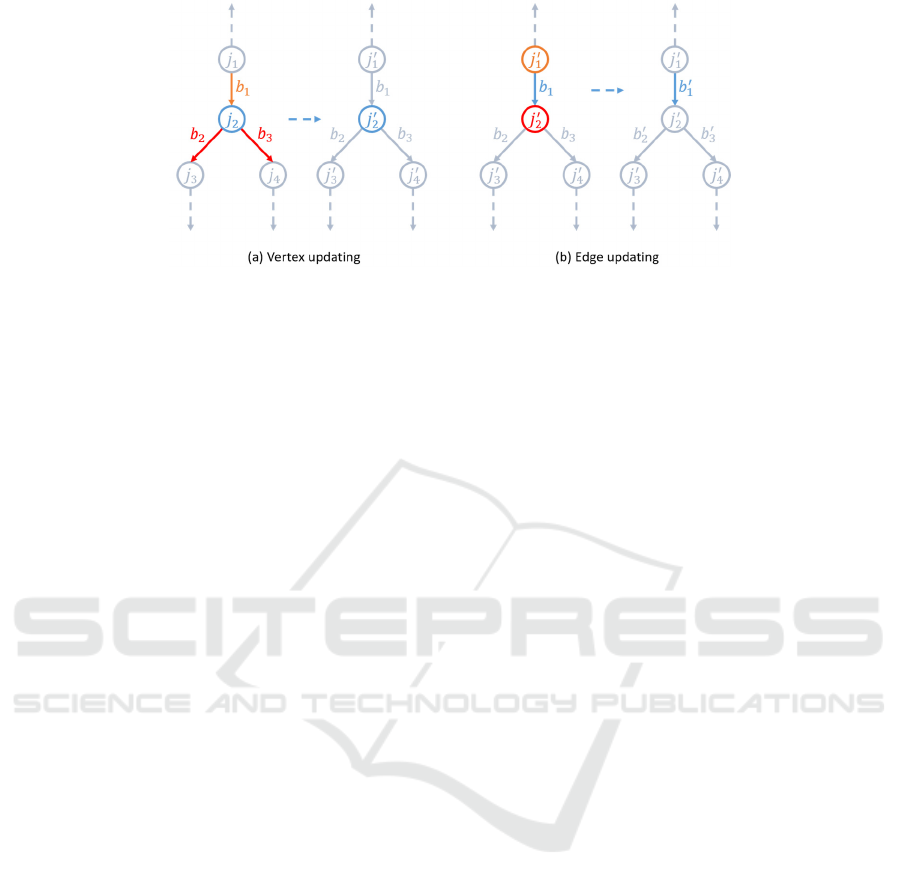

Figure 4: Directed graph network block, vertex and edge updating.

way, a skeleton-based frame can be formulated as a

directed graph (,), where  is a set of vertexes

(joints) and  is a set of directed edges (bones). A

skeleton-based video is a sequence of frames that can

be formulated as 



,



,…,



, where  means

the length of the video. Similarly, the motion

information of the skeleton-based video is

represented as a sequence of directed acyclic graphs







,





,…,





, where 



(



,



), 















,…,



and 













,…,



. Then,

the spatial and motion graphs are fed into two-stream

DGNN respectively to make the prediction for the

action label. Finally, two networks are fused by

adding the output scores of the softmax layer.

3.2.3 Directed Graph Network Block

The directed graph network (DGN) block is the basic

block for a directed graph neural network; it includes

two updating functions, 



and 



, and two

aggregation functions, 





and 





. The updating

function is used to update the attributes of vertexes

and edges which is according to their adjacent edges

and vertexes (Figure 4). We use the aggregation

function to make aggregation of the attributes which

are contained in multiple incoming (outgoing) edges

connected to one vertex. The aggregation function

should stay invariant to the permutation of its inputs

since there are no apparent orders for these edges and

is able to take variable numbers of arguments, such as

the average pooling, max pooling and elementwise

summation. Formally, this process is designed in

details as follows:



















) (5)



















) (6)











(



,







,







) (7)











(



,







,







) (8)

Where the concatenation operation is denoted as [·].





and 



are the updated versions of  and ,

respectively.

For temporal information modelling, inspired by

the pseudo-3D and R(2+1)D CNN which model the

spatial information with the 2D convolutions and then

model the temporal information with the 1D

convolutions, after updating the spatial information of

joints and bones or the motion information of

movements of joints and deformations of bones in

each DGN block, we apply a 1D convolution along

the temporal dimension to model the temporal

information.

The whole DGNN model is similar to I3D model

which is based on two-stream framework and use 3D

CNNs to model RGB frames in spatial stream and

optical flow maps in temporal stream. DGNN also has

spatial and temporal streams. The RGB frames and

optical flow maps are replaced with joints and bones

data in the spatial stream and movements of joints and

deformations of bones in the temporal stream

respectively. Instead of 3D CNN block, DGNN use

directed graph network block and 1D convolution

along the temporal dimension to model spatio-

temporal information. Lastly, two stream networks

are fused by adding the output scores of the softmax

layer.

3.3 Local Image Classification

The human action class can be recognized by DGNN

with skeleton data. However, in this process, we do

not utilize appearance information of video.

Furthermore, even if the action class of the worker

who performed a specific task are identified, we

might also encounter a “feint” situation that the

workers do the same body movement without holding

the accessories in his hands. To further improve the

correct recognition rate and make use of the content

Skeleton-based Action Recognition for Industrial Packing Process

Table 1: Object detection and action recognition methods accuracy on RHPD.

Method Dataset mAP / top-1 (Line-1) mAP / top-1 (Line-2)

Faster RCNN RHPD accessories detection 92.1 86.6

YOLO v3 RHPD accessories detection 94.7 55.9

Two-Stream RHPD video 87.5 79.6

ST-GCN RHPD skeleton

96.4 94.3

information efficiently, we crop local images

according to coordinates of wrists in skeleton joints

estimated by AlphaPose, then classify the images to

identify whether there are accessories in his hands

and whether the worker put them into packing box.

The problem cannot be solved completely if only the

images of hands area of the worker are tracked and

recognized, which is due to various factors like

motion-induced blur, camera viewpoints, object

occlusion and interference of backgrounds. Only

combining action recognition and the local image

classification can identify that the accessories are

packed into the box, which has been proved in our

experiments.

There are many methods for image classification.

ResNeXt which was introduced by Xie et al. provides

the advantages of high accuracy and fast speed.

ResNeXt enhanced ResNet by substituting residual

block with grouped convolutions block and

introduced a super parameter “cardinality”. This

structure is similar to the inception block (Szegedy et

al., 2015) but there are only 1×1 and 3×3

convolutional kernels on the paths of the grouped

convolutions block. The value of cardinality

represents the number of paths in the block. The input

feature map is divided into cardinality paths

according to the channels, then the outputs of all paths

are aggregate by summation. This process is called

aggregated residual transformations. Specifically,

ResNeXt-50 (32 ×4d) is embedded into our LI-

DGNN framework. The value of cardinality is 32, and

4d represents each path receives 4 channels feature

maps in first grouped convolutions block.

4 EXPERIMENTS

4.1 The Range Hood Packing Dataset

The range hood packing dataset (RHPD) is made for

solving the problem of lacking integrity in the

recognition of accessories during range hood packing

process of kitchen appliance manufacturing

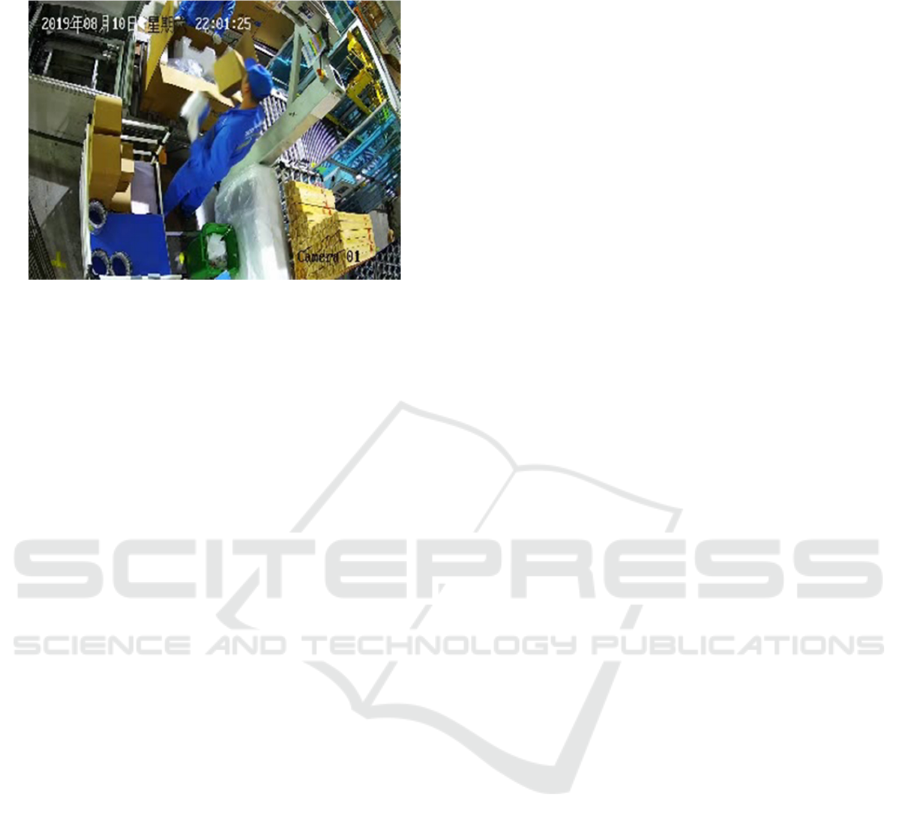

enterprise Robam. We recorded videos of the process

on two production lines by several cameras set up

with different viewpoints, then labelled them

manually, extracted human skeletons and perform

data augmentation. The dataset contains 4 different

modalities of data: RGB videos, 2D skeleton data,

local images and parts’ bounding boxes data. The data

of two assembly lines are separated and noted as line-

1 and line-2. The line-1 is used for training and

validation. The line-2 is only used in the test phase to

evaluate the generalization ability of model on the

other production lines.

Video Dataset. Video data contains 3000 clips of

worker’s actions during packing process. The actions

are divided into three classes (grab, feint and other)

which represent packing accessories, doing packing

action without accessories in hands and other actions

during packing respectively. Each clip is 25 FPS and

lasts about 5 seconds. There are 2000 clips in line-1

and 1000 clips in line-2.

Skeleton Dataset. Skeleton data is extracted by pose

estimation algorithm AlphaPose. The classes and

numbers are the same as video dataset. The length of

skeleton sequence detected in the whole clip is the

product of video time and frame rate. AlphaPose

predicts 18 joints for each person as labelled. Each

joint is represented as 2D coordinate (,) and

corresponding confidence score .

Local Image Dataset. There are 6000 images

cropped from local areas according to coordinates of

wrists in skeleton joints. The dataset contains 3

classes (connecting pipe, tool carton and other). Each

class has 2000 images and the size of them are all

350×350.

Accessories Detection Dataset. This is a dataset that

we originally created which uses object detection

methods to detect and track accessories in the whole

packing process. It contains 4000 images and

bounding boxes data of accessories in the images.

There two classes of objects we annotated

(connecting pipes and tool boxes). The images are

also captured from two production lines by several

cameras from different viewpoints.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Table 2: RGB-based and skeleton-based methods action recognition performance on RHPD.

Method Dataset Line-1 Line-2 Line-1(no feint) Line-2(no feint)

Two-Stream RHPD video 87.5 79.6 91.3 82.6

C3D RHPD video 73.7 63.8 85.2 77.4

I3D RHPD video 84.1 79.5 97.5 89.6

R(2+1)D RHPD video

89.9 81.2 98.9

85.7

ST-GCN RHPD skeleton - - 96.4 94.3

DGNN RHPD skeleton - - 98.5

96.2

4.2 Implementation Details

Data Augmentation. We use both spatial and

temporal jittering for augmentation. Specifically, we

apply random cropping, horizontal flipping, rotation

and colour jittering on videos and images. We

augment skeleton data with translation and rotation.

Temporal jittering is also applied during training by

randomly selecting a starting frame and decoding T

frames.

Training. All experiments are conducted on the

PyTorch deep learning framework (Paszke et al.,

2019). We train directed graph neural networks

(DGNN) and image classification model ResNeXt on

RHPD skeleton and local image dataset respectively.

For DGNN, we initialize the network weights from

the model pretrained on Kinetics-Skeleton dataset.

The batch size is 64. Stochastic gradient descent

(SGD) with momentum (0.9) is applied as the

optimization strategy. The learning rate is initialized

as 0.1 and reduced by a factor of 10 in epoch 30 and

60. The model is trained with 150 epochs. For

ResNeXt, we use ImageNet-pretrained model as base

networks. Then, we finetune it with the batch size

(32), learning schedule (Adam with an initial learning

rate 3e-4 and reduce by a factor 0.9) and training 1000

epochs.

4.3 Exploration Study

In this section, we examine the effectiveness of object

detection approach, action recognition method and

proposed LI-DGNN framework. The recognition

accuracy is used as the evaluation indicator.

4.3.1 Object Detection vs. Action

Recognition

For the problem of accessories deficiency

recognition, a direct way is to detect and track the

accessories in video stream. In this part of

experiments, we investigate and compare object

detection methods Faster RCNN (Ren et al., 2017),

YOLO v3 (Joseph and Ali, 2018) and action

recognition methods two-stream model, ST-GCN on

our RHPD. We report mAP for object detection

methods and Top-1 accuracy for action recognition

methods (Table 1). Since ST-GCN is skeleton-based

and cannot capture appearance information of

accessories, we merge grab and feint data into one

class. ST-GCN classifies only two classes of actions.

Table 1 shows the methods generally provide

good validation performance on line-1. But on the

line-2, YOLO v3 yields a poor generalization ability.

Faster RCNN and two-stream model yield 5.5% and

7.9% precision gaps between line-1 and line-2.

Notably, skeleton-based action recognition approach

ST-GCN has a best validation and test accuracy on

line-1 and line-2. The test accuracy is only 2.1%

lower than the validation accuracy. This shows ST-

GCN has a good generalization on other production

lines. In the following sections, we will focus on

investigating action recognition approaches.

4.3.2 RGB-based vs. Skeleton-based

In this section, we implement several mainstream

action recognition methods (two-stream, C3D, I3D,

R(2+1)D, ST-GCN and DGNN) and evaluate on the

RHPD video and skeleton datasets. These methods

are divided into two camps, RGB-based and skeleton-

based. Since the feint and grab actions are very

similar, we not only evaluate on the original datasets

(three classes), but also remove the feint class to

evaluate the model in order to eliminate the

interference of fake actions. The results are

summarized in Table 2.

On the original sets, we test the RGB-based

methods, but most of them do not perform very well.

R(2+1)D model yields best top-1 accuracy, which is

only 81.2% on line-2, though. After eliminating the

interference of fake actions, the overall accuracy has

been improved significantly. This indicates that

RGB-based methods are hard to capture small

differences of actions. Compared with RGB-based

methods, skeleton-based methods obtain more stable

recognition accuracy on both line-1 and line-2 sets

Skeleton-based Action Recognition for Industrial Packing Process

Table 3: Comparisons with mainstream action recognition methods on RHPD.

method dataset Line-1 Line-2

Two-Stream RHPD video 87.5 79.6

C3D RHPD video 73.7 63.8

I3D RHPD video 84.1 79.5

R(2+1)D RHPD video 89.9 81.2

Local Image RHPD local image 78.1 64.2

LI-DGNN RHPD skeleton

98.0 96.7

without feint actions. DGNN obtains best test

performance and 1.9% higher than ST-GCN on line-

4.4 Local Image Is Necessary

Our experiments have proved that skeleton-based

action recognition methods have better recognition

performance and generalization ability to human

body actions in similar scenes. In this part, we

evaluate the benefits of local image strategy to

skeleton-based action recognition method DGNN,

and compare our LI-DGNN with other approaches on

the complete RHPD set. The results are shown in

Table 3. We report top-1 accuracy as the evaluation

indicator of the local image strategy. We crop local

images of the area of worker’s hands for each frame

of the video clip, then if more than 10 images in 25

consecutive frames are identified accessory class and

the wrist joint coordinate move towards the packing

box of the range hood, it is judged that the accessories

are successfully packed. Two accessories are tested

separately and the final result is average of the two

accessories.

There are several noteworthy observations. First,

using the local image strategy solely does not work

well, probably because of object occlusion, viewpoint

changes and the harsh condition that accessories must

be tracked continuously to determine packing

successfully. Second, our LI-DGNN model has a

surprisingly good effect in further verifying the

recognized human actions with local image strategy.

It raises the performance to 98.0% on line-1 and

96.7% on line-2. This result is similar to DGNN

perform on no feint set, which indicates local image

strategy can identify fake actions well in our model.

Third, LI-DGNN also has a good generalization

ability on line-2 set which the model does not seen

before. Our model can be easily migrated to other

new production lines for deployment. Finally,

compared with other mainstream RGB-based action

recognition methods, our LI-DGNN performs best on

the complete RHPD dataset and this performance can

meet the actual production requirements.

5 CONCLUSIONS

In this work, we proposed a novel Local Image

Directed Graph Neural Network (LI-DGNN) which

integrates Directed Graph Neural Networks and local

image classification model ResNeXt to make good

use of skeleton data and local images for action

recognition. In view of the actual production scenario

problem of identifying the completeness of the

accessories during the range hood packing process in

a kitchen appliance manufacturing workshop, we

made an RHPD dataset. We implement the

mainstream RGB-based and skeleton-based action

recognition methods, and train them on RHPD.

Compared through results by experiments, our LI-

DGNN framework shows the best recognition

accuracy on RHPD dataset and has good

generalization ability, which can meet the recognition

requirements in the actual production process.

ACKNOWLEDGEMENTS

This work was supported by the National Natural

Science Foundation of China (No. 61802095,

61572162), the Zhejiang Provincial Key Science and

Technology Project Foundation (No. 2018C01012).

Zhongjin Li is the corresponding author.

REFERENCES

Cao, Z., Simon, T., Wei, S, Sheikh, Y., 2017. Temporal

Segment Networks: Towards Good Practices for Deep

Action Recognition. IEEE Conference on Computer

Vision and Pattern Recognition, 1302-1310.

Carreira, J., Zisserman, A., 2017. Quo Vadis, Action

Recognition? A New Model and the Kinetics Dataset.

2017 IEEE Conference on Computer Vision and

Pattern Recognition, 4724-4733.

Du, Y., Fu, Y., Wang, L., 2015. Skeleton Based Action

Recognition with Convolutional Neural Network. 2015

3rd IAPR Asian Conference on Pattern Recognition,

579–583.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

Fang, H., Xie, S., Tai, Y., Lu, C., 2017. RMPE: Regional

Multi-person Pose Estimation. IEEE International

Conference on Computer Vision, 2353-2362.

Feichtenhofer, C., Pinz, A., Zisserman, A., 2016. Deep

Residual Learning for Image Recognition. IEEE

Conference on Computer Vision and Pattern

Recognition, 1933-1941.

He, K., Gkioxari, G., Dollár, P., Girshick, R. B., 2017.

Mask R-CNN. IEEE International Conference on

Computer Vision, 2980-2988.

He, K., Zhang, X., Ren, S., Sun, J., 2016. Deep Residual

Learning for Image Recognition. IEEE Conference on

Computer Vision and Pattern Recognition, 770-778.

Jaderberg, M., Simonyan, K., Zisserman, A., Kavukcuoglu,

K., 2015. Spatial Transformer Networks. Conference

on Neural Information Processing Systems, 2017–

2025.

Joseph, R., Ali, F., 2018. YOLOv3: An Incremental

Improvement. arXiv preprint arXiv: 1804.02767.

Kim T. S., Reiter, A., 2017. Interpretable 3d Human Action

Analysis with Temporal Convolutional Networks.

Computer Vision and Pattern Recognition Workshops,

1623–1631.

Kuehne, H., Jhuang, H., Garrote, E., Poggio, T., Serre, T.,

2011. HMDB: A Large Video Database for Human

Motion Recognition. IEEE International Conference

on Computer Vision, 2556-2563.

Li, L., Zheng, W., Zhang, Z., Huang, Y., Wang, L., 2018.

Skeleton-Based Relational Modeling for Action

Recognition. arXiv preprint arXiv:1805.02556.

Liu, J., Shahroudy, A., Xu, D., Wang, G., 2016. Spatio-

Temporal LSTM with Trust Gates for 3d Human

Action Recognition. European Conference on

Computer Vision, 816-833.

Paszke, A., Gross, S., Massa, F. et al., 2015. PyTorch: An

Imperative Style, High-Performance Deep Learning

Library. Advances in Neural Information Processing

Systems, 8024-8035.

Qiu, Z., Yao, T., Mei, T., 2017. Learning Spatio-Temporal

Representation with Pseudo-3D Residual Networks.

2017 IEEE Conference on Computer Vision and

Pattern Recognition, 5534-5542.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bernstein,

M. S., Berg, A. C., Li, F., 2015. ImageNet Large Scale

Visual Recognition Challenge. International Journal of

Computer Vision, 211-252.

Shahroudy, A., Liu, J., Ng, T., Wang, G., 2016. NTU

RGB+D: A Large Scale Dataset for 3d Human Activity

Analysis. IEEE Conference on Computer Vision and

Pattern Recognition, 1010-1019.

Shi, L., Zhang, Y., Cheng, J., Lu, H., 2018. Non-Local

Graph Convolutional Networks for Skeleton-Based

Action Recognition. arXiv preprint arXiv:1805.07694.

Shi, L., Zhang, Y., Cheng, J., Lu, H., 2019. Skeleton-Based

Action Recognition with Directed Graph Neural

Networks. IEEE Conference on Computer Vision and

Pattern Recognition, 7912-7921.

Simonyan, K., Zisserman, A., 2014. Two-Stream

Convolutional Networks for Action Recognition in

Videos. Annual Conference on Neural Information

Processing Systems 2014, 568-576.

Song, S., Lan, C., Xing, J., Zeng, W., Liu, J., 2017. An End-

to-End Spatio-Temporal Attention Model for Human

Action Recognition from Skeleton Data. AAAI

Conference on Artificial Intelligence, 4263-4270.

Soomro, K., Zamir, A. R., Shah, M., 2012. A Dataset of 101

Human Actions Classes from Videos in The Wild.

arXiv preprint arXiv:1212.0402.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S. E.,

Anguelov, D., Erhan, D., Vanhoucke, V., Rabinovich,

A., 2015. Going deeper with convolutions. IEEE

Conference on Computer Vision and Pattern

Recognition, 1-9.

Tang, Y., Tian, Y., Lu, J., Li, P., Zhou, J., 2018. Deep

Progressive Reinforcement Learning for Skeleton-

Based Action Recognition. IEEE Conference on

Computer Vision and Pattern Recognition, 5323-5332.

Tran, D., Bourdev, L. D., Fergus, R., Torresani, L., Paluri,

M., 2015. Learning Spatiotemporal Features with 3D

Convolutional Networks. 2015 IEEE International

Conference on Computer Vision, 4489-4497.

Tran, D., Wang, H., Torresani, L., Feiszli, M., 2019. Video

Classification with Channel-Separated Convolutional

Networks. arXiv preprint arXiv: 1904.02811.

Tran, D., Wang, H., Torresani, L., Ray, J., LeCun, Y.,

Paluri, M., 2018. A Closer Look at Spatiotemporal

Convolutions for Action Recognition. 2018 IEEE

Conference on Computer Vision and Pattern

Recognition, 6450-6459.

Wang, H., Schmid, C., 2013. Action Recognition with

Improved Trajectories. IEEE International Conference

on Computer Vision, 3551-3558.

Wang, L., Xiong, Y., Wang, Z., Qiao, Y., Lin, D., Tang, X.,

Gool, L. V., 2016. Temporal Segment Networks:

Towards Good Practices for Deep Action Recognition.

European Conference on Computer Vision, 20-36.

Xie, S., Girshick, R. B., Dollár, P., Tu, Z., He, K., 2017.

Aggregated Residual Transformations for Deep Neural

Networks. IEEE Conference on Computer Vision and

Pattern Recognition, 5987-5995.

Xie, S., Sun, C., Huang, J., Tu, Z., Murphy, K., 2018.

Rethinking Spatiotemporal Feature Learning for Video

Understanding. European Conference on Computer

Vision, 318-335.

Yan, S., Xiong, Y., Lin, D., 2018. Spatial Temporal Graph

Convolutional Networks for Skeleton-Based Action

Recognition. AAAI Conference on Artificial

Intelligence,

7444-7452.

Skeleton-based Action Recognition for Industrial Packing Process
