JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

N. Benjamin Erichson

, Zhewei Yao

and Michael W. Mahoney

ICSI and Department of Statistics, University of California at Berkeley, U.S.A.

Department of Mathematics, University of California at Berkeley, U.S.A.

Keywords:

Adversarial Learning, Robust Learning, Deep Neural Networks.

Abstract:

It has been demonstrated that very simple attacks can fool highly-sophisticated neural network architectures.

In particular, so-called adversarial examples, constructed from perturbations of input data that are small or

imperceptible to humans but lead to different predictions, may lead to an enormous risk in certain critical

applications. In light of this, there has been a great deal of work on developing adversarial training strategies

to improve model robustness. These training strategies are very expensive, in both human and computational

time. To complement these approaches, we propose a very simple and inexpensive strategy which can be used

to “retroﬁt” a previously-trained network to improve its resilience to adversarial attacks. More concretely, we

propose a new activation function—the JumpReLU—which, when used in place of a ReLU in an already-

trained model, leads to a trade-off between predictive accuracy and robustness. This trade-off is controlled by

the jump size, a hyper-parameter which can be tuned during the validation stage. Our empirical results demon-

strate that this increases model robustness, protecting against adversarial attacks with substantially increased

levels of perturbations. This is accomplished simply by retroﬁtting existing networks with our JumpReLU

activation function, without the need for retraining the model. Additionally, we demonstrate that adversarially

trained (robust) models can greatly beneﬁt from retroﬁtting.

1 INTRODUCTION

As machine learning methods become more inte-

grated into a wide range of technologies, there is a

greater demand for robustness, in addition to the usual

efﬁciency and high-quality prediction, in machine

learning algorithms. Deep neural networks (DNNs),

in particular, are ubiquitous in many technologies that

shape the modern world (LeCun et al., 2015; Good-

fellow et al., 2016), but it has been shown that even

the most sophisticated network architectures can eas-

ily be perturbed and fooled by simple and impercepti-

ble attacks. For instance, single pixel changes which

are undetectable to the human eye can fool DNNs

into making erroneous predictions. These adversar-

ial attacks can reveal important fragilities of modern

neural networks (Szegedy et al., 2013; Goodfellow

et al., 2014; Liu et al., 2016), and they can reveal

ﬂaws in network training and design which pose se-

curity risks (Kurakin et al., 2016). Partly due to this,

evaluating and improving the robustness of DNNs is

an active area of research. Due to the unpredictable

and sometimes imperceptible nature of adversarial at-

tacks, however, it can be difﬁcult to test and evaluate

network robustness comprehensively. See, e.g., Fig-

ure 1, which provides an illustration of how a rela-

tively small adversarial perturbation can lead to in-

correct classiﬁcation.

Most work in this area focuses on training, e.g.,

developing adversarial training strategies to improve

model robustness. These training strategies are ex-

pensive, in both human and computational time. For

example, a single training run can be expensive, and

typically many runs are needed, as the analyst “ﬁddles

with” parameters and hyper-parameters.

Motivated by this observation, we propose a com-

plementary approach to improve the robustness of the

model to the risk of adversarial attacks. The rectiﬁed

linear unit (ReLU) will be our focus here since it is the

clean example adversarial perturbation adversarial example

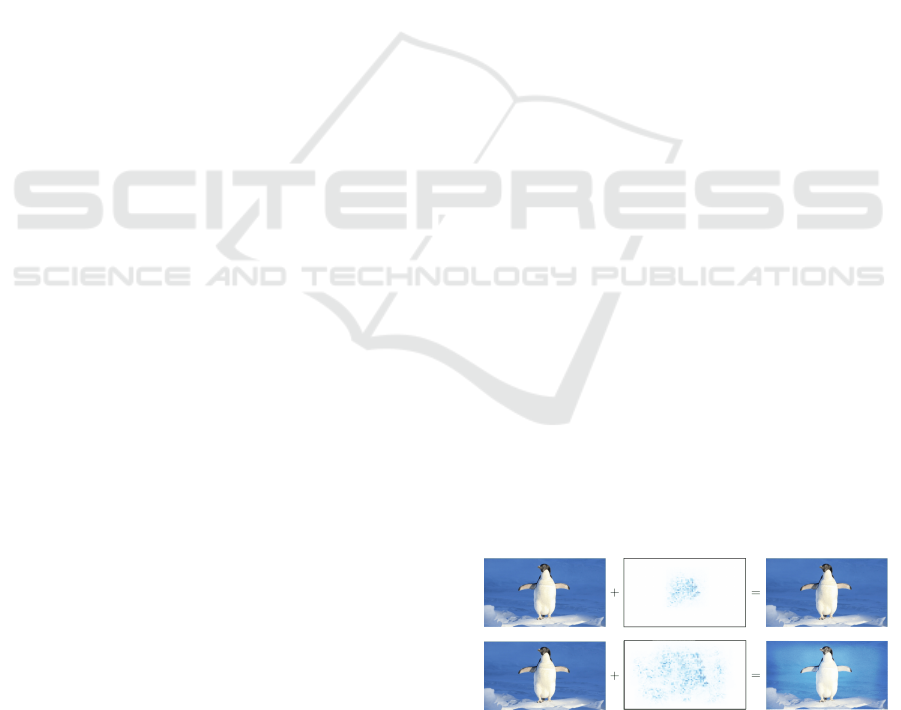

Figure 1: Adversarial examples are constructed by perturb-

ing a clean example with a small amount of non-random

noise in order to fool a classiﬁer. Often, an imperceptible

amount of noise is sufﬁcient to fool a model (top row). The

JumpReLU improves the robustness, i.e., a higher level of

noise is required to fool the retroﬁtted model (bottom row).

Erichson, N., Yao, Z. and Mahoney, M.

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks.

DOI: 10.5220/0009316401030114

In Proceedings of the 9th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2020), pages 103-114

ISBN: 978-989-758-397-1; ISSN: 2184-4313

103

Input

Output

Conv. layer

Dropout

Max Pool

ReLU

Input

Output

Conv. layer

Dropout

Max Pool

Jump

ReLU

Jump

ReLU

ⲕ ⲕ

Adversarial

example

Tuning parameter

Prediction

ⲕⲕ

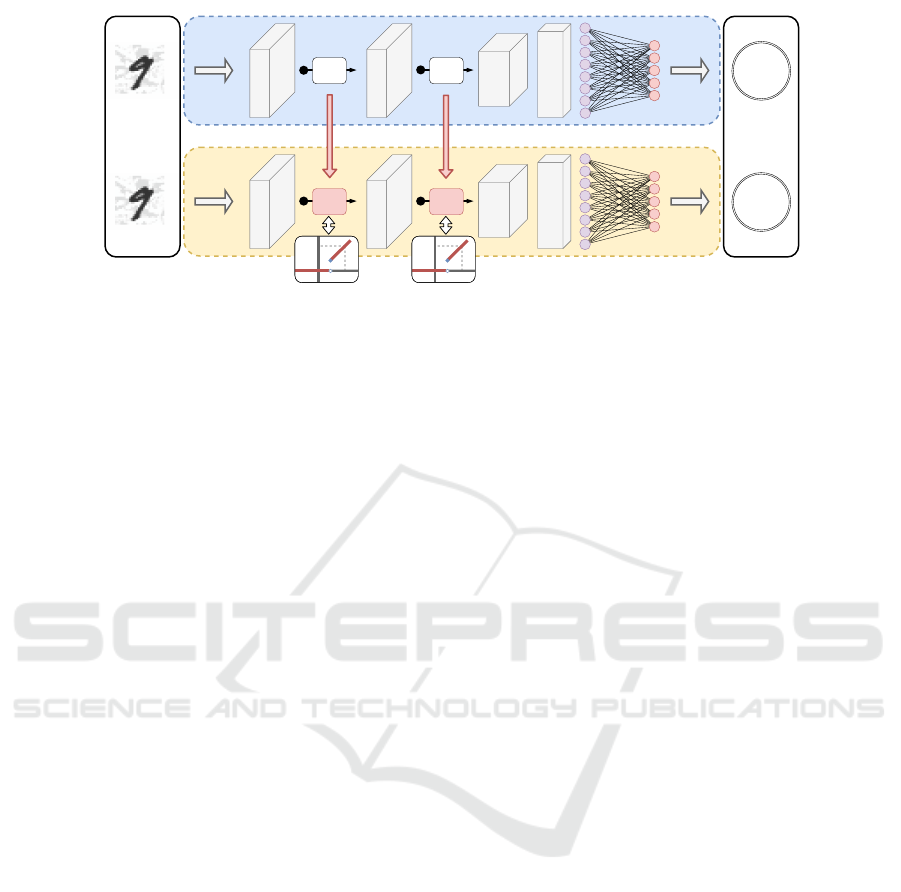

Figure 2: Simpliﬁed illustration of a neural network architecture using ReLU activation functions. JumpReLU can be activated

by setting the jump size (threshold value) κ larger than zero to increase the resilience to adversarial attacks. (One could use

different values of κ for different layers, but we did not observe that to help.)

most widely-used and studied activation function in

the context of adversarial attacks (but we expect that

the same idea can be applied more generally). For net-

works trained with ReLUs, our method will replace

the ReLU with what we call a JumpReLU function, a

variant of the standard ReLU that has a jump discon-

tinuity. See Figure 2 for an illustration of the basic

method. The jump discontinuity in the JumpReLU

function has the potential to dampen the effect of ad-

versarial perturbations, and we will “retroﬁt” existing

ReLU-based networks by replacing the ReLU with

the JumpReLU, as a defense strategy, to reduce the

risk of adversarial attacks. The magnitude of the jump

is a parameter which controls the trade-off between

predictive accuracy and robustness, and it can be cho-

sen in the validation stage, i.e., without the need to

retrain the network. In more detail, our contributions

are the following:

• We introduce and propose the JumpReLU activa-

tion function, a novel rectiﬁed linear unit with a

small jump discontinuity, in order to improve the

robustness of trained neural networks.

• We show that the JumpReLU activation function

can be used to “retroﬁt” already deployed, i.e.,

pre-trained, neural networks—without the need to

perform an expensive retraining of the original

network. Our empirical results show that using the

JumpReLU in this way leads to networks that are

resilient to substantially increased levels of per-

turbations, when defending classic convolutional

networks and modern residual networks. We also

show that JumpReLU can be used to enhance ad-

versarially trained (robust) models.

• We show that the popular Deep Fool method re-

quires increased noise levels by a factor of about

3–7 to achieve nearly 100 percent fooling rates

for the retroﬁtted model on CIFAR10. We show

that these increased noise levels are indeed crit-

ical, i.e., the detection rate of adversarial exam-

ples is substantially increased when using an ad-

ditional add-on detector.

• The magnitude of the jump is an additional hyper-

parameter in the JumpReLU activation function

that provides a trade-off between predictive accu-

racy and robustness. This single parameter can be

efﬁciently tuned during the validation stage, i.e.,

without the need for network retraining.

In summary, the JumpReLU activation function

improves the model robustness to adversarial pertur-

bations, while attaining a “good” accuracy for clean

examples. Further, the impact on the architecture is

minimal and does not effect the inference time.

2 RELATED WORK

Adversarial examples are an emerging threat for many

machine learning tasks. Szegedy et al. (Szegedy et al.,

2013) discovered that neural networks are particularly

susceptible to such adversarial examples. This can

lead to problems in safety- and security-critical ap-

plications such as medical imaging, surveillance, au-

tonomous driving, and voice command recognition.

Due to its importance, adversarial learning has be-

come an intense area of research, posing a cat-and-

mouse game between attackers and defenders.

Indeed, there is currently a lack of theory to ex-

plain why deep learning is so sensitive to this form of

attack. Early work hypothesized that the highly non-

linear characteristics of neural networks and the ten-

dency toward almost perfect interpolation of the train-

ing data are the reasons for this phenomena. Tanay

and Grifﬁn (Tanay and Grifﬁn, 2016) argued that the

adversarial strength is related to the level of regular-

ization and that the effect of adversarial examples can

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

104

be mitigated by using a proper level of regulariza-

tion. In contrast, Goodfellow et al. (Goodfellow et al.,

2014) impressively demonstrated that the linear struc-

ture in deep networks with respect to their inputs is

sufﬁcient to craft adversarial examples.

Let x be an input such as an image. The problem

of crafting an adversarial example ˜x

˜x = x + ∆x (1)

requires ﬁnding an additive perturbation ∆x so that ˜x

fools a speciﬁc model F under attack. The minimal

perturbation with respect to a p-norm k·k

can be ob-

tained by using an optimization based strategy which

aims to minimize

∆x := argmin

∆ ˆx

k∆ ˆxk

s.t. F(x + ∆ˆx) 6= F(x), (2)

so that the example x is misclassiﬁed.

Note, the perturbation used to construct adversar-

ial examples needs to be small enough to be unnotice-

able for humans, or add-on detection algorithms. In-

tuitively, the average minimum perturbation which is

required to fool a given model yields a plausible met-

ric to characterize the robustness of a model (Papernot

et al., 2016). Hence, we can quantify the robustness

for a trained model F as

:= E

(X,Y )∼D



k∆Xk

kXk



, (3)

where the input-target-pairs (X,Y ) are drawn from

distribution D, and ∆X is the minimal perturbation

that is needed to fool the model F.

2.1 Attack Strategies

There are broadly two types of attacks: targeted and

non-targeted attacks. Targeted attacks aim to craft

adversarial examples which fool a model to predict

a speciﬁc class label. Non-targeted attacks have a

weaker objective, i.e., simply to classify an adversar-

ial example incorrectly.

Independent of the type, attack strategies can be

categorized broadly into two families of threat mod-

els. Black-box attacks aim to craft adversarial ex-

amples without any prior knowledge about the tar-

get model (Su et al., 2017; Sarkar et al., 2017; Cisse

et al., 2017; Dong et al., 2017). White-box attacks,

in contrast, require comprehensive prior knowledge

about the target model. There are several popu-

lar white-box attacks for computer vision applica-

tions (Szegedy et al., 2013; Goodfellow et al., 2014;

Liu et al., 2016; Moosavi-Dezfooli et al., 2016; Ku-

rakin et al., 2016; Poursaeed et al., 2017). Gray-box

attacks are a slightly weaker threat model in which the

adversary has only partial knowledge about the target

model.

The following (non-targeted) attack methods are

particularly relevant for our results.

• First, the Fast Gradient Sign Method

(FGSM) (Goodfellow et al., 2014), which

crafts adversarial perturbations ∆x by using the

sign of the gradient of the loss function L with

respect to the clean input image x. Let’s assume

that the true label of x is y. Then, the adversarial

example ˜x is constructed as

˜x = x + ε · sign(∇

L(F(x), y)), (4)

where ε controls the magnitude of the perturba-

tion. Here, the operator sign is an element-wise

function, extracting the sign of a real number.

Relatedly, the iterative variant IFGSM (Kurakin

et al., 2016) constructs adversarial examples using

1, ..., k steps

˜x

= clip

[ ˜x

k−1

+ ε ·sign(∇L (F( ˜x

k−1

), y))] , (5)

where clip

is an element-wise clipping function.

This approach is essentially a projected gradient

descent (PGD) method (Madry et al., 2017).

• Second, the Deep Fool (DF) method, which is

also an iterative method. (Moosavi-Dezfooli et al.,

2016). The DF method ﬁrst approximates the

model under consideration as a linear decision

boundary, and then seeks the smallest perturbation

needed to push an input image over that boundary.

DF can minimize the loss function using either the

∞

or L

norm.

• Third, the recently introduced trust region (TR)

based attack method (Yao et al., 2018). The

TR method performs similarly to the Carlini and

Wagner (CW) (Carlini and Wagner, 2017) attack

method, but is more efﬁcient in terms of the com-

putational resources required to construct the ad-

versarial examples.

2.2 Defense Strategies

Small perturbations are often imperceptible for both

humans and the predictive models, making the design

of counterattacks a non-trivial task. Commonly used

techniques for preventing overﬁtting (e.g., including

weight decay and dropout layers and then retraining)

do not robustify the model against adversarial exam-

ples. Akhtar and Mian (Akhtar and Mian, 2018) seg-

ment defense strategies into three categories.

The ﬁrst category includes strategies which rely

on specialized add-on (external) models which are

used to defend the actual network (Akhtar et al.,

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

105

2017; Lee et al., 2017; Shen et al., 2017; Xu et al.,

2017). The second category includes defense strate-

gies which modify the network architecture in order to

increase the robustness (Gu and Rigazio, 2014; Ross

and Doshi-Velez, 2017; Papernot et al., 2016; Nayebi

and Ganguli, 2017; Guo et al., 2017). Closely related

to our work, Zantedeschi et al. (Zantedeschi et al.,

2017) recently proposed a bounded ReLU activation

function as an efﬁcient defense against adversarial at-

tacks. Their motivation is to dampen large signals to

prevent accumulation of the adversarial perturbation

over layers as a signal propagates forward, using the

function. The third category aims to modify the in-

put data for the training and validation stage in order

to improve the robustness of the model (Miyato et al.,

2016; Guo et al., 2017; Bhagoji et al., 2018; Luo et al.,

2015; Liao et al., 2017).

A drawback of most state-of-the-art defense

strategies is that they involve modifying the network

architecture. Such strategies require that the new net-

work is re-trained or that new specialized models are

trained from scratch. This retraining is expensive in

both human and computation time. Further, special-

ized external models can require considerable effort

to be deployed and often increase the need of compu-

tational resources and inference time.

3 JumpReLU

The rectiﬁed linear unit (ReLU) and its variants have

arguably emerged as the most popular activation func-

tions for applications in the realm of computer vi-

sion. The ReLU activation function has beneﬁcial

numerical properties, and also has sparsity promot-

ing properties (Glorot et al., 2011). Indeed, sparsity

is a widely used concept in statistics and signal pro-

cessing (Hastie et al., 2015). For a given input x and

an arbitrary function f : R −→ R , the ReLU function

can be deﬁned as the positive part of the ﬁlter output

z = f (x) as

R(z) := max(z, 0), (6)

illustrated in Figure 3a. The ReLU function is also

known as the ramp function which has several other

interesting deﬁnitions. For instance, we can deﬁne the

ReLU function as

R(z) := zH(z), (7)

where H is the discrete Heaviside unit step function

H(z) :=

(

0 if z ≤ 0,

1 if z > 0.

(8)

Alternatively, the logistic function can be used for

smooth approximation of the Heaviside step function

H(z) :≈

1 + exp (−2βz)

. (9)

This smooth approximation resembles the Swish ac-

tivation function (Ramachandran et al., 2017), which

is deﬁned as

S(z) := z

1 + exp(−2βz)

. (10)

R(z)

(a) ReLU and Swish (dashed).

J(z)

(b) JumpReLU activation function.

∂J(z)

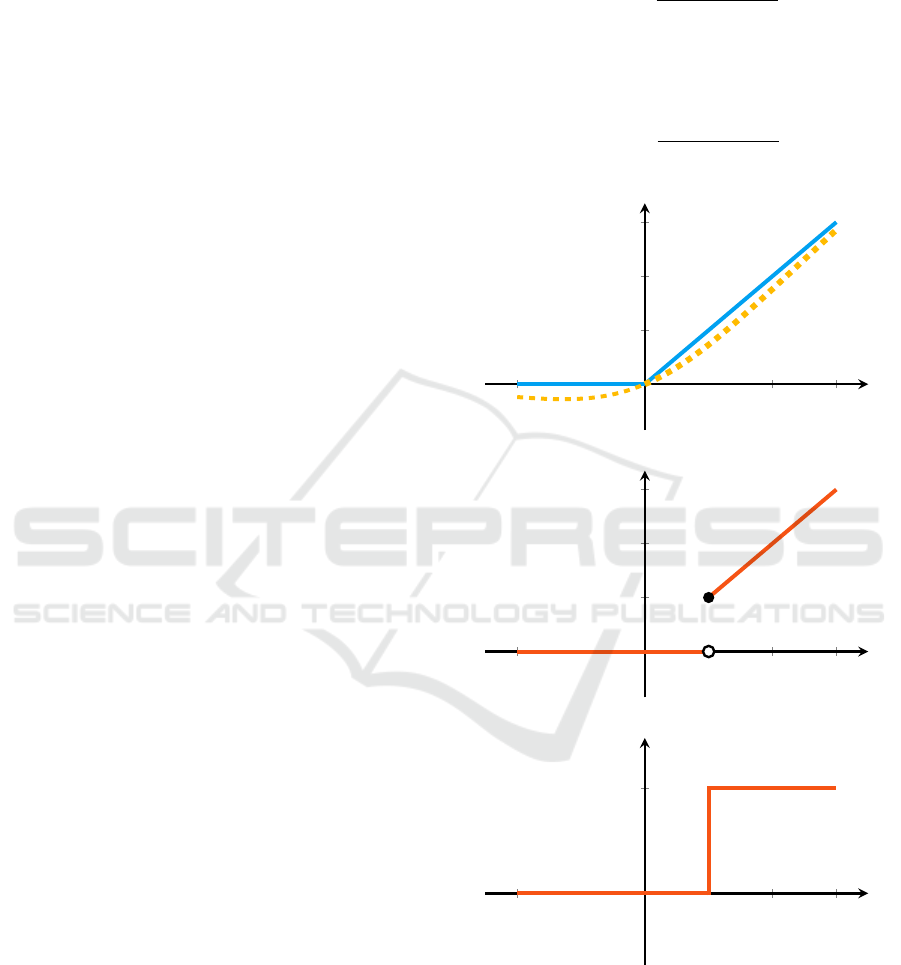

Figure 3: The ReLU is the most widely studied activation

function in context of adversarial attacks, shown in (a). In

addition its smooth approximation (Swish) is shown, with

β = 0.5. The JumpReLU activation (b) introduces robust-

ness and an additional amount of sparsity, controlled via the

jump size (threshold value) κ. In other words, JumpReLU

suppresses small positive signals. The corresponding subd-

ifferential ∂J(z) as a function of z is shown in (c).

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

106

The ReLU activation function works extremely

well in practice. However, a ﬁxed threshold value 0

seems arbitrary. Looking to biophysical systems can

inspire more biologically plausible as well as more

robust neural networks and activation functions (Glo-

rot et al., 2011; Nayebi and Ganguli, 2017). In par-

ticular, the brain utilizes nonlinear activation func-

tions to ﬁlter out noise sources in the neural response.

Biophysical properties inherent to each neuron de-

termines a threshold for eliciting an action poten-

tial (Amit, 1989). This allows the neuron to collect

and transmit relevant information. Indeed, threshold-

ing ﬁlters out noise sources in the neural response.

This allows the neuron to collect and transmit rele-

vant information. Thus, it seems reasonable to crop

activation functions so that they turn on only for in-

puts greater than or equal to the threshold value κ. In

this case, sub-threshold signals are suppressed, while

signiﬁcant signals are allowed to pass.

We introduce the JumpReLU function which sup-

presses signals of small magnitude and negative sign

J(z) := zH(z − κ) =

(

0 if z ≤ κ

z if z > κ,

(11)

illustrated in Figure 3b. This activation function intro-

duces a jump discontinuity, yielding piece-wise con-

tinuous functions. While this idea can likely be trans-

ferred to other activations, we restrict our focus to the

family of discrete ReLU activation functions.

Glorot et al. (Glorot et al., 2011) note that too

much sparsity can negatively affect the predictive ac-

curacy. Indeed, this might be an issue during the train-

ing stage, however, a ﬁne-tuned threshold value κ can

improve the robustness of the model during the vali-

dation stage by introducing an extra amount of spar-

sity. The tuning parameter κ can be used to control the

trade-off between predictive accuracy and robustness

of the model. Importantly, JumpReLU can be used to

retroﬁt previously trained networks in order to miti-

gate the risk to be fooled by adversarial examples.

Note that the threshold value κ can be tuned

cheaply during the validation stage once the network

is trained, i.e., without the need for expensive retrain-

ing of the model.

4 EXPERIMENTS

We ﬁrst outline the setup which we use to evaluate the

performance of the proposed JumpReLU activation

function. We restrict our evaluation to MNIST and

CIFAR10, since these are the two standard datasets

which are most widely used in the literature to study

adversarial attacks.

• The MNIST dataset (LeCun et al., 1998) provides

28 × 28 gray-scale image patches for 10 classes

(digits), comprising 60, 000 instances for training,

and 10, 000 examples for validation. For our ex-

periments we use a LeNet5 like architecture with

an additional dropout layer.

• The CIFAR10 dataset (Krizhevsky and Hinton,

2009) provides 32 × 32 RGB image patches for

10 classes, comprising 50, 000 instances for train-

ing, and 10, 000 examples for validation. For our

CIFAR10 experiments we use a simple AlexLike

architecture proposed by (Carlini and Wagner,

2017); a wide ResNet architecture (Zagoruyko

and Komodakis, 2016) of depth 30 and with width

factor 4; and a MobileNetV2 architecture which is

using inverted residuals (Sandler et al., 2018).

We aim to match the experimental setup for cre-

ating adversarial examples as closely as possible to

prior work. Thus, we follow the setup proposed by

Madry et al. (Madry et al., 2017) and Buckman et

al. (Buckman et al., 2018). For all MNIST experi-

ments we use ε = 0.01 and 40 attack iterations; for

experiments on CIFAR10 we use the same ε, and 7

steps for PGD and Deep Fool attacks. For the TR at-

tack method we use 1000 steps. Note, these values

are chosen by following the assumption that an at-

tacker aims to construct adversarial examples which

have imperceptible perturbations. Further, we assume

that the attacker has only a limited budget of compu-

tational resources at disposal.

We also evaluate the effectiveness of the

JumpReLU for adversarially trained networks. Train-

ing the model with adversarial examples drastically

increases the robustness with respect to the speciﬁc

attack method used to generate the adversarial train-

ing examples (Goodfellow et al., 2014). Here, we use

the FGSM method to craft examples for adversarial

training with ε = 0.3 for MNIST, and ε = 0.03 for CI-

FAR10. Unlike Madry et al. (Madry et al., 2017), we

perform robust training with mixed batches composed

of both clean and adversarial examples. This leads to

an improved accuracy on clean examples, while being

slightly less robust. The speciﬁc ratio of the numbers

of clean to adversarial examples can be seen as a tun-

ing parameter, which may depend on the application.

4.1 Results

In the following, we compare the performance of

JumpReLU to the standard ReLU activation function

for both gray-box and white-box attack scenarios. For

each scenario, we consider three different iterative at-

tack methods: the Projected Gradient Descent (PGD)

method, the Deep Fool (DF) method using both the

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

107

(denoted as DF

) and L

∞

norm (denoted as DF

∞

)

as well as the Trust Region (TR) attack method. Here,

we use the TR method as a surrogate for the more

popular Carlini and Wagner (CW) (Carlini and Wag-

ner, 2017) attack method. This is because the CW

method requires enormous amounts of computational

resources to to construct adversarial examples, and re-

cent work has shown that the TR method performs

similarly with much less computational cost (Yao

et al., 2018). For instance, it takes about one hour

to construct 300 adversarial examples for CIFAR10

using the CW method, despite using a state-of-the-

art GPU and the implementation provided by (Rauber

et al., 2017).

4.1.1 Gray-box Attack Scenario

We start our evaluation by considering the gray-box

attack scenario. In this “vanilla” ﬂavored setting, we

assume that the adversary has only partial knowledge

about the model. Here, the adversary has full access

to the ReLU network to construct adversarial exam-

ples, but it has no information about the JumpReLU

setting during inference time.

Table 1 shows a summary of results for MNIST

and CIFAR10 using different network architectures.

The ReLU network is used as a source network to

craft adversarial examples which are then used to at-

tack the JumpReLU network. We present results for

models trained on clean data only (base) and adver-

sarially trained models (robust).

The results presented in Table 1 show that the pos-

itive beneﬁts of JumpReLU are pronounced across

the different datasets and architectures, while the loss

of accuracy on clean examples is moderate. Clearly,

more complex residual networks appear to be more

vulnerable than the simpler AlexLike network. Still,

JumpReLU is able to increase the robustness with re-

spect to Deep Fool attacks.

Surprisingly, the JumpReLU is also able to sub-

stantially improve the resilience of robustly trained

models. Indeed, this demonstrates the ﬂexibility of

our approach and shows that retroﬁtting is not limited

to weak models only. Further, we see that the adver-

sarially trained models are more robust with respect

to the speciﬁc attack method used for training, while

still being vulnerable to other attack methods. In con-

trast, our defense strategy based on the JumpReLU is

agnostic to speciﬁc attack methods, i.e., we improve

the robustness with respect to all attacks considered

here. Note we could further increase the jump value

for the robust models, in order to increase the robust-

ness to the Deep Fool and TR attack method. How-

ever, this comes with the price of sacriﬁcing slightly

more accuracy on clean data.

Table 1: Summary of results for gray-box attacks. The num-

bers indicate the accuracy, i.e., the percentage of correctly

classiﬁed instances (higher numbers indicate better robust-

ness). The ReLU network (indicated by a ‘*’) is used as the

source model to generate adversarial examples. The best

performance in each category is highlighted in bold letters.

Robust adversarial trained models are highlighted in gray.

Model Accuracy PGD DF

∞

ReLU (Base)* 99.55% 66.69% 0.0% 0.0% 0.0%

JumpReLU 99.53% 91.65% 81.39% 58.93% 58.90

ReLU (Robust)* 99.50% 91.39% 0.0% 0.0% 0.0%

JumpReLU 99.47% 97.07% 70.84% 45.17% 53.24%

Results for LeNet like network (MNIST); κ = 1.0.

Model Accuracy PGD DF

∞

ReLU (Base)* 89.46% 6.38% 0.0% 0.0% 0.0%

JumpReLU 87.52% 45.75% 61.82% 60.55% 53.08%

ReLU (Robust)* 87.93% 51.88% 0.0% 0.0% 0.0%

JumpReLU 86.19% 67.65% 52.28% 46.9% 51.52%

Results for AlexLike network (CIFAR10); κ = 0.4.

Model Accuracy PGD DF

∞

ReLU (Base)* 94.31% 0.0% 0.0% 0.0% 0.0%

JumpReLU 92.58% 0.39% 37.33% 40.21% 45.90%

ReLU (Robust)* 93.72% 60.43 0.0% 0.0% 0.0%

JumpReLU 93.01% 70.25% 28.62% 26.11% 35.33%

Results for Wide ResNet (CIFAR10); κ = 0.07.

Model Accuracy PGD DF

∞

ReLU (Base)* 92.07% 0.0% 0.0% 0.0% 0.0%

JumpReLU 90.43% 0.54% 40.69% 41.61% 43.18%

ReLU (Robust)* 91.69% 53.98 0.0% 0.0% 0.0%

JumpReLU 90.12% 66.37% 37.31% 35.45% 40.4%

Results for MobileNetV2 (CIFAR10); κ = 0.06.

4.1.2 White-box Attack Scenario

We next consider the more challenging white-box at-

tack scenario. Here, the adversary has full knowledge

about the model, and it can access their gradients.

Table 2 summarizes the results for the differ-

ent datasets and architectures under consideration.

Again, we see some considerable improvements for

the retroﬁtted models—especially, the retroﬁtted ro-

bustly trained wide ResNet and MobileNetV2 ex-

cel. The performance of JumpReLU is even compet-

itive in comparison to more sophisticated techniques

such as one-hot and thermometer encoding (the au-

thors provide only scores for the FGSM and PGD

attack method) (Buckman et al., 2018). This is de-

spite the fact that JumpReLU does not require that

the model is re-trained from scratch. We can simply

select a suitable jump value κ during the validation

stage. The choice of the jump value depends thereby

on the desired trade-off between accuracy and robust-

ness, i.e., large jump values improve the robustness,

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

108

while decreasing the accuracy on clean examples. We

also considered comparing with the bounded ReLU

method (Zantedeschi et al., 2017), but our preliminary

results showed a poor performance.

The adversarially trained (robust) models provide

a good defense against the PGD attack. However,

Deep Fool is able to fool all instances in the test set

using only 7 iterations, and TR using 1000 iterations.

On ﬁrst glance, this performance seems to be unde-

sirable. We can see, however, that Deep Fool re-

quires substantially increased average minimum per-

turbations in order to achieve such a high fool rate.

The numbers in parentheses in Table 2 indicate the

Table 2: Summary of results for white-box attacks. The

numbers indicate the accuracy, i.e., the percentage of cor-

rectly classiﬁed instances (higher numbers indicate better

robustness). The Deep Fool method is able to fool all in-

stances using only 7 iterations, hence we show here the

average minimum perturbations in parentheses. The best

performance in each category is highlighted in bold letters.

Robust adversarial trained models are highlighted in gray.

Model Accuracy PGD DF

∞

ReLU (Base) 99.55% 66.69% (17.9%) (21.8% ) (18.9%)

JumpReLU 99.53% 83.21% (34.1%) (44.9% ) (25.0%)

ReLU (Robust) 99.50% 91.39% (28.4% ) (31.4% ) (24.7%)

JumpReLU 99.47% 94.36% (46.6%) (53.3%) (32.8%)

Madry 98.80% 93.20% - - -

Vanilla 99.03% 91.36% - - -

One-hot 99.01% 93.77% - - -

Thermo 99.23% 93.70% - - -

Results for LeNet like network (MNIST); κ = 1.0.

Model Accuracy PGD DF

∞

ReLU (Base) 89.46% 6.38% (1.2%) (1.5%) (1.3%)

JumpReLU 87.52% 18.56% (9.80%) (10.6%) (1.7%)

ReLU (Robust) 87.93% 51.88% (3.6%) (4.2%) (3.6%)

JumpReLU 86.19% 56.70% (13.2%) (14.1%) (4.3%)

Results for AlexLike network (CIFAR10); κ = 0.4.

Model Accuracy PGD DF

∞

ReLU (Base) 94.31% 0.37% (1.4%) (1.8%) (1.3%)

JumpReLU 92.58% 0.95% (14.3%) (18.5%) (1.9%)

ReLU (Robust) 93.72% 60.43% (6.4%) (7.5%) (4.8%)

JumpReLU 93.01% 67.89% (44.4%) (43.8%) (6.1%)

Madry 87.3% 50.0% - - -

Vanilla 87.16% 34.71% - - -

One-hot 92.19% 58.96% - - -

Thermo 92.32% 65.67% - - -

Results for WideResNet (CIFAR10); κ = 0.07.

Model Accuracy PGD DF

∞

ReLU (Base) 92.07% 0.74% (0.7%) (0.9%) (0.7%)

JumpReLU 91.10% 0.92% (5.3%) (6.8%) (1.0%)

ReLU (Robust) 91.69% 53.98% (4.7%) (5.3%) (4.1%)

JumpReLU 90.12% 59.66% (62.6%) (51.4%) (4.9%)

Results for MobileNetV2 (CIFAR10); κ = 0.06.

average minimum perturbations which are needed to

achieve a nearly 100 percent fooling rate. These num-

bers provide a measure for the empirical robustness of

the model, which we compute by using the following

plug-in estimator

∑

− ˜x

, (12)

with ˜x

= x

+ ∆x

. Here, we compute the relative

rather than absolute perturbations. The relative mea-

sure provides a more intuitive interpretation, i.e., the

numbers reﬂecting the average percentage of changed

information in the adversarial examples.

The numbers show that the retroﬁtted models fea-

ture an improved robustness, while maintaining a

‘good’ predictive accuracy for clean examples. For

MNIST, the noise levels need to be increased by a fac-

tor of about 2 in order to achieve a 100 percent fooling

rate. Here, we set the JumpReLU threshold value to

κ = 1.0. For CIFAR10, we achieve a stellar perfor-

mance of resilience to the Deep Fool attacks, i.e., the

noise levels are required to be increased by a factor of

3 to 7 to achieve a successful attack.

Clearly, we can see that the TR method is a

stronger attack than Deep Fool. However, we are still

able to achieve an improved resilience to this attack.

4.1.3 Performance Trade-offs

As mentioned, the JumpReLU activation function

provides a trade-off between robustness and classiﬁ-

cation accuracy. The user can control this trade-off in

a post-training stage by tuning the threshold value κ,

where κ = 0 resembles the ReLU activation function.

Figure 4 contextualizes this trade-off for the

LeNet Like network (MNIST) and the AlexLike net-

work (CIFAR10). We see that the threshold value κ is

positively correlated to the level of perturbation which

is required in order to achieve a 100 percent fooling

rate. Choosing larger threshold values increase the ro-

bustness of the model, while sacriﬁcing only a slight

amount of predictive accuracy.

Larger thresholds only marginally affect the ac-

curacy of the LeNet like network on clean examples,

while the the AlexLike network (CIFAR10) is more

sensitive. Thus, the decision of a ‘good’ jump value

is application dependent.

4.1.4 Visual Results

The interested reader may ask whether the increased

adversarial perturbations are of any practical signiﬁ-

cance. To address this question, we show some visual

results which illustrate the magnitude of the effect.

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

109

0.00 0.25 0.50 0.75 1.00 1.25 1.50

Jump ReLU threshold value

0.9925

0.9930

0.9935

0.9940

0.9945

0.9950

Average accuracy

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Level of perturbation

DeepFool

clean

(a) LeNet like network (MNIST)

(b) AlexLike network (CIFAR10)

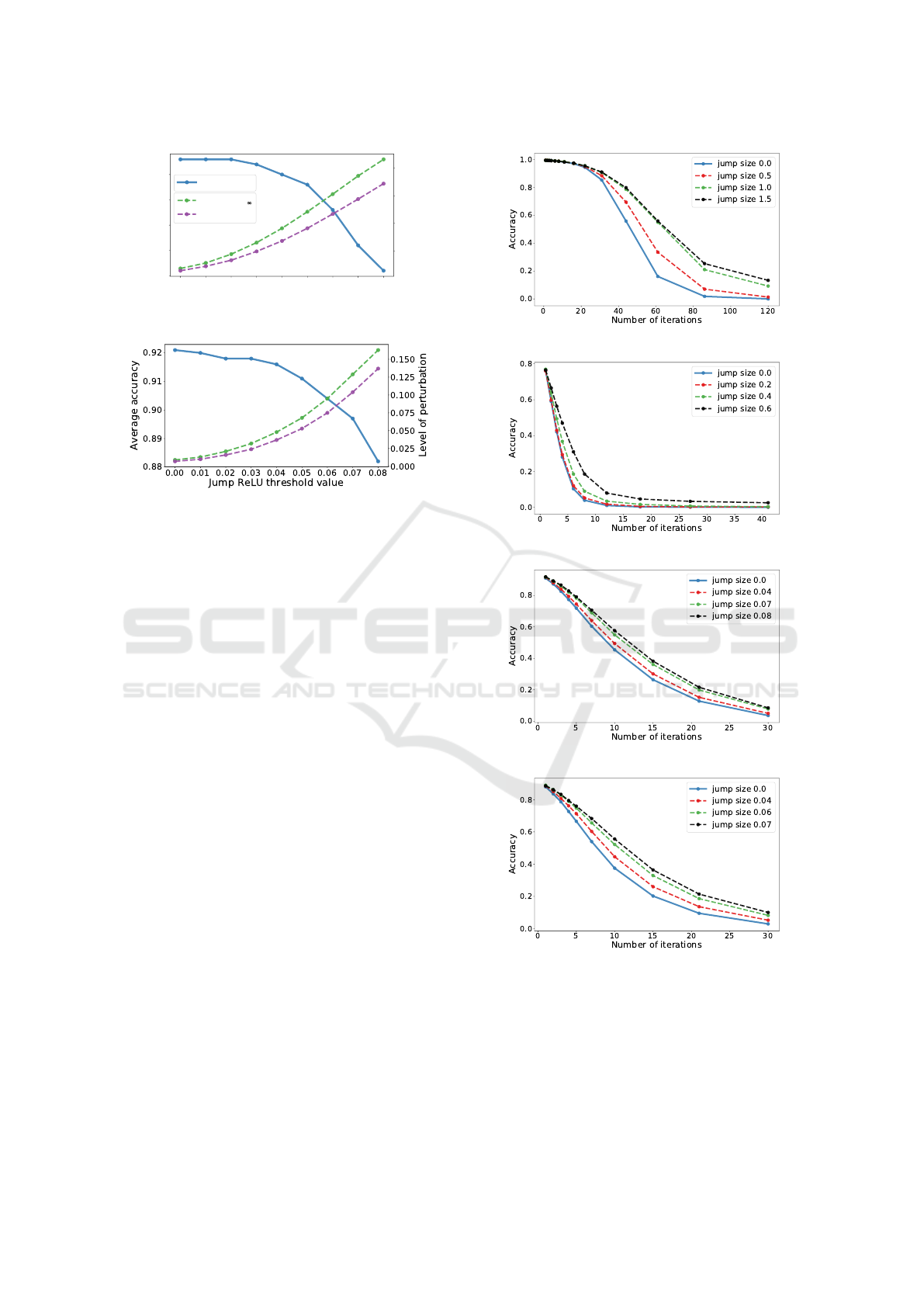

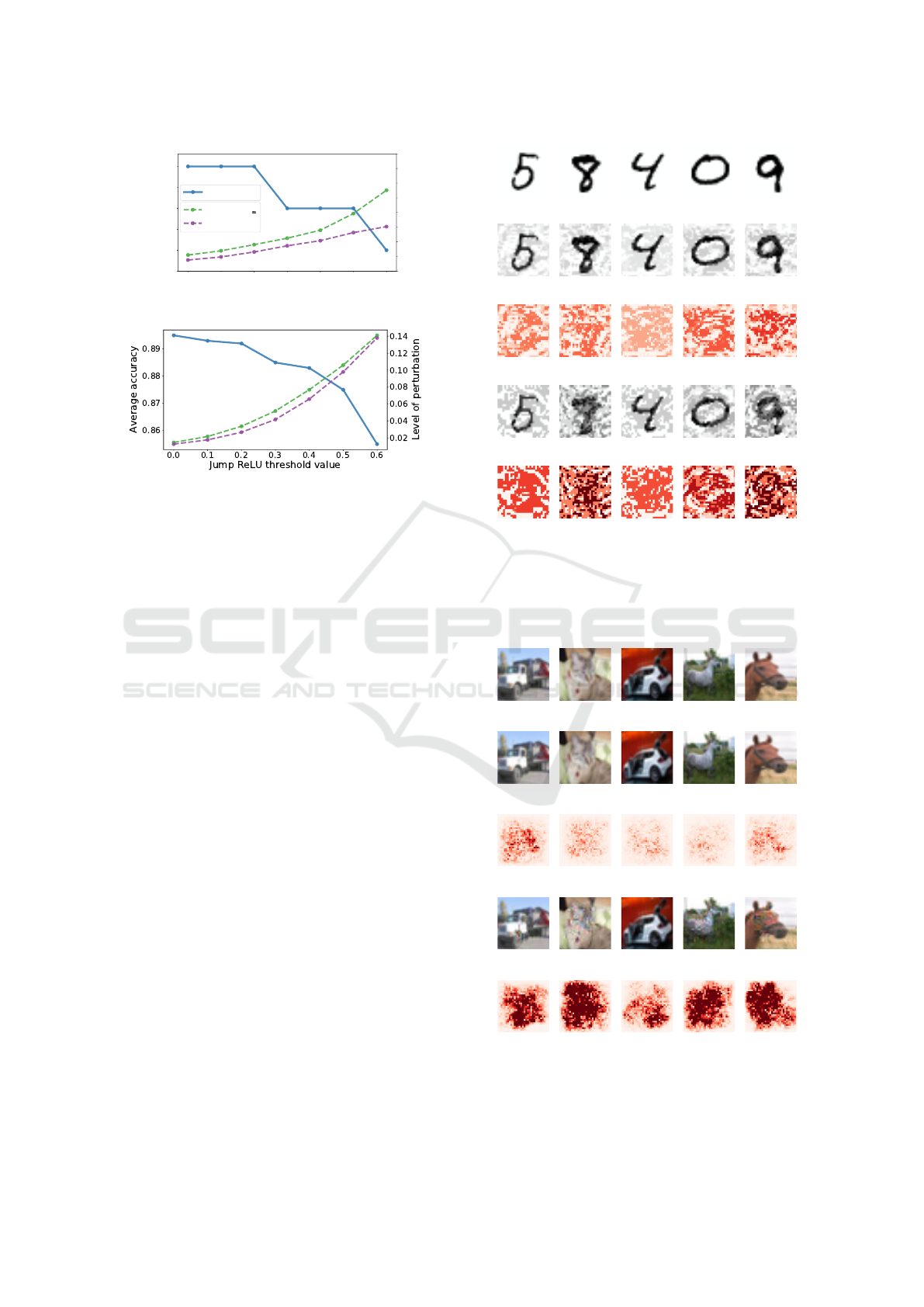

Figure 4: JumpReLU performance trade-offs for MNIST

and CIFAR10. The left axis shows the average predic-

tive accuracy for clean examples for varying values of the

JumpReLU threshold. The right axis shows the minimum

level of perturbation required to construct adversarial ex-

amples which achieve a nearly 100% fooling rate.

Recall the aim of the adversary is to construct unob-

trusive adversarial examples.

Figure 5 shows both clean and adversarial exam-

ples for the MNIST dataset, which are crafted by the

Deep Fool algorithm. Clearly, the adversarial exam-

ples which are needed to fool the retroﬁtted LeNet

like network are visually distinct from those examples

which are sufﬁcient to fool the unprotected model.

We also show the corresponding perturbation pat-

terns, i.e., the absolute pixel-wise difference between

the clean and adversarial examples, to better contex-

tualize the difference. Note that we use a “reds” color

scheme here: white indicates no perturbations, light

red indicates very small perturbations, dark red indi-

cates large perturbations.

Next, Figure 6 shows visual results for the CI-

FAR10 dataset. It is well known that models for this

dataset are highly vulnerable, i.e., very small pertur-

bations ∆x are already sufﬁcient for a successful at-

tack. Indeed, the minimal perturbations which are

needed to fool the unprotected network (here we show

results for the AlexLike network) are nearly imper-

ceptible by visual inspection. In contrast, the crafted

adversarial examples to attack the retroﬁtted model

show distinct perturbation patterns, and one can rec-

ognize that the examples were altered.

In summary, the visual results put the previously

presented relative noise levels into perspective, and

(a) Clean examples which are used for training.

(b) Adversarial examples to fool a standard model.

(d) Adversarial examples to fool the retroﬁtted model.

(e) Perturbation patterns to fool the retroﬁtted model.

Figure 5: Visual results for MNIST to verify the effect of the

JumpReLU defense strategy against the DF

∞

attack. No-

ticeable higher levels of perturbations are required to suc-

cessfully attack the retroﬁtted network. Subﬁgures (c) and

(e) show the corresponding perturbation patterns.

(a) Clean

(b) Adversarial examples to fool a standard model.

(d) Adversarial examples to fool the retroﬁtted model.

(e) Perturbation patterns to fool the retroﬁtted model.

Figure 6: Visual results for CIFAR10. The DF

attack re-

quires noticeable higher levels of perturbations in order to

successfully attack the retroﬁtted network.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

110

Table 3: AUC scores as measure of the discrimination

power between clean and adversarial examples using LID

characteristics. Here we compare ReLU and JumpReLU.

Model PGD DF

∞

LID + ReLU 72.54 73.41 72.93 72.47

LID + JumpReLU 74.25 78.24 75.84 74.71

they show that average minimum perturbations of

about 5% to 10% are lucid. Thus, it can be con-

cluded that the JumpReLU is an effective strategy for

improving the model robustness.

4.1.5 Detection with LID

As a proof-of-concept, we demonstrate that the in-

creased minimum perturbations, which are required

to attack the retroﬁtted model can help to improve the

discrimination power of add-on adversarial detectors.

We follow the work by Ma et al. (Ma et al., 2018),

who use the idea of Local Intrinsic Dimensionality

(LID) to characterize adversarial subspaces. The idea

is that clean and adversarial examples show distinct

patterns so that the LID characteristics allow to dis-

criminate between such examples.

Intuitively, adversarial examples which show in-

creased perturbation patterns should feature more ex-

treme LID characteristics. Hence, a potential applica-

tion of the JumpReLU is to combine it with an LID

based detector. Table 3 shows the area under a re-

ceiver operating characteristic curve (AUC) as a mea-

sure for the discriminate power between clean and ad-

versarial examples. Indeed, the results show that the

combination with JumpReLU improves the detection

performance for CIFAR10.

5 CONCLUSION

We have proposed a new activation function—the

JumpReLU function—which, when used in place of

a ReLU in an already pre-trained model, leads to a

trade-off between predictive accuracy and robustness.

This trade-off is controlled by a parameter, the jump

size, which can be tuned during the validation stage.

That is, no additional training of the pre-trained model

is needed when the JumpReLU function is used. (Of

course, if one wanted to perform additional expensive

training, then one could do so.) Our experimental

results show that this simple and inexpensive strat-

egy improves the resilience to adversarial attacks of

previously-trained networks.

Limitations of our approach are standard for

current adversarial defense methods, in that stand-

alone methods do not guarantee a holistic protec-

tion and that sufﬁciently high levels of perturbation

will be able to break the defense. That being said,

JumpReLU can easily be used as a stand-alone ap-

proach to “retroﬁt” previously-trained networks, im-

proving their robustness, and it can also be used to

support other more complex defense strategies.

ACKNOWLEDGEMENT

NBE and MWM would like to acknowledge support

from DARPA and the Air Force Research Laboratory

under agreement number FA8750-17-2-0122. The

U.S. Government is authorized to reproduce and dis-

tribute reprints for Governmental purposes notwith-

standing any copyright notation thereon. The views

and conclusions contained herein are those of the au-

thors and should not be interpreted as necessarily rep-

resenting the ofﬁcial policies or endorsements, either

expressed or implied, of DARPA and the Air Force

Research Laboratory or the U.S. Government.

REFERENCES

Akhtar, N., Liu, J., and Mian, A. (2017). Defense against

universal adversarial perturbations. arXiv preprint

arXiv:1711.05929.

Akhtar, N. and Mian, A. (2018). Threat of adversarial at-

tacks on deep learning in computer vision: A survey.

arXiv preprint arXiv:1801.00553.

Amit, D. J. (1989). Modeling Brain Function: The World

of Attractor Neural Networks. Cambridge University

Press.

Bhagoji, A. N., Cullina, D., Sitawarin, C., and Mittal, P.

(2018). Enhancing robustness of machine learning

systems via data transformations. In Information Sci-

ences and Systems (CISS), 2018 52nd Annual Confer-

ence on, pages 1–5. IEEE.

Buckman, J., Roy, A., Raffel, C., and Goodfellow, I. (2018).

Thermometer encoding: One hot way to resist ad-

versarial examples. In International Conference on

Learning Representations.

Carlini, N. and Wagner, D. (2017). Towards evaluating the

robustness of neural networks. In 2017 IEEE Sym-

posium on Security and Privacy (SP), pages 39–57.

IEEE.

Cisse, M., Adi, Y., Neverova, N., and Keshet, J. (2017).

Houdini: Fooling deep structured prediction models.

arXiv preprint arXiv:1707.05373.

Dong, Y., Liao, F., Pang, T., Su, H., Hu, X., Li, J., and Zhu,

J. (2017). Boosting adversarial attacks with momen-

tum. arXiv preprint arXiv:1710.06081.

Glorot, X., Bordes, A., and Bengio, Y. (2011). Deep sparse

rectiﬁer neural networks. In Proceedings of the four-

teenth international conference on artiﬁcial intelli-

gence and statistics, pages 315–323.

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

111

Goodfellow, I., Bengio, Y., and Courville, A. (2016). Deep

Learning. The MIT Press.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2014). Ex-

plaining and harnessing adversarial examples. CoRR,

abs/1412.6572.

Gu, S. and Rigazio, L. (2014). Towards deep neural network

architectures robust to adversarial examples. arXiv

preprint arXiv:1412.5068.

Guo, C., Rana, M., Cisse, M., and van der Maaten, L.

(2017). Countering adversarial images using input

transformations. arXiv preprint arXiv:1711.00117.

Hastie, T., Tibshirani, R., and Wainwright, M. (2015). Sta-

tistical learning with sparsity: the lasso and general-

izations. CRC press.

Krizhevsky, A. and Hinton, G. (2009). Learning multiple

layers of features from tiny images. Technical report,

Citeseer.

Kurakin, A., Goodfellow, I., and Bengio, S. (2016). Adver-

sarial examples in the physical world. arXiv preprint

arXiv:1607.02533.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. nature, 521(7553):436.

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Lee, H., Han, S., and Lee, J. (2017). Generative adversarial

trainer: Defense to adversarial perturbations with gan.

arXiv preprint arXiv:1705.03387.

Liao, F., Liang, M., Dong, Y., Pang, T., Zhu, J., and Hu,

X. (2017). Defense against adversarial attacks us-

ing high-level representation guided denoiser. arXiv

preprint arXiv:1712.02976.

Liu, Y., Chen, X., Liu, C., and Song, D. (2016). Delving

into transferable adversarial examples and black-box

attacks. arXiv preprint arXiv:1611.02770.

Luo, Y., Boix, X., Roig, G., Poggio, T., and Zhao, Q.

(2015). Foveation-based mechanisms alleviate adver-

sarial examples. arXiv preprint arXiv:1511.06292.

Ma, X., Li, B., Wang, Y., Erfani, S. M., Wijewickrema, S.,

Schoenebeck, G., Song, D., Houle, M. E., and Bai-

ley, J. (2018). Characterizing adversarial subspaces

using local intrinsic dimensionality. arXiv preprint

arXiv:1801.02613.

Madry, A., Makelov, A., Schmidt, L., Tsipras, D., and

Vladu, A. (2017). Towards deep learning mod-

els resistant to adversarial attacks. arXiv preprint

arXiv:1706.06083.

Miyato, T., Dai, A. M., and Goodfellow, I. (2016). Adver-

sarial training methods for semi-supervised text clas-

siﬁcation. arXiv preprint arXiv:1605.07725.

Moosavi-Dezfooli, S.-M., Fawzi, A., and Frossard, P.

(2016). Deepfool: a simple and accurate method to

fool deep neural networks. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 2574–2582.

Nayebi, A. and Ganguli, S. (2017). Biologically inspired

protection of deep networks from adversarial attacks.

arXiv preprint arXiv:1703.09202.

Papernot, N., McDaniel, P., Wu, X., Jha, S., and Swami, A.

(2016). Distillation as a defense to adversarial pertur-

bations against deep neural networks. In 2016 IEEE

Symposium on Security and Privacy (SP), pages 582–

597. IEEE.

Poursaeed, O., Katsman, I., Gao, B., and Belongie, S.

(2017). Generative adversarial perturbations. arXiv

preprint arXiv:1712.02328.

Ramachandran, P., Zoph, B., and Le, Q. V. (2017).

Searching for activation functions. arXiv preprint

arXiv:1710.05941.

Rauber, J., Brendel, W., and Bethge, M. (2017). Fool-

box v0. 8.0: A python toolbox to benchmark the ro-

bustness of machine learning models. arXiv preprint

arXiv:1707.04131.

Ross, A. S. and Doshi-Velez, F. (2017). Improving the ad-

versarial robustness and interpretability of deep neural

networks by regularizing their input gradients. arXiv

preprint arXiv:1711.09404.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2018). Mobilenetv2: Inverted residu-

als and linear bottlenecks. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 4510–4520.

Sarkar, S., Bansal, A., Mahbub, U., and Chellappa, R.

(2017). Upset and angri: Breaking high performance

image classiﬁers. arXiv preprint arXiv:1707.01159.

Shen, S., Jin, G., Gao, K., and Zhang, Y. (2017). APW-

GAN: Adversarial perturbation elimination with

GAN. arXiv preprint arXiv:1707.05474.

Su, J., Vargas, D. V., and Kouichi, S. (2017). One pixel at-

tack for fooling deep neural networks. arXiv preprint

arXiv:1710.08864.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Er-

han, D., Goodfellow, I., and Fergus, R. (2013). In-

triguing properties of neural networks. arXiv preprint

arXiv:1312.6199.

Tanay, T. and Grifﬁn, L. (2016). A boundary tilting

persepective on the phenomenon of adversarial exam-

ples. arXiv preprint arXiv:1608.07690.

Xu, W., Evans, D., and Qi, Y. (2017). Feature squeez-

ing: Detecting adversarial examples in deep neural

networks. arXiv preprint arXiv:1704.01155.

Yao, Z., Gholami, A., Xu, P., Keutzer, K., and Mahoney,

M. (2018). Trust region based adversarial attack on

neural networks. arXiv preprint arXiv:1812.06371.

Zagoruyko, S. and Komodakis, N. (2016). Wide residual

networks. arXiv preprint arXiv:1605.07146.

Zantedeschi, V., Nicolae, M.-I., and Rawat, A. (2017). Efﬁ-

cient defenses against adversarial attacks. In Proceed-

ings of the 10th ACM Workshop on Artiﬁcial Intelli-

gence and Security, pages 39–49. ACM.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

112

APPENDIX

A Second Look to the Gray-box Attack

We present an extended set of results for the gray-

box attack scenario. Speciﬁcally, we study the situa-

tion where the adversary has full access to a retroﬁtted

model (which has a ﬁxed jump value) in order to con-

struct adversarial examples, but the adversary has no

information about the jump value of the target net-

work during inference time.

Here, the adversarial examples are crafted by

using the projected gradient descent (PGD) attack

(a) Transferability for MNIST.

(b) Transferability for CIFAR10.

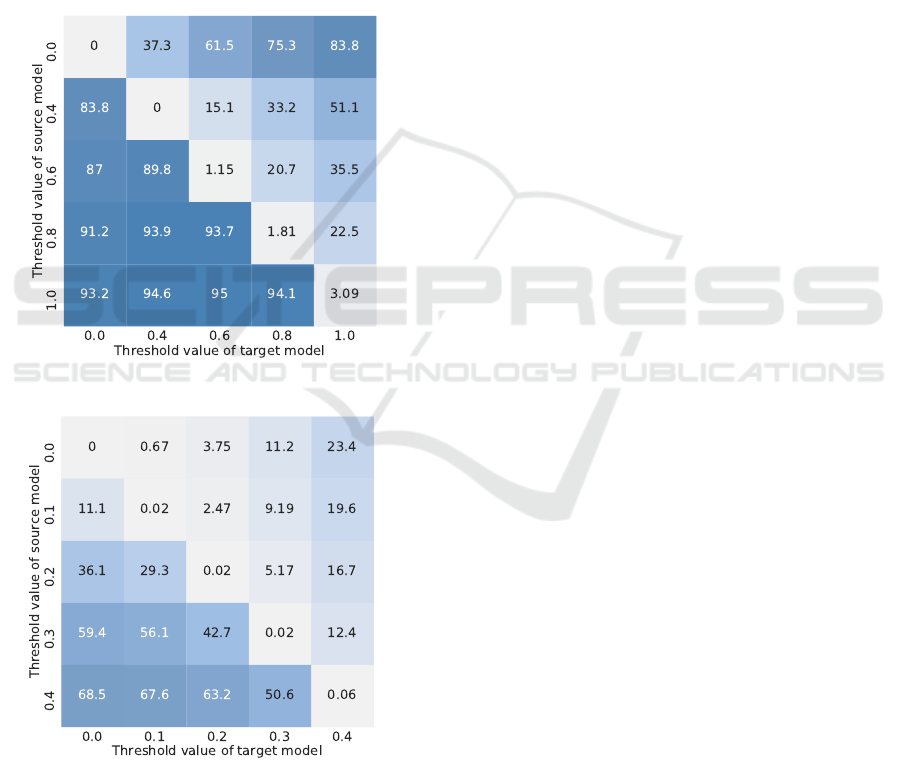

Figure 7: Gray-box attack matrix for different jump values.

Each cell (i, j) indicates the predictive accuracy of a model

retroﬁtted with the jump value j (target), which is being at-

tack by using adversarial examples generated by a model

with jump value i (source). Higher cell values indicate bet-

ter robustness.

method. Figure 7 shows the efﬁciency of a non-

targeted attack on networks using different jump val-

ues. Note, we run the attack with a large number of

iterations, enough so that the crafted adversarial ex-

amples achieve a nearly 100 percent fool rate for the

source model.

We see that the attack is unidirectional, i.e., ad-

versarial examples crafted by using source models

which have a low jump value can be used to attack

models which have a higher jump value. However,

retroﬁtted models which have a low jump value are

resilient to adversarial examples generated by source

models which have a large jump value. Thus, one

could robustify the network by using a large jump size

κ for evaluating the gradient, while using a smaller

jump size for inference. Of course, this is a some-

what pathological setup, yet these results reveal some

interesting behavioral properties of the JumpReLU.

Additional Results to Characterize the

Performance Trade-offs

The JumpReLU activation function poses a trade-

off between robustness and classiﬁcation accuracy.

Here we provide additional results for both the wide

ResNet and MobileNetV2 architectures. Recall, the

user can control this trade-off in a post-training stage

by tuning the threshold value κ, where κ = 0 resem-

bles the ReLU activation function.

Figure 8 shows the performance trade-offs for the

two different architectures. We can see, that the ad-

versarial examples (crafted by using the Deep Fool

method) require increased levels of perturbations in

order to successfully attack the retroﬁtted models

which have higher jump values. Of course, the user

needs to decide how much accuracy on clean data he

is willing to sacriﬁce in order to buy more robustness.

However, this sacriﬁce is standard to most robustiﬁ-

cation strategies. For instance, for adversarial train-

ing one must choose the ratio between clean and ad-

versarial examples used for training, where a higher

ratio of adversarial examples improves the robustness

while decreasing the predictive accuracy.

Accuracy vs Number of Iterations

Iterative attack methods can be computational de-

manding if a large number of iterations is required

to craft strong adversarial examples. Of course, it is

an easy task to break any defense with unlimited time

and computational resources. However, it is the aim

of an attacker to design efﬁcient attack strategies (i.e.,

fast generation of examples which have minimal per-

turbations), while the defender aims to make models

JumpReLU: A Retroﬁt Defense Strategy for Adversarial Attacks

113

0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08

Jump ReLU threshold value

0.920

0.925

0.930

0.935

0.940

Average accuracy

0.05

0.10

0.15

0.20

Level of perturbation

DeepFool

clean

(a) Wide ResNet (CIFAR10)

(b) MobileNetV2 (CIFAR10)

Figure 8: JumpReLU performance trade-offs for MNIST

and CIFAR10. The left axis shows the average predic-

tive accuracy for clean examples for varying values of the

JumpReLU threshold. The right axis shows the minimum

level of perturbation required to construct adversarial ex-

amples which achieve a nearly 100% fooling rate.

more robust to these attacks (i.e., force the attacker to

increase the average minimal perturbations which are

needed to fool the model).

Figure 9 contextualizes the accuracy vs the num-

ber of iterations for the PGD attack. Attacking the

retroﬁtted model requires a larger number of itera-

tions in order to achieve the same fool rate as for

the unprotected network. This is important, because

a large number of iterations requires more compu-

tational resources as well as increases the computa-

tional time. To put the numbers into perspective, it

takes about 4 minutes to run 7 iterations to attack the

unprotected wide ResNet. In contrast, it takes about 5

minutes to run 7 steps to attack the retroﬁtted model.

(a) LeNet like network (MNIST).

(b) AlexLike (CIFAR10).

(d) Robust MobileNetV2 (CIFAR10).

Figure 9: Strength of the PGD attack for increasing num-

bers of iterations. The PGD method requires a large num-

ber of iterations to craft strong adversarial examples. The

JumpReLU increases the model robustness, i.e., the fooling

rate is reduced for a ﬁxed number of iterations.

ICPRAM 2020 - 9th International Conference on Pattern Recognition Applications and Methods

114
