Artificial Neural Networks and Reinforcement Learning for

Model-based Design of an Automated Vehicle Guidance System

Or Aviv Yarom

, Soeren Scherler

, Marian Goellner

and Xiaobo Liu-Henke

Ostfalia University of Applied Sciences, Salzdahulmer Str. 46/48, 38302 Wolfenbuettel, Germany

Keywords: Artificial Intelligence, AI, Artificial Neural Networks, ANN, Genetic Algorithm, Reinforcement Learning,

Automated Vehicle Guidance, Automated Lateral Guidance, Automated Driving, ADAS.

Abstract: This paper presents the model-based development of a function for lateral control of an automated vehicle

using Artificial Neural Networks (ANN) and Genetic Algorithms (GA). After an explanation of the method-

ology used and a summary of the state of the art for automated lateral control as well as for ANNs and rein-

forcement learning, the driving function is designed in the form of a functional structure. This is followed by

a detailed description of the model-based design and validation process of the AI system. Finally, the function

for automated lateral guidance in combination with a superior intelligent route management is verified and

optimized in a pilot application.

1 INTRODUCTION

Automated driving and the associated digitalization

and cross-linking of the cyber-physical traffic system

(CPTS) are important focal points of modern research

and development projects aimed to make mobility

safer, more environmentally friendly and more com-

fortable. Autonomous driving shows new applica-

tion-specific usage scenarios that lead to innovative

technologies if they are considered at an early stage

in vehicle development. For this reason, electric, driv-

erless, application-specific vehicle concepts are being

developed within the joint project "autoMoVe" (Dy-

namically Configurable Vehicle Concepts for a Use-

specific Autonomous Driving) funded by the Euro-

pean Fund for Regional Development (EFRE).

The various advanced driver assistance systems

(ADAS) used today are usually based on conven-

tional algorithms for information processing or on tra-

ditional methods of control theory. With increasing

automation of driving operations, the requirements

for safety and reliability in the various unpredictable

situations of the complex CPTS continue to rise,

which these proven methods can no longer meet

(Vishnukumar, 2017). Therefore, the subproject "au-

toEVM" (Holistic Electronic Vehicle Management

https://orcid.org/0000-0001-5627-4199

https://orcid.org/0000-0003-0578-3203

https://orcid.org/0000-0002-5577-2740

for Autonomous Electric Vehicles) aims the model-

based design of innovative intelligent algorithms and

functions for autonomous driving. Artificial intelli-

gence (AI) is a key technology for the many domains

involved in the development, testing and deployment

of intelligent, automated vehicles.

A primary constituent of autonomous or automat-

ed driving is the control of the planar dynamics, i.e.

the adjustment of the driving speed and steering an-

gle. In this contribution, the model-based design of a

function based on Artificial Neural Networks (ANN)

and Genetic Algorithms (GA) for the automated lat-

eral guidance of a vehicle is exemplarily presented.

2 METHODOLOGY

Due to the constantly increasing complexity and

cross-linking of mechatronic systems, a structured

and holistic design methodology is unavoidable. In a

top-down process, a complex overall system is mod-

ularized and hierarchically structured into intelligent,

encapsulated subsystems consisting of mechatronic

components with defined interfaces. Figure 1 shows

an example of the mechatronic structuring of the re-

Yarom, O., Scherler, S., Goellner, M. and Liu-Henke, X.

Artiﬁcial Neural Networks and Reinforcement Learning for Model-based Design of an Automated Vehicle Guidance System.

DOI: 10.5220/0008995407250733

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 2, pages 725-733

ISBN: 978-989-758-395-7; ISSN: 2184-433X

725

search vehicle FREDY (Function Carrier for Regen-

erative Electromobility and Vehicle Dynamics) with

four hierarchical levels based on (Scherler, 2019).

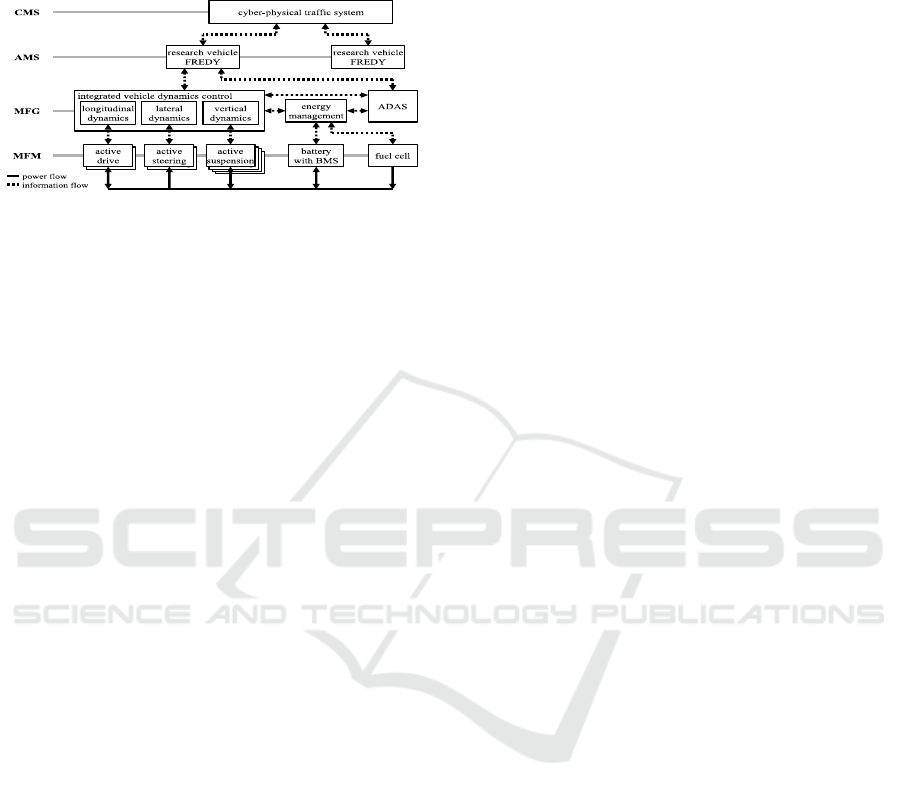

Figure 1: Mechatronic structuring of FREDY.

The lowest hierarchical level is made up of mech-

atronic function modules (MFM), which consist of

mechatronic systems that cannot be further subdi-

vided. They contain a mechanical structure, sensors,

actuators and information processing. Each encapsu-

lated MFM has a defined functionality and describes

the dynamics of the system. By coupling several

MFMs and adding an information processing, mech-

atronic function groups (MFG) are set up. MFGs en-

able the realization of higher-value functions by using

the subordinate MFMs. The combination of MFGs

leads to autonomous mechatronic systems (AMS),

e.g. the autonomous vehicle FREDY. By cross-link-

ing several AMS a cross-linked mechatronic system

(CMS), in this case a CPTS, is created.

After the hierarchical structuring, the mechatronic

composition takes place in a bottom-up procedure.

Starting with the lowest hierarchy level, each module

is designed, validated and successively integrated into

the overall system in a model-based, verification-ori-

ented process.

3 STATE OF THE ART

3.1 Automated Lateral Guidance

Modern ADAS for automated lateral guidance re-

quire vehicle sensors for determining the direction of

movement as well as environmental sensors, e.g. to

detect the course of the road or to calculate the devi-

ation from the centre of the lane (Bartels, 2015).

Self-localization is usually achieved by visual ori-

entation along the road markings. Currently used al-

gorithms are based either on lane color characteristics

or on manually programmed lane models. Such con-

ventional methods of image analysis achieve good re-

sults under suitable lighting conditions and clearly

visible road markings, e.g. on motorways. But they

are also very computationally intensive and reach

their limits in the case of disturbances such as poor

visibility as well as dirty, damaged or complex road

marking situations (Zang, 2018). If the position of the

vehicle in the lane cannot be clearly determined the

driver must take over the steering himself. Therefore,

depending on the manufacturer, modern lateral guid-

ance assistants are only enabled above 60 km·h

-1

(Bartels, 2015). As a result, these systems can only be

used on country roads and motorways. Their use in

complex inner-city scenarios is explicitly excluded.

The approach to lateral guidance presented in

(Koelbl, 2011) is based on the control of lateral accel-

eration. The actual value is determined using of vehi-

cle sensors and a behavior model. This implies that

the control performance depends on the complexity

of the underlying vehicle model, which is kept as low

as possible due to high real-time requirements. In

model-based design, the complexity and thus the time

and cost of controller synthesis increases with the

depth of modeling. This aspect is intensified if the in-

dividual perspective and acceptance of the passengers

are considered during function design. A real individ-

ualization of a driving function, i.e. the controller pa-

rameters, is hardly possible with conventional driver

models for reasons of effort (Semrau, 2017).

3.2 Artificial Neural Networks and

Reinforcement Learning

AI algorithms are characterized by a high fault toler-

ance as well as their ability to learn and are therefore

suitable for questions of automated vehicle guidance

(Eraqi, 2016). Particularly ANNs with machine learn-

ing have proven themselves in control engineering

with reliability despite incomplete data, the advanta-

geous design process and their performance (Duriez,

2017). ANNs try to imitate the structure of the human

brain and its function. Neurons are processing units

that accumulate input stimuli (signals) via weighted

connections and calculate an output using an activa-

tion function. The interconnection of several neurons

in at least two layers makes up the ANN.

ANNs have achieved very good results with su-

pervised learning in various fields. However, if the

ANN is to be used directly as a controller, there is

usually no sample data available for training. In this

case, reinforcement learning (RL) can be used. The

ANN learns the optimal strategy in terms of a reward

function given by the developer (Duriez, 2016). Q-

Learning and Policy Gradients are widely used gradi-

ent based RL algorithms. (Such, 2017) showed that

gradient based methods are in some cases not always

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

726

the ideal choice for optimization problems, since gra-

dient-free genetic algorithms (GA) often provide bet-

ter results in shorter time. In GAs the principle of evo-

lution is applied to optimization problems. A set of

randomly generated individuals representing possible

solution candidates make up a population. Each indi-

vidual is evaluated according to a fitness function (re-

ward). The best individuals of each generation (selec-

tion) evolve through replication, crossing and muta-

tion into the next generation (Eraqi, 2016).

4 CONCEPT

4.1 Problem and Requirements

The AI-based lateral vehicle guidance system devel-

oped in the scope of this paper addresses the identi-

fied weaknesses and limitations from subsection 3.1.

The main requirement is to maintain a trajectory

or a safe area around this trajectory (trajectory tube).

The purpose of the lateral guidance function is to de-

termine a steering angle setpoint based on vehicle and

environment sensors, which is then controlled by an

underlying vehicle dynamics control system. The

driving function should provide a natural steering be-

havior without permanent oscillations with large am-

plitudes. The driving task is to be learned and tested

by the ANN itself on randomly generated tracks. Its

ability to generalize guarantees a safe, robust and

model- and route-independent functionality. Model-

independent in this context means that the type and

structure of a vehicle or route model does not influ-

ence the structure and parameters of the ANN. For se-

curity, flexibility, time and cost reasons, the design

and testing of the AI system remain model-based.

4.2 MFG Automated Lateral Guidance

Figure 2 shows the structure of the function for auto-

mated lateral guidance on MFG level. It mainly con-

sists of a sensor model which preprocesses the posi-

tion and orientation of the ego vehicle in the trajectory

tube as well as the ANN which determines a steering

angle. The input of the ANN is the output d of the

sensor model, which indicate the position x, y and ori-

entation (yaw angle ψ) of the vehicle in relation to the

trajectory tube. The steering angle δ

ref

is the output of

the ANN and serves as the setpoint of a subordinate

vehicle dynamics control system on MFM level,

which sets the real steering angle δ on the front axle.

The remaining modules in Figure 2 are required

for the model-based design. A linear single-track ve-

hicle model with constant velocity v, whose input var-

iable is δ, is used for this purpose. During training, a

fitness value Fit is calculated for each individual us-

ing simulated vehicle and environmental data as well

as a reward function. This value is used in the GA to

pass new connection weights to the next generation

after an evolutionary process. Thus, an ANN which

performs the automated lateral guidance according to

the criteria and requirements defined in the fitness

function regarding safety and comfort is evolved.

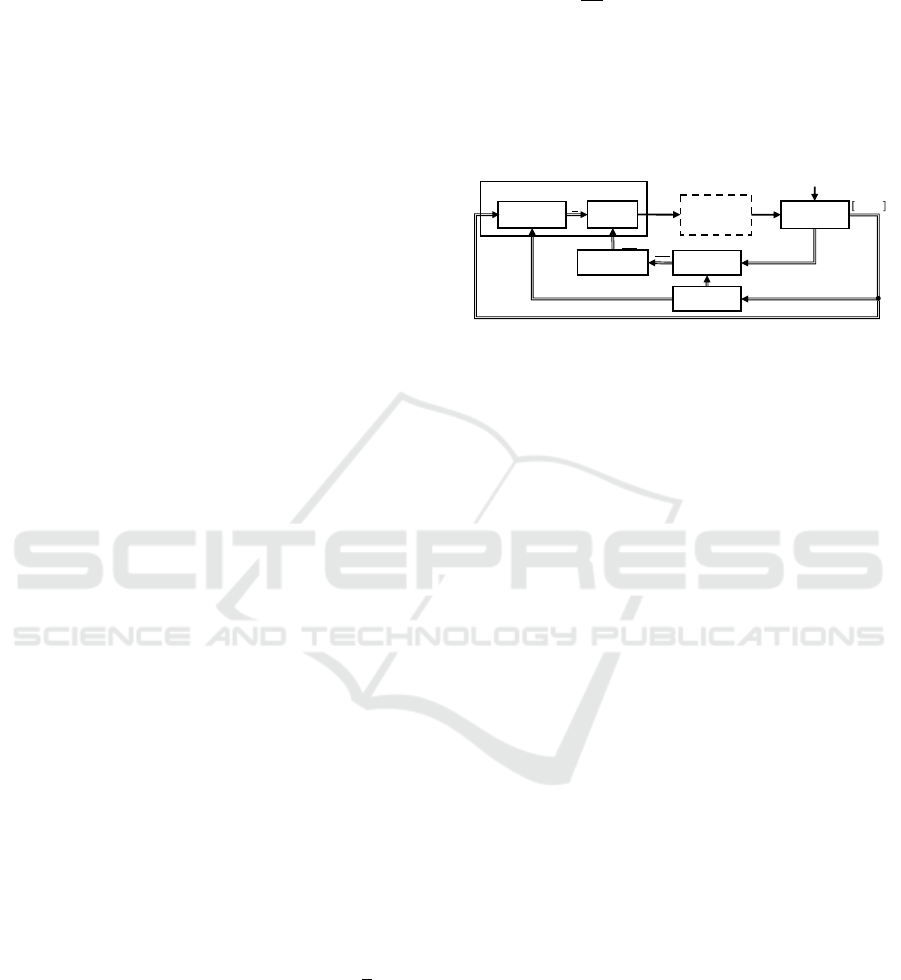

Figure 2: Concept of the ANN for automated lateral control.

4.3 AMS Intelligent

Route-Management

The function for automated lateral guidance operates

at MFG level (Figure 1) and requires a trajectory tube

(Figure 2). This data is provided by the intelligent

route-management (iRM) doplar (domain-specific

configurable, modular platform for route guidance

and trajectory planning), a system on AMS level. The

iRM doplar, is able to carry out trajectory planning in

a way that a trajectory optimized for energy consump-

tion, travel distance or travel time is generated. Dy-

namic environmental data, which is available via

wireless V2X (vehicle-to-everything) communica-

tion within the CPTS, can also be included. The struc-

ture of the iRM doplar is shown in Figure 3. It con-

sists of nine main functions that have defined internal

and external interfaces:

 Self-localization. The ego position of the vehicle

is essential information for route guidance. The

determination can be done via GPS or environ-

mental sensors. Finally, the ego position must be

assigned to a node in the map’s graph.

 Environment Perception. Environmental Per-

ception evaluates vehicle and environmental sen-

sors to provide information about the environment

that is used in both route guidance and mapping.

 Mapping. The map data are the essential basis for

route guidance. The mapping function supplies

this map data and converts it into the mathemati-

cally necessary form for route guidance. E.g. the

Open-StreetMap can be used as a data source. A

further possibility for generating or updating the

map data is the use of environmental perception.



vehicle

dymamics

control



trajectory

tube

vehicle

model

,,

automated lateral guidance

ANN

sensor

model



reward

function

Genetic

Algorithm













Artiﬁcial Neural Networks and Reinforcement Learning for Model-based Design of an Automated Vehicle Guidance System

727

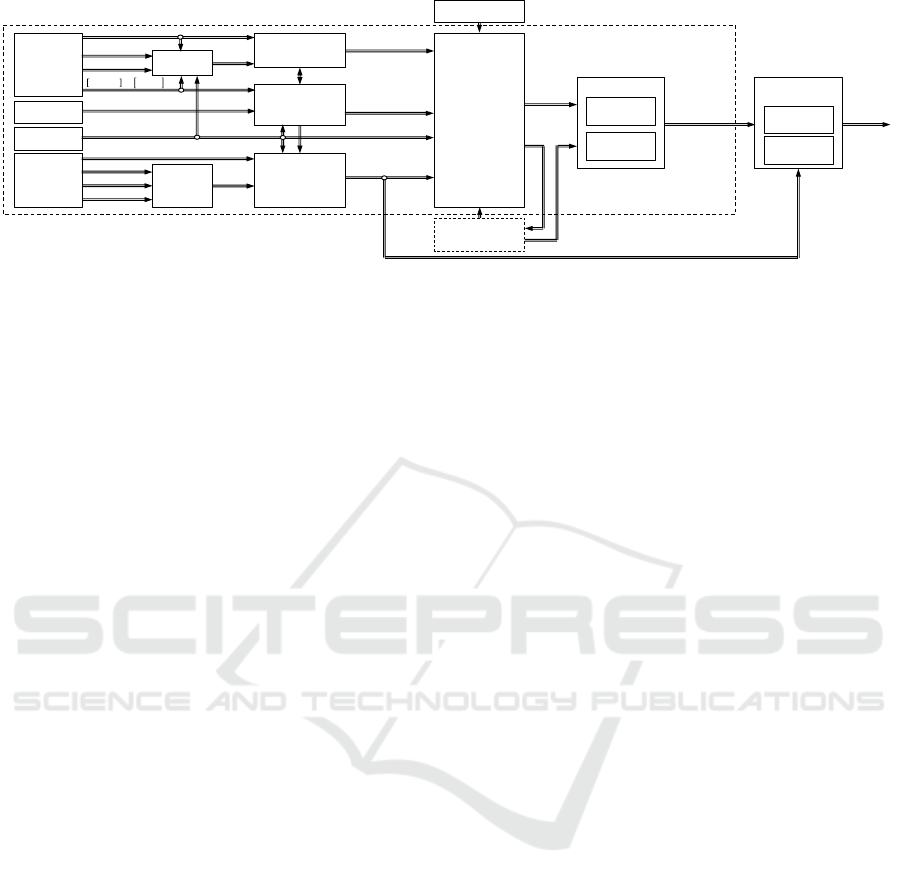

Figure 3: Structure of iRM doplar.

 HMI. The HMI determines the destination and the

setting of the route guidance in relation to the de-

sired operating mode.

 Communication. The communication function is

used for route guidance in order to receive mes-

sages about disturbances or warnings of wireless

communication with the environment and their

evaluation. This communication can be based on

a variety of technologies, such as V2X communi-

cation according to the WLAN standard 802.11p

or the mobile radio standard 5G.

 Route Guidance. The route guidance is based on

the Dijkstra algorithm and has an interface for in-

formation from wireless communication, e.g.

about disturbances or warnings of other vehicles

(CMS level). Based on the ego position of the self-

localization, the destination input of the HMI and

the map data, an optimized route is determined ac-

cording to travel time or energy consumption.

 Fleet Management. Optionally, a fleet manage-

ment can influence the route guidance of a vehicle

in order to achieve the optimum of a vehicle fleet.

 Trajectory Planning. The trajectory planning de-

termines a trajectory tube from the calculated

route, considering safety and comfort aspects such

as lateral acceleration or vehicle speed.

 Automated Vehicle Guidance. The automated

vehicle guidance calculates setpoints for inte-

grated vehicle dynamics control systems on the

basis of the trajectory tube as well as relevant ve-

hicle conditions such as speed or position. This

function is divided into two sub-functions for lon-

gitudinal and lateral guidance.

5 MODEL-BASED DESIGN OF

AN ANN FOR AUTOMATED

LATERAL GUIDANCE

After the interfaces and the supply of the necessary

information by the iRM doplar were introduced, in

this section, the function development from the de-

sign of the GA over the determination of the network

architecture and derivation of the fitness function up

to the validation is described.

5.1 Modelling

Linear single-track models have proven to be a good

approximation for describing the lateral dynamics of

automobiles (Schramm, 2018). The longitudinal ve-

locity v

of the vehicle with the mass m is assumed to

be constant. The orientation of the vehicle in the pla-

nar coordinate system is described by the yaw angle

ψ. The yaw rate ψ and the yaw acceleration ψ are

characterizing the rotational movement of the vehicle

about its vertical axis with the moment of inertia J

The slip angle β is the difference between the direc-

tion of the centre of gravity speed and the longitudinal

axis of the vehicle. The centre of gravity is defined by

the distances to the centres of the front l

and the rear

axle l

. The steering angle δ describes the angle be-

tween the front wheels and the longitudinal axle and

is the input of the linear single-track model. The steer-

ing angle is also defined as output of the ANN, since

it is required as the setpoint of a subordinate vehicle

dynamics control system. It is assumed that the sys-

tem

can set the steering angle within a computation

step, so it does not have to be simulated. The corner-

ing stiffnesses of the front and rear wheels c

αF

and c

αR

describe the constantly proportional relationship be-

tween the cornering angles of the respective axle and





,



,



,⋯

trajectory generator





kinematics

kinetics

environment

sensors





,







,



≡ 



,







data fusion





,



,







,



,



odometry





state sensors

self-localization

environment

perception

map data

e









stabilisation

conditions

route guidance



fleet management

HMI

communication

mapping



automated vehicle

guidance

longitudonal

guidance

lateral

guidance





ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

728

the associated lateral forces (Schramm, 2018). The

equations of motion of the linear one-track model are:



=‐

αF

αR

m·v

β+ 

αR

·l

-c

αF

·l

m·v

-1ψ+

αF

m·v

(1)



=

αR

·l

-c

αF

·l

β-

αF

·l

αR

·l

·v

ψ+

αF·l

(2)

In order to test and ensure the ANN's generaliza-

tion capability, training and testing take place on ran-

domly generated tracks. The limited validity range of

the linear single-track model with respect to lateral

acceleration a

must already be considered during

route generation. With the radius of curvature ρ ap-

plies to the linear single-track model:

≤4 m·s

-2

(3)

The guidelines for the layout of country roads is-

sued by the German Federal Highway Research Insti-

tute (BASt) specify the ratio between the length of a

straight line and the subsequent curve radius This

guideline and the minimum curve radius have been

considered during automatic track generation.

The vehicle was extended with a body whose

outer dimensions exceed those of the chassis. A vir-

tual sensor was modeled to detect the vehicle's own

position and orientation in the trajectory tube. The

sensor is centrally mounted on the front of the body

and detects the boundaries of the trajectory tube in an

angle range of ±40 ° and a radius of 8 m. The orien-

tation and position of the vehicle in relation to the the

trajectory tube is determined by eleven straight lines

with a constant angular distance. The distances be-

tween the point where the straight lines intersect with

the trajectory tube and the mounting point of the sen-

sor make up its output signal d. If a line has no inter-

section with the trajectory tube, the measured value

corresponds to its maximum range, in this case 8 m.

5.2 Design of the Genetic Algorithm

In this contribution, an individual is represented by

one ANN. The connection weights are called param-

eters or genes. In the crossing of two individuals, ran-

domly selected genes of two randomly selected indi-

viduals are swapped. When a mutation is performed,

one or more genes of a randomly selected individuals

are reinitialized. The stochastic influence neither

guarantees that the individuals of each generation will

improve nor that a global optimum will be achieved.

Therefore, a well-adjusted GA is essential.

A large population n

increases the genetic diver-

sity and thus the exploration of the parameter space,

but on the other hand also requires a higher computa-

tional effort per generation. Smaller populations pro-

mote evolutionary optimization whilst less explora-

tion of the search space. In tournament selection, n

randomly selected individuals are compared in n

tournaments. The best individuals evolve into the

next generation. A larger tournament size leads to a

reduction in diversity while at the same time making

better exploitation of the known parameter space. The

crossing rate describes the proportion of individuals

in the population who reproduce in pairs by recom-

bining their genes into the next generation. Whether

the modified individuals behave better or worse is not

known before. Although recombination improves ex-

ploitation, the crossing rate should not be too high to

minimize the probability of losing good individuals

of the current generation. With a small mutation rate,

the learning process tends to yield a local optimum,

while a large rate increases the probability of finding

a global optimum, but also the risk of losing good in-

dividuals. After intensive research, the GA parame-

ters for learning lateral guidance were defined:

 Population Size: 50

 Tournament Size: 5

 Crossing Rate: 90 %

 Mutation Rate: 1 %

5.3 Determination of the Network

Architecture

The definition of the ANN’s architecture includes the

determination of the topology as well as the number

of hidden layers and the neurons contained therein.

The sizes of the input and output layers can be derived

from the function structure and interfaces (Figure 2).

The eleven sensor values are the inputs of the ANN

and are mapped on the steering angle representing the

output. It can be assumed that the same lateral posi-

tion and orientation on the track always require the

same action. Therefore, no sequential signals have to

be processed, so that a feed-forward network, in par-

ticular a multilayer perceptron, can be used, which

keeps the computational and training effort low. The

hyperbolic tangent serves as the activation function.

In a preliminary test, ANNs with one, two and

three hidden layers are examined to determine a suit-

able network architecture. The number of neurons per

hidden layer n

hidden

was selected to n

hidden

={2,4,8,16}

in order to consider very small as well as large layer

sizes (Heaton, 2015). All solution candidates are

trained on the same track with a length of approx.

640 m and tested on five further identical tracks.

Artiﬁcial Neural Networks and Reinforcement Learning for Model-based Design of an Automated Vehicle Guidance System

729

To train and evaluate the various network archi-

tectures a fitness function Fit was used, in which the

distance covered by the vehicle u is rewarded. In ad-

dition, there is a bonus B when the vehicle reaches the

finish of the track. As soon as the car body touches

one of the boundaries of the trajectory tube, the sim-

ulation of this individual is classified as a crash and

aborted. The fitness function is:

Fit=u+B

(4)

B= 

1000 arrived at destination

0else

(5)

The evolutionary process of a GA is infinitely

long, which is why the definition of suitable termina-

tion conditions is necessary. For the preliminary test,

the only requirement is to reach the destination. Due

to the stochastic influence of the GA, it is not guaran-

teed that an individual that meets the requirements

will evolve in finite time. Therefore, the maximum

number of generations is defined as 25.

The preliminary test showed that ANNs with one

hidden layer and four neurons (Figure 4) are already

able to learn lateral guidance. Larger ANNs were only

partially able to complete the test tracks without

crashing. Using large ANNs is associated with a

higher risk for overfitting and a higher computational

effort. Therefore, it is advisable to always use the

smallest possible ANN (Figure4). This also keeps the

parameter space for optimization as small as possible.

Figure 4: ANN developed in the preliminary experiment.

5.4 Optimization of the Fitness

Function

According to subsection 4.1, the ANN should keep

the vehicle in the middle of the trajectory tube without

oscillations. In consequence the absolute value devi-

ation from the centre of the trajectory tube |Δy| is pe-

nalized. In order to avoid oscillations, steering angle

speeds |δ



|> δ





= 60 °·s

-1

on the steering wheel are pe-

nalized too. For a stable evolution process, a monot-

onously increasing fitness function is recommended

(Duriez, 2017). For this the penalized parameters |Δy|

and |δ



| must be normalized to their respective maxi-

mum values Δy

max

and δ



max

and multiplied by a factor.

The factor k

describes the percentage of the maxi-

mum possible penalty of the reward received. The ra-

tio between |Δy| and |δ



| is expressed by k

Fit = u+B - k

·u k

Δy



1-k



fδ







max



(6)

fδ



= 

δ



δ



>δ



0else

(7)

The optimum values for k

and k

according to the

requirements have to be determined experimentally.

The new requirements result in two further termina-

tion conditions. Firstly, the root-mean-sqaure value of

the lateral deviation Δy must not exceed 25 cm over

the entire track. In addition, no inadmissible steering

angle speed may occur on the entire tracks.

During extensive simulation series it was found

out that k

=50 % is the best compromise between un-

acceptable driving behavior at a too small and an in-

creasing tendency for overfitting at a too high penalty.

In further experiments the factor k

was determined.

Figure 5 exemplarily shows the simulation results of

three fitness functions according to eq. (6) on one of

the test tracks. The indices for the different colored

curves indicate the respective value for k

. The lateral

deviation, the steering angle and the steering angle

speed at the steering wheel are shown over the x-co-

ordinate of the approx. 630 m long track.

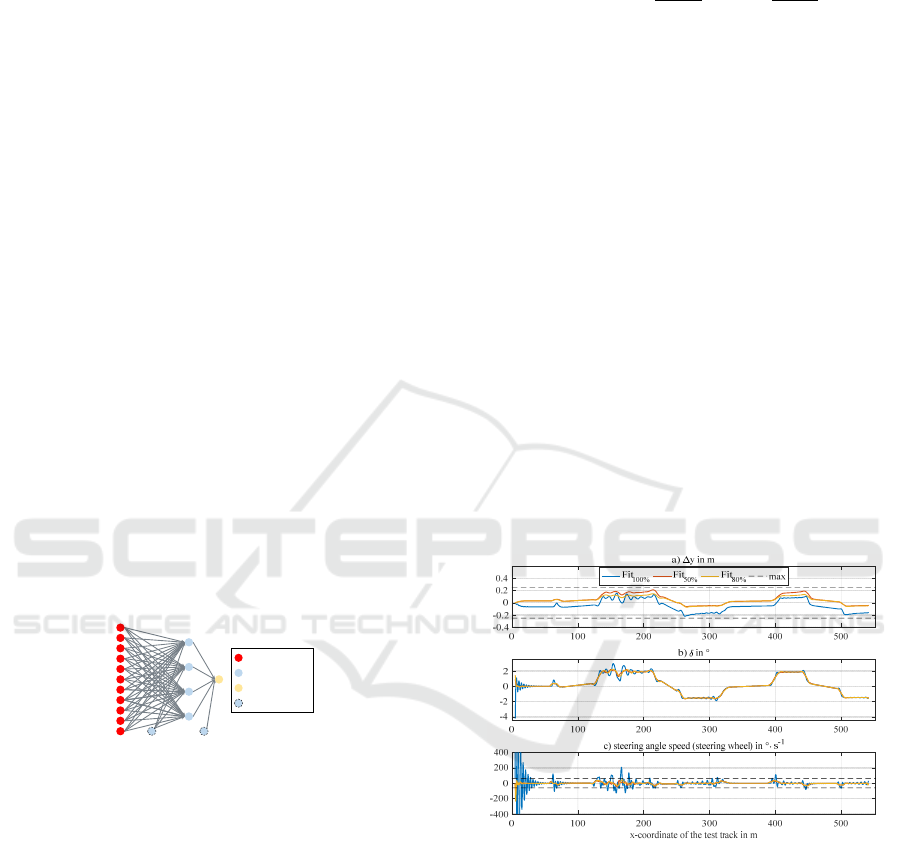

Figure 5: Simulation results on one of test tracks.

Figure 5a shows that for all factors k

, the lateral

deviations are completely inside the dashed lines

marking the RMS boundaries, so that they all fulfil

this requirement. The blue curve with k

=100 % does

not take δ



into account. Therefore, Figure 5c shows

steering angle speeds exceeding the acceptable range.

The resulting strong oscillations can also be observed

in the steering angle and the lateral deviations curves.

The red curve with k

=50 % shows a significantly im-

proved behavior regarding the steering angle speed.

This has also led to smoother curves of the steering

angle and lateral deviation. The minimum value for

input neuron

hidden neuron

output neuron

bias neuron

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

730

is 50 %, since a vehicle which always drives at the

edge of the lane without oscillations is dangerous. All

yellow curves with k

=80 % show a good compro-

mise |Δy| and |δ



|. The steering angle speed is consist-

ently within the acceptable range and barely exceeds

the values of the red line. Furthermore, there has been

an improvement in the lateral deviation. Neverthe-

less, the oscillations, especially at the beginning of

the track, could not be completely avoided. The re-

maining amplitudes in Figure 5a are in the range of

millimeters, which are retained anyway in a real ap-

plication due to imperfect environmental conditions.

With k

=80 %, the best result was achieved in the

simulation series, which is why this GA-trained ANN

forms the result of the model-based designed function

for automated lateral guidance.

5.5 Validation of the ANN

The training and testing of the ANN designed so far

has been carried out with a constant vehicle speed of

50 km·h

-1

, on tracks with a length of up to 800 m. In

order to extensively validate the driving function, a

longer distance had to be travelled at different but

constant speeds. Figure 6 shows the simulation result.

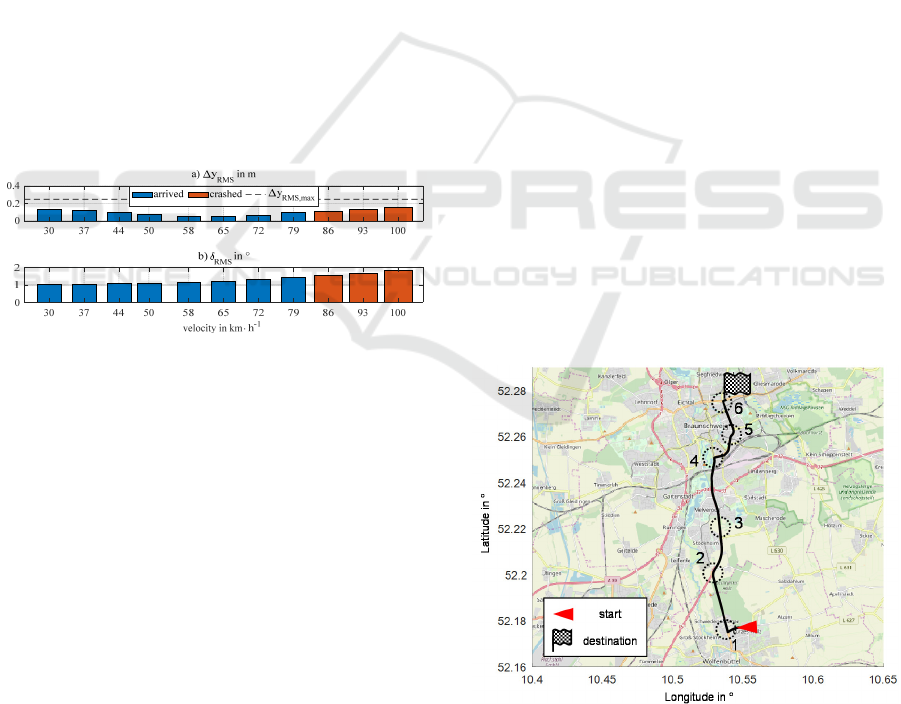

Figure 6: Simulation results with different velocities.

It is noticeable that the vehicle caused crashes at

speeds >79 km·h

-1

and that the RMS values of the lat-

eral deviations in Figure 6a show a V-shaped course.

The ANN does not know the speed, so it always out-

puts the same steering angle for the same sensor sig-

nals. This increases the tendency to high-frequency

steering angle oscillations with large amplitudes at

higher speeds when looking at the δ

RMS

values in Fig-

ure 6b. At 65 km·h

-1

, a favorable combination of am-

plitude and frequency seems to help the vehicle keep-

ing in the middle of the trajectory tube. At lower

speeds there are no oscillations to compensate the de-

viations, so the ANN causes higher but acceptable lat-

eral deviations. However, the driving function has po-

tential for improvement, especially at higher speeds.

From these simulation results it can be concluded

that the model-based developed and GA-trained ANN

is able to realize automated lateral guidance for the

speed range between 30 and approx. 70 km·h

-1

with

constant speeds according to the requirements.

6 VERIFICATION AND

OPTIMAZATION

To verify and further optimize the ANN for auto-

mated lateral guidance, it will be tested in a pilot ap-

plication under more realistic conditions. The vehicle

should automatically navigate from Ostfalia in Wolf-

enbuettel (Salzdahlumer Straße 46/48) to the Institute

of Automotive Engineering (IfF) at the Technical

University of Braunschweig (Hans-Sommer-Straße

4) as shown in Figure 7. In an offline simulation, ad-

ditional functions of the iRM doplar on AMS level

are used for route guidance and trajectory planning.

At first, the vehicle must localize itself and calcu-

late a route. The black line in Figure 7 shows the re-

sulting travel time-optimized 12.8 km long route.

Since this is an offline simulation, no dynamic infor-

mation from the V2X communication were consid-

ered. The trajectory generator then calculates a trajec-

tory tube considering safety and comfort aspects. The

sensor model uses this information to determine the

position and orientation of the ego vehicle and passes

it to the ANN. Since this can only operate at constant

speeds so far, it is set to 50 km·h

-1

over the entire route

because of the inner-city sections. When navigating

on the route, curved sections are particularly chal-

lenging. The five most critical situations as well as an

exemplary straight line are marked by the numbered

circles in Figure 7 and will be evaluated exemplarily.

Figure 7: Pilot Application with time optimized route.

Figure 8a and b show simulation results in seg-

ments of the sections 2 and 5 from Figure 7. In Figure

8a and b the trajectory tube is drawn in black and its

Artiﬁcial Neural Networks and Reinforcement Learning for Model-based Design of an Automated Vehicle Guidance System

731

centre line in turquoise, while the actual travelled

route was drawn in red. Here it can be seen that the

trajectory tube contains relatively strong kinks in

some places due to a large discretization. At the kinks

the vehicle deviates quite strongly from the set course

but maintains a realistic and more pleasant route.

Shortly before and after the kinks, the vehicle holds

the middle of the trajectory tube very exactly.

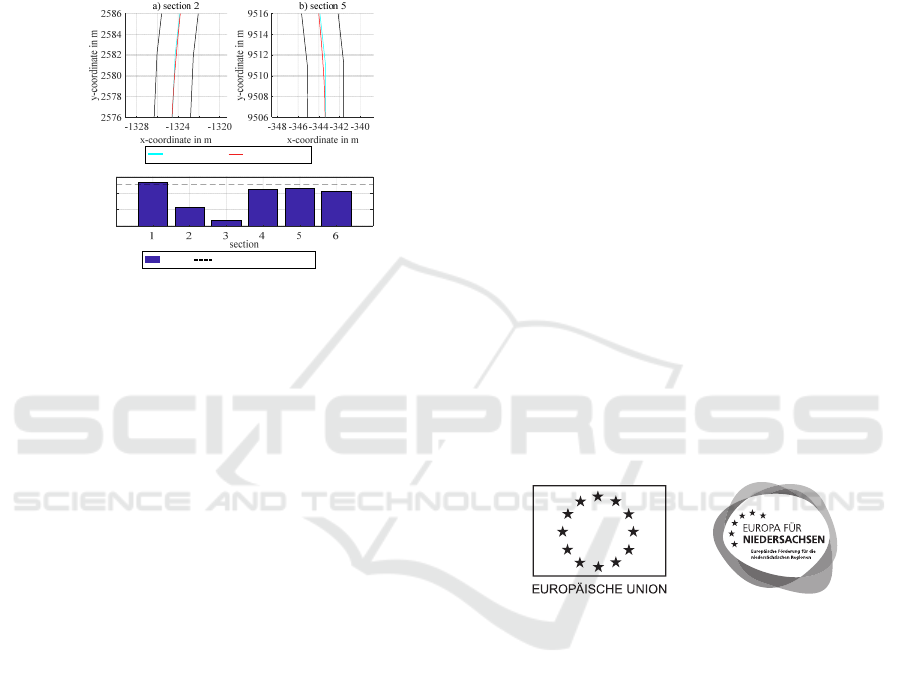

Figure 8: Exemplary results of the pilot application.

Figure 8c shows the maximum lateral deviations

of the vehicle from the centre of the trajectory tube in

the respective sections. The dashed line marks the ac-

ceptable limit during training (Δy

RMS

=25 cm). Except

for the first section of the route with a particularly

small, i.e. difficult, curve, this limit was adhered to

over the entire track. For segments 2 and 5, these de-

viations are about 12 and 23 cm at the kink points

drawn, and thus within a very good range. On the

straight section 3 the maximum lateral deviation is

less than 4 cm. Within the 3.5 m wide trajectory tube,

a maximum lateral deviation of 85 cm is possible for

the simulated vehicle with a width of 1.81 m.

Thus, both parts of the iRM doplar and the func-

tion for automated lateral guidance have proven to be

functional in a realistic pilot application. Considering

the constraints that the vehicle drives at a constant

speed, the function is verified. By extending the func-

tionality regarding the longitudinal dynamics, the sys-

tem can be further optimized in the future.

7 CONCLUSION AND

FUTURE WORK

This paper shows the model-based design of a func-

tion for automated lateral guidance using ANNs and

GAs. After a short presentation of the the motivation

and the underlying methodology of this work, the ba-

sics of automated lateral guidance as well as ANNs

and RL were explained. Subsequently, requirements

and a functional structure for the driving function

were derived from the problems of today's ADAS and

the advantages of ANNs and GAs were pointed out.

This was followed by a description of the model-

based design process of the ANN for automated lat-

eral guidance. After the training on a remarkably

short distance with a length of 640 m, the function for

automated lateral guidance was validated. Finally, the

function was verified in a realistic pilot application

and optimization potential regarding the longitudinal

dynamic behavior was pointed out.

A future work step is to extend the functionality

of the lateral guidance function for operation at higher

and variable speeds. A further step is the analogous

design of an ANN for longitudinal guidance respec-

tively their integration for planar vehicle guidance.

ACKNOWLEDGEMENTS

This publication resulted from the subproject "au-

toEMV" (Holistic Electronic Vehicle Management

for Autonomous Electric Vehicles) in the context of

the research project "autoMoVe" (Dynamically Con-

figurable Vehicle Concepts for a Use-specific Auton-

omous Driving) funded by the European Fund for Re-

gional Development (EFRE | ZW 6-85030889) and

managed by the project-management agency Nbank.

REFERENCES

Bartels, A. et al., 2015. Querfuehrungsassistenz. In Hand-

buch Fahrerassistenzsysteme, Springer Fachmedien,

Wiesbaden, Germany, pp. 937-957

Duriez, T., Brunton, S., Noack B. R., 2017. Machine Learn-

ing Control. Springer International Publishing, Cham,

Switzerland

Eraqi, H. E., Eldin, Y. E., Moustafa, M. N., 2016. Reactive

Collision Avoidance using Evolutionary Neural Net-

works. 8th International Conference on Evolutionary

Computation Theory and Applications, Porto, Portugal

Heaton, J., 2015. Artificial Intelligence for Humans, vol. 3,

CreateSpace Independent Publishing Platform

Koelbl, C., 2011, Darstellung und Potentialuntersuchung

eines integrierten Quer- und Längsreglers zur Fahr-

zeugführung. Ph.D. Thesis,.Technical University of

Munich, Munich, Germany

c) lateral deviation in cm

center line

traveled route

value

termination condition

0.1

0.2

0.3

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

732

Scherler, S. et al., 2019. iREX 4.0 – A contribution to a pre-

dictive, energy-optimal drive of Autonomous Electric

Vehicles equipped with Range Extender by means of

Cross-linking and Digitization. Hybrid and Electric Ve-

hicles, Brunswick, Germany

Schramm, D., Hiller, M., Bardini, R., 2018. Vehicle Dy-

namics, Springer, Berlin, Heidelberg, Germany

Semrau, M., 2017. A validated Simulation framework for

testing ADAS in Chinese traffic situations. Wolfsburg,

Germany

Such, F. P., Madhavan, V. Conti, E., Lehman, J., Stanley,

K. O., Clune, J., 2017. Deep Neuroevolution: Genetic

Algorithms Are a Competitive Alternative for Training

Deep Neural Networks for Reinforcement Learning.

CoRR

Vishnukumar, H. J. et al., 2017. Machine learning and deep

neural network — Artificial intelligence core for lab

and real-world test and validation for ADAS and auton-

omous vehicles: AI for efficient and quality test and

validation.2017 Intelligent Systems Conference (Intel-

liSys), London, pp. 714-721

Zang, J. et al., 2018. Traffic Lane Detection using Fully

Convolutional Neural Network. 2018 Asia-Pacific Sig-

nal and Information Processing Association Annual

Summit and Conference (APSIPA ASC), Honolulu, HI,

USA, pp. 305-311

Artiﬁcial Neural Networks and Reinforcement Learning for Model-based Design of an Automated Vehicle Guidance System

733
