An OAuth-based Authentication Mechanism for Open Messaging

Interface Standard

Hitesh Chander Monga

, Tuomas Kinnunen

, Avleen Malhi

1 a

, Asad Javed

and Kary Fr

amling

1,2

Department of Computer Science, Aalto University, Finland

Department of Computer Science, Ume

a University, Sweden

Keywords:

Internet of Things, Open Messaging Interface, Open Data Format, Authentication, Authorization, OAuth2.

Abstract:

The Internet of Things (IoT) security and privacy remain a major challenge, especially due to the highly

scalable and distributed nature of IoT networks. IoT security has an exceptionally wide scope which also

leads to the most demanding requirements needed for the widespread realization of many IoT visions. It

includes the tasks such as trusted sensing, computation, communication, privacy in terms of security scope. A

large number of industry-driven domain speciﬁc standards has been developed which hinder the development

of a single IoT ecosystem. O-MI and O-DF standards were previously proposed to address the challenge of

interoperability in IoT devices. This paper highlights and discusses the measures taken to enhance the security

of these standards by integration of OAuth 2.0 service provider functionality with the O-MI authentication

module along with the existing security module. The security architecture has been proposed which enhances

the security features by providing authorization without use of certiﬁcates. The implementation details of

the plug-in module for envisioned security model developed for the O-MI and O-DF standards have been

discussed.

1 INTRODUCTION

The Internet of Things (IoT) has become an inevitable

part of our daily lives by drawing an attention of many

researchers and industrialists. The latest press release

by Gartner

forecasts that the enterprise and automo-

tive IoT market will expand to 5.8 billion endpoints

in 2020, which is about 21% increase from 2019. By

the end of 2019, around 4.8 billion endpoints are ex-

pected to be in use, with an increase of 21.5% from

2018. As IoT deployments increase continuously, the

need for handling the authentication and authorization

tasks to improve the data security in IoT communica-

tions also increase. Recently, many IoT frameworks

such as IBM BlueMix, AWS IoT, and Azure IoT have

been launched, and most of the industry-driven do-

main speciﬁc standards hinder the development of a

single IoT ecosystem. As discussed in (Yousefnezhad

et al., 2017), requiring a new web browser for each

website would be complicated. In the similar context,

it would be hard to imagine the current approach of

IoT connectivity. The authors (Yousefnezhad et al.,

https://orcid.org/0000-0002-9303-655X

[Online]. Available: https://www.gartner.com/en/

newsroom/press-releases/

2017) state that the IoT community must follow the

example of the World Wide Web, in which the uniﬁed

protocols, TCP/IP and HTTP/HTML boosted the In-

ternet to spread all over the world. The Open Group

platform has developed the open messaging standards

for solving the interoperability problem in communi-

cations among different IoT devices. The Open Mes-

saging Interface (O-MI) and Open Data Format (O-

DF) standards are proposed as the application-level

interface to make a complete and ﬂexible standard to

support a variety of organizational needs and struc-

tures (Kubler et al., 2014). The security model for

these standards provide the suitable access control

and authentication mechanisms. As stated in (Onl,

d), the OAuth 2.0 authorization protocol enables a

third-party application to obtain restricted access to

an HTTP service mainly by two methods, either on

behalf of a resource owner or on an end user by set-

ting up an approval interaction for user between the

resource owner/end user and the HTTP service, or by

allowing the third-party application to obtain access

on its own behalf. Various roles, grants and termi-

nologies of the OAuth 2.0 ﬂow have been discussed

in Subsection 4.

The main contribution of this paper is to enhance

216

Monga, H., Kinnunen, T., Malhi, A., Javed, A. and Främling, K.

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard.

DOI: 10.5220/0008970902160225

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 216-225

ISBN: 978-989-758-395-7; ISSN: 2184-433X

the existing security for O-MI/O-DF standards, pro-

viding better authentication plug-in module, access

control, and authorization. We can use this new pro-

posed security module without any external provider,

speciﬁcally with the OAuth 2.0 authentication proto-

col. In contrast to the earlier security module which

uses client certiﬁcates, there is a wider user commu-

nity for OAuth 2.0 (used in the new version of secu-

rity module) instead of client certiﬁcates to support

the new development in IoT domain.

The rest of the paper is organized as follows. Sec-

tion II describes the background and related work.

Section III explains O-MI/O-DF standards along with

comparison between various standards, the existing

security module and the vision for enhancing it. Sec-

tion IV presents OAuth 2.0 details and its advantages

while Section V explains the proposed security archi-

tecture with added security features as well as its im-

plementation details. Section VI presents the business

use cases and Section VII provides the discussions for

the proposed security plug-in module along with the

limitations. Finally, Section VIII concludes the paper

with the possible future directions.

2 RELATED WORK

Security in IoT implementations is critical and cor-

rectly implemented. Secure IoT deployments should

ensure the proper conﬁguration of the basic security

requirements: data conﬁdentiality,data integrity, and

data accessibility as part of the solution. An efﬁ-

cient identity management is a primary security re-

quirement for dynamically assigning and managing

unique identities for the large number of objects and

users. OAuth 2.0 is an authorization framework that

allows third party applications to get protected ac-

cess to user accounts on an HTTP service. Recently,

many research works have focused on security related

with Internet of Things and discussed various sce-

narios for implementing OAuth to be used for Inter-

net of Things. The use of OAuth for IoT networks

was ﬁrst proposed in (Emerson et al., 2015), the pro-

posed approach protects IoT network from unauthen-

ticated users with security manager which manages

various kinds of constrained devices using OAuth 2.0

protocol. (Fremantle et al., 2014) explores the use

of OAuth for IoT systems and built a prototype that

uses OAuth 2.0 to enable access control to infor-

mation distributed via MQTT. (Sciancalepore et al.,

2017) proposed a ﬂexible authentication and autho-

rization framework for the Internet of Things, namely

OAuth-IoT which leverages and properly harmonizes

existing open-standards while taking into account the

limited capabilities of constrained devices. A con-

ﬁgurable and easily integrable proposal was made in

(Cirani et al., 2014) which proposes an architecture

targeting HTTP/CoAP that provides an authorization

framework which can be integrated with an exter-

nal oauth-based authorization service (OAS) collab-

oratively making it the IoT-OAS architecture. (Khan

et al., 2018) proposed an authentication scheme based

on the OAuth 2.0 protocol to secure the IoT net-

work by providing an authentication service. (Fre-

mantle and Aziz, 2016) proposed model for IoT us-

ing OAuth 2.0 protocol which allowed the identity

of users and devices on the network to be federated.

Other lightweight approaches to solve the authentica-

tion and authorization problems in the IoT networks

have been discussed in (Yao et al., 2013).

This article is an extension of the work done

in (Yousefnezhad et al., 2017) to provide suitable

access control and authentication mechanisms that

could regulate the rights of different principles and

operations deﬁned in O-MI/O-DF standards. This pa-

per discusses a major step taken to enhance the secu-

rity modules and added functionalities in the security

module of the O-MI/O-DF standards.

3 OPEN MESSAGING

STANDARDS

3.1 O-MI/O-DF Standards

With the vision of creating a protocol for Internet

of Things which serves in the same way as HTTP

protocol serves to the Internet, Open Group devised

the O-MI/O-DF standards. In other words, O-MI/O-

DF standards will offer connectivity between various

things and will allow rapid integration of these links

with other systems and networks, making it an inte-

grated standard for Internet of things. O-MI provides

a communication framework between commodities

and distributed information systems that consume and

publish information on a real-time basis. It can be

seen as a transportation mechanism which allows to

exchange information between different O-MI nodes

across a network. In O-MI Node, each node can act

both as a ”server” and as a ”client” with other nodes

or systems. O-DF is speciﬁed as an expandable XML

Schema for representing payload in Internet of things

applications (Javed et al., 2019) (Madhikermi et al.,

2018).

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard

217

3.2 Reference Implementation of

O-MI/O-DF Standards

Reference Implementation of O-MI/O-DF standards

shows the executable documentation as well as re-

quest and response examples which can cover each

and every aspect of these standards

. The develop-

ers can understand with the help of examples and im-

plementations what these standards can do in real-

ity. Current reference implementation includes three

modules: O-MI Node Server: Server implements

all basic O-MI operations and maintains a database

where the information about O-DF data model, con-

sisting of all object(s) and InfoItem(s) is stored. Web-

client: It provides graphical user interface which al-

lows the users or developers to perform the desired

operation under the standards by just clicking the de-

ﬁned buttons instead of writing all the XML messages

and HTTP queries. Agent: The agents are the actors

that interact with core of O-MI node programmati-

cally and act as an intermediate between the hardware

and O-MI node Since for a application to be fully

developed it would certainly require security aspects

which can defend against different cyber-crimes and

attacks, so there is need to discuss the reference im-

plementation for security sub-modules.

3.3 Security of O-MI/O-DF Standards

Though the reference implementation clearly ensures

robust development and data standardization, secu-

rity was always a concern for fully developed appli-

cation. So as mentioned in (Saeed, 2018), initially

the reference implementation had only IP white list

mechanism for security, i.e, the trusted IP addresses or

their ranges are listed and only these trusted users can

access the domain and perform ”write” functionality

while the ”read” functionality was open for all users.

Thus, in order to have an appropriately designed se-

curity mechanism, a dedicated security model was re-

quired and created (the version 1 of security model)

which became obsolete since it does not provide any

support for O-MI read request permission and it only

had speciﬁc authentication method implementations.

Then the second version (which is the existing ver-

sion) provides a better solution where Authentication

and Authorization module are separated into two indi-

vidual processes working concurrently. The Authen-

tication sub-module basically registers, authenticates

and logins the users for session handling. Three lo-

gin options are available for the user to authenticate

O-MI reference implementation developed by Aalto

University, Available: https://github.com/AaltoAsia/O-MI

namely local authentication, Facebook login and lo-

gin with LDAP (Lightweight Directory Access Proto-

col) credentials. The authorization sub-module has

two parts namely superuser console and the access

control module. An administrator console has a user

interface which can only be accessed by a superuser.

This console handles addition of users to group and

manages access policies on the database. On the other

hand,the Access control module communicates with

the O-MI node, processes requests made by users

and authorizes them. However, the security model of

O-MI/O-DF standard is required to be updated with

more recent security techniques in order to prevent

cyber attacks and ensure data security.

The implementation details for the above men-

tioned sub-modules are stated in (Saeed, 2018) and

the existing security module is developed using

Python and Scala. Django web framework was used

for developing the authentication module and Akka

HTTP was also used for construction of security

model. The module supports SQL databases and

LDAP directory services. Furthermore, JSON Web

Tokens were used for the token mechanism. New Au-

thentication and Authorization APIs are ﬂexible and

adaptable. These modules were necessary to make the

O-MI Node secure which makes the APIs more secure

and add extra functionalities which can be beneﬁcial

to any organization in terms of security, user identity,

analysis and monitoring, better access control, from a

variety of other methods discussed in section 3.4.

3.4 Comparison between Various

Security Standards

A variety of methods to increase the security of O-

MI-Authentication sub-module are being analysed in

this sub section. The most common web security pro-

tocols are OpenID, OAuth 2.0 and SAML. These are

standardized protocols and there are generalised im-

plementations and libraries existing in multiple lan-

guages to implement these protocols. A comparison

between these protocols has been shown in Table 1.

These web security protocols support the idea of Sin-

gle sign-on (SSO) which allows a user to enter one

username and password in order to access multiple

applications. The three security standards (Lightfoot,

2018) (Onl, e) are discussed along with their usage as

mentioned in the following:

OpenID. OpenID is an open standard for authenti-

cation. The user is authenticated using a third-party

service called identity provider in this standard. If au-

thentication is a major concern for security implemen-

tation then OpenID is highly recommended than any

other security methods. In 2014, OpenID connect was

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

218

introduced where OpenID is used for authentication

along with OAuth 2.0 being used as authorization.

SAML. SAML stands for Security Assertion Markup

Language. It is an XML-based markup language for

security assertions and is the oldest standard of these

all. It’s an open standard that provides both authen-

tication and authorization services. This protocol is

much more complex to use than other protocols and

is vulnerable towards XML signature wrapping to im-

personate any user.

OAuth 2.0. This is an authorization protocol that al-

lows third party applications to get protected access

to user accounts on an HTTP service like Facebook,

GitHub, and Google. It is mainly used for access-

ing delegation via token-based authentication. This

is a quite ﬂexible and adaptable mechanism for pro-

tected resource view and authorization but lacks a

good mechanism for authentication of the user. Phish-

ing is a common security risk to which OAuth 2.0 is

vulnerable. Apart from that OAuth 2.0 relies com-

pletely on TLS for conﬁdentiality.

4 OAuth 2.0 PROTOCOL

4.1 OAuth 2.0 Roles

OAuth 2.0 basically deﬁnes four major roles as spec-

iﬁed in (Onl, d) which are:

Resource Owner. An entity that provides access to

the protected resources. It can be a person or a ma-

chine. According to (Buyya and Dastjerdi, 2016),

when the resource owner is a person, it is referred as

an end-user. The Resource owner must give autho-

rization to third party applications to access its data.

Resource Server. It is the server that hosts protected

resources and it has the ability to accept and send re-

sponses to protected resources requests using access

token. The resource server might be the same server

as the authorization server. In O-MI-Authentication

module, we used same server to function as resource

server and authorization server.

Client. Client is an application that makes secured

resource requests on behalf of the resource owner and

with its authorization speciﬁcations. Each client is de-

ﬁned by a unique client id and a client secret. These

credentials are registered with an authorization server

inserted into an OAuth 2.0 Access token and then val-

idated by the resource server which provides addi-

tional layer of security. The client can be hosted on

a server, desktop, mobile or any other device.

Authorization Server. It is the server that maintains

the list of registered clients, manages and issues the

access token needed for all authorization ﬂows. These

are supported by OAuth 2.0 spec to the client after

authenticating the resource owner and obtaining au-

thorization. Usually the same application that offers

resources through OAuth 2.0 protected API also be-

haves like an authorization server.

4.2 OAuth 2.0 Grant Types

OAuth 2.0 is a ﬂexible authorization framework

which provides a number of methods for client appli-

cation to obtain access token which is further used for

authenticated access to the API endpoint. There are

basically four authorization grant types, as mentioned

in (Onl, d), namely:

Authorization Code. This is the most common grant

type used. Here, the authorization code is obtained by

an authorization server which acts as an intermediary

between the client and the resource owner. Here the

client directs the resource owner to an authorization

server which then directs the resource owner back to

the client with the authorization code which can be

further used to obtain a long-lived access token and a

refresh token. So, the Authorization server authen-

ticates the resource owner and after authentication,

it directs the resource owner back to the client thus

adding an additional layer of security. It prevents di-

rect transmission of access token to the client unlike

implicit grant.

Implicit. The implicit grant is a simpliﬁed authoriza-

tion code ﬂow developed for clients implemented in

a browser using scripting language like JavaScript.

The grant type is implicit so there are no intermediate

credentials and access token is directly issued to the

client. Unlike authorization code grant type, client re-

ceives the access token in the front-end as a result of

the authorization request. In some cases, redirection

URL used to deliver the access token to the client are

used to verify the client identity. Although, implicit

grant improves the responsiveness and efﬁciency of

some clients by removing extra steps of authentica-

tion before obtaining the access token, still it is the

least secure grant type because the access token is di-

rectly exposed on the client side.

Resource Owner Credentials. Resource owner

password credentials can be used directly to obtain an

access token. This method is only used when there

is a high level of trust between the client and the

resource owner and when other authorization grant

types are not viable. By exchanging the credentials

with a long-lived access token or refresh token, this

grant type can eliminate the need for the resource

owner credentials to be stored by the client for future

use. This is for what OAuth was created to prevent in

the ﬁrst place, so it is not a recommended method to

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard

219

Table 1: Comparison between web security protocols.

Web Security Protocols

Parameters OpenID Connect SAML OAuth 2.0

Token format JSON, JWT XML JSON, XML, JWT

Protocols used JSON, HTTP, REST XML, HTTP, SOAP XML, HTTP, REST

Main purpose Single sign-on for Single sign-on for API authorization

consumer applications enterprise users between applications

Provides Authorization No Yes Yes

Provides Authentication Yes Yes Pseudo-Authentication

User Consent It collects user consent It does not collects It collects users consents

before sharing attributes users consent before sharing attribute

Security Risks Phishing since Identity XML Signature wrapping Phising, OAuth 2.0 does not

support encryption &

provides have a database of

OpenID logins.

to impersonate any user also it relies completely on

TLS for conﬁdentiality.

allow third-party apps to use this grant, but this meth-

ods ﬁnds its use mainly when the client is developed

or works under the same authority as the authorization

server i.e it is entitled to great degree of trust.

Figure 1: Authorization code grant ﬂow.

Client Credentials. The client credentials grant type

can be used as an authorization grant when the autho-

rization scope is conﬁned to protected resources under

the control of client or under the authorization server.

This grant type is used by clients to acquire an access

token outside user’s context and used by clients to ac-

cess resources about themselves rather than to access

user’s resources. Hence the end-user does not have

to give its authorization for accessing the resource

server.

4.3 Advantages of using Authorization

Code in O-MI-Authentication

rather than Other Grant Types

According to (Onl, d) the authorization code grant

ﬂow can be shown in Fig. 1. The authorization code

ﬂow is also known as the three-legged OAuth ﬂow

since it has three legged scenarios of the application,

user and the service provider. So this ﬂow has an ex-

tra authorization step as compared to generic 2-legged

approach. As stated in (Onl, a) since Authorization

code is short lived and that can be further used to ob-

tain a unique access token and a refresh token. When

the request for access token is made by the applica-

tion, the user is authenticated with the client secret,

which diminishes the risk of attacker intercepting au-

thorization code.

5 OAuth 2.0 SECURITY MODULE

FOR O-MI/O-DF STANDARDS

5.1 Architecture

The architecture for OAuth 2.0 integration with the

O-MI authentication module is shown in the Fig. 2

depicting all the steps undertaken for the proposed

model. Fig. 3 illustrates our security module imple-

mentation with OAuth 2.0. The implementation steps

can be listed as follows:

1. The OAuth 2.0 module authenticates the client

and generates a unique token/session for secure

communication.

2. The client sends O-MI request with the authenti-

cation token/session. This request is then parsed

in terms of TTL and request type.

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

220

User

Client

User Agent

(Web Browser)

Authorization

Server

Resource

server

(O-MI Server)

User veriﬁed

Authorization

code

request

Access token

and Refresh Token

Exchanging Tokens

Validates

Access token

verifying access token

Send omi request

Omi response

Figure 2: The proposed architecture for OAuth 2.0 integra-

tion with O-MI Node.

Parse

Request

Authorization Routing

Fetch/

Store

O-MI Node

Response

3. 4.

Client

OAuth2

Access

Control

Security Module

Client

Figure 3: Security module with OAuth 2.0 implementation.

3. The authorization block validates the token with

OAuth 2.0 to conﬁrm that the user is authenti-

cated.

4. Once the token has been validated, OAuth 2.0 re-

turns the user ID.

5. The authorization block gets access control rules

with user ID and request type. The O-DF request

is also ﬁltered based on these rules.

6. The routing block then split the O-DF request

to the corresponding handlers. The database is

queried in the fetch/store block based on the read

or write request. Finally, the results are sent to the

client.

OAuth 2.0 implementation and integration with

the O-MI authentication module was done using

open-source python framework Django. This deci-

sion to use Django framework has been made mostly

due to availability of libraries to complete the whole

OAuth 2.0 ﬂow. Django-oauth-toolkit is used to set

up our own Authorization server to issue access to-

kens to client applications for a certain API, to set up a

resource server to protect the views of the application

and to authenticate the access token and ultimately the

client. The implementation of security module can

be found on GitHub

. To complete the OAuth 2.0

O-MI security module implementation, Available:

https://github.com/AaltoAsia/O-MI-Authentication/tree/

OAuth2-Service-Provider-Functionality

ﬂow, we used the authorization code grant ﬂow type

due to various advantages it offers. Django-allauth

library was included to establish the client or the mid-

dleware server for the third party application/client

side integration for the OAuth ﬂow to be completed

and to store and manage the information about access

tokens, social accounts, applications, user and group

information.

5.2 Added Security Features

OAuth 2.0 ﬂow was found the most suitable one to be

integrated with the O-MI/O-DF standards. Following

reasons were also considered to implement OAuth 2.0

in the O-MI authentication module:

• API Security: To make an API secure; one way is

to use the basic authentication method similar as

the O-MI-Authentication method where the user-

name and password are sent using Base64 encod-

ing. The credentials are not encoded or hashed

and the user has to send username and password

over the wire. To improve this ﬂow, we use OAuth

2.0 to secure the API, so instead of username and

password, an access token is sent which makes the

ﬂow more secure. Since in case of any attack if

the client application starts misbehaving or using

data improperly, access token for that application

can be revoked any time thus making all the future

requests invalid.

• Provision for limited access: Limited access to

the application can be also be provided by deﬁn-

ing limited scopes in the access token. So when

using access tokens, a client application may not

have full API access. In contrast, if the credentials

are stolen then whole API can be misused.

• Federal identity: As discussed in (Onl, b) with

OAuth 2.0, an effective mechanism can be applied

where once user logs in with username and pass-

word (the OAuth 2.0 service provider), he is redi-

rected to the provider in all other applications. He

has to conﬁrm that he wants to be authorized and

need not to enter his credentials/sign up for other

applications.

• Service analysis and monitoring: According to

(Onl, b) the organizations can monitor their ap-

plication usage by the consumers and can track,

monitor more easily that which access token is

making requests. It helps in gaining better in-

sights about customer’s behavior and can make

optimizations.

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard

221

5.3 Steps of Implementation

The implementation steps adopted for the OAuth inte-

gration with O-MI/O-DF standards is depicted in Fig.

Resource

Owner

(User)

Client

(O-MI Client)

User Agent

(Web

browser)

Authorization

Server

(O-MI

Authentication)

Resource

Server

(O-MI Server)

Authorization code request

Authorization

code provided

Sends authorization code

Access token provided

Sends O-MI request with access token

O-MI response

Token valid/invalid

Checks access token

Figure 4: The implemented OAuth 2.0 ﬂow for O-MI Node.

Accessing the O-MI Authentication Module. The

ﬁrst step of the ﬂow requires the user to provide

appropriate credentials to the O-MI Authentication

module. If valid user credentials are provided, then

the user is redirected to the authentication module in-

terface where the user can obtain his/her own signed

and decoded token which can be further used to au-

thenticate the user in the O-MI-Node. If the user does

not have valid credentials, he/she can register as a user

or super user by using ﬁlling up the sign-up form pro-

vided on the homepage of authentication module.

Figure 5: Client Registration Interface.

Application Registration. Now the user should tell

the authorization server which application is allowed

to use the OAuth 2.0 Authentication by registering

the application on the server. Here the user has to

provide information about the application like client

type, grant type and the redirect URL. To make this

module secure and as per the needs of authentication

module, we used the conﬁguration of having client

type as conﬁdential client, grant type as authoriza-

tion code and the redirect URL as the callback ad-

dress of the client application on running on differ-

ent server (or the middle-ware server). After reg-

istration the user is provided with a client id and a

client secret which is used to authenticate the appli-

cation while obtaining the authorization codes, ac-

cess token and the refresh token. Fig. 5 shows the

application interface along with the desired applica-

tion code ﬂow. Here the user is assigned a unique

client ID and secret, the client type is made conﬁden-

tial so that only trusted clients could access the re-

sources of the O-MI node. As discussed in subsection

4.3 due to the mentioned advantages of authorization

code ﬂow, the grant type is set to authorization code

here. The redirect URI includes the callback URI of

the client application which is bound to run on a dif-

ferent domain/server than that of the O-MI authenti-

cation module. The following details about the ap-

plication can be edited/deleted according to the user’s

need.

Obtaining Authorization Code. The authorization

server validates the client and continues to complete

the ﬂow according to the grant type and the client cre-

dentials provided. After validation, it asks the user’s

permission to provide the demanded scopes to the ap-

plication. After getting user’s permission, authoriza-

tion server redirects the user agent back to client us-

ing the redirection URI provided at the time of ap-

plication registration. Now after redirection, the redi-

rection URI automatically includes an authorization

code and any local state provided earlier by the client

as shown in Fig. 6.

Exchanging Tokens. After a short lived Authoriza-

tion code is obtained from the authorization server,

now the client requests an access token from the au-

thorization server’s token endpoint by exchanging the

authorization code and client information with the au-

thorization server. After veriﬁcation of client and the

authorization code, an HTTP response is passed by

the authorization server including the access token,

its validity period and a refresh token.

Obtaining the Protected Resource View and Au-

thenticating the Access Token with O-MI Node.

After the access token and refresh tokens are obtained

as shown in Fig. 7, the client is OAuth protected i.e

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

222

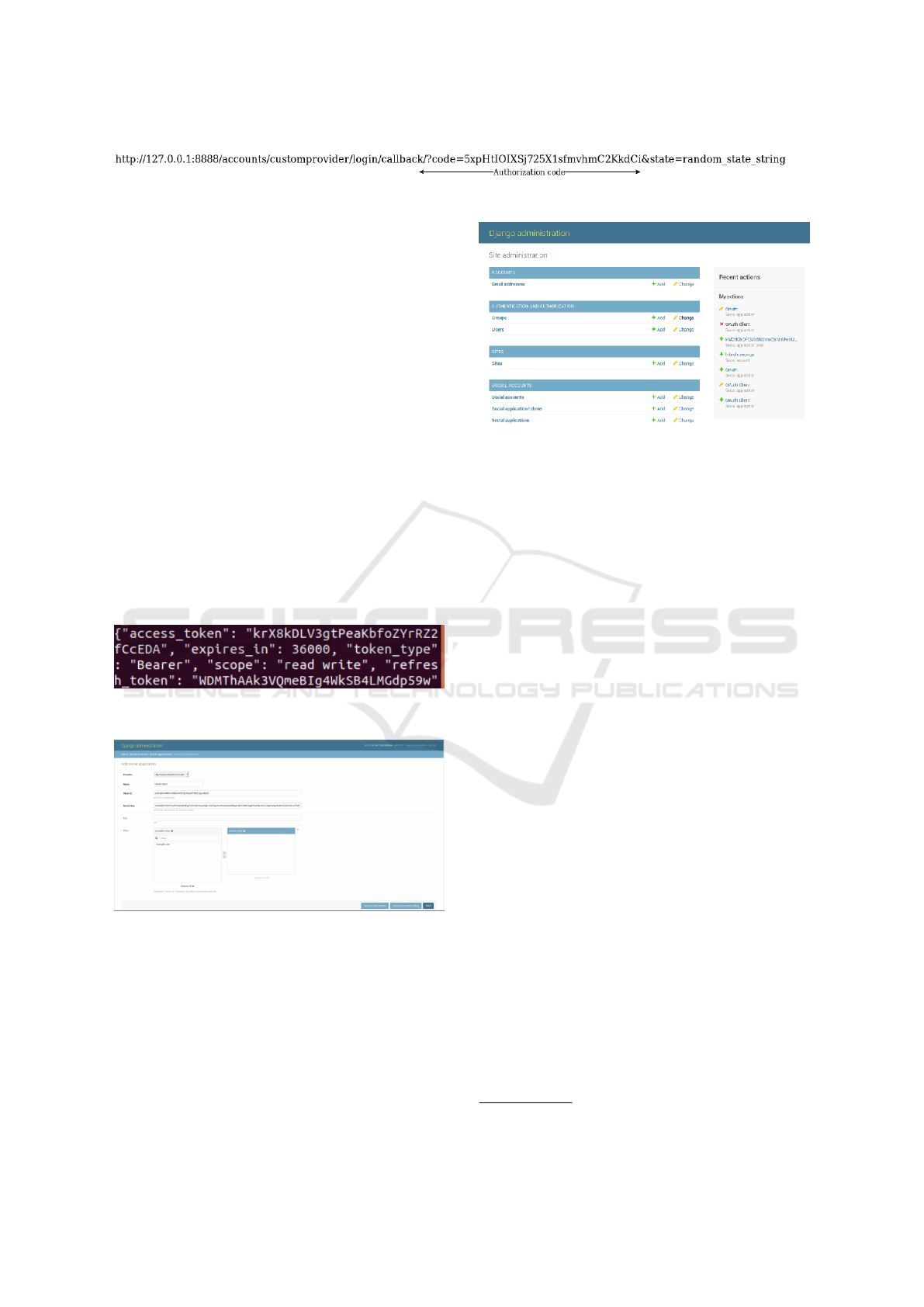

Figure 6: Authorization code included in the URL after redirection.

the user can access the protected resource view of the

client by providing the access token. Now to complete

the whole process, user has to provide the access to-

ken to the O-MI-Node which checks with the O-MI-

Authentication module and ultimately results with a

200 OK code if the access token provided is valid.

User Interface. Our Django social application which

runs on a different server must be told about the cre-

dentials to be allowed to use the server as an authen-

tication back end and information about the provider

must be provided. We used the django-allauth library

for developing the client application which provides

the ﬂow for sign up of both local and social accounts,

allows connection of more than one social account

to a local account and supports consistent storage of

access token. For the purpose of developing a gen-

eralised reference implementation we used our own

custom provider, in case we use any external OAuth

2.0 provider like Github, Facebook,etc. We would

need the unique client id and secret key which is ob-

tained from respective OAuth 2.0 providers. Fig. 8

shows the interface for social application registration.

Figure 7: Access token,refresh token and token details ob-

tained from token endpoint.

Figure 8: Page for creating/editing django social applica-

tion.

Django Site Administration. The django client ap-

plication also manages multiple social applications,

social accounts and the social tokens. Basic features

such as addition/deletion of accounts and tokens are

also included within the library, multiple sites can also

be added or deleted. The user can keep a track of

the recent changes implemented under the My actions

section. Figure 9 shows the django site administration

panel.

Figure 9: Django site administration panel on client side.

6 BUSINESS USE CASES

The O-MI/O-DF standards are used for uniﬁcation of

diverse IoT systems and data streams. It can enable

a range of diverse IoT applications, more speciﬁcally,

three use cases (proof-of-concept) have been devel-

oped and showcased

1. Greater Lyon Use case: There are two case studies

implemented for Lyon which are associated with

essential elements of public policies of metropoli-

tan; heat wave mitigation case study deals with the

urban monitoring and the climate change adap-

tation and bottle banks management case study

deals with the optimization of daily public ser-

vices.

2. The Brussels city use case: This use case is for

smart mobility which covers three general pilot

cases; Safety Around School use case, waterbus

services use case and smart mobility for disabled

people.

3. The Helsinki Smart City use case: It is being

designed for contribution in creation of an elec-

tric vehicles’ charging ecosystem. The proposed

ecosystem helps in integrating all charging possi-

bilities by providing interoperability between the

charging service provider companies and inclu-

sion of other non-specialized possibilities, such as

house-holds and private parking places.

Apart from the business use case of the O-MI/O-

DF standards, the recently added OAuth integration

also has speciﬁc use cases (Onl, c) which can used

according to the user’s need.

bIoTope Project, Available: https://biotope-project.eu

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard

223

Table 2: Comparison between different versions of O-MI security module.

Functionalities and properties Version 1 Version 2 Modiﬁed Version 2

Request type in O-MI Write Read, write, call, delete Read, write, call, delete

Token types Base64 token Base64 token Base64 token and OAuth access token

Local user and password no yes yes

OAuth 2.0 user login no no yes

External Client registration no no yes

Protected page or API no yes yes

External OAuth 2.0 provider no yes yes

OAuth 2.0 service provider no yes yes

Http Framework Jetty Django, Akka HTTP Django, Akka HTTP

1. Multiple Access tokens: This use case is partic-

ularly useful for native applications since a web

browser needs to be launched only once. And as

discussed in 5.2, multiple access tokens provide

the functionality of federal identity, which eases

the login process for the user.

2. Data monitoring: The user/organisation can give

limited access to another user or organisation and

can manage the data to be shared. The organi-

sation can monitor the application usage by the

consumers and monitor the data usage based on

access token requests.

3. Support for native applications: Since OAuth2.0

supports native applications, which makes it eas-

ier for the user to log-in and the user does not need

to authenticate and authorize access on every exe-

cution of the app. This use case can be implied in

various ways including in-app-payment methods,

data sharing applications, etc.

7 DISCUSSION

In the IoT security, data privacy and conﬁdential-

ity are important aspects to be concerned about. As

of now, the security module v2 used so far has two

security sub-modules namely authentication and au-

thorization modules for security purposes which had

minimalist security features required for an Internet

of things network. Though these modules are fully

functional modules, still some major functionalities

are required to improve the performance and the secu-

rity of reference implementation is missing. Adding

OAuth 2.0 security feature was one of the major steps

taken to improve the security modules. Table 2 also

compares the newly developing modules with the pre-

vious versions.

Limitations and Vulnerabilities of OAuth

As mentioned in (Emerson et al., 2015) (Lodderstedt

et al., 2013) following limitations and threats are be-

ing observed for the OAuth 2.0 process ﬂow:

• Addition of extra extensions at the ends in the

speciﬁcation produce a wide range of non-inter

operable implementations.

• By eavesdropping the communication between

the service provider and user attacks like replay

attacks and impersonation attacks are quite com-

mon. By eavesdropping, any intruder can steal the

authorization code or access token and pretend as

a user.

• There are chances that the data can be mishandled

by the registered third party application.

• According to (Mangal, 2019), the spec recom-

mends the use of SSL/TLS while transmitting the

issued tokens in plain text over the wire, so if the

authorization endpoints or the redirection URL is

not secure, then the attacker can easily attack the

security module.

• In (Chae et al., 2015) authors have discussed

about the replay attack as the authorization code

is not for single use. Any attacker who captures

the authorization code within its lifetime can re-

send the request to access the resources. Authors

have also mentioned the impersonation, phishing

and the replay vulnerabilities.

8 CONCLUSION AND FUTURE

SCOPE

The main focus of this research is to develop an en-

hanced security model for the Open Messaging Inter-

face (O-MI) and Open Data Format (O-DF) standards

by integration with OAuth 2.0 authentication proto-

col. The integrated security module helps in making

the APIs more secure, providing provision for limited

access, federal identities and helps in service analysis

as well as monitoring. The design and implementa-

tion principles of authentication module are explained

and the integration with the existing O-MI security

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

224

module is presented. Adding OAuth 2.0 security fea-

ture was one of the major steps taken to improve the

existing security module. However, the requirements,

the core design decisions, and the code structure are

conceived to be generally applicable to other systems,

providing a solid foundation for a further abstraction

and generality of the used approach.

Future work will be to implement JSON Web To-

ken (JWT) in the O-MI reference implementation to

achieve good performance and portability. With JWT,

there is no session to manage as the security informa-

tion is digitally signed and self-contained in the token,

which makes the system stateless. Further, the work

will be extended to reduce network round trip time by

sharing user ID between OAuth 2.0 and Access Con-

trol module, instead of retrieving the ID from autho-

rization module.

REFERENCES

Authorization Code Grant - OAuth2.0 Servers. https:

//www.oauth.com/oauth2-servers/server-side-apps/

authorization-code/. [Online]; accessed October

2019.

Beneﬁts of OAuth 2.0. https://subscription.packtpub.

com/book/application development/9781783285594/

1/ch01lvl1sec09/beneﬁts-of-oauth-2-0. [Online];

accessed October 2019.

OAuth Use Cases. https://tools.ietf.org/html/

draft-ietf-oauth-use-cases-01. [Online]; accessed

December 2019.

The OAuth 2.0 Authorization Framework. https://tools.ietf.

org/html/rfc6749. [Online]; accessed October 2019.

User Authentication with OAuth 2.0. https://oauth.net/

articles/authentication/. [Online]; accessed October

2019.

Buyya, R. and Dastjerdi, A. V. (2016). Internet of Things:

Principles and paradigms. Elsevier.

Chae, C.-J., Choi, K.-N., Choi, K., Yae, Y.-H., and Shin,

Y. (2015). The Extended Authentication Protocol us-

ing E-mail Authentication in OAuth 2.0 Protocol for

Secure Granting of User Access. Journal of Internet

Computing and Services (JICS), 16(1):21–28.

Cirani, S., Picone, M., Gonizzi, P., Veltri, L., and Ferrari,

G. (2014). IoT-OAS: An OAuth-based Authorization

Service Architecture for Secure Services in IoT Sce-

narios. IEEE sensors journal, 15(2):1224–1234.

Emerson, S., Choi, Y., Hwang, D., Kim, K., and Kim, K.

(2015). An OAuth based authentication mechanism

for IoT networks. In International Conference on

Information and Communication Technology Conver-

gence, ICTC 2015, Jeju Island, South Korea, October

28-30, 2015, pages 1072–1074.

Fremantle, P. and Aziz, B. (2016). OAuthing: Privacy-

enhancing federation for the Internet of Things. In

2016 Cloudiﬁcation of the Internet of Things, CIoT

2016, Paris, France, November 23-25, 2016, pages 1–

Fremantle, P., Aziz, B., Kopeck

y, J., and Scott, P. (2014).

Federated Identity and Access Management for the

Internet of Things. In 2014 International Workshop

on Secure Internet of Things, SIoT 2014, Wroclaw,

Poland, September 10, 2014, pages 10–17.

Javed, A., Yousefnezhad, N., Robert, J., Heljanko, K.,

and Fr

amling, K. (2019). Access Time Improve-

ment Framework for Standardized IoT Gateways. In

IEEE International Conference on Pervasive Comput-

ing and Communications Workshops, PerCom Work-

shops 2019, Kyoto, Japan, March 11-15, 2019, pages

220–226.

Khan, J., ping Li, J., Ali, I., Parveen, S., ahmad Khan,

G., Khalil, M., Khan, A., Haq, A. U., and Shahid,

M. (2018). An Authentication Technique Based on

Oauth 2.0 Protocol for Internet of Things (IoT) Net-

work. In 2018 15th International Computer Con-

ference on Wavelet Active Media Technology and In-

formation Processing (ICCWAMTIP), pages 160–165.

IEEE.

Kubler, S., Madhikermi, M., Buda, A., and Fr

amling, K.

(2014). QLM Messaging Standards: Introduction and

Comparison with Existing Messaging Protocols. In

Service Orientation in Holonic and Multi-Agent Man-

ufacturing and Robotics, pages 237–256.

Lightfoot, J. (2018). Authentication and authorization:

Openid vs oauth2 vs saml. https://spin.atomicobject.

com/2016/05/30/openid-oauth-saml/. [Online]; ac-

cessed October 2019.

Lodderstedt, T., Mcgloin, M., and Hunt, P. (2013). OAuth

2.0 Threat Model and Security Considerations. RFC,

6819:1–71.

Madhikermi, M., Yousefnezhad, N., and Fr

amling, K.

(2018). Data Exchange Standard for Industrial Inter-

net of Things. In 2018 3rd International Conference

on System Reliability and Safety (ICSRS), pages 53–

61. IEEE.

Mangal, A. (2019). OAuth 2.0 - The Good, The Bad

& The Ugly. https://code.tutsplus.com/articles/

oauth-20-the-good-the-bad-the-ugly--net-33216.

[Online]; accessed October 2019.

Saeed, A. (2018). Authentication and Authorization Mod-

ules for Open Messaging Interface (O-MI). Master’s

Thesis, Aalto University.

Sciancalepore, S., Piro, G., Caldarola, D., Boggia, G., and

Bianchi, G. (2017). OAuth-IoT: An access control

framework for the Internet of Things based on open

standards. In 2017 IEEE Symposium on Computers

and Communications, ISCC 2017, Heraklion, Greece,

July 3-6, 2017, pages 676–681.

Yao, X., Han, X., Du, X., and Zhou, X. (2013). A

lightweight multicast authentication mechanism for

small scale IoT applications. IEEE Sensors Journal,

13(10):3693–3701.

Yousefnezhad, N., Filippov, R., Javed, A., Buda, A., Mad-

hikermi, M., and Fr

amling, K. (2017). Authenti-

cation and Access Control for Open Messaging In-

terface Standard. In Proceedings of the 14th EAI

International Conference on Mobile and Ubiquitous

Systems: Computing, Networking and Services, Mel-

bourne, Australia, November 7-10, 2017., pages 20–

27.

An OAuth-based Authentication Mechanism for Open Messaging Interface Standard

225
