Snap & Hear: Comic Book Analyst for Children Having Literacy and

Visual Barriers

R. B. Dias Yapa

, T. L. Kahaduwa Arachchi

, V. S. Suriyarachchi

, U. D. Abegunasekara

and S. Thelijjagoda

Department of Software Engineering, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka

Department of Information Technology, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka

Department of Information Systems Engineering, Sri Lanka Institute of Information Technology, Malabe, Sri Lanka

samantha.t@sliit.lk

Keywords: Comics, Visual and Literacy Barriers, Recognition, Association, Image Processing, Machine Learning, Audio

Story.

Abstract: Comic books are very popular across the world due to the unique experience they provide for all of us in the

society without any age limitation. Because of this attraction, which comic books have received, it has proved

that comic literature will be able to survive in the twenty first century, even with the existence of multi-

dimensional movie theatres as its competitors. While the biggest global filmmakers are busy with making

movies from comic books, many researchers have been investigating their time on digitizing the comic stories

as it is, expecting to create a new era in the comic world. But most of them have focused only on one or few

components of the story. This paper is based on a research which aims to give the full experience of enjoying

the comic books for everyone in the world despite of visual and literacy barriers people are having. Proposed

solution comes as a web application that translates input image of a comic story into a text format and delivers

it as an audio story to the user. The story will be created using extracted components such as characters,

objects, speech text and balloons and considering the association among them with the use of image

processing and deep learning technologies.

1 INTRODUCTION

Comic is a unique category of entertainment which

was initially printed in papers. Later, with the

development of the technology combined with

immense trend towards reading comic books have

made it to the era of digital comic books where people

have started reading comics through digital devices,

instead of reading traditional ones.

Even today, storytelling is used as one of the best

methods on guiding and improving the minds of kids.

Out of all the story books, comic books have been

playing a contrasting role in this field. But, one needs

to have enough literacy to read and understand the

association of dialogues and the images contained in

these books in order to have the full experience of

enjoying comics. Therefore, some people, especially

the children who do not have enough literacy level

and those who are visually impaired, have always

been challenged and kept far away from obtaining

this wonderful experience that they deserve. They had

to be guided by an external party like parents or a

caretaker to make them understand these stories. But

unfortunately today everyone has become busy with

their own work. Even caretakers might reject on

storytelling repeatedly.

This paper is on the research that has been

conducted on implementing a prototype by aiming to

initiate with the process of giving the opportunity to

have this comic book experience by targeting an

extended audience by providing a user friendly web

application to generate audio story and make it listen

to the children through a guardian.

Going further, this research paper will provide

information on related work which explains the

current status of the related field, procedure and the

methodology that has been carried out in order to

make this into existence, results and discussion on the

work done and the references which guided

throughout this research process.

Yapa, R., Arachchi, T., Suriyarachchi, V., Abegunasekara, U. and Thelijjagoda, S.

Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers.

DOI: 10.5220/0008936402090215

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 2, pages 209-215

ISBN: 978-989-758-417-6

209

1.1 Proposed Solution

Throughout the literature survey conducted, it was

discovered that many researches have been conducted

related to this field of digitizing the comic books, but

almost all of them were focused only on one or few

components. Therefore as a solution for this problem,

this research bears the aim of implementing a

prototype of a web application which could generate

the audio story corresponding to an image which will

be uploading to this web site, which will make the

delivery of storytelling task easier an automated by

just one click.

It took a lot of image understanding and

processing works for the development and

improvement of digitizing and automating the manual

experience of comic books for us.

Following are the supported key areas in order to

come up with the final prototype solution:

● Detection and identification of the comic

characters and objects that exist within the scope.

● Speech text recognition and extraction from the

segmented speech balloons.

● Speech balloon extraction and Story building

through relationship analysis.

● Panel extraction and Text-to-speech conversion.

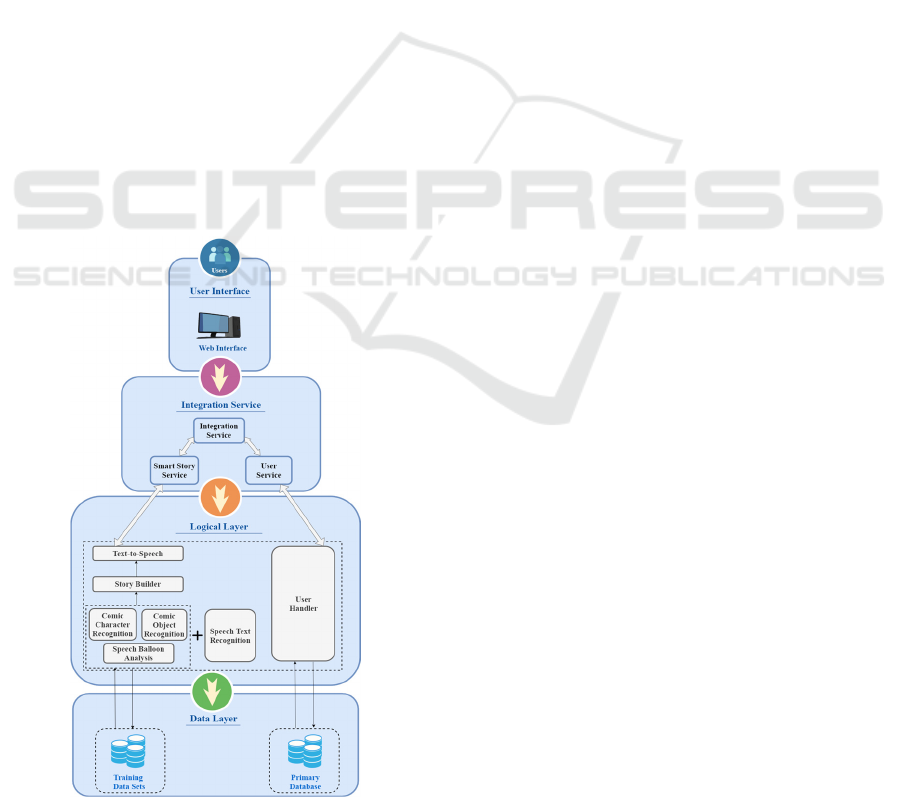

Following figure depicts the high level architecture of

the proposed solution:

Figure 1: High level diagram.

2 RELATED WORK

A literature survey was conducted for this project to

identify the existing work and solutions that have

been used in the process of creating an audio story out

of the comic images. There the unavailability of a

proper commercial product as a complete solution for

the proposed idea is observed. But most of the

research has been done as separate concerns of

extracting content of a comic book. None of the

existing applications have built to generate the story

by combining these extracted information from

panels in a given comic book. Some of the researches

which have conducted related to the comic story field

are briefly explained below.

2.1 Related Work in Product Level

2.1.1 Smart Teddy Bear A Vision-based

Story Teller

Smart Teddy Bear is a research conducted as an audio

book player concealed as a teddy bear equipped with

visual recognition capability Pham et al., 2013 . When

a page of a book of interest is opened before the smart

teddy bear, the system automatically analyze the

images captured by the teddy bear’s camera and

recognizes which book is interested and plays the

corresponding audio story. The proposed system is

based on the Bag-Of-Words model in learning and

recognizing visual object categories to identify the

book corresponding a selected page. Then the

corresponding audio story have been retrieved from a

database.

2.1.2 Segmentation and Indexation of

Complex Objects in Comic Book

Images

This research was conducted on different approaches

on comic books analysis. They had focused on three

such approaches which describes the image content.

This research was only conducted on segmenting and

indexing the comic images, but not on examining the

relationships between them Rigaud, 2016.

2.1.3 Enhancing the Accessibility for All of

Digital Comic Books

Main aim of this research was to implement a system

to make it possible for mobile users, motor-impaired

people, and low-sighted people to access comic books

(Ponsard and Fries, 2009). So, a system has been

improved in the aspect of providing more improved

CSEDU 2020 - 12th International Conference on Computer Supported Education

210

images in a way that targeted category can see the

contents in comic books clearly.

2.2 Related Work in Component Level

2.2.1 Panel Extraction

Panel contains a key moment of the comic story

which is depicted through speech balloons, speech

text, characters and other story specific objects.

Panel extraction and ordering processes have been

concerned in few researches based on X-Y recursive

cut algorithm (Sutheebanjard and Premchaiswadi,

2010). A robust panel extraction method has been

proposed to extract irregular panels but fails to

separate panels joined by some elements (Pang et al.,

2014).

2.2.2 Comic Object and Character

Recognitions

Comic characters and objects are important

components that are needed to focus on when

performing content enhancement of comic books.

Identification of comic characters is a challenging

task because of the unlimited freedom of comic

creators when drawing the comic characters, and also

they are not rich with a vast number of features as in

real human and other characters (Nguyen et al.,

2018a).

Use of deep learning approaches along with

machine learning techniques has become popular

with the advancement of the technologies (Nguyen et

al., 2018b). Analyzing the bounding boxes of the

detected comic characters had been used in the

extraction of those elements (Nguyen et al., 2018b).

Convolutional Neural Networks is the latest

technology which has been found as the most

successful technique in character and object

recognition fields (Ogawa et al., 2018). Although

CNN performs good results with neuralistic images it

does not provide the same performance with the

comic book images (Ogawa et al., 2018).

Another approach had been used to identify the

comic characters by using predefined colour

thresholds for each character (Siddiqui, 2019). This

approach can be useful in identification of characters

with a specific costume where those dress codes

possessed with a particular colour combination.

2.2.3 Text Recognition

In the process of story building, dialogues of the

characters have been identified through speech text

recognition.

Several researches have been conducted to

recognize and extract speech text using image

processing algorithms but only few researches have

been done on identifying text fonts. In those

researches adaptive thresholding, edge detection

operators and mathematical morphology technologies

(Shejwal Bharkad, 2017) had been used for text

detection and K-nearest classifier (Shejwal Bharkad,

2017) had been used for text classification and fonts

have been identified using a simple correlation- based

method (Bashir, 2013).

2.2.4 Balloon Segmentation and Speaker

Association

Balloons contain most of the text and go pairwise

with comic characters. Association between speech

balloons and comic characters involved in

understanding the comic story. Literature survey was

carried out to identify the existing solutions and

technologies in balloon segmentation and association

determination.

Few work concerns balloon extraction and mainly

closed speech balloons have been studied. Only few

has been done on open balloon extraction because of

its partial outlines. These researches are based on

Connected component detection approaches (Tolle

and Arai, 2011,Ho et al., 2012,Rigaud et al., 2017)

and contour-based classification methods (Rigaud et

al., 2013). Anchor point selection approach has been

proposed to determine association (Rigaud et al.,

2015).

2.2.5 Story Building

Story building has been done through Visual

Captioning and Visual Storytelling. In past research

concrete content of image which is depicted through

sentences are retrieved from visual captioning and

summarize the idea and tell a story via visual

storytelling.

Novel Adversarial Reward Learning (AREL)

algorithm is proposed to generate more human-like

stories for a given image sequences (Wang et al.,

2018). Reinforcement learning, and adversarial

training approach is proposed in a sequence to

sequence modelling (Jing et al., 2018). Novel

Bidirectional Attention Recurrent Neural Networks

framework is proposed for visual storytelling (Liu et

al., 2017).

2.2.6 Text-to-Speech

Text to speech conversion can be challenging in

determining the real voice of comic characters.

Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers

211

Several researches have been done to convert text

to speech and few are based on Microsoft Win32

Speech API (SAPI) (Domale et al., 2012). Few

researches have been done to identify the real voice

of comic characters and those are based on Amazon

Mechanical Turk (Mishra et al., 2012).

3 METHODOLOGY

There are three application components implemented

in our proposed solution.

1. End User Application - Angular

2. Integration Service - Node.js

3. Image Processing Service - Python

As the name implies, the Angular application acts

as the frontend component for application which is

visible for the end user to interact with. The Node.js

service is the middle component which is listening to

the requests made by the frontend and executes the

story building process using the Application

Programming Interfaces(APIs) exposed by the

Python service

As per the high level diagram, the logical layer

consists of several sub-components which have been

implemented and powered by a Python flask service.

Here are the main functionalities provided by this

service.

3.1 Panel Extraction

When an image of a comic book, containing a set of

story panels, is provided to this function, it will

analyse the source and output the panel images that

the source image is created with. In this panel

extraction process, component labelling (CCL)

algorithm and N erosions followed by N dilations

performed on CCL, has been used to identify the

panel shapes and cut the connecting elements

between the panels.

Then, X-Y recursive cut algorithm has been used

to extract the panels and get the extracted panels as

separate panels and order the panels by top-down and

left-to-right approach.

3.2 Comic Characters and Objects

Recognition

This is for Identifying comic objects and characters

along with their coordinates once a panel is provided

to the component.

In implementation point of view, initially data of

both comic characters and objects were gathered for

the preparation of data sets. Two separate classifiers

were implemented in python language to run

sequentially and to work on recognising multiple

classes of comic characters and objects from the panel

images. Once the targeted components are

recognised, those components were marked with the

bounding boxes.

As the next step, locations of the recognised

components have been extracted and passed along

with recognised classes as the input for the

association analysis and story building sections.

3.3 Speech Text Recognition

Images of the extracted speech balloons were taken as

the input for the text recognition process and

subjected to go through the Tesseract OCR model,

which was identified as the best text recognition

solution for this prototype. The recognized text will

be saved as a text file on the deployed environment

for further processing of the application.

3.4 Speech Balloon Segmentation and

Component Association

This will create the association of the characters,

objects and text contents recognized in the previous

steps. In order to achieve that, it is necessary to get to

know the association between the text and the

characters who speak that particular dialogue. That is

where the balloon segmentation comes to the play.

A model based on a deep convolutional neural

network has been used for balloon segmentation. In

this algorithm speech balloon detection is considered

as a pixel-wise classification task and fully

convolutional network approach has been used. Since

this approach lack in precision for a single panel in

preparation of the dataset, images were preprocessed

to fit into the required image ratio of the model.

An algorithm has been proposed to retrieve the

association link between speech balloon and speaker

using anchor point selection and euclidean distance

techniques with the assumption of character positions

have been extracted and comic characters and speech

balloons are relatively close. These associations are

used in the process of building the story.

3.5 Story Building

In Story building section story will be built through

connecting relationships between contents within the

panel. String Manipulation has been used to combine

the relationships of extracted character, objects and

the speaker association and generate sentences. Then

CSEDU 2020 - 12th International Conference on Computer Supported Education

212

the Sentences are combined to build the story. Built

story will be delivered in text format as the output of

this section.

3.6 Text-to-Speech

In this section Google Speech API has been used to

convert text into audio. Amazon Mechanical Turk

(MTurk) has been used to get the real voice of comic

characters by data driven approach and using Naive

Bayes classiﬁer, the relationship between the

character attributes and the voice has been modeled.

4 RESULTS

Results gained throughout the flow of the

implemented prototype have been briefed below. The

flow initiates with the upload of comic image. Once

the image is uploaded to the web application it goes

through the panel segmentation process and generates

the segmented panels as separated images. Then from

each of those images, desired comic characters,

objects and speech balloons will be recognized as the

results of the subjected character recognition, object

recognition and balloon recognition deep learning

models.

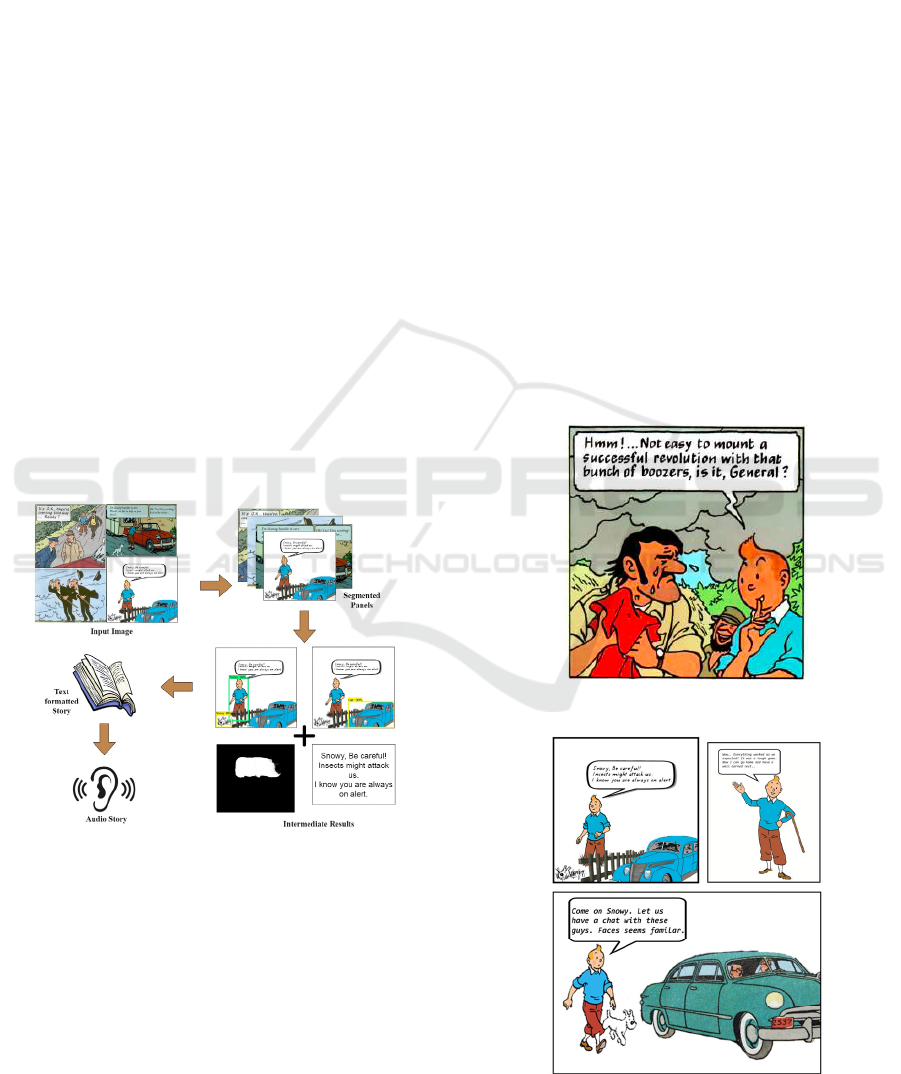

Figure 2: Resulted Product Flow.

Identification of comic characters and objects has

been carried out successfully and the accuracy up to

99% can be reached by comparing with the generated

inference graph when implementing the classifiers by

training data. It is possible to happen misrecognitions

due to the difficulties faced when gathering datasets

for both characters and objects (specially for the

objects). But in most cases, it is able to identify

characters and objects accurately even with the

challenges that were facing.

Output of the speech balloon extraction has also

been another critical element of research which leads

to the association of characters and the dialogues.

Isolation of speech balloons from the initial image is

merged with the original image again and provide the

resulted image to the OCR component in order to

extract the text of speech balloons from the given

image.

As mentioned earlier, the text will be extracted

from the output of balloon segmentation component,

but not from the original image. Therefore the

accuracy of text recognition will depend on the

quality of the output of balloon segmentation

component.

The extracted text will be saved in a text file in

order to provide for the next steps.

For a given input image (such as Fig 3), a story

will be generated using the results of intermediate

steps which are explained above and will be displayed

on the GUI as a plain text as shown in Fig. 4. Then

the final result of this prototype will be delivered as

an audio story to the user by generating an audio file

for the text output which was created at the end of

story building phase.

Figure 3: Input Image - in Panel Form.

Figure 4: Input Image - in Page Form.

Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers

213

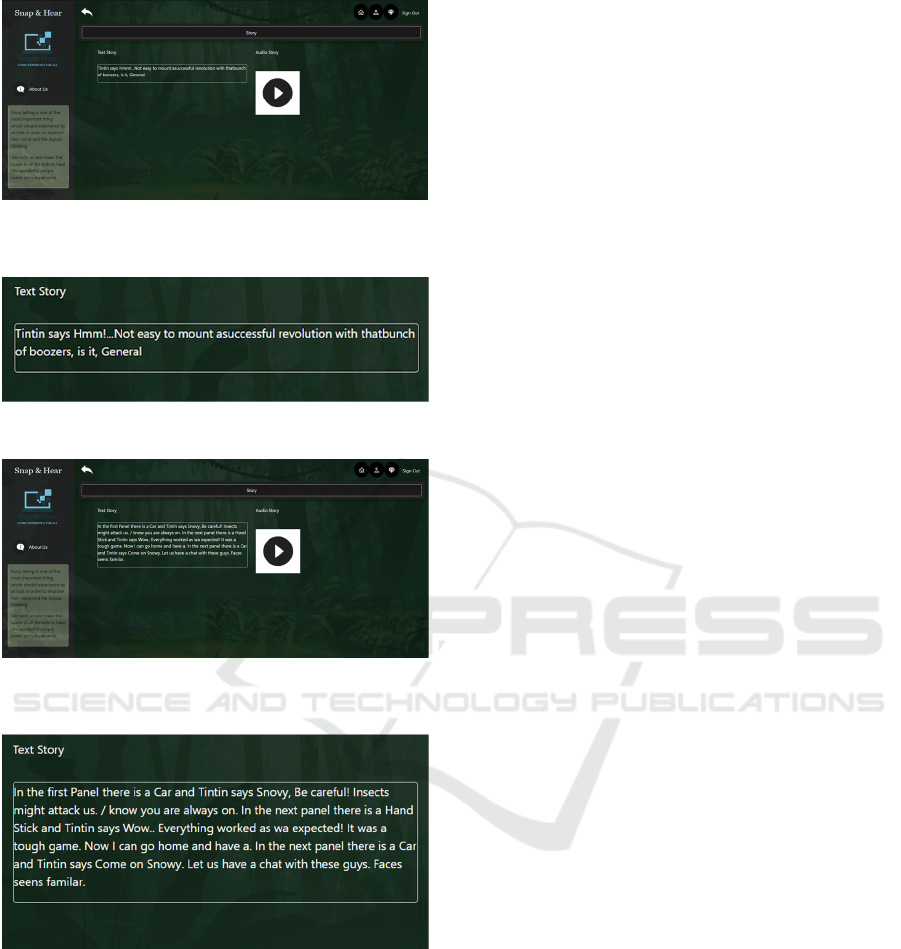

Figure 5: User Interface with Final Result Generated to the

Input Image in panel form.

Figure 6: Close up Image of Generated Text Story.

Figure 7: User Interface with Final Result Generated to the

Input Image in page form.

Figure 8: Close up Image of Generated Text Story.

5 DISCUSSION

Proposed approach can recognise specific classes of

comic characters and objects as planned in the scope.

Actions, speech tones and emotions of the comic

characters are not taken into account.

While the dialogues which are boarded by the

speech balloons are considered for the story, the

graphical text which often used to convey emotions

are not considered within our scope. The speech text

recognition is only guaranteed for the font styles

which has a fair equality to a clear font styles such as

Arial, Times New Roman and Calibri.

Out of the different scenarios with the placement

of speech balloons, tail and speaker within a panel,

unique scenario of all the content included in a single

panel, speech text is inside speech balloons, speech

balloons are nearby their speakers and related

speakers and speech balloons are within the same

place is chosen for this work.

Although speaker voice feeding has been taken

into consideration, it is limited to only a few

characters when building the audio story within our

scope.

5.1 Future Improvements

For the future improvements recognition of speech

tone and emotions of the characters, Extending

speech balloon extraction to extraction of balloons

with partial contours and Extending character and

object recognition models to identify more classes

can be taken into consideration.

Since the recognition of selected characters and

objects was able to do with a successful rate,

successful recognition for rest of the objects and

characters by training the algorithm with proper

expanded data sets can be assumed safely. Text

recognition also will be able to recognize for font

styles with the increased data sets and text to speech

component can be expanded with more comic voices

with the expanded audio training streams of more

comic characters.

6 CONCLUSION

There are two main problems that trying to address by

the prototype proposed by this novelty. Providing the

comic experience to children/adults who have literacy

level issues, and helping busy parents to narrate

stories to their children are those main problems

which have tried to solve here.

The proposed web application solution is

composed with content extraction processes of an

uploaded image and the integration of the

relationships between those contents to build a

storyline and deliver it as an audio story to the

audience. Through that, it was possible to address the

above mentioned problems and to let the targeted

audience to hear the generated audio and to have the

new experience of digitised comic books.

CSEDU 2020 - 12th International Conference on Computer Supported Education

214

It is possible to scale up the scope of Snap & Hear

project and consider the scenarios mentioned above

in the discussion to the analysis parts to give a better

experience to the end user by integrating those

missing inputs to the story as well.

REFERENCES

Duc-Minh Pham, Trong-Nhan Dam-Nguyen, Phuc-Thinh

Nguyen-Vo and Minh-Triet Tran, "Smart Teddy Bear a

vision-based story teller", 2013 International

Conference on Control, Automation and Information

Sciences (ICCAIS), 2013. Available: 10.1109/iccais.

2013.6720564

C. Rigaud, "Segmentation and indexation of complex

objects in comic book", ELCVIA Electronic Letters on

Computer Vision and Image Analysis, vol. 14, no. 3,

2016. Available: 10.5565/rev/elcvia.833

C. Ponsard and V. Fries, "Enhancing the Accessibility for

All of Digital Comic Books", vol. I, no. 5, 2009.

Available: http://www.eminds.hci-rg.com.

Phaisarn Sutheebanjard & Wichian Premchaiswadi, “A

Modified Recursive X-Y Cut Algorithm for Solving

Block Ordering Problems”, 2010 2nd International

Conference on Computer Engineering and Technology,

Available: v3-307.

Xufang Pang, Ying Cao, Rynson W.H. Lau, and Antoni B.

Chan, “A Robust Panel Extraction Method for Manga”,

2014.

N. Nguyen, C. Rigaud and J. Burie, "Multi-task Model for

Comic Book Image Analysis", MultiMedia Modeling,

pp. 637-649, 2018.

N. Nguyen, C. Rigaud and J. Burie, "Digital Comics Image

Indexing Based on Deep Learning", Journal of

Imaging, vol. 4, no. 7, p. 89, 2018.

T. Ogawa, A. Otsubo, R. Narita, Y. Matsui, T. Yamasaki

and K. Aizawa, "Object Detection for Comics using

Manga109 Annotations", Research Gate, 2018.

Available: https://www.researchgate.net/publication/

324005785_Object_Detection_for_Comics_using_Ma

nga109_Annotations/citations.

K. Ahmed Siddiqui, "Skin Detection Of Animation

Characters", International Journal on Soft Computing,

vol. 6, no. 1, pp. 37-52, 2015.

M. Shejwal and S. Bharkad, "Segmentation and extraction

of text from curved text lines using image processing

approach", 2017 International Conference on

Information, Communication, Instrumentation and

Control (ICICIC), 2017.

S. Muhammad Arsalan Bashir, "Font Acknowledgment and

Character Extraction of Digital and Scanned Images",

International Journal of Computer Applications, vol.

70, no. 8, pp. 1-5, 2013.

H. Tolle and K. Arai, “Method for Real Time Text

Extraction of Digital Manga Comic,” International

Journal of Image Processing (IJIP), vol. 4, no. 6, pp.

669–676, 2011.

A. K. N. Ho, J. C. Burie and J.M. Ogier, “Panel and Speech

Balloon Extraction from Comic Books,” presented at

Tenth IAPR International Workshop on Document

Analysis Systems, pp. 424-428, Mar. 2012.

C. Rigaud, J. C. Burie and J.M. Ogier, “Text-Independent

Speech Balloon Segmentation for Comics and Manga,”

2017, pp. 133-147.

C. Rigaud, J. C. Burie, J.M. Ogier, D. Karatzas and Jo, “An

Active Contour Model for Speech Balloon Detection in

Comics,” in Proceedings of the International

Conference on Document Analysis and Recognition,

ICDAR 2013

Rigaud, C., Thanh, N.L.; Burie, J.C.; Ogier, J.M.; Iwata,

M.; Imazu, E.; Kise, K. “Speech balloon and speaker

association for comics and manga understanding,” in

Proceedings of the 2015 13th International Conference

on Document Analysis and Recognition (ICDAR),

Tunis, Tunisia, Aug. 23–26, 2015; pp. 351–355.

Xin Wang, Wenhu Chen, Yuan-Fang Wang and William

Yang Wang, “No Metrics Are Perfect: Adversarial

Reward Learning for Visual Storytelling.” ACL 2018.

Wang, Jing, Jianlong Fu, Jinhui Tang, Zechao Li and Tao

Mei, “Show, Reward and Tell: Automatic Generation

of Narrative Paragraph From Photo Stream by

Adversarial Training,” AAAI 2018.

Y. Liu, J. Fu, C. W. Chen, “Let Your Photos Talk:

Generating Narrative Paragraph for Photo Stream via

Bidirectional Attention Recurrent Neural Networks,”

AAAI Conference on Artificial Intelligence.

Ajinkya Domale, Bhimsen Padalkar, Raj Parekh, M.A.

Joshi, “Printed book to audio book converter for

visually impaired”,2013 Texas Instruments India

Educators' Conference.

Mishra, Taniya & Greene, Erica & Conkie, Alistair. (2012).

Predicting Character-Appropriate Voices for a TTS-

based Storyteller System. 13th Annual Conference of

the International Speech Communication Association

2012, INTERSPEECH 2012. 3.

Snap Hear: Comic Book Analyst for Children Having Literacy and Visual Barriers

215
