Peer-to-peer Energy Trading for Smart Energy Communities

Roman Denysiuk

2,∗ a

, Fabio Lilliu

1,∗ b

, Diego Reforgiato Recupero

1,∗ c

and Meritxell Vinyals

2,∗

1

Department of Mathematics and Computer Science, University of Cagliari, Via Ospedale 72, Cagliari, Italy

2

CEA, LIST, 91191 Gif-sur-Yvette, France

∗

These authors contributed equally to this work

Keywords:

Renewable Energies Incentive Systems, Smart Grid, Game Theory, Peer-to-peer Energy Trading.

Abstract:

Local energy communities (LECs) comprise prosumers cooperating for the satisfaction of their energy needs.

Prosumers are community members that can both produce and consume energy. LECs facilitate the integration

of renewables and provide the potential for reducing energy costs. Peer-to-peer (P2P) energy trading allows

direct energy exchange between members of a local energy community. The surplus of energy from renew-

ables is traded to meet a local consumption demand so that costs and revenues stay within community avoiding

transmission losses and stress on the grid. This study presents a design of the peer-to-peer market for local

energy communities where prosumers are rational and self-interested agents acting selﬁshly in an attempt to

optimize their trades. The market design aims to ensure self-consumption of locally produced energy and pro-

vides incentives for balancing supply and demand within community. The proposed design is investigated in

comparison with existing ones using theoretical analysis and simulations. The obtained results are promising

and reveal advantageous properties of the proposed P2P energy trading.

1 INTRODUCTION

Nowadays, the topics of energy and climate policies

are crucial, and require a transition for energy systems

from exhaustible energy sources, such as fossil and

nuclear, to renewables (e.g. wind and solar). About

this, several policies have been made in order to sup-

port installation and employment of renewable energy

sources (RES). These policies reward RES produc-

ers for the excess of energy they export to the grid,

for example by paying them money for unit of en-

ergy exported or by providing them energy at no cost

later, so that they are repaid for their RES investment.

These policies have been effective for increasing the

share of energy generated from RES, which in 2016

already represented 30% of total energy generated in

Europe

1

; however, the employment of this type of

energy comes with stability problems to the grid (Mi-

haylov et al., 2019; Commission, 2013), and support

policies are unable to solve this at the moment, so this

limits their effectiveness. More precisely, renewable

a

https://orcid.org/0000-0002-6847-8313

b

https://orcid.org/0000-0003-1140-4433

c

https://orcid.org/0000-0001-8646-6183

1

http://www.eea.europa.eu/data-and-maps/indicators/

overview-of-the-electricity-production-2/assessment

energy production is difﬁcult to control, and for this

reason production usually does not match consump-

tion.

In order to face these issues, in these years

there have been new proposals for incentive mecha-

nisms (Ilic et al., 2012; Mihaylov et al., 2014; Kok

et al., 2005; Capodieci et al., 2011). The key feature

of these mechanisms is building the payment support

functions for producers and consumers in such a way

that, at every moment, energy consumption is encour-

aged to match energy production.

Some of these mechanisms use market-based ap-

proaches (Ilic et al., 2012; Kok et al., 2005), which

consider a local market where prosumers sell the en-

ergy they produce and consumers buy it. Another

work by (Mihaylov et al., 2014) proposes a mecha-

nism called NRG-X-Change, which does not rely on

an energy market, as locally produced renewable en-

ergy is simply injected into the grid and taken by con-

sumers. Unlike traditional support policies, the NRG-

X-Change mechanism offers incentives not only for

producers but also consumers, depending on their

contribution to the local energy balance.

The most prominent feature of NRG-X-Change

is the employment of NRGcoin, a virtual currency

whose exploitation offers some relevant beneﬁts to

40

Denysiuk, R., Lilliu, F., Recupero, D. and Vinyals, M.

Peer-to-peer Energy Trading for Smart Energy Communities.

DOI: 10.5220/0008915400400049

In Proceedings of the 12th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2020) - Volume 1, pages 40-49

ISBN: 978-989-758-395-7; ISSN: 2184-433X

Copyright

c

2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

energy trading. However, there are some important

factors not taken into account by this mechanism,

such as energy self-consumption and the management

of congestion. More precisely, we want to ensure that

prosumers always consume their produced energy be-

fore selling or buying the excess energy they produce

or need. In other words, we want to actively discour-

age scenarios where the energy consumption or pro-

duction is excessive. Therefore, the purpose of this

work is to create a new incentive mechanism based

on NRG-X-Change and the use of NRGcoin using as a

baseline the works in (Mihaylov et al., 2014) and (Lil-

liu et al., 2019b), but further improving the critical

points of the mechanism and studying its behavior in

a context with selﬁsh agents. The contributions of this

paper are therefore the following:

• We analyze the NRG-X-Change project and iden-

tify its main issues (import and export price func-

tions) and the situations where they appear;

• We design new import and export price functions

that can work better within the NRG-X-Change

mechanism by exploiting known results in game

theory about Nash Equilibria, and provide theo-

retical background on those;

• We demonstrate the validity of our proposed func-

tions through mathematical proof, and carry out

an experimental evaluation on real data from a

grid in Cardiff that measured the efﬁciency of our

proposed functions.

The remainder of the paper is structured as fol-

lows. Section 2 describes the literature related to

our work. Section 3 formulates the game theoretical

model, and in Section 4 we present the baseline we

work on top, and how we want to achieve the objec-

tives of this paper. Section 5 validates our theoretical

results and quantiﬁes the efﬁciency of the described

mechanisms via simulations using real data from a

grid in Cardiff (UK). Finally Section 6 concludes the

paper and describes possible future developments.

2 RELATED WORK

Although the NRG-X-Change mechanism has not yet

been implemented in actual grids, there are some

works in which it has been described in detail. The

most important one is from (Mihaylov et al., 2014),

where the authors explain the advantages of using

a digital currency and the interactions between grid

users, with or without outside parties. Also, (Mi-

haylov et al., 2015) created a scenario simulating a

local grid, showing how NRG-X-Change performs in

a realistic environment.

A survey on incentive mechanisms has been done

by (Mihaylov et al., 2019), where issues about net me-

tering and feed-in tariffs are discussed, such as over-

consumption in some periods of the year, overpay-

ment for the energy provider, and underpayment to

energy producers. In that work, there is a comparison

of some new support mechanisms which aim to solve

these problems. One of them is the auction-based

mechanism Nobel (Ilic et al., 2012), which trades

energy at a local level based on the stock exchange

model. Another mechanism is PowerMatcher (Kok

et al., 2005), which is based on a market structure

regulated by software agents balancing demand and

supply in a tree-shaped hierarchical structure, and are

called SD-matchers. There is also a work proposed

by (Capodieci et al., 2011), which is a negotiation-

based mechanism where prosumers compete with en-

ergy generating companies (Gencos) for selling en-

ergy, and negotiate the price with buyers. It is then

shown how this mechanism affects the energy price,

and also what happens with the implementation of

a learning strategy for the buyers. However, all

these above-cited works focus on market mechanisms

which require ﬁnal prosumers to get involved into

complex bidding processes.

Literature on employment of game theory for the

smart grid context is extensive. (Saad et al., 2012)

present a survey which describes comprehensively

how game theory methods have been used for smart

grid. The work done by (Rad et al., 2010) is prob-

ably one of the closest to the work we propose here

in terms of employment of game theory, although its

focus is mainly devoted to manage demand response

whereas ours is on the incentive mechanism. The

game theory usage done by (Nguyen et al., 2012)

and (Soliman and Leon-Garcia, 2014) has also been

of inspiration for us, since the model we will propose

in this work has been heavily inﬂuenced by their game

theory modeling in the smart grid context. The work

from (Loni and Parand, 2017) contains another survey

describing the use of game theory for smart grid, al-

though it focuses on collaborative games, whereas our

work describes mainly a situation where each agent is

selﬁsh.

3 MODELIZATION OF THE

PROBLEM

In this section the modelization of the problem will

be discussed. We built a model from a game theory

perspective in order to explain the effect of the incen-

tive mechanism on the agents. Our construction was

inspired by (Nguyen et al., 2012) and (Soliman and

Peer-to-peer Energy Trading for Smart Energy Communities

41

Leon-Garcia, 2014).

3.1 Game Theory Approach to Our

Smart Grid Problems

First, we introduce our notation for game theory. We

deﬁne a game G = (U,S,Q) in the following way:

• U = {U

1

,...,U

N

} is the set of players.

• S = {S

1

,...,S

N

}, where for any i ∈ {1,...,N}, S

i

is the set of player U

i

’s strategies.

• Q = {q

1

,...,q

N

}, where for any i ∈ {1,...,N},

q

i

:

N

∏

j=1

S

j

→ R is the payoff function for player

U

i

.

Let us consider a grid with N users: we will now

deﬁne a game on it. The players are the grid users,

which will thus be denoted as U

i

, for i ∈{1,...,N}. In

what follows we describe the users’ payoff functions

and the strategies they are allowed to choose.

For each user U

i

, we deﬁne a vector c

i

which in-

dicates the energy consumption of U

i

, and a vector p

i

which indicates the energy production of U

i

. The size

of these vectors is the number of intervals in which the

considered time horizon is divided: for example, in a

scenario with a 24 hour time horizon with 15 minutes

intervals, the size of c

i

and p

i

is 96. Each component

of both c

i

and p

i

is a non-negative real number. We

will denote this number of time intervals as T .

One important consideration has to be made about

the values of c

i

and p

i

: in this work we assume that

each user self-consumes all the energy she

2

needs

before exporting it or imports the extra energy she

needs, and the values of c

i

and p

i

are considered after

self-consumption is taken into account. This, in for-

mal terms, denoting as c

i

(t) the t−th element of c

i

, is

written as

c

i

(t) ·p

i

(t) = 0 ∀t ∈ 1, . . . , T (1)

for each i ∈{1,...,N}. Of course, if U

i

is a consumer

which does not produce energy, p

i

is the zero vector.

Later in this work, we will ensure that all the payment

functions we propose actively encourage energy pro-

ducers to self-consume their produced energy.

Now, we can deﬁne the utility function q

i

for each

grid user as the sum of the utility in the different time

intervals, namely:

q

i

=

T

∑

t=1

q

i

(t) (2)

where the utility of a user U

i

at time interval t is de-

ﬁned as:

q

i

(t) = g(p

i

(t),t

p

,t

c

) −h(c

i

(t),t

p

,t

c

). (3)

2

from now on, this is to be read as he/she.

where g and h are two pre-determined functions with

the property that g(0,a, b) = h(0,a,b) = 0 for every

a,b ∈ R, and represent respectively the reward for

the energy produced, and the cost for the energy con-

sumed. Fixed a time unit t, the aforementioned quan-

tities t

p

and t

c

are deﬁned as

t

p

=

N

∑

i=1

p

i

(t)

t

c

=

N

∑

i=1

c

i

(t)

(4)

and represent the total production and the total con-

sumption through the grid at that given time. In par-

ticular, at a given time t, t

p

depends on every p

i

(t) and

t

c

on every c

i

(t).

The formulation of costs and rewards based on

functions which take into account the total production

and the total consumption at a certain time has been

inspired by (Mihaylov et al., 2014): this has been the

work we used as baseline to build on top.

Next, we show the possible strategies for the play-

ers. More precisely, how the loads can be modeled

in our scheme. An example of this has been seen in

the work from (Soliman and Leon-Garcia, 2014). In

the following we will indicate the loads that we have

taken into consideration for our work.

• Production: This is p

i

. It represents the energy

production of the user U

i

, and it is a ﬁxed vector

unless the energy production is somehow modu-

lable, which is not our case.

• Fixed Consumption: This is a ﬁxed vector f

i

. It

represents the ﬁxed part of the energy consump-

tion of the user U

i

. In this work it will be treated

as a known vector, although it has to be forecast

and may present uncertainty: a possible approach

to this issue can be the one used by (Lilliu et al.,

2019a), which treat the components of the vector

as probability distributions.

• Shiftable Load: This is a vector h

i

j

, which rep-

resents a consumption load of user U

i

which can

be shifted in time. The user can control how many

time units this vector can be shifted by, although

sometimes they have restrictions on this. Given

the vector h

i

j

, the notation r

k

(h

i

j

) will indicate

that vector shifted by k places. In other words, r

k

indicates the rotation by k places: if k = 0 there is

no rotation, therefore r

0

(h

i

j

) = h

i

j

.

Thus, if a user has n shiftable loads {h

i

1

,...,h

i

n

}, and

decides to shift each h

i

j

by a quantity k

j

, we have

c

i

= f

i

+

n

∑

j=1

r

k

j

(h

i

j

). (5)

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

42

The set of possible strategies of U

i

is then the set of

all her possible vectors p

i

and c

i

, depending on how

the loads are shifted.

4 PEER-TO-PEER MARKET

DESIGN

This section presents the proposed peer-to-peer mar-

ket for energy trading.

4.1 Purpose

The goal of this paper is to modelize an incentive

mechanism for renewable energy, using as a baseline

the NRG-X-Change (Mihaylov et al., 2014) mecha-

nism, but improving some of its critical points. More

precisely, these points are:

1. Ensuring that prosumers are not incentivized to

curtail their own energy production, unless this is

necessary for the grid stability.

2. Taking into account the possibility of a conges-

tion, and actively attempting to prevent it.

3. Encouraging prosumers to self-consume the en-

ergy they produce before selling, or before buying

from the grid the excess energy they need.

4. Analyzing the behavior of the users if they mod-

ulate selﬁshly their production and consumption,

and ensure that they reach an equilibrium.

in their work, (Lilliu et al., 2019b) have addressed

the ﬁrst three points by creating functions which de-

scribe rewards for energy production and costs for

energy consumption respectively. The scope of this

work is to create new functions which address all of

the four points mentioned above.

4.2 The NRG-X-Change Incentive

Mechanism

First, we describe the baseline on which we have built

our work. The ﬁrst thing to be described is NRG-X-

Change: it is an incentive mechanism based on the

usage of a virtual currency.(Mihaylov et al., 2014)

Its functioning is described as follows. At each

time unit, grid users may produce and consume en-

ergy. Suppose that at a certain time unit, the user

U

i

produces energy and injects an amount x of en-

ergy into the grid. The user is then rewarded a certain

amount of NRGcoins for the energy produced. This

amount is regulated by a function, which is deﬁned as

g(x,t

p

,t

c

) = x ·

q

e

(t

p

−t

c

)

2

a

(6)

where q and a are two parameters, the ﬁrst indicating

the maximum value of the tariff, the second calibrat-

ing the function.

Similarly, if at a certain time unit the user U

i

con-

sumes an amount y of energy from the grid, she will

pay a certain amount of NRGcoins for that. This

amount is regulated by a function, which is deﬁned

as

h(y,t

p

,t

c

) = y ·

r ·t

c

t

c

+t

p

(7)

where r is a parameter which determines the maxi-

mum possible value of the tariff.

These tariffs have been chosen in order to regu-

late consumption, so that users are encouraged to con-

sume energy when local production is higher than lo-

cal consumption, and discouraged to consume when

local production is lower. Also, production is re-

warded more when local production and consumption

are similar, in order to encourage balance between

them.

However, this system has several ﬂaws, which the

paper from (Lilliu et al., 2019b) has pointed out and

addressed by creating one new function for reward-

ing energy production and one for determining costs

for energy consumption. These functions will be de-

scribed now.

We indicate with t

p

−i

and t

c

−i

the values of t

p

and

t

c

if x and y are both zero. In other words,

t

−i

p

=

∑

j6=i

p

j

(t)

t

−i

c

=

∑

j6=i

c

j

(t)

(8)

The new selling function g is deﬁned as

g(x,t

p

,t

c

) =P

max

·

g

1

(t(x,t

−i

p

,t

−i

c

))−

g

1

(t(0,t

−i

p

,t

−i

c

))

−P(x,t

−i

p

,t

−i

c

)

(9)

where P(x,t

−i

p

,t

−i

c

) is a penalty term, which is positive

if t

−i

p

and t

−i

c

are such that a congestion will happen

(i.e. |t

−i

p

+ x −t

−i

c

|> B), and zero otherwise, and P

max

is a scaling factor used to determine the tariff. In this

deﬁnition, g

1

is a function deﬁned as

g

1

(t) =

0 i f t ≤ 0

1

1+e

2t−1

t

2

−t

i f t ∈ (0,1)

1 i f t ≥ 1

(10)

which determines the shape, and t is a function de-

ﬁned as

t(x,t

−i

p

,t

−i

c

) =

t

−i

p

+ x −t

−i

c

2B

+

1

2

(11)

where B is a constant, depending on the maximum

difference between t

−i

p

and t

−i

c

which will not corre-

spond to a congestion.

Peer-to-peer Energy Trading for Smart Energy Communities

43

The new buying function h is deﬁned as

h(y,t

−i

c

,t

−i

p

) =

Q

max

·h

1

(

t

−i

c

+ y −t

−i

p

B

+ 1) ·y + P(y,t

−i

c

,t

−i

p

).

(12)

Q

max

is a parameter used in order to determine the

tariff value, corresponding to the maximum cost per

unit of energy; B is a parameter corresponding to the

congestion threshold like in the deﬁnition of Eq. (11),

and P(x,t

−i

c

,t

−i

p

) is a penalty factor which is zero for

t

−i

c

+ y −t

−i

p

< B and positive otherwise.

In the above deﬁnition, the function h

1

is deﬁned

as:

h

1

(t) =

0 i f t ≤ 0

√

t i f t ∈ (0,1]

2 −

√

2 −t i f t ∈ [1,2)

2 i f t ≥ 2.

(13)

These new functions solve many of the issues of the

original NRG-X-Change work, but still have to be an-

alyzed from a game theoretical perspective. In order

to do so, we have to use the model deﬁned in Sec-

tion 3 and analyze the behavior of the players with

the payoff functions relative to each system.

For the original NRG-X-Change work, it is not

difﬁcult to write q

i

(t): using Eq. 3, it can be written

as

q

i

(t) = x ·

q

e

(t

p

−t

c

)

2

a

if y = 0

q

i

(t) = −y ·

r ·t

c

t

c

+t

p

if x = 0

(14)

keeping in mind that either x or y is equal to zero, as

seen in Eq. 1.

As mentioned by (Lilliu et al., 2019b) the expres-

sion for q

i

is more complicated to write, although

it may be simpliﬁed if we consider different cases.

Since at least one between x and y is equal to zero,

substituting Eq. (10) and (11) in Eq. (9) and Eq. (13)

in Eq. (12):

• If y = 0, i.e. the user’s production is greater than

the user’s consumption, we have

q

i

(t) =

P

max

1 + e

2

t

−i

p

+x−t

−i

c

B

t

−i

p

+x−t

−i

c

B

2

−

1

4

−

P

max

1 + e

2

t

−i

p

−t

−i

c

B

t

−i

p

−t

−i

c

B

2

−

1

4

(15)

• If x = 0, i.e. the user’s consumption is greater than

the user’s production, we have

– If t

−i

p

> t

−i

c

,

q

i

(t) = −y ·Q

max

·

s

t

−i

c

+ y −t

−i

p

B

+ 1 (16)

– If t

−i

p

< t

−i

c

+ y,

q

i

(t) = −y ·Q

max

·

2 −

s

1 −

t

−i

c

+ y −t

−i

p

B

(17)

An important remark has to be made: since the

production suffers from no curtailment, but x is the

value of production minus consumption, a prosumer

may change this value by changing her consumption.

4.3 New Proposals

Among the points listed in Section 4.1, the fourth is

the one which still has to be solved. Basically we want

to check whether a Nash Equilibrium (NE) exists for

the previously deﬁned incentive systems, and in case

it does not, to create new possible selling and buying

functions which guarantee the existence of a NE while

fulﬁlling the ﬁrst three points listed in Section 4.1.

For the ﬁrst two systems, our strategy has been the

following: ﬁrst, create a simulation of the described

game in order to see empirically whether a NE exists

or not, and if the answer was positive, ﬁnd a mathe-

matical proof of its existence. As we will see in Sec-

tion 5, these functions do not guarantee the existence

of a NE.

We wanted to create selling and buying functions

which guarantee the existence of a NE in the game we

described. For this, we exploited a well-known result:

a game with a concave payoff function admits a pure

NE (Nguyen et al., 2012). So, if we can create a con-

cave selling function and a convex buying function,

the utility function deﬁned in Eq. 3 will be concave

and the theorem proven by (Rosen, 1965) will guar-

antee the existence of a pure NE.

However, this may create conﬂicts with the other

points, in particular with the condition for avoiding

curtailment and the self-consumption condition. For

the former, it is enough to ensure that the selling func-

tion g is a monotonic function with respect to x. In

order to check the latter, however, we want to see that

the following condition

g(x,t

p

,t

c

) < h(x,t

p

,t

c

) (18)

holds for each x > 0 and for each t

p

,t

c

≥ 0.

Some ideas for functions that respect the above

constraints may be the following. We will denote

Z = t

−i

p

−t

−i

c

+ B. (19)

• For the selling function g:

– [Logarithm] One idea may be to base the func-

tion on logarithm. In this case, the function can

be

g(x,t

p

,t

c

) = k

1

·

ln

x + Z + a

1

Z + a

1

(20)

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

44

where a

1

and k

1

are parameters, and a

1

> 0.

– [Square root] Another idea may be to use the

square root function as a base. In this case, a

possible candidate is

g(x,t

p

,t

c

) = k

1

·(

√

x + Z + a

1

−

√

Z + a

1

)

(21)

where a

1

and k

1

are parameters, and a

1

> 0.

• For the buying function h:

– [Quadratic] One possibility is to use the

quadratic function. In this case, a candidate

may be

h(y,t

p

,t

c

) = k

2

·((y −Z + a

2

)

2

−(a

2

−Z)

2

)

(22)

where a

2

and k

2

are parameters, and a

2

> 2B.

– [Square root] Another possibility for this may

be the negative square root function. In this

case, our function may have the following

form:

h(y,t

p

,t

c

) = k

2

·(

√

Z + a

2

−

p

Z + a

2

−y)

(23)

where a

2

and k

2

are parameters, and a

2

> 0.

To each of the proposed functions a term P has to

be added. For selling functions, P is a function deter-

mined by x, t

p

and t

c

such that its value is zero unless

t

p

−t

c

> B, in which case it is negative. For buying

functions, P depends on y, t

p

and t

c

and its value is

zero unless t

c

−t

p

> B, in which case it is positive. In

other words, P is a penalty term which punishes over-

production/overconsumption when it causes a con-

gestion. Notice that, with the used notation, a con-

gestion occurs if and only if Z /∈ (0,2B).

These functions have been designed to have a cer-

tain behavior in relation to the variable Z. When local

energy consumption is higher than local energy pro-

duction, the energy generated by producers is valu-

able since it helps covering the consumption needs of

the community: in this case the selling functions as-

sume higher values, and consequently producers are

paid more for the energy they produce. On the other

hand, when local energy production is higher than lo-

cal energy consumption, the surplus energy injected

by the producers is not needed by the consumers, so

the selling functions assume lower values and energy

producers are paid less. As far as the buying func-

tions are concerned, when local energy consumption

is higher than local energy production we want to dis-

courage consumers from consuming energy, since en-

ergy has to be bought from outside the community:

for this reason, buying functions assume higher val-

ues and the price for buying energy is higher for con-

sumers. Conversely, when local energy consumption

is lower than local energy production, we want to

encourage consumers to consume energy, since they

would use the energy generated by the producers: for

this reason, buying functions assume lower values and

consequently energy costs less for the consumers.

It is not difﬁcult to check that the proposed sell-

ing functions are monotonic: the more energy a user

produces, the more she is paid for. For this reason

the user is discouraged from curtailing her own en-

ergy production, since curtailment would decrease her

proﬁts. The only exception is the case of congestion

for overproduction, where the penalty term discour-

ages producers from generating energy by lowering

their proﬁts. This is the ﬁrst condition described at

the beginning of Section 4.1, which is then respected

by our functions: we want to ensure that the func-

tions we create satisfy all of them. The second con-

dition that has to be fulﬁlled is the fact that both sell-

ing and buying functions actively consider the possi-

bility of congestion: since the functions we are cre-

ating have a penalty term for congestion, they fulﬁll

this condition. We will prove in Section 5.1 that the

proposed functions respect also the third condition,

while the last condition holds because of the theorem

proven by (Rosen, 1965). This theorem implies that

our game guarantees the existence of a Nash Equilib-

rium if the payoff functions are concave; it is easy to

check that this is true from Eq. 3, since the proposed

selling functions are concave and the proposed buying

functions are convex.

5 SIMULATIONS AND RESULTS

This section is divided in two parts. In Section 5.1

the constraint for encouraging self-consumption due

to pricing is proven to hold for the newly proposed

functions, while in Section 5.2 it is proven that the

baseline functions do not guarantee the existence of a

NE, while the new proposed functions always reach a

NE as expected from the theoretical results.

5.1 Parameter Settings

The goal of this section is to verify that the functions

proposed in this work respect the self-consumption

condition, which is expressed in Eq. 18. We will ana-

lyze the behavior of the functions, and check if there

is a choice for the parameters such that the condition

is fulﬁlled.

Peer-to-peer Energy Trading for Smart Energy Communities

45

5.1.1 Candidate 1: Logarithm Selling,

Quadratic Buying

This is the case where the selling function g is the

one described in Eq. 20, while the proposed buying

function h is the one described in Eq. 22.

We want to check that Eq. 18 holds for some

choice of the parameters of these two functions. By

rewriting this condition with the two functions, we

want to prove that there is a choice for the parame-

ters k

1

, a

1

, k

2

and a

2

such that

k

1

·

ln

x + Z + a

1

Z + a

1

< k

2

·

(x−Z +a

2

)

2

−(a

2

−Z)

2

holds for each x > 0 and Z ∈(0, 2B).

Lemma 1. For each x > 0, Z > 0, a

1

≥ 1 and a

2

≥

2B + 1, and choosing k

1

= k

2

> 0, the inequality

ln

1 +

x

Z + a

1

k

1

< k

2

·x ·(x −2Z + 2a

2

) (24)

holds.

Proof. Considering the exponent, Eq. 24 becomes

1 +

x

Z + a

1

k

1

< e

k

2

·x·(x−2Z+2a

2

)

Since k

1

= k

2

, we can remove the equal exponents and

the inequality that we want to prove becomes

1 +

x

Z + a

1

< e

x·(x−2Z+2a

2

)

Thus, exploiting the properties a

1

≥ 1 and a

2

≥ 2B +

1, the chain of inequalities

1+

x

Z + a

1

≤1+

x

Z + 1

< 1+x < e

x

2

+x

≤e

x·(x−2Z+2a

2

)

completes the proof, since it holds for every value of

x > 0 and Z ∈(0, 2B).

Proposition 1. The function deﬁned in Eq. 20 with

a

1

= 1, together with the function deﬁned in Eq. 22

with a

2

= 2B + 1, satisﬁes the self-consumption con-

dition deﬁned in Eq. 18 if k

1

= k

2

> 0.

Proof. Thanks to Lemma 1, with the aforementioned

choice of parameters, the chain of inequalities

k

1

·ln

x + Z + a

1

Z + a

1

= ln

x + Z + a

1

Z + a

1

k

1

=

= ln

1 +

x

Z + a

1

k

1

< k

2

·x ·(x −2Z + 2a

2

) =

k

2

·

(x −Z + a

2

)

2

−(a

2

−Z)

2

.

holds for each x > 0, Z ∈(0, 2B).

5.1.2 Candidate 2: Square Root Selling,

Negative Square Root Buying

This is the case where the selling function g is the

one described in Eq. 21, while the proposed buying

function h is the one described in Eq. 23.

Proposition 2. There is a choice for the parameters

k

1

and a

1

for the selling function deﬁned in Eq. 21,

and for the parameters k

2

and a

2

for the buying func-

tion deﬁned in Eq. 23, such that these two functions

fulﬁll the condition deﬁned in Eq. 18. More speciﬁ-

cally, this happens if k

1

= k

2

> 0 and if a

1

≥ a

2

+ 2B.

Proof. The self-consumption condition can be writ-

ten as

k

1

·

√

x + Z + a

1

−

√

Z + a

1

<

k

2

·

√

Z + a

2

−

√

Z + a

2

−x

.

Substituting k

1

= k

2

and canceling them out, it be-

comes

√

x + Z + a

1

−

√

Z + a

1

<

√

Z + a

2

−

√

Z + a

2

−x.

Rationalizing the denominators, this holds if and only

if

x

√

x + Z + a

1

+

√

Z + a

1

<

x

√

Z + a

2

+

√

Z + a

2

−x

and considering denominators, since we want to prove

it for x > 0, this is true if and only if

√

x + Z + a

1

+

√

Z + a

1

>

√

Z + a

2

+

√

Z + a

2

−x.

Now, if a

1

≥ 2B + a

2

, we have the chain of inequali-

ties

√

x + Z + a

1

+

√

Z + a

1

> 2

√

a

1

≥

2

p

2B + a

2

>

√

Z + a

2

+

√

Z + a

2

−x

which holds for every x > 0, Z ∈ (0, 2B), and this

completes the proof.

5.2 Results

In this section, we show two important facts. First,

the NRG-X-Change incentive system and the one de-

scribed by (Lilliu et al., 2019b) do not guarantee the

existence of a NE in the game described in Section 3.

Second, we will see that a NE always exists with the

functions we have deﬁned in the end of Section 4, as

expected by the known theoretical results.

A script in Python language has been created in

order to simulate this framework. For this, real data

relative to a Cardiff grid with 184 users, 40 of which

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

46

are prosumers, have been used. More detailed infor-

mation about the grid can be found in (Sisinni et al.,

2016)

3

.

This is how the game has been simulated:

1. A set of N users, U

1

,...,U

N

, is randomly cho-

sen from the 184 Cardiff users: depending on

the scenario that we want to simulate, N is pre-

determined, and it is the number of users that are

prosumers. The predicted consumption and pro-

duction of each user U

i

is known. Each user has

exactly one shiftable load, which is randomly al-

located at the beginning.

2. This step is repeated sequentially for each user U

i

,

i.e. starting from U

1

, then U

2

, and arriving to U

N

.

Each user considers that the values of t

p

and t

c

may have been modiﬁed by the actions of previ-

ous users. The user U

i

now has the possibility to

choose where to allocate her shiftable load. For

each possibility, her payoff function is calculated,

taking into account the total production and con-

sumption through the grid at each time unit. After

this, U

i

allocates her shiftable load in the time unit

which maximizes her payoff function q

i

. Perform-

ing this step on all the users of the considered set

is called an iteration.

3. For each user, a check is performed in order to

see if any user has changed the allocation of her

shiftable load compared to the previous iteration.

If none has, the simulation ends. If at least one

user has changed it, the game goes back to step 2

with the current allocations.

4. After a certain maximum number of iterations, or

if the conﬁguration of the shiftable loads is iden-

tical to the one reached in a previous iteration, the

game ends.

If the game ends at step 3, the conﬁguration of

shiftable loads has reached a Nash equilibrium, since

the most proﬁtable strategy for each user is to leave

the load in the allocation where it already was. If the

game ends at step 4 for ﬁnding a conﬁguration already

known in the past, the game will never reach a Nash

equilibrium, since it will go on a loop. It is not nec-

essary to establish a maximum number of iterations,

as the number of conﬁgurations is ﬁnite and therefore

the game will eventually end in one of the two ways

that have been just described. However, if compu-

tational time gets too high, it may be convenient to

choose a limit for those.

These are the cases that have been simulated in

order to see whether the algorithm just described con-

verges or not.

3

To obtain the data please send an email to the

MAS

2

TERING coordinator https://www.mas2tering.eu/

Table 1: Number of cases in which Nash Equilibrium is

reached depending on the used selling/buying functions.

The number of simulations carried out is 245 for each case

and couple of functions; the size of the grid varies, ranging

from 10 to 70 users. The leftmost column indicates the per-

centage of grid users who produce energy. The functions

are, in order from left to right: the original NRG-X-Change

functions, the functions proposed in (Lilliu et al., 2019b),

the logarithm selling and square buying functions, and the

square root selling and negative square root buying func-

tions.

% Original Improved Log/Sq SqRs

10% 20 203 245 245

30% 114 232 245 245

50% 242 245 245 245

Table 2: Results of the simulations in terms of convergence

and self-consumption. The ﬁrst column describes the func-

tions, the second column indicates the average number of

iterations for reaching a NE, and the third column reports

how much, on average, the amount of self-consumed en-

ergy increases with our optimization.

Functions Iterations SelfCons

Original 4.7255 15.7248

Improved 4.8554 20.2876

Log/Sq 4.0370 23.2854

SqRs 3.8872 23.3021

• Payoff functions are determined by the origi-

nal NRG-X-Change selling and buying functions.

(Original)

• Payoff functions are determined by the selling and

buying functions deﬁned in (Lilliu et al., 2019b).

(Improved)

• Payoff functions are determined by the selling

function in Eq. 20 and the buying function in

Eq. 22. (Log/Sq)

• Payoff functions are determined by the selling

function in Eq. 21 and the buying function in

Eq. 23. (SqRs)

Since the functions’ parameters are arbitrary, they

have been chosen so that for t

p

= t

c

all the selling

functions have the same value, and all the buying

functions have the same value , which roughly cor-

respond to the average selling/buying (respectively)

tariffs already existing for the Cardiff grid. In Table 1

we report the number of times the game converges to a

NE depending on the percentage of energy producers

through the grid. Table 2 describes the average num-

ber of iterations needed to obtain convergence with

each couple of functions (Iterations), and the average

increase of self-consumed energy through the grid af-

ter performing the game (SelfCons).

From these results, these considerations follow.

Peer-to-peer Energy Trading for Smart Energy Communities

47

• The functions labeled as Original and Improved

do not guarantee that the algorithm converges to a

NE. On the other hand, as expected from the theo-

retical results, the new proposed functions always

converge to a Nash equilibrium.

• The Improved functions perform better than the

Original functions in terms of convergence, for

every considered grid size and percentage of pro-

sumers. They also provide better results in terms

of increase of self-consumption, although the av-

erage number of iterations required for conver-

gence is slightly higher.

• The new proposed functions (SqRs and Log/Sq)

outperform the old functions (Original and Im-

proved) on all the considered aspects. They al-

ways guarantee convergence to a NE, need less

iterations to converge compared to the old func-

tions, and also improve self-consumption through

the grid.

• Among the new proposed functions, the SqRs

functions seems to perform better than the Log/Sq

functions in terms of convergence speed. Also,

the amount of self-consumed energy is, on aver-

age, slightly higher.

Finally, we report in graphical form the conse-

quences of the game to the daily net consumption

through the grid, which achieves an effect of peak-

shaving/valley-ﬁlling. We took as example the case

with 4 prosumers and 36 consumers, although all

cases present the same behavior. In Figure 1 the dif-

ference between production and consumption of en-

ergy is shown at each time unit, before and after opti-

mization.

6 CONCLUSIONS AND FUTURE

WORK

Local energy communities and peer-to-peer energy

trading are expected to be important components of

future energy system. This study investigated dif-

ferent mechanisms for regulating energy exchanges

between agents in local energy communities. The

agents are assumed to act in their own self-interest

when optimizing energy usage. The market mecha-

nisms are designed to incentivize production and self-

consumption of locally produced renewable energy

while matching supply and demand.

The proposed design exhibits advantageous the-

oretical properties when compared with some exist-

ing market mechanisms. The results obtained by sim-

ulations using real-world data reveal that incentives

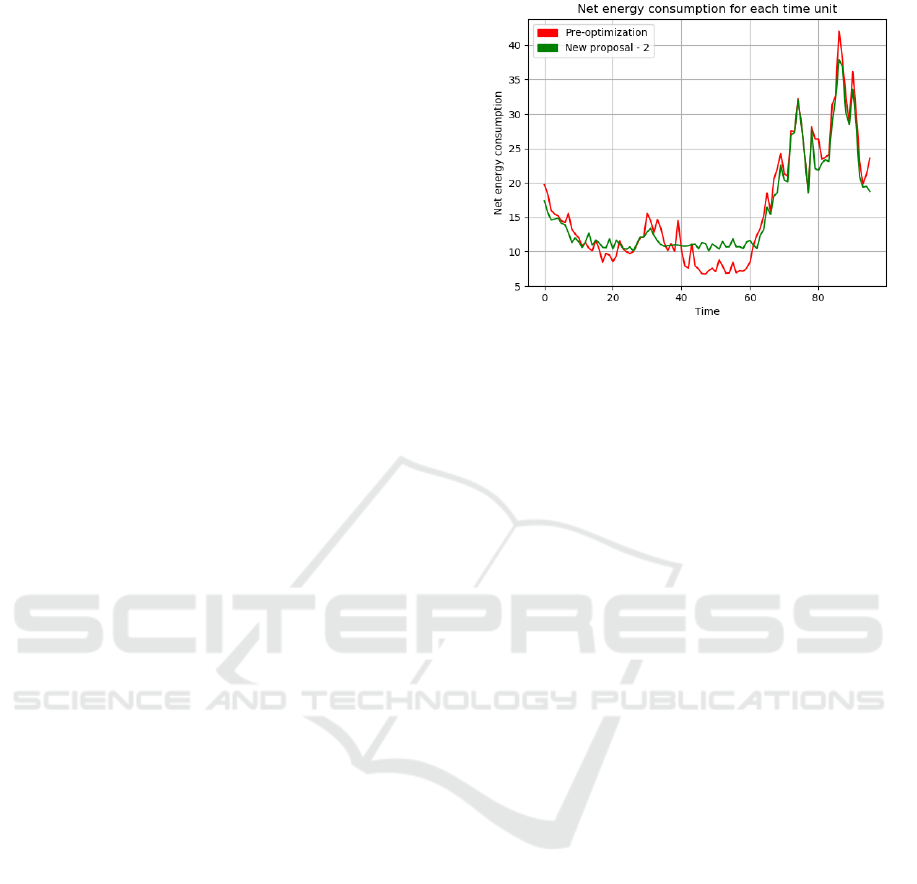

Figure 1: Graph of net consumption of energy before and

after the optimization. The x axis indicates the time units

through the day, while on the y axis is indicated the differ-

ence between total consumption and production through the

grid. We have depicted the values before the optimization

(in red) and after the optimization (in green). It has to be

remarked that the shiftable loads were randomly allocated

through the day in the initial conﬁguration.

offered by the proposed mechanisms in the form of

buying and selling prices lead more sustainable be-

haviours of energy communities. Consumers sched-

ule their consumption in periods with an intensive in-

jection of renewable energy whereas producers are

given a high reward that help discouraging them

from curtailment, which can appear under other ap-

proaches.

As future work we intend to investigate how the

proposed mechanisms behave when diverse sources

of ﬂexibility are available including heating systems

and storage units.

ACKNOWLEDGEMENTS

This research has received funding from the European

Union’s Horizon 2020 research and innovation pro-

gram under grant agreement No 774431 (DRIvE).

REFERENCES

Capodieci, N., Pagani, G., Cabri, G., and Aiello, M.

(2011). Smart meter aware domestic energy trading

agents. In First International E-Energy Market

Challenge Workshop (co-located with ICAC’11).

ACM Press. Relation: https://www.rug.nl/fmns-

research/bernoulli/index Rights: University of

Groningen, Johann Bernoulli Institute for Mathemat-

ics and Computer Science.

Commission, T. E. (2013). European commission guidance

for the design of renewables support schemes, in: De-

ICAART 2020 - 12th International Conference on Agents and Artiﬁcial Intelligence

48

livering the internal market in electricity and making

the most of public intervention. Technical report, The

European Commission.

Ilic, D., da Silva, P. G., Karnouskos, S., and Griesemer,

M. (2012). An energy market for trading electricity

in smart grid neighbourhoods. In 6th IEEE Interna-

tional Conference on Digital Ecosystems and Tech-

nologies, DEST 2012, Campione d’Italia, Italy, June

18-20, 2012, pages 1–6.

Kok, J. K., Warmer, C. J., and Kamphuis, I. G. (2005).

Powermatcher: multiagent control in the electricity in-

frastructure. In 4rd International Joint Conference on

Autonomous Agents and Multiagent Systems (AAMAS

2005), July 25-29, 2005, Utrecht, The Netherlands -

Special Track for Industrial Applications, pages 75–

82.

Lilliu, F., Loi, A., Reforgiato Recupero, D., Sisinni, M.,

and Vinyals, M. (2019a). An uncertainty-aware op-

timization approach for ﬂexible loads of smart grid

prosumers: A use case on the cardiff energy grid. Sus-

tainable Energy, Grids and Networks, 20:100272.

Lilliu, F., Vinyals, M., Denysiuk, R., and Reforgiato Recu-

pero, D. (2019b). A novel payment scheme for trad-

ing renewable energy in smartgrid. In Proceedings of

the Tenth International Conference on Future Energy

Systems, e-Energy 2019, Phoenix, United States, June

25-28, 2019, page To appear.

Loni, A. and Parand, F. (2017). A survey of game theory

approach in smart grid with emphasis on cooperative

games. In 2017 IEEE International Conference on

Smart Grid and Smart Cities (ICSGSC), pages 237–

242.

Mihaylov, M., Jurado, S., Avellana, N., Razo-Zapata, I. S.,

Moffaert, K. V., Arco, L., Bezunartea, M., Grau, I.,

Ca

˜

nadas, A., and Now

´

e, A. (2015). SCANERGY: a

scalable and modular system for energy trading be-

tween prosumers. In Proceedings of the 2015 Inter-

national Conference on Autonomous Agents and Mul-

tiagent Systems, AAMAS 2015, Istanbul, Turkey, May

4-8, 2015, pages 1917–1918.

Mihaylov, M., Jurado, S., Avellana, N., Van Moffaert, K.,

de Abril, I. M., and Now

´

e, A. (2014). Nrgcoin: Vir-

tual currency for trading of renewable energy in smart

grids. In European Energy Market (EEM), 2014 11th

International Conference on the, pages 1–6. IEEE.

Mihaylov, M., R

˘

adulescu, R., Razo-Zapata, I., Jurado, S.,

Arco, L., Avellana, N., and Now

´

e, A. (2019). Com-

paring stakeholder incentives across state-of-the-art

renewable support mechanisms. Renewable Energy,

131:689–699.

Nguyen, H. K., Song, J. B., and Han, Z. (2012). Demand

side management to reduce peak-to-average ratio us-

ing game theory in smart grid. In 2012 Proceed-

ings IEEE INFOCOM Workshops, Orlando, FL, USA,

March 25-30, 2012, pages 91–96.

Rad, A. H. M., Wong, V. W. S., Jatskevich, J., Schober, R.,

and Leon-Garcia, A. (2010). Autonomous demand-

side management based on game-theoretic energy

consumption scheduling for the future smart grid.

IEEE Trans. Smart Grid, 1(3):320–331.

Rosen, J. B. (1965). Existence and uniqueness of equilib-

rium points for concave n-person games. Economet-

rica, 33(3):520–534.

Saad, W., Han, Z., Poor, H. V., and Basar, T. (2012). Game-

theoretic methods for the smart grid: An overview

of microgrid systems, demand-side management, and

smart grid communications. IEEE Signal Process.

Mag., 29(5):86–105.

Sisinni, M., Sleiman, H., Vinyals, M., Oualmakran, Y.,

Pankow, Y., Grimaldi, I., Genesi, C., Espeche, J., Di-

bley, M., Yuce, B., Elshaaﬁ, H., and McElveen, S.

(2016). D2.2 - mas

2

tering platform design document.

MAS

2

TERING public reports.

Soliman, H. M. and Leon-Garcia, A. (2014). Game-

theoretic demand-side management with storage de-

vices for the future smart grid. IEEE Trans. Smart

Grid, 5(3):1475–1485.

Peer-to-peer Energy Trading for Smart Energy Communities

49
