Website Security Analysis of Department and Integrated Services One

Door of XYZ Regency using Kali Linux

Poltak Andreas Marbun

, Ahmad Almaarif

and Avon Budiono

Information System, School of Industrial and System Engineering, Telkom University, Bandung 40257, Indonesia

Keywords:

Vulnerability assessment, Web application, Kali Linux, Security, Web vulnerability scanners

Abstract:

Protecting the system from an attack is important in the information system security process. Information

system security in a company or organization must be given special attention because this is very important

for conﬁdentiality, integrity, and availability data on the system. Therefore, we need a method to maintain the

security and conﬁdentiality of data, so that the data can only be accessed by certain people. Weaknesses on a

website will never be known if there is no audit of the system. The website security audit process is carried

out with the aim of getting a system vulnerability gap from the website. The weakness from the website

will be used as a parameter to provide solutions or suggestions to improve the system. The purpose of this

research is to conduct a security level audit on Investment Department and Integrated Services One Door of

XYZ Regency. There are three tools carried out for the audit, namely Nmap, Paros, and Vega with Kali Linux

operating system. The method used in this research is Vulnerability Assessment Methodology. The scope of

this research is to ﬁnd the vulnerability of a website and then provide a solution only to that vulnerability.

1 INTRODUCTION

The issue of security is one of the important aspects

of an information system. Often the order of security

in a system is ranked second, or even last in the list

of things that are considered important. As security at

the network perimeter has improved, attackers have

transferred their efforts to the easier target of web ap-

plications (Walden, 2008). In web application, an at-

tacker can exploit the data by attacking the target web-

site that can cause damage or steal any information

on the system (Mahmoud et al., 2017). A report that

has been collected highlights that 86% of 30,000 web-

sites were tested has at least one serious vulnerability,

and most have more than one (Subedi et al., 2016).

Web applications are difﬁcult to secure because they

are open to the public and can be accessed by every-

one, including malicious users (BAYKARA, 2018).

Web applications vulnerability has been widely rec-

ognized as a serious problem because data breaches

due to this vulnerability have been repeated in recent

years and will likely continue to be a major problem

in the future (Bau et al., 2012). Attacks on a network

connected to the Internet can be done by anonymous

(Montieri et al., 2019). One of the software that can

be used in anonymously attacking a network is Tor

(Montieri et al., 2019). Gartner Group estimates that

more than 70% of attacks on a company’s website

or web apps are in the application layer, not a net-

work or system layer therefore, network vulnerability

scanners, network ﬁrewalls, and use of Secure Socket

Layer (SSL) do not guarantee the security of a web-

site (BAYKARA, 2018).

Investment Department and Integrated Services

One Door of XYZ Regency is one form of service

provided by the local government in providing ser-

vices to the community. This department provides

online services in the form of web applications to fa-

cilitate the public in accessing information and to take

care of matters relating to investment and the process

of fulﬁlling business licensing in XYZ Regency. The

department’s web application certainly stores a lot of

sensitive public and government data. Therefore, we

need a good security for this web application in order

to minimize the hackers who want to retrieve the data.

This research aims to conduct a security analy-

sis on the department’s web application using Kali

Linux. After the security analysis has been com-

pleted, it will be given recommendation or proposal

in terms of security development of the website sys-

tem. This can contribute to help the Investment De-

partment and Integrated Services One Door of XYZ

Regency ﬁnd out the weaknesses of their web appli-

cations so that security can be improved in the future.

Marbun, P., Almaarif, A. and Budiono, A.

Website Security Analysis of Department and Integrated Services One Door of XYZ Regency using Kali Linux.

DOI: 10.5220/0009908302270233

In Proceedings of the International Conferences on Information System and Technology (CONRIST 2019), pages 227-233

ISBN: 978-989-758-453-4

227

2 LITERATURE REVIEW

2.1 Web Application Vulnerabilities

Web application can be described as a program that

is developed in order to perform speciﬁc processes

and normally handles the user’s input in a script and

includes database data collection (Charpentier Rojas,

2013). Web application vulnerabilities are security

vulnerabilities that are present on the system. Attack-

ers have the potential to use many different loopholes

in different attacks on the system, so that each vul-

nerability has its own risks in the security of the web

application (M. Sevri, 2016). Some major threats to

the web server layer are SQL injection, unauthorized

server access, and password hacking attacks. Most

SQL injection vulnerabilities are caused by weak in-

put validation (BAYKARA, 2018).

2.1.1 Injection Vulnerabilities

These types of attacks include data injection, com-

mand injection, resource injection, and SQL injec-

tion attacks (BAYKARA, 2018). SQL Injection does

not ﬁlter correctly user input of web applications and

places them directly into SQL statements (Tajpour

et al., 2011). This allows data in the database to be

stolen or modiﬁed. Another possibility that can occur

is an executable script that is forced to do things that

were not anticipated by the author.

2.1.2 Cross Site Scripting (XSS)

Cross site scripting is an attack in the form of mali-

cious script code that is injected into a web applica-

tion that wants to be attacked (M. Sevri, 2016). Cross

site scripting exploits vulnerabilities in web applica-

tions in the form of inputs and outputs that are not

validated or coded. Hackers inject malicious script

code into the web pages and when a user visits a web-

site the evil script can exploiting user credentials such

as hijacking session ID, password, credit card number

or cookie (Mahmoud et al., 2017).

2.1.3 Security Misconﬁguration

Misconﬁguration in the web application server can be

fatal for the security of the system. The reason is be-

cause Apache, MySQL and PHP (AMP) are web ap-

plication server environment is the most widely used,

and these components are open source (Eshete et al.,

2011). It can cause vulnerabilities in Web applica-

tions that hackers can exploit

2.1.4 Authorization, Authentication, and Access

Control

This vulnerability can allow hackers to control appli-

cations or back-end servers. These attacks include

weak password management, use of weak encryption

methods, authentication errors, and cryptographic er-

rors (BAYKARA, 2018). This threat can endanger in-

tegrated applications or systems related to stolen iden-

tity data.

2.2 Web Application Attacks

Crimes in cyber security for now have been very dif-

ﬁcult to avoid. One of the events that often happens

now is hacking a web application of a company or or-

ganization (Joshi and Singh, 2016). Web application

attacks can occur due to several possibilities, such as

security misconﬁguration, session management and

authentication, or other problems (Mitropoulos et al.,

2017). Hackers usually ﬁrst conduct a vulnerability

assessment to ﬁnd out the weaknesses of the target

web application. Weaknesses with the highest level

of web applications will be used by hackers to carry

out attacks (M. Sevri, 2016).

Figure 1: Web Application Attacks Model.

Figure 1 describe that the attack can be carried out

by the attacker for each vulnerability. Each vulnera-

bility also has its own impact.

2.3 Conﬁdentiality, Integrity,

Availability (CIA)

Conﬁdentiality, Integrity, Availability (CIA) is the

center of information security. The three aspects

above are very important because it is very inﬂuential

on the level of information system security (Sumra

et al., 2015). If one aspect fails, this can provide a way

for hackers to compromise with your network and

data. However, the mixture of the three sections de-

pends on each company, project or asset used. Some

companies may value conﬁdentiality above all, others

may give the highest value on availability (Qadir and

Quadri, 2016). Effective cyber security is knowing

what vulnerabilities are to the system and can protect

them from hacker attacks.

CONRIST 2019 - International Conferences on Information System and Technology

228

space

Figure 2: CIA Model.

Figure 2 explains that a good data must have con-

ﬁdentiality, integrity, and availability.

2.3.1 Conﬁdentiality

Conﬁdentiality is all about privacy and is a user’s priv-

ilege. Only those who need access to speciﬁc infor-

mation must be provided, and steps need to be taken

to ensure sensitive data is prevented from falling into

the wrong hands (Qadir and Quadri, 2016). The more

critical the information, the stronger security mea-

sures need to be applied. This ensures that conﬁ-

dentiality support can include data encryption, ID and

password, and two-factor authentication.

2.3.2 Integrity

Integrity refers to trust in a data or information, the

trust includes consistency, completeness, and accu-

racy of the data or information available. Information

integrity is very important, and organizations need to

take the steps necessary to ensure that information re-

mains accurate throughout its entire life cycle. In this

case also need to be considered that all data or infor-

mation must be backed up so that it can be recovered

if there is an attack from hackers.

2.3.3 Availability

Availability is the availability of data or information,

which means that data or information is always avail-

able when needed for people who have permission to

that information. So that when needed by the user,

data or information can be quickly accessed and used.

To guarantee the availability of data or information, it

is necessary to backup data to anticipate unexpected

things.

2.4 Kali Linux Operating System

Kali Linux is a very popular operating system in terms

of digital forensics, penetration testing, and security

audits (Gunawan et al., 2018). Kali Linux was ﬁrst

released on March 13, 2013 based Debian ﬁles and

systems in accordance with the File system Hierarchy

Standard (FHS) (Babincev and Vuleti

c, 2016). Kali

Linux Operating System can be downloaded freely

and for free on its ofﬁcial website on the internet. Kali

Linux can also be installed in a virtual environment

or as a main operating system. In addition, there is

also the possibility of using two operating systems in

one computer with a dual boot method, it depends on

the user’s comfort in its application. Kali Linux al-

ready has more than 600 penetration testing tools and

wideranging wireless device support(Gunawan et al.,

2018). The many choices of security tools owned by

Kali Linux can be utilized by users in conducting se-

curity analysis on web or network applications.

2.4.1 Kali Linux Tools

Kali Linux consists of hundreds of tools that exist on

the operating system. These tools are grouped into

sections based on their functionality and utility. Each

section performs a different task but with the same

goal to do penetration testing and security analysis

both on the network or web application (Gunawan

et al., 2018). The following are categorizing tools

in Kali Linux based on their functions (Babincev and

Vuleti

c, 2016):

1. Information Gathering

The reconnaissance tools used for collecting data

on the target network and devices. Tool identify

the device until the protocol is used.

2. Vulnerability Analysis

This tool focuses on evaluate and analyze vulner-

abilities in a system.

3. Web Applications

These tools are used to analyze vulnerabilities in

web servers. However, this tool does not always

refer to attacks on web servers, but can also audit

web applicationbased network services.

4. Password Attacks

This tool is useful for performing Brute force

password attacks used for authentication on a sys-

tem.

5. Wireless Attacks

This tool is used to analyze vulnerabilities on

wireless networks.

6. Exploitation Tools

This tool is used which is used to exploit vulnera-

bilities found in the system.

7. Snifﬁng and Spooﬁng

This tool is used for network packet capture and

manipulate network packets.

8. Database Assessment

This tool is used to look for vulnerabilities and

database attacks on web applications.

Website Security Analysis of Department and Integrated Services One Door of XYZ Regency using Kali Linux

229

9. Reverse Engineering

This tool functions to analyze how a program is

developed so that it can be copied, modiﬁed, or so

that it can lead to the development of other pro-

grams. This tool is lso used for malware analysis

or in ﬁnding vulnerabilities in software applica-

tions.

10. Forensics

Forensic tools are used to monitor and analyze

computer network trafﬁc and applications on a

system.

11. Reporting Tools

This tool serves to provide information found af-

ter doing penetration testing.

12. System Services In this section we can enable or

disable the kali linux service.

3 METHODOLOGY

Vulnerability Assessment is one methodology used in

analyzing or auditing the security system of a network

or web application (Nath, 2011). The Vulnerability

Assessment aims to measure and prioritize risks as-

sociated with network and host-based systems or de-

vices to enable rational technology planning and ac-

tivities that manage data or information from an orga-

nization (Bairwa et al., 2014). Periodic vulnerability

checking is very necessary, it serves to ﬁnd out the

state of the security of the system owned, so as to

minimize all forms of threats that might occur. The

output of this method is a report of security condi-

tions of the web application that can be used as a pa-

rameter in improving the security system of the web

application. The security report will greatly assist

an organization or company in closing vulnerabilities

contained in the object to be examined. Vulnerabil-

ity Assessment methodology have 5 phase for imple-

mentation. Start from Reconnaissance, Vulnerability

Scanning, Vulnerability Detection, Risk Assessment

Value, and Reporting.

space

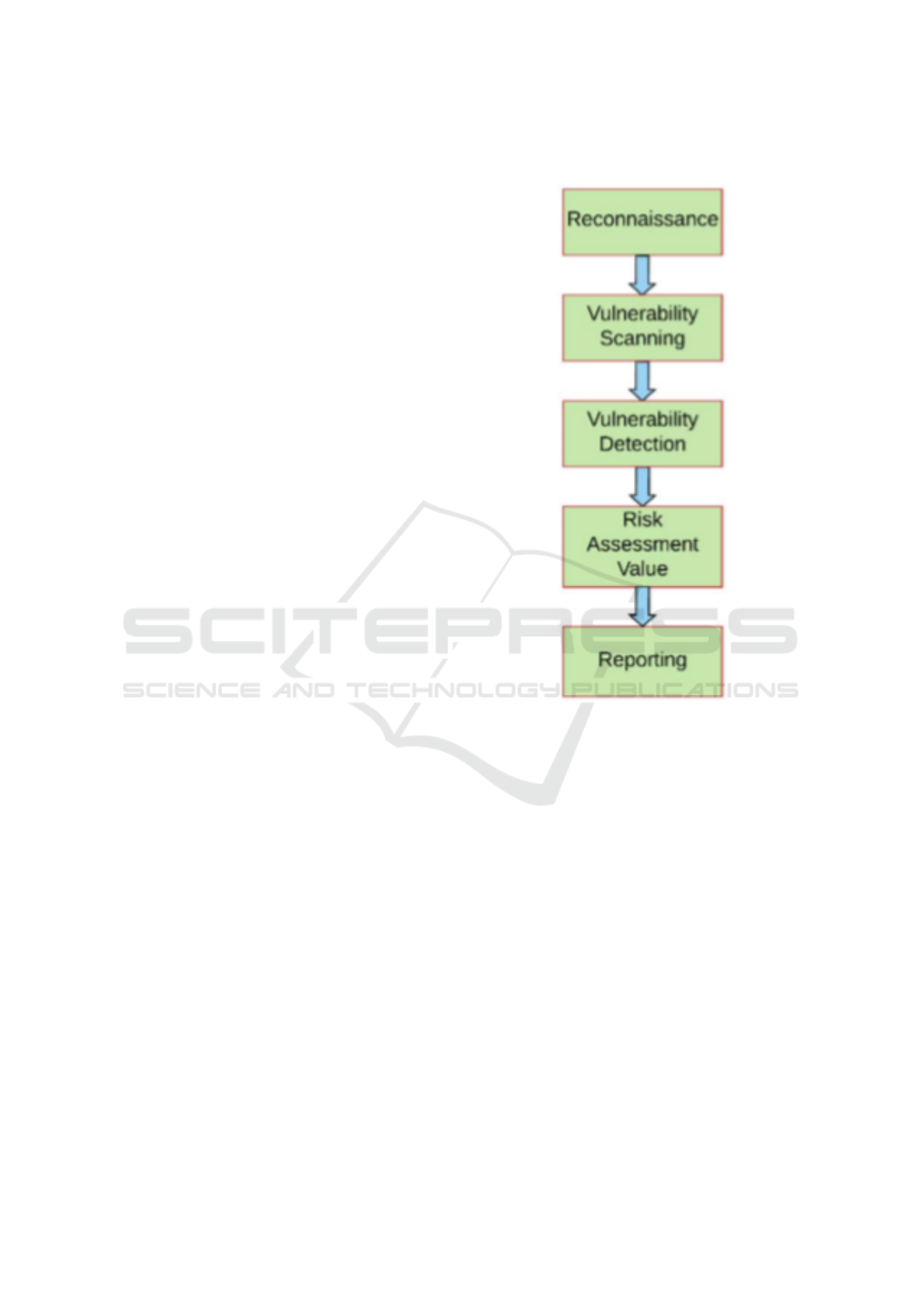

Figure 3: Vulnerability Assessment Methodology.

Figure 3 describes these phases of Vulnerability

Assessment Methodology in this research which is il-

lustrated in a ﬂow diagram. The following is an ex-

planation of each phase:

1. Reconnaissance

This phase is the stage of gathering as much in-

formation as possible about the target object that

will be carried out Vulnerability Assessment.

2. Vulnerability Scanning

In this phase the Vulnerability Scanning process

begins with various tools. In this research, the

tools used for Vulnerability scanning are Paros

and Vega.

3. Vulnerability Detection

After completing vulnerability scanning, in this

phase we can ﬁnd out the vulnerability of the web

application.

4. Risk Assessment Value

At this stage is an assessment of the threat level of

the vulnerability owned by system.

CONRIST 2019 - International Conferences on Information System and Technology

230

5. Reporting

In this phase, the results of the examination of

each tool will be presented together with a com-

parison.

In this research all phases of the Vulnerability As-

sessment methodology will be used in its implemen-

tation.

4 EXPERIMENTAL RESULTS

AND ANALYSIS

The focus of this research is to ﬁnd any vulnerabilities

that may occur on Investment Department and Inte-

grated Services One Door of XYZ Regency web ap-

plication, so that later security recommendations can

be given to improve the current web application sys-

tem. The ﬁrst step taken is to collect as much infor-

mation as possible about the web application that will

be the target of vulnerability assessment or we can

also call it a security analysis on the web application.

In this research, the security analysis of the Invest-

ment Department and Integrated Services One Door

of XYZ Regency web application is three times the

experiment with 3 different tools. The aim is to get

more information about the vulnerabilities that exist

in the web application. Tools used in this research are

Nmap, Paros, and Vega. The Vulnerability Assess-

ment process is carried out in a virtual environment

with Linux times as the operating system.

4.1 Vulnerability Assessment with

Nmap Tools

Nmap is a tool used to perform scan on ports (Bairwa,

2014). To do a port scan, we can use the IP address

or hostname as a scope for checking. In this research,

port inspection and analysis will be carried out on the

One Door of XYZ Regency Investment and Integrated

Services web application. This should be done to ﬁnd

out the vulnerability of existing ports in the web ap-

plication.

Figure 4: Port scan results.

Figure 4 is the result of port scanning on the

Investment Department and Integrated Services One

Door of XYZ Regency web application. From the re-

sults of these experiments, the following is informa-

tion that can be obtained:

1. Port 80/tcp with http services has open port status.

2. Port 443/tcp with ssl/http services has open port

status.

3. Support methods used are OPTION, GET, HEAD,

and POST.

4. The web server used in the web application is

Apache / 2.4.10 Debian.

4.2 Vulnerability Assessment with

Paros Tools

Paros is an application that is installed by default on

Kali Linux. Paros can be used to perform an overall

security scan of web applications. In this research, a

vulnerability assessment trial was carried out on the

Investment Department and Integrated Services One

Door of XYZ Regency web application, to determine

the existing vulnerabilities.

Figure 5: Summary of Alerts Paros Tools.

Figure 5 is a report about the vulnerability infor-

mation found after scanning the Integrated Services

One Door of XYZ Regency web application. The to-

tal number of vulnerability alerts on this web applica-

tion is 6. The results of scanning the web application

indicate that the security system is still insecure be-

cause there are still many weaknesses and some even

have a high level of threat level.

Figure 6: Detail of Alerts.

Figure 6 contains detailed information of each

threat that exists in the web application. The results of

the report can be used as parameters to minimize all

forms of attack from hackers. In improving the secu-

rity of web applications it is advisable to ﬁrst improve

the threat with the highest level.

4.3 Vulnerability Assessment with Vega

Tools

Vega is a free tool designed to test security and ﬁnd

out web application vulnerabilities. Tools can be used

Website Security Analysis of Department and Integrated Services One Door of XYZ Regency using Kali Linux

231

to check the vulnerability of web applications such

as SQL Injection, Cross Site Scripting (XSS), Coun-

terfeiting Cross Site Requests Forgery (CSRF), and

many others (Babincev and Vuleti

c, 2016). The Tools

Vega is very user friendly and very easy to use. In

Kali Linux to run Vega there are two ways namely by

typing the command in the terminal and directly open

the application. In this study also conducted exper-

iments on the application of web applications using

Vega tools.

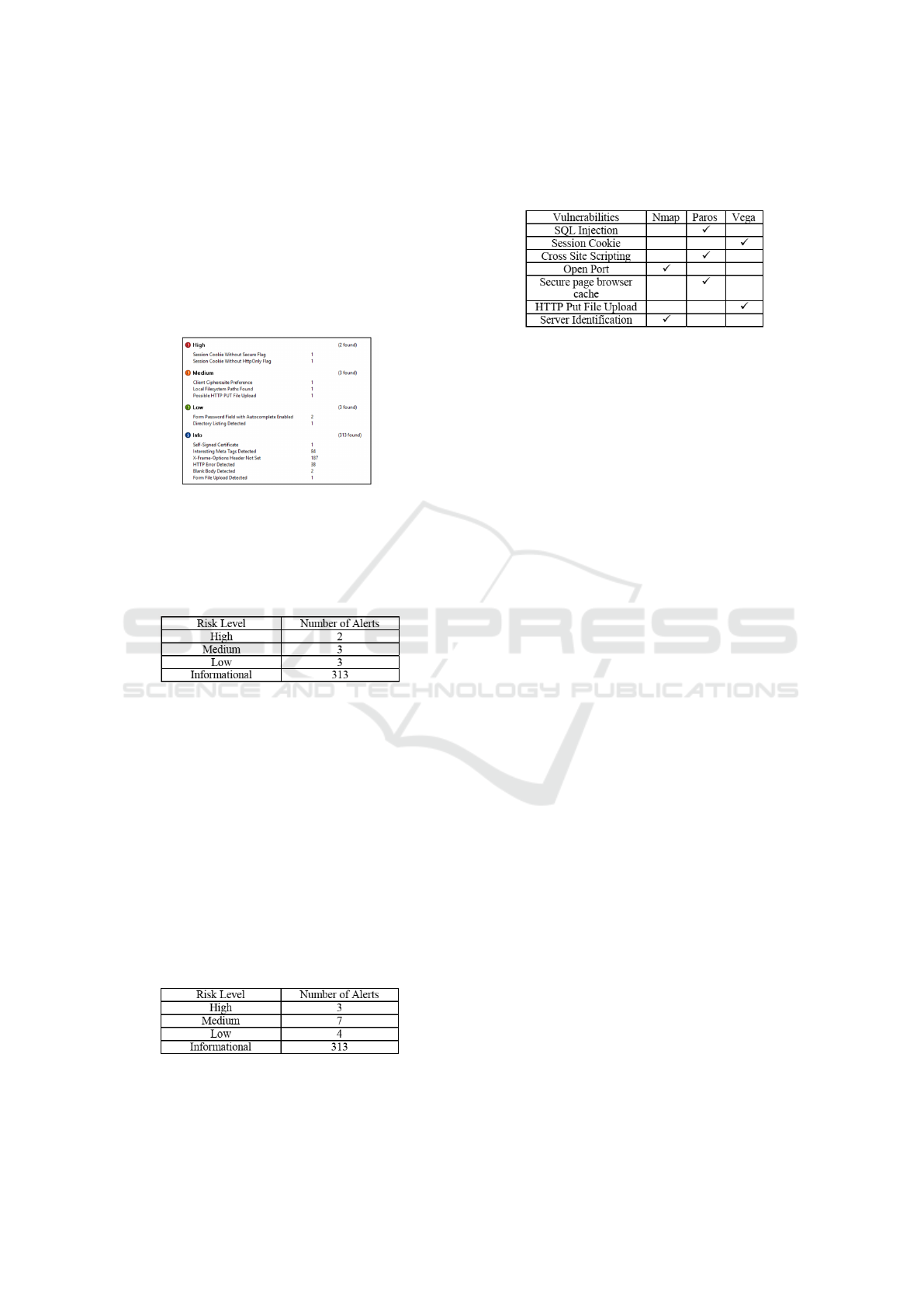

Figure 7: Vega Scanning Tool Reports.

Figure 7 is a report on the results of a web appli-

cation security check on the Integrated Services One

Door of XYZ Regency web application.

Reports from the results of the scan can be used as

a benchmark to ﬁx any gaps in the web application.

Figure 8: Summary of Alerts Vega Tools.

Figure 8 describes the report on the web applica-

tion security check on the Integrated Services One

Door of XYZ Regency web application using the

Vega tool. Vulnerability levels in the table are sorted

by threat level with the highest level to the lowest.

4.4 Vulnerability Analysis

Based on the vulnerability assessment experiment

that has been carried out with 3 tools, various infor-

mation about the security conditions on the Integrated

Services One Door of XYZ Regency web application

has been obtained. This information can be used as

material for analysis in correcting any existing weak-

nesses.

Figure 9: Total Summary of Alerts.

Figure 9 lists the total reports of vulnerabilities

based on threat level. From this report it can be seen

that the security conditions of web applications are

not good. That’s because there are 3 security holes

with the highest threat level.

Figure 10: Comparative of Vulnerabilities Detected by

Tools.

Figure 10 contains a comparison of the ability of

tools to detect every possible vulnerability.

5 CONCLUSIONS

The conclusion of this research is that Investment

Department and Integrated Services One Door of

XYZ Regency web application still has many secu-

rity weaknesses, so there are many loopholes that can

be exploited by hackers to attack this web application.

Vulnerability Assessment has a very important role in

developing a network system. Without doing Vulner-

ability Assessment we will never know the weakness

of the web application that we have in terms of secu-

rity unless there is already a hacker who is attacking.

In this research, it can be seen that scanning of web

applications using different tools will produce differ-

ent types of vulnerabilities. In this research Figure 5:

Vega Scanning Tool Reports.

found 3 vulnerabilities with the highest threat

level, 7 threats with medium level, and 4 threats with

low level. This indicates that the Investment Depart-

ment and Integrated Services One Door of XYZ Re-

gency web application has a very big risk to be at-

tacked by people who are not responsible or com-

monly called hackers. Therefore, it is recommended

that the Web application immediately upgraded its se-

curity on SQL injection section, session cookie, pass-

word management, cross site scripting, client cipher-

suite preference, local ﬁlesystem paths, and possible

HTTP PUT ﬁle upload. This is done to minimize all

possible threats related to weaknesses that are owned

by the web application.

For further research it is recommended to use

other methods and tools in conducting security audit

experiments on a web application. It aims to compare

the features and capabilities of each tool in conduct-

ing Vulnerability Assessment. This research can also

be a reference for everyone in conducting a security

audit of a web application, both in terms of methods

or tools.

CONRIST 2019 - International Conferences on Information System and Technology

232

REFERENCES

Babincev, I. M. and Vuleti

c, D. V. (2016). Web application

security analysis using the kali linux operating system.

Vojnotehni

cki glasnik, 64(2):513–531.

Bairwa, S., Mewara, B., and Gajrani, J. (2014). Vulnerabil-

ity scanners-a proactive approach to assess web appli-

cation security. arXiv preprint arXiv:1403.6955.

Bau, J., Wang, F., Bursztein, E., Mutchler, P., and Mitchell,

J. C. (2012). Vulnerability factors in new web appli-

cations: Audit tools, developer selection & languages.

Stanford, Tech. Rep.

BAYKARA, M. (2018). Investigation and comparison of

web application vulnerabilities test tools.

Charpentier Rojas, J. E. (2013). Web application security.

Eshete, B., Villaﬁorita, A., and Weldemariam, K. (2011).

Early detection of security misconﬁguration vulnera-

bilities in web applications. In 2011 Sixth Interna-

tional Conference on Availability, Reliability and Se-

curity, pages 169–174. IEEE.

Gunawan, T. S., Lim, M. K., Zulkurnain, N. F., and Kartiwi,

M. (2018). On the review and setup of security audit

using kali linux. Indonesian Journal of Electrical En-

gineering and Computer Science, 11(1):51–59.

Joshi, C. and Singh, U. K. (2016). Performance evaluation

of web application security scanners for more effec-

tive defense. International Journal of Scientiﬁc and

Research Publications (IJSRP), 6(6):660–667.

M. Sevri, N. T. (2016). An infrastructure model to detect

and prevent web attacks.

Mahmoud, S. K., Alfonse, M., Roushdy, M. I., and Salem,

A.-B. M. (2017). A comparative analysis of cross site

scripting (xss) detecting and defensive techniques. In

2017 Eighth International Conference on Intelligent

Computing and Information Systems (ICICIS), pages

36–42. IEEE.

Mitropoulos, D., Louridas, P., Polychronakis, M., and

Keromytis, A. D. (2017). Defending against web ap-

plication attacks: approaches, challenges and implica-

tions. IEEE Transactions on Dependable and Secure

Computing, 16(2):188–203.

Montieri, A., Ciuonzo, D., Bovenzi, G., Persico, V., and

Pescap

e, A. (2019). A dive into the dark web: Hierar-

chical trafﬁc classiﬁcation of anonymity tools. IEEE

Transactions on Network Science and Engineering.

Nath, H. V. (2011). Vulnerability assessment methods–a

review. In International Conference on Network Se-

curity and Applications, pages 1–10. Springer.

Qadir, S. and Quadri, S. (2016). Information availability:

An insight into the most important attribute of in-

formation security. Journal of Information Security,

7(3):185–194.

Subedi, B., Alsadoon, A., Prasad, P., and Elchouemi, A.

(2016). Secure paradigm for web application develop-

ment. In 2016 15th RoEduNet Conference: Network-

ing in Education and Research, pages 1–6. IEEE.

Sumra, I. A., Hasbullah, H. B., and AbManan, J.-l. B.

(2015). Attacks on security goals (conﬁdentiality, in-

tegrity, availability) in vanet: a survey. In Vehicu-

lar Ad-Hoc Networks for Smart Cities, pages 51–61.

Springer.

Tajpour, A., Ibrahim, S., and Masrom, M. (2011). Sql in-

jection detection and prevention techniques. Interna-

tional Journal of Advancements in Computing Tech-

nology, 3(7):82–91.

Walden, J. (2008). Integrating web application security into

the it curriculum. In Proceedings of the 9th ACM SIG-

ITE conference on Information technology education,

pages 187–192.

Website Security Analysis of Department and Integrated Services One Door of XYZ Regency using Kali Linux

233
