Speech Source Tracking Based on Particle Filter under non-Gaussian

Noise and Reverberant Environments

Ruifang Wang

1, a

, Xiaoyu Lan

1, b

School of Electronic and Information Engineering, Shenyang Aerospace University, Shenyang 110136, China

Keywords: Speech Source Tracking, non-Gaussian Noise, Particle Filter, Generalized Correntropy Function.

Abstract: Tracking a moving speech source in non-Gaussian noise environments is a challenging problem. A speech

source tracking method based on the particle filter (PF) and the generalized correntropy function (GCTF) in

non-Gaussian noise and reverberant environments is proposed in the paper. Multiple TDOAs are estimated

by the GCTF and the multiple-hypothesis likelihood is calculated as weights for the PF. Next, predict the

particles from the Langevin model for the PF. Finally, the global position of moving speech source is

estimated in term of representation of weighted particles. Simulation results demonstrate the vadility of the

proposed method.

1 INTRODUCTION

Tracking a speech source accurately in reverberant

environments is desirable for teleconferencing

system (B. Kapralos, M. R. M. Jenkin and M.

Evangelos, 2003), robots (K. Nakadai, et al, 2006),

and human-machine interaction (T.P. Spexard, M.

Hanheide, and G. Sagerer, 2007). Acquiring the

position of the speech source plays an important role

in speech signal processing region. The

environmental noise and reverberation of the speech

signal are two challenging problems for speech

source tracking. In conventional speech source

localization and tracking approaches (E. T. Roig, F.

Jacobsen and E. F. Grande, 2010), (M. F. Fallon,

and S. J. Godsill, 2012), they only depend on the

current observations to estimate the positions of the

speech source. To improve tracking performance,

Bayesian filtering algorithms are used to track the

moving speech source, which employs not only

current observations but also previous observations.

The particle filter (PF) is an approximation of the

optimal sequential Bayesian estimation via Monte

Carlo simulations for non-linear and non-Gaussian

system. The PF incorporated multiple-hypothesis

model was applied to the speaker tracking problem

based upon TDOA observations (abbreviated to PF)

(D. B. Ward, E. A. Lehmann and R. C. Williamson,

2003). A novel framework of PF based on

information theory was discussed for speaker

tracking (F. Talantzis, 2010). A non-concurrent

multiple talkers tracking based on extended Kalman

particle filtering (EKPF) was proposed (X. Zhong,

and J. R. Hopgood, 2014). In (X. Zhong, A.

Mohammadi, et al, 2013), a distributed particle filter

(DPF) was proposed in speaker tracking in a

distributed microphone network, in which each node

runs a local PF for local posteriors fused to obtain a

global posterior probability (abbreviated to DPF-

EKF). In (Q. Zhang, Z. Chen, and F. Yin, 2016), a

distributed marginalized auxiliary particle filter was

proposed for speaker tracking.

For above-mentioned speech source tracking

methods, the background noise is assumed to be

Gaussian noise. However, the practical background

noise may be non-Gaussian noise such as knock on

the door, sudden phone ringing and a fit of couching,

which is impulsive in essence and would lead to

poor tracking performance for these speech source

methods. To remedy impacts of non-Gaussian

background noise on tracking performance, a PF

based speaker tracking method under non-Gaussian

noise environments is proposed. First, the symmetric

alpha-stable (SαS) distributions (M. Shao and C. L.

Nikias, 1993) are employed to model the non-

Gaussian noise and TDOA observations of speech

signals received between a microphone pair at each

node are approximated via a generalized correntropy

function (GCTF) (W. Liu, P.P. Pokharel, et al,

2007). Next, the Langevin model (D. B. Ward, E. A.

Lehmann and R. C. Williamson, 2003) is used to

Wang, R. and Lan, X.

Speech Source Tracking based on Particle Filter under non-Gaussian Noise and Reverberant Environments.

DOI: 10.5220/0008874204610466

In Proceedings of 5th International Conference on Vehicle, Mechanical and Electrical Engineering (ICVMEE 2019), pages 461-466

ISBN: 978-989-758-412-1

461

model the time-varying states of a moving speech

source to predict the particles and a multiple-

hypothesis model is introduced to calculate the

likelihood function as weights corresponding to the

particles of the PF. Finally, the global time-varying

position estimations at each time step are obtained in

terms of weighted particles.

2 FUNDAMENTAL ALGORITHM

2.1 Particle Filter for Tracking

Problem

Considering time-dependent state vector

in a

distributed sensor network, where k being a discrete

time index. The state-space model of the system and

observation models at node j are given as (D. B.

Ward, et al, 2003).

()

k k k k

















(1)

Where

is observation vector of

and

are the system dynamics function and the

observation function, respectively,

and

are the

process noise and observation noise with known

probability density function, respectively.

The Bayesian filter for tracking problem is to

calculate the posterior probability density

()

p xz

Particle filter estimates the Bayesian recursion via

the Monte Carlo simulation and works in the

principle of sequential importance resampling (SIR)

algorithm. In the prediction step, N particles

 

are drawn from a suitable chosen proposal function

1: 1 1:

( , )

k k k



x X z

at time k. In the update step, the

weight

corresponding to the nth particle

calculated based on the prior transition density as the

proposal function, i.e.,

1: 1 1: 1

( , ) ( ),

k k k k k



x X z x X

written as

( ) ( )

()

n n n

k k k k

k k k





z X x X

(2)

Where

()

p zX

is likelihood function.

The PF is to represent posterior probability

()

p xz

by a set

 



, given as

k k k k



  



(x z ) (x X )

(3)

Where

()

denotes the multi-dimensional Dirac

delta function. Finally, the MMSE estimate of the

state

is estimated as

k k k





(4)

2.2 TDOA Estimation under non-

Gaussian Environments

For non-Gaussian noise, symmetric alpha-stable

(SαS) processes can model the impulsive noise

better than other processes (M. Shao and C. L.

Nikias, 1993), (W. Liu, P.P. Pokharel, et al, 2007)

which does not have finite second order statistics

and a closed-form probability density function

unfortunately. Normally, alpha-stable processes can

be described with characteristic functions, written as

 

 

( ) exp 1 sign( ) ( , )t jbt t j t t



    

  

(5)

tan( / 2) , 1

( , )

(2 / )log , 1

 

















for

t for

(6)

Where



(0,2





is the characteristic exponent.

When speech source signals received by a pair of

microphones is polluted by non-Gaussian noise,

accurate TDOA estimations is difficult to be

obtained via typical TDOA estimation methods for

example generalized cross-correlation (GCC) (C.

Knapp, and G. C. Carter, 1976). To solve the

problem, a generalized correntropy function (GCTF)

(W. Liu, P.P. Pokharel, et al, 2007) based TDOA

estimation method is presented for speech source

tracking under the non-Gaussian noise environment.

The GCTF

()



at node j is defined as

,1 ,2

( ) ( ( ) ( ))

j j j

k k j j k

D E s k s k



  



  

(7)

1 ( )

( ) exp

















(8)

ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering

462

Where

()

and

()

denote the two signals

received at two microphones of node j,

 

represents mathematical expectation operation,

()



is the Gaussian kernel and

( 0)







is the kernel

size.

The TDOA observations at node j can be

estimated by a GCTF estimator

max max

( ( ))

argmax

j j j

k k k









  



(9)

Where

maxj



denotes the maximal probable

value of the TDOA at node j.

Considering the noise and reverberation,

generally,

TDOAs selected from first

local

maxima of

()



constitute the TDOA observation

vector

,1 ,2

ˆ ˆ ˆ

, , ,

j j j j

k k k



   



at node j (D. B.

Ward, E. A. Lehmann and R. C. Williamson, 2003).

3 SPEECH SOURCE TRACKING

UNDER NON-GAUSSIAN

ENVIRONMENTS

3.1 Speech Source Dynamic Model

The Langevin model is simple and has worked well

in practice to represent the time-varying locations of

a speech source moving trajectory which is denoted

as (D. B. Ward, E. A. Lehmann and R. C.

Williamson, 2003), (Q. Zhang, Z. Chen, and F. Yin,

2016).

1 0 0 0 0 0

0 1 0 0 0 0

0 0 0 0 0 0

a T b T







   

   



   



   

   

(10)

Where

[ , , , ]

k k k k k

x y x yx

denotes the speech

source’s state at time step k in the Cartesian

coordinates,

T

is the discrete time interval,



the time-uncorrelated Gaussian white noise vector,

and the parameters a and b are defined as

exp( ) 1a T b v a    



(11)

Where β is the rate constant, and

is the root-

mean-square velocity.

3.2 Multiple-Hypothesis Likelihood

Model

Consider the local likelihood function

()

p zx

node j based on

TDOA observations in

. Due

to noise and reverberation, among

TDOAs at

most one associated with the true speech source,

whereas the others correspond to the spurious speech

source (X. Zhong, and J. R. Hopgood, 2014). Thus,

the multiple-hypothesis likelihood model is

employed as the local likelihood function or local

weight for particles at node j, written as (X. Zhong,

and J. R. Hopgood, 2014).

( 1)

max max

( ) ( ; ( ), )

(2 ) (2 )

j j j

k i k i k k





    





z x x

(12)

Where

is the prior probability that none of

TDOA observations corresponds to the true

speech source,

q i N（）

is the prior

probability that only the ith TDOA corresponds to

the true source,





and

()

denotes the

Gaussian distribution.

3.3 Speech Source Tracking Method

Based on PF and GCTF

Under non-Gaussian noise environments, the PF is

employed for speech source tracking. Assume that

observation vectors

( 1,2, , )

jJz

in the

distributed microphone network with J nodes are

conditionally independent given a particle

. Then

the global likelihood function

()

p zX

in Eq. (2)

can be factorized into all local likelihood functions

()

p zX

in Eq. (12), written as

( ) ( )

n j n

k k k k





z X z X

(13)

Then a global MMSE estimate

of the speech

source state

can be obtained from Eq. (4).

The speech source tracking method based on PF

and GCTF under non-Gaussian noise environments

Speech Source Tracking based on Particle Filter under non-Gaussian Noise and Reverberant Environments

463

is described as follows (abbreviated as PF-GCTF).

Firstly, the TDOA observations of speech signals

with non-Gaussian noise received by microphone

pair are estimated from the GCTF according to Eq.

(7). Taking into account the reverberation, multiple

TDOA candidates are selected as observation vector

at each node and based on them the multiple-

hypothesis likelihood model is performed to

calculate the local likelihood function. Next, predict

the particles according to the dynamic model in Eq.

(10), and global likelihood functions, i.e., weights,

corresponding to the particles are computed from Eq.

(13). Finally, a global position estimate of the

speech source state can be obtained in form of

weighted particles in Eq. (4).

4 SIMULATIONS AND

DISCUSSIONS

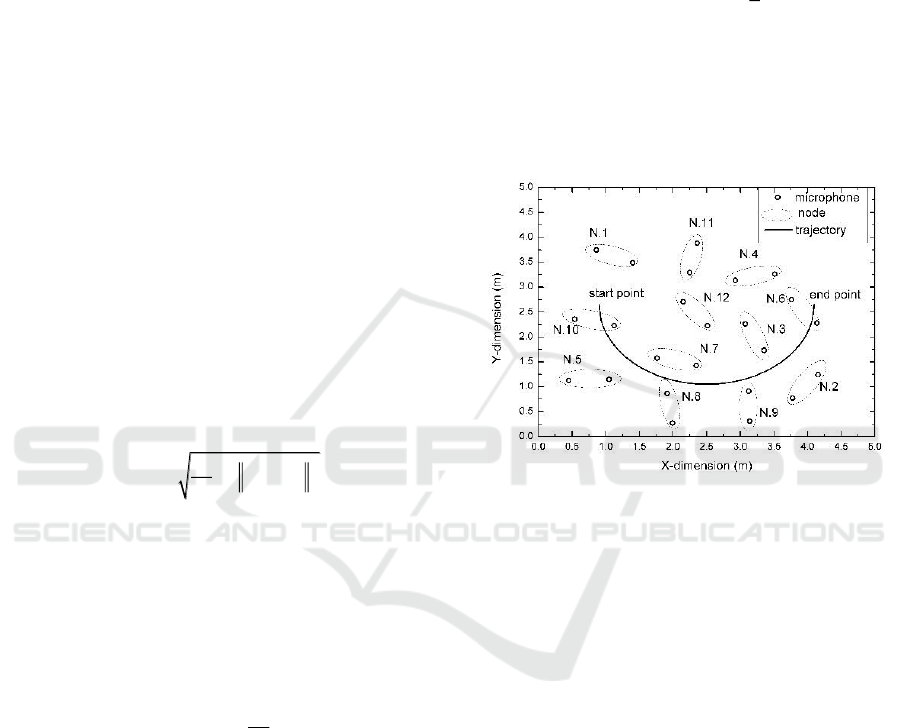

4.1 Simulation Setup

To verify the performance of a speech source

tracking method, the Root Mean Square Error

(RMSE) is given as

RMSE







(14)

Where

and

represent the position estimate

and ground true position at time k, respectively, M

denotes the number of Monte Carlo simulations.

In the SαS noise environment, the generalized

signal noise ratio (GSNR) is used to describe the

different non-Gaussian environments

GSNR 10log (dB)







(15)

Where



is the signal variance and



is the

dispersion parameter of the SαS noise.

In simulation experiments, a female speech

source with the length about 4s and 16 kHz sampling

frequency moves along a semicircle trajectory in a

room which size is

5m 5m 3m

, and microphone

network has been constructed in advance with J=12

pairs of omni-direction microphones shown in Fig.1.

The heights of microphones and speech source are

set 1.5 m. The spacing distance of two microphones

in each node is 0.6 m. The speech signal is split into

120 frames and each frame length is 32ms. The

signal received by each microphone is captured by

Image method (E. A. Lehmann, A. M. Johansson, et

al., 2007), setting the size of room, reverberation

time T60 and the microphone coordinates, then

different impulsive noise is added to each

microphone, generating different GSNRs and

reverberations signals.

The simulation parameters are set as follows. For

the Langevin model,

10s







and

1msv





; for the

PF, the number of particles is N =500 and the initial

states of speech source state are considered

randomly; for the TDOAs, the number of the

TDOAs is Nm=4; for the GCTF, the kernel size





set as 0.5; for the multi-hypothesis model,

=0.25

and the observations standard deviation is

=5 10







Figure 1. Speech source trajectory and layout of the 12

microphone pairs in X-Y plane.

4.2 Result Discussions

To evaluate the proposed method (PF-GCTF), some

comparative experiments with the existing speech

source tracking methods are conducted, i.e., the PF

(D. B. Ward, E. A. Lehmann and R. C. Williamson,

2003) and the DPF-EKF (X. Zhong, A. Mohammadi,

et al, 2013). These methods are evaluated in the

RMSE results in Eq. (14), and the tracking results

are averaged over 50 Monte Carlo simulations based

on the same speech signal and the simulation setup.

4.2.1 Speech Source Tracking Results with

Different Reverberation Time T60

Table 1 shows that the RMSE results of all methods

with different reverberation time T60 from 100 ms

to 300 ms, when GSNR=6 dB and α=0.8. It can be

observed that the RMSE values of all methods

become larger when reverberation gets heavier.

Obviously, the DPF-EKF almost cannot track the

moving speech source under different reverberations

and the PF method has better tracking performance

ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering

464

only when T60 < 200 ms. It can be seen from Table

1 that the tracking performance of the PF-GCTF

method is better than the PF and DPF-EKF with

smaller RMSE values. It illustrates that the proposed

method is robust to the environmental reverberations.

Table 1. Average RMSE results versus different

reverberation times T60.

(ms)

PF-GCTF (m)

PF (m)

DPF-

EKF (m)

100

0.1062

0.1614

1.405

150

0.0921

0.1792

1.4544

200

0.1101

0.3987

1.7067

250

0.3385

0.63

1.8741

300

0.3974

0.9043

1.9738

4.2.2 Speech Source Tracking Results with

Different GSNR

Fig.2 illustrates that the RMSE results of all methods

with different GSNRs from -4 dB to 8 dB, when the

reverberation time T60 = 100 ms and α=0.8. It can

be seen from Fig.2 that with the rise of the GSNR

the RMSE values of all methods become smaller.

We can find that the tracking performance of the

DPF-EKF is the worst with larger RMSE values and

the PF method owns better tracking accuracy only

when GSNR > 6 dB. However, the proposed method

can successfully track the moving speech source

under different GSNR conditions with smaller

RMSE values. It implies that the PF-GCTF is a valid

speech source method for non-Gaussian background

noise of different GSNRs.

4.2.3 Speech Source Tracking Results with

Different Characteristic Exponents α

The RMSE results of all methods with different

characteristic exponents from 0.6 to 1.6 are

illustrated in Table 2 when T60 = 100 ms and

GSNR=0 dB. We can find that the PF and DPF-EKF

have better tracking accuracies only when α > 1.

Nevertheless, the RMSE values of the proposed

method in Table 2 are smaller when 0.6 < α < 1.6

which implies the PF-GCTF is an effective speech

source tracking method under non-Gaussian noise

environments.

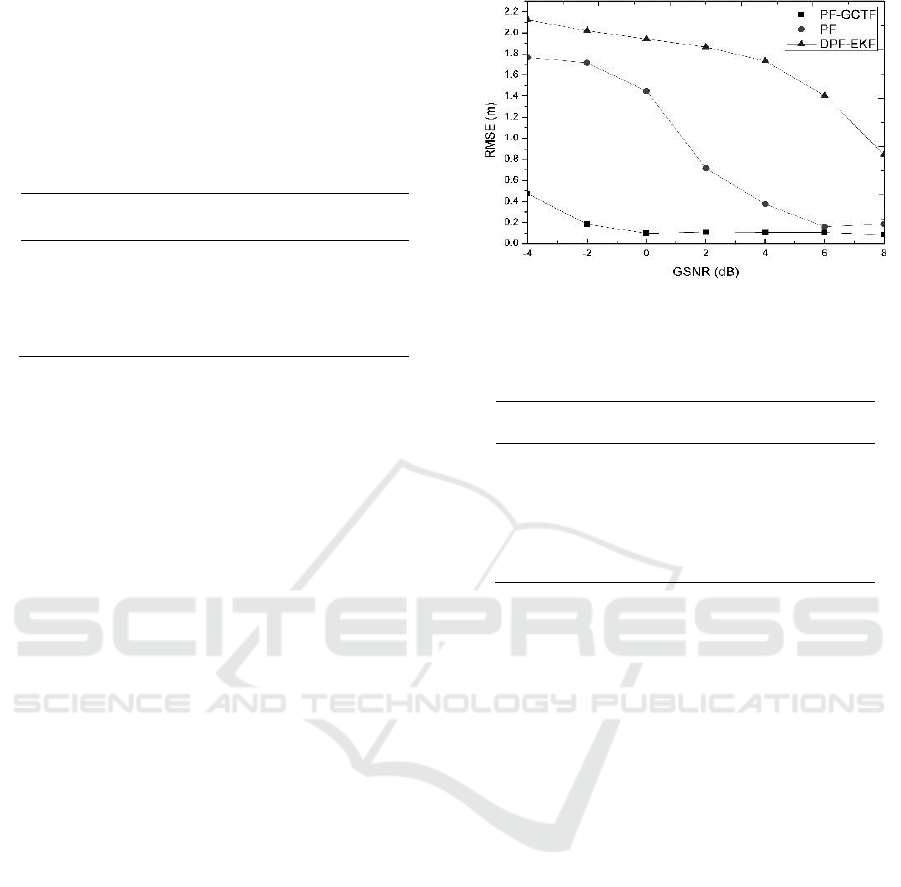

Figure 2. Average RMSE results versus different GSNRs.

Table 2. Average RMSE results versus different

characteristic exponents α.

PF-GCTF (m)

PF (m)

DPF-EKF

(m)

0.6

0.1565

2.2503

2.1875

0.8

0.1301

1.4484

1.9428

0.0967

0.1552

1.3202

1.2

0.0892

0.0853

0.2833

1.4

0.0846

0.0672

0.1517

1.6

0.09

0.0641

0.1302

5 CONCLUSIONS

In the paper, a tracking method based on PF and

GTPF is proposed to estimate the positions of the

moving speech source under non-Gaussian noise and

reverberant environments. Since the generalized

correntropy function is employed to estimate

TDOAs, the proposed method based on PF can track

a moving speech source successfully in non-

Gaussian noise environments. Simulation results

illustrate that the PF-GCTF outperforms other

comparative methods and is robust against non-

Gaussian background noise and room

reverberations.

ACKNOWLEDGMENTS

This work was supported by National Science

Foundation for Young Scientists of China (Grant

No.61801308).

Speech Source Tracking based on Particle Filter under non-Gaussian Noise and Reverberant Environments

465

REFERENCES

B. Kapralos, M. R. M. Jenkin and M. Evangelos,

Audiovisual localization of multiple speakers in a

video teleconferencing setting, Int. J. Imaging Syst.

Technology, pp. 13 (1): 95-105 (2003).

C. Knapp, and G. C. Carter, The generalized correlation

method for estimation of time delay, IEEE Trans.

Acoust., Speech, Signal Process., pp. 24(4): 320-327

(1976).

D. B. Ward, E. A. Lehmann and R. C. Williamson,

Particle filtering algorithms for tracking an acoustic

source in a reverberant environment, IEEE Trans.

Speech and Audio Process., pp. 11 (6):826-836 (2003).

E. T. Roig, F. Jacobsen and E. F. Grande, Beamforming

with a circular microphone array for localization of

environmental noise sources, J. Acoust. Soc. Am., pp.

128(6):3535-3542 (2010).

E. A. Lehmann, A. M. Johansson, et al., Reverberation-

time prediction method for room impulse responses

simulated with the image-source model, in: IEEE

Workshop on Applications of Signal Processing to

Audio and Acoustics, pp. 159-162 (2007).

F. Talantzis, An acoustic source localization and tracking

framework using particle filtering and information

theory, IEEE Trans. Audio Speech Lang. Process., pp.

18 (7):1806-1817 (2010).

K. Nakadai, et al., Robust tracking of multiple sound

sources by spatial integration of room and robot

microphone arrays, in: IEEE Int. Conf. Acoust.,

Speech, Signal Process., pp. IV- 929- IV-932 (2006).

M. F. Fallon, and S. J. Godsill, Acoustic source

localization and tracking of a time-varying number of

speakers, IEEE Trans. Audio Speech Lang. Process.,

pp. 20(4):1409-1415 (2012).

M. Shao and C. L. Nikias, Signal processing with

fractional lower order moments: Stable processes and

their applications, Proceedings of the IEEE, pp. 81 (7):

986-1010 (1993).

Q. Zhang, Z. Chen, and F. Yin, Distributed marginalized

auxiliary particle filter for speaker tracking in

distributed microphone networks, IEEE Trans. Audio

Speech Lang. Process., pp. 24(11): 1921-1934 (2016).

T.P. Spexard, M. Hanheide, and G. Sagerer, Human-

oriented interaction with an anthropomorphic robot,

IEEE Trans. Robotics, pp.23 (5):852- 862 (2007).

W. Liu, P.P. Pokharel, et al., Correntropy: properties and

applications in non-Gaussian signal processing, IEEE

Trans. Signal Process., pp. 55 (11): 5286-5298 (2007).

X. Zhong, and J. R. Hopgood, Particle filtering for TDOA

based acoustic source tracking: Non-concurrent

multiple talkers, Signal Process., pp. 96(5):382-394

(2014).

X. Zhong, A. Mohammadi, et al., Acoustic source tracking

in a reverberant environment using a pairwise

synchronous microphone network, in: 16th Int. Conf.

Information Fusion, pp. 953-960 (2013).

ICVMEE 2019 - 5th International Conference on Vehicle, Mechanical and Electrical Engineering

466
