Mind the Gap: Finding What Updates Have (Really) Changed in

Android Applications

Johannes Feichtner

1,2

, Lukas Neugebauer

and Dominik Ziegler

Institute of Applied Information Processing and Communications (IAIK), Graz University of Technology, Austria

Secure Information Technology Center - Austria (A-SIT), Austria

Know-Center GmbH, Austria

Keywords:

Android, Code Comparison, Application Security, Static Analysis, Obfuscation, Smali.

Abstract:

Android apps often receive updates that introduce new functionality or tackle problems, ranging from critical

security issues to usability-related bugs. Although developers tend to brieﬂy denote changes when releasing new

versions, it remains unclear what has actually been modiﬁed in the program code. Verifying even subtle changes

between two Android apps is challenging due to the widespread use of code transformations and obfuscation

techniques. In this paper, we present a new framework to precisely pinpoint differences between Android apps.

By pursuing a multi-level comparison strategy that targets resources and obfuscation-invariant code elements,

we succeed in highlighting similarities and changes among apps. In case studies, we demonstrate the need and

practical beneﬁts of our solution and show how well it is suited to verify changelogs.

1 INTRODUCTION

Developers of Android applications regularly dis-

tribute and update their apps via Google Play or

third-party distribution channels. Featured by descrip-

tions, screenshots, and further promotional informa-

tion, users can pick from a large pool of often similar

applications. Many vendors reuse their own code and

offer multiple revisions of the same app for different

devices or with adaptations, e.g., for learning vari-

ous languages, local weather, and city travel guides.

While these apps are usually clearly distinguishable by

their visual appearance, the opposite is the case when

third-party developers distribute repackaged versions

of existing apps with barely noticeable modiﬁcations.

Often, these changes introduce malware or code to

hijack revenues for advertisements.

Upon the release of new app versions, developers

can provide a changelog that typically includes a list

of modiﬁcations, ﬁxed issues, and new functionality.

In practice, however, release notes are not necessarily

accurate. For instance, if an author states that a known

security-critical problem has been ﬁxed, users have to

put their trust into that statement. Besides not being

able to check whether indicated changes have indeed

and thoroughly been implemented, additional code

modiﬁcations that are not exposed in the changelog

are impossible to reproduce.

Whenever updates are published for Android apps,

or applications appear to be repackaged versions or

clones, it is crucial to see what has actually changed in

the program code. From a research perspective, there

is a strong need for a solution that can reliably high-

light differences among various app versions while

being able to distinguish between functional changes

by developers and structural adaptations by compilers.

Especially, regarding the rising complexity and size of

today’s apps, a comprehensive comparison could help

to lower the costs and efforts needed for app analysis

and would allow for easier veriﬁcation of bugﬁxes.

Manually ﬁnding similarities and differences be-

tween two implementations is challenging due to the

widespread use of code transformation techniques that

are applied not only to optimize code but also to harden

against reverse engineering and tampering.

Automated solutions, on the other side, are usually

targeted to return a verdict (yes/no) on whether an app

appears to be a cloned or repackaged version of another

one (Chen et al., 2015; Wang et al., 2015). In a triv-

ial case, this decision can be made by checking if the

majority of ﬁles of one app sample are also contained

in the comparison object. However, if code transfor-

mation techniques are used, a content or hash-based

comparison would lead to spurious results. Likewise,

the verdict will be tainted if obfuscation and related

techniques are not taken into account.

306

Feichtner, J., Neugebauer, L. and Ziegler, D.

Mind the Gap: Finding What Updates Have (Really) Changed in Android Applications.

DOI: 10.5220/0008119303060313

In Proceedings of the 16th International Joint Conference on e-Business and Telecommunications (ICETE 2019), pages 306-313

ISBN: 978-989-758-378-0

Problem.

When comparing Android apps with each

other, we aim to disclose changes in the implemented

program behavior, rather than ﬁnding stylistic or other

non-functional changes without inﬂuence on execution

or visual appearance. However, precisely uncovering

only real differences between apps is challenging due

to code transformations at compile time and a vari-

ety of ways, how developers can express semantically

similar program statements. Also, if obfuscation tech-

niques are used, the identiﬁers of classes, methods, and

variables are replaced by meaningless placeholders.

Existing state-of-the-art efforts focus on detecting

repackaged or cloned apps based on heuristics but are

unable to highlight individual code parts that are simi-

lar or different between two Android apps. Mostly op-

erating on the Dalvik bytecode of apps, these work de-

rive a verdict based on a custom similarity metric that

yields accurate but often irreproducible results (Zhan

et al., 2019; Guan et al., 2016). Other approaches for

similarity analysis, as implemented by the tools Andro-

guard

and FSquaDRA (Zhauniarovich et al., 2014),

deliver a deterministic score but give no explanation

on how and where code relates to each other.

The ability to highlight concrete similarities and

differences among apps is essential since it is crucial to

understand what has really been changed by updates

and in repackaged versions of apps. In addition, a

reliable comparison can provide valuable insight for

analysts and curious users into how developers have

addressed critical bugs by updates.

Approach.

To detect and visualize similarities and

differences between two Android applications, we pro-

pose a multi-level comparison strategy:

We model the hierarchy of packages with code and

resources in Merkle trees and prune parts that are

equal between the two versions. For resources, we

end after this step and can already tell what ﬁles

are equal, deleted, or have changed among apps.

From the remaining code, we extract and process

all classes, methods, and basic blocks. While pre-

serving the original code semantics and data ﬂow,

we perform multiple rounds of comparison that

accurately identify newly added, changed, moved,

and deleted code elements.

We tackle common code transformation techniques

by comparing only features that are invariant to

obfuscation and arbitrary compiler modiﬁcations.

The comparison results can be inspected in a web-

based view that visualizes differences similar to

tools found in source code version-control systems,

such as Git and Subversion.

https://github.com/androguard/androguard

Results.

We implemented an analysis framework

that can be used for various purposes involving the

direct comparison of two Android applications. In a

case study, we show the practical beneﬁts of our so-

lution by verifying the developer-provided changelog

of real-world applications. Moreover, we demonstrate

that our tool cannot only help to identify repackaged

apps but also to precisely isolate code that might have

been added or modiﬁed by malware authors.

Contribution. Our contributions are as follows:

We design a framework that enables a pairwise

comparison of the code and resources contained in

two given Android apps. We implement similarity

checks at ﬁle, class, method, and basic block level

and present code differences in a format that is

well-known from source code versioning systems.

We propose a multi-round comparison approach

for code that takes compiler peculiarities and code

transformation techniques, such as identiﬁer ob-

fuscation into account. We modify the baksmali

reverse-engineering tool to extract different repre-

sentations of basic blocks from Dalvik bytecode.

To counter code obfuscation, we derive segments

where registers, labels, and re-arrangements cannot

inﬂuence similarity matching.

Finally, we perform case studies on real-world

applications to demonstrate how our framework

can be used to explain differences and similari-

ties among apps. We exemplify the veriﬁcation of

changelogs presented by popular apps and show

how to identify functional changes in code.

Outline.

In Section 2, we discuss related work. In

Section 3, we deﬁne the requirements for our frame-

work and summarizes the comparison workﬂow for

code and resources. Section 4 elaborates our approach

for code matching at class, method, and basic block

level in more detail. Applied on real-world Android

apps, in Section 5, we demonstrate the usage scenario

of changelog veriﬁcation by identiﬁng similarities and

differences in app code. Section 6 concludes our work.

2 RELATED WORK

Comparing the code of Android apps typically in-

volves ﬁnding a metric that assigns scores to imple-

mentation differences. Using a static or dynamic anal-

ysis approach, most existing work extract features

from meta-data (e.g., app permissions), code (e.g., call

graphs or instruction subsets), or obtain them during

runtime (e.g., execution traces).

https://github.com/JesusFreke/smali

Mind the Gap: Finding What Updates Have (Really) Changed in Android Applications

307

The reverse-engineering framework AndroGuard

ﬁrst included an algorithm for pairwise comparison us-

ing Normalized Compression Distance (Desnos, 2012).

By comparing hashing-based ﬁngerprints of methods,

a value between 0 and 1 was derived to indicate the

similarity between them. Variants of this approach

focused on dependency graphs (Crussell et al., 2012),

layout information (Sun et al., 2015), or combined

different features (Shao et al., 2014).

To improve the scalability of pairwise compari-

son, other solutions summarize extracted features in

vector representations. Instead of operating on code,

PiggyApp (Zhou et al., 2013) ﬁlls vectors with se-

mantic information and uses them to compute the dis-

tance between apps. For faster comparisons, other

approaches abstract code parts into graph-like repre-

sentations (Chen et al., 2014; Deshotels et al., 2014).

Newer approaches are directed towards measuring

similarity using machine learning-based techniques.

Supervised (Tian et al., 2016) and unsupervised (Shao

et al., 2014) learning approaches have been proposed

to tackle the recognition of malware in repackaged

Android applications.

All related work presented implement a pairwise

comparison and differ mostly in the algorithm used as

a distance metric, as well as in the features that are

used to derive ﬁngerprints from. Although the prob-

lem domain is strongly related to our research, related

work does not yet (1) tackle the problem of uncov-

ering individual code differences instead of deriving

a summarizing similarity score and (2) cannot distin-

guish between functional changes by developers and

structural adaptations by compilers.

3 SYSTEM DESIGN

We design a framework to list differences and similari-

ties between two given Android application archives.

The primary workﬂow can be split into two phases:

In the

resource comparison

phase, our solution

extracts and compares static content and all non-

code ﬁles that are referenced in code, such as

bitmaps, layout deﬁnitions, and user interface

strings. We then organize these ﬁles in Merkle

trees and leverage the resulting set of hashes to

efﬁciently determine newly added, changed, and

deleted resource ﬁles or folders. As resources are

never affected by obfuscation or related techniques,

the comparison already ends after a single step.

Two applications with identical resources can in-

dicate that applications are repackaged or cloned

versions (Sun et al., 2015; Shao et al., 2014).

In the subsequent

code comparison

phase, we ﬁrst

convert the Dalvik bytecode of both comparison

objects into Smali code and, similar to resources,

organize the resulting hierarchy of ﬁles and directo-

ries as Merkle trees. Considering the large amount

of classes in today’s applications, we leverage this

data structure to quickly ﬁlter classes and packages

that are equal among both apps. For the remain-

ing code, we continue with a more ﬁne-grained

comparison at class, method, and basic block level.

In multiple rounds, we rewrite Dalvik bytecode

and derive different code representations where

possible compiler modiﬁcations or effects of trans-

formation techniques, such as code obfuscation,

are mitigated. Due to the wide range of possibil-

ities how code can be transformed, we elaborate

multiple semantically equivalent code representa-

tions tackling different obfuscation aspects and

apply them for comparison. Overall, this approach

ensures that only code parts are matched that are

indeed related with each other.

After analyzing two apps, our tool collects all found

differences and similarities in separate ﬁles for later

interpretation in a web-based comparison view. Based

on HTML and JavaScript, differences between apps

are visualized in a representation that is well-known

from established management systems for source code,

such as Git and Subversion. Deleted basic blocks are

marked in red color, whereas newly added or changed

code fragments are highlighted in green. Existing or

unchanged parts are not underlined.

We replicate the visual representation of code

changes, as displayed by our framework, in a case

study of real-world applications (see Section 5).

4 CODE SIMILARITY IN

ANDROID APPS

To answer the question of how much code is shared

between two applications, we apply several generic

options for both comparison on class level as well as

comparison on method level. Our concept is based on

comparing .smali code to detect code similarities and

differences. The idea is to iteratively split parts that do

not match between apps into smaller chunks. In each

step, we gradually reduce the number of identiﬁers

and substitute them with placeholders. However, this

approach alone does not account for modiﬁcations or

peculiarities of used compilers that would inﬂuence

the hash value of a ﬁle or block. In the following we

explain the operations we apply to the original Dalvik

bytecode before comparing applications.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

308

• Removing Debug Information:

Debug informa-

tion typically has no impact on code execution.

Still, it might differ for two exact versions of a ﬁle,

depending on the used compiler. In a ﬁrst step, we,

thus, strip debug information, such as line num-

bers and parameter names from the .smali code

generated by our modiﬁed version of baksmali.

• Implicit Method and Field References:

We rely

on implicit method and ﬁeld references for ele-

ments of a current class, when generating .smali

code. Notably, we do not use the current class

name as a preﬁx for method and ﬁeld names. For

instance,

La/b;->a:Ljava/lang/Object;

will

be rewritten as

a:Ljava/lang/Object;

. By rely-

ing on this reduced variant, we can identify identi-

cal code snippets across different classes.

• Sequential Numbering of Labels:

Instead of us-

ing the address information contained in the orig-

inal bytecode, we apply a sequential numbering

scheme for labels (for instance targets of jump in-

structions). This enables a semantic comparison

of classes and basic blocks despite obfuscation.

• Sorting Fields and Methods:

Another important

task when performing hash-based comparison of

classes is sorting ﬁeld and methods consistently.

We achieve this by linking name invariant values

with each ﬁeld and method in a class. Therefore,

we derive a unique deterministic value, depending

on the access ﬂag, number of parameters and return

type for methods, and access ﬂag and type of ﬁeld

for ﬁelds. To determine the order of elements, we

also leverage the method and ﬁeld index stored

in Dalvik bytecode. The resulting name-invariant

value is ﬁnally used to sort methods and ﬁelds.

Although the applied operations already ascertain

consistent comparison results, additional measures

are necessary to tackle dynamic decisions during

compilation. The following four operations are

designed to address these differences among apps:

• Deterministic Register Labels:

Our customized

version of baksmali enforces the assignment of

registers in a deterministic way instead of using

variable, compiler-chosen registers. For this pur-

pose, we sequentially assign registers depending

on their ﬁrst occurrence. This operation enables us

to detect two semantically identical blocks where

only the register names were assigned differently

during compilation. However, without additional

checks, a sequential labeling could lead to false

results. For instance, if a simple instruction is in-

serted in between two app versions, all registers

might be shifted and consequently, all remaining

basic blocks cannot be identiﬁed as matching.

• Static Register Labels:

Instead of replacing reg-

ister names with deterministic assignments, our

solution also supports static register placeholders.

As a result, hashes of blocks are independent of

used registers. However, this measure can inﬂu-

ence accuracy. For instance, if a method changes

the return value by referencing another register,

this change would be unnoticed by this approach.

We, thus, apply this step in conjunction with others

to prevent possible mismatches.

• Resolve Resource Identiﬁers:

The third impor-

tant measure to facilitate the analysis due to com-

piler decisions is replacing resolved resource iden-

tiﬁers with the original type and content deﬁned

/res/default.xml

. For example, the value

const v0, 0x123cafe0

could be replaced by

const v0, **APKCOMPARE.<some value>**

Due to arbitrary assignments of resource identi-

ﬁers during compilation, these replacements are

inevitable for a distinctive comparison of code

with references to application resources.

• Excluding:

Our solution supports the exclusion

of classes in the

android

package from analysis.

As these classes are typically unmodiﬁed included

from the Android runtime, they do not contribute

to showing functional differences between apps.

4.1 Matching Classes

Matching classes is based on the idea of gradually

trimming classes. For each app under comparison, we

build a Merkle trees that holds all packages, classes,

and methods. As depicted in Figure 1, the analysis

process consists of six rounds. In each iteration step

already matched classes are excluded from the next:

1. Unmodiﬁed Files:

In the ﬁrst step, we compare

the hash value of unmodiﬁed .smali ﬁles. Unmodi-

ﬁed in this step means that no additional measures,

besides those necessary for coherent generation

of classes, have been applied. Subsequently, we

compare the generated Merkle trees. All identi-

cal classes found in both apps are determined and

removed from the tree before the next step.

2. Files with Replaced Super Class Names:

In the

second step, we aim at detecting classes which

differ only in the names of the used superclasses.

Hence, we generate .smali ﬁles, where occurrences

of superclasses have been substituted with place-

holders. Again, we store all matching classes and

remove them from our analysis set at this point.

3. Files with Replaced Class Names:

After compar-

ing all classes with changed super class names, we

Mind the Gap: Finding What Updates Have (Really) Changed in Android Applications

309

now substitute only the class name with a place-

holder. This approach gives us the ability to detect

renamed classes. After this step, our analysis set

only contains classes which either implement a

different interface or differ in their class signature.

4. Files with Replaced Interfaces Names:

In the

fourth step, we try to detect classes with changed

interface names. Hence, we introduce a place-

holder for all used interfaces in our class ﬁles. Like

in the previous steps, we reduce our analysis set

by all classes matching in both apps.

5. Files with Replaced Class Signatures:

For all

classes for which no corresponding match was

found, we repeat the search with a combination

of all previous variants, in this step. In detail, we

introduce placeholders for class and super class

names as well as implemented interfaces. We refer

to this step as replacement of class signatures.

As can be seen in Figure 1, steps 1-5 can be repeated

multiple times. Between each iteration, we rewrite

the Dalvik bytecode of both apps and apply additional

operations, e.g., replacing register names with place-

holders, to increase the detection rate. These steps can

be repeated as long as new matches are found.

However, classes where ﬁelds or methods have

been renamed, are not covered by the ﬁrst ﬁve steps.

Additionally, code obfuscation tools like ProGuard

have been found to be resistant against these ﬁrst

ﬁve steps. Consequently, we introduce one ﬁnal step,

where we replace all identiﬁers with placeholders:

6. Files with All Identiﬁers Replaced:

In the last

step, we remove all identiﬁers and names and sub-

stitute them with placeholders. An example of this

approach is depicted in Figure 2. In this step, we

replace method, ﬁeld, class and type names with

placeholders. However, we leave method names

<init>

, certain package names like

android/

or basic data types unchanged, as they cannot be

renamed by code obfuscation tools.

4.2 Matching Methods and Basic Blocks

The pairwise comparison of classes does not lead to

positive matches if methods were added, removed, or

changed. For all code classes that did not match in the

previous step, we propose a ﬁne-grained inspection

that focuses on individual methods and basic blocks.

In a ﬁrst step, we leverage our customized version

of baksmali to extract all methods from remaining

classes that could not be matched in the previous step.

For each method, we retrieve two representations: ﬁrst

the original code with all identiﬁers and in addition, to

overcome code transformations, we rewrite the Dalvik

* Disassembling of .dex files

.dex

.smali

.dex

.smali

.dex

.smali

.dex

.smali

.dex

.smali

.dex

.smali

(max n rounds)

.smali

Unmodified .smali files

.smali files with replaced super class names

.smali files with replaced class names

.smali files with replaced interface names

.smali files with replaced class signatures

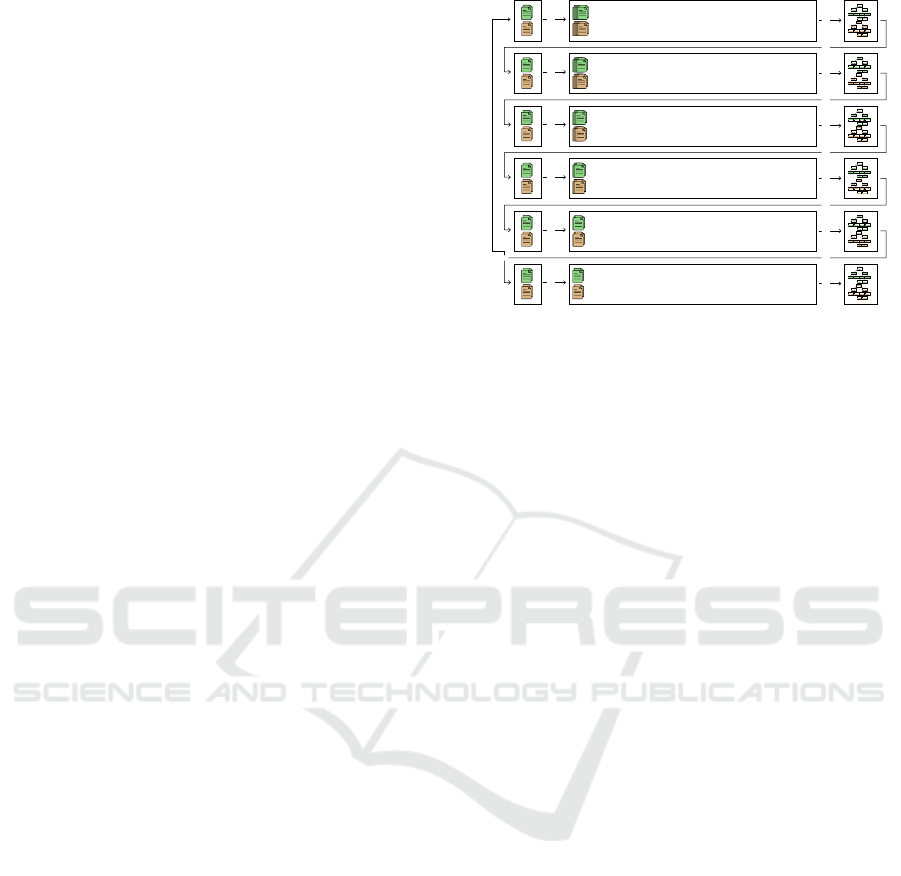

.smali files with all identifiers replaced

* Generation of Merkle Trees

* Comparison of Merkle Trees + Writing results to files

* Rewriting of .dex files

Figure 1: Multi-round code comparison at class level.

bytecode to generate a semantically equivalent version

where identiﬁers are replaced with placeholders.

For all methods that exceed the lower bound of

code lines needed for matching, we derive a hash value

of the method signature and the body with all basic

blocks. This implies that the order to basic blocks

is also considered and re-arranged, moved, added, or

deleted basic blocks will thwart a successful match. As

a remedy, in cases where methods cannot be matched,

we propose to extend the matching process to the level

of basic blocks for a more in-depth comparison.

Overall, the analysis procedure of methods and

basic blocks can be split into four steps:

1. Methods with Identiﬁers:

After extracting all

methods of unmatched classes from Dalvik byte-

code in their original format (with potentially ob-

fuscated identiﬁers), their hash representation is

stored in a sorted list. Methods that fall below the

conﬁgured minimum threshold for needed code

lines are winnowed and not considered. Then, for

all generated hash values of one Android app a

match is looked up in the set of methods in the

second app provided for comparison.

In this step, we determine all methods that have

not been changed but were moved to another class.

2. Methods without Identiﬁers:

For all methods for

which no corresponding match was found in the

ﬁrst step, the search is repeated with the seman-

tically equivalent but obfuscation-invariant repre-

sentation of the method body.

This step ﬁnds all methods that exhibit the same

control and data ﬂow with differently named iden-

tiﬁers. In practice, this is the case, if one version

of an Android app is obfuscated and the compari-

son object is not. Likewise, this comparison step

SECRYPT 2019 - 16th International Conference on Security and Cryptography

310

1 . metho d p u b lic fina l run () V

2 . re g i s ter s 3

4 i get - o bje c t v0 , p0 , b : L b/f ;

5 i get - o bje c t v0 , v0 , L b /f ; - > a : L b / e ;

6 i get - o bje c t v1 , p0 , a : L

re n am e d /b y /a p k co m pa r e / n u mb e r 1 2 4 ;

8 i nv o k e-s t a ti c { v0 , v1 } , Lb/e ; - > a

9 (L b/e ; L r e na m e d/ b y/ a p kc o mp a r e / n um b e r 1 2 4 ; ) V

10 r etu r n -vo i d

12 . e n d m e t hod

1 . metho d p u b lic fina l _ MET H O D_ N A ME_ ( ) V

2 . re g i s ter s 3

4 i get - o bje c t v0 , p0 , _FIE L D _ N AME_ : _ T Y P E _ ;

5 i get - o bje c t v0 , v0 , _C L ASS_- > _ F IE L D _NA M E _ : _TYP E _ ;

6 i get - o bje c t v1 , p0 , _FIE L D _ N AME_ :

Lr e na m e d/ b y/ a p k c o mp a r e / n um b er 1 2 4 ;

8 i nv o k e-s t a ti c { v0 , v1 } , _CL ASS_ - > _M E T HOD _ N AM E _

9 ( _TYPE _ ; L r e n am e d / b y /a p kc o m pa r e/ n u mb e r1 2 4 ; ) V

10 r etu r n -vo i d

12 . e n d m e t hod

Figure 2: Comparison of Smali code at class level without (left) and with (right) replaced identiﬁer names.

matches method bodies that were applied differ-

ent code transformation techniques and were e.g.,

compiled using different obfuscation settings.

3. Basic Blocks with Identiﬁers:

If the method

body has changed, a more ﬁne-grained matching

using the contained basic blocks is inevitable. Sim-

ilar to the ﬁrst step, we derive the hash value of all

basic blocks in so far unmatched methods, collect

them in a sorted list, and compare them with the

hash values of basic blocks of a comparison ob-

ject. If basic blocks are found in multiple methods,

the resulting candidates are sorted by the over-

all amount of matching basic blocks in the same

method. This decision logic resembles the match-

ing behavior of the Git source code versioning

system.

This step discloses basic blocks that were moved

to other methods without changing any identiﬁers.

4. Basic Blocks without Identiﬁers:

Finally, the

hash values of obfuscation-invariant basic blocks

are compared with hash values of basic block rep-

resentations where identiﬁers have been replaced

by placeholders.

In this step, we ﬁnd deleted and newly added basic

blocks. Due to the lookup without identiﬁers, we

also discover basic blocks that have been moved

to other methods but where identiﬁers have been

renamed, e.g., due to different obfuscation settings

or membership in a different code package. This

step also covers typical obfuscation settings, such

as code merging and inlining. Conscious about pre-

serving control ﬂow integrity, code transformations

are usually applied on entire basic blocks, rather

than single code lines. By comparing representa-

tions without identiﬁers, our approach enables to

effectively keep track of affected basic blocks.

The described comparison strategy evolves from entire

methods to a ﬁne-grained matching on basic block

level. Considering that today’s Android apps often

include tens of thousands of methods, our approach

reasonably reduces the set of objects to compare in

each step. Evidently, newly added or deleted basic

blocks always come at full analysis cost as they are

compared with the hash values of all other blocks, until

we can conclude that they exist in only one of the two

given Android applications.

5 CASE STUDY

We evaluate our framework by comparing subsequent

versions of Android apps and validate whether pro-

vided release notes are accurate. For demonstration

purposes, we select two popular apps with a large

amount of code: the messenger app Skype

and the

password manager 1Password

For both apps, the source code is non-public, which

means that only changelog information and the results

of our tool can be used for analysis. We could ﬁnd

security-relevant release notes for both apps and will

use our tool to verify if the changes that have been

made correspond to the statements in the changelogs.

5.1 1Password

1Password is a password manager app for Android

with more than 1.000.000 installations, according to

Google Play. Besides the brief changelog denoted in

the ofﬁcial distribution platform, full release notes are

presented at the developer website

. In version 6.4.1,

the authors addressed several security-relevant vulner-

abilities that were present in previous versions. In the

following, we apply our tool to compare the versions

6.4 (build 58) and 6.4.1 (build 59) of 1Password and

validate how the security issues were handled in code.

According to the developer-provided changelog, the

app update involved functional code changes:

• Improved Domain Matching.

https://play.google.com/store/apps/details?id=

com.skype.raider

https://play.google.com/store/apps/details?id=

com.agilebits.onepassword

https://app-updates.agilebits.com/product history/OPA4

Mind the Gap: Finding What Updates Have (Really) Changed in Android Applications

311

In versions 6.4 and older, the 1Password app did

not consider subdomains when parsing URLs due

to a mismatching regular expression. The update to

version 6.4.1 replaced the check with a call to the

newly added method

getLoginsForUrl

, which

our tool successfully located in the class

Utils

(Listing 1). An inspection of the new code be-

havior reveals that the changes indeed ﬁxed the

domain matching problem.

• New Default Scheme: HTTPS instead of

HTTP.

In prior app versions, the internal browser of the

app used HTTP as the default scheme, if no full

URL was provided by the user. As also shown in

lower part of Listing 1, code has been added to

prepend URLs with the https:// preﬁx.

• Prevent Access to Non-web URLs.

In older versions, users could read private data

from the app folder by using URLs with the ﬁle:///

scheme in the built-in web browser. As shown in

Listing 2, the update introduced a limitation to web

URLs and printed an error with all other URLs.

• Informative Dialogs in the Case of TLS Errors.

According to the changelog, the update also im-

proved messages that are shown when SSL/TLS

errors occur. Inspecting the newly added class

CommonWebViewClient

, we can verify how the

improvements have been realized.

Summarizing, the veriﬁcation of changes between two

versions of the 1Password app shows that all indicated

security-relevant modiﬁcations have indeed been car-

ried out as described and that the developer-provided

release notes covered all changes.

5.2 Skype

In 2011, the developers of the Skype messenger app

distributed an update via Google Play that raised the

version from 1.0.0.831 to 1.0.0.983. The provided

changelog reported the ﬁx of a recent security issue

As also reported by related work (Desnos, 2012), in the

vulnerable version of the messenger, sensitive proﬁle

data, such as the account balance, date of birth, email

address, etc. were stored unencrypted on the device. In

addition, wrong access permissions have been chosen

for ﬁles, allowing other apps to read and write them.

By applying our tool on both versions, we ﬁnd that

security-relevant changes have been made in the class

com/skype/ipc/SkypeKitRunner

. The most signif-

icant modiﬁcations with relevance to ﬁxed security

issue have been compiled in Listing 3.

http://www.helloandroid.com/content/skype-security-

vulnerability-ﬁxed

Listing 1: 1Password: Added method getLoginsForUrl.

1 @@ diff : com / a g ile b i t s / on e p ass w o rd / s u p p o r t / Utils . java

<->

2 @@ com / a g ile b i t s / on e p ass w o rd / s u p p o r t / Utils . java

3 ...

4 + publi c s t a tic List < G e neri c I t e mBas e >

ge t L og i n sFo r U rl (

5 + List < G ener i c I t emBa s e > pa r amList , Strin g

pa r a m Str i n g )

6 + {

7 + p a ram S t r in g = Publ i c Su f f i x .

re g i st r ab l e Do m a in F or U r l ( p a r a mS t r i ng ) ;

8 + A r r ayL i s t loca l A rr a y Lis t = ne w ArrayLi s t () ;

9 + if ( ( pa r a m List != null ) && ( ! T ext U t i ls . is E m p t y (

pa r a m Str i n g ) ) )

10 + {

11 + par a m L ist = param L i s t . ite r a t or () ;

12 + while ( p a ram L i s t . has N e x t () )

13 + {

14 + Ge n e ri c I tem B a se l oc a l Ge n er i c It e m Ba s e = (

Ge n e ri c I tem B a se ) p a r amL i s t . next () ;

15 + if ((! T ext U t i ls . is E m p t y ( mL o c a tio n ) ) &&

16 + ( pa r a mSt r i ng . equ a l s ( P ubl i c Su f f i x .

re g i st r ab l e Do m a in F or U r l ( m L o c ati o n ) )) ) {

17 + l oc a l Ar r a y Li s t . a d d ( l o ca l G en e ri c I te m B as e ) ;

18 + }

19 + }

20 + }

21 + r e t u r n loca l A rr a y L is t ;

22 + }

23 ...

24 + publi c s t a tic URI pa r s eU R I Fro m U rl ( S t r i n g

pa r a m Str i n g )

25 + {

26 + ...

27 + r e t u r n cre a t eU R I Fr o m Ur l S tr ( " h t t p s :// " +

pa r a m Str i n g ) ;

28 + }

29 ...

Listing 2: 1Password: Changed URL input check.

1 @@ diff : com / a g ile b i t s / on e p ass w o rd / a c t i v ity /

Au t o lo g i nA c t iv i t y . java <->

2 @@ com / a g ile b i t s / on e p ass w o rd / a c t i v ity /

Au t o lo g i nA c t iv i t y . java

3 ...

4 pub l i c v o i d l oadU r l ( S t r i ng p a r amS t r ing )

5 {

6 - p a ram S t r in g = Utils . u riF r o mUr l ( p a ra m S t ri n g ) ;

7 + p a ram S t r in g = Utils . pa r s eUR I F ro m U rl ( p a ram S t r in g )

;

8 if ( p a ra m S t ri n g != null ) {

9 - mWe b V i e w . loa d U r l ( pa r a m St r i n g . to S t r ing () );

10 + mWe b V i e w . loa d U r l ( pa r a m St r i n g . t o A SCI I S tr i n g () ) ;

11 + return ;

12 }

13 + A c ti v i t yH e l pe r . g et A l e rt D i al o g ( this , 213123 1 5 4 8 ,

21 3 1 2 315 4 7 ) . show () ;

14 }

15 ...

As shown in the upper part of the listing, two

new methods have been introduced by the up-

date. The methods

fixPermissions(File[])

and

chmod(File, String)

are used to change access per-

missions for ﬁles that were created with previous ver-

sions of the Skype app. In the second half of the listing,

we see that a string value used to deﬁne the Unix access

permissions for ﬁles was reset from

777

(rwxrwxrwx)

to the value

750

(rwxr-x—), followed by an invocation

of the newly added method fixPermissions.

Overall, the comparison study of Skype underlined

that our tool can reproduce the ﬁx of security issues in

accordance with the ﬁndings reported by related work.

SECRYPT 2019 - 16th International Conference on Security and Cryptography

312

Listing 3: Skype: Update with security-related changes.

1 @@ diff : c o m/ s k y p e /i p c / S k yp e K it R un n e r . smal i <- >

co m /s k y pe / i p c / Sk y p e K i tR u n n e r . smali

2 ...

3 .end met h o d

5 + . m e t h o d pr i v a t e fixP e r mi s s io n s ([ L j ava / i o/F i l e ; ) V

6 + . re g i s ter s 7

7 +

8 + a rr a y - le n g t h v0 , p 1

9 + ...

10 +

11 + . end meth o d

12 +

13 + . m e t h o d pr i v a t e chmod ( L ja v a /io / F ile ; L

ja v a /l a n g/ S t rin g ; ) Z

14 + . re g i s ter s 7

15 ...

16 c on s t - st r i n g v6 , " csf "

17 - c o nst/ 4 v7 , 0x3

18 + c o nst/ 4 v7 , 0x0

20 i nv o k e- v i r tu a l { v4 , v6 , v7} , L

an d r oi d /c o n te n t /C o nt e x t ; - >

21 o p en F i l eO u t pu t ( L ja v a /l a n g/ S t ri n g ; I ) L

ja v a / i o /F i l eO u t p u t St r e am ;

22 ...

24 i nv o k e-d i r ec t { v 2 } , L j a va / la n g /S t r in g Bu i l de r ; - > <

init >()V

26 - c on s t - st r i n g v4 , " c h m o d 7 77 "

27 + c on s t - st r i n g v4 , " c h m o d 7 50 "

28 ...

30 m ov e - re s u lt - o bj e c t v1

31 + m ov e - ob j e ct / f ro m 1 6 v3 , p0

32 +

33 + i get - o bje c t v3 , v3 , mCon t e x t :L

an d r oi d /c o n te n t /C o nt e x t ;

34 + m ove - o bje c t v2 , v 3

35 +

36 + i nv o k e- v i r tu a l { v2 } , L an d r oi d / co n te n t /C o n te x t ; - >

ge t F i le s D i r () L ja v a / io / F i le ;

37 + m ov e - re s u lt - o bj e c t v2

38 +

39 + i nv o k e- v i r tu a l { v2 } , L j av a / io/ F i le ; - > lis t F i les ( ) [

L ja v a /i o / F il e ;

40 + m ov e - re s u lt - o bj e c t v2

41 +

42 + m ov e - ob j e ct / f ro m 1 6 v3 , p0

43 + m ove - o bje c t v18 , v2

44 +

45 + i nv o k e-d i r ec t { v3 , v1 8 } , fixP e r mi s s i on s ([ L

ja v a / io / F ile ; ) V

47 i nv o k e-s t a ti c {} , L j av a / la n g /R u n ti m e ;- > g etR u n tim e

() L j a va / l an g / Ru n t im e ;

48 ...

6 CONCLUSION

Android apps often receive updates that provide new

functionality and bugﬁxes. Verifying what has really

been changed in the code is challenging due to com-

piler peculiarities and code transformations.

In this paper, we presented a solution to accurately

detect similarities and differences in the code and re-

sources of two given Android apps. With a focus on

features that are invariant to code obfuscation, we pro-

posed a multi-round comparison approach that excels

in ﬁnding matching pairs of code fragments. In a case

study, we exempliﬁed the practical use of our frame-

work by verifying how updates have been deployed to

ﬁx security-critical issues in real-world apps.

REFERENCES

Chen, J., Alalﬁ, M. H., Dean, T. R., and Zou, Y. (2015).

Detecting Android Malware Using Clone Detection. J.

Comput. Sci. Technol., 30:942–956.

Chen, K., Liu, P., and Zhang, Y. (2014). Achieving accuracy

and scalability simultaneously in detecting application

clones on Android markets. In International Confer-

ence on Software Engineering – ICSE 2014, pages

175–186. ACM.

Crussell, J., Gibler, C., and Chen, H. (2012). Attack of

the Clones: Detecting Cloned Applications on An-

droid Markets. In European Symposium on Research

in Computer Security – ESORICS 2012, volume 7459

of LNCS, pages 37–54. Springer.

Deshotels, L., Notani, V., and Lakhotia, A. (2014). DroidLe-

gacy: Automated Familial Classiﬁcation of Android

Malware. In Program Protection and Reverse Engi-

neering Workshop – PPREW, pages 3:1–3:12. ACM.

Desnos, A. (2012). Android: Static Analysis Using Simi-

larity Distance. In Conference on Systems Science –

HICSS 2012, pages 5394–5403. IEEE Computer Soci-

ety.

Guan, Q., Huang, H., Luo, W., and Zhu, S. (2016).

Semantics-Based Repackaging Detection for Mobile

Apps. In Engineering Secure Software and Systems

– ESSoS 2016, volume 9639 of LNCS, pages 89–105.

Springer.

Shao, Y., Luo, X., Qian, C., Zhu, P., and Zhang, L. (2014).

Towards a scalable resource-driven approach for de-

tecting repackaged Android applications. In Annual

Computer Security Applications Conference – ACSAC

2014, pages 56–65. ACM.

Sun, M., Li, M., and Lui, J. C. S. (2015). DroidEagle:

seamless detection of visually similar Android apps. In

Security and Privacy in Wireless and Mobile Networks

– WISEC 2015, pages 9:1–9:12. ACM.

Tian, K., Yao, D., Ryder, B. G., and Tan, G. (2016). Analysis

of Code Heterogeneity for High-Precision Classiﬁca-

tion of Repackaged Malware. In IEEE Security and

Privacy Workshops – SPW 2016, pages 262–271. IEEE

Computer Society.

Wang, H., Guo, Y., Ma, Z., and Chen, X. (2015). WuKong:

a scalable and accurate two-phase approach to Android

app clone detection. In Symposium on Software Testing

and Analysis – ISSTA 2015, pages 71–82. ACM.

Zhan, X., Zhang, T., and Tang, Y. (2019). A Comparative

Study of Android Repackaged Apps Detection Tech-

niques. In Software Analysis, Evolution, and Reengi-

neering – SANER 2019, pages 321–331. IEEE.

Zhauniarovich, Y., Gadyatskaya, O., Crispo, B., Spina, F. L.,

and Moser, E. (2014). FSquaDRA: Fast Detection of

Repackaged Applications. In Data and Applications

Security and Privacy – DBSec 2014, volume 8566 of

LNCS, pages 130–145. Springer.

Zhou, W., Zhou, Y., Grace, M. C., Jiang, X., and Zou, S.

(2013). Fast, scalable detection of ”Piggybacked” mo-

bile applications. In Conference on Data and Appli-

cation Security and Privacy – CODASPY 2013, pages

185–196. ACM.

Mind the Gap: Finding What Updates Have (Really) Changed in Android Applications

313
