A Detection Algorithm of Malicious Domain Based on Deep Learning
and Multi-Head Attention Mechanism
Siqi Huang
1
, Bo Yan
1
, Dongmei Zhang
2
1
School of Cyberspace Security, Beijing University of Posts and Telecommunication, Beijing.
2
School of Computer Science, Beijing University of Posts and Telecommunication, Beijing,
Keywords: Domain name detection, Multi-head attention mechanism, PCFG model.
Abstract: DGA (domain generation algorithms) domain names are a class of domain names generated by specific
algorithms which are used to communicate with malicious C&C servers. DGA based on the PCFG model has
been proposed Lately. Under the test of existing DGA detection techniques, its anti-detection effect is very
obvious. One of the reasons is that these domains are generated by legal domain names and have the same
statistical characteristics of legitimate domain names. This paper proposes a detection model which combines
deep learning and Multi-head attention mechanism. It employs these two techniques to extract the features of
the domain names. Experiment results show that the model has a good effect on detecting domain names
based on PCFG model.
1 INTRODUCTION
Botnets have been problematic for over a decade and
botmasters have developed techniques to evade
detection. One of the widely used techniques is
domain fluxing. Domain names are generated with
DGA (Domain Generated Algorithms) and they are
used as the ‘rendezvous’ points between botnets and
hidden C&C (Command and Control) servers. In this
way, botnets and botmasters establish communication.
According to the relevant experiment, 23 of the 43
malware samples used the DGA to generate domain
names (Plohmann, 2016). It is very important for
security personnel to detect malicious domain name
which are generated by DGA.
2 RELATED WORK
There are two main directions to detect
algorithmically generated domain names (AGDs).
The first one focuses on the distribution of domain
name’s structure and character features, while the
other one focuses on group behaviours of botnet DNS
requests generated by DGAs.
Yadav focused on the character distribution
differences between AGDs and benign domain names.
He used three metrics: Kullback-Leibler (KL)
distance, Edit distance (ED) and Jaccard Index (JI) to
detect AGDs (Yadav, 2010). Weiwei classified AGDs
by analysing the morphemes in the domain name
sequence (Weiwei, 2013). Mowbray analysed the
character composition of the fixed domain name, and
then used the machine learning model to detect AGDs
(Mowbray, 2014).
In terms of traffic characteristics, Antonakakis used
non-existent domain name traffic data to monitor
randomly generated domain names (Antonakakis,
2012). Erquiaga used Markov model which is used to
distinguish between normal traffic and DGA-based
domain name traffic (Erquiaga, 2016). DNSRadar
(X.ma, 2014) infers unknown malicious domains
from the distribution of domain cache-footprints in
the network. Wang et al. proposed BotMeter to assess
the population distribution of DGA-based botnets by
analyzing DNS query patterns (Wang, 2016). Wang
et al. proposed a method DBod for assessing botnet
traffic distribution through DNS query mode (Wang,
2017).
The current DGA detection methods can
effectively detect existing AGDs, but they are not able
to detect all the new emerging DGA. Two new DGAs
are proposed by Yu Fu, one is based on Hidden
Markov Model (HMM) and the other one is based on
Probabilistic Context-Free Model (PCFG) (Yu Fu,
2017). The experiments in their paper showed that
84
Huang, S., Yan, B. and Zhang, D.
A Detection Algorithm of Malicious Domain Based on Deep Lear ning and Multi-Head Attention Mechanism.
DOI: 10.5220/0008098200840091
In Proceedings of the International Conference on Advances in Computer Technology, Information Science and Communications (CTISC 2019), pages 84-91
ISBN: 978-989-758-357-5
Copyright
c
2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
under the detection of commercial DGA detection
systems BotDigger (H. Zhang, 2016) and Pleiades,
these two DGAs had better anti-detection effects than
the existing DGAs.
This paper aims to detect one of the DGA which is
based on the PCFG model. Using the neural network
combined with the Multi-Head Attention mechanism,
the model for detecting PCFG-based domain names is
proposed.
3 ANALYSIS OF PCFG-BASED
DOMAINS’S FEATURES
Yu Fu proposed a method for domain name
generation using PCFG model. A context-free
grammar (CFG) is a set of recursive production rules
used to generate or recognize string patterns. It is
represented as a tuple G = (N, Σ, R, S) where N is a
set of nonterminal symbols, Σ represents a set of
terminal symbols, S is a set of special starting
symbols and R represents a set of production rules. A
Probabilistic Context-Free Grammar (PCFG), uses a
probability vector θ to assign a probability to each
production rule in R. The grammar can be visualized
with a parse tree, which is a finite tree regulated by
grammar rules.
Based on the above concepts, Yu Fu’s paper used
PCFG model to generate domain names. The rules
and the parsing tree used in the paper are shown in
Figure 1.
Figure 1: Grammar and parse tree of PCFG model.
The terminators ‘a’ and ‘c’ are taken from the two
disjoint sets A and C respectively. Yu Fu’s paper also
gives several alternative sources of A and C in Figure
2.
Figure 2: Source of domain name composition of PCFG
model.
(1) pcfg_dict: A syllable list generated from an
English dictionary using hyphenation.
(2) pcfg_dict_num: The syllable list in pcfg_dict plus
a number set;
(3) pcfg_ipv4: A syllable list parsed from IPv4
domain names;
(4) pcfg_ipv4_num: The collection comes from
pcfg_ipv4 plus a non-alphabetic list;
The experiment results in Yu Fu’s paper showed
that if “a” and “c” are selected from the
‘pcfg_ipv4_num’ set, the generated domain names
have the best anti-detection effect. Therefore, in this
article we will focus on the detection of domain
names which are composed of ‘pcfg_ipv4_num’.
After study, PCFG-based domain names have the
following features:
1.Generated by legal domain name, the
distribution of characters is very close to legal
domain names.
Some previous detecting methods use relative
entropy for analysis. The relative entropy of one
single character is calculated as follows:






(1)

represents the probability of character
occurrence, and n is the total number of the character
types. Table 1 shows a comparison of the relative
entropy of character distribution between PCFG-
based domain names and other kinds of domain
names:
Table 1: Relative entropy of different DGAs.
1-gram
2-gram
legit
0.861
0.813
PCFG-
based
0.857
0.864
corebot
0.999
0.952
kraken
0.995
0.938
locky
0.999
0.947
ramnit
0.999
0.926
banjori
0.93
0.916
As shown in Table 1, the PCFG-based domain
names and legal domain names are very close in
character distribution. This is because the PCFG-
A Detection Algorithm of Malicious Domain Based on Deep Learning and Multi-Head Attention Mechanism
85
based domain names are derived from legal domain
names. The domains composed of splitted legal
domain names have the same character distribution
feature with the legal domain name without doubt.
2.Once the PCFG model is confirmed, what
domain names will be generated only relate to the
selection of source sets and the probability of every
rule. It also means that one PCFG model can
generate multiple types of domain names.
The domain name generated by the
‘pcfg_ipv4_num’ is composed of part of the legal
domain name and numbers and the PCFG model for
generating these domain names defines three rules.
We find that the generated domain name can be
described as “letter + number” finally. We can also
try to generate other types of domain names by
constructing other PCFG models (See Appendix):
Table 2: Domains generated by different PCFG models.
Model
Source
collection
examples
Model1
pcfg_ipv4_num
hrabei7123; face01
Model2
pcfg_ipv4_num
china568; glove782
Model3
pcfg_ipv4_num
grass56; milk45
Model4
pcfg_ipv4_num
herb98beer; tariy890
76ricky78
As shown in Table 2, how the domain names are
generated depends on the rules defined by the
model and the probability distribution. If the rules
are complex enough and the probability
distribution is uniform, one PCFG model can
generate multiple types of domain names. From the
other side, we can see that the DGA based on the
PCFG model is very scalable, which challenges us
in finding the domain name by identifying features.
4 DETECTION MODEL
4.1 Multihead-Deep Detection Model
︷
CELL
CELL
CELL
CELL
CELL
Multi-Head
Attention
CELL
CELL
CELL
CELL
CELL
Linear
softmax
r
o
a
d
e
g
word
embedding
Bi-LSTMⅠ
Multi-Head
Layer
Bi-LSTMⅡ
Figure 3: MultiHead-Deep model structure.
With the above analysis, it is extremely difficult to
detect PCFG-based names by manually extracting
features. The neural network provides us convenience
that the output of the network layer can be considered
as another expression of data, which can be
considered as the feature extracted by neural network
(Woodbridge J, 2016). Therefore, we adopted neural
network in the construction of detection model.
In order to capture features better, the model uses
the Multi-Head Attention mechanism (Ashish
Vaswani, 2017). Multi-Head Attention is a leading
technique in the field of natural language processing.
Its usage scenarios include reading comprehension,
abstractive summarization, textual entailment, etc.
Multi-Head Attention uses the Self-Attention
mechanism. Sometimes called intra-attention, it has
the advantage of calculating the attention of current
position and all the other positions, which can be used
to compute a representation of the sequence.
Based on the above ideas, the structure of the entire
model is shown in Figure 3. The Embedding layer is
followed by the neural network layer, then is followed
by the Multi-head Attention layer. After extracting
the features from the first two layers, the output is sent
to the subsequent BRNN layer, which combines the
state of the last two units in the forward and backward
directions respectively. Finally, this input will be
passed to the closely followed SoftMax layer to get
the final probability distribution after a linear
transformation.
4.2 Multihead-Deep Detection Method
4.2.1 Pre-Processing
Before the detection, the domain sequence needs to be
encoded in the Embedding layer. The input of neural
network layer should be the word vector matrix of
domain names, so we need to pre-process the domain
name first in the Embedding layer. Pre-processing is
divided into two steps:
(1) Dictionary Construction
Firstly, an index dictionary for each character is
generated, in the form of (character: subscript). A
mapping of characters to ids is constructed.
CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications
86
(2) Vector Coding
Each character is encoded as a vector which has the
number of hidden units of the Multi-Head Attention
Layer dimension. Then, a word vector matrix with
dimensions [Sequence length, Number of hidden
dims of Multi-Head Attention Layer] will be obtained,
which will be trained along with the network. The
word vector corresponding to each character can be
found by the index of the previous step.
4.2.2 Network Processing
Neural Network Layer. After the processing of
Embedding layer, we input the vector sequence into
the neural network layer for preliminary extraction of
features. At this layer, we construct FNN, CNN, and
RNN as the main part of the neural network layer
(Zhixing Tan, 2018).
(1) FFN（feedforward neural network）
Feedforward neural network, also known as
multilayer perceptron (MLP). It is the simplest neural
network in which neurons are arranged hierarchically.
Each neuron is only connected to the neurons of the
previous layer. It receives the output of the previous
layer and passes it to the next layer. There is no
feedback between the layers.
If we adopt the FFN, the formula for this layer is:
 

(2)
(2) CNN（Convolutional neural network）
Generally, the basic structure of CNN includes two
layers, one is feature extraction layer. The input of
each neuron is connected to the part of the previous
layer, then the features of that part are extracted. The
second layer is the feature mapping layer, each
computing layer of the network is composed of
multiple feature mappings, and each feature mapping
is a plane. All neurons in the plane have equal weights.
Each convolutional layer in the CNN is followed by a
computational layer for local averaging and quadratic
extraction. This unique two-feature extraction
structure reduces feature resolution.
If we adopt CNN, our formula will be:


  (3)
(3) RNN（Recurrent neural network）
Bi-LSTM is adopted in this experiment. It is
composed of a forward LSTM and a backward LSTM.
The LSTM unit controls, discards or adds
information through a "gate" to enable forgetting or
memorizing. A "gate" is a structure that selectively
passes information. It consists of a sigmoid function
and an element-level multiplication operation. An
LSTM unit has three such gates: a forget gate, an
input gate, and an output gate. Such a unit design
allows the neural network to store access states over
long sequences, thereby mitigating gradient
disappearance issues.
Bi-LSTM is used to capturing bidirectional
semantic dependence and we adopt the following
formula:


(4)


(5)
(6)
represents the encoded vector.
Multi-Head Attention Layer. The Multi-Head
Attention layer is responsible for receiving the output
of the previous neural network layer. This layer
obtains the feature information of each position
through the calculation of Multi-Head Attention.
Figure 4: Structure of Multi-Head Attention.
The basic structure of Multi-Head Attention is
shown in Figure 4. The Scaled Dot-Product Attention
at the center is a variant of the general Attention,
given the matrix

，

，

，
Scaled Dot-Product Attention can be used to calculate
the Attention score by the following formula:
  


(7)
“d” represents the number of neural network hidden
units.
In the MultiHead-Deep model, Multi-Head
Attention first needs to linearly transform the input
vectors of Q, K, and V, then calculate them. “Multi-
Head” means the calculation in the Scaled Dot-
Product Attention section needs to be performed
A Detection Algorithm of Malicious Domain Based on Deep Learning and Multi-Head Attention Mechanism
87
multiple times. The "head" number means the number
of calculations, but the linear projection of Q, K, and
V is different for each head’s calculation. Take the i-
th head as an example:
  
(8)
  
(9)
  
(10)
Since this layer receives the output of the neural
network, therefore:
 
(11)
Finally, the result of this head is:


(12)
After h operations, we splice these
:
  
(13)
MultiHead-Deep does not directly transform the
stitched result in this layer, but it sends the output of
this layer to the next layer for subsequent processing.
BRNN Layer. The processing of this layer is simple.
After receiving the output of the Multi-Head
Attention layer, the model will combine the state of
the last two units in the forward and backward
directions, As follows:


(14)
Soft Max Layer. The output of the BRNN Layer
will be linear transformed, then the result will be
processed by the SoftMax layer to obtain the final
probability distribution. We define the loss function
as the cross-entropy loss function:


(15)
5 EXPERIMENT
5.1 Experiment Design
This experiment intends to use the data set to find a
better network model through comparison
experiments and test the accuracy of the MultiHead-
Deep model for PCFG-based malicious domain
names. For this purpose, we have prepared two sets of
comparative experiments:
(1) Using different neural network models (RNN,
CNN and FFN) to detect the detection effect of
MultiHead-Deep against PCFG-based malicious
domain names under different models;
(2) Using a conventional DGA detection algorithm to
detect PCFG-based malicious domain names, and
comparing the results with the MultiHead-Deep
model;
5.2 Experiment Procedure
5.2.1 Data Set Preparation
In this paper, the data set is prepared in the way given
in Yu Fu’s paper. Considering the actual situation,
the domain names generated by the PCFG model are
second-level domain names.
The experiment crawl top 100,000 legal domain
names from Alexa, and the domain names are used to
regenerate PCFG-based domains according to the
algorithm given in the Yu Fu’s paper.
60% of the domain name collection (a mixture of
legal domain names and PCFG-based domain names)
will be used as a training set, 20% as a test set and the
left 20% as a verification set.
5.2.2 Parameter Settings
The parameters that need to be determined when the
model is initialized.
Table 3 Initialization parameters of MultiHead-Deep model.
Parameter index
value
Number of Multi-Head Attention
hidden Units
288
Heads of Multi-Head Attention
8
Learning rate
0.001
Gradient
5.0
Dropout rate
0.5
Epoch number
10
5.3 Experiment Result
Experiment one: Compare MultiHead-Deep’s
detection of PCFG-based domain names using
different neural network models.
Table 4: Results of MultiHead-Deep’s detection using
different network models detecting Model 1.
Model1
Recall/%
Precision/%
F1/%
MultiHead-CNN
96.13
89.78
92.85
MultiHead-FFN
86.48
84.25
85.35
MultiHead-LSTM
92.48
91.25
91.86
CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications
88
Table 5: Results of MultiHead-Deep’s detection using
different network models detecting Model 2.
Model2
Recall/%
Precision/%
F1/%
MultiHead-CNN
96.29
91.27
93.71
MultiHead-FFN
87.26
87.74
88.99
MultiHead-LSTM
91.73
93.86
92.70
Table 6: Results of MultiHead-Deep’s detection using
different network models detecting Model 3.
Model3
Recall/%
Precision/%
F1/%
MultiHead-CNN
95.78
89.67
92.62
MultiHead-FFN
85.37
84.91
85.13
MultiHead-LSTM
90.41
90.93
90.67
Table 7: Results of MultiHead-Deep’s detection using
different network models detecting Model 4.
Model4
Recall%
Precision/%
F1/%
MultiHead-CNN
95.14
91.13
93.09
MultiHead-FFN
87.29
87.01
87.14
MultiHead-LSTM
91.79
91.99
91.62
The results show that when detecting the same
PCFG model, we can get the conclusion that
MultiHead-CNN > MultiHead-LSTM > MultiHead-
FFN. It can be seen that in the experimental
environment, CNN is a network model that is more
suitable for detecting PCFG-based malicious domain
names. Although the overall performance of
MultiHead-CNN is more excellent, the difference
between MultiHead-CNN and MultiHead-LSTM is
very small. The disparity is no more than 2.1%.
Experiment two: Compare detection methods for
different PCFG-based domain names.
Table 8: Results of different methods detecting Model 1.
Model1
Recall/%
Precision/%
F1/%
KL
22.70
22.20
22.35
ED
43.50
42.70
43.09
JI
51.90
51.15
51.52
MultiHead-CNN
96.13
89.78
92.85
Table 9: Results of different methods detecting Model 2.
Model2
Recall/%
Precision/%
F1/%
KL
22.70
22.20
22.35
ED
43.50
42.70
43.09
JI
51.90
51.15
51.52
MultiHead-CNN
96.29
91.27
93.71
Table 10: Results of different methods detecting Model 3.
Model3
Recall/%
Precision/%
F1/%
KL
22.70
22.20
22.35
ED
43.50
42.70
43.09
JI
51.90
51.15
51.52
MultiHead-CNN
95.78
89.67
92.62
Table 11: Results of different methods detecting Model 4.
Model4
Recall/%
Precision/%
F1/%
KL
22.70
22.20
22.35
ED
43.50
42.70
43.09
JI
51.90
51.15
51.52
MultiHead-CNN
95.14
91.13
93.09
In this experiment, MultiHead-Deep uses CNN as
a network model for detection. When these four
methods detect the same PCFG model, we can get the
conclusion that MultiHead-CNN > Jaccard Index >
Edit Distance > KL Divergence. It can be seen that
the detection effect of the MultiHead-CNN model on
the PCFG-based domain name is indeed better than
the traditional method. From the perspective of the
model and in the case of “detected” rate, we have
model 2 > model 4 > model 1 > model 3. It can be
seen that the detection effect of MultiHead-CNN is
also affected by different PCFG models.
6 EXPERIMENT ANALYSIS
6.1 Feature Extraction Analysis
Traditional methods focus mainly on the random
distribution of characters. Such as Zeus, Kraken and
other DGA, the distribution characteristics of
characters and the legal domain name are very
different. Therefore, we can use KL divergence,
Editing Distance and Jaccard Index to get better
results. However, the PCFG-based domain names are
assembled with the character part and the digital part
from the legal domain names, supplemented by some
hyphens. In terms of construction, it is exactly the
same as the legal domain name. Even if the ‘source
collection’ is large enough, it is possible to generate a
domain name that is identical to the legal domain
name. In the process of manually generating PCFG-
based domain names, we found that with the
increasing complexity of the PCFG model, domain
names can be iteratively nested, and they show a
certain partial regularity. However, using character
features to distinguish between legitimate domain
names and PCFG-based domain names is still very
difficult, because the same feature is difficult to
A Detection Algorithm of Malicious Domain Based on Deep Learning and Multi-Head Attention Mechanism
89
completely "measure" different types of domain
names generated by the same model.
The results of the above experiments show that the
detection effect of CNN and Bi-LSTM network is
more prominent, while the effect of FFN is relatively
poor. Comparing the Bi-LSTM network with the FFN,
the Bi-LSTM can synthesize the forward and
backward information, and it solves the long-distance
dependence problem in the ordinary RNN network
and can memorize historical information. The FFN
cannot learn the surrounding "context" because the
data fed to the FFN is not related to the previous data,
and it cannot remember the previous context
information. Therefore, the features captured by the
LSTM network are more detailed.
The effect of CNN is even better. After the domain
name is vectorized, a domain name can be regarded
as a vector matrix, which is very similar to the image
processing of CNN. Every time in convolution,
CNN processes the data in whole line. It's like an
n-gram model. If you process every two rows, it will
be a 2-gram model. At the same time, since multiple
convolution kernels can be set in the model to capture
different features, it has stronger feature extraction
capability than FFN.
The results prove that the effect of using CNN on
PCFG-based domain name detection is slightly better
than that of LSTM. In the short-sentence task, CNN
has an overall ability to summarize the overall
structure of the sentence because of its convolution
function; but in the long-sentence task, CNN can only
process the information in its window. The
information of adjacent windows can only be
supported by the latter convolutional layer, which
depends heavily on the parameters of the convolution
window and the length of the movement. The domain
name of this mission is not particularly long, so using
the CNN model is a suitable solution.
6.2 Multi-Head Attention Layer Analysis
The MultiHead-Deep model not only uses the neural
network as a way of feature extraction, but also adopts
Multi-Head Attention layer, which is also the key to
improving the detection effect. Multi-Head Attention
employs self-attention mechanism. Its advantage is
that it can capture the global connection in one step
and completely solve the long-distance dependence
problem. In addition, Multi-Head computing can be
considered as learning in a number of different
subspaces, integrating information in different
subspaces to capture the features of each location as
much as possible.

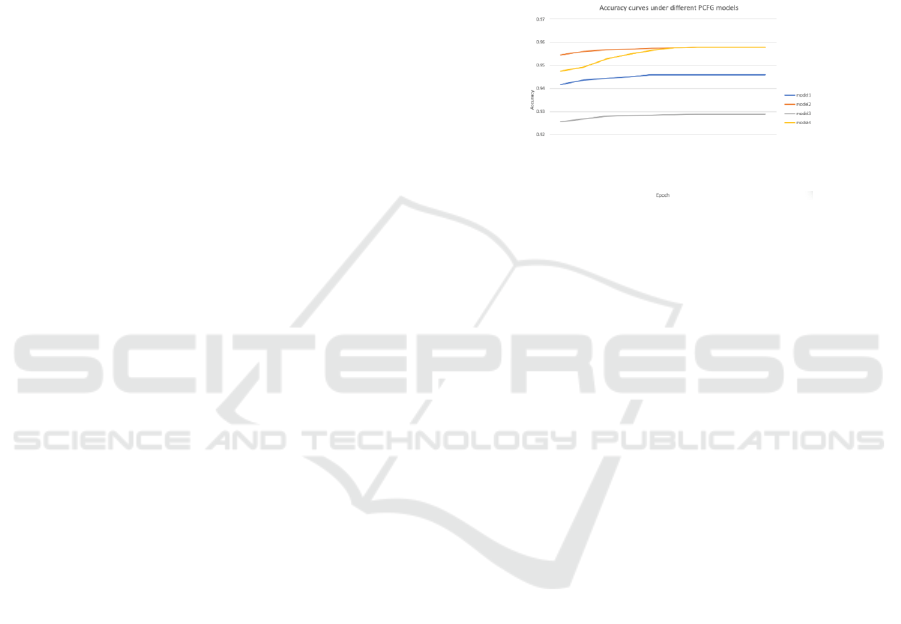

Figure 5 shows the accuracy curve of the
MultiHead-CNN model. Under different PCFG
models, the accuracy convergence value of
MultiHead-CNN is different. This is because that the
detection complexity of domain names generated by
different models is different.
Figure 5 also shows that the MultiHead-CNN
model converges faster, and MultiHead-CNN
converges before the fifth iteration in different models.
It is proved that the model extraction feature is
excellent from the other side.
7 CONCLUSIONS
This paper proposes a model for detecting PCFG-
based domain names using neural networks and
Multi-Head Attention mechanism. Experiments show
that the MultiHead-Deep model is better than
traditional detection methods in detecting such DGA
domain names. This model takes advantage of the
neural network that does not require manual capture
of features and the intrinsic link of domain names. It
uses the Multi-Head Attention mechanism to capture
the overall features more deeply. Different PCFG
models have different detection rates, which also
indicates that the PCFG mode can be extended
according to the rules established by the user. In the
experiment, MultiHead-Deep has shown decent
results on different PCFG models, which proves the
effectiveness of the model in PCFG-based domain
name detection
REFERENCES
Plohmann D, Yakdan K, Klatt M, A comprehensive
measurement study of domain generating malware[C]//
25th USENIX Security Symposium. Austin: Usenix,
2016:263-278.
S. Yadav, A. K. K. Reddy, A. L. N. Reddy, and S. Ranjan,
“Detecting algorithmically generated malicious
domain names,” in Proc. 10th ACM SIGCOMM Conf.
Internet Meas., 2010, pp. 48–61.
Figure 5: Accuracy trends of different PCFG model.
CTISC 2019 - International Conference on Advances in Computer Technology, Information Science and Communications
90
Z. Wei-Wei and G. J. L. Qian, “Detecting machine
generated domain names based on morpheme features,”
in Proc. Int. Workshop Cloud Comput. Inf. Secur., 2013,
pp. 408–411.
M. Mowbray and J. Hagen, “Finding domain-generation
algorithms by looking at length distribution,” in Proc.
IEEE Int. Symp. Softw. Rel. Eng. Workshops
(ISSREW), Nov. 2014, pp. 395–400.
M. Antonakakis et al., “From throw-away traffic to bots:
Detecting the rise of DGA-based malware,” in Proc.
USENIX Secur. Symp., 2012, pp. 491–506.
Maria Jose Erquiaga, “Detecting DGA Malware Traffic
Through Behavioral Models ” IEEE, 2016-6
X. Ma, J. Zhang, J. Tao, J. Li, J. Tian, and X. Guan,
“DNSRadar: Outsourcing malicious domain detection
based on distributed cache- footprints,” IEEE Trans.
Inf. Forensics Security, vol. 9, no. 11, pp. 1906–1921,
Nov. 2014.
T. Wang, X. Hu, J. Jang, S. Ji, M. Stoecklin, and T.
Taylor, “BotMeter: Charting DGA-botnet landscapes
in large networks,” in Proc. IEEE 36th Int. Conf.
Distrib. Comput. Syst. (ICDCS), Jun. 2016, pp. 334–
343.
T.-S. Wang, H.-T. Lin, W.-T. Cheng, and C.-Y. Chen,
“DBod: Clustering and detecting DGA-based botnets
using DNS traffic analysis,” Comput. Secur., vol. 64,
pp. 1–15, Jan. 2017.
Yu Fu, Lu Yu, Oluwakemi Hambolu, Ilker Ozcelik,
Benafsh Husain, “Stealthy Domain Generation
Algorithms” IEEE Transactions on Information
Forensics and Security ( Volume: 12 , Issue: 6, June
2017 )
H. Zhang, M. Gharaibeh, S. Thanasoulas, and C.
Papadopou- los, “BotDigger: Detecting DGA bots in a
single network,” in Proc. IEEE Int. Workshop Traffic
Monitor. Anal., Louvain La Neuve, Belgium, Apr. 2016,
pp. 16–21. [Online]. Available:
http://www.cs.colostate.edu/hanzhang/papers/BotDigg
er-TMA16.pdf
Ashish Vaswani, Noam Shazeer, Niki Parmar, “Attention is
all your need”, Computation and Language (cs.CL);
Machine Learning (cs.LG), arXiv:1706.03762
Woodbridge J, Anderson H S, Ahuja A, et al. Predic ting
domain generation algorithms with long short-term
memory networks[EB/OL]. arXiv, 2016-11-2[1018-3 -
10]. https://arxiv.org/abs/1611.00791.
Zhixing Tan, Mingxuan Wang, Jun Xie “Deep Semantic
Role Labeling with Self-Attention” AAAI-2018,
arXiv:1712.01586 [cs.CL]
APPENDIX:
Different PCFG Models:
Model 1：
Terminals
a, c
Non-terminals
S, B
Productions
S -> BB
B -> a B c (p = 0.25)
B -> Ø (p = 0.75)
Model 2：
Terminals
a, c
Non-terminals
S, B
Productions
S -> BB
B-> a B c (p = 0.5)
B -> Ø (p = 0.5)
Model 3：
Terminals
a, c
Non-terminals
S, B
Productions
S -> BB
B-> a c (p = 0.25)
B -> Ø (p = 0.75)
Model 4：
Terminals
a, c
Non-terminals
S, A, B, C
Productions
S -> A B C
A -> a
B -> c
C -> a (p = 0.5)
C -> Ø (p = 0.5)
A Detection Algorithm of Malicious Domain Based on Deep Learning and Multi-Head Attention Mechanism
91
