Data Streaming for Appliances

Marta Patiño and Ainhoa Azqueta

Laboratorio de Sistemas Distribuidos, E.T.S. Ingenieros Informáticos Universidad Politécnica de Madrid, Spain

Keywords: Data Stream Processing, NUMA Aware, Appliances.

Abstract: Nowadays many applications require to analyse the continuous flow of data produced by different data sources

before the data is stored. Data streaming engines emerged as a solution for processing data on the fly. At the

same time, computer architectures have evolved to systems with several interconnected CPUs and Non

Uniform Memory Access (NUMA), where the cost of accessing memory from a core depends on how CPUs

are interconnected. This paper presents UPM-CEP, a data streaming engine designed to take advantage of

NUMA architectures. The preliminary evaluation using Intel HiBench benchmark shows that NUMA aware

deployment improves performance.

1 INTRODUCTION

Large companies use mainframes for running their

businesses. In general, the main frames are

characterized by having a large memory and several

cores. The mainframe usually runs the operational

database which is part of the core business of

companies.

The goal of the CloudDBAppliance project

setting up a European Cloud Appliance that integrates

three data management technologies: operational

database, analytical engine and real-time data

streaming on top of a many-core architecture with

hundreds of cores and several Terabytes of RAM

provided by Bull.

Servers with several CPUs in a single board, many

cores, with non-uniform memory access (NUMA)

and 128GB or more are common these days.

Nowadays several data streaming engines (DSE)

are available and ready to be used like Flink, Spark

Streaming, and Storm among others. These data

streaming engines were designed to run on a

distributed system made of several computers

connected through a network in a LAN in order to

scale and process large amount of events per second.

However, mainframes although they resemble a

distributed architecture they expose a centralized

architecture with no network communication and

large shared memory. In this paper we present UPM-

CEP, a NUMA aware DSE for appliances. UPM-CEP

The CloudDBAppliance Project. http://clouddb.eu

provides a scalable architecture to be deployed on

NUMA architectures. To the best of our knowledge,

this is the first DSE with this feature. The paper

describes the UPM-CEP architecture and preliminary

performance results using the Intel HiBench

benchmark.

The rest of the paper is organized as follows.

Section 0 introduces NUMA architectures. Section 0

presents data streaming engines main features. The

architecture of UPM-CEP is presented in Section 0.

Section 0 presents the performance evaluation and

finally, Section 0 presents some conclusions.

2 NUMA ARCHITECTURES

A NUMA system consists of several connected

CPUs, also called nodes or sockets. Each CPU has its

own memory that can be accessed faster than the

memory attached to other CPUs. Main vendors have

implemented this model and connect the CPUs using

QuickPathInterconnect (QPI, Intel) or other means,

like HyperTransport in AMD processors. The cores

of a CPU have its own L1 and L2 caches and share a

L3 cache. In the case of Intel each CPU has a number

of QPI links used to connect to other CPUs.

Depending on the total number of CPUs the memory

of other CPUs is reachable in a single hop or more

hops are needed.

672

Patiño, M. and Azqueta, A.

Data Streaming for Appliances.

DOI: 10.5220/0007905906720678

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 672-678

ISBN: 978-989-758-365-0

For instance, the Bullion S16 consists of 16 Intel

NUMA nodes each of them equipped with 18 cores.

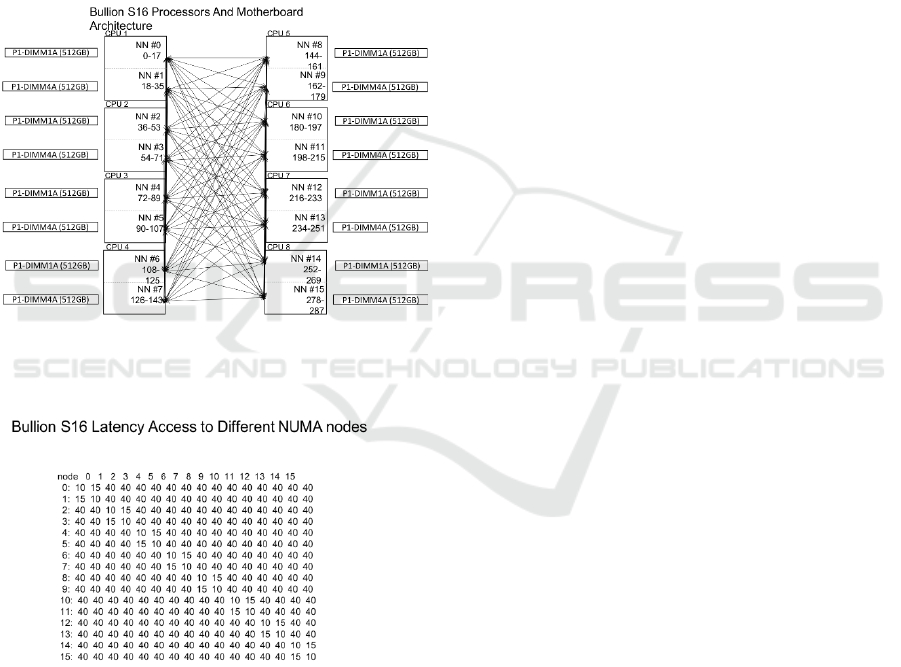

Figure 1 shows how the CPUs are connected and

Figure 2 shows the memory distance between

different NUMA nodes.

The distance represents the relative latency for

accessing the memory from one CPU to another one.

For instance, a program in node 0 accessing data in

its own memory has a cost of 10, while accessing the

data in the memory attached to node 1 has a higher

cost, 15 (50% overhead). If data is the memory of any

of the 14 remaining nodes, the cost is 40. That is, it

costs 4 times more than accessing local memory of

node 0.

Figure 1: Bullion S16 Architecture.

Figure 2: NUMA distances in the Bullion S16.

Operating systems in general allocate threads on

the CPU with lowest usage. Therefore, the threads of

a process can be spread across several CPUs and

therefore the performance of the application can be

affected by remote access to the data. Linux systems

provide functions to bound threads to a CPU (e.g.,

libnuma) and even tools to bind a process to a CPU

(e.g., numactl). The numactl command also allows to

define where the memory is allocated for an

application, for instance, on a single CPU, on a set of

CPUs or interleaved among a set of CPUs.

3 DATA STREAMING ENGINES

Stream Processing (SP) is a novel paradigm for

analysing data in real-time captured from

heterogeneous data sources. Instead of storing the

data and then process it, the data is processed on the

fly, as soon as it is received, or at most a window of

data is stored in memory. SP queries are continuous

queries run on a (infinite) stream of events.

Continuous queries are modeled as graphs where

nodes are SP operators and arrows are streams of

events. SP operators are computational boxes that

process events received over the incoming stream and

produce output events on the outgoing streams. SP

operators can be either stateless (such as projection,

filter) or stateful, depending on whether they operate

on the current event (tuple) or on a set of events (time

window or number of events window). Several

implementations went out to the consumer market

from both academy and industry (such as Borealis

(Ahmad, 2005), Infosphere (Pu, 2001), Storm

(Foundation, 2015), Flink (Fundation, 2014) and

StreamCloud (Gulisano, 2012)). Storm and Flink

followed a similar approach to the one of

StreamCloud in which a continuous query runs in a

distributed and parallel way over several machines,

which in turn increases the system throughput in

terms of number of tuples processed per second.

UPM-CEP adds efficiency to this parallel-distributed

processing being able to reach higher throughput

using less resources. It reduces the inefficiency of the

garbage collection by implementing techniques such

as object reutilization and takes advantage of the

novel Non Uniform Memory Access (NUMA)

multicore architectures by minimizing the time spent

in context switching of SP threads/processes.

4 UPM-CEP DATA STREAMING

ENGINE

UPM-CEP provides a client driver for streaming

applications, the JCEPC driver that hides from the

applications the complexity of the underlying system.

Applications can create and deploy continuous

queries using the JCEPC driver as well as register to

the source streams and subscribe to output streams of

these queries. During the deployment of a streaming

Data Streaming for Appliances

673

query the JCEPC driver takes care of splitting the

query into sub-queries and deploys them in the CEP.

Some of those sub-queries can be parallelized. For

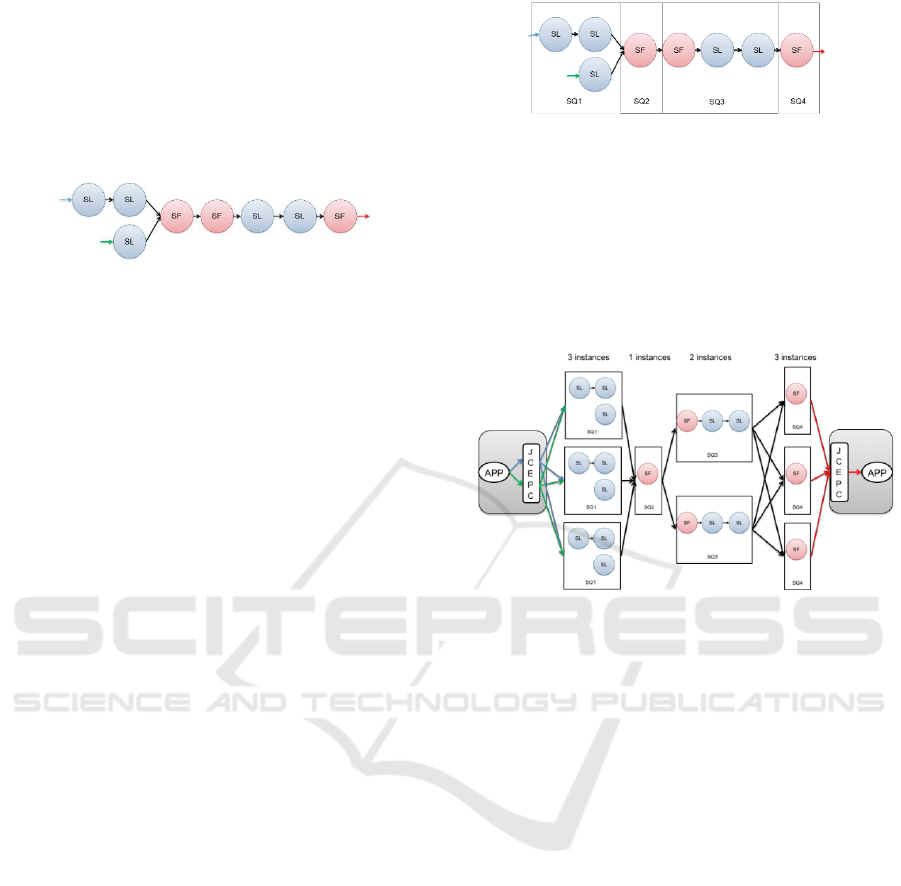

instance, the query in Figure 3 shows a data streaming

query made out 2 input streams and 8 operators. The

operators are either stateless (SL) or stateful (SF)

operators.

Figure 3: Data streaming query.

UPM-CEP has several stateless and stateful operator

implemented and users can create their own

customized operators. The stateless operators than

can be found are: 1) Map: that allows to select the

desired fields from the input tuple and create an

output tuple with those fields. 2) Filter: Only the

tuples that satisfy a defined condition are sent through

the output stream, the rest of tuples are discarded. 3)

Demux: sends the input tuples to all the output

streams that satisfies the defined conditions and 4)

Union: Tuples that arrives to the operator from

different input streams are sent to one output stream.

Regarding the stateful operators two window

oriented operators are available: 1) Aggregate: group

all tuples that are in the time or size window taking

into account defined functions executed over the

fields of all the tuples. Moreover, tuples can be

grouped into different windows if the group by

parameter is specified. 2) Join: Correlates tuples from

two different input stream. Two time windows are

created, one per input stream and when the windows

are slide tuples are joined creating one output tuple

taking into account a specified predicate.

UPM-CEP partitions queries into subqueries so

that, each subquery executes in a different node.

Figure 4Error! Reference source not found. shows

how the previous query is split into four subqueries

(SQ1, SQ2, SQ3 and SQ4). The number of

subqueries of a given query is defined by the number

of stateful operators. All consecutive stateless

operators are grouped together in a subquery till a

stateful operator is reached. That stateful operator is

the first operator of the next subquery. This way of

partitioning queries has proven to be efficient in

distributed scenarios (Gulisano, 2010). We have

applied the same design principles to UPM-CEP

although it is not a distributed setup, the same

principles apply minimizing the communication

across NUMA nodes in this case and keeping the

same semantics a centralized system will provide.

Figure 4: Query partitioning.

Subqueries can be parallelized in order to increase

the throughput. Each instance of a subquery can run

in a different core in the same node. Figure 5 shows

how subqueries of the previous example could be

parallelized. There are 3 instances of SQ1, one

instance of SQ2, two instances of SQ3 and three

instances of SQ4.

Figure 5: Query parallelization.

The main challenge in query-parallelization is to

guarantee that the output of a parallel execution is the

same as a centralized one. If we consider a sub-query

made by only one operator, this challenge means that

the output of a parallel operator must be the same as

a centralized operator. On the other hand, window

oriented operators require that all tuples that have to

be aggregated/correlated together are processed by

the same CEP instance. For example, if an Aggregate

operator computing the total monthly operations of

the bank accounts for each client is parallelized over

three CEP Instances, it must be ensured that all tuples

belonging to the same user account must be processed

by the same CEP Instance in order to produce the

correct result.

To guarantee the equivalence between centralized

and parallel queries, particular attention must be

given to the communications among sub-queries.

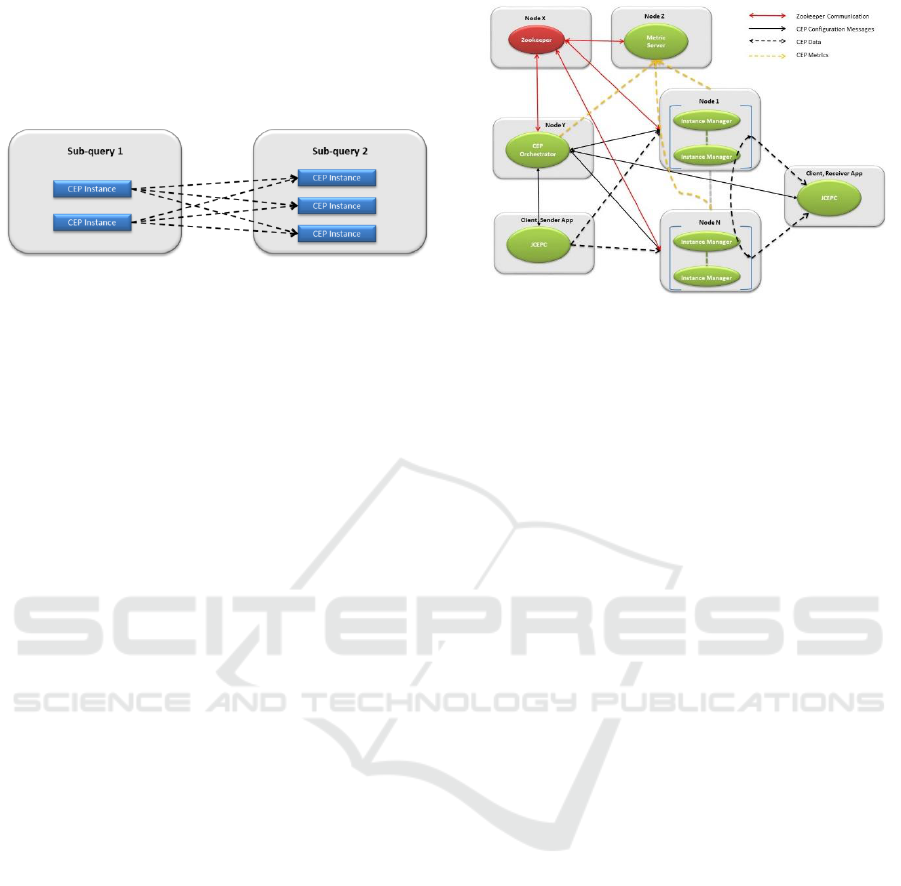

Consider the scenario depicted in Figure 6 where there

are two sub-queries, Sub-query 1 and Sub-query 2,

with a parallelization degree of two and three,

respectively. If Sub-query 2 does not contain any

window oriented operator, CEP instances at Sub-

query 1 can arbitrary decide to which CEP instance of

Sub-query 2 send their output tuples. Output tuples of

Sub-query 1 are assigned to buckets. This assignment

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

674

is based on the fields of the tuple. Given B distinct

buckets, the bucket b corresponding to a tuple t is

computed by hashing one or more fields of the tuple

modulus B. All tuples belonging to a given bucket are

sent to the same CEP instance of the Sub-query 2.

Figure 6: Subquery Connections.

The fields to be used in the hash function depend

on the semantics of the window oriented operators

defined at Sub-query 2 and the mapping among

buckets and downstream CEP Instances depends on

the load balancing algorithm used in the CEP.

 Join: if the join predicate has at least one equality

condition, it is an equi-join (EJ), otherwise it is a

cartesian product. For downstream operators of

type EJ, the hash function is computed over all

the fields used in the equalities plus the optional

fields which could appear in the group-by clause.

 Aggregate: the fields used in the hash function

are all the fields used in the group-by parameter.

In this way, it is ensured that all tuples sharing

the same values of the attributes specified in the

group-by parameter are processed by the same

CEP instance.

UPM-CEP comes with this default partition

strategy used for splitting a query into sub-queries in

the absence of user defined split policies. According

to this strategy a new sub-query is created anytime

one of the following conditions is satisfied during the

query:

 It is a stateful operator.

 It is an operator with more than one input

stream.

All the event oriented operators before the first

stateful operator are part of the same sub-query.

4.1 UPM-CEP Architecture

The UPM-CEP architecture consists of two main

components: the orchestrator and instance managers.

Other components are the reliable registry

(Zookeeper) and the metric server. Figure 7 depicts

how the CEP components can be deployed in a

scenario with several NUMA nodes or nodes.

Figure 7: CEP Components.

4.1.1 Orchestrator

The orchestrator is in charge of managing the rest of

the elements of the CEP. There is only one instance

of this component in a deployment. It deploys queries

and subqueries in the instance managers and balances

the load among different nodes running instance

managers.

The state of the orchestrator is kept in Zookeeper

(Fundation, 2010) so that, if there is a failure a new

orchestrator can be run and take its state from

Zookeeper. Active replication could be an alternative

design however, although fault-tolerance is easier to

implement in this case, the overhead of active

replication of the orchestrator will have an impact on

regular processing (when there are no failures).

4.1.2 Instance Managers

The instance manager is the component is charge of

running queries. Each instance manager runs on a

core of NUMA node and can run one or more

subqueries. Instance managers are single threaded.

Instance managers receive tuples either from

clients (through the JCEPC driver) or from other

instance managers. Instance managers must be aware

of the nature of the subquery it sends tuples. In a

scenario in which there is no parallelism, an instance

manger running a subquery will send all the data to

the next subquery. These means, tuples from the first

subquery are sent directly to the next one, this type of

tuple sender process is called point to point balancer.

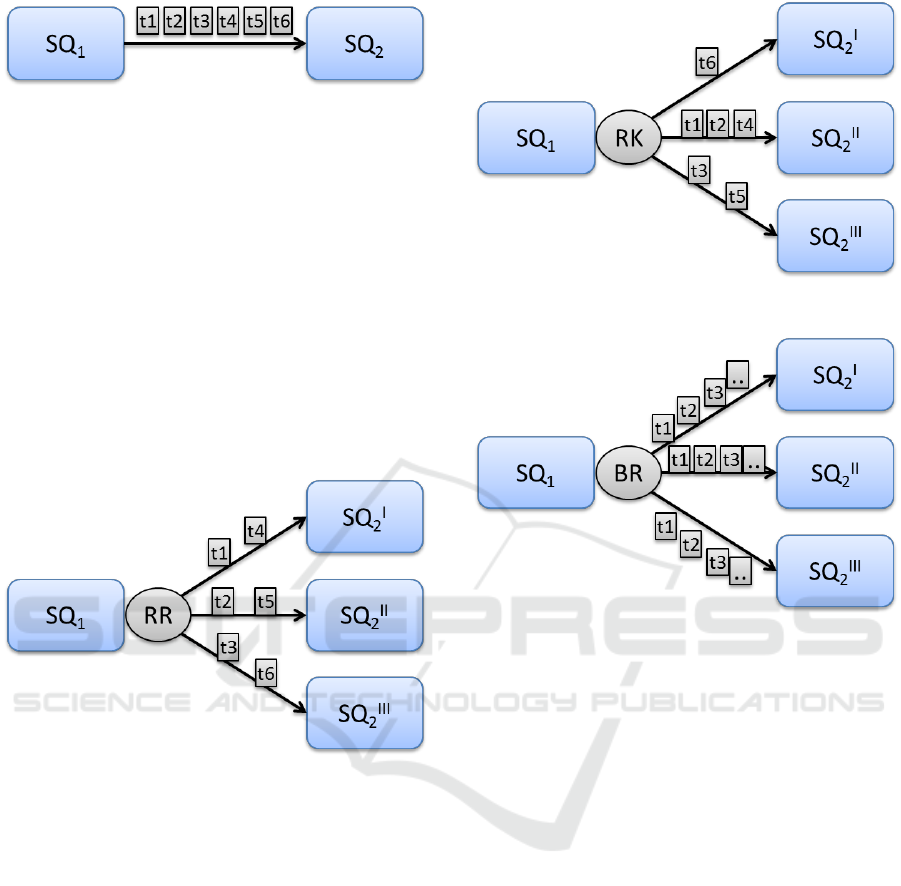

Figure 8 shows two subqueries SQ

and SQ

, both are

deployed using one instance manager. And tuples t1

to t6 are being sent from SQ

to SQ

by means of the

point to point balancer.

Data Streaming for Appliances

675

Figure 8: Point to Point Balancer.

However, if SQ

is deployed in several instances,

has to take into consideration the type of operator

is placed at the beginning of SQ

. If it is a stateless

operator, tuples from the previous instance manager

are sent in a round-robin fashion. For instance, Figure

9 represents the aforementioned scenario. SQ

has

been parallelized in three different instances and the

first operator is stateless, these means the tuples can

be handle by any con the SQ

instances. The round

robin balancer sends tuples t1 to t6 as presented, tuple

t1 is sent to the first instance, t2 is sent to the second

instance, t3 is sent to instance number 3 and the

process is repeated with tuples t4 to t6 beginning from

the first instance.

Figure 9: Round Robin Balancer.

Nevertheless, if the first operator is stateful these

means that tuples have to be handled by a specified

instance. For that cases a route key balancer is

required, taking into account the group by clause

specified in the operator configuration. Tuples

produced by SQ

are routed to the required SQ

instance, Figure 10 shows how the route key balancer

works sending tuples t1 to t6 to the different instances

of SQ

. Tuple t6 is sent to SQ

, tuples t1, t2 and t4

are sent to SQ

taking into account the route key and

finally tuples t3 and t5 are sent to SQ

III

To complete the types of balancer presented, the

UPM-CEP also defines a broadcast balancer of those

operators that requires to send the tuples to all the

instances. Figure 11 exposes an example of how

tuples are sent from SQ

to all SQ

instances.

Figure 10: Route key Balancer.

Figure 11: Broadcast Balancer.

5 PERFORMANCE EVALUATION

UPM-CEP performance has been measured using the

Intel HiBench benchmark (Intel, 2017). This

benchmark allows to evaluate different big data

frameworks and contains 19 different workloads that

are distributed in: micro, machine learning, sql,

graph, websearch and streaming. Specifically, we

focus on the screaming workloads: 1) Identity: This

workload reads input tuples and produces the same

tuples without any modification. A map operator is

defined with the same input and output fields. 2)

Repartition: Modifies the parallelism level and

distributes the load in a round robin fashion. It defines

a map operation that copies the input to the output.

The query is deployed several times. Tuples are sent

to the different instances of the query in a round robin

fashion. 3) Stateful wordcount: counts the number

word. This workload requires several operators, first

of all a map operator picks only the word from the

input tuple; an aggregate operator with a number of

tuples window and a group by condition based on the

word is added. This query tests the route key balancer.

4) Fixed Window: This workload tests the

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

676

performance of the time window operator group by a

field.

This streaming workload has been implemented

to be executed in four different streaming frameworks

such as Flink, Storm, Spark and Gearpump. We have

implemented same workloads for the UPM-CEP. In

this evaluation we use the Fixed Window query,

which aggregates the connections to a server from

each IP address during a period of time. After this

time expires, a tuple with the timestamp of the first

and last connection from that IP address and the

number of connections during that period is

produced.

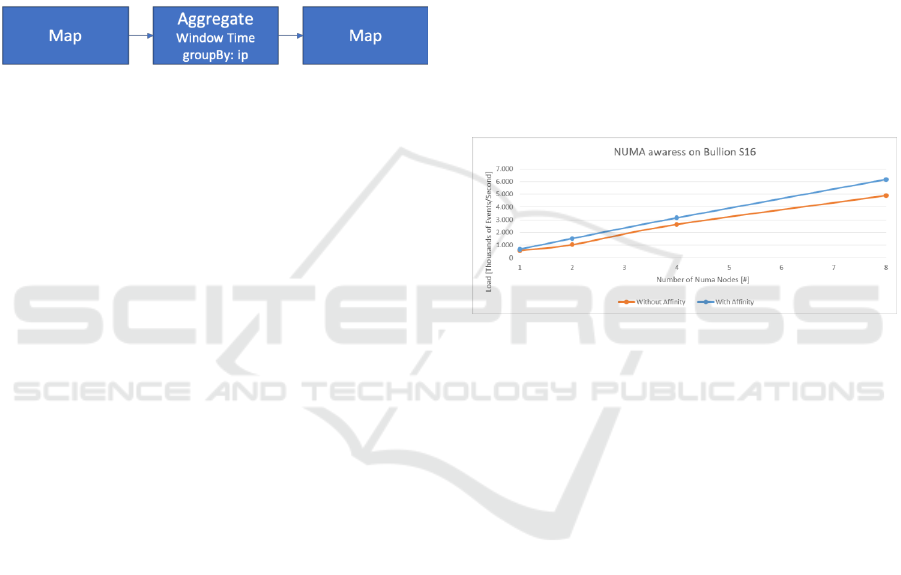

Figure 12: HiBench Fixed Window Topology.

This query, represented in Figure 12, is implemented

as a map operator that selects the IP address and the

connection time (timestamp) from incoming tuples.

Then, an aggregate operator with a time window of

30 seconds per IP is defined. When the window is

triggered a tuple is emitted with the timestamp of the

first tuple in the window and the number of tuples. To

finalize a map operator, add an extra field to the tuple

with the timestamp at this moment. The code below

corresponds to the aggregate function.

AggregateOperatorConfig aggregator = new

AggregateOperatorConfig("aggregator",

PROJECTOR_STREAM, AGGR_STREAM);

aggregator.setWindow(OperatorEnums.WindowTyp

e.TIME, wsize, wadv);

aggregator.addGroupByField("ip");

aggregator.addIntegerFunctionMapping("counter",

OperatorEnums.Function.COUNT, "ip");

aggregator.addLongFunctionMapping("startts",

OperatorEnums.Function.LAST_VAL,

ParameterStore.TIMESTAMP_USER_FIELDNAM

E);

aggregator.addStringFunctionMapping("ip",

OperatorEnums.Function.LAST_VAL, "ip");

query.addOperator(aggregator );

The goal of the evaluation is to demonstrate how

NUMA awareness can improve performance. So, we

run the same tests twice, one without NUMA

awareness (baseline) and then, with NUMA

awareness.

The HiBench query is run in a single NUMA node

by increasing the load till the maximum throughput is

reached. Then, two instances of the query are

deployed in two NUMA nodes and repeat the same

process with up to 8 NUMA nodes.

The results are shown in Figure 13. The handled

load is presented as thousands of tuples per second.

With one node, the non-NUMA aware configuration

processes up-to 570,000 events per second; the load

increases up to 670, 0000 events per second using a

NUMA aware configuration. That is, 18% more of

load. When 4 nodes are used the handled load without

NUMA aware is 2.630 million events per second,

while the NUMA aware configuration processes

3,150 million events per second (19% more). The

same situation happens with 8 NUMA nodes, where

(Fundation, 2010) the load increase reaches up to

26% (6.170 million events and 4.9 million,

respectively).

Figure 13: HiBench Throughput with and without NUMA

awareness.

6 CONCLUSIONS

In this paper we have presented the design of UPM-

CEP and how a NUMA aware configuration can

improve performance. The preliminary results with

S16 Bullion show large performance gains (up to

25% more load in the largest setup).

As future work we plan to run more benchmarks

and use other hardware to confirm the performance

results.

ACKNOWLEDGEMENTS

This work has received funding from the European

Union’s Horizon 2020 research and innovation

programme under grant agreements No 732051,

779747, the Madrid Regional Council, FSE and

FEDER, projects Cloud4BigData and EDGEDATA

(grants S2013TIC2894, S2018/TCS-4499), the

∫œMinistry of Economy and Competitiveness

Data Streaming for Appliances

677

(MINECO) under project CloudDB (grant TIN2016-

80350).

REFERENCES

Ahmad, Y. e. a., 2005. Distributed Operation in the Borealis

Stream Processing Engine. ACM SIGMOD

International Conference on Management of Data, pp.

882-884.

Foundation, A. S., 2015. Apache Storm. [En línea]

Available at: http://storm.apache.org/

Fundation, T. A. S., 2010. Apache ZooKeeper. [En línea]

Available at: https://zookeeper.apache.org/

Fundation, T. A. S., 2014. Apache Flink® - Stateful

Computations over Data Streams. [En línea]

Available at: https://flink.apache.org/

Gulisano, V. e. a., 2010. StreamCloud: A Large Scale Data

Streaming System. pp. 126-137.

Gulisano, V. e. a., 2012. StreamCloud: An Elastic and

Scalable Data Streaming System. IEEE Transactions

on Parallel Distributed Systems, 23 12.pp. 2351-2365.

Intel, 2017. HiBench. [En línea]

Available at: https://github.com/Intel-bigdata/HiBench

Pu, C. e. a., 2001. Infosphere Project: System Support for

Information Flow Applications. SIGMOD, Issue 30, pp.

25-34.

ADITCA 2019 - Special Session on Appliances for Data-Intensive and Time Critical Applications

678
