Easing the Deployment and Management of Cloud Federated Networks

Across Virtualised Clusters

Ivan Andrade Casta

neda

, Ignacio Blanquer

1 a

and Carlos de Alfonso

2 b

Institute for the Instrumentation for Molecular Imaging - I3M, Universitat Polit

ecnica de Val

encia, Valencia, Spain

SENESCYT - Secretar

ıa de Educaci

on Superior, Ciencia, Tecnolog

ıa e Innovaci

on, Ecuador

Keywords:

Cloud Federation, Overlay Networks, Virtual Machine Migration, Federated Virtual Private Network.

Abstract:

Cloud federation, in the last years, has grown rapidly in literature because to its multiple advantages to co-

ordinate and re-use different services across multiple sites, different geographic locations or cloud providers.

This article presents a federated network architecture and focuses on the multi-tenant overlay networks cre-

ation across different sites, as well as, the inter-site migration of virtual machines, introducing a framework

that allows us to manage our federate cloud environment in three scenarios: distribution of Virtual Machines,

resource management, and network management.

1 INTRODUCTION

Nowadays, big data centers networks provide redun-

dancy and ensure reliability to their customers in case

of a site failure, also has to minimize cost while deal-

ing with high peaks of demands. Thus, cloud feder-

ation has grown rapidly in the literature and became

a powerful paradigm for cloud providers and for sci-

entiﬁc computing, as its facilities the interoperability

of different cloud computing environments, offering

access to different resources that are allocated in dif-

ferent geographic locations or cloud providers.

Despite containers are sometimes treated as vir-

tual machines, they are conceptually different objects.

Containers are groups of processes that run on envi-

ronments isolated at the level of a ﬁlesystem, devices,

process namespaces or resource allocations. Contain-

ers are mainly implemented through operative system

calls and therefore do not boot a separate operating

system. They offer other advantages as packaging ap-

plications dependencies, image preparation and dis-

tribution, and memory footprint. However, container

isolation is reduced with respect to Virtual Machine

environment, especially in a multi-tenancy environ-

ment.

The network and resource management require-

ments are demanding, with the emerging need for a

middleware layer to provide a general orchestration

https://orcid.org/0000-0003-1692-8922

https://orcid.org/0000-0002-2378-021X

of resources, giving the right connectivity between the

resources across the federation, as well as a complete

view of the entire network from any point of the cloud

federated environment.

Such a middleware layer will imply requirements

as Network re-programming (such as SDN, which

makes possible to separate the Control Plane from

the Data Plane (Kaur et al., 2016)), a centralized ser-

vice that provides a reliable storage data, discovering

and conﬁguring services (in our case Consul (Con-

sul, 2019), EC managed (EC-Managed, 2019) or etcd

(Coreos, 2019)), coherent IP address assignment sup-

porting WAN live VM migration, user authentication,

and authorization, etc.

The framework that we present in this paper, im-

plements a solution that performs resource federation

at the network layer, based in Software Deﬁned Net-

working (SDN) technology, creating virtual networks

on demand across multiple data centers including the

VM live migration over WAN in a federated environ-

ment.

In this article, we are going to test and analyze

the beneﬁts of the framework in 3 different scenarios:

distribution of VMs, resource management, and net-

work management. The rest of the paper is structured

as follows. First, Section II describes an overview of

related works in cloud federation, network federation

and live migration. In Section III, we deﬁne the fed-

erated network topology used, based on three differ-

ent data centers. Section IV describes more in detail

the lower-level processes for each scenario that our

Castañeda, I., Blanquer, I. and de Alfonso, C.

Easing the Deployment and Management of Cloud Federated Networks Across Virtualised Clusters.

DOI: 10.5220/0007877406010608

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 601-608

ISBN: 978-989-758-365-0

601

model offers for both, network and resources manage-

ment. The preliminary results are presented in sec-

tion V. The article concludes in Section VI, where we

discuss the proposed approach, summarizes the work

and suggests future works

2 RELATED WORKS

2.1 Cloud Federation

Cloud federation is to interconnect two or more cloud

computing environments of the same or different

service provider, to interact between different types

of typologies that can share resources to optimize

the quality of services and reduce provisioning costs

(Moreno-Vozmediano et al., 2012). In the literature,

cloud federation can be deﬁned as centralized or de-

centralized (Melhem et al., 2017), where the main dif-

ferent is that in a decentralized federation the clouds

communicate and negotiate directly with each other.

Meanwhile in a centralized federation, such as Inter-

cloud (Elmroth et al., 2009), Contrail (Carlini et al.,

2012), Dynamic Cloud Collaboration (Hassan et al.,

2010), and Federated Cloud Management (Marosi

et al., 2011); central entities act as intermediates for

performing tasks such as resource registration, mar-

keting, searching or allocation.

This work is focused on a decentralized federation

environment, such as, The European Grid Infrastruc-

ture (EGI) Federated Cloud (Newhouse and Brewer,

2012) that is a federation of publicly funded comput-

ing, storage, and data resource centers across Europe

to provide access to high-throughput computing re-

sources through the EGI Core Infrastructure Platform.

The idea behind it is to offer a cloud infrastruc-

ture consisting of a pool of resources and services

provided by both public and private partners and pre-

sented as a single system. The problem is that the fed-

erated resources demanded by the tenants are imple-

mented at the level of the cloud management middle-

ware, making it more complicated to federate clouds

that run non-supported middleware or even particular

versions of supported middleware that are not com-

patible with the EGI model.

Another model of cloud federation is Reservoir

(Rochwerger et al., 2009), a European project in-

terconnecting computing grids, creating a peer-to-

peer(P2P) cloud federation to lease its resources to

other members of the federation.

OpenStack (OpenStack, 2019), one of the most

used and popular platforms to build private clouds,

where a cloud installation can be conﬁgured as a ser-

vice provider and as an identity provider.

• Used as a service provider, a local cloud will

trust users that present proof of authentication

from a trusted identity provider; such as SAML

or OpenID to give authentication and authoriza-

tion to local clouds.

• When is used as an entity provider, the local cloud

can be used to emit authentication tokens that can

be taken to a trusted remote service provider.

Fogbow (Brasileiro et al., 2016) is a middleware

for cloud federation that has been developed in the

context of the EUBrazilCC project, co-funded by

the European Commission and the Brazilian Min-

istry of Science, Technology, Innovation, and Com-

munication (MCTIC). It has the same concept as

EGI Federated Cloud, but implements federation at a

higher level, being more ﬂexible to interact with cloud

providers that are not compatible with the EGI model.

In summary, the actual model of cloud federation

are mature in Authentication and Authorization In-

frastructures (AAI), virtual machine repositories fed-

eration, IaaS interfaces or use of distributed entities

for directories or brokering, as we presented in our

previous work (Andrade et al., 2017) . But, in Feder-

ation of cloud networks is still an issue in cloud com-

puting.

2.2 Networking Federation

Software-Deﬁned Networking (SDN) makes possible

to separate the Control Plane from the Data Plane giv-

ing us more control to re-programming the network

on demand. There are various solutions that provide a

tool for cloud network management, such as, Onos,

Nox/Pox, OpenDaylight, Beacon, RYU, Floodlight

and many more (Khondoker et al., 2014) allowing the

trafﬁc orchestration through the OpenFlow protocol

(McKeown et al., 2008).

Network Functions Virtualisation (NFV) enable

the virtualization of dedicated network components,

like routers, ﬁrewalls, load balancers, and other

components that need dedicated hardware equipment

and give them to users as services (Rodriguez and

Guillemin, 2016). Also NFV is considerate as a key

concept in container-based computing to create over-

lay network, such as, Flannel (Flannel, 2019), Weave

(Weave, 2019), Calico (Calico, 2019), Romana (Ro-

mana, 2019); used in well-known platforms for vir-

tualization and resource management,such as Mesos

(Mesos, 2019) and Kubernetes (Kubernetes, 2019).

These two technologies allow cloud providers to

provide the necessary federated networking capabil-

ities, having better control and performance over the

networks, also allow the automation of resource man-

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

602

agement to improve scalability, quality of services

and reduce costs.

2.3 Live Migration

The main advantage of live migration is that give us

ﬂexibility, allowing us to move one virtual machine

from one physical host to another without disrupt-

ing its normal operation, where memory, storage, and

network connectivity are transferred. In a WAN net-

work, the live migration faces more challenges than

in a LAN-based live VM migration, such as the la-

tency, limited bandwidth, having a shared storage sys-

tem between the sites that can be a bottleneck, correct

IP addresses allocation after the migration.

Solutions such as Silvera et al. (Silvera et al.,

2009), they propose to have central agents on both

sites to avoid changing the virtual machine IP address

in each migration. These agents are responsible to en-

sure the connectivity using Proxy-ARP and IP-in-IP

tunnels to forward the trafﬁc between them.

LayerMover (Zhang et al., 2018) use a duplication

technique in three-layer image structure, in order to

optimize the performance.

Bradford et al. (Bradford et al., 2007) propose a

solution based on DNS-resolutions through IP tunnel-

ing. Improving the network performance because the

VM machine maintains its canonical names, and the

new IP address is registered with the named host.

A uniﬁed virtual network to provide a complete

view of the LAN keeping a single IP address, for

instance, is presented by wood et al. (Wood et al.,

2015). Where the idea is to combine virtual Private

networks (VPNs), layer 3, and virtual private LANs

service (VPLS), layer 2, to provide end-to-end rout-

ing across multiple networks and bridge LANs at dif-

ferent locations.

TCP connection before the migration to reduce the

total size of the dataset is proposed by Kuribayashi et

al. (Kuribayashi, 2013). Eliminating the redundancy

on block level and more coarse-grained than compres-

sion.

3 ARCHITECTURE

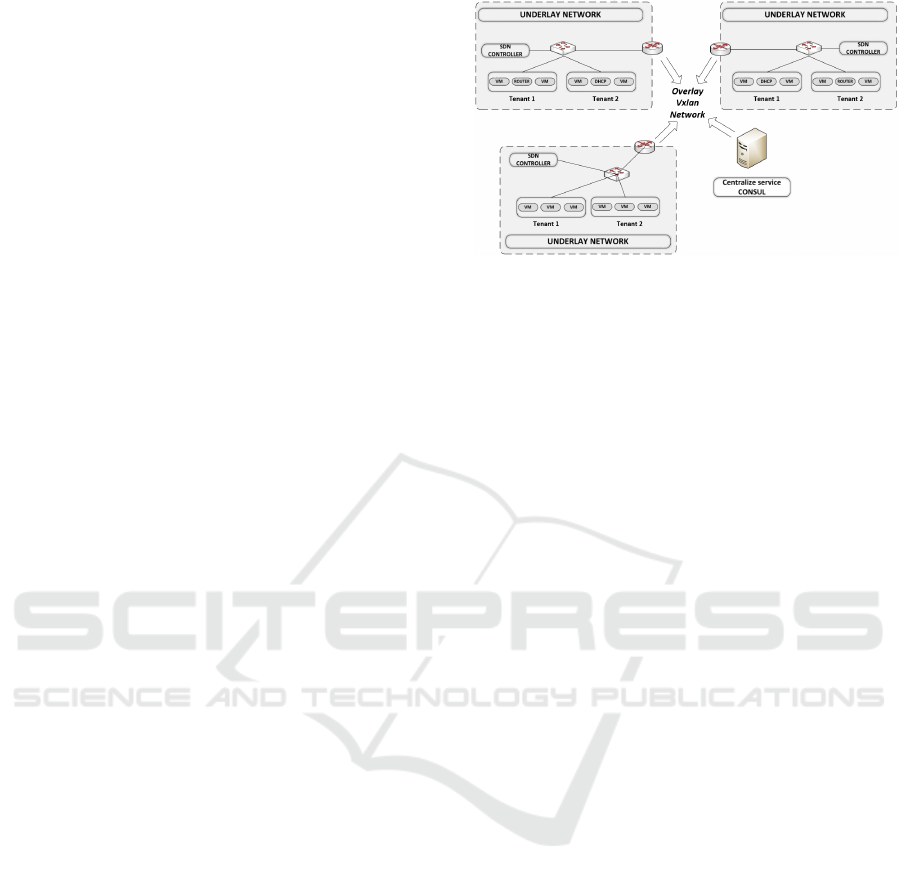

The architecture that has been deployed to recreate

a federated network environment is shown in Figure

1. Where we have some resources deployed across

three different sites reaching each other through a pri-

vate overlay network, having two different simulated

tenants with full isolation between them and with the

underlying network with the same IP segment address

(172.16.0.0/16).

Figure 1: Multi-site Federated Network.

This model of cloud federation architecture enables

the access to resources that are not allocated in the

same site, such as the Router as a Service - RaaS (to

reach to the outside world), the dynamic IP allocation

(via DHCPaaS) or the IPﬂoater tool to serve ﬂoating

IPs.

It includes a centralized service-based for dy-

namic infrastructure, CONSUL (Consul, 2019). It is a

distributed service mesh to connect, secure, and con-

ﬁgure services across any runtime platform and public

or private cloud.

Features such as service and node discovery

mechanisms to incorporate new Cloud servers, ensure

that services are always working and scalable when

facing peak demand, health checks with the purpose

of providing detailed monitoring and control of ser-

vices and nodes. Therefore, we can build a sophis-

ticated level of awareness into your applications and

services.

The network and resource management are also

managed by OpenVswitch among with libvirtd,

where the ﬁrst one is a multilayer software switch,

that provides the connectivity among the nodes; as a

virtual boundary switch. Enabling massive network

automation through programmatic extension and pro-

viding logical end-points to the resources (Open-

Vswitch, 2019). On the other hand, libvirt is used

as a wrapper to handle VM and LXC deployed across

the federation (Libvirt-project, 2019).

Floodlight (Floodlight-Project, 2019) is an SDN

controller designed to work with the growing num-

ber of switches, routers, virtual switches, and access

points that support the OpenFlow standard; which

is an open standard to orchestrate trafﬁc ﬂows in an

SDN environment.

To manage the WAN-based live VM migration

and reduce problems such as network performance,

data migration performance, the continued connectiv-

ity, and IP address reassignment; we decide to use

NFS (NFS, 2019) as ﬁle sharing protocol in combi-

nation with OFS (OFS, 2019), also Known as Of-

Easing the Deployment and Management of Cloud Federated Networks Across Virtualised Clusters

603

ﬂine FileSytem. It is is a tool that makes it possi-

ble to extend every ﬁlesystem with ofﬂine capabili-

ties. In other words, we are able to work in ofﬂine

mode avoiding the RPCs calls made by NFS that can

be deadly to performance in WAN network.

In summary, the framework uses these technolo-

gies to grant elasticity, reliability, isolation, scalabil-

ity, monitoring, deployment, releasing and control of

services and nodes in our federated cloud network.

4 USES CASES

According to the cloud architecture presented in sec-

tion 3, we have deﬁned three main uses cases: distri-

butions of VMs, resource management, and network

management. Inside of these three scenarios, we de-

rive several uses cases that describe lower-level pro-

cesses for each scenario which are described in this

section brieﬂy.

4.1 Network Management

Combining Libvirt, Consul, OpenVswitch and the

Floodlight controller, we can manage our federate

network built across the sites. It allows us to create

overlay networks, assign the right VLANs for each

tenant, manage the complete process of creating and

deleting end-points for each tenant (Linux Bridges),

deﬁne ﬁrewall rules and modiﬁes network character-

istics such as routing, NAT capacity, ﬁrewall rules,

and IP assignment.

The set of network management calls that we have

deﬁned is the next:

• Fed net create: It creates a new federated net-

work from scratch from either of the sites, it de-

ﬁnes the network conﬁguration (name, UUIDs,

VLANs, end-points for the resources, bound-

ary switches creation, overlay network connec-

tion, IPs assignment, assigns the corresponding

SDN controller and applies the ﬂow rules from

fed

net sdn controller use case), avoiding the du-

plication between tenants. The network deﬁni-

tion, in most of the process, is carried out by

conﬁguration ﬁles and replicated in all the sites

thanks to the use of key-value storage based on

Consul.

• Fed net delete: Performs the opposite action of

the previous use case. It deletes the federated net-

work from all the sites. It also ensures that no

more resources are still deployed in the tenant net-

work before and proceed to remove both the entire

network conﬁguration and the deﬁnition ﬁles in

our centralized service.

• Fed net list: Give us a global view of all the re-

sources in the federation using the Libvirt API to

retrieve the networks deployed at each site of the

federated cloud.

• Fed net sdn controller: This function call up-

dates the ﬂow entries, previously deﬁned in a

conﬁguration ﬁle. It enables to program and re-

program the network on demand.

4.2 Resource Manegement

Libvirt as wrappers to handle Kernel-based Vir-

tual Machine (KVM, 2019), Linux containers (LXC,

2019) and Consul as distributed service, give us com-

plete resource administration across the federated

cloud, from the resources deﬁnition to the resources

removal in an automatic way.

In conjunction with the live migration use case, we

can deﬁne the deployment, edit, delete and perform

WAN live migration across the different sites in the

federation. Guaranteeing high availability, elasticity,

scalability of the resources and avoiding duplication

because it gives us a global view of the resources that

are deployed across the federation.

• Fed vm create: We can deploy resources on de-

mand and verify if the resource has not been cre-

ated before avoiding duplication. We used pre-

deﬁned templates that deﬁne the features of each

resource, the packages required according to VM

role (Rass, DHCPaaS, DNSaaS, LBaaS), user,

password, hostname, IP tables, ssh keys, IPs seg-

ments and other information which is updated and

contextualized on deployment time.

• Fed

vm delete: This function is the opposite of

the previous use case and considers the same cri-

teria as before.

• Fed vm list: From a single point of our feder-

ated cloud, we can have a complete view of the re-

sources deployed in the federation, as an extended

LAN network.

4.3 WAN-based Virtual Machine live

migration

Having talked about the issues as network and data

migration performance, the continued connectivity

and IP address reassignment in section 2. We decided

to use a ﬁle sharing protocol NFS and OFS (Ofﬂine

FileSytem tool) to avoid the RRPCs calls made by

NFS.

• Fed vm migration: It performs the live migra-

tion, from any point of the federation, of a VM

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

604

across the cloud sites using both tools mentioned

before, NFS and OFS.

5 TEST AND RESULTS

As we describe in section 3, the federation has three

different sites simulating a WAN network environ-

ment, where our WAN will be the Campus network.

Accessing the different resources deployed across the

federation via a private overlay network.

For the purpose of the test we carried it on two

of the three hosts with different characteristics, as we

can see in table 1, gauging the time performance in

seconds and executing it ﬁve times for each lower-

level use cases using four different ﬂavors, as shown

in table 2, mainly for the resource management use

case.

Table 1: Host features.

Processor cores Frequency - (GHz) RAM

Host A intel i5-3470 4 3.20 7.7

Host B intel core 2 Quad - Q9300 4 2.50 7.8

Table 2: Virtual Machine Flavors Description.

Flavor VCPUs RAM(MB) Disk(GB)

Tiny (t) 1 512 2

Small (s) 1 2048 20

Medium (m) 2 4096 40

Large (l) 4 8192 80

5.1 Network Management

Table 3: Average Performance Time - Network Manage-

ment.

Host A Host B Percentage difference

Network Deployment 4.001 4.186 5 %

Network Removal 1.711 1.953 14 %

Network List 0.658 0.689 5 %

Network Reprogramming 0,366 0.348 5 %

Table 3, shows four lower-level processes for

the complete network administration: network

deployment (fed net create), network removal

(fed net delete), network list(fed net list) and

network reprogramming (fed net sdn controller).

Revealing that different features of each host did not

affect the performance of the framework, because the

percentage difference for each use case is between

5% to 14%, which means, a minimum increase of

only milliseconds between the two host.

Table 4: Average Performance Time - Resources Manage-

ment.

Flavor Host A Host B Percentage difference

t 7.280 13.130 80 %

Resource Deployment s 7.828 20.390 160 %

m 7.986 20.927 162 %

l 8.249 21.118 156 %

t 0.572 1.920 236 %

Resource Releasing s 0.577 2.342 306 %

m 0.561 2.483 343 %

l 0.592 2.663 350 %

t 108.186 365.306 216 %

Full boot s 119.122 347.542 218 %

m 111.116 351.260 216 %

l 142.536 350.180 164 %

Resource List - 0.658 0.681 1 %

5.2 Resource Management

This use case has three lower-level processes

for complete management: resource deployment

(fed vm create), resource removal (fed vm removal)

and resource list (fed vm list).

The resource deployed for the test was a DHCP

server, using Ubuntu Cloud Images (Ubuntu-Cloud-

images, 2019). Therefore, it needs to update its repos-

itory at the booting time and install some packages for

its correct performance, giving us the possibility to

gauge the deployment time made by the framework

and the time it takes to a full boot, as shown in table

Also, we have to consider the fact that we are de-

ploying a resource that has to reach the gateway in

Host B to get access to the internet. Therefore, we

have to reduce the MTU slightly in the gateway inter-

face because the trafﬁc has to to go through the tunnel

Vxlan and will add an extra header to every packet;

as we presented in our previous work (Andrade et al.,

2017).

• Resource Deployment: Shows an increase in the

performance from 80% to 156%, this means be-

tween 6 to 13 seconds more in host B than host

• Resource Removal: The performance increase

was even greater than in the ﬁrst use case, with

an increase from 256% to 350%. However, if we

look at table 4, the increase was just 0.5 to 2.6

seconds respectively.

• Resource List: This use case presented an in-

crease of only 1%, which means nothing relevant,

just milliseconds.

• Full boot: This use case shows a big increase in

the performance around 230 seconds more than

host A.

Easing the Deployment and Management of Cloud Federated Networks Across Virtualised Clusters

605

The test reveals that an increase in three of the four

use case, where we can determine that one of the most

relevant reasons for this increase is the different fea-

ture of each host. Because if we compare each ﬂavor

in each host, there is not much increase, just around

0.5 - 1 second, even though each ﬂavor has different

characteristics.

Where we can see a consistent increase is the full

boot test, due to the slight reduction of the MTU that

we had to do at the interface of our gateway. We can

conclude that the performance time will concern the

WAN network congestion (UPV network) than to the

characteristics of each host.

5.3 VMs Distribution

Migration time depends on the resource activity, so

if the resource is highly active, the memory transfer

process will take longer to complete. For the present

work, we have focused only on VM migration, leav-

ing container migration for further work.

We followed the same procedure as (ZHAW,

2014) to analyze the performance of our framework in

live migration on WAN. Using a stress tool we could

generate a stable memory consumption of around

75%, during migration.

Giving us the opportunity to measure the migra-

tion process time, Virtual machine downtime duration

and the amount of data transferred across the network

during the live migration process between a loaded

against unloaded VM.

Table 5: WAN live migration Performance.

Flavor Unloades VM Loades VM Percentage difference

t 40.298 52.637 31 %

Migration Time s 43.509 183 321 %

m 52.228 196.5 276 %

l 60.12 207 244 %

t 1 31 3000 %

VM Down time s 1 159.5 15850 %

m 9.6 190.5 1884 %

l 12 588.5 4804 %

t 408 514.5 26 %

Total amount of data transferred s 440 1547.5 252 %

m 544 2028.5 273 %

l 623 2040 227 %

On table 5, we can see the three tests to gauge the

live migration performance:

• Migration time: Total migration time, in seconds,

of a resource from one physical host to another

while continuously without disrupting its normal

operation.

• VM Downtime: the period during which VM does

not reply to ICMP echo request from the remote

host. Total downtime is counted by summing of

all lost packets multiplied by requests interval.

This interval was set up between 2 consecutive

ICMP packets to 200 ms.

• Total amount of data transferred: Amount of data

transferred from source to destination host during

migration process via the network measured in

MB. We used the iftop tool (IFTOP-Tool, 2019)

to measure transferred data during the migration

process.

The results show us a considerable percentage dif-

ference for each lower-level use case between a VM

with a high CPU and memory usage (loaded virtual

machine) and a unload virtual machine. This is be-

cause the amount of data to be transferred and the

number of messages to synchronize at the moment of

the migration are higher in a loaded resource than an

unloaded one.

Also, as the previous results for the resource and

management use cases, the difference between the

smaller and larger images increased; but in a reduced

rate concerning the percentage reported in loaded

against unloaded resources.

6 CONCLUSION AND FURTHER

WORK

According to the rapid growth of the cloud federa-

tion paradigm, network federation has become more

important and necessary in a federated networks en-

vironment. The capability of having NFV services

on federated infrastructures as cloud services facil-

itate the implementation of new use cases, such as

geographically-wide workload migration, the deﬁni-

tion of priority network paths, conﬁnement of re-

sources to cloud regions due to legal constraints or

increased multitenancy in network management.

Current solutions focus mainly on user-based and

centralized solutions (such as the set up of VPN

servers), the experiments performed in this article

show the possibility to have a ﬂexible middleware tool

that allows us a complete network federation and at

the same time supports VM live migration in a WAN

network. Further updates to the framework will al-

low, ﬁrst, support to container networks and combin-

ing them with OpenVswitch to create overlay WAN

networks in a containers environment and second test

the framework in an intercontinental scenario inte-

grating the model with the fogbow federation system

(Brasileiro et al., 2016).

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

606

ACKNOWLEDGEMENTS

This work is supported by SENESCYT (Secretar

ıa

de Educaci

on Superior, Ciencia, Tecnolog

ıa e Inno-

vaci

on - Ecuador) and partially funded by the AT-

MOSPHERE Project (funded by the European Com-

mission under the Cooperation Programme, Horizon

2020 grant agreement No 777154).

REFERENCES

Andrade, I., de Alfonso, C., and Blanquer, I. (2017). Deﬁn-

ing and testing virtual federated networks across mul-

tiple cloud sites. In 2017 Second International Con-

ference on Fog and Mobile Edge Computing (FMEC),

pages 107–112.

Bradford, R., Kotsovinos, E., Feldmann, A., and Schi

oberg,

H. (2007). Live wide-area migration of virtual ma-

chines including local persistent state. In Proceedings

of the 3rd International Conference on Virtual Exe-

cution Environments, VEE ’07, pages 169–179, New

York, NY, USA. ACM.

Brasileiro, F., Vivas, J. L., d. Silva, G. F., Lezzi, D., Diaz,

C., Badia, R. M., Caballer, M., and Blanquer, I.

(2016). Flexible federation of cloud providers: The

eubrazil cloud connect approach. In 2016 30th In-

ternational Conference on Advanced Information Net-

working and Applications Workshops (WAINA), pages

165–170.

Calico (2019). Calico ofﬁcial website.

https://www.projectcalico.org/. Accessed: 2019-

01-12.

Carlini, E., Coppola, M., Dazzi, P., Ricci, L., and Righetti,

G. (2012). Cloud federations in contrail. In Alexan-

der, M., D’Ambra, P., Belloum, A., Bosilca, G., Can-

nataro, M., Danelutto, M., Di Martino, B., Gerndt, M.,

Jeannot, E., Namyst, R., Roman, J., Scott, S. L., Traff,

J. L., Vall

ee, G., and Weidendorfer, J., editors, Euro-

Par 2011: Parallel Processing Workshops, pages 159–

168, Berlin, Heidelberg. Springer Berlin Heidelberg.

Consul (2019). Consul ofﬁcial website.

http://www.consul.io. Accessed: 2019-01-10.

Coreos (2019). Coreos ofﬁcial website.

https://www.coreos.com/etcd/. Accessed: 2019-

01-10.

EC-Managed (2019). Ec managed ofﬁcial website.

https://www.ecmanaged.com/. Accessed: 2019-01-

10.

Elmroth, E., Marquez, F. G., Henriksson, D., and Fer-

rera, D. P. (2009). Accounting and billing for fed-

erated cloud infrastructures. In 2009 Eighth Interna-

tional Conference on Grid and Cooperative Comput-

ing, pages 268–275.

Flannel (2019). Flannel ofﬁcial website.

https://www.coreos.com/etcd/. Accessed: 2019-

01-10.

Floodlight-Project (2019). Floodlight project ofﬁcial web-

site. http://www.projectﬂoodlight.org/ﬂoodlight. Ac-

cessed: 2019-01-13.

Hassan, M. M., Song, B., and Huh, E.-N. (2010). A market-

oriented dynamic collaborative cloud services plat-

form. annals of telecommunications - annales des

ecommunications, 65(11):669–688.

IFTOP-Tool (2019). Iftop tool. http://www.ex-

parrot.com/pdw/iftop/. Accessed: 2018-01-28.

Kaur, K., Kaur, S., and Gupta, V. (2016). Software de-

ﬁned networking based routing ﬁrewall. In 2016 In-

ternational Conference on Computational Techniques

in Information and Communication Technologies (IC-

CTICT), pages 267–269.

Khondoker, R., Zaalouk, A., Marx, R., and Bayarou, K.

(2014). Feature-based comparison and selection of

software deﬁned networking (sdn) controllers. In

2014 World Congress on Computer Applications and

Information Systems (WCCAIS), pages 1–7.

Kubernetes (2019). Kubernetes ofﬁcial website.

https://kubernetes.io/. Accessed: 2019-01-13.

Kuribayashi, S. (2013). Improving quality of service

and reducing power consumption with wan accel-

erator in cloud computing environments. CoRR,

abs/1302.1921.

KVM (2019). Kvm ofﬁcial website. https://www.linux-

kvm.org/page/Main Page. Accessed: 2019-01-16.

Libvirt-project (2019). Libvirt ofﬁcial website.

https://libvirt.org/. Accessed: 2018-01-24.

LXC (2019). Linux container ofﬁcial website.

https://linuxcontainers.org. Accessed: 2019-01-

15.

Marosi, A., Kecskemeti, G., Kert

esz, A., and Kacsuk, P.

(2011). Fcm: an architecture for integrating iaas cloud

systems. pages 7–12.

McKeown, N., Anderson, T., Balakrishnan, H., Parulkar,

G., Peterson, L., Rexford, J., Shenker, S., and Turner,

J. (2008). Openﬂow: Enabling innovation in cam-

pus networks. SIGCOMM Comput. Commun. Rev.,

38(2):69–74.

Melhem, S. B., Agarwal, A., Daraghmeh, M., Goel, N., and

Zaman, M. (2017). Live vm migration across cloud

data centers. In 2017 IEEE 14th International Confer-

ence on Mobile Ad Hoc and Sensor Systems (MASS),

pages 654–659.

Mesos (2019). Mesos ofﬁcial website.

http://mesos.apache.org/. Accessed: 2019-01-13.

Moreno-Vozmediano, R., Montero, R. S., and Llorente,

I. M. (2012). Iaas cloud architecture: From virtu-

alized datacenters to federated cloud infrastructures.

Computer, 45(12):65–72.

Newhouse, S. J. and Brewer, S. (2012). Egi: An open e-

infrastructure ecosystem for the digital european re-

search area and the humanities. In Ioannides, M.,

Fritsch, D., Leissner, J., Davies, R., Remondino, F.,

and Caffo, R., editors, Progress in Cultural Her-

itage Preservation, pages 849–856, Berlin, Heidel-

berg. Springer Berlin Heidelberg.

NFS (2019). Network ﬁle system ofﬁcial website.

http://linux-nfs.org/wiki/index.php/Main

Page//. Ac-

cessed: 2019-01-14.

OFS (2019). Ofﬂine ﬁle system ofﬁcial website.

http://ofﬂinefs.sourceforge.net/wiki/. Accessed:

2019-01-20.

Easing the Deployment and Management of Cloud Federated Networks Across Virtualised Clusters

607

OpenStack (2019). Openstack ofﬁcial website.

http://www.openstack.org. Accessed: 2019-01-

11.

OpenVswitch (2019). Openvswitch ofﬁcial website.

https://www.openvswitch.org/. Accessed: 2019-01-

22.

Rochwerger, B., Breitgand, D., Levy, E., Galis, A., Nagin,

K., Llorente, I. M., Montero, R., Wolfsthal, Y., Elm-

roth, E., Caceres, J., Ben-Yehuda, M., Emmerich, W.,

and Galan, F. (2009). The reservoir model and ar-

chitecture for open federated cloud computing. IBM

Journal of Research and Development, 53(4):4:1–

4:11.

Rodriguez, V. K. Q. and Guillemin, F. (2016). Performance

analysis of resource pooling for network function vir-

tualization. In 2016 17th International Telecommu-

nications Network Strategy and Planning Symposium

(Networks), pages 158–163.

Romana (2019). Romana ofﬁcial website. ttp://romana.io/.

Accessed: 2019-01-12.

Silvera, E., Sharaby, G., Lorenz, D., and Shapira, I. (2009).

Ip mobility to support live migration of virtual ma-

chines across subnets. In Proceedings of SYSTOR

2009: The Israeli Experimental Systems Conference,

SYSTOR ’09, pages 13:1–13:10, New York, NY,

USA. ACM.

Ubuntu-Cloud-images (2019). Ubuntu ofﬁcial website.

lhttps://cloud-images.ubuntu.com/. Accessed: 2018-

01-24.

Weave (2019). Weave ofﬁcial website.

https://www.weave.works/. Accessed: 2019-01-

11.

Wood, T., Ramakrishnan, K. K., Shenoy, P., der Merwe,

J. V., Hwang, J., Liu, G., and Chaufournier, L. (2015).

Cloudnet: Dynamic pooling of cloud resources by live

wan migration of virtual machines. IEEE/ACM Trans-

actions on Networking, 23(5):1568–1583.

Zhang, F., Fu, X., and Yahyapour, R. (2018). Layermover:

Fast virtual machine migration over wan with three-

layer image structure. Future Generation Computer

Systems, 83:37 – 49.

ZHAW (2014). An analysis of the perfor-

mance of block live migration in openstack.

https://blog.zhaw.ch/icclab/an-analysis-of-the-

performance-of-block-live-migration-in-openstack/.

IWFCC 2019 - Special Session on Federation in Cloud and Container Infrastructures

608
