ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

Marco Ant

onio de Sousa Reis and Alet

eia Patr

ıcia Favacho de Ara

ujo

Department of Computer Science, University of Bras

ılia, UnB, Bras

ılia, Brazil

Keywords:

Big Data, Cloud Computing, NoSQL, Hadoop, Data Engineering.

Abstract:

There are multiple deﬁnitions and technologies making the path to a big data solution a challenging task.

The use of cloud computing together with a proven big data software architecture helps reducing project

costs, development time and abstracts the complexity of the underlying implementation technologies. The

combination of cloud computing and big data platforms results in a new service model, called Big Data as

a Service (BDaaS), that automates the process of provisioning the infrastructure. This paper presents an

architecture for big data systems in private clouds, using a real system to evaluate the functionalities. The

architecture supports batch/real-time processing, messaging systems and data services based on web APIs.

The architectural description deﬁnes the technology roadmap, composed exclusively of big data tools. The

results showed that the proposed architecture supports the facilities of cloud computing and performs well in

the analysis of large datasets.

1 INTRODUCTION

The infrastructure required to support the demand

for technology in modern life is complex, has a

high ﬁnancial cost and needs a specialized workforce,

since the datacenter of the companies is usually het-

erogeneous, with multiple operating systems, stor-

age devices, programming languages and application

servers. In this context, cloud computing aims to

streamline provisioning and optimize the use of data-

center equipment through virtualization, enabling bet-

ter utilization and decreasing the idleness of comput-

ing resources (Mell et al., 2011).

The need to process and store a huge amount of

data has became known as ”big data”, a concept that

is related to the generation or consumption of a large

volume of data in a short time, so that the traditional

technology infrastructure can not process efﬁciently

and at low cost (Chang, 2015a).

The value of combining these two trends, big data

and cloud computing, has been recognized an is of in-

teresting in the software industry and academia, lead-

ing to the creation of a technology category called

Big Data as a Service (BDaaS) (Bhagattjee, 2014).

But creating big data systems is not trivial, and or-

ganizations that need to use their private cloud have

difﬁculty delivering effective solutions because of the

company’s lack of expertise.

To meet this demand, this paper presents an ar-

chitecture for building big data systems in private

cloud, called ArchaDIA (Architecture for Data In-

tegration and Analysis), detailing the functionalities,

techniques and tools most suitable for this type of sys-

tem. The architecture uses the capabilities of cloud

computing to shorten the time needed to build big data

systems that operate in the same scenarios described

in this proposal. As a result, architecture can help to

reduce the time required to deploy big data solutions,

avoiding the time spent in the early stages of adopting

new technologies.

The main contributions of this paper are: (i) the

formal and up-to-date architectural description for big

data systems (Rozanski and Woods, 2012), (ii) a clear

deﬁnition of the Big Data as a Service model, (iii) the

description of techniques for creating data-intensive

systems, (iv) architecture evaluation through a proof

of concept (PoC) involving a real situation and real

data.

The rest of the paper is organized as follows: Sec-

tion 2 presents the concepts of big data and cloud

computing. Section 3 gives the proposed architecture.

Section 4 describes techniques for building big data

systems. Section 5 discusses the methodology used

to conduct the study, to evaluate the architecture and

to build the proof of concept. In the end, Section 6

highlights the conclusion and some future works.

Reis, M. and Favacho de Araújo, A.

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud.

DOI: 10.5220/0007787801870197

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 187-197

ISBN: 978-989-758-365-0

187

2 BACKGROUND

2.1 Cloud Computing

Cloud computing, according to (Foster et al., 2008),

is a large-scale, scale-driven, distributed computing

paradigm in which a set of resources is delivered on

demand to external users on the Internet. This set of

resources consists of computational power, storage,

platforms and services.

Cloud computing differs from other models by be-

ing massively scalable, virtualized, encapsulated at

different levels of service to the external customer,

and by their services being dynamically conﬁgured.

The essential features of cloud computing embodied

in ArchaDIA, the architecture proposed in this article,

are: (i) on-demand self-service; (ii) broad network

access; (iii) resource pooling; (iv) elasticity; and (v)

measured service.

2.2 Big Data

The term ”big data” has several deﬁnitions, depend-

ing on the context it applies. The ﬁrst deﬁnition pre-

sented is (Chang, 2015a) and says that big data con-

sists of large datasets with the characteristics of vol-

ume, variety, speed, and/or variability that require a

scalable architecture for efﬁcient storage, manipula-

tion, and analysis. Also in (Chang, 2015a), big data

refers to the inability of traditional data architectures

to efﬁciently manipulate new datasets, forcing the cre-

ation of new architectures, consisting of data systems

distributed in independent, horizontally-coupled com-

puting resources to achieve scalability, using mas-

sively parallel processing.

A big data system is made up of functionalities to

handle the different phases of the data life cycle from

birth to disposal. From the point of view of systems

engineering, a big data system can be decomposed

into four consecutive phases, namely generation, ac-

quisition, storage and data analysis, as listed in (Hu

et al., 2014). Data generation refers to the way data

is generated, considering that there are distributed and

complex sources, such as sensors and videos. Data

acquisition is the process of obtaining the data. This

process includes partitioning into speciﬁc collections,

data transmission and preprocessing. Data storage

refers to data retention and management capabilities.

The last phase of data analysis presents new meth-

ods and tools for querying and extracting information

from datasets.

This paper adds the data integration phase, so

that external systems can consume the data through

web services, an approach that guarantees low cou-

pling between the big data system and the data con-

sumers.

2.3 Big Data as a Service (BDaaS)

Big Data as a Service (BDaaS) is a new model that

combines the capabilities of cloud computing with

the processing power of big data systems to deliver

data, database, data analysis, and processing platform

services, in addition to the tradicional service models

(Paas, Saas and IaaS).

BDaaS represents an abstraction layer above data

services, so the user selects the functionality, and the

underlying infrastructure is in charge of provision-

ing, installing, and conﬁguring the services, which

are complex tasks that require specialist knowledge.

In this model it is possible to rapidly deploy big data

systems, reducing development time and cost in the

early stages of the project’s lifecycle (Zheng et al.,

2013).

The implementation of big data systems involves

high costs for conﬁguring the infrastructure and ob-

taining skilled labor. A BDaaS framework can there-

fore help organizations move quickly from the start-

ing point, which is big data technology research, to

the ﬁnal phase of the solution deployment. Even the

phases involving pilot projects would be streamlined

with the use of cloud-based technologies (Bhagattjee,

2014).

BDaaS includes other service models to address

the speciﬁc demands of big data systems. A BDaaS

cloud infrastructure must offer the following func-

tionalities:

• Data as a Service (DaaS): refers to the availabil-

ity of data sets through web services and it is im-

plemented by the Application Programming Inter-

face (API). The data services are independent of

each other and are reusable;

• Database as a Service (DBaaS): refers to the

provisioning of NoSQL databases. Although

technically possible, the ArchaDIA, proposed in

this work, does not provision relational databases

management system (RDBMS) instances;

• Big Data Platform as a Service (BDPaaS): refers

to the provisioning of big data clusters to run

Hadoop or Spark

. The private cloud platform is

responsible for installing and conﬁguring the soft-

ware, reducing the complexity of the management

of big data environments;

https://spark.apache programs.org/

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

188

• Analytics as a Service (AaaS): refers to the pro-

visioning of data analysis tools from big data clus-

ters. For AaaS, the tools are Hive

and Spark.

Hive is a data warehouse tool with SQL support.

Spark has a framework for in-memory process-

ing that combines capabilities for processing SQL

queries, real-time, machine learning and graphs;

• Storage as a Service (StaaS): refers to stor-

age provisioning through distributed ﬁle systems

(DFS). The service is implemented in two ways:

(i) with OpenStack Swift

in the form of object

storage (Varghese and Buyya, 2018) or (ii) with

HDFS

from a Hadoop cluster. The techniques

to select between one technology and another are

described in Section 4.

Well-known cloud providers such as Amazon, Mi-

crosoft and Oracle already offer the BDaaS cloud

model. In these cases, the provider is responsible for

the equipment, the software instalation and conﬁgu-

ration, the datacenter operation and the big data ser-

vices.

Thus, as will be presented in Section 3, the Ar-

chaDIA presents an alternative in which the BDaaS

model uses its own infrastructure without the public

cloud. This article presents the advantages of this ap-

proach that uses the big data in the private cloud.

2.4 Private Cloud

According to (Mell et al., 2011), the private cloud is

one of the forms of deployment in cloud computing,

in which computing resources are available only to

an organization and its consumers. It may belong to,

be managed, located and operated by the organization

itself or by an outsourced company or even some kind

of combination between them.

The private cloud is adequate when the company

has the datacenter itself and its data demands a high

level of security, as in the government, banking and

telecom. It is not necessary for the datacenter to be

large, so only a few servers can justify its adoption.

In the private cloud computing resources are not nec-

essarily available to the public.

The tool used to deploy the private cloud in this

study is OpenStack

, which is a widely used and

tested open source IaaS tool. OpenStack supports

the most important virtualization solutions such as

https://hive.apache.org/

https://docs.openstack.org/swift/latest/

http://hadoop.apache.org/

https://www.openstack.org

KVM

, Hyper-V

, QEMU

etc.

2.5 Related Work

The correct selection of architecture components has

the potential to reduce project costs, development

time and abstracts the complexity of the underlying

implementation technologies. In this direction, there

are several architectures that can be used for big data

solutions.

The Lambda Architecture, proposed by (Marz and

Warren, 2015), was designed based on the principles

of scalability, simplicity, immutability of data, batch

and real-time processing frameworks. The architec-

ture was created by observing the problems presented

by traditional information systems, such as the com-

plexity of the operation, the addition of new function-

alities, the recovery of human errors and the optimiza-

tion of performance.

This architecture uses big data techniques and

tools to process and store data, including technologies

for batch processing, the NoSQL database for data

management, and the messaging system for data in-

gestion. The goal is to combine the beneﬁts of each

technology to minimize the weaknesses. In order to

organize the internal elements, the architecture is di-

vided into three layers, which are:

• Batch layer: stores the main copy of the data and

preprocesses the batch views with the batch pro-

cessing system (Hadoop);

• Serving layer: stores the result of batch process-

ing in a data management system for queries, such

as a NoSQL database;

• Speed layer: processes incoming data while batch

processing, ensuring the execution of the query

with real time data.

In (Chang, 2015b) the authors show a reference archi-

tecture for big data solutions. The goal is to create a

conceptual model of architecture for big data archi-

tecture, without reference to speciﬁc technologies or

tools. In this model the following functional logical

components are deﬁned:

• System Orchestrator: deﬁnes and integrates activ-

ities into a vertical operating system. It is respon-

sible for setting up and managing the other com-

ponents, or directly assigning the workload to the

computational resource;

https://www.linux-kvm.org

https://www.microsoft.com/en-us/cloud-platform/

server-virtualization

http://www.qemu.org/

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

189

• Data provider: includes new data or sources of

information in the system;

• Big data application provider: encapsulates busi-

ness logic and functionality to be executed by the

architecture. It includes activities such as collec-

tion, preparation, analysis, visualization and ac-

cess to data;

• Big Data Framework Provider: consists of one or

more technologies to ensure ﬂexibility and meet

the requirements that are set by the big data appli-

cation provider. It is the component that gets the

most attention from the industry;

• Data consumer: the end users and other systems

that use the result produced by the big data appli-

cation provider.

In (Bhagattjee, 2014), the author deﬁnes that BDaaS

is a distributed, horizontally scalable, cloud-based

computing framework designed to handle large

datasets (big data). However, due to the number of

technologies available, it is difﬁcult to identify the

right solutions for each demand. As a result, the

development of big data systems ultimately involves

high costs both for infrastructure management and

for skilled labor. As a proposed solution, (Bhagat-

tjee, 2014) introduces a framework to help technology

users and suppliers identify and classify cloud-based

big-time technologies. The framework is described in

layers, each with a set of responsibilities and the ap-

propriate tools for implementation.

3 ARCHITECTURE FOR DATA

ANALYSIS - ArchaDIA

This section introduces the design of the big data ar-

chitecture to ensure the state of the art in integrating

big data resources and cloud computing. The pro-

posal uses and extends the models deﬁned by (Bha-

gattjee, 2014) (Chang, 2015b) (Marz and Warren,

2015).

The architecture’s scope includes support for two

processing modes: batch and real-time. The batch

processing platform will be used for analysis in the

complete dataset, in which the need to access its re-

sult has no rigid time limitation, i.e. it is possible to

wait minutes or hours for the result. The real-time

processing platform will be used in applications with

constant data ﬂow, that is, data is entered continuously

and the system response must be immediate.

The design of big data systems is more complex

than traditional projects, mainly because it involves

distributed processing. The difﬁculties include not

only the technologies but also the processing and stor-

age techniques that must be reviewed in this new con-

text of data-intensive applications. In order to guide

the creation of this type of system, the study of (Chen

and Zhang, 2014) proposes seven principles:

1. Good architecture and good frameworks - there

are many distributed architectures to big data and

each uses different strategies for real-time and

batch processing;

2. Support for various analysis methods - data sci-

ence involves a large number of techniques that

need to be supported by new architectures, such

as data mining, statistics, machine learning etc;

3. No one size ﬁts all - there is no single solution

that suits all situations, since each technology has

limitations. One should choose the right tool for

each technique and situation;

4. The analysis must be close to the data - the pro-

cessing must have high performance access to the

storage, which favors the use of data lakes, as de-

tailed in Item 4.3;

5. Processing must be distributable for in-memory

analysis - Massively Parallel-Processing (MPP) is

one of the bases of big data systems, in which data

is accumulated in the datacenter storage system,

but must be partitioned to allow parallel process-

ing;

6. Storage must be distributable to memory retention

- MPP tools often divide data into blocks in mem-

ory;

7. A mechanism is required to coordinate data and

processing units to ensure both scalability and

fault tolerance.

As a constraint, the tools used in ArchaDIA should

be free and open source (FOSS) to ensure that the so-

lution can be used in government agencies or private

companies without the limitations of the cost of ac-

quisition.

The stakeholders are people and organizations in-

terested in the architecture. Thus, for the architecture

of big data systems, those interested are: (i) Data Sci-

entists: who perform ad hoc queries and data anal-

ysis; (ii) Software Developers: who create the sys-

tems; (iii) Enterprise Systems: production systems

and databases in the organization; (iv) External Sys-

tems: systems and databases in operation outside the

organization; (v) Infrastructure Administrators: re-

sponsible for maintaining the datacenter environment,

including servers, storage, network and database.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

190

3.1 Architectural Views for Big Data

Systems

Architectural views are used to show different aspects

of the big data system in an abstract way without tech-

nical details. The formalization of the documentation

uses the (1) context, (2) functional and (3) deploy-

ment views, a combination that clearly illustrates big

data in the ArchaDIA.

3.1.1 Context View

It presents the architecture from a conceptual per-

spective, in which the operational environment of the

project is illustrated and shows what is inside and out-

side the boundaries of the BDaaS architecture, as ver-

iﬁed in Figure 1. On one side are the data sources, in

the center the private cloud and the BDaaS, and on the

right side are the users of the system.

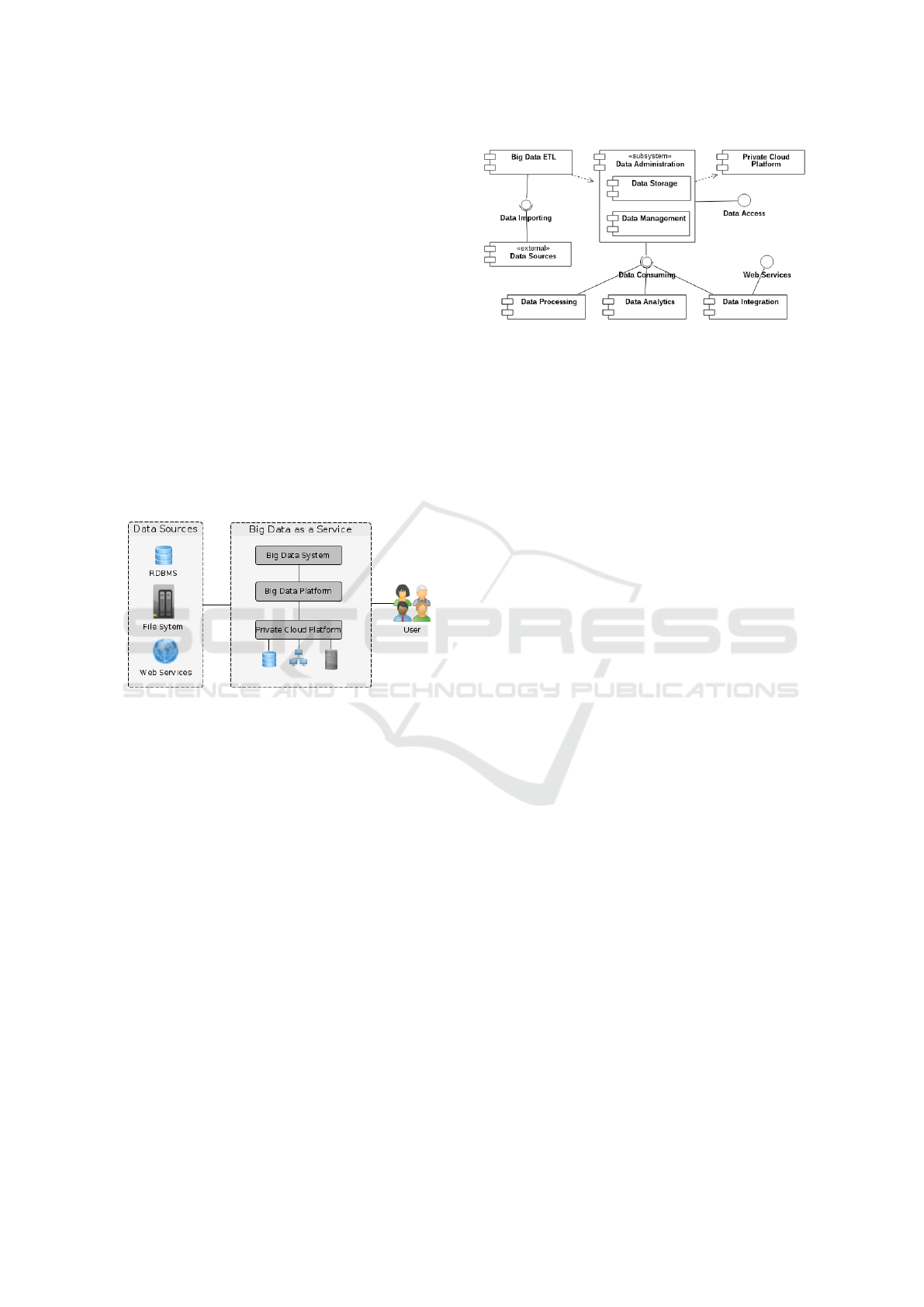

Figure 1: ArchaDIA Context View.

The data sources are composed of pre-existing re-

lational databases, ﬁle systems, or web services in the

organization. After importing these records into the

big data system, data is available for processing or

storage and then accessible to users.

3.1.2 Functional View

Describes the uses, components, interfaces, external

entities and the main interactions between them. Fol-

lowing this deﬁnition, Figure 2 shows the Functional

View of the architecture through a component dia-

gram.

The Data Source component is an external en-

tity that represents, as the name suggests, any mech-

anism that provides corporate data, and includes the

RDBMS, ﬁle system, and web services.

The Big Data ETL performs the processing re-

quired to convert the data from its source format to

the formats supported by the big data storage engine.

This component and the techniques used are detailed

in Section 4.

Figure 2: ArchaDIA Component Diagram.

The Data Administration subsystem is a compo-

nent for managing the data lifecycle in the organiza-

tion. It consists of two components. The ﬁrst one is

the Data Storage service, responsible for persisting

the data in the distributed ﬁle system. The compo-

nent of Data Management consists of the NoSQL

database.

The Data Processing component consists of the

mechanisms for batch and real-time processing, as

well as support for the implementation of big data

programs such as Hadoop and Spark, by the use of

their respective frameworks.

The Data Integration is a feature present in the

latest big data architectures and provides an API for

external systems to insert and query system data with

high performance. The API is built by a NoSQL

database and available through web services, a trend

in the area of Big Data and Cloud Computing that is

detailed in Section 4.

The last component is the Data Analysis, which

combines ad hoc query mechanisms, statistics, and

machine learning algorithms. These features are used

by data scientists and are part of an area known as big

data analytics.

3.1.3 Deployment View

Describes the environment where the system will be

installed, the hardware and the software necessary for

its execution, that is, in this view the necessary equip-

ment types, software and basic network requirements

are deﬁned to implement the big data system. This

view shows two diagrams, one for deploying the pri-

vate cloud platform and one for deploying the big data

systems. Figure 3 shows the necessary equipment for

private cloud deployment.

In ArchaDIA, big data systems are deployed

through the private cloud platform, as can be seen in

Figure 4. The servers represented in the diagram can

be VMs or physical servers (bare metal). For the cre-

ation of PoCs it is possible to use a single server for

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

191

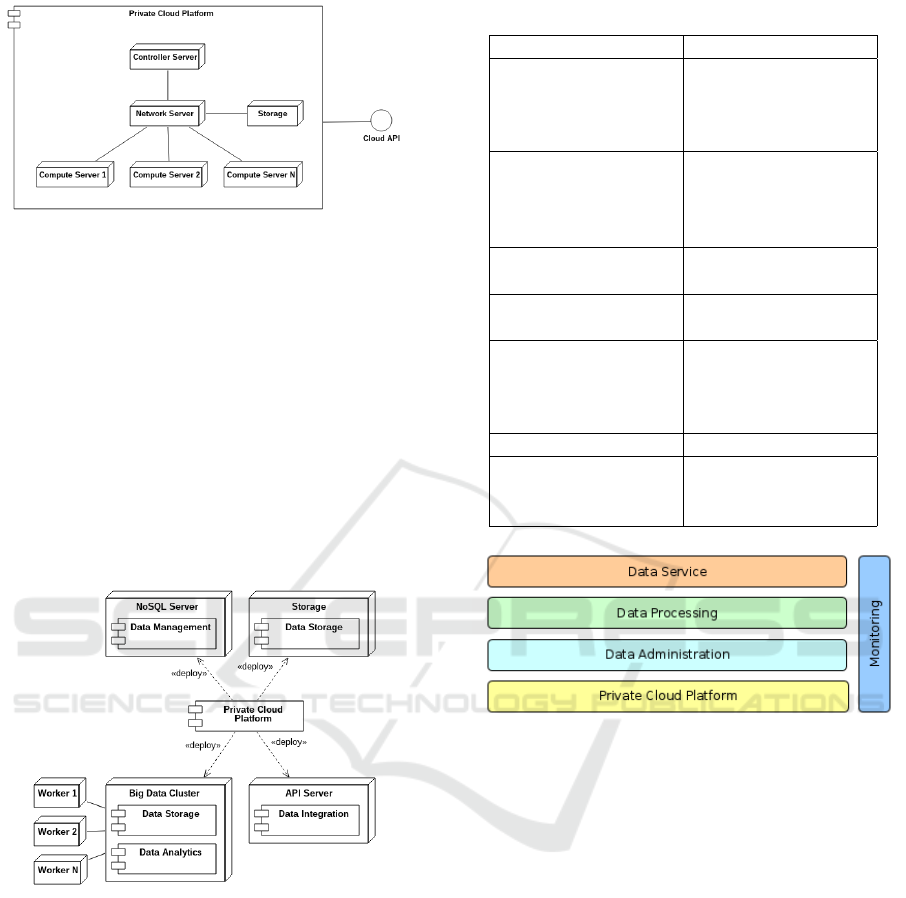

Figure 3: Private Cloud Deployment Diagram.

the private cloud platform and for the big data sys-

tems, however, the performance can not be evaluated

because the computational resources are limited.

The functionalities provided in the architecture to

meet the demands of the big data systems are (i) Big

Data Cluster, where the data storage and analysis

services reside; the (ii) API Server, which encom-

passes the Data Integration service; (iii) NoSQL

Server includes Data Management; and ﬁnally, (iv)

the Storage offers the Data Storage service with ob-

ject storage, that is, without the need of a big data

cluster. The Table 1 lists these components and their

implementation tools.

Figure 4: Deployment Diagram for Big Data Systems.

3.2 Layered Implementation

The ArchaDIA architecture obeys the layered archi-

tectural style, in which the structure is divided into

logical modules, each with a well-deﬁned function-

ality. This view serves the non-technical stakehold-

ers, as it presents the description of the functionalities

without details of implementation or technologies.

Figure 5 shows the layers that are detailed through-

out this section. The layers are functionally indepen-

dent of each other, are low-coupling and the commu-

nication between them is done with web services and

APIs.

Table 1: Software Components Dependencies.

Component Requirement

Private Cloud Plat-

form

OpenStack Pike

CentOS 7

KVM

Big Data ETL Java 8

Apache Sqoop

Apache Flume

Apache Kafka

Data Storage Apache HDFS

OpenStack Swift

Data Management Apache Cassandra

Apache HBase

Data Processing Apache Hadoop

Apache Spark

Cloudera

Hortonworks

Data Integration Spring Boot 2.0

Data Analysis Apache Hive

Apache Spark

Hue

Figure 5: ArchaDIA Layered View.

The Data Service Layer provides a data access

interface through a ﬂexible, loose coupling communi-

cation mechanism with external systems. This layer

is related to the DaaS model. This layer is shown in

the Figure 6. The data ﬂow starts with the External

System request to the Web API and has two ways: (i)

to ingest the data in the Messaging System, in an as-

syncronous way; and (ii) NoSQL query. It should be

noted that operations with the Messaging System are

unidirectional, since the purpose of this proposal is to

allow the insertion of new records as an alternative to

improve performance (Chang, 2015b).

The Data Processing Layer offers a platform that

allows the user to execute big data programs and data

analysis, including SQL queries. The layer is formed

by BDPaaS and AaaS.

The Data Administration Layer offers storage

and data management services. Thus, this layer is

composed of DBaaS and StaaS. Data is stored perma-

nently or temporarily, according to user demand. Se-

curity, access control, integrity, replication, and scal-

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

192

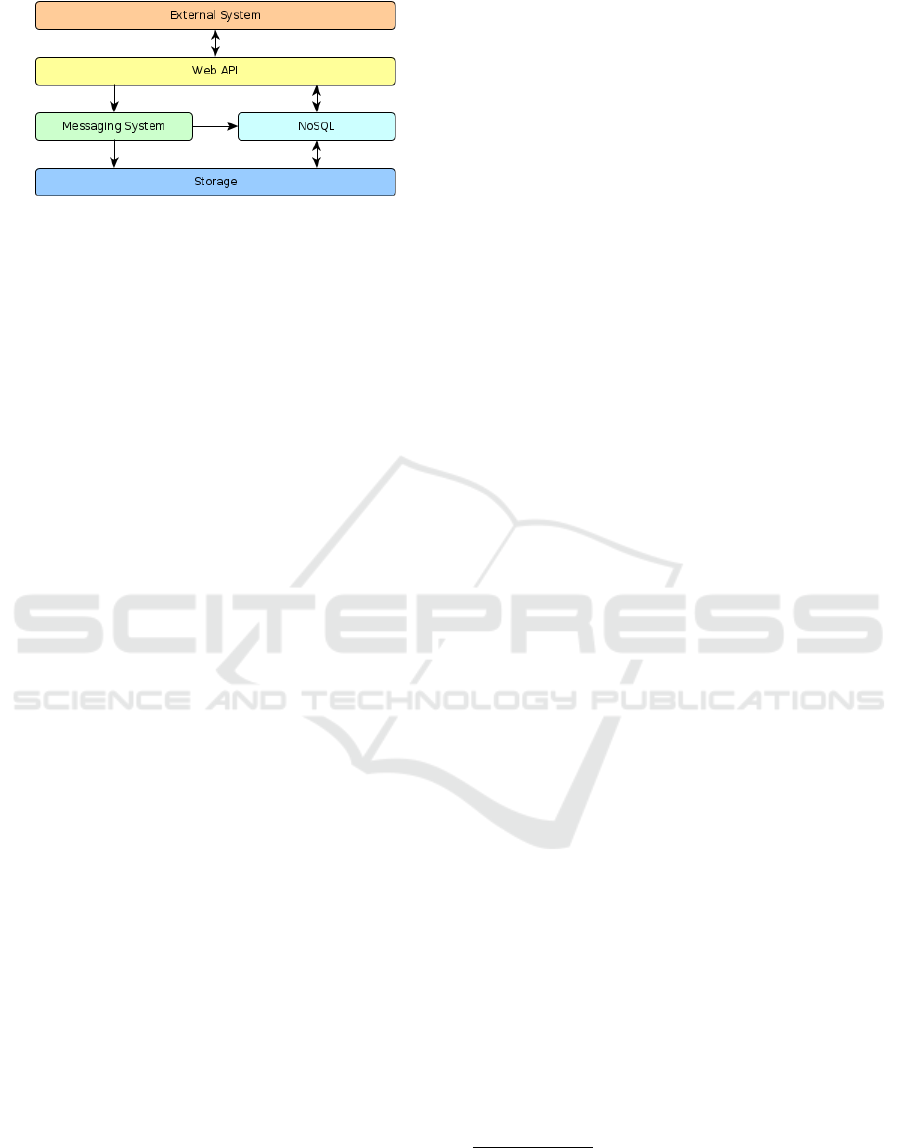

Figure 6: Data Integration Diagram.

ability are provided by the cloud platform.

The Private Cloud Platform Layer is responsi-

ble for the management of computing resources (pro-

cessing, memory, storage and networking). The user

can start or stop the services through the web inter-

face or console, without direct access to the underly-

ing hardware resources or deployment technologies.

The Monitoring Layer checks the operating con-

ditions and usage of the systems in the datacenter.

Users of this layer have access to metrics on resource

availability and utilization. Collecting these metrics

allows datacenter administrators to plan scalability of

systems. The objective of the layer is related to the

quality of the service offered, as it allows the moni-

toring of failures, unavailability, underutilization and

resource overload.

4 TECHNIQUES FOR BUILDING

BIG DATA SYSTEMS

The description of an architecture should detail the

best practices for building systems, which is espe-

cially important in an area as recent and complex as

big data. The construction of big data systems based

on computational cloud has speciﬁc techniques for

sizing, loading, storage, modeling and data integra-

tion.

The deployment of infrastructure for big data sys-

tems demands great effort from technology teams.

The difﬁculties include: (i) the installation and conﬁg-

uration of the big data cluster and NoSQL databases;

(ii) sizing the resources and attend to changes in the

processing demand; and (iii) the provisioning of data

services.

4.1 Resource Sizing

Resource sizing for big cloud data systems is the sub-

ject of several researches (Corradi et al., 2015), in-

cluding the use of predictive algorithms and the auto-

matic provisioning of Hadoop clusters. In many com-

panies it is common to ﬁnd large clusters with dozens

of servers, however, this type of installation tends to

be oversized to meet processing peaks.

With ArchaDIA, the recommendation to meet the

demand for large-scale processing is to use several

smaller big data clusters, one for each type of work-

load, since most Hadoop jobs run on datasets with

less than 100 GB (Appuswamy et al., 2013). In these

cases, a cluster with up to three nodes and 48 GB

memory can be used as a starting point. After the

processing is ﬁnished, the resources can be released.

For a NoSQL database the starting point is a single

VM with 16 GB memory. In this case, the resources

are not released, since the duration of this processing

is undetermined.

4.2 Cloud Storage

In the early versions of Hadoop, data analysis was

performed using data from the cluster’s ﬁle system,

because HDFS is optimized for this purpose. How-

ever, for cloud-based systems, this approach is not

the most efﬁcient and durable. As the data is directly

connected to the cluster, there are limitations in or

even the impossibility of using the cloud character-

istics. For example, considering a Hadoop cluster in

the datacenter, if the user needs more disk space, the

storage capacity can not be easily increased because

only the datacenter operations team has this capabil-

ity. Similarly, when the cluster is released, its data

is usually deleted. To make further analysis on this

deleted dataset, the data sources need to be copied

back to a cluster.

One possible solution to this problem is the use

of object storage technology, separating the data from

the processing. The object storage (ObS) or object

storage device (OSD) stores the data as objects of

variable size, unlike traditional block storage (Fac-

tor et al., 2005). Thus, object storage features are:

durability, high availability, replication, and ease of

elasticity, allowing storage capacity to be virtually in-

ﬁnite. In object storage each stored item is an object,

deﬁned by a unique identiﬁer, offering an alternative

to the block-based ﬁle model.

Because of these facilities, storing data in the

cloud can be done through object storage. Following

this trend, leading cloud providers have their object

storage implementations, such as AWS S3

, Oracle

Object Storage

, Azure Blob Storage

and Google

https://aws.amazon.com/s3/

https://cloud.oracle.com/storage/object-storage/

features

https://azure.microsoft.com/en-us/services/storage/

blobs/

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

193

Cloud Storage

. In Openstack, the object storage

module is Swift (Rupprecht et al., 2017), in which

data analysis can be performed with the ArchaDIA

architecture.

4.3 Data Lake

Data lakes are centralized repositories of enterprise

data, including structured, semi-structured and un-

structured data. This data is usually in its native for-

mat and stored on low-cost, high-performance ﬁle

systems such as HDFS or object storage (Dixon,

2010). The purpose of the data lake is different from a

data warehouse (DW). In DW, the data are processed

and structured for the query and the structure is de-

ﬁned before ingestion in the system, through ETL

routines. This technique is called schema-on-write,

a task that is not technically difﬁcult, but is time-

consuming.

In data lakes the data is in its original format,

with little or no transformation and the data structure

is deﬁned during its reading, a technique known as

schema-on-read. Users can quickly deﬁne and rede-

ﬁne data schemas during the process of reading the

records. With this, the ETL runs from the data lake

itself (Fang, 2015).

Data lake provisioning and conﬁguration are per-

formed by the private cloud platform, with the Open-

Stack Swift module. Swift is integrated with Hadoop

and Spark in order to allow data analysis with the

main ﬁle formats: SequenceFiles, Avro

and Par-

quet

(Liu et al., 2014).

The advantage of the data lake is its ﬂexibility,

which is at the same time a problem because it makes

the analysis very complete, but also complex. Data

lake users should be highly specialized, such as data

scientists and developers. There are also other risks in

adopting data lakes, such as quality assurance, secu-

rity, privacy and data governance, which are still open

questions.

4.4 NoSQL Databases

This new database paradigm, which does not follow

relational algebra, is generally called Not Only SQL

(NoSQL). In a NoSQL database, the data is stored in

its raw form and the formatting of the result is done

during the read operation, a feature called schema-on-

read (Chang, 2015a).

NoSQL has fast access to read and write, sup-

ports large volumes of data and replication, so they

https://cloud.google.com/storage/docs/

https://avro.apache.org/

https://parquet.apache.org/

are suitable for big data systems. However, NoSQL

databases do not follow the same rules and standards

as a relational database. For example, there is no na-

tive SQL support, and queries are typically run in pro-

prietary languages, or through third-party tools.

At this point, there are big differences between

relational and NoSQL modeling. While a relational

data model is standardized to avoid data redundancy,

NoSQL databases do not use normalization, and data

is often duplicated in several tables to ensure maxi-

mum performance (Chebotko et al., 2015).

4.5 API Management

The use of web APIs is becoming the standard for

web, mobile, cloud and big data applications (Tan

et al., 2016). APIs make it easy to exchange data and

are used to integrate business, make algorithms avail-

able, connect people, and share information between

devices. This new business model, called the APIs

economy, enables companies to become true data

platforms, which simpliﬁes the creation of new ser-

vices, products and business models (Gartner, 2018).

Web APIs are composed of independent services

in the form of reusable components, which can be

combined to create the data platform. For example, a

company can create a new service by using third-party

APIs, such as maps, machine learning, geolocation,

and payments. These services are usually based on

REST and JSON, thus allowing the sharing of the data

and the new features with high performance. This is

the strategy adopted by major API providers and users

such as Netﬂix, Google, AWS and eBay.

In this context, it is extremely important that a

big data architecture provide technological support

for API management. In ArchaDIA, the Data Inte-

gration Component is the technical solution for cre-

ating data services by accessing NoSQL databases or

the Hadoop cluster. The API server is permanent and

the VMs are not released, only resized in the case of

processing peaks.

5 ARCHITECTURE EVALUATION

The evaluation of the proposed architecture (Archa-

DIA) used a proof of concept (PoC), in which the us-

age scenarios and the behavior of the system were ver-

iﬁed. In this way, it was possible to determine the pos-

itives and negatives of the project. After deﬁning the

functionalities of the BDaaS, experiments were con-

ducted using techniques and tools to create big data

systems in order to ﬁnd the most appropriate combi-

nation.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

194

The Big Data Access Tool (BDAT)

is the prac-

tical implementation of PoC and was used to evalu-

ate the capabilities of the architecture proposal in the

form of a big data system. The BDAT was written in

Java and incorporates frameworks for big data, ETL,

API management and messaging system. Consider-

ing the diversity of technologies available in the big

data area, BDAT represents an abstraction layer be-

tween the functionalities of a big data system and its

implementation software, and can be used to create

new big data systems.

The experiments used real data sources from the

Brazilian government and the performance was mea-

sured in four situations: (i) batch/real-time process-

ing of big data; (ii) ad hoc queries; (iii) ingestion of

records in the system; and (iv) data query by API.

The dataset consists of several tables of systems

available in the TJDFT, a Brazilian Court, totaling

approximately 1.5 billion records that were imported

from the enterprise RDBMS. The Hadoop/Spark clus-

ter used in the experiments has four nodes, one master

and three worker nodes, as shown in Figure 4. Eval-

uations were performed by simulating routine activi-

ties, such as executing SQL commands for extracting

dataset information, such as those shown in the table

2. In the RDBMS the ﬁelds used for data consoli-

dation are indexed and partitioned, at a high level of

optimization. In the cluster analysis tools were used

on ﬁles recorded in HDFS and object storage Swift.

The ArchaDIA involves the areas of Big Data,

Cloud Computing and the intersection between them.

Therefore, it was evaluated from different perspec-

tives. Initially, it was evaluated as a reference archi-

tecture independent of technologies and implementa-

tions, in order to contribute to the research and devel-

opment of big data systems. Finally, services, tech-

nologies, and how they relate to the private cloud en-

vironment are demonstrated.

5.1 Deployment Roadmap

The private cloud deployment used OpenStack and

its speciﬁc modules that supports big data (Sahara)

and databases (Trove). The installation scripts, com-

mands, procedures, and conﬁgurations are available

in the repository

In addition to the Web interface, OpenStack offers

the option of operating via command line, which was

the option used in this study. After the complete en-

vironment conﬁguration, you can provision a Hadoop

https://github.com/masreis/big-data-access-tool

https://github.com/masreis/big-data-as-a-service-

openstack

cluster with a single command. With the cloud operat-

ing platform, the next step was provisioning services.

The roadmap used for the creation of the PoC (Section

5.2) and for the initial data load using BDATconsists

of the following steps:

1. Provision the big data cluster;

2. Provision an instance of the NoSQL Server (Cas-

sandra);

3. Provision an instance of the Spring Boot API

Server with BDAT;

4. List the available tables of the RDBMS environ-

ment;

5. Import each table to the big data staging area;

6. Convert imported ﬁles to Avro format and write

them to HDFS and data lake;

7. Create the tables in Cassandra and load them with

the ﬁles imported;

8. Perform the analyzes in the dataset with the

Hadoop and Spark cluster;

9. Query through the Web API;

10. Release the cluster resources.

5.2 Proof of Concept

The ﬁrst experiment was the analysis of the complete

dataset with batch and real-time processing tools. The

analyzes were performed with the execution of SQL

commands in the Hadoop/Spark cluster and in the

RDBMS. The second experiment was to write the

records in the NoSQL database. Finally, the last sim-

ulated situation was the query of the records through

the Web API. The operations available on the Web

API are divided into three categories:

• Data Access: data inclusion, change and query

operations;

• Data Store: lists the available tables in the PoC;

• ETL: data import and export operations, as well

as list of available tables in the RDBMS.

In each experiment, we used three load levels: (i)

low, with up to 10 million records; (ii) moderate, with

up to 100 million records; and (iii) high, from 100

million records. Thus, the minimum amount of re-

sources required to support the experiments was veri-

ﬁed, avoiding oversizing or undersizing.

The proof of concept allowed us to verify that Ar-

chaDIA supports the expected characteristics of the

Big Data as a Service model.

The results in the Table 2 show that the correct

combination of technologies and techniques for build-

ing big data systems in the cloud ensure performance

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

195

similar to the traditional datacenter solutions. An im-

portant point to note is the performance and disk sav-

ing made possible by the new ﬁle formats compres-

sion, such as Avro

6 CONCLUSION AND FUTURE

WORKS

This study describes the functionalities and the pro-

posed solutions for the big data area in the pri-

vate cloud, adding new practical use cases evaluated

with PoC in real scenarios. As a result, an archi-

tectural description was formalized, with its speciﬁc

systems-building techniques in the form of a tech-

nology roadmap that can be used to deploy new so-

lutions, or as a tool for communicating with non-

technical users.

The study of the state of the art lead to conclude

that the object storage is more interesting than HDFS

in the cloud, since there is no great performance dif-

ference between the technologies. This point rein-

forces the importance of loose coupling in the pro-

posed architecture, and is pointed as a trend along

with the advancement of the data lakes.

Provisioning the big data cluster in the Archa-

DIA takes a few minutes, as opposed to installing

an RDBMS in a datacenter, which can take hours.

The query by keys in NoSQL is not as fast as that

of RDBMS, however it presents acceptable perfor-

mance, considering that the NoSQL table was not

as optimized as that of RDBMS in the experiments

(Chebotko et al., 2015).

Table 2: Results of the Experiments.

Item Small Medium Large

Cluster provi-

sioning

160 sec. 180 sec. 190 sec.

Size of the

dataset (Avro)

400 MB 4 GB 18 GB

Size of

the dataset

RDBMS

- - 76 GB

Cluster data

analysis

8 sec. 80 sec. 150 sec.

RDBMS data

analysis

6 sec. 90 sec. 201 sec.

NoSQL query

by key

0.03 sec. 0.06 sec. 0.1 sec.

RDBMS

query by key

0.01 sec. 0.02 sec. 0.04 sec.

The Big Data and Cloud Computing research presents

several open issues that will be considered in the fu-

ture works (Varghese and Buyya, 2018) (Taleb and

Serhani, 2017). The evolutions of ArchaDIA in the

future include (i) the provision of a job completion

prediction model; (ii) a pre-processing methodology

to guarantee data quality and cleanliness in the anal-

ysis and integration phases; (iii) evolution of the

disk load balancing mechanism, considering the im-

balance between CPU and I/O; (iv) provide a secu-

rity and data sharing model, considering a multi-user

cloud; and (v) support for other resource managers

(Kubernetes, Swarm and Mesos).

REFERENCES

Appuswamy, R., Gkantsidis, C., Narayanan, D., Hodson,

O., and Rowstron, A. (2013). Scale-up vs scale-out

for hadoop: Time to rethink? In Proceedings of the

4th annual Symposium on Cloud Computing, page 20.

ACM.

Bhagattjee, B. (2014). Emergence and taxonomy of Big

Data as a service. PhD thesis, Massachusetts Insti-

tute of Technology.

Chang, W. L. (2015a). Big Data Interoperability Frame-

work: Volume 1, Deﬁnitions. NIST special publica-

tion, Information Technology Laboratory, Gaithers-

burg, 1.

Chang, W. L. (2015b). Big Data Interoperability Frame-

work: Volume 6, Reference Architecture. NIST spe-

cial publication, Information Technology Laboratory,

Gaithersburg, 6.

Chebotko, A., Kashlev, A., and Lu, S. (2015). A big data

modeling methodology for apache cassandra. In Big

Data (BigData Congress), 2015 IEEE International

Congress on, pages 238–245. IEEE.

Chen, C. P. and Zhang, C.-Y. (2014). Data-intensive appli-

cations, challenges, techniques and technologies: A

survey on Big Data. Information Sciences, 275:314–

347.

Corradi, A., Foschini, L., Pipolo, V., and Pernaﬁni, A.

(2015). Elastic provisioning of virtual hadoop clus-

ters in openstack-based clouds. In Communication

Workshop (ICCW), 2015 IEEE International Confer-

ence on, pages 1914–1920. IEEE.

Dixon, J. (2010). Pentaho, Hadoop, and Data Lakes.

https://jamesdixon.wordpress.com/2010/10/14/pentaho-

hadoop-and-data-lakes/.

Factor, M., Meth, K., Naor, D., Rodeh, O., and Satran,

J. (2005). Object storage: The future building

block for storage systems. In Local to Global Data

Interoperability-Challenges and Technologies, 2005,

pages 119–123. IEEE.

Fang, H. (2015). Managing data lakes in big data era:

What’s a data lake and why has it became popular

in data management ecosystem. In Cyber Technology

in Automation, Control, and Intelligent Systems (CY-

BER), 2015 IEEE International Conference on, pages

820–824. IEEE.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

196

Foster, I., Zhao, Y., Raicu, I., and Lu, S. (2008). Cloud

computing and grid computing 360-degree compared.

In Grid Computing Environments Workshop, 2008.

GCE’08, pages 1–10. Ieee.

Gartner (2018). Welcome to the API Economy.

https://www.gartner.com/smarterwithgartner/welcome-

to-the-api-economy/.

Hu, H., Wen, Y., Chua, T.-S., and Li, X. (2014). Toward

scalable systems for big data analytics: A technology

tutorial. IEEE access, 2:652–687.

Liu, X., Iftikhar, N., and Xie, X. (2014). Survey of real-time

processing systems for big data. In Proceedings of the

18th International Database Engineering & Applica-

tions Symposium, pages 356–361. ACM.

Marz, N. and Warren, J. (2015). Big Data: Principles and

best practices of scalable realtime data systems. Man-

ning Publications Co.

Mell, P., Grance, T., et al. (2011). The NIST deﬁnition of

cloud computing.

Rozanski, N. and Woods, E. (2012). Software systems

architecture: working with stakeholders using view-

points and perspectives. Addison-Wesley.

Rupprecht, L., Zhang, R., Owen, B., Pietzuch, P., and

Hildebrand, D. (2017). Swiftanalytics: Optimizing

object storage for big data analytics. In Cloud Engi-

neering (IC2E), 2017 IEEE International Conference

on, pages 245–251. IEEE.

Taleb, I. and Serhani, M. A. (2017). Big data pre-

processing: Closing the data quality enforcement

loop. In Big Data (BigData Congress), 2017 IEEE

International Congress on, pages 498–501. IEEE.

Tan, W., Fan, Y., Ghoneim, A., Hossain, M. A., and Dust-

dar, S. (2016). From the service-oriented architecture

to the web API economy. IEEE Internet Computing,

20(4):64–68.

Varghese, B. and Buyya, R. (2018). Next generation cloud

computing: New trends and research directions. Fu-

ture Generation Computer Systems, 79:849–861.

Zheng, Z., Zhu, J., and Lyu, M. R. (2013). Service-

generated big data and big data-as-a-service: an

overview. In Big Data (BigData Congress), 2013

IEEE International Congress on, pages 403–410.

IEEE.

ArchaDIA: An Architecture for Big Data as a Service in Private Cloud

197
