Adoption of Machine Learning Techniques to Perform Secondary

Studies: A Systematic Mapping Study for the Computer Science Field

Leonardo Sampaio Cairo

, Glauco de Figueiredo Carneiro

and Bruno C. da Silva

Universidade Salvador (UNIFACS), BA, Brazil

California Polytechnic State University (Cal Poly), San Luis Obispo, CA, U.S.A.

Keywords:

Machine Learning, Text Mining, Systematic Mapping, Systematic Literature Review, Secondary Studies.

Abstract:

Context: Secondary studies such as systematic literature reviews (SLR) have been used to collect and syn-

thesize empirical evidence from relevant studies in several areas of knowledge, including Computer Science.

However, secondary studies are time-consuming and require a signiﬁcant effort from researchers. Goal: This

paper aims to identify contributions derived from the adoption of machine learning (ML) techniques in Com-

puter Science SLRs. Method: We performed a systematic mapping study querying well-known repositories

and ﬁrst found 399 studies as a result of applying the search string in each of the selected search engines.

Following the research protocol, we analyzed titles and abstracts and applied inclusion, exclusion and quality

criteria to ﬁnally obtain a set of 17 studies to be further analyzed. Results: The selected papers provided

evidence of relevant contributions of the machine learning usage in performing secondary studies. We found

that ML techniques have not been applied yet to all the stages of a SLR. Typically, the preferred stage to

apply ML in an SLR is the study selection phase (typically the initial phase). For assessing the effectiveness

of ML support while performing SLRs, researchers have provided a comparison either across different ML

techniques tested or between manual and ML-supported SLRs. Conclusion: There is signiﬁcant evidence

that the use of machine learning applied to SLR activities (especially the study selection activity) in Computer

Science is feasible and promising, and the ﬁndings can be potentially extended to other research ﬁelds. Also,

there is a lack of studies exploring ML techniques for other stages than study selection.

1 INTRODUCTION

Secondary studies are typically performed as System-

atic Literature Reviews (SLR). An SLR is a research

method for identifying, evaluating and interpreting

relevant research papers available focusing on a spe-

ciﬁc topic, thematic area, or phenomenon of inter-

est. There are many reasons to perform an SLR, such

as summarizing existing evidence for a treatment or

technology and identifying gaps in current research

to suggest areas for additional research. Furthermore,

they can be a mean to examine to what extent the em-

pirical evidence supports/contradicts theoretical hy-

potheses (Kitchenham and Charters, 2007).

Systematic Mapping Studies (SMS) are also clas-

siﬁed as secondary studies. An SMS has the goal to

review primary studies related to speciﬁc topic, the-

matic area, or phenomenon of interest represented as

research questions (RQs) to integrate/synthesize evi-

dence related to those RQs. The result of perform-

ing secondary studies is mainly the potential ability to

combine data from several studies and provide both a

panoramic and in-depth characterization from the per-

spective of the target research questions. These bene-

ﬁts can at least partly explain why secondary studies

have been gaining popularity over the years.

The number of research studies published in Com-

puter Science is continually expanding, and sec-

ondary studies have become essential tools for re-

searchers to keep up to date in their particular ﬁelds.

However, SLRs require considerable effort (Petersen

et al., 2008), especially in the cases when the SLR

activities are performed manually. For this reason,

automating the activities of a SLR can reduce the re-

quired effort and also increase the coverage of evi-

dence to support the answers for the stated research

questions.

Therefore, we performed a systematic mapping

study guided by the following research questions:

RQ1: Which machine learning techniques have been

applied by researchers and practitioners to support the

execution of SLRs in Computer Science? RQ2: How

Cairo, L., Carneiro, G. and C. da Silva, B.

Adoption of Machine Learning Techniques to Perform Secondary Studies: A Systematic Mapping Study for the Computer Science Field.

DOI: 10.5220/0007780603510356

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 351-356

ISBN: 978-989-758-372-8

351

have researchers and practitioners evaluated the effec-

tiveness of the machine learning techniques to support

SLRs in Computer Science?

The goal of RQ1 is to provide an overview on how

existing machine learning techniques cope with the

automation of activities in secondary studies. It con-

siders the adoption of both specialized supervised and

unsupervised ML algorithms to target the aforemen-

tioned automation. In addition, we are interested in

the evaluation of effectiveness of the machine learn-

ing support to this automation (RQ2).

The remainder of this paper is organized as fol-

lows. Section 2 describes the research method used in

this systematic mapping. In Section 3, we discuss the

results based on evidence obtained from the literature.

Section 4 presents the conclusion, threats to validity,

and scope for future work.

2 THE METHODOLOGY

This section describes the methodology applied in the

planning, execution and documentation phases of our

systematic mapping. Unlike an unstructured review,

this mapping follows a precise and rigorous sequence

of methodological steps to review the literature avail-

able in electronic databases.

Our goal is to analyze the current state-of-the-art

on machine learning techniques applied to secondary

studies in the area of computer science. Thefore, this

mapping study intended to answer the research ques-

tions we introduced in the previous section.

2.1 Search for Primary Studies

We target the search on the following digital

databases: ACM Digital Library, IEEE Xplore, and

Scopus. ACM and IEEE digital libraries are the

most relevant ones in Computer Science (Zhang et al.,

2011) whereas Scopus is the world largest database

for peer-reviewed research literature. After the ﬁne

tuning and preliminary analysis of retrieved results,

we ended up with the following search string:

(“systematic literature review” OR “slr” OR

“systematic review” OR “systematic mapping” OR

“mapping study” OR ”secondary study”) AND

(“machine learning” OR “text mining” OR “nlp”

OR “natural language processing” OR “text

analytics” OR “information retrieval”)

Regarding the period covered in our search, we

covered all papers published in peer-reviewed mag-

azines, journals, and conferences until March 2018,

when we last applied the Search String.

2.2 Selection of Primary Studies

The following steps guided the selection of primary

studies.

Stage 1 - Results Obtained from Automatic Apply-

ing Our Search String on the Digital Libraries. We

converted the search string to each speciﬁc syntax of

the repositories, and we always applyed the search

string to the title, keywords and abstract.

Stage 2 - Reading Titles and Abstracts to Identify

Qualifying Studies. Identiﬁcation of eligible stud-

ies, based on the title, abstract and content analysis in

some cases, ruling out studies that were clearly irrel-

evant to the review. This activity was performed by

the three researchers co-authors of this paper. When

we raised questions about the eligibility of a study,

we marked the paper for further discussion, and then

we went over all the marked papers to a debate over

raised questions. In the end, we debated over the pa-

pers that had a different classiﬁcation in this stage in

order to come to a consensus.

Stage 3 - Applying Inclusion and Exclusion Crite-

ria When Reading the Full Text. We deﬁned that

entries must meet all of the following Inclusion Cri-

teria listed bellow: IC1: Published papers describing

the use of ML techniques in the execution of Com-

puter Science secondary studies. IC2: When several

papers report the same study, only the most recent one

should be included. IC3: Papers published in peer-

reviewed computer science conferences, magazines,

and journals. IC4. Works written in English. Regard-

ing the Exclusion Criteria, this Systematic Mapping

discarded papers that met at least one of the follow-

ing: EC1: Studies that do not describe the Machine

Learning technique used. EC2: Studies that are only

available in a summary form or presentation notes

(slides). EC3. Book chapters and other materials that

have not undergone peer-review.

Stage 4 - Obtaining Primary Studies and Perform-

ing a Critical Evaluation. We obtained a list of pri-

mary studies which was subsequently subject to criti-

cal examination using the following Quality Criteria

(QC): QC1: Is the document based on research or is it

just a “lessons learned” report based on expert opin-

ion? QC2: Is there an adequate description of the

context in which the search was performed? QC3:

Is there a control group with which to compare treat-

ments? QC4: Is there a clear statement of results?

2.3 Conducting the Review

We initiated the review with an automatic search in

the repositories, followed by a manual search on ref-

erences of backward snowballing (Jalali and Wohlin,

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

352

2012), to identify potentially relevant studies. Next,

the inclusion and exclusion criteria were applied. It

was necessary to adapt the search string according to

the syntax of each repository. The manual search con-

sisted of studies previously known and published in

conference proceedings and computer science jour-

nals and/or secondary studies that were included by

the authors while researching the theme in different

repositories.

During the course of this review, we used the tool

Mendeley

to manage references collaboratively. All

annotations and classiﬁcations were performed us-

ing Mendeley by using tags, folders and annotations

made directly in the PDF ﬁles of each study.

2.4 Data Extraction

During this phase, we extracted data from each of the

17 primary studies to answer the research questions of

this systematic mapping. We registered the obtained

data as Mendeley notes e exported them using the

Bibtex format supported by JabRef

. We organized

the extracted data in HTML format with the follow-

ing ﬁelds: Study Identiﬁcation (S1, ..., S17), Authors,

Study Title, Abstract, Research Questions, Year, Jour-

nal/Conference/Periodical and Source Repository.

2.5 Potentially Relevant Studies

We included in our Mendeley library the results ob-

tained from the automatic and manual search. At this

phase, a total of 399 studies were recorded, 395 of the

automated search plus four manual search (Phase 1).

Then we read titles and abstracts to identify relevant

studies, resulting in 48 studies (Phase 2). In Step 3,

we read the introductions and methodology and con-

clusions sections. Then we applied the quality criteria

carrying 17 studies forward to the subsequent stage.

In Step 4 the answers for the the research questions

were obtained. Table 1 summarizes the paper selec-

tion and review process in numbers.

2.6 Summary of Results

The aim of the synthesis was to group the informa-

tion extracted from the studies in order to: identify

the main techniques, algorithms, validation strategies

and metrics related to the research questions. Meta-

ethnographic methods were used to synthesize the

data extracted from the primary studies (Noblit and

https://www.mendeley.com, Reference Management

Software and Researchers Network

http://www.jabref.org, Graphic Application in Java to

manage bibtex (.bib) databases.

Table 1: Paper selection and review process in numbers.

Repository Result (1) Incl.(2) (2)/(1)%

ACM Digital

Library

183 9 4,92%

IEEE Xplorer 83 4 4,82%

SCOPUS 268 13 4,85%

Manual

Inclusion

4 2 50,00%

Total 399 17 4,26%

Hare, 1988). In the ﬁrst phase of the synthesis the

main concepts of each study were identiﬁed using the

author’s original terms. The key concepts were then

tabulated to allow comparison between studies. In the

next section we present the results and the respective

discussion of the ﬁndings obtained from the selected

primary studies.

3 RESULTS AND DISCUSSION

In this section, we present the ﬁndings related to re-

search questions 1 and 2. These ﬁndings provide ev-

idence that machine learning techniques have been

applied in computer science secondary studies in a

somewhat successful way. Each of the two nodes

of the mental map presented in Figure 1 summarizes

ﬁndings to answer both of our research questions.

3.1 ML Techniques to Support

Secondary Studies in Computer

Science (RQ1)

According to Figure 1 illustrates, the literature has

registered a number of machine learning techniques

to support secondary studies in Computer Science:

Bag Of Words (BoW), Decision Tree (DT), Hybrid

Feature Selection Method (HFSM), Support Vector

Machine (SVM), Term Frequency (Inverse Document

Frequency (TF- IDF), Visual Text Mining (VTM) and

its variations.

The Bag Of Words (BoW) adopted by studies S1,

S3, S4, S9, S11, S12 and S15, technique focuses on

the preprocessing of input data to convert them into

a vectorial representation based on counting the num-

ber of appearance of a set of selected words extracted

from the primary studies, as proposed by Salton and

colleagues (Salton et al., 1975).

According to S12, Suitable algorithms for study

selection are then, e.g. decision trees, logistic regres-

sion, and Naive Bayes. Overall, the most popular ones

are VTM, TF-IDF, and BoW.

These results are aligned with the results already

Adoption of Machine Learning Techniques to Perform Secondary Studies: A Systematic Mapping Study for the Computer Science Field

353

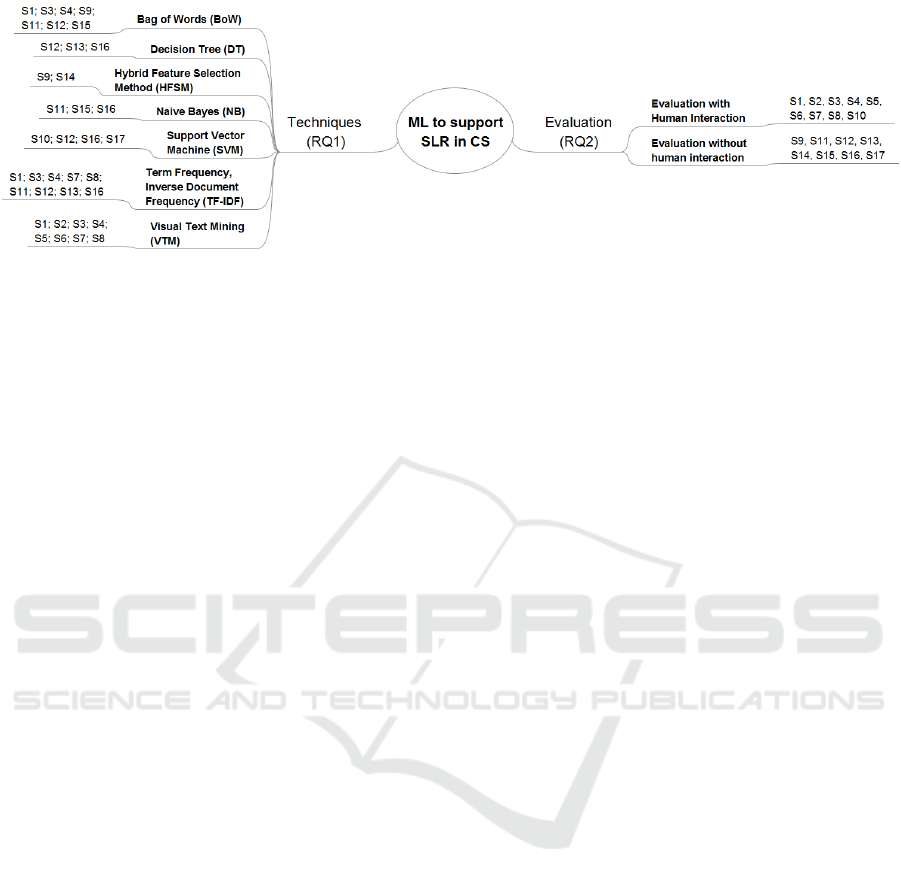

Figure 1: Results of selected studies.

presented in (Hamad and Salim, 2014) regarding ML

algorithms (NB, DT, and SVM) and the use of VTM.

Even though the past studies covered on Hamad and

Salim (2014) have not speciﬁcally focused on com-

puter science studies, our review indicates how use-

ful these algorithms are to the research community,

whether they are computer science or not.

In addition, a large number of studies using VTM

for SLR in computer science (47% of selected pri-

mary studies) matches with the ﬁndings of (O’Mara-

Eves et al., 2015) and (Olorisade et al., 2016).

However, in spite of the similarities previously re-

ported, for automation of SLR steps in computer sci-

ence, the most used algorithm in the primary studies

was TF-IDF, which that was present in 53% of the

selected primary studies.

3.2 How ML Techniques Have Been

Assessed (RQ2)

According to the data extracted from each of the pri-

mary studies, researchers have assessed their tech-

niques by performing exploratory studies carried out

using one of the two models as follows:

Evaluation with Human Interaction: In S1, S2,

S3, S4, S5, S6, S7, S8, and S10, the authors simulated

an SLR with groups of researchers that were divided

into researchers following a traditional SLR process

(manual SLR) and researchers following an assisted

SLR approach (using the technique in question). In

the end, the results of these groups were compared.

Following this approach, the results were susceptible

to the degree of knowledge and experience of the in-

volved researchers.

Evaluation without Human Interaction: In S9,

S11, S12, S13, S14, S15, S16 and S17, the authors

used SLRs already published to generate a corpus (set

of texts extracted from each selected primary study)

on which the author of the proposal, without the par-

ticipation of third parties, applied her/his technique.

In the end, the evaluation result was compared with

the result of the original secondary study.

The two forms of evaluation proved to be very

common in our study dataset. The evaluation model

with human participants (the ﬁrst mode described

above) had one more paper compared to the other

model. However, in the systematic review carried

out by (Olorisade et al., 2016), the use of evaluation

without human participation was the most commonly

used.

Additionally, among the phases of a systematic

review (Kitchenham and Charters, 2007) (SLR plan-

ning phase, search string construction, primary stud-

ies selection, and data extraction from primary stud-

ies), most of the studies, 14 out of 17, focused on

support the automation of the primary studies selec-

tion phase, whereas the other 3 papers are secondary

studies published a few years ago. This concentra-

tion of efforts in the selection phase of primary studies

coincides with previous ﬁndings (Hamad and Salim,

2014) regarding the support of automation. This also

reinforces the position of (Olorisade et al., 2016) that

identiﬁed solid evidence on the effectiveness ML sup-

port at that SLR phase.

4 CONCLUSIONS

In this systematic mapping we found evidences that

there is an increasing use of ML techniques to sup-

port the automation of some SLR activities. We high-

light the following works to represent such evidences

(Hamad and Salim, 2014), (O’Mara-Eves et al., 2015)

and (Olorisade et al., 2016). Over the last four years,

they have obtained more than 50 studies that have set

out to automate activities of secondary studies. The

use of ML algorithms has been shown to be promis-

ing based on the results reported, and as presented by

(Hamad and Salim, 2014), (O’Mara-Eves et al., 2015)

and (Olorisade et al., 2016), automation is increasing

in several areas of knowledge other than computer sci-

ence.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

354

In addition, it becomes apparent the viability of

automation techniques applied to the area of computer

science. Although still in the experimental stage and

with the need for some advancements, the application

of ML to support SLRs has been effective enough to

be further explored.

The studies we analyzed indicate consistency in

their results and the keen interest in the paper selec-

tion phase demonstrates how important and costly this

step is for researchers.

This systematic mapping supports the develop-

ment of future work that can either propose new tech-

niques for automating different phases of an SLR or

improve the effectiveness of existing approaches.

In the following, we present the list of studies

selected in this Systematic Mapping: S1 (Felizardo

et al., 2010), S2 (Felizardo et al., 2011), S3 (Felizardo

et al., 2012), S4 (Felizardo et al., 2014), S5 (Feng

et al., 2017), S6 (Garc

es et al., 2017), S7 (Malheiros

et al., 2007), S8 (Mergel et al., 2015), S9 (Ouhbi

et al., 2016), S10 (Piroi et al., 2015), S11 (Rizzo

et al., 2017), S12 (Ros et al., 2017), S13 (R

ubio

et al., 2016), S14 (Sellak et al., 2015), S15 (Tomas-

setti et al., 2011), S16 (Torres et al., 2013), S17 (Yu

et al., 2018).

REFERENCES

Felizardo, K. R., Andery, G. F., Paulovich, F. V., Minghim,

R., and Maldonado, J. C. (2012). (S3) A visual anal-

ysis approach to validate the selection review of pri-

mary studies in systematic reviews. Information and

Software Technology, 54(10):1079–1091.

Felizardo, K. R., Nakagawa, E. Y., Feitosa, D., Minghim,

R., and Maldonado, J. C. (2010). (S1) An Approach

Based on Visual Text Mining to Support Categoriza-

tion and Classiﬁcation in the Systematic Sapping. In

Proceedings of the 14th international conference on

Evaluation and Assessment in Software Engineering,

EASE 2010, EASE’10, pages 1–10, Swinton, UK,

UK. British Computer Society.

Felizardo, K. R., Nakagawa, E. Y., MacDonell, S. G., and

Maldonado, J. C. (2014). (S4) A visual analysis ap-

proach to update systematic reviews. In Proceedings

of the 18th International Conference on Evaluation

and Assessment in Software Engineering - EASE ’14,

EASE ’14, pages 1–10. ACM.

Felizardo, K. R., Salleh, N., Martins, R. M., Mendes, E.,

MacDonell, S. G., and Maldonado, J. C. (2011). (S2)

Using Visual Text Mining to Support the Study Se-

lection Activity in Systematic Literature Reviews. In

2011 International Symposium on Empirical Software

Engineering and Measurement, ESEM ’11, pages 77–

86. IEEE Computer Society.

Feng, L., Chiam, Y. K., Abdullah, E., and Obaidellah, U. H.

(2017). (S5) Using Sufﬁx Tree Clustering Method To

Support The Planning Phase Of Systematic Literature

Review . pp 311 - 332. Malaysian Journal of Com-

puter Science, 30(4):311–332.

Garc

es, L., Felizardo, K., Oliveira, L., and Nakagawa, E.

(2017). (S6) An Experience Report on Update of Sys-

tematic Literature Reviews. In Proceedings of the In-

ternational Conference on Software Engineering and

Knowledge Engineering, SEKE, pages 91–96.

Hamad, Z. and Salim, N. (2014). Systematic literature re-

view (SLR) automation: A systematic literature re-

view. Journal of Theoretical and Applied Information

Technology, 59(3):661–672.

Jalali, S. and Wohlin, C. (2012). Systematic literature

studies: Database searches vs. backward snowballing.

In Proceedings of the 2012 ACM-IEEE International

Symposium on Empirical Software Engineering and

Measurement, pages 29–38.

Kitchenham, B. and Charters, S. (2007). Guidelines for per-

forming systematic literature reviews in software en-

gineering. Guidelines for Performing Systematic Lit-

erature Reviews in Software Engineering.

Malheiros, V., Hohn, E., Pinho, R., Mendonca, M., and

Maldonado, J. C. (2007). (S7) A Visual Text Mining

approach for Systematic Reviews. In Proceedings of

the First International Symposium on Empirical Soft-

ware Engineering and Measurement, pages 245–254.

IEEE.

Mergel, G. D., Silveira, M. S., and da Silva, T. S. (2015).

(S8) A method to support search string building in

systematic literature reviews through visual text min-

ing. Proceedings of the 30th Annual ACM Symposium

on Applied Computing - SAC ’15, 13-17-Apri:1594–

1601.

Noblit, G. and Hare, R. (1988). Meta-Ethnography. SAGE

Publications, Inc., 2455 Teller Road, Thousand Oaks

California 91320 United States of America.

Olorisade, B. K., de Quincey, E., Brereton, P., and Andras,

P. (2016). A critical analysis of studies that address

the use of text mining for citation screening in system-

atic reviews. In Proceedings of the 20th International

Conference on Evaluation and Assessment in Software

Engineering - EASE ’16, volume 01-03-June of EASE

’16, pages 1–11. ACM.

O’Mara-Eves, A., Thomas, J., McNaught, J., Miwa, M.,

and Ananiadou, S. (2015). Using text mining for

study identiﬁcation in systematic reviews: A system-

atic review of current approaches. Systematic Reviews,

4(1):5.

Ouhbi, B., Kamoune, M., Frikh, B., Zemmouri, E. M., and

Behja, H. (2016). (S9) A hybrid feature selection rule

measure and its application to systematic review. In

Proceedings of the 18th International Conference on

Information Integration and Web-based Applications

and Services - iiWAS ’16, pages 106–114. ACM Press.

Petersen, K., Feldt, R., Mujtaba, S., and Mattsson, M.

(2008). Systematic mapping studies in software en-

gineering. In Ease, volume 8, pages 68–77.

Piroi, F., Lipani, A., Lupu, M., and Hanbury, A. (2015).

(S10) DASyR(IR) - document analysis system for sys-

tematic reviews (in Information Retrieval). In 2015

Adoption of Machine Learning Techniques to Perform Secondary Studies: A Systematic Mapping Study for the Computer Science Field

355

13th International Conference on Document Analysis

and Recognition (ICDAR), ICDAR ’15, pages 591–

595. IEEE Computer Society.

Rizzo, G., Tomassetti, F., Vetr

o, A., Ardito, L., Torchiano,

M., Morisio, M., and Troncy, R. (2017). (S11) Seman-

tic enrichment for recommendation of primary studies

in a systematic literature review. Digital Scholarship

in the Humanities, 32(1):195–208.

Ros, R., Bjarnason, E., and Runeson, P. (2017). (S12)

A Machine Learning Approach for Semi-Automated

Search and Selection in Literature Studies. In Pro-

ceedings of the 21st International Conference on

Evaluation and Assessment in Software Engineering

- EASE’17, pages 118–127. ACM.

ubio, T. R. P. M., Gulo, C. A. S. J. C., Rubio, T. T. R.,

and Gulo, C. A. S. J. C. (2016). (S13) Enhancing aca-

demic literature review through relevance recommen-

dation: Using bibliometric and text-based features for

classiﬁcation. In Iberian Conference on Information

Systems and Technologies, CISTI, volume 2016-July,

pages 1–6.

Salton, G., Wong, A., and Yang, C.-S. (1975). A vector

space model for automatic indexing. Communications

of the ACM, 18(11):613–620.

Sellak, H., Ouhbi, B., and Frikh, B. (2015). (S14) Us-

ing rule-based classiﬁers in systematic reviews. In

Proceedings of the 17th International Conference on

Information Integration and Web-based Applications

&Services - iiWAS ’15, iiWAS ’15, pages 1–5. ACM.

Tomassetti, F., Rizzo, G., Vetro, A., Ardito, L., Torchi-

ano, M., and Morisio, M. (2011). (S15) Linked data

approach for selection process automation in system-

atic reviews. 15th Annual Conference on Evaluation

& Assessment in Software Engineering (EASE 2011),

2011(1):31–35.

Torres, J. A. S., Cruzes, D. S., and Salvador, L. N. (2013).

(S16) Automatically locating results to support sys-

tematic reviews in software engineering. CIbSE 2013:

16th Ibero-American Conference on Software Engi-

neering - Memorias del 10th Workshop Latinoamer-

icano Ingenieria de Software Experimental, ESELAW

2013, (January):6–19.

Yu, Z., Kraft, N. A., and Menzies, T. (2018). (S17) Finding

Better Active Learners for Faster Literature Reviews.

Empir Software Eng.

Zhang, H., Babar, M. A., and Tell, P. (2011). Identifying

relevant studies in software engineering. Information

and Software Technology, 53(6):625–637.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

356
