Transparent Cloud Privacy: Data Provenance Expression in

Blockchain

Gabriel Hogan and Markus Helfert

ADAPT Centre, Dublin City University, Ireland

Keywords: Cloud, Privacy, Data Provenance, Transparency, W3C, PROV, Blockchain, Distributed Ledger Technologies.

Abstract: The development of Cloud processing and ‘Big Data’ have raised many concerns over the use to which data

is being put. These concerns have created new demands for methodologies, and capabilities which can provide

transparency and trust in data provenance in the Cloud. Distributed ledger technologies (DLTs) have been

proposed as a possible platform to address cloud big data provenance. This paper examines the W3C

recommendation for data provenance PROV and if the blockchain DLT can apply the core primary PROV

attributes required to satisfy data provenance. The research shows that not all data provenance expressions

can be provided by blockchain. Instances of data provenance which rely on circular references are not possible

as the blockchain DLT is a single linked list.

1 INTRODUCTION

Provenance is a well-established and well understood

concept which seeks to establish the origin, lineage,

history, transactions on, and ownership of, an artefact

and has been applied in many domains, including art,

antiquities, finance, and procurement, to name just a

few, over many centuries.

Data Provenance applies the concept of

provenance to the digital data domain. This has

application in nearly all the current digital domains

where data and content are being produced and

transacted at an ever-increasing rate, but particularly

in the Cloud based ‘big data’ domain. The importance

of tracking provenance is widely recognized, as

witnessed by significant research in various areas

including: e-science (Janowicz et al, 2018),

(Sigurjonsson, 2018); data warehousing (Hambolu et

al, 2016); democratic decision making (Aragón et al,

2014), (Beris and Koubarakis, 2018); e-Health (Masi

and Miladi, 2018); digital forensics (Ulybyshev et al,

2018), (Zawoad et al, 2018); security (Cha and Yeh,

2018); news checking (Huckle and White, 2017); and

information theory (Lemieux, 2016), (Lemieux and

Sporney, 2017), to name just a few. As Cloud based

processing, storage and ‘big data’ has become

ubiquitous, privacy concerns have become common

to all these areas, raising the same problems that data

provenance seeks to address: where did this data

originate, what is its history and how can these be

shown?

For ordinary people this has many specific use

cases including identity theft, breach of copyright,

digital anonymity, and the ability to see, and gain

control over, how individuals’ personal data is

transacted, used or misused.

For organisations collecting and using personal

data, the ability to organise, audit, and verify

compliance with legislation such as Sarbanes-Oxley

(Congress of the United States, 2002), Health

Insurance Portability and Accountability (Congress

of the United States, 1996), Gramm-Leach-Bliley

Financial Services Modernization (Congress of the

United States, 1999), are key requirements in

business today. This creates new challenges to

organisational strategies and the management of data

provenance in their Cloud and ‘big data’

infrastructure and management.

The increased public awareness of the use and

misuse of big data has raised many privacy concerns,

particularly in opaque Cloud based technologies

(Zou, 2016), (Pahl et al, 2018). These public concerns

have resulted in the introduction of specific new

legislative concepts and laws which seek to mitigate

and address these issues, such as General Data

Protection Regulation (GDPR) (European

Commission, 2016), which seeks to not only regulate

what data can be used and how it can be used, but also

where it can be used. This along with the Payment

430

Hogan, G. and Helfert, M.

Transparent Cloud Privacy: Data Provenance Expression in Blockchain.

DOI: 10.5220/0007733404300436

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 430-436

ISBN: 978-989-758-365-0

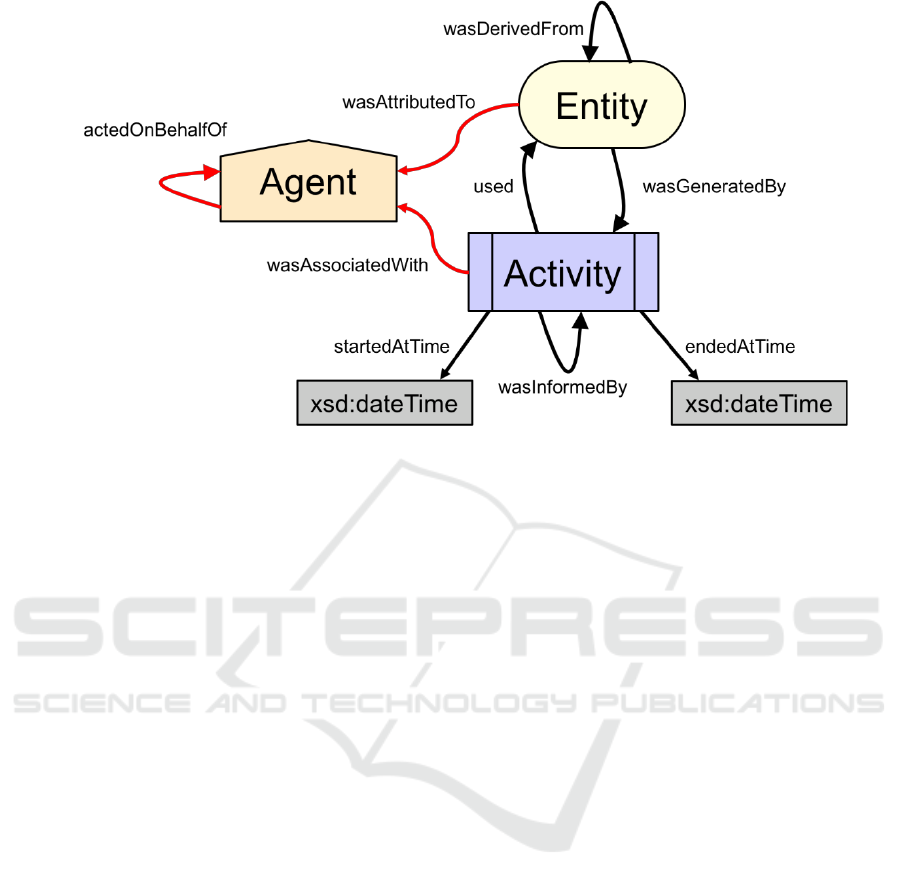

Figure 1: PROV Ontology Fundamental Classes and Relations.

Services Directive (PSD2) (European Commission,

2015), in Europe, which has also highlighted these

privacy issues in other jurisdictions, presents specific

challenges for privacy in the global Cloud.

The introduction of these new legal requirements

have also brought challenges to regulatory bodies

charged with the investigation, auditing and

enforcement of these new laws. Current practices are

manually intensive and linear expansion of human

resources to address the ever increasing demand for

their services are unsustainable. Existing provenance

approaches are challenged when faced with Cloud

based distributed systems, and with the volume,

velocity, variety, variability, and veracity requirements

of big data and (Wang et al, 2015). New strategies, new

approaches and new capabilities are required to enable

provenance strategy and management in the era of

Cloud big data.

This paper is constructed as follows: Section 2

outlines the literature review and the methodology

used to conduct the review; section 3 presents the

background to the paper based on the review; section 4

presents the research question; section 5 presents the

results; section 6 outlines the limitations and section 7

outlines the conclusion and future work.

2 SELECTION METHODOLOGY

The academic database sources AIS eLibrary, ACM

Digital library, IEEE Xplore, Inspect Engineering

Village, Science Direct, Web of Science, Wiley Online

Library, along with Semantic Scholar, Google Scholar,

grey and non-peer reviewed resources such as arXiv

were searched using the following search criteria:

“(PROV-O OR W3C) AND (blockchain OR

distributed ledger) AND (provenance OR lineage OR

pedigree)”.

The queries to these databases returned over 350

publications of which 201 were non duplicate

publications. Manually filtering the title and abstract

for specific mentions of provenance or blockchain

excluded 112 of these publications, leaving 89

publications to be full text screened. The manual full

text screening, which examined the context relevance

of each of these publication to the subject matter of this

paper, further filtered the body of publications down to

a review set of 27 papers with relevant contributions to

the subject in question.

A search for citations of these 27 papers provided

an additional set of publications which were reviewed

in a forward search, examining publications that cited

any of the review set for relevant contributions. This

provided another 12 relevant publications.

In addition new search queries for each of the

authors of the publications in the review set were

carried out on the databases to see if any previous or

subsequent publications by the authors contributed

further to the subject of this paper. A review of the

references and the authors previous publications

provided additional 15 relevant papers after repeating

the screening protocol above.

Transparent Cloud Privacy: Data Provenance Expression in Blockchain

431

3 BACKGROUND

A number of different approaches and

recommendations for provenance are represented in

the literature, including: the Open Provenance Model

(OPM) (Moreau et al, 2011), the Dublin Core

Metadata Initiative (Dublin Core Metadata Initiative,

2014), both of which culminated in the W3C

Provenance Recommendation (World Wide Web

Consortium, 2013a, 2013b). The W3C Working

Group on Provenance provide the following

definition “Provenance is information about entities,

activities, and people involved in producing a piece

of data or thing, which can be used to form

assessments about its quality, reliability or

trustworthiness“. In addition, they specify a standard

model, PROV-DM (World Wide Web Consortium,

2013a) with documentation for supporting data

provenance, and a provenance ontology PROV-O

(World Wide Web Consortium, 2013b), Figure 1.

Other approaches recognise that provenance is an

aspect of information theory (Lemieux, 2016),

specifically in the context of record keeping and the

auditing of these records. A suite of ISO/IEC

standards also addresses provenance in the context of

information management including: security

techniques; privacy; records management; audit and

certification; information security management; and

information technology in business (International

Standards Organisation, 2011, 2012, 2013, 2015,

2016). In short there are many interpretations of, and

perspectives of provenance due to the contextual

nature of provenance.

Cloud based Distributed Ledger Technologies

(DLTs) emerged from a number of incremental

innovations in the concept of digital and electronic

money, the development of blockchain, and

distributed Cloud technology, which underpinned the

invention of Bitcoin (Nakamoto, 2008). DLTs

potentially offer an alternative model for enabling

data provenance in both the digital and physical

realms. The DLT domain has evolved to include

further concepts, addressing: standards for privacy

and trust (Anjum et al, 2017); public, private,

permissionless or permissioned DLTs (El Ioini and

Pahl, 2018); hybrid DLTs (Lemieux, 2016); and

federated DLTs (Wood, 2013). In addition there are

several competing implementations of DLTs

including Blockchain (through which Bitcoin is

implemented), Ethereum (Wood, 2013),

Hyperledger, ConsenSys, and R3, though this list is

not exhaustive and new implementations are being

released on an ongoing basis with different

application areas and capabilities.

Additionally the application of smart contracts

which allows for the implementation of logic through

the execution of code in DLTs has enabled new

applications and scenarios for both physical and

digital provenance (Fotiou and Polyzos, 2018). The

relative recentness of DLT and its rapid rate of

development have outpaced the academic

community’s study of the topic, particularly with

reference to the strategies and management of data

provenance.

Multiple individual instances, use cases and

examples of provenance capable blockchains have

been proposed including SPADE (Gehani and

Dawood, 2012), SECPROV (Zawoad et al, 2018),

health data provenance (Masi and Miladi, 2018),

jewellery provenance (Orenge, 2018) which illustrate

the topical conversation on this topic and the current

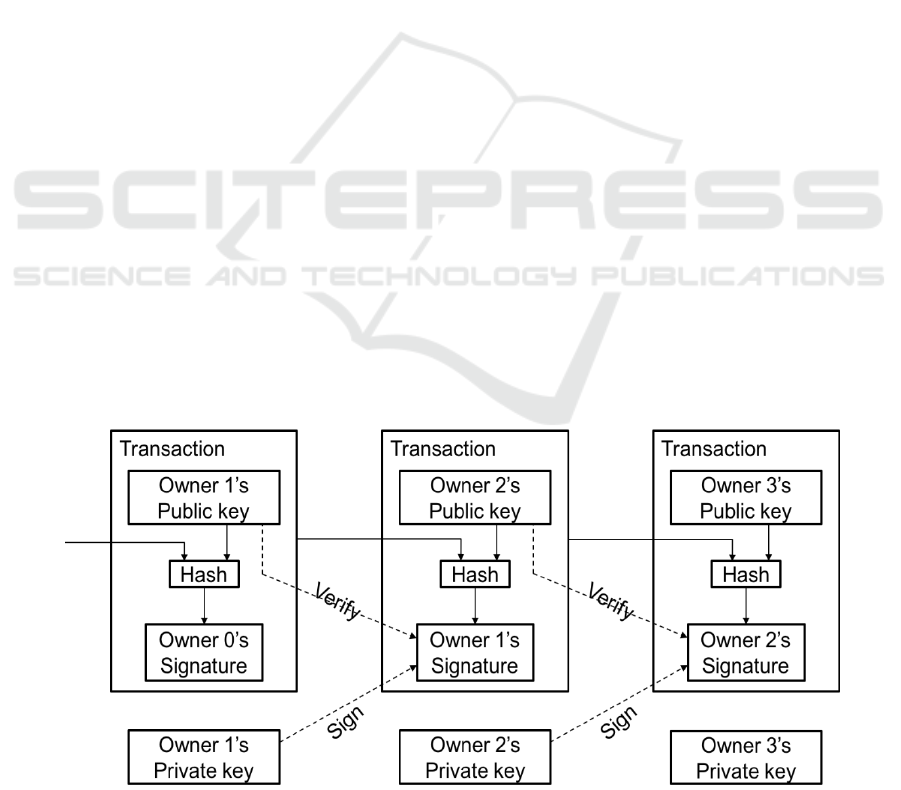

Figure 2: Fundamental concepts of the Bitcoin Blockchain.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

432

efforts being made to express provenance through the

Blockchain DLT.

4 THE RESEARCH QUESTION

The background literature shows data provenance

being expressed for specific use cases in Cloud based

Blockchains but do not address if data provenance can

be expressed for all use cases in Blockchain.

The research approach is to examine a specialised

case by using the Blockchain DLT and questions the

degree to which this most adopted implementation,

Blockchain aligns with the W3C PROV

recommendation for data provenance (Problem 1).

4.1 Problem 1: Alignment of

Blockchain with PROV

The provenance (PROV) family of documents specify

the W3C recommendations for provenance

information on the world wide web. The PROV-DM

data model and PROV-O ontology (World Wide Web

Consortium, 2013a, 2013b) outline the classes,

properties and relationships between these that are

used to describe a provenance instance.

Table 1: PROV-DM types and relations.

PROV Concepts

PROV-DM

types or

relations

Name

Entity

PROV-DM

Types

Entity

Activity

Agent

Generation

PROV-DM

Relations

wasGeneratedBy

Usage

used

Communication

wasInformedBy

Derivation

wasDerivedFrom

Attribution

wasAttributedTo

Association

wasAssociatedWith

Delegation

actedOnBehalfOf

The primary classes of Agent, Entity and Activity

and their relationships, shown in Figure 1, form the

core concept which allows provenance to be

described. PROV-O provides the following

definitions for each of the fundamental classes:

 “An prov:Entity is a physical, digital,

conceptual, or other kind of thing with some

fixed aspects; entities may be real or

imaginary.”

 “An prov:Activity is something that occurs

over a period of time and acts upon or with

entities; it may include consuming, processing,

transforming, modifying, relocating, using, or

generating entities.”

 “An prov:Agent is something that bears some

form of responsibility for an activity taking

place, for the existence of an entity, or for

another agent's activity.”

Four basic types of technologies for DLT are

identified: blockchain; tangle; hashgraph; and

sidechain, with underlying technologies of a) linked-

list/ list of linked-list or b) directed acyclic graph,

with blockchain described as a linked-list (El Ioini

and Pahl, 2018). The immutable quality of blockchain

restricts the linked list type that blockchain can be, to

a singly linked list (Scriber, 2018), or single

backward-linked list (van den Hooff et al, 2014).

The Bitcoin implementation of Blockchain

(Nakamoto, 2008) is outlined in Figure 2 showing its

fundamental concepts and relationships. Its main

concepts are Transactions, Owners and Hashes. The

Bitcoin ‘thing’ is defined as a “chain of digital

signatures”. Coin transfers are made by means of

transactions which are initiated and executed by, and

between Owners.

In this specific case, for the single linked list

Blockchain implementation of Bitcoin to provide data

provenance there should be alignment between the

Blockchain fundamental concepts and the core

PROV-DM types and relations.

5 RESULTS

In naive terms, there is a simple alignment between

the PROV data model (PROV-DM) fundamental

classes, shown in Table 1 and the Bitcoin

implementation of blockchain. At the highest level

the core PROV-DM (prov:) type align logically to a

Blockchain(bc:) equivalent:

 bc:Transaction is equivalent to a prov:Activity

and has a temporal start and end which are

equivalent to prov:startedAtTime and

prov:endedAtTime respectively.

 bc:Owner is equivalent to a prov:Agent both as

the initiator, and the receiver, of a transaction;

 bc:Hash (chain of hashes) is equivalent to a

prov:Entity as the object of a transaction

In each of the cases above it can be stated that

blockchain satisfies the basic PROV-DM types.

Looking at the PROV-DM relations between their

origin and endpoint:

Transparent Cloud Privacy: Data Provenance Expression in Blockchain

433

Table 2: Alignment of PROV and Blockchain types and concepts.

 prov:Entity[wasGeneratedBy]Activity is

equivalent to bc:Hash[Verify, Sign,

(Signature), HashFunction]Transaction as

these form the relationships between the new

Hash and the previous transaction.

 prov:Activity[used]Entity is equivalent to

bc:Tranaction[Verify, Sign, (Signature),

HashFunction]Hash as these form the

relationships between the new Transaction and

the previous Hash.

 prov:Activity[wasInformedBy]Activity has no

equivalent. There is no Blockchain Transaction

which allows another Transaction to be created

without the involvement of a Hash (Entity) and

Owner (Agent).

 prov:Entity[wasDerivedFrom]Entity has no

equivalent. There is no Blockchain Hash (other

than the initial creation of the first Hash) which

allows another Hash to be created without the

involvement of a Transaction (Activity) and

Owner (Agent).

 prov:Entity[wasAttributedTo]Agent is

equivalent to bc:Hash[Verify, publicKey,

(Signature), privateKey]Owner as these form

the relationships between the Hash (Entity) and

the Owner/s (Agent).

 prov:Activity[wasAssociatedWith]Agent is

equivalent to bc:Tranaction[Verify, Sign,

(Signature), publicKey, HashFunction]Owner

as these form the relationships between the

Transaction (Activity) and the Owner/s

(Agent).

 prov:Agent[actedOnBehalfOf]Agent has no

equivalent. As the Blockchain depends on

unique identity in the cryptography of the hash,

there is no Blockchain Agent which allows

another ‘proxy’ Agent to act on the Owners

behalf.

The full mapping of the Core PROV-DM types to the

equivalent blockchain type is shown in Table 2. Each

of the PROV-DM relations which have no blockchain

equivalent are circular (self-referring) references to a

single PROV-DM type for which there is no equivalent

in a single linked list blockchain. Data provenance

instances which reply on these circular reference

relations are not implementable in a single linked list

DLT such as blockchain.

6 LIMITATIONS

The findings of this paper are limited in scope to the

Blockchain specific instance of Distributed Ledger

Technology. In addition it is further confined to the

Bitcoin implementation on Blockchain. Other altchain

instances of Distributed Ledger Technologies such as

Hashgraph, Tangle, and Sidechain, or alternative

implementations of of Distributed Ledger

Technologies such as Ethereum and Hyperledger are

not considered.

In addition, only the core classes and concepts of

PROV is considered. The extended classes and

relationships of PROV-DM and the PROV-O ontology

are more complex and are outside the scope of this

paper.

Core PROV-DM

types and relations

Name

Blockchain type

PROV-DM

Types

Entity

Hash (Chain)

Activity

Transaction

Agent

Owner

PROV-DM

Relations

WasGeneratedBy

Verify, Sign, (Signature),

HashFunction

Used

Verify, Sign, (Signature),

HashFunction

WasInformedBy

WasDerivedFrom

WasAttributedTo

Verify, publicKey, (Signature),

privateKey

WasAssociatedWith

Verify, Sign, (Signature), publicKey,

HashFunction

ActedOnBehalfOf

xsd:dateTime

startedAtTime,endedAtTime

TimeStamp

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

434

7 CONCLUSIONS AND FUTURE

WORK

In this paper we showed that there are equivalencies

in Blockchain to the core PROV-DM types - Agent,

Activity and Entity, namely Owner, Transaction and

Hash respectively. This paper also showed that there

are instances of the core PROV-DM relationships

which have equivalent Blockchain relationships.

We conclude that it is possible to express a subset

of the total instances of data provenance in the

Blockchain using the Blockchain equivalents of the

PROV-DM core types and equivalent relationships.

This paper also showed that there are instances of

the core PROV-DM relationships which have no

equivalent Blockchain relationships, namely

prov:wasInformedBy, prov:wasDerivedFrom and

prov:actedOnBehalfOf, as they self-refer, or loop

back, to a single class without the involvement of

another class, which Blockchain as a single linked list

does not support.

It is reasonable to propose that any data

provenance instances which rely on these PROV

relationships may not be expressed in Blockchain.

Future steps include further examination of the

PROV model and investigation of possible extensions

that may facilitate closer alignment of blockchain to

PROV. Other flavours of distributed ledgers such as

directed acyclic graph based Tangle or Hashgraph

may provide different results to Blockchain should

also be investigated.

ACKNOWLEDGEMENTS

This publication has emanated from research

conducted with the financial support of Science

Foundation Ireland (SFI) and is co-funded under the

European Regional Development Fund under Grant

Number 13/RC/2106.

REFERENCES

Anjum, A., Sporny, M., Sill, A., 2017. Blockchain

Standards for Compliance and Trust. In: IEEE Cloud

Computing, 4(4):84-90.

Aragón, P., Bria, F., de Filippi, P., Halpin, H., Korhonen,

J., 2014. D-CENT D4.3 Technical Design of Open

Social Web for Crowdsourced Democracy.

[Available online: https://dcentproject.eu/wp-

content/uploads/2014/10/D4.3-final.pdf]

Beris, T., Koubarakis, M., 2018. Modeling and Preserving

Greek Government Decisions Using Semantic Web

Technologies and Permissionless Blockchains. In

ESWC 2018, The Semantic Web - 15th International

Conference, pages 81-96. Springer.

Cha, S., Yeh, K., 2018, An ISO/IEC 15408-2 Compliant

Security Auditing System with Blockchain

Technology. In CNS’18, IEEE Conference on

Communications and Network Security, pages 1-2.

IEEE

Congress of the United States (1996). Health Insurance

Portability and Accountability Act, Public Law No:

104-191. Washington D.C.

Congress of the United States (1999). Financial Services

Modernization Act, Public Law No: 106-102.

Washington D.C.

Congress of the United States (2002). Sarbanes-Oxley Act,

Public Law No: 107-204. Washington D.C.

Dublin Core Metadata Initiative 2014, DCMI Metadata

Provenance Task Group. [Available online:

http://dublincore.org/groups/provenance/]

El Ioini, N., Pahl, C., 2018. A Review of Distributed Ledger

Technologies. In On the Move to Meaningful Internet

Systems, Proceedings of OTM 2018 Conferences, pages

277-288. Springer

European Commission (2015) Payment Services Directive.

Luxembourg: Office for Official Publications of the

European Communities.

European Commission (2016) General Data Protection

Regulation. Luxembourg: Office for Official

Publications of the European Communities.

Fotiou, N,. Polyzos, G.C., 2018. Smart Contracts for the

Internet of Things: Opportunities and Challenges. In

EuCNC’2018, European Conference on Networks and

Communications, pages 256-260. IEEE.

Gehani, A., Dawood, T., 2012. SPADE: Support for

Provenance Auditing in Distributed Environments. In

Middleware’12, Proceedings of the 13

International

Middleware Conference, pages 101-120. Springer

Hambolu, O., Yu, L., Oakley, J., Brooks, R.R.,

Mukhopadhyay, U., Skjellum, A., 2016. Provenance

threat modelling. In PST’14, 14th Annual Conference

on Privacy, Security and Trust, pages 384-387. IEEE

Huckle, S. and White, M., 2017. Fake News: A

Technological Approach to Proving the Origins of

Content, Using Blockchains. Big Data, 5(4), pages

356–371. Mary Ann Liebert

International Standards Organisation 2011, Information

technology -- Security techniques -- Privacy

framework, ISO/IEC 29100:2011, International

Standards Organisation, Geneva.

International Standards Organisation 2012, Space data and

information transfer systems -- Audit and certification

of trustworthy digital repositories, ISO 16363:2012,

International Standards Organisation, Geneva.

International Standards Organisation 2013, Information

technology -- Security techniques -- Information

security management systems – Requirements, ISO/IEC

27001:2013, International Standards Organisation,

Geneva.

International Standards Organisation 2015, Information

technology -- Business operational view -- Part 4:

Transparent Cloud Privacy: Data Provenance Expression in Blockchain

435

Business transaction scenarios -- Accounting and

economic ontology, ISO/IEC 15944-4:2015,

International Standards Organisation, Geneva.

International Standards Organisation 2016, Information

and documentation -- Records management -- Part 1:

Concepts and principles, ISO 15489-1:2016,

International Standards Organisation, Geneva.

Janowicz, K., Hitzler, P., Regalia, B., Mai, G., Delbecque,

S., Frohlich, M., Martinent, P., Lazarus, T., 2018. On

the prospects of blockchain and distributed ledger

technologies for open science and academic publishing.

In Semantic Web, 9(5), pages 545-555. IOS Press

Lemieux, V.L., 2016. Trusting records: is Blockchain

technology the answer? In Records Management

Journal, 26(2), pages 110-139. Emerald.

Lemieux, V.L., Sporny, M., 2017. Preserving the Archival

Bond in Distributed Ledgers: A Data Model and

Syntax. WWW '17, Proceedings of the 26th

International Conference on World Wide Web

Companion, pages 1437-1443. ACM

Masi, M., Miladi, A., 2018. Using PROV and Blockchain

to Achieve Health Data Provenance. Working Paper,

University of Southampton Institutional Repository.

[Available online: https://eprints.soton.ac.uk/421292/]

Moreau, L., Clifford, B., Freire, J., Futrelle, J., Gil, Y.,

Groth, P., Kwasnikowska, N., Miles, S., Missier, P.,

Myers, J., Plale, B., Simmhan, Y., Stephan, E., Van den

Bussche, J., 2011. The Open Provenance Model core

specification (v1.1). In Future Generation Computer

Systems, 27(6), pages 743-756. Elsevier.

Nakamoto, S., 2008. Bitcoin: A Peer-to-Peer Electronic

Cash System. [Available online:

http://bitcoin.org/bitcoin.pdf]

Orenge, A.O., 2018. Blockchain-based Provenance

Solution for Handcrafted Jewellery. Masters Thesis.

University of Tartu.

Pahl, C., Ioini, N.E., Helmer, S., Lee, B., 2018. An

architecture pattern for trusted orchestration in IoT edge

clouds. In FMEC’2018, Third International Conference

on Fog and Mobile Edge Computing, pages 63-70.

IEEE.

Scriber, B. A., A Framework for Determining Blockchain

Applicability, in IEEE Software, 35(4):70-77. IEEE.

Sigurjonsson, S.M.K., 2018. Blockchain Use for Data

Provenance in Scientific Workflow. Master Thesis.

KTH Royal Institute of Technology.

Ulybyshev, D., Villarreal-Vasquez, M., Bhargava, B.,

Mani, G., Seaberg, S., Conoval, P., Pike, R., Kobes, J.,

2018. (WIP) Blockhub: Blockchain-Based Software

Development System for Untrusted Environments. In

IEEE 11th International Conference on Cloud

Computing, pages 582-585. IEEE.

van den Hooff, J., Kaashoek, M.F., Zeldovich, M., 2014.

VerSum: Verifiable Computations over Large Public

Logs. In CCS’14, Proceedings of the 2014 ACM

SIGSAC Conference on Computer and

Communications Security, pages 1304-1316. ACM.

Wang, J., Crawl, D., Purawat, S., Nguyen, M.H., Altintas,

I., 2015. Big data provenance: Challenges, state of the

art and opportunities. In Big Data’2015, IEEE

International Conference on Big Data, pages 2509-

2516. IEEE

Wood, G., 2013. Ethereum: A Secure Decentralised

Generalised Transaction Ledger. [Available online:

https://gavwood.com/paper.pdf]

World Wide Web Consortium 2013a, PROV-DM: The

PROV Data Model, W3C Recommendation, World

Wide Web Consortium, Geneva.

World Wide Web Consortium 2013b, PROV-O: The PROV

Ontology, W3C Recommendation, World Wide Web

Consortium, Geneva.

Zawoad, S., Hasan, R., Islam, M.K., 2018. SECProv:

Trustworthy and Efficient Provenance Management in

the Cloud. In INFOCOM’2018, IEEE Conference on

Computer Communications: pages 1241-1249. IEEE

Zou, J., 2016. Accountability in cloud services. PhD Thesis.

Macquarie University, Sydney.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

436
