CVSS-based Estimation and Prioritization for Security Risks

Roman Wirtz and Maritta Heisel

Working Group Software Engineering, University of Duisburg-Essen, Oststr. 99, Duisburg, Germany

Keywords:

Security Risk, Risk Management, Risk Estimation, CVSS, Pattern, Requirements Engineering.

Abstract:

During software development, it is of essential importance to consider security threats. The number of reported

incidents and the harm for organizations due to such incidents highly increased during the last few years. The

efforts for treating threats need to be spent in an effective manner. A prioritization can be derived from the

risk level of a threat, which is deﬁned as the likelihood of occurence and the consequence for an asset. In this

paper, we propose a risk estimation and evaluation method for information security based on the Common

Vulnerability Scoring System (CVSS). Our method can be applied during requirements engineering. The

application in one of the earliest stages of a software development lifecycle enables security engineers to

focus on the most servere risks right from the beginning. As initial input, we make use of a pattern-based

description of relevant threats to the software. When estimating the risk level of those threats, we consider

three perspectives: (1) software providers, (2) data owner, and (3) third parties for which a potential harm

may exist, too. Our method combines attributes of the pattern and the different perspectives to estimate and

prioritize risks. The pattern-based description allows a semi-automatic application of our method, which ends

with a ranking of risks according to their priority as ﬁnal outcome.

1 INTRODUCTION

Security is one key factor for building successful soft-

ware. The number of reported security incidents and

the resulting harm for organizations and private stake-

holders highly increased during the last few years.

The effort for protecting against such threats in-

creases, the later one considers them during software

development. Therefore, we advocate the concept of

security-by-design, which means to consider security

aspect as early as possible. Prioritizing threats helps

security engineers to spend the necessary effort in an

effective manner. A prioritization can be performed

based on risks. A risk is deﬁned as the combination

of the likelihood of the occurrence of a threat and its

possible consequence for some asset.

A risk management process describes a set of

coordinated activities to identify, estimate and treat

risks. In this paper, we provide a method that assists

security engineers in estimating and evaluating the

previously identiﬁed risks during requirements engi-

neering. Our method provides novel contributions for

evaluating risks: First, we identify stakeholders for

which consequences may exist and make their con-

sequences explicit when estimating the risks. Sec-

ond, we make use of existing pattern-based threat

knowledge from which we automatically derive con-

sequence values.

The initial input of our method is a set of iden-

tiﬁed threats which are described using an attribute-

based pattern (Wirtz and Heisel, 2019). The pattern

is based on the Common Vulnerability Scoring Sys-

tem (CVSS), which not only provides attributes to de-

scribe vulnerabilities, but also metrics to calculate the

severity of vulnerabilities. In our method, we com-

bine the threat description with the CVSS metrics to

estimate risks. For the estimation, we consider three

different types of stakeholders: (1) software provider,

(2) data owner, and (3) third parties for which a po-

tential harm may exist. Our method starts with iden-

tifying those stakeholders, and we make the value of

the assets explicit for all of these stakeholders. To cal-

culate the severity of a threat, we combine the values

to derive an overall severity. Using risk matrices, we

ﬁrst evaluate the risks with regard to their acceptabil-

ity and ﬁnally, we prioritize unacceptable risks.

The ﬁnal outcome of our method is a list of risks

which are ordered according to their risk level.

The paper is structured as follows: We introduce

relevant background knowledge in Section 2. In Sec-

tion 3, we describe our method, which is the main

contribution of the paper. To exemplify our method,

Wirtz, R. and Heisel, M.

CVSS-based Estimation and Prioritization for Security Risks.

DOI: 10.5220/0007709902970306

In Proceedings of the 14th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2019), pages 297-306

ISBN: 978-989-758-375-9

297

we provide a case study in Section 4. We discuss dif-

ferent aspects and limitations of our approach in Sec-

tion 5, and we discuss related work in Section 6. Fi-

nally, we conclude our work in Section 7 with a sum-

mary and some future research directions.

2 BACKGROUND

In this paper, we make use of the Common Vulnerabil-

ity Scoring System (CVSS) (FIRST.org, 2015) to esti-

mate security risks. It consists of different metrics to

calculate the severity of vulnerabilities. In the follow-

ing, we describe the Base Metric Group and parts of

the Modiﬁed Base Metrics which we will adapt for our

method. For each metric, there is a predeﬁned qual-

itative scale. To each value of the scale, the CVSS

assigns a numerical value. Those numerical values

are then used in formulas to calculate the severity.

(Wirtz and Heisel, 2019) relate the CVSS to the

description of threats for an application during re-

quirements engineering. The authors propose a pat-

tern which describes a threat based on the base met-

rics of the CVSS. Table 1 shows the relevant excerpt

of a pattern instance for the threat Injection. In the

following, we explain the different metrics and corre-

sponding values.

Threat Description A threat might be accidental

or deliberate (Threat Type). A Threat Agent realizes

a threat and can be human, technical or natural. The

Threat Vector (attack vector in CVSS) describes pos-

sible ways how to realize a threat. There are four dif-

ferent values: (1) network, which means access from

an external network; (2) adjacent, which means a lo-

cal network; (3) local, which means direct access to

the computer; and (4) physical, which describes ac-

cess to the hardware.

The Complexity of a threat is deﬁned by two pos-

sible values: low and high. A high effort is required

when a threat agent needs some preparation to real-

ize the threat and that the threat cannot be repeated an

arbitrary number of times.

To state whether privileges are required to suc-

cessful realize the threat, we make use of the corre-

sponding attribute. There are three possible values:

(1) None; (2) Low, e.g. a user account; and (3) High,

administrative rights.

A threat realization may require some User Inter-

action, for example by conﬁrming the installation of

malicious software.

The Threat Scope may change when a threat agent

uses a component to reach other parts of the software.

The impact on conﬁdentiality, integrity and avail-

ability is measured using qualitative scales. The used

scale consists of three values: None, Low and High.

The pattern provides two different attributes

which are not covered by the CVSS base metrics, but

which supports the estimation of the likelihood of the

occurrence of a threat.

We ﬁrst distinguish the Threat Type which might

be Accidental or Deliberate. A Threat Agent which

realizes the threat can be Human, Technical or Natu-

ral.

3 RISK ESTIMATION AND

EVALUATION METHOD

Figure 1 provides an overview of the structure of the

method, which consists of seven steps. Steps that

are marked in gray can be carried out automatically.

From the second to sixth step, the method is carried

out iteratively for all assets. In the following, we de-

scribe the different steps in detail.

3.1 Initial Input

To carry out our method, we require the following ini-

tial input:

1. Assets: Since our method focusses on informa-

tion security, we consider an asset as a piece of

information that shall be protected with regard to

conﬁdentiality, integrity or availability. The deﬁ-

nition of assets is not within the scope of the pa-

per.

2. Identiﬁed Threats: In previous steps of the risk

management process, we identiﬁed threats that

might lead to a harm for at least one asset. Those

threats are represented as instances of the pattern

we introduced in Section 2.

3.2 Step 1: Likelihood Estimation

For each threat that has been identiﬁed, it is neces-

sary to estimate its likelihood of occurrence. We de-

ﬁne that likelihood by its frequency of occurrence per

year.

In contrast to the consequence of a threat, the oc-

currence of it is independent of any asset. Therefore,

we estimate the values in the beginning.

Currently, our method does not support an auto-

mated estimation of likelihoods. Therefore, the step

requires the expertise of security engineers and do-

main experts. Nevertheless, the threat description

may support the estimation. For example, in compa-

nies where computer scientists are working, the like-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

298

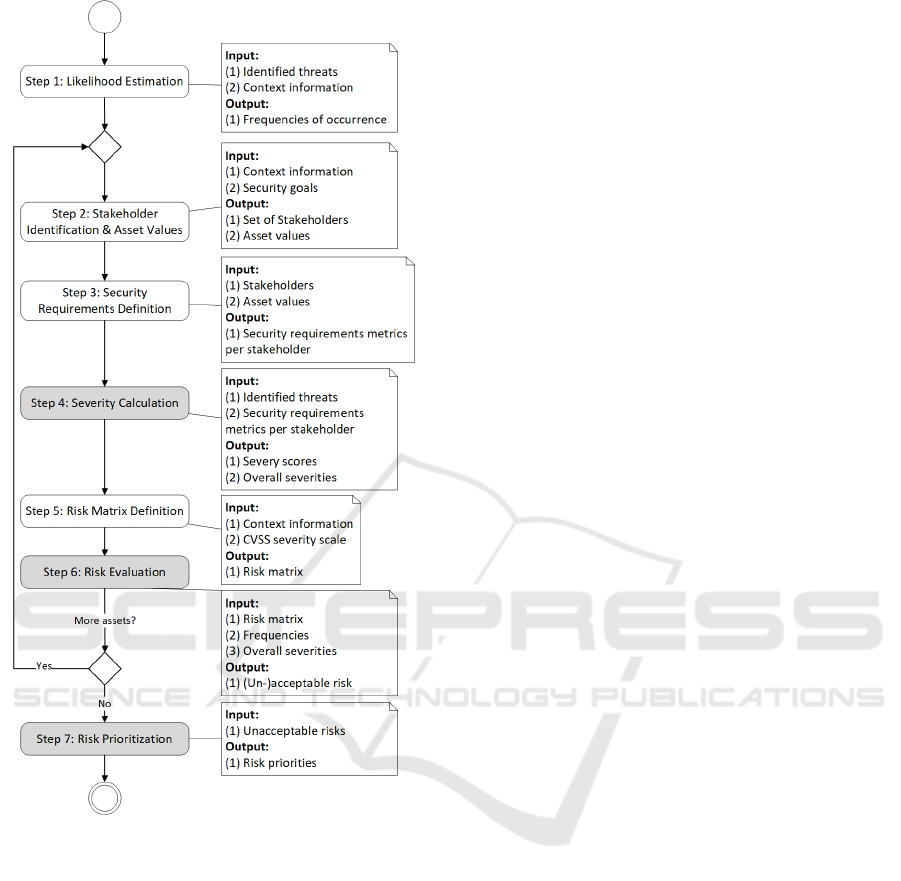

Figure 1: Risk Estimation Method.

lihood of accidental threats for software may be lower

than in other companies.

3.3 Step 2: Stakeholder Identiﬁcation &

Asset Values

The speciﬁc value of an asset may differ for each

stakeholder. For example, harming the integrity of

health records may lead to death for a patient, whereas

for a hospital, it leads to a loss of reputation. In exist-

ing risk management processes, e.g. CORAS (Lund

et al., 2010), security engineers deﬁne a single point

of view to estimate risks. Doing so, consequences for

some stakeholders may be omitted, which leads to in-

complete risk estimations.

A distinguishing feature of our method is that we

make all stakeholders explicit. For each identiﬁed

stakeholder, we estimate the value of an asset with

regard to conﬁdentiality, integrity and availability in-

dependently. Those values are deﬁned independently

of any threat. We consider three types of stakehold-

ers:

Software Provider. Stakeholder or company that is

responsible for the software, e.g. development

and maintenance. Since all assets are related to

the same piece of software, the software provider

is the same for all assets.

Data Owner. Stakeholder to which the asset be-

longs, e.g. a patient is the data owner for his/her

health record. The data owner may also be a com-

pany, for example when protecting business infor-

mation.

Third Parties. Set of other stakeholders for which

consequences might exist. We investigate each

relevant third party independently of each other.

Using a detailed description of the context, in

which the application shall be deployed, we identify

data owner and relevant third parties for each asset.

For each so identiﬁed stakeholder, we estimate the

impact for each security property using the same unit,

e.g. in terms of monetary impact. The monetary im-

pact can also later be used to evaluate the costs of se-

lected controls.

We use a table as shown in Table 4 to document

the stakeholders and the asset values. There is one ta-

ble per asset. Currently, our method does not require

a common format for the context description. There-

fore, the step has to be carried out manually. Using

context patterns, e.g. (Beckers, 2015), security en-

gineers can be assisted in identifying relevant stake-

holders.

3.4 Step 3: Security Requirements

Deﬁnition

Each threat description states the maximum impact

on conﬁdentiality, integrity and availability indepen-

dently of the concrete context. Therefore, the descrip-

tions also do not consider the speciﬁc impact for a

stakeholder. In contrast to existing methods, we put

a special focus on stakeholders and make them ex-

plicit during severity calculation. Therefore, it is nec-

essary to adjust the importance of impact metrics ac-

cordingly.

To reweight the importance of impacts, the CVSS

contains metrics to deﬁne security requirements. The

metric is deﬁned as a qualitative scale with the fol-

lowing values: Not deﬁned, Low, Medium and High.

Not deﬁned means that the asset has no value for the

CVSS-based Estimation and Prioritization for Security Risks

299

stakeholder. Using those metrics, we take the differ-

ent stakeholders into account. We deﬁne security re-

quirements for each stakeholder to reﬂect his/her spe-

ciﬁc value of the asset with regard to conﬁdentiality,

integrity or availability.

Since we deﬁned monetary asset values in the pre-

vious step, security engineers need to derive the quali-

tative metric values manually. We make use of a table,

such as shown in Table 5, to document the security re-

quirements for each asset. Since the value of an asset

does not depend on any threat, we do not need to con-

sider threats in this step.

3.5 Step 4: Severity Calculation

Our method provides an easy and precise way to cal-

culate the severity of a threat with regard to a speciﬁc

asset and the different stakeholders. We consider the

pattern instances of the identiﬁed threats and the secu-

rity requirements metrics of the stakeholder as input.

The severity needs to be calculated for each

threat that might harm the asset under investiga-

tion. Since the impact differs per stakeholder, we

calculate the severity for each stakeholder using the

security requirements metrics and the pattern in-

stances. The CVSS deﬁnes formulas for that calcu-

lation (FIRST.org, 2015), which we will use for that

task.

If a security requirement for a security property

has been set to not deﬁned, it is necessary to adjust the

related impact metric. Not deﬁned means that harm-

ing the security property will not lead to an value loss

for the stakeholder. We then deﬁne a modiﬁed base

metric for that property and set its value to None. Dur-

ing the severity calculation, a modiﬁed base metric

overwrites the base metric provided by the threat de-

scription.

The calculation yields a set of severities per threat.

Next, we combine the values of the set to derive the

overall severity of a threat for an asset. For this,

we propose two different approaches: (1) Taking the

maximal value of the set or (2) calculating the aver-

age of all values. In case that software provider and

data owner are the same for the asset, we consider the

corresponding severity only once. The corresponding

impact for the stakeholder can also happen only once.

For later prioritizing risks, the values have to be com-

parable for all assets. Therefore, the same approach

has to be taken for all calculations.

Since we deﬁned the metrics for the calculation in

previous steps of our method, the calculation can be

automated by implementing the formulas and provid-

ing the threat description and metrics in a machine-

readable way.

3.6 Step 5: Risk Matrix Deﬁnition

When treating risks, it is important to focus on the

most important ones. In a ﬁrst step, it is necessary to

deﬁne risk levels that are considered as acceptable or

unacceptable. Later on, only unacceptable risks need

further inspection and hence, only those risks need

to be prioritized. We make use of risk matrices to

evaluate risks. That kind of matrix has already been

used in other risk methods, for example in CORAS

(Lund et al., 2010).

Deﬁne Scales. Prior to the deﬁnition of the risk ma-

trix, it is necessary to deﬁne its scales. The CVSS

score describes the severity of a threat. The severity

is derived from conditions under which a threat can

be successfully realized and its corresponding impact

on an asset. The second dimension is the likelihood of

the occurrence of a threat as mentioned in the ﬁrst step

of the method. For creating a risk matrix, we deﬁne

intervals for the occurrence which we use to deﬁne a

qualitative scale.

The likelihood scale is the same for all risk ma-

trices and hence, for all assets. Therefore, it is only

necessary to deﬁne it once during method execution.

The severity calculation leads to values between

0 and 10. In the CVSS speciﬁcation document

(FIRST.org, 2015), there is an interval-based quali-

tative scale. It consists of the following values: None,

Low, Medium, High and Critical. We make use of that

scale in our risk matrices.

Deﬁne Risk Matrices. The acceptance threshold for

risk highly depends on the importance of an asset.

Therefore, it is necessary to provide a risk matrix for

each asset. We annotate the severity scale horizontally

and the likelihood scale vertically. For each cell of the

matrix, it is necessary to deﬁne whether the risk level

is acceptable or not. In a graphical representation, we

mark acceptable values in green and unacceptable val-

ues in red. An example of such a risk matrix is shown

in Table 9. Other categories of risks may be added, as

well, e.g. for risks that do not need to be treated but

which shall be monitored.

The likelihood scale might be reused from other

software projects, but the deﬁnition of acceptance

needs some manual interaction. Therefore, we do

consider this step currently as non-automatable.

3.7 Step 6: Risk Evaluation

For each asset, we evaluate the acceptance of identi-

ﬁed risks. The risk of a threat for an asset is com-

posed by its corresponding likelihoods (Step 1) and

the severity for the asset (Step 4). Using these values,

we ﬁll the risk matrix. Those risks which are consid-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

300

ered as unacceptable are prioritized in the next step.

Acceptable risks do not need any further investiga-

tion, and hence will be omitted.

3.8 Step 7: Risk Prioritization

A well known concept for calculating the risk level

is to multiply the likelihood and the severity (Stoner-

burner et al., 2007). For prioritizing risks, we con-

sider the numerical values for likelihood and severity,

which enhances the precision.

We calculate the risk level for all unacceptable

risks. The resulting value states the priority of the

risk. The higher the value, the higher the priority.

The ﬁnal step of our method takes all risks into

account. The ﬁnal outcome of our method is there-

fore a list of all unacceptable risks which are ordered

according to their priority. The list ensures that risks

can be treated in an effective manner by considering

their priority.

Using the calculated values and the results of risk

evaluation, the step can be automated.

4 CASE STUDY

To illustrate our risk estimation and evaluation

method, we make use of a smart home scenario. We

ﬁrst describe the scenario and the initial input, and

then we execute the different steps of our method.

4.1 Scenario & Input

Our scenario is a smart grid which enables the energy

supplier to measure a customer’s power consumption

remotely. The invoices are calculated automatically

based on the measured values. The gateway at the

customer’s home is called Communication Hub, for

which the software shall be developed. It is the bridge

between energy supplier and measuring units. Cus-

tomers can connect to the communication hub using

a mobile app in the local area network to check the

invoices or to change their personal data. The in-

voices are calculated based on the customer’s tariff

parameters, which are stored at the communication

hub, as well as the personal data and the measured

values. As assets, we consider the customer’s tariff

parameters, which shall be protected with regard to

integrity, and customer’s personal data, which shall

be protected with regard to conﬁdentiality.

In the following, we will focus on the functional

requirement for changing personal data for which we

identiﬁed two threats using the method for risk iden-

tiﬁcation as described by (Wirtz and Heisel, 2019).

Table 1: Description of Injection (Wirtz and Heisel, 2019).

Threat Information

Threat Type  Accidental X Deliberate

Threat Agent X Human

 Technical  Natural

Threat Vector  Network X Adjacent

 Local  Physical

Complexity X Low  High

Privileges

Required

 None X Low  High

User

Interaction

X None  Required

Threat Scope  Unchanged X Changed

Conﬁdentiality

Impact

 None  Low X High

Integrity Impact  None  Low X High

Availability Impact  None  Low X High

Injection and Inception are examples of threats for

which we provide pattern instances in Tables 1 and 2.

We will use those threats as the initial input of our

method.

4.1.1 Injection

For an injection (see Table 1), an attacker may take

the role of a user and uses the connection to the gate-

way via the app to insert malicious database queries

and updates. The functional requirement only consid-

ers changing the customer’s personal data. Since the

tariff parameters are stored in the same database, it is

possible to harm the integrity of the asset using mali-

cious updates. The threat agent is deﬁned as deliber-

ate and human. Since the app can be used in the local

area network, the threat vector is deﬁned as adjacent.

The complexity of injecting malicious queries is con-

sidered as low. The threat agent only needs user priv-

ileges to realize the threat, which leads to a low privi-

lege value. There is no additional user interaction and

the threat scope is changed, because the threat agent

uses the software to manipulate the database. In gen-

eral, an injection has possibly a high impact for all

three security properties.

4.1.2 Interception

The threat description for interception is given in Ta-

ble 2. An attacker may also intercept the local net-

work connection (adjacent) to disclose transmitted

data. The threat is relevant for the functional require-

ment of our scenario, because it describes the trans-

mission of personal data. Hence, the threat leads to a

harm of the conﬁdentiality of personal data. The de-

scription of the threat states a human deliberate threat

agent. The threat has a high complexity (and requires

CVSS-based Estimation and Prioritization for Security Risks

301

Table 2: Description of Interception.

Threat Information

Threat Type  Accidental X Deliberate

Threat Agent X Human

 Technical  Natural

Threat Vector  Network X Adjacent

 Local  Physical

Complexity  Low X High

Privileges

Required

 None  Low X High

User

Interaction

X None  Required

Threat Scope X Unchanged  Changed

Conﬁdentiality

Impact

 None  Low X High

Integrity Impact X None  Low  High

Availability Impact X None  Low  High

high privileges. Since the attacker intercepts the con-

nection and only discloses data on that level, the scope

remains unchanged. There is a high impact on conﬁ-

dentiality but no impact on integrity or availability.

In the following, we describe the application of

our method for each step in detail. The ﬁrst step is

applied for both threats, and the following steps are

performed for both assets, tariff parameters and per-

sonal data.

4.2 Step 1: Likelihood Estimation

For our example, we estimate the likelihood for the

occurrence of the threat injection as 25 times a year.

That is, 25 times a year an attacker tries to inject ma-

licious code to manipulate tariff parameters.

The likelihood that an attacker tries to intercept a

local network is considered as 25 times a year, too.

4.3 Step 2: Stakeholder Identiﬁcation &

Asset Values

The software provider in our scenario is the energy

supplier, which is the same for all assets.

Tariff Parameters. The ﬁrst asset are tariff parame-

ters, which shall be protected with regard to integrity.

Since tariff parameters are deﬁned by the energy sup-

plier, we consider that stakeholder as the data owner.

We deﬁne an asset value per customer of 200 e, be-

cause invoices are generated automatically based on

the tariff parameters, and not each invoice is checked

for its correctness by the energy supplier. A lower in-

voice amount will lead to a loss of money, whereas a

higher amount might harm the reputation of the com-

pany and also produces effort to correct the incor-

rect invoices manually. In case that the tariff parame-

ters are not manipulated by customers themselves, we

Table 3: Stakeholders and Values for Tariff Parameters.

Stakeholder Conf. Integr. Avail.

(SP) Energy

Supplier

– 200e –

(DO) Energy

Supplier

– 200e –

(TP) Customer – 50e –

Table 4: Stakeholders and Values for Personal Data.

Stakeholder Conf. Integr. Avail.

(SP) Energy

Supplier

400e – –

(DO) Customer 50e – –

consider customers as a relevant third party. Manipu-

lated tariff parameters lead to an incorrect invoice and

may request the customer to pay more money than

necessary. Since most customers check their invoices,

we estimate an impact only at 50 e. Customers who

check their invoices and ﬁnd errors still have to spend

some effort to get it sorted. Table 3 summarizes the

results for the asset tariff parameters. SP stands for

software provider, DO for data owner and TP for third

party. We only deﬁne values for integrity, because the

scenario only requires that security property.

Personal Data. The second asset is the personal data

of the customer who is the data owner. There are

no other third parties. When personal data is dis-

closed, the software provider may be liable for dam-

ages. Therefore, we estimate a value of 400e per cus-

tomer. The personal data only consists of the cus-

tomer’s address to provide the invoice, which may

also be accessible via the phone book. Therefore, we

do not consider address data as highly sensitive infor-

mation, and we estimate a relatively low value of 50e

for the data owner.

4.4 Step 3: Security Requirements

Deﬁnition

Tariff Parameters. For the asset tariff parameters,

there is no impact on conﬁdentiality and availability

for both stakeholder. The security requirement met-

ric for both security properties is set to not deﬁned

(–). Using the previously deﬁned asset values, we de-

ﬁne the impact on integrity for the energy supplier as

medium and for customers as low. The values are doc-

umented in Table 5.

Personal Data. For the second asset, there is only an

impact on conﬁdentiality. For the customer, we deﬁne

the impact as low, whereas for the software provider,

the impact is medium. The results are documented in

Table 6.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

302

Table 5: Security Requirements Metrics for Tariff Parame-

ters.

Stakeholder Conf. Integr. Avail.

(SP) Energy

Supplier

– Medium –

(DO) Energy

Supplier

– Medium –

(TP) Customer – Low –

Table 6: Security Requirements Metrics for Personal Data.

Stakeholder Conf. Integr. Avail.

(SP) Energy

Supplier

Medium – –

(DO) Customer Low – –

4.5 Step 4: Severity Calculation

In our example, there is one threat per asset for which

we need to calculate its severity.

Tariff Parameters. For the asset tariff parame-

ters, we identiﬁed the threat Injection. The formu-

las provided by the CVSS speciﬁcation document

(FIRST.org, 2015) are ﬁlled with the base metrics

contained in the instance of the threat pattern. In the

third step of our method, we deﬁned security require-

ments metrics. Since the metrics for conﬁdentiality

and availability have been set to not deﬁned, we de-

ﬁne corresponding modiﬁed base metrics which are

set to none.

The severity needs to be calculated for the energy

supplier and the customer independently. For the cal-

culation, we use a web-based tool

which takes the

metric values as an input and calculates the severity

automatically based on the deﬁned formulas. The re-

sults of the calculation are summarized in Table 7.

There is one column per threat in which we state the

corresponding severity for the energy supplier and

the costumer, the maximum severity and the aver-

age severity. In our example, software provider and

data owner are the same. Therefore, that stakeholder

counts only once for calculating the average.

Personal Data. The severity of the threat Interception

for the asset personal data is calculated in the same

manner. We state the corresponding results in Table 8.

Here, we do not have any third party. The average

severity is only calculated based on software provider

and data owner.

4.6 Step 5: Risk Matrix Deﬁnition

Likelihood Scale. We deﬁne a qualitative likelihood

scale for the frequency of occurrences per year with

https://www.ﬁrst.org/cvss/calculator/3.0 - CVSS Cal-

culator v3 (last accessed on 26 November 2018)

Table 7: Severity for Tariff Parameters.

Stakeholder Severity of Injection

(SP) Energy Supplier 6.8

(DO) Energy Supplier 6.8

(TP) Customer 4.5

Average 5.65

Maximum 6.8

Table 8: Severity for Personal Data.

Stakeholder Severity of Interception

(SP) Energy Supplier 4.2

(DO) Customer 2.4

Average 3.3

Maximum 4.2

the following values: Never, Seldom (up to 20 times

a year), Frequently (up to 50 times a year) and Often

(more than 50 times a year).

Risk Matrix. We deﬁne a risk matrix to evaluate

whether a risk is acceptable or unacceptable. On

the vertical axis, we annotate the previously deﬁned

likelihood scale and on the horizontal axis we anno-

tate the CVSS severity score. The resulting matrix

is shown in Table 9. Acceptable risks are shown in

green and unacceptable risks are shown in red. In the

present example, we use the same matrix for both as-

sets.

Table 9: Risk Matrix.

None

0.0

Low

0.1–3.9

Med.

4.0–6.9

High

7.0–8.9

Critical

9.0–10.0

Never

0 times

Seldom

≤ 20 times

Freq.

≤ 50 times

Avg

Max

Often

> 50 times

Table 10: Calculated Risk Levels.

Risk Likelihood Maximal

Severity

Risk Level

R1 25 6.8 170

R2 25 4.2 105

CVSS-based Estimation and Prioritization for Security Risks

303

4.7 Step 6: Risk Evaluation

To evaluate the risks, we make use of the risk matrix

shown in Table 9.

Tariff Parameters. For the asset tariff parameters,

there is one risk concerning the threat Injection. In

Table 9, we use R1 as an abbreviation for the cor-

responding risk. Max indicates the risk level when

using the maximal value of all severities, and avg in-

dicates the average value. Both approaches lead to an

unacceptable risk which is indicated by a red cell.

Personal Data. For the asset personal data, there is

a risk for the threat Interception. In Table 9, we use

R2 as an abbreviation for the corresponding risk. Us-

ing the risk matrix, we consider the risk as acceptable

for using the average value for the severity, which is

indicated by the green cell. The risk is unacceptable

for using the maximum of all severities. Hence, fur-

ther inspection of the threat is necessary for the asset

personal data when taking the maximum severity.

4.8 Step 7: Risk Prioritization

To prioritize risks, we multiply likelihood and sever-

ity for each unacceptable risk. The higher the calcu-

lated value, the higher the priority of the risk.

Using the average of the severities, we only identi-

ﬁed one unacceptable risk in the sixth step. Therefore,

a prioritization is not necessary.

Using the maximum of the severities, there are

two risks that need to be prioritized: R1, risk of in-

jection for the asset tariff parameters; and R2, risk of

interception for the asset personal data. The results of

the calculation are summarized in Table 10. The risk

of injection has a higher level, and hence will have

priority during risk treatment.

5 DISCUSSION

Based on the description of our method in Section 3

and the application for the case study in Section 4, we

discuss beneﬁts and limitations of our method.

5.1 Usability

Threats that have been identiﬁed during risk identiﬁ-

cation are described in a pattern format. Limiting the

effort for security engineers, the pattern allows to cal-

culate the severity without collecting additional infor-

mation about the threat. For each step, we explicitly

state input, output and procedure which assists engi-

neers in applying our method. Additionally, we pro-

vide a structured documentation for the outcome of

each step in form of tables. We designed our method

in such a way that it can be easily integrated into a

tool (see future research directions in Section 7). To

limit the effort for applying our method, we describe

how steps can be automated.

Nevertheless, the security engineers need some

speciﬁc expertise, for example in estimating the like-

lihood for a threat. Using the table-based documenta-

tion, we aim to assist security engineers in collecting

and documenting the results in an effective and struc-

tured way.

5.2 Scalability

The complexity of our method mainly depends on the

number of assets, threats and identiﬁed stakeholders.

The complexity of the ﬁrst step which deals with the

likelihood estimation of identiﬁed threats cannot be

improved. It is always necessary to estimate the like-

lihood of a threat depending on the concrete context.

Since we identify different stakeholders for esti-

mating the severity of a threat, we increase the com-

plexity of some steps. When omitting the stakehold-

ers, we will improve the scalability of our method but

the estimated risk levels will be less precise. There-

fore, it is necessary to ﬁnd a compromise between

both limitations. We automated all steps as much as

possible to limit the manual effort for engineers to

perform those steps. The required calculation is sim-

ple enough to ensure a good scalability. The CVSS

provides a format to store the values of the different

metrics in a vector string. Such a simple format sup-

ports the scalability for larger applications, since it is

easy to use and does not require much storage or com-

plex calculations.

5.3 Precision

To calculate the severity of a threat with regard to a

speciﬁc asset, we use the CVSS. The deﬁned metrics

are widely accepted by the community and many in-

dustrial partners to estimate the severity of vulnera-

bilities. Based on the threat description pattern (cf.

Section 2), we adapted the scoring system to estimate

the severity of threats. The corresponding formulas

to calculate the score have been deﬁned by security

experts based on real vulnerabilities. Although the

metrics and formulas have been deﬁned on sound ex-

pertise, there are limitations in their precision. The

instances of the threat pattern do not consider the con-

crete context of the application, and the values for the

metrics are qualitative. As mentioned above, prede-

ﬁned scales have the beneﬁt of a better usability. We

try to address the issue with a context-independent de-

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

304

scription by an explicit identiﬁcation of stakeholders

and by adjusting the base metrics.

To evaluate risks, we make use of qualitative

scales in risk matrices. Those scales are only used

to deﬁne intervals for risk acceptance. The scales we

use in this paper can be easily replaced by arbitrary

ones with a more ﬁne-grained resolution. For priori-

tizing risks, we use the numerical values of frequency

and severity which leads to a higher precision when

calculating the priority for a risk.

6 RELATED WORK

To identify related work, we performed a simpliﬁed

literature review using Scopus

. We used the built-

in search engine to identify relevant publications that

either describe a risk estimation or risk evaluation

method. Those methods should be applicable during

requirements engineering and should put a special fo-

cus on security.

Argyropoulos et al. (Argyropoulos et al., 2018)

suggest to use the analytic hierarchy process (AHP)

(Saaty, 1988) in the context of security. The AHP

method allows to prioritize risks relatively to each

other. The approach has a high precision but requires

an overhead in terms of effort because all risks need

to be compared pair-wise.

(Llans

o et al., 2015) considers the level of effort

to realize a cyber attack as an important factor to de-

termine the likelihood of the attack. The authors pro-

pose a model-based algorithm to estimate such effort.

In our approach, we consider the level of effort by

some attributes of the CVSS, e.g. threat vector. The

proposed algorithm may improve the precision of our

method.

Using Bayesian Networks and agent-based simu-

lation, other authors aim to provide a probabilistic ap-

proach to support risk analysis (Tundis et al., 2017b;

Tundis et al., 2017a). There, a risk level is deﬁned

as the percentage of failure for a functionality. Us-

ing the mentioned approaches, it is possible to ana-

lyze the propagation of risks throughout the system’s

components. There is no prioritization of risks, but

the approaches may extend our method to analyze the

dependencies between different risks.

ArgueSecure (Ionita et al., 2017) is a method for

argument-based risk assessment that does not rely on

any quantitative estimation of risks. The proposed

framework relies on a qualitative method that is per-

formed in brainstorming sessions. The results are

www.scopus.com - Scopus (last accessed on 4 Decem-

ber 2018)

documented in a tree structure. The proposed graph-

ical notation is designed for an application by non-

experts, but there are no explicit risk levels, which

makes it hard to evaluate the identiﬁed risks. CORAS

(Lund et al., 2010) combines a graphical notation for

risk identiﬁcation in brainstorming sessions with a

semi-quantitative risk evaluation.

SERA (Abeywardana et al., 2016) is a risk anal-

ysis framework with a special focus on social engi-

neering attacks. The importance of human factors

is also mentioned in other publications (e.g. (Rajb-

handari, 2013)). Currently, neither the CVSS nor our

method supports the consideration of social engineer-

ing, which is a limitation.

Islam et al. (Islam et al., 2016) propose an

attribute-based estimation of risks which is based on

the Common Criteria (Common Criteria, 2017). The

attributes to deﬁne the likelihood are comparable to

the CVSS, whereas the impact is not measured with

regard to a speciﬁc security property. The values for

the attributes need to be set manually, whereas we

make use of existing pattern-based threat knowledge.

Elahi et al. (Elahi et al., 2010) make use of a quali-

tative method to analyze goal models. The i*-notation

has been extended to model attacks. The authors men-

tion that the qualitative evaluation makes an applica-

tion easier, but it is less precise.

Another approach is to combine threat trees with

Monte Carlo models (Pardue et al., 2009). The risk

is deﬁned by a set of parameters, such as complexity

and motivation of an attacker. The assigned values

are used for a Monte Carlo simulation to estimate risk

values. The method does not rely on existing threat

knowledge and does not allow to prioritize risks.

Labunets et al. have carried out a study to com-

pare graphical and tabular representations for security

risk assessment (Labunets et al., 2017). The results

of the study revealed that there is no signiﬁcant dif-

ference between both representations with regard to

the perceived efﬁcacy. Our method relies on tabular

descriptions for the results and does not contain any

graphical notation. Since the study shows the equiva-

lence of both notations, there is no need to add such a

notation.

In contrast to our method, none of the mentioned

methods makes different stakeholders’ perspectives

explicit for estimating risks. To the best of our knowl-

edge, it is a novelty in our method.

7 CONCLUSION

In this paper, we proposed a semi-automatic method

to estimate and evaluate security risks. Our method

CVSS-based Estimation and Prioritization for Security Risks

305

has been designed for an application during require-

ments engineering, which enables security engineers

in focusing on the most severe risks right from the

beginning of a software development process. The

distinguishing features of our method are:

(1) We make the impact for different stakeholders

explicit. The different perspectives improve the pre-

cision of the risk estimation.

(2) Our method makes use of pattern instances

based on the CVSS for describing identiﬁed threats.

The pattern format simpliﬁes the risk estimation.

(3) We provide guidance for each step by deﬁning

input and output and describing its execution in detail.

Since our method is semi-automatic, we reduce the

manual effort for security engineers in applying it.

Based on our method, we plan to assist security

engineers in selecting and evaluating controls. To do

so, we will adapt our method to suggest a combination

of controls that provides a sufﬁcient risk reduction.

The selection will be based on the risk priorities and

the effort for applying a control.

Currently, we only take security for software-

based systems into account. In future work, we plan

to investigate how our method can improve the evalu-

ation of privacy and safety risks. Depending on the

context, we will elaborate whether it is possible to

combine the process for security, privacy and safety.

As mentioned in Section 5, we will develop a tool

for our method. The tool will be designed in form of

a workﬂow that asks the engineers for inserting the

required data, documents the results in a usable way

and ﬁnally provides a list of risks with the assigned

priority.

REFERENCES

Abeywardana, K., Pﬂuegel, E., and Tunnicliffe, M. (2016).

A layered defense mechanism for a social engineering

aware perimeter. pages 1054–1062.

Argyropoulos, N., Angelopoulos, K., Mouratidis, H., and

Fish, A. (2018). Risk-aware decision support with

constrained goal models. Information and Computer

Security, 26(4):472–490.

Beckers, K. (2015). Pattern and Security Requirements

- Engineering-Based Establishment of Security Stan-

dards. Springer.

Common Criteria (2017). Common Criteria for Informa-

tion Technology Security Evaluation v3.1. Release 5.

Standard.

Elahi, G., Yu, E., and Zannone, N. (2010). A vulnerability-

centric requirements engineering framework: analyz-

ing security attacks, countermeasures, and require-

ments based on vulnerabilities. Requirements Engi-

neering, 15(1):41–62.

FIRST.org (2015). Common Vulnerability Scor-

ing System v3.0: Speciﬁcation Document.

https://www.ﬁrst.org/cvss/cvss-v30-speciﬁcation-

v1.8.pdf.

Ionita, D., Kegel, R., Baltuta, A., and Wieringa, R. (2017).

Arguesecure: Out-of-the-box security risk assess-

ment. pages 74–79.

Islam, M. M., Lautenbach, A., Sandberg, C., and Olovsson,

T. (2016). A risk assessment framework for automo-

tive embedded systems. In Proceedings of the 2Nd

ACM International Workshop on Cyber-Physical Sys-

tem Security, CPSS ’16, pages 3–14, New York, NY,

USA. ACM.

Labunets, K., Massacci, F., and Paci, F. (2017). On the

equivalence between graphical and tabular represen-

tations for security risk assessment. Lecture Notes in

Computer Science, 10153 LNCS:191–208.

Llans

o, T., Dwivedi, A., and Smeltzer, M. (2015). An ap-

proach for estimating cyber attack level of effort. 2015

Annual IEEE Systems Conference (SysCon) Proceed-

ings, pages 14–19.

Lund, M. S., Solhaug, B., and Stølen, K. (2010).

Model-Driven Risk Analysis. The CORAS Approach.

Springer.

Pardue, H., Landry, J., and Yasinsac, A. (2009). A risk as-

sessment model for voting systems using threat trees

and monte carlo simulation. In 2009 First Interna-

tional Workshop on Requirements Engineering for e-

Voting Systems, pages 55–60.

Rajbhandari, L. (2013). Consideration of opportunity and

human factor: Required paradigm shift for informa-

tion security risk management. In 2013 European In-

telligence and Security Informatics Conference, pages

147–150.

Saaty, T. L. (1988). What is the analytic hierarchy process?

In Mitra, G., Greenberg, H. J., Lootsma, F. A., Ri-

jkaert, M. J., and Zimmermann, H. J., editors, Mathe-

matical Models for Decision Support, pages 109–121,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Stonerburner, G., Goguen, A., and Feringe, A. (2007). Risk

management guide for information technology sys-

tems, 2002 (nist special publication 800-30).

Tundis, A., M

uhlh

auser, M., Gallo, T., Garro, A., Sacc

a, D.,

Citrigno, S., and Graziano, S. (2017a). Systemic risk

analysis through se methods and techniques. volume

2010, pages 101–104. cited By 0.

Tundis, A., M

uhlh

auser, M., Garro, A., Gallo, T., Sacc

a, D.,

Citrigno, S., and Graziano, S. (2017b). Systemic risk

modeling & evaluation through simulation & bayesian

networks. volume Part F130521. cited By 0.

Wirtz, R. and Heisel, M. (2019). A systematic method to

describe and identify security threats based on func-

tional requirements. In Zemmari, A., Mosbah, M.,

Cuppens-Boulahia, N., and Cuppens, F., editors, Risks

and Security of Internet and Systems, pages 205–221,

Cham. Springer International Publishing.

ENASE 2019 - 14th International Conference on Evaluation of Novel Approaches to Software Engineering

306
