Abstract: Context: Software inspection represents an effective way to identify defects in early phase software artifacts,

such as models. Unfortunately, large models and associated reference documents cannot be thoroughly in-

spected in one inspection session of typically up to two hours. Considerably longer sessions have shown a

much lower defect detection efficiency due to cognitive fatigue. Goal: The goal of this paper is to propose

and evaluate a Model Scoping approach to allow inspecting specific parts of interest in large models. Method:

First, we designed the approach, which involves identifying Expected Model Elements (EMEs) in selected

parts of the reference document and then using these EMEs to scope the model (i.e., remove unrelated parts).

These EMEs can also be used to support inspectors during defect detection. We conducted a controlled ex-

periment using industrial artifacts. Subjects were asked to conduct UML class diagram inspections based on

selected parts of functional specifications. In the experimental treatment, Model Scoping was applied and

inspectors were provided with the scoped model and the EMEs. The control group used the original model

directly, without EMEs. We measured the inspectors’ defect detection effectiveness and efficiency and col-

lected qualitative data on the perceived complexity. Results: Applying Model Scoping prior to the inspection

significantly increased the inspector defect detection effectiveness and efficiency, with large effect sizes.

Qualitative data allowed observing a perception of reduced complexity during the inspection. Conclusion:

Being able to effectively and efficiently inspect large models against selected parts of reference documents is

a practical need, in particular in the context of incremental and agile process models. The experiment showed

promising results for supporting such inspections using the proposed Model Scoping approach.

1 INTRODUCTION

Software engineering models represent abstractions

for different aspects of a software system (e.g., struc-

ture, behaviour, or interaction). The quality of such

models can be of key importance for completing pro-

jects successfully (Lange and Chaudron, 2005).

Hence, the verification of models prior to the creation

of software is of particular relevance for high-quality

information systems analysis.

Verifying the correct representation of domain

concepts in software models requires human

knowledge of the domain. Software inspection meth-

ods (Thelin et al., 2003; Travassos et al., 1999) have

been found effective to detect defects in requirements

and software models in empirical studies (El-

berzhager et al., 2012).

Software model inspection typically requires

checking whether a conceptual model correctly and

completely represents the content of suitable refer-

ence documents, such as systems specifications. In

practice, models representing abstractions of large en-

terprise information systems tend to be large as well

(e.g., UML class diagrams for large information sys-

Neto, C., Neto, A., Kalinowski, M., Moraes de Oliveira, D., Sabou, M., Winkler, D. and Bifﬂ, S.

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment.

DOI: 10.5220/0007691001070118

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 107-118

ISBN: 978-989-758-372-8

107

tems may have hundreds of domain classes). Unfor-

tunately, model inspection studies have only focused

on the inspection of small-to-medium sized models so

far.

Hence, an important question is how to address

cases where large models need to be inspected against

their associated reference documents, i.e., involving

inspection materials beyond the size that an inspector

can cover within the limitations of a traditional one-

pass inspection process (Laitenberger and DeBaud,

2000), of typically up to two hours.

The strategy investigated in this paper to tackle

this problem involves scoping the model for selected

parts of the reference documents. It is noteworthy that

nowadays software is typically developed following

iterative or agile processes (Theocharis et al., 2015),

where new specifications (e.g., user stories or use

cases and their descriptions) are added incrementally.

Hence, being able to effectively and efficiently in-

spect large models against selected (or incremental)

parts of reference documents is a practical need.

We introduce the model scope concept as a well-

defined model part that acts as a filter or view show-

ing only relevant model elements. Our proposed

Model Scoping with Expected Model Elements ap-

proach consists of identifying Expected Model Ele-

ments (EMEs) in the selected parts of the reference

document and then using these EMEs to: (a) scope the

model (remove unrelated parts) and (b) guide the in-

spectors during defect detection. The idea of identify-

ing EMEs within reference documents has been used

to allow supporting inspection with crowdsourcing

(Winkler et al., 2017). In this paper, we investigate

using the EMEs for model scoping.

We conducted a controlled experiment with stu-

dents using real industrial artifacts (UML class dia-

grams and selected parts of functional specifications)

aiming to understand how Model Scoping would in-

fluence the model inspection effectiveness and effi-

ciency. Subjects were asked to conduct UML class di-

agram inspections based on selected parts of func-

tional specifications for two different modules. In the

experimental treatment Model Scoping with EMEs

was applied and inspectors were provided with the

EMEs and the scoped model. The control group used

the original model directly, without EMEs.

Applying Model Scoping with EMEs prior to in-

spection significantly increased the inspector defect

detection effectiveness and efficiency. While this pa-

per presents the first reference-document-based

Model Scoping approach and it positively influenced

model inspection effectiveness and efficiency, apply-

ing it properly requires some effort and being able to

correctly identify EMEs in selected parts of the refer-

ence document.

The remainder of this paper is organized as fol-

lows. Section 2 presents the background and related

work. Section 3 describes the Model Scoping ap-

proach. Sections 4 and 5 present the experimental

study and its results. Section 6 discusses the results.

Section 7 concerns the threats to validity. Finally,

Section 8 concludes and identifies future work.

2 SOFTWARE MODEL

INSPECTIONS

Software inspection (Fagan, 1976) is a well-estab-

lished formal defect detection approach that enables

efficient defect detection in early software develop-

ment phases, e.g., during software design.

Over the years, some research has been reported

regarding model inspections. Travassos et al. (1999),

for instance, introduced a reading technique for in-

specting object-oriented UML structure and behav-

iour models regarding the consistency between mod-

els and reference information. Sabaliauskaite et al.

(2002; 2003; 2004) conducted controlled experiments

with UML documents to compare and evaluate the ef-

fectiveness and efficiency of reading techniques with

different levels of guidance. Thelin et al. (2003) in-

troduced usage-based reading to guide inspectors by

first prioritizing business scenarios and then checking

whether a design model correctly represented the in-

formation of the most important business scenarios.

These studies have focused on a complete scope

of work, typically involving small-to-medium sized

models and their related reference documents, which

an average inspector can address in two hours to mit-

igate risks from fatigue. However, the studies did not

consider how to address larger inspection objects

(e.g., larger models and/or larger reference docu-

ments). Therefore, it is unclear to what extent their

findings hold for (parts of) larger software artifacts.

Winkler et al. (2017a; 2017b; 2018) investigated dis-

tributing the effort of model inspection on a group of

inspectors by using crowdsourcing. While inspectors

had to focus on specific parts of a model, model scop-

ing was not directly considered in these investiga-

tions.

The idea of using model scoping to support soft-

ware inspections was also explored by Briand et al.

(2014). Their results show a significant decrease in

effort and an increase in decisions correctness when

models are filtered prior to inspection. However, they

focused on a particular problem, extracting design

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

108

slices (model fragments) to support safety inspection.

In contrast, the approach proposed in this paper, de-

tailed in the next section, is generic and not restricted

to a particular type of requirements.

3 MODEL SCOPING WITH EMES

The core idea of the approach Model Scoping with

EMEs is to define a model scope based on a selected

part of the reference documents (e.g., a selected part

of a large functional specification). The scoping is

conducted based on Expected Model Elements

(EMEs). The EMEs for the selected part of the refer-

ence documents should be identified and used to: (a)

scope the model (remove parts that are not related to

the EMEs) and (b) guide the inspectors during defect

detection.

To help identifying the EMEs in the reference

documents, guidelines commonly applied when de-

signing the model could be used. For instance, Lar-

man (2004) presents guidelines for identifying clas-

ses, attributes, operations and relationships for UML

class diagrams based on requirements. Alternatively,

Sabou et al. (2018) argue on the feasibility of using

expert sourcing for such purpose. While such alterna-

tives could be applied, for simplification purposes, in

the scope of this paper, we consider that Model Scop-

ing with EMEs is applied by a specific role, which

typically could be conducted by someone with skills

similar to the ones required for identifying such ele-

ments when designing conceptual models (e.g., a re-

quirements analyst).

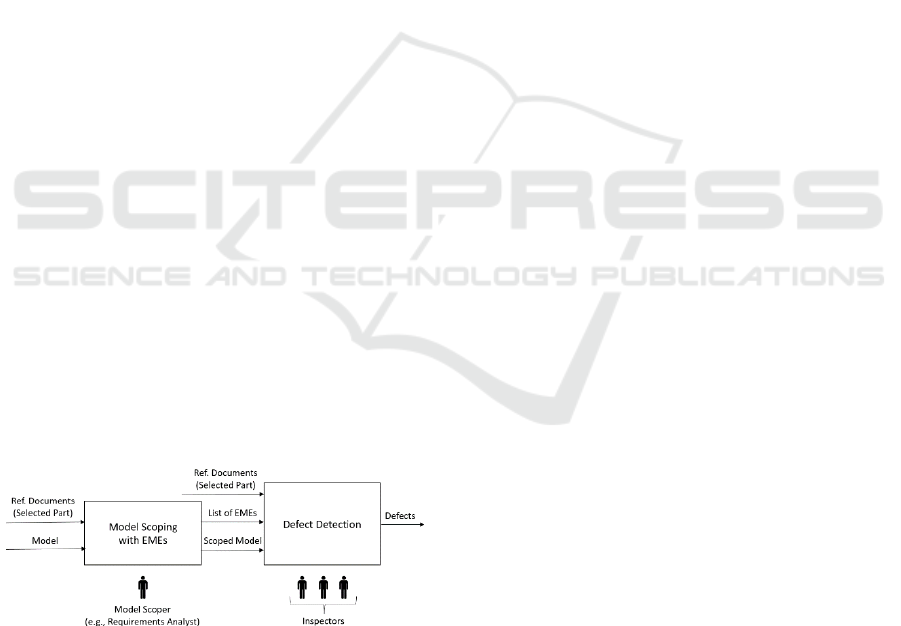

Figure 1 outlines the context in which the Model

Scoping with EMEs approach is applied. Inputs are

the selected part of the reference documents and the

model to be reviewed, outputs are the list of EMEs

and the scoped model.

Figure 1: Model Scoping with EMEs approach.

Model Scoping with EMEs itself is conducted by

following 3 steps:

1. Based on the type of model to be inspected, define

the types of EMEs to be identified (e.g., for UML

class diagrams, EME types are classes, attributes,

operations and relationships; for UML state dia-

grams, EME types are states and transition

events).

2. Read the selected part of the reference documents

and identify the list of EMEs (existing guidelines

for identifying EMEs may be used to support this

step).

3. Scope the model by removing model elements

that are not in the list of EMEs. While doing so, to

avoid removing relevant contextual (closely re-

lated) information, the following elements should

not be removed: (a) elements that represent rela-

tionships among elements included in the list of

EMEs (e.g., an association between classes in an

UML class diagram or a transition between two

states in an UML state diagram); and (b) elements

that are contained in an element included in the

list of EMEs (e.g., attributes of a class in an UML

class diagram).

During defect detection (not part of the Model

Scoping with EMEs approach), inspectors can use the

list of EMEs and the reference documents to verify

whether the EMEs are correctly represented in the

scoped model as foundation for reporting defects.

4 EXPERIMENT DESCRIPTION

Aiming to understand how Model Scoping with EMEs

would influence the model inspection effectiveness

and efficiency, we designed and conducted an exper-

imental study. The goal, planning (i.e., context, vari-

ables, hypotheses, subject selection, design, and in-

strumentation), and operation of the experiment are

detailed in the following subsections.

4.1 Experiment Goal

The experiment goal was defined based on the GQM

(Goal-Question-Metric) template (van Solingen et al.,

2002). Table 1 presents the experiment goal.

It is noteworthy that, while the approach is in-

tended to be generic (i.e., applicable to any type of

model), we instantiated the experiment using UML

class diagrams to be inspected with respect to func-

tional information system specifications.

Based on our goal, we derived the following re-

search question: What is the impact of Model Scoping

with EMEs on inspection effectiveness and effi-

ciency? The variables used to answer this research

question are described in detail in Subsection 4.3.

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment

109

Table 1: Experiment goal.

Analyze

the inspection of UML class diagrams

using Model Scoping with EMEs

or the purpose o

characterization

with respect to

inspection effectiveness & efficiency

rom the point of

view of

he information systems researche

in the context o

UML class diagram inspection based

on a valid functional specification,

conducted by novice inspectors, when

compared to not using Model Scoping

with EMEs.

4.2 Experiment Context

The experiment was conducted in two undergraduate

class room trials, representing exact internal replica-

tions, involving students enrolled in Software Engi-

neering classes at the Fluminense Federal University.

These students were asked to review UML class dia-

grams based on correct functional specifications.

In order to make the context more representative,

we selected artifacts from a real industrial software

project. The project concerned the development of an

integrated management system, with several mod-

ules. We selected the functional specification and

class diagrams of two modules, one module concern-

ing simpler administrative functions and the other

module more complex financial billing services. Each

functional specification contained an overview de-

scription, a list of functional requirements, use case

diagrams, and use case descriptions. It is noteworthy

that the specifications had been reviewed by profes-

sionals and validated by industrial stakeholders.

For the experiment, we selected excerpts of each

functional specification related to specific use cases,

which were good representatives of use cases to be

implemented in a next development cycle and against

which the model should be verified before implemen-

tation. The excerpt of the administrative module com-

prised the contextual information (i.e., overview,

functional requirements, use case diagram, and use

case descriptions) for four small use cases, while the

excerpt of the financial billing module comprised the

contextual information for two more complex use

cases. These specifications were assumed to be cor-

rect. We seeded each class diagram with 28 artificial

defects related to the respective functional specifica-

tion excerpts. For distributing the types of defects, we

considered the defect taxonomy proposed by Shull

(1998), containing the types ambiguity, incon-

sistency, incorrect fact, omission, and extraneous in-

formation. We seeded 7 defects of each type (except

inconsistency, given that each task involved inspect-

ing a single model that could therefore not be incon-

sistent with others). The seeding also considered in-

cluding defects of different difficulty levels (easy,

medium, and hard) for each type.

The first author applied the Model Scoping with

EMEs activity, building the lists of EMEs and the

scoped models for both class diagrams using the func-

tional specifications excerpts. The third author re-

viewed this activity.

4.3 Variables Selection

The independent variable in the inspection experi-

ment is the treatment applied by the groups in order

to find defects in the UML model. While both groups

used an ad-hoc inspection technique (i.e., no specific

reading technique), the experimental group received

the Defect Taxonomy, the list of EMEs, and the

scoped model, and the control group received the De-

fect Taxonomy and the full model.

Regarding dependent variables, we used in the in-

spection experiment effectiveness and efficiency, de-

fined as follows:

 Effectiveness is the ratio between the number of

real defects found and the total number of known

defects.

 Efficiency is the ratio between the number of real

defects found and the time spent.

Besides measuring these variables, we collected

qualitative feedback in a follow-up questionnaire, in-

spired by the Technology Acceptance Model (TAM)

questionnaire (Davis, 1989) regarding the perceived

usefulness, ease of use, and behavioral intention of

adoption. TAM provides proper theoretical constructs

and has been extensively used and validated for this

purpose (Turner et al., 2010).

4.4 Hypotheses

Using the variables described in the previous subsec-

tion, we defined the following null hypotheses:

 H

– there is no difference in the effectiveness

when inspecting UML class diagrams with or

without using Model Scoping with EMEs.

 H

– there is no difference in the efficiency when

inspecting UML class diagrams with or without

using Model Scoping with EMEs.

4.5 Selection of Subjects

Subjects were intended to represent novice inspec-

tors, to avoid specific knowledge on inspection tech-

niques as a significant confounding factor. We se-

lected students from two undergraduate classes on

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

110

Software Engineering at the Fluminense Federal Uni-

versity, involving 44 daily shift and 10 nightly shift

students.

All students filled in a characterization form with

objective questions to inform us about their expertise

in the topics related to the study: (a) their experience

with software development; (b) their experience in

object-oriented modeling (UML); and (c) their expe-

rience in software inspection. We collected the in-

spector characterization form from each student and

ranked it into: none (N), low (L), medium (M), me-

dium-high (MH), and high (H) experience for each

expertise topic.

For instance, regarding experience with software

development, a subject was characterized as having:

(N) no experience, if s/he never had contact with soft-

ware development; (L) low experience, if s/he had

contact with software development only in class; (M)

medium experience if s/he had contact with program-

ming in an academic project; (MH) medium-high ex-

perience, if s/he had contact with programming in an

industry project; or (H) high experience, if s/he had

industrial experience involving multiple projects.

Likewise, the experience in software inspection and

in object-oriented modeling (UML) were assigned.

After characterizing the participant’s experience,

aiming to mitigate threats to validity concerning the

distribution of subjects between the groups, we ap-

plied the principles of balancing, blocking, and ran-

dom assignment (Wohlin et al., 2012). For balancing,

we attempted to create groups of equal size. However,

due to some absences on the day of the experiment

execution, one group had a larger number of mem-

bers. Concerning blocking, we avoided having one

team with more experienced subjects than the other.

Finally, subjects of equal experience were randomly

assigned to the groups.

The experiment comprised two exercises applied

on two days (one exercise per day). Students who par-

ticipated in only one exercise were removed from the

analysis. In addition, participants, who found less

than 10% of the defects were discarded as outliers be-

cause their results were understood as those of stu-

dents with difficulty understanding the task or who

did not engage in the activity for some other reason.

Thus, out of 44 participants in the first trial, the data

of 32 participants was considered for the data analy-

sis. Regarding the second trial, out of 10 participants,

the data of 8 participants was considered.

Table 2 (first trial subjects) and Table 3 (second

trial subjects) present the results of the subjects’ char-

acterization and the group division. To facilitate un-

derstanding of the blocking, we highlighted the most

experienced subjects in the tables with grey-tone

background filling.

4.6 Experiment Design

The experiment design is a one-factor design with

two treatments (ad-hoc with or without Model Scop-

ing with EMEs) and two different tasks (artifact in-

spection exercises, study objects). We adopted a

cross-over design to mitigate threats to validity of the

experiment concerning: (i) differences among exper-

imental tasks (the influence of the provided exercise

matierials in the results); and (ii) the learning effect

(the influence of the order in which the treatments are

applied on the outcomes). It is noteworthy that the

principles applied to distribute the subjects between

the groups still enable comparing the results for each

individual exercise. The cross-over design is shown

in Figure 2.

Table 2: Expertise per participant in the first trial.

Group ID

Software De-

velo

ment

UML

Models

Software

Ins

ection

P1 MH M M

P2 L MH L

P3 M MH M

P4 MH H L

P5 M M L

P6 L M L

P7 MH L L

P8 H H M

P9 MH M L

P10 L M L

P11 H H L

P12 L M L

P13 L MH M

P14 L L L

P15 M M M

P16 MH M L

P17 MH MH M

P18 M L L

P19 H MH L

P20 L MH L

P21 L L L

P22 MH MH L

P23 MH MH L

P24 MH MH M

P25 L L M

P26 L L L

P27 L L L

P28 L L L

P29 MH MH L

P30 M M MH

P31 MH M L

P32 MH L L

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment

111

Table 3: Expertise per participant in the second trial.

Group ID

Software De-

velopment

UML

Models

Software

Inspection

P33 H H L

P34 L H L

P35 M M L

P36 H H M

P37 H H M

P38 H H L

P39 L H L

P40 M H L

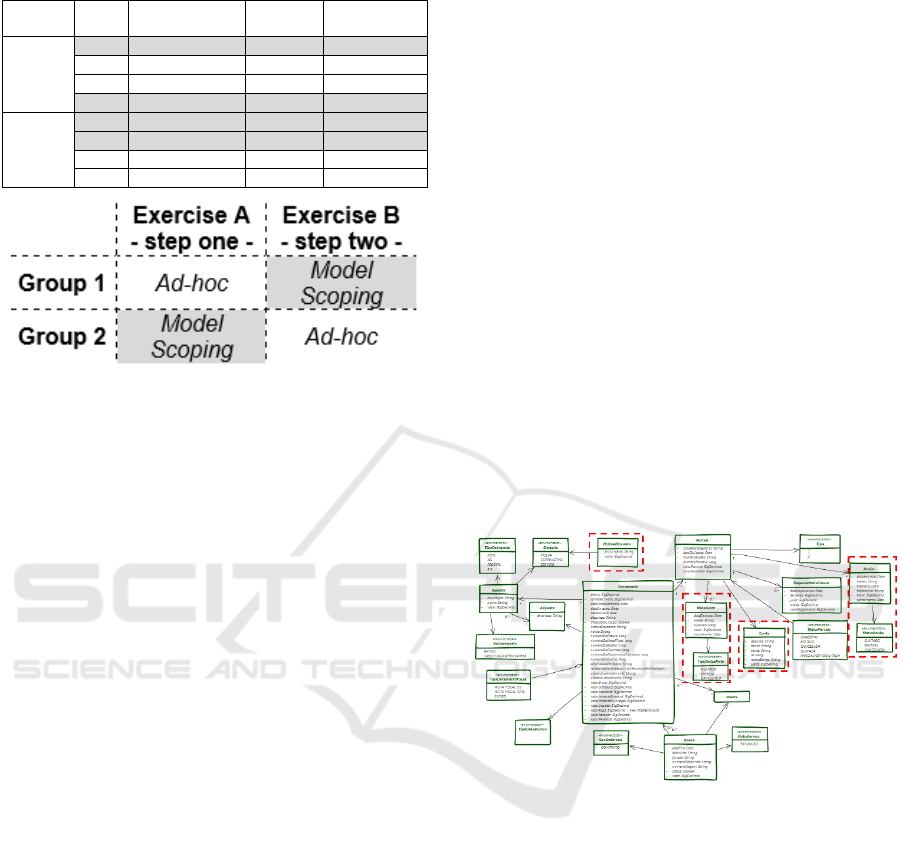

Figure 2: Cross-over experiment design.

4.7 Instrumentation

The instruments used in this experiment were: con-

sent and characterization forms; training material on

model inspection; task description, with instructions

to perform the inspection, including the defect taxon-

omy; a defect reporting form; an excerpt of a real in-

dustrial functional specification (the overview of the

system module to be inspected, the functional re-

quirements, the use case diagrams and their descrip-

tions); and an industrial UML class diagram with de-

fects seeded by the authors. When Model Scoping

with EMEs was applied, instead of the UML class di-

agram, subjects received the scoped UML class dia-

gram and the list of EMEs.

The scoped models were prepared by applying

Model Scoping with EMEs on the defect seeded UML

class diagrams based on the functional specification

excerpts. For the administrative module, researchers

identified a list of EMEs in the contextual information

(i.e., overview, functional requirements, use case di-

agram, and use case descriptions) for four small use

cases (maintaining company data, maintaining cus-

tomer data, maintaining tax information, and main-

taining cost centers). Then, using this list of EMEs,

researchers scoped the UML class diagram by apply-

ing Model Scoping with EMEs as described in Section

3. This process reduced the domain class diagram for

this module from 19 to 12 classes.

Similarly, for the billing module, based on the two

(more complex) selected use cases (registering in-

voices for provided services and registering payments

for invoices), the class diagram was reduced from 22

to 16 classes. Figure 3 shows the cut-outs performed

during the scoping for the billing module. These cut-

outs are related to entities concerning the physical

emission of invoices (in communication with the fed-

eral invoice emission system) and of other receipts,

which are detailed in two other use cases that were

not part of the selection. Thus, these model parts

would only add complexity to the inspection, as they

were not related to the selection against which the

model should be verified.

It is noteworthy that, while the scoping allowed

cutting out some irrelevant parts for the inspection

scope, many classes still remained, given that the se-

lected use cases were very central for each module. It

is noteworthy that the researchers did not bias the pro-

cess, as these artifacts were used as provided from the

industrial partner. The excerpt of the functional spec-

ification for the inspection task was planned for an

inspection of up to 75 minutes (industrial inspections

are recommended to take no longer than 2 hours). It

is noteworthy that if one of these modules even would

have had hundreds of use cases and hundreds of do-

main classes, the cutout for the selected use cases

would still select the same relevant amount of classes,

related to the EMEs contained in the excerpt.

Figure 3: Cut-outs during Model Scoping (dashed rectan-

gles) for the billing module.

4.8 Experiment Operation

The experiment was conducted on three days. On the

first day, the participants answered the characteriza-

tion form in order to allow dividing them into exper-

iment groups. Prior to the execution of the experi-

ment, on the second day, basic concepts of the dia-

grams and relevant types of defects were reviewed

with participants in a training session of 15 minutes.

After that, the inspection was conducted as follows.

On the first round (Exercise A), Group 1 inspected

the full UML class diagram with 19 classes, based on

the requirements document using the ad-hoc treat-

ment. On the other hand, the participants of Group 2

(Model Scoping with EMEs treatment) inspected the

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

112

scoped UML class diagram with 12 classes. Besides

the exact same functional specification excerpt, the

subjects of Group 2 used the list of EMEs. All subjects

had to report the defects found in the diagram. In to-

tal, the inspectors had 75 minutes to perform the in-

spection, including reporting the defects found. It is

important to mention that communication between

participants was not allowed. After the inspection, the

participants answered the follow-up questionnaire.

On the last day, the procedures conducted for Ex-

ercise A (administrative module) were repeated for

Exercise B (billing module). However, the group that

was previously assigned to the ad-hoc treatment was

now assigned to the Model Scoping treatment and

vice-versa. We used the exact same procedures and

instrumentation for both trials. In the next section, we

present the results of the experiment.

5 RESULTS

This section reports on the analysis of quantitative

and qualitative data collected in the experiment.

5.1 Quantitative Analysis

The data analyst obtained the quantitative data from

the defect reporting form, resulting from the experi-

mental task. The data analyst counted the number of

real defects found, false positives, and time used by

each subject. Following the design presented in Fig-

ure 2, Table 4 presents both the results per subject and

the overall result per treatment of the Exercise A and

Exercise B, respectively.

The data analyst performed the statistical analyses

using the statistical tool SPSS v 25.0.0. For hypothe-

sis testing, the data analyst used the Mann-Whitney

non-parametrical test with α = 0.10. This statistical

significance level has been found acceptable for soft-

ware engineering experiments, which typically in-

volve small sample sizes (Dybå et al., 2006). In addi-

tion, to increase our sample size, we decided to ag-

gregate the results of both trials, which does not ex-

pose us to additional threats to validity, given that the

trials were exact internal replications.

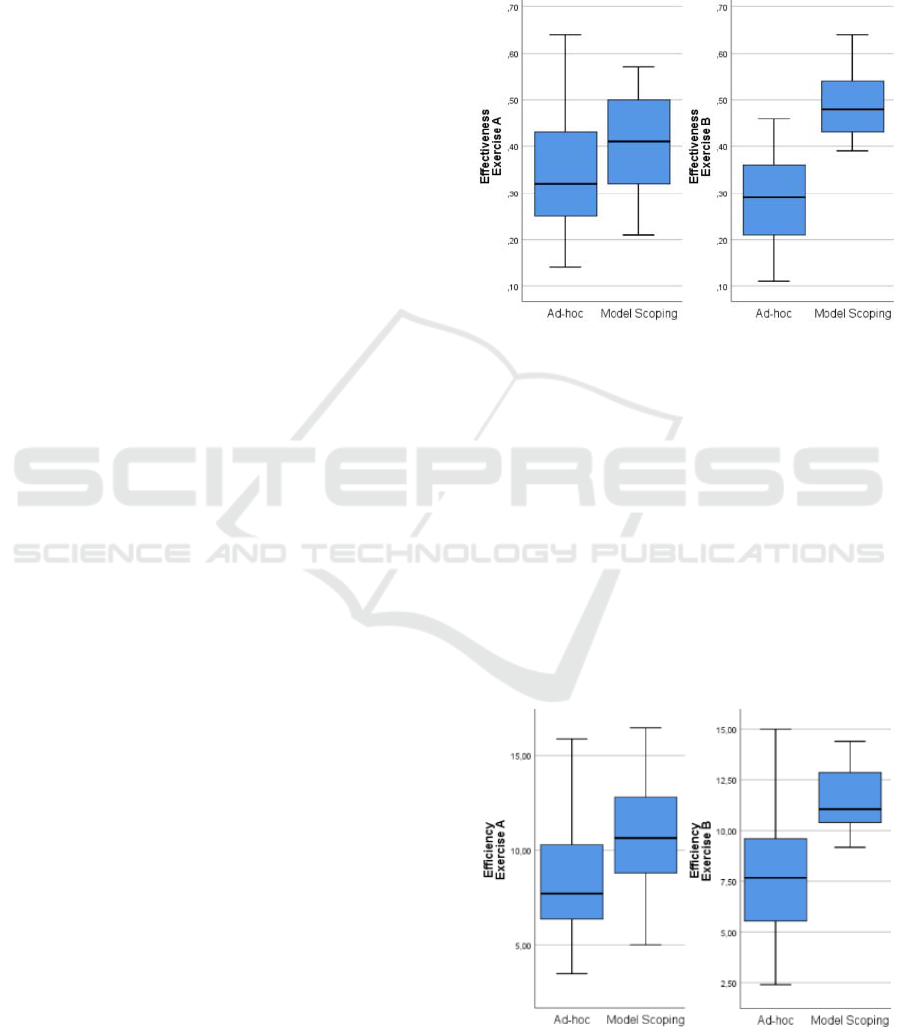

Figure 4 shows descriptive results as boxplots that

compare the effectiveness indicator of both exercises

(A and B). It is possible to observe that the median

for the Model Scoping with EMEs treatment in both

exercises (A median 0.41, A mean 0.41, B median

0.50, B mean 0.48) is higher than the median for the

ad-hoc treatment (A median 0.32, A mean 0.36, B

median 0.28, B mean 0.29). The effect sizes (stand-

ardized mean difference between two populations)

for exercises A and B are respectively 0.47 (medium)

and 1.57 (very large). Thus, the group that used

Model Scoping with EMEs was more effective than

the control group. Also, using the Mann-Whitney test

showed a significant difference between the groups (p

= 0.075 for Exercise A and p = 0.001 for Exercise B).

Figure 4: Effectiveness (defects found / seeded defects) in-

dicator for defect detection.

These results suggest that the use of Model Scop-

ing with EMEs allowed the inspectors to achieve

higher defect detection effectiveness. These results

allow rejecting the null hypothesis H

Figure 5 shows boxplots comparing the efficiency

of the treatments. For efficiency it is also possible to

observe that the median of the Model Scoping treat-

ment in both exercises (A median 10.64, A mean

10.60, B median 11.05, B mean 11.53) is higher than

the median of the ad-hoc treatment (A median 7.71,

A mean 8.58, B median 7.67, B mean 7.43). The ef-

fect sizes for exercises A and B are respectively 0.65

(medium-to-large) and 1.30 (very large).

Figure 5: Efficiency (defects found per hour) indicator for

defect detection.

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment

113

Table 4: Quantitative results per subject and treatment.

Exercise A

Exercise B

Duration

(min)

Defects

found

False

positives

Effect. Effic.

Duration

(min)

Defects

found

False

positives

Effect. Effic.

Group 1

P1 71 8 4 29% 6.76 73 13 14 46% 10.68

P2 72 10 4 36% 8.33 75 13 4 46% 10.40

P3 72 15 8 54% 12.50 75 17 7 61% 13.60

P4 69 13 6 46% 11.30 73 14 15 50% 11.51

P5 68 7 11 25% 6.18 66 12 0 43% 10.91

P6 71 9 4 32% 7.61 78 12 14 43% 9.23

P7 68 10 6 36% 8.82 75 14 5 50% 11.20

P8 66 7 4 25% 6.36 72 11 6 39% 9.17

P9 70 9 5 32% 7.71 75 15 10 54% 12.00

P10 69 10 4 36% 8.70 75 12 0 43% 9.60

P11 72 17 9 61% 14.17 76 17 5 61% 13.42

P12 70 9 12 32% 7.71 70 14 7 50% 12.00

P13 72 6 13 21% 5.00 63 15 5 54% 14.29

P14 69 4 8 14% 3.48 72 13 11 46% 10.83

P15 70 12 9 43% 10.29 75 18 23 64% 14.40

P16 72 7 7 25% 5.83 75 12 3 43% 9.60

P17 69 15 13 54% 13.04 73 13 20 46% 10.68

P18 69 11 9 39% 9.57 70 15 12 54% 12.86

P33 68 18 4 64% 15.88 75 16 18 57% 12.80

P34 75 9 7 32% 7.20 75 13 4 46% 10.40

P35 71 8 4 29% 6.76 75 12 3 43% 9.60

P36 75 7 13 25% 5.60 75 18 15 64% 14.40

Group 2

P19 60 11 4 39% 11.00 50 7 11 25% 8.40

P20 67 12 4 43% 10.75 63 4 0 14% 3.81

P21 51 14 5 50% 16.47 50 8 12 29% 9.60

P22 71 9 3 32% 7.61 66 10 2 36% 9.09

P23 72 16 10 57% 13.33 73 12 8 43% 9.86

P24 72 9 9 32% 7.50 75 8 4 29% 6.40

P25 71 11 6 39% 9.30 66 4 14 14% 3.64

P26 57 10 4 36% 10.53 74 4 7 14% 3.24

P27 63 15 10 54% 14.29 75 12 3 43% 9.60

P28 60 9 3 32% 9.00 60 10 5 36% 10.00

P29 67 9 15 32% 8.06 52 13 6 46% 15.00

P30 72 6 14 21% 5.00 75 7 4 25% 5.60

P31 61 12 4 43% 11.80 65 6 5 21% 5.54

P32 62 14 7 50% 13.55 55 9 6 32% 9.82

P37 75 16 2 57% 12.80 75 8 2 29% 6.40

P38 68 13 4 46% 11.47 75 3 17 11% 2.40

P39 75 12 3 43% 9.60 59 8 18 29% 8.14

P40 75 11 0 39% 8.80 75 9 3 32% 7.20

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

114

Thus, the group that used the Model Scoping with

EMEs was more efficient when compared to the con-

trol group. Again, the Mann-Whitney test shows the

difference between the groups to be statistically sig-

nificant (p = 0.024 for Exercise A and p = 0.001 for

Exercise B). Hence, using Model Scoping with EMEs

allowed inspectors to achieve higher efficiency.

These results allow rejecting the null hypothesis H

5.2 Qualitative Analysis

The data analyst collected qualitative data from the

follow up questionnaires. The participants rated their

perception on the complexity of the task (as very

complex, complex, simple, or very simple), and noted

difficulties they had during the experiment. For par-

ticipants using the Model Scoping with EMEs treat-

ment (which received a list of EMEs to support the

inspection), participants filled in the TAM question-

naire with a five point Likert scale (completely disa-

gree, disagree, neutral, agree, and completely agree)

for the questions on perceived usefulness, ease of use,

and intention of adoption.

Regarding the perceived complexity of the task,

shown in Table 5, there was a subtle difference be-

tween the treatments. While overall the tasks were

considered complex by the participants, which was

expected as they were handling real industrial arti-

facts, the amount of participants that perceived the

complexity as simple was larger for the Model Scop-

ing with EMEs treatment. In particular, it is easy to

observe that Exercise B (the billing system, which

had more complex business rules) was perceived as

more complex by the participants when using the ad-

hoc treatment. Thus, the Model Scoping and the

EMEs seemed to have reduced the perceived com-

plexity. For instance, participant P34 mentioned "dif-

ficulties to understand the description of use cases

and then compare against the class diagram" and

suggested that "the diagram could be […] smaller".

Participant P1 mentioned that "browsing through the

numerous descriptions when searching defects is a

complex task […], some kind of guidance is needed".

The TAM questionnaire was applied only with the

Model Scoping with EMEs treatment. In general, the

inspectors perceived receiving the EMEs to support

inspection as useful, easy to use and would like to re-

ceive such support. Note that the participants did not

know that they were inspecting a scoped model. In-

deed, all participants agreed or completely agreed

with the TAM questions. Moreover, we noticed that

many inspectors, who used the Model Scoping with

EMEs treatment in the first exercise, mentioned that

Table 5: Complexity of the experimental tasks as perceived

by participants.

Treatment Mod.

Complexity

Very

Sim-

ple

Com-

plex

Very

Com-

lex

Ad-hoc

Adm. 0% 5% 90% 5%

Bill-

ing

0% 12.5% 50% 37.5%

Model Scop-

ing

Adm. 0% 15% 75% 10%

Bill-

ing

0% 22.5% 72.5 5%

they missed this kind of support in the second exer-

cise. For instance, participant P32 mentioned that the

exercise contained "a lot of information" and that it

was "difficult to understand what to do without a

guide". He also requested "the extra page (EMEs) of

the previous exercise". Participant P28 mentioned

difficulties in "identifying defects in relationships be-

tween classes" and reported that "the use of EMEs"

could make the task more enjoyable.

6 DISCUSSION

In this section we discuss the results of the quantita-

tive and qualitative analyses of experiment data.

The main goal of the quantitative analysis was in-

vestigating how the Model Scoping with EMEs ap-

proach would affect the effectiveness and efficiency

of inspectors when reviewing models based on refer-

ence documents. We selected real industrial class di-

agrams and their related functional specifications as

reference documents for two modules of an integrated

management system. As input for the experiment, we

selected a set of use cases (and their contextual infor-

mation) for each module and conducted the Model

Scoping with EMEs activity as described in Section 3.

The experiment results indicate that applying the

proposed Model Scoping with EMEs approach before

the inspection improved both effectiveness and effi-

ciency of the inspectors when reviewing the UML

class diagrams against the functional specification ex-

cerpts. Moreover, the results were statistically signif-

icant and had large effect sizes.

As a complement, the qualitative analysis indi-

cated that inspectors perceive their inspection tasks as

less complex if Model Scoping with EMEs was ap-

plied before the inspection (i.e., they inspect a scoped

model and receive a list of EMEs). They also per-

ceived it useful to receive candidate EMEs to support

the verification of the model against the reference

documents.

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment

115

These results indicate applying Model Scoping

with EMEs before inspections in situations where

large UML class diagrams are to be inspected against

excerpts (or increments) of functional specifications.

This is in line with the results by Briand et al. (2014),

who also observed effort reductions when scoping

models for their specific purposes (addressing safety

requirements). While we assume Model Scoping with

EMEs applicable for any kind of model, we limit the

advice and recommendations to the findings of our

specific experimental setting.

It is also noteworthy that properly applying Model

Scoping with EMEs requires some effort and being

able to correctly identify EMEs in selected parts of

the reference document. The first author took 1 hour

to identify the EMEs within each functional specifi-

cation excerpt and then used the EMEs to scope the

model. Still, we believe that the effort is worthwhile

in many cases (in particular for large models) consid-

ering that inspection teams usually involve three to

five inspectors who would perceive their task as less

complex and would be more effective and efficient.

Approaches for identifying expected model elements

in natural text have been investigated (Sabou et al.,

2018) and could be used in this context.

7 THREATS TO VALIDITY

In this section, we present and discuss the threats to

the validity of the controlled experiment, organized

by the categories described by Wohlin et al. (2012).

7.1 Internal Validity

The tasks of the experiment were performed by the

participants individually and under the supervision of

one of the researchers. Communication among the

participants was not allowed.

After characterizing the participants' experience,

the principles of balancing, blocking and random as-

signment (Wohlin et al., 2012) were applied to miti-

gate threats to validity regarding the distribution of

subjects between groups.

7.2 External Validity

Regarding artifact representativeness, we used real

industrial UML class diagrams and functional speci-

fications. Still, they represent artifacts from one spe-

cific organization. For subject representativeness, we

used students to represent novice inspectors. Using

students for this purpose is a valid abstraction, in par-

ticular considering that they have been properly char-

acterized (Falessi et al., 2018).

Still, artifacts are from one specific organization

and subjects come from one specific context. There-

fore, there are no claims of external validity through-

out the paper and the study validity is specific to the

context in which it was performed. Indeed, we call for

replications involving a variety of artifacts (e.g., mod-

els and reference documents) and contexts to rein-

force the experimental evidence.

7.3 Construct Validity

Regarding the treatment, the experiment task in-

volved inspections using real industrial artifacts. We

employed a cross-over design to isolate confounding

factors related to the experimental tasks (i.e., the ex-

ercises) and the learning effect. In addition, it is im-

portant to note that the metrics used to measure effec-

tiveness and efficiency have been widely used in em-

pirical studies on software inspection.

A potential threat to the construct validity regards

the defects seeded in the diagrams. To mitigate this

threat, the defects were distributed in a harmonic way

as to their types, as well as the levels of difficulty of

detection.

7.4 Conclusion Validity

To improve conclusion validity, we aggregated the

subjects from both trials to increase the sample size

for data analysis. This was possible given that we had

two exact internal replications following the same

cross-over design. Outliers were carefully removed to

avoid influence on the results. We applied appropriate

statistical tests and our results were statistically sig-

nificant with large effect sizes. Based on these results,

we are confident that the drawn conclusions are valid

for the reported experimental setting.

8 CONCLUSION AND FUTURE

WORK

In this paper, we introduced the model scope concept

as a well-defined model part that acts as a filter or

view showing only relevant model elements. We pro-

posed and evaluated an approach for Model Scoping

with Expected Model Elements. The approach con-

sists of identifying Expected Model Elements (EMEs)

in the selected parts of the reference document and

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

116

then using these EMEs to scope the model and guide

inspectors during defect detection.

For evaluation, we conducted a controlled experi-

ment with students using real industrial artifacts aim-

ing to understand how Model Scoping with EMEs

would influence the model inspection effectiveness

and efficiency. The experiment results indicate, with

statistical significance and large effect sizes, that ap-

plying Model Scoping with EMEs before the inspec-

tion improved both, effectiveness and efficiency of

the inspectors when reviewing UML class diagrams

against the functional specification excerpts. Addi-

tionally, qualitative data indicated that inspectors per-

ceive their inspection tasks less complex when Model

Scoping with EMEs has been applied before inspec-

tion.

Our takeaway message is that we recommend ap-

plying Model Scoping with EMEs before inspections

in situations where large UML class diagrams are to

be inspected against excerpts (or increments) of func-

tional specifications. Nevertheless, further investiga-

tions to precisely estimate in which cases Model

Scoping with EMEs would be (most) worthwhile the

upfront investment are needed. We call out to the

community for replicating the reported experiment on

Model Scoping with EMEs, including the use with

other diagrams in other contexts, to reinforce experi-

mental evidence and improve external validity.

ACKNOWLEDGEMENT

The financial support by the Christian Doppler Re-

search Association, the Austrian Federal Ministry for

Digital & Economic Affairs and the National Foun-

dation for Research, Technology and Development is

gratefully acknowledged.

REFERENCES

Briand, L., Falessi, D., Nejati, S., Sabetzadeh, M. and Yue,

T., 2014. Traceability and SysML design slices to sup-

port safety inspections: A controlled experiment. ACM

Transactions on Software Engineering and Methodol-

ogy (TOSEM), 23(1): 43p.

Davis, F.D., 1989. Perceived Usefulness, Perceived Ease of

Use, and User Acceptance of Information Technology.

MIS Quarterly, vol. 13.

Dybå, T., Kampenes, V. B., Sjberg, D. I. K., 2006. A sys-

tematic review of statistical power in Software Engi-

neering experiments. Information and Software

Technology 48 (8):745-755.

Elberzhager, F., Münch, J., Nha, V.T.N., 2012. A system-

atic mapping study on the combination of static and dy-

namic quality assurance techniques. In: Information

and Software Technology, 54(1):1-15.

Fagan, M.E., 1976. Design and code inspections to reduce

errors in program development. IBM Systems Journal,

15(7): 182-211.

Falessi, D., Juristo, N., Wohlin, C., Turhan, B., Münch, J.,

Jedlitschka, A. and Oivo, M., 2018. Empirical software

engineering experts on the use of students and profes-

sionals in experiments. Empirical Software Engineer-

ing, 23(1): 452-489.

Laitenberger, O., DeBaud, J.M., 2000. An encompassing

life cycle centric survey of software inspection. In: J. of

Syst. and Software, 50(1):5-31.

Lange, C.F., Chaudron, M.R., 2005. Managing model qual-

ity in UML-based software development. IEEE Interna-

tional Workshop on Software Technology and Engi-

neering Practice, pages 7-16.

Larman, C., 2004. Applying UML and Patterns. 3

Edition,

Prentice Hall.

Sabaliauskaite G., Matsukawa F., Kusumoto S., Inoue K.,

2002. An experimental comparison of checklist-based

reading and perspective-based reading for UML design

document inspection. Int. Symp. on Empirical Software

Engineering, pages 148–157.

Sabaliauskaite G., Matsukawa F., Kusumoto S., Inoue K.,

2003. Further investigations of reading techniques for

object-oriented design inspection. Information and

Software Technology, 45(9): 571–585.

Sabaliauskaite G., Kusumoto S., Inoue K., 2004. Assessing

defect detection performance of interacting teams in ob-

ject-oriented design inspection. Information and Soft-

ware Technology, 46(13): 875–886.

Sabou, M., Winkler, D., Petrovic, S., 2018. Expert Sourcing

to Support the Identification of Model Elements in Sys-

tem Descriptions. In: SWQD 2018, pages 83-99.

Shull, F., 1998. Developing Techniques for Using Software

Documents: A Series of Empirical Studies. Ph.D. the-

sis, University of Maryland, College Park.

Solingen, R. van, Basili, V., Caldiera, G., Rombach H. D.,

2002. Goal Question Metric (GQM) Approach. In: En-

cyclopedia of Software Engineering.

Thelin, T., Runeson, P., Wohlin, C., 2003. An experimental

comparison of usage-based and checklist-based read-

ing. In: TSE, 29(8):687–704.

Theocharis, G., Kuhrmann, M., Münch, J. Diebold, P.,

2015. Is water-scrum-fall reality? on the use of agile

and traditional development practices. International

Conference on Product-Focused Software Process Im-

provement, pages 149-166.

Travassos, G., Shull, F., Fredericks, M., Basili, V., 1999.

Detecting defects in object-oriented designs: Using

reading techniques to increase software quality. In:

Proc. of OOPSLA, pages 47-56.

Turner, M., Kitchenham, B., Brereton, P., 2010. Does the

technology acceptance model predict actual use? A sys-

tematic literature review. Information and Software

Technology, vol. 52: 463-479.

Using Model Scoping with Expected Model Elements to Support Software Model Inspections: Results of a Controlled Experiment

117

Winkler, D., Kalinowski, M., Sabou, M., Petrovic, S., Biffl,

S., 2018. Investigating a Distributed and Scalable

Model Review Process. CLEI Electronic Journal,

21(1): 4:1–4:13.

Winkler, D., Sabou, M., Petrovic, S., Caneiro, G.,

Kalinowski, M., Biffl, S., 2017a. Improving model in-

spection with crowdsourcing In: International Work-

shop on Crowdsourcing in Software Engineering,

ICSE, Buenos Aires, Argentina, pages 30-34.

Winkler, D., Sabou, M., Petrovic, S., Carneiro, G.,

Kalinowski, M., Biffl, S., 2017b. Improving Model In-

spection Processes with Crowdsourcing: Findings from

a Controlled Experiment. In EuroSPI, pages 125–137.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M. C.,

Regnell, B., Wesslén, A., 2012. Experimentation in

Software Engineering. Berlin, Heidelberg: Springer

Berlin Heidelberg.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

118
