An Enterprise Architecture Planning Process for Industry 4.0

Transformations

Emmanuel Nowakowski

, Matthias Farwick

, Thomas Trojer

, Martin Häusler

, Johannes Kessler

and Ruth Breu

Institute of Computer Science, University of Innsbruck, 6020 Innsbruck, Austria

Txture GmbH, 6020 Innsbruck, Austria

Keywords: Enterprise Architecture Management, Enterprise Architecture Planning, Industry 4.0, Industrial Internet of

Things, Transformation, Modeling, Process, Metamodel.

Abstract: Industry 4.0 changes the manufacturing industry significantly. In order to stay competitive, companies need

to develop new business capabilities and business models that are enabled by Industry 4.0 concepts. However,

companies are currently struggling with expensive and risky IT transformation projects that are needed to

implement such concepts. We observed a lack of research on the planning and modeling part of IT

transformations towards Industry 4.0. Therefore, we conducted a series of expert interviews on the topic of

enterprise architecture in the context of modeling and planning Industry 4.0 transformations. As a result, we

were able to develop a metamodel that can be used as target model for planning endeavors and a planning

process that helps as guideline for such planning projects.

1 INTRODUCTION

Industry 4.0 (I4.0) is substantially influencing the

manufacturing industry (Stock and Seliger, 2016).

Companies need to adapt their business processes and

business models in order to be able to stay

competitive (Kaidalova et al., 2017).

Among the goals of the digital transformation is

to optimize processes over the whole value chain. To

achieve this, horizontal and vertical integration are

essential. Hence, the concept of interoperability is of

crucial importance, as it enables humans and

organizations to connect and communicate via IoT

and Cyber Physical Systems (CPS) (Xu et al., 2018).

In order to gain benefit, corporations either have to

introduce new connected IT systems (e.g. CPS), or

legacy machines need to be upgraded so that they are

able to communicate with other systems. This leads

to new challenges due to the pervasiveness in all types

of supply chains and organizations, which results in a

new level of IT complexity that demands for a holistic

management approach of the business, the IT, and the

production IT (Nowakowski et al., 2018).

Enterprise architecture (EA) gives a consolidated

and broad view of an entire company (Aier and

Gleichauf, 2010) and is used to capture the essentials

of business, IT, and its evolution (Lankhorst, 2013).

Enterprise architecture management (EAM) is an

IT management discipline that uses the consolidated

view of the EA to optimize IT support for business

execution and reducing IT costs.

According to TOGAF (The Open Group, 2011),

EA planning is one of the core processes of EAM and

it aims at planning IT transformations that are aligned

with the overall strategy of an organization. Such

transformation projects are usually conducted in

multiple phases and aim at meeting the emerging and

current requirements of the business (Luftman et al.,

1993; Nowakowski et al., 2017). EA planning is

executed by modeling different scenarios (to-be

architectures) that represent the future steps in the

transformation project, which transforms the current

architecture (as-is) into a specified target architecture.

Afterwards, the planned steps are documented,

executed, and evaluated. The planning phase is of

crucial importance to ensure that digital

transformations are successful.

In our research, we consider an EA planning

methodology for digital transformations. Our past

research on the topic of EA planning in the context of

I4.0 transformations (Nowakowski et al., 2018)

indicated that there is a need for a structured planning

572

Nowakowski, E., Farwick, M., Trojer, T., Häusler, M., Kessler, J. and Breu, R.

An Enterprise Architecture Planning Process for Industry 4.0 Transformations.

DOI: 10.5220/0007680005720579

In Proceedings of the 21st International Conference on Enterprise Information Systems (ICEIS 2019), pages 572-579

ISBN: 978-989-758-372-8

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

process and a metamodel for I4.0. These two artifacts

are able to guide companies in their planning

endeavors. The I4.0 metamodel proposes a target data

model for the transformation project and the process

helps to realize it by using an agile approach. Both of

these artifacts were developed and evaluated based on

an interview series with industry experts and are

presented in the paper at hand.

The remainder of this paper is structured as

follows: Section 2 describes our research method and

research questions. Furthermore, in Section 3 relevant

related work is presented. In Section 4, we describe

our interview results consisting of the proposed I4.0

metamodel and the I4.0 planning process in detail.

Section 5 contains the discussion and future work.

Finally, Section 6 concludes our paper.

2 RESEARCH METHOD

The research presented in this paper is based on

Hevner’s three-cycle approach for design science

research (DSR) that consists of a relevance, a design,

and a rigor cycle (Hevner, 2007). The goal of DSR is

to create IT artifacts that are able to solve

organizational problems and to evaluate them

rigorously (Hevner et al., 2004). Figure 1 depicts how

we applied the DSR approach.

The design cycle builds the core of the DSR

approach. In this cycle, we developed a metamodel

and a planning process for I4.0 transformation

planning. The requirements for the artifacts and the

acceptance criteria for their evaluation come from the

relevance cycle. Considering the rigor cycle, the DSR

artifacts are influenced by the results of the conducted

literature review.

Figure 1: DSR applied to our research project (based on

(Hevner, 2007)).

For analyzing the relevance of our research, we

conducted an interview series consisting of nine

experts in the field. From these interviews, we aimed

to establish a deeper understanding of how I4.0

planning is conducted. Additionally, we discussed

relevant metamodel elements and the connections

between them, and evaluated the developed

metamodel.

The following two research questions (RQ) build

the core of this paper:

 RQ1: What kind of information should be part

of the documentation model so that EA

planning in the context of I4.0 can be

conducted?

 RQ2: Which steps are needed to conduct I4.0

transformation planning and how should the

process be structured?

3 RELATED WORK

In this section, related work for I4.0 metamodels,

frameworks, and transformation processes that are

conducted with the help of EA is presented.

Molano et al. (2018) developed a metamodel for

the integration of the Internet of Things (IoT), social

networks, the cloud and I4.0. However, their

metamodel is mainly focused on communication

flows from the various sensors and actuators to a

specific IoT device.

Furthermore, Bücker et al. (2016) created a

framework, which is based on I4.0 design principles

and an approach to structure an organization. For

achieving this, they developed a metamodel of the

proposed I4.0 transformation process, which focuses

on change management of the organizational aspects.

Goerzig and Bauernhansl (2018) developed a

method which makes use of agile EA for digital

transformations. Their approach is based on Scrum

(Schwaber, 2004), hence, the EA evolution is done

iteratively with the help of sprints and via user stories

and a backlog.

Additionally, reference architectures for smart

industry, such as the “Industrial Value Chain

Reference Architecture-Next” (IVRA Next)

(Industrial Value Chain Initiative, 2018), the

“Industrial Internet Reference Architecture” (IIRA)

(Industrial Internet Consortium, 2017), and the

“Reference Architecture Model Industrie 4.0” (RAMI

4.0) (Bitkom et al., 2016) were developed.

Furthermore, there are efforts to align the proposed

architectures of RAMI 4.0 and the IIRA (Plattform

Industrie 4.0 and Industrial Internet Consortium,

2018).

Considering EAM, the most commonly used

framework is TOGAF (The Open Group, 2011) with

its architecture development method (ADM), which

is a generic method intended to be used by a wide

variety of different enterprises (The Open Group,

2011). Furthermore, the modeling language

An Enterprise Architecture Planning Process for Industry 4.0 Transformations

573

ArchiMate (The Open Group, 2016) is considered as

standard. ArchiMate introduced a physical layer in

version 3.0 (The Open Group, 2016) that was inspired

by the I4.0 development. Franck et al. (2017) found

shortcomings of ArchiMate 3.0 while they worked on

an EA solution for I4.0 and developed new concepts

and modeling patterns to compensate for them.

Furthermore, Rogers (2016) conducted research on

I4.0 simulation-based information assets that is based

on TOGAF.

Zimmermann et al. focus on the transformation of

EA for the IoT, architectural decision making for

digital transformations, and the evolution of EAs

(Zimmermann et al., 2016, 2015b, 2015a). However,

the authors mainly discuss the improvement of

decision-making and do not elaborate on techniques

that help practitioners to model and plan target

architectures in the context of IoT or I4.0.

Finally, Kaidalova et al. (2017) discuss the

challenges in integrating operational technology (OT)

into EA, where OT consists of the IT systems and

production machines that are located on the shop-

floor of a company. The researchers concluded that

traditional EA layers (business, application, and

technology) are suitable but not optimal for

structuring OT. They propose that refinement layers

are needed, e.g. by identifying a “mixed zone”

between OT and business IT that has a different

structure and granularity (Kaidalova et al., 2017).

4 INTERVIEW RESULTS

With the help of the interviews we aimed to gain

information about the process how I4.0

transformation projects are conducted and about the

required artifacts and resources. Furthermore, we

investigated on which abstraction level the planning

needs to be done and what is documented during this

process.

For this purpose, we interviewed professionals in

the field of EAM who are working in the industry and

have experience with digital transformation projects.

The interviews were conducted in the timespan

between October and November 2018. We were able

to interview nine interviewees from four different

industry sectors in Germany, Austria, and

Switzerland (see Table 1).

The interviewees were identified via Linked-In

and XING – a business social network for German-

speaking countries. Here, it was specifically searched

for enterprise architects in industrial companies. We

contacted 42 potential interview partners from which

ten responded (~24%). Six of these and three of our

former interview partners, from which two are

consultants with I4.0 experience, agreed to

participate. Hence, we conducted our interview series

with nine participants in total that are all employed in

different companies. Additionally, we were able to

use a part of the interview results from our previous

research (Nowakowski et al., 2018).

Table 1 gives an overview of the interviewees’

position in the company, the location, as well as the

industry sector. The role of the participants is added

to the abbreviation (see last row in Table 1).

Table 1: Interviewee overview.

Participant

and Role

Country Industry sector

PE1 Austria Manufacturing

PE2 Germany Manufacturing

PE3 Germany Manufacturing

PE4 Germany Manufacturing

PE5 Germany Manufacturing

PE6 Germany Chemical

PE7 Germany Pharma

PC8 Germany Consulting

PC9 Switzerlan

Consulting

E = enterprise architect, C = consultant

The interviews were conducted in a semi-

structured way, were based on a fixed set of open

questions, and took in average about 45 min.

Furthermore, they were recorded for later analysis.

The interviews were transcribed and coded

according to the procedure described by Mayring

(2014). For this purpose, a completely data-driven

coding frame in combination with successive

summarizing, as proposed by Flick (2014), was used.

The coding frame is the basis of the analysis

methodology and consists of main and subcategories.

Main categories are aspects for which more

information are needed and subcategories specify

what is said in respect to the main categories (Flick,

2014). With the help of successive summarizing,

relevant passages of the interviews were paraphrased

and the superfluous aspects were deleted. After that,

the categories and subcategories were built by

summarizing similar paraphrases. The next step was

to check if there exist similar subcategories and to

collapse them. Two rounds of coding were conducted

based on the coding frame. This was done by one

coder at different points in time and the results were

compared in order to ensure coding consistency. As

proposed by Flick (2014), the transcripts were

segmented in a way that each unit fits exactly one

category or subcategory of the coding frame to ensure

that each time the codes were applied to identical

parts of the transcripts. For checking if our coding

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

574

frame needs to be adapted, we applied this procedure

to a subset of our transcripts before it was used for the

analysis of all transcripts. Finally, as suggested by

Flick (2014), the final coding of all transcripts and the

preparation of the coding results for answering the

research questions was conducted.

From the interviews, we were able to extract the

proposed I4.0 target metamodel, and the planning

process for I4.0 transformations, which are described

in detail in the following subsections.

4.1 Metamodel for I4.0

Based on the interview results we were able to

enhance the proposed four-layer model from our

previous work (Nowakowski et al., 2018), which

builds the basis for our I4.0 target metamodel. The

layered model, shown in Figure 2, adapts the classical

three-layer approach of EAM (business layer,

application layer, and technology layer) (The Open

Group, 2011) and adds two new layers. The

operational layer tackles the growing similarities of

production machines and applications, as they now

have the same security, update, and release

management requirements. Hence, it is not possible

to distinguish between technology and application

layer anymore. Additionally, these automation assets

now need to be part of the EA, while in the past OT

and business IT were strictly separated from each

other (Nowakowski et al., 2018). These assets are

located in the operational layer and are connected to

the business, application, and technology layers.

Furthermore, the external interface layer is used for

the horizontal integration of the business partners

(e.g. suppliers) and customers, as they are now

directly involved with the production processes.

Figure 2: Five-layer approach for EAM.

The proposed metamodel, shown in Figure 3,

depicts a target EA model with incorporated I4.0

concepts. In the following paragraphs, the metamodel

layers and elements are described in detail.

External Interface Layer. As depicted in Figure 2,

the external interface layer connects to the business

and to the operational layer. It normally consists of

partner systems and the customer. These two

information sources are important to achieve

horizontal integration, which is one key aspect of I4.0

(Xu et al., 2018). The production system is connected

via an interface to the partner systems to be able to

e.g. order parts automatically. On the other hand, the

customer is directly involved in the production

process and is therefore able to order highly

customized products. The external interface layer is

not included in the metamodel because it is not

directly part of the EA. However, the business

capability to manage this information needs to exist

(PC9).

Standard EA Layers. The business layer consists of

business capabilities, business processes, and the

specific product that is produced. Here, the new

aspect is the connection to the operational layer. The

application layer consists of the applications, the

interfaces and data objects that are transferred with

the help of these interfaces. In the case of I4.0, the

interface is also connected to the operational layer,

which makes it e.g. possible to analyze machine data.

The technology layer consists of technology assets

like servers and storage devices. According to the

interviewees, these assets are needed in order to be

able to conduct impact analysis and are modeled on a

course-grained level. Additionally, as many

companies are currently migrating their assets to the

cloud, detailed technology modeling is not important

anymore (PE3).

Operational Layer. The difference to established

EAM metamodels is that the business layer, the

application layer, and the technology layer are now

connected to the operational layer, which makes it

possible that e.g. production machines and sensors

can be associated to a business capability.

Furthermore, it is possible to drill down directly to the

machines and sensors, which is according to the

interviewees necessary in order to be able to plan I4.0

transformations. According to PC8 and PC9, it is

crucial to know the interdependencies between OT

and business IT in order to be able to see how well it

is integrated.

As can be seen in Figure 3, the operational layer

consists of production processes, I4.0 components

and sensors. All of these elements can be connected

to business capabilities that are needed for the

execution of I4.0 business models. The I4.0

components, as well as the products, may have

sensors attached. This enables monitoring and

analyzing production machines that are relevant for

executing the production processes. Sensor data can

be transferred via an interface and be analyzed with

the help of an application to e.g. conduct predictive

maintenance. Additionally, customers now have

direct influence on the production process. Hence, it

is necessary that the highly customized products can

be individually produced by the factory. For this

purpose, the I4.0 components need to be able to

An Enterprise Architecture Planning Process for Industry 4.0 Transformations

575

communicate with each other. Additionally, the

sensors on the product enable the introduction of new

services. With the help of detailed analysis of the

sensor data and the actual usage of the product, it is

possible to create new business models. Furthermore,

it is important to know in which factory the I4.0

components are located; therefore, the components

are linked to the location.

According to RAMI4.0 (Bitkom et al., 2016), an

I4.0 component comprises one or more objects and an

administration shell that consists of the functions of

the technical functionality and the data for virtual

representation.

The production processes are modeled separately

from the business processes. According to the

interviewees the two kind of processes differ

significantly. Production processes are modeled in the

OT department and are solely concerned with the

production.

Enterprise architects mostly work with aggregated

data and in some situations want to be able to drill

down to a sensor type. Hence, in the proposed

metamodel the I4.0 components and the sensors are

only modeled with the type information attached.

Therefore, it is possible to distinguish between

different types of sensors and machines without

needing to know about the specific instances. This

makes a drill down and impact analysis still possible.

Additionally, the I4.0 component can be used as an

interface to the operational department. In this case,

the operational department models the low level OT

architecture and is able to connect it to the EA via the

operational layer, which enables to create holistic

plans. This is especially important for digital

transformation projects, as mentioned by PE1.

Though, choosing the right scope and level of

granularity for the planning is challenging.

With the help of ArchiMates’ physical layer, the

OT can be modeled in detail. However, the

interviewees required an abstract view on the

production machines and other I4.0 components that

is based on type information. Hence, in our

metamodel only abstract concepts are modeled.

4.2 Transformation Planning for I4.0

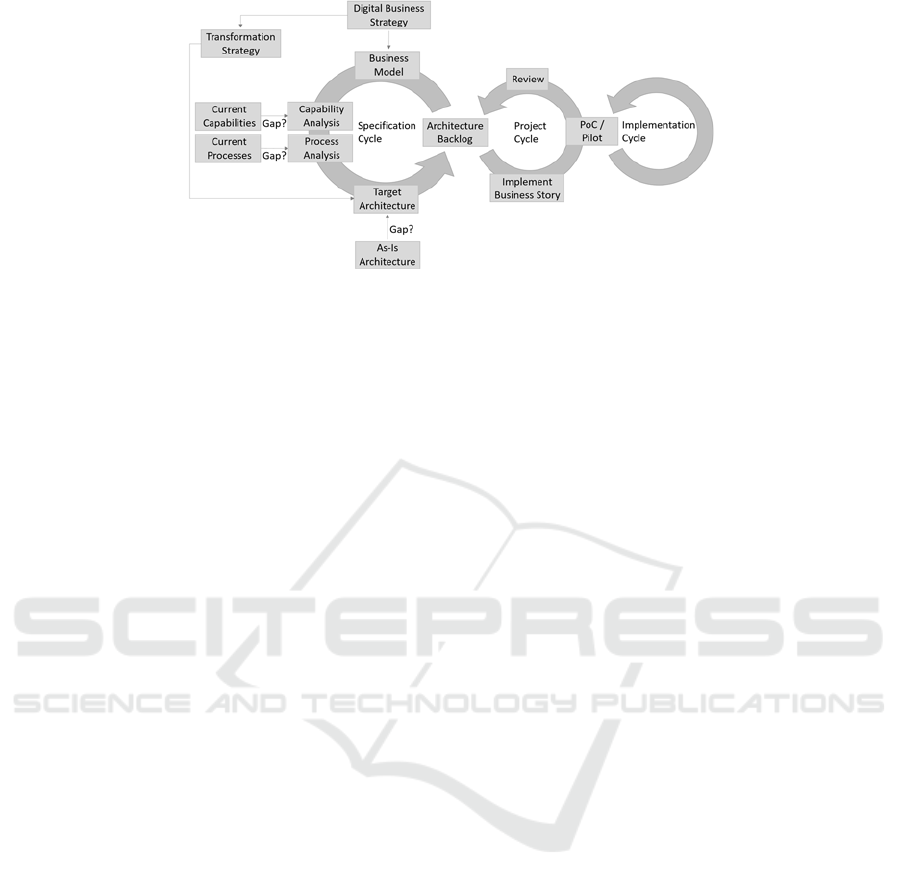

In this subsection, the proposed planning process (see

Figure

4) is described in detail. The process was

developed on the basis of our interview results and

existing planning methods for EAM.

According to our interviewees, a digital

transformation has to be conducted in an agile way

because waterfall methods are too rigid for this kind

of project. We analyzed the results of our interviews

and extracted the relevant planning steps that our

interview partners mentioned and developed an agile

I4.0 transformation planning process. This process is

based on Goerzig and Bauernhansl (2018), which

makes use of the agile Scrum method (Schwaber,

2004). The process consists of several steps and is

iterative. Goerzig and Bauernhansl (2018) divided

their approach into two cycles, a micro and a macro

cycle. The macro cycle defines the architecture of the

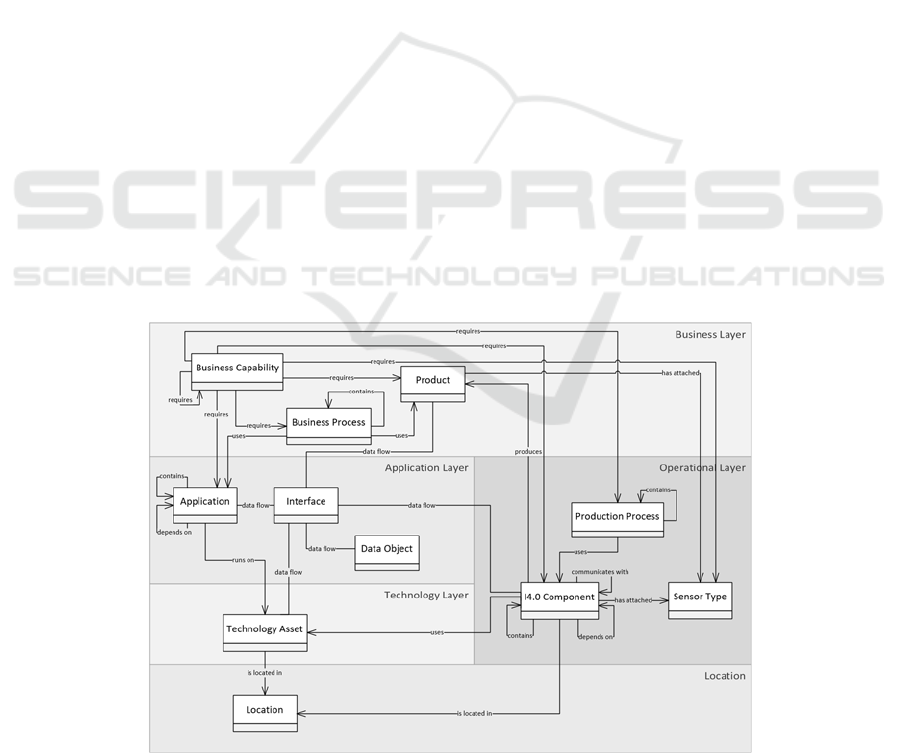

Figure 3: EA metamodel considering Industry 4.0 concepts.

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

576

entire company and the micro cycle is used for the

implementation and testing of single functions. For

our approach, we use a specification, a project and an

implementation cycle. In the specification cycle, the

whole architecture specification happens, while in the

project cycle, the business stories are implemented

and tested. Business stories are similar to user stories

in the Scrum context and describe a business goal.

Finally, the implementation cycle is needed for

implementing the resulting IT projects.

We used the digital business strategy as initial

point of the approach, which contains basic decisions

concerning scale, speed, and scope of the digital

technology application in the enterprise (Goerzig and

Bauernhansl, 2018). In our definition, it consists of

scope, scale, and speed of the I4.0 transformation.

Matt et al. (2015) concluded that it is necessary to

derive the transformation strategy out of the digital

business strategy. The transformation strategy

consists of organizational and technological

principles for the implementation of the

transformation (Goerzig and Bauernhansl, 2018).

Furthermore, the strategy influences the model of the

target architecture.

According to the interviewees, the first step in the

specification cycle is to derive the business model

from the digital business strategy. The business

model contains information like customer segments,

revenue stream, and value propositions (Goerzig and

Bauernhansl, 2018).

The next step is to derive the needed business

capabilities from the new business model (PE2, PE3,

and PE4). After that, the capabilities need to be

analyzed and compared with the currently available

capabilities to identify gaps. This analysis is mostly

done with the help of capability maps.

After the capability gaps are found, the required

business processes are derived from the new

capability. Again, the set of new business processes

is compared to the currently available processes and

the gaps are documented. This is done with the help

of business process landscapes or maps.

With the knowledge gained from the steps before,

a target EA architecture can be developed. This

architecture needs to close the found gaps in order to

be able to introduce the new business model.

Additionally, the target model is influenced by the

transformation strategy, which dictates the

technological and organizational principles of the

transformation. Furthermore, the application and the

technology landscape need to be analyzed to make

sure that the new business processes are appropriately

supported. This is usually done with the help of

landscape visualizations, which show the

technologies or applications and their

interdependencies. If there are gaps to the current

architecture, they are documented again. According

to the interviewees, for the planning of the target

architecture multiple scenarios are developed, which

are compared and the one that fits best is chosen to be

implemented. The fit criteria depend on the

transformation strategy. As last step, the gaps to the

as-is architecture are formulated into business stories,

which describe the users, the desired functionality,

and the benefit and are put in the architecture backlog.

Afterwards, the business stories are prioritized and

ready to be implemented.

When the best fitting target architecture is chosen,

the first iteration of the specification cycle is finished

and the project cycle begins with choosing the

prioritized business stories from the backlog. The

amount of the chosen business stories depends on the

aimed speed of change of the company, which is

defined in the transformation strategy.

The next step is to implement the business story

with the highest priority. For this purpose, the gaps

that were found in the specification cycle are

analyzed again and closed according to the specified

target architecture.

After that, it is checked if the architecture is now

capable of depicting the new business story and if all

identified gaps are closed. To evaluate the newly

implemented business capability a proof of concept

(PoC) with a pilot customer can be used. The newly

needed IT artifacts are developed in the

implementation cycle and tested again.

In the review, the final step in the project cycle,

the state of the business story is either marked as

done, adaptations need to be implemented, or the

overall impact on the architecture needs to be

analyzed again. If it is marked as done, the teams start

with the next business story. Otherwise, if there are

still adaptations required, the project cycle starts

again. Finally, if the changes generate findings that

have an impact on the whole architecture, the

specification cycle has to start again (Goerzig and

Bauernhansl, 2018).

According to Goerzig and Bauernhansl (2018),

the architecture after the first iteration of the

specification cycle is still very rough and more details

are added with every run. Additionally, the

specification cycle should always give enough space

for decisions in the project and implementation cycle.

However, the business critical core processes

should still be planned with the help of a waterfall

method (PE4 and PE5). Additionally, PE5 mentioned

that they are using agile methods for planning the

architecture and the introduction of new capabilities

An Enterprise Architecture Planning Process for Industry 4.0 Transformations

577

Figure 4: Agile EA planning for Industry 4.0 transformations (based on (Goerzig and Bauernhansl, 2018)).

until the PoC phase. Afterwards, for the business

wide release they are planning based on waterfall

methods.

5 FUTURE WORK

Our future work will consider further evaluation of

the proposed artifacts. Hence, we plan to conduct a

new interview series in which the interviewees will

use the planning process and the metamodel for

modeling a small example transformation. For this

purpose, a tool will be used that is outcome of our

previous research on automated EA documentation

(Trojer et al., 2015). Additionally, confirmatory

interviews are planned to evaluate if the developed

artifacts are useful in their current state. Furthermore,

we will evaluate the metamodel and the planning

process with the help of a case study to ensure their

applicability and a better alignment between the two

artifacts.

The planning process needs further investigation,

as details like team size and holistic EA planning via

agile methods in general are still open research

questions that are subject of current research on this

topic.

Finally, the proposed research artifacts can be

used to extend the TOGAF ADM and therefore to

introduce a holistic planning guideline for digital

transformations into the framework.

6 CONCLUSION

This paper presented an EA planning approach for

digital transformations that consists of a planning

process and a metamodel that serves as a target data

model. Both of these DSR artifacts were developed

based on the results of a series of expert interviews.

Furthermore, the interview results showed that

OT needs to be part of the EA in order to be able to

plan such transformations. This was materialized by

introducing a new operational layer to the standard

three-layer approach of EAM. This layer consists of

I4.0 components, the production processes and

sensors, where the I4.0 components are connected via

an interface to the application layer. The I4.0

components and the sensor may not be modeled in

detail, but on an abstract basis only considering their

types. The operational layer can also be used as a

modeling interface to the detailed OT models and

therefore connects both worlds.

The proposed planning process is an agile

approach that is based on the Scrum method. The

process makes a detailed planning of the EA in

several iterations possible. This is needed for the

introduction of I4.0 concepts, as it is faster to conduct

than planning based on a waterfall method.

ACKNOWLEDGEMENTS

This research was partially funded by the research

project “txtureSA” (FWF-Project P 29022).

REFERENCES

Aier, S., Gleichauf, B., 2010. Towards a Systematic

Approach for Capturing Dynamic Transformation in

Enterprise Models, in: 43rd Hawaii International

Conference on System Sciences. pp. 1–10.

Bitkom, Vdma, Zvei, 2016. Implementation Strategy

Industrie 4.0 [WWW Document]. URL

https://www.zvei.org/fileadmin/user_upload/Presse_u

nd_Medien/Publikationen/2016/januar/Implementatio

n_Strategy_Industrie_4.0_-_Report_on_the_results_of

_Industrie_4.0_Platform/Implementation-Strategy-

Industrie-40-ENG.pdf (accessed 18.02.19).

ICEIS 2019 - 21st International Conference on Enterprise Information Systems

578

Bücker, I., Hermann, M., Pentek, T., Otto, B., 2016.

Towards a Methodology for Industrie 4.0

Transformation. Bus. Inf. Syst. 255, 209–221.

Flick, U., 2014. The SAGE Handbook of Qualitative Data

Analysis. SAGE Publications Ltd., London.

Franck, T., Iacob, M.-E., Van Sinderen, M., Wombacher,

A., 2017. Towards an Integrated Architecture Model of

Smart Manufacturing Enterprises, in: Proceedings of

the 7th International Symposium on Business Modeling

and Software Design (BMSD 2017). pp. 112–133.

Goerzig, D., Bauernhansl, T., 2018. Enterprise

Architectures for the Digital Transformation in Small

and Medium-sized Enterprises. Procedia CIRP 67,

540–545.

Hevner, A.R., 2007. A Three Cycle View of Design Science

Research. Scand. J. Inf. Syst. 19, 87–92.

Hevner, A.R., March, S.T., Park, J., Ram, S., 2004. Design

Science in Information Systems Research. MIS Q. 28,

75–105.

Industrial Internet Consortium, 2017. The Industrial

Internet of Things Volume G1: Reference Architecture.

Industrial Value Chain Initiative, 2018. Strategic

Implementation Framework of Industrial Value Chain

for Connected Industries.

Kaidalova, J., Sandkuhl, K., Seigerroth, U., 2017.

Challenges in Integrating Product-IT into Enterprise

Architecture – A Case Study. Procedia Comput. Sci.

121, 525–533.

Lankhorst, M., 2013. Enterprise Architecture at Work -

Modelling, Communication and Analysis, 3rd ed.

Springer-Verlag, Berlin, Heidelberg.

Luftman, J.N., Lewis, P.R., Oldach, S.H., 1993.

Transforming the Enterprise: The Alignment of

Business and Information Technology Strategies. IBM

Syst. J. 32, 198–221.

Matt, C., Hess, T., Benlian, A., 2015. Digital

Transformation Strategies. Bus. Inf. Syst. Eng. 57, 339–

343.

Mayring, P., 2014. Qualitative Content Analysis -

Theoretical Foundation, Basic Procedures and Software

Solution.

Molano, J.I.R., Lovelle, J.M.C., Montenegro, C.E.,

Granados, J.J.R., Crespo, R.G., 2018. Metamodel for

integration of Internet of Things, Social Networks, the

Cloud and Industry 4.0. J. Ambient Intell. Humaniz.

Comput. 9, 709–723.

Nowakowski, E., Farwick, M., Trojer, T., Haeusler, M.,

Kessler, J., Breu, R., 2018. Enterprise Architecture

Planning in the Context of Industry 4.0

Transformations, in: 22nd International Enterprise

Distributed Object Computing Conference (EDOC).

pp. 35–43.

Nowakowski, E., Farwick, M., Trojer, T., Haeusler, M.,

Kessler, J., Breu, R., 2017. Enterprise Architecture

Planning: Analyses of Requirements from Practice and

Research, in: 50th Hawaii International Conference on

System Sciences.

Plattform Industrie 4.0, Industrial Internet Consortium,

2018. Architecture Alignment and Interoperability.

Rogers, C., 2016. Proposed Enterprise Architecture

Solutions for Industry 4.0 Manufacturing Simulation

Information Assets Based on TOGAF.

Schwaber, K., 2004. Agile Project Management With

Scrum. Microsoft Press, Redmond, WA, USA.

Stock, T., Seliger, G., 2016. Opportunities of Sustainable

Manufacturing in Industry 4.0. Procedia CIRP 40, 536–

541.

The Open Group, 2016. ArchiMate 3.0 Specification. Van

Haren Publishing.

The Open Group, 2011. TOGAF Version 9.1, 10th ed. Van

Haren Publishing.

Trojer, T., Farwick, M., Haeusler, M., Breu, R., 2015.

Living Modeling of IT Architectures: Challenges and

Solutions, in: Software, Services, and Systems - Essays

Dedicated to Martin Wirsing on the Occasion of His

Retirement from the Chair of Programming and

Software Engineering. pp. 458–474.

Xu, L. Da, Xu, E.L., Li, L., 2018. Industry 4.0: State of the

Art and Future Trends. Int. J. Prod. Res. 7543, 1–22.

Zimmermann, A., Jugel, D., Sandkuhl, K., Schmidt, R.,

Schweda, C.M., Möhring, M., 2016. Architectural

Decision Management for Digital Transformation of

Products and Services. Complex Syst. Informatics

Model. Q. 31–53.

Zimmermann, A., Schmidt, R., Jugel, D., Möhring, M.,

2015a. Evolving Enterprise Architectures for Digital

Transformations, in: Digital Enterprise Computing

2015. pp. 183–194.

Zimmermann, A., Schmidt, R., Sandkuhl, K., Wissotzki,

M., Jugel, D., Mohring, M., 2015b. Digital Enterprise

Architecture - Transformation for the Internet of

Things, in: Enterprise Distributed Object Computing

Workshop (EDOCW). pp. 130–138.

An Enterprise Architecture Planning Process for Industry 4.0 Transformations

579
