Deep Neural Networks for Android Malware Detection

Abhilash Hota and Paul Irolla

Laboratoire de Cryptologie et de Virologie Operationnelles,

Ecole Sup

erieure d’Informatique,

Electronique, Automatique, Laval, France

Keywords:

Machine Learning, Deep learning, Android, Malware.

Abstract:

In this paper we present a study of the application of deep neural networks to the problem of pattern matching

in Android malware detection. Over the last few years malware have been proliferating and malware authors

keep developing new techniques to bypass existing detection methods. Machine learning techniques in general

and deep neural networks in particular have been very successful in recent years in a variety of classiﬁcation

tasks. We study various deep neural networks as potential solutions for pattern matching in malware detection

systems. The effectiveness of the different architectures is compared and judged as a potential replacement for

traditional approaches to malware detection in Android systems.

1 INTRODUCTION

Smartphone use has been rising steadily over the past

few years. Surveys (Deloitte, 2017) show anywhere

from 80 to 82% smartphone penetration in the tested

markets. Of the surveyed users, about a third conduct

regular ﬁnancial transactions on their smartphones.

The share of consumers using mobile payments in-

creases to about 90% in markets like India and China.

A signiﬁcant interest in FinTech has led to an even

greater increase in adoption of mobile platforms, not

just for payments but also as a substitute for regular

banking. Globally, in terms of mobile operating sys-

tems, 99% of the market share is owned by Android

and iOS. Since 2015, Android has consistently ma-

naged to hold on to the majority of this market share

ranging from 70 to 85% in different markets.

This popularity has, however, also attracted the at-

tention of malware authors. The number of android

malware samples detected in the marketplaces has ri-

sen from about 500,000 in 2013 to more than 3.5 mil-

lion in 2017 (SophosLabs, 2017). Different types of

malware are currently active in the Android ecosy-

stem including banking bots, ransomwares, adwares,

spywares, etc. The problem is compounded by the

existence of multiple unofﬁcial marketplaces that are

largely unregulated and improperly monitored. As

such, there is a distinct need to provide a reliable sy-

stem to protect these endpoint devices from these mal-

ware.

In this paper, we study the application of various

deep neural network networks to the problem of an-

droid malware detection. The paper is organized as

follows. We start off by discussing existing approa-

ches to android malware detection. Section 3 discus-

ses the creation of the datasets. Section 4 discusses

the preprocessing of the android application samples

and the neural network models we trained for mal-

ware detection. Section 5 presents the results follo-

wed by the conclusion in section 6.

2 RELATED WORK

There exists a signiﬁcant body of work on the pro-

blem of detecting malware on mobile devices. Gene-

rally speaking, these approaches can be broadly ca-

tegorized as based on static analysis or dynamic ana-

lysis. In this paper we are primarily concerned with

static analysis.

2.1 Static Analysis based Approaches

Static program analysis refers to the analysis of soft-

ware without actually executing the program. Static

analysis has the advantages of low computation cost

and low RAM consumption . However, methods like

code obfuscation of even byte padding can often be

effective in bypassing these approaches.

These approaches are based primarily on ex-

tracting features by inspecting application manifests

and code disassembly. The most commonly used fea-

tures are permissions and API calls.

Hota, A. and Irolla, P.

Deep Neural Networks for Android Malware Detection.

DOI: 10.5220/0007617606570663

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 657-663

ISBN: 978-989-758-359-9

657

(Jiang and Zhou, 2012) discusses the characteri-

zation of various android malware including their in-

stallation methods, activation mechanisms as well as

the nature of carried malicious payloads.

(Feng et al., 2014) discuss a new semantics-based

approach for identifying a prevalent class of Android

malware that steals private user information. They

incorporate a high-level language for specifying sig-

natures that describe semantic characteristics of mal-

ware families and static analysis for deciding if a gi-

ven application matches a malware signature.

(Wu et al., 2012) discuss a static feature-based

mechanism for detecting Android malware. They

consider static information including permissions, de-

ployment of components, intent messages passing and

API calls for characterizing the Android applications

behavior. Clustering algorithms are deployed to cha-

racterize malware intent.

(Schmidt et al., 2009) perform static analysis on

the android applications to extract function calls.

Function call lists are compared with malware exe-

cutables for classifying them with Prism and Nearest

Neighbor Algorithms. Further they present a colla-

borative malware detection approach to extend these

results.

(Arp et al., 2014) propose a method for detection

of Android malware directly on endpoint devices.

Their system performs a broad static analysis gather-

ing as many features of an application as possible.

The features are embedded in a joint vector space

from which characterizing patterns maybe be identi-

ﬁed.

The works described in this section all use satic

analysis methods to build up a dataset by extracting

features like API calls, installation methods, etc, and

using that dataset to classify or cluster applications.

3 THE DATASETS

The work described in this paper was carried out

using two datasets.

3.1 Dataset 1

This was the ﬁrst dataset that our models were trained

on. It consists of the results of static analysis perfor-

med on 3500 malware samples from the Drebin Data-

set (Arp et al., 2014) and 2700 benign samples from

Fdroid(Gultnieks, 2010). We took only unique sam-

ples from Drebin Dataset, in order to remove statisti-

cal bias in the experiment (Irolla and Dey, 2018). The

neural networks were trained on opcode sequence of

application source code, which is the sequence of Java

bytecode operators. It was clear early on that deeper

architectures were overtraining on such a limited da-

taset very quickly. This led us to create the second

dataset.

3.2 Dataset 2

(Allix et al., 2016) present Androzoo, a growing col-

lection of Android applications collected from se-

veral sources, including the ofﬁcial GooglePlay app

market. It currently contains 7,412,461 different

APKs, each of which has been (or will soon be)

analyzed by tens of different AntiVirus products to

know which applications are detected as Malware.

The APKs downloaded from Androzoo were veriﬁed

against VirusTotal (Total, 2012) to build a dataset of

150000 malware samples and 150000 benign sam-

ples. Keeping computational constraints in mind, we

restricted ourselves to application samples of size less

than 4MB.

4 DATA PREPARATION AND

NEURAL NETWORKS

This section describes the data preparation and the

neural network models developed.

4.1 Data Preparation

Preprocessing steps involved in machine learning ap-

plied to the security domain are very similar to those

involved in machine learning applied to the Natural

Language Processing (NLP) domain. In fact, the

source code of a program is a language — even if it

is not natural. It has words that assemble themselves

into syntax to form a meaning. In the NLP domain, it

is common to pretrain Deep Learning with a dedica-

ted neural network that learns a numerical representa-

tion of words.

Bytes obtained from the dataset were used as

words to generate document vectors for the samples

using Doc2Vec (Le and Mikolov, 2014).

4.1.1 Doc2Vec

Doc2vec (Le and Mikolov, 2014) is an unsupervi-

sed algorithm to generate vectors for sentences, pa-

ragraphs or documents. Many neural network archi-

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

658

tectures require inputs to be ﬁxed-length vectors. The

bag-of-words technique is one approach to this end,

but has some drawbacks. It loses the ordering of the

words and ignores semantics. Paragraph Vector, or

doc2vec, was proposed as an unsupervised approach

to learning ﬁxed-length feature representations from

variable-length texts, such as sentences, paragraphs

or documents.

Every paragraph and every word are mapped to

unique vectors which are averaged or concatenated to

predict the next word in a given context. The para-

graph label acts as a context memory. The paragraph

vector stays consistent across all contexts from the

same paragraph but not across paragraphs. The word

vectors, however, are shared across paragraphs.

This approach was designed to resolve certain we-

aknesses in traditional bag-of-words models. It re-

tains the semantics of the text and does not lose in-

formation about word order. A bag-of-words n-gram

model would create a very-high-dimensional feature

space with poor generalization.

The algorithm itself has two key stages:

1. Training: Compute word vectors W , softmax

weights U, b and paragraph vectors D on already

seen paragraphs

2. Inference: Compute paragraph vectors D for new

paragraphs by adding more columns in D and gra-

dient descending on D while W, U, b are ﬁxed.

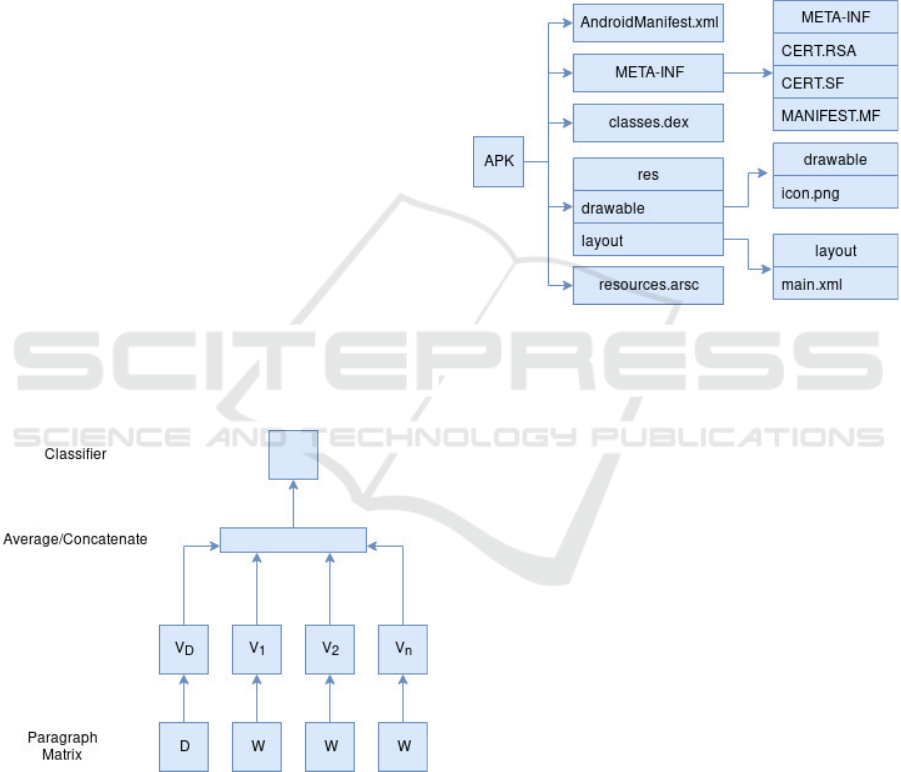

Figure 1: Doc2Vec.

4.1.2 Dataset 1

Dataset 1 consists of the results of static analysis per-

formed on android applications. The bytes from these

ﬁles were treated as words and used to generate do-

cument vectors of length 300 for all the samples. The

document vectors served as inputs for the convolutio-

nal neural networks. The bytes were the inputs for the

long short-term memory networks.

4.1.3 Dataset 2

Dataset 2 consists of multiple android applications,

both malware and benign. Ground truth for trai-

ning was obtained by checking the samples against

VirusTotal (Total, 2012). Android applications are

packaged as APK ﬁles. Figure 2 shows the general

structure of an APK ﬁle.

Figure 2: APK File Structure.

For the purposes of the work shown in this paper,

we focus on the classes.dex ﬁle. Java source code is

compiled by the Java compiler into .class ﬁles. These

ﬁles are then processed by the dexer tool in the An-

droid SDK into the .dex (Dalvik Executable) ﬁle for-

mat. This eliminates all the redundant information

that is present in the classes. In DEX all the classes of

the application are packed into one ﬁle.

We use APKTool (Tumbleson and Wisniewski,

2016) to extract the dex ﬁles from the APKs. The

bytes from the extracted dex ﬁles was then used to

generate document vectors of length 300 representing

each sample. The document vectors served as inputs

for the convolutional neural networks. The bytes were

the inputs for the long short-term memory networks.

4.2 Deep Neural Networks

Artiﬁcial neural networks (ANNs) are machine lear-

ning systems, vaguely inspired by biological neural

networks. They can broadly be seen as consisting of

four parts:

1. Processing units called neurons, each of which

has a certain activation level at any point in time.

2. Weighted interconnections between the units

which determine the input to subsequent units gi-

ven the activation of previous units.

Deep Neural Networks for Android Malware Detection

659

3. An activation rule which a new output signal or

activation from the inputs to the units.

4. A learning rule to adjust the weights for a given

input/output pair.

ANNs have been around in various forms since the

1940s (McCulloch and Pitts, 1943). Recently, howe-

ver, the signiﬁcantly decreasing cost of computational

power has led to a massive revival of interest in neu-

ral networks in general and deep neural networks in

particular.

Deep neural networks, which have shown remar-

kable successes in recent years in a multitude of

ﬁelds, are essentially neural networks, distinguished

primarily by their depth. The data passes through

multiple layers of neurons. Each layer trains on a dis-

tinct set of features based on the output of the previous

layer. As we go deeper into the network, the layers

are able to recombine features from previous layers,

leading to increased complexity of features learned.

The models presented in this paper are based on

convolutional neural networks and long short-term

memory networks.

4.2.1 Convolutional Neural Networks

Convolutional neural networks (CNNs) are a type

of neural network that have shown excellent results

in various classiﬁcation tasks and image recogni-

tion(Schmidhuber, 2015).

CNNs are based on the assumption of spatially-

local correlations. This is enforced by maintaining a

local connectivity between neurons of adjacent lay-

ers. Stacking many such layers leads to ﬁlters that

can learn more global features. In CNNs there is also

the idea of shared weights. Using the same weights

across multiple hidden units allows for features to be

detected regardless of position. It is also an effective

way of increasing learning efﬁciency by reducing the

number of free parameters to be learned.

CNNs can be described in terms of 4 primary

functions:

1. Convolution. This step involves the convolution

of the input vectors with a linear ﬁlter and adding

a bias term.

Let h

i j

be the k

feature map at a hidden

layer. Given weights W

and bias b

C can be

computed as follows

i j

= (W

∗ x)

i j

+ b

(1)

The size of the feature map is affected by three

parameters:

(a) Depth: This refers to the number of ﬁlters used

for the convolution.

(b) Stride: This refers to the number of steps the

ﬁlter slides over the input matrix. Larger strides

produce smaller feature maps.

or wide convolution (Kalchbrenner et al., 2014)

can allow us to apply the ﬁlters to border values

in the input matrix and control the size of the

feature map.

2. Non-linearity. The purpose of the non-linearity

is to account for the non-linearity in most

real-world data. Different types of non-linear

functions are used for various models including

tanh, sigmoid, ReLU, etc. Rectiﬁed Linear Units

(ReLU, h(x) = max(0, x)) is an element-wise

operation that replaces all negative values in the

feature map by zeros. In Deep Learning, ReLU

has been shown to outperform sigmoid or tanh

(which is essentially a symmetric sigmoid) in

most cases (Krizhevsky et al., 2012). Half of

the neurons are activated, and sparse activation

is preferred on deep architectures for feature

selection (to recall, it is the network that learns to

detect the best features in Deep Learning) and for

processing time. Moreover, when stacking neuron

layers it creates a vanishing gradient effect with

sigmoid-like transfer function. Gradient values

are multiplied together and as the derivative of

sigmoid-like function tends to zero when their

input tends to their extremum values, the gradient

magnitude diminishes from a layer to one other.

ReLU, having a constant or null derivative, solves

the vanishing gradient problem.

Applying non-linear function f

to C

i j

from

Eq.1 we get the rectiﬁed feature map.

F = f

i j

) = f

((W

∗ x)

i j

+ b

) (2)

3. Pooling or Sub-sampling. Max-pooling splits

the input matrix into a set of non-overlapping spa-

ces and, for each such sub-region, outputs the

maximum value. It provides the following advan-

tages:

(a) It reduces the computational load by elimina-

ting non-maximal values.

(b) It gives us a sort of translational invari-

ance(Springenberg et al., 2014). In other

words, by providing robustness to feature po-

sition it allows us to reduce the dimensionality

of intermediate representations.

4. Classiﬁcation. Here we employ a fully connected

layer, which is a multi layer perceptron with a

softmax activation. The convolutional and pool-

ing layers give us high-level features of the in-

put matrix. The purpose of the fully connected

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

660

layer is to classify the input based on these featu-

res. The layer is also a cheap way to learn non-

linear combinations of these features. The output

of the softmax activation is equivalent to a catego-

rical probability distribution and makes sure that

the sum of output probabilities of the fully con-

nected layer is always 1.

We created three models using CNNs.

Model 1. This network, shown in ﬁg.3, con-

sists of three 2D convolutional layers, each followed

by ReLU units and maxpooling. An initial dropout

layer is added to avoid overﬁtting. The ﬁnal output is

obtained through a fully connected layer and softmax

activation. The document vectors of length 300 were

reshaped into matrices of dimensions (30,10) and

used as the input. Essentially the network would be

treating it as an input image. Thus the use of 2D

convolutions.

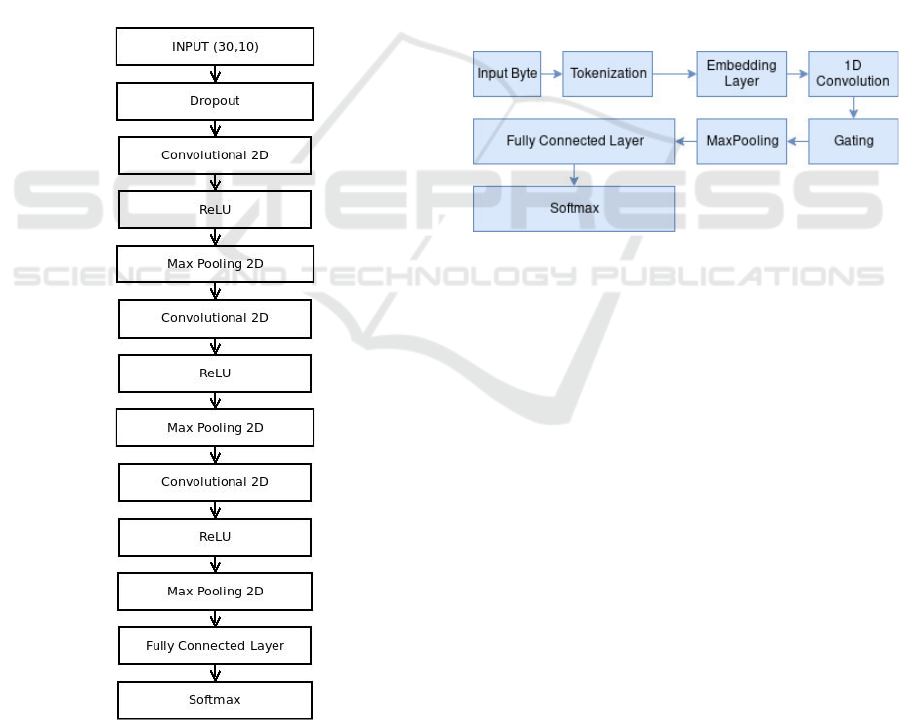

Figure 3: Model 1.

Model 2. This network has the same architecture as

Model 1, shown in ﬁg.3. However the difference is

that larger document vectors of length 10000 were

generated and the input was a matrix of dimension

(100,100). The intention was to see if using larger

document vectors would allow the network to learn

better representations and thus be able to classify the

samples better.

Model 3. This model is based on the MalConv

architecture (Raff et al., 2017). This architecture was

developed for malware detection by ingesting PE

ﬁles. Here, it has been modiﬁed to accept raw bytes

from the dex ﬁles extracted from the APKs as the

input sequences. The architecture, shown in ﬁg. 4 is

based on CNNs. Here the problem is treated similar

to a natural language processing problem. The input

bytes are tokenized and an embedding layer learns

a representation for the tokens. Since the input here

is in the form of row vectors instead of 2D images,

we deploy a 1D convolutional layer. The gating layer

determines the fraction of information hat is sent to

subsequent layers.

Figure 4: Model 3 - MalConv.

4.2.2 Long Short-Term Memory Networks

Long-short term memory (LSTM) (Gers et al., 1999)

is a variant of recurrent neural networks (RNNs).

RNNs use recurrent connections within the hidden

layer to create an internal state representing the previ-

ous input values. This allows RNNs to capture tem-

poral context. However, as the time interval expands,

the updated gradient from backpropagation can decay

or explode exponentially, referred to as the vanishing

and exploding gradient problems respectively. This

makes it difﬁcult for RNNs to learn long-term depen-

dencies. LSTM uses constant error carousel (CEC) to

propagate a constant error signal through time, using a

gate structure to prevent backpropagated errors from

vanishing or exploding. The gate structure controls

information ﬂow and memory by tuning the value of

CEC according to current input and previous context.

A gate is essentially a pointwise multiplication opera-

tion and a nonlinear transformation that allows errors

to ﬂow backwards through a longer time range.

Model 4. This model, shown in ﬁg.5, is based on

LSTM cells.

Deep Neural Networks for Android Malware Detection

661

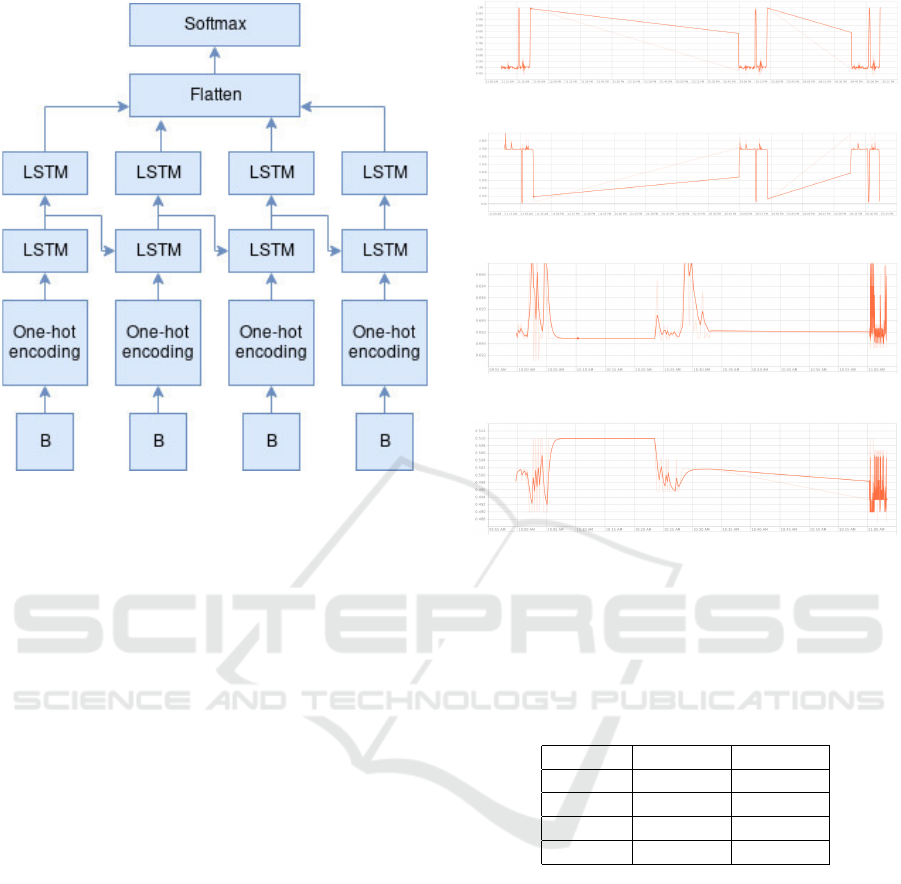

Figure 5: Model 4 - LSTM Network.

Bytes from the extracted dex ﬁles are fed directly

into the network. An initial one-hot encoding of these

bytes is used as a representation and fed into the

LSTM network. The output of the LSTM layers is

ﬂattened and the ﬁnal output is obtained after a soft-

max layer.

5 TRAINING AND RESULTS

Model 1: was trained using NADAM (Dozat, 2016).

This is a variation of ADAM (Kingma and Ba, 2014)

that employs Nesterov momentum instead of classi-

cal momentum. Hyperparameters was optimized over

50 trials. A 9:1 split was maintained for training and

validation.

Model 2: was trained using ADAM (Kingma and Ba,

2014). Hyperparameter optimization was performed

by experi- menting over 50 trials.

Model 3: was trained using ADAM (Kingma and Ba,

2014). Hyperparameter optimization was performed

by experi- menting over 60 trials.

Model 4: was trained using ADAM (Kingma and Ba,

2014) over 1000 steps, with validation checks every

20 steps.

Training time over Dataset 1 was shorter. Ho-

wever, due to less data the models would easily

overﬁt. Accuracy over the training set would quickly

reach about 98-99% but accuracy over the test set

was limited to about 60-80%.

Figure 6: Training Accuracy.

Figure 7: Training loss.

Figure 8: Test Accuracy.

Figure 9: Test loss.

Dataset 2 gives much better results considering the in-

creased amount of data available (Table 1). Accuracy

over the training set approaches 1 and over the test

set approaches 95.3%. As expected training time is

signiﬁcantly increased to about 160-170 minutes.

Table 1: Malware Detection Accuracy.

Dataset 1 Dataset 2

Model 1 67% 94.4%

Model 2 70% 95.1%

Model 3 89% 93.7%

Model 4 70% 95.3%

6 CONCLUSIONS

Deep neural networks have shown excellent results

in recent years and they show promise in the ﬁeld of

malware detection. In their current state of develop-

ment, however, they present certain challenges. They

require immense amounts of data and processing po-

wer to learn the features that make them successful.

When it comes to endpoint device security in An-

droid systems, most smartphones running the OS have

resource limitations. As such, building a real-time

monitoring and malware detection system would cur-

rently not be feasible using deep neural networks on

the endpoint devices. Moreover treating byte code

from the applications as input to the neural networks

ForSE 2019 - 3rd International Workshop on FORmal methods for Security Engineering

662

makes the networks very sensitive to slight modiﬁ-

cations of the binary. It requires a ﬁxed length in-

put, so any shift of the binary bytes (like adding bloa-

ting code) breaks the detection. Deep neural networks

that learn to detect malware based on static analy-

sis would be subject to the same limitations as tradi-

tional signature-based approaches. Malware authors

have shown a considerable talent for avoiding signa-

ture detection systems. Adversarial neural networks

have been very successful in fooling neural network

based recognition systems (Nguyen et al., 2015).

As such,it would be preferable to have deep neural

networks running on the cloud and analyzing applica-

tion behavior for applications available on the mar-

ketplaces, instead of running on endpoint devices for

real-time detection. Potentially, unsupervised appro-

aches to deep learning could be used to generate re-

presentations. These signatures could then be used

by pattern-mathcing based detection systems on end-

point devices. There is a lot more scope for work in

this ﬁeld. The study presented here considers only

static analysis or raw byte analysis. However the re-

sults do show promise and potential for application to

dynamic analysis methods.

REFERENCES

Allix, K., Bissyand

e, T. F., Klein, J., and Le Traon, Y.

(2016). Androzoo: Collecting millions of android

apps for the research community. In Mining Software

Repositories (MSR), 2016 IEEE/ACM 13th Working

Conference on, pages 468–471. IEEE.

Arp, D., Spreitzenbarth, M., Hubner, M., Gascon, H.,

Rieck, K., and Siemens, C. (2014). Drebin: Effective

and explainable detection of android malware in your

pocket. In Ndss, volume 14, pages 23–26.

Deloitte (2017). Global mobile consumer survey. Technical

report.

Dozat, T. (2016). Incorporating nesterov momentum into

adam.

Feng, Y., Anand, S., Dillig, I., and Aiken, A. (2014). Ap-

poscopy: Semantics-based detection of android mal-

ware through static analysis. In Proceedings of the

22nd ACM SIGSOFT International Symposium on

Foundations of Software Engineering, pages 576–587.

ACM.

Gers, F. A., Schmidhuber, J., and Cummins, F. (1999). Le-

arning to forget: Continual prediction with lstm.

Gultnieks, C. (2010). F-droid. https://f-droid.org/en/.

Accessed: 2018-10-20.

Irolla, P. and Dey, A. (2018). The duplication issue within

the drebin dataset. Journal of Computer Virology and

Hacking Techniques, pages 1–5.

Jiang, X. and Zhou, Y. (2012). Dissecting android malware:

Characterization and evolution. In 2012 IEEE Sympo-

sium on Security and Privacy, pages 95–109. IEEE.

Kalchbrenner, N., Grefenstette, E., and Blunsom, P. (2014).

A convolutional neural network for modelling senten-

ces. arXiv preprint arXiv:1404.2188.

Kingma, D. P. and Ba, J. (2014). Adam: A method for sto-

chastic optimization. arXiv preprint arXiv:1412.6980.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in neural information pro-

cessing systems, pages 1097–1105.

Le, Q. and Mikolov, T. (2014). Distributed representations

of sentences and documents. In International Confe-

rence on Machine Learning, pages 1188–1196.

McCulloch, W. S. and Pitts, W. (1943). A logical calculus

of the ideas immanent in nervous activity. The bulletin

of mathematical biophysics, 5(4):115–133.

Nguyen, A., Yosinski, J., and Clune, J. (2015). Deep neural

networks are easily fooled: High conﬁdence predicti-

ons for unrecognizable images. In Proceedings of the

IEEE Conference on Computer Vision and Pattern Re-

cognition, pages 427–436.

Raff, E., Barker, J., Sylvester, J., Brandon, R., Catanzaro,

B., and Nicholas, C. (2017). Malware detection by

eating a whole exe. arXiv preprint arXiv:1710.09435.

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural networks, 61:85–117.

Schmidt, A.-D., Bye, R., Schmidt, H.-G., Clausen, J., Kiraz,

O., Yuksel, K. A., Camtepe, S. A., and Albayrak, S.

(2009). Static analysis of executables for collabora-

tive malware detection on android. In Communica-

tions, 2009. ICC’09. IEEE International Conference

on, pages 1–5. IEEE.

SophosLabs (2017). Sophoslabs 2018 malware forecast.

Technical report.

Springenberg, J. T., Dosovitskiy, A., Brox, T., and Riedmil-

ler, M. (2014). Striving for simplicity: The all convo-

lutional net. arXiv preprint arXiv:1412.6806.

Total, V. (2012). Virustotal-free online virus, malware and

url scanner. Online: https://www. virustotal. com/en.

Tumbleson, C. and Wisniewski, R. (2016). Apktool.

Wu, D.-J., Mao, C.-H., Wei, T.-E., Lee, H.-M., and Wu,

K.-P. (2012). Droidmat: Android malware detection

through manifest and api calls tracing. In Information

Security (Asia JCIS), 2012 Seventh Asia Joint Confe-

rence on, pages 62–69. IEEE.

Deep Neural Networks for Android Malware Detection

663
