A Fog-Cloud Computing Infrastructure for Condition Monitoring and

Distributing Industry 4.0 Services

Timo Bayer, Lothar Moedel and Christoph Reich

Institute of Cloud Computing and IT Security, University of Applied Science, 78120 Furtwangen, Germany

Keywords:

Fog Computing, Industrial Cyber Physical System, Application Deployment, Condition Monitoring.

Abstract:

Data-driven Industry 4.0 applications require low latency data processing and reliable communication models

to enable efﬁcient operation of production lines, fast response to failures and quickly adapt the manufacturing

process to changing environmental conditions. Data processing in the Cloud has been widely accepted and in

combination with Fog technologies, it can also satisfy these requirements.

This paper investigates the placement of service containers and wheater they should be carried out in the Cloud

or at a Fog node. It shows how to provide an uniform well-monitored execution environment to automatically

distribute services concerning their application-speciﬁc requirements. An infrastructure is presented, that

utilizes measurement probes to observe the node and environmental conditions, derive and evaluate appropriate

distribution algorithms and ﬁnally deploy the application services to the node that meets the requirements.

1 INTRODUCTION

Industry 4.0 is a ubiquitous keyword, including au-

tomated and data-driven manufacturing technologies,

communicating plants and a large set of data sources

to collect detailed process information. Basis for

this, are optimized processing infrastructures provid-

ing computation capabilities and data storage.

Cloud Computing is a typical enabler for such ap-

plications. However, Industry 4.0 applications often

deal with frequency data and require low latency data

processing. Low latency is important to enable efﬁ-

cient operation, fast response to failures and quickly

adapt the manufacturing processes to changing envi-

ronmental conditions (Jiang et al., 2017). Further-

more, they are often built on sensitive data, including

intellectual properties or customer data that need to

be protected. Low latency and strict privacy require-

ments make the use of Cloud Computing problematic.

A new trend to overcome these insufﬁciencies is

to combine Cloud Computing and Fog Computing.

For instance, Fog Computing can be used to provide

low latency data processing or perform preprocessing

tasks such as data fusion. Using the results of the Fog

nodes, further tasks that require considerable process-

ing power are executed inside the Cloud.

Combining Cloud Computing and Fog Computing

poses particular challenges concerning service execu-

tion, data integration and communication capabilities.

One point of special interest is the decision weather a

service is better executed in the Cloud or on a Fog

node. To be able to do a founded decision, several

characteristics of the involved nodes and their envi-

ronment need to be considered.

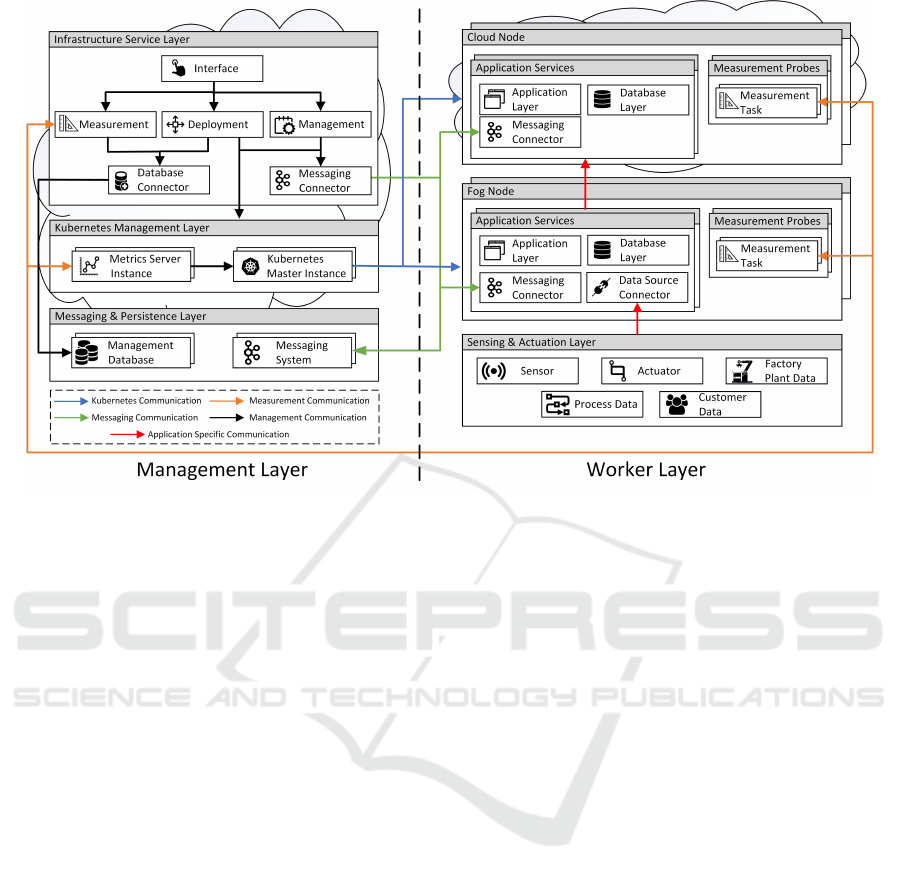

This paper investigates most signiﬁcant distribu-

tion criteria and presents an architecture to measure

and collect the required data for service distribution,

apply suitable distribution algorithms and ﬁnally de-

ploys the services on the most suitable node. The ar-

chitecture also provides an excelent environment to

develop new or optimize existing distribution algo-

rithms to match the individual requirements arising

from combining Cloud and Fog Computing.

The paper is structured as follows. Section 2

presents related topics in the ﬁeld of Fog Comput-

ing. In Section 3 criteria and requirements for service

distribution are investigated. The architecture to mea-

sure these criteria and deploy the services accordingly

is presented in Section 4 and evaluated in Section 5.

Section 6 summarizes the results.

2 RELATED WORK

Several investigations took place showing possible

use cases and approaches to integrating Cloud and

Fog. Mahmud et al. (Mahmud et al., 2018) intro-

duced an IoT healthcare solution and explored the in-

Bayer, T., Moedel, L. and Reich, C.

A Fog-Cloud Computing Infrastructure for Condition Monitoring and Distributing Industry 4.0 Services.

DOI: 10.5220/0007584802330240

In Proceedings of the 9th International Conference on Cloud Computing and Services Science (CLOSER 2019), pages 233-240

ISBN: 978-989-758-365-0

233

tegration of Cloud-Fog technologies. They evaluated

the scenario in regards to distributed computing, re-

ducing network latency, optimize communication and

power consumption. The investigation showed that

using Fog-Cloud solutions results in better task distri-

bution, instance cost, energy usage and network delay.

Notably, a signiﬁcant improvement in the ﬁeld of real-

time processing can be recognized. The beneﬁts are

also pointed out by Chakraborty et al. (Chakraborty

et al., 2016). They introduced a solution to gather, an-

alyze and store time-sensitive data. To achieve min-

imum delay while ensuring data accuracy they per-

form time-sensitive tasks within the Fog nodes and

apply further processing and long-term persistence in-

side the Cloud. We took these design principles and

enhanced them with the capability to integrate mea-

surement probes and container virtualization to create

an infrastructure focussing on distribute services.

Developing an application that is distributed over

Cloud and Fog poses particular challenges such as

ensuring interoperability, providing consistent pro-

gramming models and distribution algorithms. Re-

cently appeared frameworks try to simplify applica-

tion development. Cheng et al. (Cheng et al., 2018)

described a framework for Smart City applications

while considering distributed data processing, low la-

tency and reducing network usage. The main char-

acteristic of this approach is a programming model

that allows to implement applications using Fog and

Cloud in an uniform fashion. Using this approach,

they showed three use cases including anomaly detec-

tion of energy consumption, video surveillance and

smart city magniﬁer. There are several similarities

to the work presented in our paper such as enabling

low latency and scalable applications. To increase the

ﬂexibility and support heterogeneous nodes, we use a

container-based approach instead.

The feasibility of using containerization is inves-

tigated by Bellavista et al. (Bellavista and Zanni,

2017). They presented a fog-oriented framework

based on extensions of the Kura gateway to investi-

gate the feasibility of Docker-based containerization

even over strongly resource limited nodes. The re-

sults showed that containerization provides good scal-

ability, limited overhead and high ﬂexibility. Another

approach that utilizes containerization is presented by

Woebker et al. (Woebker et al., 2018). They described

a solution to deploy and manage Fog applications,

based on containers. The deployment mainly relies

on statically raised distribution criterias such as la-

tency and bandwith. Based on these criteria the nodes

are labeled and categorized using the labeling system

provided by Kubernetes. Our approach builds upon

the solutions presented above but focusses on provid-

ing an infrastructure to measure environmental con-

ditions such as the current load, location or security

levels to support decision making wheater a service

shall be carried out in the Cloud or on a Fog node.

A lot of effort has been made to investigate dis-

tribution algorithms in the areas of Cloud and High-

Performance Computing. The solutions need to be

adapted to the speciﬁc requirements of Fog and Cloud

integration. Neto et al. (Neto et al., 2017) described

the current problems of Fog Computing such as qual-

ity of service and load distribution. They described an

algorithm to optimize load distribution, that takes cri-

teria such as latency and priorities into consideration.

The solution presented in our paper aims to provide a

framework to evaluate existing distribution algorithm

and apply them in Fog-Cloud environments.

3 DISTRIBUTION CRITERIA

Selecting the most suitable node to distribute a ser-

vice is one primary challenge while combining Fog

and Cloud. The relevance of the criteria highly de-

pends on the optimization goal, like enery optimiza-

tion, privacy protection or process time minimization.

The following section presents static and dynamic cri-

teria that can support the decision making.

Network Connection. Several network characteris-

tics need to be considered to choose a suitable node.

Ensuring low latency data processing is crucial to

provide appropriate query time and fast computation.

Industry 4.0 applications require to collect local data,

process it and use the processing result to control the

manufacturing process. Thus, it’s necessary to deploy

time-sensitive services to a node with low latency.

Industry 4.0 services often processes large

datasets and extract insights on time. Transfering

large data sets need a high network bandwidth and is

critical for deploying services. For instance, it’s pos-

sible that short running applications perform better

deployed in the Cloud due to the delay for the deploy-

ment on low bandwidth nodes. The type of network

connection is also relevant. Applications with high

data rates or a high demand for reliable network con-

nections require a wired connection, whereas other

applications perform well with wireless connections.

Performance & Storage Capabilities. Industry 4.0

services require high computational and storage capa-

bilities. In contrast, Fog nodes are typically resource

limited. Therefore, it is necassary to consider the per-

formance (e.g. CPU and RAM). Besides the statical

performance, it is essential to dynamically check the

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

234

current load of the nodes before deploying a service.

The involved data volume requires high storage ca-

pabilities. There is a tradeoff between the total data

amount required to fulﬁll the desired task and the de-

mand for data locality to match the latency require-

ments and reduce network trafﬁc.

The number of mobile devices, such as au-

tonomous guided vehicles increase the demand to in-

tegrate battery powered devices. Thus, the energy

consumption of a service and the available power

supply of the nodes need to be considered. A dis-

tinction can be made between services that are conti-

nously running or only react to low frequency events.

This mainly affects if the service needs to be deployed

on a device with a permanent power supply or if the

battery level of the device ﬁts the requirements.

Security & Privacy. Industry 4.0 applications pro-

cess sensitive information including intellectual prop-

erties or customer data. Thus, it is required to pro-

vide a secure infrastructure and ensure data pri-

vacy. To achieve this, special characteristics need to

be considered. The primary goal is to achieve mutual

trust between the involved components. If this can’t

be ensured due to insecure communication channels

or missing computation performance to provide ad-

vanced security mechanisms, it’s better to select a

different node. In contrast, if the sensitive data pro-

cessing should only take place in a trusted network,

using components with high reputation, it’s appro-

priate to execute it on a Fog node.

The node location also needs to be considered

regarding privacy concerns and national regulations.

Using Cloud infrastructures, it is required to be aware

where the virtual machine is deployed. Due to the

possibility to change the location of a virtual machine

or a mobile Fog node, it’s required to dynamically

check the current location before deploying a task and

get informed if a migration took place.

The decision how secure a node is can be arbi-

trarily complex. Besides some easy examples such as

checking for a encrypted communication, more com-

plex or application speciﬁc methods are required. Se-

curity checks can comprise autonomous security tasks

that run on each involved node and collect evidence

about security or privacy concerns. These checks

need to be applied on heterogeneous environments,

such as Cloud nodes, Hypervisors and Fog nodes.

Inventory & Environmental Constraints. Dis-

tributing Industry 4.0 services also requires more

application-speciﬁc distribution criteria, such as the

node inventory. For instance, the node inventory can

include the data sources/actuators attached to a spe-

ciﬁc node or the available software libraries needed

to fulﬁll the desired task. Concerning the node inven-

tory before deploying a service can also ensure data

locality because the inventory can be used to deter-

mine where the required data is collected.

Another type of application-speciﬁc distribution

criteria are environmental constraints. A environ-

mental constraint can be a speciﬁc type of node, that

is required by the service or a certain level of rep-

utation a node must provide. Especially, if mobile

nodes are involved, the constraints can also include

the availability of collaboration partners.

4 ARCHITECTURE

The architecture presented in this section aims to

overcome the challenges of combining Fog and Cloud

Computing by providing uniform functionality to

monitor advanced deployment criteria and consis-

tently apply distribution algorithms to ﬁnd the most

suitable node. This section describes the requirements

and the high level architecture.

4.1 Requirements

Develop a Industry 4.0 Service

• R1: Support distributed data processing tasks be-

tween Cloud and Fog nodes

• R2: Provide all required functionalities to provide

suitable node management, inter-node communi-

cation, and task execution

Integrating Measurement Probes

• R3: Determine node conditions by integrating and

deploying measurement probes on the nodes

• R4: Provide support for centralized and decentral-

ized measurement probes

• R5: Provide a uniform way to execute the mea-

surement probes and services on all nodes regard-

less of the actual technology they use

• R6: Provide a consistent execution environment

that is suitable to migrate measurement probes

and services during runtime

Integrate Distribution Algorithms

• R7: Integration of distribution algorithms that

make use of the measurement results to deploy an

application service accordingly

• R8: Provide a common interface to apply and con-

ﬁgure different distribution algorithms

A Fog-Cloud Computing Infrastructure for Condition Monitoring and Distributing Industry 4.0 Services

235

4.2 Overview & Containerization

The following section provides an overview about the

architecture and how container virtualization is uti-

lized to provide state of the art node and task man-

agement, design and deploy interoperable application

services and how to execute measurement probes.

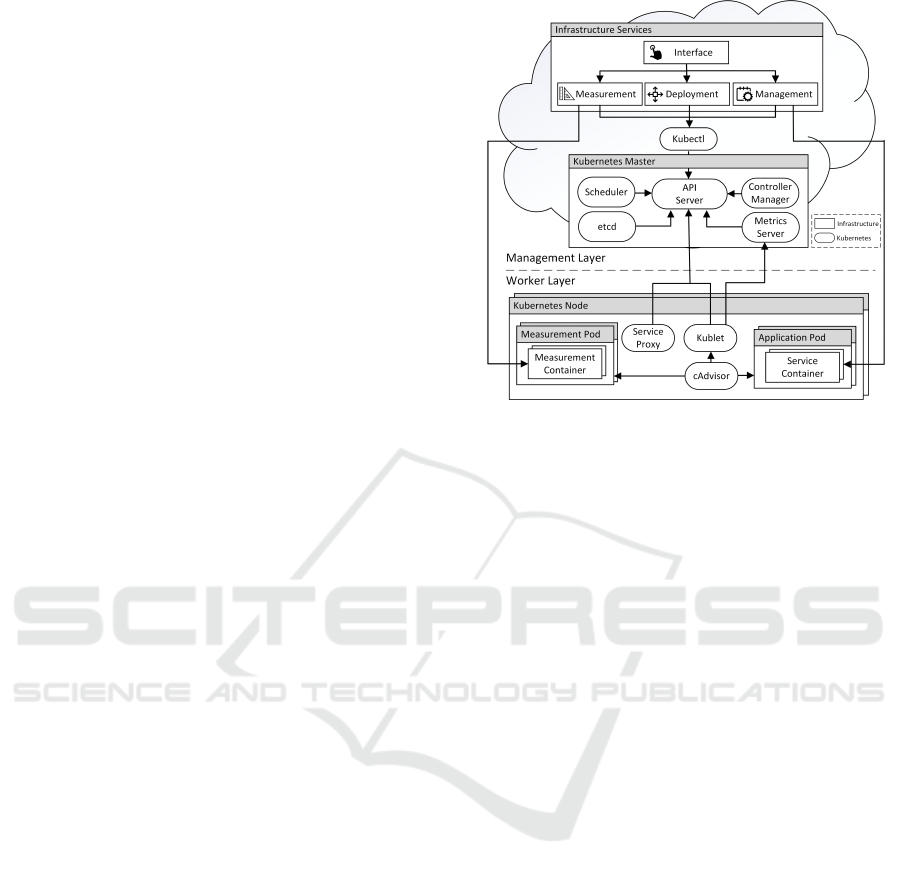

Infrastructure Services. According to Figure 1,

the architecture can be divided into management and

worker layers. The management layer provides func-

tionality for node and task management, control the

measurement probes and deploy services based on

different distribution algorithms. These responsibil-

ities are realized using infrastructure-speciﬁc imple-

mentations, which are described later.

Kubernetes Master. The service deployment, man-

agement functionality and low-level measurement

probes are realized using Kubernets. The manage-

ment layer includes a Kubernetes cluster, that is in-

terfaced by the infrastructure services using Kubectl.

Kubectl allows to add nodes, initiate the deployment

or request data provided by the cluster. These requests

are processed by the API Server. All common ser-

vices such as the Kubernetes Scheduler for service

deployment, the key-value store etcd as well as the

Controller Manager deamon responsible for lifecy-

cle management are contained in the Kubernetes Mas-

ter and can be utilized by requesting the API Server.

One component of particular interest is the Metrics

Server. The Metrics Server is an add-on for the Ku-

bernetes cluster and provides measurement capabili-

ties. Within this architecture, the Metrics Server is

used to collect low-level environmental conditions,

such as the actual CPU or memory usage.

Kubernetes Nodes. The Worker Layer contains all

nodes responsible for executing services and collect-

ing the information required to decide how to deploy a

speciﬁc service. On a low-level perspective all nodes

are managed by the Kubernetes Cluster. Hence, all

nodes are registered within the Kubernetes Master

and contain the Kublet agent, responsible for moni-

tor the API server and execute the desired contain-

ers. One central part of the Kubelet is the cAdvisor.

The cAdvisor collects, processes and aggregates met-

rics about the containers. This information is used

by the Metrics Server. All Kubernetes Nodes include

a Service Proxy that enables inter-container commu-

nication by forwarding requests to the desired target.

Besides these services, all worker nodes include Mea-

surement Pods as well as several Application Pods. A

Figure 1: Architecture & Containerization.

Pod is the smallest execution unit that can be orches-

trated by using Kubernetes. The architecture utilizes

Pods to execute the services and provide distributed

measurement capabilities. A Pod can be a whole ap-

plication including several containers or just a single

container. The Measurement Pods include all mea-

surement tasks mentioned in Section 3. Which mea-

surement probes are executed on a node can be con-

ﬁgured by using the Infrastructure Service. The appli-

cation services are executed within a Application Pod.

Both kind of Pods are monitored by the cAdvisor.

Networking and Communication. Another chal-

lenge is to provide the networking capabilities while

minimizing the administration effort. We realized the

communication between nodes, Pods and containers

using the pod-overlay network provided by Flannel.

Flannel creates a network between the host environ-

ment, all Pods and all containers. The main beneﬁt of

using Flannel is the high ﬂexibility concerning pub-

lic IPs. In contrast to many other technologies, the

IP addresses are not required to belong to the same

network. Primarily, in geographically distributed sys-

tems this approach results in higher ﬂexibility. The

overlay network creates a private network that be-

longs to all Kubernetes Nodes. Within the nodes, each

Pod receives an IP assigned from Docker. Communi-

cation between Kubernetes Nodes is also possible by

using the Flannel Kernel Route Table and UDP en-

capsulation. This approach allows requesting compo-

nents by just using the service name, forwarded by the

Service Proxy. This beneﬁt is utilized by the archi-

tecture in regards to migrating services dynamically

based on changing environmental conditions.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

236

Figure 2: Architecture Overview.

4.3 Management & Measurements

The following section provides an overview about

the architecture in regards to infrastructure manage-

ment and measurement probes. According to Figure

2 the architecture is divided into management layer

and worker layer. The Infrastructure Service Layer

contains the management capabilities of the archi-

tecture. Using the Interface service, the infrastruc-

ture can be administrated, measurement probes can

be chosen and deployment algorithms can be deﬁned.

One major responsibility is to introduce uni-

form measurement capabilities for heterogeneous

Cloud/Fog nodes. The measurements can be divided

into low-level infrastructure and application-speciﬁc

measurement probes, which are both controlled by

the Measurement Infrastructure Service. The infras-

tructure measurements are provided by the Metrics

Server. To be able to use these measurements, the

Measurement Infrastructure Service periodically re-

quests the Kubernetes API Server, converts the mea-

surement data and persists it using the Database Con-

nector. Due to the consistent execution environment

all infrastructure measurements can be directly uti-

lized requesting the Metrics Server and can be applied

to each Pod within the Kubernetes Cluster. Further-

more, they can be conﬁgured e.g. to adapt the mea-

surement interval. This low-level resource monitor-

ing performs best regarding scalability and efﬁciency

similar as can be seen in (Chang et al., 2017) and

(Tsai et al., 2017). According to the creators, the Met-

rics Server can be scaled up to 5000 nodes with 30

Pods per node, assuming a 1 minute metrics granu-

larity (Kubernetes, 2018). The Metrics Server can be

scaled individually. Both services are located in the

Kubernetes Management Layer.

While the Metrics Server already covers low-level

performance metrics, more sophisticated measure-

ments are required to optimize service deployment.

Therefore, the Measurement Infrastructure Service

is capable of executing central and controlling dis-

tributed measurements. Decentralized measurements

come with higher communication efforts and the need

to correlation the measurements. On the other hand,

centralized measurements are limited in measurement

capabilities and result in higher load of the infrastruc-

ture services. For instance, the centralized measure-

ment probes include monitoring the network connec-

tion or determining the actual location. They also can

be conﬁgured to either performed by the Measure-

ment Infrastructure Service or in a distributed fashion.

Decentralized measurement probes are located at

the worker nodes and controlled by the Measure-

ment Infrastructure Service. The probes are executed

within a Pod, which can either contain a single task

such as monitoring the energy consumption or include

multiple containers with more complex measurement

probes such as enhanced security checks. The in-

frastructure allows deploying whole security frame-

works such as the Audit Agent System which is able to

check if the node complies to security policies such

as the use of secure sockets or restrictions concern-

A Fog-Cloud Computing Infrastructure for Condition Monitoring and Distributing Industry 4.0 Services

237

ing data retention (R

ubsamen et al., 2016). The re-

quired probes can either be conﬁgured while adding

the node or can be changed during runtime to match

changing requirements. Depending on the probe, data

collection can be conﬁgured regarding collection peri-

ods, aggregation intervals or task-speciﬁc thresholds.

Measurement results are stored in the Management

Database and are made available for service deploy-

ment. To ensure scalability and loose coupling, the

communication between the Measurement Infrastruc-

ture Service and the measurement probes is realized

using a messaging system. The architecture supports

hybrid probes with decentralized measurement probes

and a centralized probe backend.

4.4 Service Deployment

Distributed Industry 4.0 applications include services

using different programming languages or execution

environments. Therefore, the Deployment Service

provides a uniform mechanism to deploy measure-

ment probes and services. According to Figure 3 the

user uploads a deployment package and a deployment

conﬁguration (1), using the Interface Service (2-3).

To address the high variability, the deployment pack-

age can assume several formats such as python scripts

or web application archives. Depending on the for-

mat, the required interpreter or application server is

automatically detected and a corresponding container

image is created (4) and uploaded to the repository

(5). The image creation utilizes Dockerﬁles to be able

to reproduce the image if the service needs to be re-

deployed due to changing conditions.

The decision-making can be inﬂuenced by provid-

ing a deployment conﬁguration. Depending on the re-

quirements, a conﬁguration can deﬁne the desired de-

ployment algorithm or can specify thresholds for spe-

ciﬁc node criteria. This information is passed to the

Decision Making Unit (6), which applies and param-

eterizes the deployment algorithm. To cover current

conditions and historical data, the Decision Making

Unit makes use of the measurement data persisted in

the Management Database (7). Due to the high di-

versity regarding deployment criteria and the hetero-

geneous technologies, combining Cloud and Fog re-

quires to adapt existing and develop new deployment

mechanisms. To investigate this research topic, the in-

frastructure can apply different algorithms (8), includ-

ing basic round-robin scheduling, threshold-based de-

cision making, prioritized list of weighted distribution

criteria or more complex mechanisms such as rule-

based or model-based machine learning approaches.

Regardless of the deployment algorithm used, the ar-

chitecture provides a consistent interface for initiating

the deployment. The uniformity allows to investigate

new kinds of deployment algorithms, without chang-

ing the infrastructure.

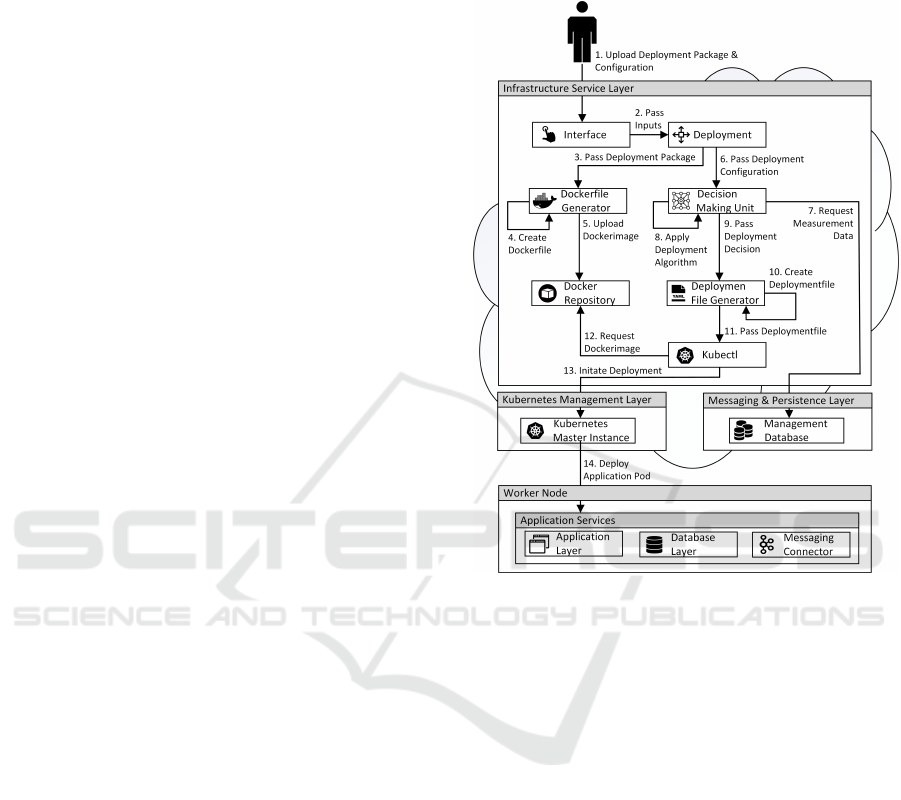

Figure 3: Deployment Architecture.

Data-driven applications usually include utility

tasks that need to be included in each worker node.

To match this requirement, two deployment types can

be chosen. This includes the default case in which

one service is deployed to one speciﬁc node or a dea-

monset. A deamonset is deployed to any node in the

cluster. The deployment decision is passed to the

Deployment File Generator (9), which is responsi-

ble for creating a YAML ﬁle including the deployment

type, network conﬁguration and authorization infor-

mation (10). With this ﬁle, the Pods are created by

the Kubectl service using the repository (11-12) and

automatically deployed on a speciﬁed node (13-14).

5 EVALUATION

The following section evaluates the architecture by

using the scenario-based software architecture ana-

ysis method. This includes an example containing

monitoring probes and a basic deployment algorithm.

According to Figure 4 the example includes a sub-

set of an automated manufacturing process. The pro-

cess starts with an incoming order. Based on the order

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

238

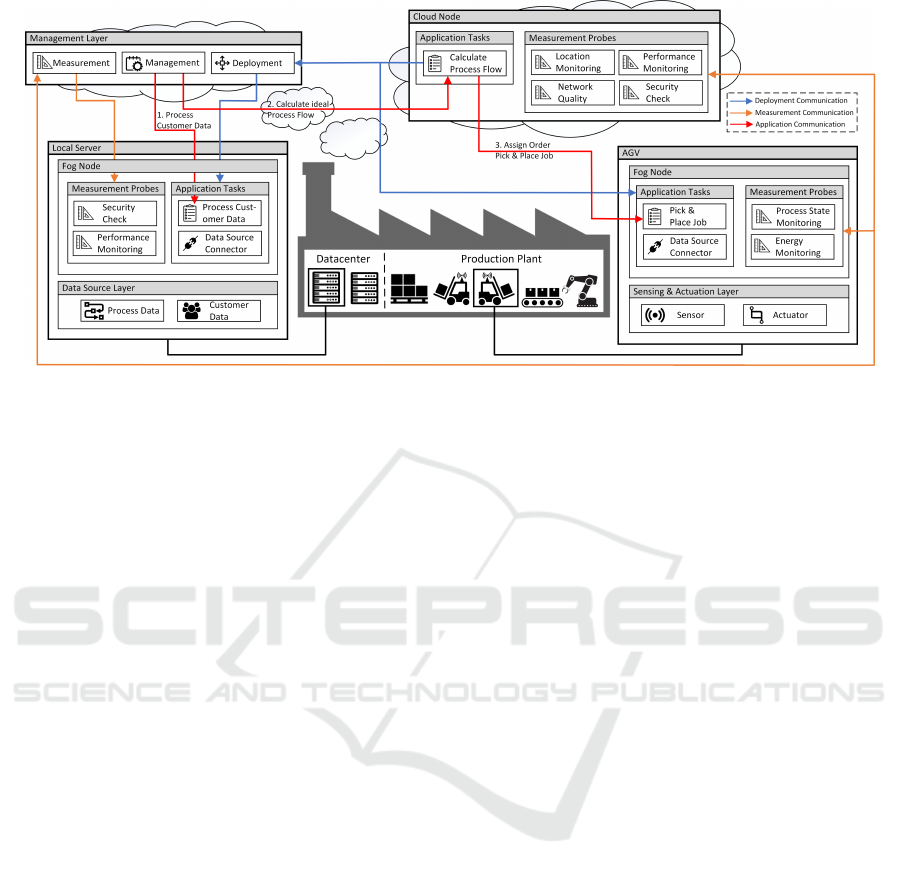

Figure 4: Application Example.

the industrial feedstock is picked and conveyed to the

manufacturing areas by using Autonomous Guided

Vehicles (AGV). Each AGV contains a processing

unit that is representing a mobile Fog node. The pro-

duction plant contains a local datacenter that is con-

sidered as a Fog node. To provide further computation

capabilities the plant is connected to a public Cloud.

Develop a Industry 4.0 Service (R1-R2). The ex-

ample includes three services with individual require-

ments (R1). The order information, including sensi-

tive customer data, is processed by the Process Cus-

tomer Data service. The requirement of this service

is a high security level (e.g. data locality, encryption)

to ensure data privacy. Based on the order the process

ﬂow is calculated using the Calculate Process Flow

service. This service aims to optimize the pick or-

der by performing comprehensive calculations. Thus,

strong computation capabilities (e.g. CPU, Memory)

and a appropriate network connection (e.g. band-

with, latency) are required for fast response time. The

AGVs use the results from the previous services and

start operation, controlled by the Pick & Place Job.

To ensure a efﬁcient process the services need to be

deployed in regards to the process state of the AGVs

(e.g. current location, loaded goods) and their energy

level (e.g. remaining battery power). The tasks are

orchestrated by the Management Service (R2).

Integrating Measurement Probes (R3-R6). In the

following it is described which measurement probes

are utilized to fulﬁll the requirements (R3). To be able

to choose the most suitable Cloud node, each Cloud

node contains four measurement probes responsible

for monitoring the location, network quality, secu-

rity level and performance (R4). These measurement

probes are made available by the infrastructure and

linked to the node type. The Fog nodes located in the

datacenter contains two measurement probes, perfor-

mance metrics and security checks (ensuring an en-

crypted communication channel). The performance

metrics are determined by using the Metrics Server

(R4). The mobile Fog nodes include two measure-

ment probes, monitoring the battery level and locate

the vehicle inside the production hall to determine the

actual process state. To integrate a new probe, an ex-

ecutable need to be created using the infrastructure

framework and its blueprint implementations (R5). In

this example, the implementation consists out of re-

questing a GPS modul and keep track of the process

state by interpreting the current and subsequent pick

orders. Using the Interface Service, the executable is

uploaded and a corresponding Pod is created (R6).

Integrate Distribution Algorithms (R7-R8). The

distribution can be categorized into load balancing be-

tween similar nodes and choosing the preferred node

type. Whereas the Pick & Place Job is linked to a

speciﬁc node type (Mobile Fog Node) and only load

balancing is required, the Process Customer Data and

Calculate Process Flow services can be deployed to a

Cloud or a Fog node. To illustrate decision-making,

we use a rule-based algorithm for each service (R7).

Figure 5 shows the decision-tree. For instance, the

Process Customer Data doesn’t requires a special

node type, is not time sensitive, but involves sensi-

tive data. Therefore the location monitoring measure-

ment probe is used to choose a node that is located in a

trusted area (e.g the local plant). The further decisions

are made on the resulting subset. The service also re-

quires a node that provides an encrypted communica-

tion channel. This is validated by using the security

A Fog-Cloud Computing Infrastructure for Condition Monitoring and Distributing Industry 4.0 Services

239

check measurement probe. Afterwards, a least loaded

algorithm is used to determine the most suitable node

within the resulting subset. Using the blueprint imple-

mentations, it is straight-forward to implement a dis-

tribution algorithm (R8). The framework predeﬁnes

distribution logic and provides the functionality to re-

quest the measurement data. In the example, it is only

required to implement nested conditional statements

that create a set of suitable nodes. Afterward, this set

is passed to a predeﬁned least-loaded algorithm. Us-

ing this approach existing blocks can be combined or

enhanced with additional distribution logic.

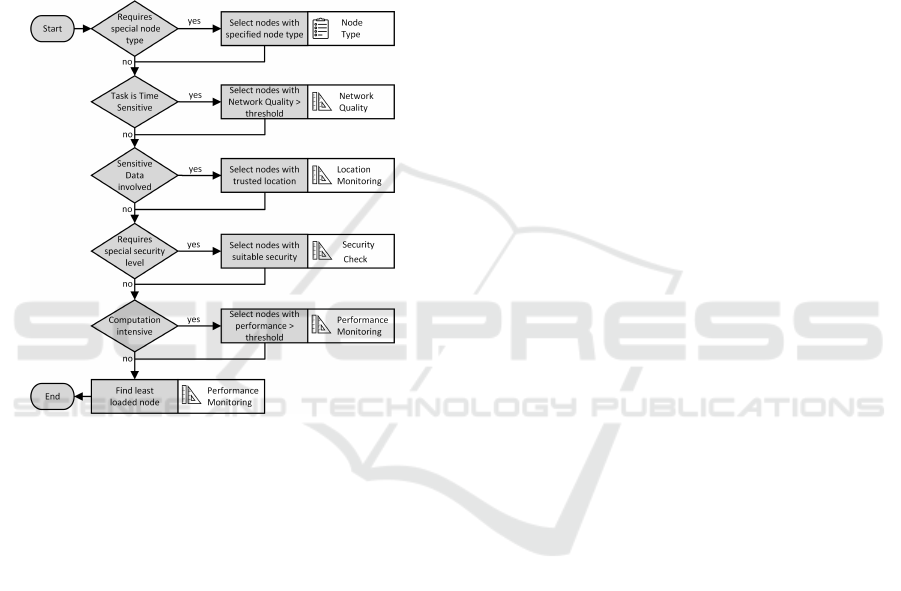

Figure 5: Example Distribution Algorithm.

6 CONCLUSIONS

This paper investigated how to provide a consistent

environment to combine Fog and Cloud Computing

using container virtualization. The architecture is fo-

cussing on develop new deployment algorithms for

distributing services between worker nodes. To be

able to do so, this paper described how to integrate

centralized and decentralized measurement probes to

collect node conditions such as the available network

connection, performance and storage capabilities as

well as security and privacy checks. Another research

question targeted in this paper is to provide uniformity

in terms of applying different deployment algorithms

and combine services using different technologies.

The architecture enables further research to in-

crease efﬁciency of data-driven applications, reduce

power consumption and overcome the security and

privacy challenges. As a next step, we’ll integrate

further distribution algorithms such as machine learn-

ing approaches and integrate additional measurement

probes for more complex security checks.

REFERENCES

Bellavista, P. and Zanni, A. (2017). Feasibility of fog com-

puting deployment based on docker containerization

over raspberrypi. In Proceedings of the 18th Interna-

tional Conference on Distributed Computing and Net-

working, ICDCN ’17, pages 16:1–16:10. ACM.

Chakraborty, S., Bhowmick, S., Talaga, P., and Agrawal,

D. P. (2016). Fog networks in healthcare application.

In IEEE 13th International Conference on Mobile Ad

Hoc and Sensor Systems (MASS), pages 386–387.

Chang, C., Yang, S., Yeh, E., Lin, P., and Jeng, J. (2017).

A kubernetes-based monitoring platform for dynamic

cloud resource provisioning. In GLOBECOM IEEE

Global Communications Conference, pages 1–6.

Cheng, B., Solmaz, G., Cirillo, F., Kovacs, E., Terasawa, K.,

and Kitazawa, A. (2018). Fogﬂow: Easy program-

ming of iot services over cloud and edges for smart

cities. IEEE Internet of Things Journal, 5(2):696–707.

Jiang, X., Fischione, C., and Pang, Z. (2017). Low latency

networking for industry 4.0. In Proceedings of the

2017 International Conference on Embedded Wireless

Systems and Networks, pages 212–213.

Kubernetes (2018). Metrics Server documenta-

tion. https://github.com/kubernetes/community/

blob/master/contributors/design-proposals/

instrumentation/metrics-server.md.

Mahmud, R., Koch, F. L., and Buyya, R. (2018). Cloud-fog

interoperability in iot-enabled healthcare solutions. In

Proceedings of the 19th International Conference on

Distributed Computing and Networking, ICDCN ’18,

pages 32:1–32:10. ACM.

Neto, E. C. P., Callou, G., and Aires, F. (2017). An al-

gorithm to optimise the load distribution of fog envi-

ronments. In 2017 IEEE International Conference on

Systems, Man, and Cybernetics (SMC). IEEE.

ubsamen, T., Pulls, T., and Reich, C. (2016). Security and

privacy preservation of evidence in cloud accountabil-

ity audits. In Cloud Computing and Services Science,

pages 95–114. Springer International Publishing.

Tsai, P., Hong, H., Cheng, A., and Hsu, C. (2017). Dis-

tributed analytics in fog computing platforms us-

ing tensorﬂow and kubernetes. In 2017 19th Asia-

Paciﬁc Network Operations and Management Sympo-

sium (APNOMS), pages 145–150.

Woebker, C., Seitz, A., Mueller, H., and Bruegge, B.

(2018). Fogernetes: Deployment and management

of fog computing applications. In NOMS 2018 -

2018 IEEE/IFIP Network Operations and Manage-

ment Symposium. IEEE.

CLOSER 2019 - 9th International Conference on Cloud Computing and Services Science

240
