Adapting YOLO Network for Ball and Player Detection

Matija Burić

, Miran Pobar

and Marina Ivašić-Kos

Hrvatska elektroprivreda d.d., SIT Rijeka, Kumičićeva 13, Rijeka, Croatia

Department of Informatics, University of Rijeka, Rijeka, Croatia

Keywords: Object Detector, Convolutional Neural Networks, YOLO, Sports, Handball.

Abstract: In this paper, we consider the task of detecting the players and sports balls in real-world handball images, as

a building block for action recognition. Detecting the ball is still a challenge because it is a very small object

that takes only a few pixels in the image but carries a lot of information relevant to the interpretation of scenes.

Balls can vary greatly regarding color and appearance due to various distances to the camera and motion blur.

Occlusion is also present, especially as handball players carry the ball in their hands during the game and it is

understood that the player with the ball is a key player for the current action. Handball players are located at

different distances from the camera, often occluded and have a posture that differs from ordinary activities

for which most object detectors are commonly learned. We compare the performance of 6 models based on

the YOLOv2 object detector, trained on an image dataset of publicly available sports images and images from

custom handball recordings. The performance of a person and ball detection is measured on the whole dataset

and the custom part regarding mean average precision metric.

1 INTRODUCTION

Object detection belongs to computer vision research

field with the goal of classifying certain objects in

images and providing their exact position. Many

machine learning algorithms have been successfully

applied through the last few decades for detection of

objects such as human faces (Viola and Jones, 2001)

or full human figures (Navneet and Triggs, 2005).

Lately, the most widely used techniques for object

detection are based on convolutional neural networks

(CNNs) such as Mask R-CNN (He et al., 2017) based

on the R-CNN family (Girshick, 2015) (Shaoqing and

et al, 2015), SSD (Liu and et al., 2016), R-fcn (Dai et

al., 2016) etc. However, there is no universal solution

for detection for all types of objects, but rather the

choice depends on the task which needs to be

performed.

Some CNNs perform faster than others, usually at

the expense of accuracy, while some provide more

information than just the bounding box around the

https://orcid.org/0000-0003-3528-7550

https://orcid.org/0000-0001-5604-2128

https://orcid.org/0000-0002-1940-5089

desired object but are more complex and require more

resources.

In this paper, we consider the task of detecting the

players and sports balls in real-world handball

images, which is essential for further research of

action recognition in handball sports footages (Pobar

and Ivašić-Kos, in Press).

Based on the previous results (Burić et al., 2018)

and (Burić et al., in Press), we decided to use

variations of the YOLO network (Redmon et al.,

2016). The pre-trained YOLO network gave

satisfactory results on the person detection task on the

test handball dataset.

However, the ball detection proved problematic.

In a typical team sport, including handball, the ball is

a small and fast-moving object that typically occupies

only a very small part of a frame, yet carries a lot of

information important for the interpretation of the

scene.

The balls themselves can vary greatly regarding

color and appearance in the images due to various

distances to the camera and motion blur, yet the

commonness of their shape makes it easy to confuse

Buri

c, M., Pobar, M. and Ivaši

c-Kos, M.

Adapting YOLO Network for Ball and Player Detection.

DOI: 10.5220/0007582008450851

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 845-851

ISBN: 978-989-758-351-3

845

similarly shaped objects for sports balls, e.g., lamps

or player's heads.

Occlusion of already small objects is also present,

especially since handball players carry the ball in

their hands during the game.

Handball players themselves take positions and

posture that are not common to people who walk, sit,

or do the usual actions for which most models for

detection or classification are commonly learned.

Also, when detecting players in the field, there is a

problem of occlusion, different distance from the

camera, different color of sportswear that sometimes

do not differ from the background and a lighting

problem.

For these reasons, the experiment in this paper

deals with testing the various YOLO based models

and network training scenarios using different

datasets to improve the sports ball and player

detection results on handball images.

In the next section, the Yolo object detector will

be described. In Section 3, the experimental setup

covering the used dataset, the prepared environment,

and the modification of each model is presented. The

results are presented in Section 4, followed by the

conclusion.

2 YOLO OBJECT DETECTOR

Yolo stands for “You Only Look Once” which

describes an approach used by a single-stage network

architecture that predicts the class probabilities along

with corresponding bounding boxes in a single stage,

as shown in Figure 1.

In the original Yolo model, the network

architecture has 24 convolutional layers plus two

additional fully connected layers.

The convolutional layers perform feature

extraction, and the fully connected layers calculate

the bounding boxes predictions and probabilities.

The bounding box predictions and class

probabilities are associated with grid cells so that if

an object occupies more than one cell, the center cell

will be designated to be the holder of prediction for a

particular object.

In the training phase, when a bounding box

prediction holds no object the associated confidence

value is zero, and if it holds an object and detection

should occur, the confidence represents the

intersection-over-union (IOU) score of prediction and

ground truth (GT) boxes.

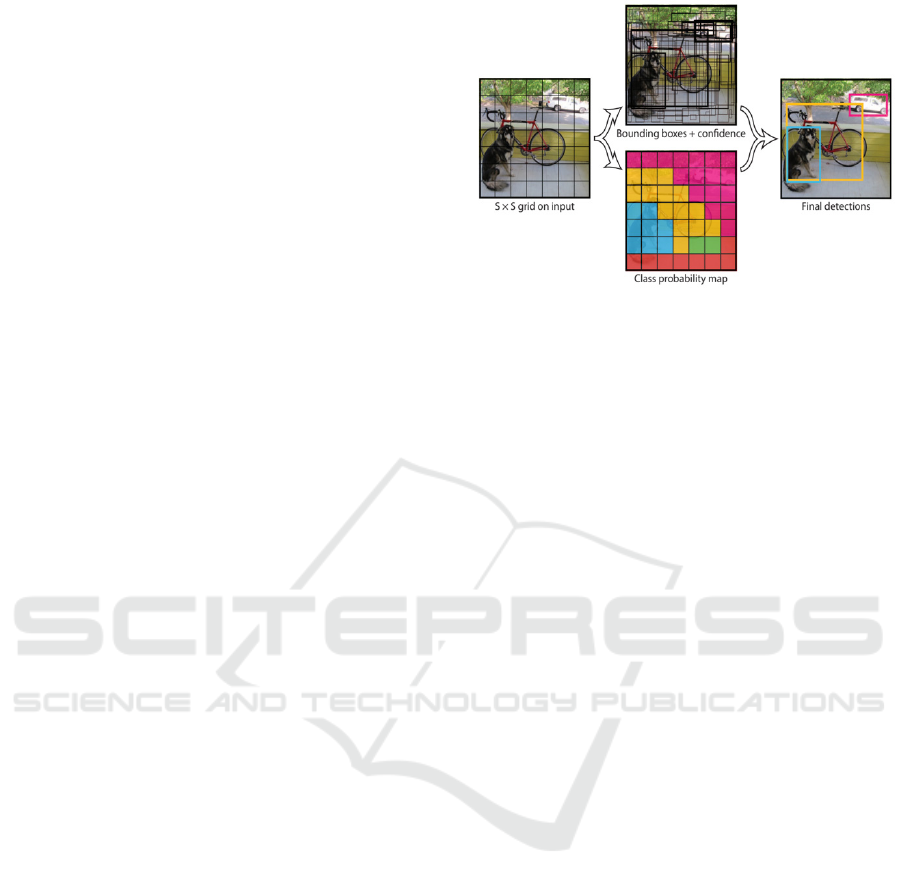

Figure 1: YOLO detection pipeline: the image is divided

into S x S grid where the bounding boxes are

simultaneously predicted with confidence and class

probability for a final decision (Redmon et al., 2016).

There have been few versions of YOLO since it

was first announced, the latest release being YoloV3

(Redmon, 2018). However, in order to preserve

consistency with the previous experiments (Burić et

al., 2017) (Burić et al., in Press), the YoloV2 version

(Farhadi and Redmon, 2017) will be used as the

starting point here.

YoloV2 differs from the original architecture by

five convolution layers which were replaced with

max-pooling layers.

Also, the fully connected layers are no longer

present in the YoloV2.

To adjust the bounding boxes, YoloV2 uses

predefined anchor boxes instead of the proposal box

coordinates predicted by each cell in the earlier

version.

To define the anchor boxes, YoloV2 uses k-means

clustering in a training set of GT bounding boxes

where boxes translations are relative to a grid cell.

3 EXPERIMENT

In the experiment, we compare the performance of 6

models based on the YOLOv2 network, trained on an

image dataset comprising publicly available sports

images and images from custom handball recordings.

The performance of person and sports ball

detection is measured on the whole dataset and on the

custom part specifically to get an estimate which

model would be most appropriate for further research

covering action recognition in handball.

The evaluation is based on the mean average

precision (mAP) criteria like the one used in the

PASCAL VOC 2012 competition (Everingham, et

al., 2010).

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

846

3.1 Datasets

The datasets used for training and testing the

detectors can be divided into two parts.

The first, custom part of the dataset, was acquired

from indoor and outdoor footage of handball practice

and competition. The recordings were made by the

authors of this paper during one week in handball

school without additional scene preparation or player

instruction to preserve real-world conditions. The

subjects in the images are mainly youngsters with

accompanying coaches, handling multiple sports ball

objects. The recordings were done using GoPro

cameras positioned at 1.5 m height at the border of

the filed or from the spectator’s viewpoint

approximately 3.5 m high and 10 m away from the

filed limit. Artificial lighting was present during

indoor activities with some sunlight through

windows. Outdoor scenes were taken during daytime

with clear sky or with almost no clouds. From the 751

videos, at 1920x1080 (full HD) resolution and 30

frames per second, 394 training and 27 validating

images were selected for training the models. The ball

objects came in a variety of colors, and so did the

players clothing mainly used for everyday sports

activities.

The second, public part of the dataset was used

to avoid overfitting and to prepare the model for

detection in other sports. It consists of 1445 training

and 13 test images of variable sizes from 174 x174 up

to 5184 x 3456 with 1 to many ball occurrences on

each. This part was gathered in part using an internet

search engine and in part from publicly available

COCO datasets (Lin et al, 2014). Here, the balls are

not exclusive to handball sport and are of different

sizes and colors. The persons in the images also take

different positions and are dressed differently.

The complete dataset has 1837 images with over

3500 ball objects.

3.2 Models

The description of the tested models is given below.

Since the goal of detecting sports balls requires the

possibility of discerning small and distant objects in

images, the input resolution was increased to

1024x1024 pixels in all models except the first two,

where the original input size of 608 x 608 pixels was

used. This was done since the ball objects in a large

number of source full HD images take up just a few

pixels, and the resizing of images to 608x608

resolution can make such objects invisible or almost

invisible.

An additional change was made to some classes

models need to detect. Since object detection in sports

action doesn’t require classes like a teddy bear and

fire hydrant, models were trained solely on the ball

and person classes. All other classes are not

considered in this experiment. This affects Mean

Average Precision (mAP) which will be used in

metrics of how successful the models are.

Our reference model, further marked as Y, is the

pre-trained YOLOv2 model with 608 x 608 input

image size with weights pre-trained on the COCO

dataset and no additional training by the authors of

this paper. The pre-trained model contains the person

and sports ball among other classes from the COCO

dataset.

The model (Y+) is the pre-trained model Y fine-

tuned on the 394 images from the custom part of the

dataset. The training of this model has proven to be

unstable, so only a limited number of epochs was

performed. Since the same dataset, consisting of large

images (up to 5184 x 3456) with small annotated

objects (few pixels high/width), was applied in

training without problems to the subsequent models

with higher input resolution, it can be concluded that

already small objects get too small when resized

ending up in error.

The third model (YB) was trained using transfer

learning, on both public custom parts of the dataset,

1837 images in total, training only for the ball class.

In this and subsequent models in this experiment, the

input image resolution was increased to 1024 x 1024

from 608 x 608 of the original model.

The YBP model included both ball and person

classes and was trained using transfer learning. It was

trained for approximately 80 epochs on both custom

and public parts of the dataset.

In the YPB+ model, the custom dataset was

doubled using flipped images and flipped

annotations. The YPB model was fine-tuned with ten

epochs to achieve this result.

For the sixth model (YPBF) it was decided to

include all images so far, public, custom and flipped

custom dataset. Since flipped custom images were

mirrored around Y axes, it was decided to try flipping

images around X axes as well which results in

unnatural sky-ground and upside-down human

position.

All of the models were trained and then tested in

the same environment, consisting of a PC equipped

with a 12 core E5-2680v3 CPU and one GeForce

GTX TITAN X GPU with 12GB of memory, with

Debian Linux operating system. Additional

programming was done in Python programming

language.

Adapting YOLO Network for Ball and Player Detection

847

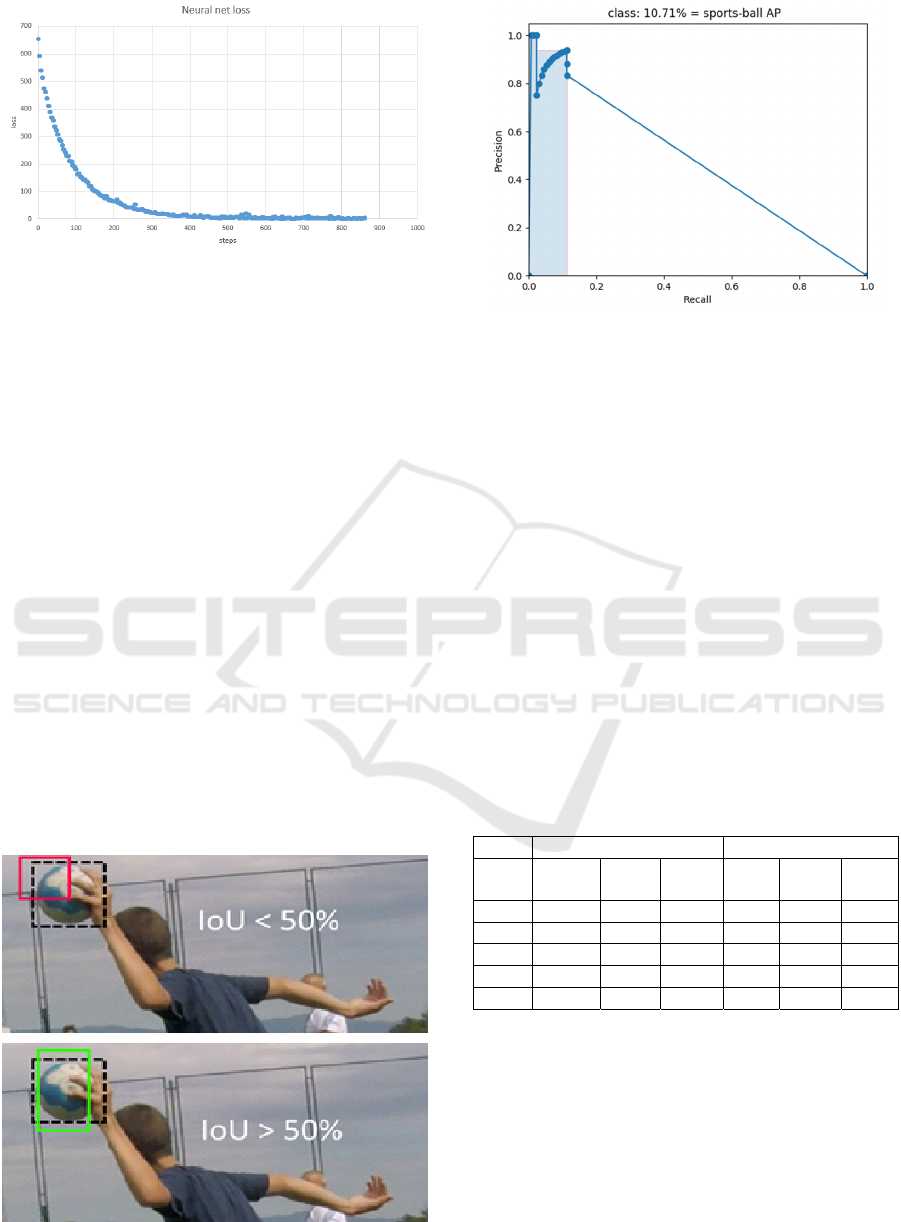

Figure 2: Typical convergence of moving average loss

during neural network training.

The models were trained to at least 20 epochs

except for the model Y+ which was unstable during

training. First, few dozen steps were trained with

higher learning rate to reduce the time it takes to

converge and after that for more reliable training

learning rate was lowered. A typical graph of training

loss can be seen in Figure 2.

Transfer learning (Cook et al., 2013) was used to

avoid training the models from the beginning. As the

foundation, YoloV2 weights pre-trained on COCO

dataset were used in all models. Because the COCO

dataset incorporates a huge number of classes among

which is sports ball, the features fused in pre-trained

weights already possess basic information about ball

objects.

The detection speed of all models don’t differ

significantly, and although the environment is

suitable for the detection speed test, this aspect was

not considered in detail.

4 RESULTS AND DISCUSSION

Figure 3: Visual representation of IoU criteria.

Figure 4: The precision-recall curve for model Y and ball

detection. AP is the shaded area under the curve.

Average Precision (AP) will be used to evaluate the

performance of the models. To calculate the AP, the

result of the detection for each model is compared to

the ground truth considering that the IoU should be

equal to or greater than 50% (Figure 3). It is measured

for each detected object and considered true positive

if an object wasn’t detected yet to avoid multiple

detections of the same object. Based on these criteria,

the precision-recall curve is calculated for every

class, in this case – person and ball. AP is finally

computed as an occupying area underneath the curve.

An example of the case of model Y and ball

detection on is shown in Figure 4. To get the mAP

value, mean of AP value of all classes is calculated.

Table 1. shows the mAP and class AP scores for

all tested models on the whole and the custom

(handball) part of the dataset.

Table 1: Class AP and mAP results of tested models (%).

Whole dataset Custom dataset

Model Ball

Person

mAP Ball

Person

mAP

Y 10.71 48.74 29.73 0.94 43.47 22.20

Y+ 10.33 52.99 31.66 0.94 31.45 16.20

YPB 8.78

62.89 35.84

7.37

65.89

36.63

YPB+ 10.8 57.9 34.35

10.61

64.09

37.35

YPBF

12.25

54.18 33.22 7.15 59.50 33.32

The reference model Y performed well for near

objects, especially persons, but it had difficulties with

ball objects, both near and distant. It performed better

on the public part of the dataset than on custom

images, especially so for the ball class, for which it

achieves AP of less than 1% on the custom dataset.

The Y+ model, which was fine-tuned with

additional examples of sports ball and person classes,

had slightly better detection of the person object, but

the majority of distant objects were still undetected.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

848

Figure 5: Example of the confused human head for a ball

with YB model.

The YB model was trained and tested only for the

sports ball class, and it had increased input image

size. As was expected, the model performed better on

distant objects, however, the detection of ball object

on the public part of the dataset was severely

degraded with many false positive detections of ball

objects on human figur

es (Figure 5). This suggests that the person class

should be included in the training set even when the

goal is the only detection of balls.

The YPB model was trained on both person and

ball class, and the performance has significantly

improved in comparison to the YB+ model.

This model had the best score for person detection

among all models tested so far, both considering only

the custom part of the dataset and on average for the

whole dataset. Ball detection has significantly

improved for distant objects and on the custom

dataset in comparison with Y and Y+, from 0.94% to

7.34%, even though the average score on the whole

dataset dropped slightly. At this point, the results

were improved enough in comparison to the base

model to be acceptable for continuing research for

action recognition in handball.

A simple data augmentation technique of using

horizontally flipped images was employed for

training the YBP+ model. Since manual annotation of

images is a tedious and time-consuming process,

requiring hours of human labor, this action has proven

to be rewarding because it further improved ball

detection. By fine-tuning the YPB model with flipped

images, YPB+ model outperformed all other models

for ball detection on both parts of the dataset. An

example is shown in Figure 6. The final tested model

included vertically flipped images in the training set,

which further improved ball detection on average,

with some degradation for the person class in

comparison with the YPB+ model (Figure 8). This

outcome was expected since ball objects are round

and vertically flipping the image doesn't produce

unnatural results, as it does for human figures. The

results on the custom dataset have not improved,

however.

It can be noticed that there is a huge gap between

TP detection on public and custom test dataset for

most models.

This gap narrows with YPB+ and YPBF models,

where detection on the public dataset didn't degrade,

so these models can more easily be applied to other

sports besides handball.

Figure 6: Comparison of YPBF (up) and fine-tuned pretrained Yolo (down) model. Green squares show detection with IoU

> 50%. Red squares show FP.

Adapting YOLO Network for Ball and Player Detection

849

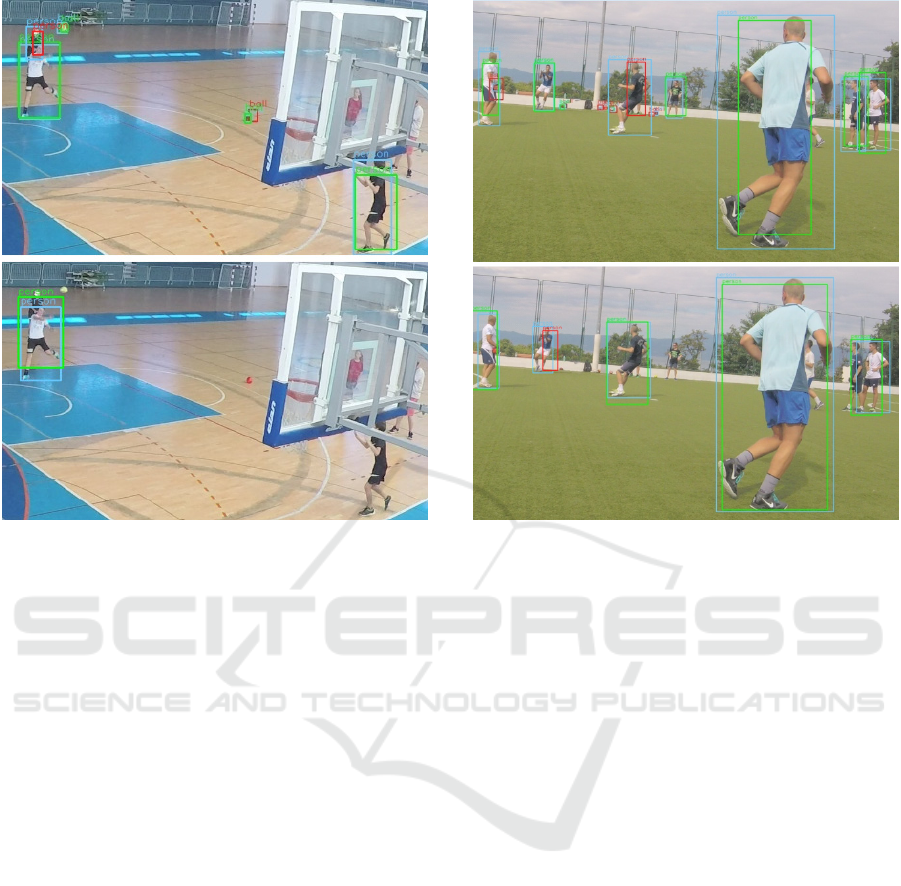

Figure 7: Two ball objects are detected using YPB+ (up)

opposite to Y+ model (down), which also has difficulty

detecting a person in the bottom right corner.

Occluded objects have proven difficult for all

tested models, but YPB+ and YPBF models show

better results on near and far occluded objects

compared to Y and Y+.

5 CONCLUSION

In this work, we have tested several models derived

from the baseline YOLO model for the task of sports

ball and person detection.

The best results for person detection regarding

mAP were achieved with the YPB model, which was

trained on additional examples for both ball and

person class and had an increased input image size.

The best score for ball detection was achieved

with the model YPBF, which was also trained with

flipped images of the same examples.

All models considered in this paper use low-level

knowledge inherited from pre-trained publicly

available weights. In such a way a time needed for

training is drastically reduced in comparison with

training the models from scratch, with the additional

benefit of shared knowledge about low-level features

trained on the large quantity of input data.

Simple modifications of input training data, in this

case mirroring of images, has proven to be quite

Figure 8: Person detection degraded when images flipped

by x-axes are used with YPBF model (down).

useful and cost-effective. More training images could

be generated by performing partial rotation or scaling

in the future. The YPB+ and YPBF models tested in

this paper provide a better solution than the basic

model for use in a sports action recognition

framework. To the task of action recognition, ball and

person objects need to be detected precisely as

possible. Also, some other kind of information such

as object tracking can be used in future work to

improve both ball and player detection.

ACKNOWLEDGMENTS

Croatian Science Foundation fully supports this

research under the project IP-2016-06-8345

“Automatic recognition of actions and activities in

multimedia content from the sports domain”

(RAASS).

REFERENCES

Burić, M., Ivašić-Kos, M., Pobar, M., 2017. An Overview

of action recognition in videos. 40th International

Convention on Information and Communication

Technology, Electronics and Microelectronics

(MIPRO), (pp. 1098-1103). IEEE.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

850

Burić, M., Ivašić-Kos, M., Pobar, M., in Press. Ball

detection using Yolo and Mask R-CNN. 5th Annual

Conf. on Computational Science and Computational

Intelligence (CSCI'18).

Burić, M., Pobar, M., Ivašić-Kos, M., 2018. Object

Detection in Sports Videos. 41st International

Convention on Information and Communication

Technology, Electronics and Microelectronics

(MIPRO).

Cook, D., Feuz, K. D., Krishnan, N. C., 2013. Transfer

learning for activity recognition: a survey. Knowledge

and information systems, 36(3), pp.537-556.

Dai, J., Li, Y., He, K., Sun, J., 2016. R-fcn: Object detection

via region-based fully convolutional networks.

Advances in neural information processing systems, pp.

379-387.

Everingham, M. et al., 2010. The PASCAL Visual Object

Classes (VOC) Challenge. International Journal of

Computer Vision, Volume 88(2), pp. 303-338.

Farhadi, J, J., Redmon, A., 2017. YOLO9000: Better,

Faster, Stronger. 2017 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), Honolulu, HI,

pp. 6517-6525.

Girshick, R., 2015. Fast r-cnn. Proceedings of the IEEE

international conference on computer vision.

He, K., Gkioxari, G., Dollár, P., Girshick, R., 2017. Mask

R-CNN. 2017 IEEE International Conference on

Computer Vision (ICCV), Venice, pp. 2980-2988.

Lin, T. et al, 2014. Microsoft COCO: common objects in

context. European conference on computer vision,

Springer, Cham, pp. 740-755.

Liu, W. et al., 2016. Ssd: Single shot multibox detector.

European conference on computer vision. Springer,

Cham.

Navneet, D., Triggs, B., 2005. Histograms of Oriented

Gradients for human detection. Computer Vision and

Pattern Recognition, 2005. CVPR 2005. IEEE

Computer Society Conference on. Vol. 1. IEEE,.

Pobar, M., Ivašić-Kos, M., in Press. Detection of the

leading player in handball scenes using Mask R-CNN

and STIPS. ICMV 2018.

Redmon, J., Farhadi A., 2018. Yolov3: An incremental

improvement. arXiv preprint , Volume

arXiv:1804.02767.

Redmon, J., Divvala, S., Girshick, R., Farhadi, A., 2016.

You Only Look Once: Unified, Real-Time Object

Detection. 2016 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), Las Vegas, NV, pp.

779-788.

Shaoqing, R. et al, 2015. Faster r-cnn: Towards real-time

object detection with region proposal networks.

Advances in neural information processing systems.

Viola, P. A., Jones, M. J., 2001. Rapid object detection

using a boosted cascade of simple features. CVPR,

Issue

1, pp. 511-518.

Adapting YOLO Network for Ball and Player Detection

851
