Towards Mainstream Multi-level Meta-modeling

Gergely Mezei

, Ferenc A. Somogyi

, Zolt

an Theisz

, D

aniel Urb

and S

andor B

acsi

Budapest University of Technology and Economics, Budapest, Hungary

evopro Systems Engineering Ltd., Hauszmann Alajos str. 2, Budapest, Hungary

Keywords:

Meta-modeling, Multi-level Modeling, Deep Instantiation, Language Engineering.

Abstract:

In recent years, a wide range of tools and methodologies have been introduced in the ﬁeld of multi-level meta-

modeling. One of the newest approaches is the Dynamic Multi-Layer Algebra (DMLA). DMLA incorporates a

fully self-modeled textual operation language (DMLAScript) over its tuple-based model entity representation.

This textual language provides effective and complex features when editing models. On the other hand, the

language supports the precise injective mapping of the multi-layers. However, such complexity comes at a

price. Using DMLAScript can be difﬁcult in practice for users who are only familiar with the classical, object-

oriented way of thinking, and are not conﬁdent with the multi-level approach. In this paper, we introduce the

concepts of a new language above DMLAScript, which supports the more effective manipulation of concrete

domain models by taking advantage of the particular process of multi-level modeling within DMLA. Although

the approach is technically bound to DMLA, the concepts discussed in the paper are of general use.

1 INTRODUCTION

Meta-modeling is widely accepted as a viable tech-

nical solution to base domain-speciﬁc languages and

workbenches on in order to efﬁciently model the se-

lected domains in practice. In recent years, meta-

model-based software engineering has also estab-

lished itself in various industrial ﬁelds, such as the

management of ICT systems (Rossini et al., 2015).

The key enabler of this success is the ability to un-

ambiguously model the domain concepts, the vari-

ous features of a particular technology, and the rela-

tions between those concepts and features in a precise

and rigorous way. Nevertheless, in some industrial

projects, two level (the meta-model and the model)

meta-modeling has quickly reached its limits. In such

complex industrial projects, the domain requirements

of the system are ﬁrst speciﬁed at a high level of ab-

straction to give shape to the planned solution, and

then the details are gradually, and sometimes recur-

sively, being introduced. Two level meta-modeling

may cope with these challenges, but only at the cost

of artiﬁcially introducing accidental complexity, that

is, by imposing mixed-level modeling patterns such as

clabjects or power types into the design (Henderson-

Sellers et al., 2013). Multi-level meta-modeling aims

to achieve a better solution: by increasing the num-

ber of modeling levels, domain concepts can be de-

ﬁned gradually as abstraction gives way to speciﬁca-

tion, down to the instance level. The other side of

the coin does not look so shiny though: the means of

multi-level meta-modeling differ from classical meta-

modeling, and even the exact meaning of instantia-

tion needs to be extended or re-deﬁned. Moreover,

currently, there is still no consensus in the multi-

level modeling community on how to turn research

results into practical applications. An important mile-

stone on this road was the so called Bicycle Chal-

lenge (MULTI, 2018) that aimed to condense reoc-

curring problems in practical models into an easily

understandable, standard modeling challenge. The re-

sults show a current lack of mainstream in multi-level

modeling, which is unfortunate, because it has been

well-known for more than a decade that the two-levels

approach will eventually reach its limit.

In this paper, we would like to contribute to bridg-

ing the gap between classical meta-modeling and the

future of multi-level meta-modeling. Our research fo-

cuses on creating a general purpose multi-layer mod-

eling framework around Dynamic Multi-Layer Alge-

bra (DMLA) (Urb

an et al., 2018) that is easily un-

derstandable by the modelers and can be effectively

applied to practical domain problems in the indus-

try. DMLA has a well-deﬁned formal basis with the

unique feature of being self-described, and it also pro-

vides what we call ﬂuid metamodeling, which means

Mezei, G., Somogyi, F., Theisz, Z., Urbán, D. and Bácsi, S.

Towards Mainstream Multi-level Meta-modeling.

DOI: 10.5220/0007580404810488

In Proceedings of the 7th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2019), pages 481-488

ISBN: 978-989-758-358-2

481

that it is not required to instantiate all entities of a

model at once. Models in DMLA are stored in tuples,

referencing each other, and thus, forming an entity

graph. Since tuples are cumbersome to produce con-

sistently, and big quantities are needed for practical

models, we have created a scripting language called

DMLAScript, which enables to manipulate tuples in-

directly via a domain-speciﬁc language (DSL) when

building domain models. Although DMLAScript ful-

ﬁlled what we aimed at originally, we had to realize

that it is still challenging to be used by domain ex-

perts in practice due to its technical preciseness and

verbosity. Therefore, we decided to work on a high

level scripting language, the Modular DMLA Script-

ing Language (MDSL), that is designed to be more

compact, in addition to being easier and faster to use

by domain engineers.

This paper brieﬂy reviews related work in Sec-

tion 2 and introduces DMLA in Section 3. Next, in

Section 4, we discuss our motivation behind MDSL,

along with the requirements (Section 5) we expect it

to satisfy in the future. In Section 6, we demonstrate

by a case study how MDSL can accelerate domain

modeling in DMLA, compared to DMLAScript. Fi-

nally, in Section 7, we conclude by paving the way

for our future research, aiming for MDSL to succeed

by showcasing that multi-level meta-modeling has al-

ready matured enough for practical industrial chal-

lenges.

2 RELATED WORK

The main reason behind the quest for multi-level

meta-modeling is to be able to eliminate all those

artiﬁcial classes, on the meta level, whose pure rai-

son d’etre is to serve as linguistic placeholders for

establishing ontological instantiation, on the model

level, among the domain objects. Hence, the crux

of multi-level meta-modeling is to successfully tackle

the unwanted emergence of accidental complexity

(Atkinson and K

uhne, 2008) by clearly separating

those linguistic and ontological instantiation mecha-

nisms from each other. The most well-known solu-

tion attempt, the Orthogonal Classiﬁcation Architec-

ture (OCA) (Atkinson et al., 2009), applies the term

ontological in this particular regard when it refers to

the concepts which exist only in the technical domain

being modelled.

Consequently, in OCA, the term linguistic thus ap-

plies to the technical modeling nomenclature of any

selected modeling technology, for example, to the

way how meta-meta-level elements (in M3) deﬁned

by the Meta Object Facility (MOF) are used to build

domain models (in M1) through meta-model interpre-

tation (in M2). The OCA architecture is rather intu-

itive and therefore there exists a few successful multi-

level meta-modeling frameworks of this kind, its most

notable implementations being Melanie (Atkinson

and Gerbig, 2012), MetaDepth (de Lara and Guerra,

2010) and DeepJava (K

uhne and Schreiber, 2007).

Analyzing them independently from the prespective

of their concrete syntax, it can be easily understood

that semantically each originates from the common

paradigm of the potency notion (Atkinson and K

uhne,

2001), and therefore, they mostly differ only by their

reinterpretation and implementation thereof.

Beyond OCA, an interesting alternative approach

is XModeler (Clark et al., 2015), which is built on

top of a self-describing meta-model, the XMF, which

supports meta-modeling facilities through higher or-

der functions in order to process the syntax and to

provide a basic executable language (XOCL), follow-

ing the syntax of OCL (Warmer and Kleppe, 2003).

This solution is similar to MetaDepth, which has

taken advantage of the Epsilon family of languages

(EOL). Both beneﬁt and get constrained by the inher-

ited legacy of a two-level modeling language. The ob-

vious beneﬁt is the apparent advantage for the mod-

eler being able to use an Object-Oriented (OO) lan-

guage for model design, but the disadvantage lies

in the same fact: OO features get in the way when

potency or a genuine multi-level meta-model feature

must be mixed. For example, in DeepJava, linguistic

instantiation is built into the language per se via Java,

but ontological instantiation must be managed by ex-

tending the class declaration of Java by injecting the

principles of potency notion. Here, accidental com-

plexity reappears as the necessary handling of correct

potency settings at the class deﬁnition, which the pro-

grammer must not mismanage. Also, level 0, the in-

stance level, which was never intended to be part of

the program code according to the semantics of Java,

will become such by the extension, which contra-

dicts the original goal of tackling accidental complex-

ity. Thus, accidental complexity may still be present.

Both MetaDepth and XModeler are more advanced is

this regard, but their languages are still hybrids: due

to the legacy of their implementation, new features

are difﬁcult to put into the language without rewriting

the underlying custom-designed compiler.

In DMLA, we design our languages around an

initial set of entities referred to as the Bootstrap.

Every scripting language of the approach is mod-

eled, but they also have an Xtext-based editor for

easy re-adaptability. We consider this an advantage

compared to the above-mentioned metamodeling ap-

proaches which rely on legacy compilers. More-

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

482

over, since our standard Bootstrap is self-described,

similarly to XMF, we base the usual OO-like meta-

modeling features such as types, cardinality or oper-

ation signatures on the fully meta-modeled constraint

concept. We consider it as our theoretical advantage

since domain constraints can be introduced into cus-

tom Bootstraps as well, for example, we can introduce

regular expressions by extending standard type con-

straints (Theisz et al., 2017). Therefore, our DSLs

must be modular by design in order to establish a

structurally understandable family of extendable lan-

guage constructs. In this regard, we share XModeler’s

strategy of XOCL, but we think that our approach will

enable modularity to a higher degree in semantics,

and at a lower cost in syntax when complex domain

models are being built.

3 THE DYNAMIC MULTI-LAYER

ALGEBRA

Dynamic Multi-Layer Algebra (DMLA, 2018) is our

multi-level modeling framework that consists of two

parts: (i) the Core, containing the formal deﬁnition

of modeling structures and its management functions;

(ii) the Bootstrap, consisting of a set of essential en-

tities that can be reused in all domains. In DMLA,

the model is represented as a Labeled Directed Graph,

where all model elements have four labels: i) the

unique ID of the element, ii) a reference to its meta

element by its unique ID, iii) a list of concrete val-

ues, and iv) a list of contained attributes. Besides the

4-tuples representing the model entities, there exist

functions that manipulate the model graph, thus form-

ing the Core of DMLA, which is deﬁned over an Ab-

stract State Machine (ASM) (Borger and Stark, 2003).

The states of the state machine represent the snap-

shots of dynamically evolving models, while transi-

tions (e.g., deleting a node) stand for modiﬁcations

between those states. The Bootstrap extends the Core

by making it more usable in practice. The Bootstrap

is an initial set of modeling constructs and built-in

model elements (e.g., primitive types) that are needed

to adapt the abstract modeling structure to practical

applications of domain models. It is also worth not-

ing that the separation of the Core and the Boot-

strap allows the creation of several different Boot-

straps (deﬁning different meta-modeling paradigms),

but so far, we have created one standard Bootstrap that

ﬁts our research goals.

Instantiation in DMLA has several specialties.

Whenever a model entity claims another entity to

be its meta, the framework automatically validates if

there is indeed a valid instantiation between the two

entities. However, unlike other modeling approaches,

the rules of valid instantiation is not encoded in an ex-

ternal programming language (e.g. Java), instead, it

is modeled by the Bootstrap. All validation formulae

can be modularized by being introduced directly into

the Bootstrap. This even applies to constraints, like

checking type and cardinality conformance (Theisz

et al., 2017). Since the validation formulae directly

inﬂuence the proper semantics of instantiation, the in-

stantiation is self-deﬁned via the model per se. The

technical facility enabling this self-described meta-

modeling is based on operation reiﬁcation. Operation

deﬁnitions are modeled by their abstract syntax tree

(AST) representation as tuples, which are later trans-

lated into executable code by the framework.

In DMLA, multi-level behavior is supported by

ﬂuid metamodeling. Hence, instantiation steps are

independent by design. Each entity can refer to any

other entity along the meta-hierarchy, unless cross-

level referencing is found to be contradictory during

model validation.

Entities may have attributes referred to as slots,

describing a part of the entity, similarly to classes hav-

ing properties in object-oriented programming. The

concept of slots is modeled in the Bootstrap. As an

example (based on our solution for the Bicycle Chal-

lenge (Mezei et al., 2018)), an entity Bicycle may

have slots for its Fork, Seat and Frame components.

Each slot originates from a meta-slot deﬁning the con-

straints to obey to. When instantiating the entity, all

of its slots are validated against the meta-slots. This

is where we check the modeled type and cardinality

constraints of the slot, along with other applied con-

straints. In our previous example, the type constraint

applied to the slot Seat restricts the value to be an in-

stance of the entity Seat.

Besides narrowing the constraints applied to a

slot, one may also divide a slot into several instances

similarly to entities, where we can create several in-

stances of a meta-entity. For example, the Wheel slot

may be divided into a FrontWheel and a RearWheel

slot. Obviously, the number of all instance slots must

not exceed the limits set by the cardinality of their

meta-slot. Note that it is also possible to omit a slot

completely during instantiation if it does not contra-

dict the given cardinality restrictions.

An important feature of DMLA is that ﬂuid meta-

modeling is supported at the slot level as well: when

instantiating an entity, one can decide which of its

slots are instantiated and which are cloned (copied to

the instance without modiﬁcation). This means that

we can keep some of the slots intact while concretiz-

ing the others. To continue with our example, the

entity RaceBike is an instance of Bicycle. RaceBike

Towards Mainstream Multi-level Meta-modeling

483

clones the deﬁnitions of the Fork and Seat slots, but it

concretizes the Frame slot by narrowing its type con-

straint from FrameComponent to RaceFrameCompo-

nent. Note that this behavior reﬂects our way of think-

ing: one can gradually tighten the constraints for cer-

tain parts of the concept, without imposing any obli-

gations on other parts of the model which are only

approximately known at this time.

4 LANGUAGES OF DMLA

The 4-tuples in DMLA are the native representation

of the modeled entities. Although 4-tuples enable the

formal precision of meta-modeling in DMLA, pro-

ducing them at scale is more than a menial task, thus,

in practical modeling scenarios, their direct usage is

technically impossible to be carried out. Hence, in

order to create models in DMLA, we introduced a

scripting language, the so called DMLAScript, which

is a low-level external DSL that is used for automat-

ing 4-tuple generation at medium scale. It is worth

mentioning that although DMLAScript is an exter-

nal DSL with an Xtext-based workbench implementa-

tion, models written in DMLAScript are compiled to

4-tuples, and thus, the model is interpreted as genuine

DMLA entities.

Moreover, we deﬁned the standard Bootstrap in

DMLAScript in order to create a self-described meta-

modeling environment. Illustrating our concept de-

sign by drawing parallels with the classical theory of

programming languages (see Figure 1), the 4-tuple

level can be considered as the binary code represen-

tation of the entities in DMLA, while DMLAScript

is the assembly language used for their production.

Thus, DMLAScript must be as precise in expressing

meta-level relations as DMLA itself, which has re-

sulted in a DSL that is sometimes too verbose for

managing practical domain models. Nevertheless,

DMLAScript is such by design, that is, its mandate

clearly stems from our explicit goal of being able

to show how to deﬁne the standard DMLA Boot-

strap recursively within itself, which required a DSL

with very detailed and precise language constructs.

However, after the standard Bootstrap had been suc-

cessfully ﬁnalized in DMLAScript, we turned our at-

tention to its direct application to practical model-

ing challenges, where we had to realize that DM-

LAScript was not suitable for these tasks. We had

concluded that similarly to classical programming

languages, a high-level programming language was

needed to be created before modelers unfamiliar with

the nitty-gritty details of DMLA and multi-level mod-

eling could use our framework for their daily mod-

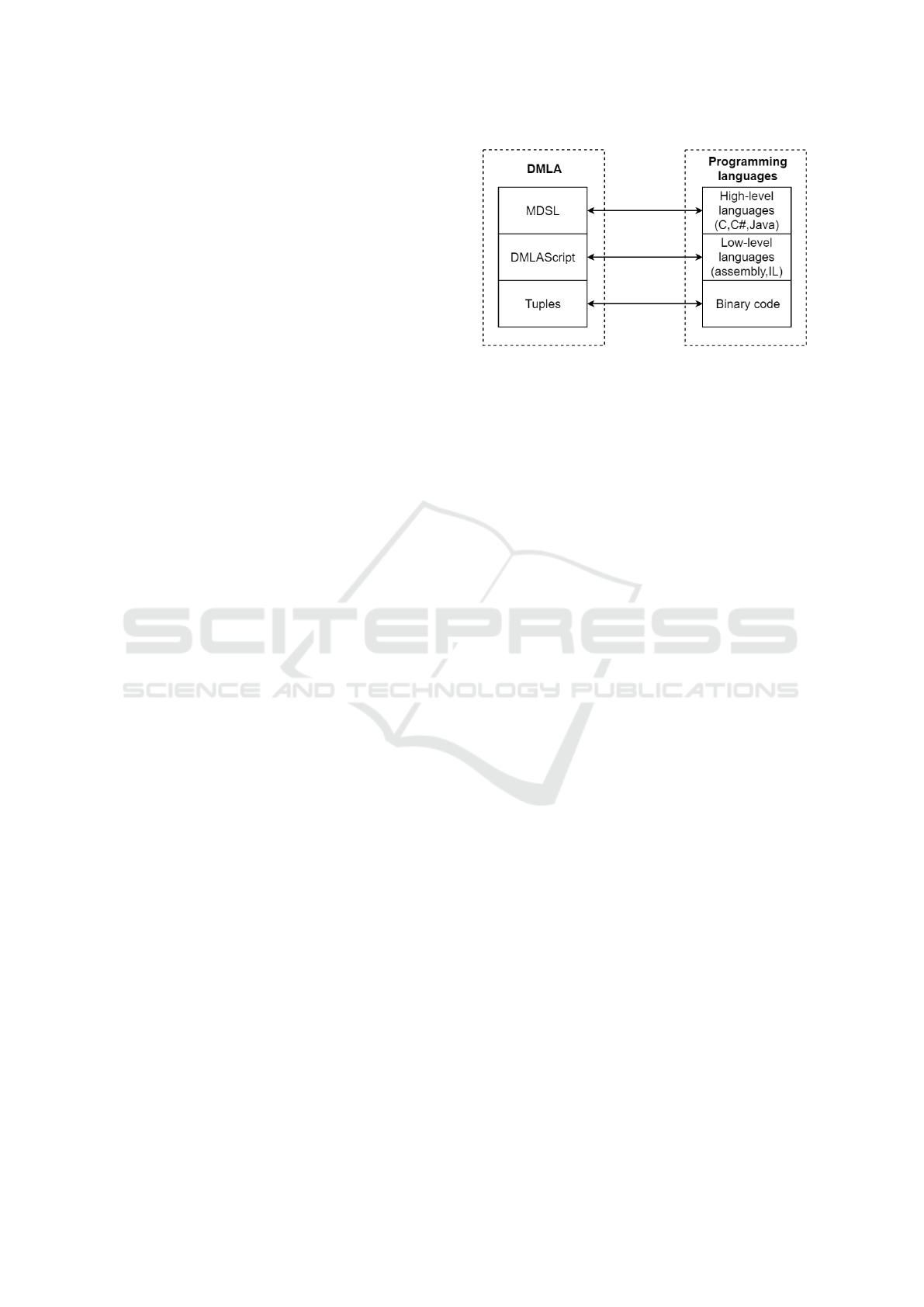

Figure 1: Layers of representation in DMLA.

eling tasks. Hence, by analyzing the shortcomings

of DMLAScript in this regard, we started designing

a new DSL around DMLA, the so called Modular

DMLA Scripting Language (MDSL), which incor-

porates classical modeling concepts in a multi-level

wrapping. Similarly to DMLAScript, we are also

planning to integrate MDSL into DMLA using an

Xtext-based workbench.

To sum it up, DMLAScript would remain the low-

level language of DMLA, while MDSL would be-

come the high-level language that is to be used mainly

by domain modelers. Nevertheless, MDSL would still

be layered on top of DMLAScript. Hence, our goal is

not to replace DMLAScript with MDSL, but to make

advanced multi-level modeling concepts look familiar

to domain modelers when building domain models in

practice. In other words, we are trying to establish

a modeling language where classical meta-modeling

can be done without introducing any accidental com-

plexity, whether it surfaces within the model or in-

side the language. However, whenever more preci-

sion is needed, DMLAScript can still be taken ad-

vantage of by directly injecting DMLAScript snippets

into MDSL code.

5 GOALS AND REQUIREMENTS

OF MDSL

As everybody knows, one of the the biggest chal-

lenges of any practical modeling technology is how to

animate a potential pool of domain modelers in order

to get real acceptance of its novel technological offer.

We had to realize during our research studies that for

DMLAScript alone it would be rather hard to attract

enough attention of modeling practitioners so that

it could succeed in the quite competitive market of

available modeling frameworks targeted to real indus-

trial challenges. Therefore, we do think that there is

currently indeed a gap in our proposed meta-modeling

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

484

ecosystem where we are still weak on the language

side although DMLA itself is ﬁrmly grounded and

stable now. Hence, we believe that a language like

MDSL is to be there so that mainstream DMLA do-

main modelers will be able to cope with their prac-

tical domain models of industrial relevance, routinely

on a daily basis. Consequently, we also do believe that

MDSL must mimic as many state-of-the-art OO mod-

eling concepts and usage patterns, on the language

level, as possible without ever losing grip of DMLA’s

formal modeling precision. In order to reach this goal

of a balanced compromise in language design around

DMLA, we do think that DMLAScript and MDSL

must fulﬁll orthogonal roles. Namely, DMLAScript

shall remain DMLA’s main modeling language for

academic research by maintaining its ability to intro-

duce, on the language level, any novel meta-modeling

concepts directly into the bootstraps and thus to pre-

cisely deﬁne their mathematical formalism as tuples

in their fully reﬂective multi-level modeling environ-

ment. However, MDSL shall streamline, on the lan-

guage level, all those sets of well-researched practical

DMLA meta-modeling concepts that may effectively

contribute to the mainstream modelers’ daily routine

and thus it will optimize bootstrap validation by par-

tially denouncing full reﬂectivity of the meta-model

for a faster validation execution. In order to achieve

this global goal, we have set the following technical

requirements on the concrete syntax of MDSL:

1. Structuralism and modularity. The syntax of

MDSL shall showcase both structuralism and

modularity in order to satisfy all practical needs of

domain modelers. Nevertheless, this duality must

always be balanced by language constructs with

semantically equivalent alternatives. Namely, the

modeler must be able to select the best trade-off

based on the complexity and the quantity of the

entities being modeled.

2. Instantiation and inheritance. The syntax of

MDSL shall clearly distinguish between instanti-

ation and inheritance as closely as possible to the

classical understanding of state-of-the-art object-

oriented principles. In order to satisfy this re-

quirement, we will precisely deﬁne and map the

concept of inheritance onto DMLA.

3. Customizable constraints. DMLA syntax for

modularity shall always be based on precisely

meta-modeled constraints in Bootstraps, and al-

though their syntax may vary it shall always be as

orthogonal as possible to other similar language

constructs. This is the enabler to introduce new

features into the language at ease such as owner-

ship handling, two-way navigation, version han-

dling etc. Relationships that require master-slave

dynamics (owner and owned) are more difﬁcult,

due to their needed verbosity, to be expressed in

DMLAScript, thus, MDSL shall support them on

the language level.

In order to impose the aforementioned require-

ments on MDSL, but also not to make the model-

ing process inﬂexible or inconvenient, we are working

on an editor with smart refactoring mechanisms. The

main refactoring requirements and the corresponding

editor features are as follows:

1. Explicit omission or speciﬁcation of cloned slots.

MDSL shall support the explicit omission of slots

so that domain modelers could specify which slots

have to be omitted. On the other hand, domain

modelers should also be able to specify the inher-

ited slots. The editor shall support copying of cer-

tain DMLA items automatically into the current

entity from its instantiated or specialized meta-

entity.

2. Relocation of features. It can be uncomfortable

to relocate features along the metahierarchy up-

wards, or downwards. Updating the references to

meta elements where the child elements are de-

ﬁned at should be automatically maintained.

3. Mandatory in-between placeholders. There may

be entities that must be instantiated and/or spe-

cialized in large numbers across meta-levels. It

can be inconvenient to manually copy these enti-

ties onto their appropriate meta-levels. The editor

shall provide support for extending selected enti-

ties towards upper and lower meta-levels.

6 CASE STUDY

In this section, we explain some of the planned fea-

tures of MDSL through a practical example. By

designing MDSL, our primary goal is to simplify

the currently still laborious creation of multi-level

models in DMLA, and thus, to make DMLA avail-

able as a viable modeling option for practition-

ers without demanding special multi-level modeling

skills. We demonstrate the main language features

of MDSL, in comparison to DMLAScript, on a case

study borrowed from the Bicycle Challenge (MULTI,

2018), for which the full solution (described in DM-

LAScript) is also available (Mezei et al., 2018). For

the sake of clarity, we have slightly simpliﬁed the

model. For example, we focus on the entity structure

and thus operations are omitted. Moreover, only those

parts of the entities are displayed that are necessary to

illustrate the mechanisms of MDSL.

Towards Mainstream Multi-level Meta-modeling

485

Figure 2: The case study fragment of the Bicycle challenge.

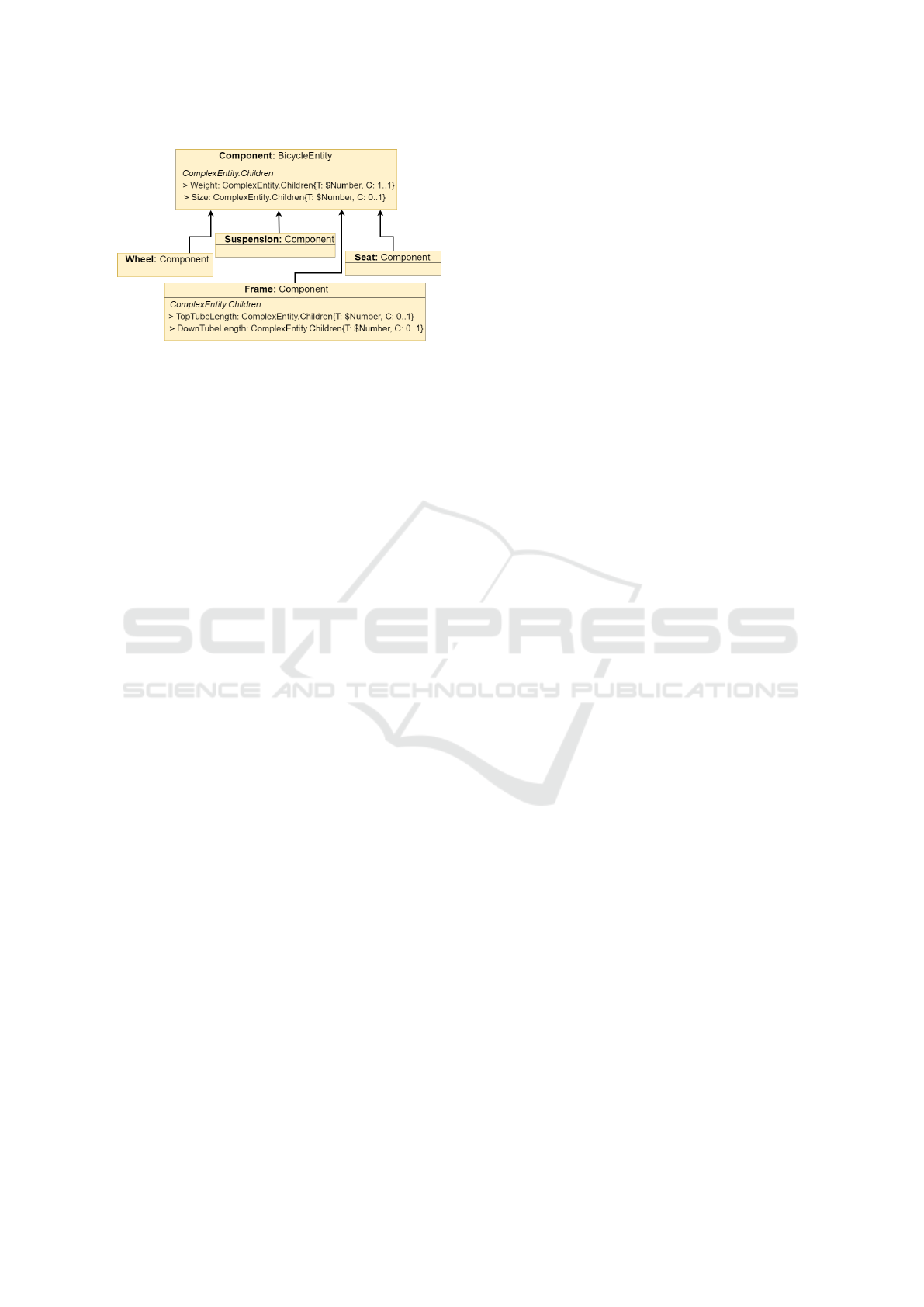

Figure 2 depicts the simpliﬁed example. The

Component entity is our starting point of the exam-

ple. The ComplexEntity.Children slot originates from

the upper part of the meta hierarchy, deﬁned in the

Bootstrap. Children enables the instantiation of cus-

tom slots, like Weight and Size, by dividing the orig-

inal slot into several instances as discussed in Sec-

tion 3. We could have chosen to omit the Children

slot, but here we clone it so that entities instantiated

from Component will also be able to deﬁne their own

custom slots. The type and cardinality constraints can

be expressed using a more compact syntax compared

to DMLAScript. Note that the syntax (and concepts)

of the language are still subject to change until we

have fulﬁlled all our requirements outlined in Sec-

tion 4.

Component:+ BicycleEntity {

$ComplexEntity.Children;

[type = $Number]

[card = [1..1]]

Weight: $ComplexEntity.Children;

[type = $Number]

[card = [0..1]]

Size: $ComplexEntity.Children;

}

To show the difference between DMLAScript and

MDSL, the original deﬁnition of the Component en-

tity in DMLAScript must be taken into account. It is

more precise, but this level of preciseness is not usu-

ally needed when designing domains. As it can be

seen, this script contains much more technical details.

In this example, we are going to showcase only a few

features of MDSL that make writing scripts in a more

concise form easier. Omission of the slots is not a

feature in DMLAScript, only cloning (explicitly list-

ing every slot to be kept) is allowed. Thus, in some

cases, this results in longer scripts. The type and car-

dinality constraints in DMLAScript (@T:. . . , @C. . . )

are very verbose and contain code that is needed for

the inner functions of the bootstrap to work, like the

IsOverwritable and IsPermanent slots. These are not

present in MDSL, instead, the default values are used

when code is generated from the MDSL script. More-

over, the minimum and maximum values of the cardi-

nality is expressed in a more concise form when us-

ing MDSL, by giving a range between the two num-

bers. It is worth noting that the editor requirements

of MDSL (like feature relocation) are still work in

progress and are not present in this example.

Component: BicycleEntity

{

ComplexEntity.Children;

@T: ComplexEntity.Children.T =

Type: ComplexEntity.Children.T.T

{

Type.IsOverwritable;

Type.IsPermanent;

slot Type:

ComplexEntity.Children.T.T.T=$Number;

slot IsInclusive:

ComplexEntity.Children.T.T.IsIncl=false;

};

@C: ComplexEntity.Children.C =

Card: ComplexEntity.Children.C.Card {

Cardinality.IsOverwritable;

Cardinality.IsPermanent;

slot Min:

ComplexEntity.Children.C.Card.Min=1;

slot Max:

ComplexEntity.Children.C.Card.Max=1;

};

slot Weight: ComplexEntity.Children;

@T: ComplexEntity.Children.T =

Type: ComplexEntity.Children.T.T

{

Type.IsOverwritable;

Type.IsPermanent;

slot Type:

ComplexEntity.Children.T.T.T=$Number;

slot IsInclusive:

ComplexEntity.Children.T.T.IsIncl=false;

};

@C: ComplexEntity.Children.C =

Card: ComplexEntity.Children.C.Card {

Cardinality.IsOverwritable;

Cardinality.IsPermanent;

slot Min:

ComplexEntity.Children.C.Card.Min=1;

slot Max:

ComplexEntity.Children.C.Card.Max=1;

};

slot Size: ComplexEntity.Children;

}

In MDSL, slots can be explicitly kept (cloned) or

omitted. The Wheel, Suspension, and Seat entities all

instantiate Component. They all clone the same slots:

Weight and Size, while omitting Children. In the case

of Seat, we explicitly omit the listed slots, while in the

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

486

other entities, we list the slots that are cloned. This

showcases two alternative ways of entity deﬁnition in

MDSL: when using the ”:-” operator (omit mode), we

have to deﬁne the list of omitted slots, all other slots

are cloned. In contrast, when using the ”:+” opera-

tor (clone mode), we have to deﬁne the list of cloned

slots, all other slots are omitted. Note that according

to the semantics of DMLA, only slots with optional

cardinality can be omitted (like Children in our ex-

ample), otherwise, the cardinality constraint would be

violated. Allowing both modes makes MDSL more

balanced and ﬂexible. In DMLAScript, our only op-

tion is to list all the slots that we want to keep.

The constraints of the slots of Component is de-

ﬁned using an annotation-like syntax, but – like many

other concepts in MDSL – there is an alternative syn-

tax we can use, which is illustrated in the Frame en-

tity. Both are signiﬁcantly shorter than their DM-

LAScript counterpart.

Wheel:+ Component {

Component.Weight;

Component.Size;

}

Suspension:+ Component {

Component.Weight;

Component.Size;

}

Seat:- Component {

$ComplexEntity.Children;

}

Frame:+ Component {

Component.Weight;

Component.Size;

$ComplexEntity.Children;

TopTubeLength: $ComplexEntity.Children {

type = $Number;

card = [1..1];

}

DownTubeLength: $ComplexEntity.Children {

type = $Number;

card = [1..1];

}

Unlike other components, the Frame entity intro-

duces two new slots besides keeping (cloning) Weight,

Size and Children. In the example, we use the ”:+” op-

erator (clone mode) and list every slot. Obviously, we

could have used the ”:-” operator (omit mode), and

have enumerated no slots if we had wanted to achieve

the same effect. The two new slot concretizations are

deﬁned the same way in both modes.

Although the illustrated example is simple, we be-

lieve that it demonstrates that MDSL is a more com-

pact and more intuitive language than the current ver-

sion of DMLAScript, therefore, it can be used eas-

ier by domain experts when building domain models.

As the language is still under construction, its con-

crete syntax is not ﬁnalized yet. Therefore, we have

not carried out any a public test yet, but plan to do

so. Until then, we have tested the language features

by re-implementing the complete Bicycle challenge

in MDSL (without the operations). The efﬁciency

gain is remarkable: we experienced a serious boost

in speed and compactness. Preliminary results show

that as opposed to the ˜1500 lines of code required

to solve the challenge using DMLAScript, we only

needed ˜700 lines of code using the new language. As

a caveat, the line numbers do not include operation

deﬁnitions, which are not yet supported in MDSL.

There are other factors to be considered (like the ex-

pressiveness of the language), but we do believe these

results are promising for the future.

7 CONCLUSIONS

In recent decades, meta-modeling techniques have

been successfully used in many industrial projects,

but their usage is still limited by the lack of support

for the step-wise reﬁnement of requirements in an or-

ganic way. Multi-level modeling aims to solve this

issue, but there is still no consensus in how multi-

level modeling should work. A few years ago, our

research group was formed to create a new multi-

layer modeling approach that is formal, ﬂexible, and

self-describing. This new approach is now referred to

as the Dynamic Multi-Layer Algebra (DMLA). From

the beginning, DMLA had always been meant to be

self-validated and modular. Once we had introduced

modeled operations and fully modeled the validation,

we achieved our original goal. However, we had also

realized that the cost of precision is payed by ver-

bosity and complexity. Trying to balance the odds, we

are currently working on a new language, the Modu-

lar DMLA Scripting Language (MDSL) that is meant

to be a viable, easy-to-use solution for multi-level do-

main engineering, unifying the advantages of OOP-

like design and multi-level modeling. As we are at

the beginning of our research programme, in this pa-

per, we have compared MDSL to our original script-

ing language, DMLAScript to show the relevance of

our concerns. However, our research goal is to ana-

lyze the plethora of meta modeling languages com-

monly used in research and industry and adapt our

language(s) to the precise requirements set by the

community. Therefore, in order to share our vision,

we have both described the main steps of our previ-

Towards Mainstream Multi-level Meta-modeling

487

ous research and presented the requirements for our

new modeling language. Even though the MDSL lan-

guage is not complete yet, we have presented a sim-

pliﬁed case study to illustrate the foreseen language

mechanisms. Currently, we are busily working on

an Xtext-based implementation of MDSL and eagerly

waiting for case studies in order to validate the lan-

guage though practical surveys with modeling practi-

tioners. According to our preliminary investigations,

modeling in MDSL is about twice as compact as in

DMLAScript, while at the same time it is much eas-

ier to explain, read, produce or maintain the models.

Due to the different abstraction levels, we expect sim-

ilar ratios in more complex case studies as well. Ob-

viously, MDSL has its own limits: it can be used for

domain engineering, but not for manipulating the un-

derlying Bootstrap.

Finally, as one of our main requirements imposed

on MDSL, we are also working on how to map clas-

sical OOP-like features such as interfaces or inheri-

tance to MDSL in order to increase its productivity

even further. An additional unforeseen beneﬁt of in-

troducing MDSL has been that it has redirected our

focus back to DMLAScript again. It seems that there

are some DMLAScript features we can further opti-

mize towards practicality. Thus, we are also planning

to carry out surveys with domain modelers and devel-

opers in order to classify the most salient features of

MDSL and DMLAScript so that in the future the lan-

guage aspect of feature modularity could characterize

all the DSLs around DMLA.

ACKNOWLEDGEMENT

The project was funded by the European Union, co-

ﬁnanced by the European Social Fund (EFOP-3.6.2-

16-2017-00013).

REFERENCES

Atkinson, C. and Gerbig, R. (2012). Melanie: Multi-level

modeling and ontology engineering environment. In

Proceedings of the 2nd International Master Class on

Model-Driven Engineering: Modeling Wizards, MW

’12, pages 7:1–7:2, New York, NY, USA. ACM.

Atkinson, C., Kennel, B., and Gutheil, M. (2009). A ﬂexi-

ble infrastructure for multilevel language engineering.

IEEE Transactions on Software Engineering, 35:742–

755.

Atkinson, C. and K

uhne, T. (2001). The essence of mul-

tilevel metamodeling. In Gogolla, M. and Kobryn,

C., editors, łUML 2001 — The Uniﬁed Modeling Lan-

guage. Modeling Languages, Concepts, and Tools,

pages 19–33, Berlin, Heidelberg. Springer Berlin Hei-

delberg.

Atkinson, C. and K

uhne, T. (2008). Reducing accidental

complexity in domain models. Software & Systems

Modeling, 7(3):345–359.

Borger, E. and Stark, R. F. (2003). Abstract State Machines:

A Method for High-Level System Design and Analysis.

Springer-Verlag, Berlin, Heidelberg.

Clark, T., Sammut, P., and Willans, J. S. (2015). Super-

languages: Developing languages and applications

with XMF (second edition). CoRR, abs/1506.03363.

de Lara, J. and Guerra, E. (2010). Deep meta-modelling

with metadepth. In Vitek, J., editor, Objects, Mod-

els, Components, Patterns, pages 1–20, Berlin, Hei-

delberg. Springer Berlin Heidelberg.

DMLA (2018).

https://www.aut.bme.hu/pages/research/vmts/dmla.

Henderson-Sellers, B., Clark, T., and Gonzalez-Perez, C.

(2013). On the search for a level-agnostic modelling

language. In Salinesi, C., Norrie, M. C., and Pas-

tor,

O., editors, Advanced Information Systems Engi-

neering, pages 240–255, Berlin, Heidelberg. Springer

Berlin Heidelberg.

uhne, T. and Schreiber, D. (2007). Can program-

ming be liberated from the two-level style: Multi-

level programming with deepjava. SIGPLAN Not.,

42(10):229–244.

Mezei, G., Theisz, Z., Urb

an, D., and B

acsi, S. (2018). The

bicycle challenge in dmla, where validation means

correct modeling. In Proceedings of MODELS 2018

Workshops, pages 643–652.

MULTI (2018). https://www.wi-inf.uni-duisburg-

essen.de/MULTI2018/.

Rossini, A., de Lara, J., Guerra, E., and Nikolov, N. (2015).

A comparison of two-level and multi-level modelling

for cloud-based applications. In Taentzer, G. and Bor-

deleau, F., editors, Modelling Foundations and Appli-

cations, pages 18–32, Cham. Springer International

Publishing.

Theisz, Z., Urb

an, D., and Mezei, G. (2017). Constraint

modularization within multi-level meta-modeling. In

Dama

sevi

cius, R. and Mika

syt

e, V., editors, Infor-

mation and Software Technologies, pages 292–302,

Cham. Springer International Publishing.

Urb

an, D., Theisz, Z., and Mezei, G. (2018). Self-

describing operations for multi-level meta-modeling.

In Proceedings of the 6th International Conference

on Model-Driven Engineering and Software Develop-

ment - Volume 1: MODELSWARD,, pages 519–527.

INSTICC, SciTePress.

Warmer, J. and Kleppe, A. (2003). The Object Con-

straint Language: Getting Your Models Ready for

MDA. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA, 2 edition.

MODELSWARD 2019 - 7th International Conference on Model-Driven Engineering and Software Development

488
