Threat Modeling and Attack Simulations of Connected Vehicles:

A Research Outlook

Wenjun Xiong, Fredrik Krantz and Robert Lagerstr

School of Electrical Engineering and Computer Science, KTH Royal Institute of Technology, Stockholm, Sweden

Keywords:

Security Architecture, Design Analysis, Threat Awareness, Vulnerability Analysis.

Abstract:

Modern vehicles are dependent on software, and are often connected to the Internet or other external services,

which makes them vulnerable to various attacks. To improve security for Internet facing systems, holistic

threat modeling is becoming a common way to proactively make decisions and design for security. One

approach that has not been commonly implemented is to enhance the threat models with probabilistic attack

simulations. That is, incorporating security intelligence, attack types, vulnerabilities, and countermeasures

to get objective security metrics and risk assessments. This combination has been shown efﬁcient in other

disciplines, e.g. energy and banking. However, it has so far been fairly unexplored in the vehicle domain.

This position paper reviews previous research in the ﬁeld, and implements a vehicle threat model using a tool

called securiCAD, based on which future research requirements for connected vehicle attack simulations are

also derived. The main ﬁndings are: 1) not much work has been done in the combined area of connected

vehicles and threat modeling with attack simulations, 2) initial tests show that the approach is useful, 3) more

research in vehicle speciﬁc attacks and countermeasures is needed in order to provide more accurate simulation

results, and 4) a more tailored metamodel is needed for the vehicle domain.

1 INTRODUCTION

Modern vehicles are often coupled with cellular con-

nections to the Internet, and they contain more than a

hundred Electronic Control Units (ECUs) that control

brakes, airbags, parts of the engine, and so forth. This

combination of ECUs, sensors, and network buses

creates a computerized system. The most commonly

used network in a vehicle is called Controller Area

Network (CAN), and there have been several known

ways to breach into this network (Currie, 2017). Vehi-

cles seem to be vulnerable to exploits in several ways

(just as other systems are), but a malicious actor get-

ting access to vital ECUs can have dire safety conse-

quences. Vulnerabilities have been reported numer-

ous times, and one famous example is when Miller

and Valasek acquired remote control of a 2014 Jeep

Cherokee (Miller and Valasek, 2015).

One way to improve security in these Internet con-

nected systems is to use advanced tools to model and

analyze them, we are then able to know what parts of

the network are the most vulnerable ones, and how

they can be secured. Holistic threat modeling has be-

come a very common way to work with proactive cy-

ber security and security by design, e.g. taking into

account software, data, infrastructure, processes, and

the most recent trend in threat modeling is to couple

it with attack simulations, to provide probabilistic

measures to security, e.g. Time-To-Compromise

(TTC) (Johnson et al., 2016c; Johnson et al., 2018).

This fairly new approach has been used successfully

in other domains like energy (Vernotte et al., 2018;

Korman et al., 2017). However, as far as we know, it

has not been developed or tested for connected vehi-

cles. Thus, we aim to explore and answer the research

questions: 1) Can holistic threat modeling and attack

simulations be used for connected vehicles? 2) What

future research needs to be done in order for it to be

efﬁcient and successful?

A software called securiCAD is used in this work.

It is a threat modeling and risk management tool in

which the user is able to model e.g. a home Local

Area Network (LAN) or a large corporate network.

Then security measures are assigned to different ob-

jects, and the built in simulation engine is used to

show the probability of different attacks succeeding.

Some attack types that can be simulated are Denial

of Service (DoS), device compromise, and replay at-

tacks (Ekstedt et al., 2015; Korman et al., 2016).

Our literature review and practical tests using se-

curiCAD show that threat modeling and attack simu-

lations for vehicles is promising, while some aspects

need to be further considered in future research in or-

der for it be efﬁcient and successful.

Xiong, W., Krantz, F. and Lagerström, R.

Threat Modeling and Attack Simulations of Connected Vehicles: A Research Outlook.

DOI: 10.5220/0007412104790486

In Proceedings of the 5th International Conference on Information Systems Security and Privacy (ICISSP 2019), pages 479-486

ISBN: 978-989-758-359-9

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

479

2 RELATED WORK

This section is divided into four parts, ﬁrst we de-

scribe the internal network of connected vehicles,

then the core work in vehicle security, after which

recent trends in threat modeling and attack simula-

tions are described, and ﬁnally the intersection be-

tween threat modeling and vehicles.

2.1 In-vehicle Network

In 2014, Miller and Valasek did a survey of attack

surfaces on several automotive models (Miller and

Valasek, 2014), and the most famous one is the 2014

Jeep Cherokee. We will continue to use this vehi-

cle model as a running example. Besides, a typical

in-vehicle network is shown in (Miller and Valasek,

2014).

The internal network of a 2014 Jeep Cherokee

consists of two CAN buses (CAN-C, CAN IHS) and

one LIN (Local Interconnect Network) bus. The CAN

protocol applied by this vehicle is called CAN-FD

, which is an extension of the original CAN proto-

col, and allows for larger payloads and decreased la-

tency. Moreover, it has a larger packet size and allows

for some security implementations e.g. message au-

thentication (Islinger et al., 2017). LIN is designed

to complement CAN. Apart from these, MOST (Me-

dia Oriented Systems Transport) and FlexRay are also

commonly used by vehicle network protocols, how-

ever, they are losing support. Overall, these network

technologies create a data communication channel be-

tween different ECUs in a vehicle.

The software used on these ECUs is either made

entirely by the Original Equipment Manufacturers

(OEMs), or applies existing architecture standards,

e.g. AUTomotive Open System ARchitecture (AU-

TOSAR

). AUTOSAR is a standardized software

framework for vehicles and it offers a multi-level se-

curity architecture among others.

2.2 Vehicle Security

Previously, vehicle OEMs did not consider cyber at-

tacks that much, since an attack was only possible if

an attacker had physical access to the vehicle. How-

ever, as modern vehicles have multiple wireless con-

nections to outside networks and devices (e.g. blue-

tooth, Internet), attacks are dramatically increasing.

Possible security mechanisms to secure vehicles

internal communications were addressed by (HoliSec,

http://www.bosch-semiconductors.com/ip-

modules/can-ip-modules/can-fd/

https://www.autosar.org/

2017), which include message authentication codes

(MAC) for trafﬁc integrity, ﬁrewalls both for external

trafﬁc and for internal trafﬁc implemented in gateway

ECUs, use of Intrusion Detection Systems (IDSs) to

detect unusual activities on the networks, and certiﬁ-

cates for identiﬁcation of various devices. Security

mechanisms were also addressed by (Buttigieg et al.,

2017) to mitigate the threats on assets, which include

access control, packet ﬁlter ﬁrewall, message authen-

tication, etc.

2.3 Threat Modeling and Attack

Simulations

The work by (Shostack, 2014) and the Microsoft

Threat Modeling tool

are commonly used in this

area. However, they are mainly used for designing

one secure software application, and not considering

the system holistically, e.g. taking into account soft-

ware, data, infrastructure, processes, etc. In (Williams

and Yuan, 2015), the authors studied the usefulness of

the Microsoft Threat Modeling tool and could show

that the participants ”improved their work on threat

modeling with the tool compared with not using the

tool”.

Another way of working with threat modeling is to

use attack (and defense) trees or attack graphs (Salter

et al., 1998; Saini et al., 2008; Kordy et al., 2010).

Although attack graphs are widely accepted and used,

there are plenty of known problems. For instance, as

stated in (Ou et al., 2006), ”previous work on attack

graphs has not provided an account of the scalability

of the graph generating process, and there is often a

lack of logical formalism in the representation of at-

tack graphs, which results in the attack graph being

difﬁcult to use and understand by human beings”.

As a response to the known problems in holistic

threat modeling and using attack graphs for quanti-

tative simulation, some approaches have been pro-

posed, for example, pwnPr3d (Johnson et al., 2016d;

Vernotte et al., 2017) and MAL (the Meta Attack Lan-

guage) (Johnson et al., 2018) both focused on proba-

bilistic measures.

2.4 Vehicle Threat Modeling

Threat modeling is a process that can be used to ana-

lyze potential attacks and threats. The work by (Kara-

hasanovic et al., 2017) adapted two threat model-

ing methods from the computer industry, TARA and

STRIDE, to ﬁt the needs of the automotive industry.

https://www.microsoft.com/en-

us/download/details.aspx?id=49168

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

480

Also, the work by (Ma and Schmittner, 2016) pro-

posed a ”practical and efﬁcient” approach to threat

modeling to better ﬁt the automotive systems. How-

ever, they have so far done a proof-of-concept im-

plementation of their approach without further vali-

dation.

The process for automotive threat modeling pro-

posed by (Park et al., 2018) starts with ﬁrst deﬁning

automotive security use cases, then identifying assets

and threats by using the STRIDE method, and ﬁnally

rating risks and evaluating the threat level and impact

level against the found threats. Besides, for assessing

exploitability risks of vehicular on-board networks,

the work by (Salfer and Eckert, 2018) automatically

generated and analyzed attack graphs, which could

aid vehicle development by automatically re-checking

the architecture for attack combinations.

Furthermore, some research concentrated on de-

signing security architectures related to vehicle secu-

rity, e.g. Sancus (Noorman et al., 2013; Noorman

et al., 2017), Vulcan (Van Bulck et al., 2017), SeP-

CAR (Symeonidis et al., 2017) and ITU-T X.1373

3 VEHICLE MODELING AND

ANALYSIS

When it comes to vehicle modeling and analysis, the

ﬁrst thing is to understand the internal network of a

vehicle, and the main assets in it. As current threat

modeling tools are more focused on architecture, and

lacking of attack analysis, this section will be done

with securiCAD, for both a generalized model and the

2014 Jeep Cherokee model. It can automatically gen-

erate probabilistic attack graphs from a given system

speciﬁcation (e.g. connected vehicles), which serves

as inference engine that produces predictive security

analysis results from the vehicle model.

3.1 Creating the Threat Model

The threat model of a connected vehicle can be built

by using drag-and-drop functionality on pre-deﬁned

objects, and these objects will be assigned certain

properties and pre-deﬁned attacks. For example, for

Network, there are DoS attack, ARP cache poisoning

attack, compromise attack, etc. Moreover, each

object has a selection of security implementations,

which can be set as enabled, disabled or probability-

based.

https://www.itu.int/rec/T-REC-X.1373/en

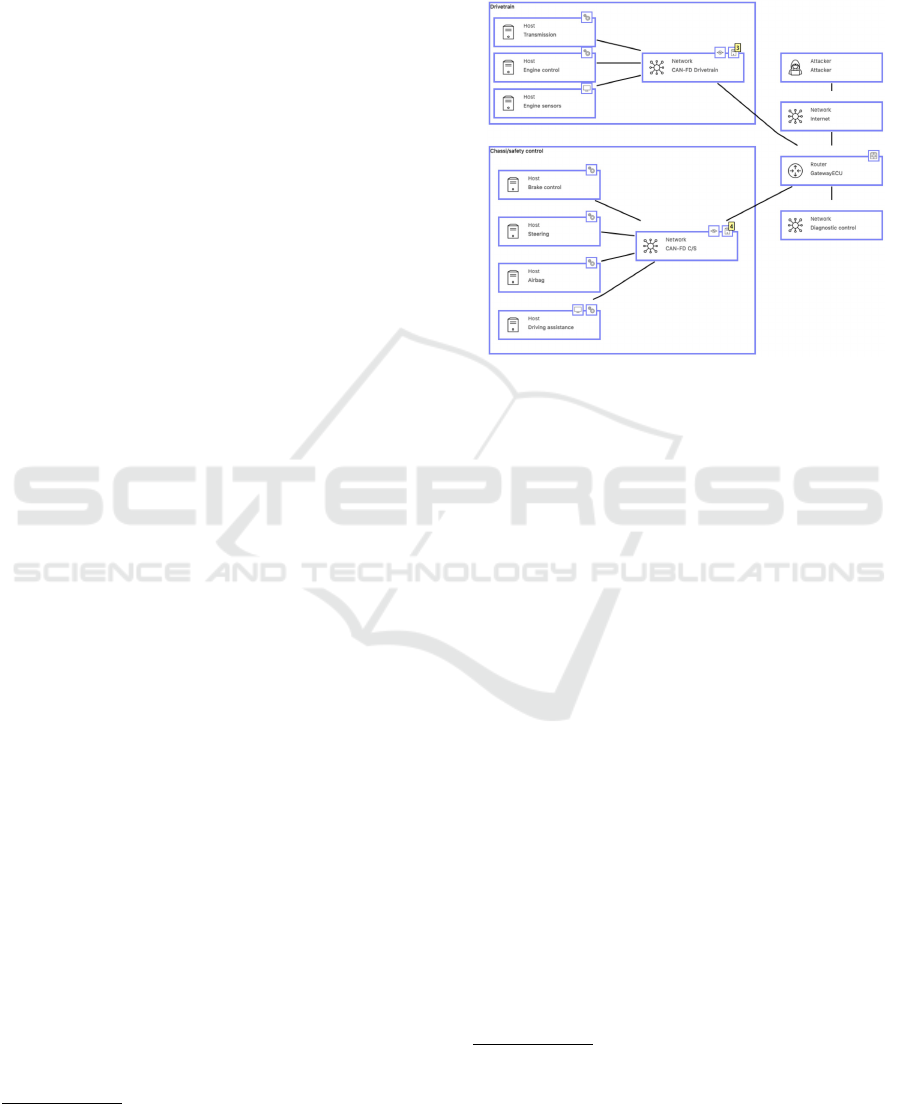

Generalized Model. The generalized model of a ve-

hicle’s internal network is shown in Figure 1, which

contains two CAN networks (Schweppe, 2012). Note

that there are small markers on each object, which in-

dicate other objects are connected to it.

Figure 1: A generalized model of a vehicle’s internal net-

work by securiCAD.

In securiCAD, a Host is described as a kernel of

an operating system, and is used to represent PCs or

servers (Foreseeti, 2018), thus, it can be used to repre-

sent ECU. Besides, a SoftwareProduct is connected

to each Host (not shown in Figure 1, but can be seen

when double-click ECU), and here it represents AU-

TOSAR, as AUTOSAR is open-source and becoming

a world standard for automotive embedded software.

In Figure 1, all ECUs have their speciﬁc names ac-

cording to a real car. The two CAN-FD Network

also have speciﬁc names, which are Drivetrain and

Chassi/safety control. Besides, a Router named

GatewayECU is connected to a Firewall and four

Networks

. Among the four networks, there are

two CAN-FD networks, an administrative network

(required by securiCAD), and Internet (is available

through the use of a Connectivity Control Unit at-

tached to the gateway, which is not represented by an

object in the model).

A Firewall has two security measurements,

Enabled and KnownRuleSet (if the ﬁrewall ruleset

is known to the modeler and conﬁgured properly).

The default settings are enabled and KnownRuleSet

is set as probability = 0.5, as no public information

is available about how manufacturers conﬁgure their

ﬁrewalls on Gateway ECUs.

https://www.bosch-mobility-

solutions.com/en/products-and-services/passenger-

cars-and-light-commercial-vehicles/connectivity-

solutions/central-gateway-cgw/

Threat Modeling and Attack Simulations of Connected Vehicles: A Research Outlook

481

In order to model the broadcast behavior of

the CAN network, ECUs are connected to a CAN-

FD Network. Besides, Network has security mea-

surements including DNSSec, PortSecurity and

StaticARPTables that are TCP/IP related, but CAN-

FD itself has no security measurements enabled.

In this generalized model, Service and Client

can be connected to ECU, but an ECU do not require

both of them. To be more speciﬁc, an ECU will be

connected to Client only when it is required to send

data to other ECUs. For example, the Driving Assis-

tance ECU is without control over any electrical de-

vices, and aims to calculate for the driving assistance

functions based on input and send output to ECUs that

handles driving functions. Both Service and Client

have a security measurement called Patched and is

enabled. Also, SoftwareProduct is connected to

them, which means all Service and Client applied

AUTOSAR standard.

Moreover, Dataflow is connected to CAN-FD

Network, and is also connected to Service and

Client, which represents the communication be-

tween Service and Client. The communication de-

notes how much access that Service and Client

have to commands and function calls in the operat-

ing system and kernel. The setting applied the most

secure option, as no information was found about how

much access does a service on an ECU in AUTOSAR

has.

Similarly, a Protocol is connected to Dataflow,

which gives options to choose different security im-

plementations to apply on the communication over

the CAN-FD networks, and the security measure-

ments available on Protocol are Authenticated,

Encrypted and Nonce. Here, Authenticated is sup-

ported by CAN-FD Network and enabled, while the

other two are disabled.

Furthermore, an Attacker is added to the threat

model to make it complete. The Attacker is con-

nected to the object where an attack start at. In this

case we consider Internet as unsafe, therefore the

Attacker is connected to the Internet Network with

the connection type Compromise.

Overall, the security settings related to the model

in Figure 1 are as follows:

• The security settings of Host:

- ASLR: Address Space Layout Randomization

(ASLR) fortiﬁes against buffer overﬂow attacks;

is disabled; because it is not implemented in AU-

TOSAR classic, but is available on the adaptive

platform.

- AntiMalware: detects, removes and deters mal-

ware attacks; is disabled; because it is not imple-

mented.

- DEP: Data Excecution Prevention (DEP) defends

against buffer overﬂow, by making memory areas

non-excecutionable; is disabled; because it is not

implemented in AUTOSAR classic, but is avail-

able on the adaptive platform.

- Hardened: represents the procedures where un-

used services, ports and hardware outlets are dis-

abled; is unset; because no information is avail-

able.

- HostFirewall: a ﬁrewall controls whether

dataﬂow is blocked or allowed between hosts; is

unset; because no information is available.

- Patched: it means the host has the latest security

updates; is enabled; because Internet connection

gives improved software support and patch avail-

ability.

- StaticARPTables: means mapping IP address

to MAC address to avoid spooﬁng; is disabled; be-

cause this measurement is with Ethernet network,

not a CAN network.

• The security settings of SoftwareProduct:

- HasVendorSupport: means whether the

software product is supported and has access

to patches; is enabled; because the model has

an Internet connection and is assumed to be

supported.

- NoPatchableVulnerability: means whether

the software product has no patchable vulnerabili-

ties; is unset; because no information is available.

- NoUnPatchableVulnerability: means

whether the software product has no unpatchable

vulnerabilities; is unset; because no information

is available.

- SafeLanguages: means the software product

is developed in languages that perform checking

to reduce the risk of buffer overﬂow; is unset;

because no information is available.

- Scrutinized: whether the software has been

thoroughly tested and checked for vulnerabilities;

is unset; because no information is available.

- SecretBinary: whether there is an access to

the binary by an attacker who can then detect

vulnerabilities; is unset; because no information

is available.

- SecretSource: whether the source code is a

secret source; is disabled; because AUTOSAR is

an open-source.

- StaticCodeAnalysis: whether there is a code

analysis tool to ﬁnd vulnerabilities and bugs; is

unset; because no information is available.

• Firewall connected to GatewayECU has

KnownRuleSet enabled, and its probability is set

to 0.5.

• The security settings of Network are disabled.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

482

• Service and Client connected to ECU have

Patched enabled.

• Dataflow connected to Network has

Authenticated enabled.

2014 Jeep Cherokee Model. According to the topol-

ogy by (Miller and Valasek, 2014), Figure 2 is created

and shows the threat model of 2014 Jeep Cherokees’s

internal network, with some changes on the general-

ized model (Figure 1). Here, CAN networks are used

instead of CAN-FD networks (Miller and Valasek,

2015), so Authenticated is disabled from the secu-

rity settings of its network Protocol. The Firewall

connected to Radio ECU is enabled, even though only

one open port is accessible. But the open ports found

by Miller and Valasek can be represented by disabling

Hardened setting of ECU.

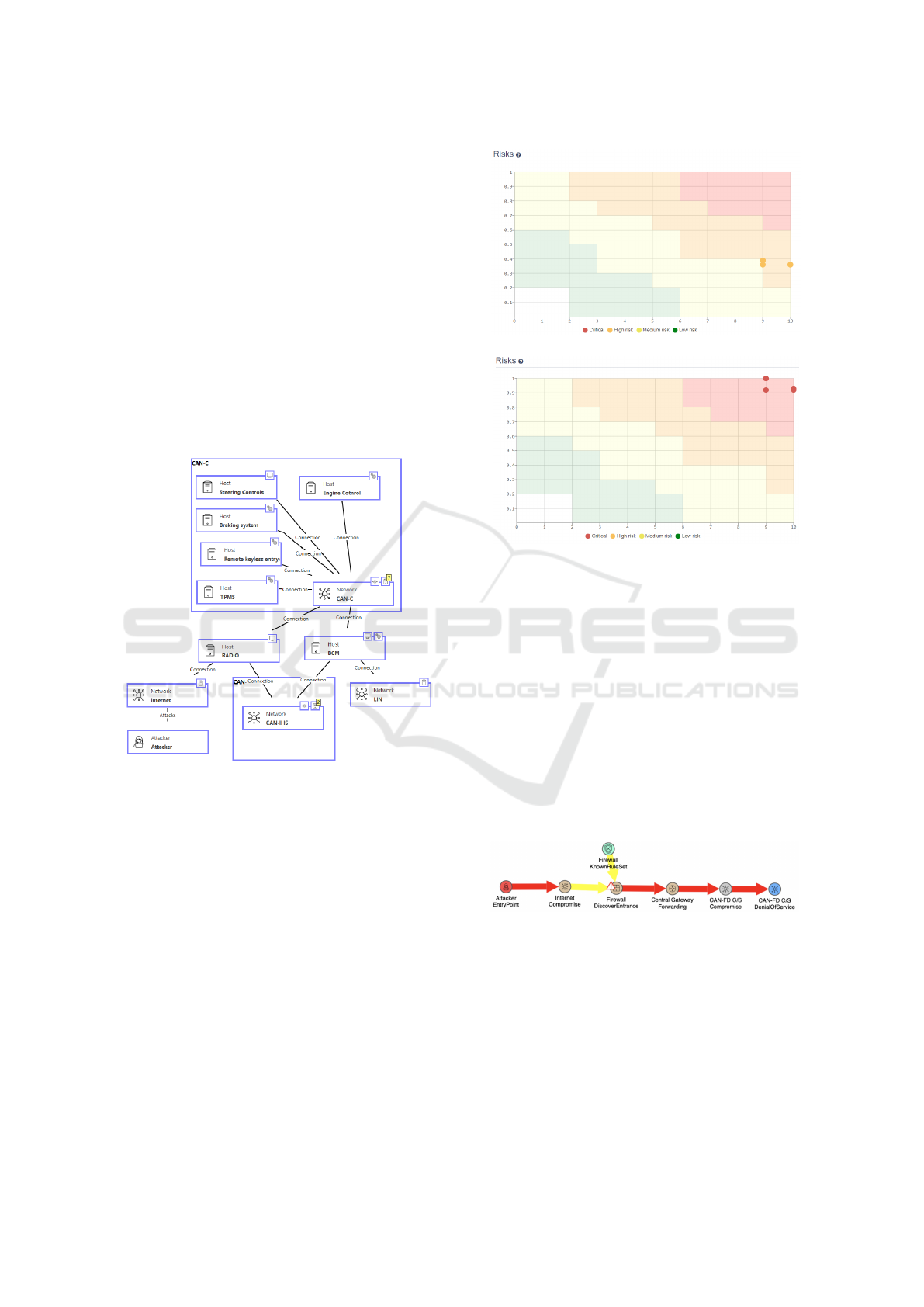

Figure 2: Internal network model of 2014 Jeep Cherokee by

securiCAD.

3.2 Running the Attack Simulations

Generalized Model. To conduct attack simulations,

the attack consequence (from 0 to 10, while 10 indi-

cates the most severity) is also required to set for each

object. For Engine control, Transmission and Brake

control ECU, the consequence of a compromise attack

is set to 10, because a compromise and an access to

these ECUs and services could lead to fatal road ac-

cidents. For CAN-FD Network, the consequence of

a DoS attack is set to 9, because a DOS attack can

shut down the access to ECUs of the network, and it

will not lead to fatal road accidents compared to the

formal one.

By running securiCAD attack simulations, the risk

assessment is shown in Figure 3(a), and all attacks are

considered to be of High risk. To show the consequen-

(a) Firewall enabled.

(b) Firewall disabled.

Figure 3: Risk matrix from simulations performed on the

generalized model.

ce if the Firewall connected to GatewayECU is dis-

abled, that all attacks are considered in the Critical

zone (shown in Figure 3(b)). The result shows that

Firewall is the most important object to secure the

network.

The simulation results also show the attack path

of an attack, which is aggregated by attack graphs to

model the composition of vulnerabilities found in a

system. For example, the attack steps for a DoS attack

on the Drivetrain network is shown in Figure 4, with

the Firewall enabled and FirewallKnownRuleSet

set as probability=0.5.

Figure 4: Attack path of a DoS attack on a CAN-FD net-

work.

In Figure 4, the measurements that can be made to

further improve security is shown by a green circle.

In this case, it is related to FirewallKnownRuleSet.

If it is set as 1.0, there would be 0 risk for all attacks.

2014 Jeep Cherokee Model. In order to simulate the

attack consequences of the Jeep model, the settings

are:

Threat Modeling and Attack Simulations of Connected Vehicles: A Research Outlook

483

• Consequence of a compromise attack on Radio

ECU is set to 3, which is used as a reference to

see how much probability lowers after the initial

entry of the network.

• Consequence of a compromise attack on Braking

system ECU is set to 10.

• Consequence of a DoS attack on CAN-C Network

is set to 10.

• Consequence of a replay attack on CAN-C

Network is set to 10, which represents the ac-

tual attack made by Miller and Valasek (Miller

and Valasek, 2015) where they to send commands

over the network unhindered.

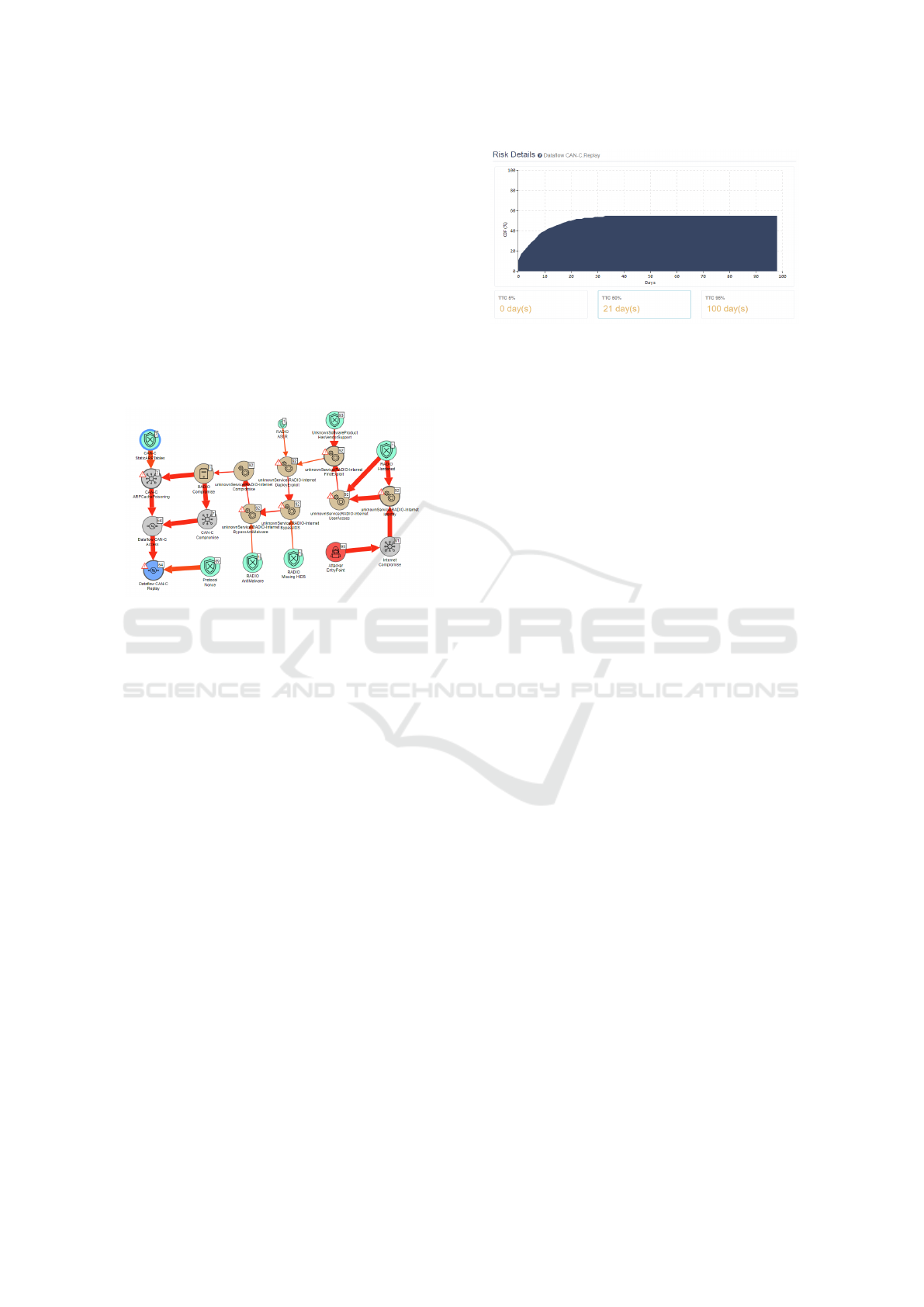

Figure 5: Attack path of the Jeep replay attack.

Figure 5 indicates the attack path of a replay at-

tack on CAN-C Network, and the unknown service

indicates the D-bus service accessed in an actual at-

tack by (Miller and Valasek, 2015), they looked at

a service (reﬂected by UnknownService in Figure 5)

connected to D-bus, and discovered that D-bus was

running as root, which helps them got access rights to

connected systems and hacked the vehicle remotely.

Just before the replay attack step, the attack paths are

divided into Compromise path and ARPCachePoison-

ing path, while the compromise path is more likely to

happen as ARP (Address Resolution Protocol) is not

applied in CAN network.

Besides, several security measurements that could

be implemented are shown by the green circles, and

most of them are related to Radio ECU. Moreover,

Hardened setting of Radio ECU is the most important,

as it allows the attack to happen in the ﬁrst place.

Furthermore, TTC is a measure of the effort ex-

pended by an attacker for a successful attack assum-

ing effort is expended uniformly. The attacker will

then take the shortest path, i.e. the least time con-

suming way to the end node. The TTC of the replay

attack can be seen in Figure 6, which indicates how

many days it takes to reach a certain risk probability.

In this case, a replay attack takes 21 days and has a

50% probability to compromise the vehicle.

Figure 6: TTC of the Jeep replay attack.

The overall attack simulation results show that the

modeled vehicles are not fully secure. According to

the risk matrix, a ﬁrewall is the most important ob-

ject to secure in this network. Also, the attack path

shows what other security measurements that can be

improved.

4 RESEARCH OUTLOOK

Holistic threat modeling and quantitative attack sim-

ulations of Internet connected vehicles seems promis-

ing, which allows a holistic identiﬁcation and ranking

of all the security related threats that are most likely to

affect the systems. However, future work requires to

be done in order for it to become efﬁcient and useful.

A metamodel describes the fundamental assets

and their associations of systems (e.g. connected ve-

hicles). Thus, the threat modeling metamodel needs

to be tailored (Lagerstr

om et al., 2009) to ﬁt the in-

ternal architecture of them, as most threat modeling

metamodels today are created for ofﬁce IT or similar

systems, and they only reﬂect parts of a vehicle sys-

tem.

The set of attack types and associated counter-

measures (defenses) related to each asset in a vehi-

cle needs to be further explored and validated. Some

attacks are known for web applications or Windows-

based systems, but they might not be relevant for ve-

hicles (Checkoway et al., 2011; V

alja et al., 2017).

Also, there might be certain attacks only possible

on vehicle systems. When it comes to countermea-

sures, a vehicle has certain limitations on its perfor-

mance, cost and functionality that do not appear in

other larger systems.

Quantitative measures of security (e.g. TTC

or Time between vulnerability disclosure (TBVD)

(Johnson et al., 2016a)) require quantitative inputs in

order to provide reasonable and useful output. Al-

though it has been done for other system types, vehi-

cle speciﬁc statistical studies relating attacks and de-

fenses quantitatively (and probabilistic) are still need

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

484

to be done. This can be realized through hacking ex-

ercises or experts.

Another important step is to validate and test the

approach with case studies by modeling vehicles and

iteratively enhancing the approach, a similar work has

been done in the energy domain (Blom et al., 2016).

Currently, the proposed approaches have focused

on automating the attack graph generation and thus

reducing modeling efforts signiﬁcantly. However,

modeling holistic systems with many components can

still be time-consuming and error-prone, thus, the ap-

proach needs to get aid in decreasing the model in-

stantiation effort (N

arman et al., 2009). This can

be achieved by automatic modeling (Holm et al.,

2014; V

alja et al., 2015) and using reference ar-

chitecture models (Korman et al., 2016; Vernotte

et al., 2018), however, neither of these has been tested

within the vehicle domain. To enhance the precision,

it could also be useful to couple this approach with

databases containing known vulnerabilities (Johnson

et al., 2016b; Lagerstr

om et al., 2017a).

Once the modeling is done with a higher degree

of automation, and the security analysis is done auto-

matically using the attack simulations, the ﬁnal step

of designing a more secure architecture remains to be

done (Lagerstr

om et al., 2017b).

5 CONCLUSION

This position paper ﬁrst addresses the security issues

on Internet connected vehicles. Then threat modeling

and attack simulations are conducted through an ad-

vanced tool named securiCAD, for both a generalized

vehicle model and a 2014 Jeep Cherokee. The simu-

lation results show that this tool is useful in modeling

a vehicle’s internal network.

This work also has its limitations, for example, the

Vehicle-to-Everything (V2X) communication is out

of the scope, and some security mechanisms have not

been implemented in the threat modeling metamodel,

which inﬂuences the scope of the attack simulations.

Future work includes providing more accurate

simulation results for vehicle-speciﬁc attacks and

countermeasures. Moreover, a more tailored meta-

model for vehicle is needed, which include more se-

curity mechanisms like access control, data privacy

models.

REFERENCES

Blom, R., Korman, M., Lagerstr

om, R., and Ekstedt, M.

(2016). Analyzing attack resilience of an advanced

meter infrastructure reference model. In Cyber-

Physical Security and Resilience in Smart Grids

(CPSR-SG), Joint Workshop on, pages 1–6. IEEE.

Buttigieg, R., Farrugia, M., and Meli, C. (2017). Security

issues in controller area networks in automobiles. In

18th international conference on Sciences and Tech-

niques of Automatic control and computer engineer-

ing, pages 1–6.

Checkoway, S., McCoy, D., Kantor, B., Anderson, D.,

Shacham, H., Savage, S., Koscher, K., Czeskis, A.,

Roesner, F., Kohno, T., et al. (2011). Comprehen-

sive experimental analyses of automotive attack sur-

faces. In USENIX Security Symposium, pages 77–92.

San Francisco.

Currie, R. (2017). Hacking the can bus: Basic manipulation

of a modern automobile through can bus reverse engi-

neering. The SANS Institute, InfoSec Reading Room

report series.

Ekstedt, M., Johnson, P., Lagerstrom, R., Gorton, D.,

Nydr

en, J., and Shahzad, K. (2015). Securi cad

by foreseeti: A cad tool for enterprise cyber secu-

rity management. In 2015 IEEE 19th International

Enterprise Distributed Object Computing Workshop

(EDOCW), pages 152–155. IEEE.

Foreseeti (2018). SecuriCAD 1.4 User Manual. Foreseeti

AB, Sveavgen 166, 3TR, 113 46 Stockholm, 5,3 edi-

tion.

HoliSec (2017). A state-of-the-art report on vehicular secu-

rity.

Holm, H., Buschle, M., Lagerstr

om, R., and Ekstedt, M.

(2014). Automatic data collection for enterprise ar-

chitecture models. Software & Systems Modeling,

13(2):825–841.

Islinger, T., Mori, Y., Neumller, J., Prisching, M., and

Schmidt, R. (2017). Autosar secoc for can fd. CAN

Newsletter.

Johnson, P., Gorton, D., Lagerstr

om, R., and Ekstedt, M.

(2016a). Time between vulnerability disclosures: A

measure of software product vulnerability. Computers

& Security, 62:278–295.

Johnson, P., Lagerstr

om, R., and Ekstedt, M. (2018). A

meta language for threat modeling and attack sim-

ulations. In Proceedings of the 13th International

Conference on Availability, Reliability and Security,

page 38. ACM.

Johnson, P., Lagerstr

om, R., Ekstedt, M., and Franke, U.

(2016b). Can the common vulnerability scoring sys-

tem be trusted? a bayesian analysis. IEEE Transac-

tions on Dependable and Secure Computing, (1):1–1.

Johnson, P., Vernotte, A., Ekstedt, M., and Lagerstr

om, R.

(2016c). pwnpr3d: an attack-graph-driven probabilis-

tic threat-modeling approach. In Availability, Relia-

bility and Security (ARES), 2016 11th International

Conference on, pages 278–283. IEEE.

Johnson, P., Vernotte, A., Gorton, D., Ekstedt, M., and

Lagerstr

om, R. (2016d). Quantitative information

security risk estimation using probabilistic attack

graphs. In International Workshop on Risk Assessment

and Risk-driven Testing, pages 37–52. Springer.

Threat Modeling and Attack Simulations of Connected Vehicles: A Research Outlook

485

Karahasanovic, A., Kleberger, P., and Almgren, M. (2017).

Adapting threat modeling methods for the automotive

industry. In Proceedings of the 15th ESCAR Confer-

ence, pages 1–10. Chalmers Publication Library.

Kordy, B., Mauw, S., Radomirovi

c, S., and Schweitzer, P.

(2010). Foundations of attack–defense trees. In Inter-

national Workshop on Formal Aspects in Security and

Trust, pages 80–95. Springer.

Korman, M., Lagerstr

om, R., V

alja, M., Ekstedt, M., and

Blom, R. (2016). Technology management through

architecture reference models: A smart metering

case. In Management of Engineering and Technol-

ogy (PICMET), 2016 Portland International Confer-

ence on, pages 2338–2350. IEEE.

Korman, M., V

alja, M., Bj

orkman, G., Ekstedt, M., Ver-

notte, A., and Lagerstr

om, R. (2017). Analyzing the

effectiveness of attack countermeasures in a scada sys-

tem. In Proceedings of the 2nd Workshop on Cyber-

Physical Security and Resilience in Smart Grids,

pages 73–78. ACM.

Lagerstr

om, R., Baldwin, C., MacCormack, A., Sturtevant,

D., and Doolan, L. (2017a). Exploring the relationship

between architecture coupling and software vulnera-

bilities. In International Symposium on Engineering

Secure Software and Systems, pages 53–69. Springer.

Lagerstr

om, R., Franke, U., Johnson, P., and Ullberg, J.

(2009). A method for creating entreprise architecture

metamodels: applied to systems modiﬁability. Inter-

national Journal of Computer Science and Applica-

tions, 6(5):89–120.

Lagerstr

om, R., Johnson, P., and Ekstedt, M. (2017b). Au-

tomatic design of secure enterprise architecture: Work

in progress paper. In Enterprise Distributed Object

Computing Workshop (EDOCW), 2017 IEEE 21st In-

ternational, pages 65–70. IEEE.

Ma, Z. and Schmittner, C. (2016). Threat modeling for auto-

motive security analysis. Advanced Science and Tech-

nology Letters, 139:333–339.

Miller, C. and Valasek, C. (2014). A survey of remote auto-

motive attack surfaces. BlackHat USA.

Miller, C. and Valasek, C. (2015). Remote exploitation of

an unaltered passenger vehicle. BlackHat USA.

arman, P., Johnson, P., Lagerstr

om, R., Franke, U., and

Ekstedt, M. (2009). Data collection prioritization for

system quality analysis. Electronic Notes in Theoreti-

cal Computer Science, 233:29–42.

Noorman, J., Agten, P., Daniels, W., Strackx, R., Her-

rewege, A. V., Huygens, C., Preneel, B., Ver-

bauwhede, I., and Piessens, F. (2013). Sancus: Low-

cost trustworthy extensible networked devices with a

zero-software trusted computing base. pages 479–

498. USENIX.

Noorman, J., Van Bulck, J., M

uhlberg, J. T., Piessens, F.,

Maene, P., Preneel, B., Verbauwhede, I., G

otzfried, J.,

uller, T., and Freiling, F. (2017). Sancus 2.0: A low-

cost security architecture for iot devices. ACM Trans-

actions on Privacy and Security (TOPS), 20(3):1–33.

Ou, X., Boyer, W. F., and McQueen, M. A. (2006). A scal-

able approach to attack graph generation. In Proceed-

ings of the 13th ACM conference on Computer and

communications security, pages 336–345. ACM.

Park, J. S., Kim, D., Hong, S., Lee, H., and Myeong, E.

(2018). Case study for deﬁning security goals and re-

quirements for automotive security parts using threat

modeling. In SAE Technical Paper. SAE International.

Saini, V., Duan, Q., and Paruchuri, V. (2008). Threat model-

ing using attack trees. Journal of Computing Sciences

in Colleges, 23(4):124–131.

Salfer, M. and Eckert, C. (2018). Attack graph-based

assessment of exploitability risks in automotive on-

board networks. In Proceedings of the 13th Interna-

tional Conference on Availability, Reliability and Se-

curity, pages 1–10. ACM.

Salter, C., Saydjari, O. S. S., Schneier, B., and Wallner, J.

(1998). Toward a secure system engineering method-

ology. In Proceedings of the 1998 workshop on New

security paradigms, pages 2–10. ACM.

Schweppe, H. (2012). Security and privacy in automotive

on-board networks. PhD thesis, T

ecom ParisTech.

Shostack, A. (2014). Threat modeling: Designing for secu-

rity. John Wiley & Sons.

Symeonidis, I., Abdelrahaman, A., Mustafa Asan, M., Men-

nink, B., Dhooghe, S., and Preneel, B. (2017). Sep-

car: A secure and privacy-enhancing protocol for car

access provision. In ESORICS 2017: Computer Secu-

rity - ESORICS 2017, pages 475–493. Springer.

alja, M., Korman, M., and Lagerstr

om, R. (2017). A study

on software vulnerabilities and weaknesses of embed-

ded systems in power networks. In Proceedings of

the 2nd Workshop on Cyber-Physical Security and Re-

silience in Smart Grids, pages 47–52. ACM.

alja, M., Lagerstr

om, R., Ekstedt, M., and Korman, M.

(2015). A requirements based approach for automat-

ing enterprise it architecture modeling using multiple

data sources. In Enterprise Distributed Object Com-

puting Workshop (EDOCW), 2015 IEEE 19th Interna-

tional, pages 79–87. IEEE.

Van Bulck, J., M

uhlberg, T., and Piessens, F. (2017). Vul-

can: Efﬁcient component authentication and software

isolation for automotive control networks. pages 225–

237. ACM International Conference Proceeding Se-

ries.

Vernotte, A., Johnson, P., Ekstedt, M., and Lagerstr

om,

R. (2017). In-depth modeling of the unix operating

system for architectural cyber security analysis. In

Enterprise Distributed Object Computing Workshop

(EDOCW), 2017 IEEE 21st International, pages 127–

136. IEEE.

Vernotte, A., V

alja, M., Korman, M., Bj

orkman, G., Ekst-

edt, M., and Lagerstr

om, R. (2018). Load balancing of

renewable energy: a cyber security analysis. Energy

Informatics, 1(1):5.

Williams, I. and Yuan, X. (2015). Evaluating the effective-

ness of microsoft threat modeling tool. In Proceedings

of the 2015 Information Security Curriculum Devel-

opment Conference, page 9. ACM.

ICISSP 2019 - 5th International Conference on Information Systems Security and Privacy

486
