Using Proof Failures to Help Debugging MAS

Bruno Mermet and Gaële Simon

Normandie Univ., Université Le Havre Normandie, CNRS, Greyc, 1400 Caen, France

Keywords:

Multi-Agent Systems, Proof Failure, Debugging.

Abstract:

For several years, we have worked on the usage of theorem proving techniques to validate Multi-Agent Sys-

tems. In this article, we present a preliminary case study, that is part of larger work whose long-term goal

is to determine how proof tools can be used to help to develop error-free Multi-Agent Systems. This article

describes how an error caused by a synchronisation problem between several agents can be identiﬁed by a

proof failure. We also show that analysing proof failures can help to ﬁnd bugs that may occur only in a very

particular context, which makes it difﬁcult to analyse by standard debugging techniques.

1 INTRODUCTION

This article takes place in the general context of the

validation of Multi-Agents Systems, and more specif-

ically in the tuning stage. Indeed, for several years

now, we have worked on the validation of MAS

thanks to proof techniques. This is why the designed

the GDT4MAS model (Mermet and Simon, 2009) has

been designed, which provides both formal tools to

speciﬁy Multi-Agent Systems and a proof system that

generates automatically, from a formal speciﬁcation,

a set of Proof Obligations that must be proven to guar-

antee the correctness of the system.

In the same time, we have begun to study how

to answer to the following question: “What happens

if the theorem prover does not manage to carry out

the proof ?”. More precisely, is it possible to learn

anything from this failures (that we call in the sequel

proof failures), in order to debug the MAS ? Answer-

ing to this question in a general context is tricky. In-

deed, a ﬁrst remark is that a proof failure may occur

in three different cases:

• ﬁrst case: a true theorem is not provable (Gödel

Incompleteness Theorem);

• second case: a true theorem can not be automat-

ically proven by the prover because ﬁrst-ordre logic

is semidecidable;

• third case: an error in the MAS speciﬁcation has

led to generate a false theorem that, hence, cannot

be proven.

So, when a proof failure is considered, the ﬁrst

problem is to determine the case it corresponds to. It

would be rather long and off-topic to give complete

explanations here. However, it is important to kn-

wow that the proof system has been designed to gen-

erate theorems that have good chances to be proven

by standard strategies of provers, without requiring

the expertise of a human. Moreover, unprovable true

theorems generally do not correspond to real cases.

Thus, in most cases, a proof failure will correspond to

a mistake in the speciﬁcation, and this is the context

that is considered in the sequel.

The subject of our study is then the following: if

some generated proof obligations are note proven au-

tomatically, can we learn from that in order to help to

correct the speciﬁcation of the MAS ? So, the main

idea is to check wether proof failures can be used to

detect, even correct bugs in the speciﬁcation of the

MAS.

Indeed, contrary to what is presented in (Dastani

and Meyer, 2010), where authors consider that proof-

based approaches are dedicated to MAS validation

and that other approaches must be considered for de-

bugging and tuning, we aim at using proof failures to

capture mistakes very early in the design of a MAS

and to help to correct them.

In this article, we begin by a brief presentation of

existing works dealing with the debugging of MAS.

In part 3, we present the GDT4MAS model, the

proof mechanism, and the associated tools. Section 4

presents the core of our work. In the last part, we con-

clude on the work presented here and we present the

future or our research in this domain.

Mermet, B. and Simon, G.

Using Proof Failures to Help Debugging MAS.

DOI: 10.5220/0007343205230530

In Proceedings of the 11th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2019), pages 523-530

ISBN: 978-989-758-350-6

523

2 STATE OF THE ART

Ensuring the correctness of a MAS is a crucial is-

sue, but this is a very hard problem, as it has been

established several times (Drogoul et al., 2004). As

for classical software, there are mainly two kinds of

methods to check the correctness of a MAS: proof and

test. If interested, the reader is encouraged to refer to

previous articles (Mermet and Simon, 2009; Mermet

and Simon, 2013) for a more comprehensive state of

the art on the subject. In this section, we focus on

works dealing with the tuning of erroneous systems.

2.1 Test

Most works about the debugging of MAS deal with

test used to discover a potential problem, and they

also deal with how to provide one or more test cases

allowing to reproduce the problem. Tests can be situ-

ated at different levels, as exposed in (Nguyen et al.,

2009):

• at the unit level: this is for instance the goal of

the work presented in (Zhang et al., 2009).

• at the agent level: there are numerous works at

this level. Some propose “xUnit” tools to spec-

ify unit tests (Tiryaki et al., 2006), whereas others

propose to add to the system agents dedicated to

test (Nguyen et al., 2008)

• at the MAS level: principles of test at the MAS

level are not yet many. One of the reasons is cer-

tainly the difﬁculty of the problem, well detailed

in (Miles et al., ). But there are however a few works

in this domain (Tiryaki et al., 2006; Nguyen et al.,

2010).

2.2 Trace Analysis

Another kind of works dealing with the debugging

of MAS relies on the trace analysis. These works

mainly focus on three of the tasks associated to de-

bugging: discovering the problem, identifying the po-

tential causes and ﬁnding the true one. (Lam and Bar-

ber, 2005; Vigueras and Botía, 2007; Serrano et al.,

2009).

Traces are analysed using two different methods:

either they study the ordering of messages exchanged

between agents, or they use knowledge provided by

the designer of the system using data mining tech-

niques to check if this knowledge can be found in the

MAS trace, in order to discover bugs and to explain

them. The combination of these two techniques is for

example studied in (Dung N. Lam, 2005).

2.3 Visualization

A few work deal with visualization tools for MAS,

although this kind of tools may be interesting. But

designing relevant views is a very hard problem be-

cause of the potential huge number of entities inter-

acting. Some works propose to generate views from

traces (Vigueras and Botía, 2007).

2.4 Proof Failures

Using proof failure is a prospective domain, that has

not yet been examined in depth. Some works pro-

pose to provide the prover with tools that might use

proof failures (Kaufmann and Moore, 2008). About

the usage of these proof failures, a few ideas are pro-

posed in (Dennis and Nogueira, 2005), but they have

not been implemented.

3 THE GDT4MAS MODEL

This approach, that integrates a model and an asso-

ciated proof system, offers several interesting char-

acteristics for the design of MAS: a formal language

to describe the behaviour of agents and the expected

properties of the system, the usage of the well-known

and expressive ﬁrst-order logic, and an automatisable

proof process.

We brieﬂy present here the GDTM4MAS method,

more detailed in (Mermet and Simon, 2009; Mermet

and Simon, 2013).

3.1 Main Concepts

The GDT4MAS model requires to specify several

concepts described here.

Environment. The environment of the MAS is

speciﬁed by a set of typed variables and an invariant

property i

Agent Types. Each agent type is speciﬁed by a set

of internal typed variables, an invariant and a be-

haviour. The behaviour of an agent is mainly deﬁned

by a Goal Decomposition Tree (GDT). A GDT is a

tree of goals, whose root correspond to the main goal

of the agent. A plan is associated to each goal: when

this plan is executed with success, the goal it is as-

sociated to (called parent goal) is achieved. A plan

can be made either of a single action, or a set of goals

(called subgoals) linked by a decomposition operator.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

524

A goal G is mainly described by its name n

, a sat-

isfaction condition sc

and a guaranted property in

case of failure gpf

The satisfaction condition (SC) of a goal is for-

mally speciﬁed by a formula that must be true when

the execution of the plan associated to the goal suc-

ceeds. Otherwise, the guaranted property in case of

failure (GPF) of the goal speciﬁes what is however

guaranted to be true when the execution of the plan

associated to the goal fails (It is of course not consid-

ered when the goal is said to be a NS goal, that is to

say a goal whose plan always succeeds).

SC and GPF are called state transition formu-

lae (STF), because they establish a link between two

states, called the initial state and the ﬁnal state, cor-

responding to the state of the system just before the

agent tries to solve the goal and the state of the sys-

tem when the agent has just ended the execution of the

plan associated to the goal. In an STF, a given vari-

able v can be primed or not. The primed notation (v

)

represents the value of the variable in the ﬁnal state

whereas a non-prime notation (v) represents the value

of the variable in the initial state. A STF can be non

deterministic when, considering a given initial state,

several ﬁnal states can satisfy it. This is for instance

the case of the following STF : x

> x. This means

that the value of variable x must be greater after the

execution of the plan associated to the goal than be-

fore. For instance, if the value of x is 0 in the initial

state, ﬁnal states with a value of 2 or 10 for x would

satisfy this STF.

Decomposition Operators. GDT4MAS proposes

several decomposition operators, in order to specify

several types of behaviours. In this article, we only

use two of them:

• the SeqAnd operator speciﬁes that subgoals must

be executed in the given order (from the left to the

right on the graphical representation of the GDT). If

the behaviour of the agent is sound, achieving all of

the subgoals achieves the parent goal. If the execu-

tion of the ﬁrst subgoal fails, the second subgoal is

not executed;

• the SyncSeqAnd operator works similarly to the

SeqAnd operator, but it offers the possibily to lock

a set of variables in the environment during the exe-

cution of the plan. Thus, other agents won’t be able

to modify these variables as long as the execution of

the plan is not ﬁnished.

Actions. Actions are speciﬁed by a precondition,

specifying in which states it can be executed, and a

postcondition, specifying by an STF the effect of the

action.

Agents. Agents are deﬁned as instances of agent

types, with speciﬁc initialisation values for the vari-

ables of the type.

3.2 GDT Example

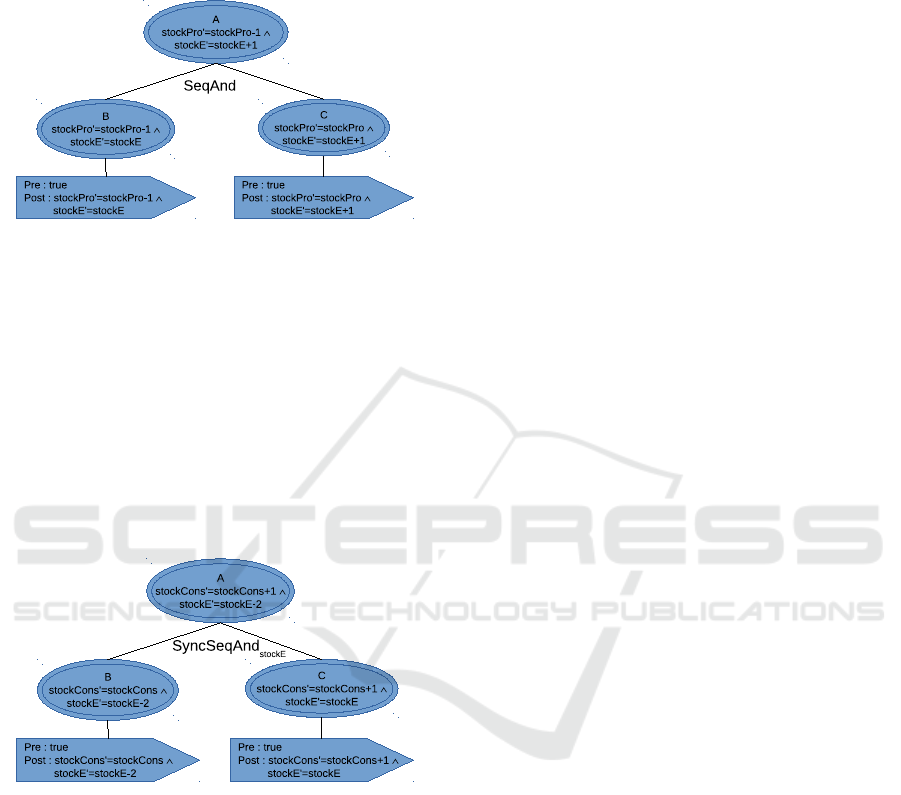

Figure 1 shows the GDT of an agent made of three

goals (represented by ellipses with their name and

their SC): goal A is the root goal. Thanks to the

SeqAnd operator, it is decomposed into 2 subgoals

B and C. These goals are leaf goals and so, an ac-

tion (represented by an arrow) is associated to each of

them.

3.3 Proof Principles

3.3.1 General Presentation

The proof mechanism aims at proving the following

properties:

• Agents preserve their invariant properties (Mer-

met and Simon, 2013);

• Agents preserve the invariant properties of the en-

vironment;

• Agents behaviours are consistent; (plans associ-

ated to goals are correct);

• Agents respect their liveness properties. These

properties formalize expected dynamic characteris-

tics.

Moreover, the proof mechanism relies on proof

obligations (PO). POs are properties that must be

proven to guarantee the correctness of the sys-

tem. They can be automatically generated from a

GDT4MAS speciﬁcation. They are expressed in ﬁrst-

order logic and can be veriﬁed by any ﬁrst-order logic

prover. Finally, the proof system is compositional:

The proof of the correctness of a given agent type

is decomposed into several small independant proof

obligations, and most of the time, the proof of a given

agent type can be performed independently of the oth-

ers.

3.3.2 Proof Schema

The GDT4MAS method deﬁnes several proof

schemas. These proof schemas are formulae that are

used to generate proof obligations.

Using Proof Failures to Help Debugging MAS

525

3.3.3 PVS

PVS (Prototype Veriﬁcation System) (Owre et al.,

1992) is a proof environment relying mainly on a the-

orem prover that can manage speciﬁcations expressed

in a typed higher order logic. The prover uses a set

of predeﬁned theories dealing, among others, with set

theory and arithmetic. The prover can work in an

interactive way: indeed, the user can interfer in the

proof process.

For our part, we want to minimize the user inter-

vention. It is the reason why Proof Obligations are

generated so as to maximize the success rate of auto-

matic proof strategies. The strategy of PVS we use

is a very general one called grind that uses, among

others, propositional simpliﬁcation, arithmetic sim-

pliﬁcation, skolemisation ad the disjunctive simpliﬁ-

cation.

3.4 Execution Platform

In order to carry out many experiments on the

GDT4MAS model, we are developing a platform with

the following features:

• execution of a GDT4MAS speciﬁcation;

• generation of proof obligations in the PVS lan-

guage;

• proof of a GDT4MAS speciﬁcation using PVS.

This platform is developed mainly in Java. Speciﬁ-

cations are written in XML and can be executed in

several modes. Among them, there is a random mode

(agents are activated at random) and a trace mode

(agents are activated in a predeﬁned order). During

the execution, dynamic charts show in real time the

values of selected agent variables. Moreover, a log

console gives information on the system activity (ac-

tivated agent, goal being executed, action executed,

etc.).

4 USING PROOF FAILURES

The problem this article deals about is the following.

Let suppose we have a GDT4MAS speciﬁcation of

a Multi-Agent System. Using the proof system as-

sociated to the model, we can generate a set of Poof

Obligations that must be proven to guarantee that the

speciﬁcation is correct. But if at least one of these

proof obligations cannot be proven, it may indicate a

bug in the speciﬁcation, than might be detected during

a particular execution of the MAS. So, can the infor-

mation provided by the proof failure (in particular by

the prover) be used, at least by hand, to identify the

error in the speciﬁcation ?

There are several kinds of such errors. Here are a

few examples:

• the decomposition operator used to deﬁne the

plan associated to a goal is not the good one, so

achieving subgoals does not achieve the parent goal;

• the Satisfaction Condition associated to a goal is

too weak, and so does not provide properties re-

quired later;

• The triggering context of the agent is wrong, so

the agent can be activated when it must not, or can

not be activated when it would be necessary;

• the invariant associated to an agent time is wrong

or too weak.

In the long term, our goal is to identify several er-

ror categories for which proof failures are similar and

can be used to help to identify the error in the speci-

ﬁcation that has generated the proof failure. In order

to adress this problem, we have speciﬁed a case-study

based on the producer/consumer system. In this ex-

ample, we have introduced two kinds of errors, and

we have studied the proof failures that they have gen-

erated, in order to determine if it was possible, to

identify the errors starting from the proof failures.

This study is presented in the sequel.

4.1 Case Study

4.1.1 Description of the MAS Used

As written before, our case study relies on a producer-

consumer system. In the basic version, the system is

made of 2 agents, with two dedicated agent types: the

Producer type and the Consumer type. For the proof

point of view, the analysis of the system is the same

whatever the number of agents of each type is, even

if from the point of view of the execution, we will

see that there are differences. The environment of the

MAS includes a variable named stockE (an integer).

This variable corresponds to the number of resources

(pounds of ﬂoor for instance) that the producer has

already put in the environment.

To produce these resources, the producer uses in-

ternal resources of an other type (wheat for instance),

represented by an internal variable stockPro whose

value represents the amount of wheat (in pounds) that

the producer owns. To produce one resource of the

environment (one pound of ﬂoor), the producer con-

sumes one of its own resources (one pound of wheat).

This process is represented by the GDT of the Pro-

ducer type (shown in ﬁgure 1) made of three goals:

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

526

goal B models the consumption of the internal re-

source and goal C models the production of the new

resource in the environment.

Figure 1: GDT of the Producer type.

For its part, the consumer produces resources of

a third type (bags of bread, for instance). The num-

ber of resources produced is represented by the value

of an internal variable of the Consumer type called

stockCons. To produce this kind of resources, the

producer needs to use 2 resources of the environment

(producing a bag of bread requires 2 pounds of ﬂoor).

This process is formalized by the GDT of the Con-

sumer type (see ﬁgure 2): goal B models the con-

sumption of 2 resources of the environment and goal

C models the production of a new resource of the third

type.

Figure 2: GDT of the Consumer type.

In addition to the process described above, there

is an additional constraint: only two resources can be

stocked in the environment (in our example, there is

a place for only two pounds of ﬂoor on the shelf).

It means that if there are already 2 resources in the

environment, one of them should be consumed be-

fore the producer can put a new one in the environ-

ment. This constraint for the producer is formalized

by its triggering context: stockPro > 0 ∧ stockE < 2.

With such a triggering context, the producer can be

activated only if it still has resources and if it can

store its production in the environment. Moreover

the following invariant is associated to the environ-

ment: stockE > −1∧stocke < 3. This invariant deter-

mines the set of legal values for the stockE variable,

according to the constraint presented above. The fol-

lowing invariant is associated to the Producer type:

stockPro > −1. Indeed, the number of internal re-

sources cannot be negative.

The triggering context of the Consumer type is

simpler: stockE > 1. In other words, the consumer

cannot act if there is not at least 2 resources available

in the environment. The invariant associated to this

agent type is similar to the invariant of the Producer:

it speciﬁes that the number of its internal resources is

a natural number: stockCons > −1.

4.1.2 Proof Failure Analysis

When proof obligations are generated from the case

study presented above, a PVS theory made of 18 the-

orems is produced, where each theorem corresponds

to a proof obligation that must be proven to ensure

that the speciﬁcations of both agent types are correct.

These proof obligations cannot be listed here, but we

can recall that, if proven, they guarantee that:

• each goal decomposition is correct (achieving the

plan associated to a goal achieves this goal);

• for each leaf goal:

– The execution context of the goal implies the

precondition of the action associated to the goal;

– The postcondition of the action associated to the

goal implies the satisfaction condition of the goal;

– the environment invariant and the agent invari-

ant are preserved by the execution of the action as-

sociated to the goal.

When PVS tries to prove the theory generated

from the GDT4MAS speciﬁcation, there are 2 proof

failures (for two theorems, PVS says that the proof

is “unﬁnished”). In interactive mode, PVS provides

to the user the last sequent of the proof branch that

it cannot verify. The two unproved theorems are the

following:

• SCproducerTypeA : this proof obligation is re-

quired to prove that the decomposition of goal A is

correct, that it is to say that the success of the execu-

tion of the plan associated to A achieves A.

• PostInvProducerTypeC : this proof obligation

is required to verify that the execution of the action

associated to goal C preserves the invariants of the

agent and of the environment.

We introduce now a few notations concerning the

variables that are used in the PVS speciﬁcation. These

notations are used to represent the value of a variable

in several states of the agent.

• v

−2

(v_2) : value of v just before B;

Using Proof Failures to Help Debugging MAS

527

• v

−1

(v_1) : value of v just after B;

• v

(v0) : value of v just before C;

• v

(v1) : value of v just after C.

For instance, in theorem SCproducerTypeA,

stockE

is represented by stockE1 and stockE is

represented by stockE_2. Indeed, in our execution

model, the state just before A is considered to be the

same state as the state just before B.

First Proof Failure. The theorem

SCtproducerTypeA generated by the plateform

is the following:

SCproducerTypeA: THEOREM

((true)&(stockPro_2>0)&(stockE_2<2)&(stockPro_2>-1)&

(stockE_2>-1)&(stockE_2<3)&(stockPro_1 = stockPro_2-1)&

(stockE_1 = stockE_2)&(stockPro_1 = stockPro0)&

(stockPro_1>-1)&(stockE_1>-1)&(stockE_1<3)&(stockPro0>-1)&

(stockE0>-1)&(stockE0<3)&(stockE1 = stockE0+1)&

(stockPro1 = stockPro0)&(stockPro1>-1)&

(stockE1>-1)&(stockE1<3))

(stockPro1 = stockPro_2 - 1)&(stockE1 = stockE_2 + 1)

We can notice that the right-hand side of the “im-

plies” corresponds to the satisfaction condition of

goal A with the states introduced above: stockE1

corresponds to à stockE’, stockE_2 corresponds to

stockE, stockPro1 corresponds to stockPro’ and

stockPro_2 corresponds to stockPro.

The sequent that PVS cannot prove when it tries

to prove this theorem is the following:

{-1} (stockPro_2 > 0)

{-2} (stockE_2 < 2)

{-3} (stockPro_2 > -1)

{-4} (stockE_2 < 3)

{-5} (stockPro_1 = stockPro0)

{-6} (stockE_1 = stockE_2)

{-7} (stockPro_2 - 1 = stockPro0)

{-8} (stockE_2 > -1)

{-9} (stockE0 > -1)

{-10} (stockE0 < 3)

{-11} (stockE1 = 1 + stockE0)

{-12} (stockPro1 = stockPro0)

{-13} (stockPro0 > -1)

{-14} (1 + stockE0 > -1)

{-15} (1 + stockE0 < 3)

|-------

{1} stockE0 = stockE_2

The ﬁrst thing we can notice is that the predi-

cate with the stockPro variable that was part of the

right-hand side of the “implies” in the initial theo-

rem is missing in the consequent of the sequent. This

means that this part of the theorem has been proven

and that the problem only concerns the part of the

satifaction condition of goal A dealing with stockE.

Thus, we can conclude that the prover cannot prove

that stockE0 = stockE_2 with the hypotheses in the

left-hand side of the theorem.

Indeed, in the hypotheses of the theorems gen-

erated by our proof systems, relations between vari-

ables concern either variables in the same state (this is

for instance the case for invariant properties) or vari-

ables in two consecutive states. So, if the sequent

above cannot be proven, this ought to be because at

least one hypothesis among stockE_2 = stockE_1 or

stockE_1 = stockE0 is missing. But we can observe

that the second one is present in the hypotheses of the

sequent (number {−6}). So, the only missing pred-

icate is stockE_1 = stockE0, meaning that the value

of stockE is not modiﬁed between the end of the ex-

ecution of goal B and the beginning of the execution

of goal C. Indeed, between these two states, another

agent in the system might modify the value of variable

stockE. The only way to prevent this is to lock the

variable, using a synchronized operator (SyncSeqAnd

in our case). With such a lock, no other agent can

modify stockE during the execution of the decompo-

sition of goal A. As stockE is an environment vari-

able, at any time, any agent can modify it (this is not

the case for agent variables, that can only be modi-

ﬁed by the owner agent). So, in the GDT of the Pro-

ducer type, the SeqAnd operator must be replaced by

a SyncSeqAnd operator locking variable stockE.

Second Proof Failure. The theorem

PostinvtypeProducteurC generated by our

plateform is the following:

((true)&(stockPro_2>0)&(stockE_2<2)&(stockPro_2>-1)&

(stockE_2>-1)&(stockE_2<3)&(stockPro_1 = stockPro_2-1)&

(stockE_1 = stockE_2)&(stockPro_1 = stockPro0)&

(stockPro_1>-1)&(stockE_1>-1)&(stockE_1<3)&(stockPro0>-1)&

(stockE0 -1)&(stockE0<3)&(stockE1 = stockE0+1)&

(stockPro1 = stockPro0))

(stockPro1 > -1)&((stockE1 > -1)&(stockE1 < 3))

This theorem aims at demonstrating that the in-

variant of the agent is preserved by the execution of

the action associated to goal C: this explains the part

stockPro1 > −1 in the right-hand side of the “impli-

cation”. It also aims at demonstrating that the in-

variant predicate of the environment is preserved by

the execution of this action. This explains the part

stockE1 > −1 ∧ stockE1 < 3.

The sequent that PVS cannot prove is the follow-

ing:

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

528

{-1} (stockPro_2 > 0)

{-2} (stockE_2 < 2)

{-3} (stockPro_2 > -1)

{-4} (stockE_2 < 3)

{-5} (stockPro_1 = stockPro0)

{-6} (stockE_1 = stockE_2)

{-7} (stockPro_2 - 1 = stockPro0)

{-8} (stockPro0 > -1)

{-9} (stockE_2 > -1)

{-10} (stockE0 > -1)

{-11} (stockE0 < 3)

{-12} (stockE1 = 1 + stockE0)

{-13} (stockPro1 = stockPro0)

|-------

{1} (1 + stockE0 < 3)

When we compare it with the initial theorem, it

appears that the prover cannot prove a part of the en-

vironment invariant, more precisely the fact that the

value of stockE is always less than 3 because hypoth-

esis stockE_1 = stockE0 is missing. This is the same

problem that we encountered for the ﬁrst proof fail-

ure. It means that this proof failure is also a conse-

quence of not having used a synchronized operator

locking variable stockE.

So, this proof failure has allowed us to detect the

same design error that the ﬁrst proof failure. How-

ever, it does not correspond to the same bug. Indeed,

the fact that the prover cannot verify that stockE0 < 2

shows that it is not guaranted that the value of stockE

is less than 2 before the execution of C. As a conse-

quence, there are situations where, after the execution

of C, the value of stockE is greater than 2, which is

forbidden by the environment invariant. This corre-

sponds to a new bug that may occur during the sys-

tem execution. An interesting property with this proof

failure is that the bug cannot occur in a system with

a single producer in the system. But if we consider a

MAS with several producers, the problem will prob-

ably occur. For instance, consider a system with 2

producers p1 and p2, each having a stockPro vari-

able initialized to 5, an environment with the variable

stockE initialized to 0, and a single consumer whose

variable stockCons is initialized to 0. Now, supppose

that the execution of the MAS leads to the following

interleaving of agents p1 and p2:

...

p1 (stockPro of p1 takes the value of 4)

p1 (stockE takes the value of 1)

p1 (stockPro of p1 takes the value of 3)

p2 (stockPro of p2 takes the value of 4)

p2 (stockE takes the value of 2)

p1 (stockE takes the value of 3)

...

The execution trace above leads to the bug pointed

out by the proof failure. This trace has indeed been

executed by our plateform and, thanks to the visual-

isation of the variables of the system, we have ob-

served the bug: the value of stockE indeed reaches

the value of 3 during this execution.

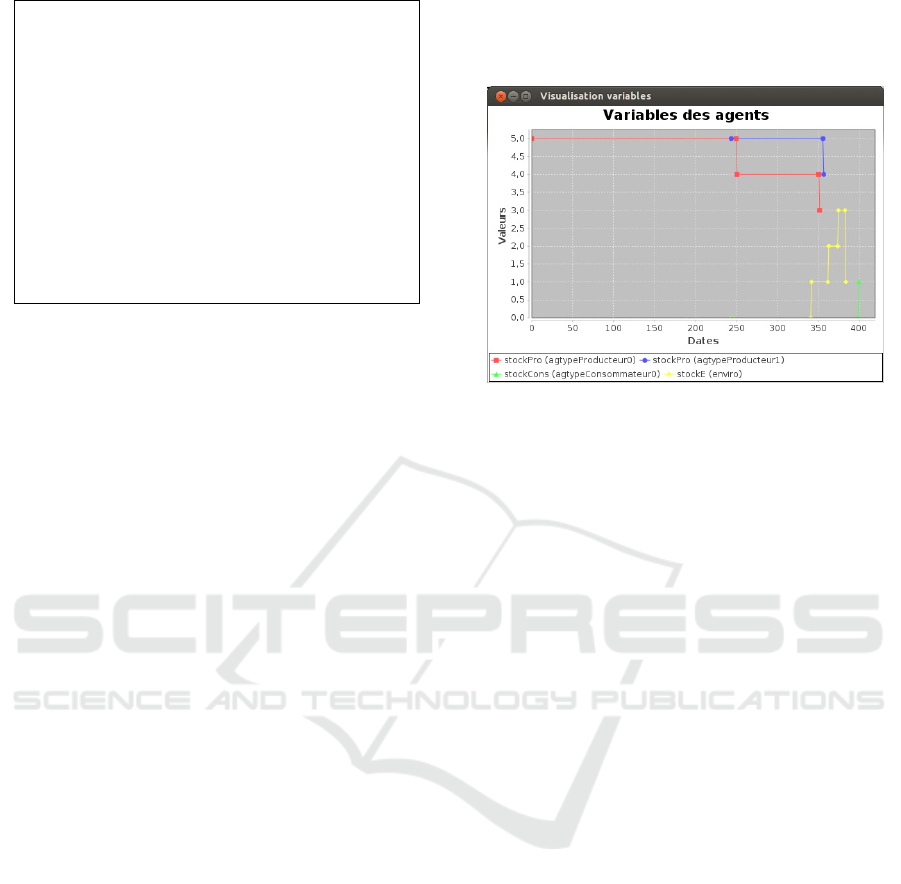

Figure 3: Values of the variables in the MAS over the time.

Review of the Proof Failures Analysis. After the

anlysis of these 2 proof failures, we can, at ﬁrst, notice

that the structure of the proof obligations generated by

our proof system provides a ﬁrst way to rapidly iden-

tify which part of the system behaviour is involved

in the problem (the name of the generated theorem

helps in this task). We have also shown that the 2

studied proof failures help to identify a design error

in the speciﬁcation of the Producer type. The ﬁrst

proof failure has helped to ﬁnd an hypothesis that was

lacking in the theorem, and that led us to ﬁnd how

to ﬁx the problem by using a synchronized operator

in order to lock variable stockE during the execution

of the decomposition of goal A. This problem is a

consequence of a synchronisation problem between

the agents (producer/consumer in the ﬁrst case, pro-

ducer/producer in the second case), identiﬁed thanks

to the proof failures.

Moreover, each of these proof failures pointed out

2 different bugs (Satisfaction condition of goal A not

established in some cases, non compliance with the

bounds of stockE in other cases) generated by the

same error in the design. We can notice that that

they would have been difﬁcult to identify without our

proof system. Namely, the bug associated to the sec-

ond proof failure cannot occur in a system with less

than two producers, and even in a system with 2 pro-

ducers or more, the bug can be observed only during

speciﬁc executions. So, using a proof system leads to

an important time saving in bug identiﬁcation.

We can notice that, if we modify the speciﬁcation

of the Producer agent type using a SyncSeqAnd oper-

ator instead of a SeqAnd operator to decompose goal

A, the proof of the system is now performed success-

fully by PVS.

This small case study shows that proof failures can

Using Proof Failures to Help Debugging MAS

529

be used to detect undesired behaviours during the ex-

ecution (bugs associated to each proof failure) and to

determine errors in the speciﬁcation linked to these

bugs (here, the lack of lock on an environment vari-

able by the producer agent).

5 CONCLUSION AND

PERSPECTIVES

In this article, we have presented a promising way to

use proof failures in the tuning of MAS. In particular,

we have shown that such a technique highlights bugs

that appears in few executions, because they can de-

pend on the interleaving of the actions of the agents.

That makes these bugs hard to detect and to correct

with standard debugging techniques because they are

hard to reproduce. Of course, research must continue

with other kinds of proof failures to validate the tech-

nique in a more general way. We also aim at devel-

oping a semi-automatic usage of proof failures, be-

cause it seems that standard patterns of proof failure

emerge. In the longer term, we should be able to pro-

pose a taxonomy of proof failures, associating to each

kind of proof failure the potential causes and the po-

tential required patches.

REFERENCES

Dastani, M. and Meyer, J.-J. C. (2010). Speciﬁcation and

Veriﬁcation of Multi-agent Systems, chapter Correct-

ness of Multi-Agent Programs: A Hybrid Approach.

Springer.

Dennis, L. A. and Nogueira, P. (2005). What can be learned

from failed proofs of non-theorems. Technical report,

Oxford University Computer Laboratory.

Drogoul, A., Ferrand, N., and Müller, J.-P. (2004). Emer-

gence : l’articulation du local au global. ARAGO,

29:105–135.

Dung N. Lam, K. S. B. (2005). Automated Interpretation of

Agent Behaviour. In AOIS, pages 1–15.

Kaufmann, M. and Moore, J. (2008). Proof

Search Debugging Tools in ACL2.

http://www.cs.utexas.edu/users/moore/publications/-

acl2-papers.html.

Lam, D. N. and Barber, K. S. (2005). Comprehending agent

software. In AAMAS, pages 586–593.

Mermet, B. and Simon, G. (2009). GDT4MAS: an exten-

sion of the GDT model to specify and to verify Multi-

Agent Systems. In et al., D., editor, Proc. of AAMAS

2009, pages 505–512.

Mermet, B. and Simon, G. (2013). A new proof system to

verify gdt agents. In IDC, pages 181–187.

Miles, S., Winikoff, M., Craneﬁeld, S., Nguyen, C., Perini,

A., Tonella, P., Harman, M., and Luck, M. Why test-

ing autonomous agents is hard and what can be done

about it. AOSE Technical Forum 2010 Working Paper.

Nguyen, C., Perini, A., Bernon, C., Pavón, J., and

Thangarajah, J. (2009). Testing in Multi-Agent Sys-

tems. In AOSE, pages 180–190.

Nguyen, C., Perini, A., and Tonella, P. (2008). Ontology-

based test generation for multiagent systems. In AA-

MAS, pages 1315–1320.

Nguyen, C. D., Perini, A., and Tonella, P. (2010). Goal-

oriented testing for MASs. IJAOSE, 4(1):79–109.

Owre, S., Shankar, N., and Rushby, J. (1992). Pvs: A pro-

totype veriﬁcation system. In CADE 11.

Serrano, E., Gómez-Sanz, J., Botía, J., and Pavón, J. (2009).

ntelligent data analysis applied to debug complex soft-

ware systems. Neurocomputing, 72(13-15):2785–

2795.

Tiryaki, A., Öztuna, S., Dikenelli, O., and Erdur, R. (2006).

SUNIT: A Unit Testing Framework for Test Driven

Development of Multi-Agent Systems. In Agent Ori-

ented Software Engineering (AOSE), pages 156–173.

Vigueras, G. and Botía, J. (2007). Tracking Causality by Vi-

sualization of Multi-Agent Interactions Using Causal-

ity Graphs. In PROMAS, pages 190–204.

Zhang, Z., Thangarajah, J., and Padgham, L. (2009). Model

based testing for agent systems. In AAMAS’09, pages

1333–1334.

ICAART 2019 - 11th International Conference on Agents and Artiﬁcial Intelligence

530
