Object Detection and Classiﬁcation on Heterogeneous Datasets

Tobias Brosch and Ahmed Elshaarany

BMW Car IT GmbH, Lise-Meitner-Straße 14, Ulm, Germany

Keywords:

Heterogeneous Datasets, Object Detection, Deep Learning, Faster R-CNN, Unlabeled Objects.

Abstract:

To train an object detection network labeled data is required. More precisely, all objects to be detected must be

labeled in the dataset. Here, we investigate how to train an object detection network from multiple heterogeneous

datasets to avoid the cost and time intensive task of labeling. In each dataset only a subset of all objects must be

labeled. Still, the network shall be able to learn to detect all of the desired objects from the combined datasets.

In particular, if the network selects an unlabeled object during training, it should not consider it a negative

sample and adapt its weights accordingly. Instead, it should ignore such detections in order to avoid a negative

impact on the learning process. We propose a solution for two-stage object detectors like Faster R-CNN (which

can probably also be applied to single-stage detectors). If the network detects a class of an unlabeled category

in the current training sample it will omit it from the loss-calculation not only in the detection but also in

the proposal stage. The results are demonstrated with a modiﬁed version of the Faster R-CNN network with

Inception-ResNet-v2. We show that the model’s average precision signiﬁcantly exceeds the default object

detection performance.

1 INTRODUCTION

Object detection and classiﬁcation research has seen

huge leaps over the past few years. Driven by the re-

cent advances in object classiﬁcation (Szegedy et al.,

2014; Krizhevsky et al., 2012; Szegedy et al., 2016;

Szegedy et al., 2015; Lin et al., 2014a; Zagoruyko

and Komodakis, 2017; Xie et al., 2017) also object

detection networks trained on annotated datasets were

able to achieve very good results (Ren et al., 2016;

Redmon et al., 2016; Redmon and Farhadi, 2018; Lin

et al., 2018). To combat overﬁtting, models need to be

trained with a large number of labeled images. Label-

ing, however, is a time and cost intensive task. Multi-

ple approaches were introduced to augment datasets

such as oversampling and image transformations. Still,

the best results are achieved when models are trained

on numerous instances of manually labeled images.

One solution is to take multiple datasets that con-

tain at least labels for a subset of the required ob-

jects and to combine them. This, however, will lead

to the following problem during training. Assume,

for example, that we want to train a model to detect

classes

C1,C2

, and

using two datasets. The ﬁrst

dataset,

DS1

, contains class labels for

and the sec-

ond dataset,

DS2

, contains class labels for

and

. Let’s also assume that

DS1

contains objects of

(which are not labeled). If the network correctly

detects an object in an instance of

DS1

of class

dur-

ing training it will consider it as background (since it

is not labeled in

DS1

) and will adapt its weights to not

select it the next time (which of course has a negative

impact on classiﬁcation and detection performance).

In this work, we present an extension for two-stage

object detectors that minimizes the described impacts.

It can probably also be applied to single-stage detec-

tors (left for future research). Performance is evaluated

on an extended version of the the Faster R-CNN based

network with Inception-ResNet-v2 and atrous convo-

lutions pretrained on the COCO dataset (Lin et al.,

2014b) provided by the TensorFlow object detection

API (Huang et al., 2017) to train on multiple combined

datasets. We show that the proposed model is signiﬁ-

cantly better than the original model when trained on

hetereogeneous datasets.

2 RELATED WORK

Current state-of-the-art object detectors are either

based on a two-stage proposal-driven mechanism or a

one-stage detector. Through a sequence of advances

the two-stage detectors (He et al., 2015; Girshick,

2015; Ren et al., 2016; Lin et al., 2017; He et al.,

Brosch, T. and Elshaarany, A.

Object Detection and Classiﬁcation on Heterogeneous Datasets.

DOI: 10.5220/0007251903070312

In Proceedings of the 8th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2019), pages 307-312

ISBN: 978-989-758-351-3

307

2017) achieved top accuracy on the challenging COCO

benchmark (Lin et al., 2014b). Same for single stage

detectors like YOLO (Redmon et al., 2016; Redmon

and Farhadi, 2018) and SSD (Liu et al., 2016) and

recently out-performed two-stage detectors (Lin et al.,

2018). For run-time comparisons see, for example,

(Nguyen-Meidine et al., 2017).

None of those, however, had a focus on training

from multiple datasets and on dealing with the problem

of heterogeneous datasets, i.e., the combination of

datasets in which each dataset contains potentially all

objects but only a subset of all objects is labeled. In

particular, a solution is needed to avoid punishing the

network for correctly selecting an object that happens

not to be labeled.

Note that this multi-task learning is somewhat re-

lated to inductive transfer learning. See (Pan and

Qiang, 2010; Csurka, 2017) for comprehensive re-

views on that topic. In contrast to inductive transfer

learning, however, we simultaneously learn from the

same source domains and multiple tasks (because of

the differing label sets). In contrast to transfer learning,

we are not only interested in the performance of the

target domain but want to learn the target and source

task simultaneously (besides, here, it cannot be clearly

distinguished between source and target task).

It also has some relation to omitting the reward

in reinforcement learning until a later time (Sutton

and Barto, 1998; Mnih et al., 2015; Brosch et al.,

2015; Brosch et al., 2013; Wörgötter and Porr, 2005;

Grondman et al., 2012). The scenario here can be seen

as not giving reward for a correctly detected instance.

3 PROPOSED MODEL

The proposed method is to combine the knowledge

about what classes are not labeled in the particular

training image with the network classiﬁcation output

during training. Whenever the network classiﬁes an

object as one that is not labeled in the current train-

ing sample it is omitted from the loss-calculation and

consequently, does not harm the training process by

giving erroneous feedback.

For single-stage detectors (Redmon et al., 2016;

Redmon and Farhadi, 2018; Liu et al., 2016; Lin et al.,

2018) we can simply omit training whenever the de-

tector recognizes a class from which we know that it

is not labeled in this particular training image. For

two-stage detectors (Girshick, 2015; Ren et al., 2016;

Lin et al., 2017; He et al., 2017) it is less obvious since

the region-proposal stage is class agnostic and thus

needs feedback from the classiﬁcation stage. The ﬁrst

stage produces class agnostic region proposals (RP)

and is trained based on the objectness and localization

losses. The second stage on the other hand produces

the bounding box detections and is trained based on

classiﬁcation and localization losses. Since the ﬁrst

stage produces RPs that are class agnostic, it is not

possible to know which RPs are supposed to be ig-

nored. Our suggestion to dealing with this problem is

to wait for the second stage to classify the RPs pro-

duced by the ﬁrst stage in an image. In this case, we

know exactly which regions belong to the classes that

are not labeled in that image based on which dataset it

belongs to (c.f. Figure 1). Hence, any bounding boxes

produced by the second stage and classiﬁed as a class

that is not labeled in the current image would not con-

tribute to the classiﬁcation loss. Consequently, it will

not affect the network weights.

The ignore-process for the ﬁrst stage means that all

region proposals that have an intersection over union

of more than

0.5

do not contribute to the objectness

and localization losses of the ﬁrst stage (Figure 1, right,

gray boxes). Similarly, the ignored bounding boxes

of the second stage are not allowed to contribute to

the classiﬁcation and localization losses of the second

stage. Thus, the loss is calculated like this:

L({p

},{t

}) =

cls

∑

i/∈N

cls

, p

∗

) (1)

+ λ

reg

∑

i/∈N

reg

∗

reg

∗

) (2)

In the example shown in Figure 1 only the green boxes

would contribute to the loss-function (and the back-

ground anchors not shown) whereas the boxes shown

in gray (that were classiﬁed as an object that is not

being labeled in this training sample) are ignored. In

contrast to (Ren et al., 2016), here, the loss is not

summed over the set

cls,reg

of all indexes belonging

to an area that was classiﬁed as an object that is not la-

beled for the particular training image. Otherwise, the

loss is calculated as in (Ren et al., 2016). It consists

of the classiﬁcation loss

cls

, p

∗

)

, i.e., the object

vs. no-object loss between the ground-truth label

∗

and the predicted probabilitiy

of anchor

being an

object, and the regression loss

reg

∗

)

that denotes

the loss due to the difference between the predicted and

the ground-truth bounding box (see (Ren et al., 2016)

for further details). The training is then performed

with stochastic gradient descent (LeCun et al., 1989)

and the usual sampling strategies and hyperparameters

as in (Ren et al., 2016) (see section 4 for details).

Here, we focus on two-stage detectors with an ob-

ject vs. no-object stage and a separate classiﬁcation

stage. For single-stage detectors we expect similar

results, which is to be investigated.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

308

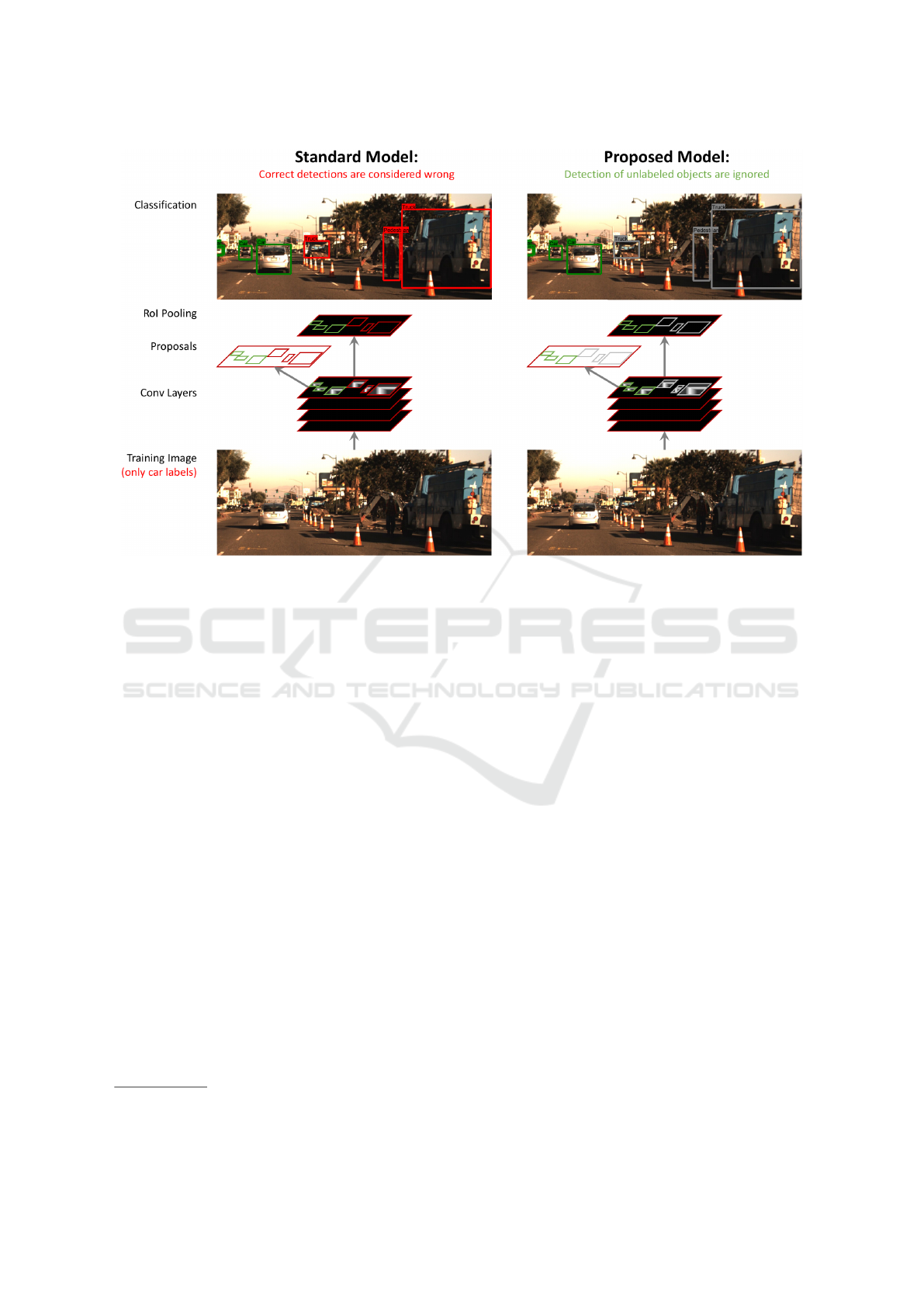

Figure 1:

The proposed model omits unlabeled objects to improve the training process:

In this example only cars are

labeled in the input image.

Left:

In the standard Faster-R-CNN model all detections will contribute to the loss including the

detections of trucks and pedestrians (shown in red). Since those objects are not labeled they will be considered as false positives

and affect the network weights.

Right:

In the proposed model, however, the model knows that trucks and pedestrians are not

labeled and consequently ignores all detections of such objects in the loss calculation of the “RoI” and “Proposal” stage (boxes

shown in gray). Note: For illustration purposes no anchor boxes of the background are shown. Pictures from (Udacity, 2017).

4 RESULTS

In this section, we demonstrate that the proposed

model-loss extension outperforms the original imple-

mentation if trained from heterogeneous datasets by a

signiﬁcant margin. In the following, we will explain

the implementation (sect. 4.1), the employed datasets

(sect. 4.2), the test conﬁguration setup (sect. 4.3), and

the test results (sect. 4.4).

4.1 Implementation

The proposed method was benchmarked with the

TensorFlow Object Detection API

. More precisely,

we extended the Faster R-CNN based network

with Inception-ResNet-v2 and atrous convolutions

(Szegedy et al., 2016) pretrained on the COCO dataset

(Lin et al., 2014b) with our proposed loss-calculation

method. For evaluation, we assembled train- and test-

sets based on the Udacity datasets 1 and 2 (Udacity,

2017) (see next section for details).

https://github.com/tensorﬂow/models/tree/master/

research/object_detection

4.2 Datasets

In order to train the proposed method, we used Udacity

dataset 1, created one subset with cars only (

DS1

), and

one with trucks and pedestrians only (

DS2

). Both

sets were then used to train the model. Mean average

precision is reported for evaluation on Udacity dataset

2 (DStest).

As mentioned earlier, the problem with training

on heterogeneous datasets is that not all classes are la-

beled in each and every dataset. In our test case, for ex-

ample,

DS1

has images with labeled cars (

∼

32000 in-

stances), and

DS2

has labeled trucks (

∼

2100 instances)

and pedestrians (

∼

2100 instances) only (c.f. Figure 2,

top for an example of

DS1

, and bottom for an example

DS2

). During training on the bottom image of Fig-

ure 2, the original model would treat the unlabeled cars

as negative examples because they do not have ground

truth references (c.f. Figure 1, left). The same can

occur for images that contain unlabeled pedestrians

and trucks in DS1.

Object Detection and Classiﬁcation on Heterogeneous Datasets

309

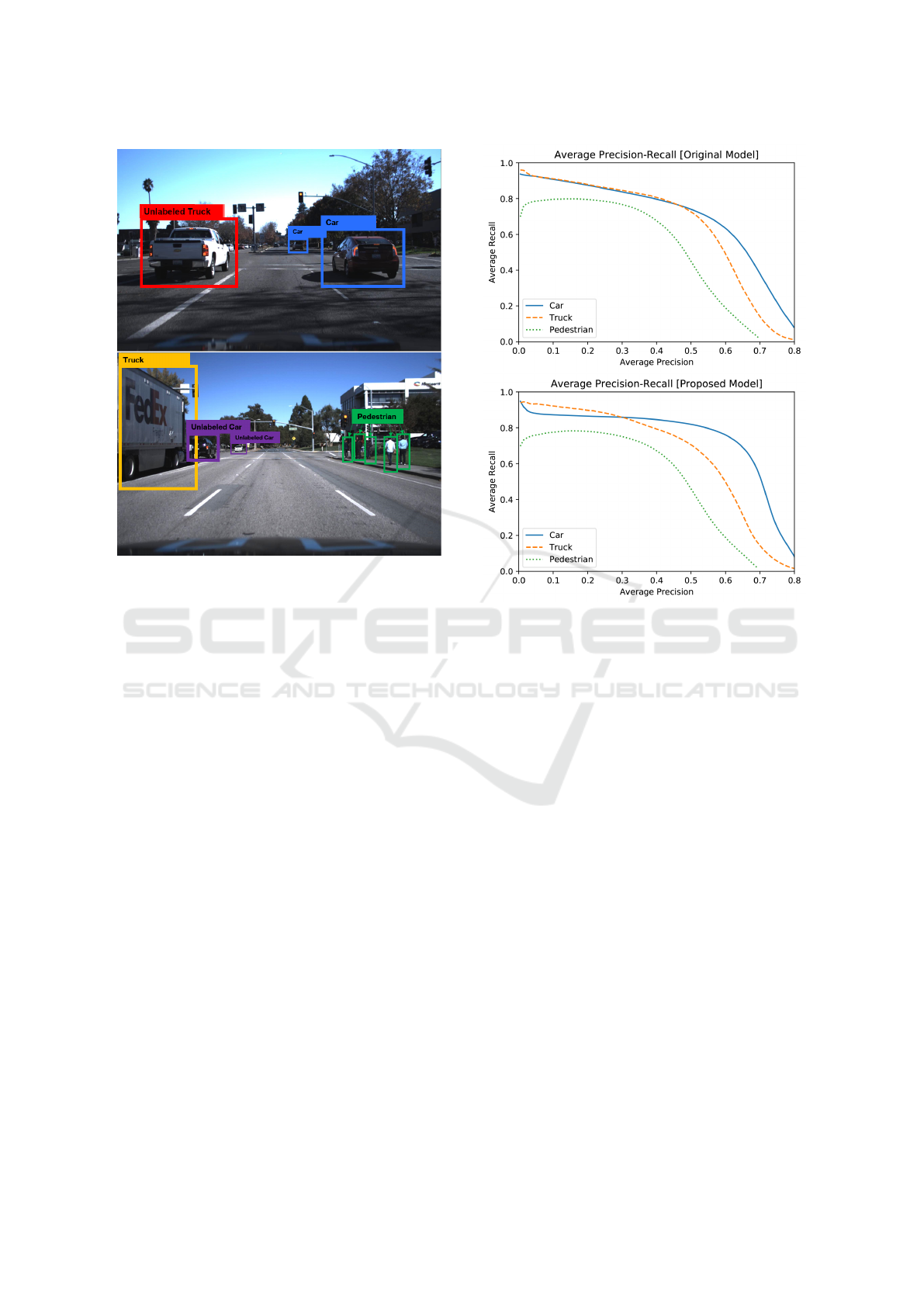

Figure 2:

Illustration of used datasets: Top:

Sample im-

age from

DS1

with labeled cars.

Bottom:

Sample image

from

DS2

with labeled pedestrians/trucks and unlabeled cars.

The samples are taken from Udacity’s annotated driving

dataset by CrowdAI (Udacity, 2017).

4.3 Test Conﬁguration

We benchmarked the proposed method against the un-

modiﬁed Faster R-CNN version of the TensorFlow

Object Detection API. Sampling strategies and hyper-

parameters were identical for both models. Only the

loss calculation differed for the proposed model as

outlined in sect. 3.

4.4 Test Results

Overall the mean average precision was

54.4%

for the

modiﬁed variant which was signiﬁcantly better than

the mean average precision of

53.2%

of the original

model (on

conﬁdence-level,

n = 30

test-runs). The

mean average precisions for trucks and pedestrians

were almost identical whereas the mean average preci-

sions for cars were signiﬁcantly better for the modiﬁed

variant (

64.6%

vs.

60.9%

for the modiﬁed vs. the orig-

inal model on

conﬁdence-level,

n = 30

test-runs),

which is to be expected due to the huge number of

cars in the dataset, since the original model suffers

signiﬁcantly from being “punished” to correctly select

cars.

A comparison of the average precision-recall

curves between the original and the proposed model

Figure 3:

Average precision-recall curves for each class.

Top:

Original model.

Bottom:

Proposed model. Note that

in particular the class of cars beneﬁts signiﬁcantly from

the proposed model, which is to be expected due to a huge

amount of samples of cars in the dataset. The curves shown

are the average of 30 runs.

conﬁrms those observations. They show that in par-

ticular the class of cars beneﬁts from our proposed

model (Figure 3).

Note that this also demonstrates that the original

model is already quite robust with respect to unlabeled

objects in the dataset as long as the objects are not

too frequent or do not occupy too much of the scene

(because in this case the likelihood of being selected

as training sample is higher). Thus, we expect that

our model performs even better compared to the orig-

inal model for objects that take up a lot of space on

images and/or are very frequent. This is deﬁnitely

something that needs to be investigated in more detail

in the future.

Finally, in order to assess whether additional labels

would lead to a better classiﬁcation result, we also used

DS1

with no objects being unlabeled (i.e. the original

dataset). Most interestingly, the original model trained

on this complete and fully labeled dataset did not out-

perform the proposed model, demonstrating that the

proposed method in this case achieves the same per-

formance level without the need for a fully labeled

training set.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

310

5 CONCLUSION

We proposed a novel method to train a two-stage ob-

ject detection network from multiple datasets in which

each dataset does not need to have the full label set,

i.e. not all object categories are labeled in all datasets

that are used for training. The results indicate that the

novel approach outperforms a regular object detection

network signiﬁcantly by excluding unlabeled objects

from the loss-calculation. Furthermore, the results

indicate that depending on the task even regular ap-

proaches are quite robust but can perform better when

extended with the new method which excludes regions

from the loss-calculations that have been identiﬁed as

objects of an unlabeled category for the current train-

ing sample. Thus, our method can help to speed up

learning of new object sets without going through the

time and cost intensive task of labeling all objects in

the entire dataset. It also helps in domains where la-

beled data is rare. From a run-time perspective the

proposed method is virtually identical to the original

Faster R-CNN implementation.

In addition to the study presented here, more work

is needed. In future studies, additional dataset con-

ﬁgurations need to be evaluated and it also needs to

be investigated how the method performs with single-

stage detectors like (Redmon et al., 2016; Redmon and

Farhadi, 2018; Liu et al., 2016; Lin et al., 2018). It

might also be interesting to see if the approach can be

transferred to other domains such as action recognition

(Layher et al., 2017). Furthermore, it should also be

adressed how many datasets can be simultaneously

used and how it affects system performance.

ACKNOWLEDGEMENTS

We thank Philippe Chiberre for his work on prelimi-

nary versions of the ideas outlined in this paper.

REFERENCES

Brosch, T., Neumann, H., and Roelfsema, P. R. (2015). Rein-

forcement Learning of Linking and Tracing Contours

in Recurrent Neural Networks. PLoS Computational

Biology, 11(10):e1004489.

Brosch, T., Schwenker, F., and Neumann, H. (2013).

Attention–Gated Reinforcement Learning in Neural

Networks–A Uniﬁed View. In ICANN, volume 8131

of LNCS, pages 272–9. Springer.

Csurka, G. (2017). Domain Adaptation for Visual Appli-

cations: A Comprehensive Survey. In G., C., edi-

tor, Domain Adaptation in Computer Vision Applica-

tions, chapter Advances in Computer Vision and Pat-

tern Recognition, pages 1–35. Springer.

Girshick, R. (2015). Fast R–CNN. In Proceedings of the

2015 IEEE International Conference on Computer Vi-

sion, ICCV, pages 1440–8. IEEE.

Grondman, I., Bu¸soniu, L., Lopes, G. A. D., and Babuška,

R. (2012). A Survey of Actor–Critic Reinforcement

Learning: Standard and Natural Policy Gradients. Sys-

tems, Man, and Cybernetics, 42(6):1291–1307.

He, K., Gkioxari, G., Dollár, P., and Girshick, R. (2017).

Mask R–CNN. In IEEE International Conference on

Computer Vision (ICCV), pages 2980–8. IEEE.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Spatial

Pyramid Pooling in Deep Convolutional Networks for

Visual Recognition. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 37(9):1904–16.

Huang, J., Rathod, V., Sun, C., Zhu, M., Korattikara, A.,

Fathi, A., Fischer, I., Wojna, Z., Song, Y., Guadarrama,

S., and Murphy, K. (2017). Speed/Accuracy Trade–

Offs for Modern Convolutional Object Detectors. https:

//arxiv.org/pdf/1611.10012.pdf.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Ima-

geNet Classiﬁcation with Deep Convolutional Neural

Networks. In NIPS.

Layher, G., Brosch, T., and Neumann, H. (2017). Real–Time

Biologically Inspired Action Recognition from Key

Poses Using a Neuromorphic Architecture. Frontiers

in Neurorobotics, 11(13):1–21.

LeCun, Y., Boser, B., Denker, J. S., Henderson, D., Howard,

R. E., Hubbard, W., and Jackel, L. D. (1989). Back-

propagation Applied to Handwritten Zip Code Recog-

nition. Neural Computation, 1(4):541–51.

Lin, M., Chen, Q., and Yan, S. (2014a). Network in Network.

https://arxiv.org/pdf/1312.4400v3.pdf.

Lin, T.-Y., Dollár, P., Girshick, R., He, K., Hariharan, B., and

Belongie, S. (2017). Feature Pyramid Networks for

Object Detection. In Conference on Computer Vision

and Pattern Recognition (CVPR), pages 936–44. IEEE.

Lin, T.-Y., Goyal, P., Grishick, R., He, K., and Dollár, P.

(2018). Focal Loss for Dense Object Detection. https:

//arxiv.org/pdf/1708.02002.pdf.

Lin, T.-Y., Maire, M., Belongie, S., Bourdev, L., Girshick,

R., Hays, J., Perona, P., Ramanan, D., Zitnick, C. L.,

and Dollár, P. (2014b). Microsoft COCO: Common

Objects in Context. In Computer Vision – ECCV 2014,

pages 740–55. Springer.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). SSD Single Shot

MultiBox Detector. https://arxiv.org/abs/1512.02325.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Ve-

ness, J., Bellemare, M. G., Graves, A., Riedmiller, M.,

Fidjeland, A. K., Ostrovski, G., Petersen, S., Beattie,

C.and Sadik, A., Antonoglou, I., King, H., Kumaran,

D., Wierstra, D., Legg, S., and Hassabis, D. (2015).

Human–Level Control Through Deep Reinforcement

Learning. Nature, 518:529–33.

Nguyen-Meidine, L. T., Granger, E., Kiran, M., and Blais-

Morin, L.-A. (2017). A Comparison of CNN–based

Face and Head Detectors for Real–Time Video Surveil-

lance Applications. In Seventh International Confer-

Object Detection and Classiﬁcation on Heterogeneous Datasets

311

ence on Image Processing Theory, Tools and Applica-

tions (IPTA), pages 1–8. IEEE.

Pan, S. J. and Qiang, Y. (2010). A Survey on Transfer

Learning. IEEE Trans. on Knowl. and Data Eng.,

22(10):1345–1359.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A. (2016).

You Only Look Once: Uniﬁed, Real–Time Object De-

tection. https://arxiv.org/pdf/1506.02640.pdf.

Redmon, J. and Farhadi, A. (2018). YOLOv3: An Incremen-

tal Improvement. https://arxiv.org/pdf/1804.02767.pdf.

Ren, S., He, K., Girshick, R., and Sun, J. (2016). Faster

R–CNN: Towards Real–Time Object Detection with

Region Proposal Networks. 39(6):1137–49.

Sutton, R. S. and Barto, A. G. (1998). Reinforcement Learn-

ing: An Introduction. MIT Press, London, England.

Szegedy, C., Ioffe, S., Vanhoucke, V., and Alemi, A. (2016).

Inception–v4, Inception–ResNet and the Impact of

Residual Connections on Learning. https://arxiv.org/

pdf/1602.07261.pdf.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2014). Going Deeper with Convolutions.

http://arxiv.org/abs/1409.4842.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wojna,

Z. (2015). Rethinking the Inception Architecture for

Computer Vision. https://arxiv.org/pdf/1512.00567.

pdf.

Udacity (2017). Udacity Self Driving Car Dataset.

https://github.com/udacity/self--driving--car/tree/

master/annotations.

Wörgötter, F. and Porr, B. (2005). Temporal Sequence Learn-

ing, Prediction, and Control: A Review of Different

Models and Their Relation to Biological Mechanisms.

Neural Computation, 17(2):245–319.

Xie, S., Girshick, R., Dollar, P., Tu, Z., and He, K. (2017).

Aggregated Residual Transformations for Deep Neural

Networks. https://arxiv.org/pdf/1611.05431.pdf.

Zagoruyko, S. and Komodakis, N. (2017). Wide Residual

Networks. https://arxiv.org/pdf/1605.07146.pdf.

ICPRAM 2019 - 8th International Conference on Pattern Recognition Applications and Methods

312
