Implementation of Google Maps API 3 with Haversine Algorithm in

the Development of Geographic Information System Boarding

House Finder

Septian Eko Prasetyo, Aryo Baskoro Utomo, and Noor Hudallah

Electrical Engineering Department, Semarang State University, Indonesia

Keywords: Haversine Algorithm, Google Maps API, Geographic Information System, Boarding House, AJAX.

Abstract: Boarding house is a temporary shelter in the blocks of room in various size which are inhabited by students

and employees from outside the area. In reality, to find the boarding house on the outside area is need a

power, cost, and a lot of time. So it is necessary to the development an information system that can be

helping to solve this problem. The purpose of this research is developing the geographic information system

that can be find the boarding house according to the criteria of user wishes. This research is uses waterfall

development method. The programming language used is PHP, MySQL database and also implemented the

AJAX method to taking data to be more interactive. The use of API 3 on Google maps is able to provide a

picture of satellite imagery from the boarding house coordinates. This requires a coordinates point to display

the satellite imagery on this database. The system is also capable to analyse the distance of the coordinates

with haversine algorithm.

1 INTRODUCTION

Boarding house is a residence that is temporary and

in the form of blocks of rooms in various sizes

which are inhabited by students and employees from

outside the area (Anamisa et all., 2016). Some

students choose the boarding house as a temporary

dwelling place because the place to study and work

away from home (Reyes II, 2016).

Lack of information about boarding houses is

often an obstacle and an opportunity for boarding

house brokers (Setyarsih, 2016). Besides that, the

boarding houses must be able to use technology to

market their boarding houses (Gommans, 2014).

With the development of information technology, it

increases the ability of computers to solve problems

in various fields that need to provide the best

solution (Ichsan and Syah, 2014). So it is necessary

to develop an information system that be able to

facilitate of the users to find the ideal boarding

house in accordance with user wishes (Sulaiman et

all., 2012).

To support the information systems that can

provide mapping services, a geographic information

system that integrates spatial data into geospatial and

geographic data is needed (Ponce-Medellín et all.,

2009). Geographical Information Systems or

Geospatial Information Systems (GIS) is a collection

of tools that captures, stores, analysis, manages, and

presents data that are linked to geographical

locations (Bhat et all., 2011). GIS Provider

facilitates with geo-specific functionality for

application including map information, map

visualization and directory services. For example,

Google maps with its API can be considered as a

GIS Provider (Kushwaha and Kushwaha, 2011).

This research used the facilities of Google Maps

API 3 that can be visualize the map view into an

external website (Garude

and Haldikar, 2014). Google

maps provide an intuitive and highly responsive

mapping interface with aerial imagery and detailed

street data (Helshani, 2015). The google maps use

latitude and longitude to be able to display satellite

images on a map (Sharma and Morwal, 2015).

Beside the uses of Google Maps API 3, the

system is used haversine algorithm to calculated and

analyse the distance between two coordinates

(Essayad, 2011). Haversine algorithm for

measurement and estimation of distance with

improved efficiency in localization (Ganesh and

Vijay, 2015).

Prasetyo, S., Utomo, A. and Hudallah, N.

Implementation of Google Maps API 3 with Haversine Algorithm in the Development of Geographic Information System Boarding House Finder.

DOI: 10.5220/0009008902270233

In Proceedings of the 7th Engineering International Conference on Education, Concept and Application on Green Technology (EIC 2018), pages 227-233

ISBN: 978-989-758-411-4

227

To make the system more interactive, the data

retrieval is used AJAX method (Sneha and Khatwar,

2015). AJAX allows partial page update without the

need of refreshing the full page (Khanna and Mistry,

2012). AJAX can help to improve usability in many

situations while implementing an online information

system (Sachdeva and Singh, 2013).

2 METHOD

This research uses waterfall model for developing

the software. The Waterfall Model is the oldest and

the most wellknown software development model.

The special feature of this model is its sequential

steps. It goes downward through the phases of

requirements analysis, design, coding, testing, and

maintenance (Munassar and Govardhan, 2010).

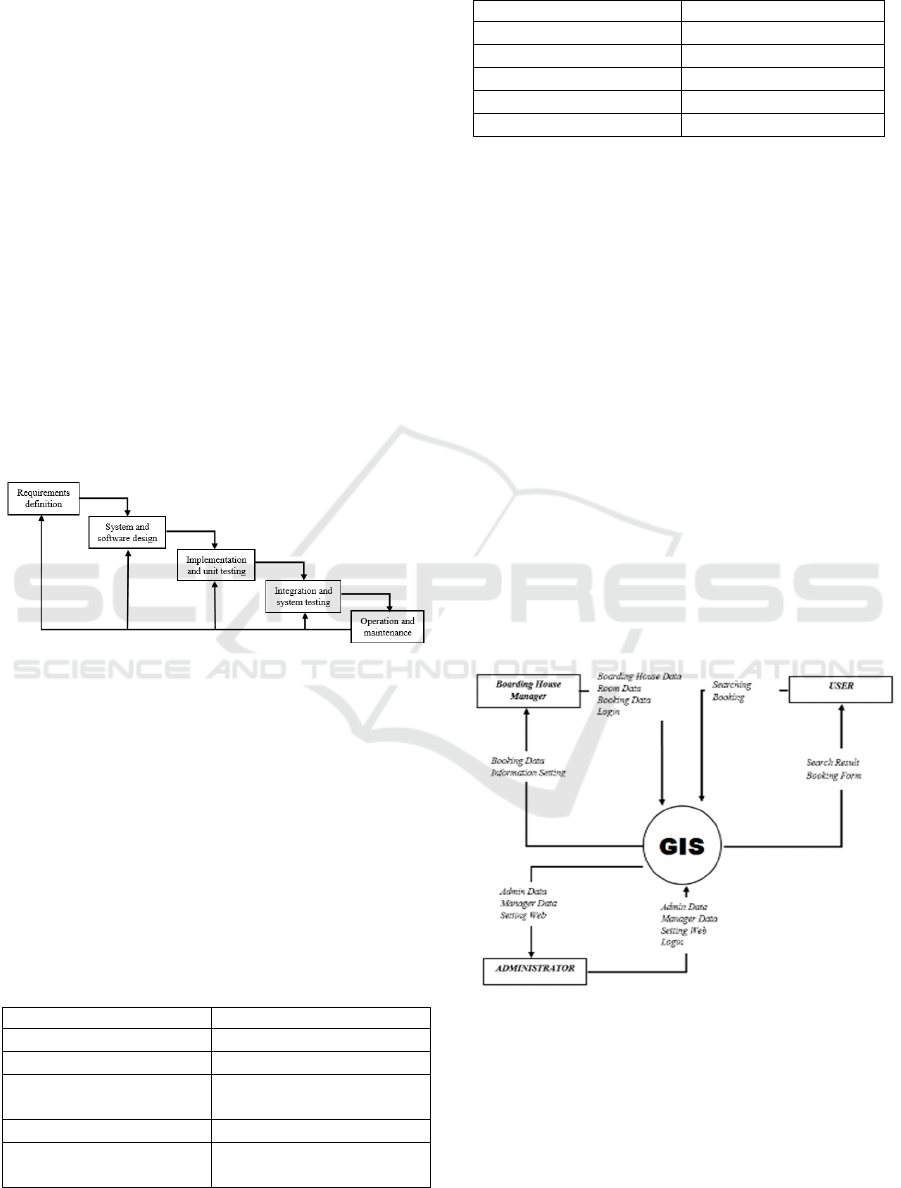

Waterfall model can be seen in Figure 1. The

implementation of this research is in the area around

Semarang State University.

Figure 1: Waterfall Model.

2.1 Requirements Definition

Often known as Software Requirements

Specification (SRS) is a complete and

comprehensive description of the behaviour of the

software to be developed. The tools and materials

used to develop this information system consists of

software requirements and hardware requirements.

Software requirements can be seen in Table 1. While

hardware requirements can be seen in Table 2.

Table 1: Software Requirements.

Requirements Specification

Operation System Windows XP

Web Server XAMPP Version 3.2.1

Text Editor Notepad ++ / Sublime

Editor

Photo Editor Adobe Photoshop

Web Browser Mozilla / Google Chrome /

Safari

Table 2: Hardware Requirements.

Requirements Specification

Processor Intel Atom 1,6 Ghz

Random Access Memory 512 Mb

Video Graphic Adapter GMA 512 Mb

Processor Intel Atom 1,6 Ghz

Random Access Memory 512 Mb

The data in this study are the variables used to

determine the search filter on the system that is the

name of boarding house, facilities, type of boarding

house, rent duration, price, gender, and radius filter.

2.2 System and Software Design

The system and software design phase is the

planning and problem solving for a software

solution. It is begins with modelling the database

relation and data flow diagram. The database

relation is will be showed the flow of relationship

between tables that occur on the database system

(Suri and Sharma, 2011). In this table relation, there

are several related tables from the primary key to the

foreign key in another table. This shows that

between table A and table B are interconnected. To

provide an overview of the rule of system it is

requires Data Flow Diagrams (Ibrahim et all., 2011).

The Data Flow Diagram (DFD) that can be seen in

Figure 2.

Figure 2: Data Flow Diagram Level 0.

For display modelling is separation of user

permissions in which have different features and

menus. Based on the Data Flow Diagram, the

features and menu for various users are different.

The user is only can be searching and booking the

boarding house. The boarding house manager is can

manage the boarding data, booking data and setting

EIC 2018 - The 7th Engineering International Conference (EIC), Engineering International Conference on Education, Concept and

Application on Green Technology

228

the information about this management. And the

administrator controls the entire activity in this

system.

2.3 Implementation and Unit Testing

This phase is where the real code is written and

compiled into an operational application, and where

the database and text files are created. In other

words, it is the process of converting the whole

requirements and blueprints into a production

environment. At this stage, the system will be

programmed into three large sub-menus are users,

managers, and administrators. Where each sub menu

has different access.

The programming language that used in this

research is Hypertext Preprocessor (PHP) because

the PHP is have speed and easy to used by

programmer (Botwe and Davis, 2015). To access the

database, the system is programmed by SQL to

manage the query to retrieve the data from database.

This programming process becomes a bridge

between Google Maps API which is a means of

connecting the program with databases and satellite

imagery from Google. The data retrieval is used the

AJAX method to be more interactive design. AJAX

allows the partial page updates which improves the

efficiency of the information system (Khanna and

Mistry, 2012)

To calculate and measuring the distance of two

point is uses the haversine algorithm. The Haversine

algorithm is used to calculate the lengths of two

points on the surface of the earth based on latitude

and longitude (Chopde and Nichat, 2013). The

latitude and longitude obtained from the query of

SQL that execute from the database.

Equation 1 is the formula used to calculate the

distance of two point. The information of the

equation 1 is as follows:

d = distance

r = radius of the earth

arcsin = inverse sinus

sin = sinus

latt = latitude

cos = cosinus

long = longitude

In equation 1 of the haversine formula, we can

turn it into a function that can calculate the distance

between the coordinates that can seen in this code.

FunctionHaversineDt(lat1,long1,lat2,lon

g2){

Diameter=2*6372,8;

var dx,dy,dz;

ph1=degtorad(long1-long2);

th1=degtorad(lat1);

th2=degtorad(lat2);

dz=sin(lat1) –sn(lat2);

dx=cos(long1)*cos(lat1) –cos(lat2);

dy=sin(long1)*cos(lat1);

result=arcsin(sqrt(sqr(dx)+sqr(dy)+s

qr(dz))/2)*diameter;

}

2.4 Integration and System Testing

The system testing phase is performed by Web

experts, GIS experts and system users covering

interface mapping, information, and technic aspects.

Testing on the mapping interface aspect is aimed at

knowing the software quality assurance in the

geographic field shown in the map field. While

testing on the aspect of information is intended to

provide evaluation and assessment of information

provided by the system to the user. In addition, the

testing on the technic aspect is aimed to testing the

critical elements in systems that directly relate to

programming techniques, algorithm usage, data

security, and programming efficiency as well as the

resulting of system.

The testing instrument on this research is using

questionnaire to find out the validity of GIS. The

questions posed to web experts are reviewed in

terms of interface and usability aspects using 9

questions. The questions posed to Web experts are

reviewed in terms of interface, information and

technic aspects with 8 questions. And the questions

posed to users are reviewed in terms of interface,

information and technic quality aspects using 13

questions.

In addition, the testing with black-box is to test

the function of the entire system was created. And

after the system is not have a problems during this

test, it will be the next process of operation and

maintenance.

2.arcsin









∆

cos



1



cos



2









∆



1

Implementation of Google Maps API 3 with Haversine Algorithm in the Development of Geographic Information System Boarding House

Finder

229

2.5 Operation and Maintenance

The last process in this research is operation and

maintenance. It is the launch and maintenance of

systems that have been made. System maintenance

is also included in the management and software

revisions that are likely to occur in the future. In

addition, the admin will also be a traffic monitor as

well as transaction processing performed within the

system.

3 RESULT AND DISCUSSION

3.1 Result

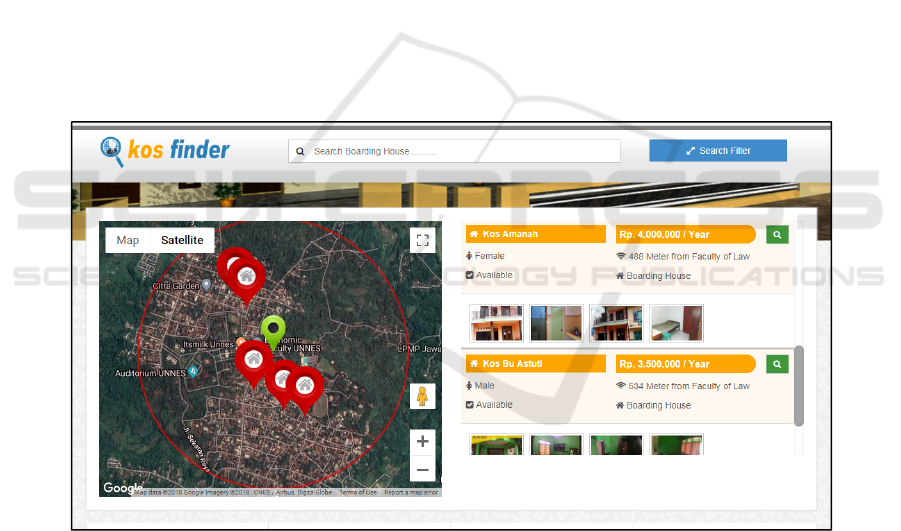

The result of this research is can be seen in

Figure 3 to Figure 4. In Figure 3, the Google Maps

API showed the marker on the field mapping. Data

has been processed based on the position of latitude

and longitude on the database system. Data

processing does not require the all refreshing of the

page because the data retrieval is used AJAX

method.

The result of distance analyses of haversine

algorithm can be seen in Figure 4. Function that

have been made before can be used and called to

calculate the distance. The distance analysis is

carried out on boarding house location with several

recognizable points.

The Haversine formula gives the most accurate

result and the error rate is very small, which is

negligible. The survey of the above experiment is

shown in the Table 3.

Based of the experiment, the error rate on the

Table 4 is the difference from actual distance and

calculated distance that have been calculated with

the haversine algorithm. The actual distance

obtained by measuring the 2 point of latitude and

longitude on the Google Maps. The Google maps

have a facilities that can be calculated the distance

between two points. The result of error rate

comparison based on Table 4 is 2-6 meter.

Figure 3: Search Result View.

EIC 2018 - The 7th Engineering International Conference (EIC), Engineering International Conference on Education, Concept and

Application on Green Technology

230

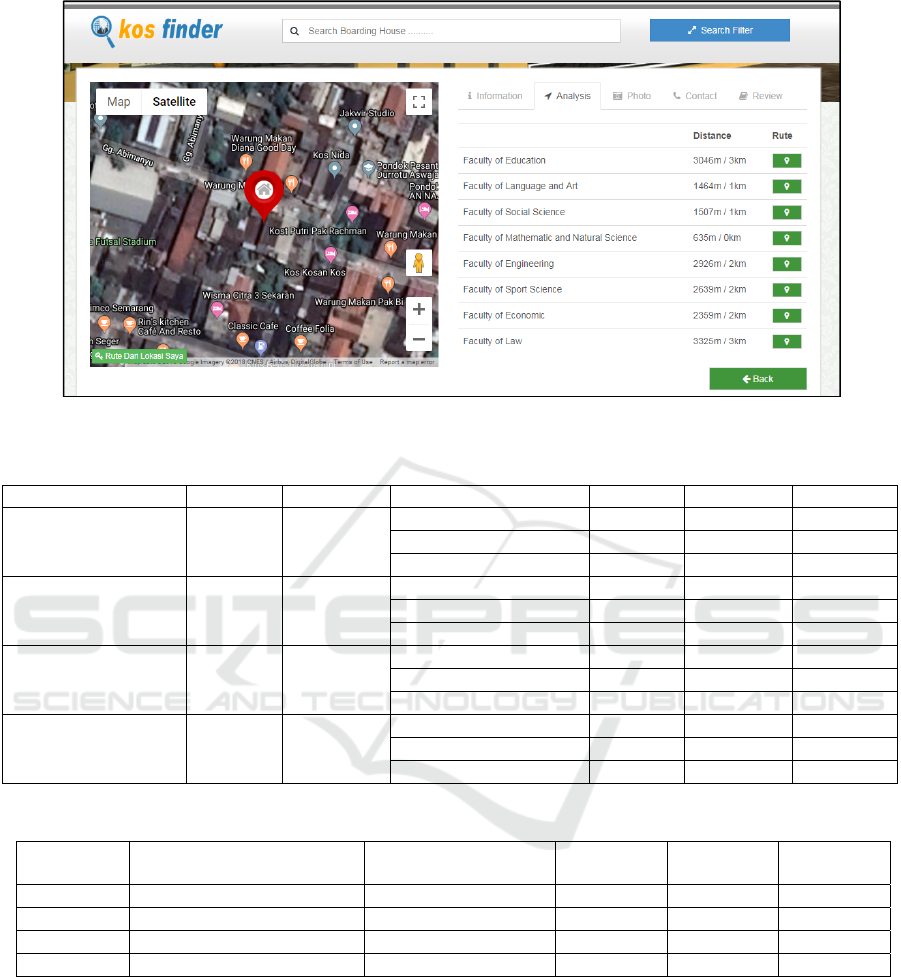

Figure 4: Result of Distance Analysis on Haversine Algorithm.

Table 3: Experiment Calculated Radius Distance with Haversine Algorithm.

Recognizable points Latitude Longitude Boarding House Sample Latitude Longitude Distance

Faculty of Social

Science

-7.050518 110.393586

Sample 1 -7.045607 110.394436 488 m

Sample 2 -7.053100 110.397661 440 m

Sample 3 -7.053534 110.399063 534 m

Faculty of Law -7.050771 110.397840

Sample 1 -7.045607 110.394436 686 m

Sample 2 -7.053100 110.397661 260 m

Sample 3 -7.053534 110.399063 336 m

Faculty of

Engineering

-7.049203 110.396964

Sample 1 -7.045607 110.394436 1.074 m

Sample 2 -7.053100 110.397661 495 m

Sample 3 -7.053534 110.399063 373 m

Faculty of Education

-7.048162 110.396862

Sample 1 -7.045607 110.394436 390 m

Sample 2 -7.053100 110.397661 556 m

Sample 3 -7.053534 110.399063 645 m

Table 4: Comparison Radius Distance with Google Maps Actual Distance.

Experiments Recognizable points

Boarding House

Sample

Actual

Distance

Calculated

Distance

Error Rate

1 Faculty of Engineering Sample 1

1.070 m

1.074 m 4 m

2 Faculty of Education Sample 3

639 m

645 m 6 m

3 Faculty of Law Sample 2 255 m

260 m 5 m

4 Faculty of Social Science Sample 1 486 m

488 m 2 m

The system testing phase is performed by Web

experts, GIS experts and system users. The first

testing about this system was carried out by web

expert that experienced on web development or web

programmer. In this phase that performed by 2 web

experts by obtaining the score of 100 with the

percentage of eligibility is 92.59%. So that entry in

the category is very feasible. This testing is

highlighted to test the system about the information

and technic aspects.

The next testing was carried out by GIS experts

that experienced in mapping area. In this test,

performed by 2 GIS experts by obtaining the score

of 57 with the percentage of eligibility is 89.06% so

that entry in the category is very feasible. GIS

Expert is more highlighted to test on aspects of

geographic and information display.

The users testing was carried out by 15

respondents that various regions from outside the

city. The scores obtained from user testing are 731

Implementation of Google Maps API 3 with Haversine Algorithm in the Development of Geographic Information System Boarding House

Finder

231

with a percentage of 93.72%. So that the feasibility

of web-based is entry into the category is very

feasible. The testing on users is to obtain evaluation

and assessment of information and interface aspects.

In addition, the testing with black-box is to test

the function of the entire system was created. Black-

box testing results show that the functional

application does not have an errors and in

accordance with the expected results with the

acquisition of 100% valid test. Black-box testing is

use to test the interface and technical function of 63

units.

3.2 Discussion

The development of information systems in the

geographical field has been widely carried out. In

this study, researchers compared information

systems created with previous studies that had

already been conducted developing a web-based

information system boarding house finder.

In previous studies, geographic information

systems boarding house finder were developed by

utilizing Google Maps API and success to show the

marking map (Mustika, 2017). Similar research have

been carried out using codeigniter framework and

Google Maps API to develop an application of

geographic information systems (GIS) for a web-

based help migrants in the city of Yogyakarta in the

process of finding and booking boarding houses

according to their needs, and help homeowners

boarding house boarding in marketing online

(Pratikto et all., 2014).

In addition, a web-based boarding house and

rented house information system has been developed

with PIECES analysis. But the system developed has

not been carried out geographically by utilizing the

Google Maps API facility (Gunawan and

Racmatullah, 2016). The SMS Gateway is also used

in the development of information systems for

boarding houses using PHP and MySQL. The study

did not use the AJAX method as the data collection

(Sundari and Komarudin, 2015).

Based on previous research, the system still has

some disadvantages. One of them is that there is no

analysis of the distance from the boarding house to a

particular place. In addition, the system developed

does not have an interactive display. In this research,

the system will be develop with implementation of

haversine algorithm to analyse the distance of the

boarding house from particular place that user

needed. The system also utilizes the AJAX data

retrieval feature to produce a more interactive web

display.

4 CONCLUSIONS

The paper has presented design and development of

Geographic Information System to find the boarding

house with waterfall model. This research was

implemented the Google Maps API 3 to embed

Google Maps site and showed the satellite imagery

from Google. To calculated the lengths of two points

on the surface of the earth based on haversine

algorithm. With haversine algorithm, the system can

be analysed the distance of two points of

coordinates. The system has many facilities to filter

the data of boarding house according to the user

wishes. AJAX was used to optimizing the taking

data to be more interactive.

REFERENCES

Anamisa, D.R., Rachmad, A. & Widiastutik, R., 2016.

‘Selection System Of The Boarding House Based On

Fuzzy Multi Attribute Decision Making Method’,

Journal of Theoretical and Applied Information

Technology, Vol. 92, No. 1, p. 52.

Bhat, M.A., Shah, R.M. & Ahmad, B., 2011. ‘Cloud

Computing: A solution to Geographical Information

Systems (GIS)’, International Journal on Computer

Science and Engineering, Vol. 3 No. 2, pp. 594-600.

Botwe, D.A. & Davis, J.G., 2015. ‘A Comparative Study

of Web Development Technologies Using Open

Source and Proprietary Software’, International

Journal of Computer Science and Mobile Computing,

Vol. 4, No. 2, pp. 154-165.

Chopde, N.R. & Nichat, M., 2013. ‘Landmark Based

Shortest Path Detection by Using A* and Haversine

Formula’, International Journal of Innovative

Research in Computer and Communication

Engineering, Vol. 1, No. 2, pp. 298-302.

Essayad, A., 2011. ‘Design and Implementation of a

Platform for Location Based Services : a Case Study

of GIS of Archaeological and Handicraft of Fez

Medina’, International Journal of Computer Science

Issues, Vol. 8, Issue. 5, No. 3, pp. 524-530.

Ganesh, L. & Vijaya, K., 2015. ‘Indoor Wireless

Localization using Haversine Formula’, International

Advanced Research Journal in Science, Engineering

and Technology,Vol. 2, No. 7, pp. 59-63.

Garude, M. & Haldikar, N., 2014. ‘Real Time Position

Tracking System using Google Maps’, International

Journal of Scientific and Research Publications, Vol.

4, No. 9, pp. 357-360.

Gommans, H.P., Njiru, G.M. & Owange, A.N., 2014.

‘Rental House Management System’, International

Journal of Scientific and Research Publications, Vol.

4, No. 11, pp. 1-24.

Gunawan, D. & Racmatullah, R., 2016. ‘Sistem Informasi

Sewa Rumah Kost dan Rumah Kontrakan Berbasis

EIC 2018 - The 7th Engineering International Conference (EIC), Engineering International Conference on Education, Concept and

Application on Green Technology

232

Web di Surakarta’, Jurnal Go Infotech, Vol. 22, No. 1,

pp. 31-36.

Helshani, L., 2015. ‘An Android Application for Google

Map Navigation System, Solving the Travelling

Salesman Problem, Optimization throught Genetic

Algorithm’, in Proceedings of FIKUSZ Symposium

for Young Researchers, Óbuda University Keleti

Károly Faculty of Economics, pp. 89-101.

Ibrahim, R. & Yen, S.Y., 2011. ‘A Formal Model for Data

Flow Diagram Rules’, ARPN Journal of Systems and

Software, Vol. 1, No. 2, pp. 60-69.

Ichsan, M. & Syah, M. R., 2014. ‘Development Model

Fuzzy Multiple Attribute Decision Making (FMADM)

for Management Jobs’, Journal of Informatic

Engineering Syiah Kuala University, Vol. 10, No 2,

2014, pp. 1-19.

Khanna, S. V. O. & Mistry, M., 2012. ‘Impact of AJAX in

Web Applications’, International Journal of Advanced

Engineering Technology, Vol. 3, No. 1, pp. 144-145.

Kushwaha, A. and Kushwaha, V., 2011. ‘Location Based

Services using Android Mobile Operating System’,

International Journal of Advances in Engineering &

Technology, Vol. 1, Issue 1, pp.14-20.

Munassar, N.M.A. & Govardhan, A., 2010. ‘A

Comparison Between Five Models of Software

Engineering’, International Journal of Computer

Science Issues (IJCSI), Vol. 7, No. 5, pp. 94 – 101.

Mustika, E., 2017. ‘Sistem Informasi Pencarian Tempat

Kos Berbasis Geografis di Bandar Lampung’, Jurnal

Cendikia, Vol.14, No.1, pp. 13-18.

Ponce-Medellin, R., Gonzalez-Serna, G., Vargas, R. &

Ruiz, L., 2009. ‘Technology Integration around the

Geographic Information: A State of the Art’,

International Journal of Computer Science Issues,

Vol. 5, pp.17-26.

Pratikto, H.S., Suraya & Sutanta, E., 2014. ‘Sistem

Pencarian dan Pemesanan Rumah Kos Menggunakan

Sistem Informasi Geografi (SIG)’, Jurnal Script, Vol.

1, No. 2, pp. 110-119.

Reyes II, P.P., 2016. ‘Profile Of Boarding Houses Of

Students Of The Kalingaapayao State College’,

International Journal of Advanced Research in

Management and Social Sciences, Vol. 5, No. 6, pp.1-

14.

Sachdeva, R.K. & Singh, S., 2013. ‘Use of AJAX to

Improve Usability of Online Information Systems’,

Global Journal of Computer Science and Technology

Software & Data Engineering, Vol 13, No. 8, pp. 13-

14.

Setyarsih, E., 2017. ‘Fenomena Makelar Kost dalam Sudut

Pandang Sosio Ekonomi Ditinjau dari Teori

Pertukaran Peter Michael Blau’, Jurnal Analisa

Sosiologi, Vol. 6, No. 2, pp. 76-90.

Sharma, M. & Morwal, S., 2015. ‘Location Tracking using

Google Geolocation API’, International Journal of

Science Technology & Engineering, Vol. 1, No. 11,

pp. 29-32.

Sneha, K. A. & Khatwar, D. M., 2015. ‘Evolving Web

Applications with AJAX - A Review’, International

Journal of Innovative Research in Science,

Engineering and Technology, Vol. 4, No. 11, pp.

11087-11093.

Sulaiman, A., Arifin, S.P. & Wibowo, A., 2012. ‘Boarding

Home Finder Menggunakan Algoritma Pencarian

MPE Berbasis PHP Codeigniter 2.0 Framework dan

AJAX’, Jurnal Aksara Komputer Terapan, Vol. 1 ,

No. 1.

Sundari, S.S. & Komarudin, I., 2015. ‘Perancangan Sistem

Informasi Rumah Kost Berbasis Web dan Short

Message Service (SMS) Menggunakan PHP dan

MySQL’, in Seminar Nasional Informatika (SNIf),

Vol. 1, No. 1, pp. 333-337.

Suri, P. & Sharma, M., 2011. ‘A Comparative Study

Between The Performance Of Relational & Object

Oriented Database in Data Warehousing’,

International Journal of Database Management

Systems, Vol.3, No.2, pp. 116-127.

Implementation of Google Maps API 3 with Haversine Algorithm in the Development of Geographic Information System Boarding House

Finder

233
