The Study on the Effect of Different Filling Methods of
Nitrate Removal from Groundwater
H N Chen
1
, L N Zheng
1,2,
*, Q S Wang
1
,Y W Pan
1
, H Jiang
1
and L Zhang
1
1
College of Marine Technology and Environmental, Dalian Ocean University ,Dalian
116023, China
2
Key Laboratory of Nearshore Marine Environmental Research, Dalian 116023,
China
1. Introduction
Because of the prevalent phenomenon of surface water pollution in our country, shallow groundwater
resources have been polluted to varying degrees, and the groundwater pollution coverage rate of
China has reached 50% approximately, nearly half of the total cities having been affected
seriously[1], especially the nitrate pollution in groundwater has been widely existed in our country.
According to different transforming patterns of nitrate in groundwater, remediation technology can
be divided into physical-chemical method, chemical method and bio-remediation technique[2-4].
This article aims to examine various effects resulted from different filling modes on the removal of
nitrate nitrogen by column test.
2. Experimental materials
2.1. Solid carbon source and fillers
Corn straw(length 0.5-1.5cm) and sawdust (powder) were selected in the experiment as carbon
sources for denitrification; quartz sand was used as inert filler; zeolite was used to ammonia
absorption effect. The particle size of zeolite is 1.0-2.0mm and quartz sand particle size is
1.0-2.0mm.
Abstract. Under the optimum combination conditions, the degree of nitrate contamination of
groundwater has been investigated by column test to research the various effects of different
filling modes towards denitrification. The research shows that under the environment of pH
value is 7, with the temperature of 30°C and influent nitrate concentration 30mg/L, mixed
filling of the hybrid filling has obvious advantages compared with sectional filling. In mixed
filling, the nitrate removal effect is better and more stable with the removal rate being
maintained at 95%. The accumulation of nitrite nitrogen mixed filling has been maintained at
a low level, while nitrogen accumulation has been kept at a high level with the pH of the
reaction system maintaining between 7 and 8
272
Chen, H., Zheng, L., Wang, Q., Pan, Y., Jiang, H. and Zhang, L.
The Study on the Effect of Different Filling Methods of Nitrate Removal from Groundwater.
In Proceedings of the International Workshop on Environmental Management, Science and Engineering (IWEMSE 2018), pages 272-277
ISBN: 978-989-758-344-5
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

2.2. Experimental water
The water utilized in this experiment is synthetic groundwater in which nitrate concentration is 30, 50,
and 70mg NO
3
--N/L with certain amount of KH
2
PO
4
, providing phosphorus for necessary growth of
microorganisms; N/P=20; pH of experimental water is controlled under the range of 7.0-8.0.
2.3. Inoculated sludge
The inoculated sludge used in this experiments from Dalian Zhiguang water sewage treatment plant
aeration tank.
3. Experimengtal process and analysis methods
3.1. Experimental method
In the denitrification column test at 30°C , water runs into synthetic groundwater with 50 mg/L at a
flow rate of 15 mL/h. Sectional filling column method and mixed filling column method are used in
this experiment separately in order to compare these two kinds of filling effects on denitrification.
The reactor is two organic glass columns, of which the column diameter was 10cm and the
column height was 60cm as shown in figure 1. Carbon sources are straw and sawdust; inert filler is
quartz sand. Prepared for this experiment, carbon sources and inert filler are washed up with distilled
water and then dried up completely. Then alcohol is used to disinfect the organic glass columns, and
at the same time, carbon source and inert filler are put into the steam sterilization pot pasteurization
for 30 minutes. After sterilization, the carbon source and filler are filled into these two filter: the 1
pillar is placed by quartz sand, straw and sawdust in order; the 2 pillar is filled with quartz sand,
straw and sawdust mixed with quartz sand in the volume of 1:1, adding 2000mL anaerobic activated
sludge and the two ends of the are filled with quartz sand in column 2 in order to prevent the outflow
of quartz sand filler, creating an anaerobic condition. After standing for 24 hours, Inflow water is
synthetic groundwater. This experiment adopts a method of peristaltic pump flow inlet, with
peristaltic pump flow rate being controlled under 2.5mL/min. The column operates for 30 days under
30°C . During this period, sample water is extracted from columns to analyze the concentration of
NO
3
-N, NO
2
-N and NH
4+
-N.
3.2. Analysis method

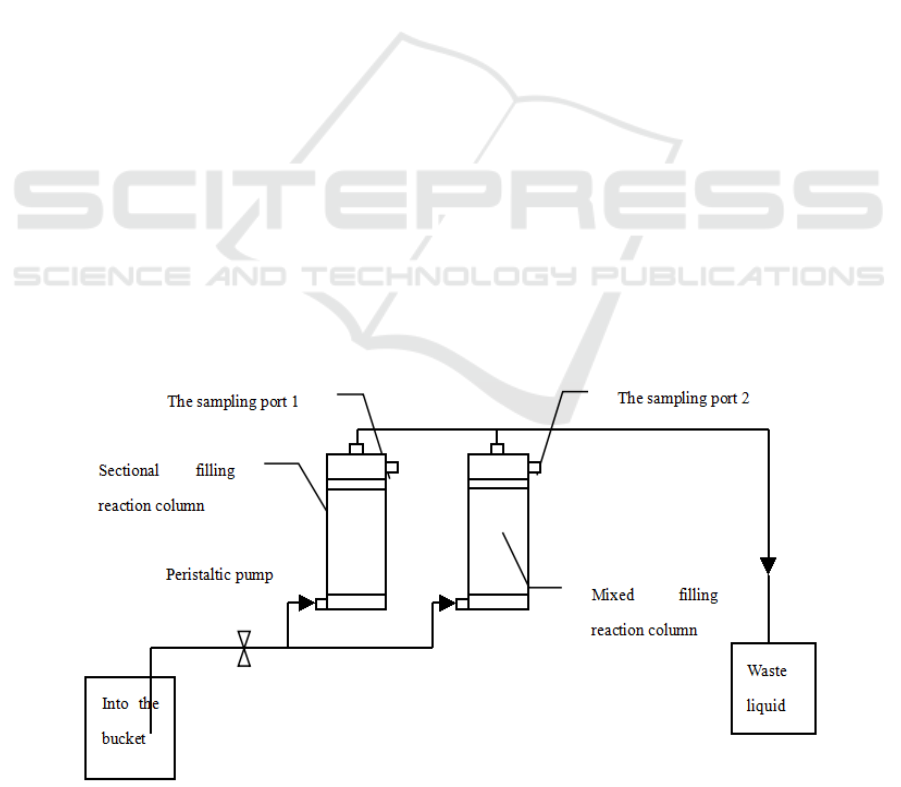

Figure 1.Reaction column packed in different ways.
The Study on the Effect of Different Filling Methods of Nitrate Removal from Groundwater
273

After filtration of sample water, measure pH, NO
3
-
-N, NO
2
-
-N, NH
4
+
-N, and determination methods
are implemented based on Monitoring and Analysis Methods of Water and Wastewater (Fourth
Edition). Using spectrophotometric determination to measureNO
3
-
-N (ultraviolet spectrophotometry),
NO
2
-
-N(N-(1-Naphthyl)-ethylenediaminedihydrochloride spectrophotometric method) and NH
4
+
-N
(the indophenol blue photometric method) by UV, PH is determined by pH meter.
4. Results and discussion
With the process of denitrification and removal of nitrate nitrogen, the accumulation of nitrite
nitrogen and ammonia nitrogen enables the concentration of nitrogen compounds tochange
accordingly.
4.1. Effect of different filling methods on nitrate nitrogen concentration
Figure 2 shows that in the first 24 days, the concentration of nitrate nitrogen removal of thesetwo
methods of filling are nearly the same, with removal rate having reached over 95%. From the
twenty-fifth day, it appears to have differences, mixed filling method remains a removal rate over
95%, while sectional filling method enables the removal rate of nitrate nitrogen increases gradually,
and intwenty-eighth day it has been reduced to a level under 90%. So mixed filling method on nitrate
removal has embodied an obvious advantage of more lasting effect. In addition, at the early stage of
reactor operation, the effluent of two filling patterns all shows yellow. In fifth day of this operation,
the effluent turbidity and color disappeared.
In theexperiment of comparing the effects of these two different filling methods, the effluent of
nitrate nitrogen concentration of these two kinds of filling methods is lower than that of our drinking
water health standard (GB5749-2006) with limited value(10mg NO
3
-
-N/L). But the hybrid fillers
nitrogen removal effect is better than sectional filling method nitrogen removal effect. It might
attributes to that corn straw and sawdust are used bothas carbon sources andas the carrier of various
microorganism to form biological membrane simultaneously. The mixture of corn straw and sawdust
could make the microorganism attach on the carrier more evenly. The adhesion ability of
microorganisms cool vary according to different textures of corn straw and sawdust. The biological
membrane formed in sectional filling method is not heterogeneous which contributes to the adherent
ability of microorganism worse than that in mixed filling method, while biological membrane formed
in mixed filling method enables denitrifying bacteria and other various bacteria to distribute evenly
so that it could keep a higher removal rate of nitrate.

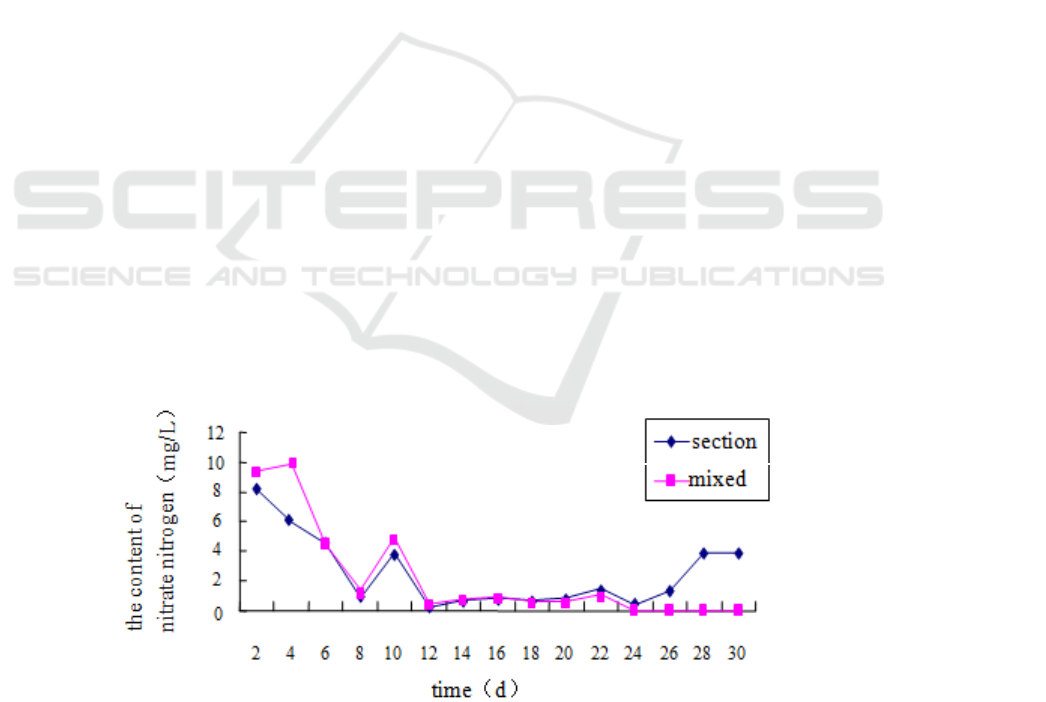

Figure 2. Change of nitrate content in column experiments.
4.2. Effect of different filling methods on nitritenitrogen concentration
Seen from Figure 3, during the first 20 days that two filling methods are operated in the reactor, the
nitrite nitrogen concentration in these two methods almost remains the same with concentration of
IWEMSE 2018 - International Workshop on Environmental Management, Science and Engineering
274

nitrite nitrogen in sectional filling method reaching around0.003mg/L and nitrite nitrogen
concentration in mixed filling method remaining around 0.002mg/L, which complies with National
groundwater environmental quality standard of Class III. On the 21st day, nitrite nitrogen
concentration in sectional filling method increases significantly，reaching 2.04mg/L, and the
concentration of nitrite nitrogen in the mixed filling method still maintains at a level of 0.03mg/L
which has highlights the advantages. From this point， mixed filling method is more standard which
can be utilized in the experiment.

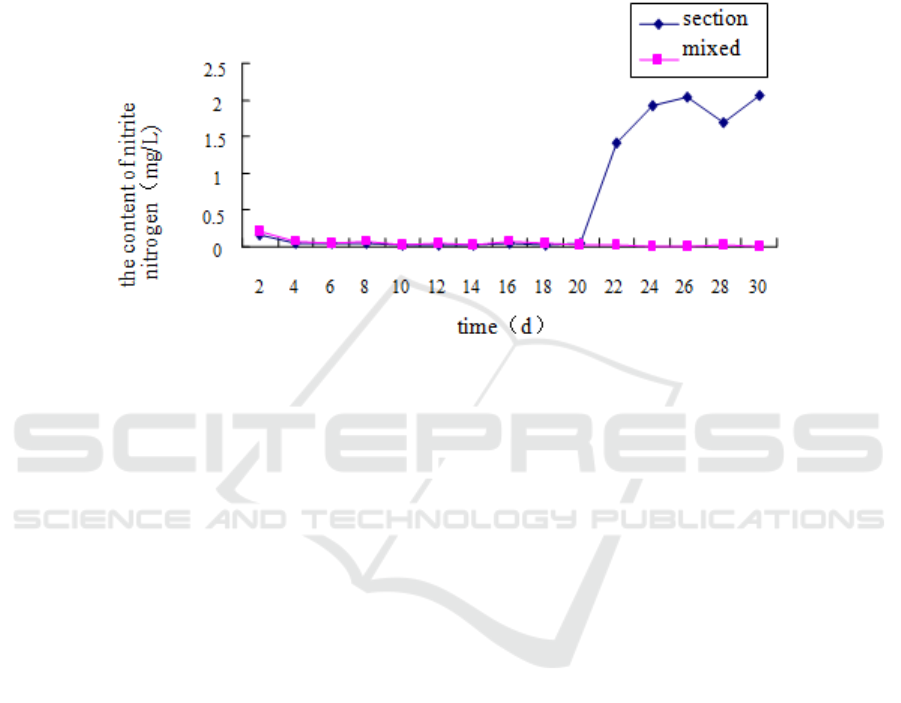

Figure 3. Change of nitrate content in column experiments.
During the whole experiment, the phenomenon of nitrite accumulation has always existed,
especially during the orthogonal test nitrite accumulation is significant, while in the column
experiment there is almost no nitrite accumulation. After analysis, what causes this difference might
attributes to the different types of reactor. All of the reaction process of orthogonal test arecarried out
in a conical flask. Nitrate reductase rates faster than nitrite reductase[5], so great amount of nitrate is
reduced rapidly but nitrite accumulates rapidly in the conical flask. Only when the denitrification of
nitrite accumulation finished, the amount of nitrite accumulation would gradually reduce in conical
flask. Therefore, with the reduction of nitrate concentration, the reduction of nitrite nitrogen
concentration has shown a delayed effect.It is completely different in column test case in which due
to the influent nitrate solution runs slowly through the column bottom into the reaction column,
giving sufficient time for denitrification and enabling the nitrite reductase could have sufficient time
to reduce the by-products of nitrite, the accumulation of nitrite in the reaction system could be
significantly reduced and thus in the effluent it shows that nitrite nitrogen concentration is very
low[6].
But for the sectional filling column test in the late period of reaction, great amount of nitrite
accumulation appears which might result from that sectional filling mode hinders the sustainable
release of carbon source, leading to the lack of organic carbon release in the reactor and the
accumulation of nitrite nitrogen.
4.3. The effect of different filling methods on ammonia nitrogen concentration
Figure 4 shows that in these two kinds of filling methods nitrogen accumulation trend are almost the
same. In the first four days, due to the reaction processes completely, little ammonia is produced. As
the denitrification of ammonia processes for a long time, the accumulation of ammonia becomes
more and more obvious. The largest accumulation could reach 15mg/L which is 15 times more than
the standard of groundwater. So when this reactor is utilized, the removal of ammonia should be
considered which is conductive to the removal effects on nitrate.
The Study on the Effect of Different Filling Methods of Nitrate Removal from Groundwater
275

Some of the accumulation of ammonia in effluent denitrif ication experiment comes from carbon
source release (maize straw, sawdust), other comes from dissimilatory nitrate reduction to
ammonium (DNRA) process. High organic carbon content in the environment is conductive to
dissimilatory nitrate reduction to ammonium (DNRA) process[7]. Ammonia nitrogen content
increases rapidly after sixth days, which might due to the release of a large number of organic carbon
source. Under the condition of the existence of microorganisms, the release rate of ammonia nitrogen
might also change. Therefore in the following experiments, it is necessary to take eliminating
ammonia nitrogen content in water into consideration to meet the standard.

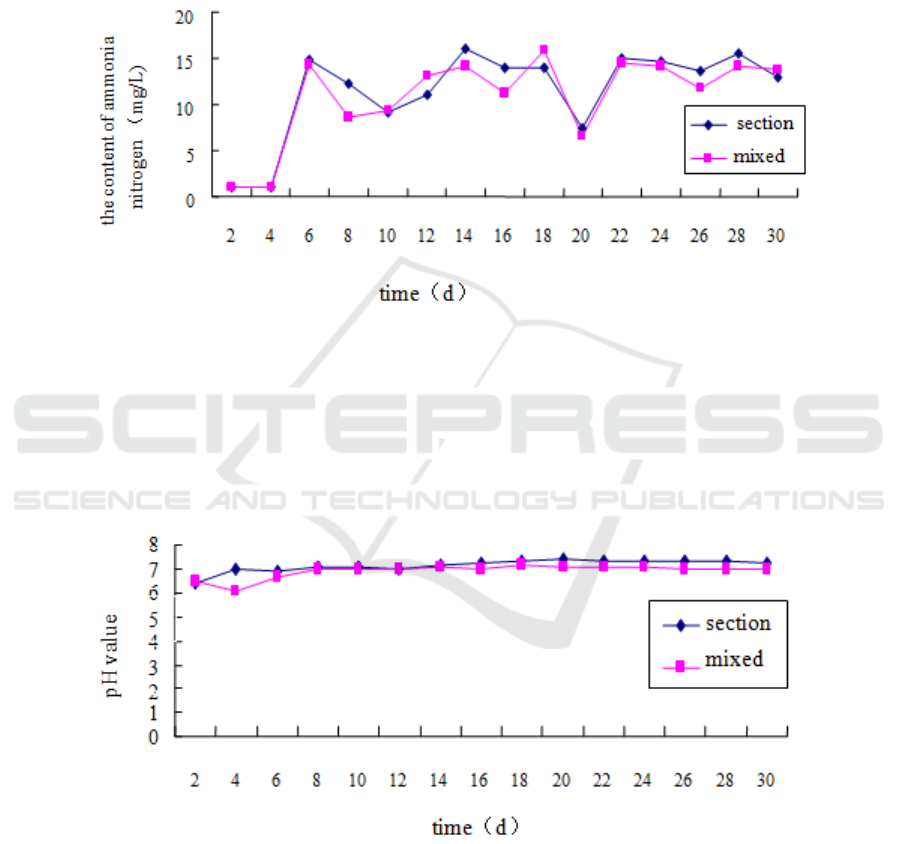

Figure 4. Change of ammonia content in column experiments.
4.4. Effect of different filling methods on pH
Seen from Figure 5, in the denitrification process, pH value is one of the important factors for the
environmental pH can affect the growth and reproduction of microorganisms which enables different
organisms havedifferent adaptive capacity in terms of various ranges of pH. In these two kinds of
filling methods, pH has maintained neutral fundamentally in the denitrification process. That is to say
that denitrification processed in neutral environmental condition.
Figure 5. Change of pH in column experiments.
Too high or too low pH value would affect the denitrification reaction. Although denitrification
reaction can also occurred when the pH value exceeds the optimum range, but this might cause the
accumulation of toxic intermediate product (such as nitrite)[8]. As Figure 5 showed, in the whole
reaction process, the pH value of effluent has maintained 6.0-7.5, suitable for denitrifying bacteria's
growth and reproduction.
IWEMSE 2018 - International Workshop on Environmental Management, Science and Engineering
276

5. Conclusions
The column test of different filling methods operated on mixed filling materials has shown that two
kinds of filling methods have different nitrate removal effects: the experiment that uses mixed filling
method has a better and more stable removal effect with a sustainable removal rate of 95% .After
twenty-fourth day the one used sectional filling method, nitrate removal rate begins to rebound. In
the late period the removal rate drops to below 90%.As for the accumulation of by-products nitrite
nitrogen in the reaction process, the mixed filling method helps it maintain at a low level, while when
used sectional filling method, its accumulation increases rapidly in later period of reaction. At the
same time, the accumulation of ammonia nitrogen in the column reaction has been maintained at a
high level and the pH of the reaction system has been maintained between 7 to 8.
Acknowledgements
This research was financially supported by College Students' innovation training program of marine
technology and Environment College (2018), Dalian Ocean University postgraduate educational
reform project(2017)（02D0201 Lina Zheng）and Dalian Ocean University Students' innovation and
entrepreneurship program plan project(2017).
References
[1] Zhai X C, Liu M, Li Z P and et al 2012 Effect of Different Additives on Decomposition of
Rice Straw J. Scientia Agricultura Sinica 45(12): 2412-2419.
[2] Wu W, Yang L and Wang J 2013 Denitrification performance and microbial diversity in a
packed-bed bioreactor using PCL as carbon source and biofilm carrier J. Applied
Microbiology Biotechnology 97(6): 2725-2733
[3] Refait Ph and Reffass M 2014 Role of nitrite species during the formation and transformation
of the Fe(II-III) hydroxyl carbonate green rust. Colloids and Surfaces A: Biochemistry Eng.
Aspects 459: 225-232.
[4] Wang T, Su J, Jin X and et al 2013 Functional clay supported bimetallic nZVI; Pd
nanoparticles used for removal of methyl orange from aqueous solution J. Journal of
hazardous materials 262: 819-825.
[5] Wang X M and Wang J L 2012 Denitrification of nitrate-contaminated groundwater using
biodegradable snack ware as carbon source under low-temperature condition J.
Environmental Science and Technology 9: 113-118.
[6] Luo G, Xu G, Tan H and et al 2016 Effect of dissolved oxygen on denitrification using
polycaprolactone as both the organic carbon on source and the biofilm carrier J.
International Biodeterioration & Biodegradation 110: 155-162.
[7] Cecconet D, Devecseri M and et al 2017 Effects of process operating conditions on the
autotrophic denitrification of nitrate-contaminated groundwater using bioelectrochemical
systems J. Science of the Total Environment 307: 661-371.
[8] Alba Grau-Martínez, Albert Folch and et al 2017 Monitoring induced denitrification during
managed aquifer recharge in an infiltration pond J. Journal of Hydrology 107: 123-135
The Study on the Effect of Different Filling Methods of Nitrate Removal from Groundwater
277
