ORB-SLAM based ICP and Optical Flow Combination Registration

Algorithm in 3D Dense Reconstruction

Liya Duan

, Renxia Wu

, Xin Wang

, Yinghe Liu

, Yongjie Ma

and Hui Fang

Institute of Oceanographic Instrumentation, Qilu Univercity of Technology (Shandong Academy of Sciences), No.37

Miaoling Road, Qingdao, China

Institute of Coastal and Offshore Engineering, School of Engineering, Ocean University of China,

o. 238 Songling Road,

Qingdao, China

Institute of Oceanology, Chinese Academy of Sciences, No.7 Nanhai Road, Qingdao, China

Keywords: ICP, Optical Flow, ORB-SLAM, 3D Reconstruction .

Abstract: Dense 3D reconstruction is important for applications in many fields. The existing depth information based

methods are typically constrained in their effective camera-object distance that should be from 0.4m to 4m.

We present a combination of optical flow method and ICP method, and fuse this method and RGB-D

camera ORB-SLAM to make full use of the color and depth data and refine the registration results that can

achieve a more accurate dense 3D reconstruction. The experiment shows that this combination method is

effective for the dense map acquisition.

1 INTRODUCTION

Registration Algorithm is of importance in dense 3D

reconstruction with many applications in object

recognition (Hong, 2015), object retrieval (Lu, 2014),

scene under-standing (Ala, 2014), object tracking

(Kim, 2014), autonomous navigation (Valiente,

2014), human–computer interaction (Sun, 2015),

telepresence, tele- surgery, reverse engineering,

virtual maintenance and visualization (Galvez, 2012).

Simultaneous Localization and Mapping (SLAM)

has been a hot research topic in the last two decades,

and has recently attracted the attention of the

researchers in computer vision related area. The

ORB-SLAM is built on the main ideas of PTAM,

the loop detection work of G´alvez-L´opez and

Tard´os (Hong, 2015), the scale-aware loop closing

method of Strasdat et. al (Strasdat, 2010) and their

idea of a local covisible map for large scale

operation (Strasdat, 2011), which is a new

Monocular SLAM system that overcomes the

limitations of PTAM. The ORB-SLAM can be

performed by using just a monocular camera, but the

scale of the map and estimated trajectory is

unknown because of the unknown depth that is not

observable from just one camera. Moreover, the

ORB-SLAM needs to produce an initial map, as it

cannot be triangulated from the very first frame. The

monocular ORB-SLAM suffers from scale drift and

may fail if performing pure rotations in exploration,

so researchers try to use RGB-D cameras to provide

the depth information to solve the above problems.

KinectFusion applies the RGB-D camera to fuse all

depth data from the sensor into a volumetric dense

model and track the camera pose by using ICP.

While the effective range of the depth data detected

by Kinect is 0.4m~3.5m, the depth information of

the Kinect camera is inaccurate when the surface of

the scene is less than 0.4m, which makes the input

point cloud of the ICP algorithm low accuracy and

eventually leads to the inaccuracy of the matching

result. When the geometric information of the scene

is less and the point cloud is too smooth, the ICP

algorithm is difficult to converge, the accuracy of

the algorithm is reduced, the position and posture of

the camera can not be correctly calculated, which

cause the situation of "losing frame". Therefore, this

system was limited to small workspaces. Recently,

the ORB-SLAM2 provides a real-time SLAM

library for Stereo and RGB-D cameras that

computes the camera trajectory and a sparse 3D

reconstruction with true scale to give us alternative

ways. The optical flow method use the

correspondence of the three-dimensional point and

the two-dimensional pixel point of the image and

tracks the two-dimensional pixels of the image

through the light stream to obtain the outer

parameters and track the camera.

In this paper, a combination of optical flow

method and ICP is proposed. We use the ICP

algorithm to reconstruct the scene and initialize the

3D point coordinates by the ICP algorithm, and then

the optical flow method is used to track the location

camera. When the camera tracking fails, the ICP

based "lost frame retrieval" method is used to

rematch. We also fuse this method and RGB-D

camera ORB-SLAM to make full use of the color

and depth data and refine the registration results.

2 TRACKING METHODS

2.1 ORB-SLAM2

KinectFusion of Newcombe et al. (Hong, 2015),

fusing all depth data from the RGBD camera into a

volumetric dense model that is used to track the

camera pose using ICP, was limited to small

workspaces due to its volumetric representation and

the lack of loop closing. ORB-SLAM2 (Ra´ul, 2017)

uses depth information to synthesize a stereo

coordinate for extracted features on the image, so

that the system is suitable for the input being stereo

or RGB-D. This system does not need a specific

structure from motion initialization as in the

monocular case, because it can get the depth

information from just one frame with the RGB-D

cameras. The system operations are based on these

features extracted from the input frame, so that the

system can run whether the input image is from the

stereo camera or RGB-D camera. For RGB-D

cameras, the system extract ORB features on the

RGB image and the system uses the same ORB

features for tracking, mapping and place recognition

tasks. The back end of ORB-SLAM2 is based on

bundle adjustment and builds a globally consistent

sparse reconstruction.

The goal of ORB-SLAM2 is long-term and

globally consistent localization instead of building

the most detailed dense reconstruction. Therefore,

we fuse ICP Algorithm and optical flow method to

present a method based on the RGB-D camera ORB-

SLAM to get the dense map.

2.2 ICP Algorithm

ICP algorithm is a common algorithm for point

cloud matching. The algorithm obtains the point

cloud matching relationship in two coordinate

systems, that is, the transformation relation of the

two coordinate systems is obtained. It is necessary to

find a suitable rotation matrix and the translation

vector, so that the two input point clouds P and X

can match (Wen, 2015), that is, to find the least

square approximation coordinate transformation

matrix of the two point cloud P and X. The rotation

and translation matrix can be computed by

quaternions. Set a rotation transformation vector as

a unit quaternions





0123

,,,

qqqq

where

=1, and obtain rotation

matrix R, set translation transformation vector as





456

qqq

, and obtain coordinate

transformation vector

q =





, then, The

problem of finding the best transformation vector for

the corresponding point set can be converted to the

minimization of the (1) formula.

() || ( ) ||

iRiT

qxRqPq







(1)

2.3 The Optical Flow Method

The optical flow represents the change of the image,

and it contains the information of the target

movement, so we can use it to determine the motion

of the target.

The basic premise of the optical flow method is

as follows (Meister, 2012):

1. The luminosity is constant. The luminance of

the same point will not change as time changes. This

is the assumption of the basic optical flow method

(all optical flow related method must be satisfied)

for obtaining the basic equations of the optical flow

method.

2. Small movements. The position changes are

small as time changes, so that the grey level can get

the partial derivative of the position. In other words,

in the case of small movement, we can use the grey

change caused by the change of the unit position

between the front and back frames to approximate

the partial derivative of the grey level to the position

level, which is also an indispensable assumption of

the optical flow method.

3. Uniform space. The adjacent points in a scene

are adjacent points when projected onto the image,

and adjacent points have uniform speed.

3 THE COMBAINATION

METHOD

3.1 Advantages of Optical Flow Method

and ICP Combination Algorithm

The optical flow method relies on the color image to

calculate the feature points, and the coordinates of

the 3D points corresponding to the 2D pixels of the

initial image are required for the subsequent

matching. Therefore, the optical flow method is

sensitive to light and requires constant illumination.

The ICP algorithm is to obtain the transformation

relationship between the point cloud from the depth

map and the 3D point cloud of the reconstruction

scene. The matching process of the ICP method uses

the depth data, and the depth map does not rely on

the constant light. The ICP algorithm has a high

accuracy, however, the precision of the initial depth

map obtained by RGB-D camera is limited, and its

effective range is 0.4m~3m, which is inaccurate

when the depth is near or less than 0.4m, resulting in

the inaccurate matching result of the current point

cloud. In the more complex scene, the more obvious

the characteristics of point cloud and the better the

matching effect of the ICP point cloud matching

algorithm is. In the smooth scenes, the matching

point clouds are smoother, the ICP algorithm is

difficult to converge, and the accuracy of the

matching result is low. When the matching is

inaccurate, we can see that even if the camera is

fixed, the two-dimensional image after projection

obviously shakes. Within the effective distance of

RGB-D camera, the accuracy and stability of ICP

algorithm are relatively high. By recording the

matched information, it rematches more quickly

when the camera tracking and localization fail. In

general, the optical flow method and the ICP

algorithm have their own advantages and

disadvantages. In the augmented reality system, the

ICP algorithm can be used to reconstruct the scene,

and initialize to get the 3D point coordinates, and

then the optical flow method is used to track and

locate the camera. When the camera tracking fails,

the "lost frame retrieval" mechanism based on the

ICP algorithm is used to rematch. The combination

of optical flow method and ICP algorithm can make

use of depth data and color data more effectively.

3.2 The Combination Algorithm Flow

The OpenCV library function is used in the optical

flow method. Image corner detection is processed at

the beginning of the algorithm and the 3D point

coordinates corresponding to the two-dimensional

pixels are found by using the ray casting algorithm.

The ray casting algorithm requires the camera

external reference. We apply the position

relationship of the two cameras of Kinect and the

relationship between the two cameras and the world

coordinate system to obtain the conversion

relationship between the color camera coordinate

system and the depth camera coordinate system.

Thus, the depth camera external parameters are

converted to the color camera external reference,

and the ray casting algorithm is used to calculate the

three-dimensional point coordinate corresponding to

a color pixel.

The Ransac process is the process of selecting

more accurate matching points from 2D points and

3D points. When the camera tracking fails, it is

necessary to use the ICP algorithm to retrieve the

correct camera pose. After the camera reaches

steady state, the optical flow method can be used

again to convert to the tracking process.

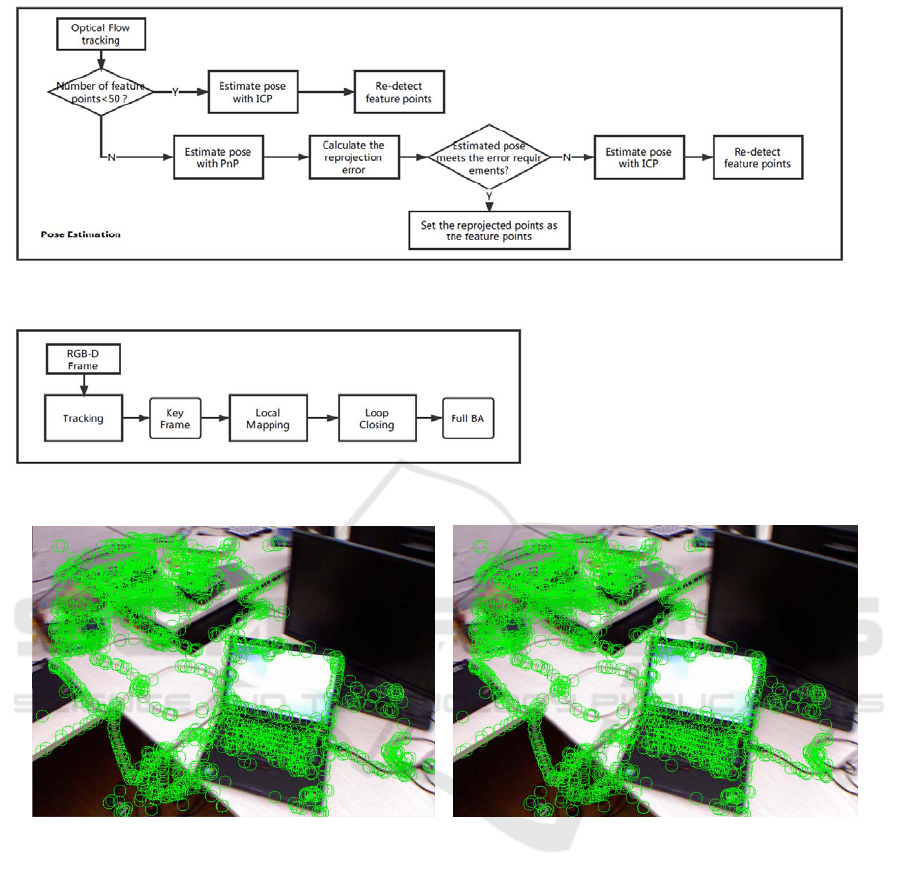

The flow chart of our method is shown in

Figure1. The upper part is the pose estimation in the

tracking process. The lower part shows the whole

3D reconstruction based on the ORB-SLAM. The

pose estimation is the combination of the ICP and

the optical flow, which makes full use of the color

images and the depth maps to get an more accurate

dense reconstruction.

4 EXPERIMENT

After the optical flow tracking the characteristic

points, the PnP Method is used to solve the pose.

When the position and posture satisfies the condition

(two thresholds we set), the 3D points of the last

frame are projected to the current frame. We have

run the combination algorithm proposed in this

paper in an Intel Core i7-6700HQ desktop computer

with 8GB RAM, and evaluated the proposed

algorithms on the TUM RGB-D benchmark (Sturm,

2012). In the experiment, we draw the feature points

(corners) tracked by the optical flow and the re-

projected feature points (re-projected corners)

Figure1: Flow chart of the proposed combination algorithm.

Figure 2: Feature points (left) tracked by the optical flow and the re-projected feature points (right).

respectively. The re-projection is that the 3D points

of the last frame are projected again onto the pixel

plane, and the calculation process does not involve

the points detected from the current frame.

Therefore, if the feature points (corners) and the re-

projected feature points (re-projected corners) are

overlapped, it shows that the pose calculation is

good. From Figure2, the re-projection points are

basically consistent with the tracked feature points,

which indicates that the pose estimation is accurate.

5 CONCLUSIONS

In this paper, we proposed an efficient ORB-

SLAM2 based registration algorithm for 3D dense

reconstruction, combining the optical flow method

and ICP. We use the ICP algorithm to reconstruct

the scene and initialize the 3D point coordinates by

the ICP algorithm, and then the optical flow method

is used to track the location camera. When the

camera tracking fails, we use the ICP based "lost

frame retrieval" method to rematch. We also fuse

this method and RGB-D camera ORB-SLAM to

make full use of the color and depth data and refine

the registration results. This improved ORB-SLAM

based method can reconstruct dense map for

practical applications. In the future research, we will

add more efficient filter to reduce the point cloud

repetition rate to get more accurate 3D

reconstruction.

ACKNOWLEDGMENTS

This research is supported by the National Natural

Science Foundation of China (NSFC) under Grant

No. 61702308 and No. 51504146.

REFERENCES

1. Galvez, A., Iglesias, A., Particles warm optimization

for non-uniform rational B- spline surface

reconstruction from clouds of 3D data points, Inf.

Sci.192(2012) 174–192,

http://dx.doi.org/10.1016/j.ins.2010.11.007.

2. Hong, C., Yu, J., You, J., Chen, X., Tao, D., Multi-

view ensemble manifold reg- ularization for 3D object

recognition, Information Sciences, doi: 10.1016/j.

ins.2015.03.032.

3. Catuhe ， D., Programming with the Kinect for

Windows Software Development Kit, Microsoft Press,

United States, 2012.

4. Valiente，D., Gil，A., Fernández，L., Reinoso，Ó.,

A modified stochastic gradient descent algorithm for

view-based SLAM using omni direction

alimages ,Inf.Sci. 279(2014)326–337,

http://dx.doi.org/10.1016/j.ins.2014.03.122.

5. Kim ， D.Y., Jeon ， M., Data fusion of radar and

image measurements for multi- object tracking via

Kalman filtering, Inf.Sci.278(2014)641–652,

http://dx.doi. org/10.1016/j.ins.2014.03.080.

6. Lu，K., Wang，Q., Xue，J., Pan，W., 3D model

retrieval and classification by semi- supervised

learning with content-based

similarity,Inf.Sci.281(2014) 703–713,

http://dx.doi.org/10.1016/j.ins.2014.03.079.

7. Sun ， L., Liu ， Z., Sun ， M.-T., Real time gaze

estimation with a consumer depth camera, Information

Sciences, doi: 10.1016/j.ins.2015.02.004.

8. Ala，R., Kim，D.H., Shin，S.Y., Kim，C., Park，

S.-K.,A 3D-graspsynthesisalgorithmto grasp unknown

objects based on graspable boundary and convex

segments, Inf. Sci. 295(2015)91–106,

http://dx.doi.org/10.1016/j.ins.2014.09.062.

9. G´alvez-L´opez，D. and Tard´os，

J. D., “Bags of

binary words for fast place recognition in image

sequences,” IEEE Transactions on Robotics,vol. 28,

no. 5, pp. 1188–1197, 2012.

10. Strasdat，H., Montiel，J. M. M., and Davison，A. J.,

“Scale drift-aware large scale monocular SLAM.” in

Robotics: Science and Systems (RSS),Zaragoza, Spain,

June 2010.

11. Strasdat， H., Davison， A. J., Montiel， J. M. M.,

andKonolige， K.,“Double window optimisation for

constant time visual SLAM,” in IEEE International

Conference on Computer Vision (ICCV), Barcelona,

Spain,November 2011, pp. 2352–2359.

12. Ra´ul M. A., Tard´os J. D., ORB-SLAM2: an Open-

Source SLAM System for Monocular, Stereo and

RGB-D Cameras, IEEE Transactions on Robotics,

33(5) pp.1255-1262.

13. Wen, Y. J., Hsu, C. C., Wang, W. Y.. Map building of

uncertain environment based on iterative closest point

algorithm on the cloud. In: Proceedings of IEEE

International Conference on Mechatronics. Nagoya:

IEEE, 2015: 188 ~ 190

14. Meister, S.， Izadi, S.， Kohli, P.， Hmmerle, M.，

Rother, C.， Kondermann, D．, When Can We Use

KinectFusion for Ground Truth Acquisition ， In

Workshop on Color-Depth Camera Fusion in

Robotics ， IEEE International Conference on

Intelligent Robots and Systems，2012．

15. Sturm, J., Engelhard, N., Endres, F., Burgard, W.,

Cremers, D., A benchmark for the evaluation of rgb-d

slam systems. In Intelligent Robots and Systems

(IROS), IEEE/RSJ Int. Conf. on, 2012: 573–580.
