The Research of Dynamic Calibration for Temperature
Sensors
W Meng
*
, Y Lu and R Z Du
Beijing Institute of Spacecraft Environment Engineering, Beijing Engineering
Research Center of the Intelligent Assembly Technology and Equipment for
Aerospace Product, No.104, Youyi Road, Haidian District, Beijing, China
Abstract. The current situation of temperature sensor dynamic calibration, including its
conception, features and methods of data processing, are introduced in this paper. Especially
the research on methods of dynamic calibration is conducted. The choice of calibration
devices and several methods of result assessment are given. According to the methods
introduced in this paper, the thermal wind tunnel method can generally satisfies performance
requirement of temperature sensors and simu late practical working status of temperature
sensors in specified experimental conditions. Therefore it is the best method of temperature
sensor calibration at present.
1. Introduction
In present temperature measurement study, the common situations are transient temperature
measurements especially in military applications. The character of transient temperature
measurement is measuring in gas with high temperature and high velocity. It is possible that high
pressure or high speed flow exists according to different conditions. So it is difficult to guarantee the
measurement accuracy. Now system errors certainly exist in common methods, it is necessary to
survey system errors of all sorts of sensors result from heat inertia and heat equilibrium with the
methods of dynamic calibration. In this way it can makes measurements closer to the true value.
With the high speed development of science and technology, especially in the domain of aviation
and aerospace (the aeroengine, rocket, jet technology etc.), temperature’s rapid and accurate
measurement has become much more important. In some circumstances, for example, the engine’s
start, acceleration and shutdown, the stalling and surging of gas compressor, the temperature changed
rapidly, the sensor should immediately perceive the change of temperature, and effectively track the
temperature’s transformation. All of contacted-measure temperature sensors have heat inertia, and
the characters of heat response are different. So the practical measuring temperature is a random
function, especially in the fluid dynamic environment, only increasing temperature sensor’s precision
in stable conditions can’t satisfy the requirement of measurement. How to reduce heat inertia and
improve capability of measurement rapidly and accurately lead the development direction of
temperature measurement nowadays. Only by enhancing sensor’s thermal response characteristic and
calibrate it, can it be possible to meet the requirement of dynamic measurement [1].
Meng, W., Lu, Y. and Du, R.
The Research of Dynamic Calibration for Temperature Sensors.
In Proceedings of the International Workshop on Materials, Chemistry and Engineering (IWMCE 2018), pages 5-11
ISBN: 978-989-758-346-9
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
5

In recent years, many research institutes have conducted temperature sensor dynamic calibration
research. Because dynamic calibration of temperature sensor also relate to the environment in which
they are used, so it makes certain differences in dynamic calibration of temperature sensor in many
research institutes.
2. Research actuality of dynamic calibration of sensor
2.1. Domestic and foreign research situation
The research of dynamic character of sensor is always an active subject in academic field. In recent
ten years, the research has changed from applying to military field to civil fields and it has made that
more and more people begin to conduct research about dynamic character of sensor.
It has been a long time to conduct the research about temperature sensor dynamic calibration
overseas and involved in broader areas. Many countries such as America, Russia, Germany and India
have already achieved high level, but they don’t share their achievements. In recent ten years many
domestic institutes and universities have made deep research about the dynamic calibration of sensor
and obtain satisfied results.
2.2. Concept of dynamic calibration
When the temperature of gas stream changes, such as rise or depress abruptly, we call it dynamic
temperature. When the temperature sensor measures dynamic temperature, it can’t reflect the changes
of the temperature of gas stream rapidly because of its certain mass and heat inertia.
The dynamic response characteristic of temperature sensor means the relation of the temperature of
sensor itself and increment of temperature being measured. We usually express them with differential
equation or transfer function. As the temperature being measured changes in different forms such as
step signal, impulse, or sine wave, the response to sensitive element of temperature sensor can reflect
the dynamic characteristic of the sensor. So we often describe the dynamic characteristic of sensor
with its response to step temperature and define two parameters, thermal response time and time
constant, to reflect the dynamic characteristic. The quality of dynamic characteristic directly reflects
the tracking ability of sensor on temperature changing over time.
Dynamic calibration of temperature sensor is a process of record and calculation. First the sensor’s
response to step signal under certain conditions is measured, and then, the thermal response time or
time constant will be calculated through the tracking record in the response process. Calibration
process mainly include generation of stable calibration conditions (stable velocity field and
temperature field), making the temperature sensor accept the temperature step signal stimulation,
collection of being calibrated sensor’s response to step signal by testing system, calculating the
thermal response time or time constant. The two parameters not only relate to structure, material,
using conditions of the sensor, but also relate to flow stream being tested and calibration conditions.
2.3. Content of dynamic calibration
Dynamic calibration of sensor mainly include two factors.
2.3.1. Dynamic demarcate. Because sensor is widely used in automatic inspect of produce process,
new type of sensors are continuously manufactured. In order to know the dynamic characteristic of
sensor accurately, we need to conduct the dynamic demarcate.
2.3.2. Dynamic proofread. After a long-term use there will be some problems in the sensor or home-
made sensor such as time float, temperature float, or some parameters changed. All these phenomena
can result in sensitivity or zero position changed obviously. So it must be dynamic proofreaded for
sensor [2].
IWMCE 2018 - International Workshop on Materials, Chemistry and Engineering
6

2.4. Method of improving the dynamic characteristic
To improve the dynamic characteristic of sensor is the ultimate purpose of dynamic calibration. It can
be considered through the two aspects of production and use [3].
2.4.1. View point of production—dynamic compensation analog filter. The manufacturer can
encapsulate the specialized chips made of modulated analog filter, sensors and amplifying circuit
conveniently. This will improve the dynamic characteristic of sensor radically from hardware. The
capability of sensor will be enhanced which manifests as rapid calculation speed, small volume, rapid
response and high resolution.
2.4.2. View point of use—dynamic compensate digital filter. If the dynamic characteristic of
temperature sensor is getting worse, it is useless to adopt the method of dynamic compensate analog
filter. The dynamic characteristic of testing system has to be improved by using computer and
software methods. Through compiling simple compensate digital filter program, the entire channels
dynamic characteristic will be enhanced a lot without adding any other hardware.
To a common user, the second method is usually used to ameliorate the dynamic characteristic of
sensor.
3. Calibrating apparatus and methods
The two aspects introduced above apply to all sorts of sensors. Some special circumstances of
calibration will be discussed next.
3.1. Experimental research method of calibration
There are many methods to research the dynamic calibration of sensor in experiment conditions and
five of them will be introduced in this article.
3.1.1. Traditional standard experimental method: plunge into experimental method. When the
thermocouple at a stable original temperature is plugged into different temperature field, a step
temperature will be generated. And at the same time continual response of thermocouple will be
recorded. Normally the temperature sensor being calibrated will be plug in thermostabilized cistern
or oil tank rapidly and result in a step temperature stimulant. By this way it can only produce less
step temperature, and it can’t satisfy the dynamic calibration on spot. To the temperature sensors with
little time constant, this method usually can't meet the requirement.
3.1.2. Transient electric heating method by using thermocouple. When the thermocouple at a stable
testing temperature is heated up by using electricity, the temperature of hot junction will increase
instantaneously because of the resistance of thermocouple itself. When the thermocouple is placed in
the testing airflow and the electric heating power is higher than the heat dissipation power, the
temperature of thermocouple will increase gradually until it’s higher than temperature of testing
airflow. Then shut off the power supply and place the thermocouple in the former testing airflow
again. In this way the input of thermocouple is a negative step signal, and the response of
thermocouple will be recorded at the same time [4].
This method can apply to calibration on measurement conditions, but also apply to measurement of
time constant of thermocouple which has little heat inertia. But this method is not appropriate to
single-shield temperature sensors because it can’t measure how the shield case affects the dynamic
characteristic of temperature sensors [5].
The Research of Dynamic Calibration for Temperature Sensors
7

3.1.3. Shock wave pipe method. Shock wave pipe is an experimental equipment which can produce
step pressure. Research on the characteristic of gas flow in the shock wave pipe indicated that there is
a temperature step platform behind the incident shock wave front. So shock wave pipe can be used in
the temperature calibration experiment. Time constant of temperature sensors can be attained by
recording the step response curve of testing sensors. This method is an attempt to dynamic calibration
experiment on thermocouple which has little time constant in recent years. But the problem of this
method is that temperature step platform only holds a short time, so it is not enough to make the
output response of temperature sensors stable and time constant can’t be attained either [6].
3.1.4. Laser method. In this method laser impulse is used as a dynamic stimulating signal and
generating instantaneous temperature increase when emitting to the surface of sensors. Once the laser
impulse is taken away, temperature sensors will produce negative temperature step in the stable gas
flow. In this way the delay time of generating temperature step is short and satisfying and all the
modalities of being calibrated system can be covered by frequency spectrum of stimulating signal.
But this method has the same defect as transient electric heating method [7].
3.1.5. Thermal wind tunnel method. In this method stable high-temperature gas stream which is
generated by both wind tunnel and heater will be blended with normal-temperature gas stream which
is generated by wind tunnel, and then place the sensor in the blended gas stream. Temperature step
signal will be generated by popping up a stream of gas suddenly through the ejection device.
This method generally satisfies performance requirement of some certain temperature sensors and
it has unique advantage that practical conditions of temperature sensors can be simulated on
experimental conditions.
3.2. The Device and method of wind tunnel calibration
3.2.1. Temperature sensor calibration device. The mainly calibration device include normal-
temperature calibration wind tunnel or high-temperature calibration wind tunnel, temperature step
signal system, reference temperature sensor, testing device, etc. Temperature step signal system
produce step temperature for the testing environment. High-temperature calibration wind tunnel can
generate a positive step temperature by using shielded ejection mechanism and cold gas stream.
Normal-temperature calibration wind tunnel can generate a negative step temperature by using
ejection mechanism and hot gas stream or laser device.

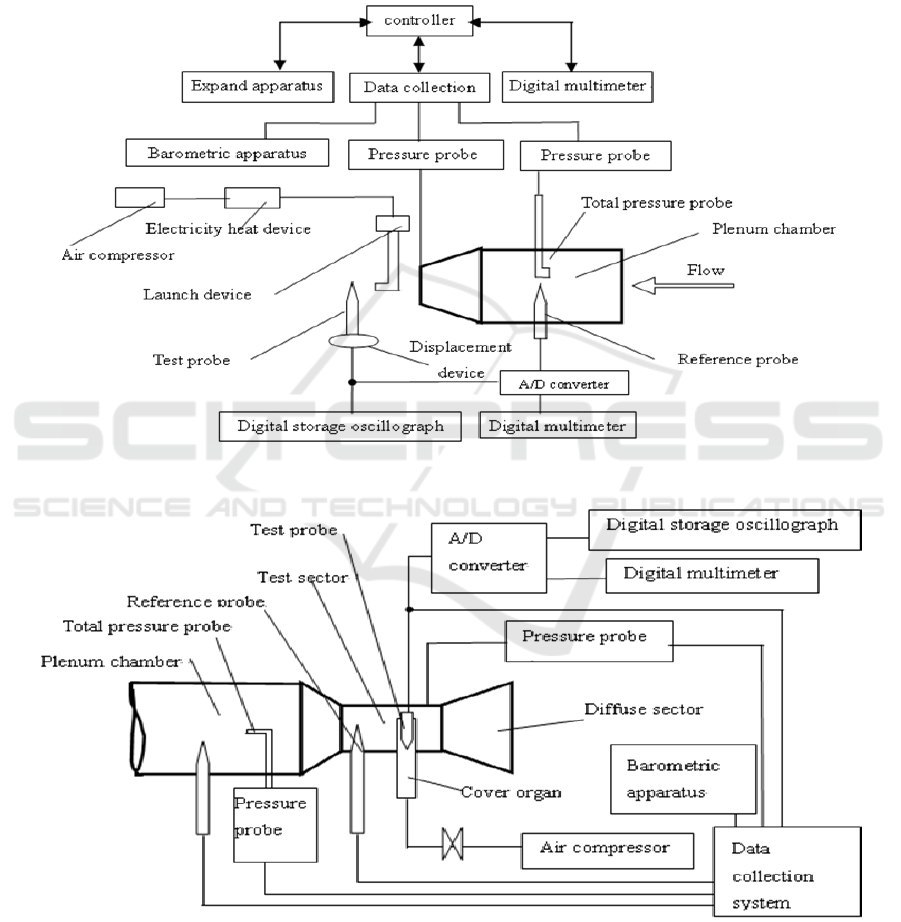

3.2.2. Method of calibration. Schematics of dynamic calibration of temperature sensors for normal-
temperature calibration wind tunnel and high-temperature calibration wind tunnel are shown as
Figure 1 and Figure 2. Normally calibration wind tunnel device simulates the working conditions of
temperature sensor and provide gas stream circumstance with stable and even flow field and
temperature field. And then extent of step can regulate to the required value when giving the
temperature sensor being calibrated a temperature step change. The total pressure and total
temperature and static pressure in the wind tunnel measured by the pressure sensor and reference
thermocouple, atmospheric pressure measured by mercury-free barometer will be transformed by the
912 module and collected by computer. Finally the gas stream Mach number and velocity of mass
stream can be calculated. The methods of generating temperature jump are mainly included method
of producing temperature step through laser device and method of changing environment temperature
of temperature sensor which is usually used. First, regulate the flow of cold gas stream and make the
temperature sensor being calibrated reach the temperature point before step temperature, then flick
away the cold gas stream by using ejection device and expose the sensor into hot stream. On these
conditions above, temperature positive step on measurement point will be formed. The voltage signal
of temperature sensor being calibrated will be recorded by digital storage oscilloscope after filtering
IWMCE 2018 - International Workshop on Materials, Chemistry and Engineering
8

by amplifier. The temperature step response curves of temperature sensor on the same experimental
conditions will be repeated three times. On the curves we can find the required thermal response time
and time constant by using direct graphic method. According to collected response curves (data), we
can also build appropriate mathematical models, fit the formula and calculate the time constant or
thermal response time.
Figure 1. Dynamic calibration frame of normal-temperature wind tunnel.
Figure 2. Dynamic calibration frame of high-temperature wind tunnel.
The Research of Dynamic Calibration for Temperature Sensors
9

3.2.3. Data processing of calibration. The calculation stream Mach number formula is:
1
0
2
1
1
s
p
M
p













(1)
Where κ means combustion gas, κ=1.33.
Velocity of mass stream G can be calculated as follows:
G M Ps
RT

  
(2)
In the formulas above, static temperature of gas stream can be calculated as follows:
0
2
273.15
1
1
2
t
T
M








(3)
Voltage-time response curves can be recorded by digital storage oscilloscope. On the curves we
can find the time constant τ
0.632
corresponding to the point of 63.2% step and this time constant can be
the time constant of the sensors [8].
3.3. Appraisal of dynamic characteristic calibration
There is not uniform standard to appraise the dynamic characteristic calibration of temperature
sensors at present. It is often evaluated from several aspects as follows.
3.3.1. Parameter of dynamic characteristic: time constant, transmission bands, working bands,
built-up time, etc. The time constant of temperature sensor can be detected easily and intuitively
because the sensor is often considered as first-order system. But the input signal can’t be regard as
step signal totally no matter how it is processed [9], so there must be some certain errors in the
dynamic characteristic.
3.3.2. Building the dynamic mathematic models. Spectral analysis can be conducted according to the
dynamic mathematic models of temperature sensors.
3.3.3. Examine the repeatability and linearity of dynamic characteristic of temperature sensors. The
repeatability and linearity are introduced because temperature sensor is not always in ideal condition.
Dynamic repeatability represents the precision of repeated dynamic calibration. Dynamic linearity
represents how the dynamic stimulation signal in whole range of temperature sensor affects dynamic
calibration.
3.3.4. Analysis of uncertainty. It is the basic requirement for measuring technique nowadays that
measuring result should be given in each measurement and analysis of uncertainty should be
conducted according to measuring result. If the time constant is the final result on dynamic
calibration, it can be analyzed according to ISO1993 (E) <Guide to the Uncertainty in Measurement>.
But in many conditions the processing of dynamic characteristic response function can’t be
conducted effectively.
According to the factual circumstances process analysis, it can consult the above methods to
appraise result of the dynamic calibration.
IWMCE 2018 - International Workshop on Materials, Chemistry and Engineering
10

4. Conclusions
In the research of dynamic calibration of temperature sensors, there is no definite conclusion about
many issues which should be discussed further in the studies later.
4.1. Appraise standard of stimulation signal (for example step signal)
It is impossible to attain the ideal step signal in any way in the dynamic calibration experiment. So it is
necessary to conduct more research on the relationship of requirement of stimulation signal and
temperature sensors being calibrated.
4.2. Appraise methods of dynamic calibration
In this paper the commonly used appraise methods about dynamic calibration are given. But these
methods place emphasis on different aspects. How to unify these methods or create a new and
comprehensive method is a problem that needs urgent resolution. This is the only way all sorts of
model sensors can be conveniently compared with.
The dynamic calibration of temperature sensors, including its conception, characteristic and
methods of data processing are discussed in this paper. Especially the research on methods of
dynamic calibration is conducted. Because the thermal wind tunnel method can generally satisfies
performance requirement of temperature sensors and simulate practical working status of temperature
sensors in specified experimental conditions, so it is the best method of temperature sensor
calibration at present.
References
[1] Xu K J 1999 Applied Research Method of Dynamic Characteristic of Sensors
[2] Zhao M, Chen X P, Wang Z and Yu R F 1999 The realization on the real-time self-calibration
and Self-compensation of Sensor Chinese Journal of Scientific Instrument 20(4) 432-434
[3] Zhang G J, Huang J Q, Li X S and Luo X H 1997 Dynamic repeat, liner degree and capability
improve of temperaturesensors Chinese Journal of Scientific Instrument 18(2) 119-124
[4] Glawe G E, Holanda R and Krause L N 1978 Recovery and radiation corrections and time
constants of several sizes of shielded and unshielded thermocouple probe for measuring gas
temperature NASA TP 1099
[5] Huang L 2007 Research on dynamic calibration technology of transient surface temperature
sensor
[6] Li Y 2012 The research of test technology about high temperature pressure sensor’s
characteristics
[7] Jia X W 2011 The research of optical dynamic calibration technology of temperature sensor
which is based on CO
2
laser and the reflective surface of off-axis parabolic
[8] Jian Z 2006 Stable & Dynamic characteristics of temperature sensors calibration experiment
report of 606 institute 10
[9] Liu D X 2001 Aeroengine Design Manual Intake and Exhaust Device Vol.7 Beijing: Aviation
Industry PressX
The Research of Dynamic Calibration for Temperature Sensors
11
