Comparison between Range-based and Prefix Dewey Encoding

Ebtesam Taktek, Dhavalkumar Thakker and Daniel Neagu

School of Electrical Engineering and Computer Science, Faculty of Engineering & Informatics,

University of Bradford, Bradford, U.K.

Keywords: XML Labelling, Range based Encoding, Prefix Encoding, XML Compression.

Abstract: XML is an increasingly important area in the field of data representation and communication over the web.

XML data labelling plays an important role in management of XML data since it allows locating the XML

content uniquely in order to improve the query performance. This paper focuses on two schemes for labelling

native XML databases where the data is represented as ordered XML trees and contain relationships between

nodes. We present a comparison between range-based and prefix encoding with focus on achieving labelling

time and memory size. In our proposed approach, we employ UTF-8, UTF-16, UTF-23 encoding and

decoding for both the labelling schemes.

1 INTRODUCTION

XML data has become one of the most important

issues in the field of databases. Existing research have

been conducted to improve the storing, retrieving and

querying of XML data (Tatarinov et al. 2002). The

main approaches for facilitating query processing

based on native XML databases are structural

indexing and labelling scheme. Labelling schemes

focuses on assigning a unique code to each node in

XML trees as an encoding for the documents to

reduces the query processing time (Subramaniam et

al. 2014; Zadjali and North 2016; Alsubai and North

2017). However, one of the criticism of most of the

encoding techniques is that they contain large label

size (Yu et al. 2005; Subramaniam and Haw 2014;

Liu and Zhang 2016).

There is no existing evaluation framework that

can be used by XML labelling schemes to provide a

comprehensive analysis of these two schemes

Our proposed technique compares Range-based

encoding and Prefix Dewey encoding in order to

achieve the fastest labelling time and to ensure the

generation of short labels in term of memory.

Therefore, we control the bits subsequent of the label

value using UTF-8, UTF-16 and UTF-23 in terms of

encoding/ decoding time.

The remaining sections of this paper is organized

as follows: Section 2 presents the existing related

work in this area while Section 3 describes the Dewey

encoding and the Range-based encoding methods. In

section 4 the experimental results and evaluation are

discussed while Section 5 concludes the paper and

recommends a future research direction.

2 RELATED WORK

There are different labelling schemes that have been

proposed for efficiently processing native XML

databases. This section reviews and address issues

related to different labelling schemes.

(Tatarinov et al. 2002) have proposed a method

called Local Order Encoding scheme, each node is

assigned an integer number, which represents its

relation position among its siblings. It is appropriate

to reconstruct document order. The advantage is that

it does not result in large label sizes and therefore

each label has a fixed length, which is one byte for

each node and uses UTF-8-character encoding

scheme. However, fixed length in labelling is leading

to overflow problems. Although, the local encoding

does not support all kinds of structural relationship

queries, such as to determine the relationship between

the following and preceding nodes. Another

advantage compared to other techniques is that, it has

a low relabelling, which allows the following siblings

of the new node to be relabelled.

In addition, (Tatarinov et al. 2002) have proposed

Dewey encoding scheme for labelling XML trees

based on Dewey decimal classification system, it is

one of the prefix labelling scheme. In this method,

364

Taktek, E., Thakker, D. and Neagu, D.

Comparison between Range-based and Preﬁx Dewey Encoding.

DOI: 10.5220/0007229003640368

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 364-368

ISBN: 978-989-758-324-7

each label is presented as an integer number and

delimiter “.”, the delimiter is encoded and stored

separately from the label value (Li et al. 2008). Each

node  is labelled as a combination of its parent

label and postfix integer number (



). If  is the





child of  in XML tree then label of , label () is

concatenation of label of  and  which is presented

as label







 , where  is the parent of . For example,

if element label for  is 2.5.3 then its 



child label

will be 2.5.3.4. If an element label is 5.1.3.1 then its

parent label is 5.1.3, its first ancestor label is 5.1. The

advantage of this method is that for any element label,

we can easily extract node labels of its ancestors and

determine the relationship between nodes. However,

the drawback of Dewey scheme is not appropriate for

dynamic XML data; inserting a new sibling node into

XML tree using Dewey labelling scheme requires

relabelling all its right sibling nodes along with their

descendants and this has produced a large label size

at the cost of extra storage.

(Xu et al. 2009) have proposed Dynamic Dewey

encoding scheme (DDE), which is an update of

Dewey encoding scheme to transform the original

Dewey into a fully dynamic labelling scheme. The

advantage of the DDE is that, the label has different

length; starting with a byte for the first level and

increases in depth in relation to the level value. So

that can be appropriate for avoiding overflow

problems. In addition, it has the ability to avoid re-

labelling completely and support high query

performance. The main drawback is that, a large label

size. Especially when the depth increases, and

frequent insertions occur between two siblings by

applying the midpoint technique.

(Kobayashi et al. 2005) have proposed VLEI

encoding scheme. VLEI scheme is applied to XML

labeling. The data type is binary string. The VLEI

encoding has used number 9 for the identifier. For

example, when a child node is inserted, the label for

the node becomes the label of its parent node + 9 +

VLEI code. However, VLEI encoding used eight

bytes for the VLEI code. The VLEI main drawback is

that lead to overflow problem especially with skewed

insertion.  is the new VLEI sequence code.

  



If   



     



For example,

          

     

The authors in (Zhang et al. 2001) used Range

based labelling scheme which aims to determine the

structural relationships between nodes by using the

related containment information. Each label is

represented as a 3-tuple and has fixed-length. Interval

scheme does not result in large label sizes but lead to

overflow problems. start, end and depth are to

identify exactly the position of an element. start is

generated by a pre-order traversal of the document

trees exactly finds the occurrence position. While end

is the maximal start of elements in the sub-tree of

current element and depth gives additional informa-

tion to determine the parent-child relationship.

In summary, following from the related work,

the main drawback we have identified in the existing

labelling schemes is the growth of the label sizes in

response to that we present a comparison between

two schemes with focus on achieving labelling time

and memory size. Our work compares Range-based

encoding and Dewey encoding to ensure the

generation of short labels size and to control the bits

subsequent of the label value using UTF-8, UTF-16,

UTF-23 in terms of encoding or decoding time and to

achieve the fastest labelling time, ultimately

impacting the query performance.

3 COMPARISONS BETWEEN

DEWEY ENCODING AND THE

RANGE-BASED ENCODING

SCHEMES

In the Dynamic Dewey encoding scheme, each label

has a different length; starting with a byte for the first

level and it increases in relation to the level value. The

length of labels can vary widely depending on the

nodes position within the XML tree. However, prefix

labels naturally extend when XML data is updated

during frequent insertions, causing overflow

problems. However, in the Local Order Encoding

scheme, each node is assigned an integer number and

each label has a fixed length label; which is one byte

for each node and used UTF-8-character encoding

(Yergeau 2003). Furthermore, in Dewey encoding,

each label presented as combination of its parent label

and postfix integer number by delimiter “.”, the

delimiter is encoded and stored separately from the

label value (Li et al. 2008).

In contrast, in Range based labelling scheme,

each label presented as combination of the start, end,

depth values using “,” as a delimiter. Furthermore, in

Quaternary encoding QED (Li and Ling 2005) and

SCOOTER encoding (O’Connor and Roantree 2012)

Comparison between Range-based and Preﬁx Dewey Encoding

365

proposed different delimiter storage scheme; they

used number “0” as delimiters and consequently,

these schemes increase the decoding time because of

the extra comparison operation to identify the 0

whether a bit or a delimiter.

In our proposed approach, we employed UTF-8,

UTF-16, UTF-23 encoding and decoding (Yergeau

2003) for both Range based scheme and Dewey

labelling scheme. We have done this to encode the

bits subsequent of the label value and then to aid the

generation of short label size to achieve the fastest

labelling time.

4 EXPERIMENTAL WORK AND

RESULTS

All experiments were run on an intel Core i7

processor with 8GB of main memory and 64-bit

Operating System, running Windows 10 system. We

run Range-based algorithm and Dewey labelling

algorithm in Java IDE 8.2. We used UTF-8, UTF-16,

UTF-23 to control the bits subsequent of the label

value and to specify the position of a label value

within a specific-level interval, the experiments

evaluated the scheme’s performance in terms of the

label size.

We carried out the experimental process on

different datasets (Miklau 2015). The XML datasets

represent various features of XML trees such as

number of nodes, file sizes, maximum depth, the

degree of fan-out. The real datasets we have used are

DBLP, TreeBank and Nasa. Table1 below gives the

properties of these datasets and summarises their

characteristics.

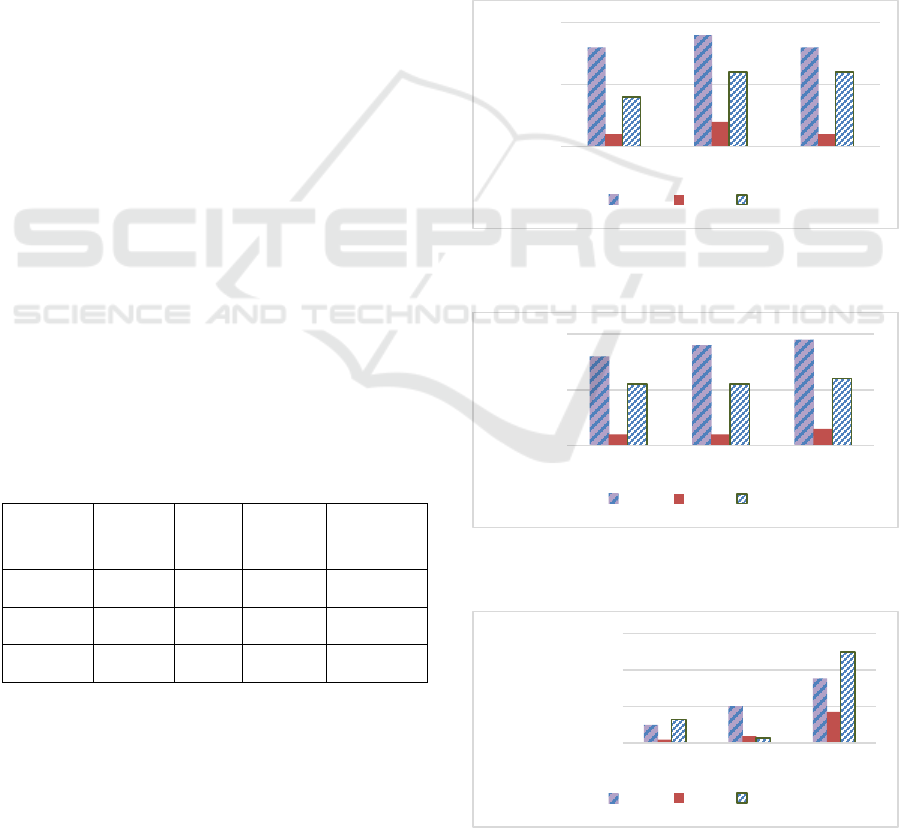

Table 1: Benchmarks datasets.

XML

dataset

File

size

Max

depth

Max

breadth

Number of

nodes

TreeBank

82 MB

144493

2437666

DBLP

127 MB

328858

3332130

Nass

23 MB

80396

476646

4.1 Experimental Evaluation

The label initialisation experiment for both Dewey

labelling and Range-based were implemented

successfully. As the focus here is the comparative of

fastest labelling initial time and generation of short

labels in term of memory. The outcome of this

experiment was also aimed to compare the labelling

size based on UTF-8, UTF-16 and UTF-23. This

experiment was intended to evaluate the Dewey

labelling against Range-based schemes, the results

showed that the experiment met its objective.

This experiment examined two parameters: initial

labelling time and the total label size. The statistical

analysis of the results in figure 1,2 and 5 presented

that there was a significance difference between the

two schemes. Dewey generated initial labels faster

than Range-based scheme see. In addition, when the

schemes were applied to a large XML dataset of size

127MB, the performance between the schemes were

significant, by up to 50%.

Dewey labels

Figure 1: Initial labelling time for Dewey labelling scheme.

Range-based labels

Figure 2: Initial labelling time for Range-based scheme.

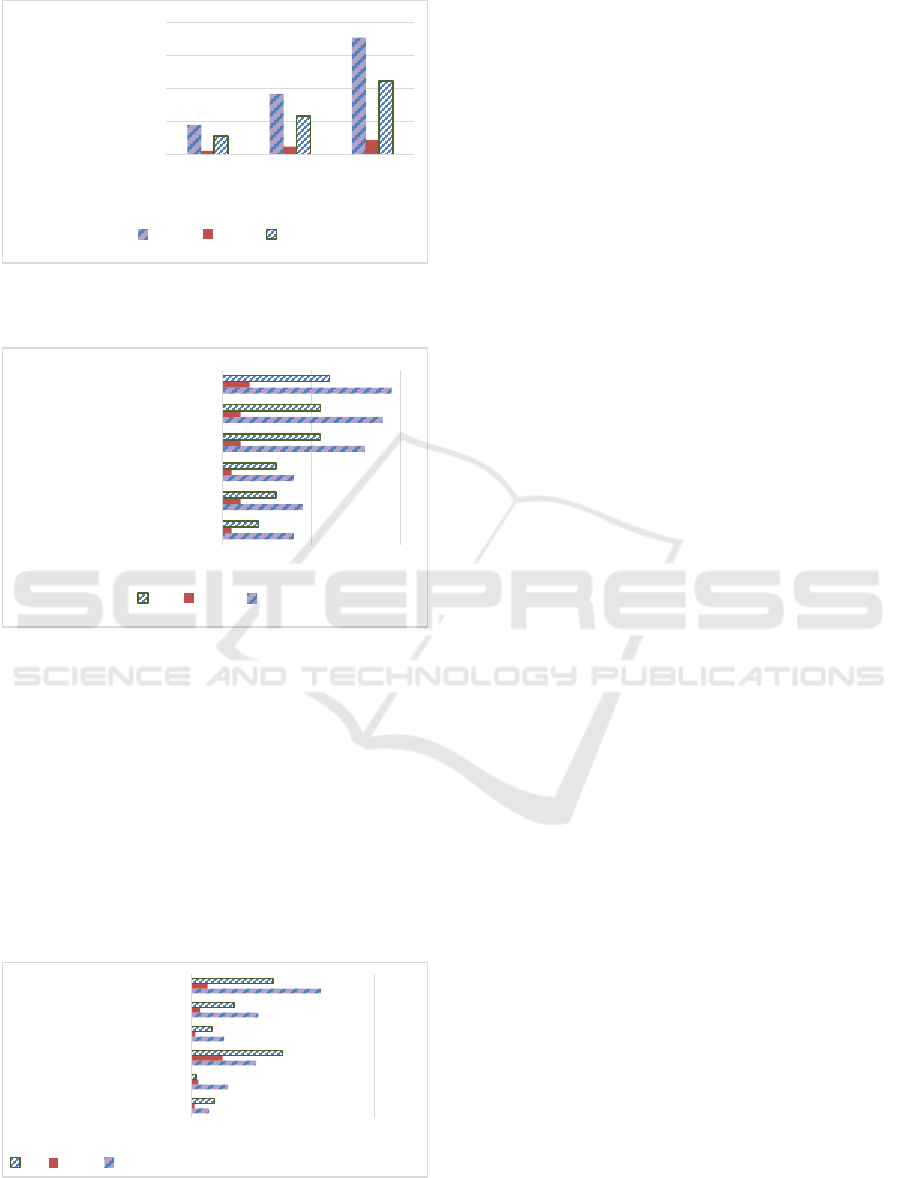

Dewey labels (Total label Size)

Figure 3: Total label Size (KB) for Dewey labels.

UTF-8 UTF-16 UTF32

Initial Time in Second

DBLP Nasa TB

UTF-8 UTF-16 UTF-32

Initial Time in Second

DBLP Nasa TB

100000000

200000000

300000000

UTF-8 UTF-16 UTF-32

Total label size(KB)

DBLP Nasa TB

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

366

Range-based labels (Total label Size)

Figure 4: Total label Size (KB) for Range-based scheme.

Dewey labelling and Range-based schemes

Figure 5: Initial labelling time for Dewey labelling and

Range-based schemes.

In terms of controlling the bits subsequent of the

label value using UTF-8, UTF-16 and UTF-23, The

significance of the two schemes were justified in

figure 3, 4 and 6. The overall label size for Dewey has

a smaller label value in comparison to the Range

based coding methods, except the in UTF-32 test, it

has shown that Range-based scheme was performed

better than Dewey scheme in Nasa and TreeBank

datasets.

Dewey labelling and Range-based schemes.

Figure 6: Total label Size (KB) for Dewey labelling and

Range-based schemes.

5 CONCLUSION

This paper compares two XML labelling schemes,

namely Range-based encoding and prefix encoding.

The work was aimed to achieve the fastest labelling

time and to ensure the generation of short labels in

term of memory size and also to control the bits

subsequent of the label value using UTF-8, UTF-16

and UTF-23 in terms of encoding/ decoding time.

The overall label size for Dewey has a smaller label

value in comparison to the Range based coding

methods, except the in UTF-32 test, it has shown

that Range-based scheme was performed better than

Dewey scheme in Nasa and TreeBank datasets. In

addition, when the schemes were applied to a large

XML dataset of size 127MB, the performance

between the schemes were significant, by up to 50%.

In the future, we will generate an improved labelling

scheme using an advance technique in comparison

to the existing approaches. We will also apply other

advanced encoding/decoding methods such as Elias-

Fabonacci code to compare the performance of

Range-based encoding and prefix encoding schemes

in order to achieve the fastest labelling initial time

and to ensure the generation of short labels in term

of memory size.

ACKNOWLEDGEMENT

The authors would like to thank the anonymous

reviewers for their helpful reviews in improving the

quality of the paper.

REFERENCES

Alsubai, S. and North, S. D. (2017) A prime number

approach to matching an XML twig pattern including

parent-child edges. 2017. SCITEPRESS.

Kobayashi, K., Liang, W., Kobayashi, D., Watanabe,

A. and Yokota, H. (2005) VLEI code: An efficient

labeling method for handling XML documents in an

RDB. 2005. IEEE.

Li, C. and Ling, T. W. (2005) QED: a novel quaternary

encoding to completely avoid re-labeling in XML

updates. 2005. ACM.

Li, C., Ling, T. W. and Hu, M. (2008) Efficient updates in

dynamic XML data: from binary string to quaternary

string. The VLDB Journal—The International Journal

on Very Large Data Bases 17 (3), 573-601.

Liu, J. and Zhang, X. X. (2016) Dynamic labeling scheme

for XML updates. Knowledge-Based Systems 106, 135-

149.

100000000

200000000

300000000

400000000

UTF-8 UTF-16 UTF-32

Total label size(KB)

Axis Title

DBLP Nasa TB

0 10 20

UTF-8 Dewey

UTF-16 Dewey

UTF32 Dewey

UTF-8 Range-based

UTF-16 Range-based

UTF32 Range-based

Initial

Time in Second

TB Nasa DBLP

0 500000000

UTF-8 Dewey

UTF-16 Dewey

UTF32 Dewey

UTF-8 Range-based

UTF-16 Range-based

UTF32 Range-based

Total label size(KB)

TB Nasa DBLP

Comparison between Range-based and Preﬁx Dewey Encoding

367

Miklau, G. (2015) Xml Data Repository. http://www.

cs.washington.edu/research/xmldatasets/ [Online].

[Accessed August 2018].

O’Connor, M. F. and Roantree, M. (2012) SCOOTER: a

compact and scalable dynamic labeling scheme for

XML updates. 2012. Springer.

Subramaniam, S. and Haw, S.-C. (2014) ME labeling: A

robust hybrid scheme for dynamic update in XML

databases. 2014. IEEE.

Subramaniam, S., Haw, S.-C. and Soon, L.-K. (2014)

Relab: a subtree based labeling scheme for efficient

XML query processing. 2014. IEEE.

Tatarinov, I., Viglas, S. D., Beyer, K., Shanmugasundaram,

J., Shekita, E. and Zhang, C. (2002) Storing and

querying ordered XML using a relational database

system. 2002. ACM.

Xu, L., Ling, T. W., Wu, H. and Bao, Z. (2009) DDE: from

dewey to a fully dynamic XML labeling scheme. 2009.

ACM.

Yergeau, F. (2003) UTF-8, a transformation format of ISO

10646. 2070-1721.

Yu, J. X., Luo, D., Meng, X. and Lu, H. (2005)

Dynamically updating XML data: numbering scheme

revisited. World Wide Web 8 (1), 5-26.

Zadjali, H. and North, S. D. (2016) XML Labels

Compression using Prefix-encodings. 2016.

SCITEPRESS, Science and Technology Publications.

Zhang, C., Naughton, J., DeWitt, D., Luo, Q. and Lohman,

G. (2001) On supporting containment queries in

relational database management systems. 2001. Vol. 30.

ACM.

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

368
