Best Practice-based Evaluation of Software Engineering Tool Support:

Collaborative Tool Support for Design, Data Modeling, Speciﬁcation,

and Automated Testing of Service Interfaces

Fabian Ohler

and Karl-Heinz Krempels

1,2

Fraunhofer Institute for Applied Information Technology FIT, Aachen, Germany

Information Systems, RWTH Aachen University, Aachen, Germany

Keywords:

Software Engineering Collaboration, Service Interface Speciﬁcation, Service Interface Interaction Design,

Tool Support Evaluation, Software Engineering Tool Support.

Abstract:

Especially in complex software development projects, involving various actors and interaction interdependen-

cies, the design of service interfaces is crucially important. In this work, a structured approach to support the

design, speciﬁcation and documentation of service interface standards is presented. To do so, we refer to a

complex use case, dealing with the integration of multiple mobility services on a single platform. This ende-

avor requires the development of a large number of independently usable service interface standards which

adhere to a multitude of quality aspects. A structured approach is required to speed up and simplify deve-

lopment and also to enable synergies between these service interfaces. In a previous work, we performed a

requirements analysis to identify important aspects and shortcomings of the current development process and

to elicit potential improvements. Starting with a ﬁrst implementation of collaborative tool support for ser-

vice interface development, we conducted a best practice-based evaluation with experts of the Association of

German Transport Companies (VDV). In this paper, we want to present the results of this focus group-based

evaluation and discuss their implications for the envisaged tool support for collaborative service interface

development (design, data modeling, speciﬁcation, and automated testing).

1 INTRODUCTION

Software engineering projects involve highly coope-

rative tasks during every project phase (Kusumasari

et al., 2011; Inayat et al., 2017). Over the years, a

lot of approaches have surfaced to support these tasks

in different ways ranging from traceability over awa-

reness to assistance during merges of parallel work

(Whitehead, 2007). A general trend can be obser-

ved, pushing a lot of applications towards support

for cooperation (Dalmau et al., 2000). This implica-

tes additional conceptual challenges to guarantee that

user expectations regarding usability of the software

are met (Garrido et al., 2000).

An intermodal personal mobility platform allows

travelers to query, book, use and pay any combina-

tion of mobility services (Beutel et al., 2016; Beutel

et al., 2018). This might include, but is not limited to

public transportation, vehicle rental services, vehicles

sharing services, parking, charging (of electric vehi-

cles), ride sharing, etc. To simplify taking part on

such a platform and foster innovation, open and stan-

dardized access is required (Beutel et al., 2014). This

can be achieved by supplying formal and comprehen-

sive design documents, speciﬁcations and documen-

tation for the respective service interfaces and appli-

cation program interfaces (APIs). As a large number

of such artifacts is required, we ought to simplify and

speed up the creation process by providing integra-

ted support to all involved stakeholders. As a ﬁrst

step, interviews with domain experts to understand

the current process for developing service interfaces,

e.g., which phases it is composed of, which tools are

used and so on, have been conducted. Furthermore,

we identiﬁed both beneﬁts and shortcomings to elicit

potential areas of improvement. These ﬁndings were

discussed in (Ohler et al., 2018).

On the basis of these insights, we are developing

an information system that supports service interface

development with respect to design, data modeling,

speciﬁcation, and automated testing. It focuses on

intensiﬁed collaboration and promotes a stronger in-

tegration to avoid diverging artifacts. Furthermore

we aim at implementing features missing in available

348

Ohler, F. and Krempels, K-H.

Best Practice-based Evaluation of Software Engineering Tool Support: Collaborative Tool Support for Design, Data Modeling, Speciﬁcation, and Automated Testing of Service Interfaces.

DOI: 10.5220/0007227903480355

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 348-355

ISBN: 978-989-758-324-7

tools that were identiﬁed as relevant in this context.

Starting with a ﬁrst implementation of the develo-

ped tool support based on the identiﬁed requirements,

we conducted a best practice-based evaluation with

experts of the Association of German Transport Com-

panies (VDV). In this paper, we want to present the

results of this focus group-based evaluation and dis-

cuss their implications for the envisaged tool support

for collaborative service interface development.

A short overview over the requirements analysis

proposed in (Ohler et al., 2018) is given in Section 2.

For these requirements, we developed a prototype,

whose implementation is discussed in Section 3. In

this paper, we discuss the best practice-based evalu-

ation of the usability, feature coverage and ﬁtness of

our approach. We introduce the evaluation method in

Section 4 and present the results in Section 5. In clo-

sing, we then conclude with a discussion in Section 6

and an outlook in Section 7.

2 REQUIREMENTS FOR TOOL

SUPPORT FOR SERVICE

INTERFACE DEVELOPMENT

The traditional service interface development process

leads to the highest rated problem constituting the se-

paration of service interface speciﬁcation, data mo-

dels and test tools as identiﬁed by (Ohler et al., 2018).

Additional problems with high impact include the

lacking central availability of latest versions of the ar-

tifacts and problems while merging documents after

parallel work.

Thus, the core derived requirements comprise the

following two:

1. integrated tool support covering all aspects that

were previously scattered over different tools

2. support for cooperative and parallel editing

These requirements also promise to have the hig-

hest impact on the architecture of the tool and promise

the largest improvements for users of the tool. Many

further requirements were identiﬁed concerning spe-

ciﬁcation and documentation functionalities, support

for artifacts of all project phases, etc. For an early

evaluation, we decided to focus on the protocol de-

sign phase that includes the actual data type speciﬁ-

cation and documentation. Therefore, additional re-

quirements were included:

• support for XML / XML Schema for the data type

speciﬁcation

• export functionality to docx format corresponding

to VDV formatting styles

Web-based App

Application Service Engine

Synchronization

Backend

User

Management

Template

Management

docx / PDF

Generator

Database

Web-based App

Synchronization

Client

Application

Runtime

Static Content

Provider

Authentication

Provider

Figure 1: System architecture diagram of the web-based in-

formation system providing tool support for service inter-

face development.

• multilingualism

• commenting of elements

• support for rich-text content editing

Another important requirement we are not yet im-

plemented, but considered in the system architecture

design approach, is the aspect of supporting testing

through automation based on the information speci-

ﬁed using the tool.

3 IMPLEMENTATION

The evaluated application is a web application that

runs in the browser. The server hosting the website

also offers a service to synchronize the data between

the clients using Yjs

and a service to generate docx

and PDF documents. The generated documents con-

tain the entire documentation of the service interface

development project and the given data type deﬁniti-

ons rendered as tables. A sketch of the system archi-

tecture is shown in Figure 1 and a screenshot of the

user interface is shown in Figure 2.

The application aims to integrate all aspects of

a service interface documentation and speciﬁcation

in one model and generate the artifacts needed ba-

sed on this information. At the time of the evalu-

ation, it supports the documentation and speciﬁca-

tion of data types, functions, services and additio-

nal project documentation. Data types can be spe-

ciﬁed and documented using the XML Schema Lan-

guage. Data types, functions and services can be do-

cumented and further chapters of the project docu-

mentation can be written using rich text (based on

Quill

) in multiple languages. Additionally, functi-

ons can be grouped into services and their interaction

(request and response) messages (deﬁned in the XML

http://y-js.org

https://quilljs.com

Best Practice-based Evaluation of Software Engineering Tool Support: Collaborative Tool Support for Design, Data Modeling,

Speciﬁcation, and Automated Testing of Service Interfaces

349

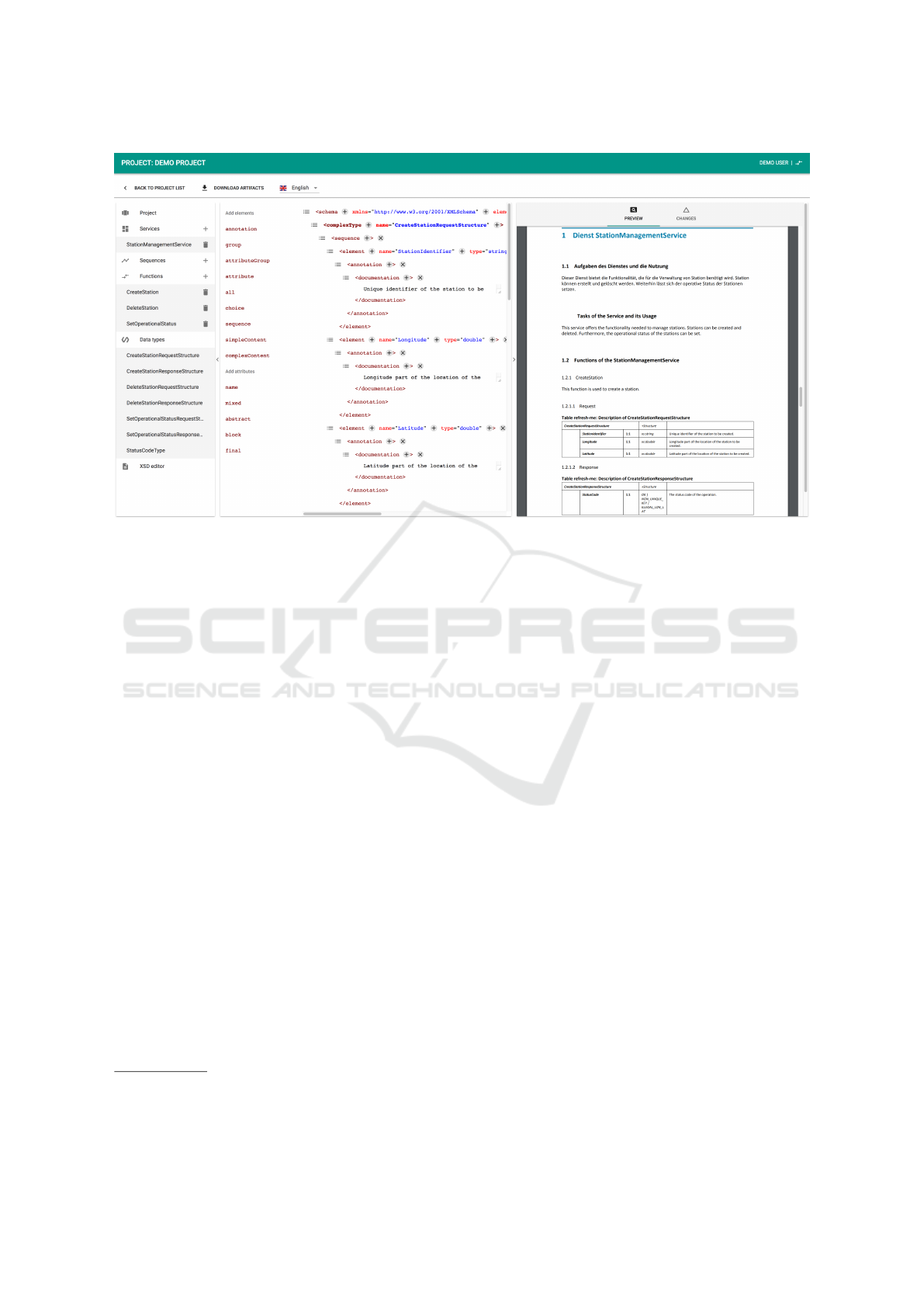

Figure 2: Screenshot of the user interface of the evaluated tool showing a simple demonstration project.

Schema part) can be linked. All these concepts (in-

cluding the comments themselves) can be annotated

with comments. Every aspect can be edited collabo-

ratively in near real-time

. The service interface do-

cumented and speciﬁed this way can be exported to a

docx document formatted according to the rules of the

Association of German Transport Companies (VDV).

This layout template is structured as follows: It starts

with introduction chapters describing the goal and in-

volved entities. Subsequently, possible common data

types and the services are described in separate chap-

ters. Each of the service chapters contains the corre-

sponding functions, which in turn contain their cor-

responding data type. However, the layout template

can be replaced to match the speciﬁcations of other

standard setting bodies or the like. The user interface

offers a preview functionality showing a PDF export

of the same document (with some shortcomings). The

XML Schema deﬁned using the tool can also be do-

wnloaded.

Aside from UML modeling aspects and further re-

quirements engineering artifacts, the application thus

presents at least partial solutions for the core require-

ments derived in (Ohler et al., 2018).

There are no timing guarantees, since messages are sent

through the Internet and the systems involved are not assu-

med to run real-time operating systems.

4 FOCUS GROUP

An increasingly popular method to gather qualitative

feedback is to host one or more focus groups (Green-

baum, 1999). A focus group comprises a small group,

often between 6 and 12 people (Longhurst, 2016),

hosted by a trained moderator. It is often advisable

to include exercises (Colucci, 2007) as proper way to

approach the participants and to steer the focus on the

target area.

“Focus groups are useful when it comes to in-

vestigating what participants think, but they

excel at uncovering why participants think as

they do.” (Morgan, 1996)

Since we are gathering feedback at an early stage and

the software is still in an experimental state, we want

to make sure, that we are able to dig deeper in case

of unclear answers so that we can draw the right con-

clusions from the feedback. Thus, we deem the focus

group method as appropriate to gather feedback in our

current situation.

The applied methodology is now shortly descri-

bed. The focus group was conducted with seven pro-

ject members of an ongoing research project in the

context of information systems for public transporta-

tion. Six of them were male, one of them female.

The test persons were experienced in the context of

service interface development and public transporta-

tion; many of them had more than ten years of ex-

perience in this area. The focus group was led by a

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

350

moderator and written notes were taken by a separate

transcript writer. Additionally, the focus group was

recorded on audiotape. It was held in a closed room of

a university building and all participants were on site.

The event took 110 minutes, starting with a 20 mi-

nute introduction, followed by 25 minutes of hands-

on exercises, and concluded by a 65 minute group dis-

cussion. The introduction presented the methodology

and goal of the focus group and demonstrated how to

use the application described above. At its end, exe-

rcises were given to the test persons that were to be

solved using the application. The test persons 5, 6

and 7 decided to work in a group using only one com-

puter, the others worked by themselves. Thus, ﬁve

different exercises were worked on.

For all exercises, a new function was to be added

to an existing service. For this new function, the cor-

responding data types were to be speciﬁed. At least

one of the concepts should be documented (multilin-

gually, if applicable). The results were to be contained

in the generated document at the correct position.

The expected tasks involved in dealing with such

an exercise were the following:

• Users had to create the function and assign it to

the correct service.

• They had to create the data types for the request

and the response of the function they were crea-

ting and link them with the function.

• For that, they had to deﬁne the data types using

the XML Schema editor.

• They were free to choose whether to document

data types within the XML Schema editor (in

plain text) or to document their function or ser-

vice using rich text.

• In case they did not link their function to a service,

it would not appear in the generated document.

• Failing to use the data types for the function re-

quest or response element would lead to the deﬁ-

ned data types being listed in the “common data

types” section of the generated document.

• They therefore had to check that their work actu-

ally appeared in the document as expected.

During the hands-on exercise the moderator assis-

ted the test persons in case of questions or problems.

All test persons succeeded in completing their tasks.

The subsequent group discussion was structured al-

ong the requirements tackled and an additional part

for further feedback. This is also reﬂected in the struc-

ture of the section below.

5 RESULTS

The presentation of results in the context of qualita-

tive content analysis includes categorization of the re-

sults (Mayring, 2014). These are given together with

an overview over the feedback in Table 1. The citati-

ons given below were translated retrospectively.

5.1 Integrated Tool Support

Usability Rating. The usability was rated as intui-

tive.

The way we structured the information (into ser-

vices, functions, data types) was deemed challen-

ging by some test persons. The information about

a service, its functions and their data types should

be represented more closely together. It was seen

as a new kind of information fragmentation – ex-

actly the problem we were trying to solve – in the

eyes of some test persons.

Feature Coverage. Test persons wanted to be able to

navigate between interconnected aspects more ea-

sily, e.g., from a function to its request data type

deﬁnition.

Approach Fitness. The approach towards the inte-

gration of aspects that were previously scattered

over several tools was found to be suitable.

5.2 Collaboration

Usability Rating. Some test persons had problems

ﬁnding their currently relevant aspects in the gro-

wing lists of functions, XML elements etc.

The visible portion of the project scrolled away

in case someone else inserted content further up,

which disrupted the interactions.

New content was always appended at the end of

lists hindering information locality of related con-

cepts.

For newly created functions, their ownership was

unclear, since they were all named “new function”

until users renamed them.

Feature Coverage. The test persons wanted to be

able to manually set the focus to the concepts they

were about to work on, e.g., by ﬁltering or collaps-

ing unrelated concepts.

Approach Fitness. Overall, the group agreed that

the way we tackled the collaboration ﬁts the needs

and is superior to using git

(or similar tools) as a

foundation.

https://git-scm.com

Best Practice-based Evaluation of Software Engineering Tool Support: Collaborative Tool Support for Design, Data Modeling,

Speciﬁcation, and Automated Testing of Service Interfaces

351

Table 1: Feedback Overview.

Usability Rating Functional Coverage Fitness of Approach

Tool Integration + + ++

Collaboration − + ++

XML Schema Support −− −− +

Docx Export ++ ++ ++

Multilingual Support + ++ ++

Comments + + +

Rich-Text Editing ++ ++ ++

++ very positive, + rather positive, − rather negative, −− very negative

“I consider the problems to be marginal com-

pared to the time and effort necessary to merge

two different versions.” (Test Person 4)

“I regard the beneﬁts of collaborating in near

real-time as more important for the practical

use cases than the disadvantages that might

occur when two people actually work toget-

her in an unsynchronized way.” (Test Person

5.3 XML Schema Support

Usability Rating. Test persons, who usually use

graphical notations of XML Schema, were not

sufﬁciently familiar with the actual syntax and

found the list of suggestions as not ﬁtting for

them.

The part of the suggestion list containing attribu-

tes was not recognized by all test persons.

Some test persons did not ﬁgure out how to delete

attributes.

Feature Coverage. Some of the test persons asked

for graphical editing of XML Schema documents

(as possible e.g. in Altova XMLSpy

Furthermore, validation of the XML Schema ﬁle

was requested.

Some test persons wanted for a mechanism to pre-

vent the accidental deletion of a node including its

children, such as a conﬁrmation dialog.

Moreover, test persons were missing auto-

completion features, e.g., when specifying the

type of an element.

The group requested the possibility to import

XML Schema ﬁles edited with external tools into

the XML Schema editor to overcome the afore-

mentioned problems.

Some test persons asked for a way to spread the

data types deﬁnitions over several XML Schema

ﬁles to increase lucidity.

Additionally, the possibility of including or im-

https://www.altova.com/xmlspy-xml-editor

porting XML Schema documents from other pro-

jects was seen as important.

A further request was made for an experimenta-

tion feature, that lets you revert your changes in

case the experiment goes wrong while respecting

changes from other users.

Approach Fitness. Our support for the creation and

editing of XML Schema documents was not re-

garded as sufﬁcient in its current state.

5.4 Docx Export

Usability Rating. No problems were mentioned re-

garding the usability.

Feature Coverage. The automatic generation of

cross references was seen as “incredible help”

(Test Person 3) and as a “huge step forward” (Test

Person 3).

Some test persons wanted to be able to reconstruct

which parts of the document were changed after

downloading it from the tool.

Approach Fitness. The generated docx document

containing the documentation and the deﬁnitions

modeled using the tool was rated positively.

5.5 Multilingual Support

Usability Rating. It was not made sufﬁciently clear

to the test persons, that the layout template of the

target standard setting body (VDV) only included

the English documentation on function and data

type level, while including the German and the

English documentation on project and service le-

vel.

Feature Coverage. Test persons asked to prevent the

user from writing text that will not get included in

the generated document.

After an explicit inquiry by the moderator, the

group found that allowing a side-by-side editing

of texts in two different languages would be supe-

rior compared to the current way, where the user

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

352

only sees the text in one language and changes the

language using a ﬂag icon.

Approach Fitness. Despite the mentioned issues,

the approach was rated positively.

5.6 Comments

Usability Rating. Some test persons expected to

have their comments appear in the generated do-

cument, which was not the case (no request was

made to change this behavior).

The fact that comments have to be submitted ex-

plicitly was perceived as a break in the usage pat-

tern compared to the rest of the tool.

Feature Coverage. The test persons requested that

there should be a hint elaborating that comments

have to be submitted explicitly.

It should easily be visible whether there are (new

or any at all) comments for project elements.

Additionally, it was suggested that one should be

able to classify a comment as a bug, problem,

praise, information, et cetera.

Approach Fitness. The approach was well received.

5.7 Rich-Text Editing

Usability Rating. No problems were mentioned re-

garding the usability.

Feature Coverage. Some test persons asked for a

mechanism to prevent accidental changes to texts

written by other people.

Approach Fitness. The approach was well received.

5.8 General Feedback

Usability Rating. The PDF preview windows refres-

hed and scrolled to the beginning too often.

Test persons had to search for their own content

and thus couldn’t beneﬁt from it.

Feature Coverage. It was requested that the PDF

preview should jump to the position that the user

just edited.

Furthermore, there should be a mode switch be-

tween continuously refreshing and manually re-

freshing the PDF preview.

Test persons asked for the integration of a chat fe-

ature.

Employing the usability problem metrics and the

rating scale from (Nielsen, 1993), Table 2 gives an

overview over the identiﬁed usability problems and

their severity.

Table 2: Overview over the usability problems and their se-

verity rating.

Usability Problem Severity

Integrated Tool Support

Information fragmentation 3

Collaboration

Finding relevant parts 2

Scrolling away 3

“New function” ownership 1

XML Schema Support

Insufﬁciency of suggestion list for

users accustomed to graphical notation

“Add attributes” not found 2

Could not delete attributes 4

Multilingual Support

Template speciﬁcs 2

Comments

Comments do not appear in document 1

Comments have to be submitted 2

General Feedback

PDF preview refreshes too often 1

PDF preview does not scroll to change 1

Rating scale taken from (Nielsen, 1993):

0 I don’t agree that this is a usability problem at all

1 Cosmetic problem only: need not be ﬁxed unless extra

time is available on project

2 Minor usability problem: ﬁxing this should be given

low priority

3 Major usability problem: important to ﬁx, so should be

given high priority

4 Usability catastrophe: imperative to ﬁx this before pro-

duct can be released

6 DISCUSSION

The test persons discovered a lot of relevant issues

and asked for reasonable additional features, especi-

ally in the context of XML Schema support. One

problematic request was to be able to edit the XML

Schema with external tools and then merge the results

back into the tool. This was mentioned for two re-

asons: Firstly, as a short term solution to overcome

the other missing features of the tool. Secondly, to

be able to do experiments and import the changes in

case of success or discard otherwise (reverting the in-

formation in the tool would possibly also revert chan-

ges made by others concurrently). We consider this to

be problematic, since the tool would lose a large part

of its cooperative aspect. The visibility and accessibi-

lity of current versions of the artifacts would then be

Best Practice-based Evaluation of Software Engineering Tool Support: Collaborative Tool Support for Design, Data Modeling,

Speciﬁcation, and Automated Testing of Service Interfaces

353

dependent on the discipline of the editing person. Du-

ring the group discussion, this was already considered

to be a double-edged sword:

“How to offer the beneﬁts [of being able to

modify project parts externally] without ope-

ning the ﬂoodgates to abuse, I don’t know. I

think, at this point we are on the horns of di-

lemma.” (Test Person 3)

It could, however, be possible to implement the expe-

rimentation feature inside the tool, such that one can

do experiments and, in case of failure, discard own

changes up to a speciﬁc point without interfering with

foreign changes. Yet, this approach would reach its

limits as soon as another user either explicitly built

upon one’s changes or implicitly relied on an artifact

in its changed state.

Looking at the feedback for the XML Schema

support, the negative scores in Table 1 are compre-

hensible. However, the test persons did not mention

that a lot of problems were implicitly prevented by

the DOM-based approach that is compatible with the

cooperative near real-time editing aspect. One impor-

tant beneﬁt of this approach is that the content of the

XML Schema editor contains a valid XML document

at all times preventing, e.g., that there are opening

tags without their closing counter part or only parti-

ally written tags such as “<element” missing the trai-

ling “>”. This way, it is much easier to parse the do-

cument and, e.g., present users a list of elements de-

ﬁned in the XML Schema editor especially in case of

parallel work. The interactions with the editor more

easily produce meaningful deltas (e.g., node added)

than in the situation of a text editor with XML con-

tent, where deltas would be character insertions or de-

letions. This promises to have beneﬁcial effects on the

synchronization layer. Additionally, combining this

approach with a graphical editing mode seems techni-

cally feasible. Thus, we consider the approach valid

even though there still is a lot of work to do.

To ease the new information fragmentation pro-

blem we will try to let the users determine the struc-

ture of the result document by mirroring it in the pro-

ject structure and thus make it easier for users to see

the connections between services, functions and data

types.

7 CONCLUSIONS, CURRENT

WORK AND OUTLOOK

We presented the results of a focus group evaluating

a ﬁrst implementation of integrated tool support for

service interface development projects. This evalua-

tion is part of a development project towards a stron-

ger integration and intensiﬁed collaborative tool sup-

port for the design, data modeling, speciﬁcation, and

automated testing of service interfaces. The overall

feedback, especially concerning the chosen approach,

was very positive. This is also reﬂected in the fact that

we are already getting inquiries from project partners,

VDV working groups and others showing interest in

using the tool. Thus, we are currently remediating

the issues identiﬁed, many of which are expected to

be resolvable short-term. We are looking forward to

deploy and evaluate the tool in a real-world service in-

terface development project with the aforementioned

partners. Furthermore, we are working on extending

the type of renderings we can generate with the tool.

These include generated beans, generated communi-

cation adapters, generated test templates or even test

cases.

A lot of the requirements we derived in (Ohler

et al., 2018) are not yet satisﬁed in the current state of

the tool. Additional requirements have emerged du-

ring the focus group and are expected to surface du-

ring further evaluation steps. Finding solutions to in-

tegrate these into the tool will constitute future work.

ACKNOWLEDGEMENTS

This work was partially funded by the German Fe-

deral Ministry of Transport and Digital Infrastructure

(BMVI) for the project “Digitalisierte Mobilit

at – die

Offene Mobilit

atsplattform” (19E16007B).

REFERENCES

Beutel, M. C., Gkay, S., Jakobs, E.-M., Jarke, M., Ka-

sugai, K., Krempels, K.-H., Ohler, F., Samsel, C.,

Schwinger, F., Terwelp, C., Thulke, D., Vogelsang,

S., and Zieﬂe, M. (2018). Information system deve-

lopment for seamless mobility. In 7

International

Conference on Smart Cities and Green ICT Systems,

SMARTGREENS 2018, and 4

International Confe-

rence on Vehicle Technology and Intelligent Transport

Systems, VEHITS 2018, Funchal, Portugal, 2018, Re-

vised Selected Papers. M. Helfert and C. Klein and B.

Donnellan and O. Gusikhin and A. Pascoal.

Beutel, M. C., G

okay, S., Kluth, W., Krempels, K., Samsel,

C., and Terwelp, C. (2014). Product oriented integra-

tion of heterogeneous mobility services. In 17th In-

ternational IEEE Conference on Intelligent Transpor-

tation Systems, ITSC 2014, Qingdao, China, October

8-11, 2014, pages 1529–1534.

Beutel, M. C., G

okay, S., Kluth, W., Krempels, K.-H.,

Ohler, F., Samsel, C., Terwelp, C., and Wiederhold,

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

354

M. (2016). Information integration for advanced tra-

vel information systems. Journal of Trafﬁc and Trans-

portation Engineering, 4(4):177–185.

Colucci, E. (2007). “Focus groups can be fun”: The use of

activity-oriented questions in focus group discussions.

Qualitative Health Research, 17(10):1422–1433.

Dalmau, M., Aniort

e, P., and Roose, P. (2000). A met-

hod for designing cooperative distributed applicati-

ons. In Proceedings of the 4th International Con-

ference on Designing Cooperative Systems, COOP

2000, Sophia-Antipolis, France, May 23-26, 2000, pa-

ges 369–384.

Garrido, J. L., Gea, M., Guti

errez, F. L., and Padilla, N.

(2000). Designing co-operative systems for human

collaboration. In Proceedings of the 4th Internati-

onal Conference on Designing Cooperative Systems,

COOP 2000, Sophia-Antipolis, France, May 23-26,

2000, pages 399–410.

Greenbaum, T. L. (1999). Moderating focus groups: A

practical guide for group facilitation. SAGE Publi-

cations.

Inayat, I., Marczak, S., Salim, S. S., and Damian, D. (2017).

Patterns of collaboration driven by requirements in

agile software development teams. In Gr

unbacher,

P. and Perini, A., editors, Requirements Engineer-

ing: Foundation for Software Quality, pages 131–147,

Cham. Springer International Publishing.

Kusumasari, T. F., Supriana, I., Surendro, K., and Sastra-

mihardja, H. (2011). Collaboration model of software

development. In Syaichu-Rohman, A., Hamdani, D.,

Akbar, S., Adiprawita, W., Razali, R., and Sahari, N.,

editors, International Conference on Electrical Engi-

neering and Informatics, ICEEI 2011, Bandung, In-

donesia, 17-19 July, 2011, pages 1–6. IEEE.

Longhurst, R. (2016). Semi-structured interviews and focus

groups. In Key Methods in Geography, pages 143–

156.

Mayring, P. (2014). Qualitative content analysis: theore-

tical foundation, basic procedures and software solu-

tion.

Morgan, D. L. (1996). Focus groups as qualitative research,

volume 16. SAGE Publications.

Nielsen, J. (1993). Usability Engineering. Morgan Kauf-

mann Publishers Inc., San Francisco, CA, USA.

Ohler, F., Beutel, M. C., G

okay, S., Samsel, C., and Krem-

pels, K. (2018). A structured approach to support col-

laborative design, speciﬁcation and documentation of

communication protocols. In Proceedings of the 13th

International Conference on Evaluation of Novel Ap-

proaches to Software Engineering, ENASE 2018, Fun-

chal, Madeira, Portugal, March 23-24, 2018., pages

367–375.

Whitehead, J. (2007). Collaboration in software engineer-

ing: A roadmap. In Briand, L. C. and Wolf, A. L., edi-

tors, International Conference on Software Engineer-

ing, ISCE 2007, Workshop on the Future of Software

Engineering, FOSE 2007, May 23-25, 2007, Minnea-

polis, MN, USA, pages 214–225. IEEE Computer So-

ciety.

Best Practice-based Evaluation of Software Engineering Tool Support: Collaborative Tool Support for Design, Data Modeling,

Speciﬁcation, and Automated Testing of Service Interfaces

355
