The Application of Heuristic Algorithm in the Location of Shared

Bic

cle Parkin

Xiaofeng Yan and Jie Zhao

Foreign trade college, Chongqing Normal University, The No. 9 Xuefu Road of Hechuan Distict, Chongqing, China

da68da68@163.com.

Keywords: Sharing single car, Heuristic algorithm.

Abstract: With the development of the shared economy and the advocacy of green travel, the shared bicycle has

emerged as the times require, and it is popularized rapidly in all big cities. However, the popularity of

sharing a single bicycle will also bring many problems, especially in the problem of vehicle management. If

it is not handled properly, it will affect traffic and travel. This article through analysing the factors

influencing the location, establishment of relevant indicators, under the premise of ensuring the user

convenience, which cost minimization as the objective function, take the example verifies the feasibility of

the scientific location based on the location of the heuristic algorithm. The experimental results show that

the algorithm is effective.

1 INTRODUCTION

The emergence of the shared economic platform is

changing the traditional consumption concept under

the tide of the Internet. In recent years, sharing

bicycles has become a new hot spot of China's

shared economy, and it is deeply loved by college

students. As of the end of 2016, the third party data

research institutions released the "2016 China bike

sharing Market Research Report" shows that the

number of bicycle market overall user China share

has reached 18 million 860 thousand, It is expected

that the bicycle market share subscribers will

continue to maintain substantial growth in 2017, It

will reach 50 million users. With a large number of

bicycle bike sharing on the sharing, there are many

"urban diseases" in the management, such as shared

bicycle companies closed down unable to return the

deposit, because users sharing bicycle parking

blocking traffic, vehicle damage to a series of

problems faster and increase the number of other

damage. About sharing parking problems, Beijing,

Shanghai, Changsha, Shenzhen and other places

have issued sharing parking regulations, but all of

these provisions do not all assign special parking

area to shared bicycles.

Now many problems in planning theory, people

always tend to use firefly algorithm, simulated

annealing, genetic algorithm and ant colony

algorithm to seek the optimal solution, but in reality,

many problems are related to the complex system of

many factors, so we always cannot accurately find

the optimal solution. Heuristic algorithm is a

technology that can find one or even multiple

understanding within the scope of problem

constraints. The solution obtained by this algorithm

is not able to describe its similarity with the optimal

solution in most cases.

The sharing of bicycles cannot develop blindly,

if the parking is not order, it will bring great trouble

to the city management. In order to make the shared

bicycles able to park properly, this paper will

analyse the main parking places and surrounding

environment of the shared cars, and consider the

feasibility and cost of sharing the single car, so as to

find a reasonable parking address.

2 SHARED PARKING LOCATION

MODEL

2.1 Problem description and index

selection

2.1.1 Description of the problem

Because Chongqing is so special, so sharing bicycle

is not completely universal, but the Chongqing city

east area 470 km long, 450 km wide from north to

294

Yan, X. and Zhao, J.

The Application of Heuristic Algorithm in the Location of Shared Bicycle Parking.

In 3rd International Conference on Electromechanical Control Technology and Transportation (ICECTT 2018), pages 294-297

ISBN: 978-989-758-312-4

south, covers an area of 82402.95 square kilo-meters,

23 under the jurisdiction of the District, 11 counties

and 4 autonomous counties, the urban built-up area

of 647.78 square meters of 1000. There are 55

colleges and universities in Chongqing. There are

about 200000 college students in the university town.

In order to cater for the needs of college students,

currently, the main area of sharing bicycles in

Chongqing is near the schools and the places where

people flow more. According to the position set

easily, convenient maintenance, not hinder the

public space principle, seeking cost costs less and

profitable bicycle parking sharing address, this paper

argues that the Ardalan heuristic algorithm can

consider the main influencing factors of parking

location, which has a certain guiding significance.

2.1.2 Selection of indicators.

As a means of transportation, the related factors that

affect the parking location of shared bicycles are

users, convenient locations, demographic

characteristics, scalability, vehicle maintenance and

recovery costs.

Since the characteristics of the heuristic

algorithm are the selection of indicators, on this

basis, this paper selects a new index. The goal is to

share the lowest cost of the parking address.

Table 1: The index symbols in the model

Index name Symbol

Population flow

(,,)i

iABC=

Sharing rate of single vehicle

Fixed cost of parked address

Total cost of parked address

Damaged vehicles (1,...,)itt X=

Maintenance cost of damaged

vehicles

( 1,..., )aa n=

Population weight

The distance from the door to

the parking address

2.2 The basic hypothesis of the model

and the establishment of the

mathematical model.

2.2.1 Basic assumptions

Suppose one, the sharing of the bicycle user quality

is good, after the use of the car, all will be parked to

the designated location and lock.

Suppose two, The 80% of the traffic in the

shared parking place will be used, and the use rate of

the single vehicle, the damage amount of the single

bicycle and the traffic flow are linear functions.

Suppose three, each shared bicycle parking place

capacity and number are limited, a total of N

alternative parked points, the maximum capacity of

1, 2,..., )

in=（

, as a result of the sharing of single

vehicle operating costs, the location of a single

parking place is up to

Suppose four, the variable cost of a shared

parking place is a convex function of the function of

its traffic.

Suppose five, the level of the shared bicycle

scheduling is not limited, and the instantaneous

distribution of the vehicle between the

disequilibrium points of demand can be completed.

2.2.2 Location model based on VRP theory

Dantzig and Ramser put forward the vehicle routing

problem (VRP) in 1959 for the first time. A certain

number of users, because each has a different

amount of demand for goods, so when the center of

distribution to provide customers with goods, we

should choose the appropriate route and distribute

the goods by a team, our goal is to satisfy the needs

of customers, and under certain conditions, to

achieve the shortest distance, minimum cost and

time the purpose of the shortest…The definition of

VRP model in this paper is: suppose the function

relation of known user volume, parking location

distance, fixed cost and variable cost, it is required

to choose suitable parking address for shared bicycle

under the premise of satisfying constraints, so that

users and operators will have the lowest cost and the

same cost.

According to the above hypothesis, it can be

obtained:

V2 2ikP b=+

(1 0, 2 0)kk>>

The objective function can be expressed as:

min Y (maxV)=M+W*P *d+

Xi n

∑∑

2.2.3 Based on the analysis of Ardalan

heuristic algorithm model.

Firstly, a n filter, consider the alternative address

for each m combination, a total of nm options, each

alternative address set by

T , the maximum capacity

of each group contained one by one to calculate the

alternative address

X ( 1,..., )i in=

. The filtration

The Application of Heuristic Algorithm in the Location of Shared Bicycle Parking

295

conditions are as follows:

iT j

≥

∑∑

(D is the total

demand for a single bicycle), If it is set up, the

combination of

T can be discussed; otherwise, the

combination of

T is filtered, not to be considered.

Then conditional filtering can be made to obtain

less than or equal to

feasible subsets, and the

corresponding sub-problems will be simplified. At

this point, there will be no 0-1 variables in the sub

problem, and the continuous variable will also be

greatly reduced. Except for the convex function in

the objective function, the rest are linear and

constant functions. The number of sub-problems is

less than that of the original one, and the difficulty

of solving the problem is greatly reduced.

Finally, the first convex function is separated by

the final processing, weight calculation, the complex

function is simple to cost as the goal function to

solve the linear programming solution, after adding

convex function value, qualitative analysis, which is

the location of the total cost sharing of bicycle.

3 EXAMPLE SOLUTION

In this paper, a university in Chongqing is taken as

an example to study the location of shared bicycle

parking. Because part of the data is large and cannot

be measured accurately, the real proportional data is

used. There are many other schools and residential

areas near the school. There is more flow of people.

There are three access doors in the school. They are

recorded as the main gate A, the side door B, the

back door C, and the bus stop near the three gates.

According to the volume of people's traffic from low

to high, they are ranked as C, B and A, and C is near

the residence. In the people's District, we are ready

to set up 4 shared parking places near the school,

with a fixed cost of 1000￥each.

4 CONCLUSIONS

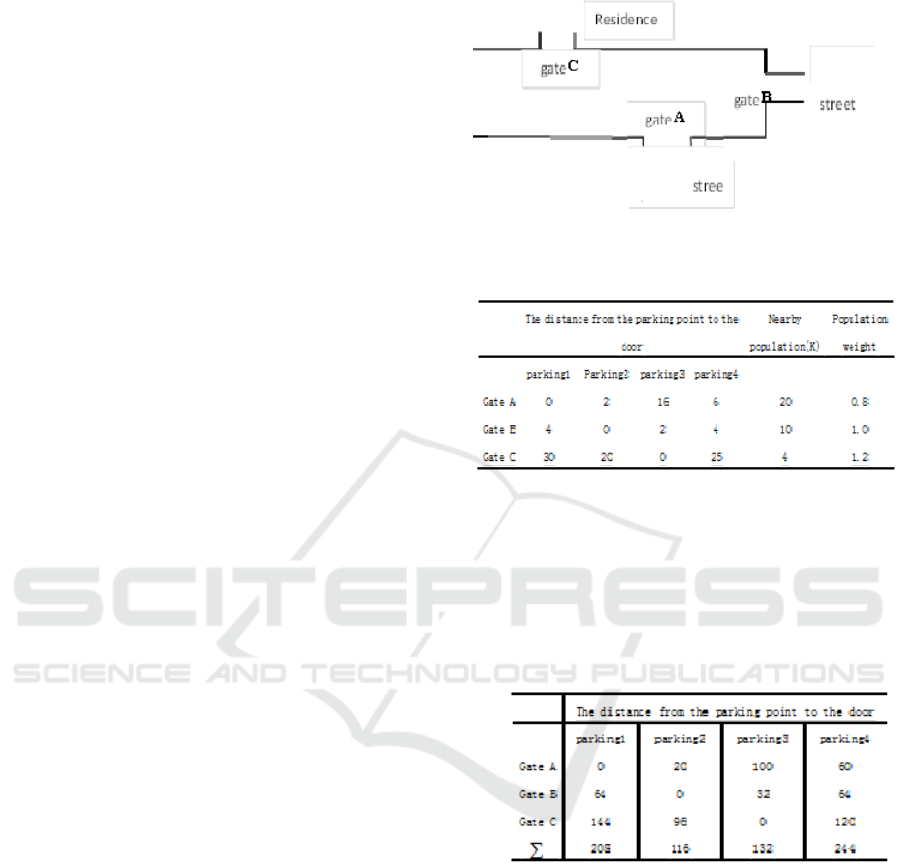

Fig. 1. Sketch map of simple distribution in a university

Table 2: Initial assumption of related data

Step 1: according to the data of the above table,

the weighted distance of the population near the

door is calculated. The formula is weighted distance

= near population * distance * population weight.

The results of the calculation are shown in the

following table:

Table 3: Initial assumption of related data

Step two: calculate the sum of every column

number in the upper table, select the smallest area

from it, which means that the weighted distance

between users in each area to share parking places is

the shortest, that is, the total cost of users (mainly

the school's students) is the lowest, and the B gate of

the school is selected.

Step three: one by one compare the distance from

the B door to the parking point and the value of each

row. If the former is large, the value remains

unchanged. If the former is small, replace the value

in the table to the distance between B door and

single parking point. The final results are as follows:

ICECTT 2018 - 3rd International Conference on Electromechanical Control Technology and Transportation

296

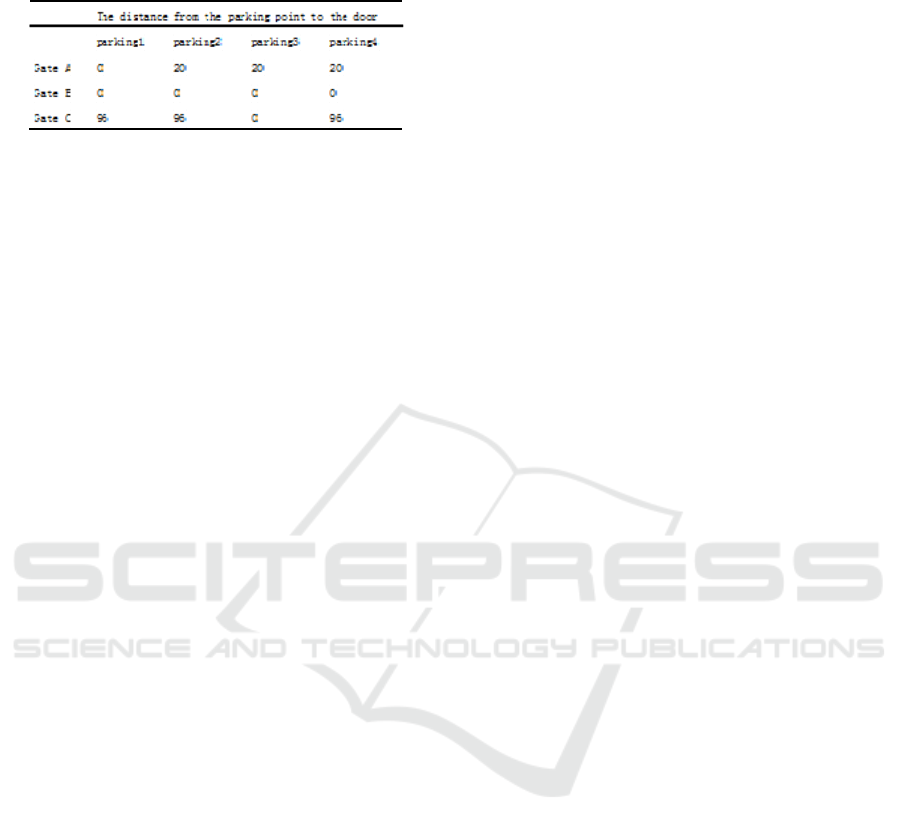

Table 4 Compare B gate distance and door distance and

replace results

Step four: repeat step two, the C gate is selected.

Step five: repeat step three or four. Combined

with the traffic condition near each door and the

vehicle repair and recovery cost brought by the use

of single car, the reasonable shared parking place is

determined to be B gate, C gate and A door.

5 CONCLUDING REMARKS

Based on qualitative and quantitative analysis,

heuristic algorithm is applied to modelling and

analysing the location problem of shared bicycles.

With examples, the heuristic algorithm is proved to

be scientific and effective. With the development of

the times, the heuristic algorithm is also applied to

all walks of life, especially in the location of

logistics centers. The algorithm can be used in some

complex system modelling, which simplifies the

elements in the system, and its innovation is mainly

based on the selection of the indexes.

The starting point of popularizing shared

bicycles is not only to get economic benefits, but

also to facilitate the public, and to share bicycles is

also a form of green economy. It has made great

contributions to the urban environment and accords

with the strategy of urban sustainable development

promoted by the government. As a fast developing

city, there are still some obstacles in the

popularization and sharing of bicycles. Chongqing

cannot completely block the market share of

bicycles in the future. A new industry wants to

develop healthfully, and its management system

must be followed up gradually, and more efforts

should be made in this respect.

REFERENCES

What Jinghui shared bicycle fixed parking point location

problem in a university as an example of [J].2017 (11)

Youyu ting. Sharing with the city's bicycle along the road

[J]. Jiangsu city planning.2017 (09)

Yang Maosheng, Wei Baohong. Application of heuristic

algorithm in location of logistics distribution center

[J]. Xi'an University Of Architecture And

Technology.2005 (05)

Cheng Guoquan, logistics facilities and planning and

design [M]. Beijing: China material press, 2003.

Yuan Ruiyu. Research and analysis of sharing single car

optimization based on Weka [J]. "scientist".2017 (13)

Wang Deying, Jiang Yanzhao. Study on [J]. research

".2011" postal location algorithm based on heuristic

Ardran postal outlets (12).

Yao Yu Qin, Hu Zhihua. The operation scheduling of

automated cross transport vehicle based on heuristic

algorithm [J]. Shanghai Maritime Univeristy Logistics

Research Center.2015 (12).

Wang Wei. Method of system analysis of road traffic

engineering [M]. Beijing: People's transportation

press, 2004.

Zhou Qian, Li Yi, Meng Chao et al. Traffic demand

analysis based on structural equation model [J].

Journal of Tsinghua University (NATURAL

SCIENCE EDITION), 2008,48 (5).

pan is not the end, sharing bicycle Luantingluanfang cause

nuisance, multi sectoral joint enterprises introduce

regulatory measures. Our city will plan to share a

single car park area, "Shenzhen special economic

zone", 2017 (01).

The Application of Heuristic Algorithm in the Location of Shared Bicycle Parking

297
