Cancer Prognosis Prediction Using SVM for Hybrid Type and

Imbalanced Data Sets

Yanping Chen

, Bingyu Su

2,*

, Le Zou

, Xiaoxuan Wu

and Songhua Hu

1,3,4,5

Department of Computer Science and Technology, Hefei University, China

2,*

Hefei Institute of Intelligence Machines, Chines Academy of Sciences, China

Keywords: Prognosis prediction, hybrid type, imbalanced data, feature selection.

Abstract: Cancer prognosis is one of the hot spots in the study of biological information. There have been many

studies to cancer prognosis prediction using machine learning methods, which have achieved better results.

Among them, the support vector machine (SVM) gets extensive attention as it is suitable to apply in small-

size, high-dimensional data classification questions. However，SVM only performs well in the case

where the class distribution is balanced and the input variables are numerical which are unlikely occurred

in the medical domain. So in this study, we introduce a new prognosis prediction method based on SVM,

which modify the standard SVM models to fit imbalanced class distribution and hybrid type of features. In

details, firstly the similarity of features with nominal and numerical type is redefined in kernel function.

Secondly synthetic minority oversampling technique (SMOTE) method is adopted to balance class

distribution. Lastly the wrapper method SVM-RFE is introduced to select the useful features to improve the

prediction performance. A series of experiments are designed and launched to validate the performance.

The results have proved the effectiveness of the proposed methods.

1 INTRODUCTION

Cancer is a major disease threatening human health.

Traditionally there are three common treatments,

including surgery, chemotherapy and radiation

therapy. So far the selection of different treatment is

based on the TNM stage of the patient, that is using

tumor size, location etc. to select the appropriate

treatment. However, there may be a big difference

that even the patients with the same TNM stage

choose the same treatment. For example, the current

standard of treatment for patients with early-stage

Non-Small-Cell Lung Cancer(NSCLC) is surgical

resection. According to the statistical data, the 5-year

survival rate is only 65-70% even in those patients

whose tumors have undergone complete

resection(Zhu, 2009). So it is very significant to

develop an accurate means of prognosis which can

predict the survival time of each individual patient

after surgical operation based on the characteristics

of patient beside TNM stage information. With the

development of molecular biological medicine and

application of molecular biological diagnostic

techniques, the study of tumor pathology from the

molecular level has become a research hot spot, such

as the use of molecular characteristics to make a

prognosis.(Xu, 2016) Due to the complexity of the

molecular characteristics, machine learning have

absolute advantages compared with traditional

statistical methods.

Machine learning methods have been

successfully applied to the analysis of many different

complex problems in recent years, including many

bio-medical applications.(Jayasurya, 2010) The work

of (Street, 1995) used a self-organizing neural

network to find classes of cases with similar expected

recurrence times. D. Chakraborty, U. Maulik (2014)

approach prognosis as separation problem. The work

of (Zhu, 2009) used SVM for prognosis in Early-

Stage Non-Small-Cell Lung Cancer(NSCLC), which

plotted Kaplan-Meier survival curve to prove the

effectiveness of its method.

Although many different prognosis prediction

methods have been proposed, these methods have

poor performance in case of hybrid type and

imbalanced data sets. For several cancer datasets, on

the one hand, are consist of feature attributes which

are likely prepossessed to hybrid type, numerical and

nominal respectively ; on the other hand, the class

distribution is imbalanced, which will be confronted

with great difficulties in classical machine learning

method. To solve this problem, we propose a novel

Chen, Y., Su, B., Zou, L., Wu, X. and Hu, S.

Cancer Prognosis Prediction Using SVM for Hybrid Type and Imbalanced Data Sets.

In 3rd International Conference on Electromechanical Control Technology and Transportation (ICECTT 2018), pages 13-18

ISBN: 978-989-758-312-4

prognosis prediction method based on nonlinear

classification, which can be implemented using SVM.

We modified the standard SVM module to fit the test

data, which have the imbalanced data set and hybrid

types of feature. We believe that better individual

predictions may be obtained.

The rest of the article is organized as follows. In

Section 2, we firstly give a brief introduction to the

data for Analysis and the method adopted in the

following experiments. Section 3 describes the

experiments and discussion followed by conclusion

in Section 4.

2 MATERIAL AND METHOD

2.1 Data for Analysis

z NSCLC

The data from a series of 196 patients with early

stage NSCLC was adopted in this study(Zhu, 2009).

The prognosis data set is consisted of three parts,

Tissue microarrays (TMA), clinical and pathologic

variables. The process of construction of TMA was

described in (Rosenwald, 2002). Thirty three

molecular markers were chosen for investigation in

the study. All of these markers have been identified

in previous studies with the best candidates for the

prognostic prediction(Duan, 2005). All marks of each

patient is assigned to a score by three pathologists

based on the number and the intensity of stained

tumors cells. Furthermore, four clinical and

pathologic variables are also used, including

sex(male vs. female), age, cancer-cell type and tumor

diameter. Thus each patient is represented by a vector

of 37 dimension and the outcome is described as

survival time after surgery. When patients are

classified as two classes, “ died before 3 years” or

“ not died in 3 yeas” after therapy, the classification

distribution is faced with imbalanced data set with

150 patients died before 3 years against 46 not died

in 3 years.

z WPBC

We also use Wisconsin Prognostic Breast Cancer

(WPBC) in which has 198 instances with 34

attributes (ID, outcome, 32 real-valued input

features) in each instances. The first 30 features are

computed from a digitized image of a fine needle

aspirate (FNA) of a breast mass, they are described

as characteristics of the cell nuclei present in the

image. The last 2 features, which are tumor size and

lymph node status, are observed at time of surgery,

the values for features are re-coded with four

significant digits. At last the outcome is described as

recurrence time and disease-free time if outcome is

recurrence or it is no-recurrence. The class

distribution is faced with imbalanced data set with

151 non-recurrences against 47 recurrence in (Street,

1995).

The two data sets above have the following

characteristics:

1) The training sets are small-size with

redundant features. Specifically, in NSCLC, there

are only 196 samples with a vector of 37 dimensions

in each sample, while in WPBC, there are 198

samples with a vector of 34 dimensions in each

sample. In one hand, some features may be

irrelevant to the prognosis of the patient, in the other

hand, the statistics show a high correlation between

some features. Existence of redundant features will

decrease the performance of methods.

2) Hybrid type is existed in each sample

expressed by a vector, with nominal and numerical

type respectively. Therefore traditional classification

method is hard to work perfectly.

3) The class distribution is imbalanced, with the

ratio of 3:1 roughly. The traditional data mining

algorithm behaves undesirable in the instance of

imbalanced data sets. The class boundary can be

severely skewed towards the majority class which

means nothing to the application.

4) They are more likely to be non-linear

classification problems. It is difficult to find the

relationship between attributes and the outcome.

From the characteristics mentioned above, the

following method and strategies will be adopted in

improving SVM approach to fit the datasets.

2.2 Support Vector Machine

SVM is a useful technique for data classification. A

classification task usually involves separating data

into training and testing sets. Each instance in the

training set contains one “target value” (usually

called class labels) and several “attributes”. The goal

of SVM is to produce a model(based on the training

data) which predicts the target values of the test data

given only the test data attributes.

Given a training set of instance-label pairs

）（

yx, ,

li ,...,1=

where

Rx ∈

and

}1,1{ −∈y

, the

SVM requires the solution of the following

optimization problem:

min

∑

Cww

ICECTT 2018 - 3rd International Conference on Electromechanical Control Technology and Transportation

Subject to

bxwy

εφ

−>+ 1))((

0≥

(1)

Function

)(x

is used to map the training vectors

into a higher dimensional space. SVM finds a linear

separating hyper-plane with the maximal margin in

this higher dimensional space. C>0 is the penalty

parameter of the error term.

The above optimization problem (1) can be used

in a linear classification problem. But classification

problem is non-linear generally. In order to solve a

nonlinear classification problem, SVM first maps the

training data to another dot product space (called the

feature space) F via a nonlinear map, thus converting

the non-linear problem in the original space to linear

problems in the F-space. Gaussian RBF kernel

function is among the most commonly used kernels,

which is defined as follows:

0),||||*exp()(

>−−= gxxgxxK

jiji

(2)

After the kernel function is applied，The above

optimization problem can be expressed by kernel

function, which is defined as follows:

max

),(

)(

1,1

jiji

xxKyyw

∑∑

−=

αααα

Subject to

∑

and C

≤≤

0 (3)

2.3 Modified Kernel function for

hybrid types

The kernel function in (2) is based on the

Euclidean distance between two pairwise samples.

However, when nominal features are faced, this kind

of kernel cannot be worked directly. The similarity of

two vector with nominal type data cannot defined as

Euclidean distance. For example, if one part of the

vector means the location of the cancer, such as

1,2,3, then we cannot find that 3 is far away from 1,

and it is near 2. So a new definition of distance

between two vectors should be given. In details, the

distance between 1 and 3 is equal to the distance

between 2 and 3. In conclusion, if the part of a vector

is nominal, then the distance is a constant which can

be predefined in the beginning when the number is

not equal, while the distance is zero when the number

is equal.

So the distance of two samples with nominal

feature can be redefined as follows:

∑

−=−

iji

xxxx

)(||||



⎪

⎩

⎪

⎨

⎧

=−

(4)

where

is nominal.

2.4 Feature selection

In our cases of NSCLC, 37 features are used where

some features may be irrelevant to the prognosis of

the patient. Accordingly, we should find ways to

select the useful features to improve the prediction

performance as well as reduce the computational

complexity.

The existing feature selection algorithms can be

generally categorized as wrapper or filter methods

based on criterion functions used in searching for

informative features. In wrapper methods, the

performance of a learning algorithm is employed to

evaluate the goodness of selected feature subsets,

whereas in filter methods, criterion functions

evaluate feature subsets by their information content,

typically measure the cor-relativity of feature subsets

and outcome，having nothing to do with learning

algorithms. In most case, filter methods are

computationally much more efficient but perform

worse than wrapper methods (Xu, 2012).

In this paper, the wrapper method recursive

feature elimination algorithm(RFE) is adopted and

SVM classifier is used as a criterion function. The

SVM-RFE method is a sequential backward selection

process. It starts with a set of all features, and the

least important feature for the classification is

removed from the whole feature set iteratively

according to criteria function which is the sum square

of the weight vector W of all features in support

vectors in SVM model(Chakraborty, 2014).

It should be noted that the combination of the

features ranked ahead can obtain better performance

than the single one. Therefore, SVM-RFE algorithm

can select the combination of identification features.

2.5 Strategies for imbalanced data set

Considering the training instances of one class are

significantly outnumbered by those of the other class,

The class boundary learned by standard SVM can be

severely skewed towards the majority class. As a

result, the false-negative rate can be excessively high,

which may cause the classifier ineffective. Taking

account of the collection of each sample is not easy

to get, in order to get a balanced samples ， the

synthetic minority oversampling technique (SMOTE)

is used to address this problem instead of under-

sampling majority class samples.

SMOTE method is a kind of oversampling

technique proposed by Chawla(Wu, 2003). The main

idea of SMOTE is artificially generate virtual

samples to minority class to over-sample the minority

class. For each minority sample, its k (which is set to

5 in SMOTE) nearest neighbors of the same class are

calculated, then some examples are randomly

selected from them according to the over-sampling

rate. After that, new synthetic samples are generated

Cancer Prognosis Prediction Using SVM for Hybrid Type and Imbalanced Data Sets

along the line between the minority samples and its

selected nearest neighbors. The process can be

described in formula(5):

)()1,0( xxrandxx

new

−×+=

(5)

Where rand(0,1) denotes random numbers

ranging from 0 to 1,

is one of the k-nearest.

SMOTE is suitable for samples with numerical

attributes. However, there is a hybrid type in each

sample expressed by a vector in the data set

mentioned above, with nominal and numerical type

respectively. Therefore, we need to modify the

formula(5) to fit hybrid types of feature. Suppose

each feature x is consist of two parts

},{

xxx = ,where

x are of nominal form and

are of numerical form, the formula(5) can be turned

as follows:

)]()1,0([)(

2221

xxrandxxrandx

new

−×+= U

(6)

Where

)(

xrand denotes the attribute value

which is randomly selected from all of the specific

attribute field.

3 EXPERIMENT RESULTS AND

ANALYSIS

We approach the prognostic prediction as a

classification problem. The following procedure with

proposed method is applied to NSCLC data set and

WPBC data set mentioned in section 2.

3.1 Experimental procedure

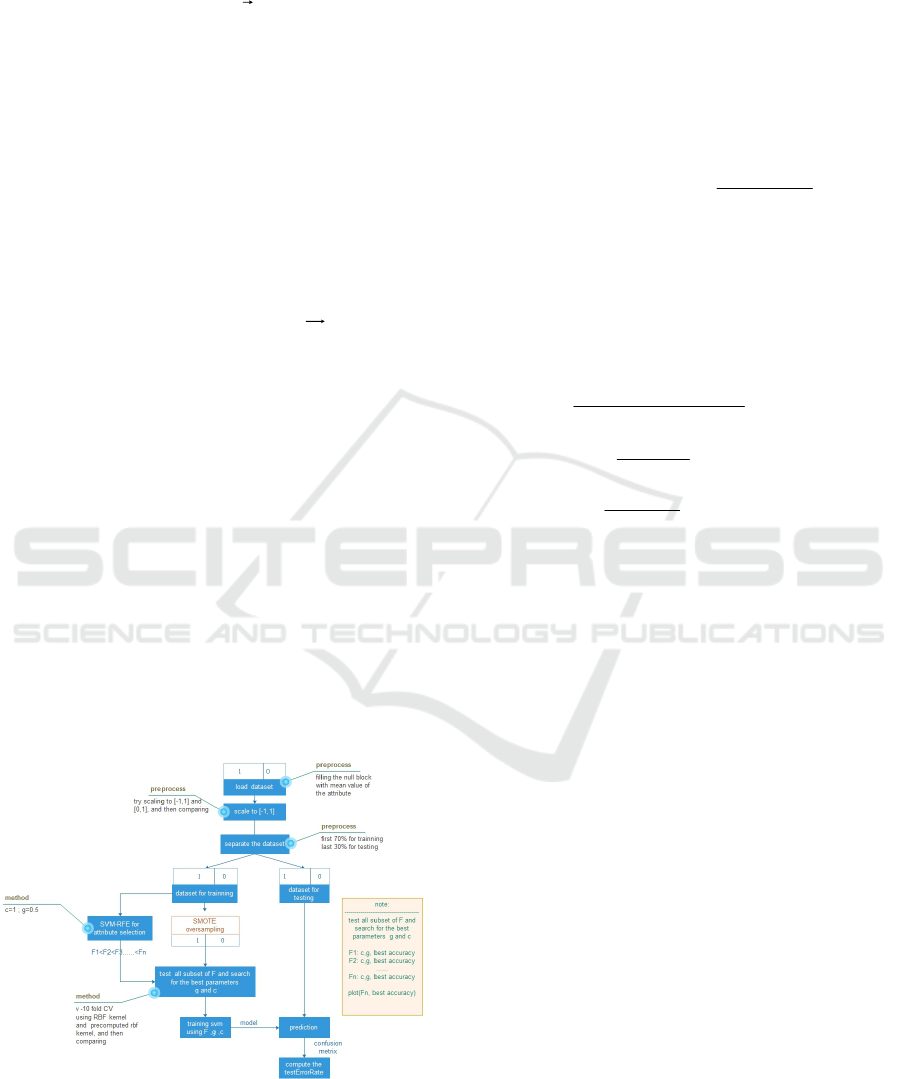

Fig 1 : The procedure of classification by SVM and using

SVM-RFE for attribute selection

Figure 1 shows the whole experimental procedure

and the detail is as following..

5) preprocessing

The standard simple imputation method(mean

among the values in the training set) is used to the

presence of missing values. In order to avoid

attributes in greater numeric ranges dominating those

in smaller numeric ranges, each numerical attribute is

scaled to range [0,1] when

max

=y and 0

min

=y by

formula(7).

min

minmax

min

minmax

)(: y

yyyxf +

−

×−=→

(7)

6) Classification

The RBF kernel is used as the number of features

is not very large. We use (9) and (10) to validate the

performance of classification instead of (8) because

(9) and (10) are more suitable for imbalanced data

problems.

TPTN

Acc

+++

(8)

(9)

(10)

In the SVM model building phase, SVM-RFE

method is implemented to order the importance of

each attribute. We test all subset of collection F

computed by SVM-RFE, and search for the best

parameter pair(C,g) with grid-search method

iteratively. The best SVM model can be reached

with the best accuracy.

Finally, testing dataset is input into the model,

after computing, confusion matrix is obtained which

can be used to validate the performance of

classification.

3.2 Application to NSCLC and WPBC

We approach the prognostic prediction of

NSCLC and WPBC data sets as a classification

problem with two classes. The main objective is to

obtain the best predictive model to separate the two

classes with high performance, which can help

doctors and patients to make a treatment decision.

In NSCLC data set, the target value means

whether a patient can survive more than 3 years or

not, that is to say, the category can be defined as true

if the patient survives more than 3 years in the last

check-up, whereas false if the patient have died in 3

years after surgery. After sorting the patients

according to their onset time in NSCLC, front 70%

patients (137 patients) are used as training data and

remaining 30% patients (59 patients) as testing data.

ICECTT 2018 - 3rd International Conference on Electromechanical Control Technology and Transportation

While in WPBC, we separated “patients who

recurred in less than three years” from “patients who

were disease free more than three years”, the target

value means whether a patient would recurrent in 3

years or not. Front 70% patients are used as training

data and the remaining 30% as testing data.

3.3 Results and analysis

The first set of experiments is to evaluate the

performance of our proposed SMOTE. Table I and II

show the average accuracy, sensitivity and specificity

whether SMOTE is used or not.

As can be seen from the tables, we get relatively

higher training accuracy but lower testing accuracy

when SMOTE method is not used. Results

significantly biased majority class. the Sn parameter

is only 12.50% in NSCLC, 20% in WPBC, which

makes the classification of minority class samples

meaningless. All features in SVM model are support

vectors, which illustrate that over-fitting is very

serious.

Two sets of results using SMOTE method

demonstrate that when using testing samples, Sn

indicators has been greatly improved, and

classification accuracy is more balanced than no use

of SMOTE, which is displayed with Sn and Sp

indicators , in NSCLC tests, are 65.22% and 61.11%,

while in WPBC tests, are 74.62% and 86.57%

respectively. The experiments validate the

effectiveness of SMOTE strategy when faced with

imbalanced data set.

able 1 ： Average accuracy whether use SMOTE on

NSCLC

Strateg

Training set as test samples Testing set as test samples

Acc Sn Sp Acc Sn Sp

No use

SMOT

99.40% 98.80% 100% 60% 12.50

91.67

use

SMOT

77.38% 61.90% 92.85

62.71

65.22

61.11

Table 2: Average accuracy whether use SMOTE on

WPBC

Strategy Training set Testing set

Acc Sn Sp Acc Sn Sp

No use

SMOTE

92.39

72% 100

76.31

20% 96.42

use

SMOTE

96.54

94% 100

79.59

74.62

86.57

The second set of experiments is launched to

evaluate the performance of attribute selection.

Training datasets are used to evaluate the importance

of attributes by using SVM-RFE. Grid-search is

employed to find out the best parameter pair(C,g) so

as to obtain the best subset of features with the

highest accuracy. Then we can use the best parameter

pair(C,g) and the best subset of features to train the

SVM classification model. The accuracy in each

iteration is calculated and shown in Fig.2

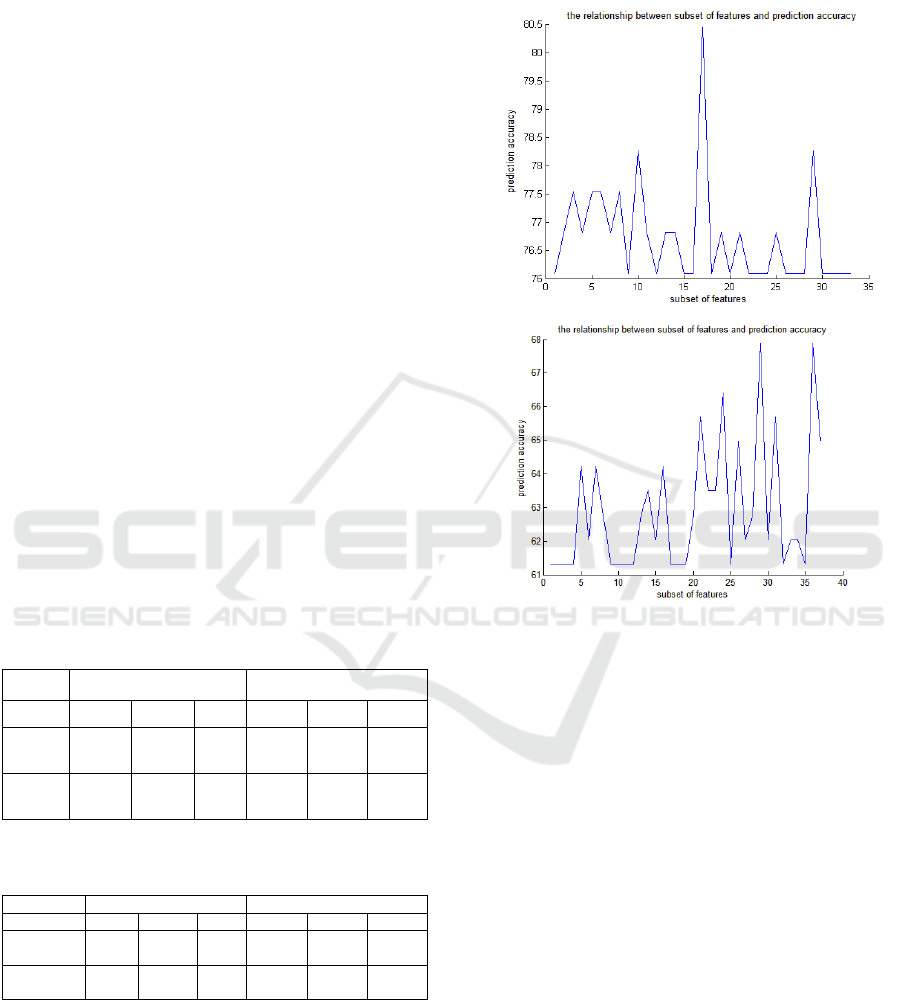

Fig 2 ：The relationship between a subset of features and

prediction accuracy of WBPC and NSCLC

From this figure it can be seen that we obtained

the optimal attribute subset of WBPC, the front 17

attributes of collection F , with the best accuracy of

80.43%. While worked on NSCLC, we obtained the

optimal attribute subset, the front 28 attributes of

collection F, with the best accuracy of 68.02% .These

results can demonstrate that the feature attribute

subset contains more discriminant information that

can greatly help prognosis prediction.

4 CONCLUSION

Prognosis prediction gives the clinician an unbiased

method to predict treatment effect instead of

traditional methods based on TNM staging. Machine

learning methods have been successfully applied to

the field of prognosis prediction. Its potential

appears to be extremely promising and is worthy of

further research.

Cancer Prognosis Prediction Using SVM for Hybrid Type and Imbalanced Data Sets

In this work, we have proposed a novel prognosis

prediction method based on SVM to create

personalized predictive models. Two datasets ,

NSCLC and WPBC, was selected which had small

size, high dimensional characteristics.

The novelty of this work is three-fold. Firstly, we

have modified the standard RBF kernel function in

SVM model to fit the test data, which have hybrid

types of feature. This modification makes the model

meet the needs of practical application. Secondly, we

propose the SMOTE strategy to deal with

imbalanced training-data problems. A series of

experiments have demonstrated the effectiveness of

SMOTE strategy when faced with imbalanced data

set. Thirdly, SVM-RFE is employed to extract

features collection of greatest impact on outcome.

The results demonstrate that with the help of SVM-

RFE, 17 out of 34 attributes of WBPC have been

selected, and 28 out of 37 attributes of NSCLC have

been selected which outperforms the over all attribute

collection.

So far, only SVM models have been employed.

In the future, we are preparing an extensive set of

tests by using other machine learning method, such

as random forest, deep learning, in the same manner

as the SVM procedure.

ACKNOWLEDGMENT

This work has been partially supported by the

National Natural Science Foundation of China(No

31371340) and the Natural Science Foundation of

Education Department of Anhui Province(No.

KJ2017A542)

REFERENCES

Z. H. Zhu, B. Y. Sun, Y. Ma, J. Y. Shao, H. Long, X.

Zhang, ... & P. Ling, “Three immunomarker support

vector machines–based prognostic classifiers for stage

IB non–small-cell lung cancer,” Journal of clinical

oncology, Vol.27, pp.1091-1099, 2009.

K. Jayasurya, G. Fung, S. Yu, C. Dehing-Oberije, D. De

Ruysscher, A. Hope, ... & A. L. A. J. Dekker,

“Comparison of Bayesian network and support vector

machine models for two-year survival prediction in

lung cancer patients treated with radiotherapy,”

Medical physics, Vol.37, pp.1401-1407, 2010.

G. Wu, E.Y. Chang, “Class-boundary alignment for

imbalanced dataset learning,” In ICML 2003

workshop on learning from imbalanced data sets II,

Washington, DC, pp. 49-56, August 2003.

W. N. Street, O. L. Mangasarian, W. H. Wolberg, “An

inductive learning approach to prognostic prediction,”

In ICML, Tahoe City, California, USA, pp.522-530,

July 1995.

D. Chakraborty, U. Maulik, “Identifying cancer

biomarkers from microarray data using feature

selection and semisupervised learning,” IEEE journal

of translational engineering in health and

medicine, Vol.2, pp.1-11, 2014.

X. Xu, Y. Zhang, L. Zou, M. Wang, ... & A. Li, “A gene

signature for breast cancer prognosis using support

vector machine,” In BMEI, Chongqing, China, pp.

928-931, October 2012

A. Rosenwald, G. Wright, W. C. Chan, “The use of

molecular profiling to predict survival after

chemotherapy for diffuse large-B-cell lymphoma,”

New England Journal of Medicine, Vol.346, pp.1937-

1947, 2002.

K. B. Duan, J. C. Rajapakse, H. Wang, et al. “Multiple

SVM-RFE for gene selection in cancer classification

with expression data,” NanoBioscience, IEEE

Transactions on, Vol.4, pp.228-234, 2005.

Xu T, Le T D, Liu L, et al. “Identifying cancer subtypes

from mirna-tf-mrna regulatory networks and

expression data,” PloS one, Vol.11(4): e0152792,

2016.

ICECTT 2018 - 3rd International Conference on Electromechanical Control Technology and Transportation
