On Graphical User Interface Verification

Abdulaziz Alkhalid and Yvan Labiche

Department of Systems and Computer Engineering, Carleton University, Ottawa, Canada

Keywords: System Testing, Graphical User Interface (GUI), GUI Testing, Verification.

Abstract: Graphical User Interface (GUI) testing, for instance by means of capture and replay tools, is

computationally expensive. In this paper, we present an approach for GUI verification that is not GUI

(verification) testing. Using this approach, we study the input provided by an actor to the GUI and the

output of the GUI to the underlying functionality. We also verify relations between those inputs and outputs.

We describe the approach and discuss some first steps towards its validation in terms of fault detection

using a real, though simple GUI-based software as well as a synthetic GUI-based software.

1 INTRODUCTION

GUI-based software is more and more prevalent and

verifying they function as expected is therefore more

and more important, especially since users are less

and less willing to accept failures. Our own

experience (Alkhalid and Labiche, 2017) with the

verification of GUI-based software, specifically with

a capture and replay tool such as GUITAR (Nguyen

et al., 2014) (as a representative example of what is

available in the field), indicates that capture and

replay tests do not necessarily entirely exercise the

application logic functionality. This may suggest that

GUI testing is not functional system testing applied

directly on the UI. Another observation we made is

that using a capture and replay tool such as GUITAR

is extremely expensive, to the point that this may not

be practical on real, large-scale GUI-based software.

These observations led us to rethink the verification

of a GUI-based software.

In this paper, assuming a GUI-based software is

designed according to the Entity-Control-Boundary

(ECB) design principle (Bruegge and Dutoit, 2000),

we suggest to decompose the verification of that

software into the (static) verification of its UI part

(i.e. no testing) combined with the (verification)

testing of its application logic code at the system

level (thereby bypassing the UI). For the (static)

verification of the UI we rely on user-defined

contracts that can be verified statically by a checker,

in our case the Extended Static Checker (Flanagan et

al., 2013) for Java; for the functional, system level

tests, we rely on high-level functional requirements

to derive tests. We evaluate our proposed solution on

a real, though simple GUI-based software as well as

a synthetic GUI-based software.

The rest of the paper is structured as follows.

Section 2 discusses related work. Section 3 describes

our solution in details. Section 4 describes an initial

attempt to validate our approach. We conclude in

section 5.

2 RELATED WORK

The application of static analysis is not only the use

of sophisticated tools such as symbolic execution

(King, 1976) using Java Path Finder (NASA, 2015)

for instance, abstract interpretation (Cousot and

Cousot, 1977) for instance using Julia (Spoto 2005),

program slicing (Weiser, 1981) using JSlice (Wang

et al., 2017) as an example or theorem proving using

Extended Static Checker (ESC) (Flanagan et al.,

2013) to analyze the code. Other types of code

analysis, even without the use of sophisticated tools,

can be considered to be static analysis. Arlt and

colleagues (Arlt et al., 2012) applied static analysis

of events relationships by checking the bytecode of a

GUI application and its dependent libraries for GUI

functional (black-box) system testing. This allowed

them to infer dependencies between events. The

relation is used to build an Event Dependency Graph

(EDG), to select relevant event sequences among the

event sequences generated from a black-box model.

Zhang et al., (2011) analyze the dependent

libraries of a GUI application for test case generation.

Alkhalid, A. and Labiche, Y.

On Graphical User Interface Veriﬁcation.

DOI: 10.5220/0006916603730380

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 373-380

ISBN: 978-989-758-320-9

373

Yuan and Memon (2007) obtain GUI run-time

feedback from the execution of a “seed test suite”

and then use static analysis (with a data-flow static

analyzer) to analyze this seed test suite and

iteratively generate new test cases. The authors

utilize the run-time state to explore a larger input

space and improve fault-detection effectiveness.

They automated this feedback-based technique into a

GUI functional system testing process. Techniques

similar to static analysis from the machine learning

field, such as reinforced learning, have been used

(Mariani et al., 2012) to discover the most relevant

functionalities and to generate test cases that

thoroughly sample these functionalities. This

technique learns by itself how to interact with the

software and simulate its functionalities. Other

approaches use search-based techniques to execute

actions and observe states of a certain behaviour in

the source code (Gross et al., 2012) to generate test

cases at the GUI level.

3 PROPOSED SOLUTION

Our solution is to verify the GUI using static

analysis. The objective is that by adding the

functional system logic tests, we can verify the whole

software. Subsection 3.1 describes the ECB design

principle. Subsection 3.2 presents our definition of

input-output relation for the GUI layer of a GUI-

based software. Section 3.3 presents our fault model.

Subsection 3.4 presents our solution. Subsection 3.5

presents our implementation of the solution.

3.1 Entity Control Boundary (ECB)

Design Principle

Our work assumes that the design of the GUI-based

software under verification follows the Entity-

Control-Boundary (ECB) design principle which

divides classes over three main categories (Bruegge

and Dutoit, 2000; Bein, 2017; IBM, 2017; Pearce,

2017): Entity classes represent the information the

software needs to manipulate and determine the state

of the software (i.e., the temporary and permanent

information); Control classes realize the use cases,

implement the logic of the software, and determine

how the state of the software changes (i.e., when and

how the state changes); Boundary classes realize the

interactions between the software and the actors (e.g.,

human, hardware, other software), transmit requests

and data and determine how the software is presented

to the outside world (Bruegge and Dutoit, 2000;

Bein, 2017; IBM, 2017; Pearce, 2017). When the

software interacts with humans, Boundary classes

necessarily represent GUI classes and are

implemented with well-known packages (e.g., Swing

in Java). This design principle also assumes that

when a Boundary class transmits requests and data

back and forth between the application logic (Control

classes) and actors, thereby converting it from/into a

form that can be dealt with in the Control classes, it

does so without changing the semantics of the

information, though possibly changing the type of the

information (e.g., from an

int variable to an

Integer object) (Nunes and Cunha, 2000),

(Bruegge and Dutoit, 2000) (page 182). Our work

relies on this important design assumption.

3.2 Input-Output Relation

We refer to input variable as any variable in the GUI

code that receives a value from the user. We refer to

argument variable as any variable in the header of a

method in a Control class. We use the term input-

output relation to refer to the relation between these

two kinds of variables: an input is received from a

human actor as an input variable which, through

some control flow in the UI code, reaches an

argument variable. This is a way to model the flow

followed by data when a Boundary class converts

data received from a human actor into a form that can

be dealt with in a Control class.

Our solution, which we discuss below, relies on

the understanding of the multiplicities of this input-

output relation. This understanding will also help

during the validation of our solution. We distinguish

between six different kinds of multiplicities. In the

Many to One (N-1) multiplicity, several input

variables to Boundary classes are used to form (i.e.

compute) one argument variable to a function in a

Control class. In a One to One (1-1) multiplicity, one

input variable to a Boundary class becomes one

argument variable to a Control method. In a Many to

Many (N-M) multiplicity, many input variables to

Boundary classes contribute to many argument

variables. In a Many or One to zero (1-N..0)

multiplicity, one or more variables do not contribute

to any argument variable to the Control class. In a

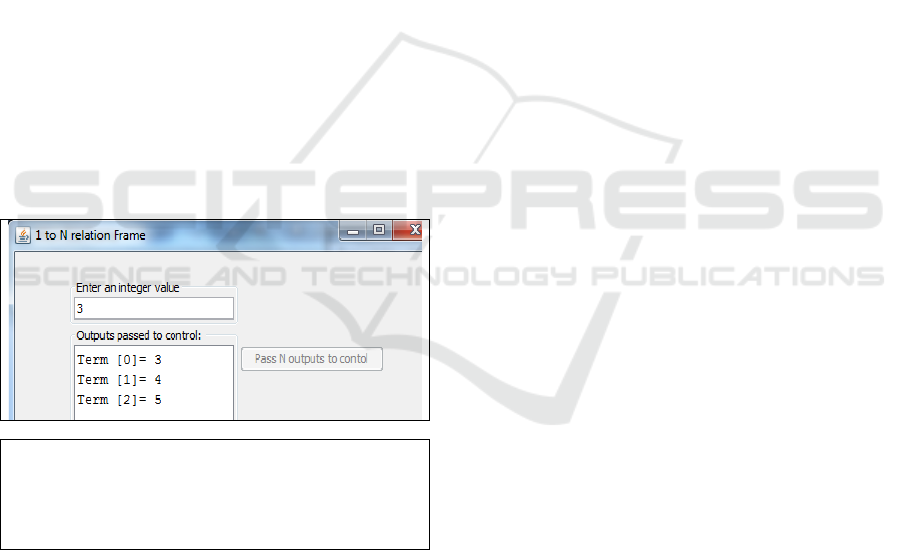

One to Many (1-M) multiplicity there is one input

variable to the GUI that contributes to many

arguments of methods in Control classes. In a Zero to

one or Many (0-1..M) multiplicity, there is no input

variable to the GUI but one or many arguments to

Control methods.

ICSOFT 2018 - 13th International Conference on Software Technologies

374

3.3 Fault Model

A fault model assists practitioners during test case

generation, and data or control flow analysis (Rajput,

2013), and allows one to qualitatively assess fault

detection of a specific verification technique (Harris,

2003). We explain some faults that we expect to

discover with our approach. They relate to the

functional behaviour of the UI part of the software,

specifically how the UI transmits data from the user

to Control classes; non-functional properties of the

UI are out of our scope.

The first type of faults in our fault model is an

unexpected change of value of an input variable; the

GUI changes the value entered by the user before

passing it to a Control class when it should not; the

input variable (integer, Boolean, String) is expected

to equal the argument variable. The second type of

faults is incorrect change in the syntax of the input.

For example, the developer may split one string

entered by the user (input variable) and pass it to two

methods in the Control when it should be passed as

two argument values to only one method. This type

of faults is not a broader description of the first type

because here we have a mathematical function (that

is not an equality) that describes the output as a

function of the input. The third type of faults is that

the values of two input variables get swapped with

each other. We consider this kind of faults as a

combination of two faults belonging to the second

type.

3.4 Solution

Our solution is to study such input-output relations to

make sure that the GUI code receives the input

provided by the user to the GUI classes and passes it

to the Control classes without semantic change. We

suggest to use static analysis techniques to achieve

this goal. In essence, our solution is to statically

verify that the UI code does indeed implement the

ECB principle correctly. And we argue that from a

functional point of view, if the UI satisfies this

condition and functional system-level tests applied to

the application logic (i.e. Control classes) pass, then

we have functionally verified the entire GUI-based

software.

We have a similar handling for the different

variable types. For each argument variable there must

exist a mathematical function or expression that can

express possible values of this variable as a function

of one or more input variables. In the simplest case

where an input variable is passed as is to a Control

method, this mathematical function is an equality: the

argument variable must equal the input variable. The

next question that needs to be answered is: what is

the mathematical expression, relating input variables

and argument variables, and how this expression can

be verified statically?

One solution is to ask the designer to specify such

expressions and rely on some static analysis

technology to verify that this expression is indeed

true on all execution paths in the code. This however

puts some burden on the designer. An alternative can

be to use some advanced static analysis such as

abstract interpretation and let the analyzer discover

expressions that relate argument variables and input

variables; it is up to the designer or tester to then

validate whether this expression is correct. Again, the

solution puts some burden on an engineer. Given we

are working on case studies written in Java, we can

investigate the use of the Java Modeling Language

(JML) and the Extended Static Checker (ESC)

(Flanagan et al., 2013) for implementing the first

solution and the use of Julia for implementing the

second solution. Regardless of the technology being

used, we can expect to be subject to some technical

limitations, even though the field of static analysis

has made tremendous progress in the last decade. As

discussed below, we opted for the first solution.

3.5 Implementation of Our Solution

Our solution is to rely on programmer-defined JML

expressions that describe how argument variables

ought to relate to input variables and then ask ESC to

statically verify whether such expressions always

hold. Because we are interested in argument

variables, that is variables that are passed to methods

of Control classes, these expressions are necessarily

pre-conditions. Let us assume that the GUI is

supposed to present a numerical input as is to a

Control class. With a static checker, we can check if

there is a difference in value, as specified in a JML

precondition, between the input variable to the GUI

and the argument passed to the Control class. In case

the static checker reports that there is a violation of

the precondition due to a difference between the

input and the output of the GUI, then the static

checker has revealed a fault. If the static checker

does not report any violation (difference), then there

is no fault. This way, the static checker is used for

fault detection in the GUI. In order to specify such

preconditions, a few additional questions must be

answered: (1) Where to place the pre-condition? (2)

how to make the input variable (input by the user)

available/visible to that precondition so that the

mathematical expression specifying the input-output

On Graphical User Interface Veriﬁcation

375

relation can be specified as a JML expression? Since

the mathematical expression/function specifies a

relation involving an argument variable, the

precondition of course specifies the Control class

method that receives that argument variable as input.

This method can either be a constructor or a

“regular” method of the Control class.

Given that we assume we work on a GUI-based

software built with the Java programming language,

we must abide to the visibility rules of variables and

attributes in Java when answering the second

question. Since the input variable is defined in a

Boundary class, and Boundary and Control classes

are different, since this input variable may (likely) be

a local variable in a Boundary class method, this

variable is not visible to a precondition in a Control

class method. We therefore add public static

variables in the GUI classes to hold the value entered

by the user (the input variables). Then, we must

search for places in the Boundary classes where calls

(methods or constructors) are made to Control

classes, analyze which (local) variables in the calling

methods are used as arguments in those calls, and

identify which user inputs are used to set values of

those arguments. This is a standard data flow

problem that can be easily solved with a tool such as

Atlas (Kothari, 2017). Once this is done, we set the

value of the added static variable to the variable (user

input) that has been identified.

3.6 A Simple Example

We use a simple, synthetic software to explain the

solution described above. The software was designed

using the ECB design principle. The Entity class is

MyTextEntity, which has a functionality for

creating some text files on the hard disk and printing

text on the standard output stream.

TextControl is

a Control class that receives inputs from the

Boundary class and makes a call to the Entity class.

RadioComponent, CopyTextComponent and

MainExeFrame are Boundary classes which receive

the input from the user, process it and pass it to the

Control class.

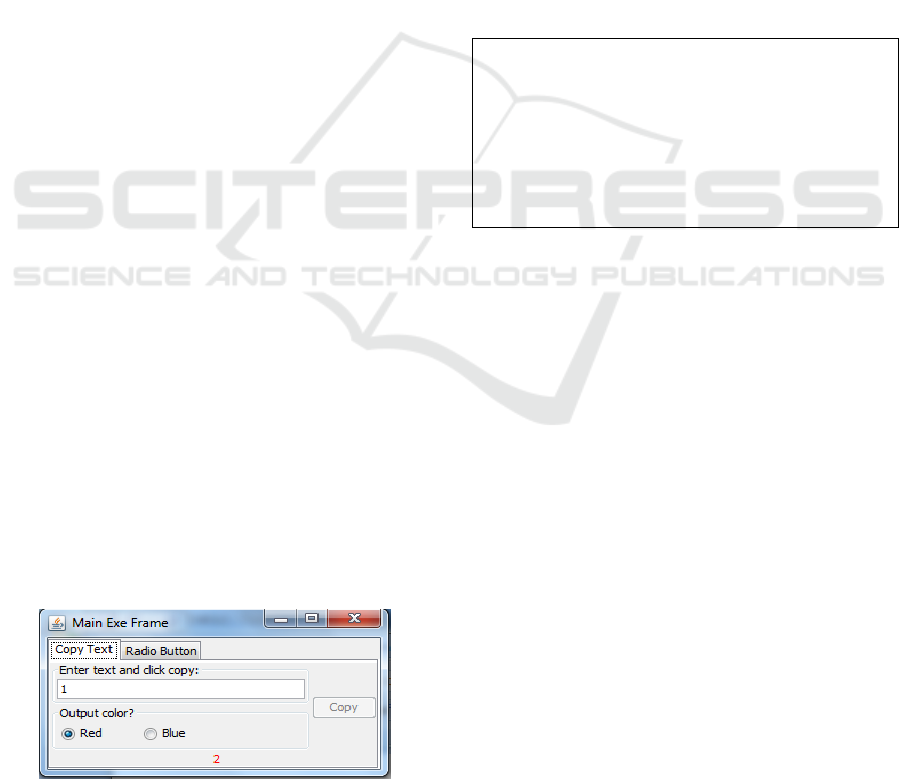

Figure 1: The main window of simple software after

typing the input and clicking the copy button.

Figure 1 shows the main window of the software.

When the user enters an input, using the text field,

and presses the copy button, the software shows the

result at the bottom of the window with the user-

selected colour (radio buttons). The figure illustrates

a fault: the software added 1 to the input value, which

should have been 1, not 2.

Figure 2 shows a sample of the code from class

CopyTextComponent, specifically an excerpt of the

actionPerformed() method of the

CopyTextComponent instance. This instance

obtains a value from the GUI (line 1) and stores it in

the

userInput variable. Then (line 2), it declares a

variable called

callArgument. The callArgument

variable takes the value of

userInput and adds the

value 1 to it: this is the fault. Then it passes it to the

Control class instance: call to the constructor of the

TextControl class. Then, the call proceeds to the

method

printCopyMessage().

1intuserInput=Integer.parseInt(

inputExpression.getText());

//gettheuserinputfromthetextfield

2intcallArgument=userInput+1;

//processtheen teredvaluebyadding1.

3TextControlt=new

TextControl(Integer.toString(callArgumen

t));

//passingtheva luetoaControl

4t.printCopyMessage(evt.toString(),0);

Figure 2: Excerpt of the GUI code.

In this example, we need to make sure that the

input given to the TextControl instance is the right

input–in this case, the string value received from the

text field. The code converts the string to an integer

and increases the value by one. The code converts the

value (after the increment) to a string and passes the

string to the Control class instance. Our procedure,

discussed earlier, is to identify the call site to the

Control class (here it is line 3 in Figure 2), and

identify the input variable that leads to an argument

used in the call site (here it is variable

userInput

that receives a value at line 1 in Figure 2). As

mentioned earlier this can be facilitated by the use of

a tool such as Atlas. Our procedure is then to add a

public static variable to record the input value: here

we record the value received by

userInput . Figure 3

shows the modified

CopyTextComponent. We

define a public static variable in class

CopyTextComponent called

verification_variable. (Code showing this

addition omitted.) The variable is used to store the

value entered by the user: the same value as

userInput . We also add a local variable

ICSOFT 2018 - 13th International Conference on Software Technologies

376

output_variable (line 5) to contain the data that

is passed to the Control class. Adding this local

variable will help ESC analyze the code. Our

experiment shows that without such a local variable

ESC does not evaluate this part of code.

1 Sting s = inputExpression.getText();

2 int userInput=Integer.parseInt(s);

// get the user input from the text

field

3 int callArgument = userInput + 1;

// process the entered value by adding

4 verfication_variable = s;

5 output_variable=

Integer.toString(callArgument);

6 TextControl t = new

TextControl(output_variable);

// passing the value to a Control

7 t.printCopyMessage(evt.toString(),0);



Figure 3: Modified Boundary code as per our solution.

The next step of our solution is to add a

precondition before the constructor of TextControl

since it is the constructor that is called in the

Boundary class (

CopyTextComponent): Figure 4.

1 /* process equality check on the entered

value and value that reach the

Control.

2 // @ requires s ==

CopyTextComponent.verificaton_variable

3 */

4 TextControl(String s){ ...

Figure 4: The adding of a precondition in the source code.

ParseException{CopyTextComponent.java:109:

Warning: Precondition possibly not

established (Pre)

TextControl t = new

TextControl(output_variable);

Associated declaration is ".\

CopyTextComponent.java", line 16, col 6:

@ requires s ==

CopyTextComponent.verificaton_variable;

Execution trace information:

Executed then branch in

"CopyTextComponent.java", line 93, col 55.

Figure 5: Excerpt of the file generated by ESC.

The precondition specifies that it is required,

when entering the Control class constructor, that the

value of argument

s (the output variable) equals the

value of the public static attribute value we added to

record the input variable. Then, ESC, when

analyzing the modified code, generates an output

file: excerpt in Figure 5. ESC reports a violation of

the precondition. (Note that line numbers reported

by ESC in the figure do not match the lines numbers

we have in the figures of this paper; this is because

we re-numbered the lines in the paper to simplify the

discussion.)

4 VALIDATION

We first discuss validation with synthetic examples

in light of the input-output relations, and their

multiplicities, that we discussed earlier, and then

validation with a real, though simple, GUI-based

software in terms of fault detection.

4.1 Applicability

In this section, we validate the applicability of our

solution on several types of multiplicity. Hence we

argue that our approach will work on those scenarios.

Consequently, we hope that such validation shows

the capability to generalize our results. We use a

synthetic case study to demonstrate how our

verification technique is applicable for several

multiplicities of the input-output relation. We use

faulty preconditions instead of generating faults in

the software. There are three buttons in this case

study, each of them shows one possible relation

between the input to the GUI and the output to the

logic. The first button simulates the first type of

multiplicities which is 1-1. Clicking on that button

shows another window where the user can enter a

text and clicks a button. When the user enters "String

Input" and clicks the button, the GUI takes the input

entered by the user in the text field and passes it to

the Control. The GUI has a label that shows a text

"String passed as is to control" at the bottom of the

window. To verify this 1-1 relation, we proceeded as

described earlier (added static variable, added

precondition): the precondition is an equality

between two variables (the static variable of the

Boundary class, the argument of the Control

method). With this precondition, ESC does not

complain. However, if we change the precondition

(e.g., inequality instead of equality), thereby

simulating a fault in the Boundary class, then ESC

warns about a violation of the precondition.

Figure 6 shows the UI of an example of 1-N

relation and the corresponding JML precondition. In

this example the UI receives an integer value as an

input; based on the value of that integer, the software

creates an array of elements. The values of those

elements and their indexes appear on the output. The

GUI shows the output. We use another example to

On Graphical User Interface Veriﬁcation

377

simulate a N-1 relation. In this synthetic example, the

software receives several values as inputs. Then, it

outputs the sum of those values. Similarly to the

previous cases, we added static variables (for

recording the values of input variables) and a JML

precondition: the argument of the Control method

should be the sum of inputs to the GUI. Details are

not shown because of space constraints. We also

simulated faults in the GUI with alternative JML

preconditions, i.e., other than the correct one; each

time ESC complained as it detected violations of the

alternative preconditions whereas it was able to

confirm the correct precondition was always

satisfied.

These examples show that our approach to verify

the input-output relation between the UI (Boundary

classes) and the application logic (Control classes)

applies to several kinds of multiplicities. We think

that the three multiplicities discussed above (1-1, 1-N

and N-1) are the most common types of

multiplicities. Hence, we believe that our solution

will work on all other types of multiplicities

discussed in section 3.2, though more studies to

confirm this assertion are warranted. We think that

this would help us to generalize our solution.

4.2 Fault Detection

15 /*@ public normal_behavior

16 @ requires a + b + c == 3 + (3*

OneToManyComponent.verification_user_input);

17 @*/

18 public OneToManyControl (int a, int b,

int c) …

Figure 6: JML code to verify the 1-N relation.

We first discuss the software under test and then the

experiment. Results are discussed last. Our software

under test performs a number of computations on

Boolean expressions provided by the user through a

GUI. The Software Under Test (SUT) provides three

main functionalities: computing and displaying the

truth table of a Boolean expression, computing and

displaying the Disjunctive Normal Form (DNF) of a

Boolean expression, and deriving tests according to

the variable negation testing strategy for a Boolean

expression (Weyuker et al., 1994). Our case study

has one main window with three buttons. Clicking on

any of the buttons generates a child window to

handle the corresponding functionality. The truth

table window accepts a string representing a Boolean

expression (text field) and generates its truth table

upon request (

Compute Truth Table button).

The DNF Expression window computes (

Compute

DNF button) the disjunctive normal form of the

Boolean expression provided in the top text field and

displays the result in the bottom text area. In the third

window the input must be provided as a series of

terms of the DNF of a Boolean expression. The user

must enter those terms in input text fields, one term

per text field.

First we formulated three preconditions for our

case study because each functionality involves only

one call to a Control class method. For each of these

preconditions, we ran ESC twice: one time using a

valid precondition and another time using a modified

(incorrect) precondition. Hence, we simulate that

ESC reports on issues when there are some (modified

precondition) and is silent when there is no issue

(original precondition). In our case study, there is one

argument variable to one truth table Control class

method, one argument variable to one DNF Control

class method, and three or more argument variables

(in fact it is an array) to one variable negation

Control class method.

For the truth table window, there is only one text

input that is the Boolean expression. In this example,

there is no intermediate variable between the GUI

and the Control. In other words, the value is taken

from the GUI and passed directly to the Control. In

fact, this Control class is called by all three

functionalities / user interfaces. Its precondition must

reflect that. For the DNF component functionality,

the situation is similar as we need to handle only one

input in the GUI of the DNF. We proceeded similarly

to the previous case: addition of a local variable,

addition of public static variable, JML precondition

checking the equality between the static variable and

the argument of the constructor of the control class.

As for the variable negation component, the situation

is different as there are three inputs by default from

the GUI and the user can add more inputs. The input-

output relation in this GUI is an example of a N-1

input-output relation. The user inputs are used to

create an array that is passed to the Control; each

element in the array is a string coming from a text

field. We need to define some verification (public

static) variables. We should define those static

variables at specific points of the code. We had to

ICSOFT 2018 - 13th International Conference on Software Technologies

378

make a few more code modifications for this third

functionality compared to the previous cases. We

defined two arrays; adding arrays is simply due to the

fact that the data we need to record (input variables)

is an array; in previous cases, the data was a simpler

type. The first array is to store the verification

variables. We pass the second array to the Control

class. The original code passes an iterator of values

to the Control class. In the precondition of the

Control class, we have to inspect every item inside

the iterator as a verification procedure. Since dealing

with an iterator is not as easy as dealing with arrays

in JML, we instead look for a place in the application

logic code (Control) where the elements of the

array/iterator can be checked. This does not happen

in the constructor but in a method immediately called

by the constructor. To perform the verification, we

added an “abstract” method (empty body) and

specified the required verification in JML as its

precondition

For fault detection, similarly to the previous case,

we asked ESC to verify correct and incorrect

preconditions. ESC did not complain about all three

valid preconditions and complained about all three

invalid (incorrect) preconditions. Hence, we conclude

that ESC is capable of fault detection. In our context

ESC takes around 2 to 3 minutes to analyze the code.

This is much less than the time consumed by

GUITAR. GUITAR tests the underlying functionality

only if we update the test cases with valid inputs and

takes approximately 20 minutes to replay a test suite

on the case study we used here regardless if it is

updated or not (Alkhalid and Labiche, 2017). We

therefore argue that the manual work of GUI

functional system testing requires much more efforts

than the manual work of our solution. For example,

updating test cases with a valid input is a much more

effort-consuming task than adding verification

variables and preconditions to the code.

5 CONCLUSION

Recognizing that GUI testing in the sense of

executing system level functional tests through the

GUI is expensive and likely leads to redundant

testing efforts, we investigate the use of static

analysis to verify the GUI part of the GUI-based

software. We describe the notion of input-output

relation at the GUI level that is data flow

relationships that exist between data provided by the

user to the UI and data provided by UI to the

application logic code. We use this notion of input-

output, describing various multiplicities of the

relation, to structure the discussion of our solution

(including a fault model). We then present an

approach to statically verify how the GUI

implements those relations, without testing. We

implement the approach using the Extended Static

Checker (ESC) that relies on Java Modeling

Language preconditions that specify the input-output

relations to be verified. In essence our approach

assumes the UI is designed by following the Entity-

Control-Boundary (ECB) design principle: class

responsibilities lead to Entity classes (hold the data,

the state of the software), Boundary classes

(interacting with actors), and Control classes

(realizing use cases); Boundary classes may change

the syntax of data they collect from actors and pass to

Control but not their semantics. The solution is a

verification that the ECB principle holds: the JML

preconditions being checked by ESC specify what it

means for the UI to not change the semantics of the

data.

Our solution overcomes other solutions of GUI

functional system testing, at least in principle (we

have not made any experimental comparisons). We

made steps towards the validation of our solution. In

the evaluation of our work, instead of a faulty

software, we decided to use faulty preconditions.

Hence, we run the ESC twice, once on a correct

precondition and another time on an incorrect one. In

doing so, we argue we simulate a fault in the code.

Our results, though limited by the size of the GUI-

based software we used, as well as some limitations

of ESC, looks encouraging.

Our future work includes the evaluation of our

solution on other case studies, as well as the use of

more advanced static checkers than ESC that would

overcome ESC’s limitations. Theoretical analysis and

experimental evaluation should also validate whether

mutating preconditions actually simulates faults in

the functional behaviour of the UI code in our

context.

ACKNOWLEDGEMENTS

This research has been funded by the Natural

Sciences and Engineering Research Council of

Canada.

REFERENCES

Alkhalid, A. and Y. Labiche (2017). How does GUI

testing exercise application logic functionality? 2017

IEEE 41st COMPSAC. Torino, IEEE. 2: 90-95.

On Graphical User Interface Veriﬁcation

379

Arlt, S., A. Podelski, et al. (2012). Lightweight static

analysis for GUI testing. 2012 IEEE 23rd

International Symposium on Software Reliability

Engineering, IEEE.

Bein, A. (2017). "Simplicity by Design." Retrieved 2017,

from http://www.oracle.com/technetwork/issue-

archive/2011/11-jan/o11java-195110.html.

Bruegge and Dutoit (2000). "Object-Oriented Software

Engineering: Using UML, Patterns and Java."

Cousot, P. and R. Cousot (1977). Abstract interpretation: a

unified lattice model for static analysis of programs by

construction or approximation of fixpoints.

Proceedings of the 4th ACM SIGACT-SIGPLAN

symposium on Principles of programming languages,

ACM.

Flanagan, C., K. R. M. Leino, et al. (2013). "PLDI 2002:

Extended static checking for Java." ACM Sigplan

Notices 48(4S): 22-33.

Gross, F., G. Fraser, et al. (2012). Search-based system

testing: high coverage, no false alarms. Proc. of the

2012 International Symposium on Software Testing

and Analysis, ACM.

Harris, I. G. (2003). "Fault models and test generation for

hardware-software covalidation." IEEE Design & Test

of Computers 20(4): 40-47.

IBM. (2017). "Guideline: Entity-Control-Boundary

Pattern." Retrieved 2017, from http://epf.eclipse.org/

wikis/openup/core.tech.common.extend_supp/guidanc

es/guidelines/entity_control_boundary_pattern_C4047

897.html.

King, J. C. (1976). "Symbolic Execution and Program

Testing." Communications of the ACM

Kothari, S. (2017). "Atlas." Retrieved 2017, from

http://www.ensoftcorp.com/atlas/.

Mariani, L., M. Pezze, et al. (2012). Autoblacktest:

Automatic black-box testing of interactive

applications. 2012 IEEE Fifth International

Conference on Software Testing, Verification and

Validation, IEEE.

NASA. (2015). "Java path finder." Retrieved 2015, from

http://babelfish.arc.nasa.gov/trac/jpf/wiki.

Nguyen, B. N., B. Robbins, et al. (2014). "GUITAR: an

innovative tool for automated testing of gui-driven

software." Automated Software Engineering 21(1): 65-

105.

Nunes, N. J. and J. O. F. O. Cunha (2000). Towards a

UML profile for interaction design: the Wisdom

approach. International Conference on the Unified

Modeling Language, Springer.

Pearce, J. (2017). "The Entity-Control-Boundary Pattern."

Retrieved 2017, from http://www.cs.sjsu.edu/~pearce/

modules/patterns/enterprise/ecb/ecb.htm.

Rajput, D. (2013). "Fault Models and Test Generation for

Covalidation Techniques in Hardware & Software"

Advance in Electronic & Electric Engin. 3(7): 817-

826.

Spoto, F. (2005). Julia: A generic static analyser for the

java bytecode. The 7th Workshop on Formal

Techniques for Java-like Programs, FTfJP’2005,

FTfJP’2005, Glasgow, Scotland, July 2005. Available

at www.sci.univr.it/~spoto/papers.html.

Wang, T., A. Roychoudhury, et al. (2017). "JSlice - a Java

Dynamic Slicing Tool."

Weiser, M. (1981). Program slicing.

Proc. of the 5th

International Conference on Software Engineering,

IEEE Press.

Weyuker, E., T. Goradia, et al. (1994). Automatically

generating test data from a Boolean specification.

IEEE Transactions on Software Engineering. 20: 353-

363.

Yuan, X. and A. M. Memon (2007). Using GUI run-time

state as feedback to generate test cases. 29th

International Conference on Software Engineering

(ICSE'07), IEEE.

Zhang, S., D. Saff, et al. (2011). Combined static and

dynamic automated test generation. Proceedings of the

2011 International Symposium on Software Testing

and Analysis, ACM.

ICSOFT 2018 - 13th International Conference on Software Technologies

380
