Implicit Data Integrity: Protecting User Data without MACs

Michael Kounavis, David Durham, Sergej Deutsch and Saeedeh Komijani

Intel Labs, Intel Corporation, 2111, NE 25

Avenue, Hillsboro, OR 97124, U.S.A.

Keywords: Data Integrity, Implicit Integrity, Pattern Detectors, Entropy, Entropy Index, Symmetric Encryption.

Abstract: We address the problem of detecting data corruption, without producing, storing or verifying mathematical

summaries of the content, as it is typically done today. Data corruption may be either due to natural means or

due to the malicious modification of content by some attacker or malware. Today, data corruption detection

is supported by producing and using security metadata such as Message Authentication Codes (MACs),

Integrity Check Values (ICVs), checksums etc. The methodology we study, called ‘implicit data integrity’

avoids the use of such metadata. It supports the detection of corruption in a novel way based on the observation

that regular unencrypted user data typically exhibit patterns. When some encrypted content becomes corrupted

and is decrypted, it may no longer exhibit patterns. It is the absence or presence of patterns in decrypted

content which denotes whether some content is modified or not. We present a number of pattern detectors and

algorithms which can successfully support implicit data integrity at quantifiable security levels. We also

demonstrate that our patterns and algorithms can characterize the overwhelming majority of client and server

workload data. We present security analysis and performance results coming from over 111 million

representative client workload cache lines and 1.47 billion representative server workload cache lines. We

also present synthesis results showing the efficiency of the hardware implementations of some of our

algorithms.

1 INTRODUCTION

1.1 The Concept of Implicit Data

Integrity

We address the problem of detecting data corruption

without producing, storing or verifying mathematical

summaries of the content. By ‘mathematical

summaries of the content’ we mean integrity

metadata such as Message Authentication Codes

(MACs), Integrity Check Values (ICVs), Cyclic

Redundancy Codes (CRCs) or checksums that can be

used for detecting whether some content has been

unintentionally or maliciously modified. Content can

be modified by natural means (e.g., due to noisy

channels or interference), by software bugs (e.g., due

to bugs corrupting memory regions) or intentionally

(e.g., due to malware or man-in-the-middle attacks).

Today, the standard way of supporting data

integrity is by using integrity metadata. Integrity

metadata can be cryptographically strong, as in the

case of MACs (SHA-256, 2012), (SHA-3, 2016),

(HMAC, 2008), (KMAC, 2016), or weak(er) but

efficient as in the case of checksums, CRCs, or Reed-

Solomon codes. Furthermore, some types of metadata

may support error correction, whereas other types of

metadata may not. What is common in all such

metadata is their associated latency, storage and

communication bandwidth overheads.

Overheads are due to the unavoidable content

expansion resulting from producing and storing the

metadata. In storage systems, for instance, extra space

may be required for storing and accessing ICVs,

Reed-Solomon codes or MACs. The cost of such

metadata in terms of extra storage space is typically

non-negligible. In computing systems with

cryptographic protection of memory (McKeen, 2013)

each cache line needs to be protected by a separate

MAC value. In this way, a separate MAC value needs

to be also read in every data read operation. This

design choice may result in wasting significant

memory access bandwidth resources in a processor,

as each data read operation may need to be realized

as two memory read operations in the worst case. In

computer communication systems that need to

reliably transmit data from a source to a destination

end-point, integrity metadata need to be transmitted

as well. The transmission of such metadata, whether

checksums, CRCs, or MACs may further consume

significant communication bandwidth resources.

Kounavis, M., Durham, D., Deutsch, S. and Komijani, S.

Implicit Data Integrity: Protecting User Data without MACs.

DOI: 10.5220/0006905105430552

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 543-552

ISBN: 978-989-758-319-3

543

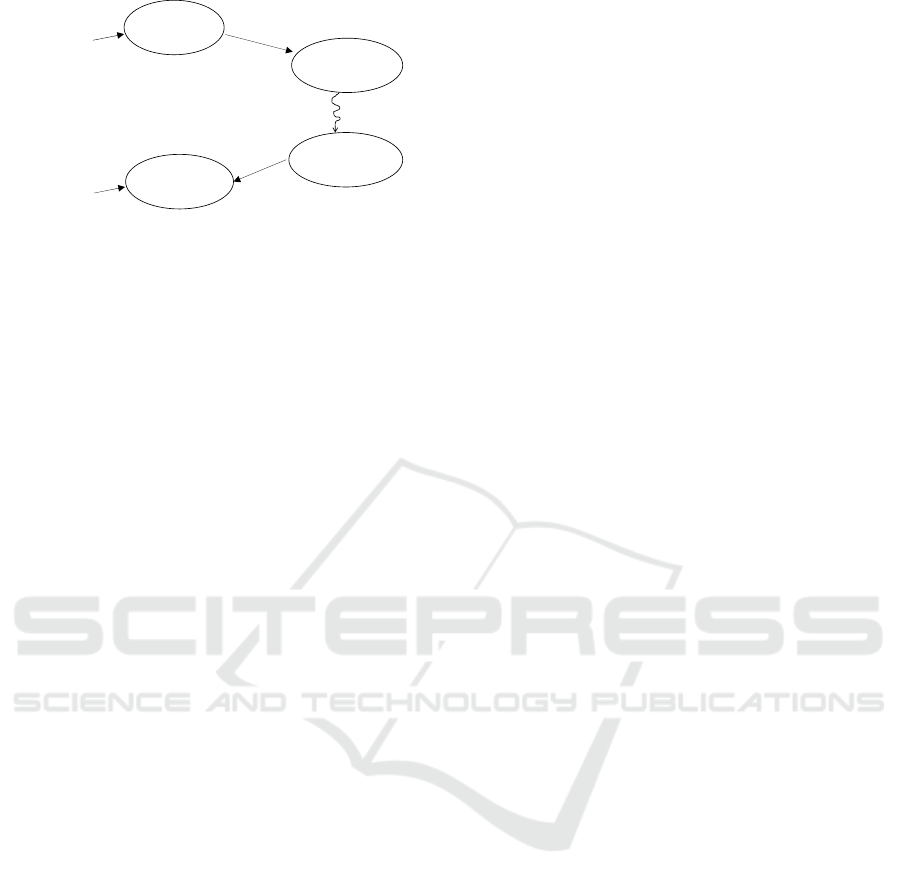

Figure 1: Implicit Data Integrity.

In this paper we study an alternative methodology

that avoids the use of some security metadata

altogether. he methodology we study employs

pattern-based algorithms in order to support data

corruption detection without content expansion. The

main idea, which we study in this paper comes from

the work by Durham et. al. (Durham, 2013, 2015) and

is illustrated in Figure 1. If some content exhibits

patterns (i.e., has low entropy), then such content can

be distinguished from random data. Let’s consider

that this content is encrypted, as shown in the figure,

where the encryption algorithm is a wide block cipher

and a good pseudo-random permutation. Thus, it can

successfully approximate a random oracle (Hall,

1998), (Gilboa, 2015). The cipher text which is

produced in this way is no longer distinguishable

from random data, under certain reasonable

assumptions about the adversary. Any corruption on

the cipher text results in a new cipher text value,

which is different from the original one.

Furthermore, any decryption operation on this new

cipher text value results in a corrupted plaintext value

which is different from the original one as well. As

decryption is the inverse operation of encryption, the

decryption algorithm also approximates a random

oracle. Because of this reason, the corrupted plaintext

value is also indistinguishable from random data with

very high probability.

From a system realization stand-point, the

corrupted plaintext is indistinguishable from random

data due to the fact that wide block ciphers, such as

(Ferguson, 2009), typically perform strong mixing of

their input bits. Due to an ‘avalanche effect’

associated with the decryption oracle, even a single

bit change in the cipher text affects all bits of the

decrypted plaintext. Therefore, checking the entropy

of the result of a decryption operation can be a reliable

test for detecting corruption for some data. We refer

to such methodology as ‘implicit data integrity’ or

just ‘implicit integrity’.

1.2 Challenges

One of the main challenges in building systems that

are based on the principles of implicit integrity is how

to define ‘high’ or ‘low’ entropy. It is not

straightforward how to determine that some content’s

entropy is ‘low enough’ or ‘high enough’ so as to

safely deduce that the original content has not been

corrupted. The standard definition of entropy may not

be easily applicable to corruption detection because

message sizes may be small (e.g., messages may be

memory cache lines of 512 bits), or the sizes of

symbols where deterministic behavior is

demonstrated may vary significantly (e.g.,

deterministic behavior may be observed over sets of

nibbles, bytes, words or double words). A good

corruption detection system must use algorithms that,

on the one hand, characterize the overwhelming

majority of the user data as ‘not random’ or ‘of low

entropy’. On the other hand, the same algorithms

when applied to corrupted plaintext values must

characterize such values as ‘random’ or ‘of high

entropy’ with probability very close to 1. Building a

system that meets these requirements is hard. In this

paper we present a solution that successfully

addresses this problem. Our solution is not the only

one that has been proposed in this space (Durham

2013, 2015 2016). However, our solution gives the

best results when compared to alternatives. In fact, it

is the most optimal solution known to us and,

according to our results, state-of-the-art for the

aforementioned problem.

1.3 Contributions of This Paper

The paper makes two contributions toward building

systems based on the principle of implicit integrity.

A first contribution is an experimentally derived

set of pattern detectors which characterize the

overwhelming majority of unencrypted uncompres-

sed user data and can be used together with wide

block ciphers for building practical working systems

supporting implicit integrity. A second contribution

of this paper is a proposal of a new entropy measure,

called entropy index, which is more appropriate for

small size quantities (e.g., 512 bits, 1024 bits) and can

be used for quantifying the security levels offered by

pattern detectors.

A related approach is described in reference

(Durham, 2013) which introduces the idea of implicit

integrity. This approach avoids specifying how

pattern detectors operate. We significantly expand

upon the idea of reference (Durham, 2013), providing

new components for implicit integrity. Another

plaintext

content

(e.g., cache line)

encryption

ciphertext

corruption

corrupted

ciphertext

decryption

corrupted

plaintext

modified content

distinguishable

from

random

no longer

distinguishable

from

random

SECRYPT 2018 - International Conference on Security and Cryptography

544

related proposal is described in reference (Durham,

2016). In this work, the content of a small size entity

(e.g., a cache line) is deemed ‘not random’ if it

demonstrates 4 or more 16-bit words equal to each

other. Compared to this solution, our solution is more

generic. It further increases the percentage of client

and server workload data that can be protected using

the implicit integrity methodology significantly. For

memory workloads, the observed increase is from

82% to 91% for client data, and from 78% to 84% for

server data, while supporting a level of security of 31

bits. These results are collected from 111 million

representative client workload cache lines and from

1.47 billion representative server workload cache

lines.

1.4 Other Considerations

From this discussion, it becomes evident that not all

data can be protected using implicit integrity. We

envision implementations that protect the

overwhelming majority of user data that exhibit

patterns using the implicit integrity methodology and

the remaining data using standard techniques.

Furthermore, we show that implicit integrity can be

supported at various security levels, which are as

measurable as MAC lengths are. In one example, for

instance, the security level supported by our solution

can be at 31 bits. By ‘31 bits’ of security we mean that

the probability of having a corrupted plaintext value

being characterized as ‘of low entropy’ is 2



for

some small security margin . The security level

offered is associated with an ‘entropy index’ value

characterizing the input data, which is defined in the

next section of the paper. The higher an entropy index

value is, the more difficult is for an attacker to corrupt

some data. All security considerations are with

respect to an adversary who performs on-line attacks

by corrupting cipher text values. By ‘on-line attacks’

we mean attacks where the detection of even a single

corruption event exposes an attack. Finally, we note

that the solution described in this paper is applicable

to any type of data, including memory, data

communication data and storage data. The following

description is independent of the data types where our

solution applies.

The paper is structured as follows. In Section 2 we

provide an overview of the algorithms discussed in

this paper. In Section 3 we discuss related work and

contrast our approach to the known state-of-the-art. In

Section 4 we provide details on our approach. Finally

in Section 5 we provide some concluding remarks.

2 PATTENS AND ALGORITHMS

FOR IMPLICIT INTEGRITY

2.1 Experimentally Derived Pattern

Detectors

The two contributions of this paper are illustrated in

figures 2 and 3 respectively. The first contribution,

shown in Figure 2, is a collection of experimentally

derived pattern detectors that support implicit

integrity using a set of thresholds T

, T

, …, T

. This

is the simplest of our contributions, and a rather

straightforward algorithm to start the exploration of

this space. The second contribution of figure 3 is an

algorithm that performs pattern checks similar to

those of the algorithm of figure 2, but using entropy

index values.

The algorithm of Figure 2, called Extended

Pattern Matching (EPM), employs many different

styles of pattern checks. The security levels

associated with these pattern checks are discussed in

Sections 2.2 and 4. One type of pattern checks detects

entities among the input data that are equal to each

other. Entities can be nibbles, bytes, words (16-bit) or

double words (32-bit). Another type of pattern checks

concerns entities among the input data which are not

only equal to each other, but are also placed in

continuous index positions. This second type of

pattern checks is not necessarily the same as the first

one. For example, one can associate these two types

of pattern checks with different thresholds and, by

doing so, build two different pattern detectors. Yet

another type of pattern checks detects entities that

take special values. Special values are values that are

frequently encountered in regular user data but are

infrequently encountered in random or corrupted

plaintext data. For example, in memory cache lines

obtained from client data workloads, a high

percentage of bytes take the values of 0x00 or 0xFF.

A last type of pattern checks detects entities, the

value histogram of which demonstrates a sum of n

highest entries (i.e., frequencies) being higher than a

threshold. The intuition behind this type of pattern

check is that there are several types of input

messages, the content of which is not as random as

that of encrypted data, but also does not demonstrate

patterns at the byte or word granularity. One example

of such content is media data, where nibble values

may be replicated, but data do not demonstrate

significant byte or word replications. Experimental

studies over 111 million client cache lines and 1.47

billion server cache lines have shown that there are

millions of cache lines demonstrating a limited set of

Implicit Data Integrity: Protecting User Data without MACs

545

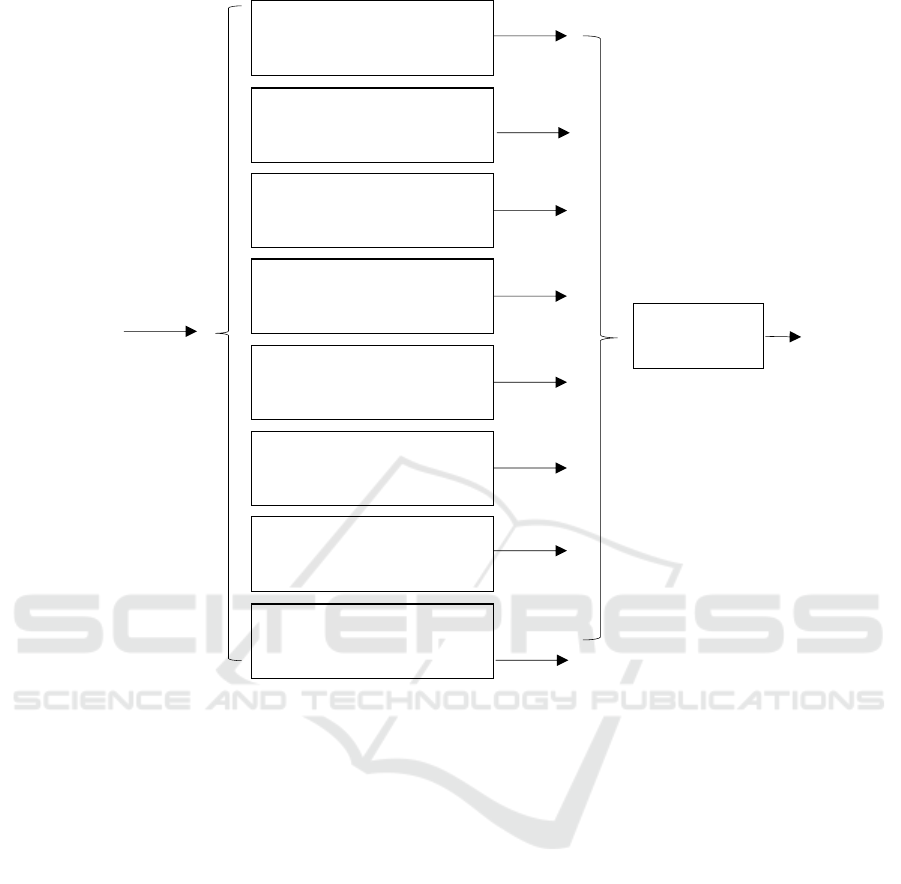

Figure 2: EPM that uses threshold values.

byte equalities, but a substantially higher number of

nibble equalities. A pattern check that computes the

maximum number of nibbles that are equal to each

other is not appropriate in this case, as we have shown

that such pattern check is limiting both in terms of the

percentage of user data it is applicable to, and in terms

of the security level it offers. An alternative pattern

check that computes whether the sum of the n highest

nibble frequencies exceeds a threshold is more

efficient. If the input data consist of cache lines, this

pattern check works best for n = 2. By checking

whether the sum of the two highest nibble frequencies

exceeds a threshold, a more flexible pattern detector

can be built, which on the one hand encompasses

significantly more regular user inputs, and on the

other hand is associated with an event that is

infrequent among random data.

The types of pattern checks outlined above can be

applied in many different types of data values and can

be further combined resulting in stronger pattern

detectors. The diagram of Figure 2 illustrates one

example where 8 pattern checks are employed. The

following computations are performed in order to be

determined whether the resulting numbers or

frequencies exceed a threshold: (i) the computation of

the maximum number of bytes being equal; (ii) the

computation of the maximum number of adjacent

bytes being equal; (iii) the computation of the

maximum number of bytes that take special values

from a set V; (iv) the computation of the maximum

number of words being equal; (v) the computation

of the sum of the two highest double word

frequencies; (vi) the computation of the sum of the

two highest nibble frequencies; (vii) the computation

of the sum of the two highest most significant nibble

frequencies; and (viii) the computation of the sum of

the two highest least significant nibble frequencies.

The resulting numbers/frequencies are compared

against thresholds T

, T

, …, T

and the responses

form a vector of eight Boolean values. These values

undergo a logical OR operation. The result of this

logical OR operation is the final response on whether

the input is of low entropy or not. Essentially, the

algorithm of Figure 2 checks whether there exists at

max number

of adjacent bytes that are equal

exceeds a second threshold T

number

of bytes that are equal

exceeds a threshold T

number of bytes that take special

values from a set V exceeds a

third threshold T

number

of 16-bit words that are equal

exceeds a fourth threshold T

sum of two highest

32-bit double word frequencies

exceeds a fifth threshold T

sum of two highest

nibble frequencies

exceeds a sixth threshold T

sum of two highest most

significant nibble frequencies

exceeds a seventh threshold T

sum of two highest least

significant nibble frequencies

exceeds an eight threshold T

YES/NO

logical

OR of all

responses

output:

characterization of

input data as

‘low entropy’ data

or not

input data

(e.g., memory

cache line)

SECRYPT 2018 - International Conference on Security and Cryptography

546

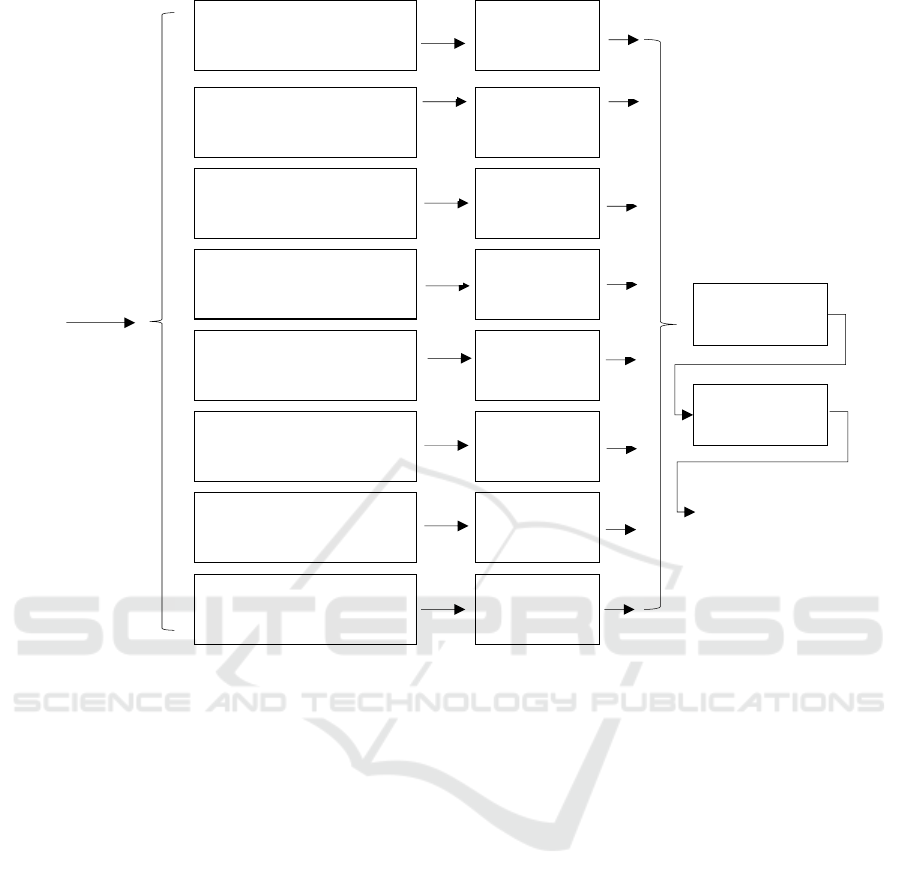

Figure 3: EPM that uses entropy index values.

least one pattern check from among the set employed,

according to which the observed entities which

exhibit the pattern exceed a threshold. If such pattern

check exists, the input is characterized of low

entropy, otherwise it is not.

2.2 The Concept of the Entropy Index

Our second contribution is illustrated in Figure 3.

This is an extension of Extended Pattern Matching

that does not require the use of thresholds. Instead,

the algorithm computes the number of entities that

exhibit a pattern in some data and converts this

number into an ‘entropy index’ value. In what

follows we define the concept of an entropy index.

Let’s consider a pattern p of type π (e.g., maximum

number of bytes being equal). If some input data x of

fixed length L demonstrates pattern p and exactly N

entities from x exhibit this pattern (e.g., the maximum

number of bytes being equal is exactly N) we denote

this fact as:

∈(,)

(1)

We define an entropy index value E associated with

the pattern type π and entity number N as the negative

logarithm of the probability that ∈

(

,

)

given

that x is random (e.g, x is obtained from the output of

a random oracle).



(

,

)

=−log



Prob[x ∈ p(π,N)|

←trunc



(





)

,



←

]

(2)

where by trunc



() we mean a function that truncates

its input returning only L bits of it.

According to the definition above, the probability

of seeing the pattern (,) in a random data value

x is equal to 2

-E

. Entropy index E is measured in bits.

Furthermore, the expected number of random values

we need to inspect until we find one that demonstrates

the pattern (,) is 2

. As a result, the entropy

index E associated a pattern type π and an entity

number N is also equal to the logarithm of the

expected number of random values we need to inspect

until we find one value x such that  ∈ (,).

The Extended Pattern Matching variant of Figure

3 employs the same pattern checks as the algorithm

of Figure 2 with one exception. The pattern checks do

compute the max number

of adjacent bytes

that are equal

compute the max number

of bytes that are equal

compute the max number of

bytes that take special values

from a set V

compute the max number

of 16-bit words that are equal

compute the sum of the two

highest 32-bit double word

frequencies

compute the sum of the two

highest nibble frequencies

compute the sum of two highest

most significant nibble

frequencies

compute the sum of the two

highest least significant nibble

frequencies

input data is of

‘low entropy’ data

or not

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index E

from N

compute

entropy index

E = max {E

,…,E

}

Is E ≥ E

threshold

input data

(e.g., memory

cache line)

Implicit Data Integrity: Protecting User Data without MACs

547

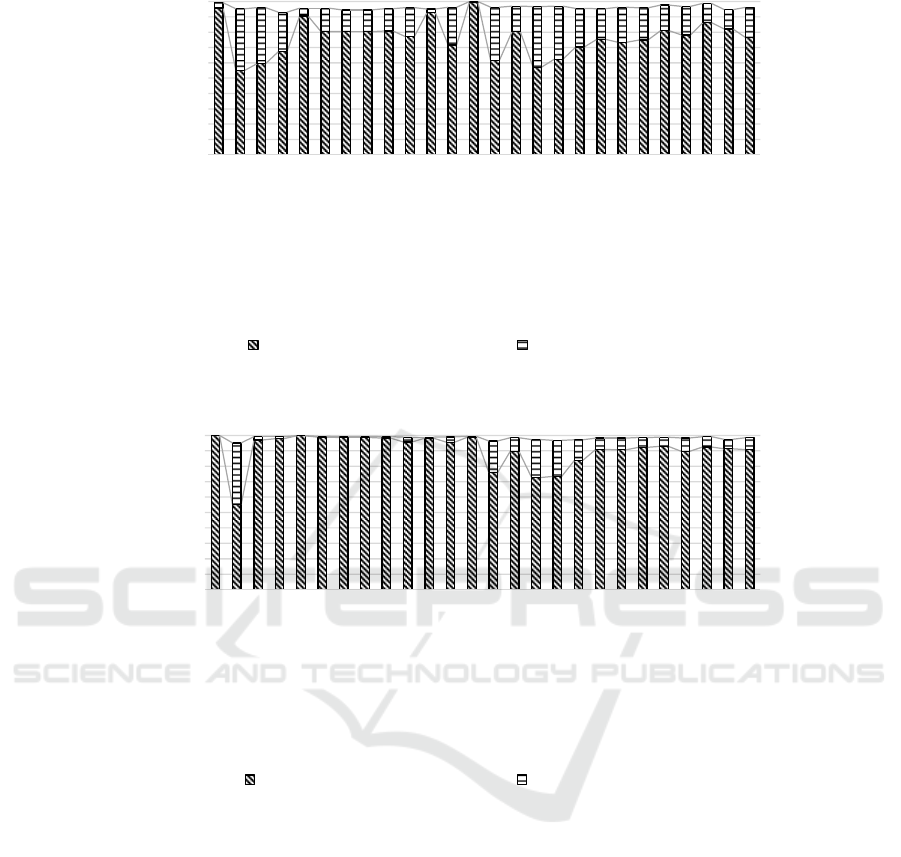

Figure 4: Pass rates of the SPM and EPM algorithms.

not return Boolean responses. Rather, the pattern

checks return the actual numbers of the entities that

exhibit patterns Ν

, Ν

, …, Ν

. Each of these numbers

is converted to an entropy index value. The

computation of every entropy index value depends on

the type of the pattern check used and on the number

of entities that exhibit the pattern in the data. In

Section 4 we provide examples of how entropy index

values can be computed for different types of pattern

checks. The entropy index values Ε

, Ε

, …, Ε

obtained this way undergo a stage that selects the

maximum of these. If the maximum entropy index E

exceeds a threshold, then the input is characterized as

demonstrating low entropy, otherwise it is not.

The algorithm of Figure 3 essentially searches for

the rarest of the patterns that are exhibited by the input

data. The rarest of the patterns is the one that appears

with the smallest probability among random data and

is associated with the highest entropy index value. As

the algorithm converts numbers Ν

, Ν

, …, Ν

into

entropy index values Ε

, Ε

, …, Ε

, the algorithm

does not need to directly operate on thresholds that

characterize the data entities exhibiting the patterns.

Instead, the algorithm of Figure 3 operates on a single

entropy index threshold, which has practical

significance. This threshold reflects the expected

number of efforts required by an adversary in order to

produce the rarest of the patterns considered in the

figure by corrupting cipher text data. Such probability

is associated with the highest entropy index value.

100

hadoop_wordcount

hadoop_wordsort

audio_playback

blackjack-vegas

navit-gps

office-impress

office-spreadsheet

office-writer

picture-animate

transcoding

3dgame

video-playback

specpower

edinburgh

adobe-flash

hdr-expose

hdr_photo-matrix

itunes

mediashow

photoshop-elements

premiere-elements

drag-n-drop

window-media-player

firefox

3dmarkvantage

Pass Rate (%)

Extended Pattern Matching and ICV Cache Hit Rates

Extended Pattern Matching Rate ICV Cache Hit Rate

100

hadoop_wordcount

hadoop_wordsort

audio_playback

blackjack-vegas

navit-gps

office-impress

office-spreadsheet

office-writer

picture-animate

transcoding

3dgame

video-playback

specpower

edinburgh

adobe-flash

hdr-expose

hdr_photo-matrix

itunes

mediashow

photoshop-elements

premiere-elements

drag-n-drop

window-media-player

firefox

3dmarkvantage

AVERAGE

Pass Rate (%)

Standard Pattern Matching and ICV Cache Hit Rates

Standard Pattern Matching Rate ICV Cache Hit Rate

SECRYPT 2018 - International Conference on Security and Cryptography

548

3 RELATED WORK

Message authentication is typically accomplished

using cryptographic algorithms that involve hashing

(SHA-256, 2012), (SHA-3, 2016), symmetric (AES,

2001), or asymmetric encryption. Today’s techniques

require additional storage or bandwidth for storing a

mathematical summary of the message which is

authenticated. An alternative approach is implicit

integrity, which is first described in reference

(Durham, 2013). Reference (Durham, 2013)

introduces the idea of implicit integrity without

specifying how pattern detectors are designed and

operate. The degree of success of this approach

depends on the design and implementation of the

pattern detectors utilized. Similar to implicit integrity

is also the idea of ‘Robust Authenticated Encryption’

(RAE) (Hoang, 2015), which typically involves some

message expansion. In this approach, some

redundancy λ is typically added to the message which

is being protected.

A related proposal described in reference

(Durham, 2016), concerns a pattern detector that

detects whether 4 or more 16-bit words are equal to

each other in a cache line. Compared to this solution,

ours is more general, avoids the use of fixed

thresholds, and increases the percentage of data that

are protected with implicit integrity significantly. In

memory systems, such increase is from 82% to 91%

on client data, and from 78% to 84% on server data,

while supporting the same level of security (31 bits).

These results are collected from 111 million

representative client workload cache lines and from

1.47 billion representative server workload cache

lines. Pass rate comparisons between the solution of

reference (Durham, 2016) and our solution are shown

in Figure 4. By ‘pass rates’ we mean the percentages

of data that demonstrate specific patterns such as

those of Figures 2 and 3.

In the figure, we refer to the solution of reference

(Durham, 2013) as Standard Pattern Matching

(SPM). Our solution is referred to as Extended Pattern

Matching (EPM). The pass rates for many different

client workloads are shown in the figure. As is

evident from the figure, there are many typical client

workloads (e.g., Microsoft® Office, transcoding,

video player) the pass rates of which range between

75%-80% using Standard Pattern Matching. These

pass rates are boosted to 98% when Extended Pattern

Matching is employed. Overall, the average pass rate

with Standard Pattern Matching is 80%. The average

pass rate with Extended Pattern Matching is 91%. For

server data, the corresponding pass rate values are

78% and 84% respectively.

Figure 4 also shows pass rates for data that are not

protected using the implicit integrity methodology

but for which Integrity Check Values (ICVs) are

stored in a quickly accessible cache unit. It is assumed

that in addition to the implicit integrity methodology,

an ICV cache unit is employed to protect those cache

lines which do not demonstrate patterns. A 4 KB ICV

cache unit is used for the charts of Figure 4. Average

pass rates for the two algorithms are 97% and 99%

respectively in this case.

4 SECURITY ANALYSIS AND

IMPLEMENTATION

In our work we assume that the security levels

supported by our algorithms are significantly smaller

than the sizes of the input messages. For on-line

attacks such assumption is not limiting. Neither the

security offered is limiting, as in on-line attacks the

adversary has only one chance to succeed. An

unsuccessful attack exposes the adversary, resulting

in a possible re-encryption of the data with a new key.

For example, for memory cache lines of 512 bits we

can safely support security levels up to 64 bits using

our methodology. The reason why is because

attackers do not in reality attack ideal primitives such

as random oracles but block ciphers that perform

encryption and decryption. The analysis presented in

this paper focuses on adversaries that aim in

producing outputs exhibiting patterns when attacking

systems that output truly random data. Block ciphers,

on the other hand, are permutations and do not output

truly random data. In fact, it is well known that block

ciphers can be distinguished from random oracles for

sufficiently large query budgets (Hall, 1998), (Gilboa,

2015). In order for our analysis to be valid, we limit

the adversary query budgets and their associated

security levels to values for which block cipher

outputs are practically indistinguishable from the

truncated outputs of random oracles. For example, the

64-bit limit we mention above derives from the

analysis found in references (Hall, 1998), (Gilboa,

2015).

4.1 Security of the Byte and Word

Equality Patter Detectors

Byte and word equality checks are applicable to the

protection of memory and storage data because many

data units in computing systems contain code or data

structures which demonstrate significant byte or word

value replications. The entropy index E associated

Implicit Data Integrity: Protecting User Data without MACs

549

with a data unit consisting of n bytes, which

demonstrates m bytes being equal to each other is

given by:

≅−log



(







256





∙1−

256





)

(3)

Similarly the entropy index E associated with a

data unit consisting of n 16-bit words, which

demonstrates m words being equal to each other is

given by:

≅−log



(







65536





∙1−

65536





)

(4)

In order for an adversary to successfully attack the

byte or the word equality pattern detector, the

adversary needs to produce corrupted plaintext data

demonstrating m or more equal byte/word values. We

consider a simple adversary model, where the

adversary repeatedly attempts to corrupt some

ciphertext, so as to produce plaintext that

demonstrates patterns. The only requirement we

introduce for the adversary is that the number of

adversary queries should be bounded so that the

system which is being attacked (e.g., a wide block

cipher) should be practically indistinguishable from a

truncated output random oracle. The advantage of

such adversary is equal to the probability of seeing

some specific patterns among random data plus the

advantage of distinguishing the real cryptographic

system used (i.e., a pseudo-random permutation)

from a truncated output random oracle. The security

analysis, which will follow, will be focused on the

probability of seeing specific patterns among random

data.

For random data, byte or word equalities are

observed with probability computed as the birthday

collision probability associated n elements, m

collisions and 256 or 65536 birthdays for bytes and

words respectively. Such probability can be

approximated in many ways, for example using a

number of recent analytical results (Klamkin, 1967),

(Suzuki, 2006), (Kounavis, 2017). Using the

approximation from reference (Kounavis, 2017) we

obtain:



(



)

≅1−







−−1









∙

256





∙

255

256





(5)

and



(



)

≅1−







−−1









∙

65536





∙

65535

65536





(6)

The advantage of an adversary who corrupts

ciphertext values, hoping that his corruptions will

pass undetected, Adv

(C)

, is computed from the

probabilities P

(bytes-equal)

(n, m) and P

(words-equal)

(n, m)

as follows:



(



)

≤

(



)

(

,

)

+

(



)

for byte equalities



(



)

≤

(



)

(

,

)

+

(



)

for word equalities

(7)

where Adv

(D)

is the advantage of distinguishing the

cryptographic system used from a truncated output

random oracle.

The birthday collision probabilities presented in

equations 5 and 6 are a little higher than the

probability values 2

-E

associated with the entropy

index values given above. This is because these

birthday collision probabilities include all events

where there are more than m values being equal in a

data unit. In Tables 1 and 2, we show the cumulative

entropy index distribution computed over 111 million

cache lines for the byte and word equality pattern

checks respectively. The corresponding threshold

values associated with each entropy index value are

also shown.

As is evident from the tables, entropy index values

corresponding to reasonably high security levels (e.g.,

32 bits, 24 bits) for implicit integrity are associated

with high pass rates in regular client data cache lines.

This is demonstrated by both the byte equality and the

word equality pattern checks. For example, for the

security level of 32 bits, the percentage of cache lines

that demonstrate this entropy index or higher is

85.28% if the byte equality pattern check is used. For

the security level of 24 bits, the percentage of cache

lines that demonstrate this entropy index value or

higher is increased to 91.48%.

SECRYPT 2018 - International Conference on Security and Cryptography

550

Table 1: Entropy index distribution for the byte equality

pattern check.

minimum

entropy index

(bits)

corresponding

threshold

% of cache

lines

8 5 97.27

16 7 93.55

24 8 91.48

32 10 85.28

40 11 83.30

Table 2: Entropy index distribution for the word equality

pattern check.

minimum

entropy index

(bits)

corresponding

threshold

% of cache

lines

8 3 87.37

16 3 87.37

24 4 82.26

32 4 82.26

40 5 77.70

4.2 Security of a Detector That

Combines All Pattern Checks

The entropy index and security levels associated with

other types of pattern checks can be computed using

similar analytical tools from probability theory. The

pass rates for a scheme that combines all

aforementioned pattern checks are shown in Table 3.

For the 32-bit security level, the combined scheme

demonstrates a pass rate of 91.11%. For the 24-bit

security level the combined scheme demonstrates a

pass rate of 94.48%.

When different pattern checks are combined, an

attacker succeeds if the attacker produces any of the

considered patterns over some corrupted plaintext.

Due to this fact, the overall security level supported

by the combined pattern detector is not equal to the

maximum entropy index characterizing the patterns,

but lower by some small parameter , which needs to

be taken into account.

Table 3: Entropy index distribution for a scheme that

combines all pattern checks of Figures 2 and 3.

minimum

entropy index

(bits)

patterns

considered

% of cache

lines

8 all (1-8) 98.13

16 all (1-8) 96.50

24 all (1-8) 94.48

32 all

(

1-8

)

91.11

40 all

(

1-8

)

88.88

Table 4: Synthesis results for the Extended Pattern

Matching algorithm of Figure 2.

patterns cycles μm

cells

equal words 2 3523 15.8K

eq. words, adj. eq. bytes,

bytes with spec. values,

most sig. nibbles

3 7179 32.1K

eq. words, eq. bytes, 3 14350 64.2K

eq. words, eq. bytes,

most sig. nibbles

3 17119 76.6K

all 8 patterns 4 26218 117.3K

4.3 Hardware Realization

Implementing the aforementioned pattern checks

efficiently in hardware is feasible. This section is

focused on the hardware implementation of the

pattern detectors of Figure 2, as these are the most

area and latency efficient. For the byte and word

equality patterns, interconnect wiring is required,

which connects every byte or word in a data unit with

every other byte or word. The necessary amount XOR

gates can be employed to perform comparisons

between such entities, followed by a layer of AND

gates and counters that compute the number of

matches associated with each entity. The pattern

detectors that compute the sum of the two highest

nibble frequencies are the most complex. These

circuits can be implemented using a combination of

decoders, counters and trees of comparators. Each

nibble value is first passed to a decoder circuit which

generates 16 lines, each corresponding to a different

nibble value from 0 to 15. The decoder outputs

corresponding to the same nibble value are added to

each other. There are 16 different summation outputs

from this stage. These outputs constitute the

histogram of nibble values produced from the input

data. Our synthesis results produced using Intel’s ®

14 nm process technology (Jan, 2015) and the

frequency of 1.67 GHz are shown in Table 4.

5 DISCUSSION

One issue that needs addressing is how to detect

corruption if data do not exhibit patterns. As we

demonstrated above, patterns can be found in up to

91% of client workload cache lines and 84% of server

workload cache lines. Whereas such data can be

protected using implicit integrity, the remaining 9%-

16% of the data need protecting also.

Such design issue can be easily addressed.

Implementations can protect the overwhelming

Implicit Data Integrity: Protecting User Data without MACs

551

majority of user data that exhibit patterns using

implicit integrity and the remaining data using

standard techniques. There is nothing in the implicit

integrity methodology, discussed here, that prevents

it from being used together with other independent

integrity mechanisms such as MACs. Such solutions

can co-exist with implicit integrity.

If some decrypted content exhibits patterns, then

there is some assurance that no corruption has

occurred. If no patterns are exhibited, however, a

search can be made for a MAC associated with the

content. If no MAC is found then the data is deemed

corrupted. Otherwise, an integrity check is made

using the returned MAC. Such implementation can

use a content addressable memory unit or a hash table

for accessing and managing MACs. Further

investigation on hardware and operating system

changes required in order to support implicit integrity

are the subject of future work.

Finally, a reasonable question that can be asked is

why not simply compress the data and augment it by

a MAC in the now free space. Compressing and

decompressing in combinatorial logic, for some

patterns such as the nibble-based ones, can be in fact

quite costly. Ongoing research of ours shows that the

client cache lines that can be compressed at

reasonable cost are significantly fewer than those

protected via implicit integrity (78% as opposed to

91%). Such analysis is the subject of future work.

REFERENCES

D. Durham and M. Long, “Memory Integrity”, United

States Patent, No. 9,213,653, December 2013.

D. Durham, et. al., “Memory Integrity with Error Detection

and Correction”, United States Patent, No. 9,990,249,

December 2015.

D. Durham, S. Chhabra, M. Kounavis, S. Deutsch, K.

Grewal, J. Cihula and S. Komijani, “Convolutional

Memory Integrity”, United States Patent Application,

No. 20170285976, 2016.

SHA256, “Secure Hash Standard”, Federal Information

Processing Standards Publication FIPS PUB 180-4,

2012.

SHA-3, “SHA-3 Standard: Permutation-Based Hash and

Extendable-Output Functions”, Federal Information

Processing Standards Publication FIPS PUB 202,

2015.

HMAC, “The Keyed-Hash Message Authentication Code

(HMAC)”, Federal Information Processing Standards

Publication FIPS PUB 198-1, 2008.

KMAC, “SHA-3 Derived Functions: cSHAKE, KMAC,

TupleHash and ParallelHash”, NIST Special

Publication 800-185, 2016.

AES, “Advanced Encryption Standard (AES)”, Federal

Information Processing Standards Publication FIPS

PUB 197, 2001.

N. Ferguson, S. Lucks, B. Schneier, D. Whiting, M. Bellare,

T. Kohno, J. Calas and J. Walker, “The Skein Hash

Function Family”, available online at http://www.

skein-hash.info/sites/default/files/skein1.2.pdf, 2009.

F. McKeen, I. Alexandrovich, A. Berenzon, C. Rozas, H.

Shafi, V. Shanbhogue and U. Savagaonkar, “Innovative

instructions and software model for isolated execution”,

Proceedings of the Workshop on Hardware and

Architectural Support for Security and Privacy (HASP),

2013.

C. Hall, D. A. Wagner, J. Kelsey and B. Schneier, “Building

PRFs from PRPs”, CRYPTO 1998: 370-389.

S. Gilboa and S. Gueron, “Distinguishing a truncated

random permutation from a random function”, IACR

Cryptology ePrint Archive 2015: 773 (2015).

M. S. Klamkin and D. J. Newman, “Extensions on the

Birthday Surprise” Journal of Combinatorial Theory,

Vol. 3, pp. 279-282, 1967.

K. Suzuki, D. Tonien, K. Kurosawa and K. Toyota,

“Birthday Paradox for Multi-collisions”, International

Conference on Information Security and Cryptology,

pp. 29-40, 2006.

M. Kounavis, S. Deutsch, D. Durham and S. Komijani,

“Non-recursive computation of the probability of more

than two people having the same birthday”, ISCC 2017:

1263-1270.

C. Jan et al., “A 14 nm SoC Platform Technology Featuring

2nd Generation Tri-Gate Transistors, 70 nm Gate Pitch,

52 nm Metal Pitch, and 0.0499 μm

SRAM Cells,

Optimized for Low Power, High Performance and High

Density SoC Products”, pp. 12-13, Sym. on VLSI Tech.,

2015.

V. T. Hoang, T. Krovetz and P. Rogaway, “Robust

Authenticated-Encryption AEZ and the Problem That It

Solves”, EUROCRYPT, 2015.

SECRYPT 2018 - International Conference on Security and Cryptography

552
